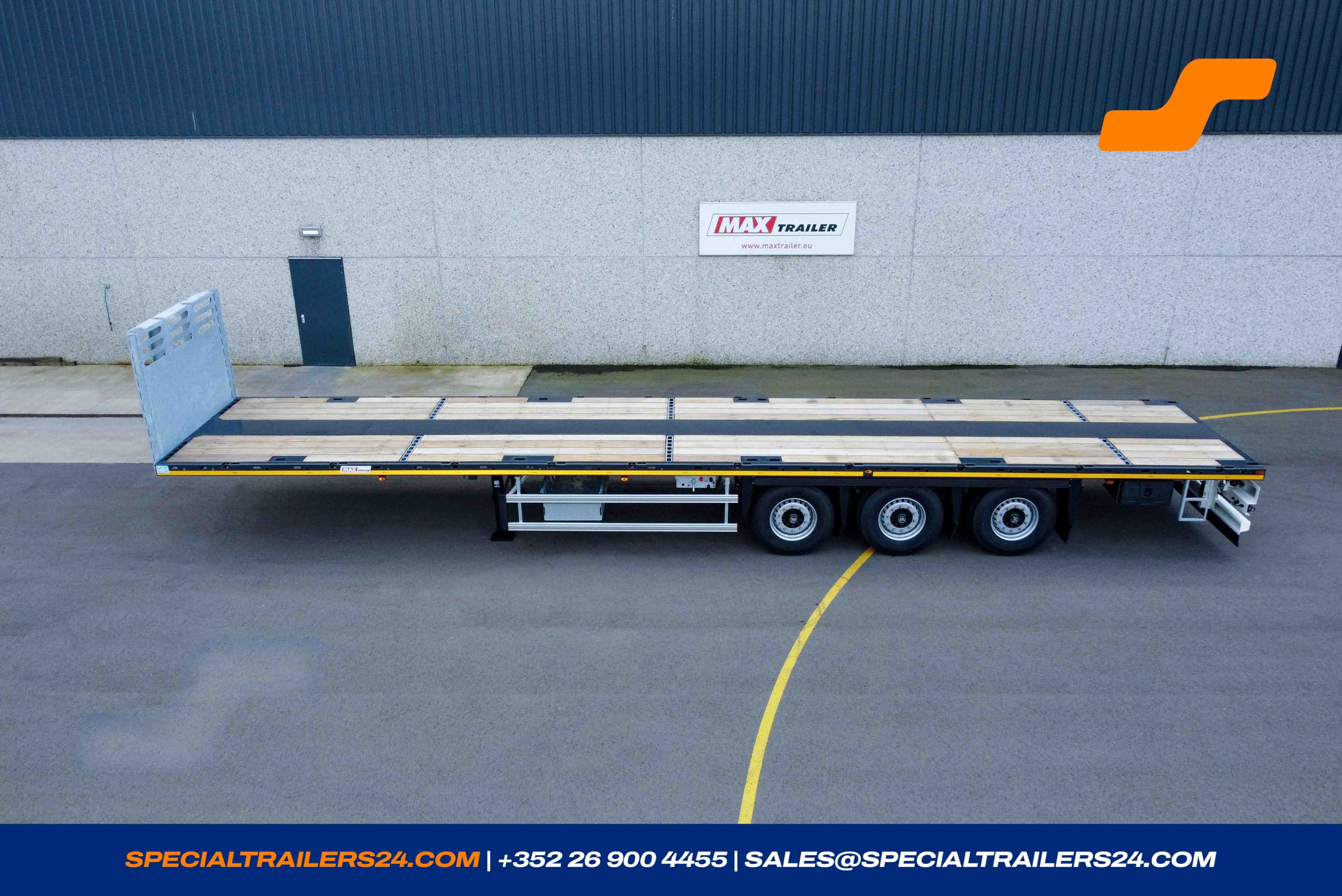

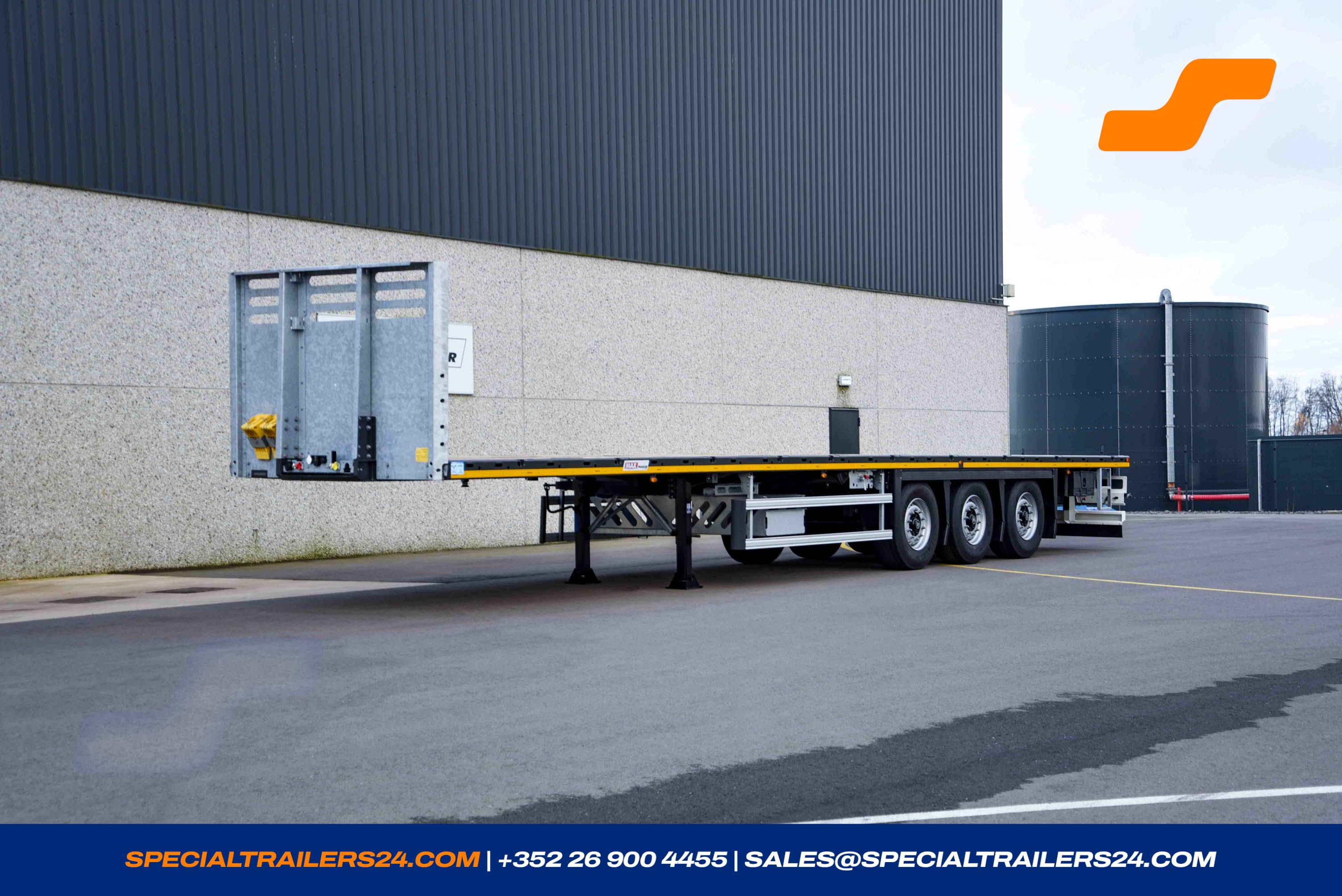

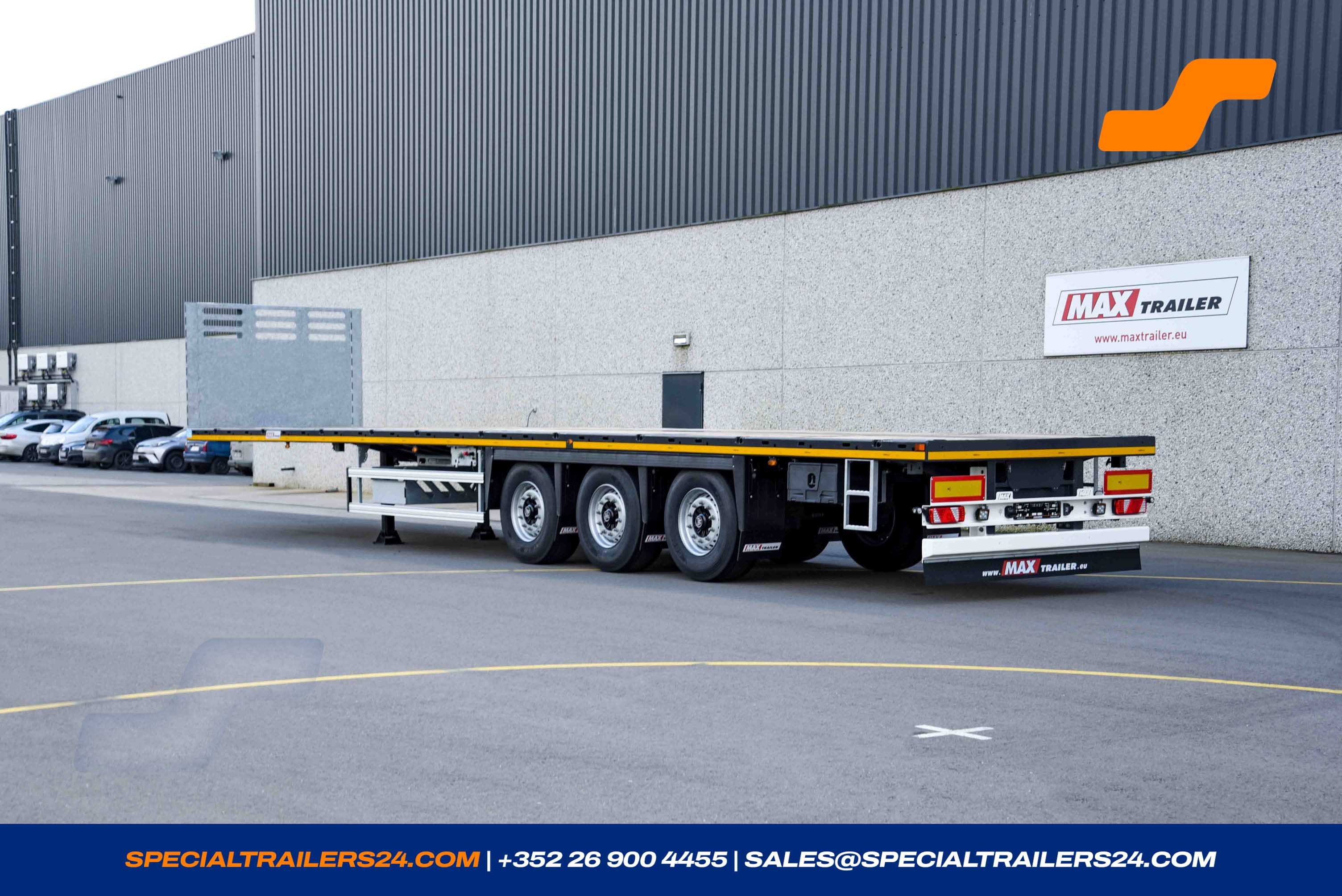

Flatbed trailer
MAX Trailer MAX200
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 110607
- Reference MAX200-S-3-13.60-22.5-2.54

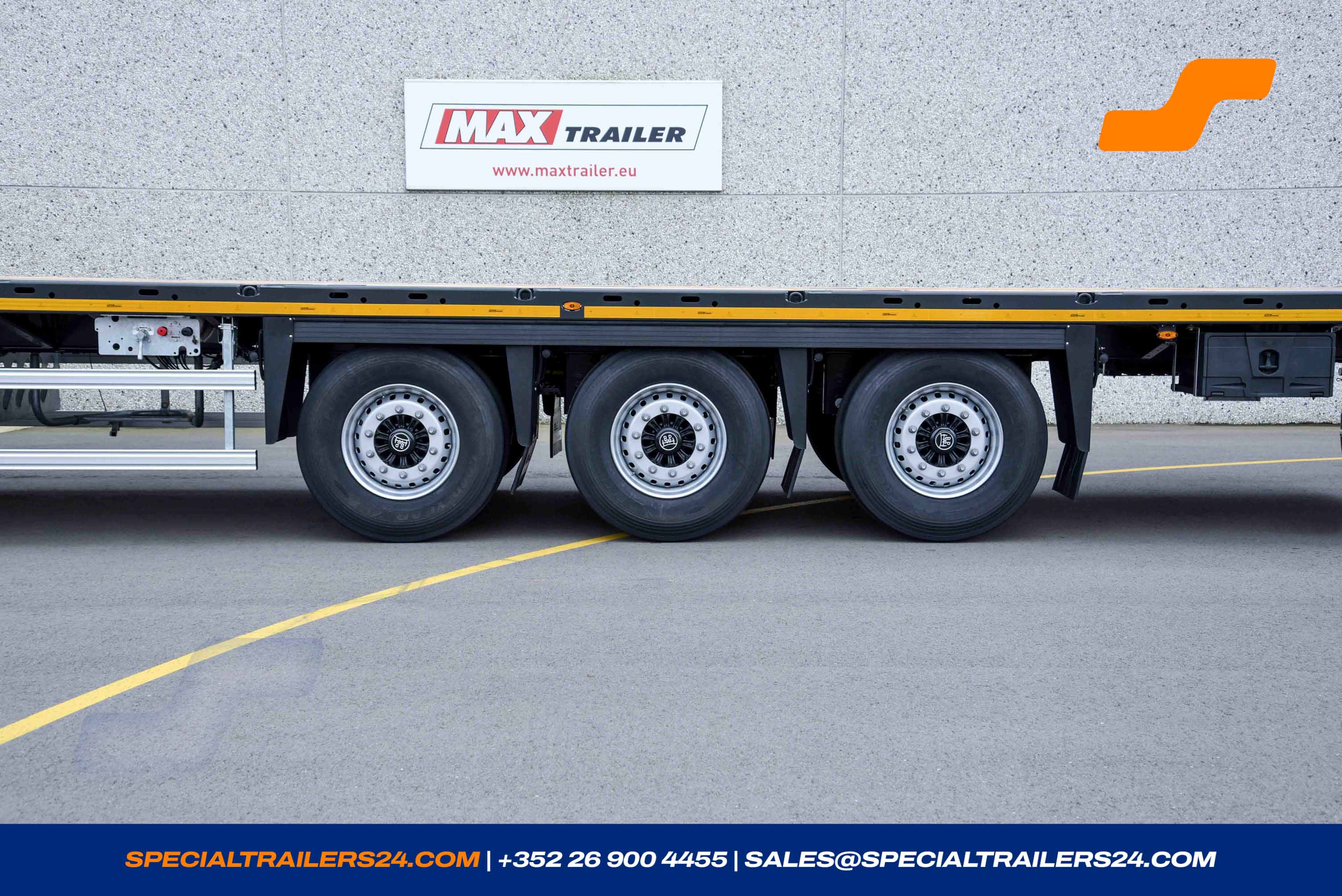

- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 03/2026
- Steering Type Rigid
Availability
03/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 27000 kg |
| Gross weight | 45000 kg |
| Tare weight +- 3% | 6839 kg |
| Payload | 38161 kg |
Dimensions
| Fifth wheel height loaded | 1080->1250 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 13 600 mm |
| Extendable by | No |
| Wheelbase | 1 360/1 405 mm |
| Total width | 2 540 mm |
Loading deck
Loading platform
1 x Loading platform
2 pairs of lashing rings inserted in the border frame, hinged outwardss (LC 5 000 daN).
24 pairs cutouts in the border frame of the loading area for hooking in tension belts. (LC 2 000 daN).

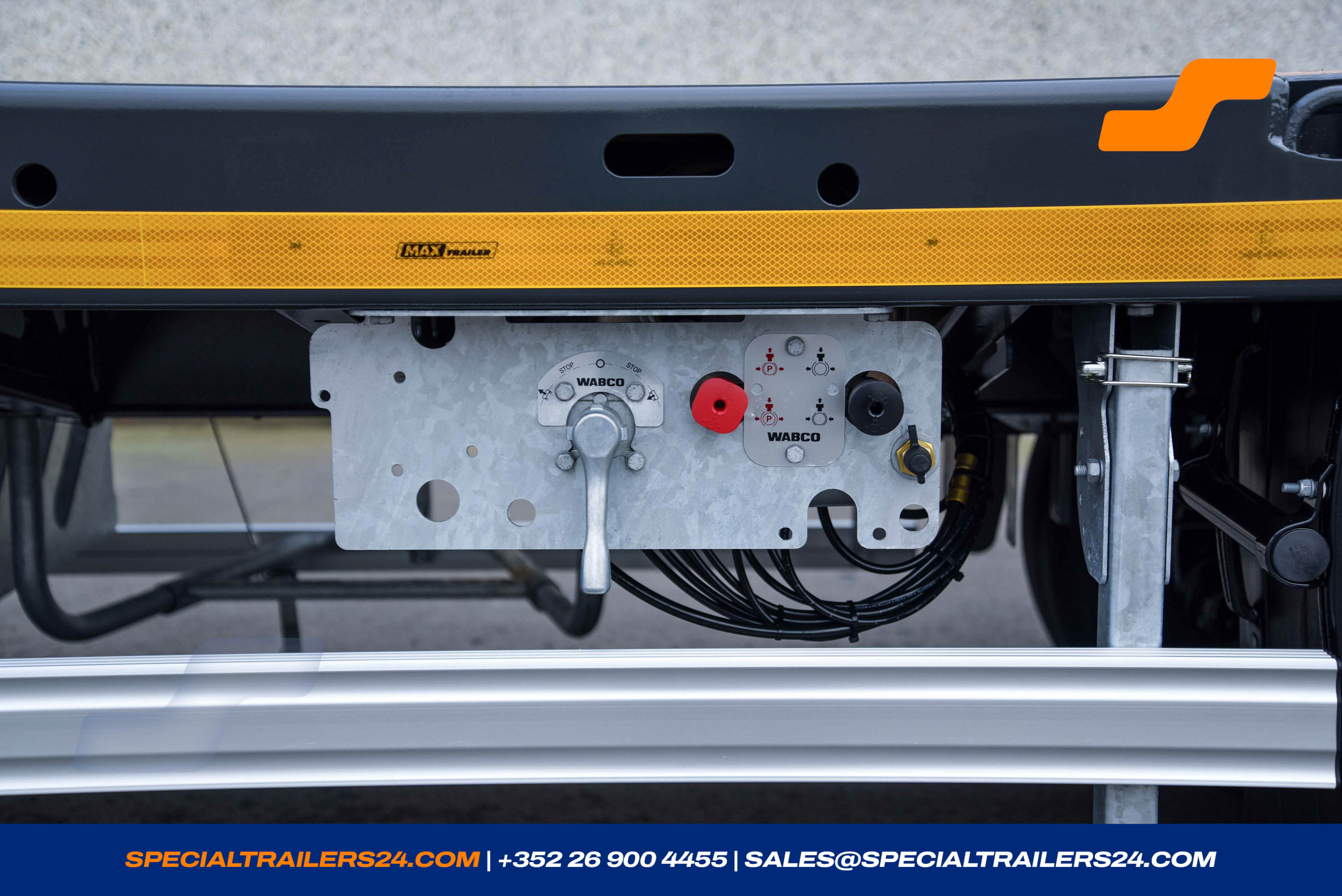

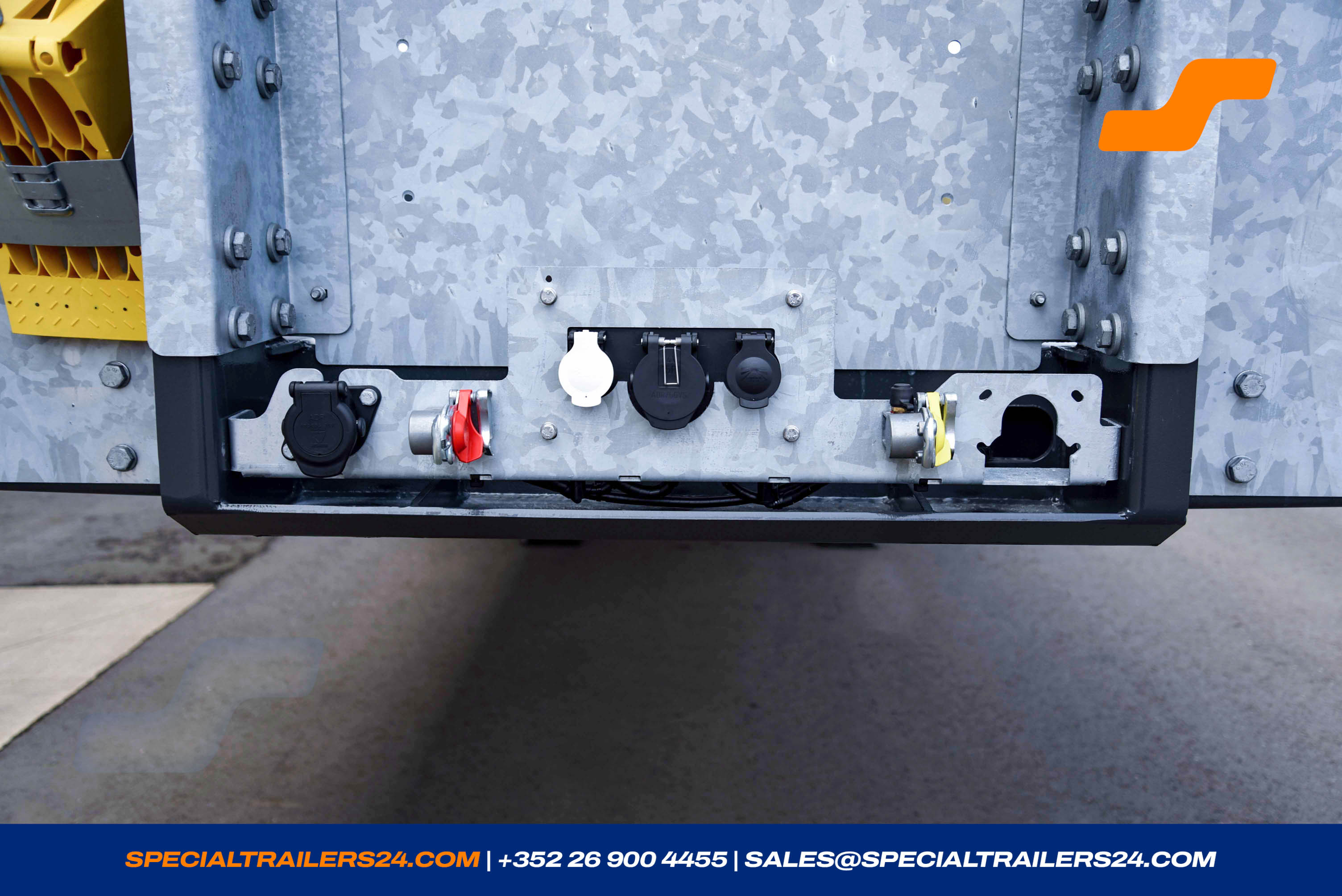

- Red and yellow air couplings on the galvanised front connection ledge.
- 2 wheel chocks with carrier.
- 2 king-pin.
- Yellow reflective tape according to the EU regulation over the entire length and at the rear.

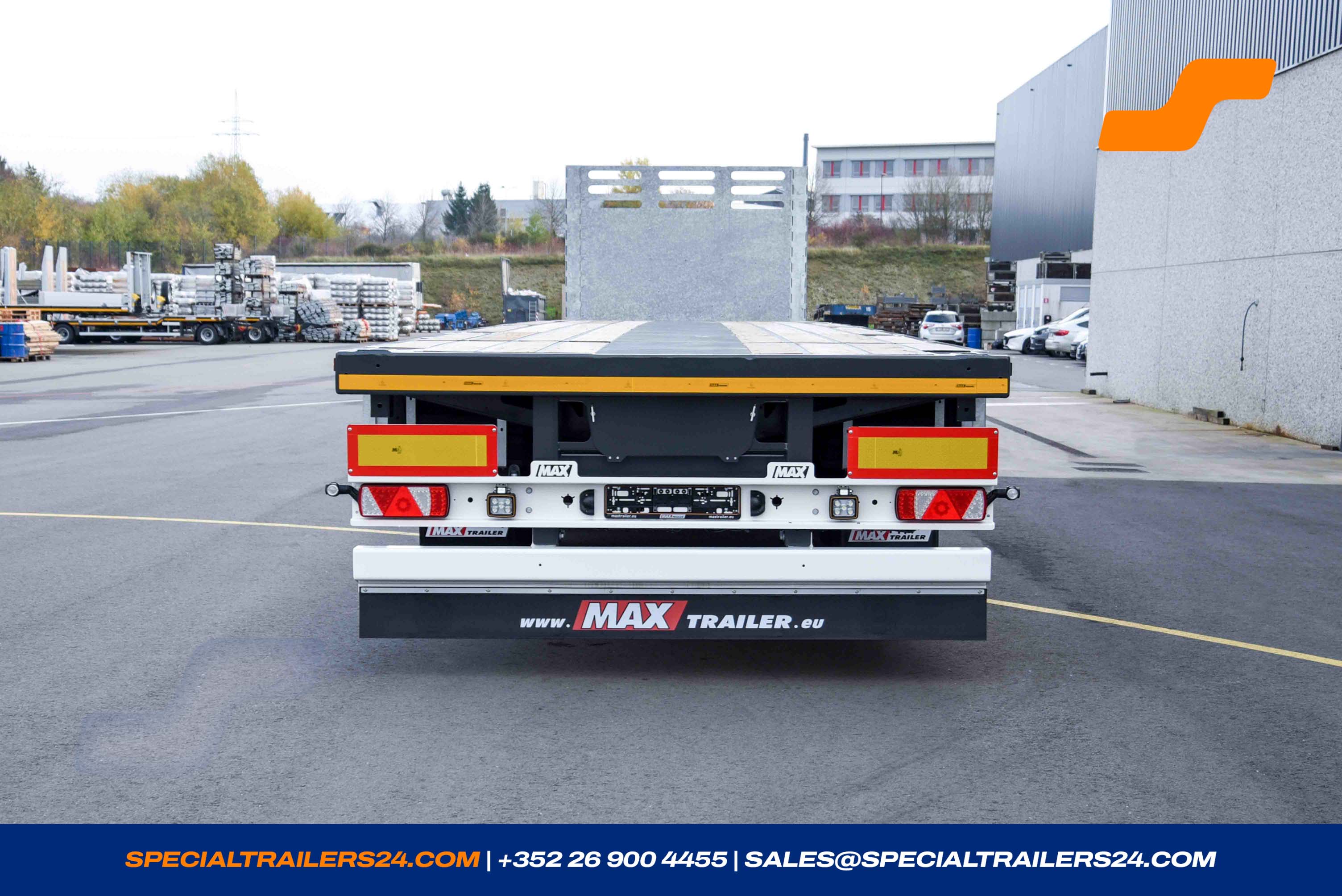

- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- 10 pairs of pockets for stakes ± 100 x 50 mm in the outer frame of the loading platform. (± 30 kg)
- 3 pairs rows of stake pockets in the loading platform for stakes 100 x 50 mm. (± 95kg)
- Storage for 1000 mm stakes in the central carrier.

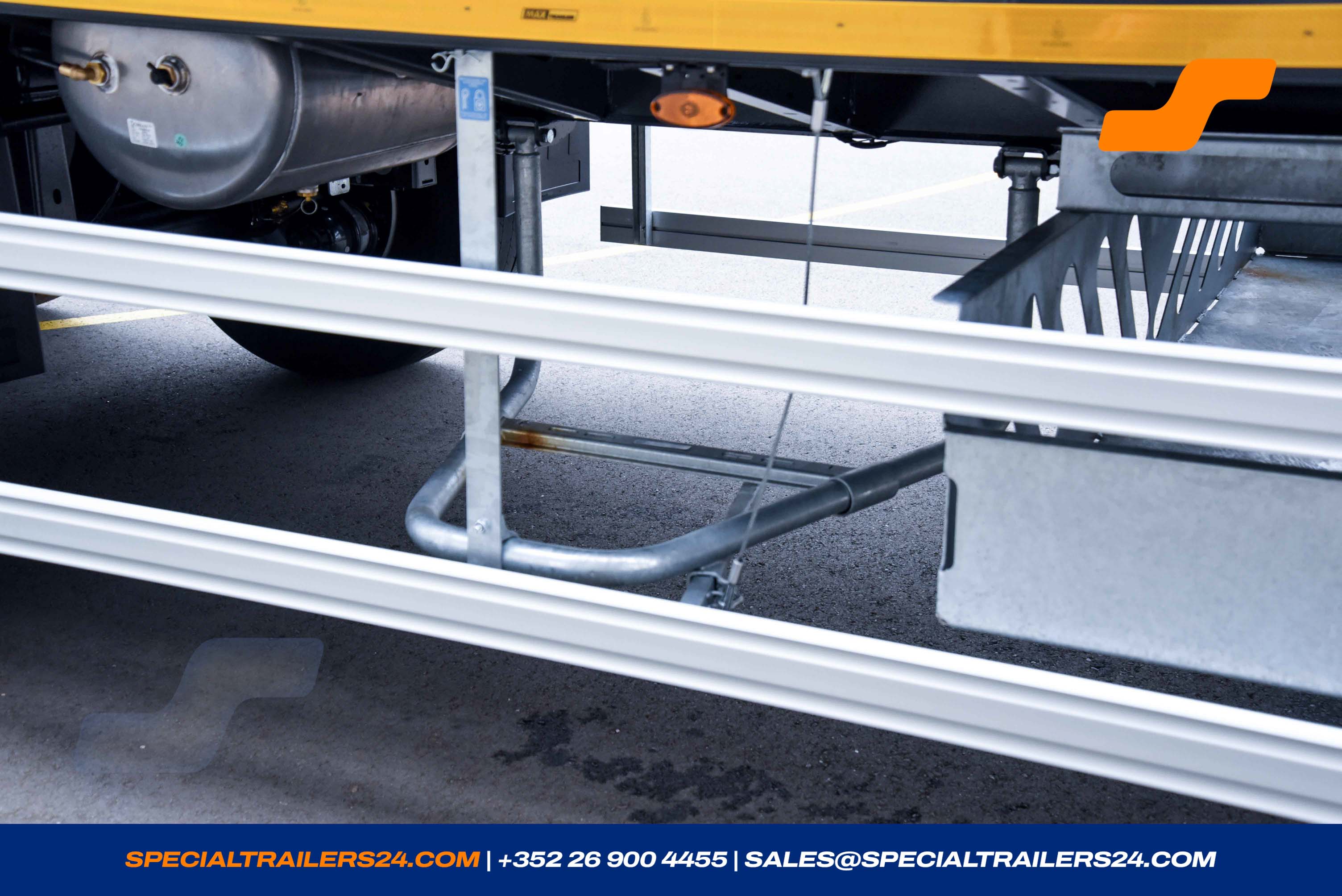

- 1 spare wheel carrier, under the loading platform on the right side.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Manual and description on USB stick .
- Holder for one beacon light at the rear of the trailer.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
-

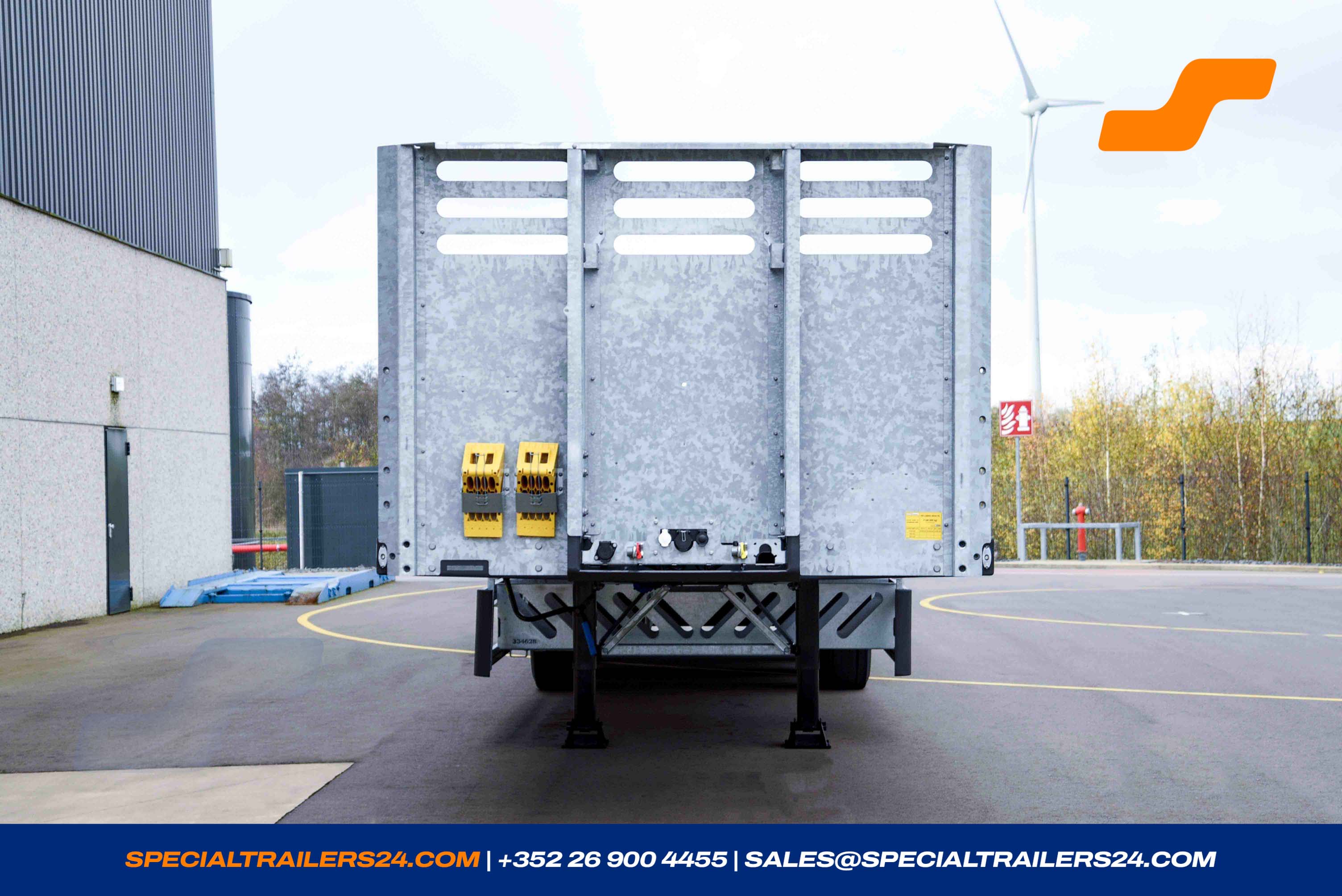

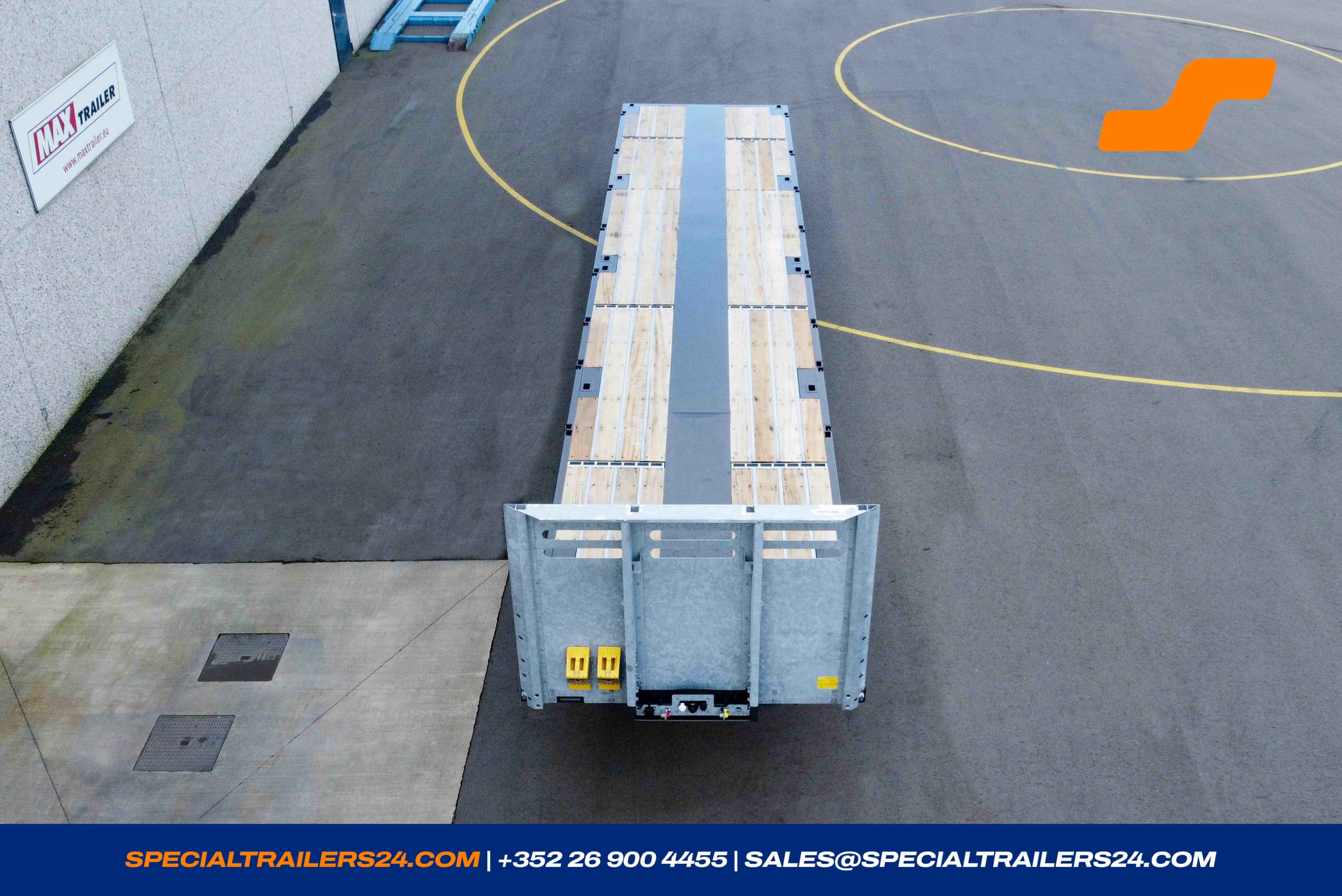

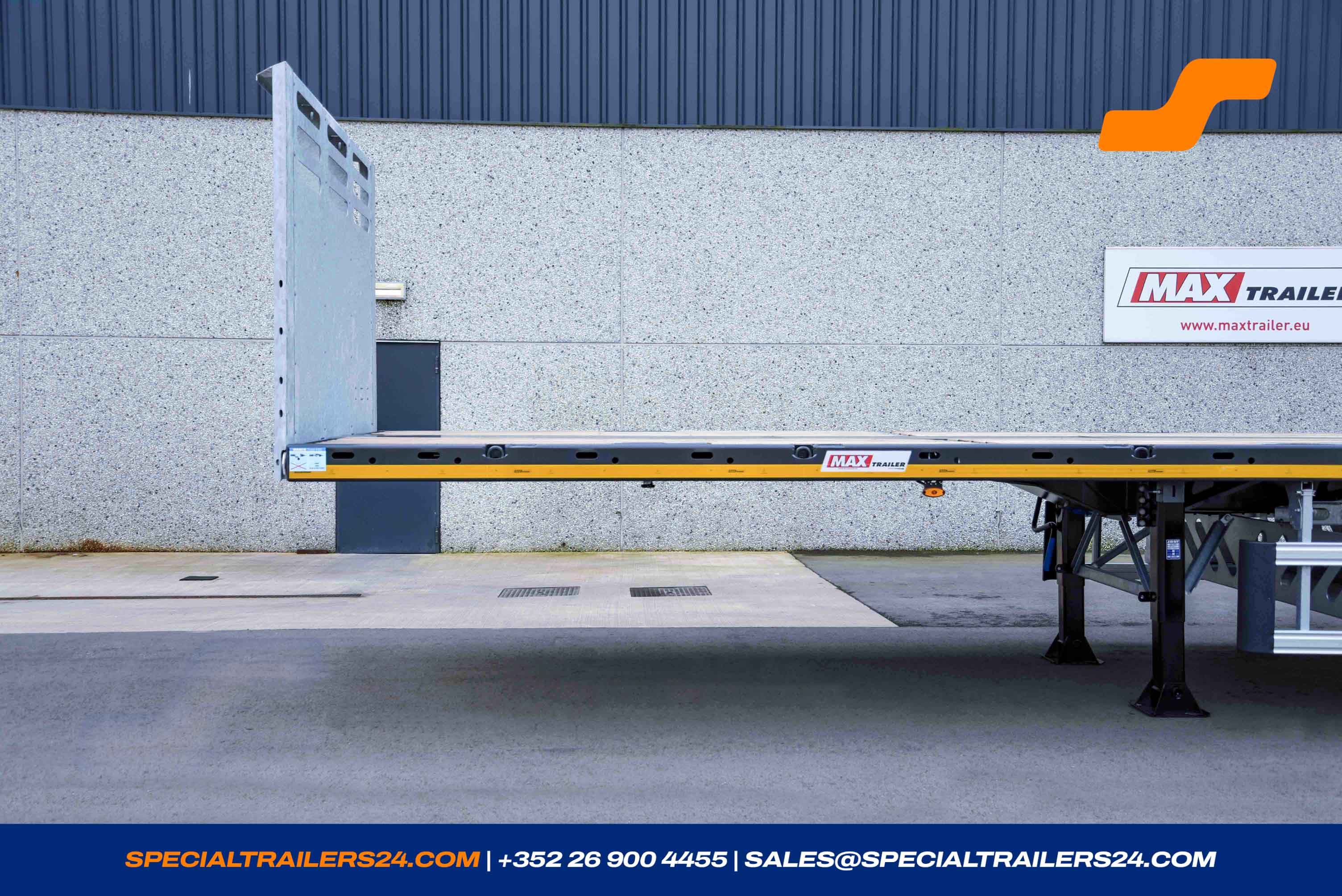

One galvanised steel headboard, height ± 1 600 mm. (± 35 kg)

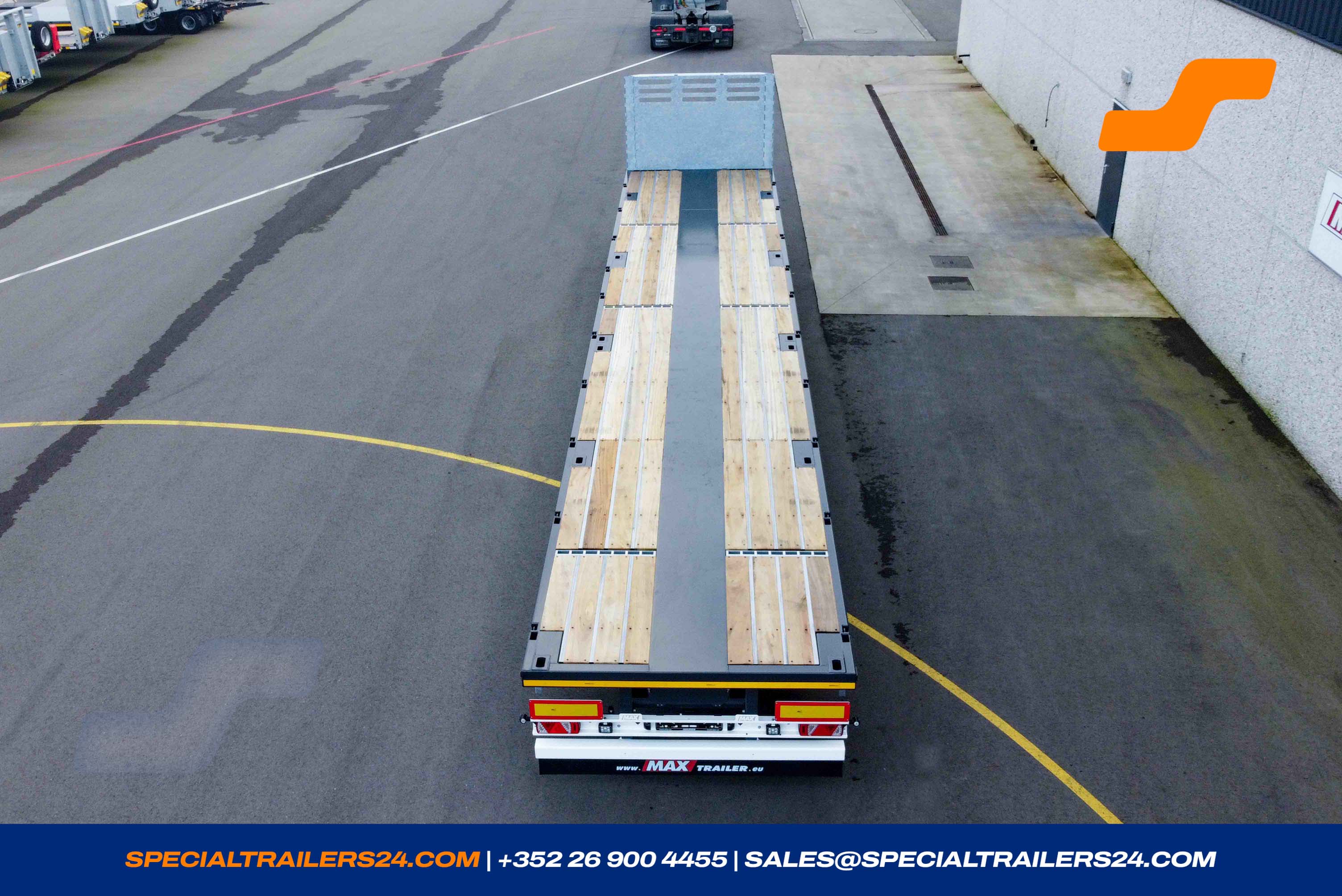

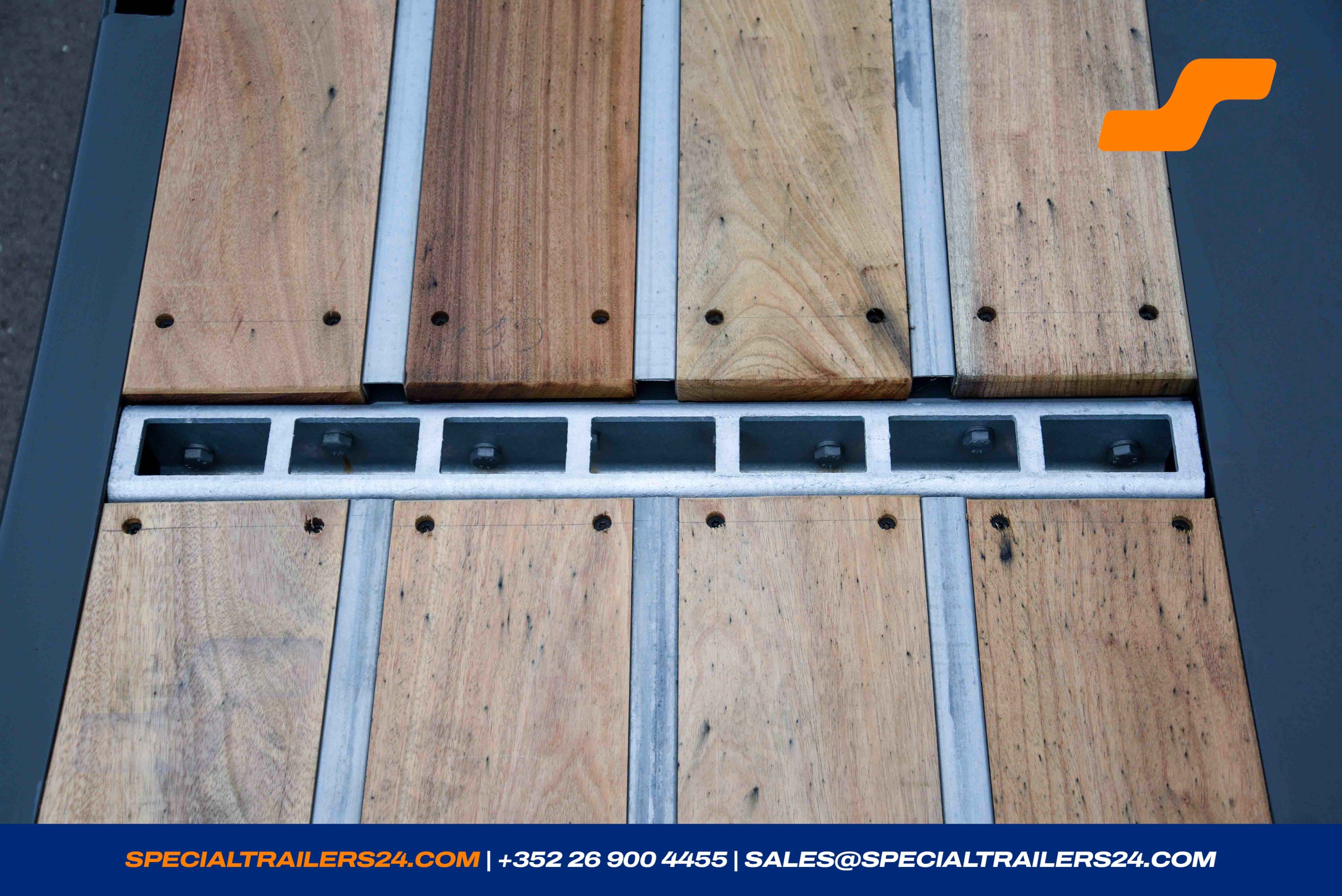

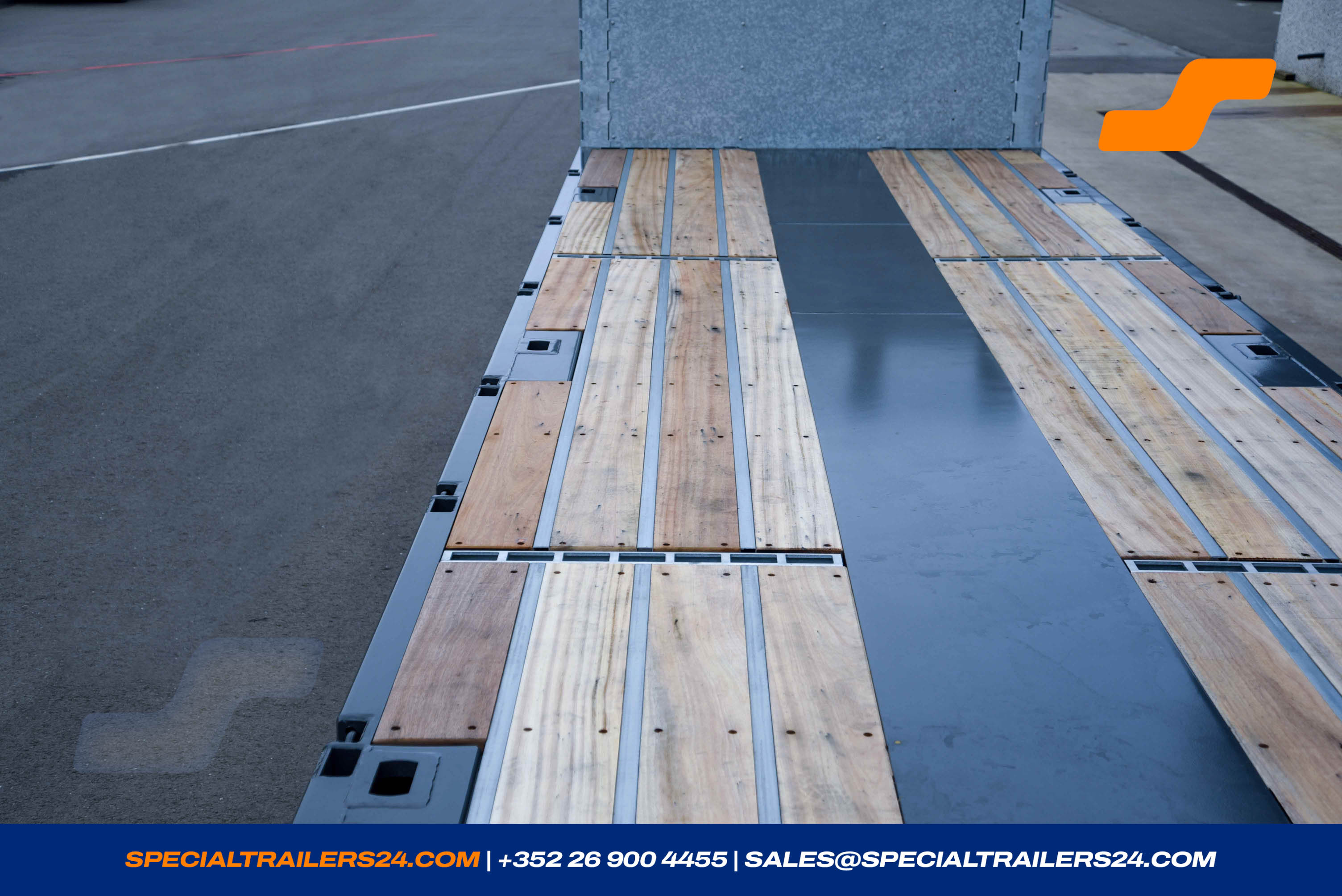

EN12642-XL - Loading area with ± 30 mm hardwood floor incorporated in omega profiles. (± 270 kg)

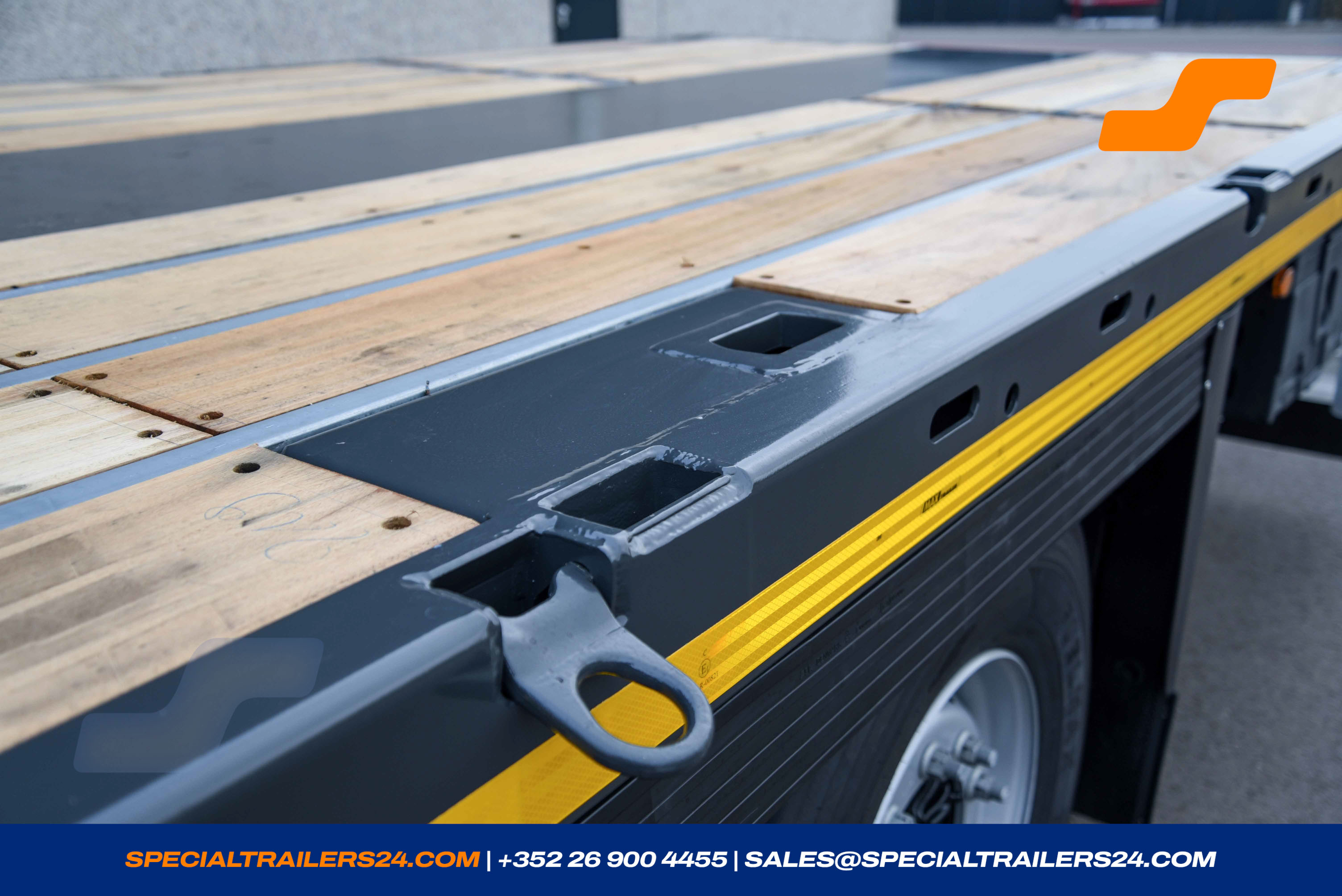

- 8 pairs of lashing rings inserted in the border frame, hinged outwards (LC 5 000 daN). (± 40 kg)
- 6 pairs of WADER container pockets, incorporated into the loading platform for 1 x 20‘ container, 2 x 20’ containers or 1 x 40' container. Flush rear. (± 90 kg)

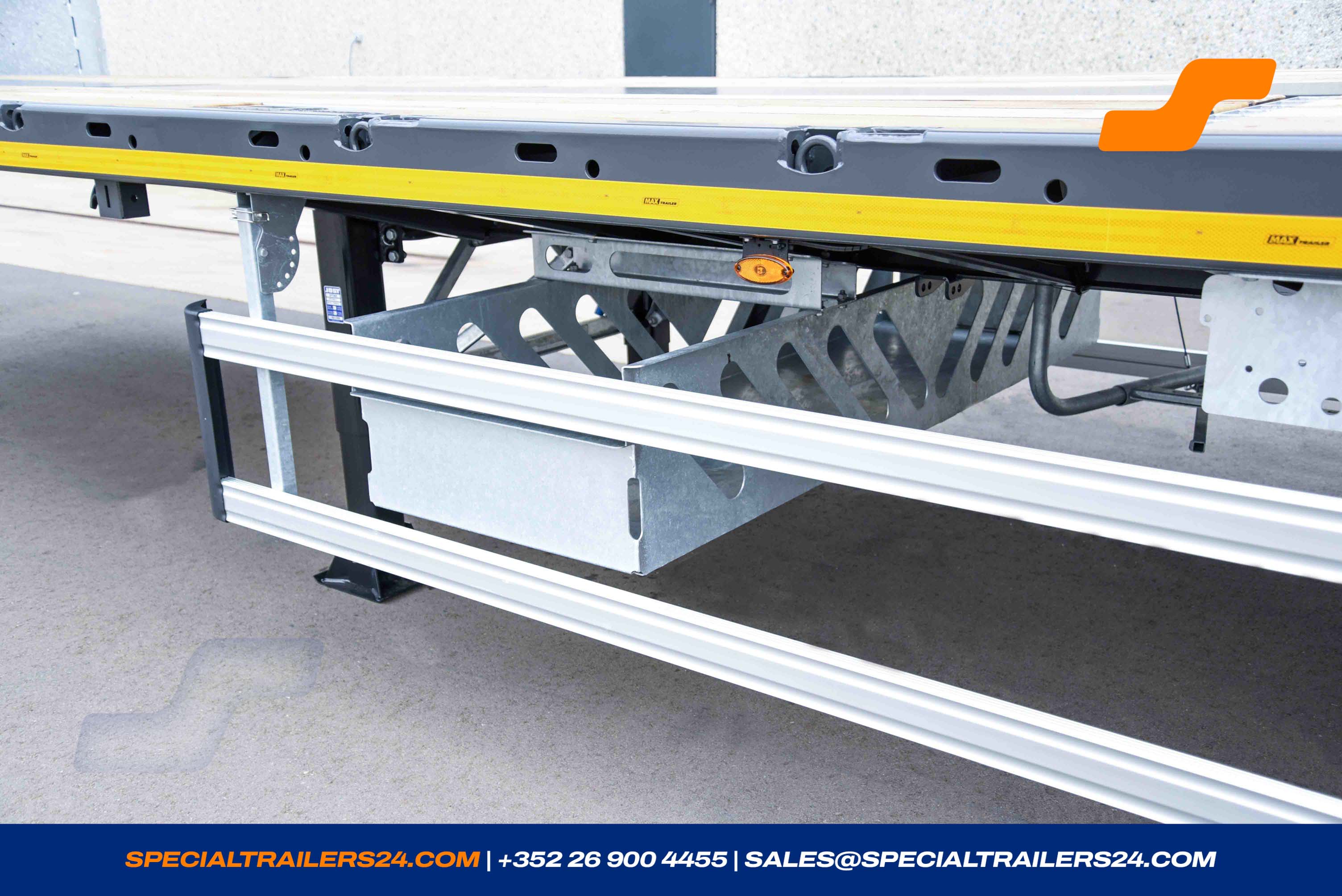

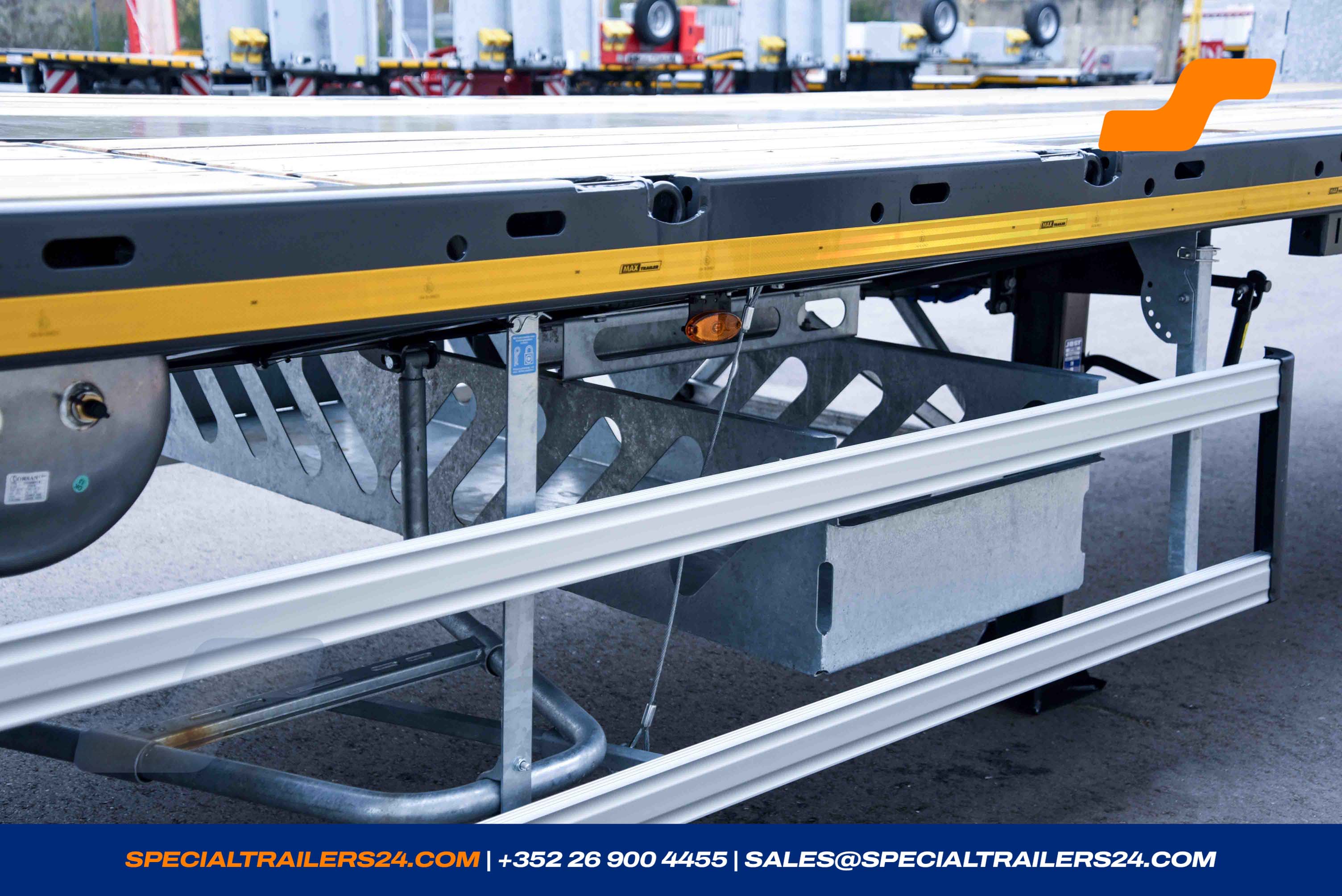

- Galvanised storage under the loading platform 2 390 x 720 x 400 mm. (± 125 kg)

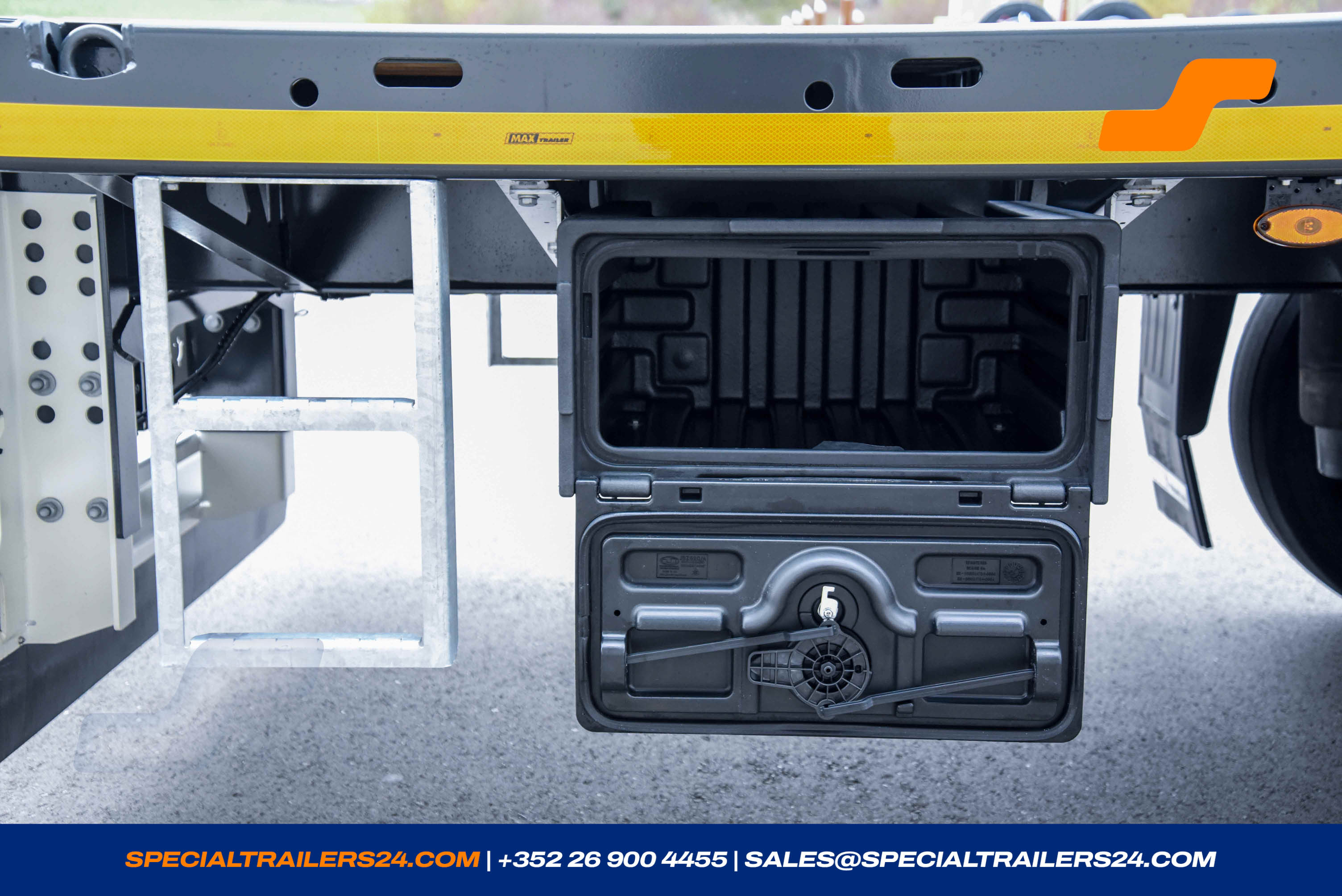

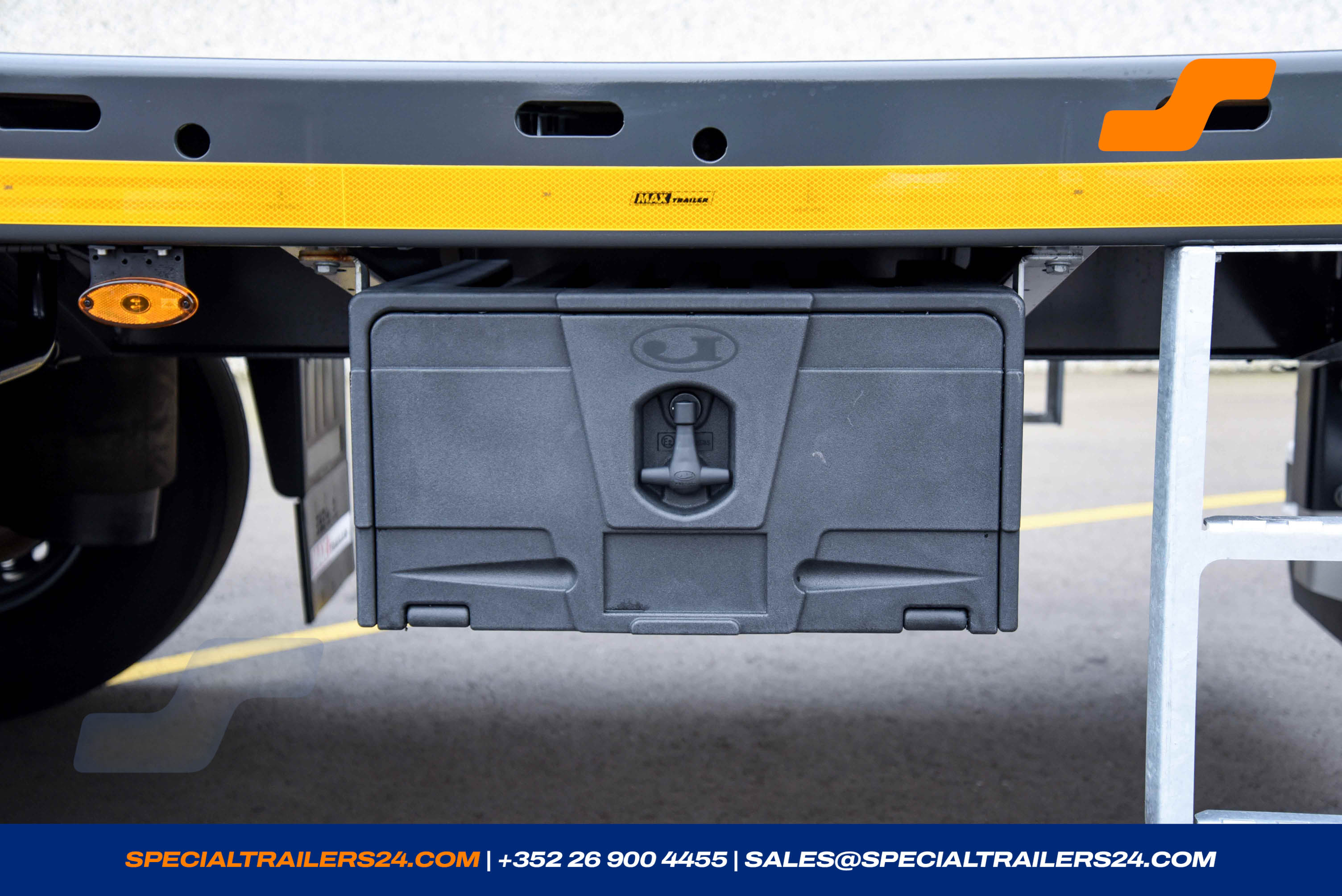

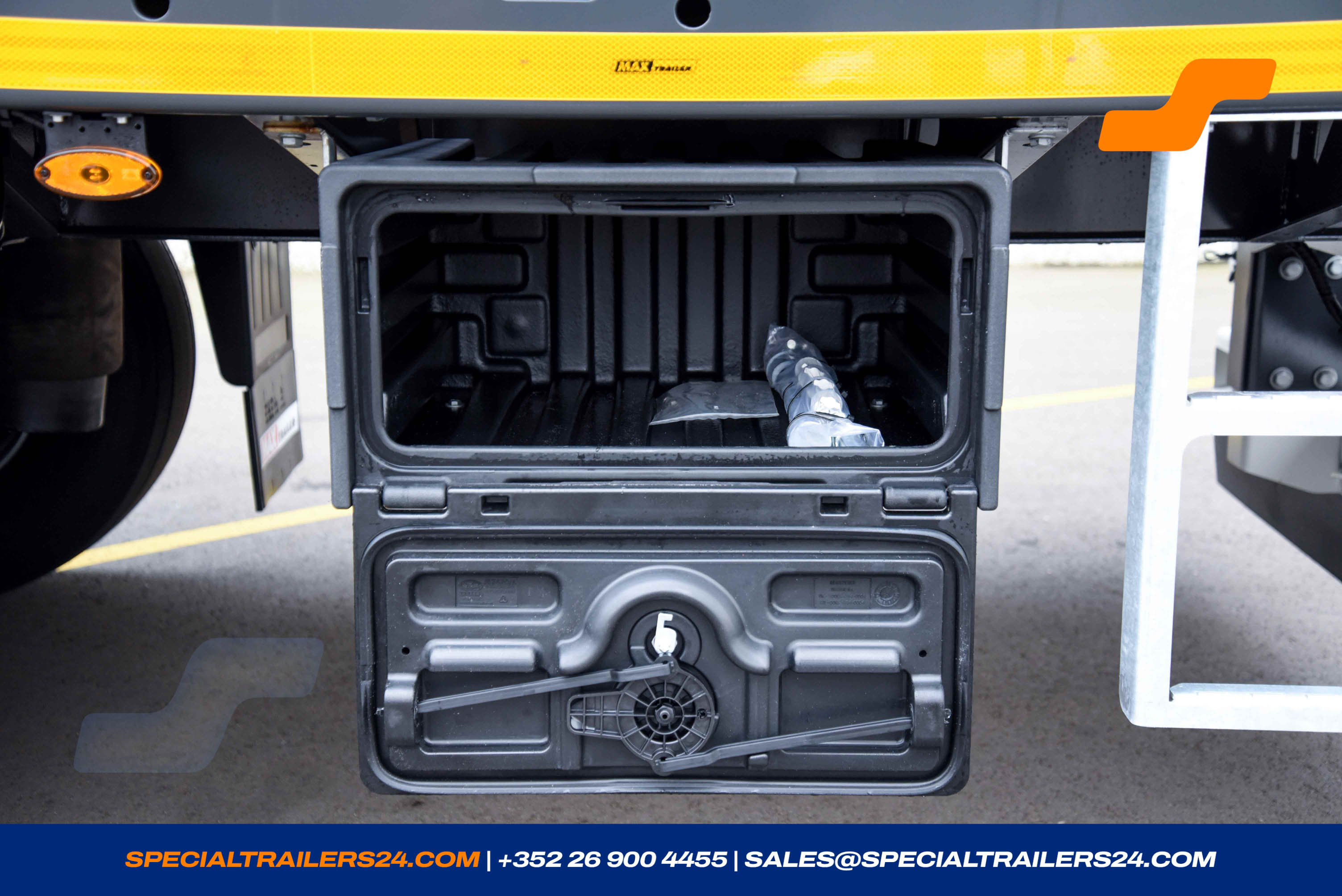

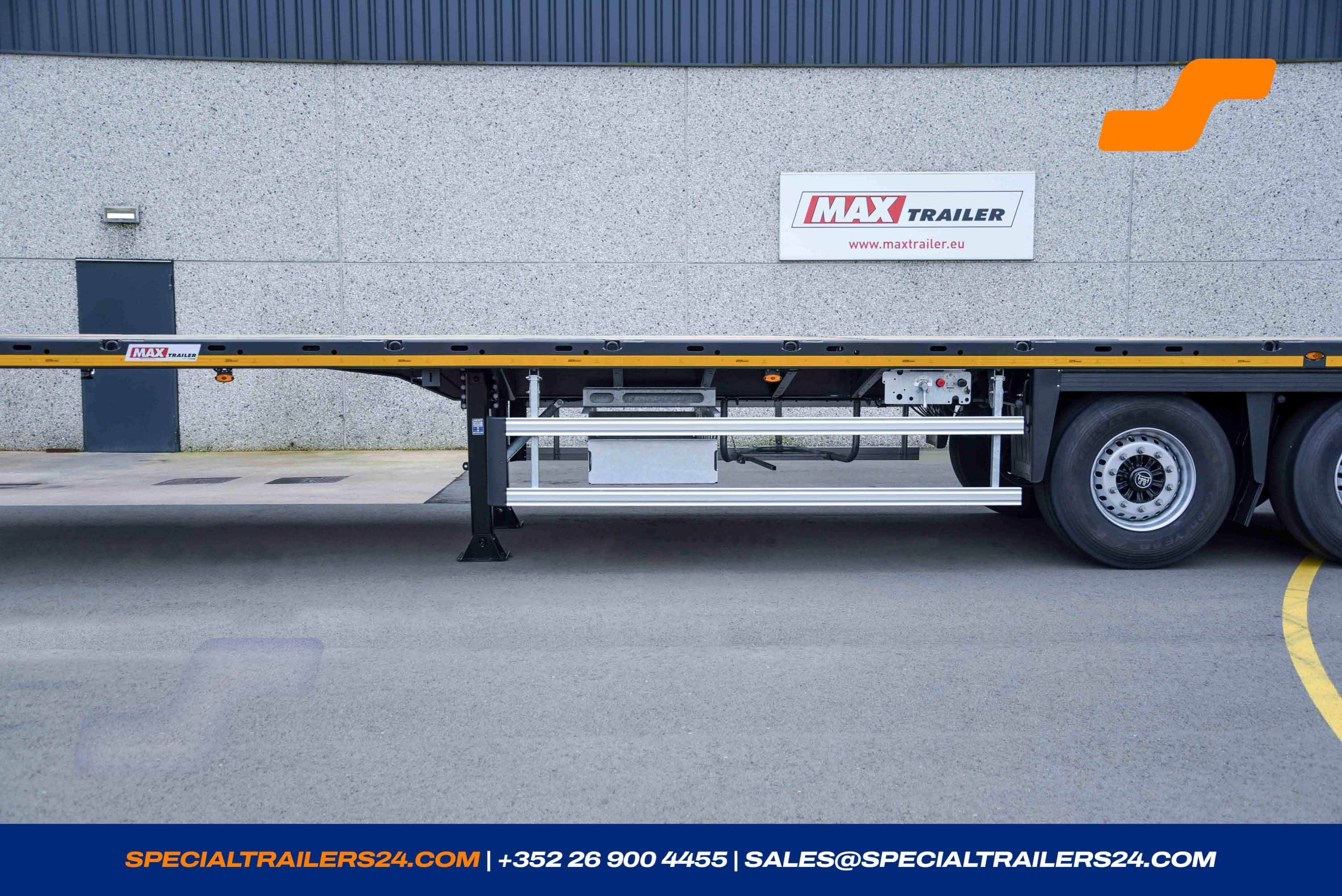

- Two lockable tool-box INOX 600 X 350 X 600 under the loading platform in driving direction on the left and right side. (± 54kg)

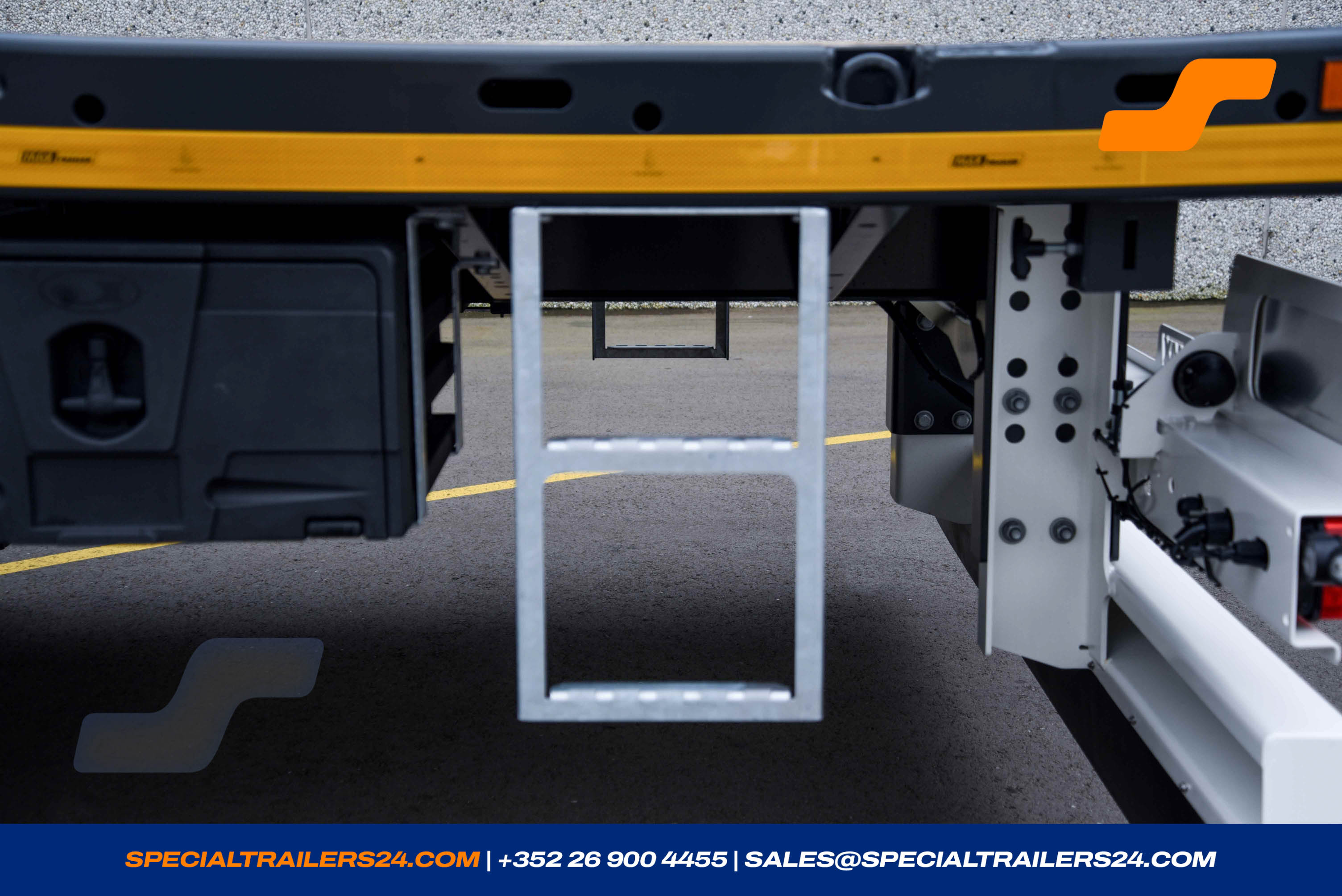

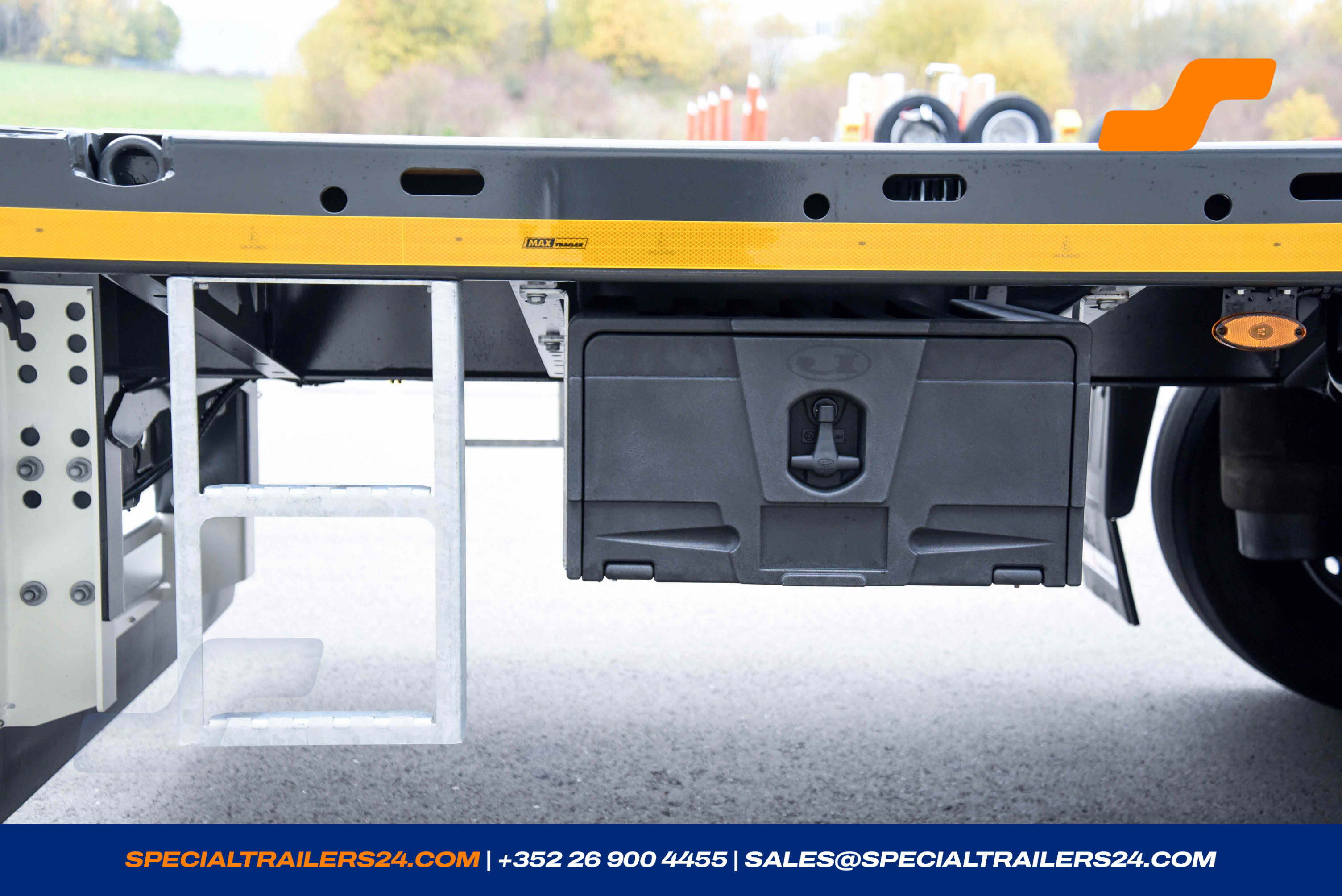

- Access ladder mounted on the left and right in the direction of travel. (± 24 kg)
Accessories
1 x Accessories
- 2 LED- reversing lights at the rear.
- Delivery from a trailer to factory Lentzweiler.
