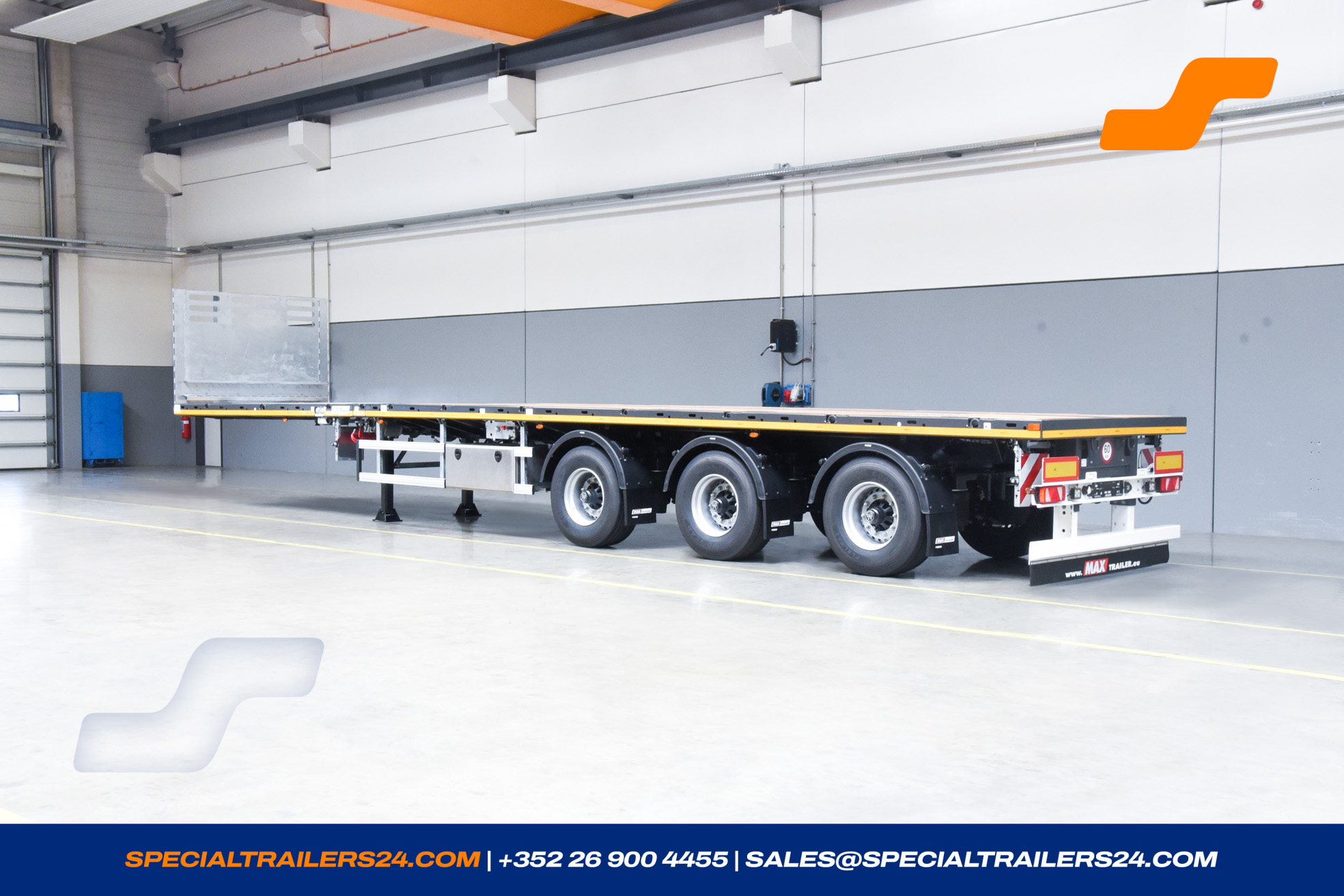

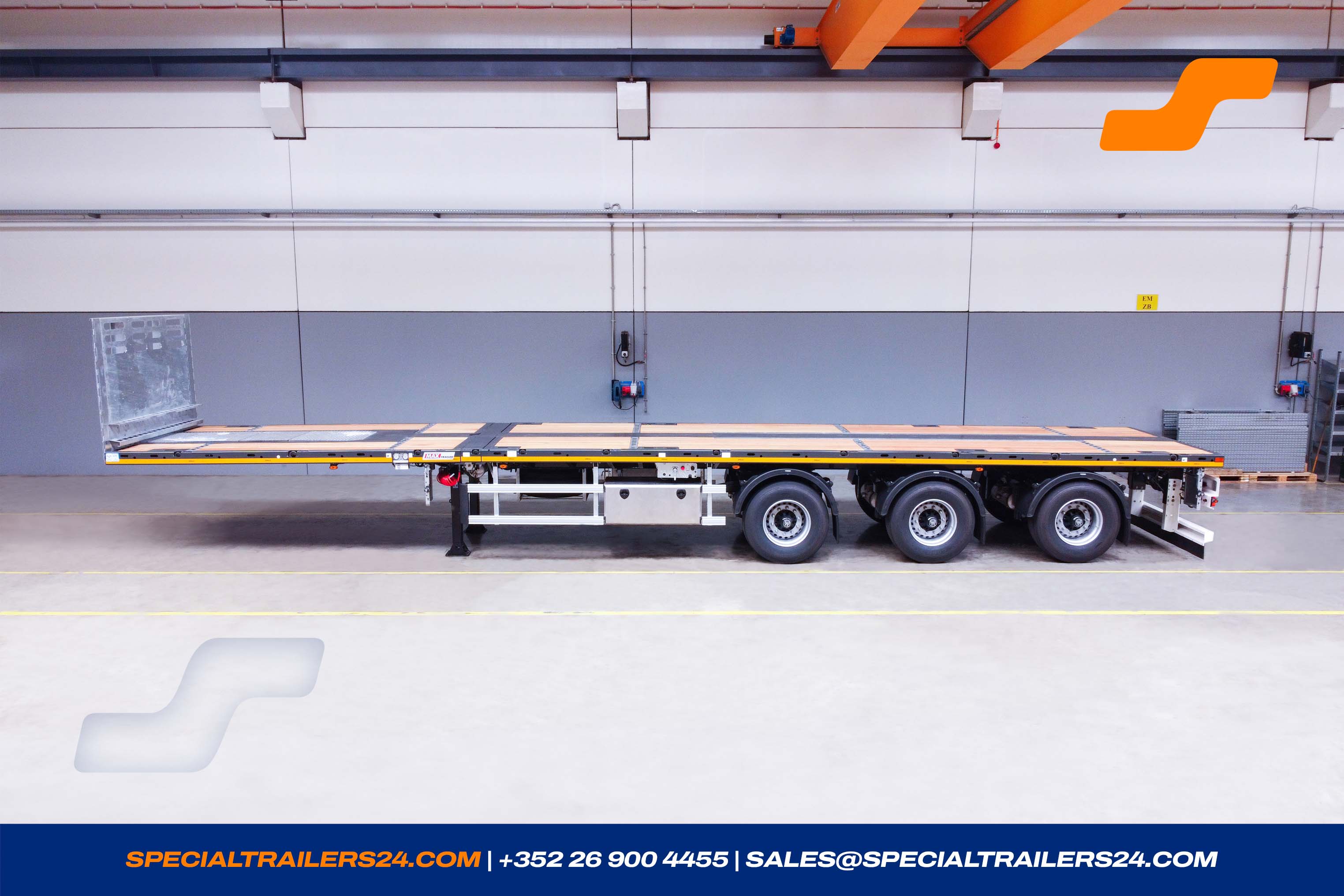

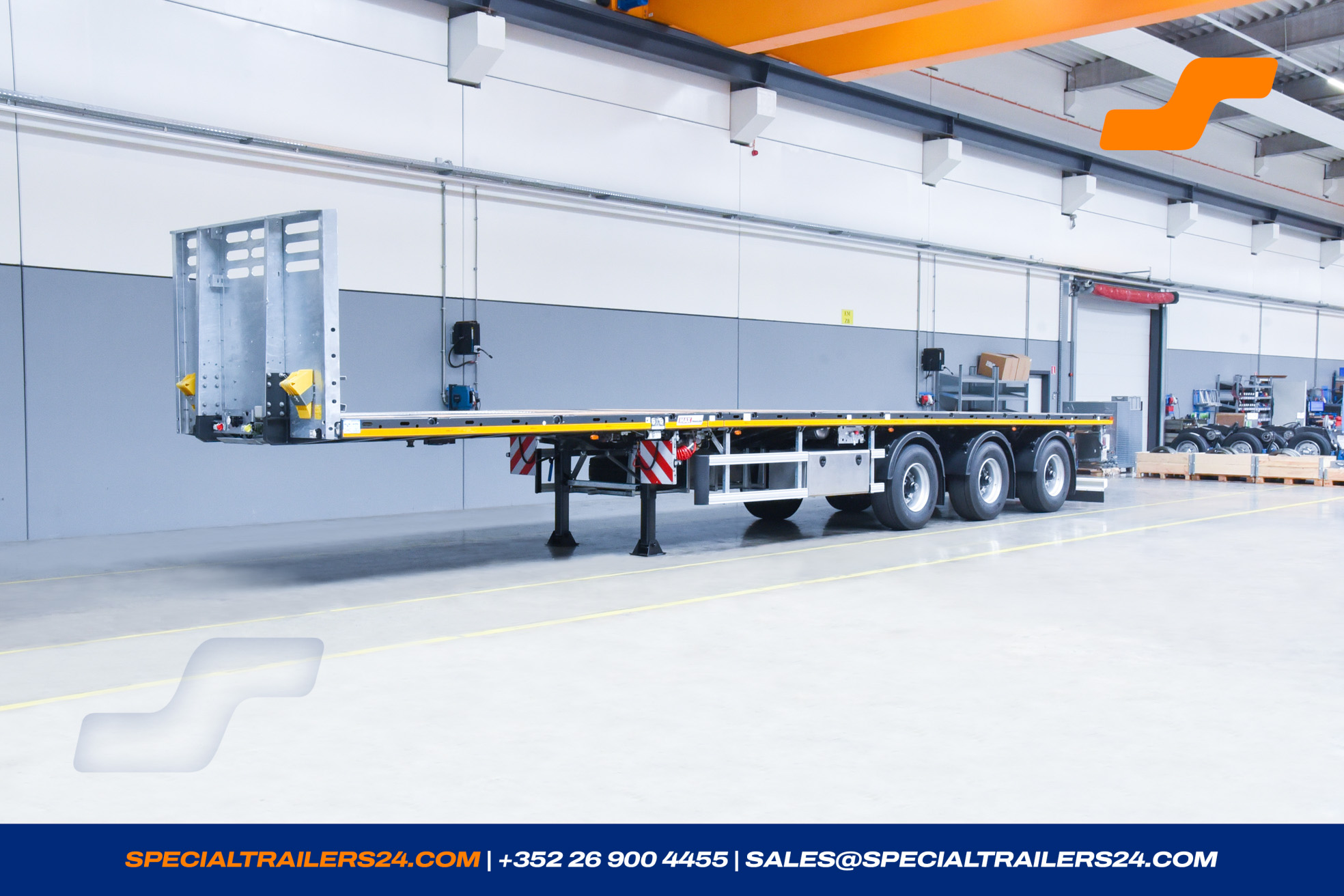

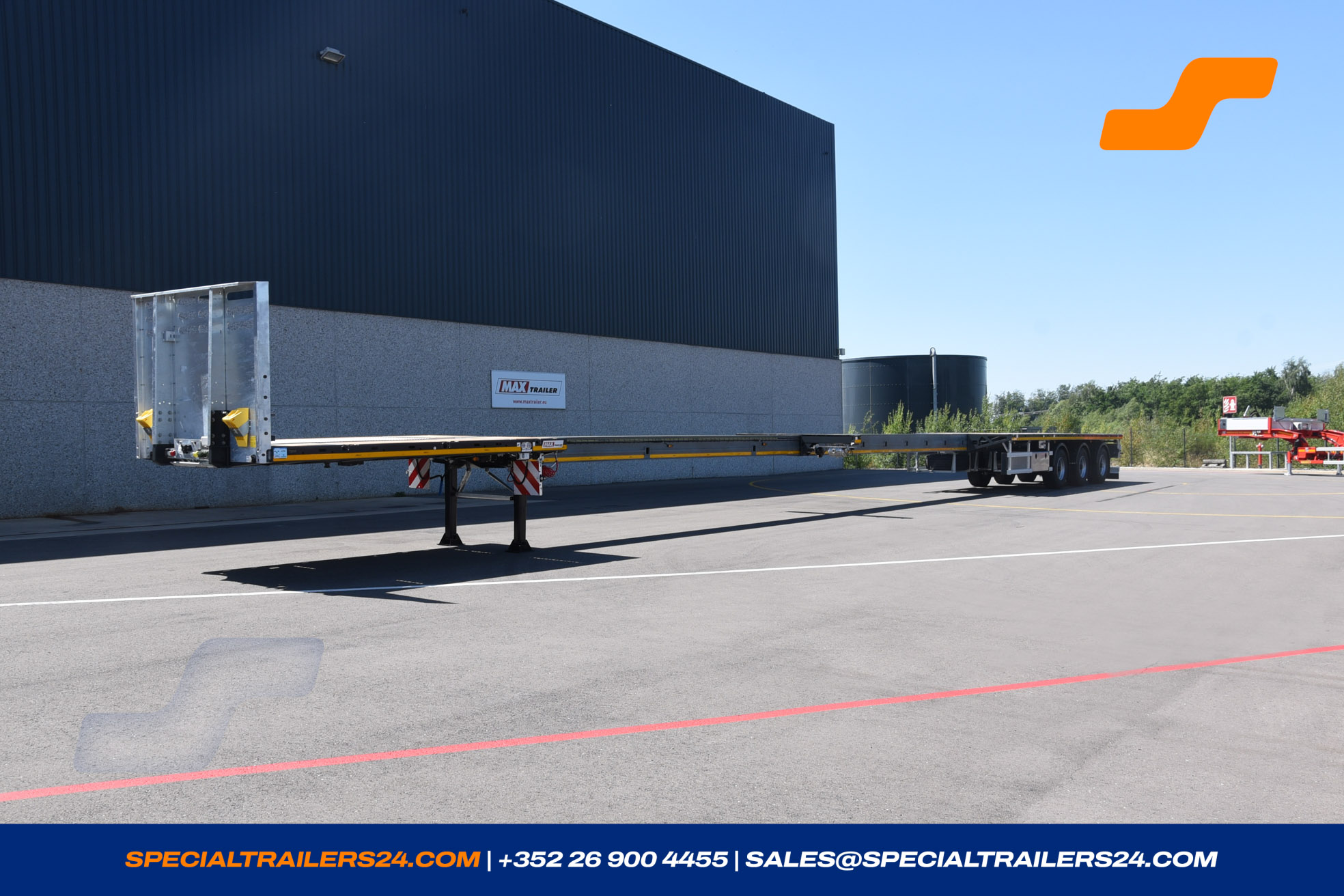

Flatbed trailer
MAX Trailer MAX210
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 110916
- Reference MAX210-Z-3AA-13.60-22.5-2.54

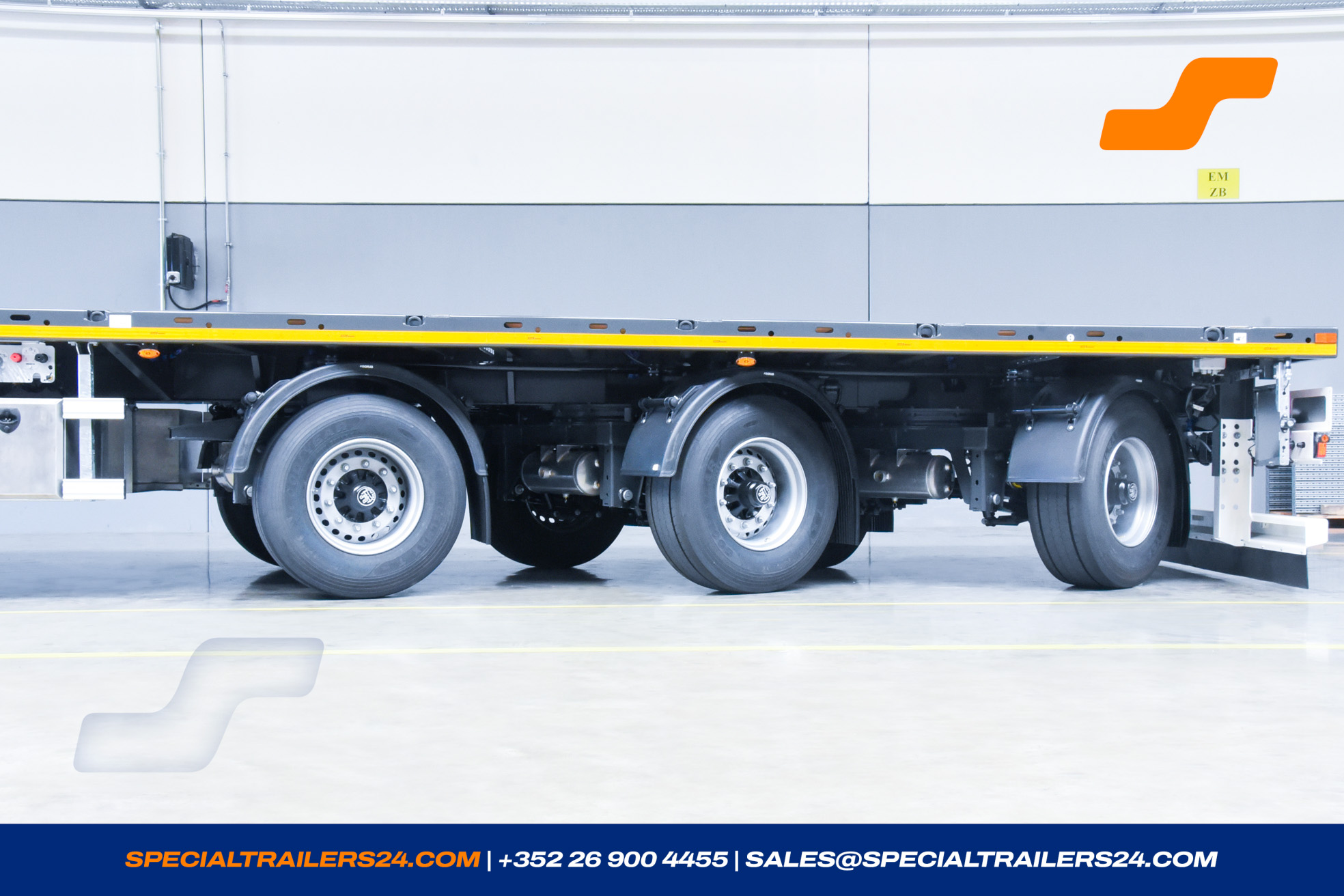

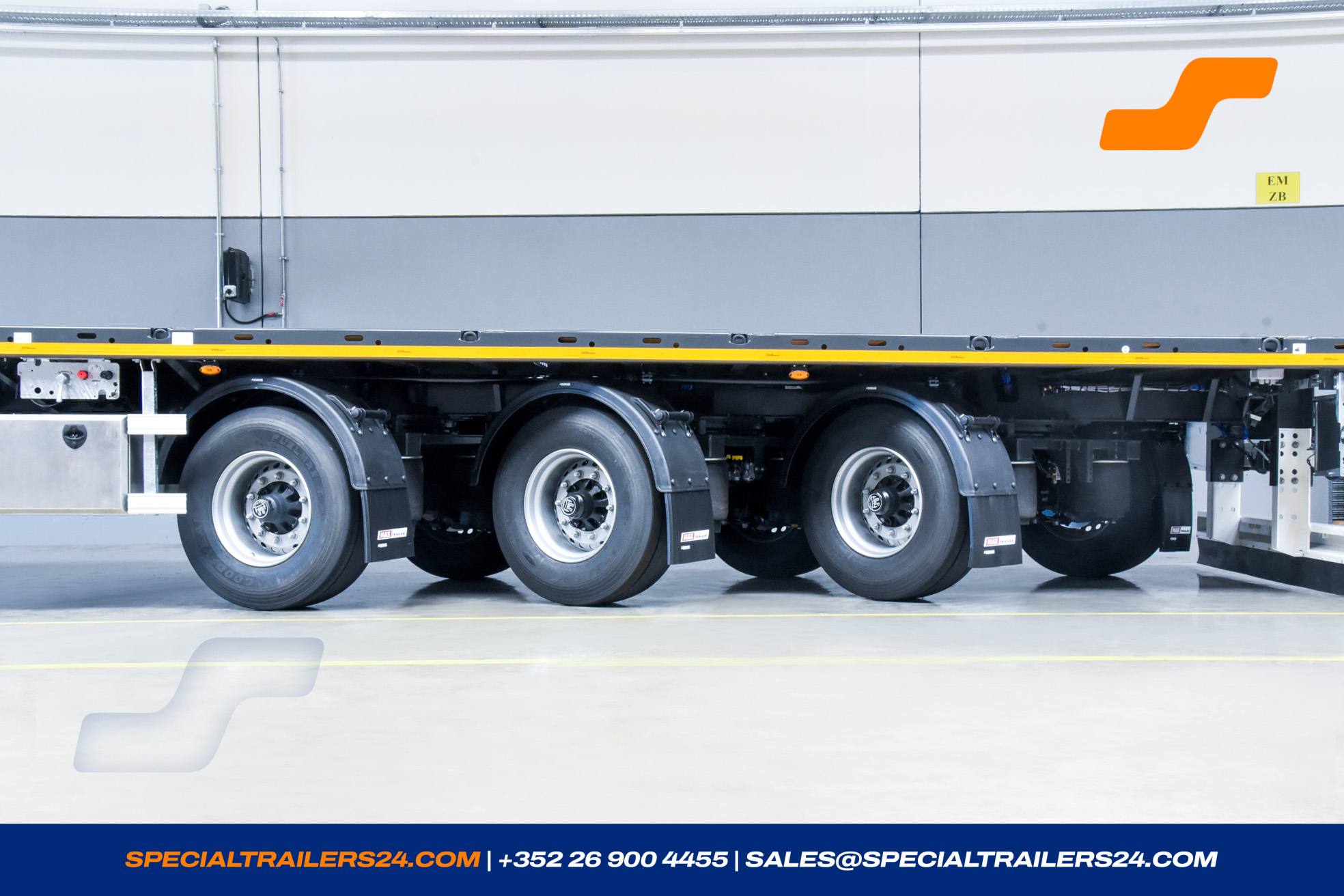

- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 03/2026
- Steering Type Hydraulic
Availability
03/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 30000 kg |
| Gross weight | 48000 kg |
| Tare weight +- 3% | 11529 kg |
| Payload | 36471 kg |
Dimensions
| Fifth wheel height loaded | 1150->1190 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 13 600 mm |

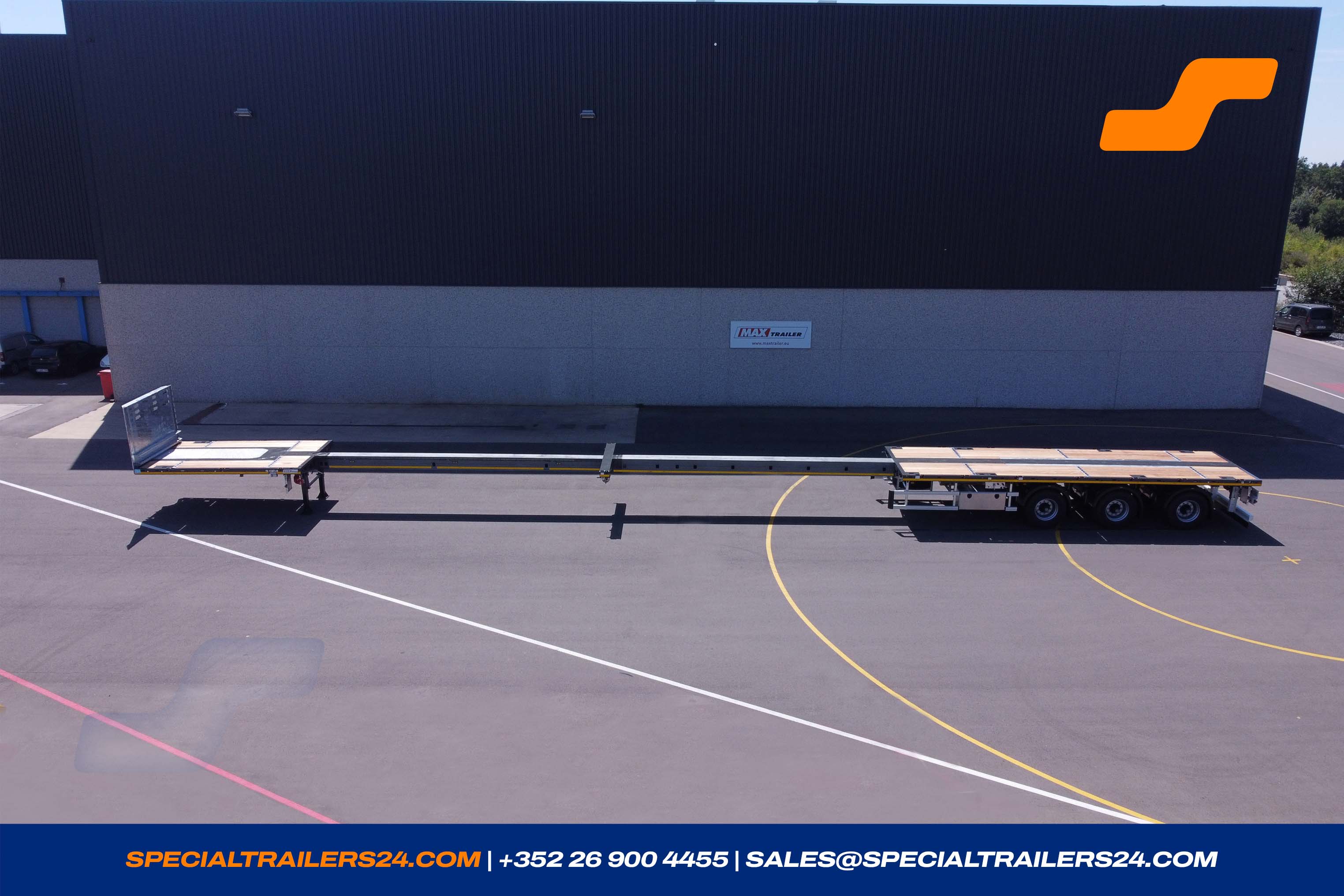

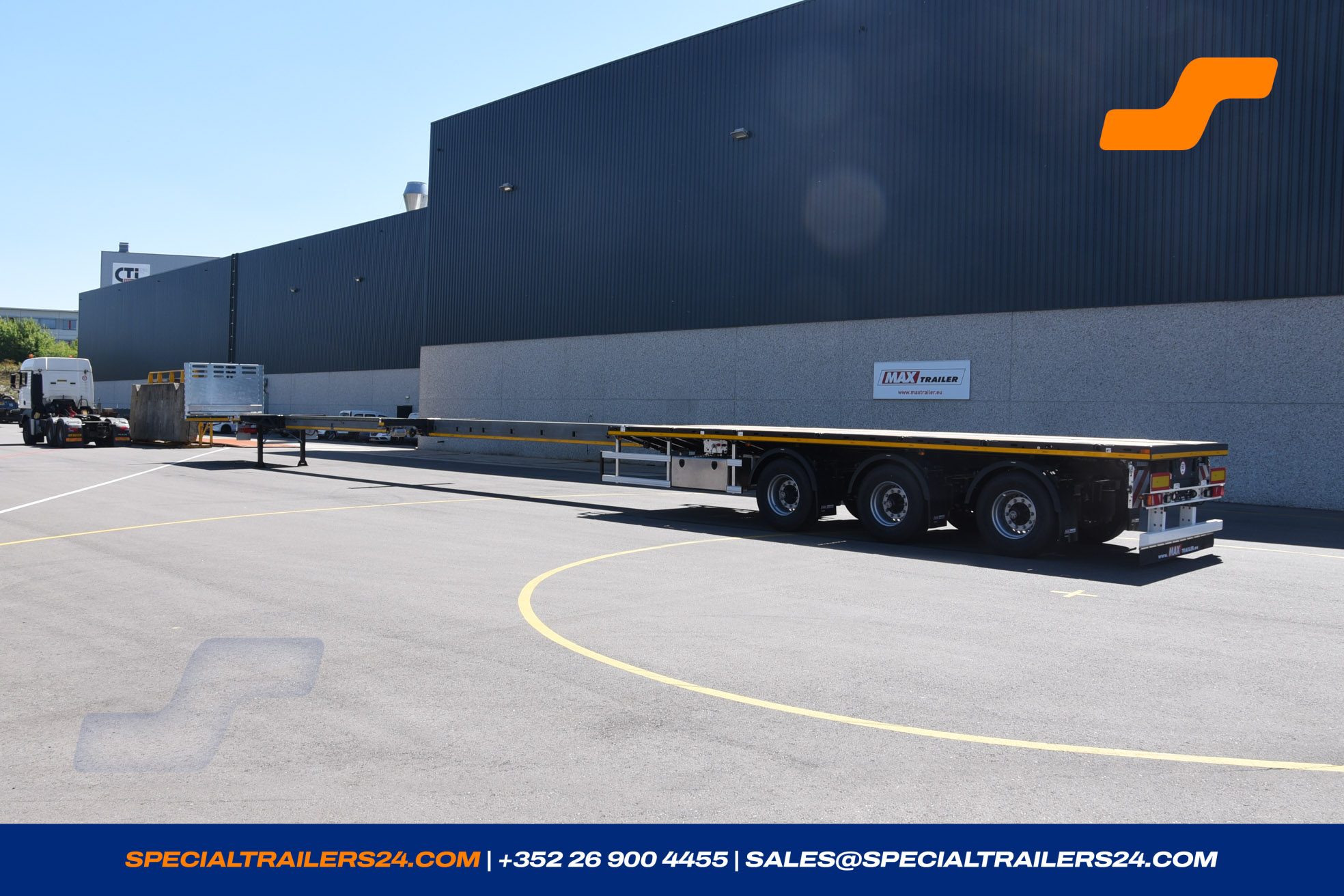

| Extendable by | 15 400 mm |
| Wheelbase | 1 810 mm |
| Total width | 2 540 mm |
Loading deck
Loading platform
1 x Loading platform

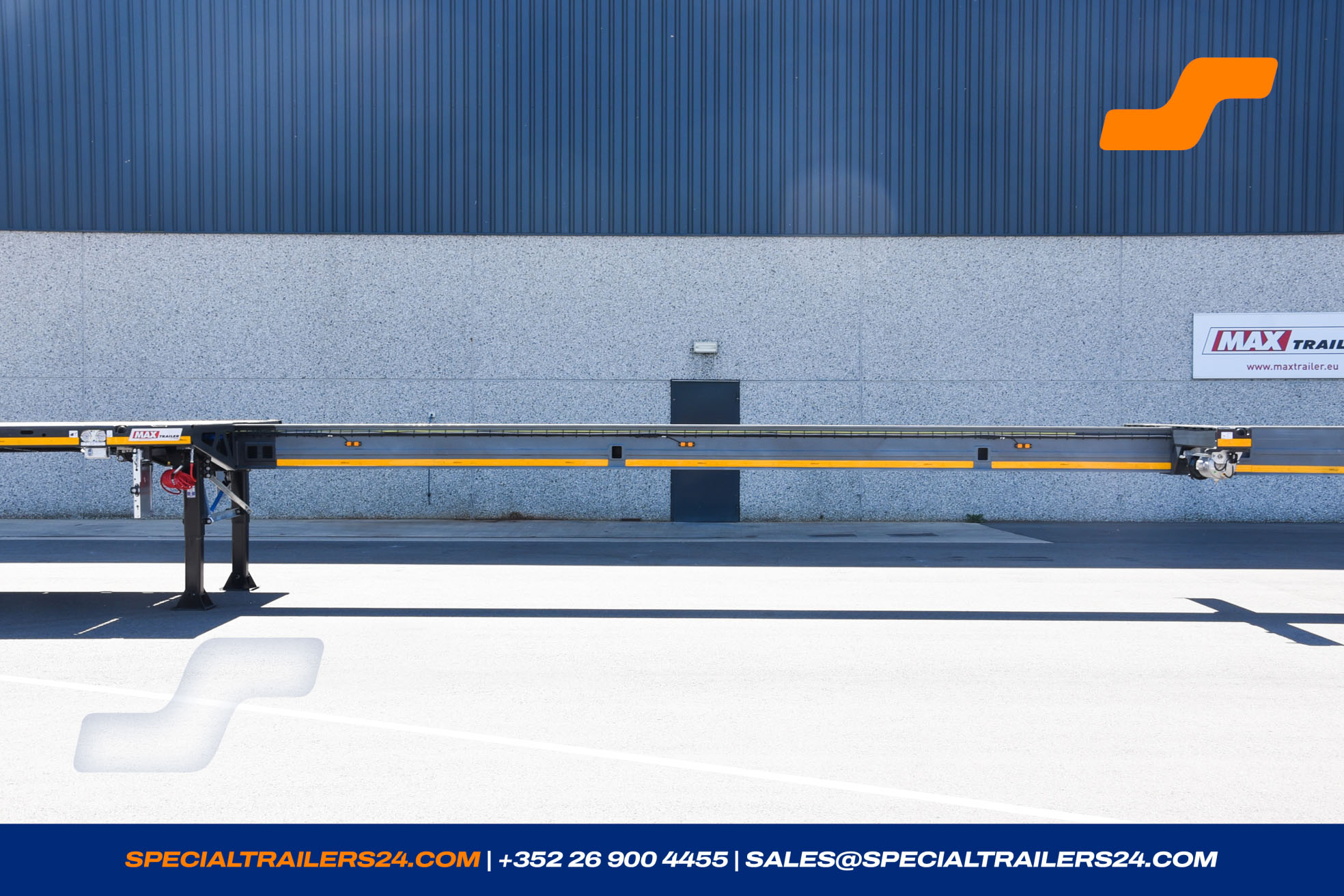

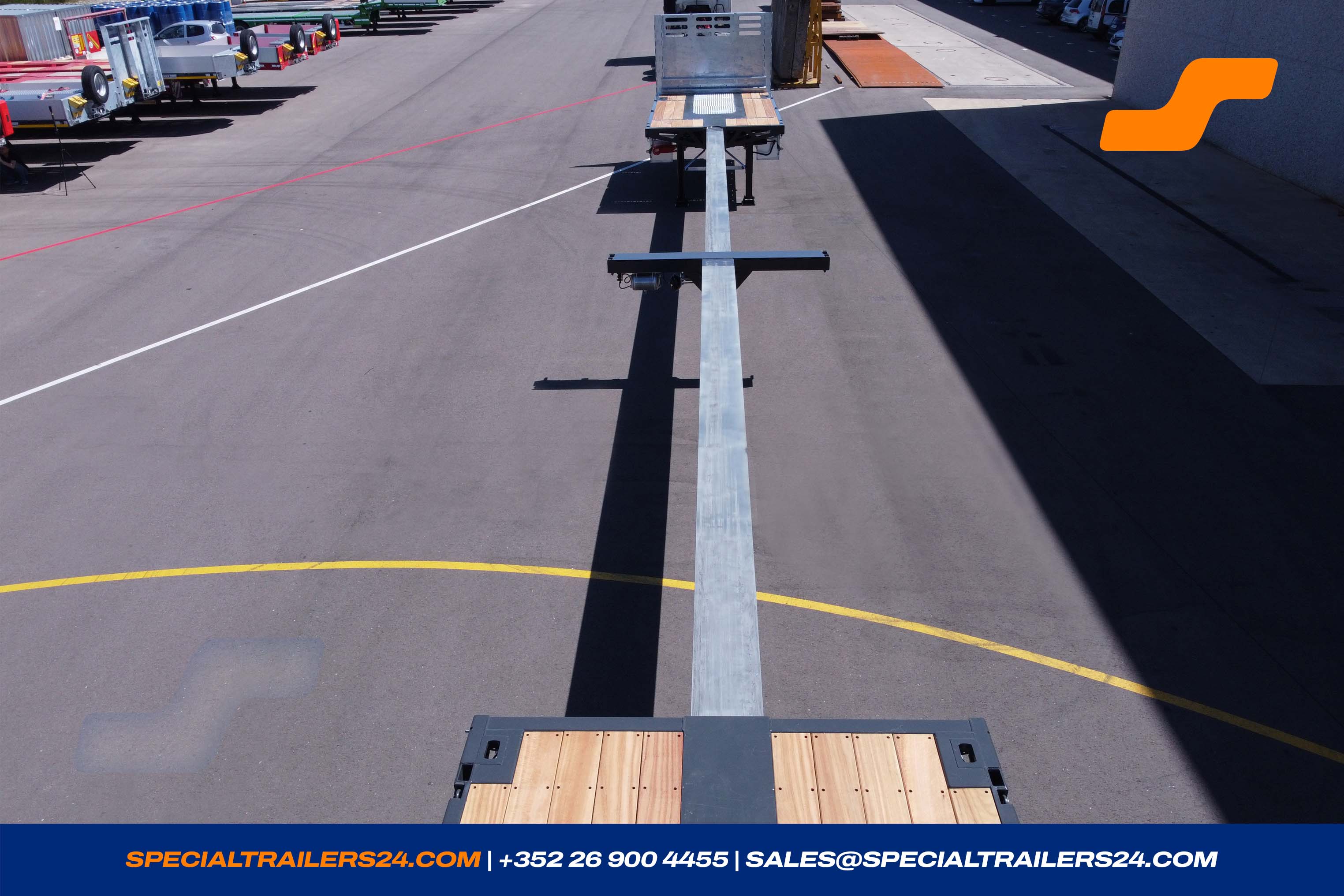

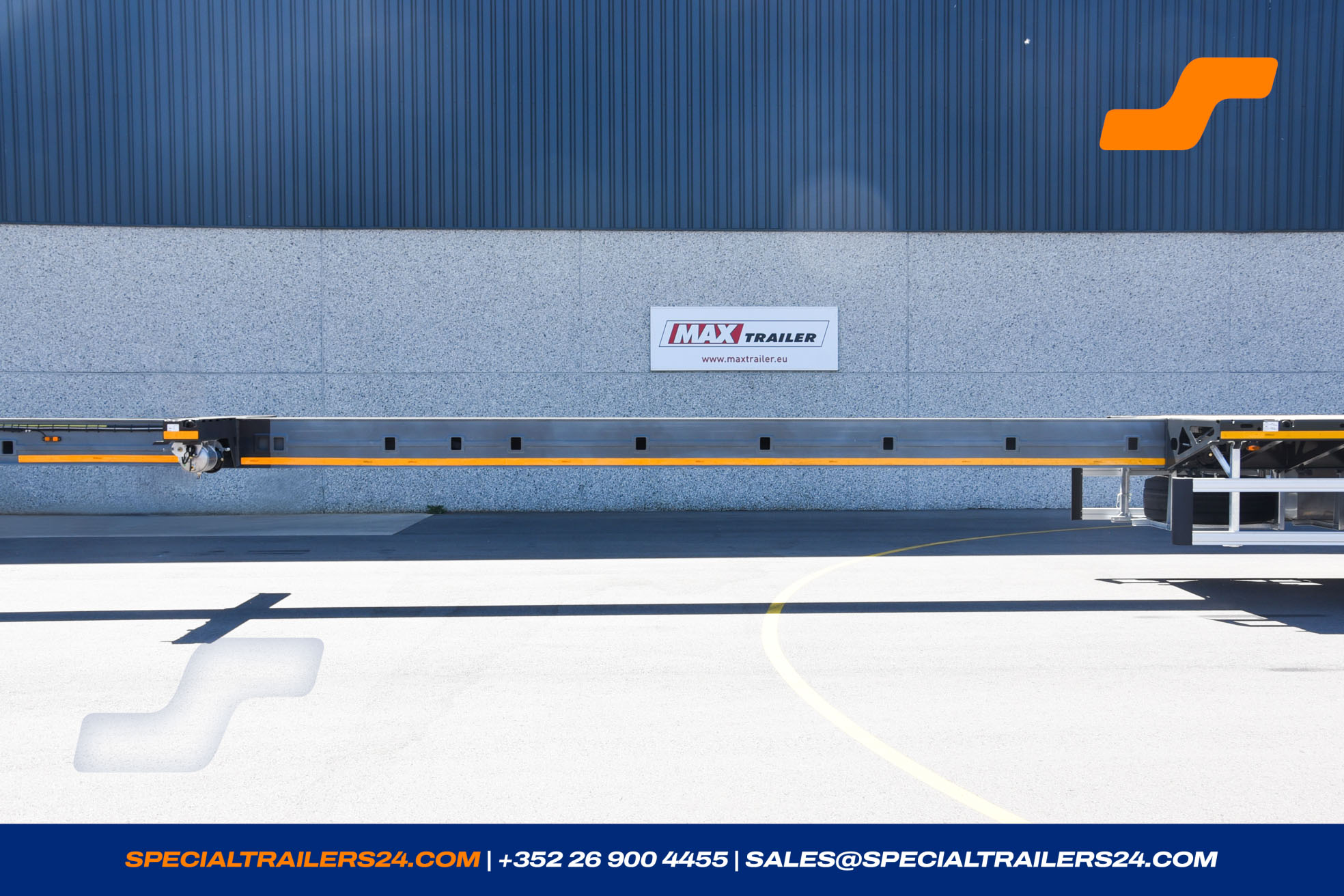

Loading area extendable center spine, pneumatically locked.
One fixed intermediate tabel + - 250 mm on the extension beam
8 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
3 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).

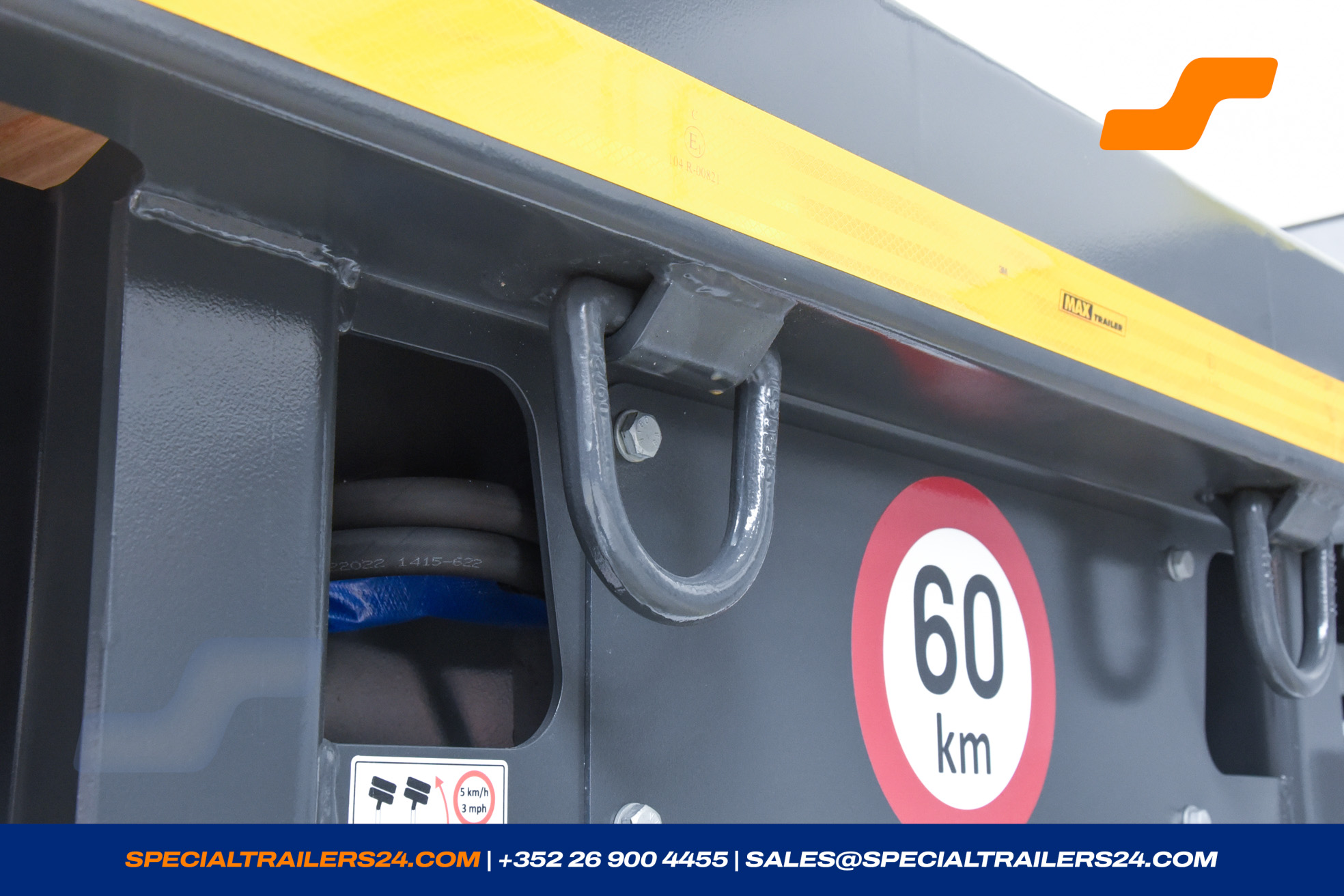

Cutouts in the border frame of the loading area for hooking in tension belts. (LC 2 000 daN).
-

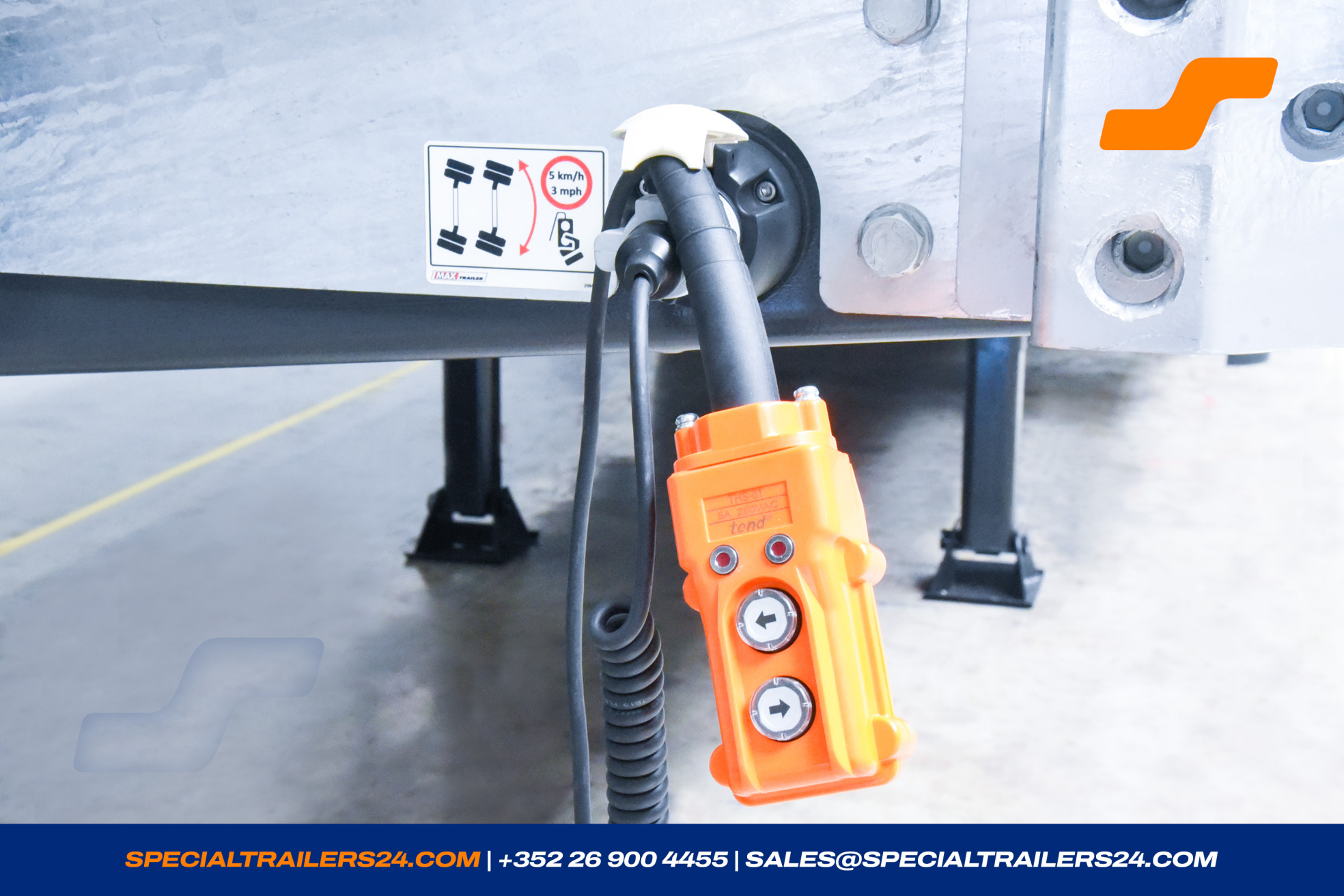

Manual-steering, handling with cable remote control from the front and the back, with PDC-light control for the realignement of the axles.

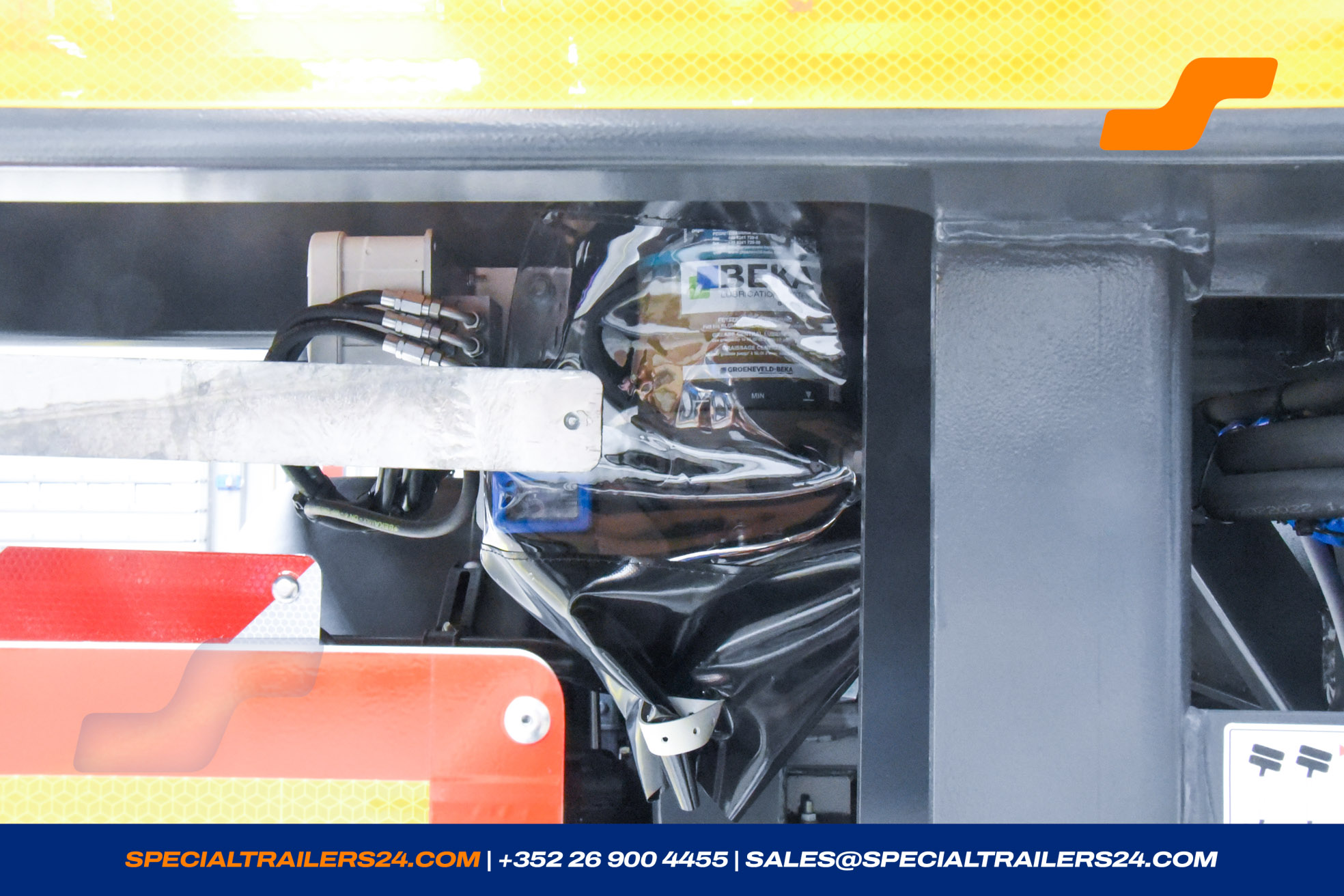

(without connection to the tractor). - Electrically operated hydraulic pump. (± 45kg)
- 2 wheel chocks with carrier on the headboard.
- 2 king-pin.

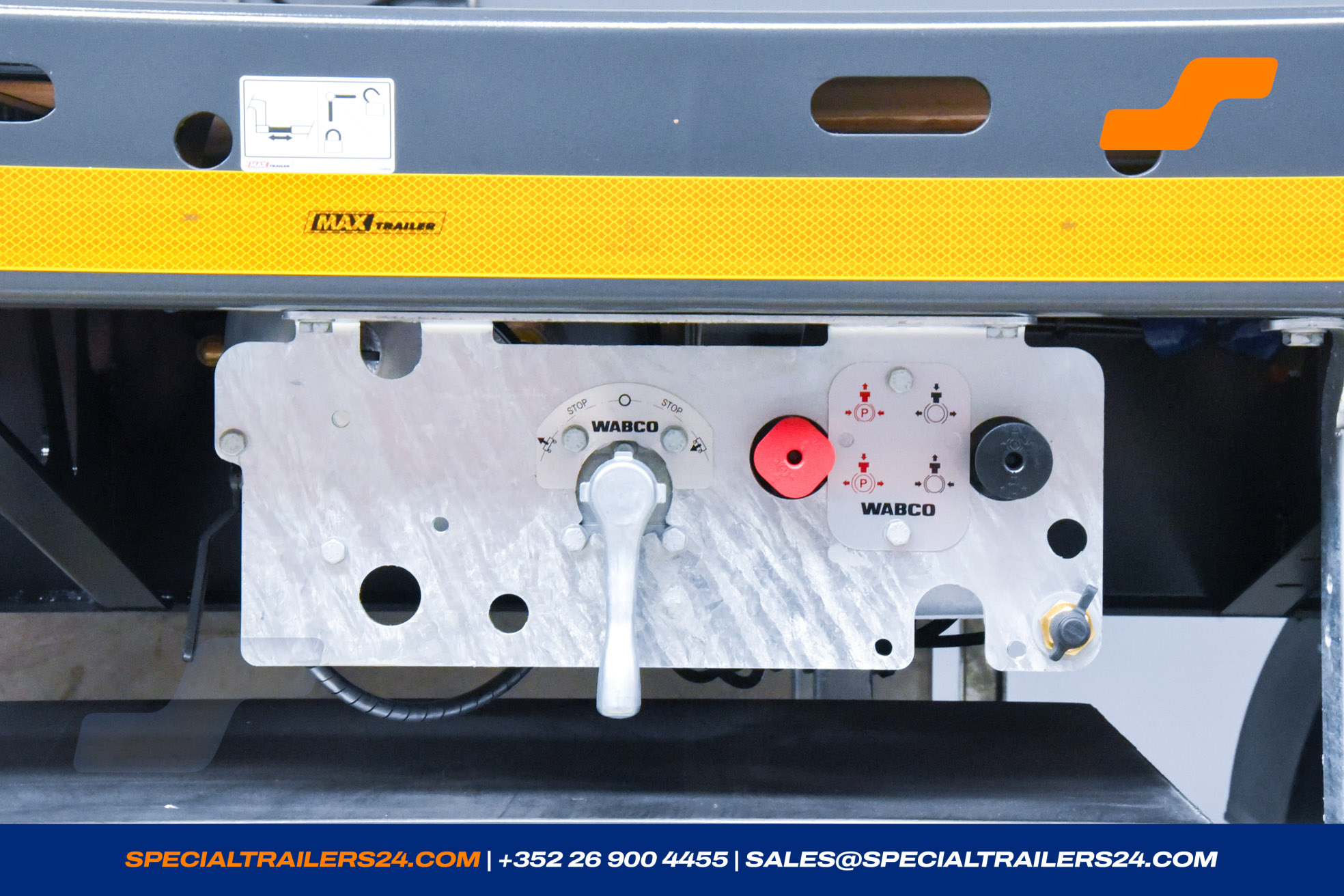

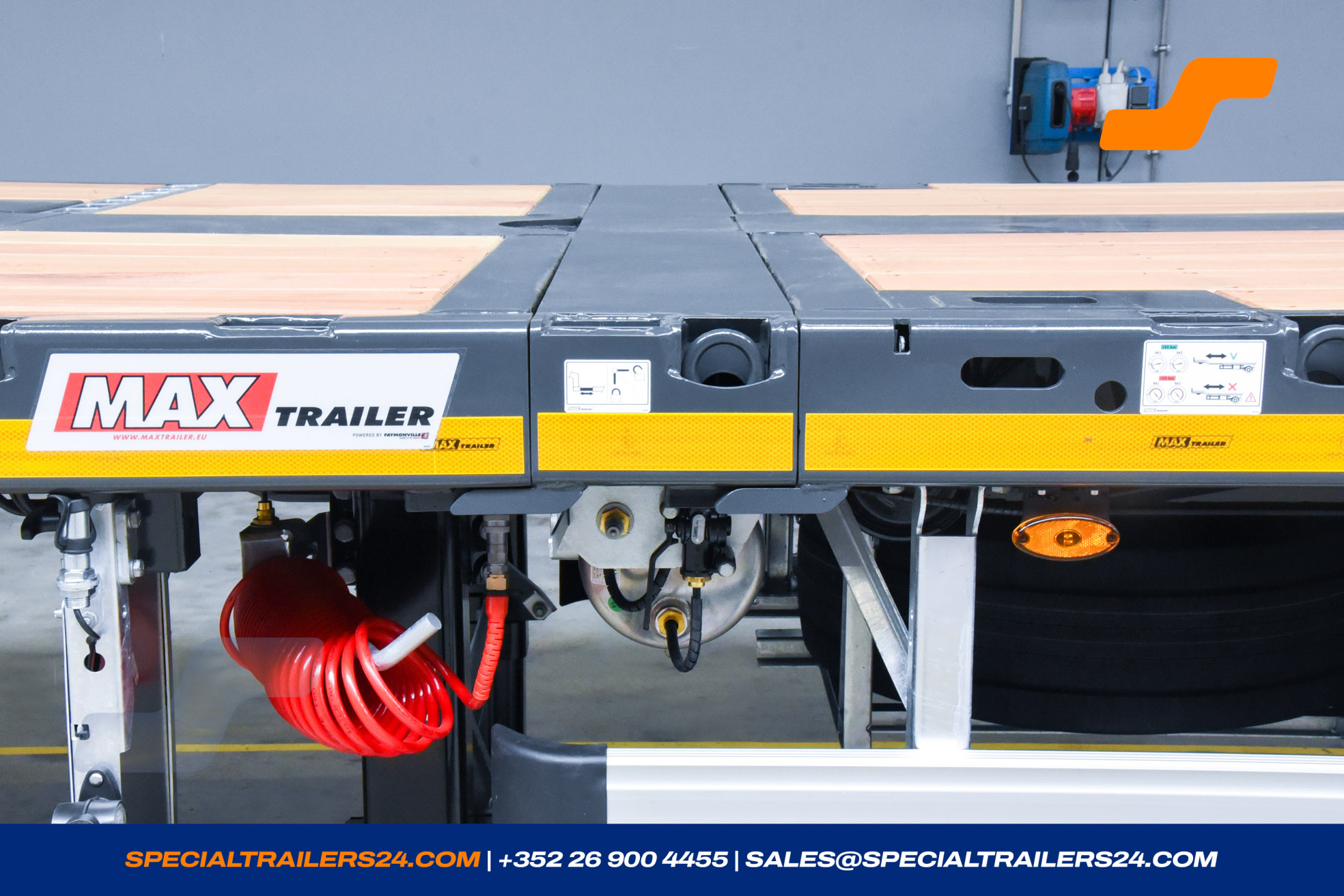

- Red and yellow air couplings on the galvanised front connection ledge.
- Yellow reflective tape according to the EU regulation over the entire length, on the extension and at the rear.

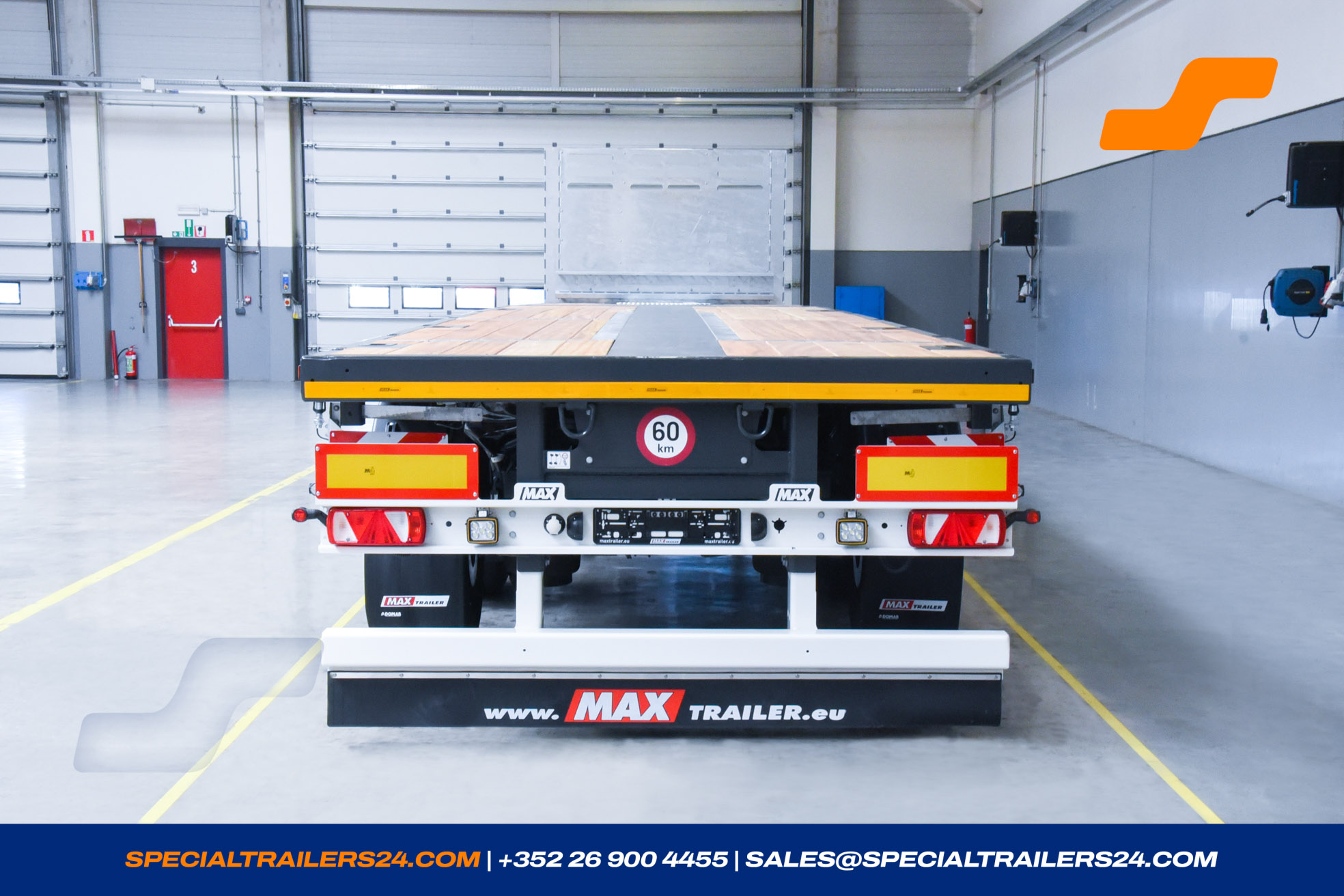

- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Holder for one beacon light at the rear of the trailer.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
- 10 pairs of pockets for stakes ± 100 x 50 mm in the outer frame of the loading platform. (± 30 kg)

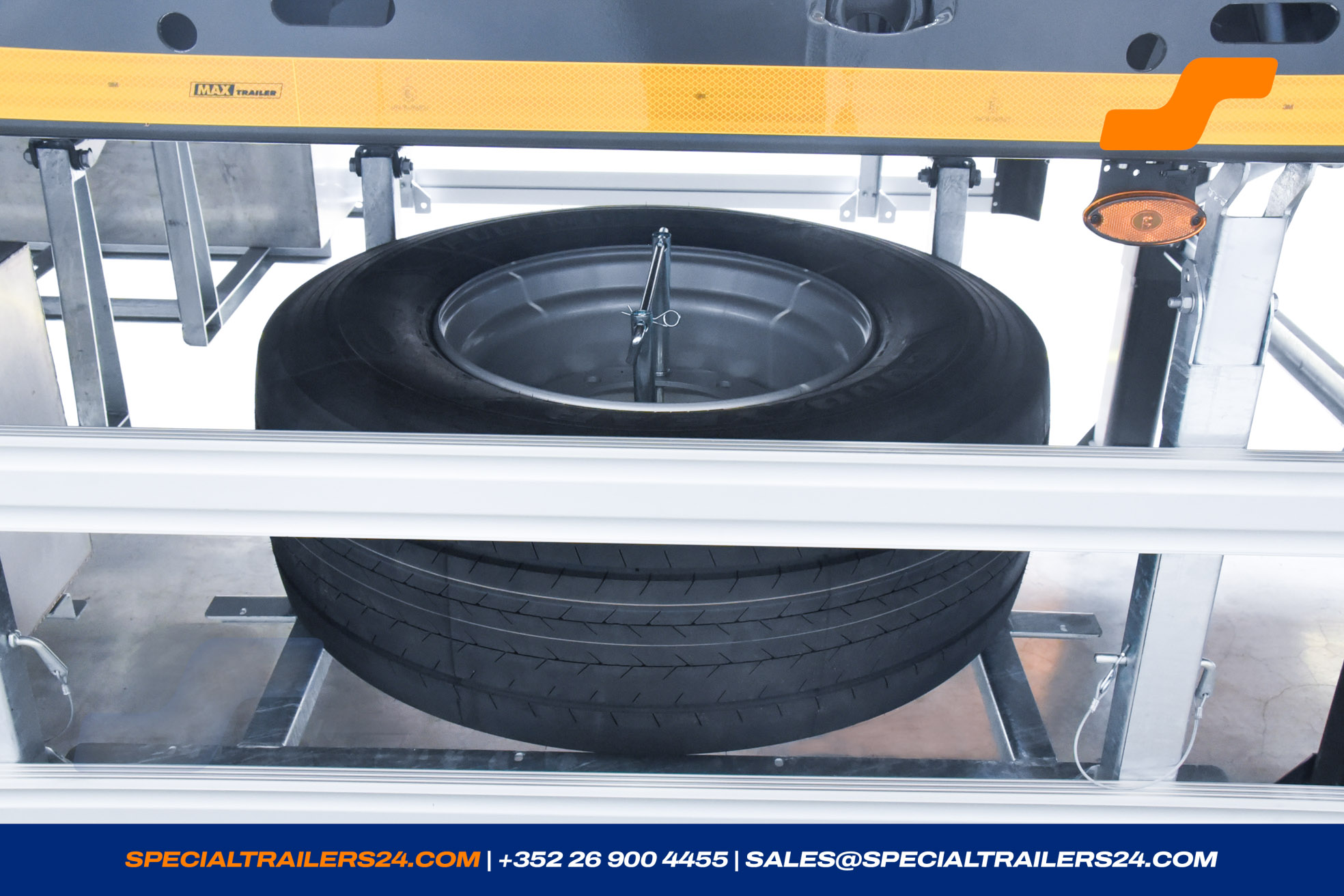

- 1 spare wheel carrier, under the loading platform on the right side.
-

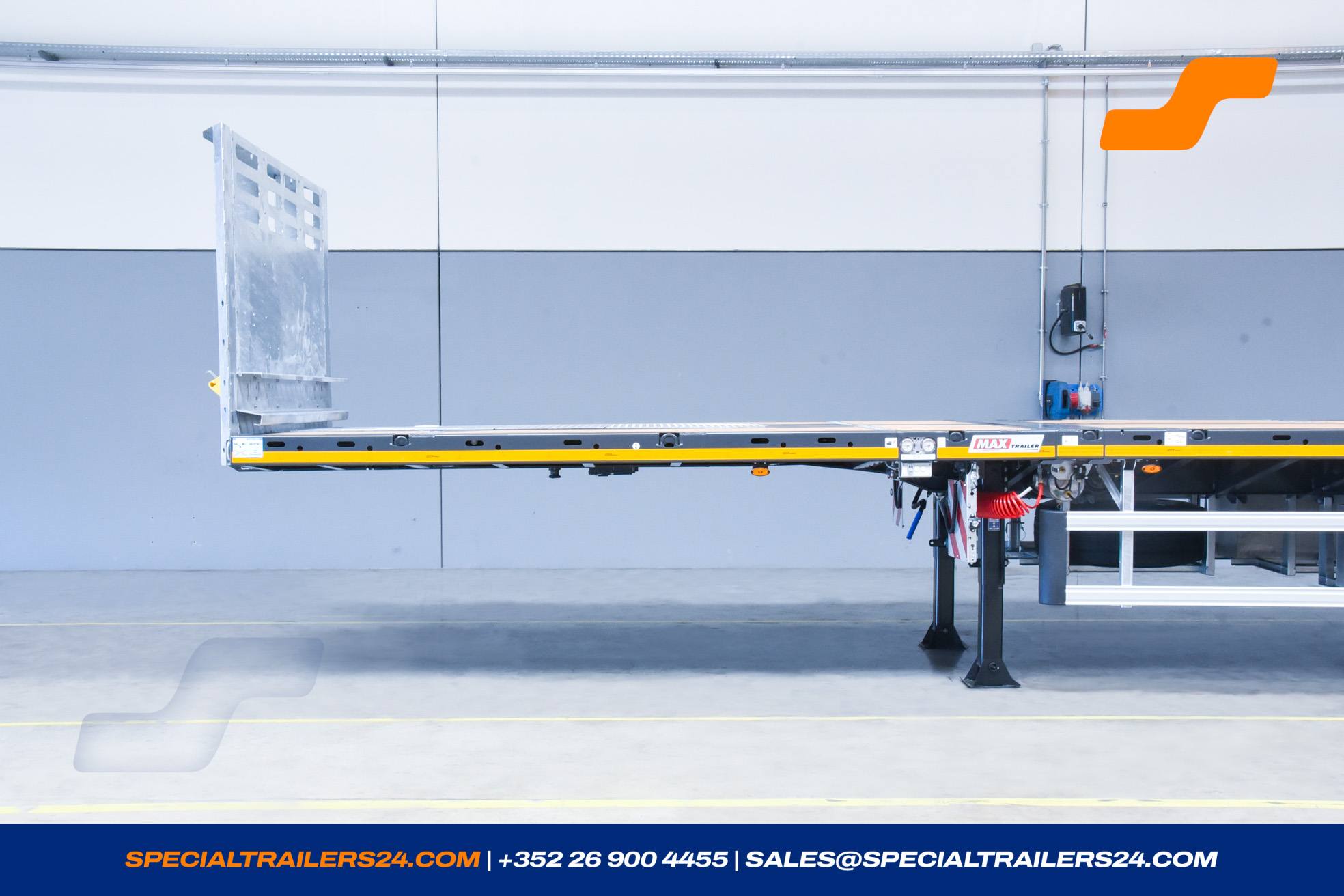

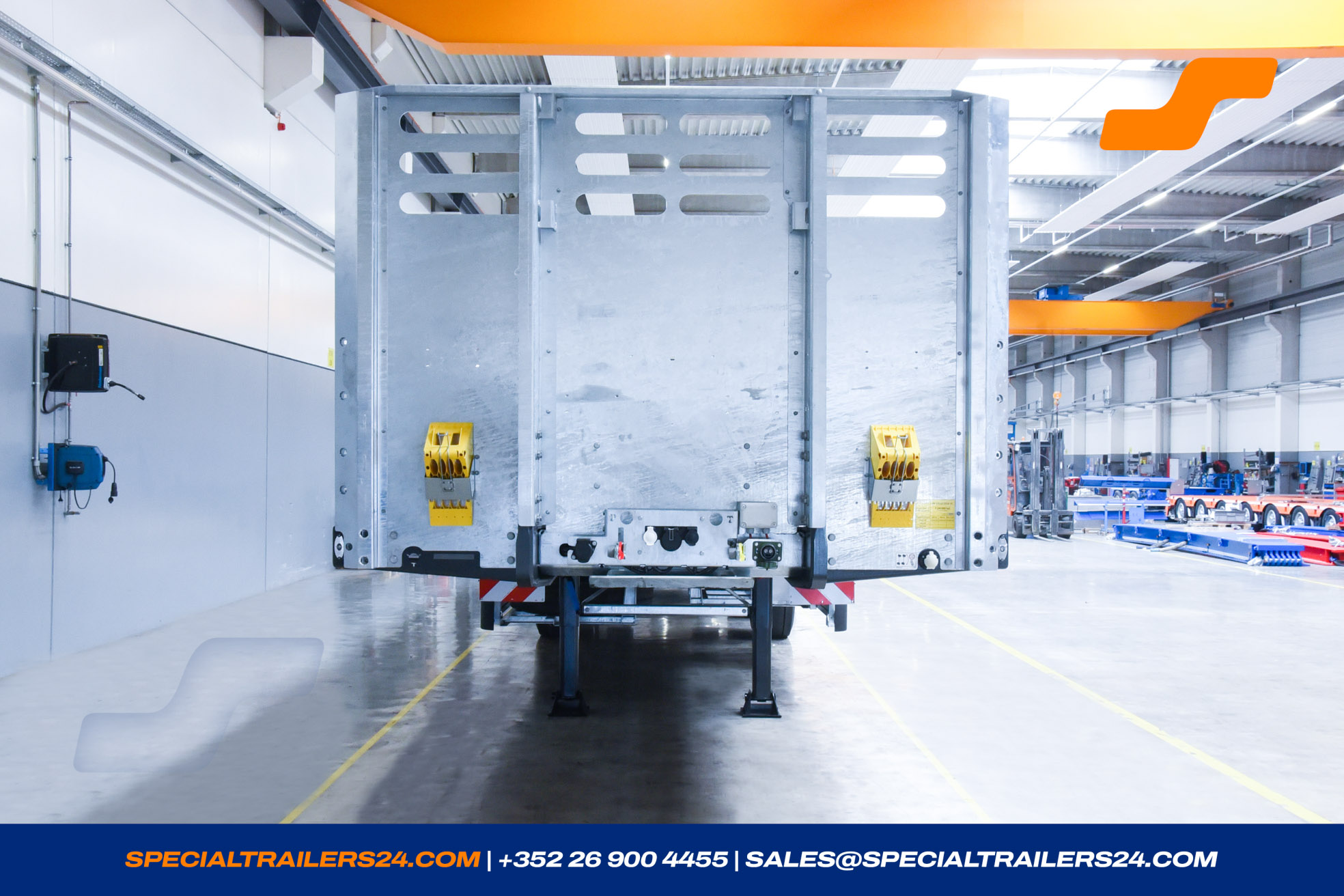

One galvanised steel headboard, height ± 1 600 mm. (± 35 kg)

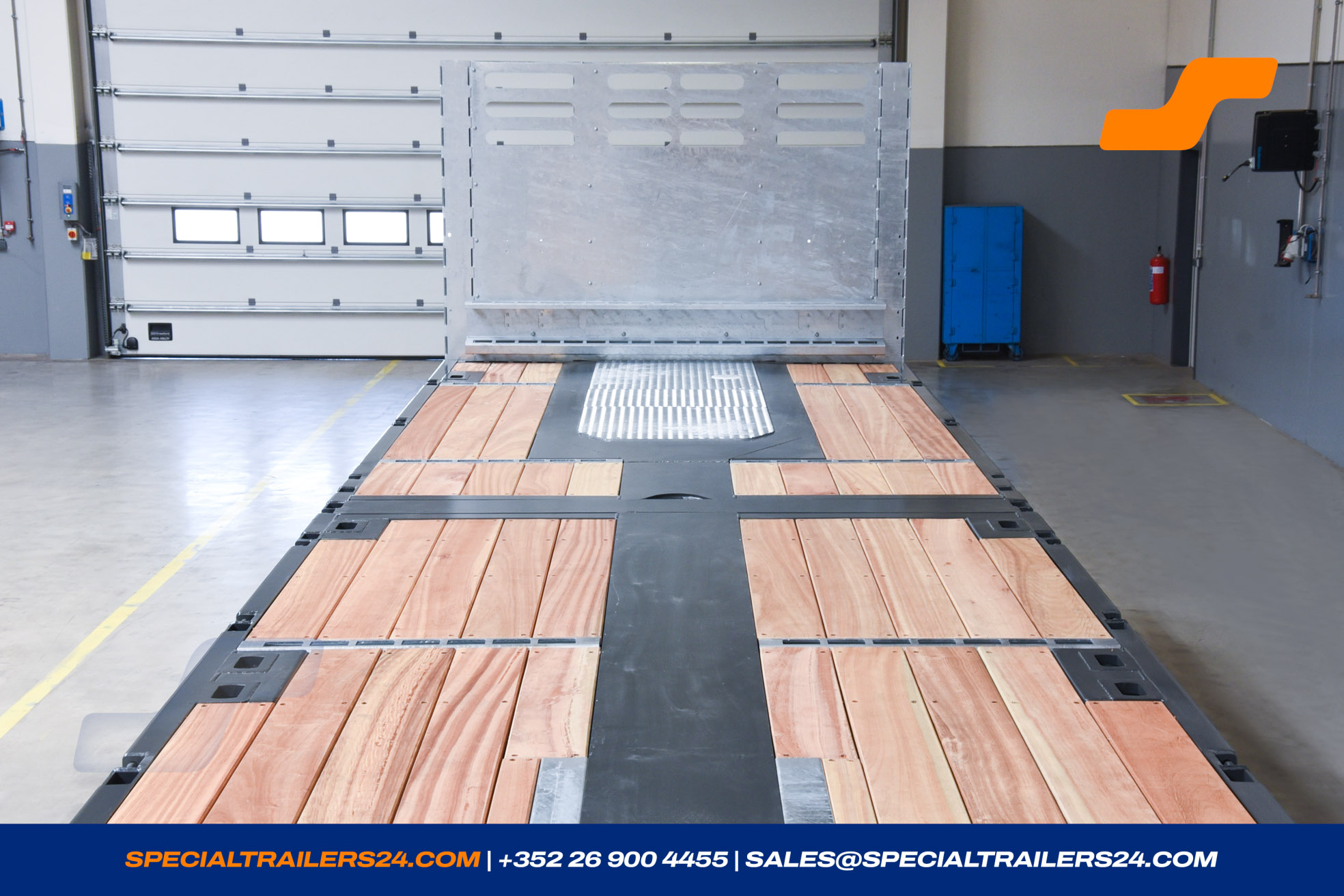

EN12642-XL - Loading area with ± 30 mm hardwood floor. (± 270 kg)
- 6 pairs of containerpockets incorporated into the loading platform for 1 x 20' or 2 x 20' Containers or 1 x 40' Containers. A locking position in the extending for a container 1 x 45'. (± 90 kg)
- 5 pairs of stake pocket rows in the loading platform, for stakes 100 x 50 mm. (± 165 kg)
- Holder for max. 9 pairs of stakes ± 100 x 50 mm, screwed on the headboard inside. (± 34 kg)
- 1 spare wheel 385/65 R22.5 (± 120 kg)

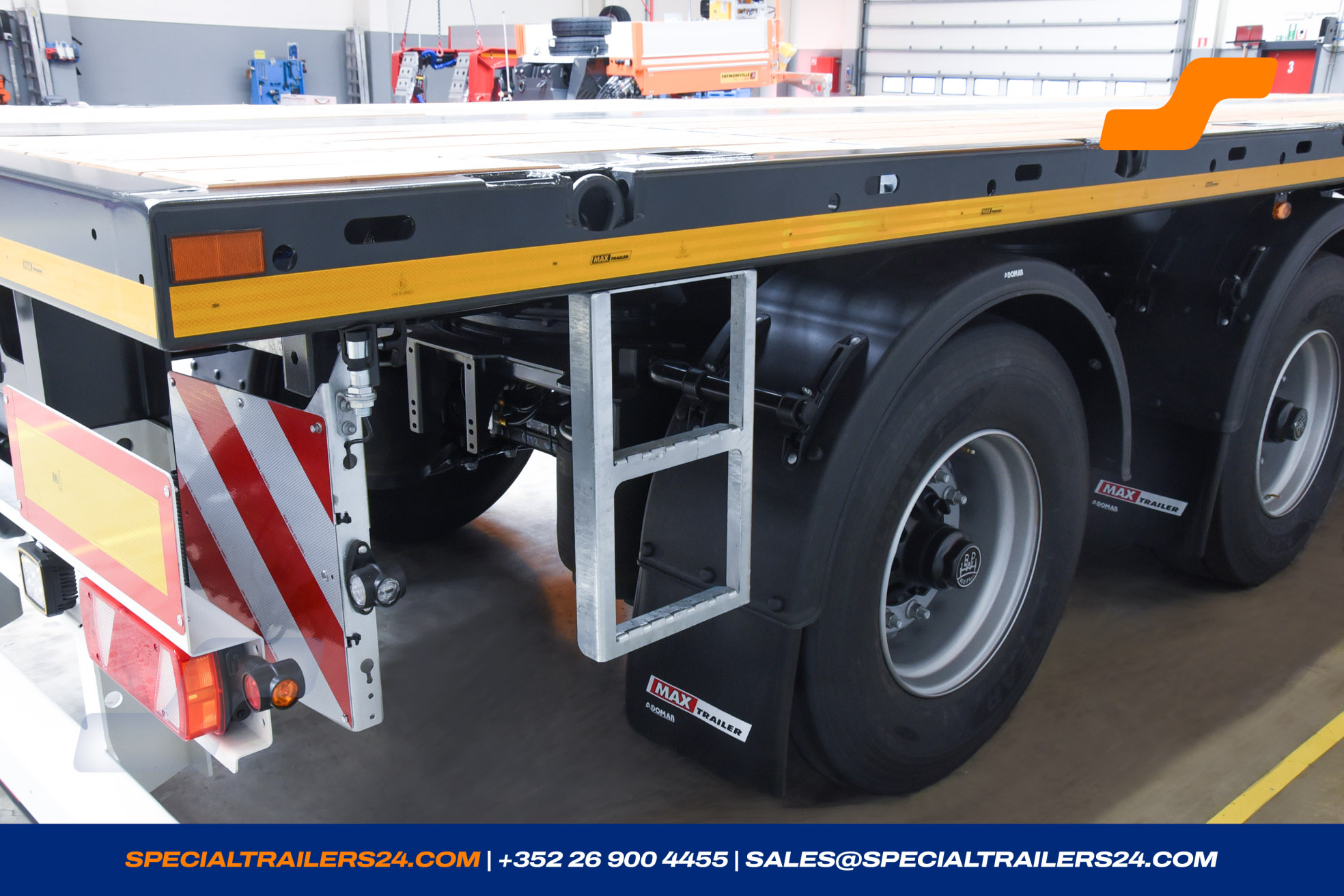

- Ladder mounted on the right hand side. (± 12kg)

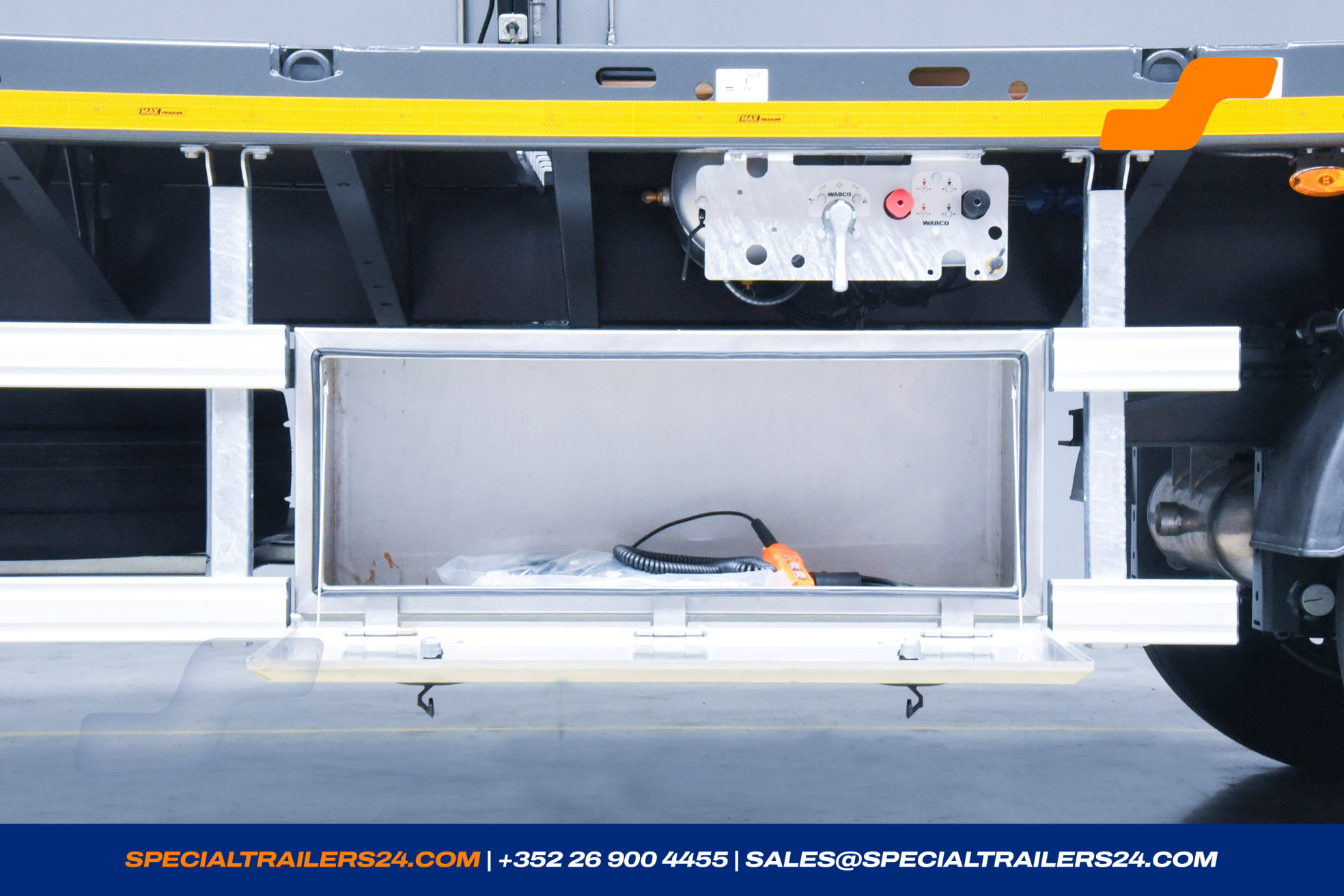

- One lockable tool-box INOX 1 200 x 460 x 550 mm under the loading platform in driving direction on the left side. (± 75 kg)

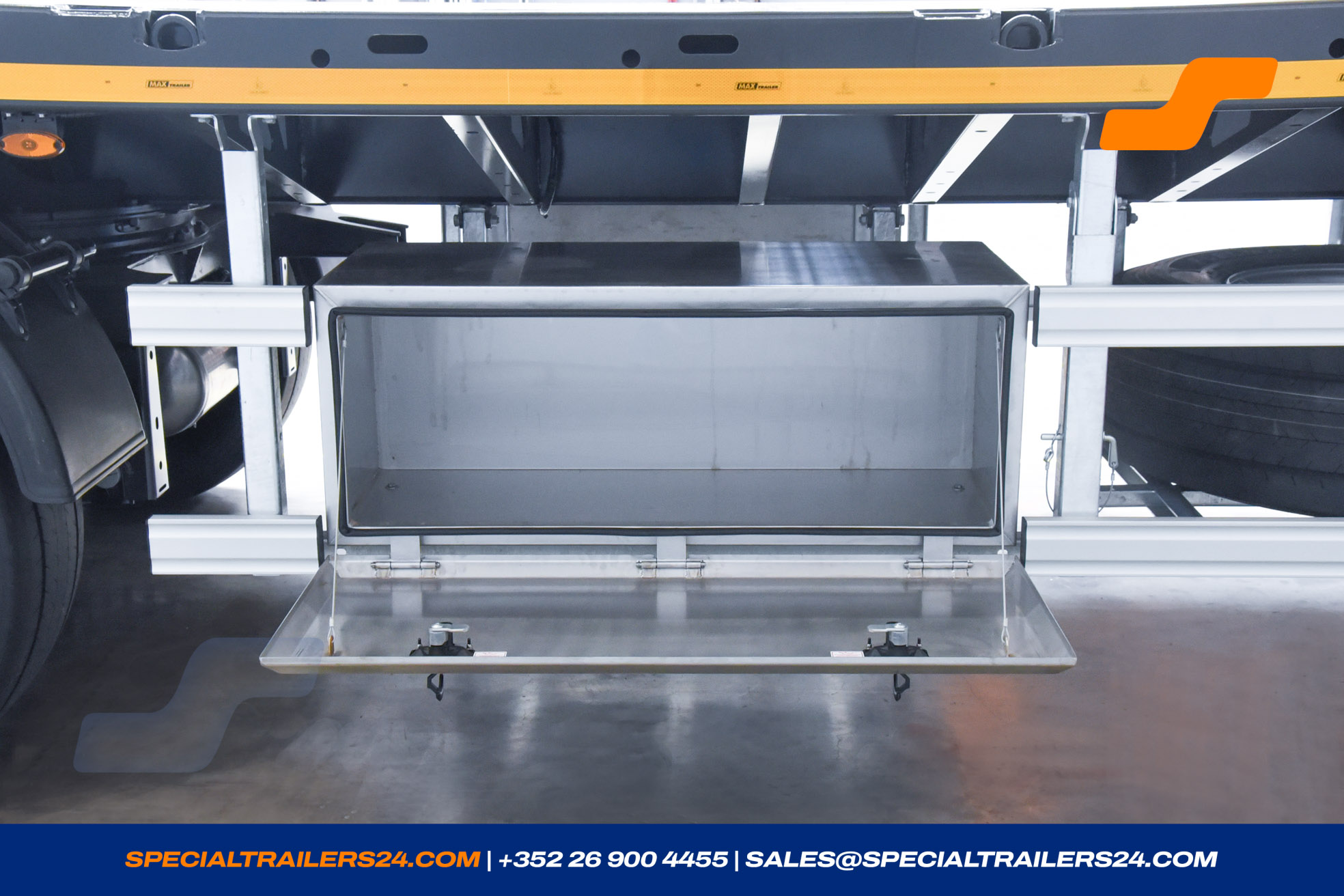

- One lockable tool-box INOX 1 200 x 460 x 550 mm under the loading platform in driving direction on the right side. (± 75 kg)
- Cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 250 A) between the semi-trailer and the truck with socket (NATO-NATO).
- Central greasing with 2 pumps BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pumps. (± 26 kg)
Accessories
1 x Accessories
-
Complete steel construction automatically blasted after welding with blast wheel system.
Second blasting with corundum for optimal adhesion of the coating system.
HRM metallisation of the entire vehicle chassis with ZINACOR 850 (85% zinc/15% aluminium) to ensure the best corrosion protection.
Final painting with 2 layers of 2K topcoat, in a single colour of your choice following RAL 841GL system.
Rear section metallised and painted in RAL 9010 (pure white). Metallic paintwork is not possible.
Lacquer structure tested in salt spray test according to ISO 9227-NSS.
Body-cavity sealing with special wax. - Manual and description on USB stick .

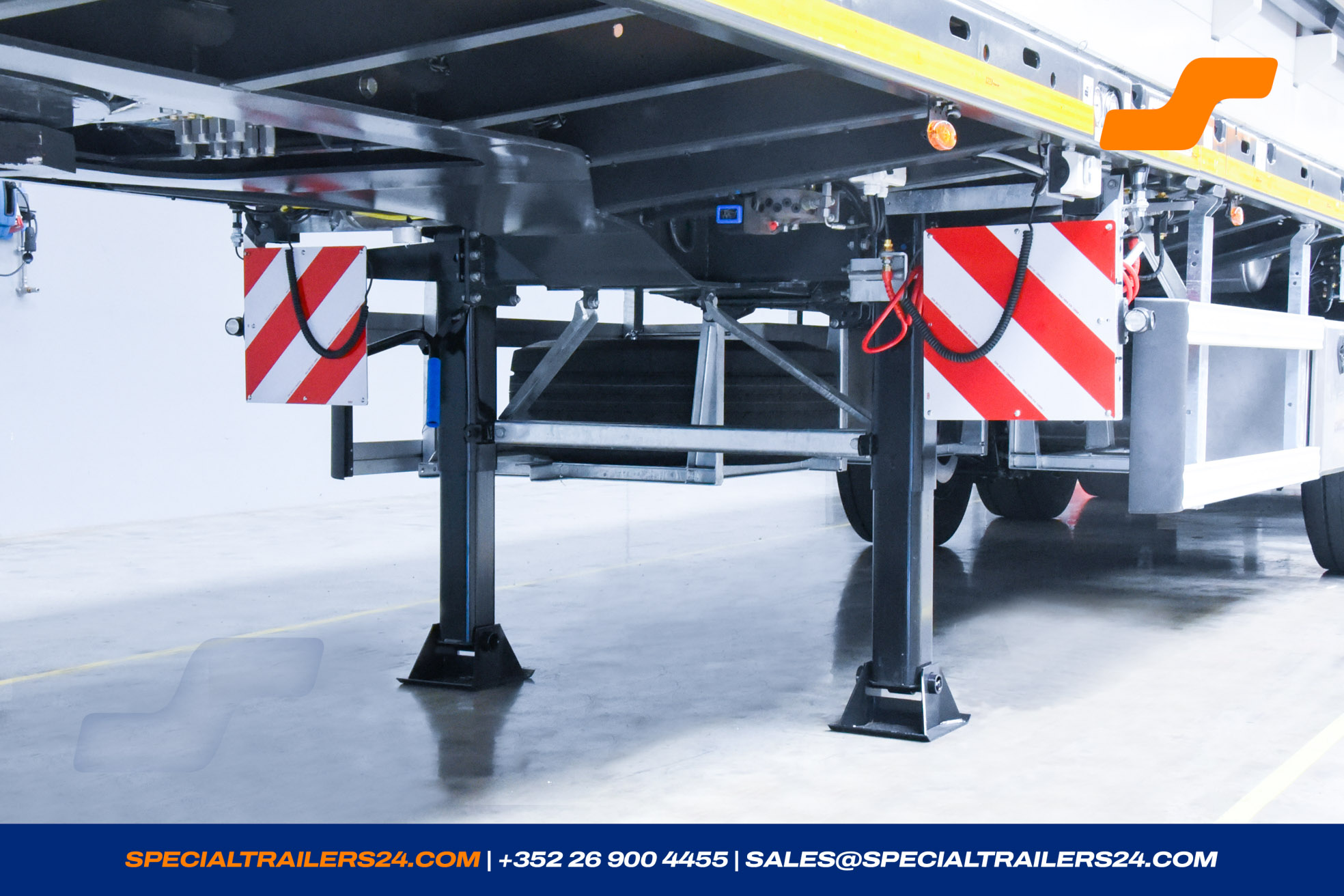

- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- 2 LED- reversing lights at the rear.
- Delivery from a trailer to factory Lentzweiler.

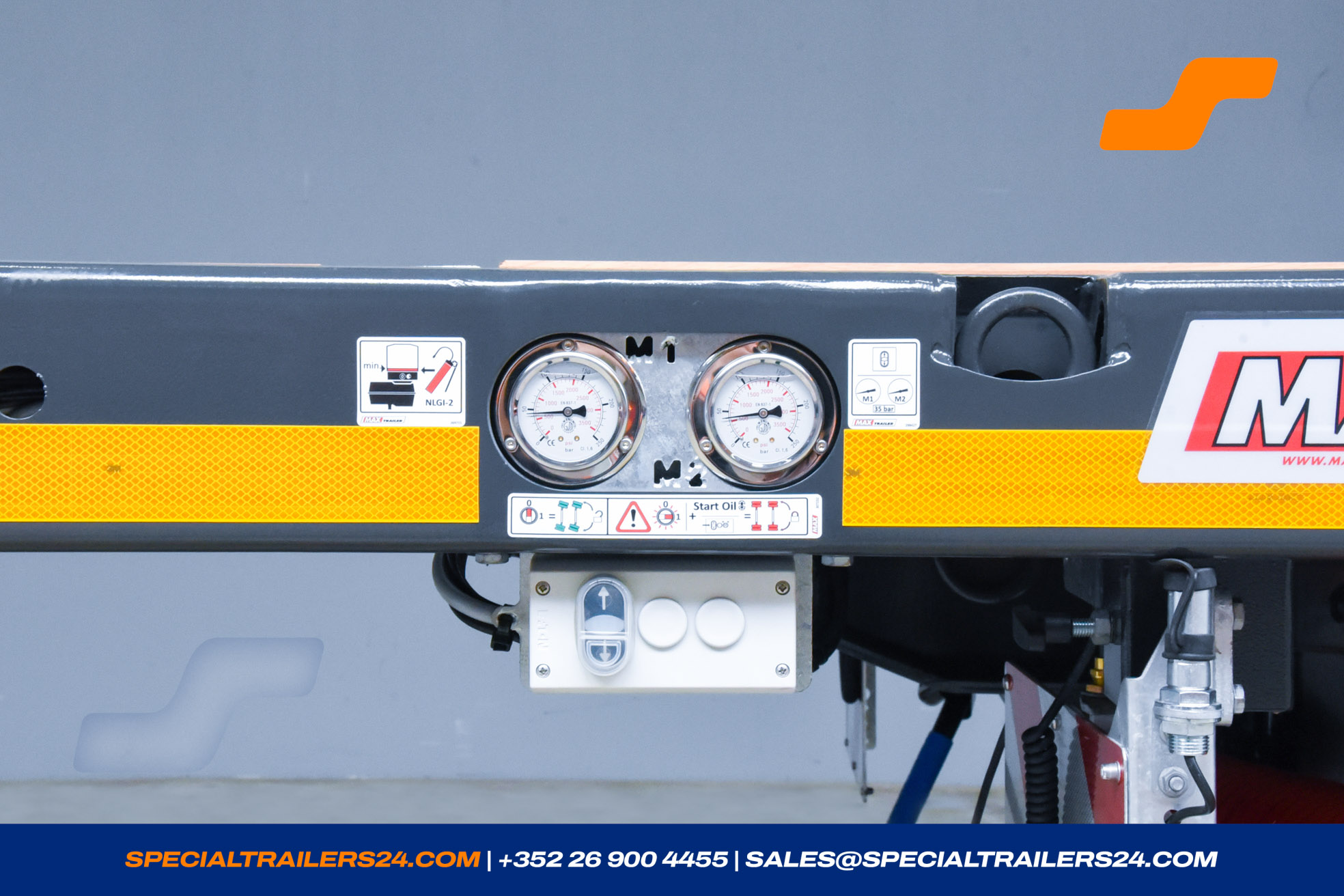

- Load manometer for determining the axle load, including load diagram.
