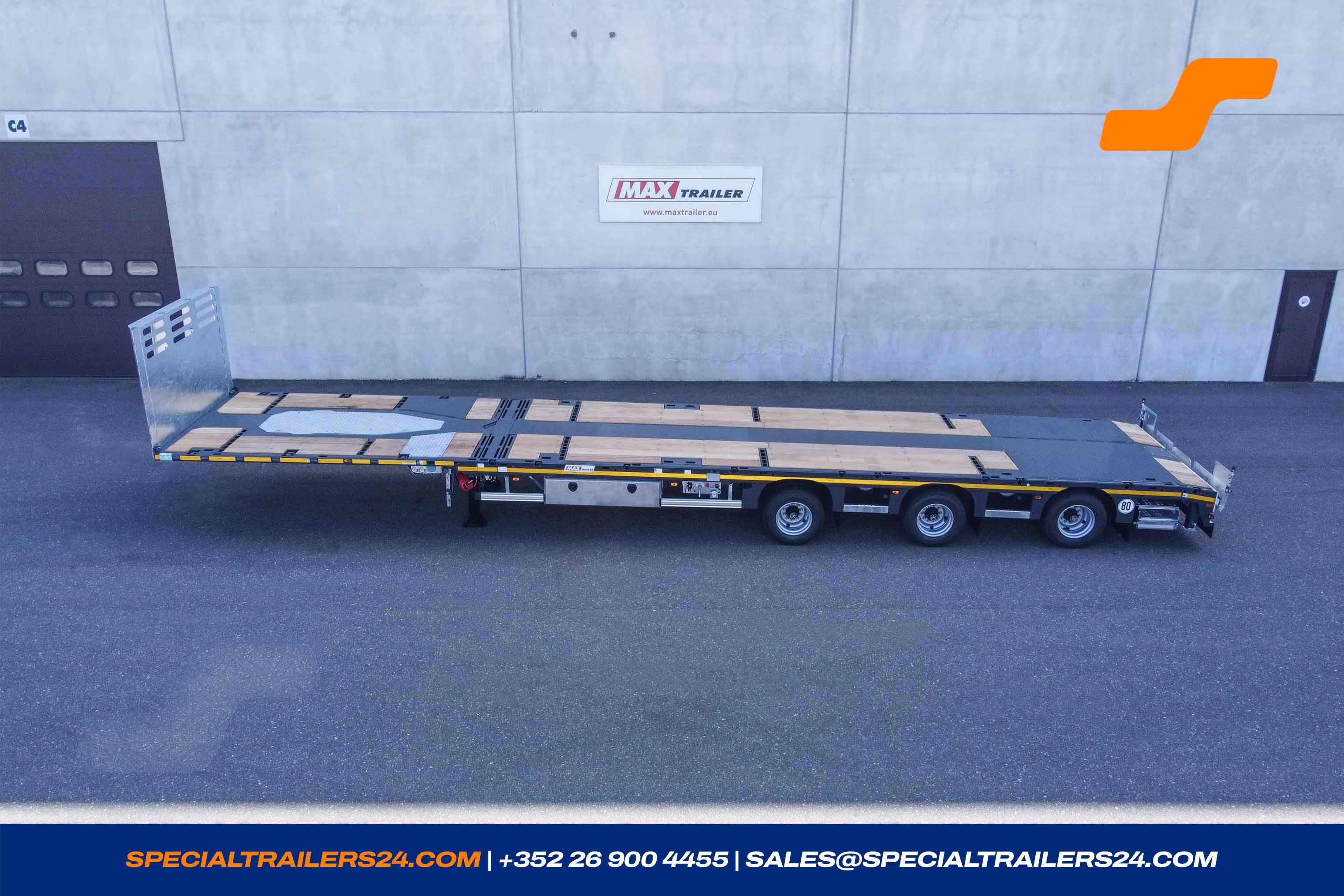

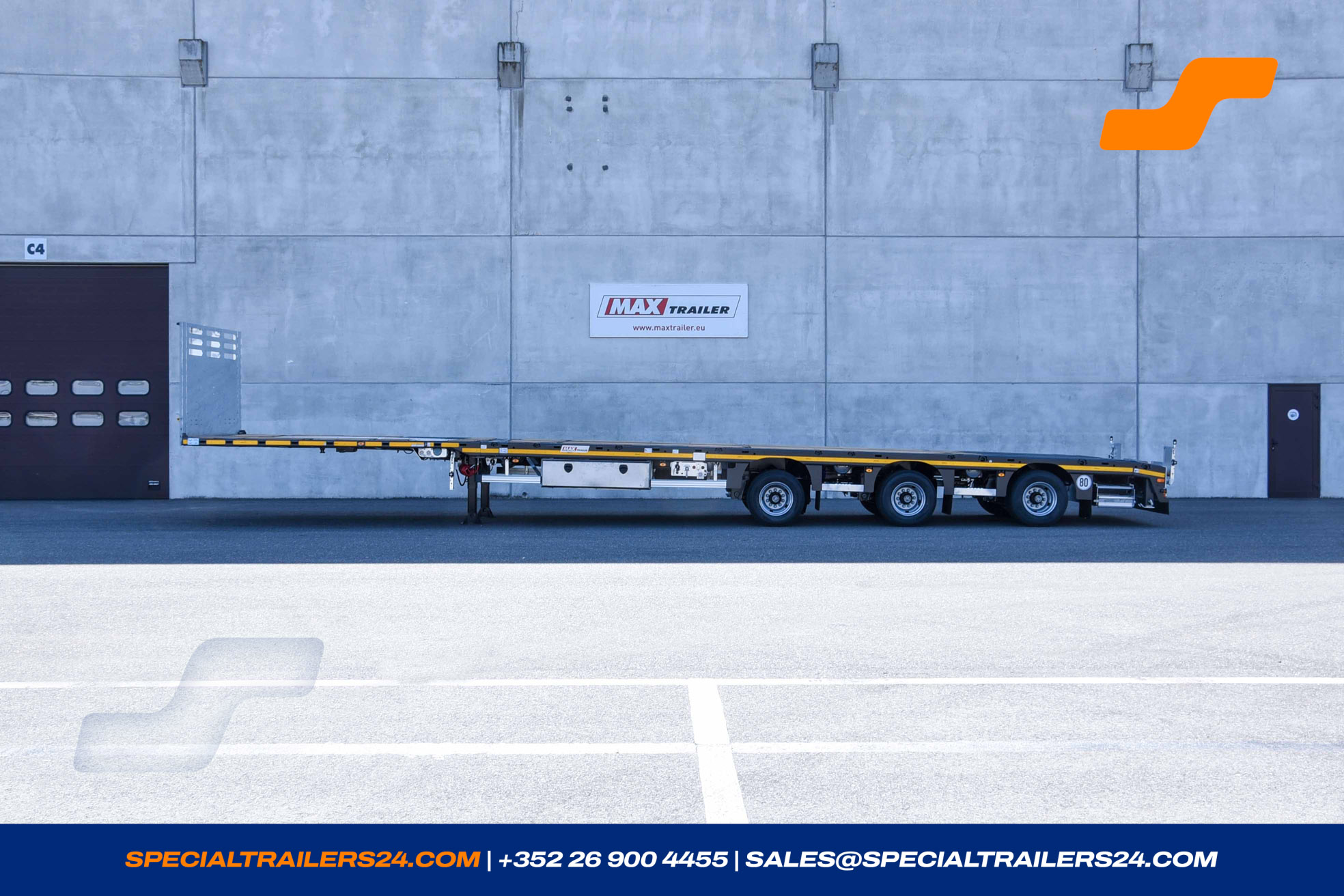

Flatbed trailer
MAX Trailer MAX210
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111533
- Reference MAX210-Z-3AA-13.50-17.5-2.54

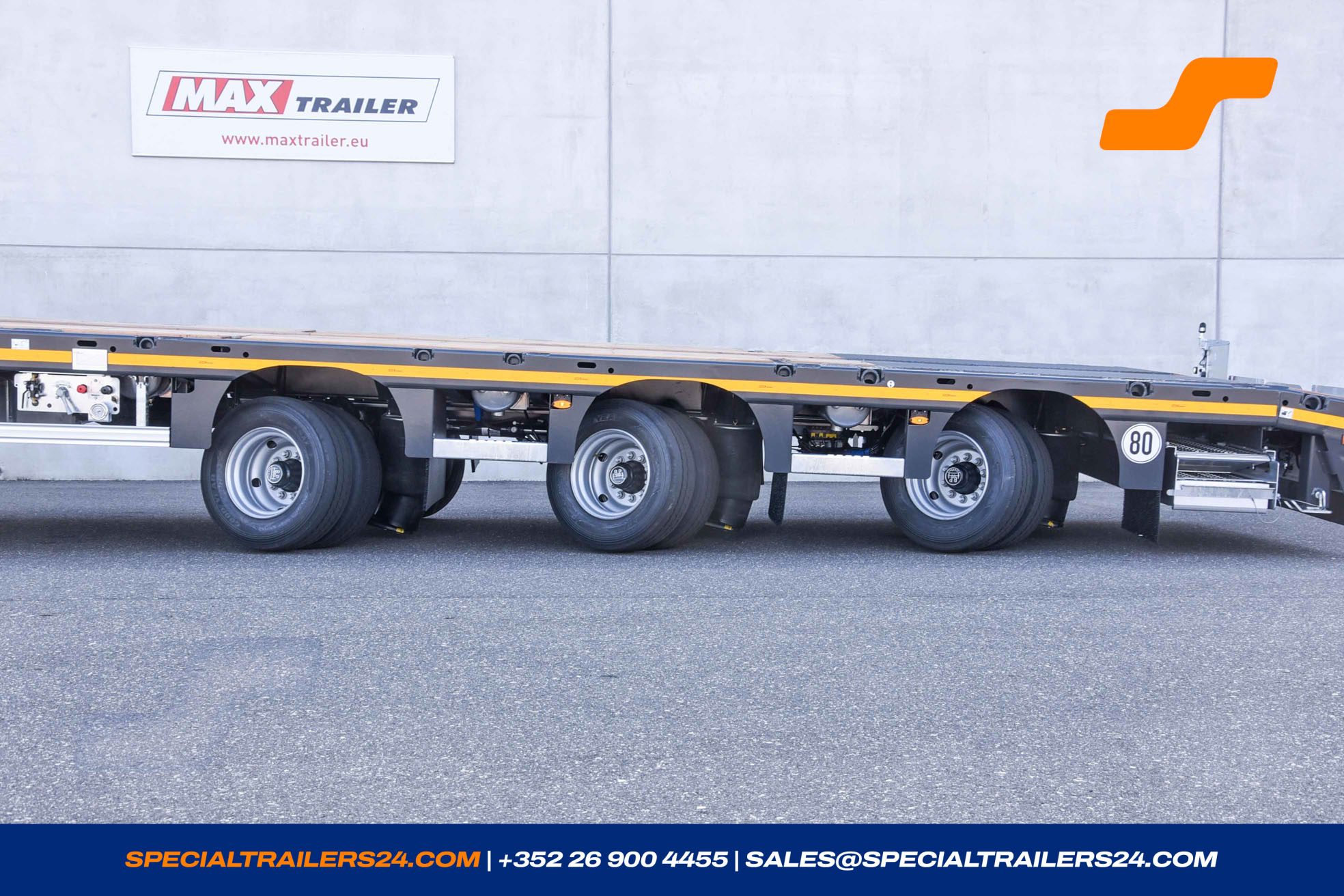

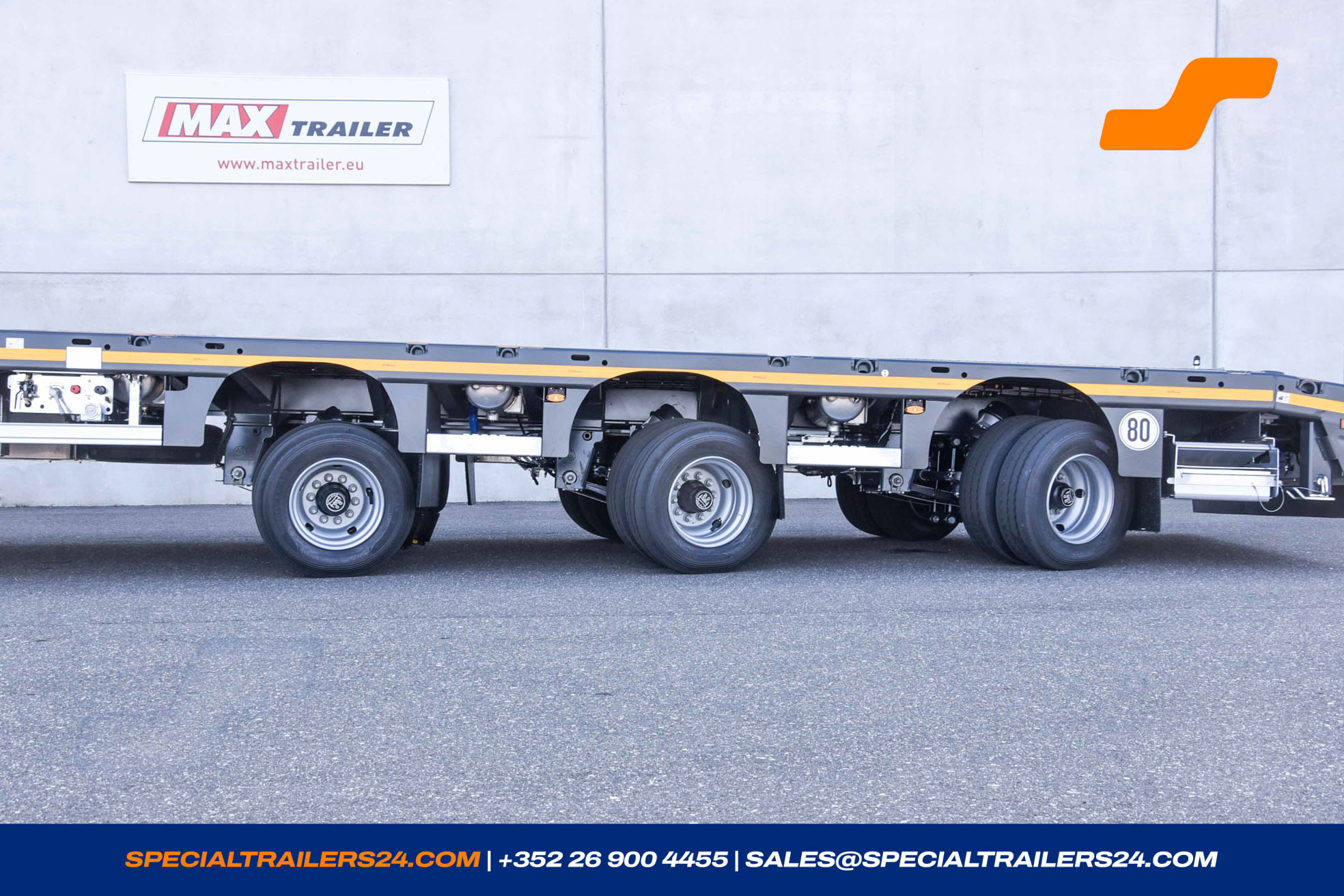

- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 04/2026
- Steering Type Hydraulic
Availability
04/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 36000 kg |
| Gross weight | 54000 kg |
| Tare weight +- 3% | 13313 kg |
| Payload | 40687 kg |
Dimensions
| Fifth wheel height loaded | 950->1050 mm |
| Turning circle reversing | 2 100 mm |

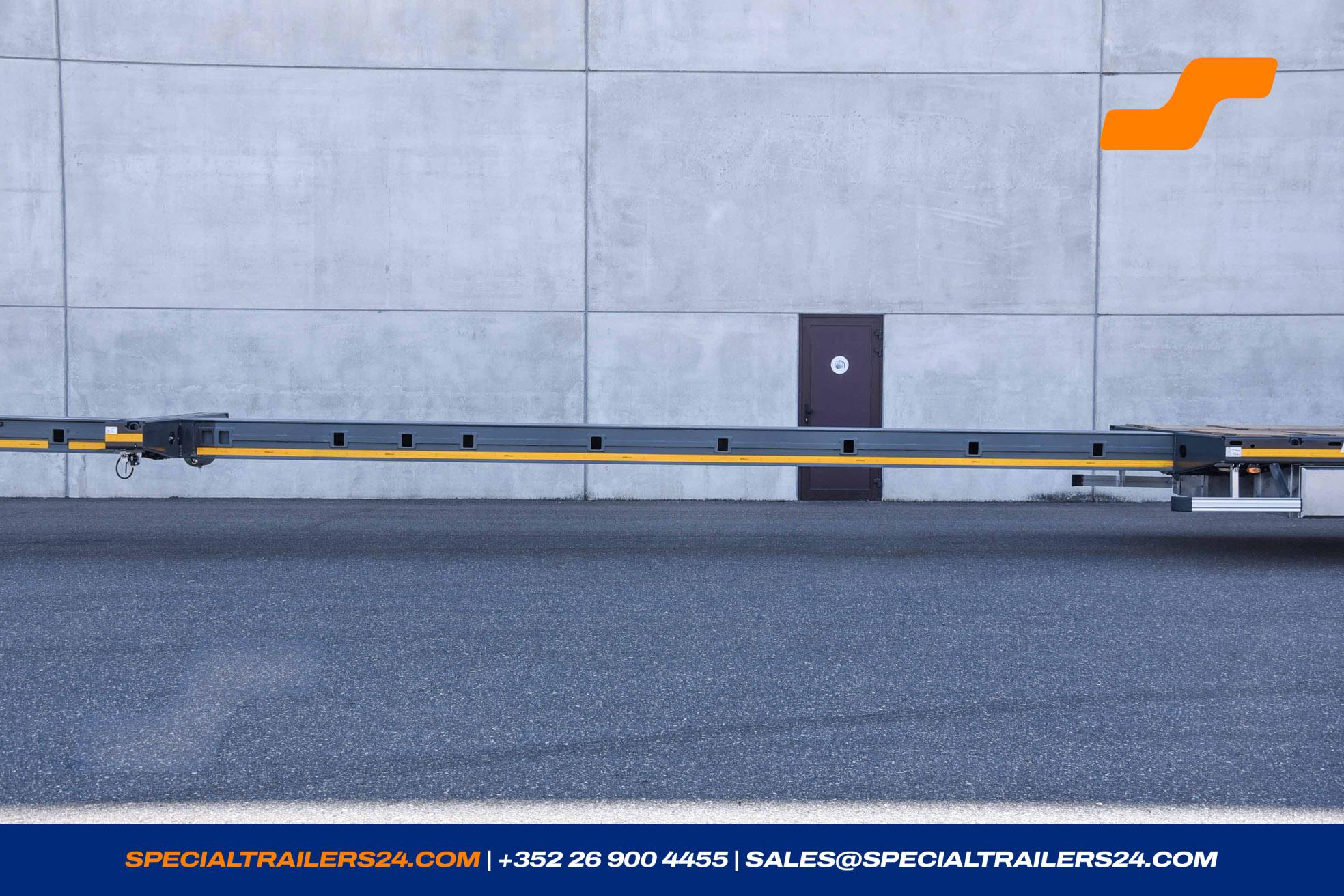

| Loading platform length | 13 500 mm |

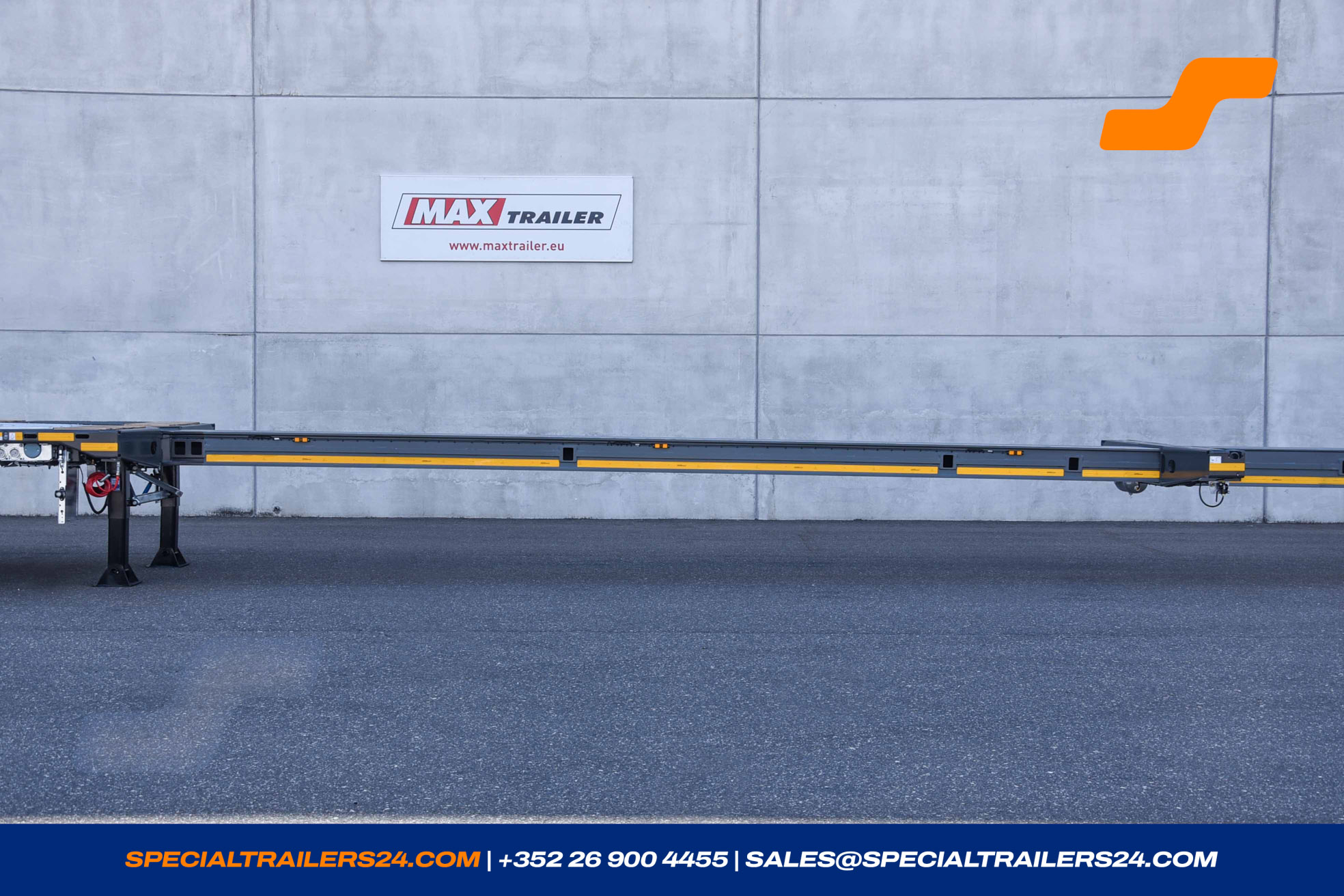

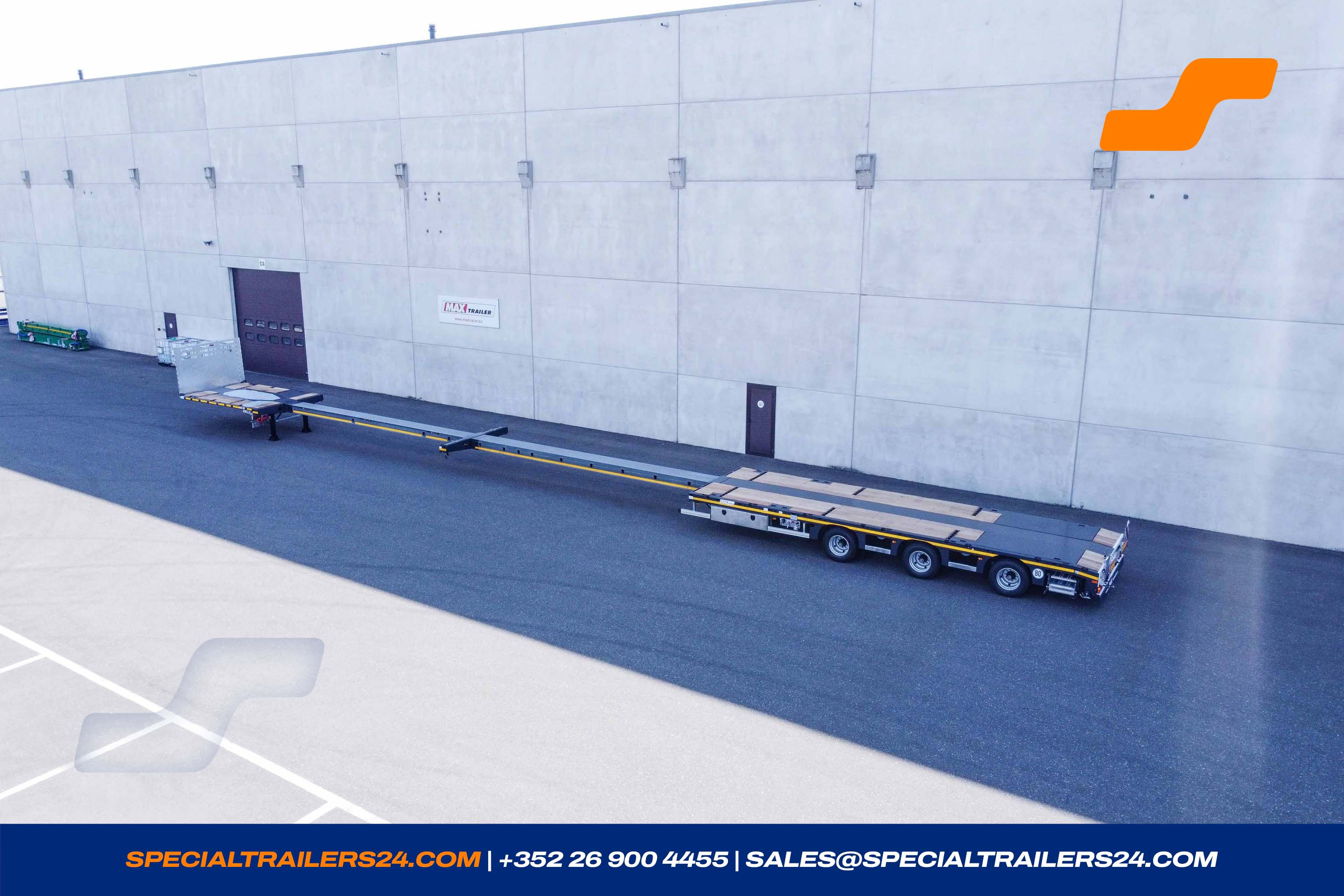

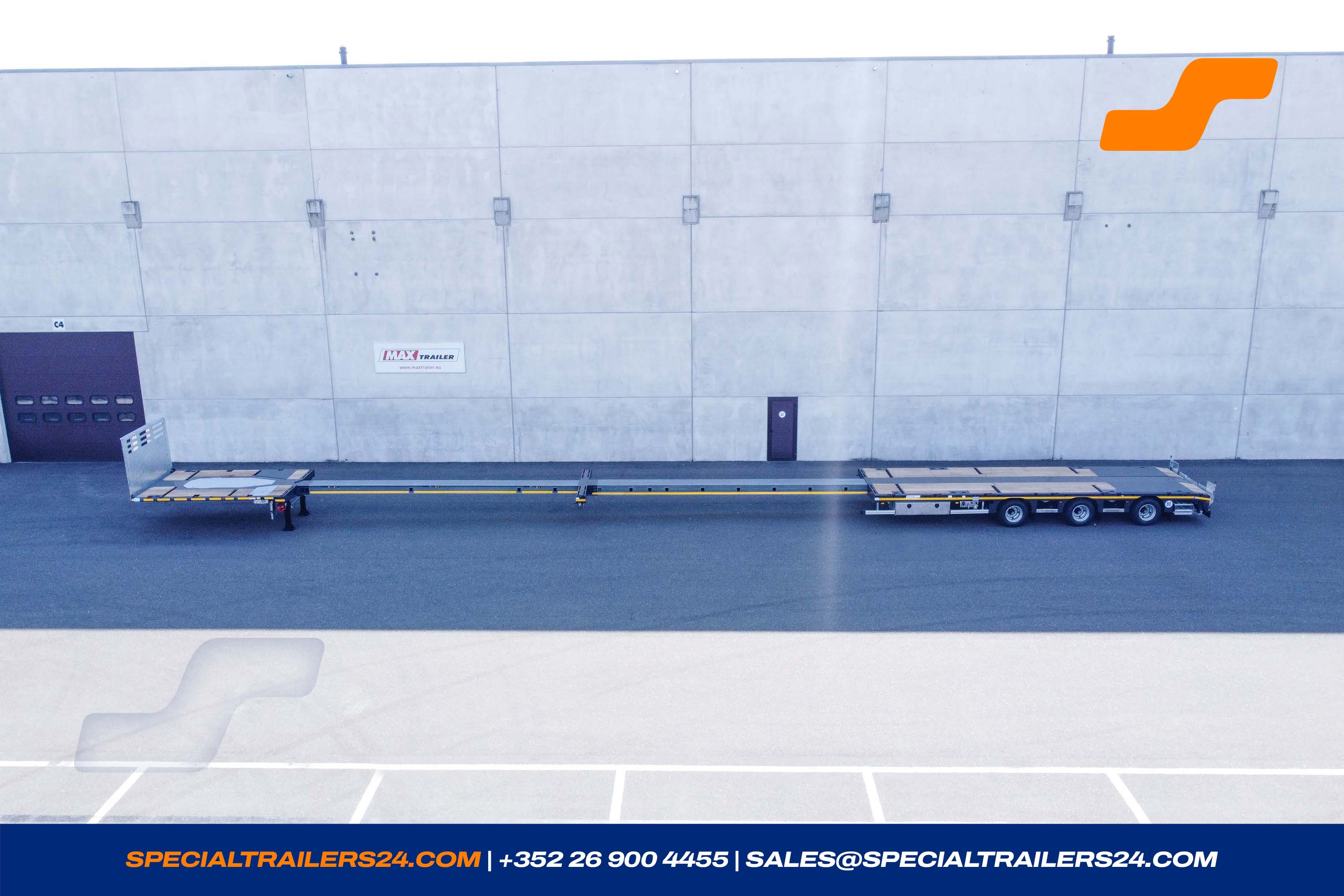

| Extendable by | 15 600 mm |
| Wheelbase | 1 810 mm |
| Total width | 2 540 mm |

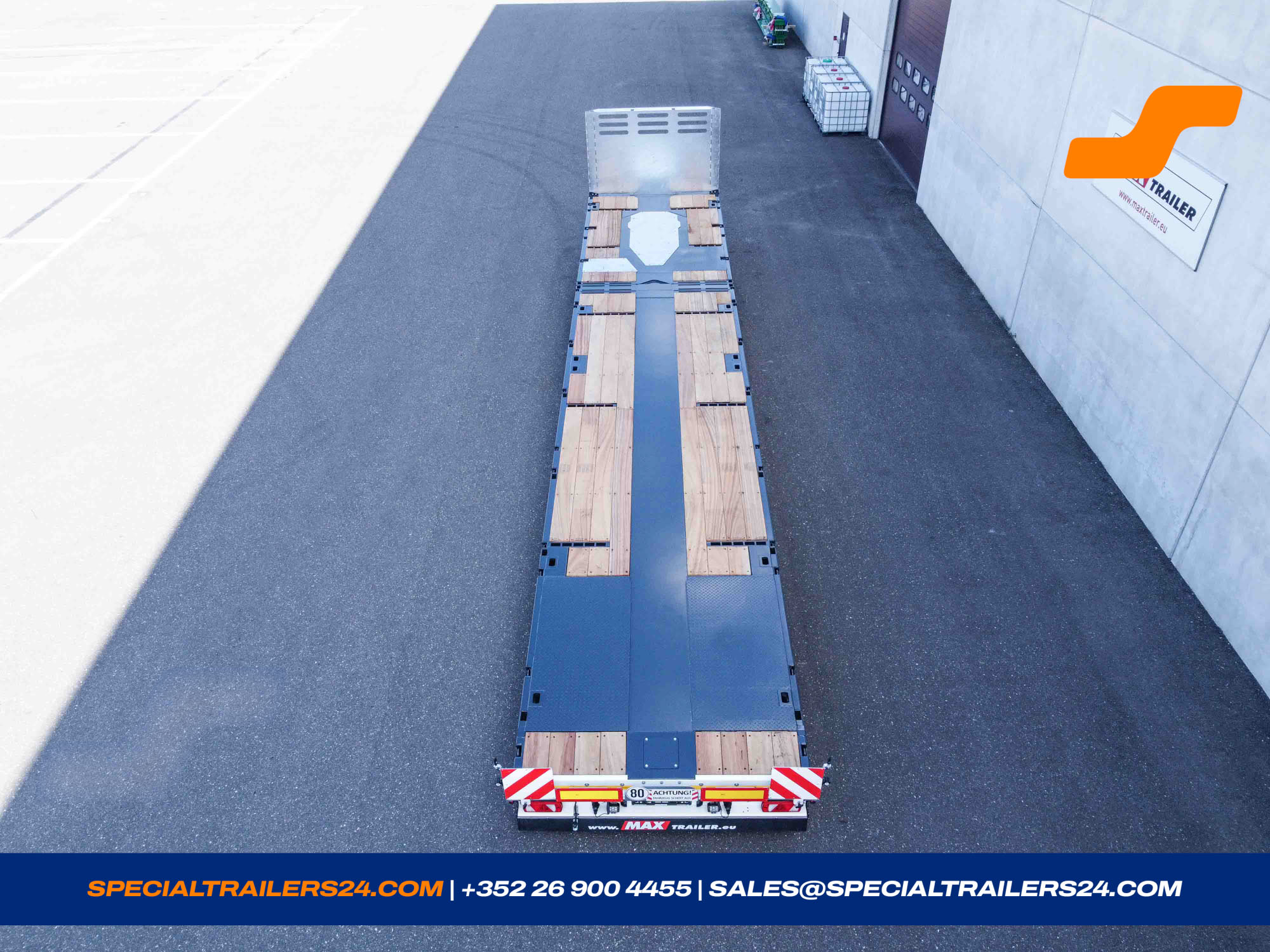

Loading deck

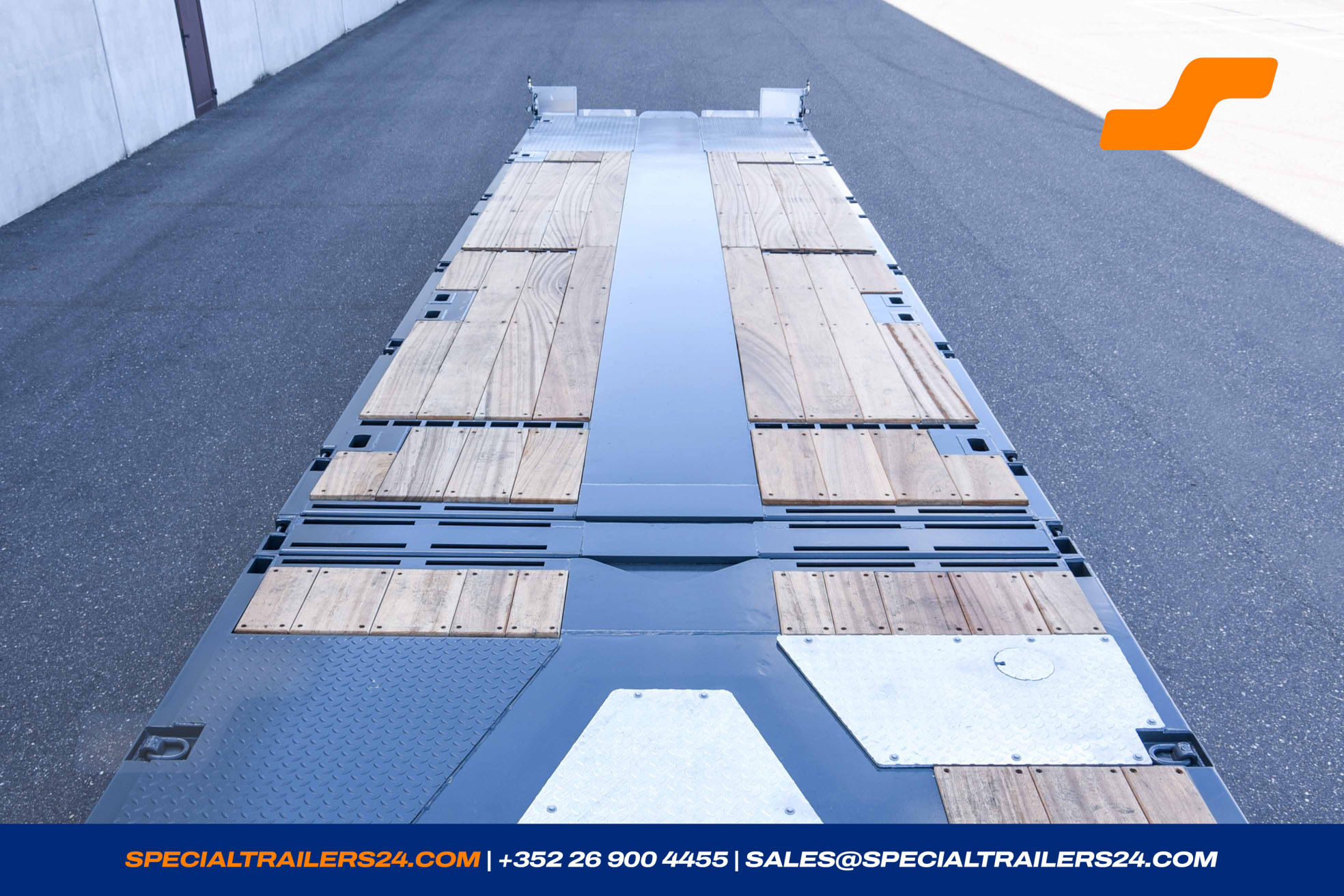

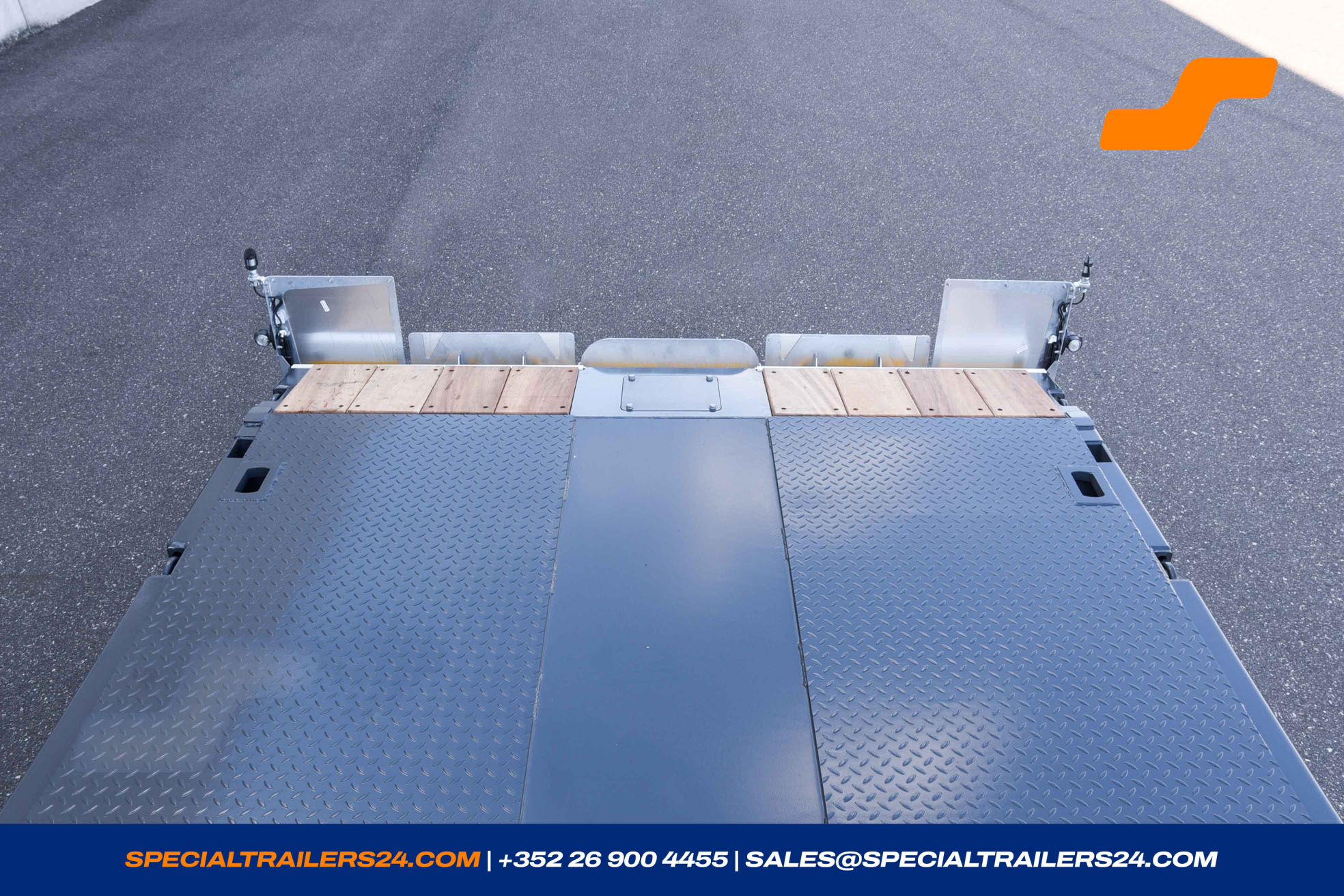

Loading platform
1 x Loading platform

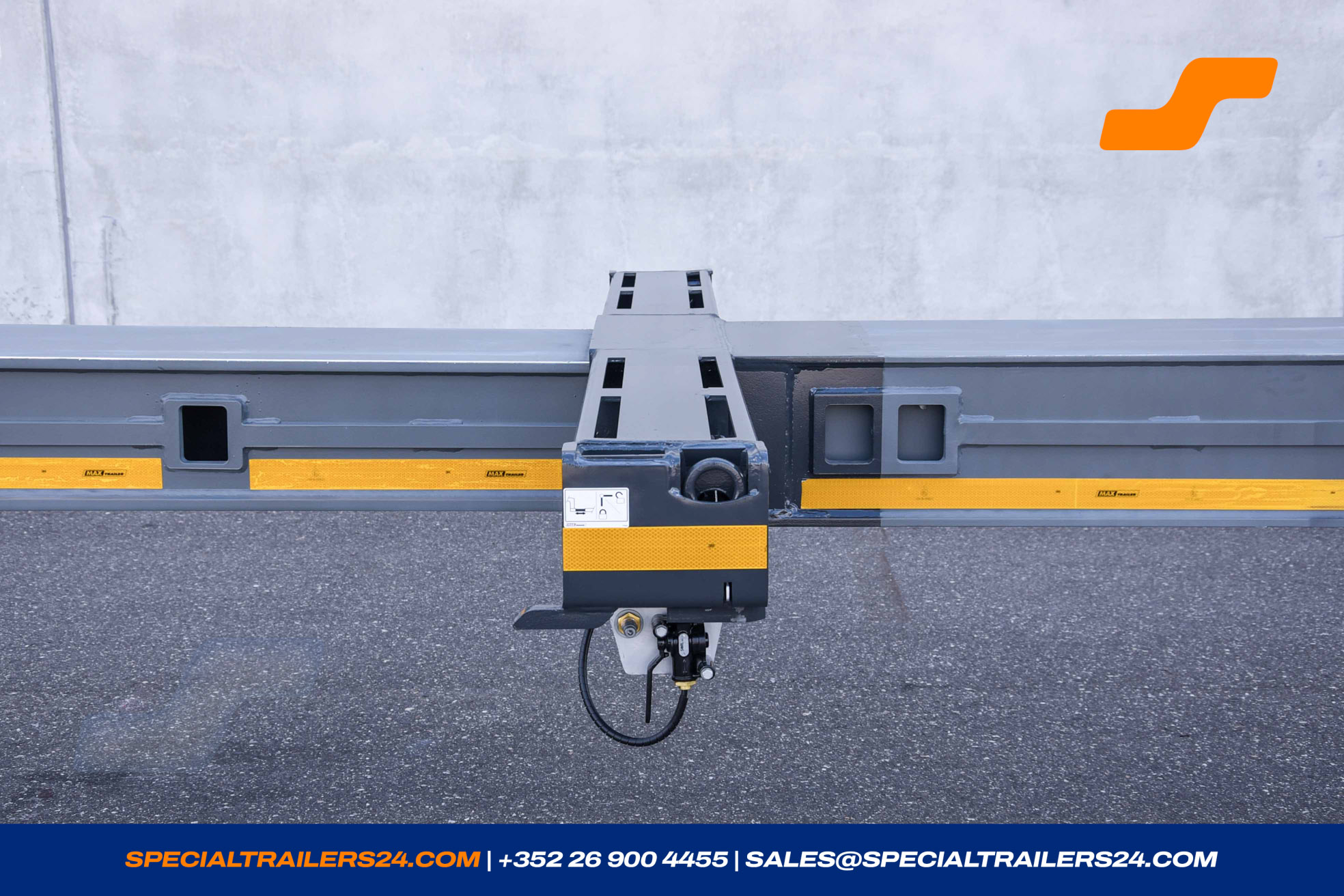

Loading area extendable center spine, pneumatically locked.
One fixed intermediate tabel + - 250 mmo n the extension beam.
2 pairs of lashing rings in the loading platform (LC 5 000 daN).
1 pairs of lashing rings in the loading platform(LC 10 000 daN).
7 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
3 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
Cutouts in the border frame of the loading area for hooking in tension belts. (LC 2 000 daN).
-

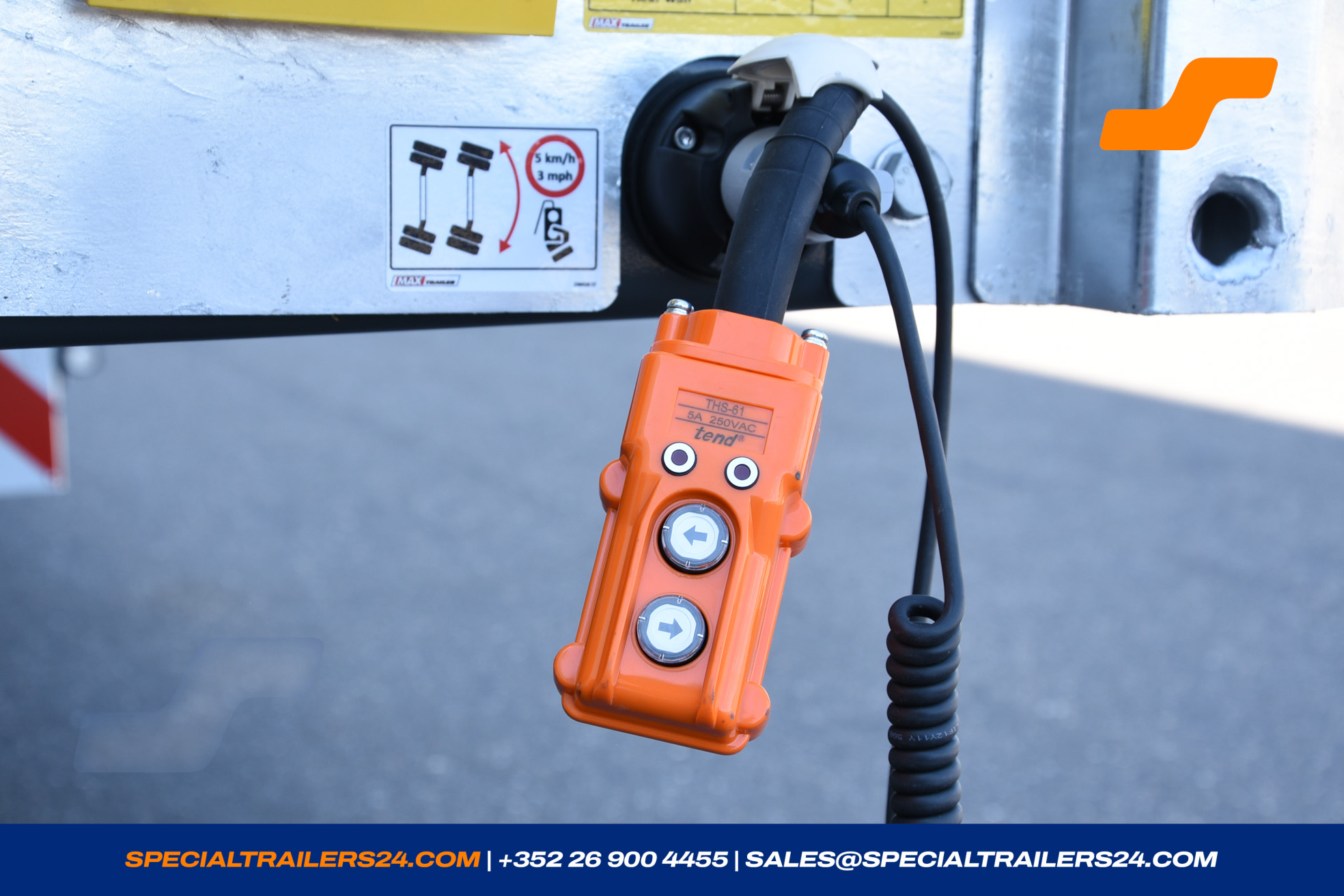

Manual-steering, handling with cable remote control from the front and the back, with PDC-light control for the realignement of the axles.
(without connection to the tractor). - Electrically operated hydraulic pump. (± 45kg)
- 2 wheel chocks with carrier on the headboard.
- 2 king-pin.
- Red and yellow air couplings on the galvanised front connection ledge.
- Yellow reflective tape according to the EU regulation over the entire length, on the extension and at the rear.

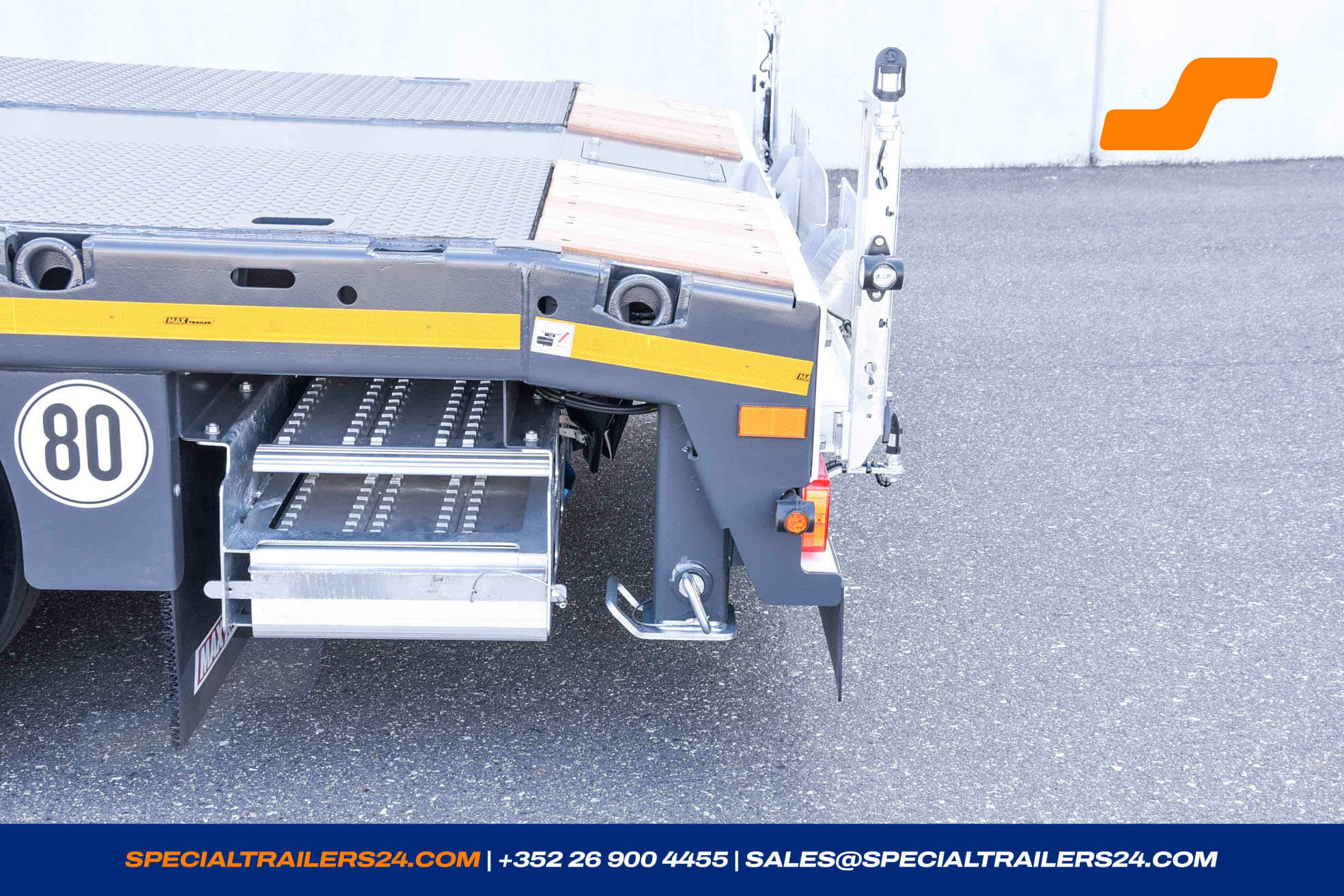

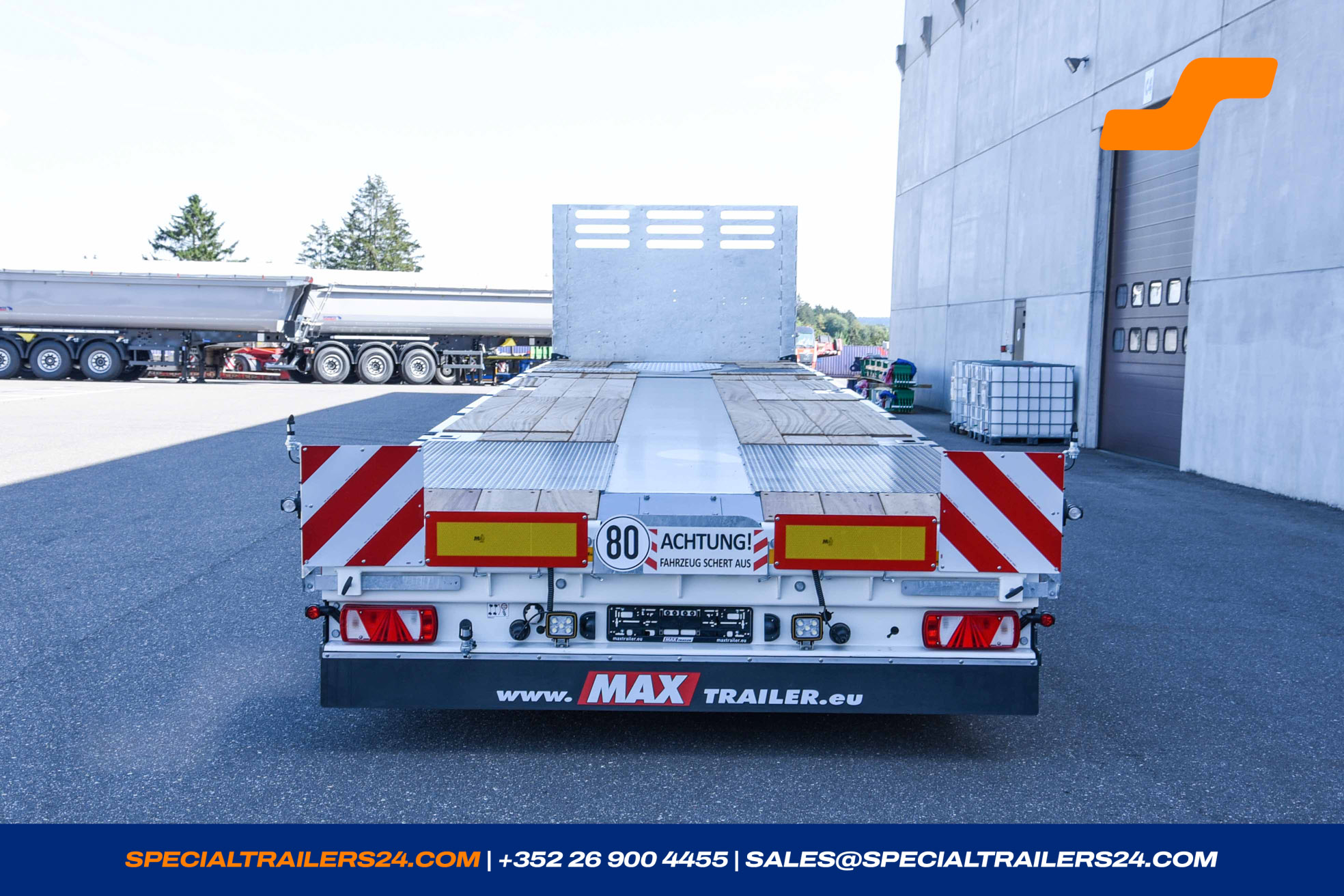

- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Holder for one beacon light at the rear of the trailer.

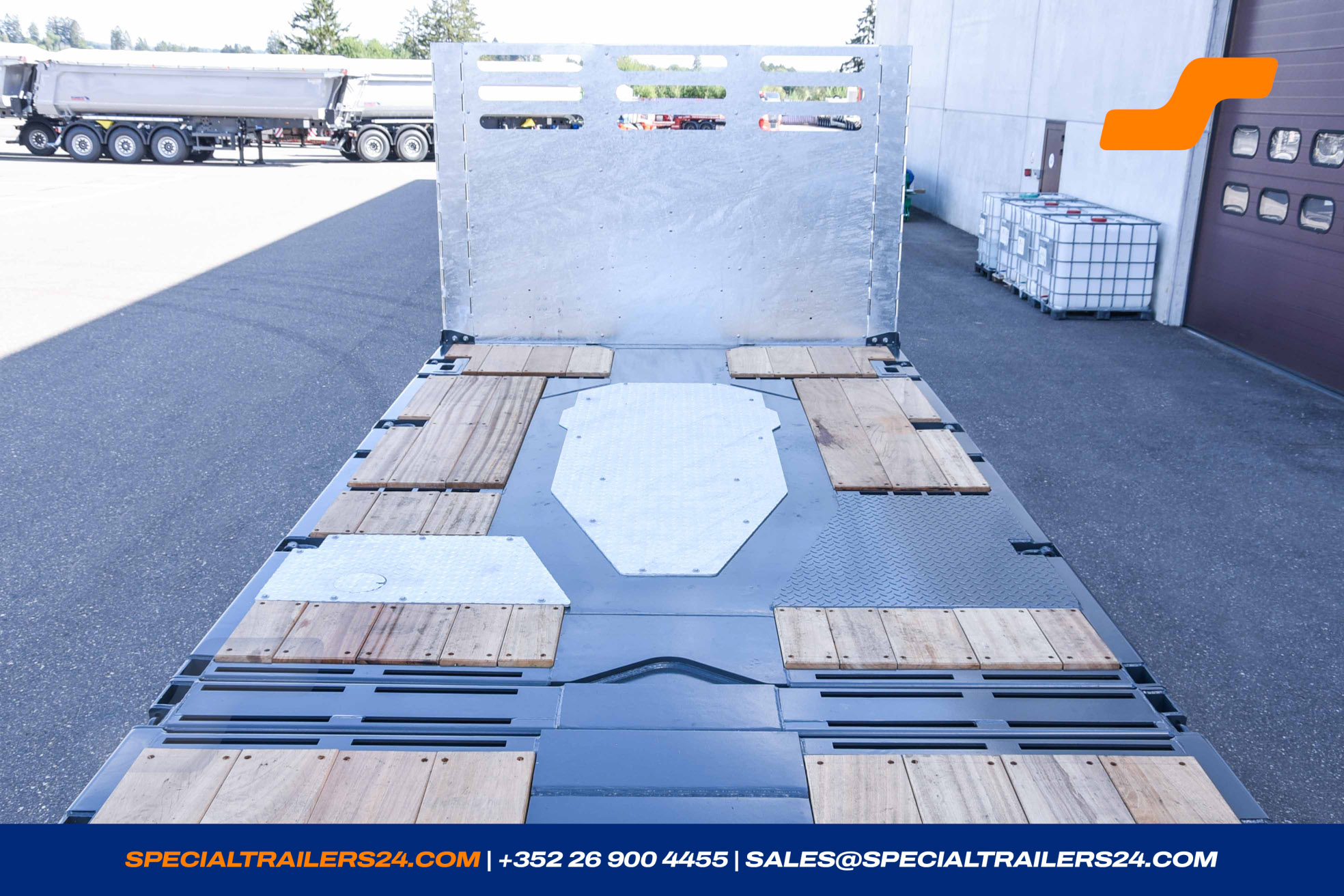

- Loading area with hardwood timber.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
- 10 pairs of pockets for stakes ± 100 x 50 mm in the outer frame of the loading platform. (± 30 kg)

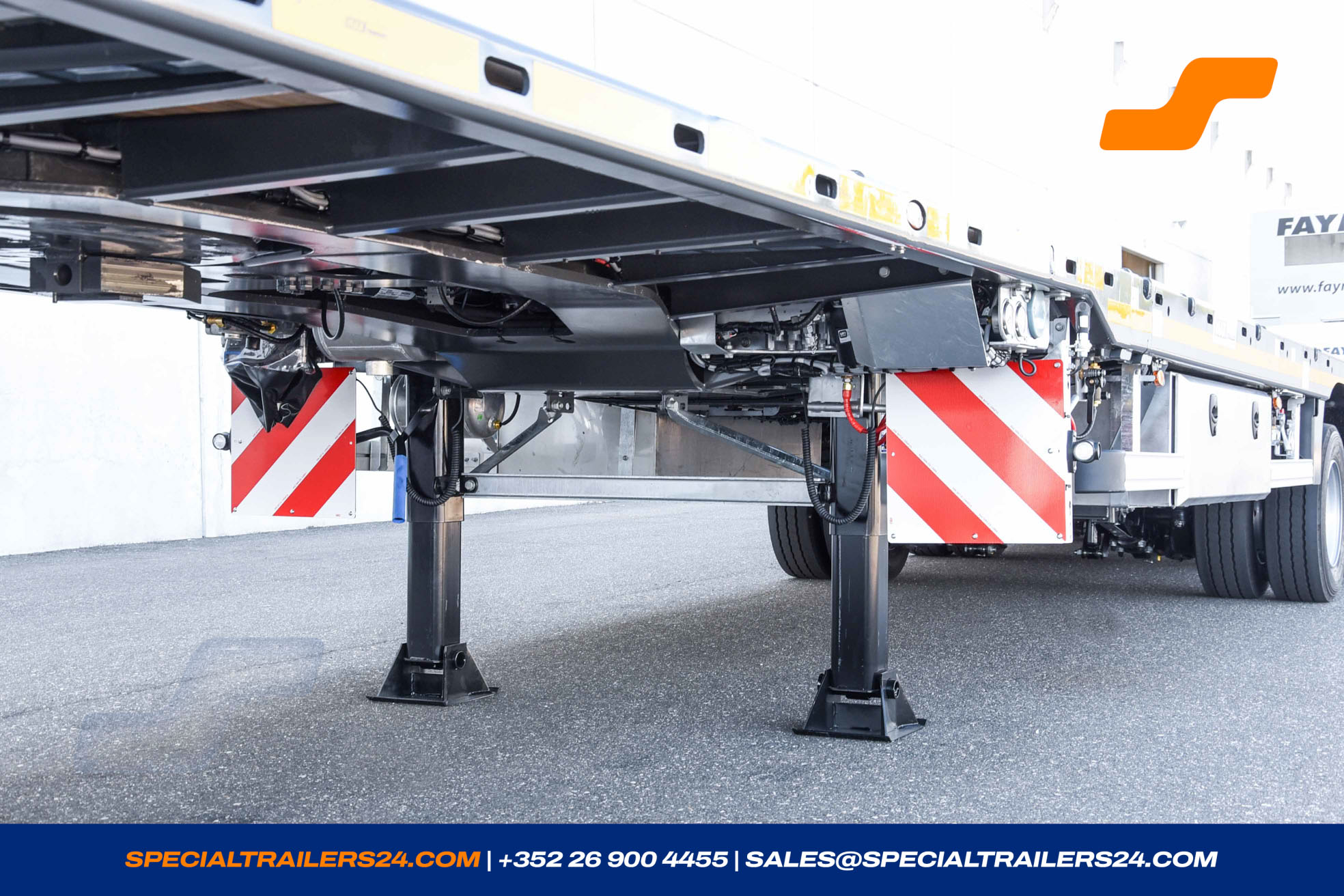

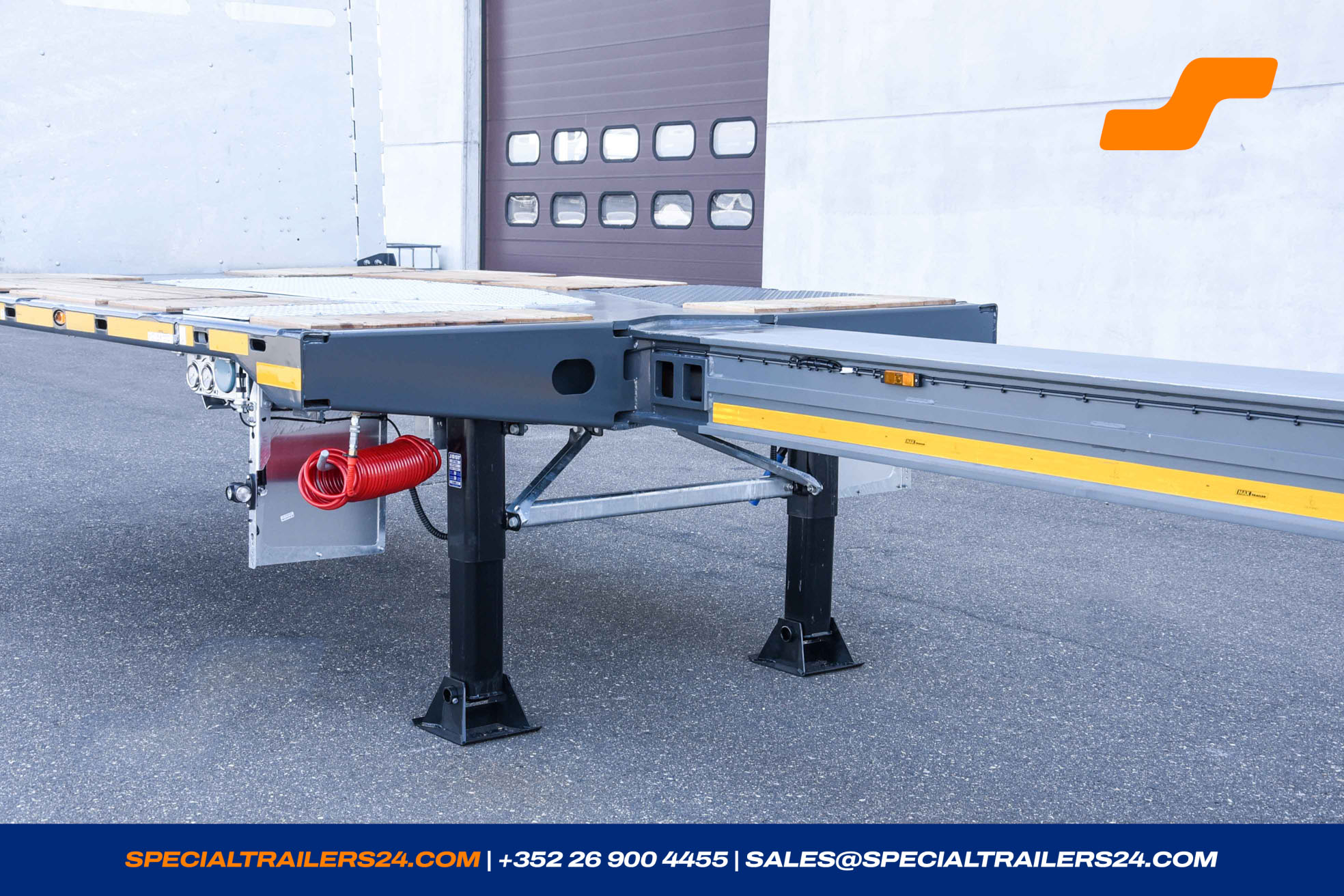

- Galvanised landing gears at the rear under the chamfer of loading platform.
-

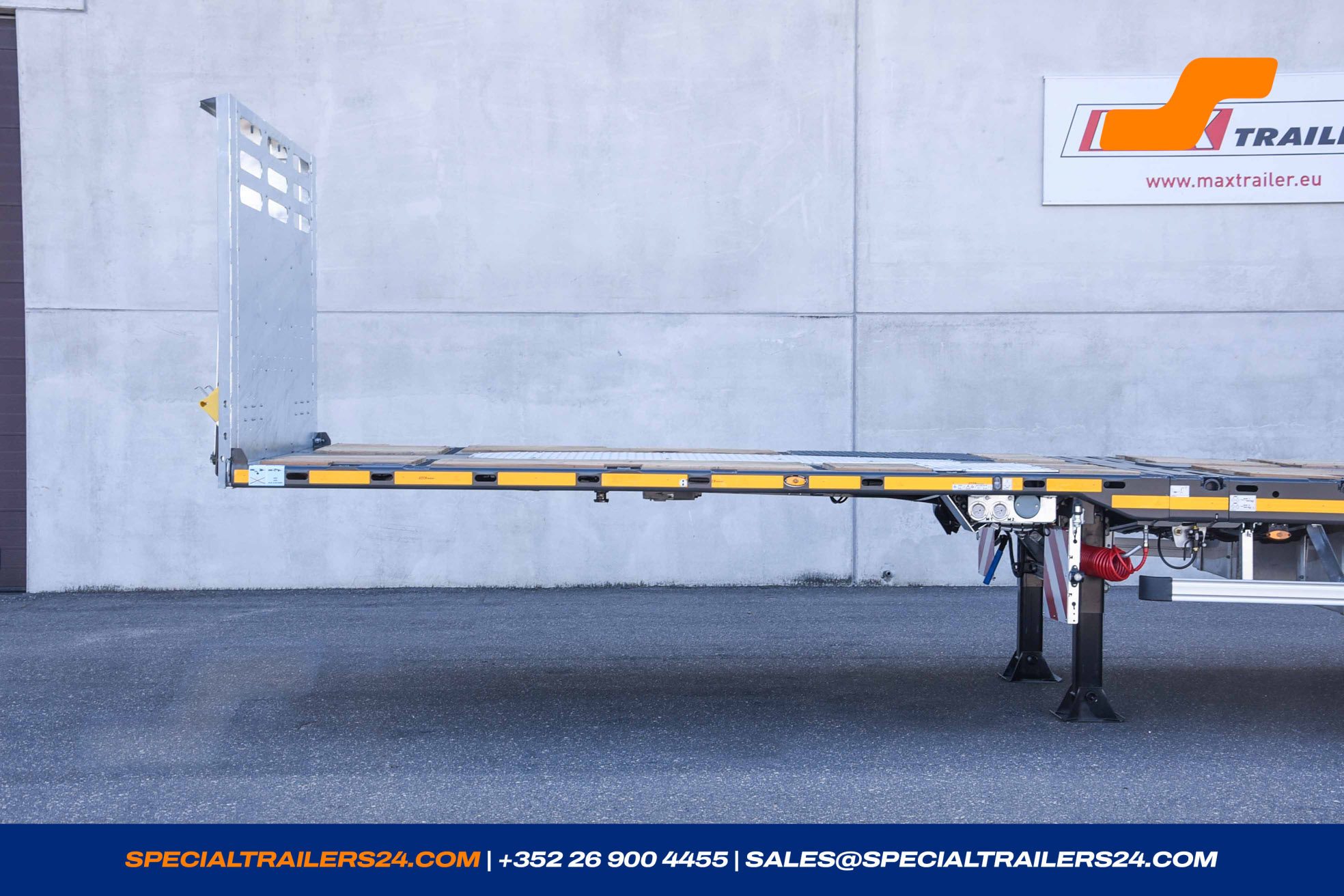

One galvanised steel headboard, height ± 1 600 mm. (± 35 kg)
EN12642-XL - 6 pairs of containerpockets incorporated into the loading platform for 1 x 20' or 2 x 20' Containers or 1 x 40' Containers. A locking position in the extending for a container 1 x 45'. (± 90 kg)
- 5 pairs of stake pocket rows in the loading platform, for stakes 100 x 50 mm. (± 165 kg)
- Galvanised outriggers, extendable up to ± 230 mm per side (± 230 kg).

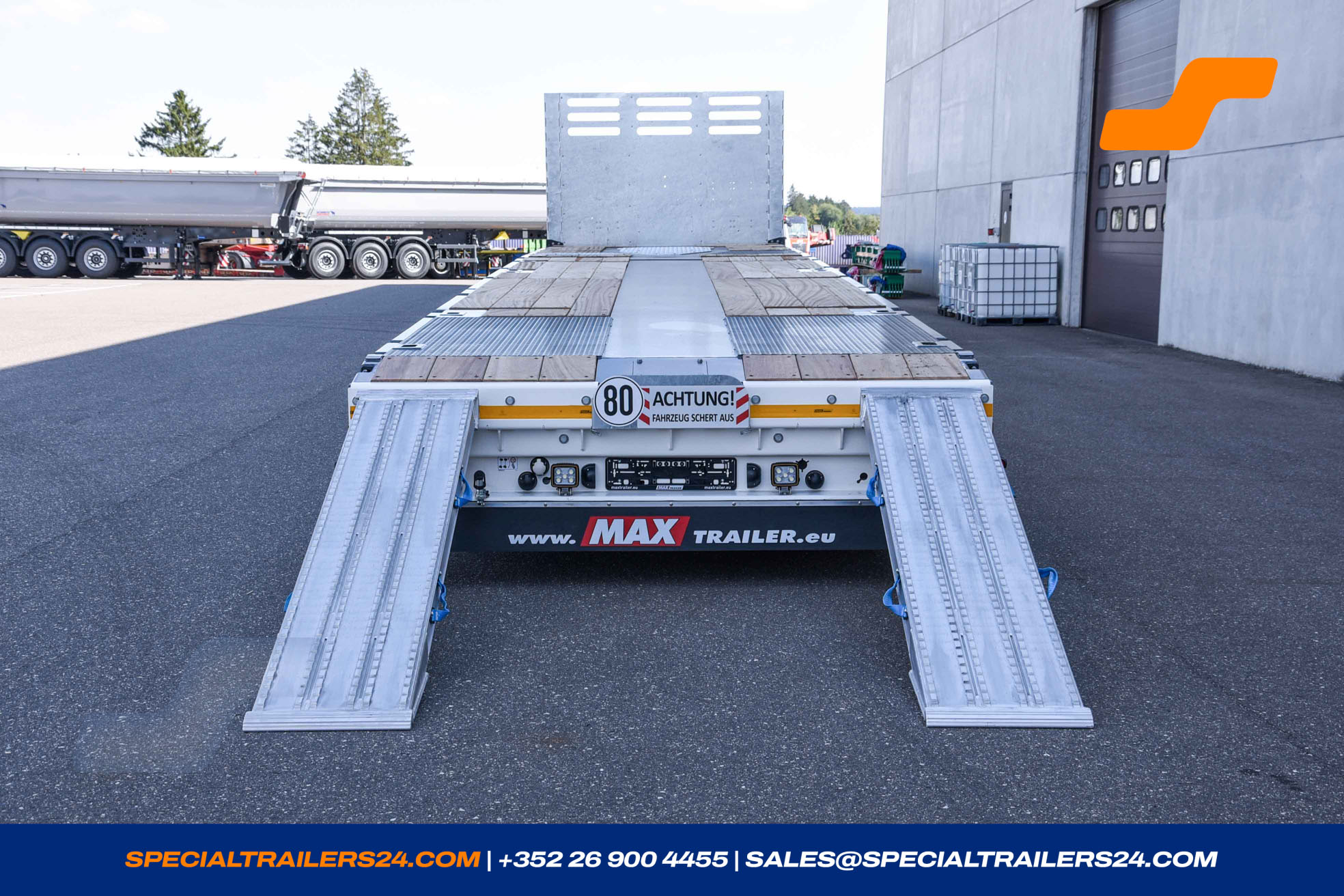

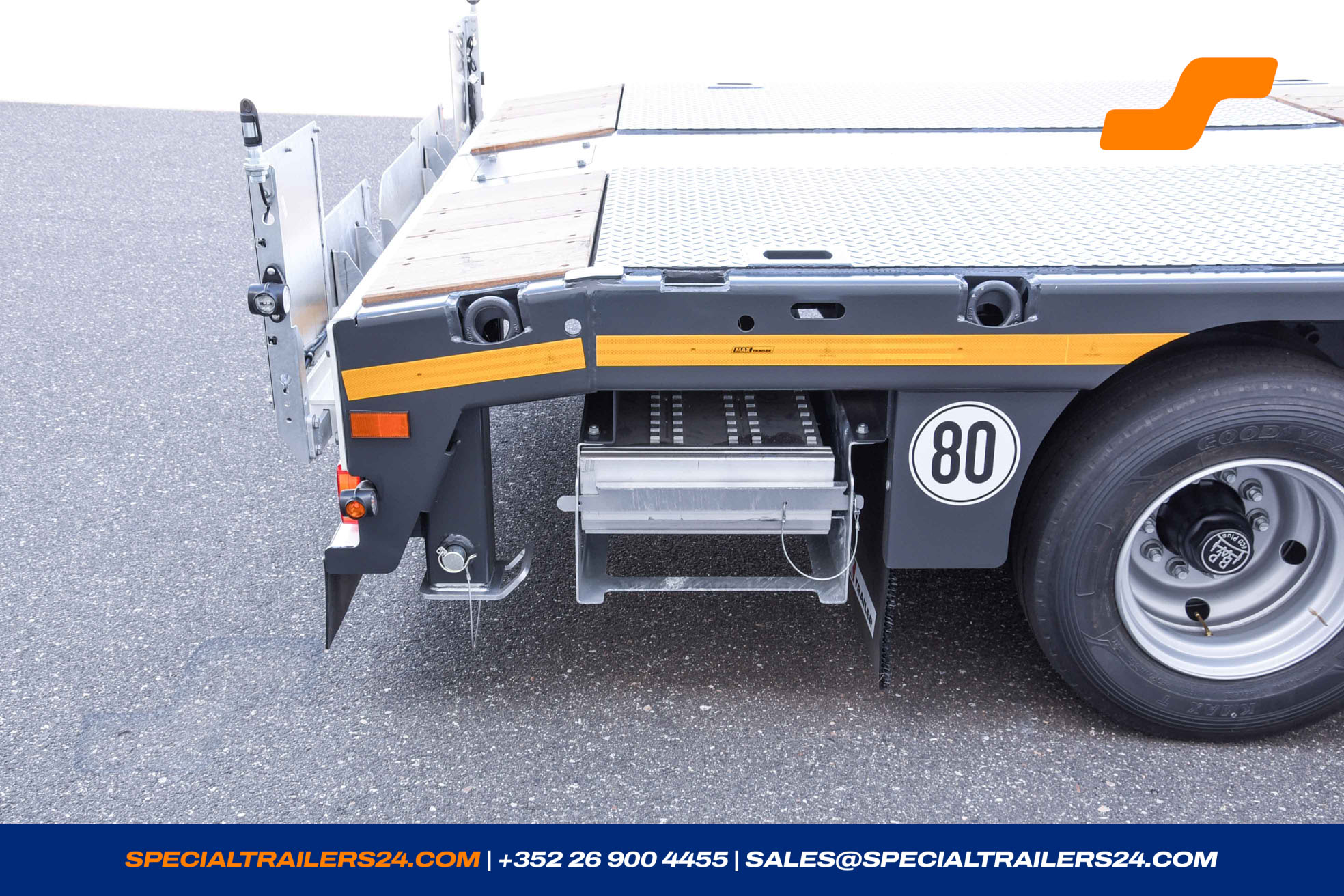

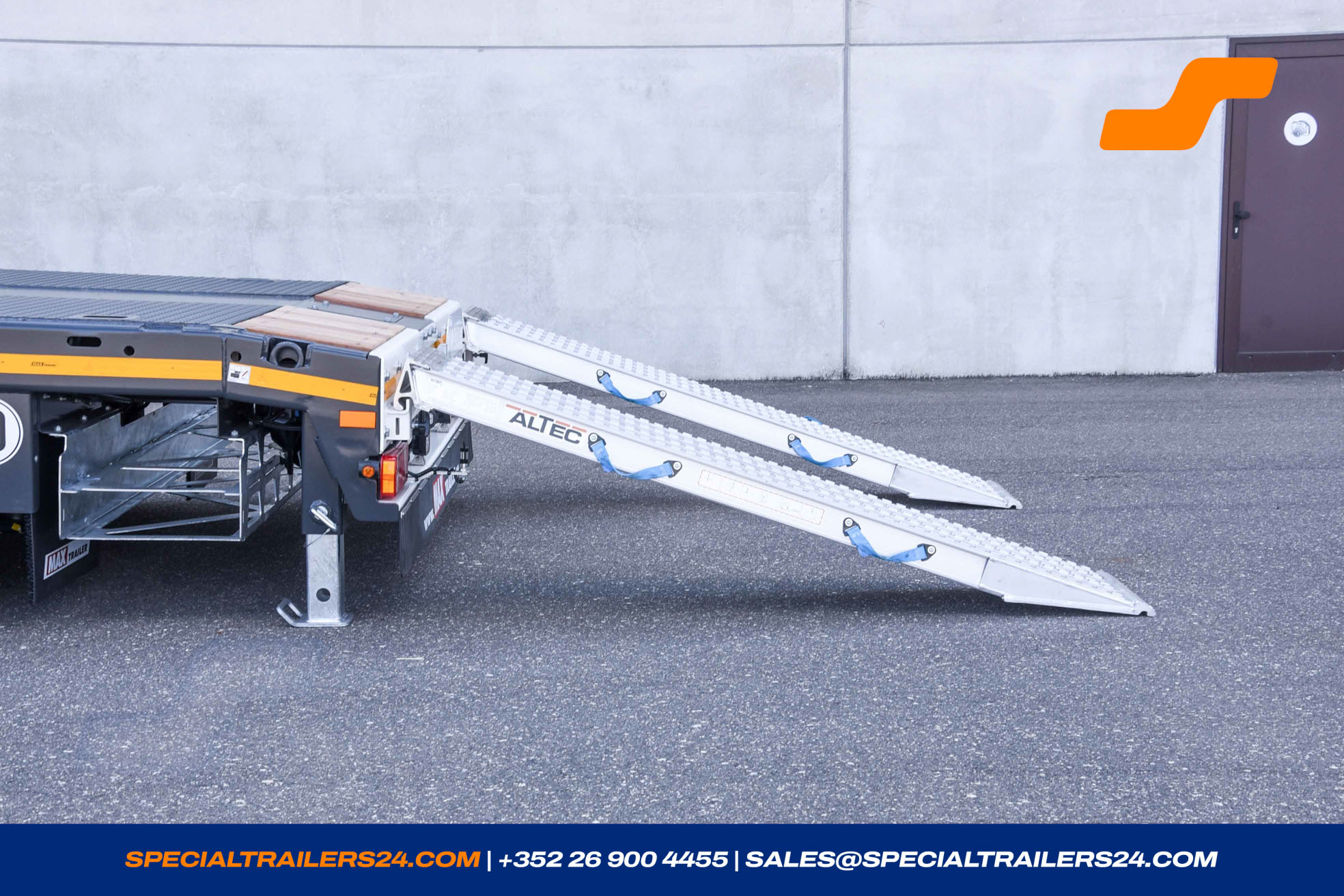

- Profile displaceable as hook-on device for alu-ramps at the rear.

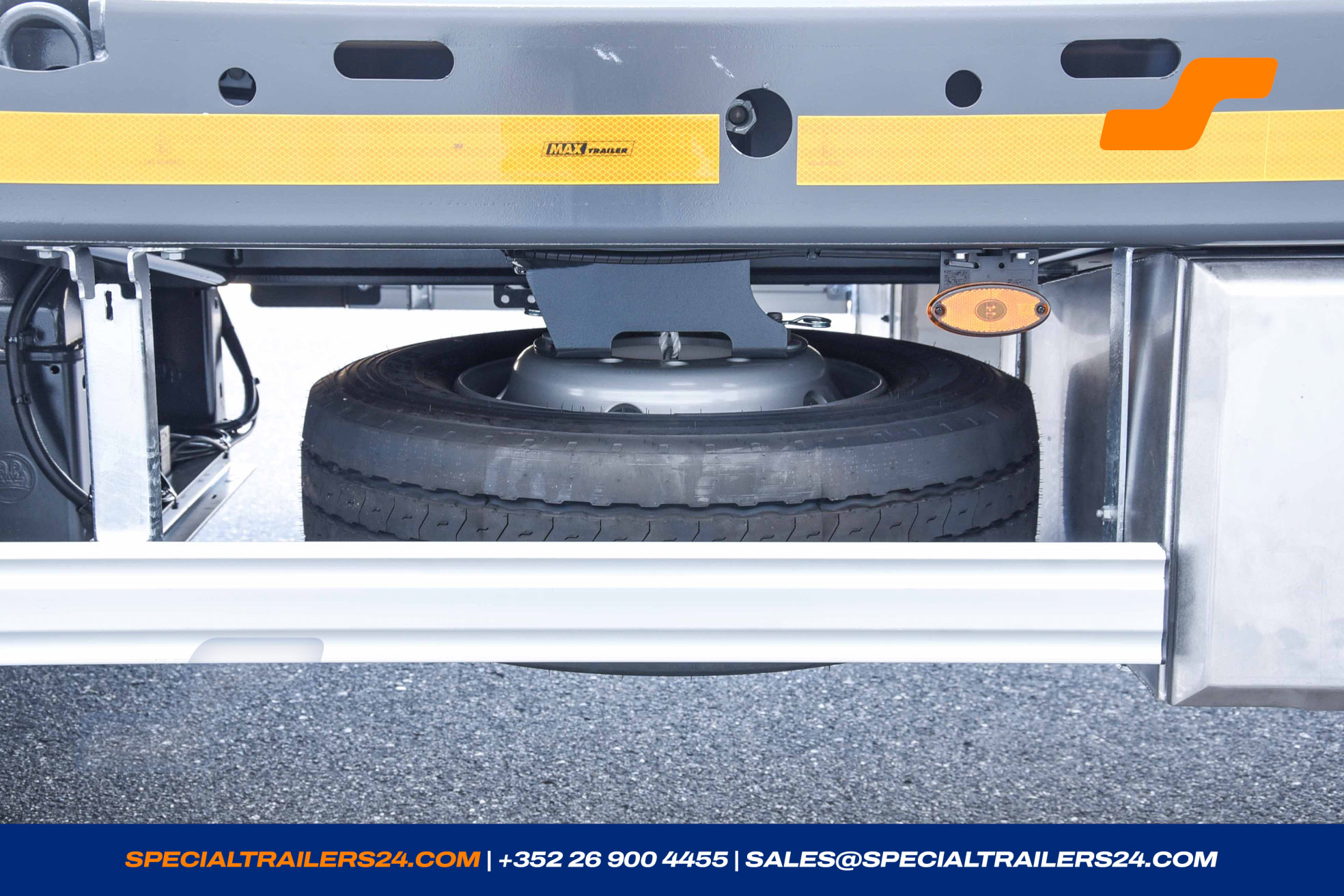

- 1 spare wheel with holder 245/70 R17.5 3PMSF (± 73 kg)
- Cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 250 A) between the semi-trailer and the truck with socket (NATO-NATO).
- Lift axle on the front axle with control by TEBS-E depending on the current axle load and the current loading condition (± 69 kg).

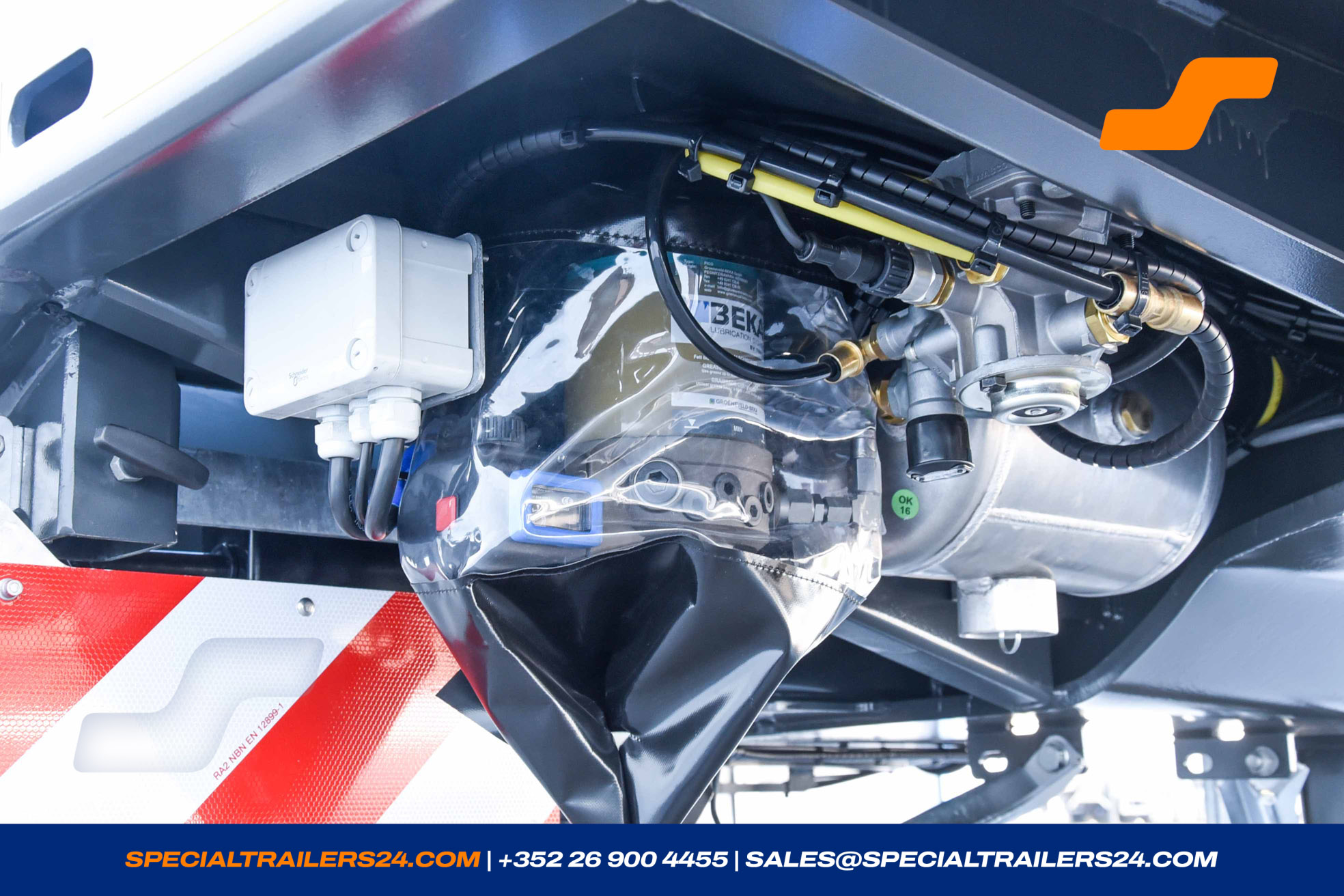

- Central greasing with 2 pumps BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pumps. (± 26 kg)
Accessories
1 x Accessories
- Manual and description on USB stick .
- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- 1 LED flashing beacon, provided separately.
- 2 LED- reversing lights at the rear.
- Delivery from a trailer to factory Lentzweiler.

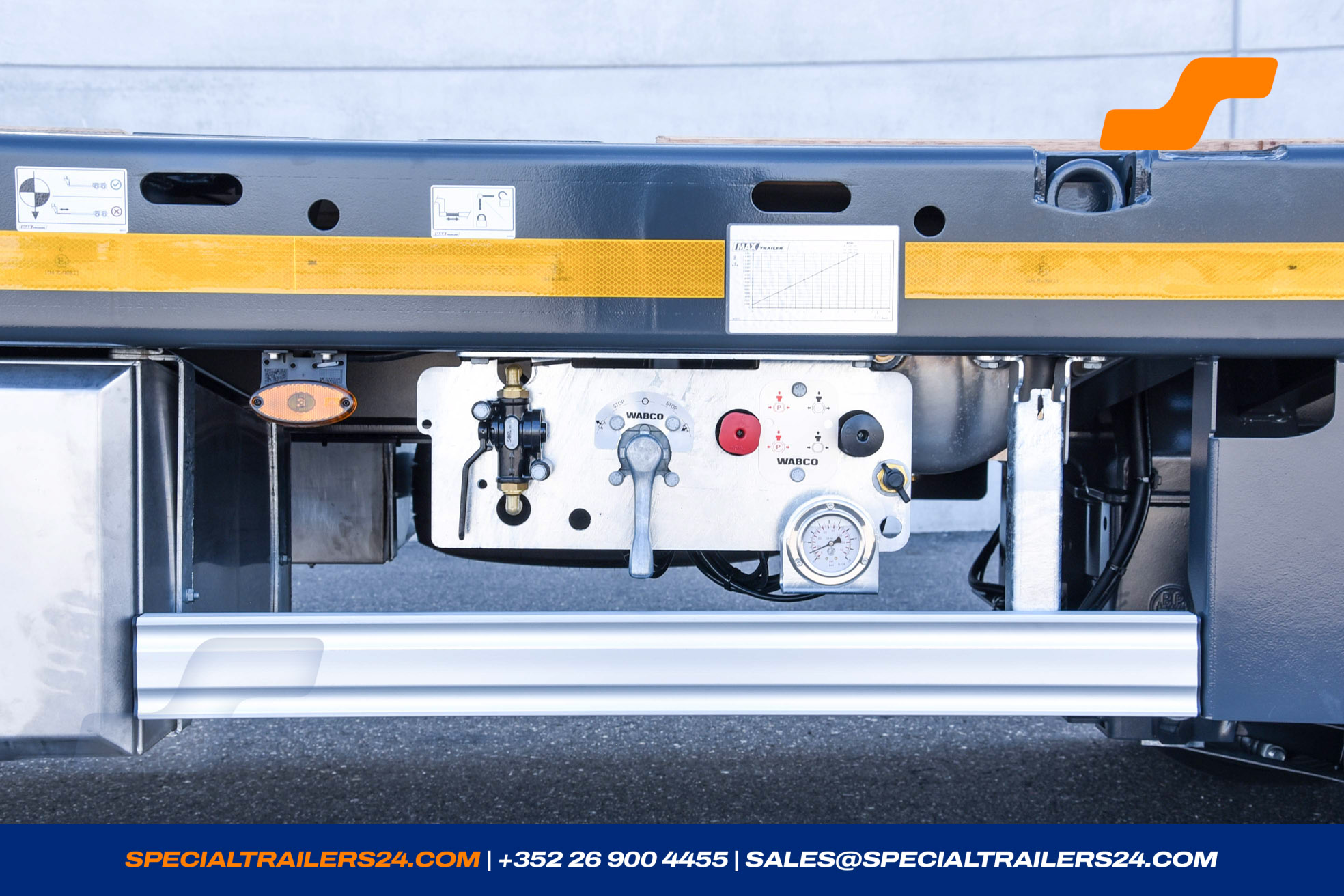

- Load manometer for determining the axle load, including load diagram.
