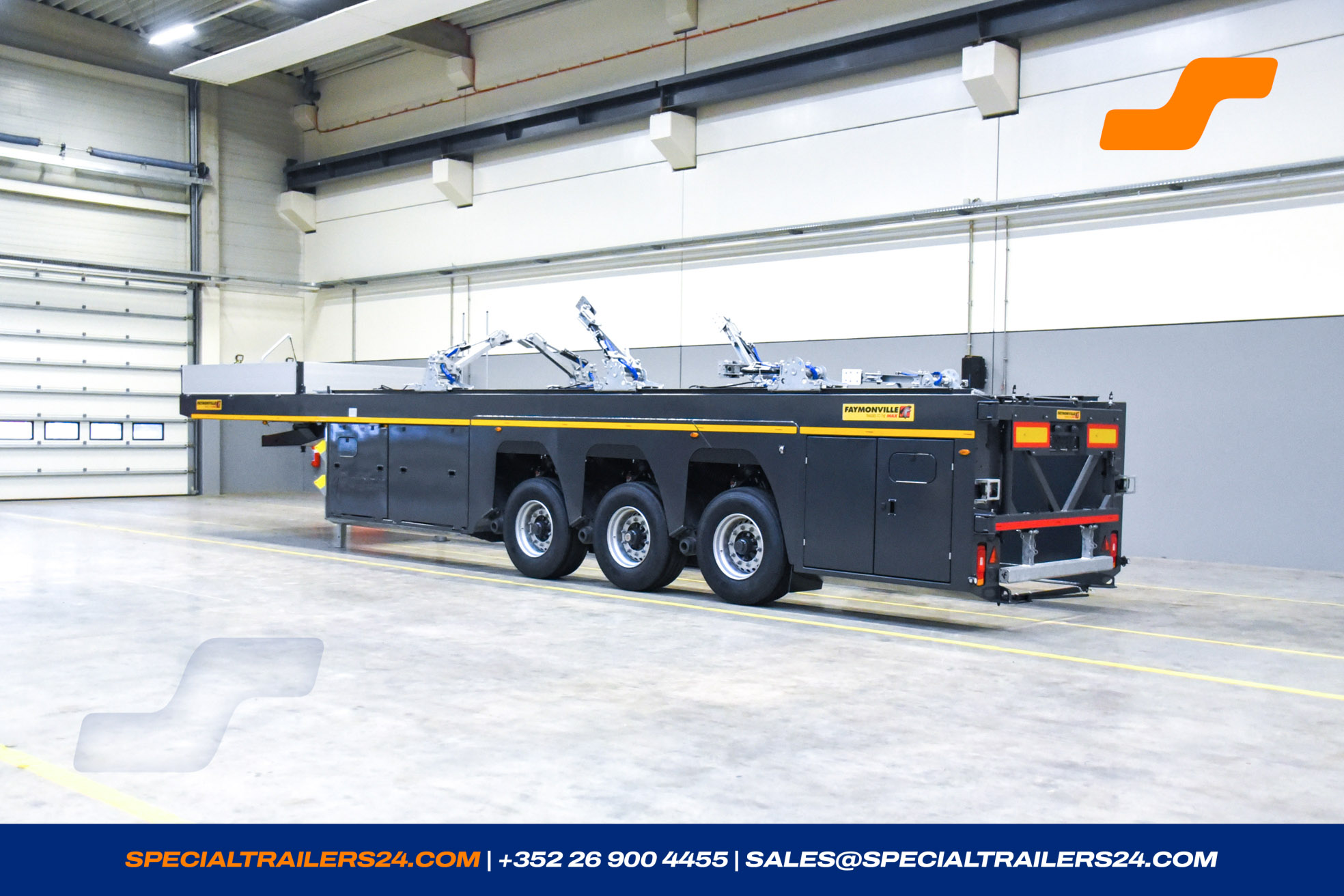

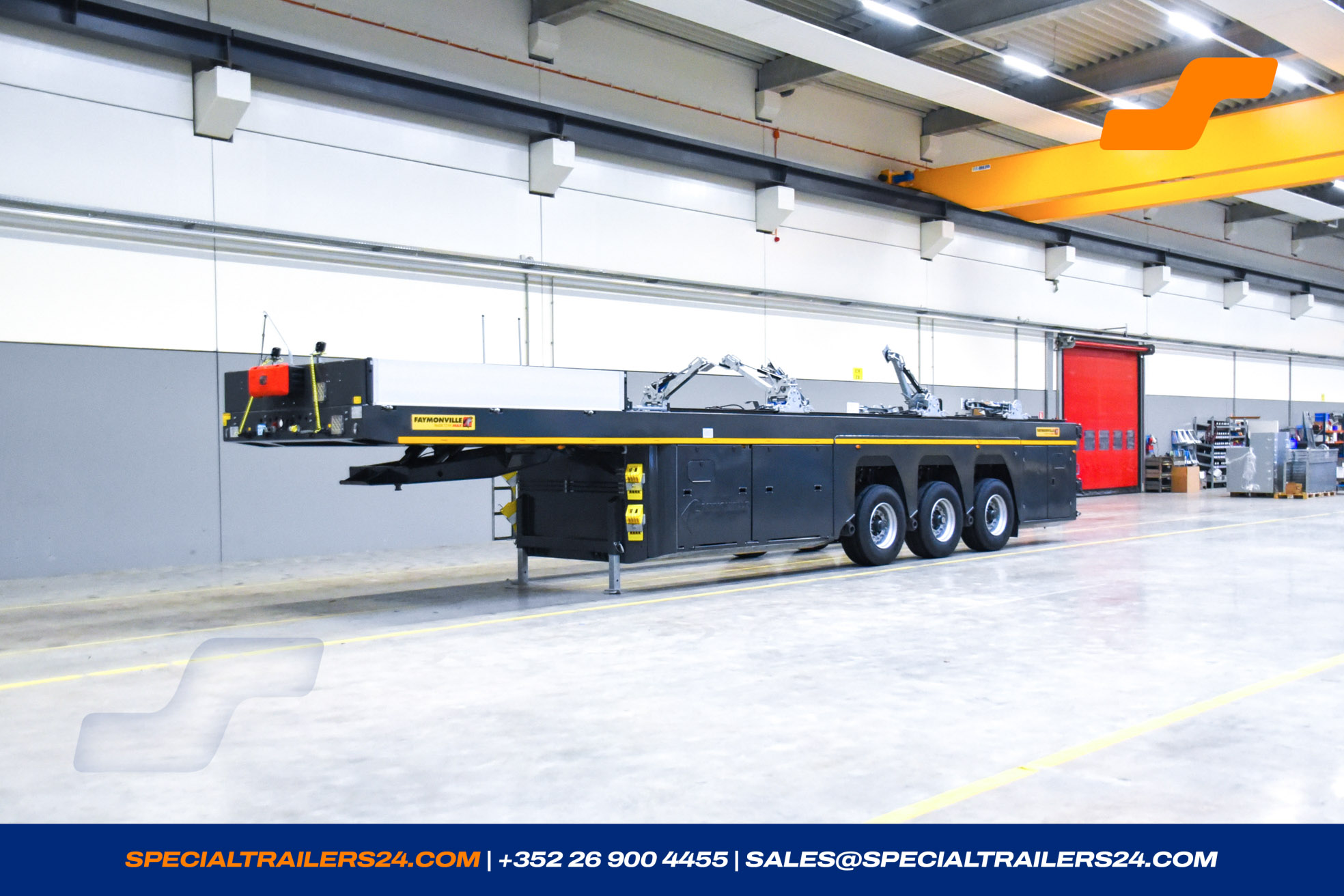

Inloader
Faymonville PrefaMAX
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 39169
- Reference Prefa-3HH-18-9.50-22.5-2.55
- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 07/2026
- Steering Type Rigid
Availability
07/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 27000 kg |
| Gross weight | 45000 kg |
| Tare weight +- 3% | 9942 kg |
| Payload | 35058 kg |
Dimensions
| Fifth wheel height loaded | 1150-1300 mm |
| Gooseneck length | 3 500 mm |
| Rear gooseneck swing | 2 300/2 000 mm |
| Stroke of hydraulic rocker | -280/+250 mm |
| Loading platform length | 9 500 mm |
| Wheelbase | 8 000 mm |
| Loading platform width | 2 550 mm |
| Loading width | 1 560 mm |
| Suspension stroke | -280/+230 mm |
| Axle distance | 1 405 mm |
Gooseneck
1 x Gooseneck

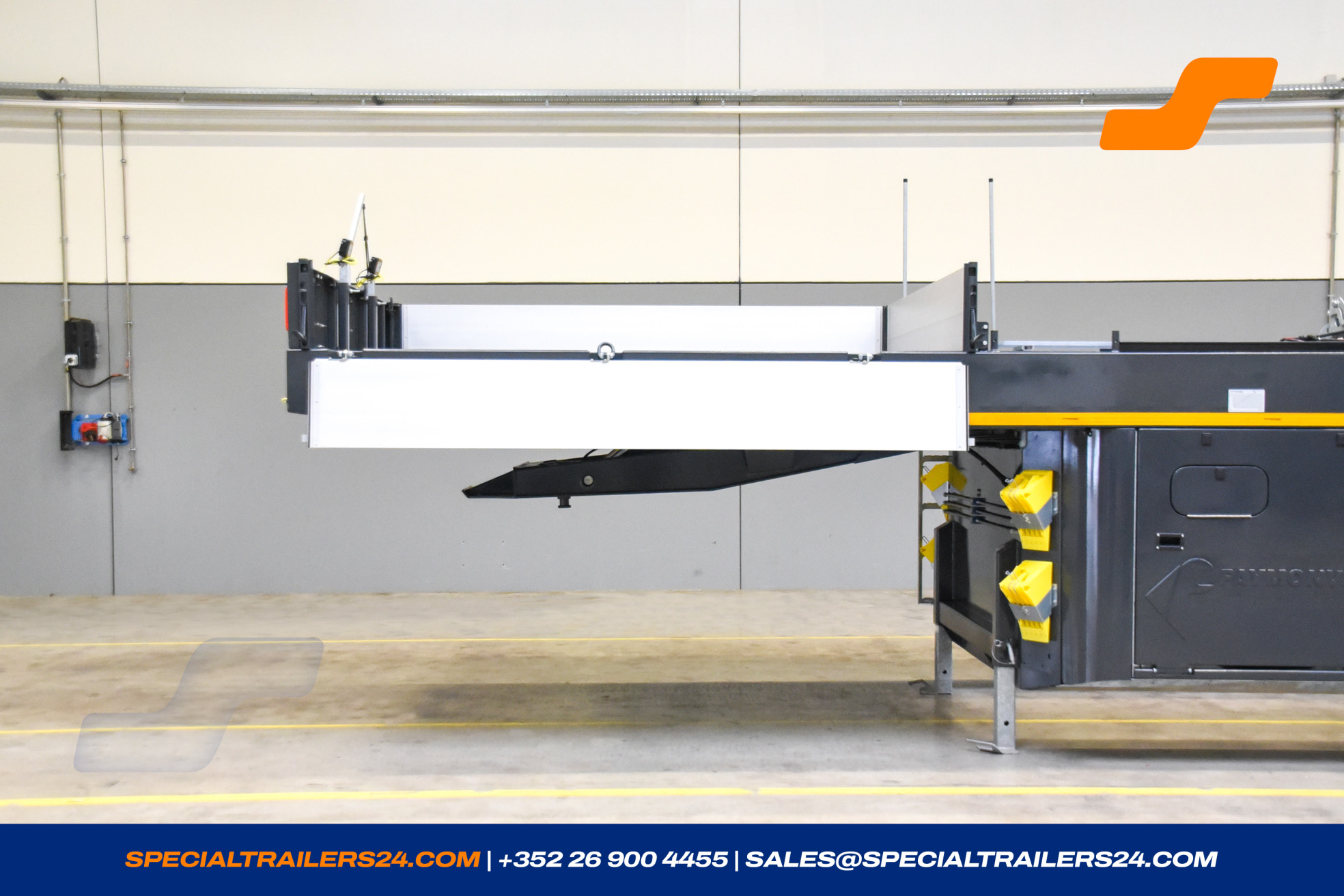

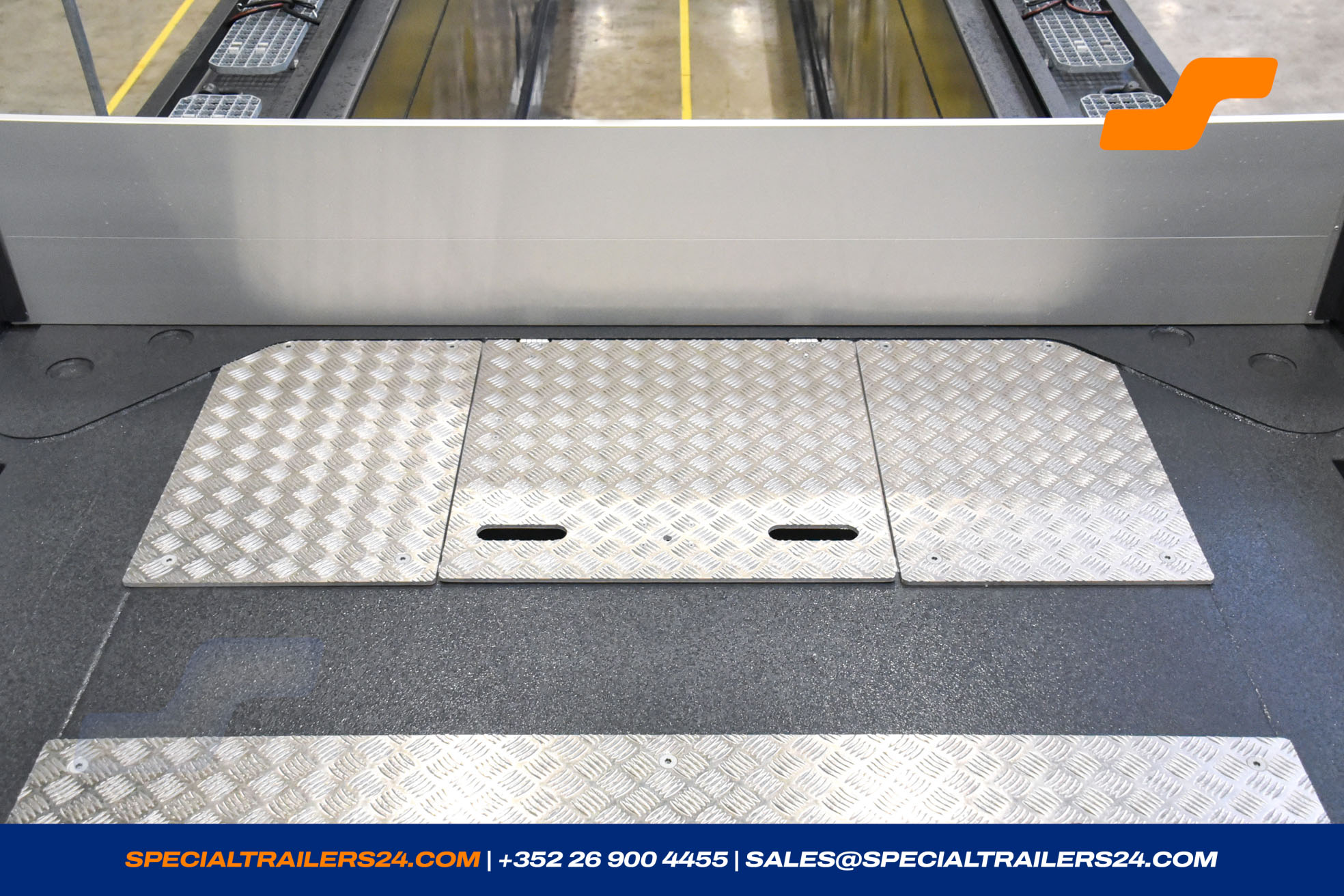

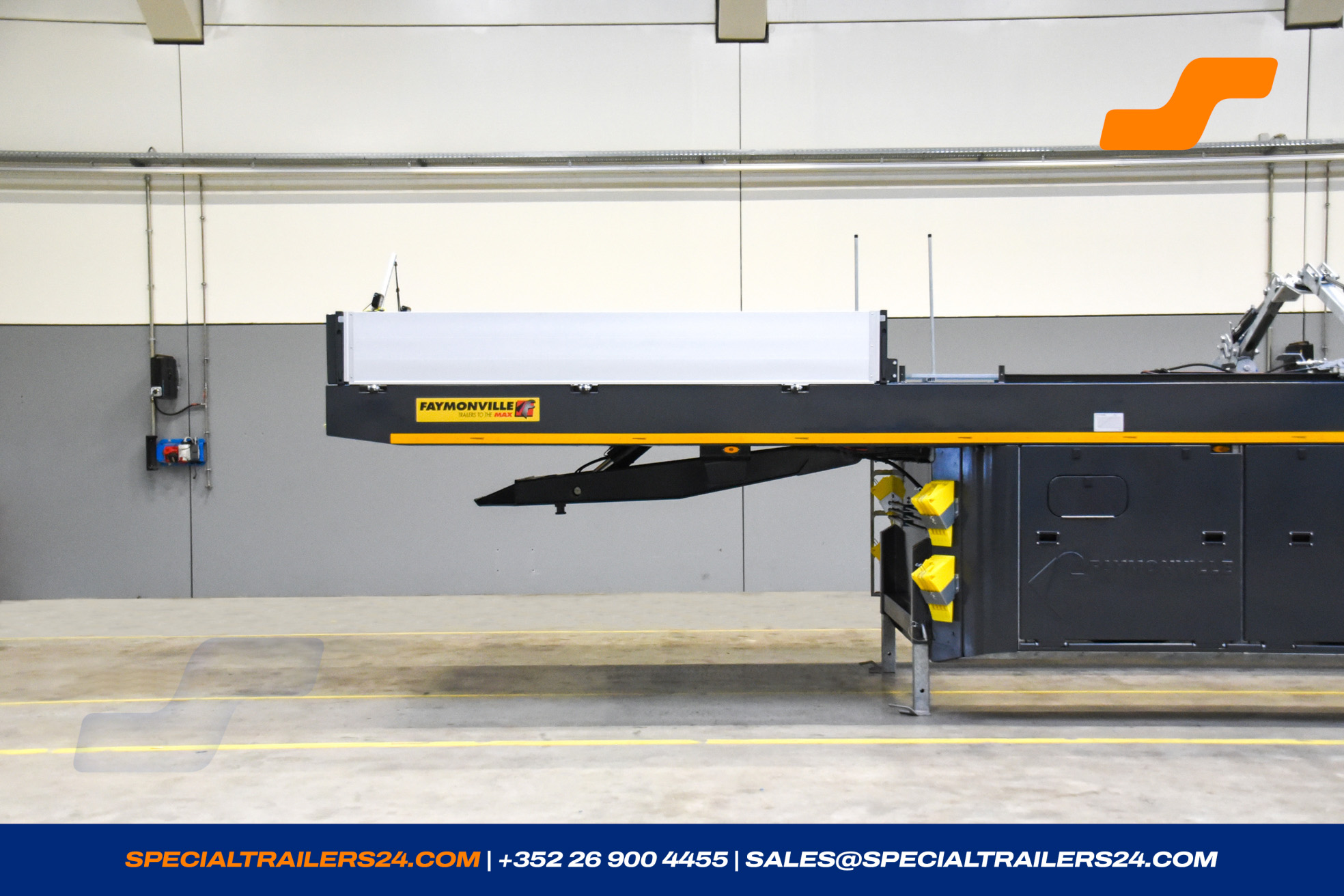

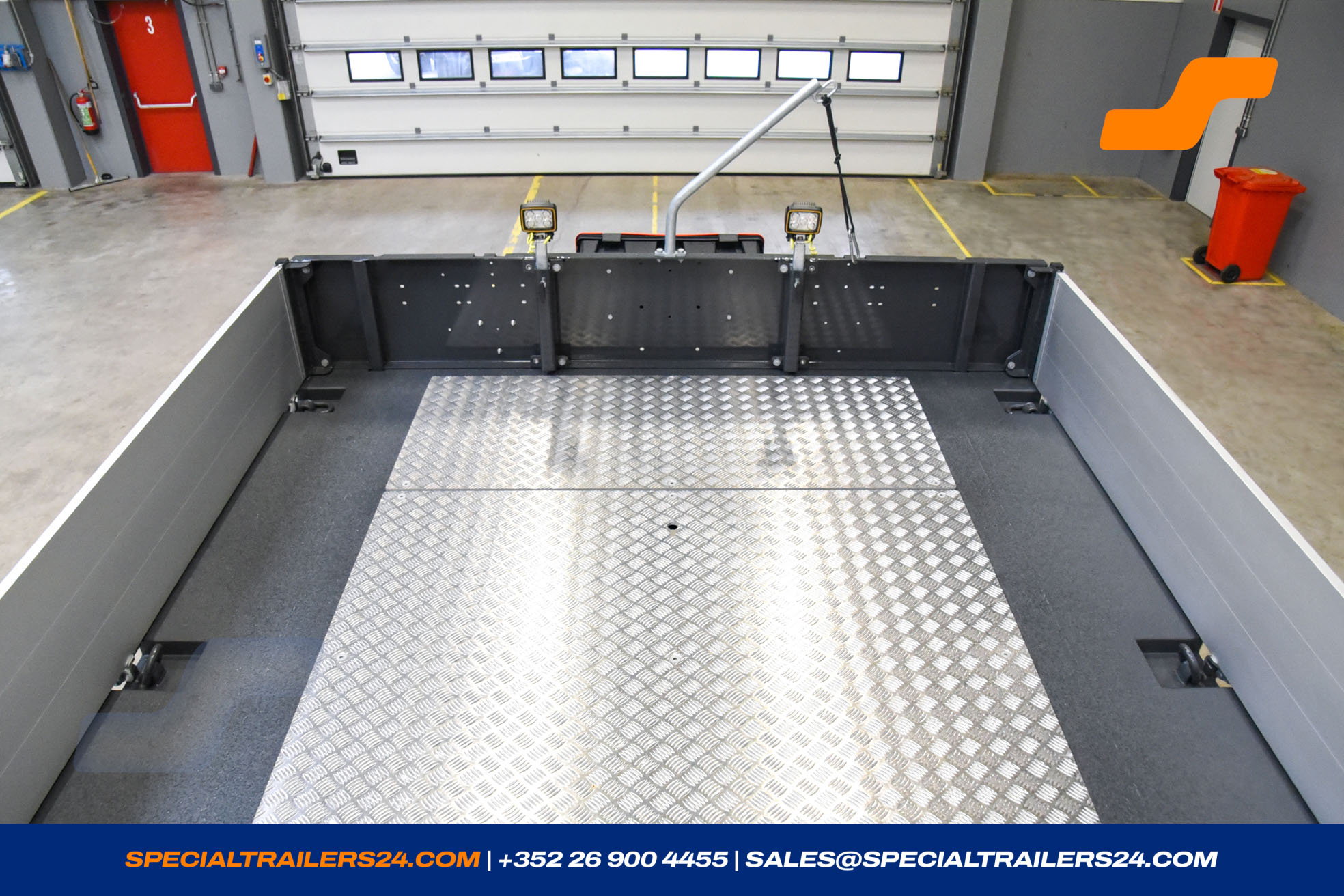

Gooseneck with loading platform with aluminium plate cover.
Hydraulic rocker, lift- and lowerable -280/+250 mm.
Two king pin positions with 2.300 mm and 2.000 mm.
For truck: 4 x 2, 6 x 2 and 6 x 4.
Loading deck
Loading platform
1 x Loading area:
Loading area, length 9 500 mm, with L- steel allowing the pick-up of pallets.
(Distance between king pin and middle of the axles group ± 8 000 mm).
-

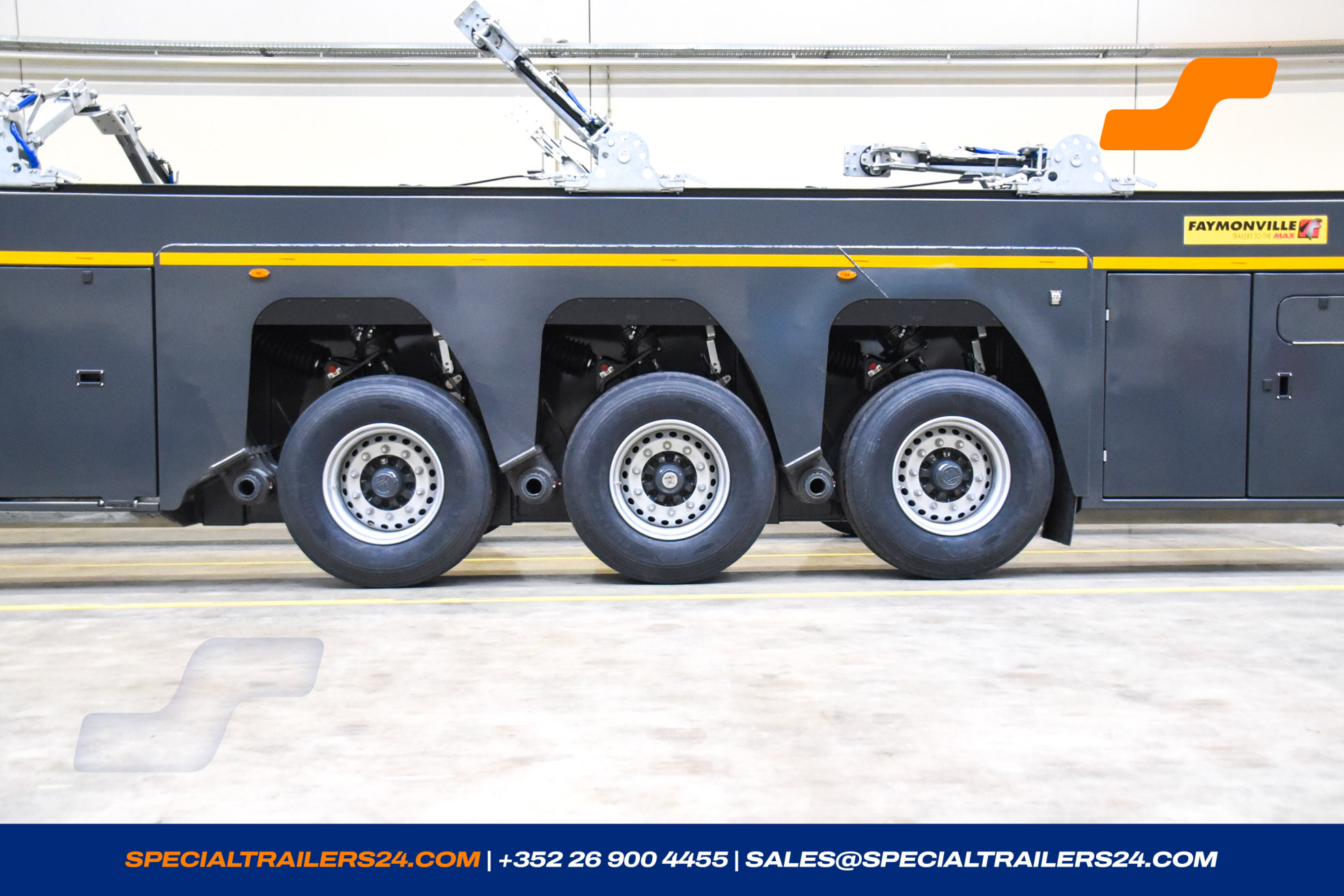

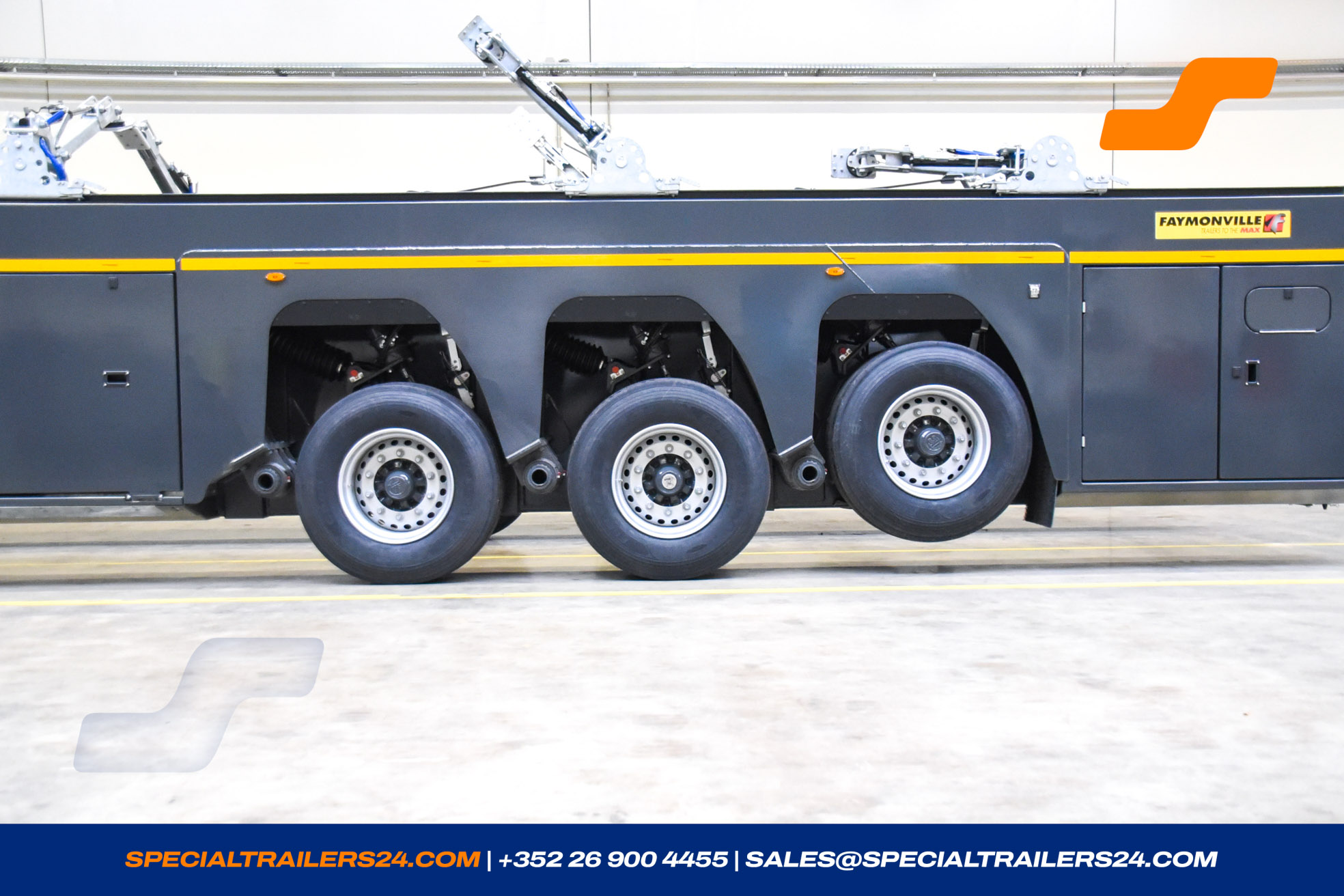

BPW axle stubs with drum brake and single-wheel suspension, hydraulic equal load distribution with lifting/lowering valve.
Safety system against lowering of the axles in case of a rupture of hydraulic pipes, laid out for a pallet height of max 150 mm
Axle tools. -
6x 385/65 R 22.5 (M+S)
Product of our choice. - Landing gears at the front.
- 2 wheel chocks with carrier on the vehicle.
-
Ladder mounted in front on the right side with 2 removable handholds.
The ladder can be fitted on the left side if customer wants so. - In front of the axles, on both sides, removable lateral protections.
- WABCO Roll Stablity Support (RSS)
- 9 pairs of lashing rings in top of the lateral beams (LC 6.300 daN).
- Serrated floor on the lateral beams, between the guiding rails of the load-securing devices.
- The first and the last axle on the left and right manually liftable.

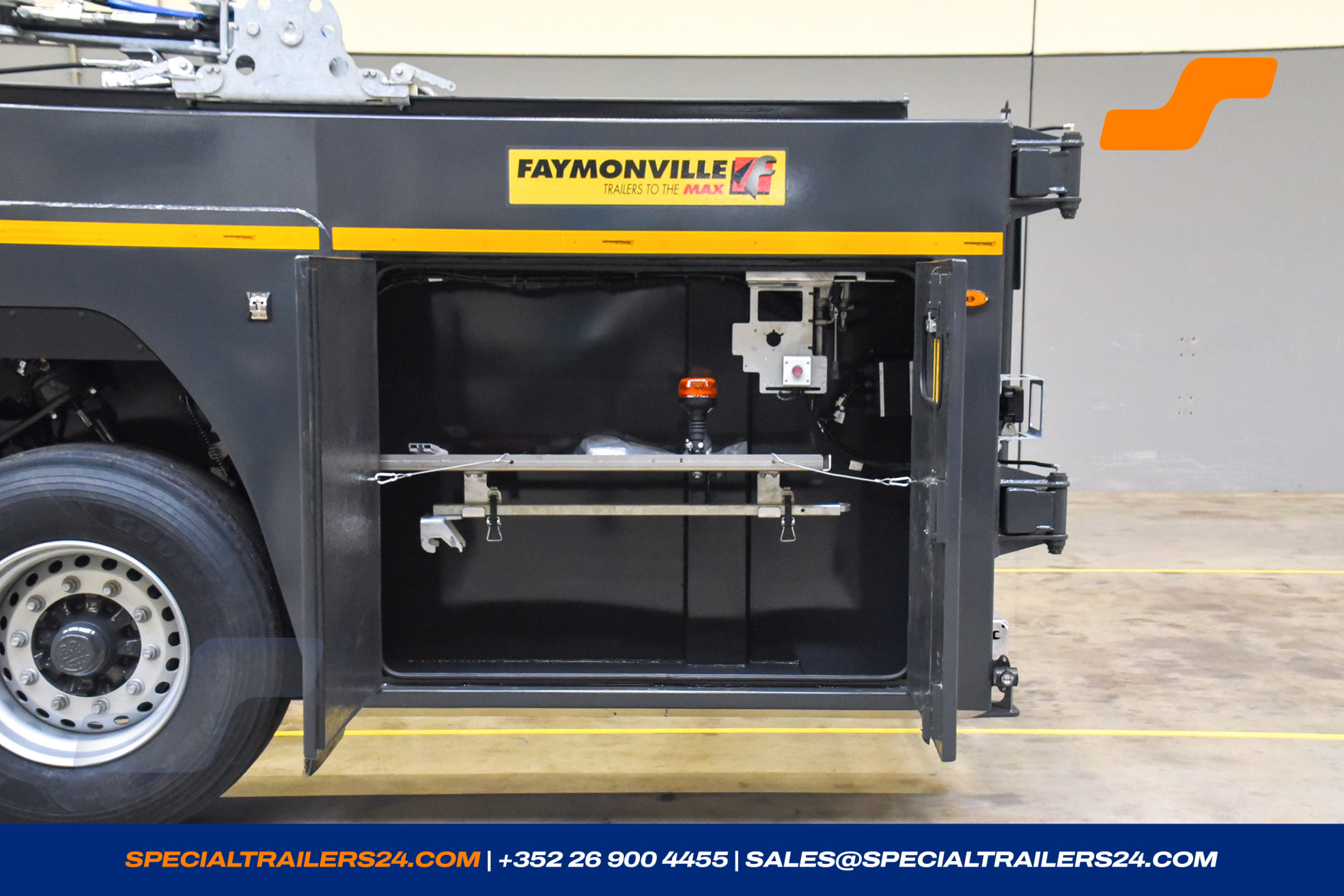

- Tool box behind the last axle, left and right.
- At the rear side an angle to guide the load-pallets.
- 2 lashing points at the back side for mechanical fixation.
-

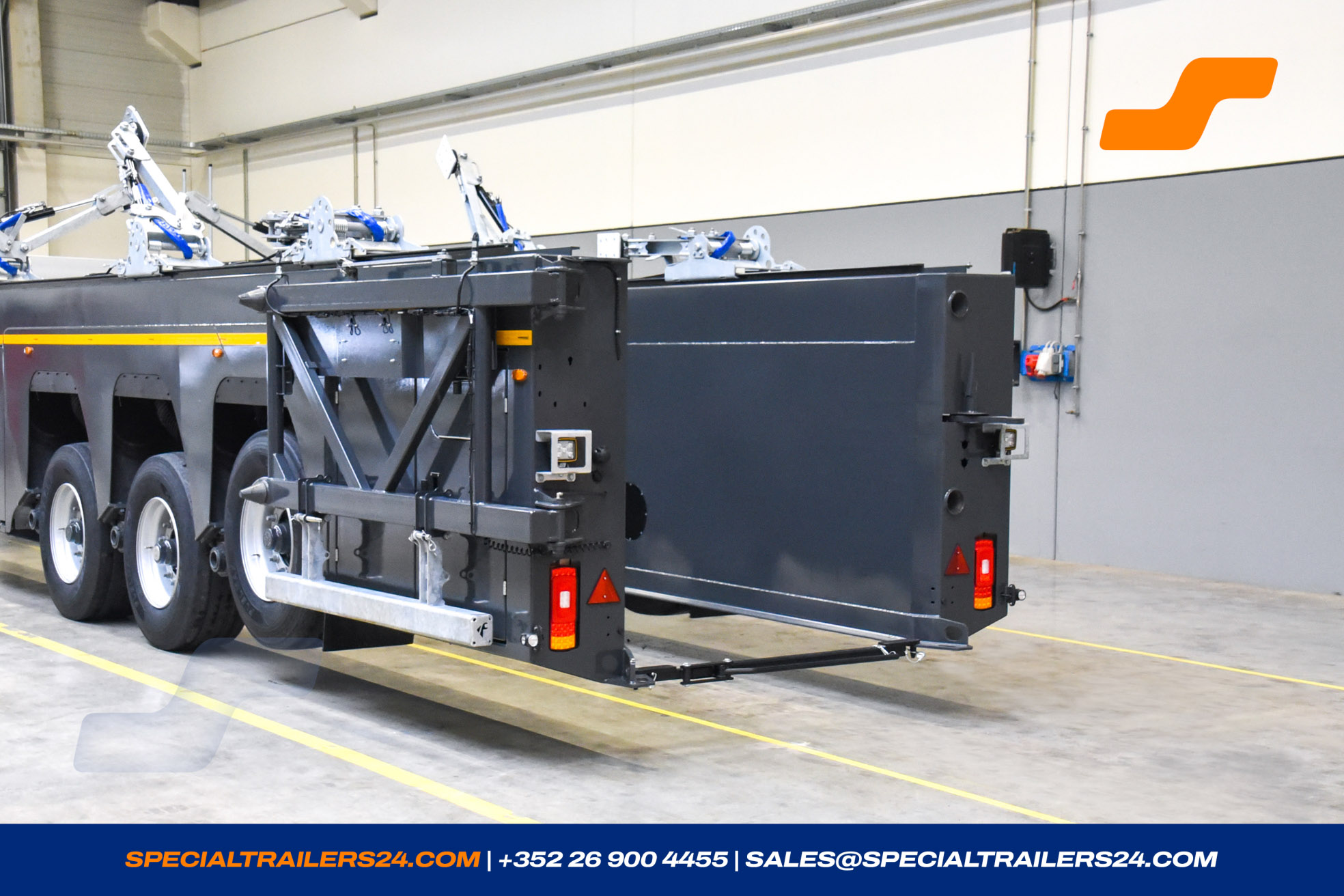

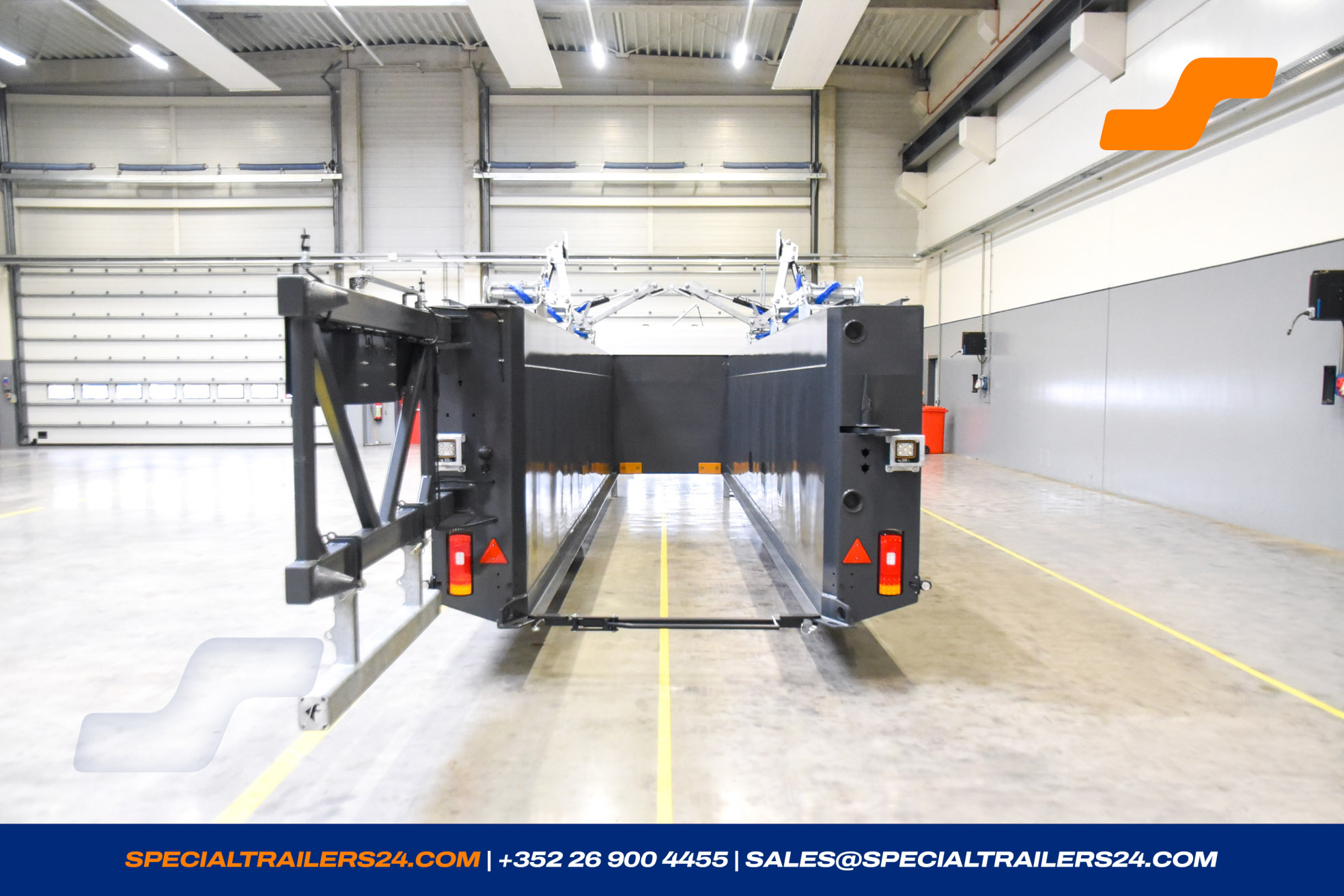

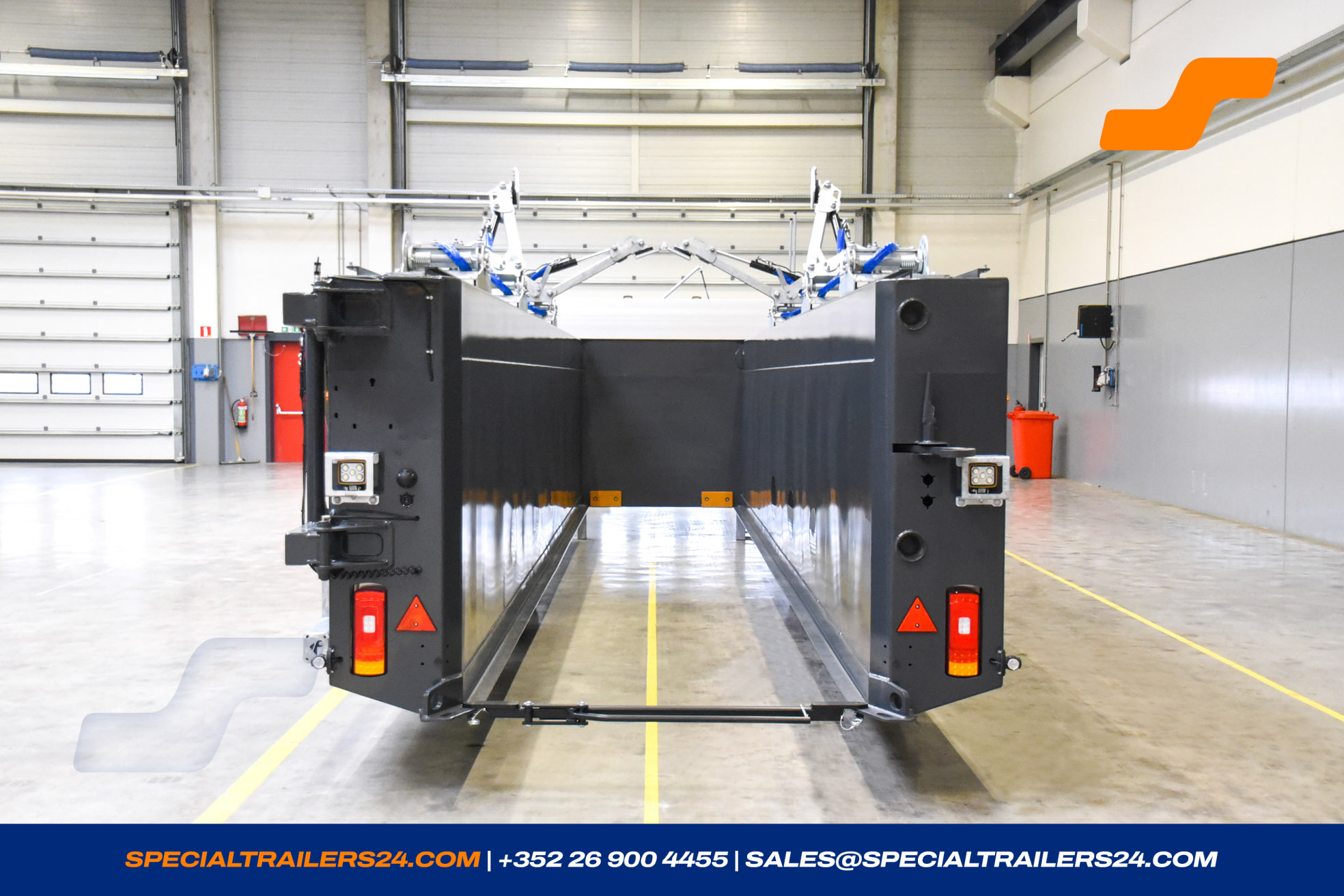

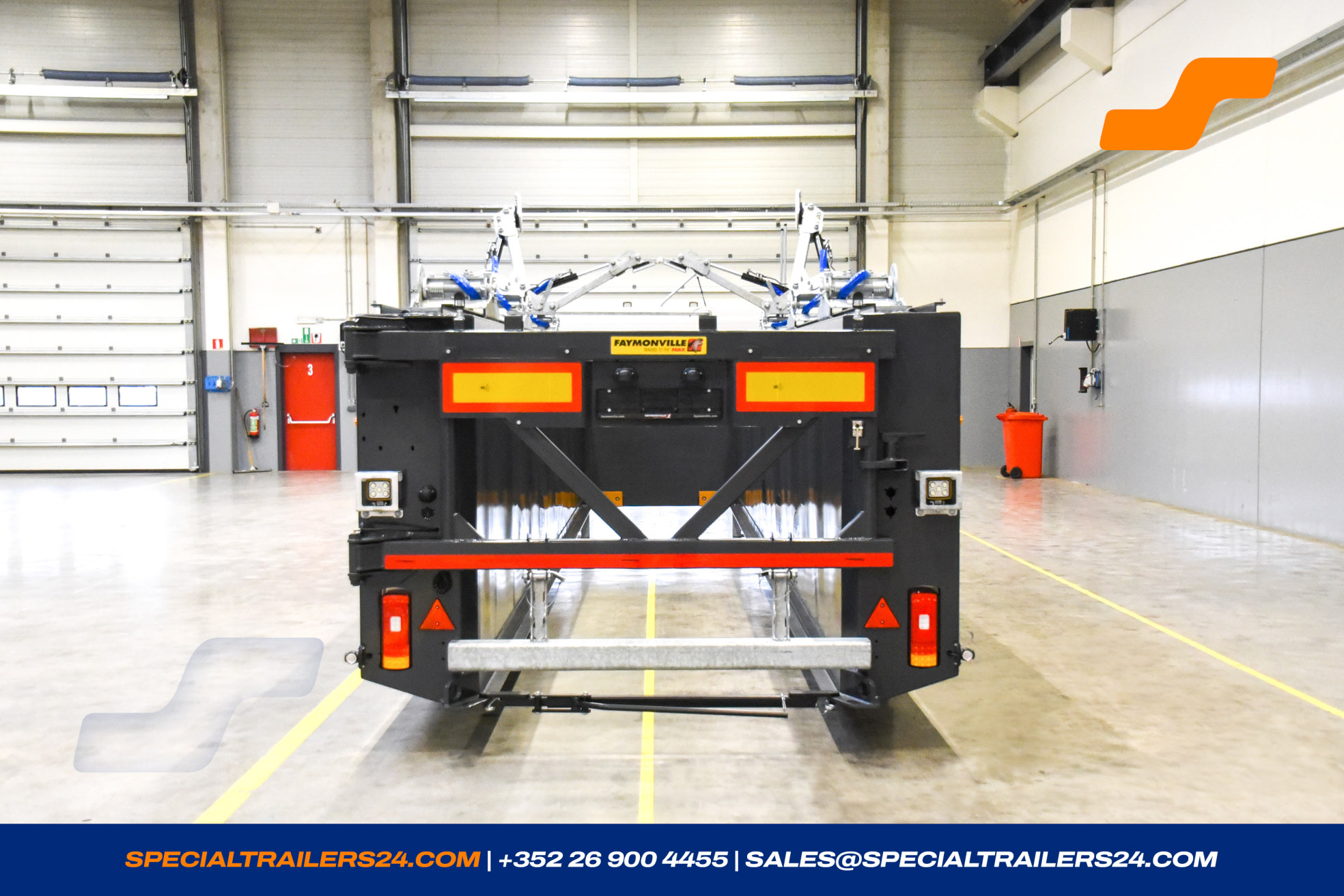

Rear door with cross bracing, fixed on the left side and hydraulically locked at the right side, horizontally lockable at 90°, 105° and 270°.
Underride guard can be folded upwards i order to load a maximum of 4 empty standard pallets. - Number plate with fixing and lighting on the backdoor.
- One 7-pole socket on the rear end.
-

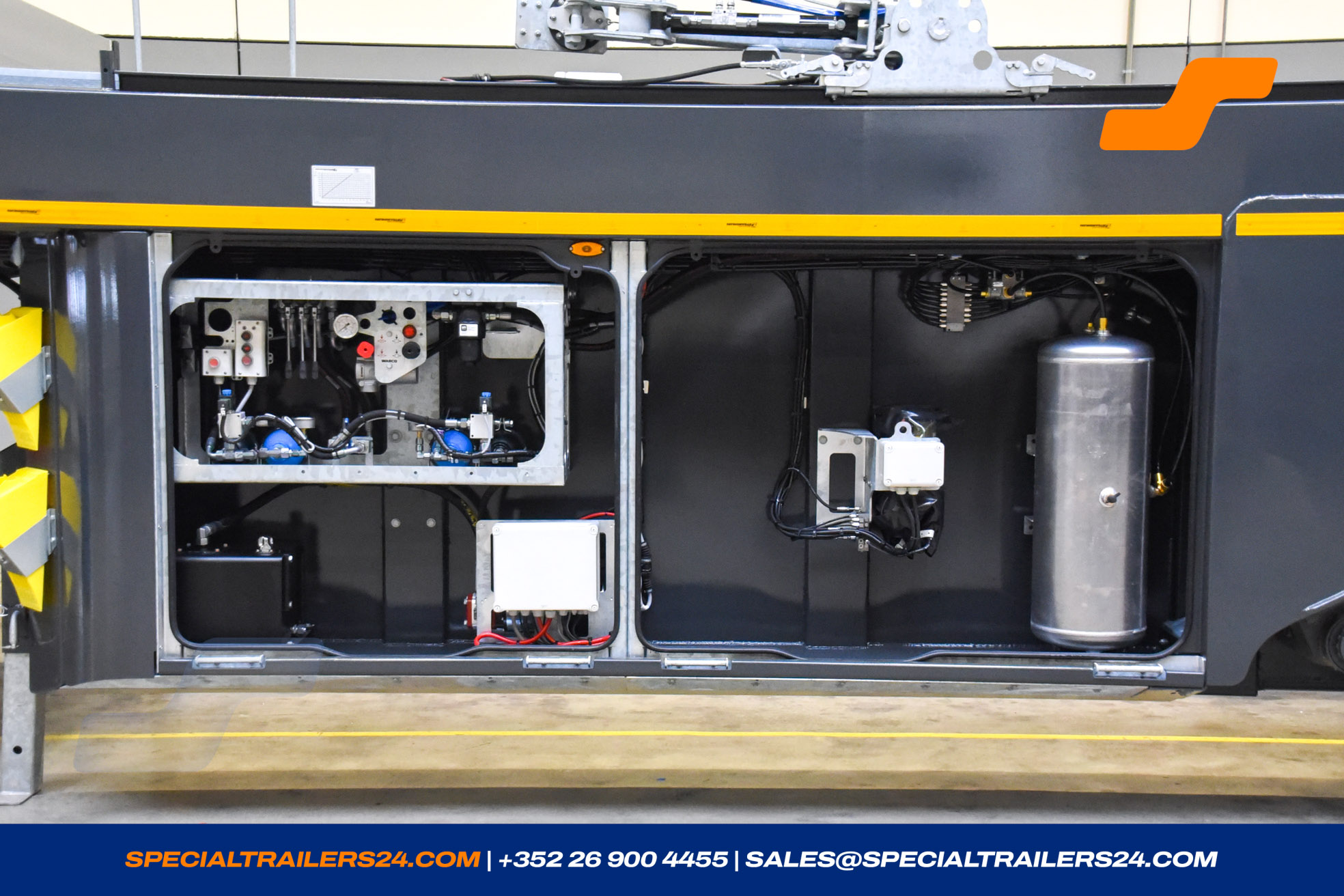

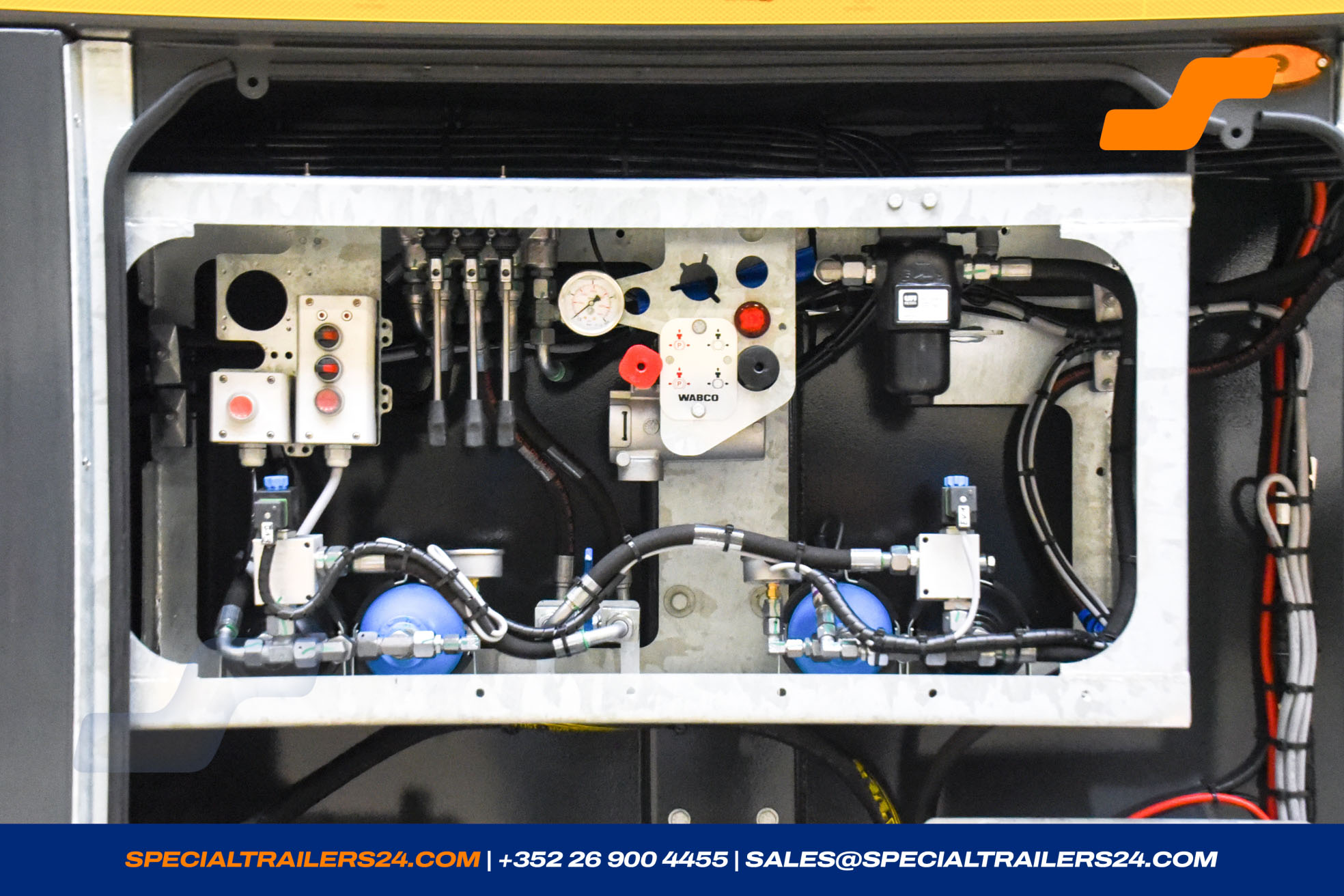

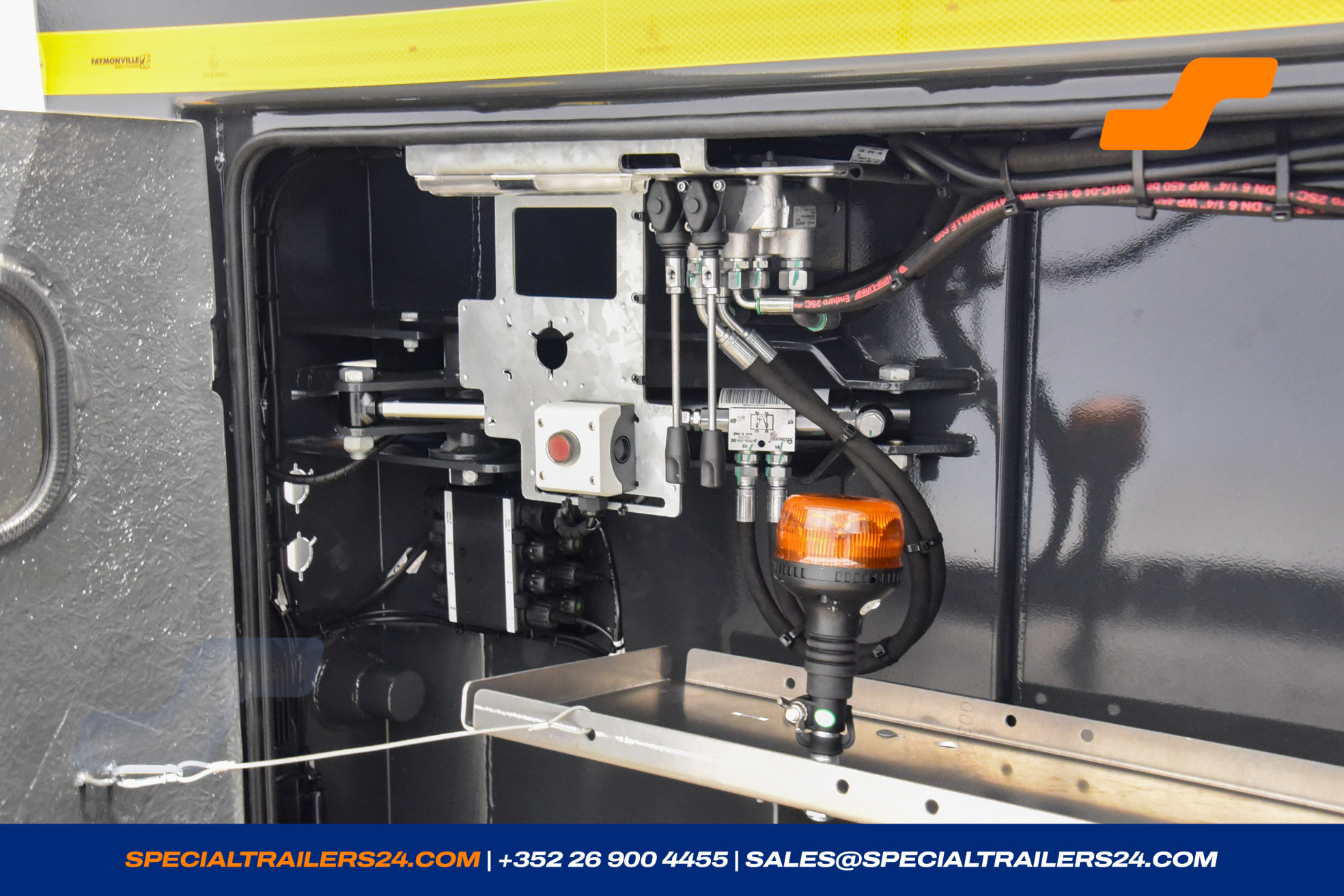

Electrically operated hydraulic pump for the hydraulic functions of the semi-trailer.
(Without connection to the truck). - TPMS pressure sensor installed in all tires including spare wheels.
-
TPMS Tyre Pressure Monitoring System according to ECE R 141.
Data transmission to the motor vehicle takes place via the standardised EBS interface according to ISO 11992.
For accurate display, the motor vehicle must be able to transmit and display this data. - Indicator lights for displaying the nominal driving height in the vehicle operating area.

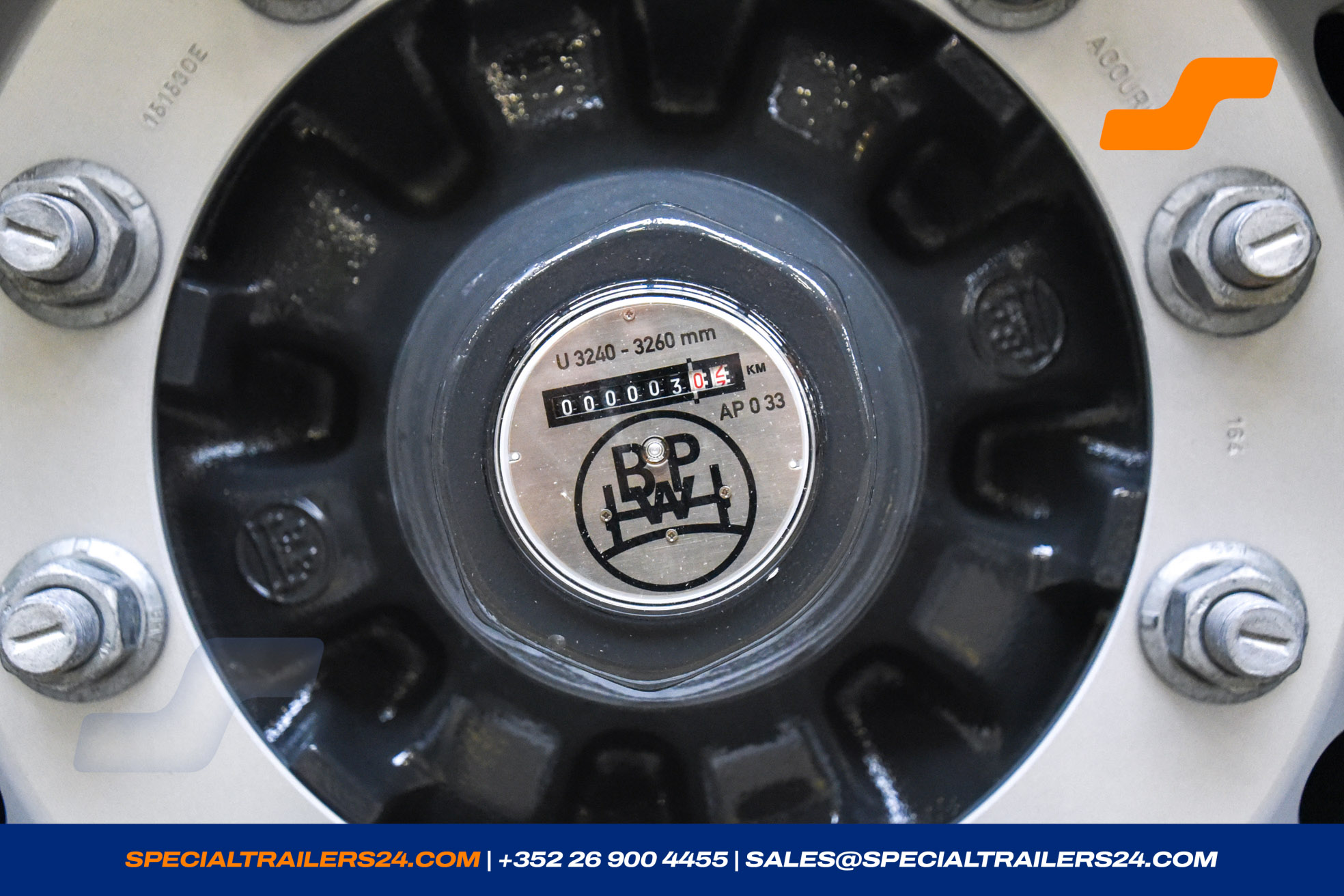

- One hubodometer on the left side.

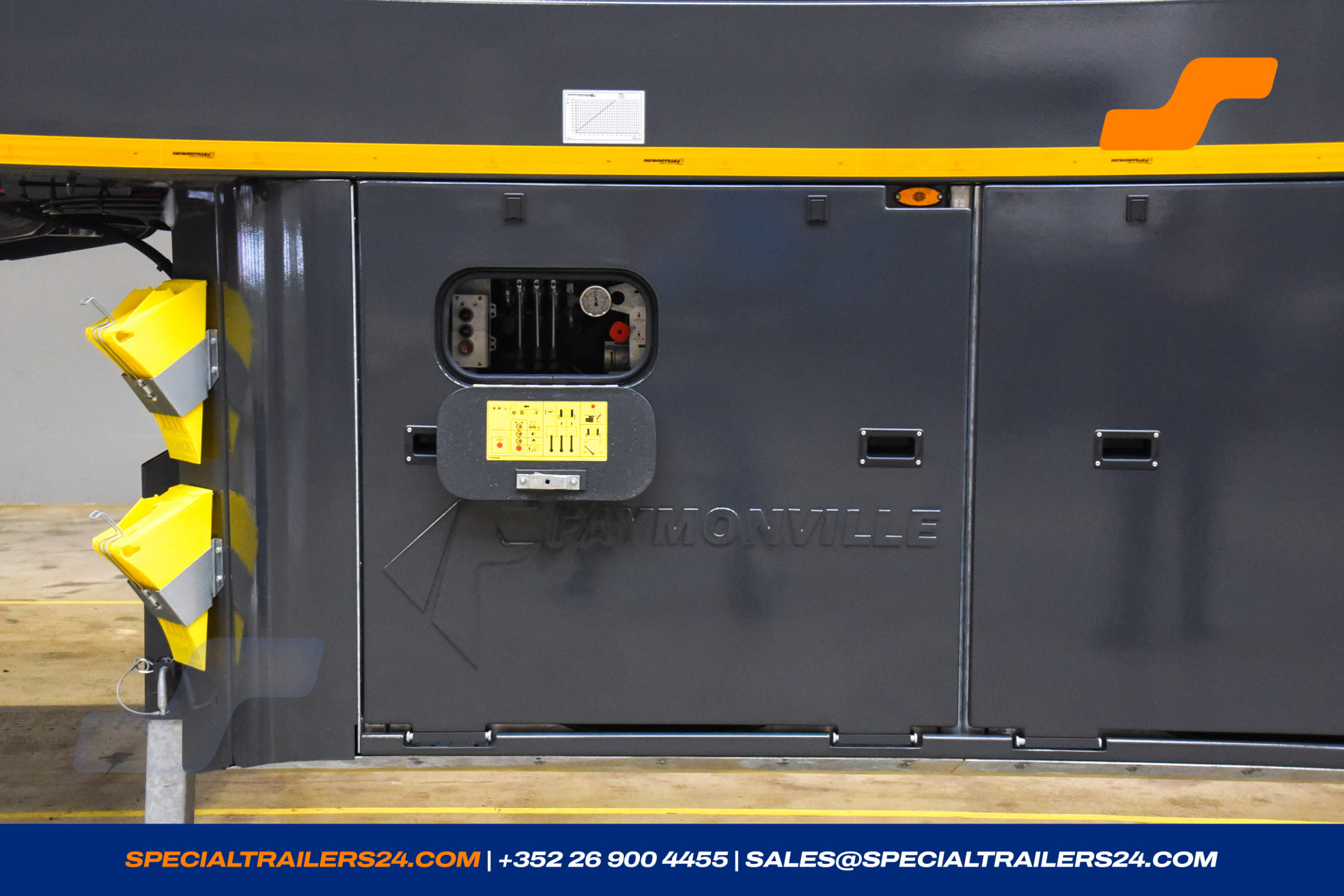

- 2 load manometers for the axle load on each side included axle load graph.
- 2 rubber bumper as stopper for the stillage in front on the loading channel.
- Hydraulic preparation including control for the installation of 4 pairs of our hydraulic removable load-securing devices
-

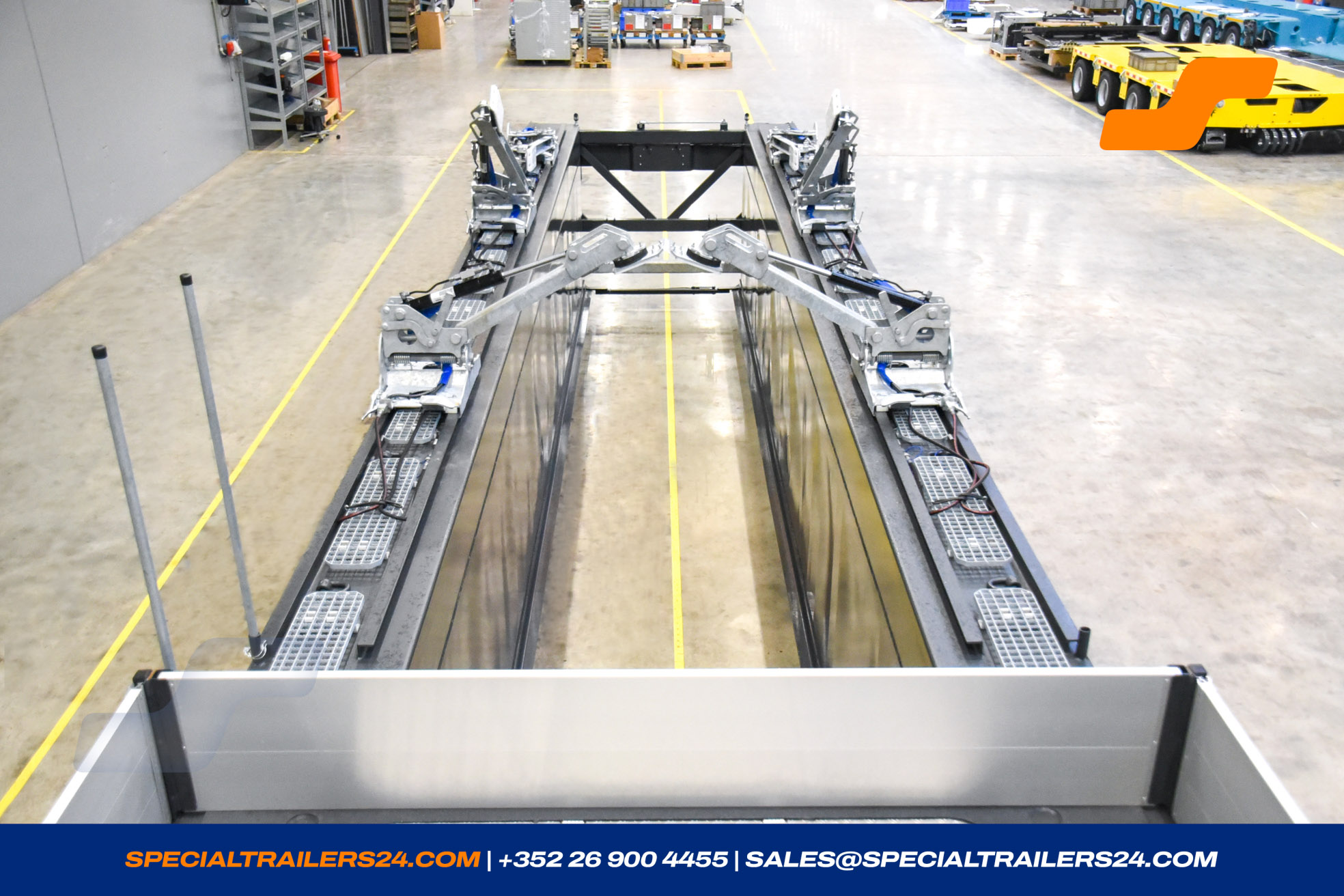

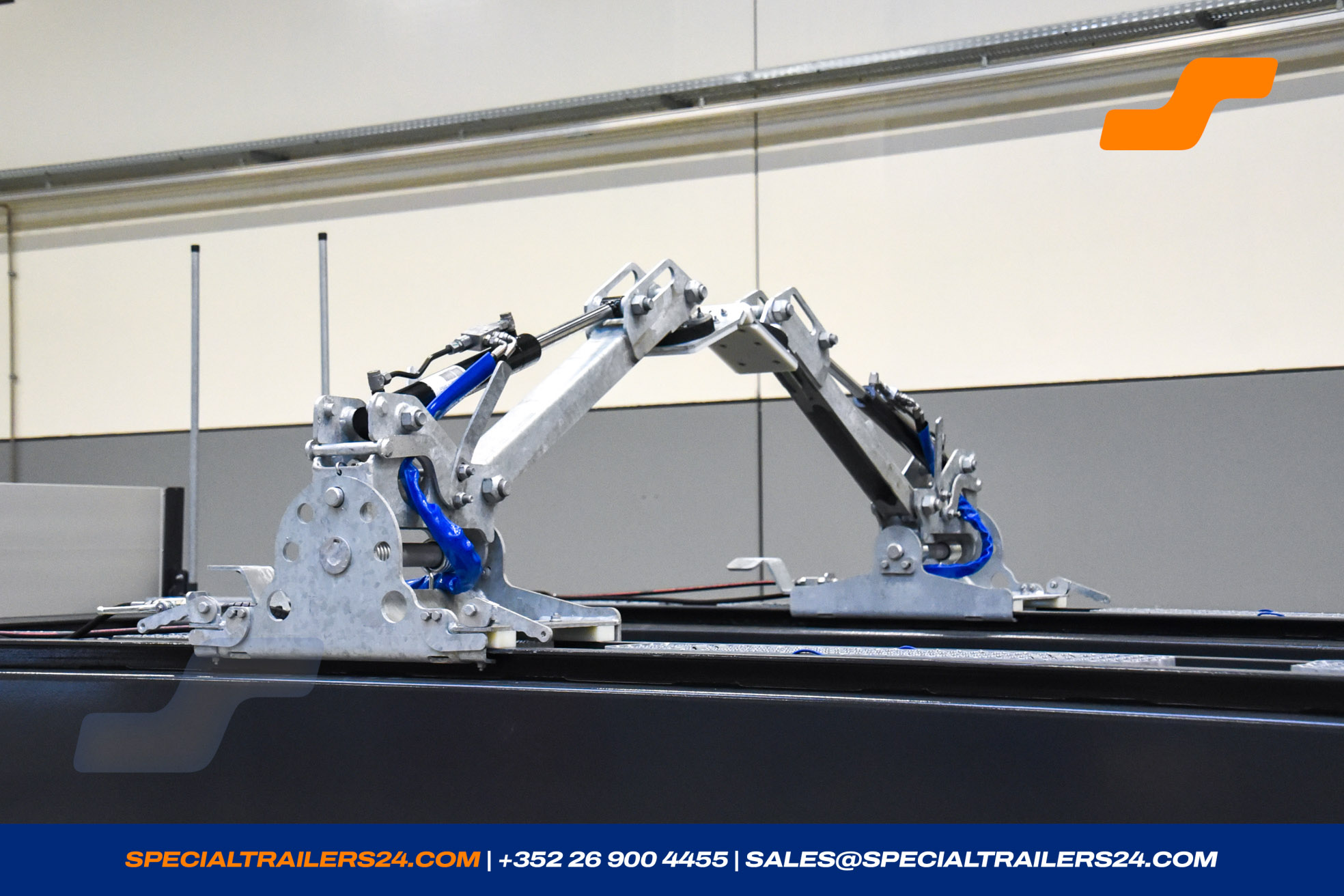

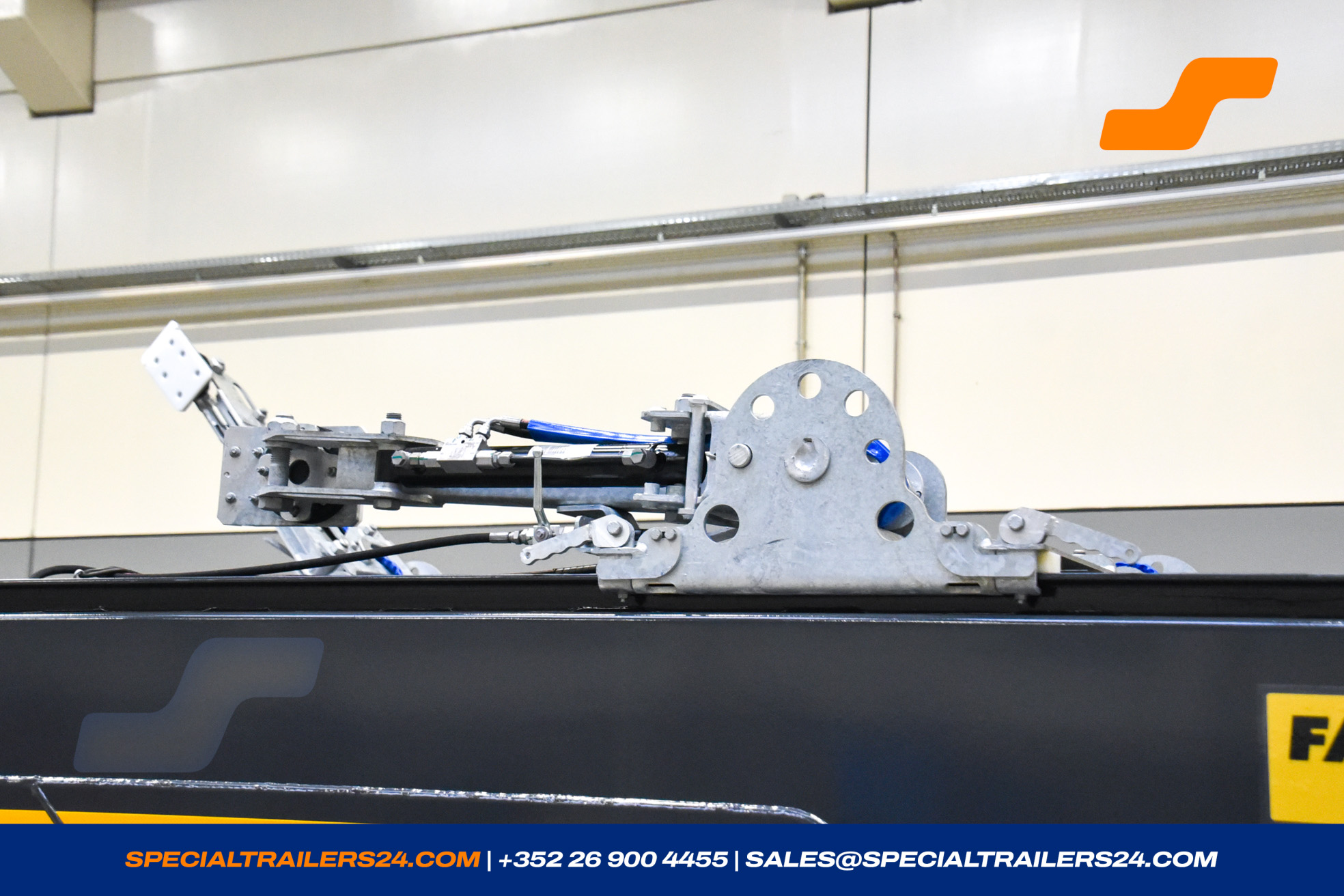

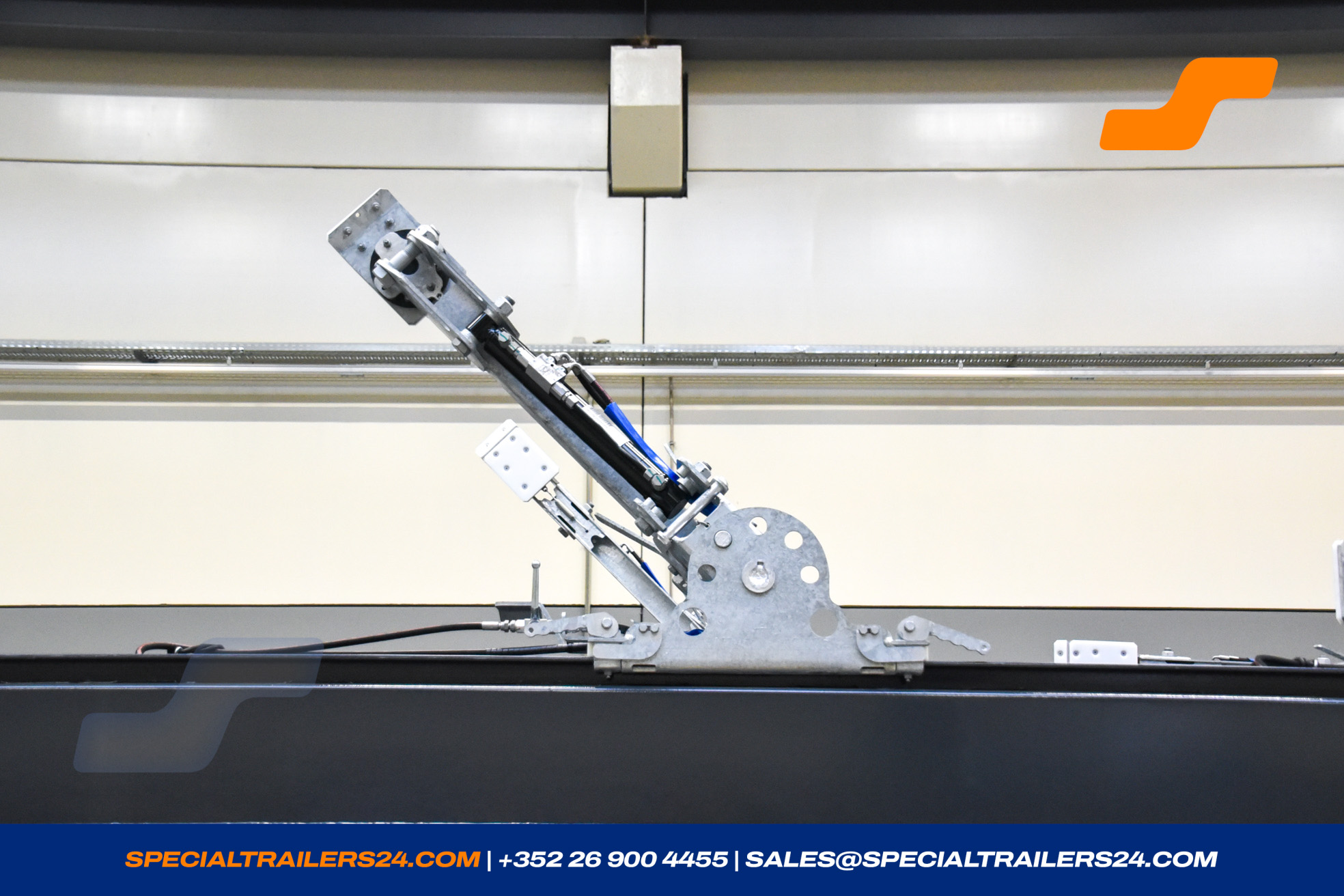

3 pairs of hydraulic removable load-securing devices with swing arm, which can be moved on rails, mounted on the lateral beams.
(+/- 480 kg) -

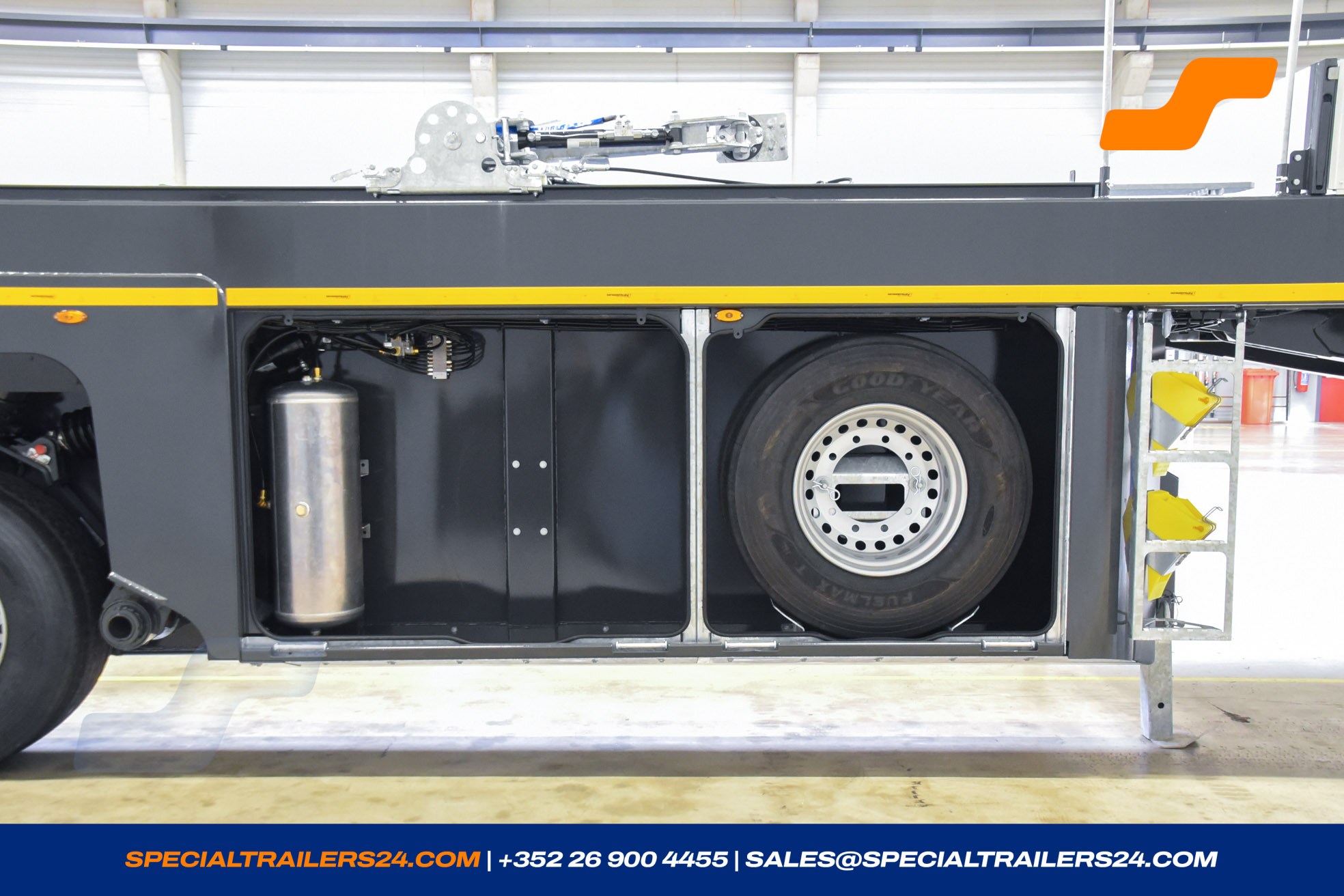

1 spare wheel with carrier on the right hand side.
385/65 R 22.5 (3PMSF)
Product of our choice. - Cross-bar at the rear with eccentric closing.
- 1 LED flashing beacon light on the left and right side at the rear of the trailer.
- 1 LED reversing light at the rear of the trailer, on left and right side.
- EU-reflector at the rear end.
- Acoustic warning signal when reversing.
-

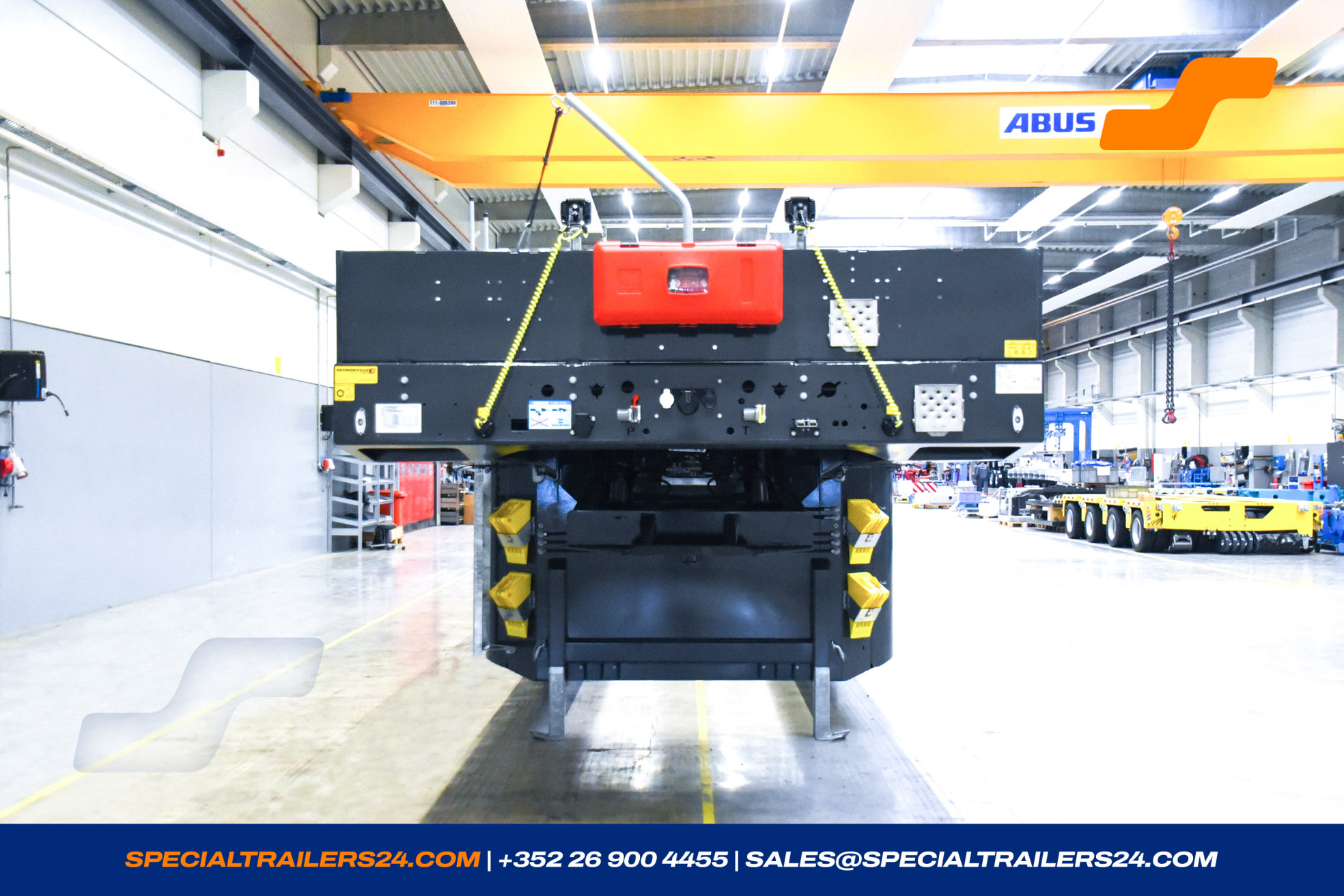

Round NATO sockets on the connecting bar in front.
(Maeler & Kaege VG 96 917) - Cable for the electric-hydraulic pump and/or electric winch (35 mm², 3.5m long) between the semi-trailer and the truck with socket (NATO-NATO).
-

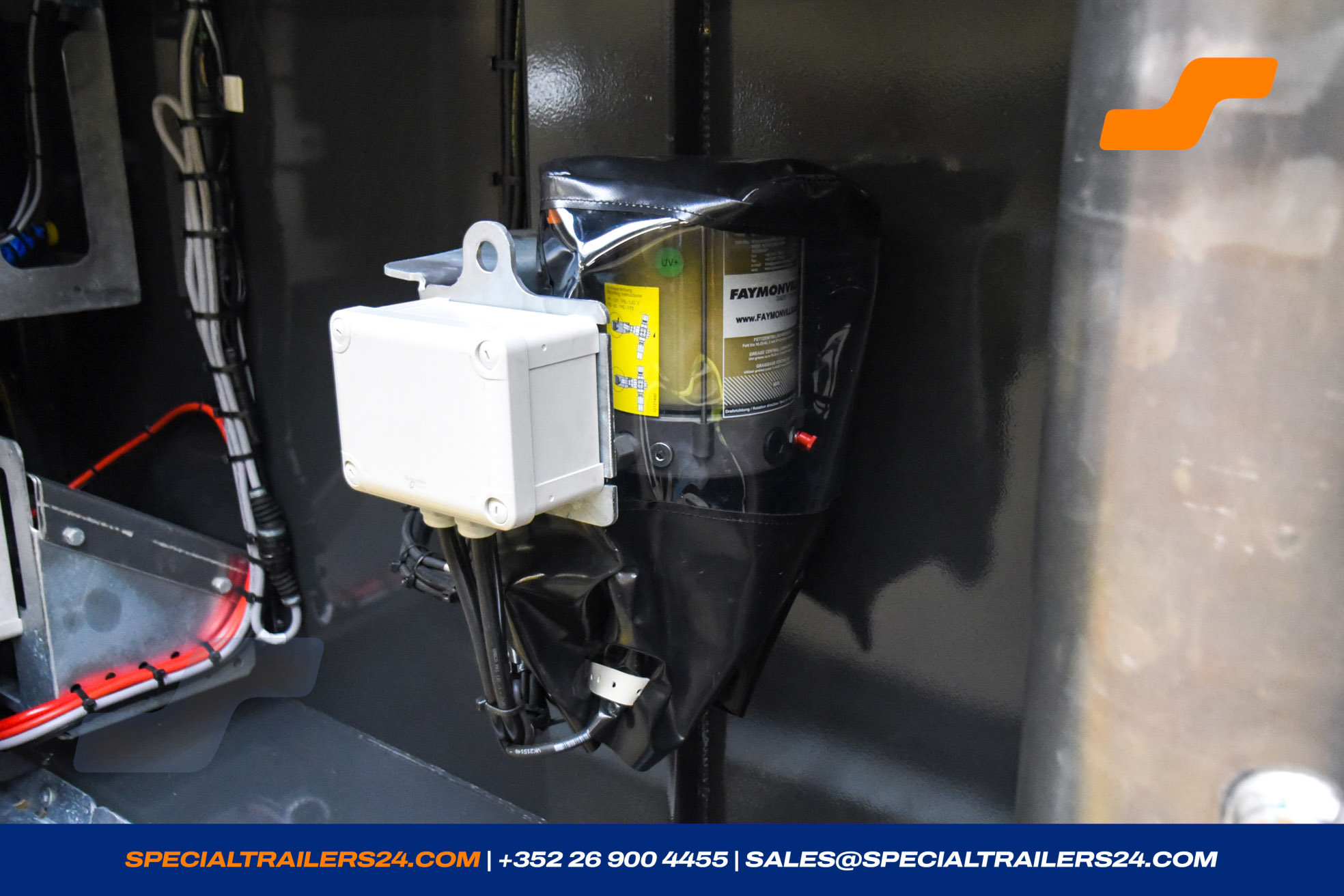

Central greasing with 1 pump, make BEKAMAX, with NLGI-2 normal grease.
Removable protection box around the (all) pump(s) of the central greasing.
Accessories
1 x Accessory
PrefaMAX-Accessories
- Manual and description :
- If your truck has a special body-work, please contact us.
- All the connecting cables (electric cables, ABS/EBS cables, brake pipes, hydraulic lines,...) between the truck and the trailer are according EU-directives, part of the delivery of the truck and not of the trailer.
- To consider : All accessories and special equipments increases the tare weight of the semi-trailer and decrease the payload.
- Yellow reflective tape on both sides on the entire length according to the EU regulation.
- Red reflective tape on the rear on the entire width according to the EU regulation.
