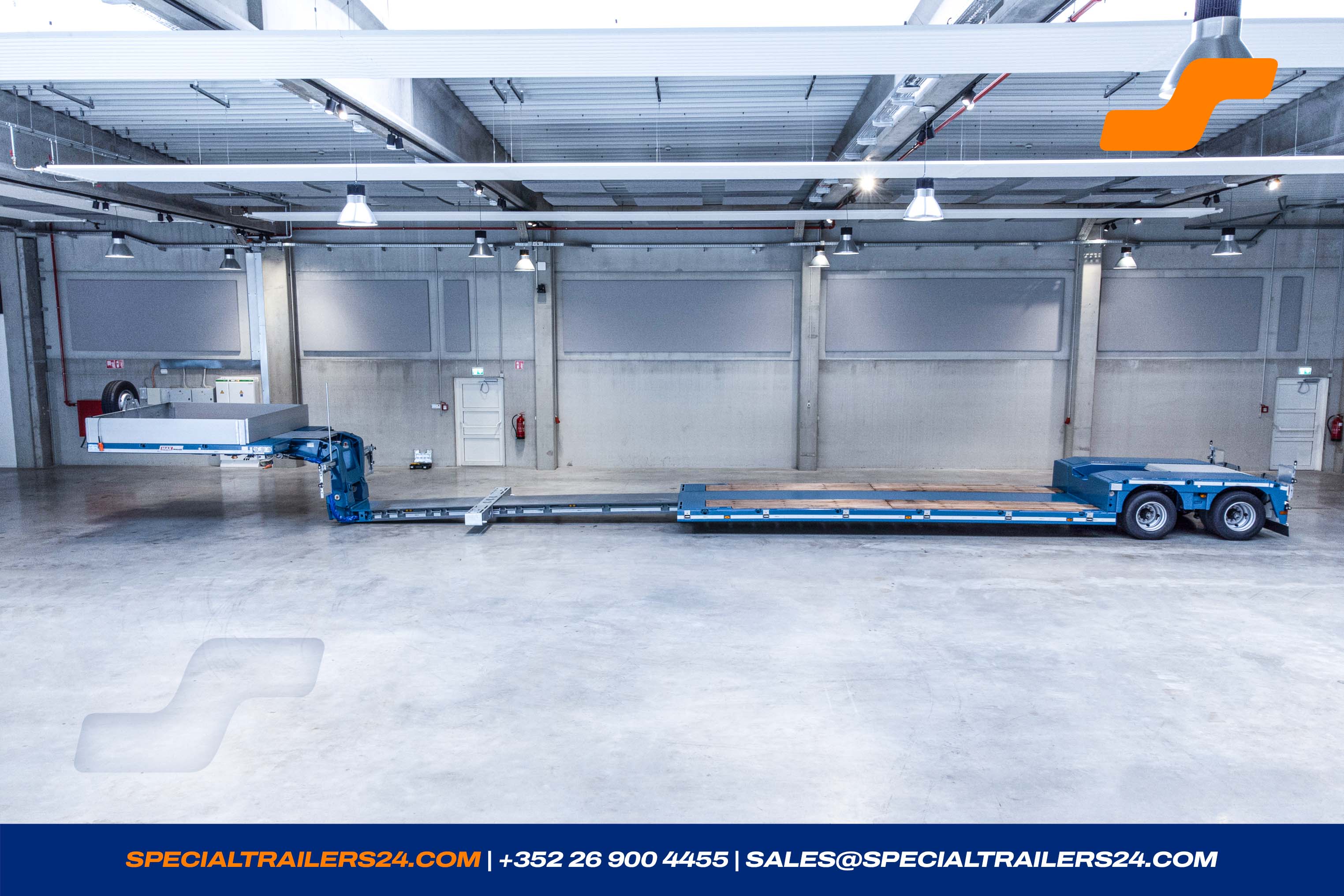

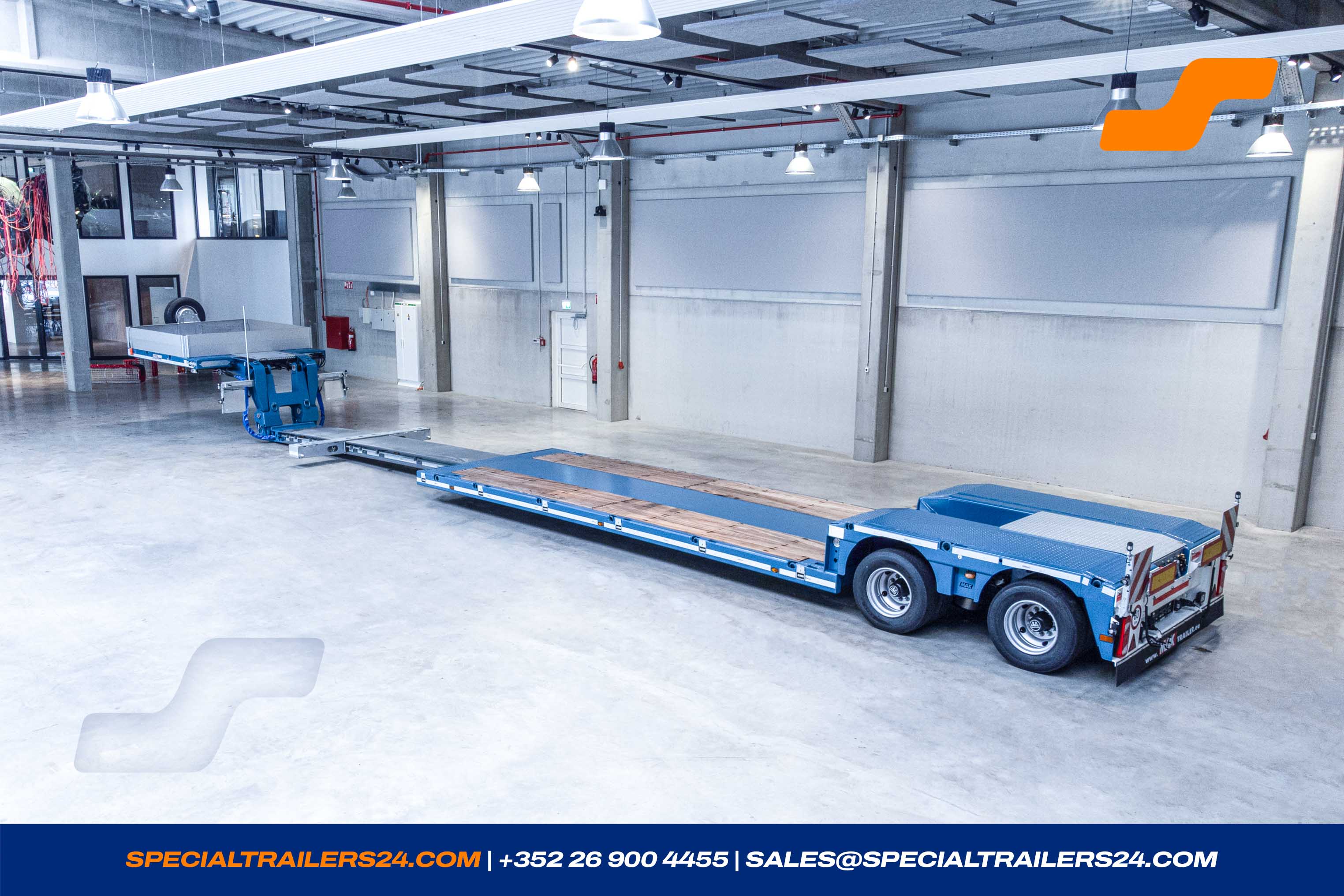

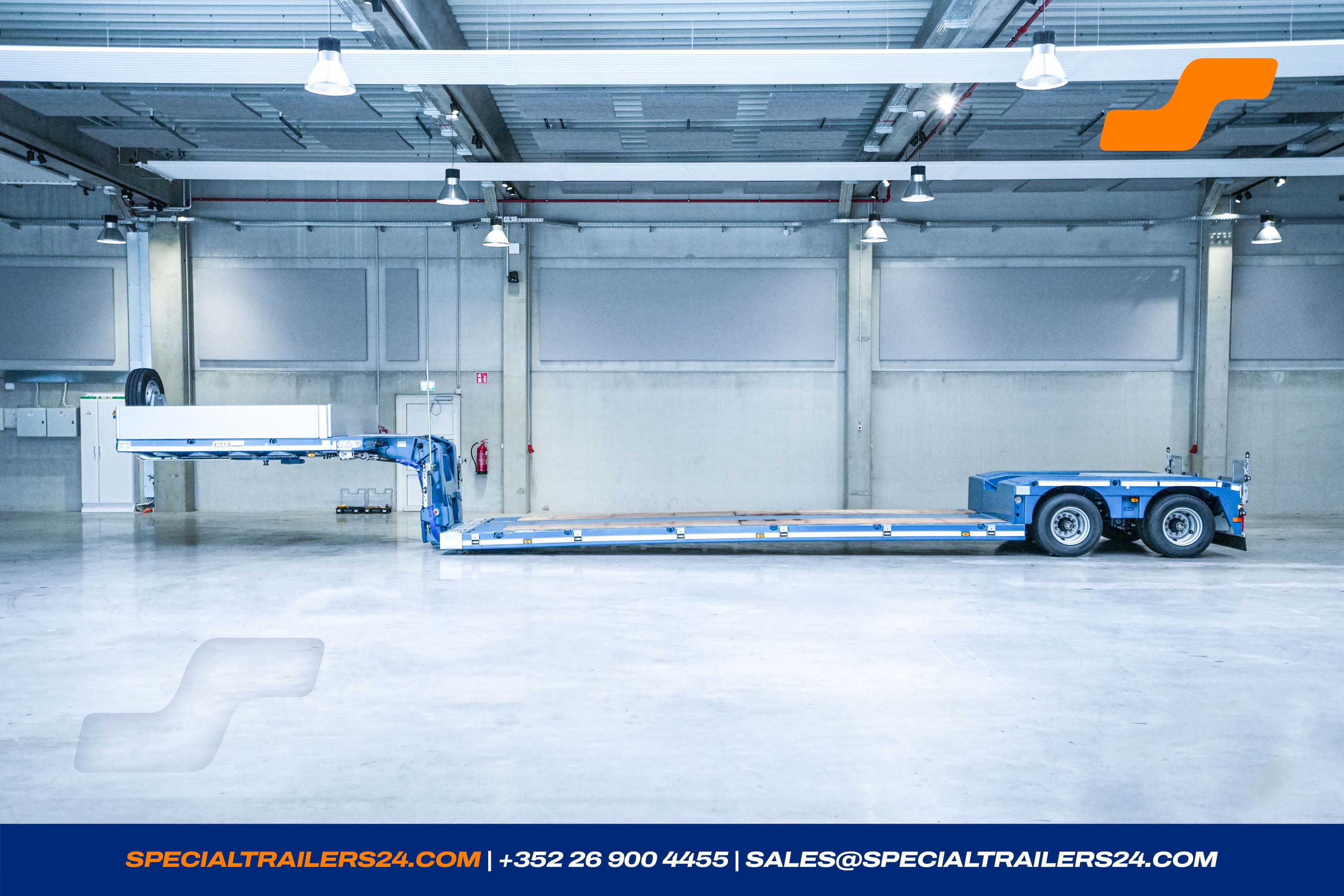

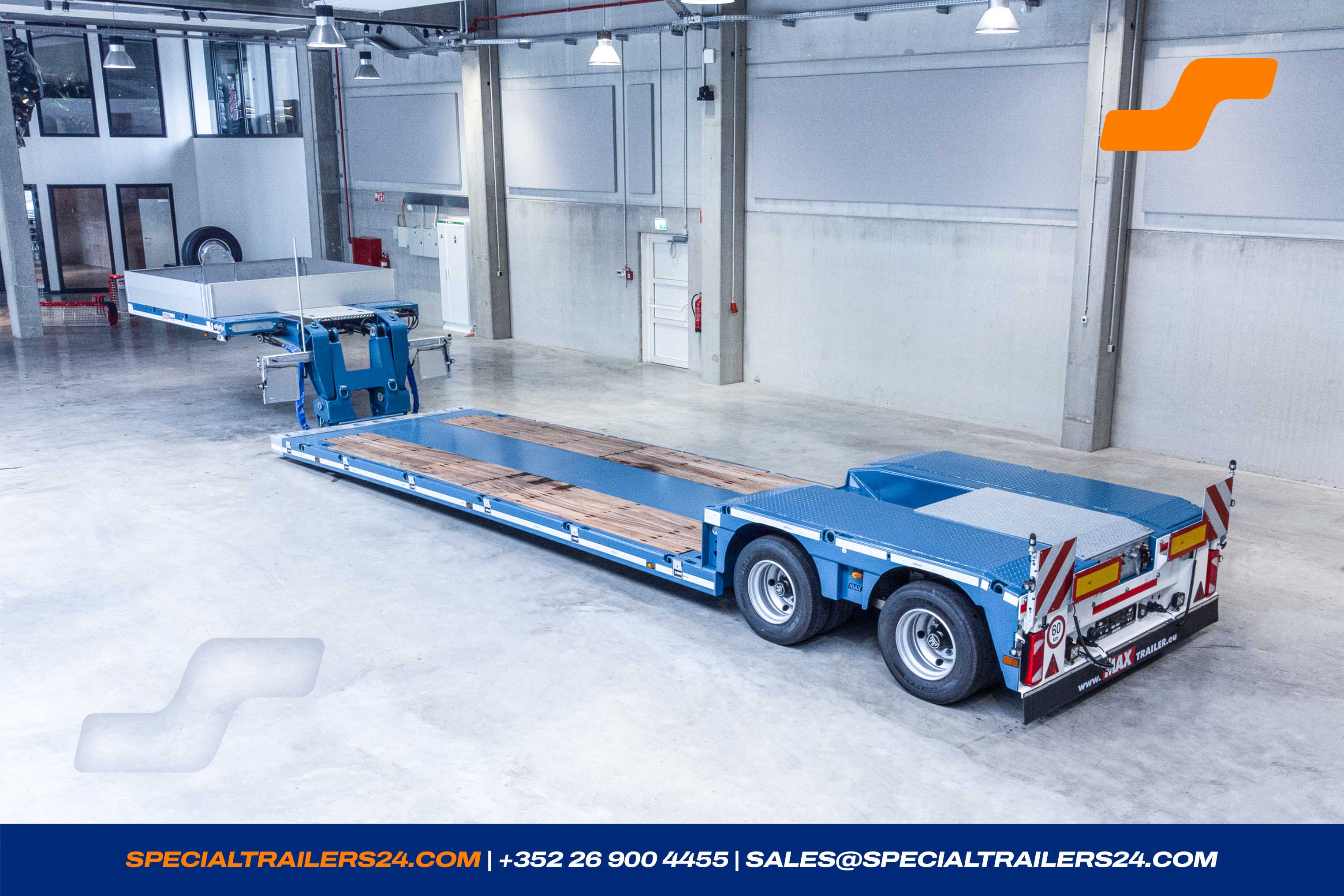

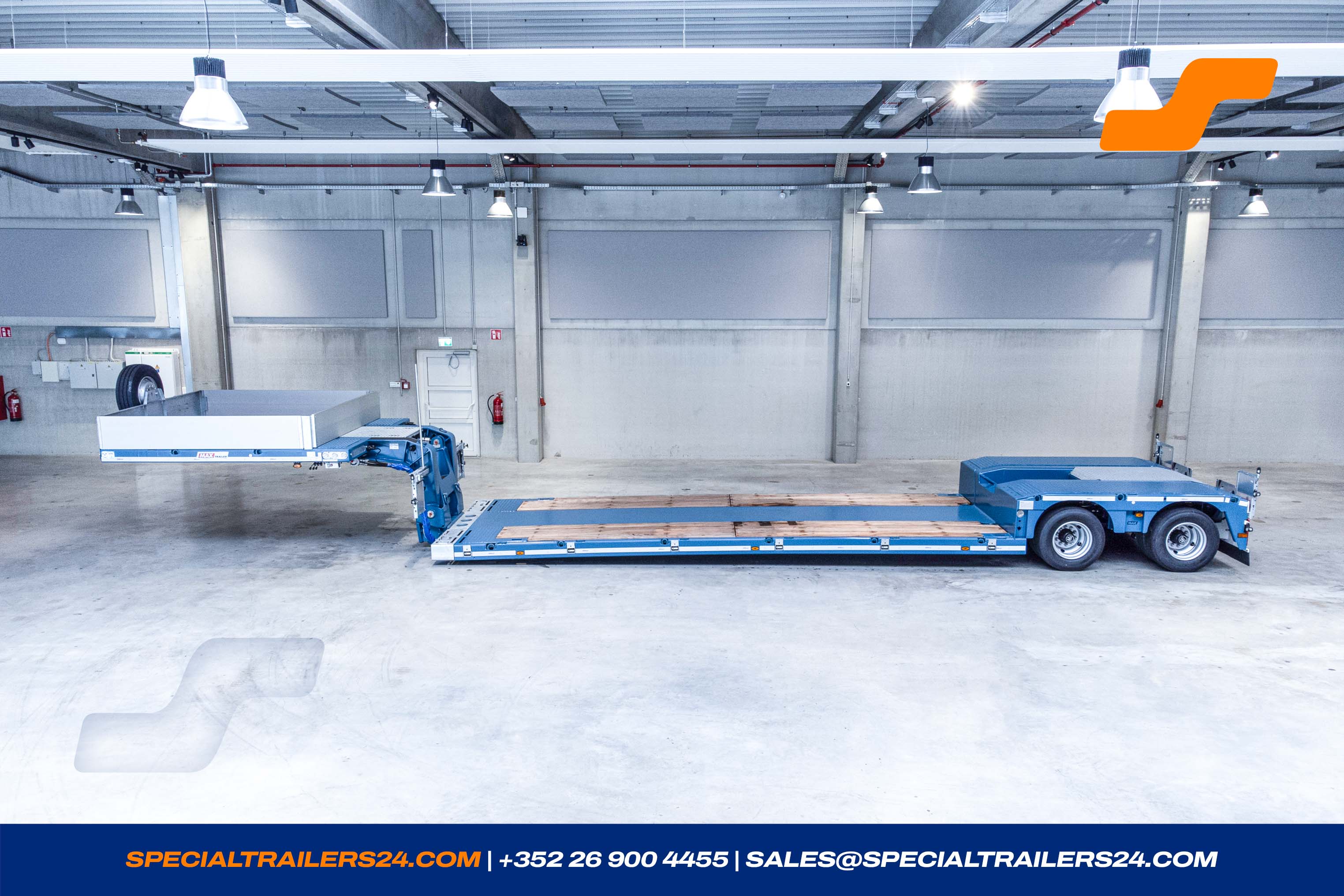

MAX Trailer MAX510
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111348
- Reference MAX510-Z-2A-6.75
- Number of axles 2
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 03/2026
- Steering Type Hydraulic
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 23000 kg |
| Axle load | 24000 kg |
| Gross weight | 47000 kg |
| Tare weight +- 3% | 12361 kg |
| Payload | 34639 kg |
Dimensions
| Fifth wheel height loaded | 1200 mm |
| Gooseneck length | 3 900 mm |
| Turning circle reversing | 2 100 mm |
| Loading platform length | 6 750 mm |
| Extendable by | 5 500 mm |
| Loading height at max. load | 350 mm |
| Bogie length | 2 750 mm |
| Loading height on bogie | 900 mm |
| Suspension stroke | -80/+160 mm |
| Wheelbase | 1 330 mm |
| Bogie width | 2 540 mm |
Gooseneck
1 x Gooseneck
Gooseneck , length ± 3.900 mm.

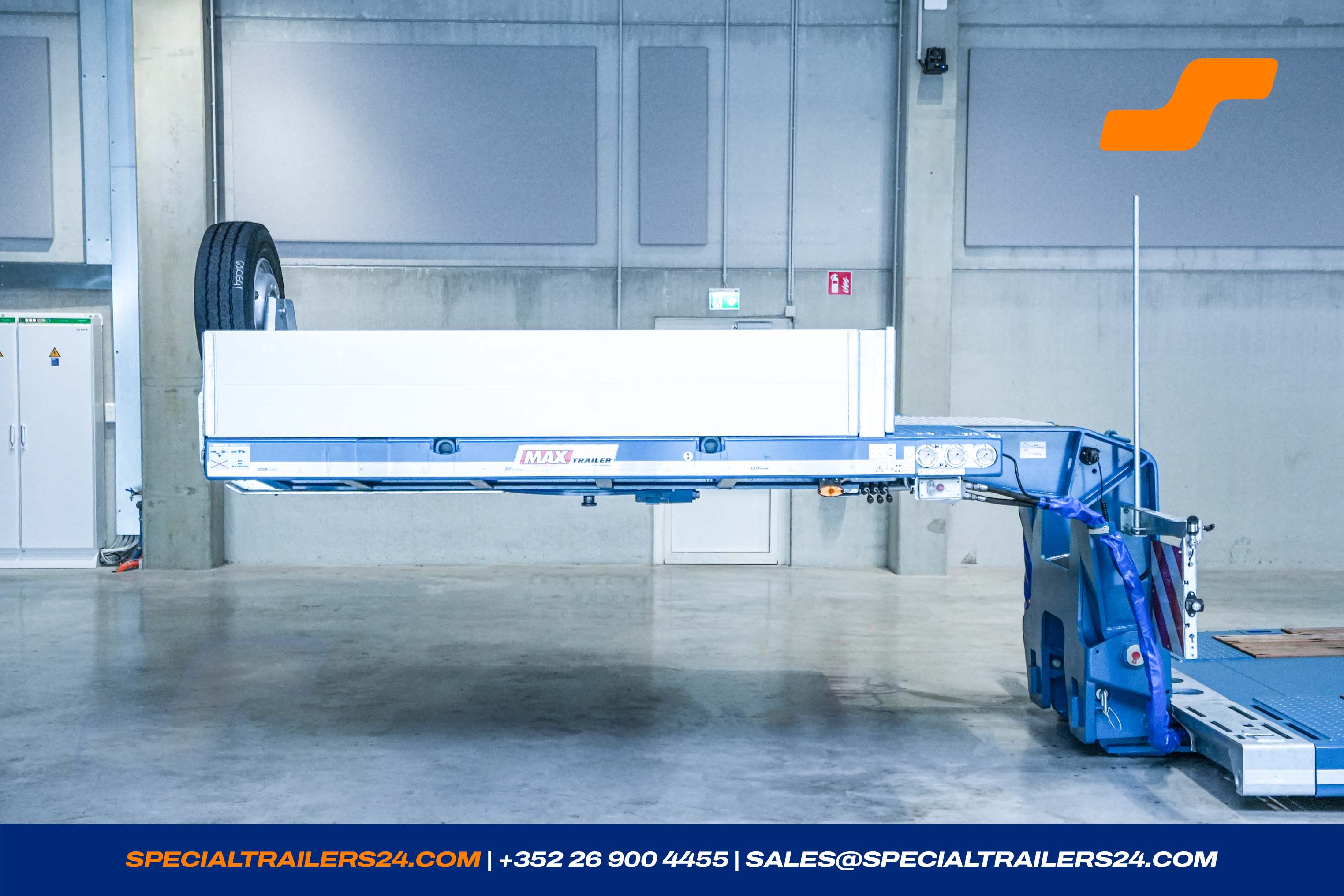

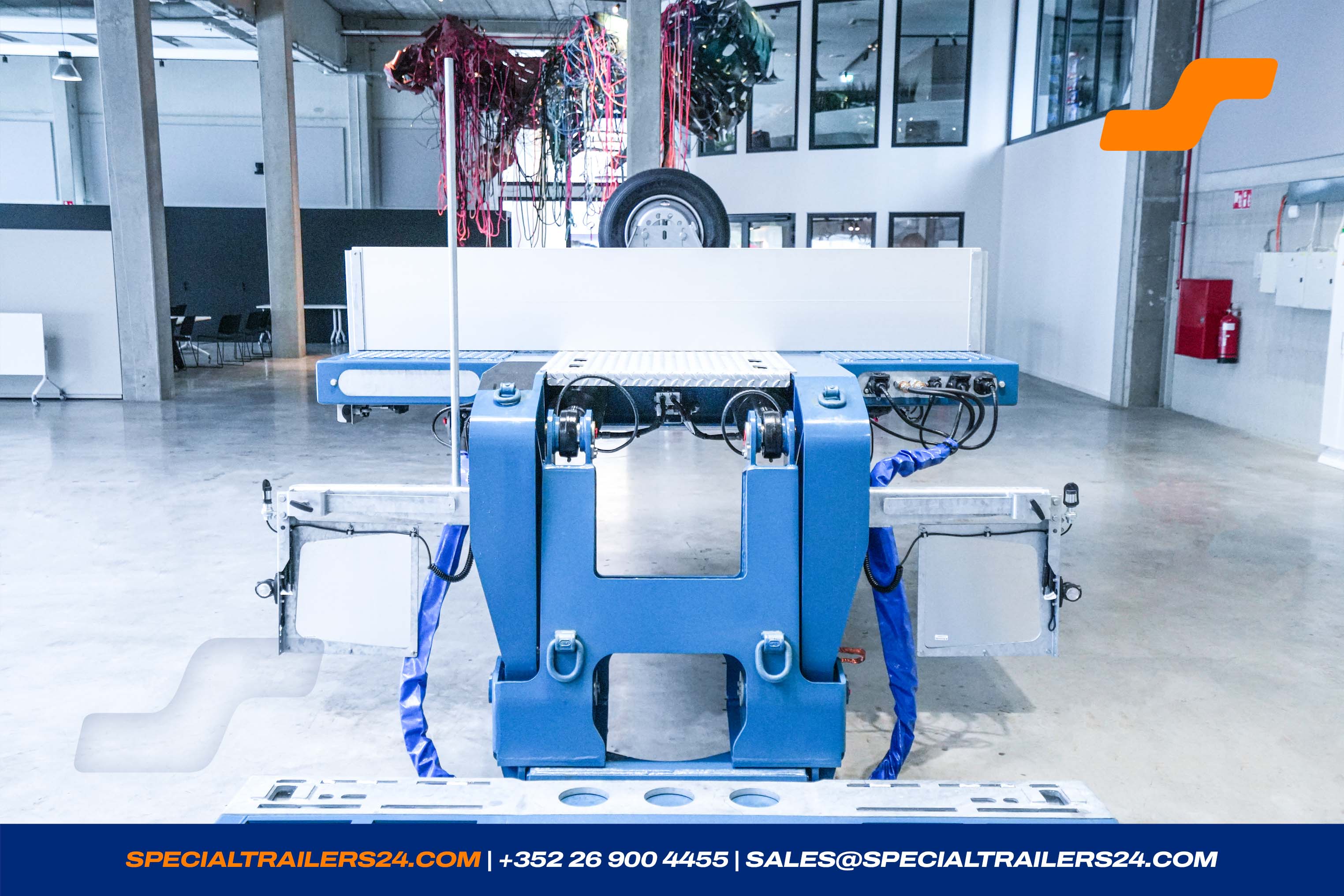

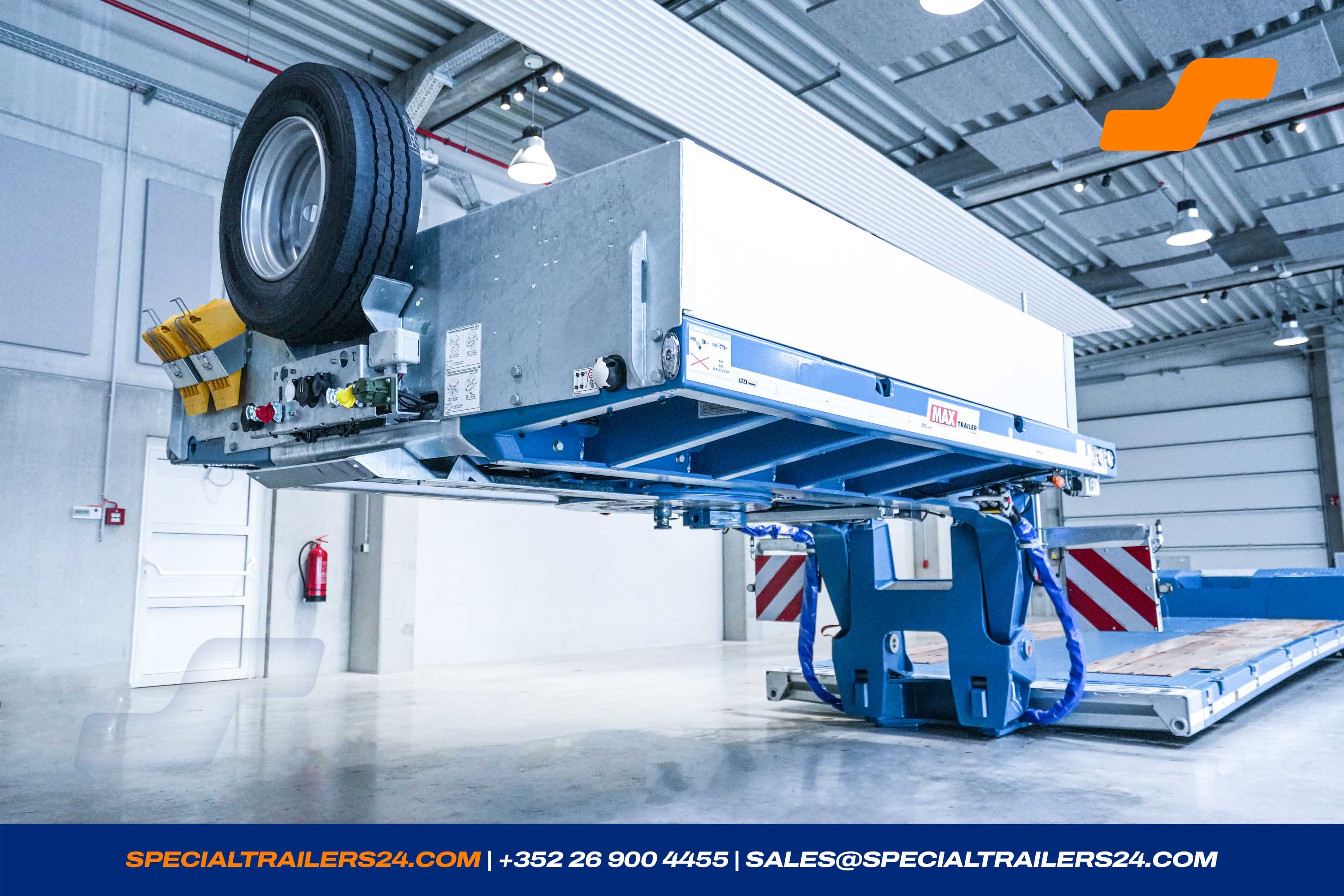

Gooseneck hydraulic lift and lowerable and detachable.
King pin load technical: 23.000
- King pin 2

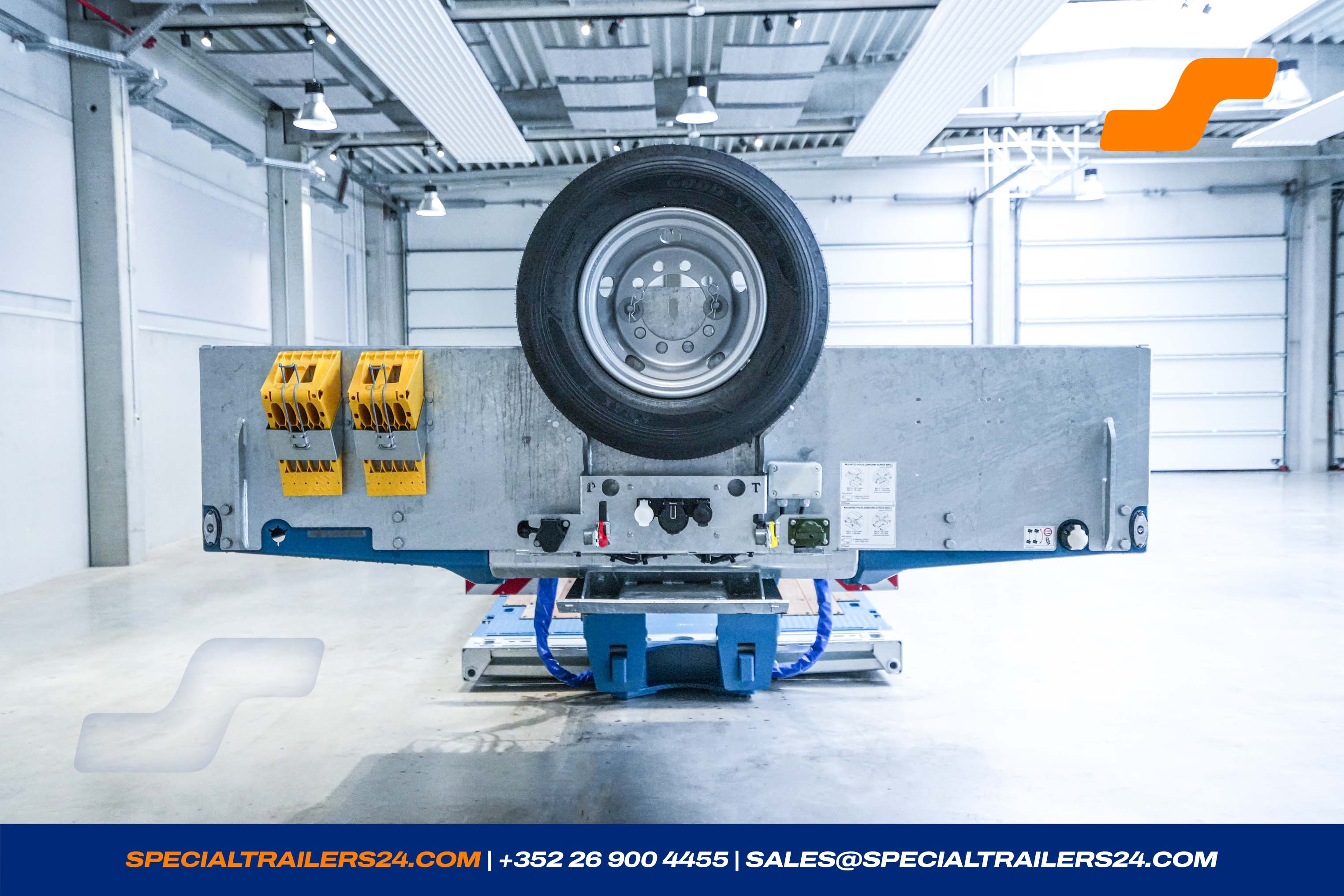

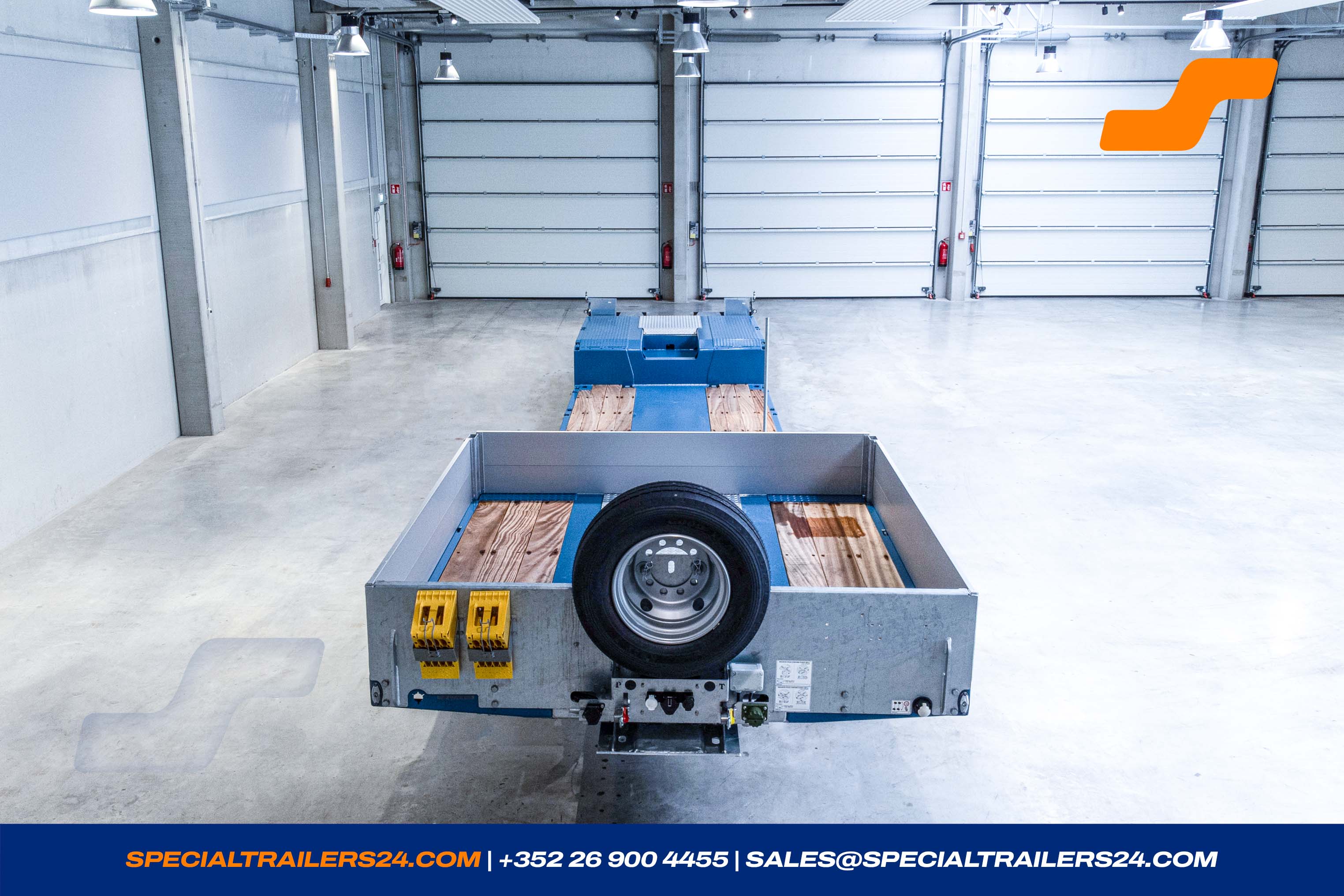

- One galvanised steel headboard, height ± 400 mm.
- One spare wheel with holder on the headboard.
- 2 wheel chocks with carrier on the headboard.

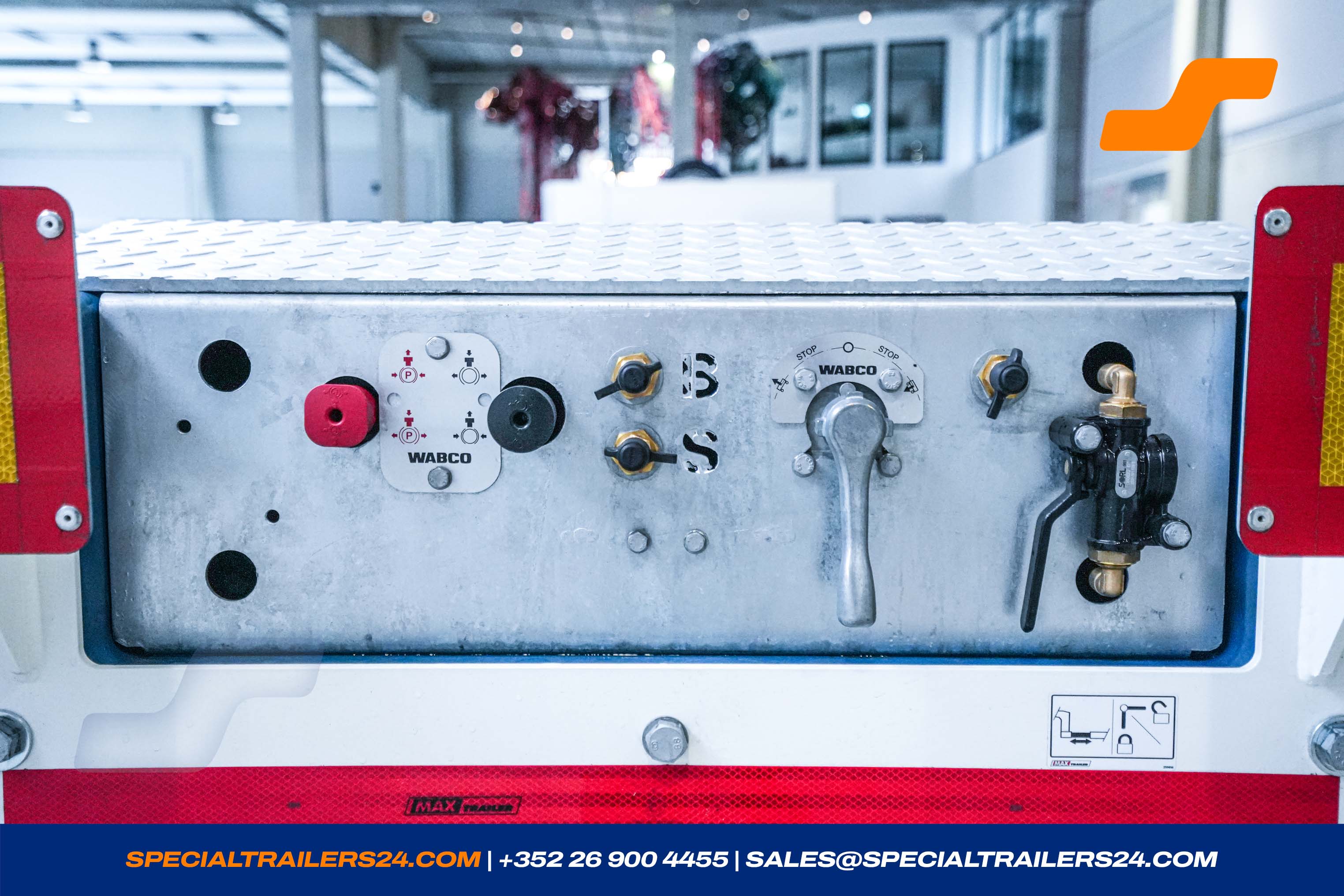

- Red and yellow air couplings on the galvanised front connection ledge.
-

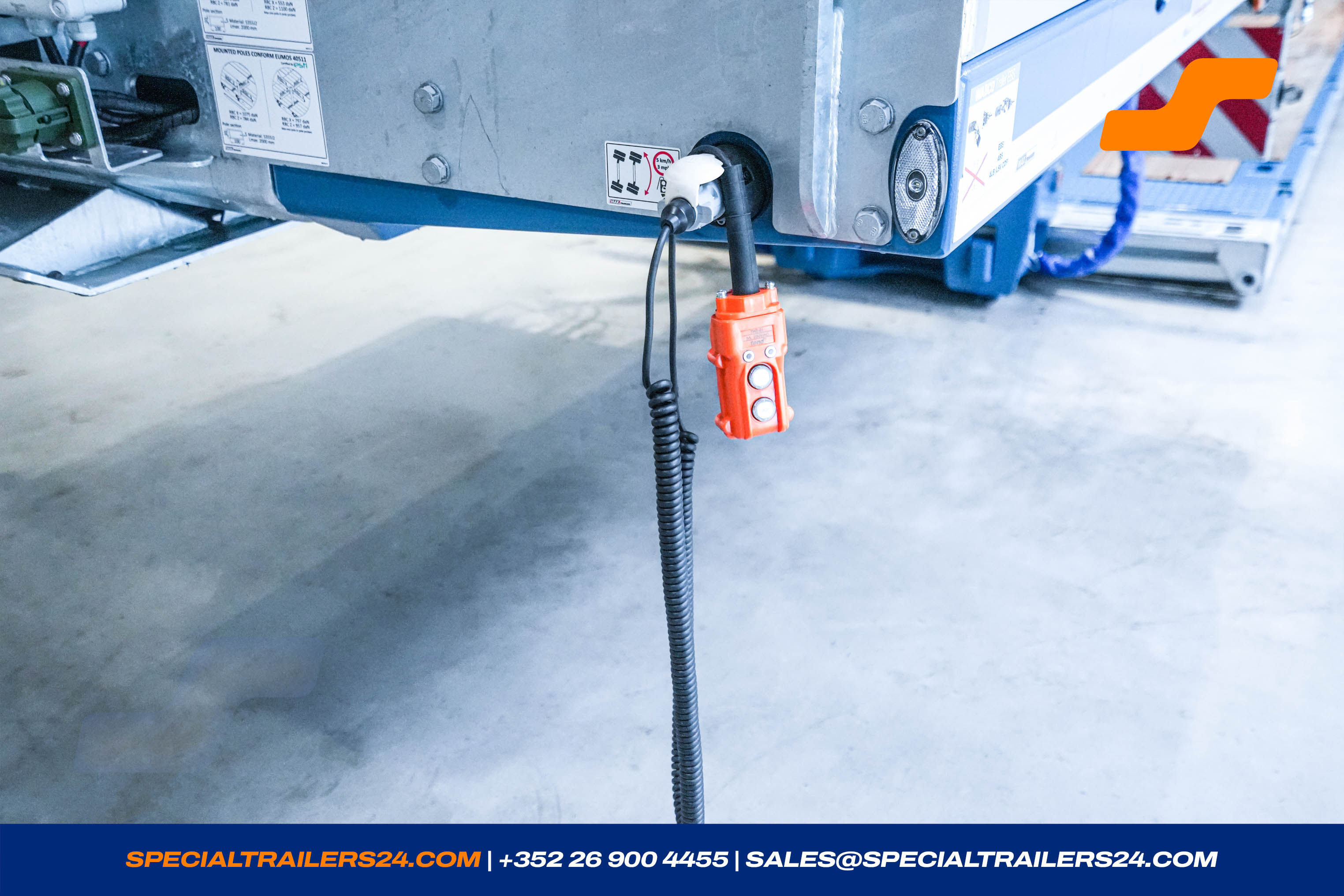

Manual-steering, handling with cable remote control from the front and the back, with PDC-light control for the realignement of the axles.
(without connection to the tractor). -

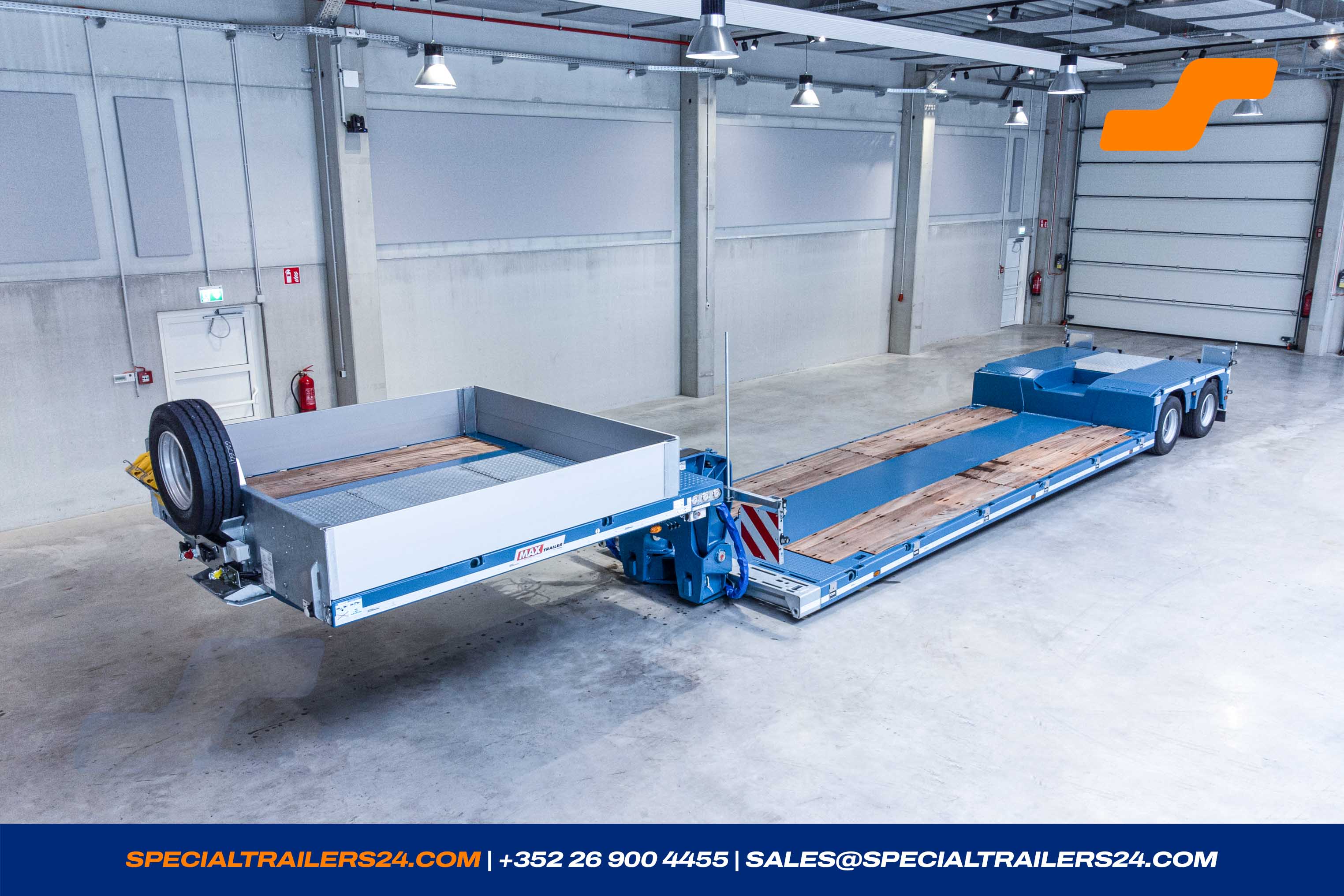

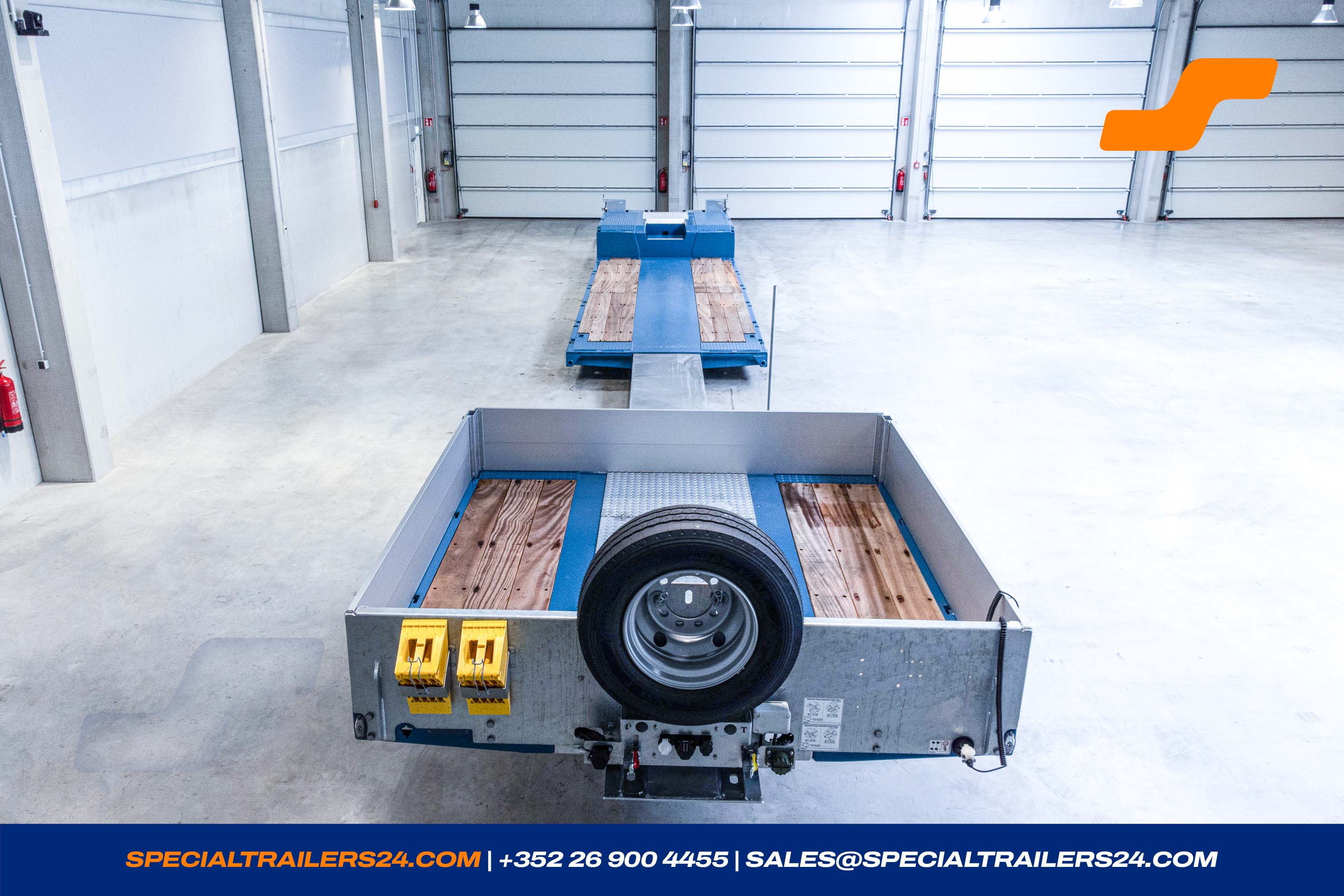

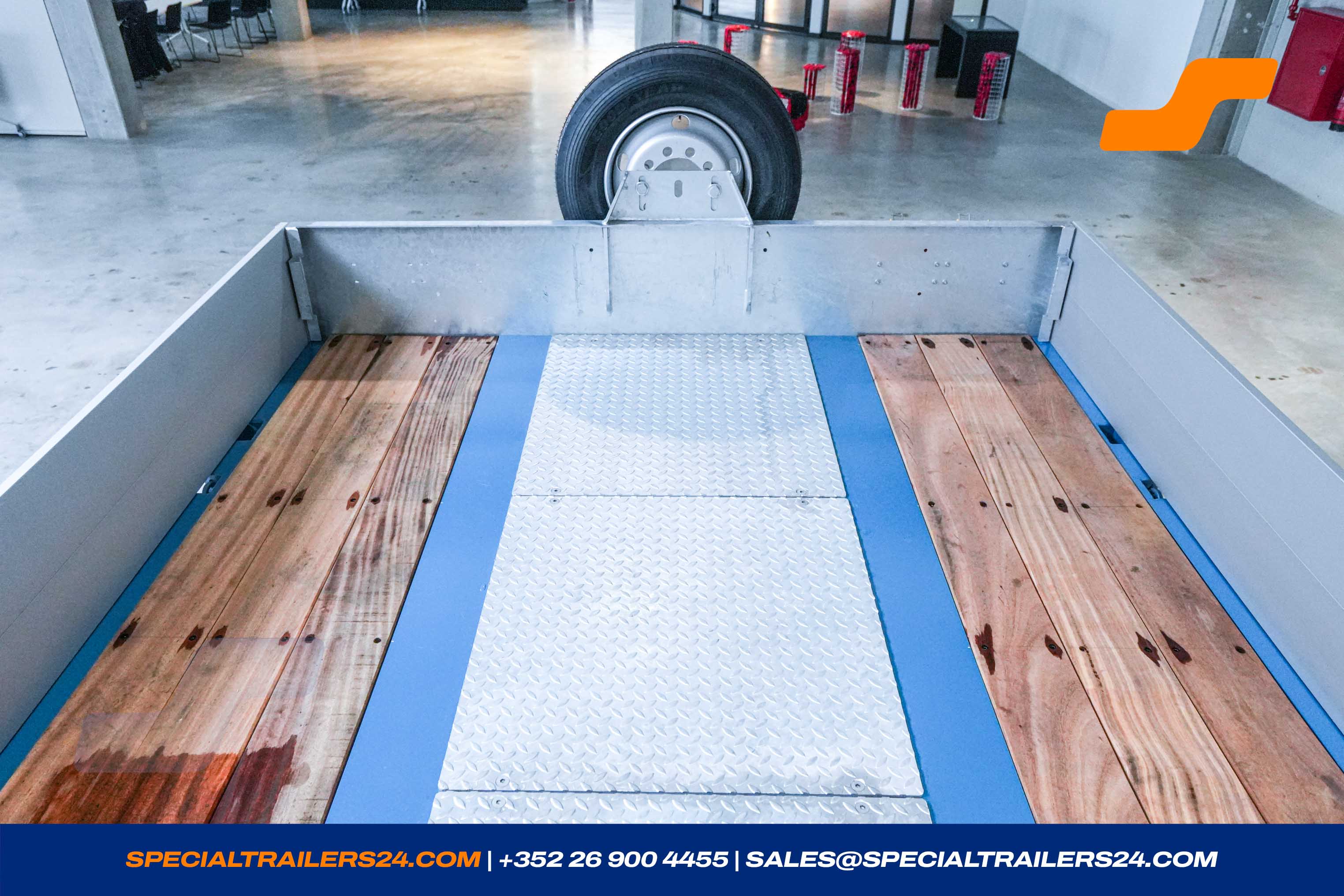

On the gooseneck removable sideboards and rearboard in alu ca. 2 400 x 400 mm (L x H).
The galvanised rear stakes are dismountable.

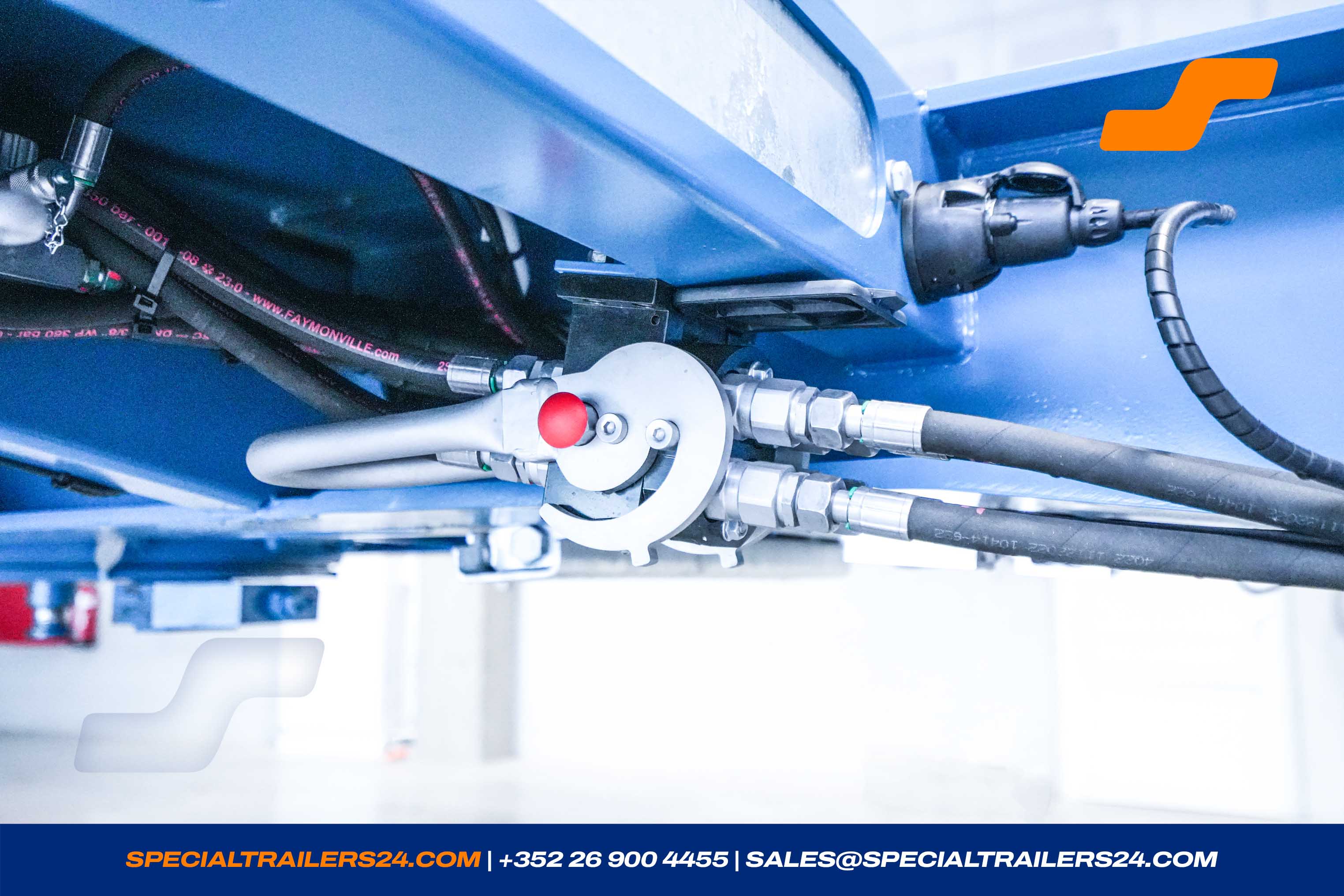

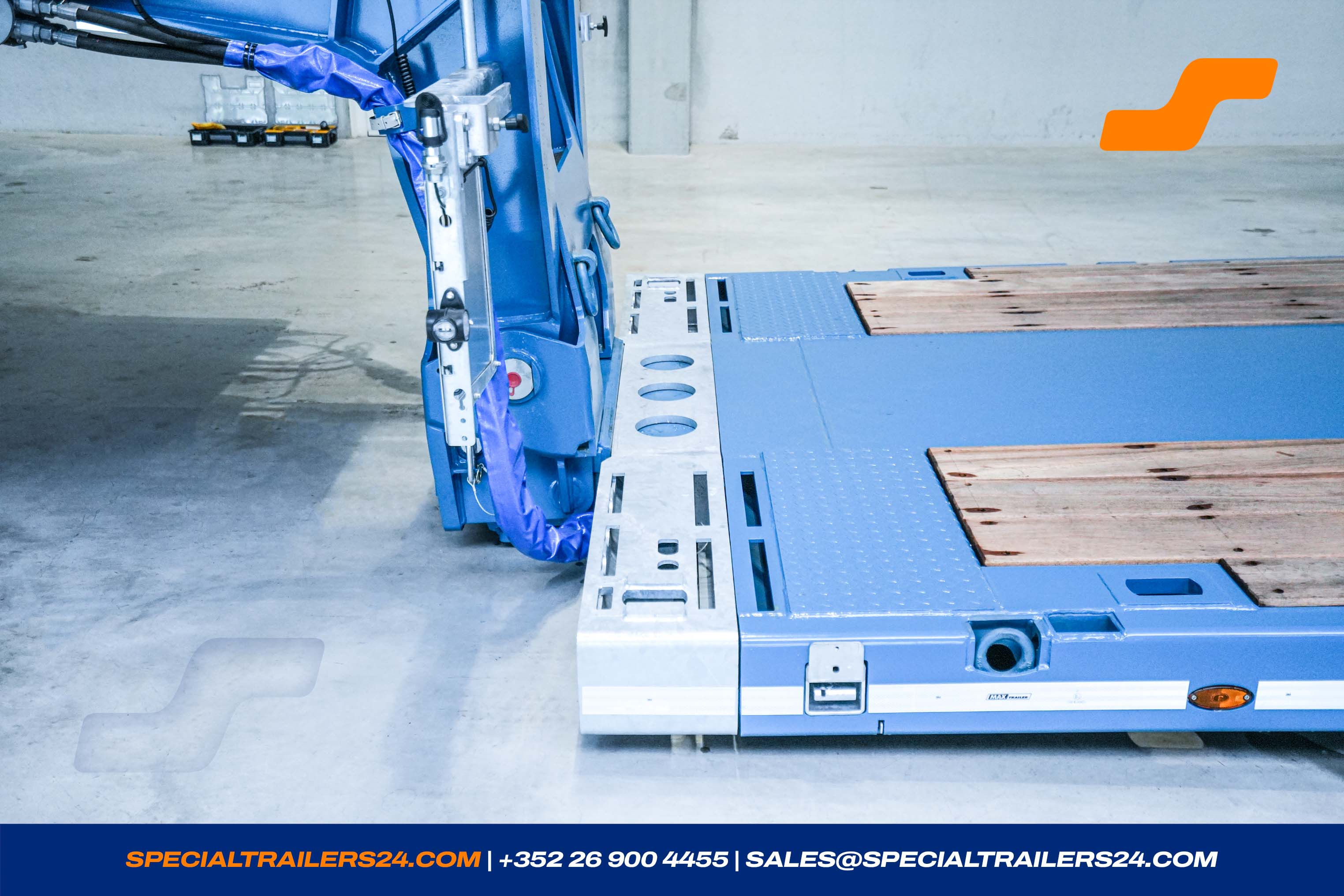

(Length of the structure ca. 2 560 mm) (± 46kg). - Hydraulic connections from loading platform to gooseneck with multi-coupling instead of screw couplings. Without guarantee on seals. (± 4 kg)
Loading deck
Loading platform
1 x Lowbed

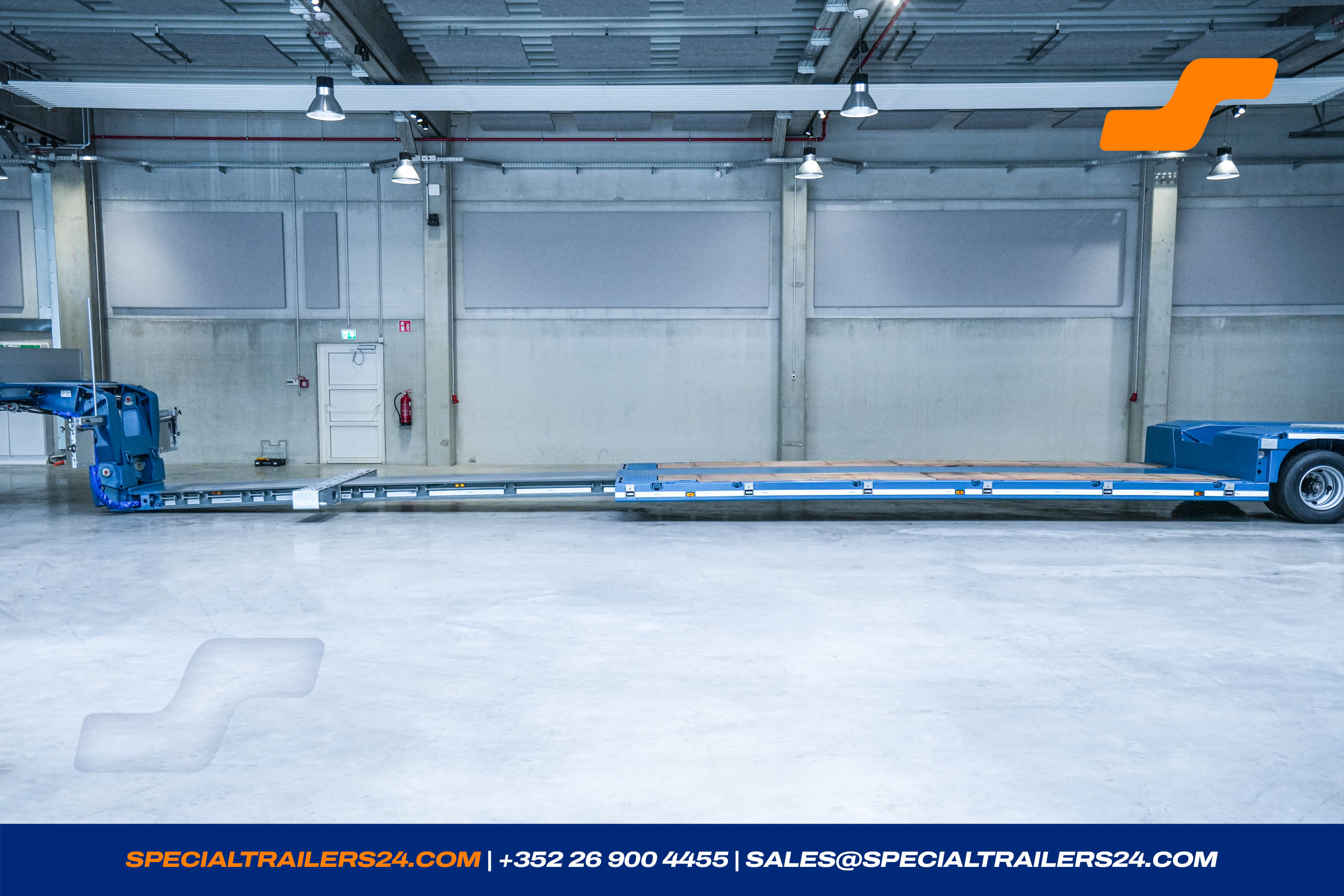

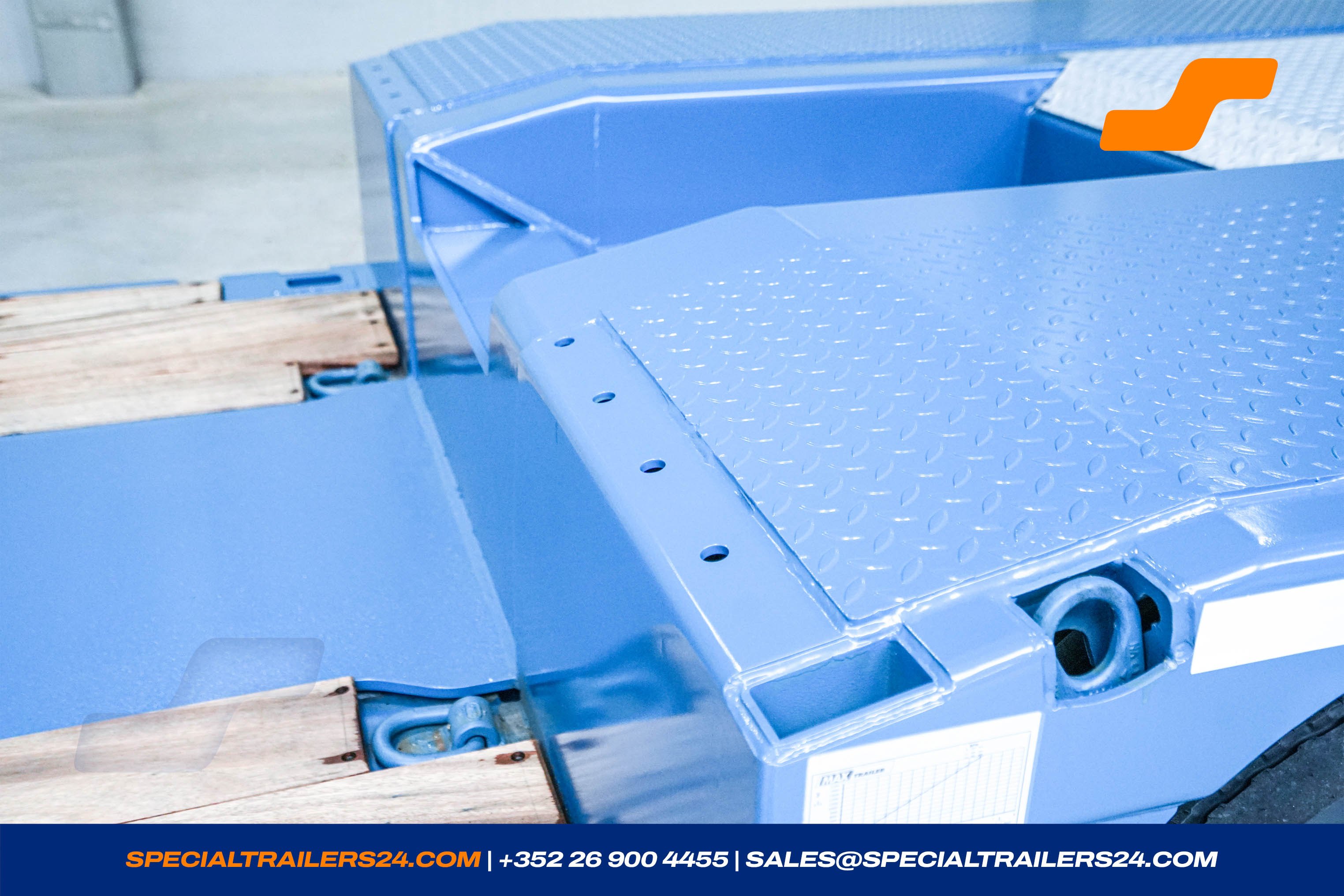

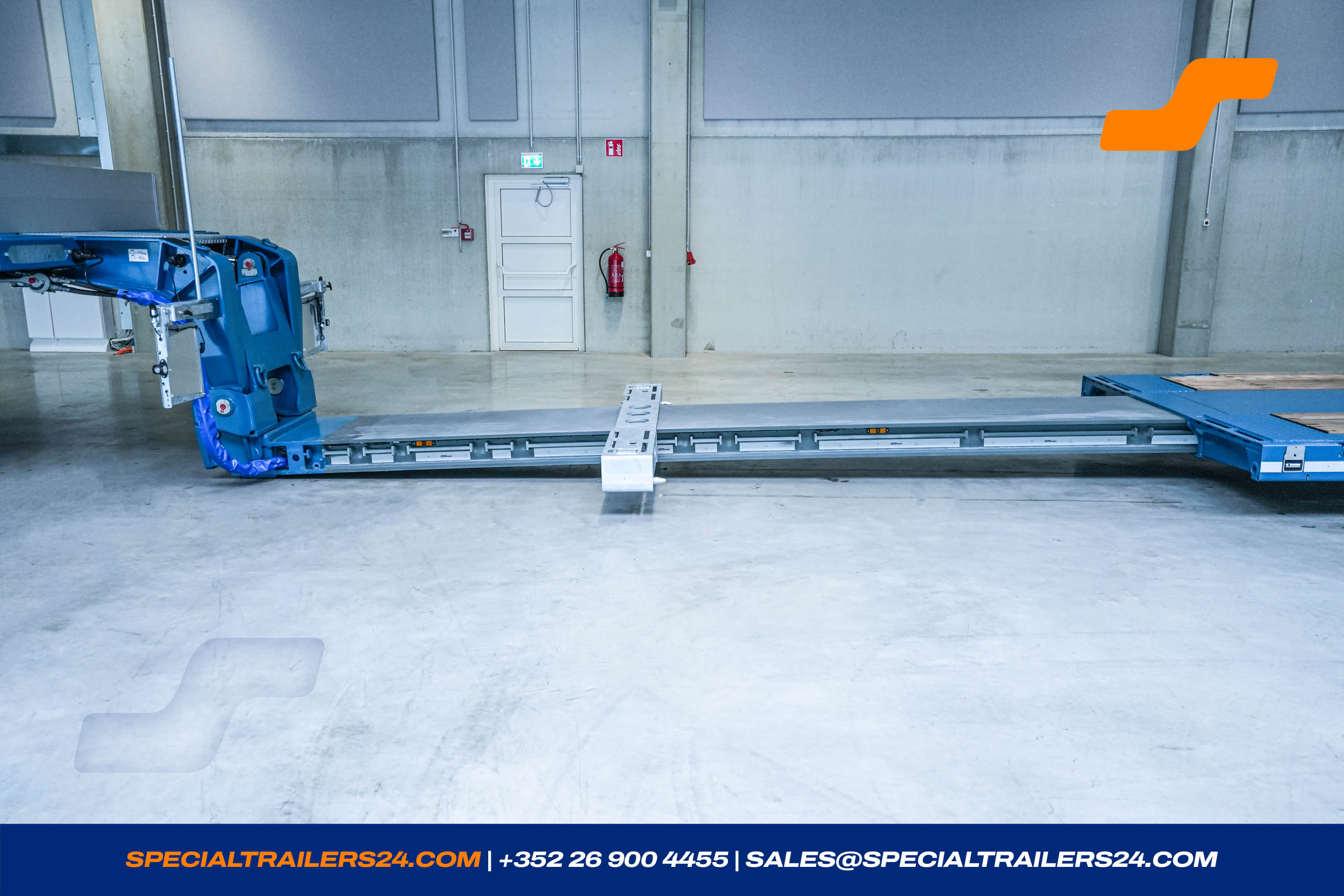

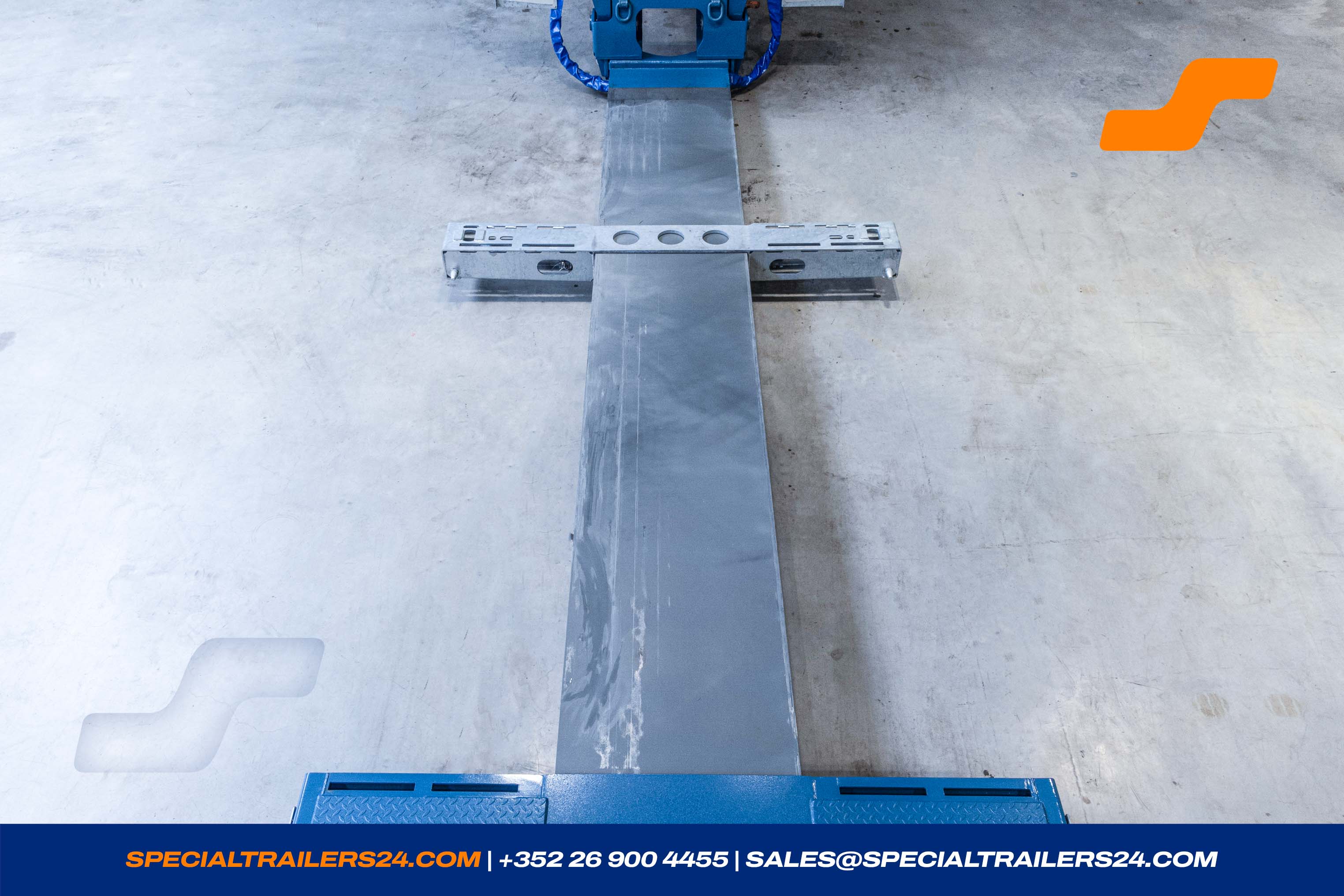

Lowbed with center spine extendable, length ± 6.750 mm.
5 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
1 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN)
1 pair of lashing rings in rear in the firm part the loading platform (LC 10 000 daN).
The supply lines are laid in the center spine and adapt automatically to the length of the loading platform.

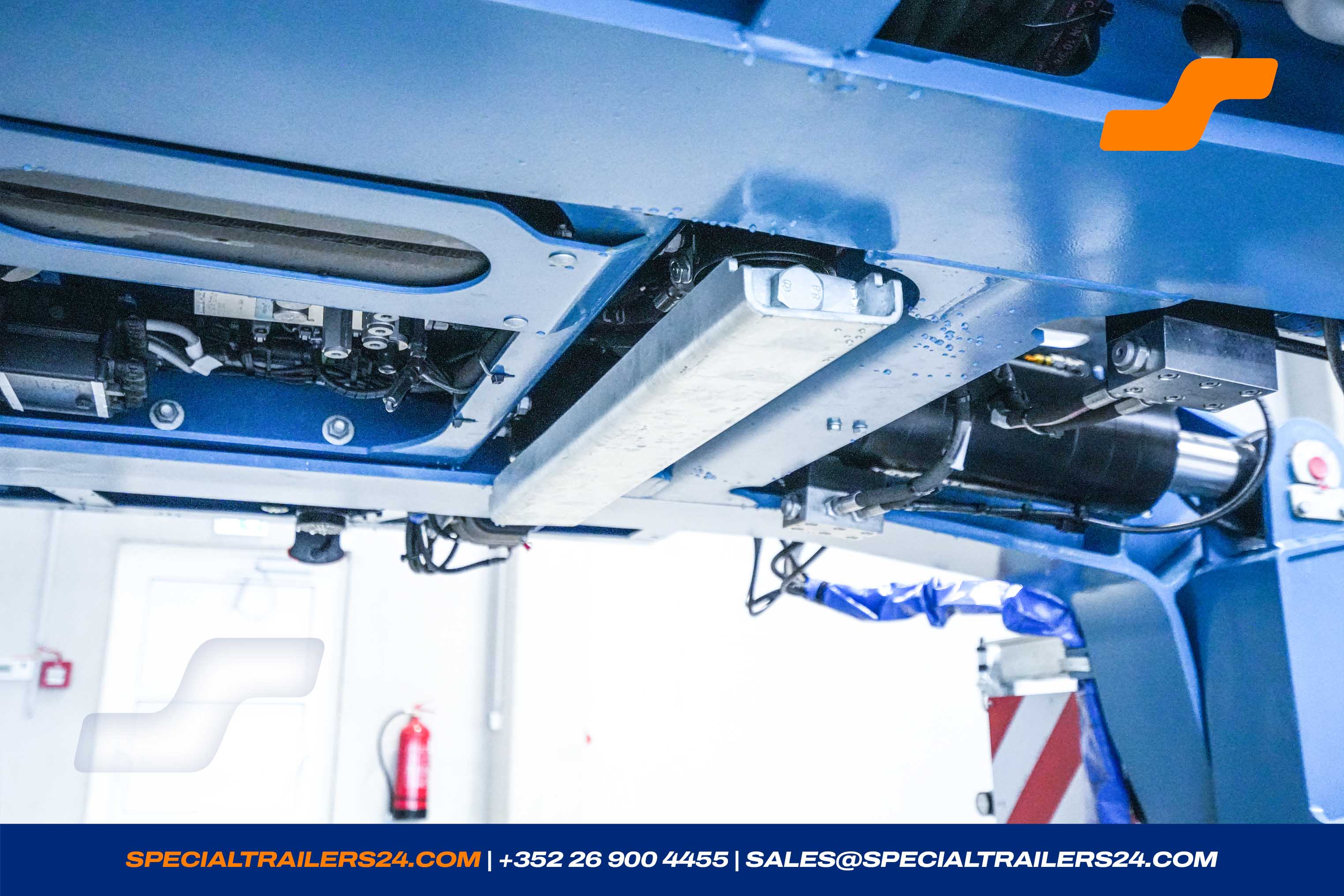

- Electrically operated hydraulic pump. (± 45kg)
- Cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 160 A) between the semi-trailer and the truck with socket (ANDERSON-ANDERSON).
- Yellow reflective tape according to the EU regulation over the entire length, on the extension and at the rear.
- A wooden block 500 x 250 x 200 mm.
- Profile as hook on device for alu-ramps at the rear.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
- 2 pairs of containerpockets WADER incorporated into the loading platform for 1 x 20'. (± 20 kg)
- One removable, galvanised sliding bolster with 1 pair of WADER containerpockets. (± 118 kg)

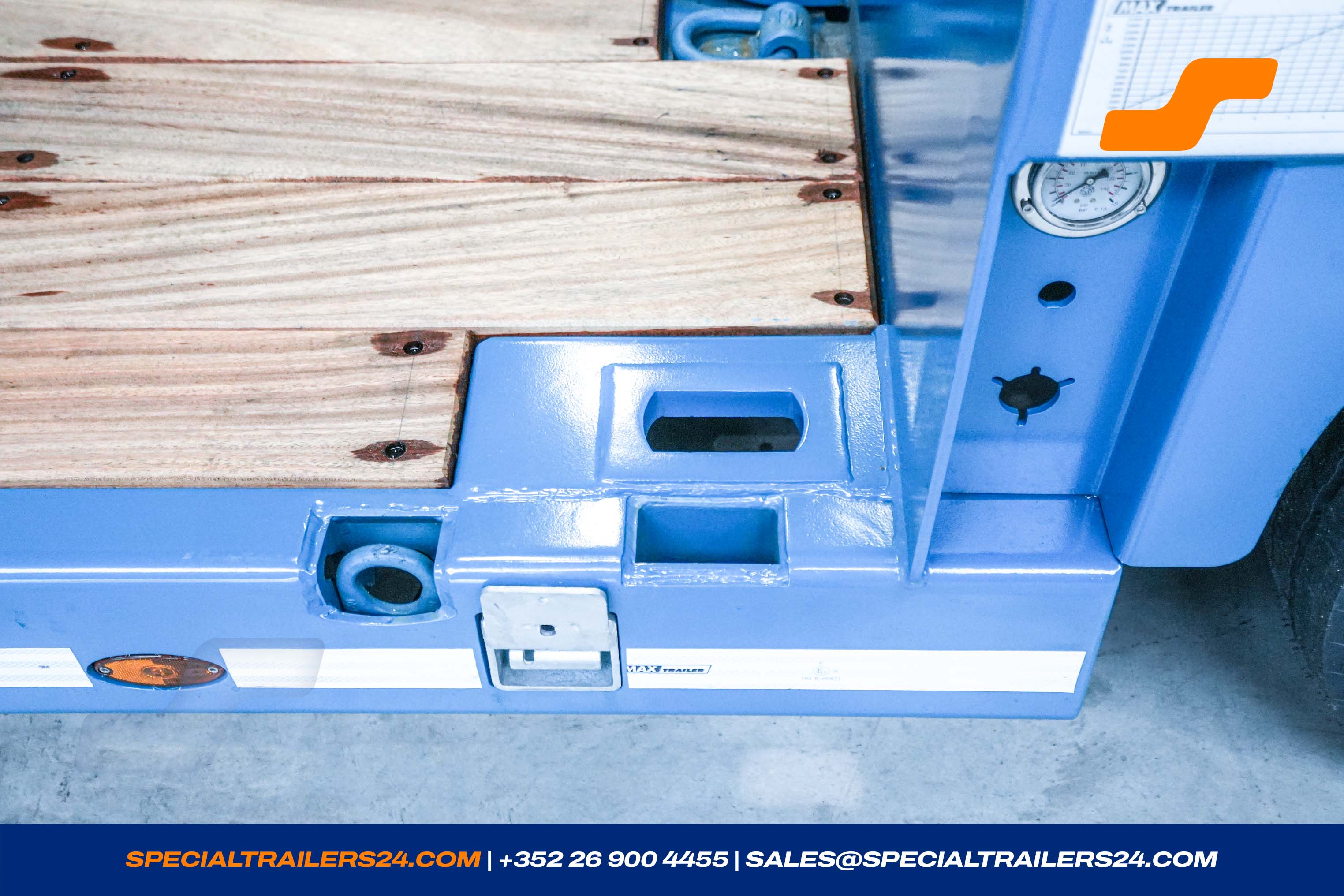

- 6 pairs of pockets for stakes ± 100 x 50 mm in the outer frame of the loading platform, 2 pairs in the axle bogie. (± 29 kg)
- Galvanised outriggers, extendable up to ± 230 mm per side (± 262 kg).
- 1 pair of steel-ramps to bridge the hooks of the lowbed. (± 60 kg)
- Anti-slip-coating with sand on the loading platform.

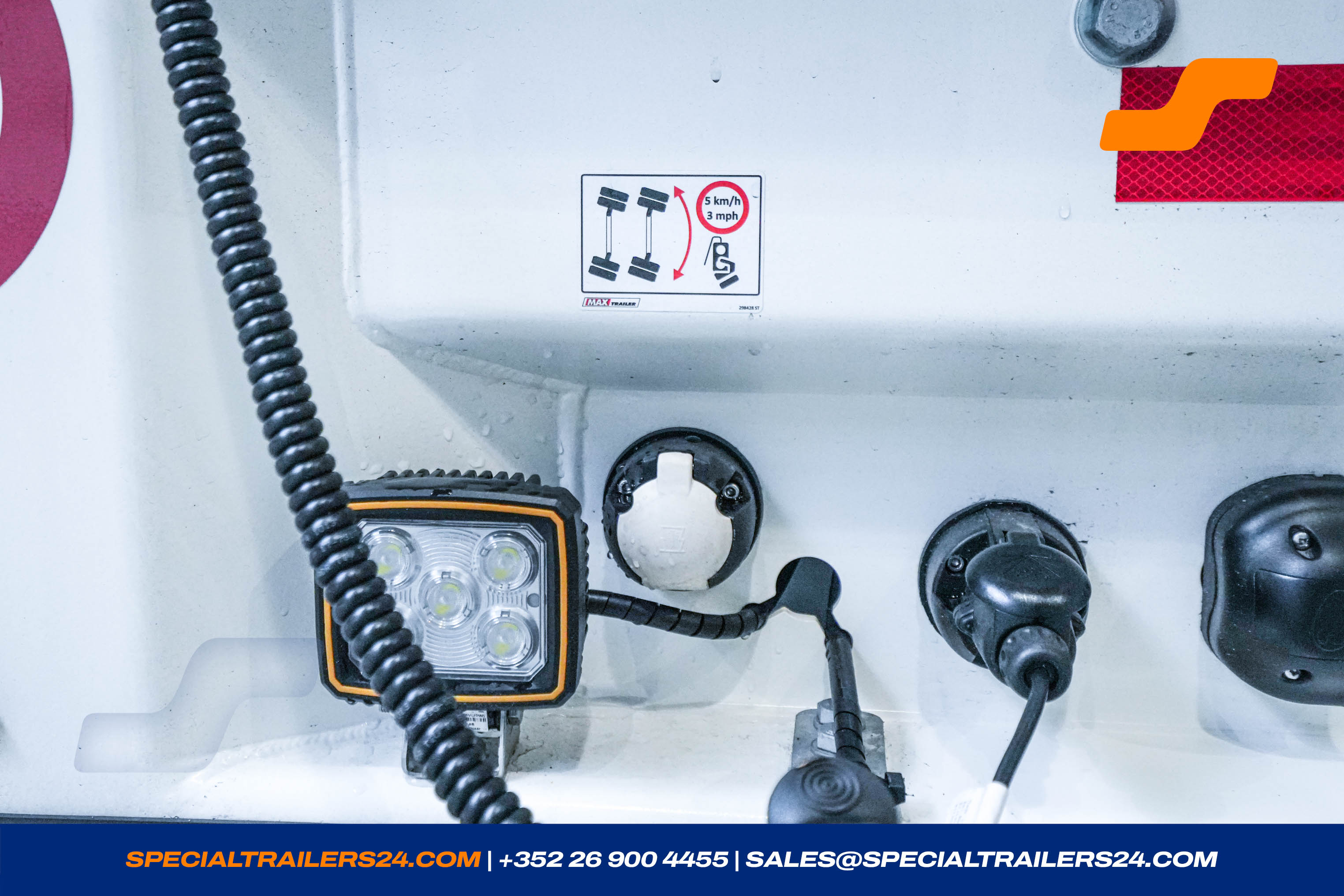

- 2 LED- reversing lights at the rear.

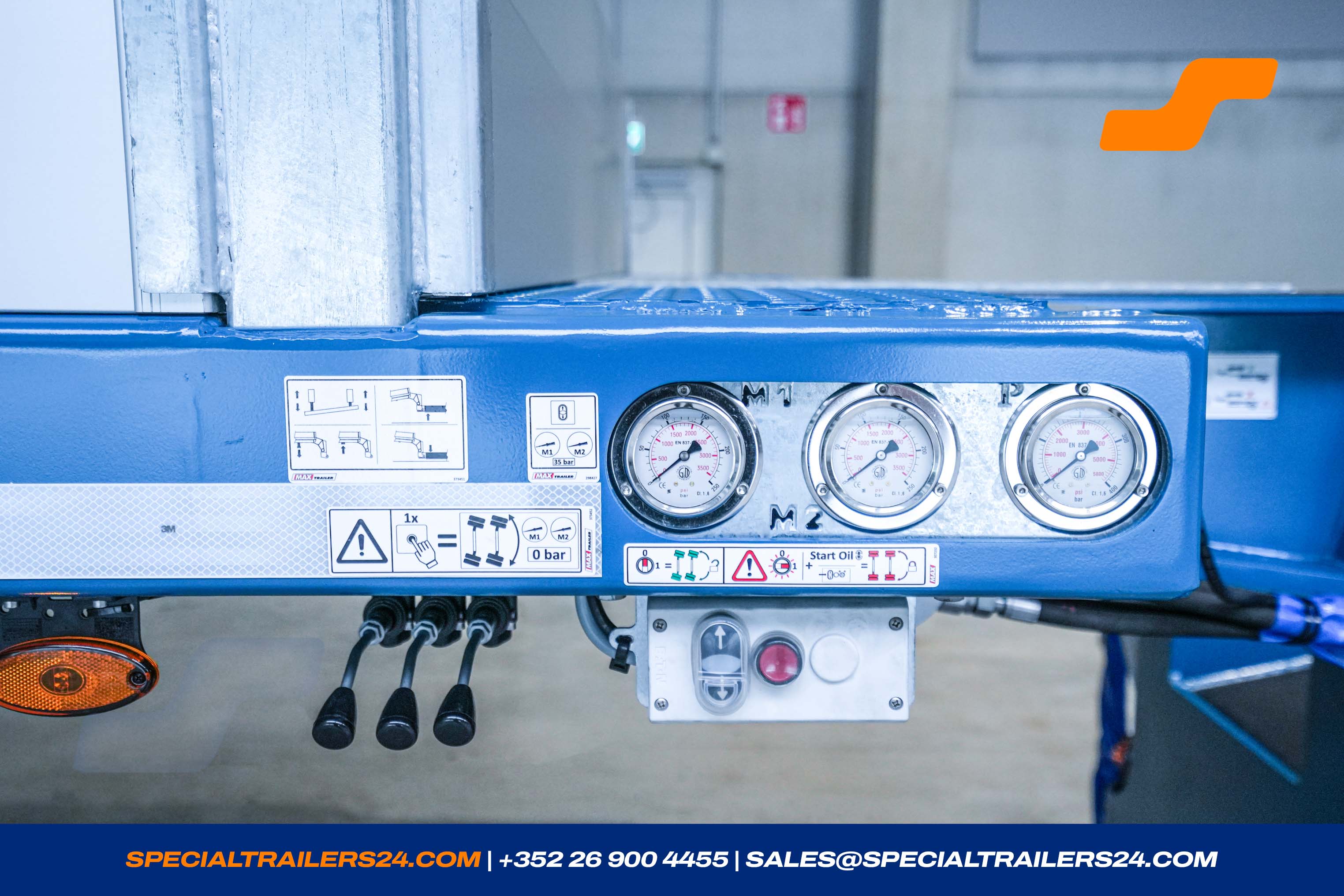

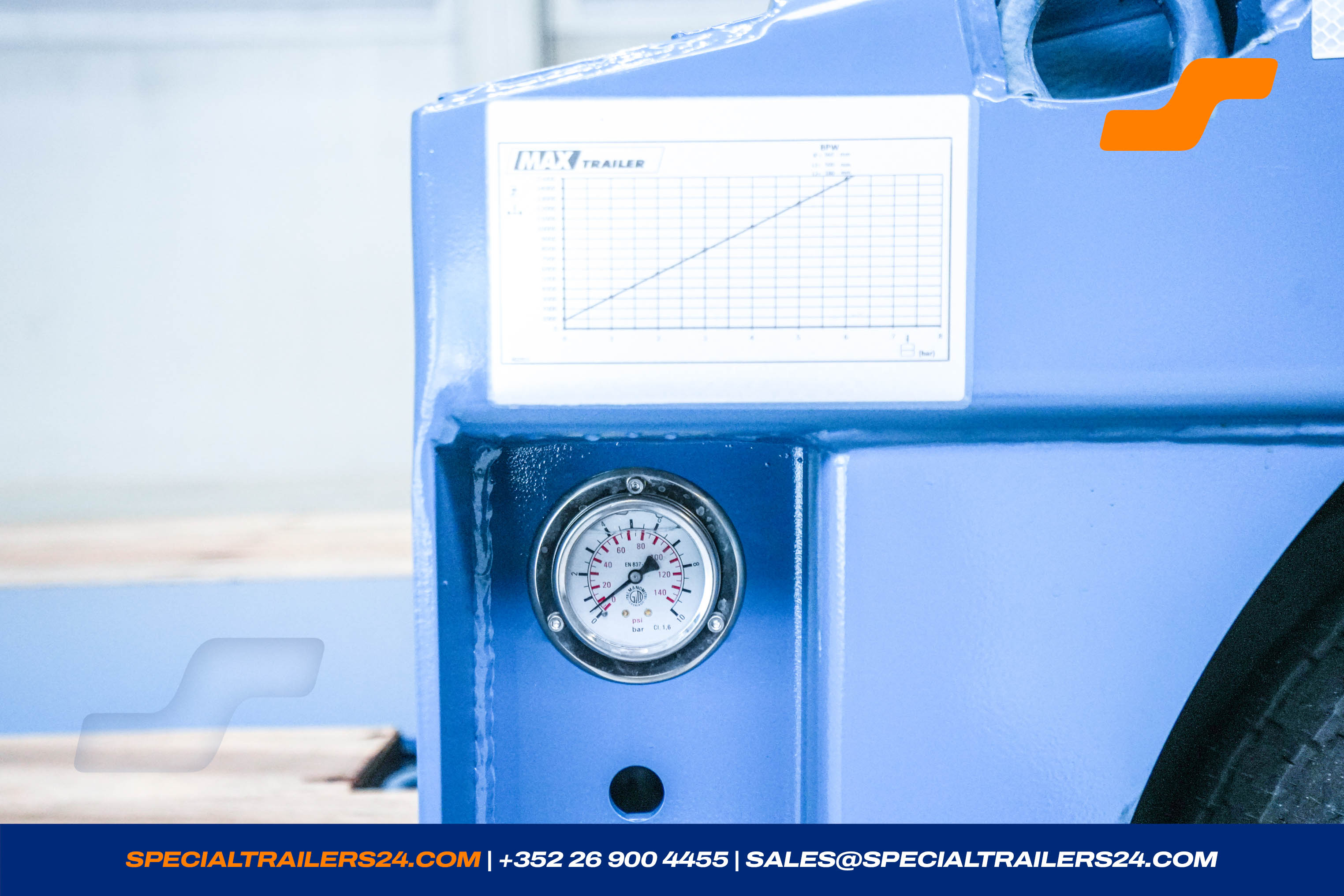

- Load manometer for determining the axle load, including load diagram.

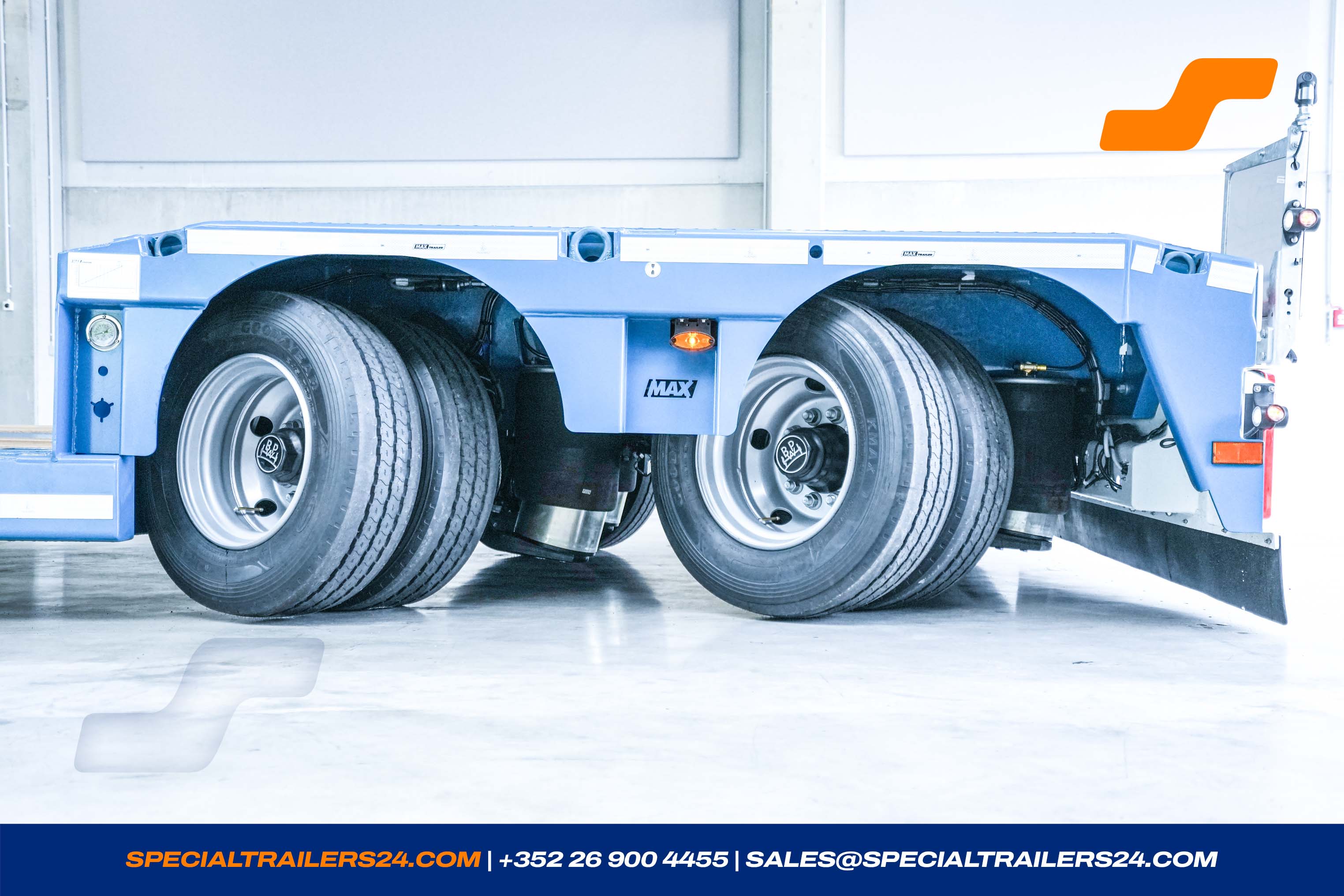

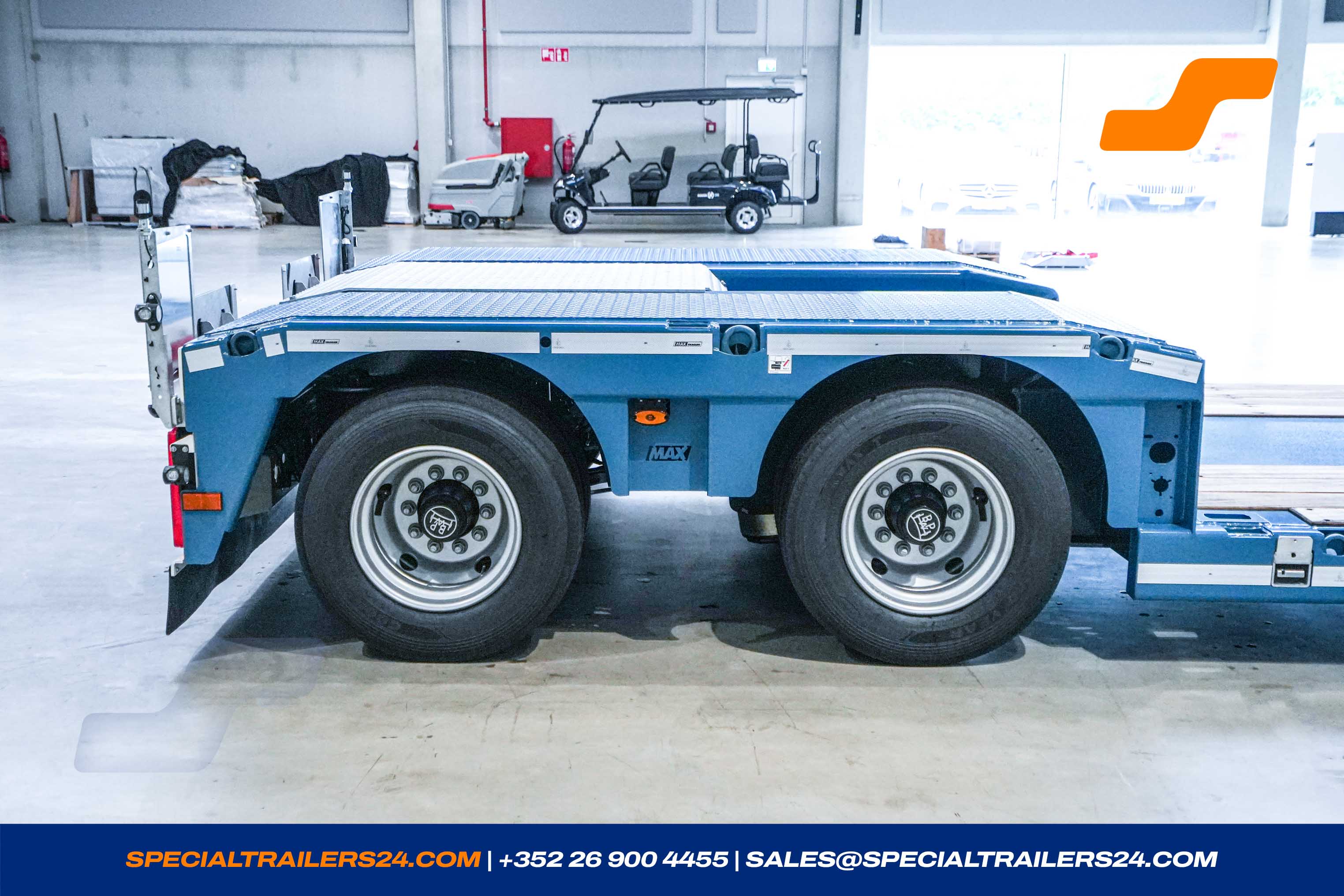

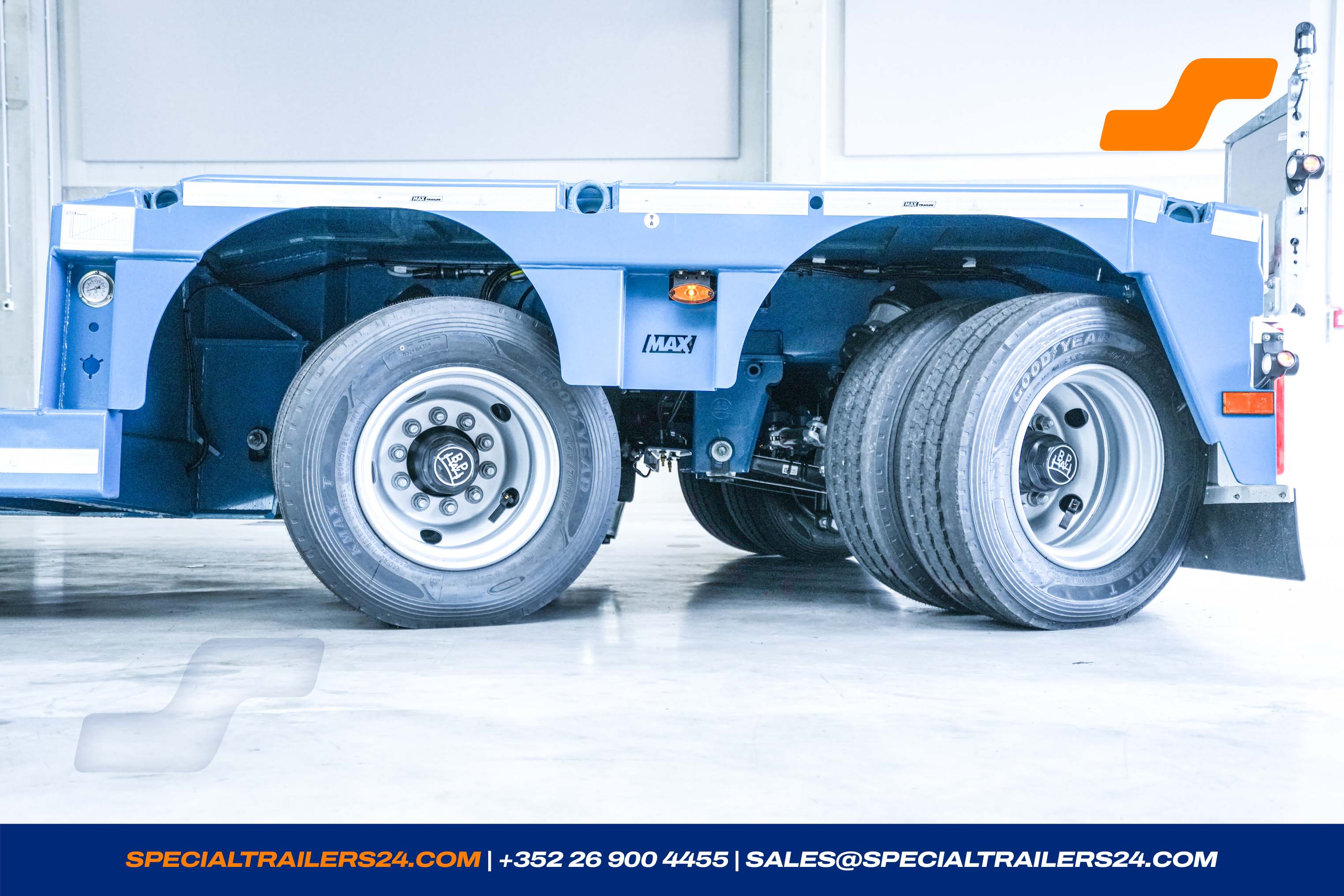

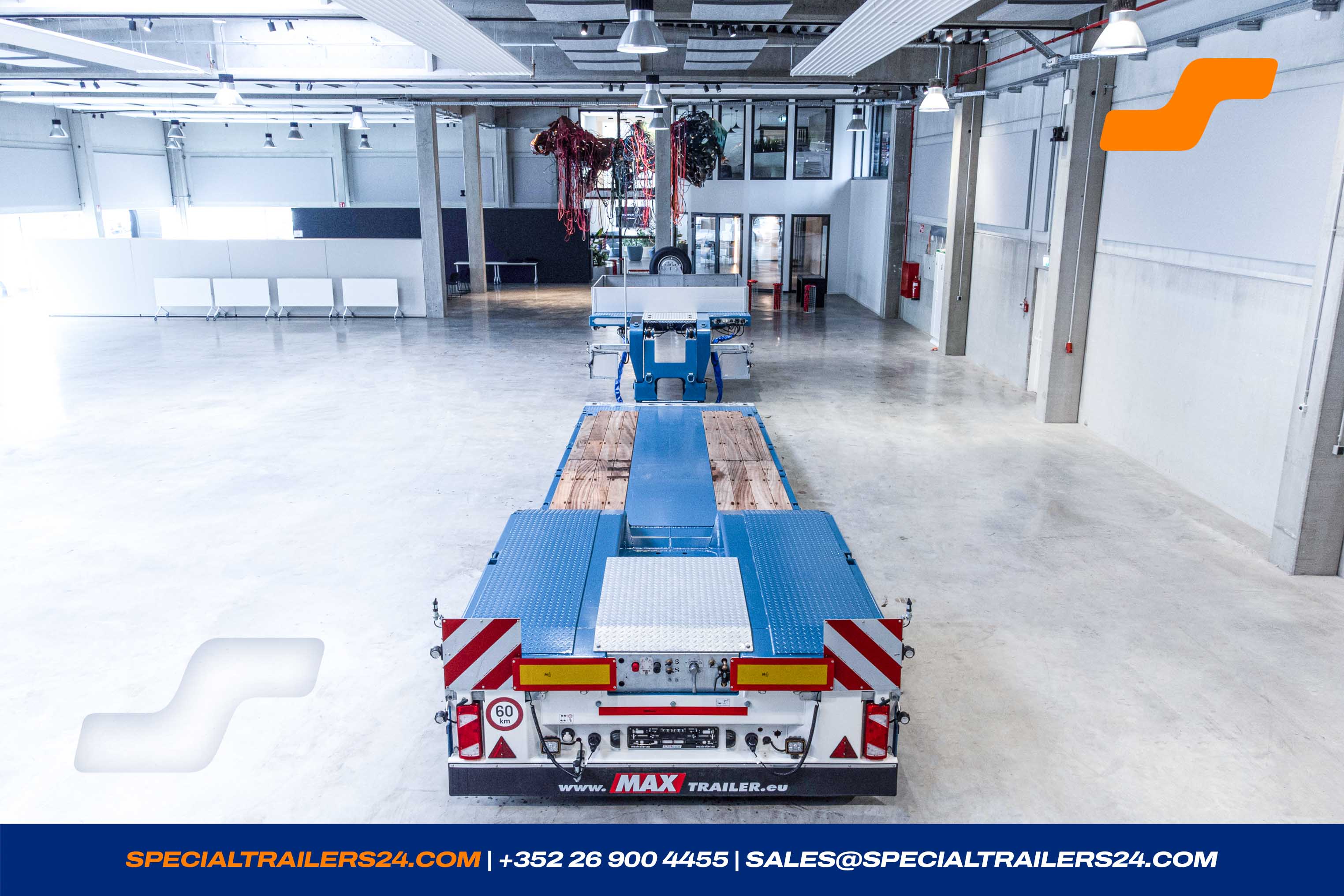

Rear Bogie
1 x Axles bogie

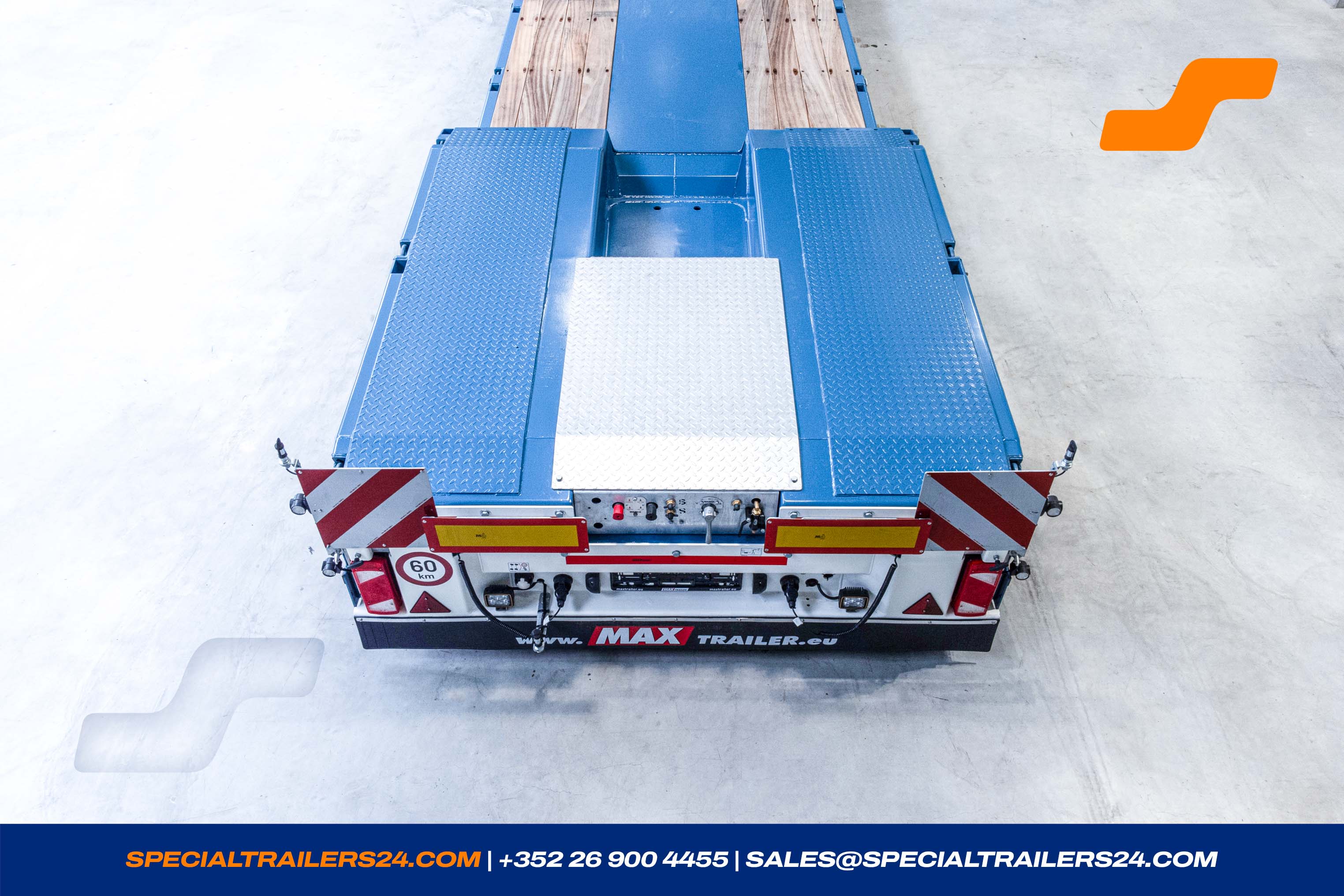

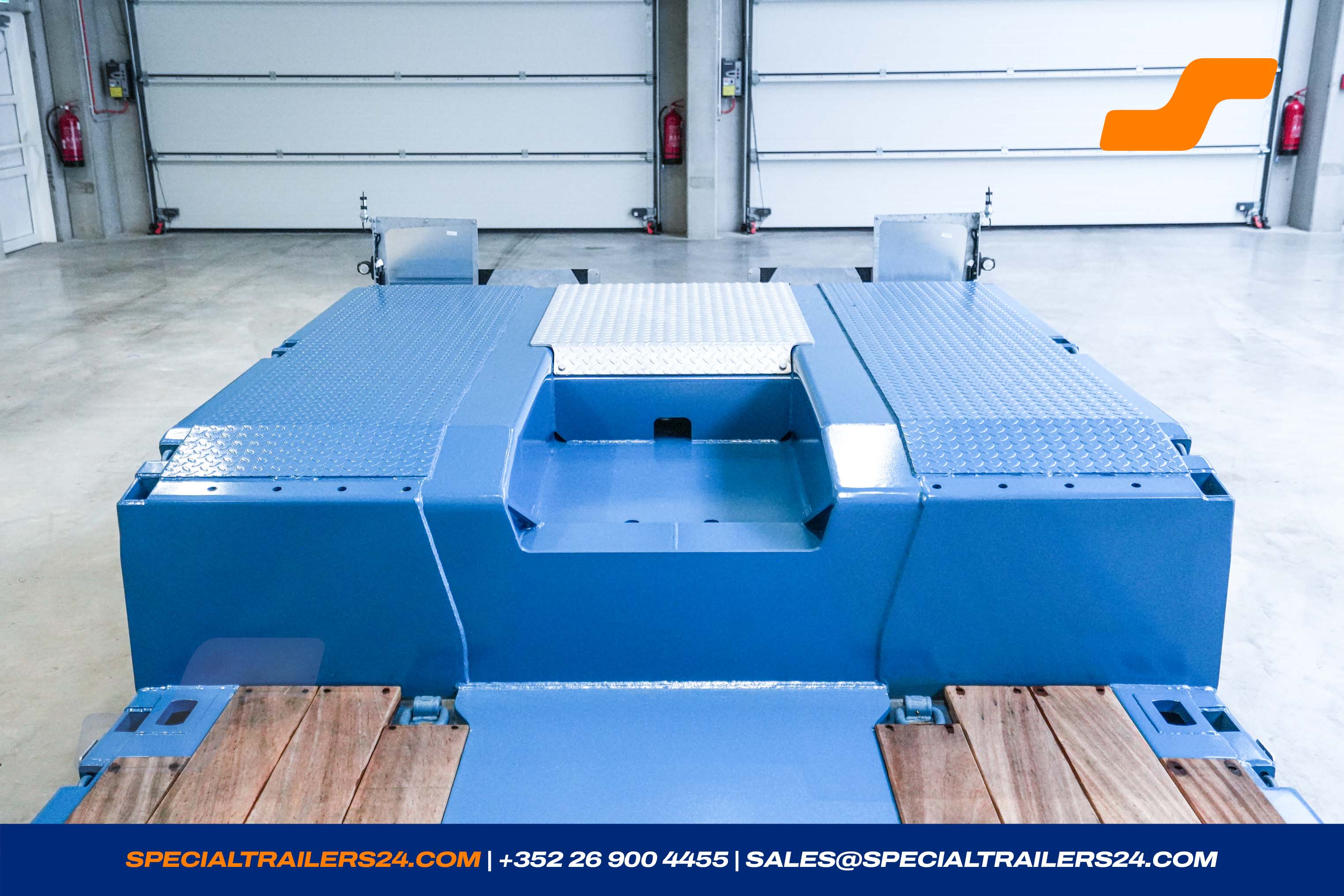

Axles bogie at the rear with outer frame construction and chequer plate cover.
Axles bogie with recess, closed at the rear part for the air tanks.
2 pairs of lashing rings in the loading platform, hinged outward (LC 5 000 daN).
1 pair of lashing rings in the loading platform, hinged outward (LC 10 000 daN).
1 pair of lashing rings at the rear of the axles bogie (LC 10 000 daN).

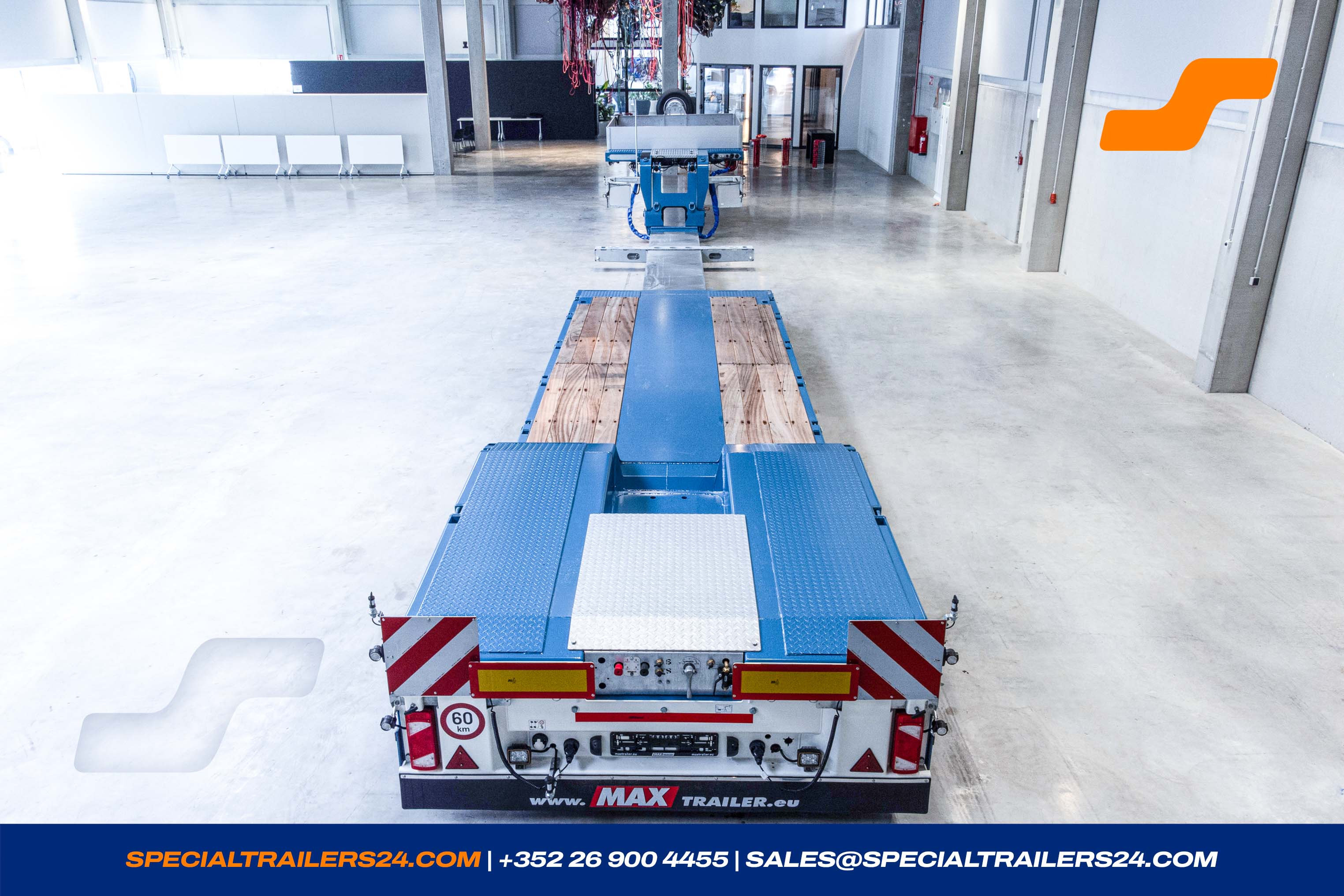

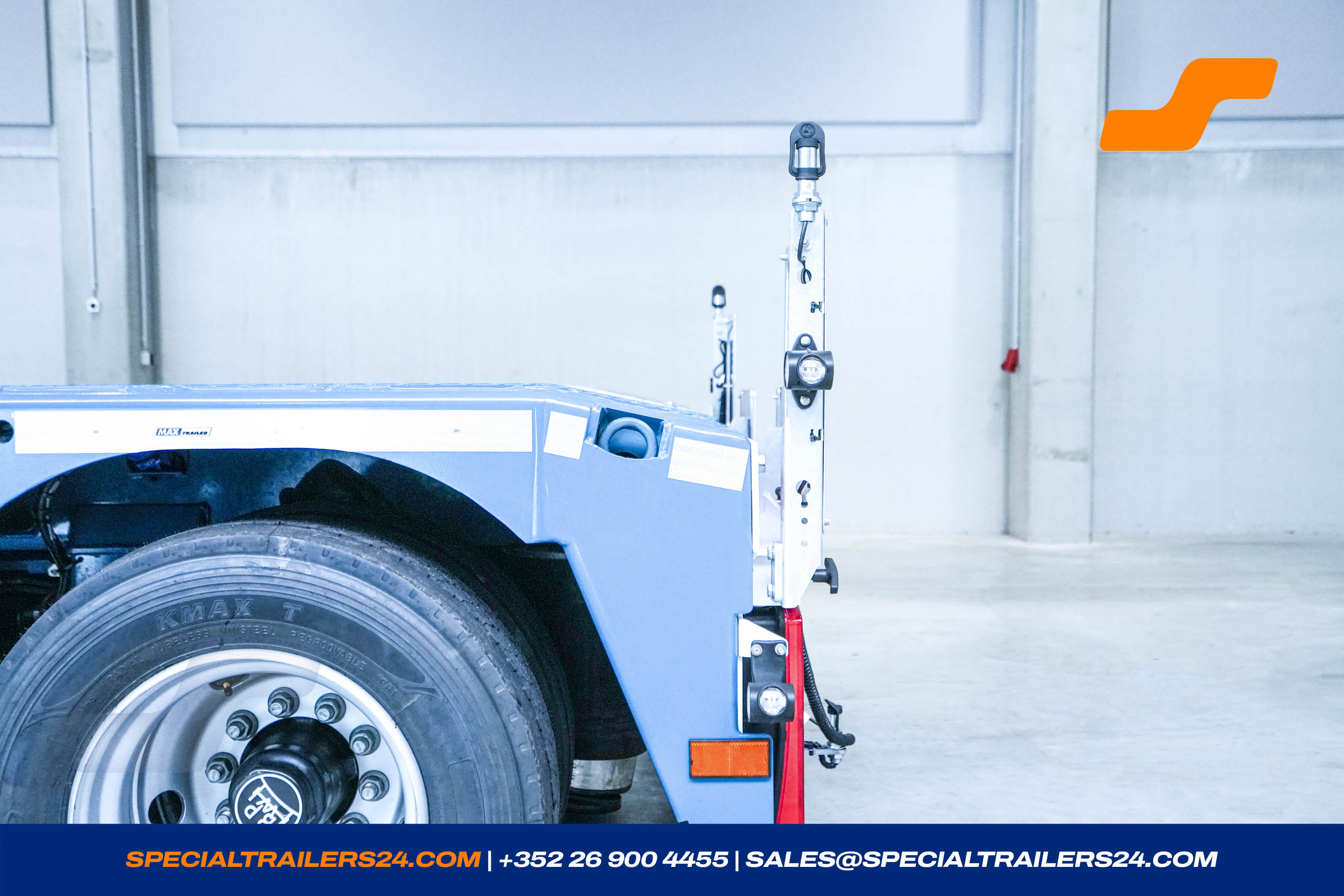

- Holder for one beacon light at the rear of the trailer.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
Accessories
1 x Accessories
-
Steel construction of high tensile steel.
Steel grade:
**S355J2+N/S355MC (yield strength 355 MPa)
**S690QL/S700MC (yield strength 690 MPa) - Manual and description on USB stick .
- We recommend to equip this trailer with a central greasing.
- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.

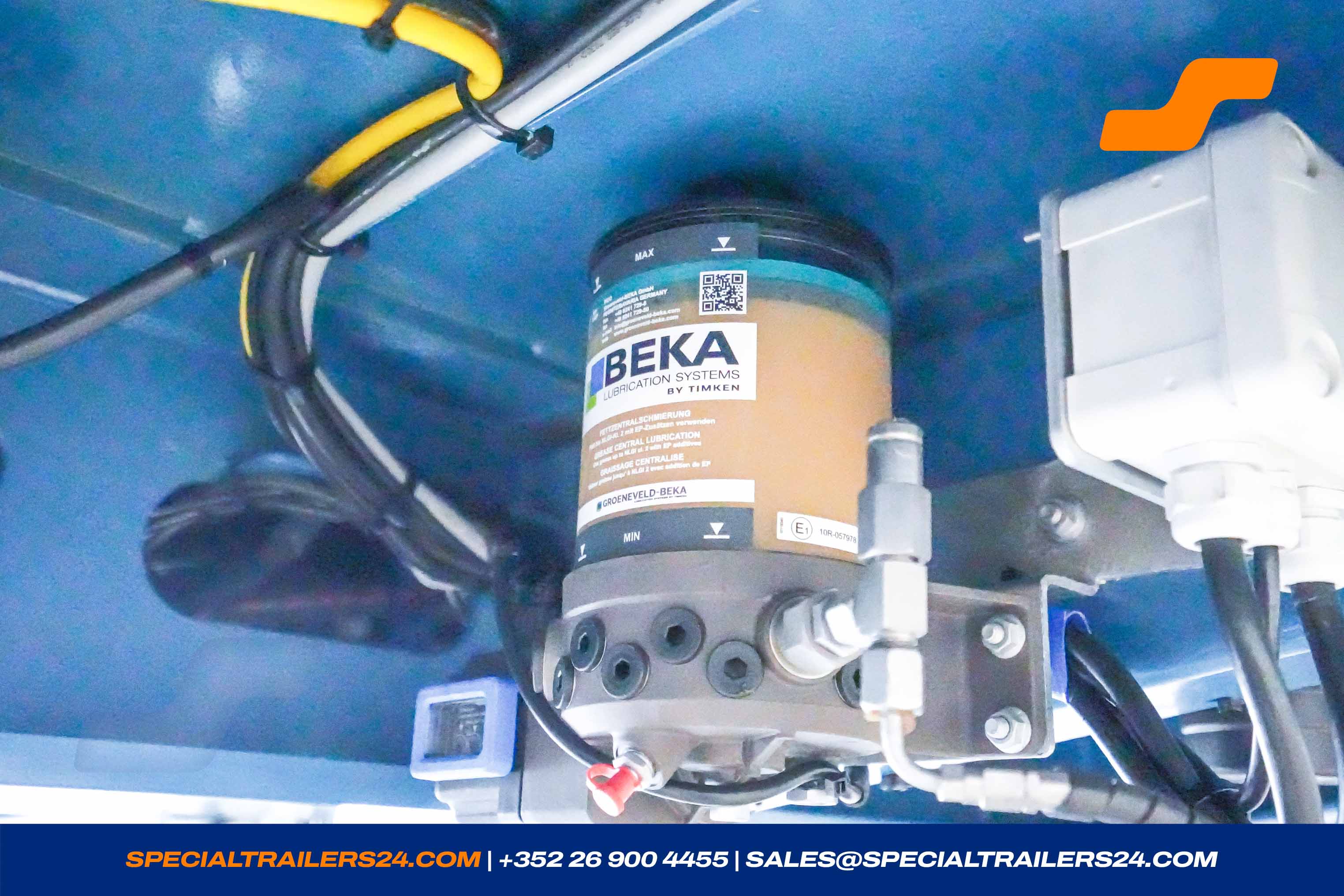

- Central greasing with 2 pumps BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pumps. (± 26 kg)
- Delivery from a trailer to factory Lentzweiler.
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 111348
- Reference MAX510-Z-2A-6.75
- Number of axles 2
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 03/2026
- Price On request
-
Location
SpecialTrailers24
Z.A.E.R. Op der Sang,
16, Op der Bréimicht
9779 Lentzweiler
Luxembourg - AdId 000277
- Steering Type Hydraulic
