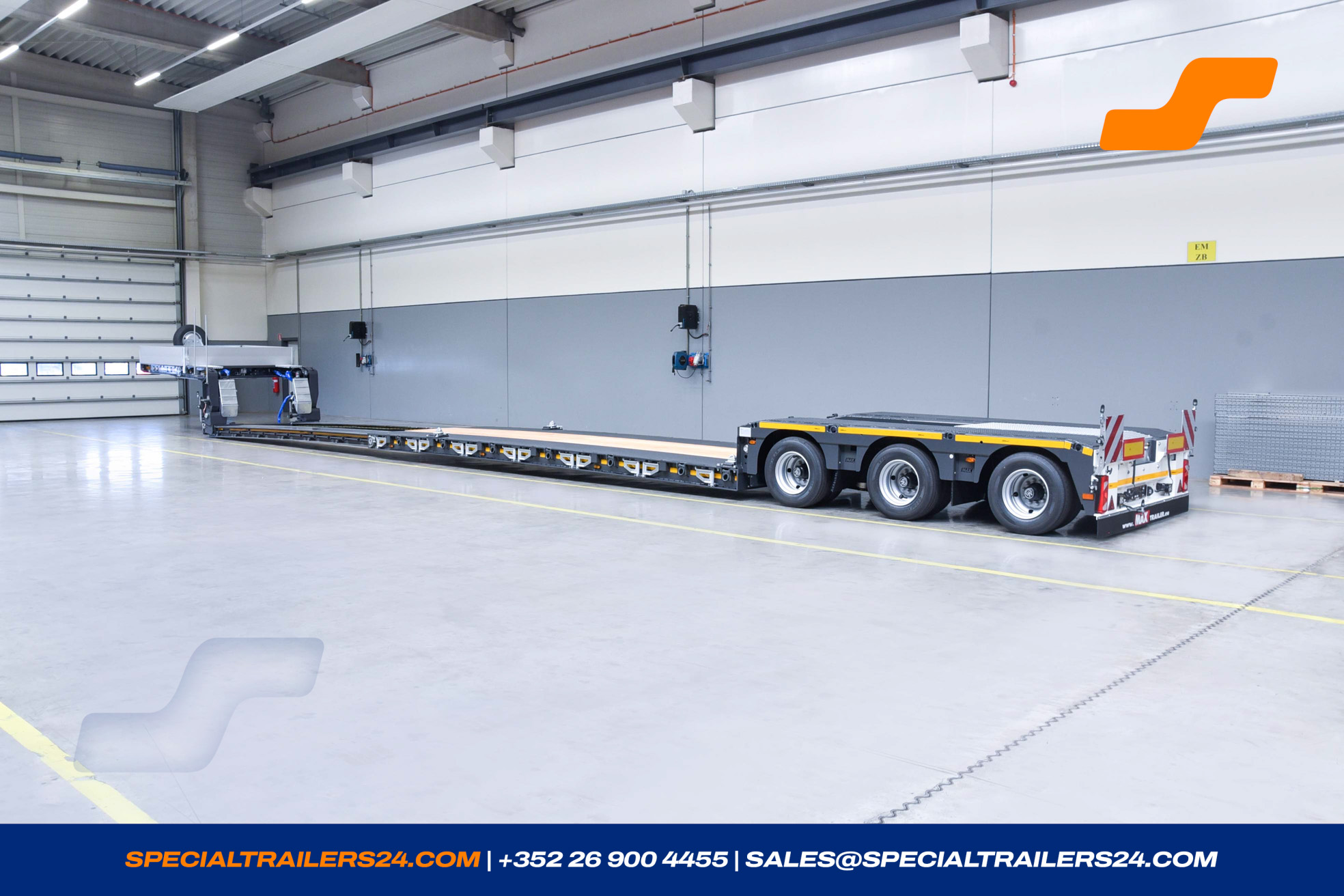

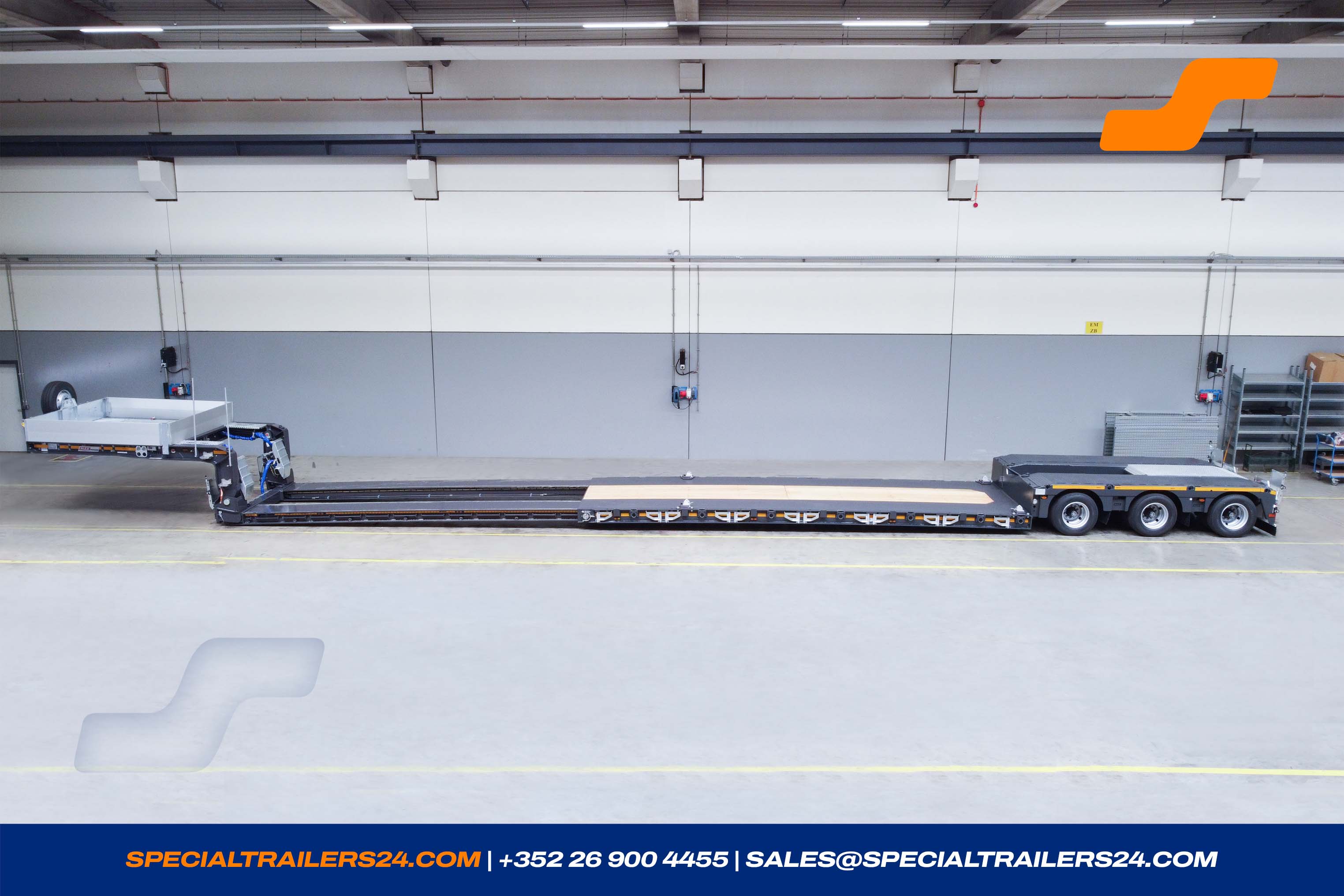

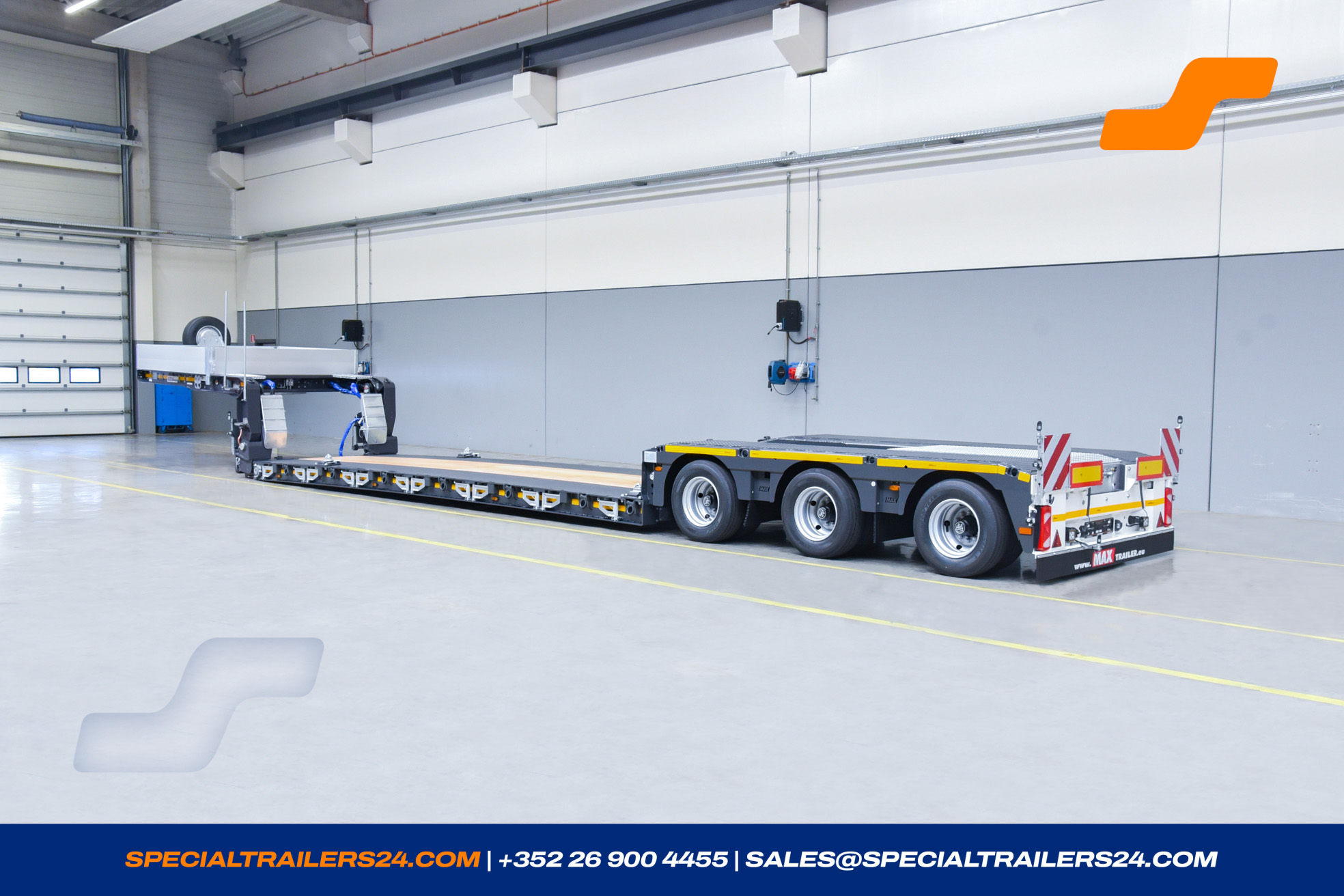

MAX Trailer MAX510
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 112394
- Reference MAX510-Z-3-ATX-A-8.00
- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 11/2026
- Steering Type Hydraulic
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 23000 kg |
| Axle load | 36000 kg |
| Gross weight | 59000 kg |
| Tare weight +- 3% | 16800 kg |
| Payload | 42200 kg |
Dimensions
| Fifth wheel height loaded | 1300 mm |
| Gooseneck length | 3 750 mm |
| Turning circle reversing | 2 500 mm |
| Loading platform length | 8 000 mm |
| Extendable by | 6 024 mm |
| Loading height at max. load | 325 mm |
| Bogie length | 4 180 mm |
| Loading height on bogie | 900 mm |
| Suspension stroke | -80/+160 mm |
| Wheelbase | 1 360 mm |
| Bogie width | 2 540 mm |

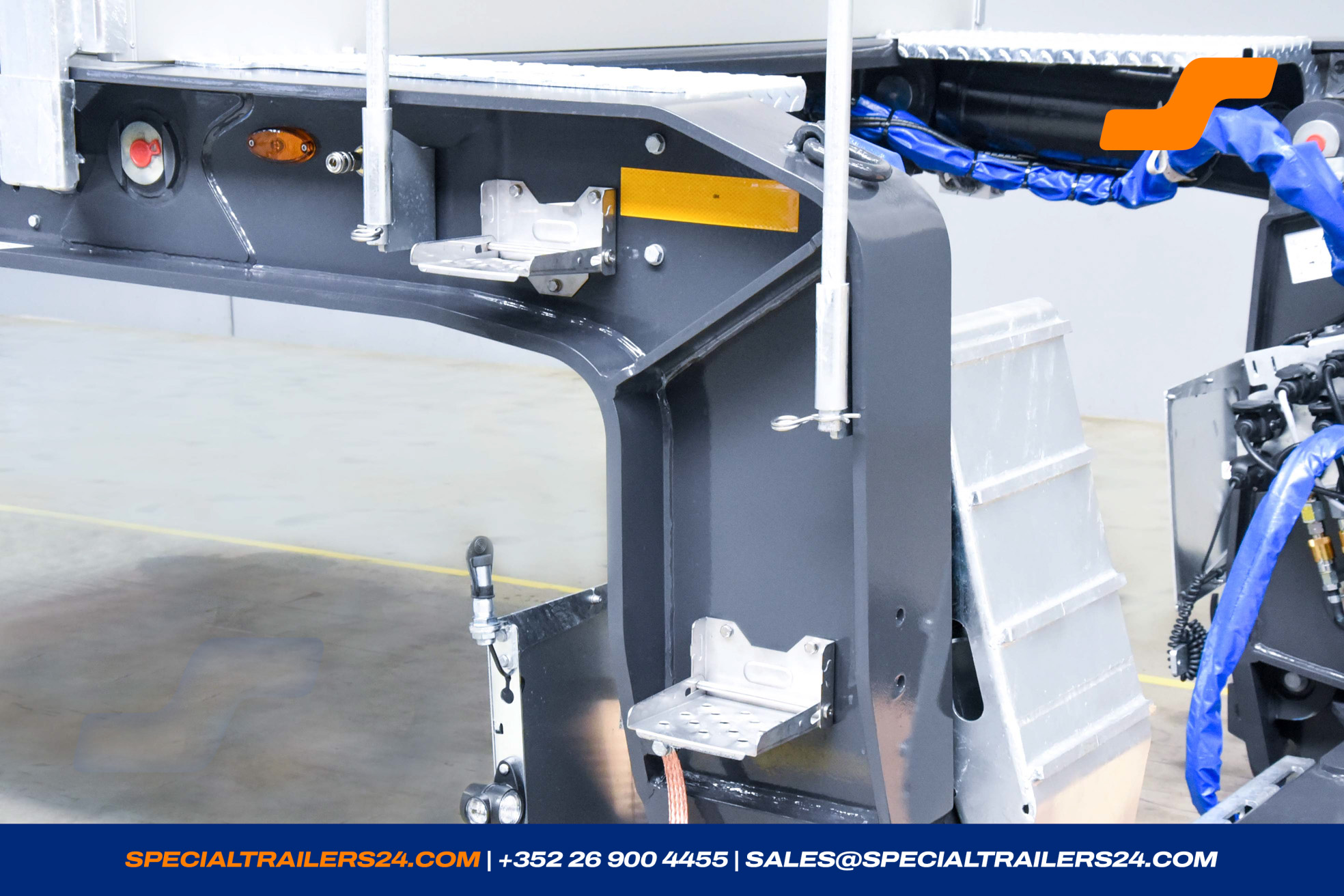

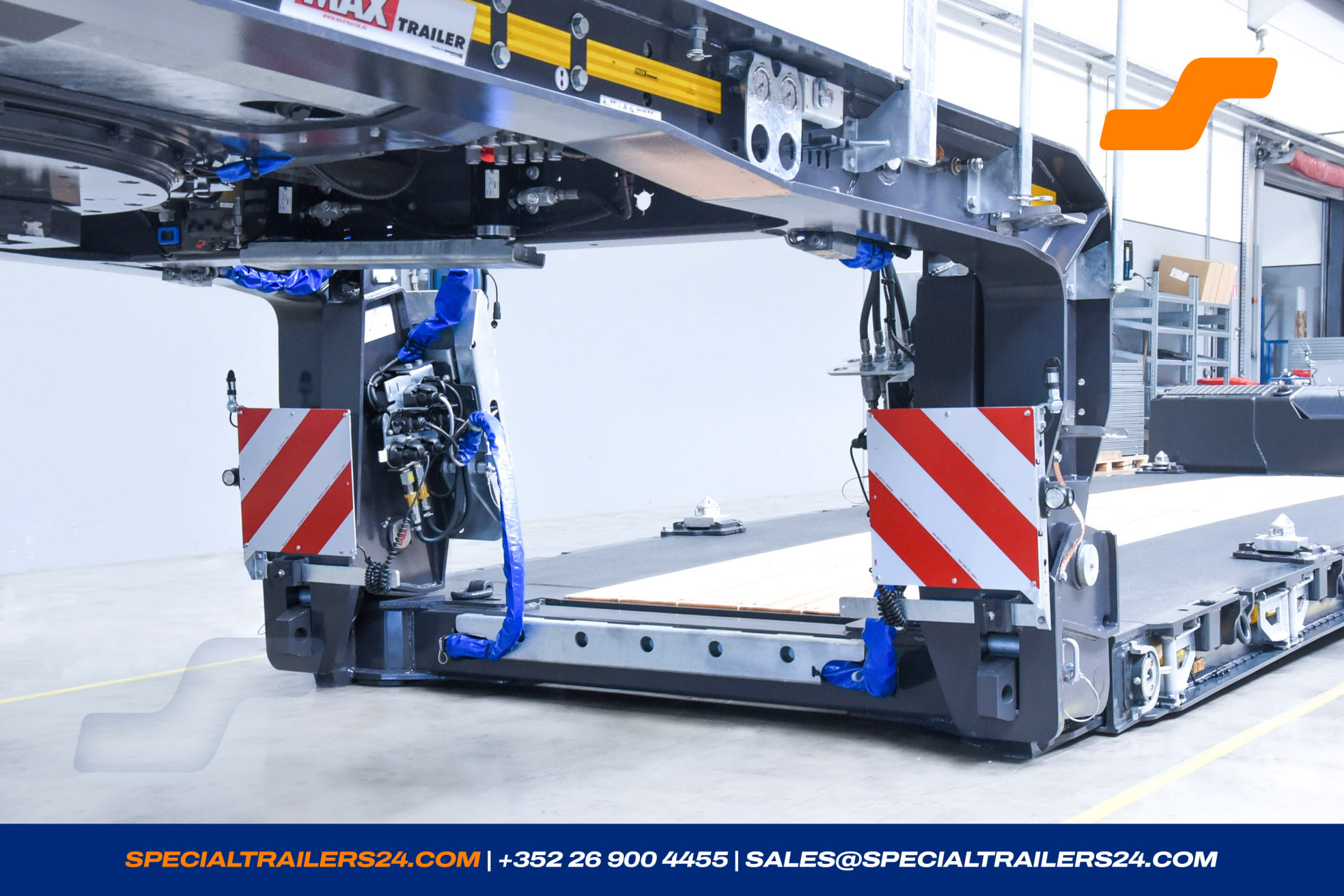

Gooseneck
1 x Gooseneck : MAX-3 750-(DSR 2 500/ASH 1300)

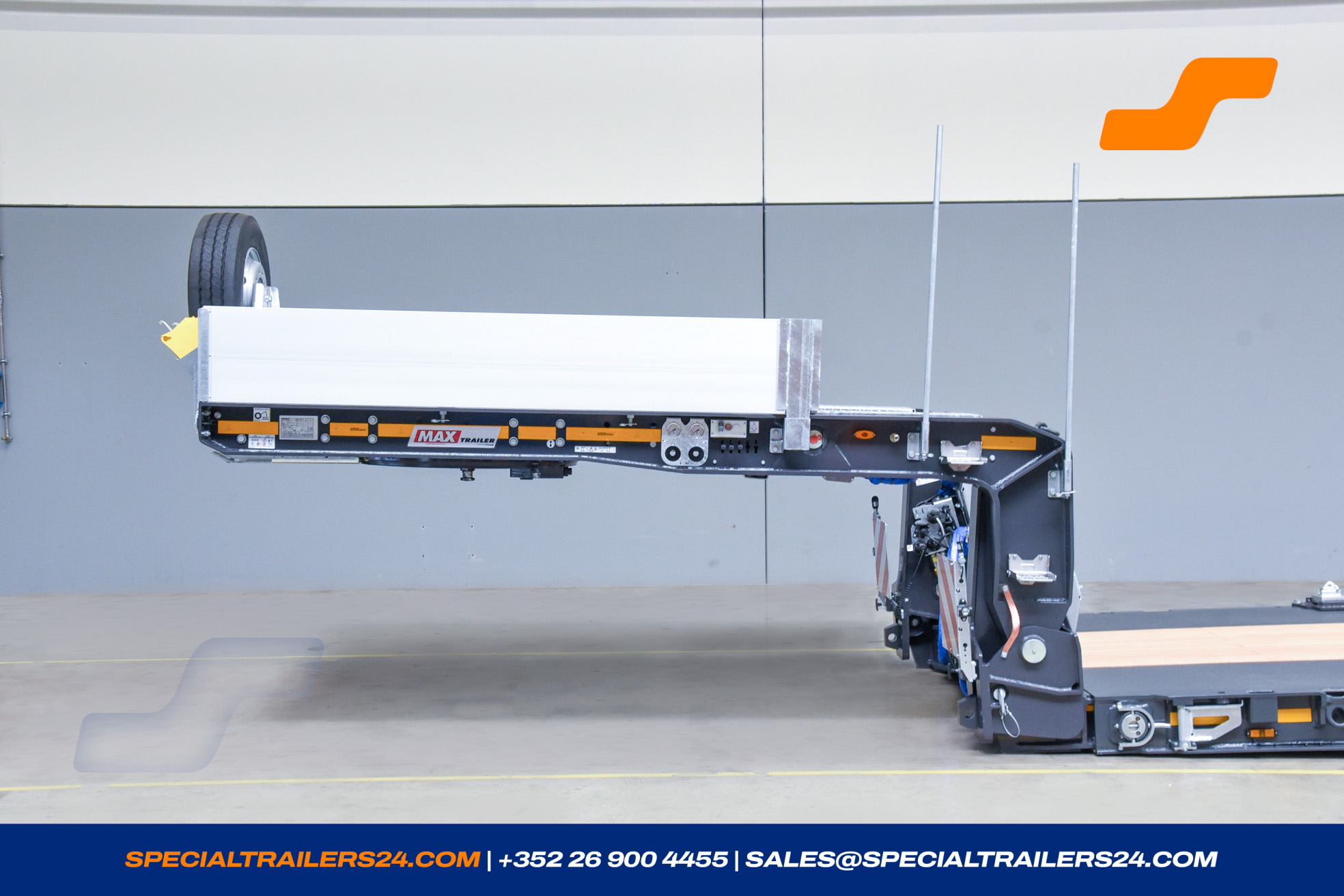

Gooseneck in SNT design for maximum loading length, length ± 3.750 mm.
Gooseneck hydraulic lift and lowerable and detachable.
For use of trucks: 6 x 4 or 8 x 4
- 2 king-pin.

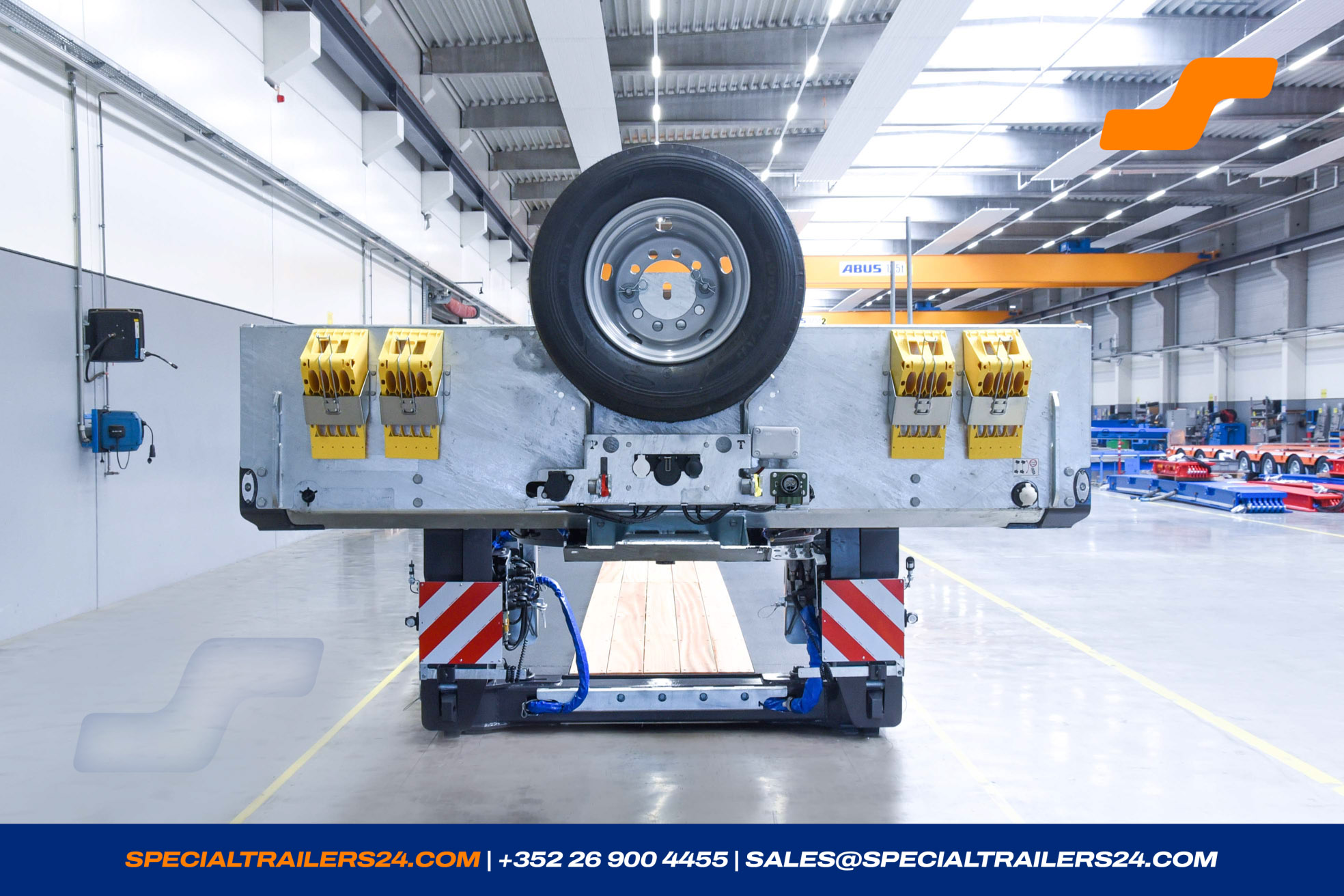

- One galvanised steel headboard, height ± 400 mm.
- One spare wheel with holder on the headboard.
- 2 wheel chocks with carrier on the headboard.

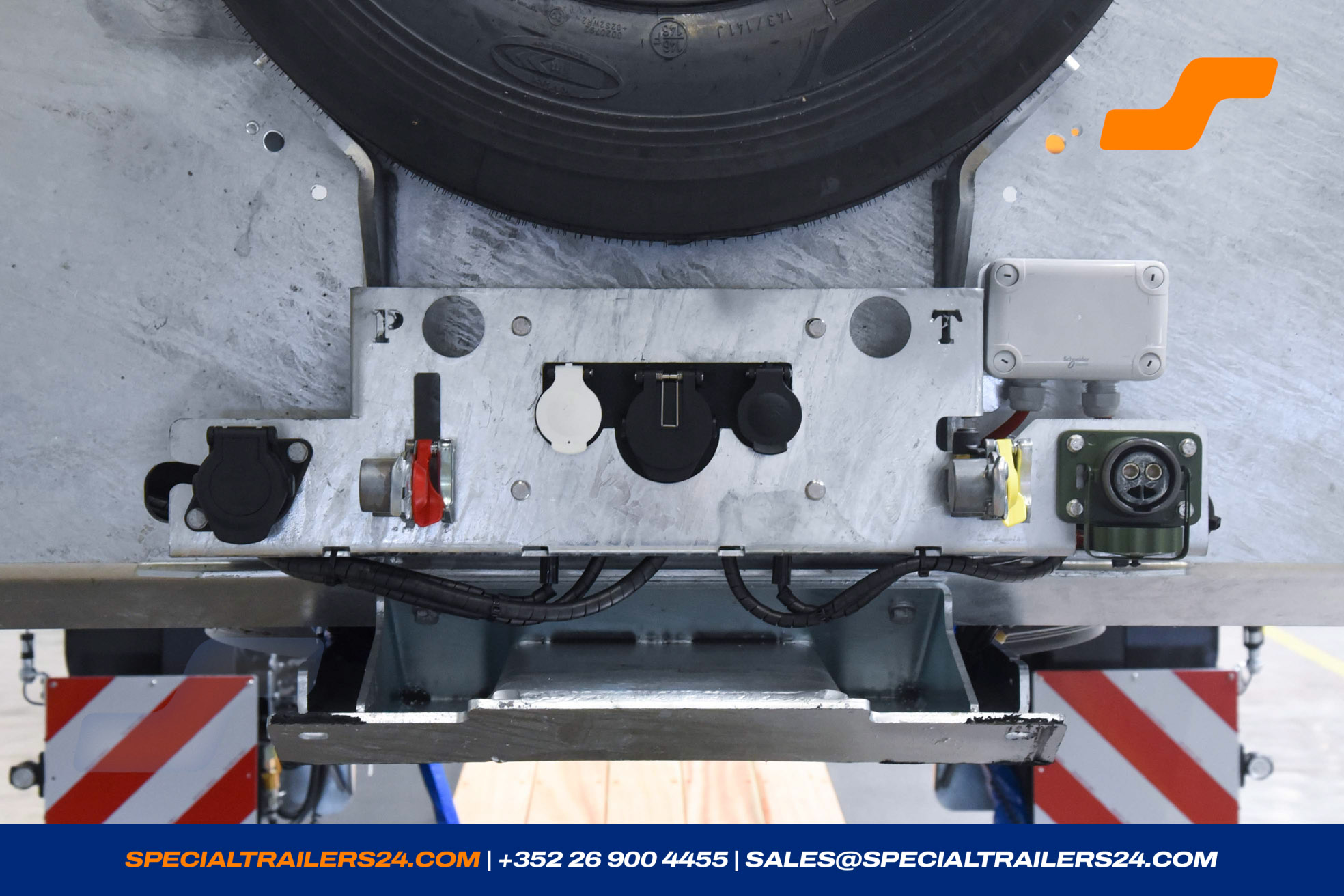

- Red and yellow air couplings on the galvanised front connection ledge.
-

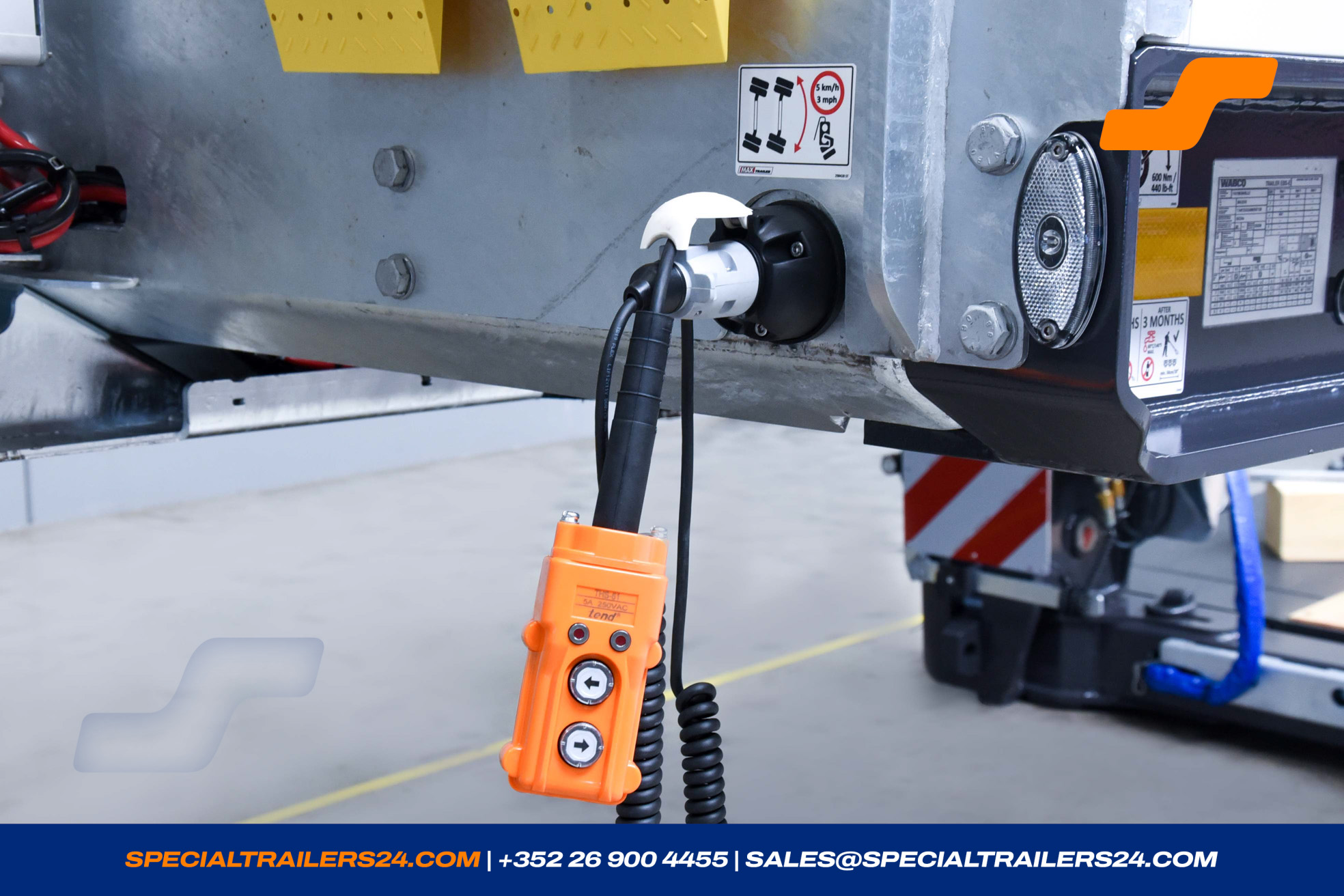

Manual-steering, handling with cable remote control from the front and the back, with PDC-light control for the realignement of the axles.
(without connection to the tractor). -

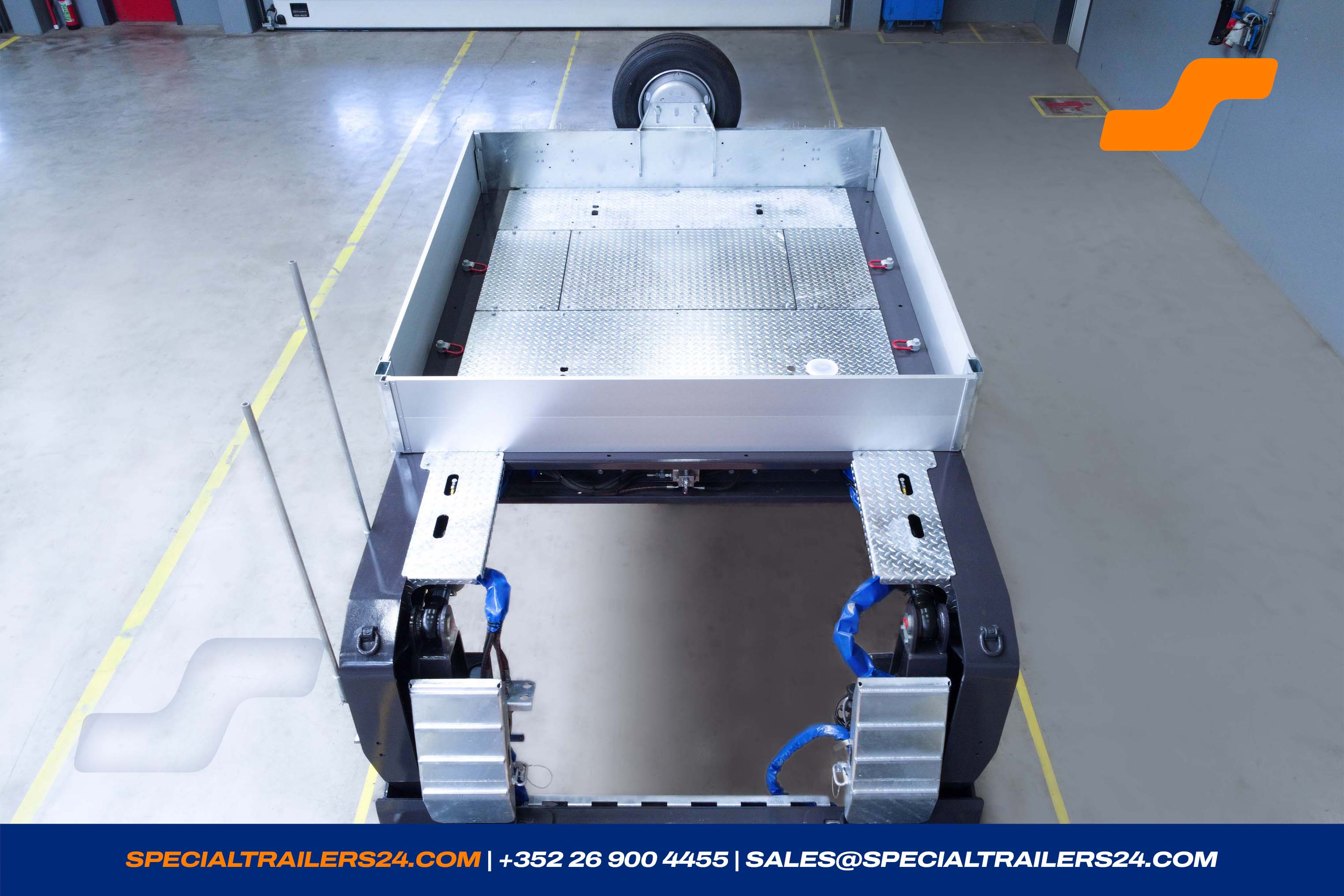

On the gooseneck removable sideboards and rearboard in alu ca. 2 400 x 400 mm (L x H).
The galvanised rear stakes are dismountable.

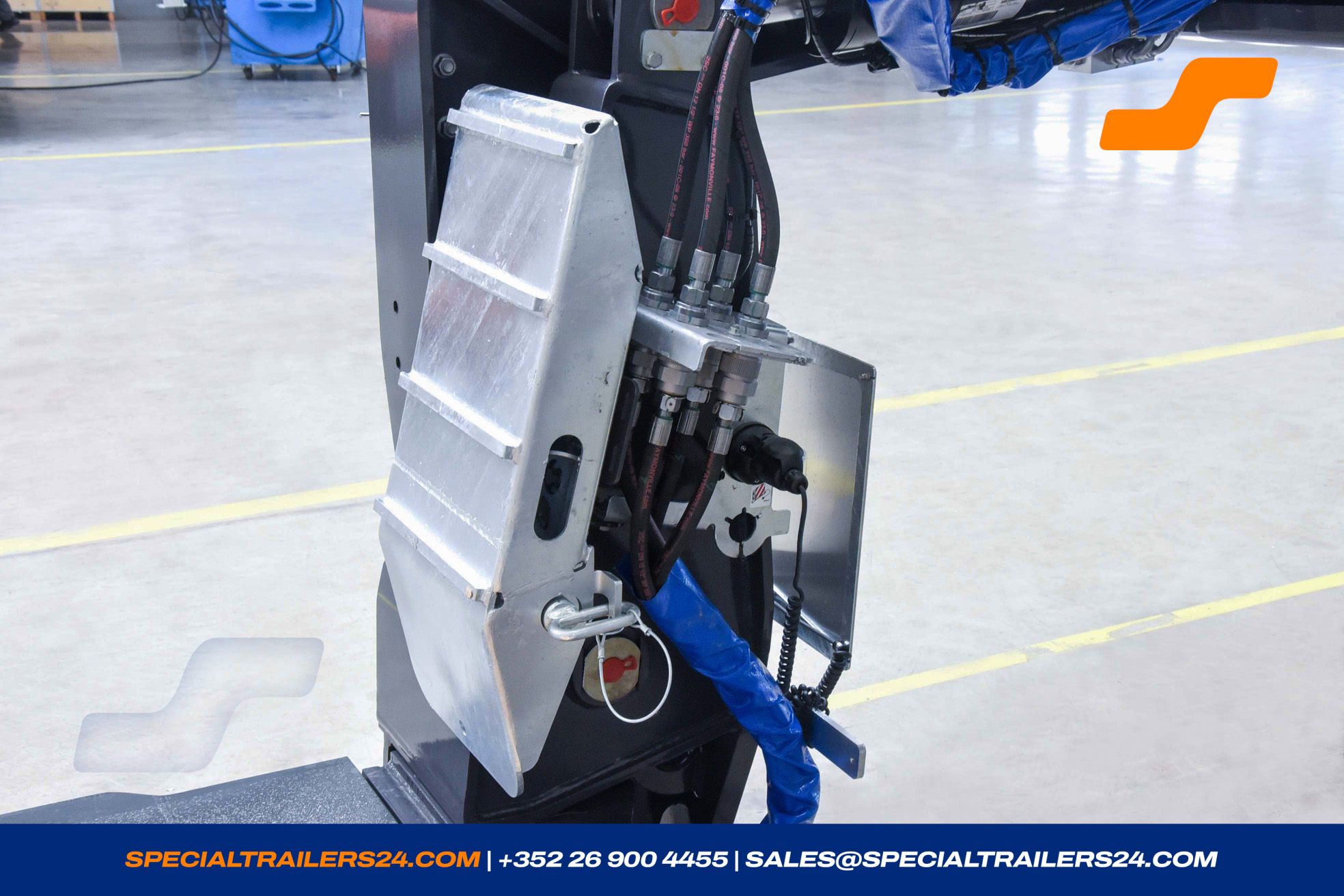

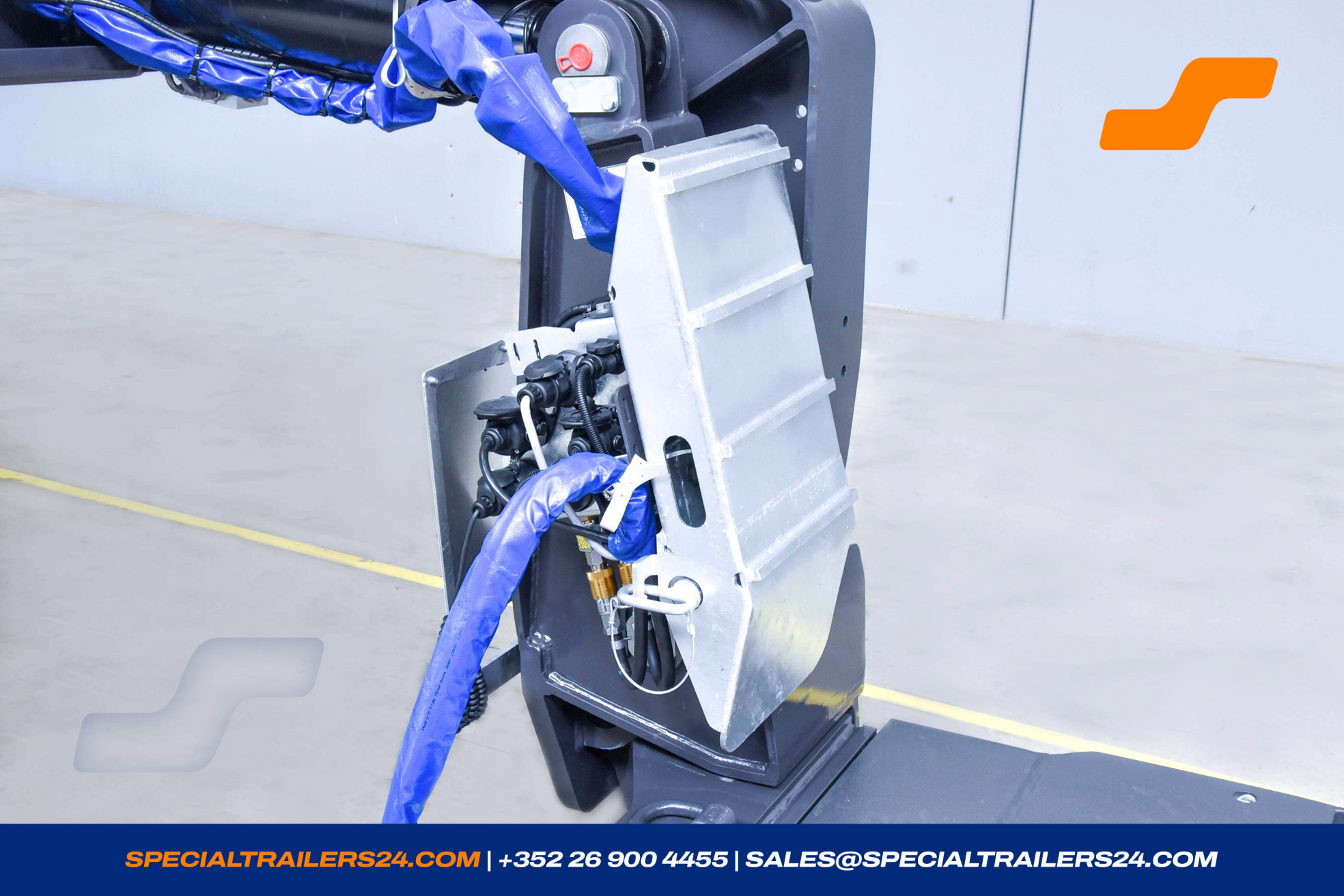

(Length of the structure ca. 2 560 mm) (± 46kg). - Hydraulic connections from loading platform to gooseneck with multi-coupling instead of screw couplings. Without guarantee on seals. (± 4 kg)
- A separate air connection with air gun on the gooseneck.
- 2 pairs of screwable lashing rings M20 (LC 5 000 daN).
Loading deck
Loading platform
1 x Lowbed : MAX510-Z-3-ATX-A-8.00-17.5-2.54

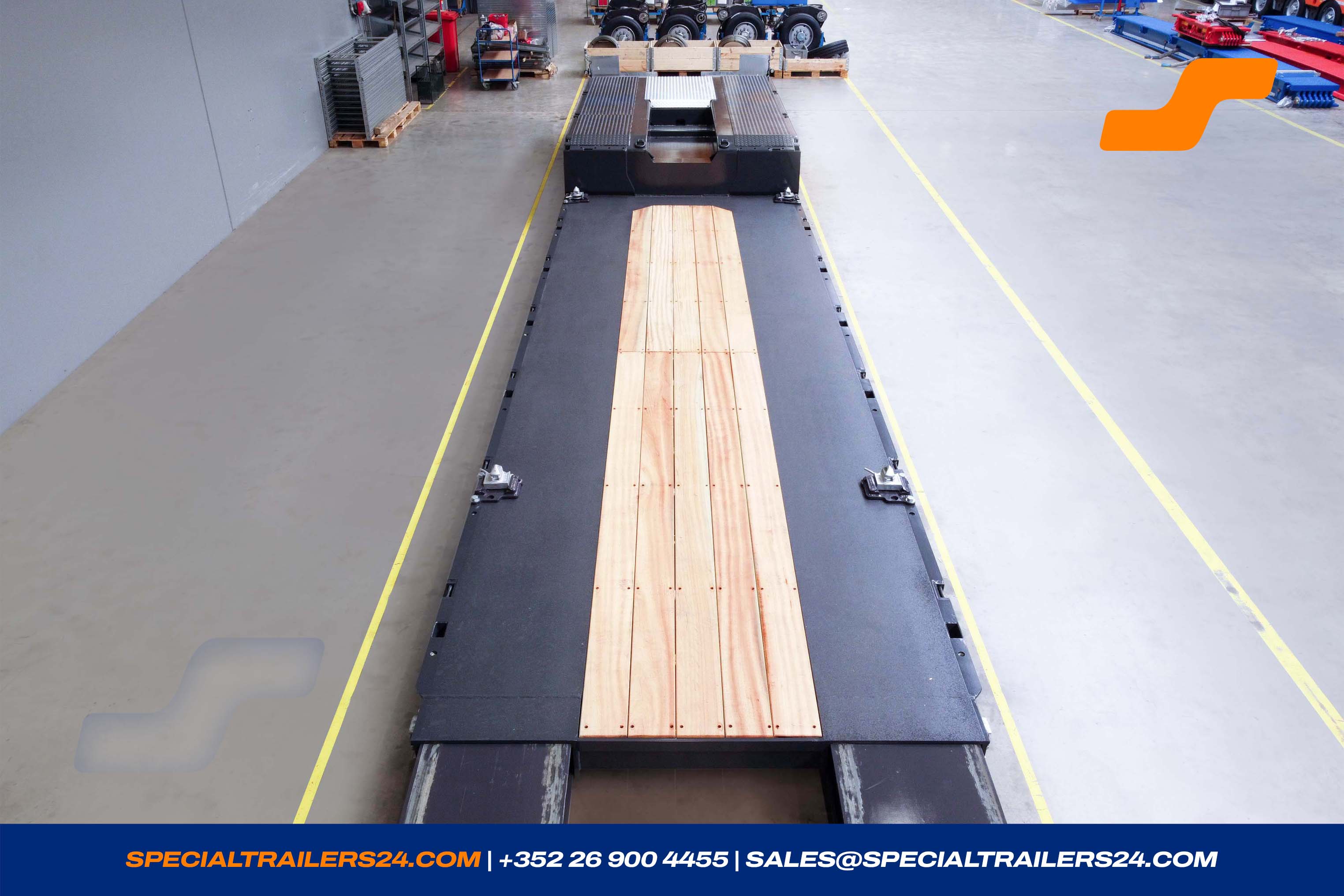

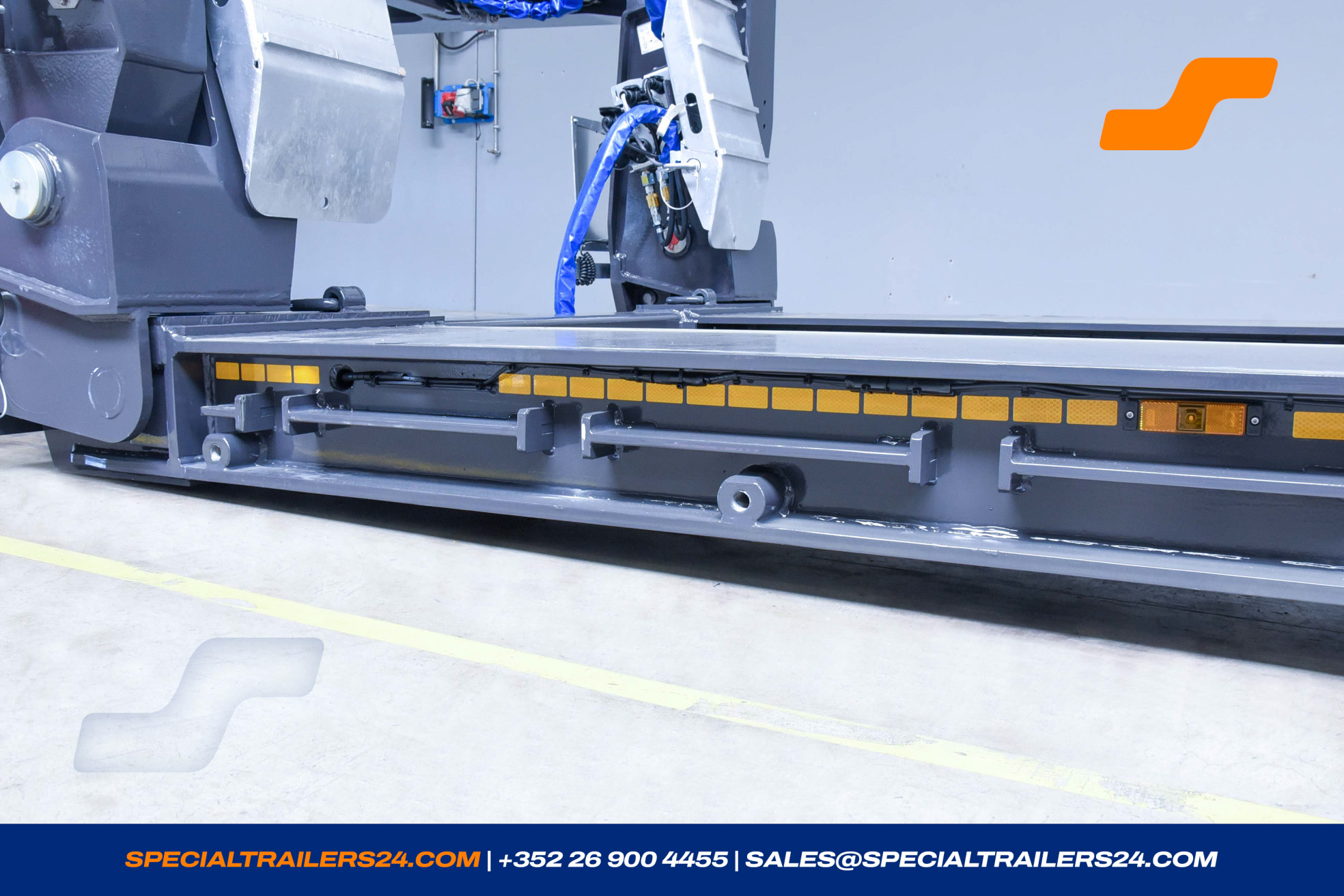

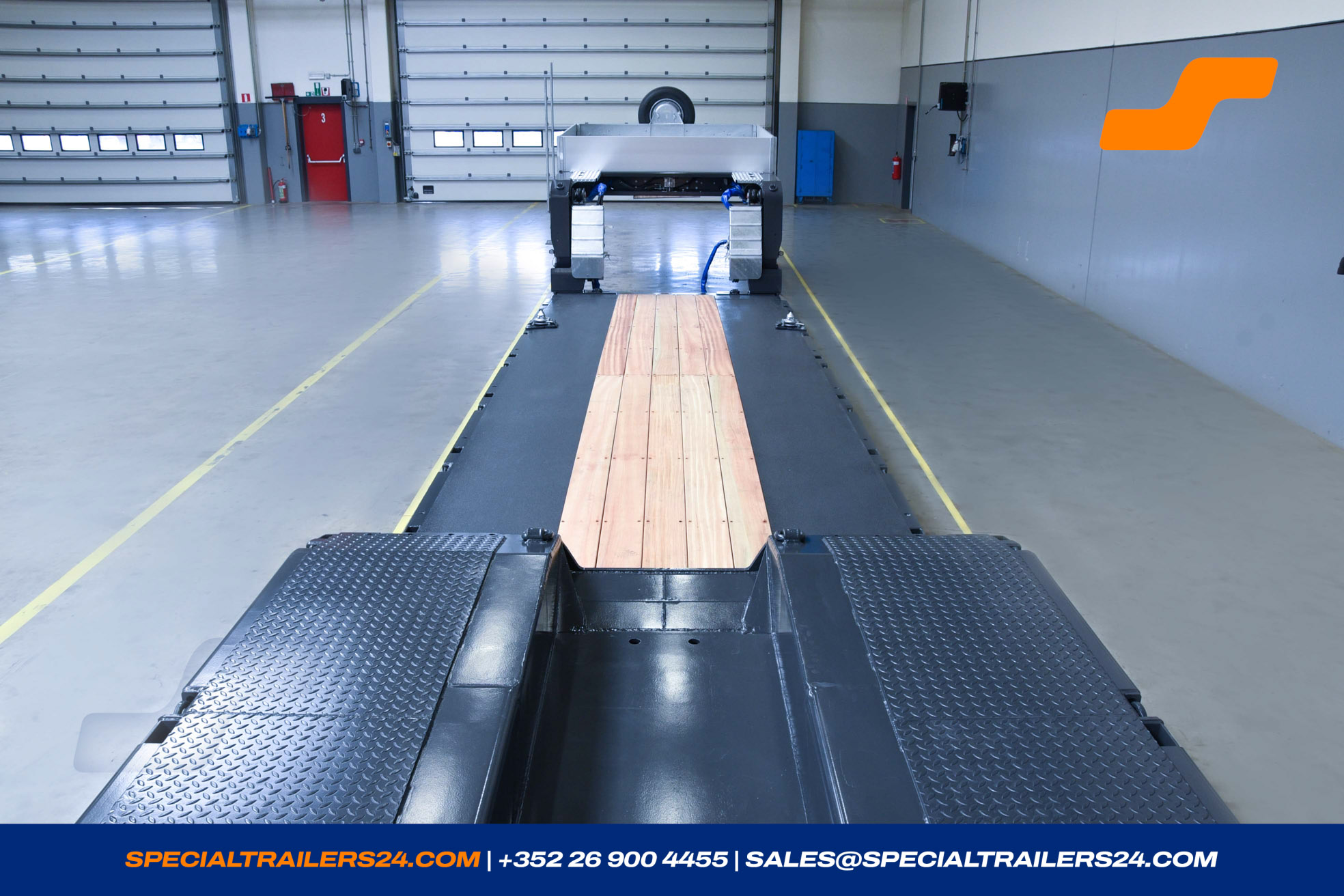

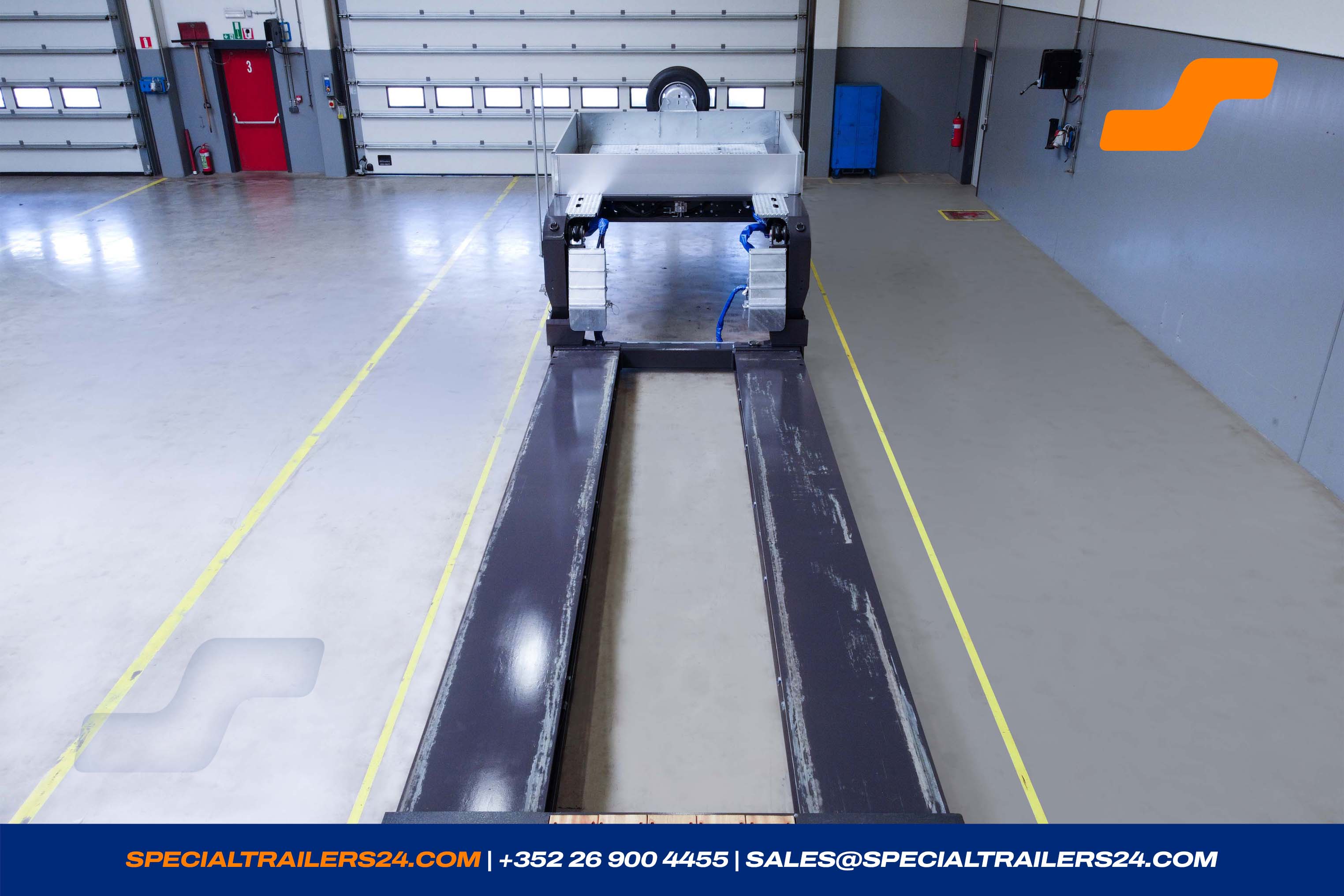

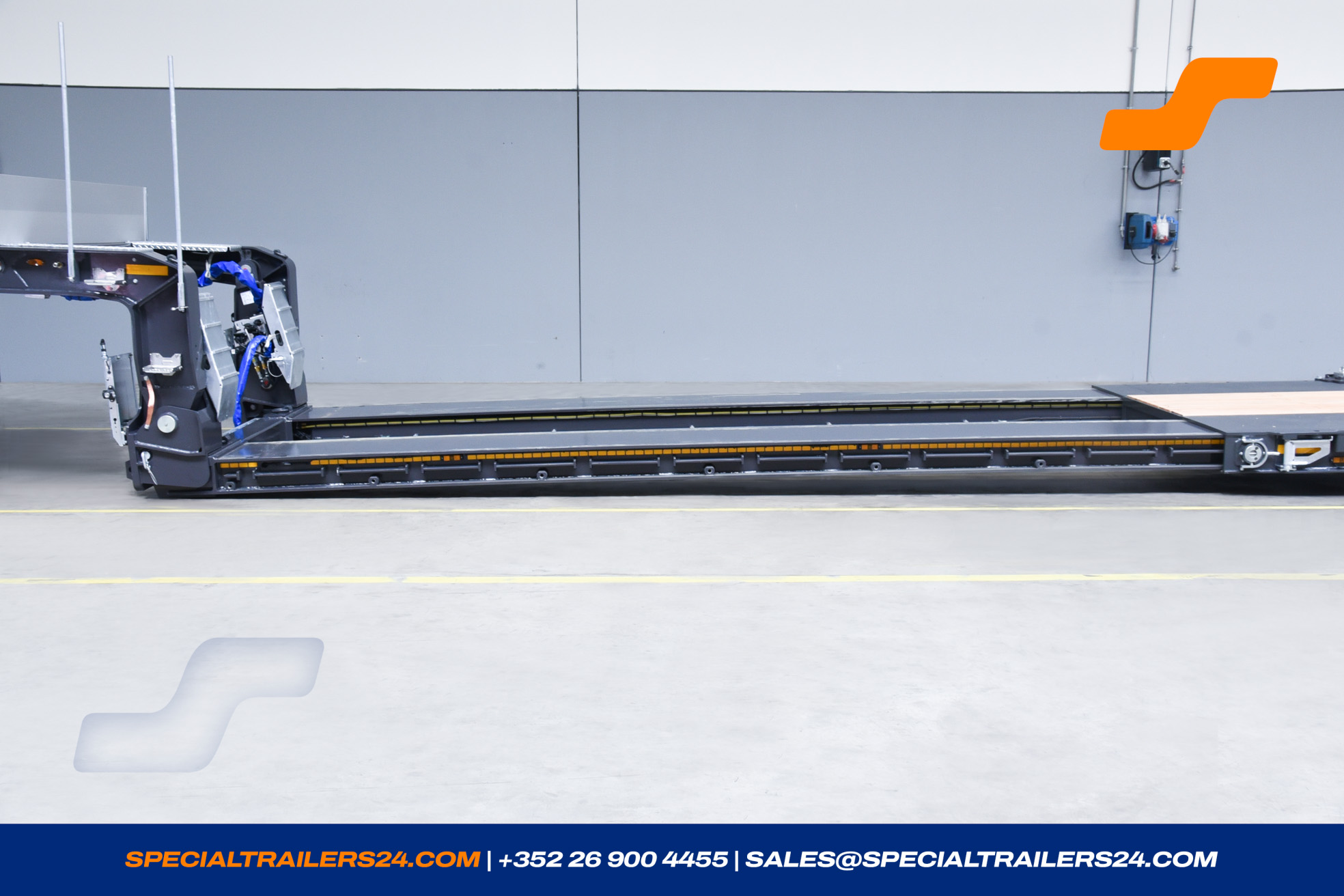

Lowbed in extendable outerbeams construction, SUPER LOW Design, length ± 8 000 mm.
Lowbed with hardwood cover ± 40 mm and with ***mechanical locking***.
The supply lines are laid in the outerbeams and adapt automatically to the loading length.
7 pairs of lashing rings (LC 10 000 daN).
6 pairs of threaded blocks on the inner beams for mounting screwable RUD rings...
-
Preparation for the attachment of screwable container fittings for 1 x 20', 1 x 40' or 1 x 45' containers on the outer beams.
Without container fittings. - Electrically operated hydraulic pump. (± 45kg)
- Yellow reflective tape according to the EU regulation over the entire length, on the extension and at the rear.
- 2 wooden blocks 500 x 250 x 200 mm.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.

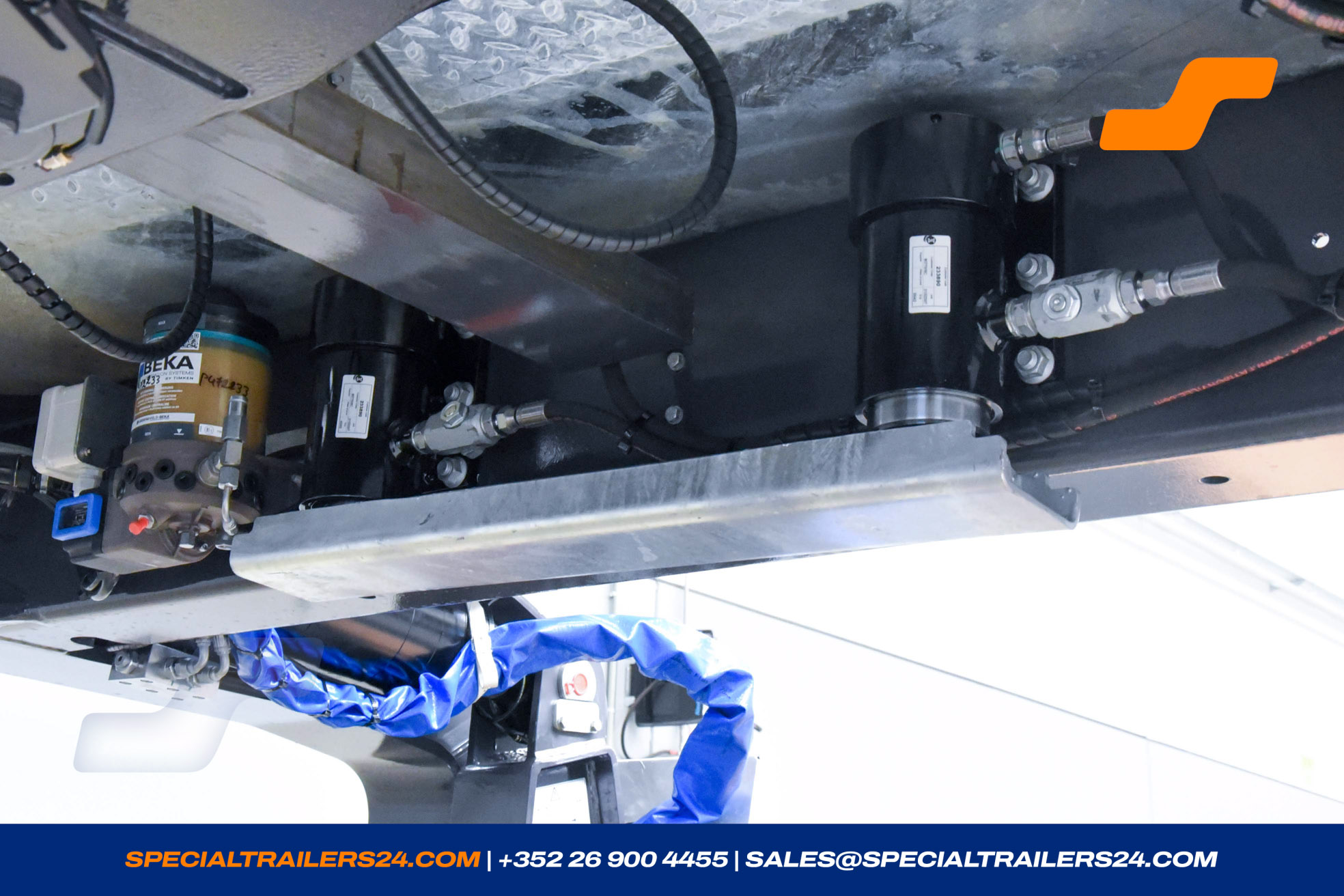

- Central greasing with 2 pumps BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pumps. (± 26 kg)

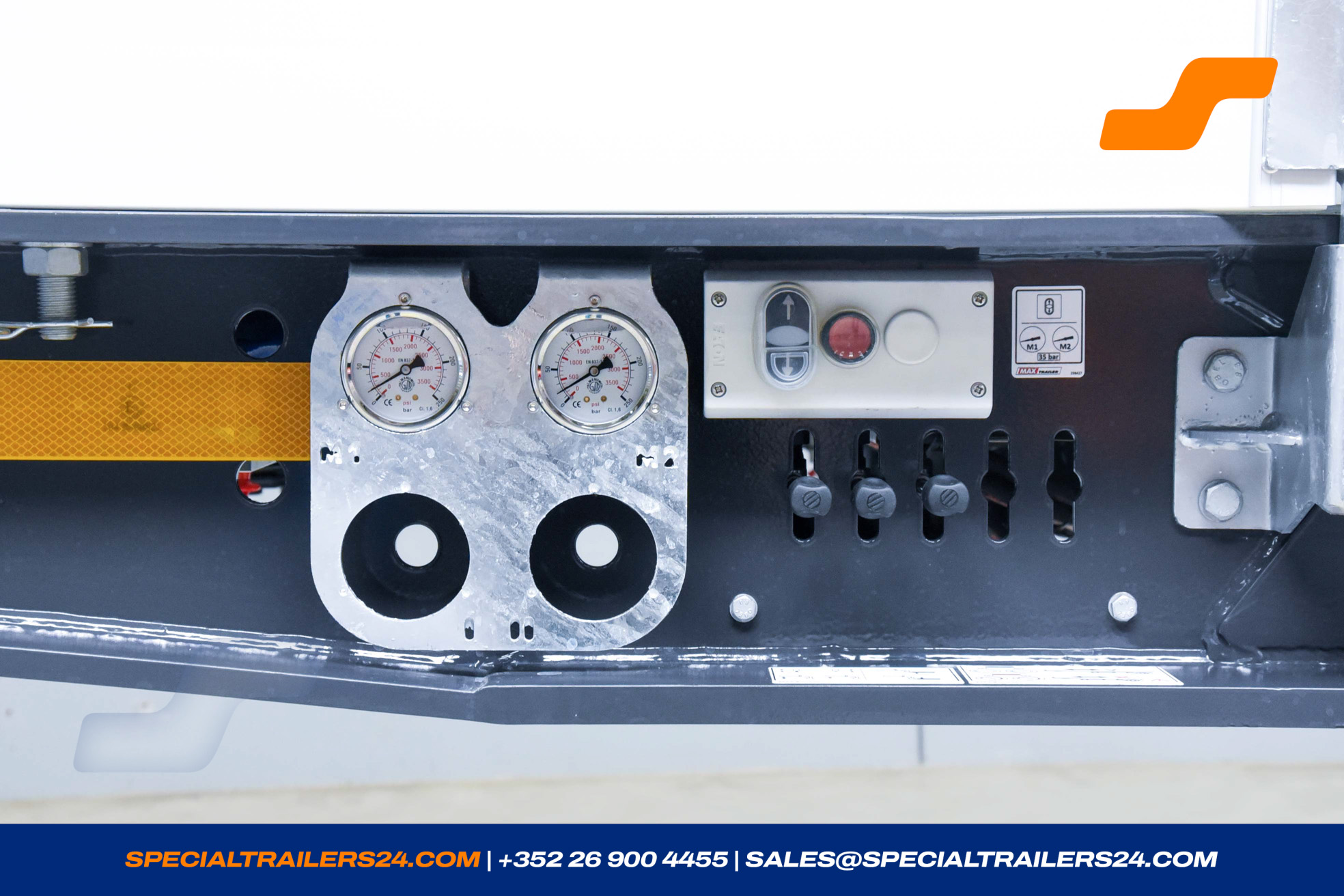

- Load manometer for determining the axle load, including load diagram.
- 7 thread blocks between the lashings rings under the upper flange on the outer beam for the fitting of srewable RUD lashings rings VLBG-4.

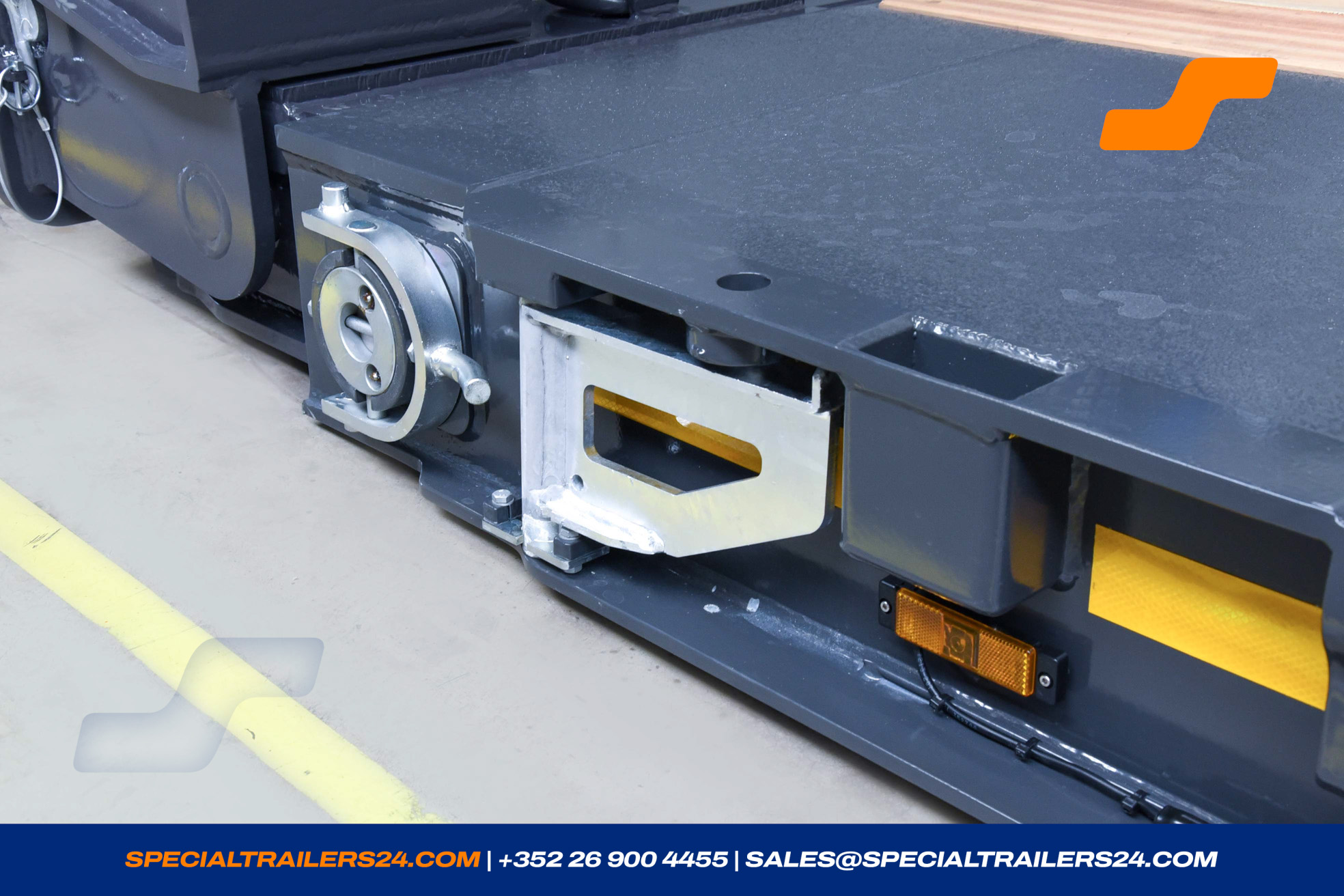

- 2 pairs of screwed-on container brackets on the outer beams. Including 2 pairs of container locks for 1 x 20', 1 x 40' or 1 x 45' container.
- 6 pairs of pockets for stakes ca. 100 x 50 mm in the outer frame of the loading platform (± 18kg).
-

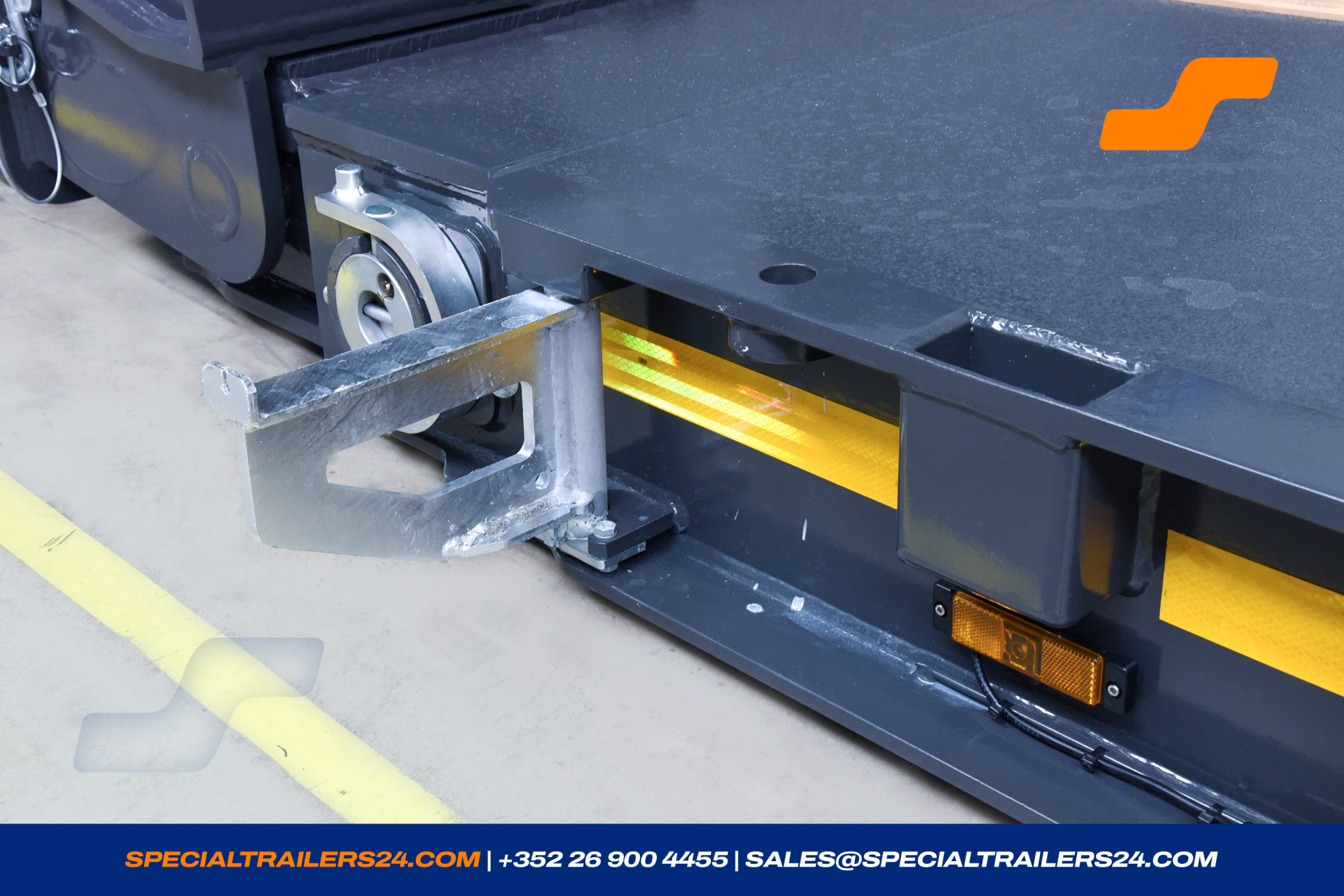

Foldable outriggers, 230 mm per side.
(Without timber) - 1 pair of steel-ramps to bridge the hooks of the lowbed. (± 60 kg)
- Anti-slip-coating with sand on the loading platform.
- 2 LED- reversing lights at the rear.

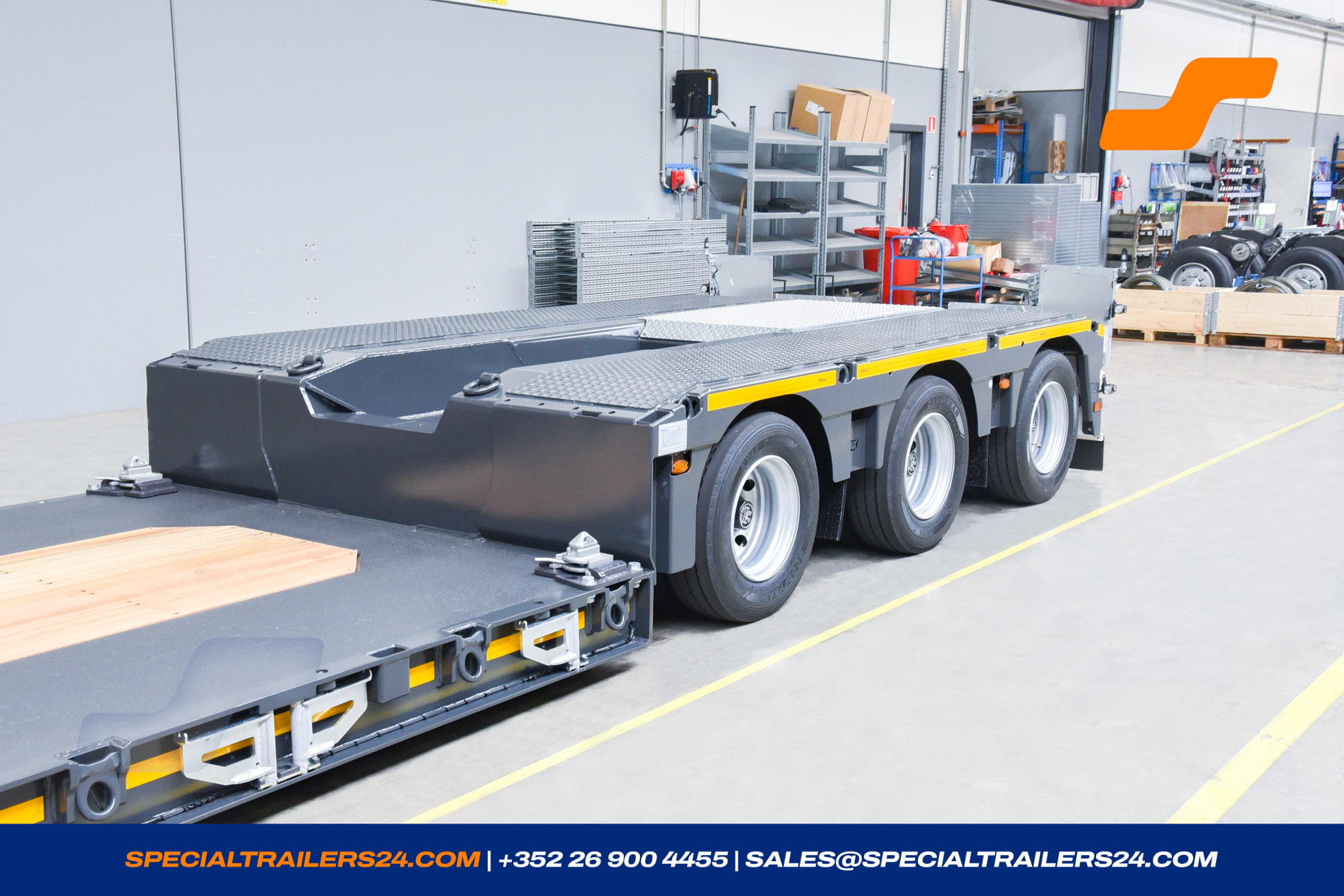

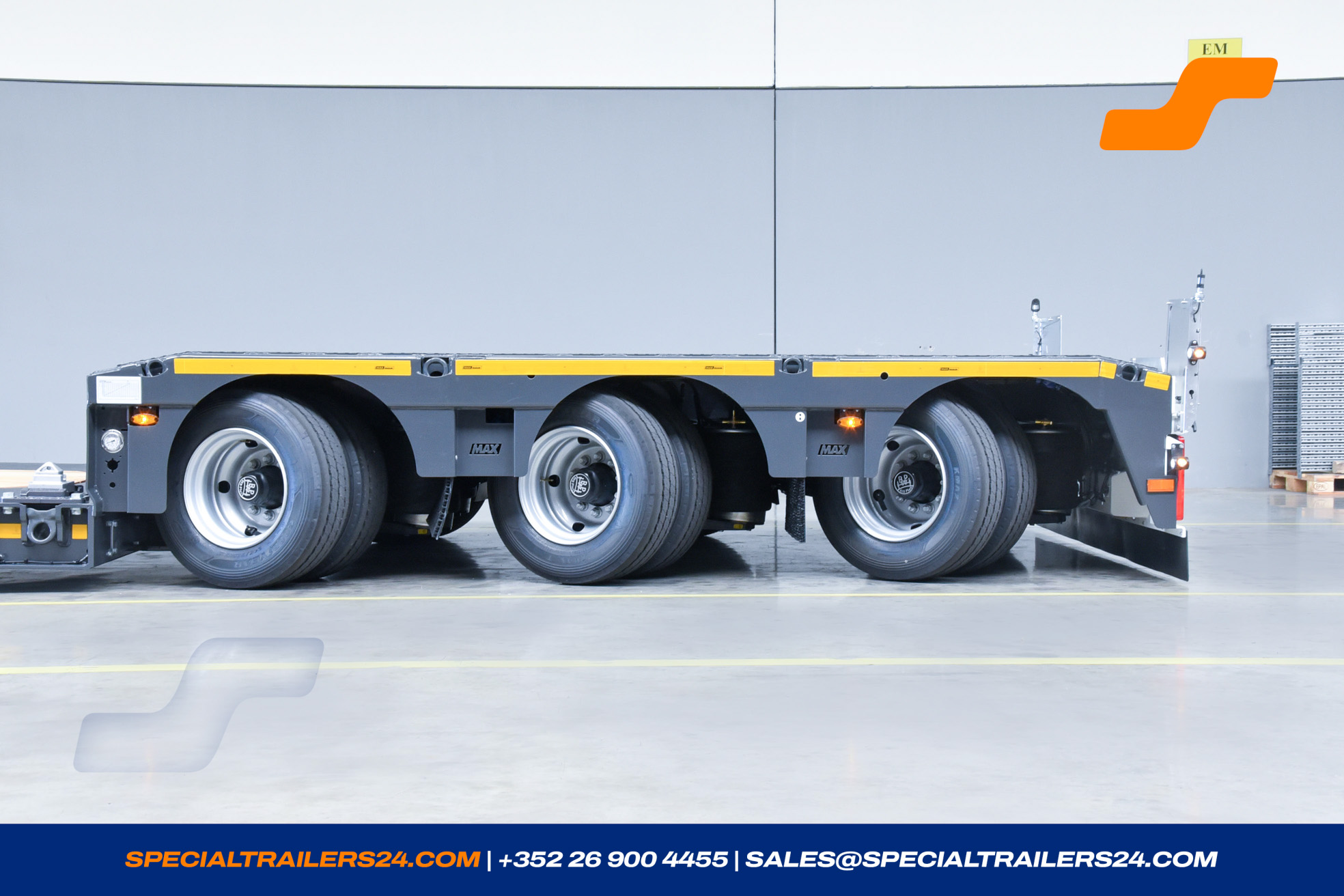

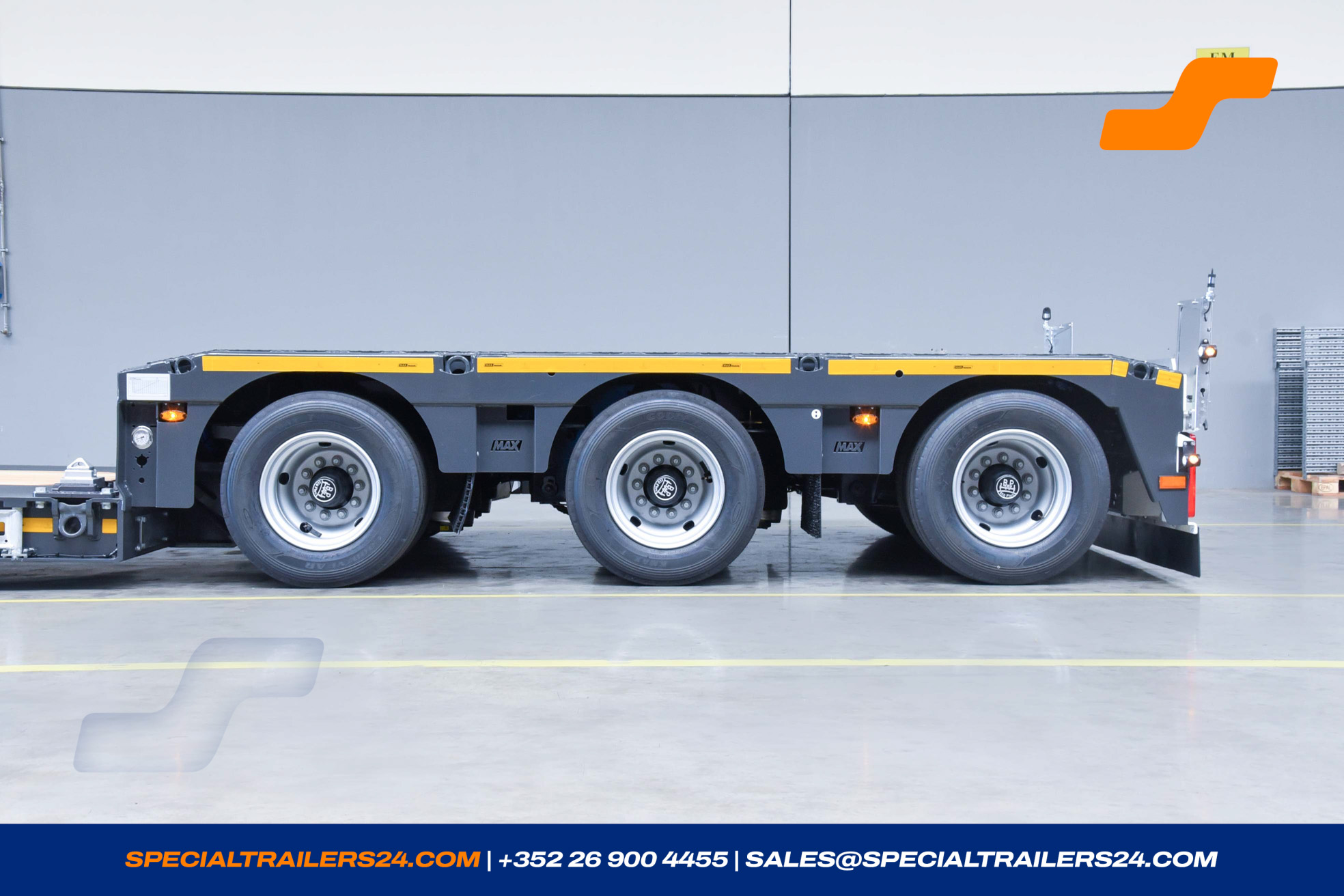

Rear Bogie
1 x Axles bogie : MAX510-Fahrwerk-Z-3L-17.5-1.36-4.18-2.54

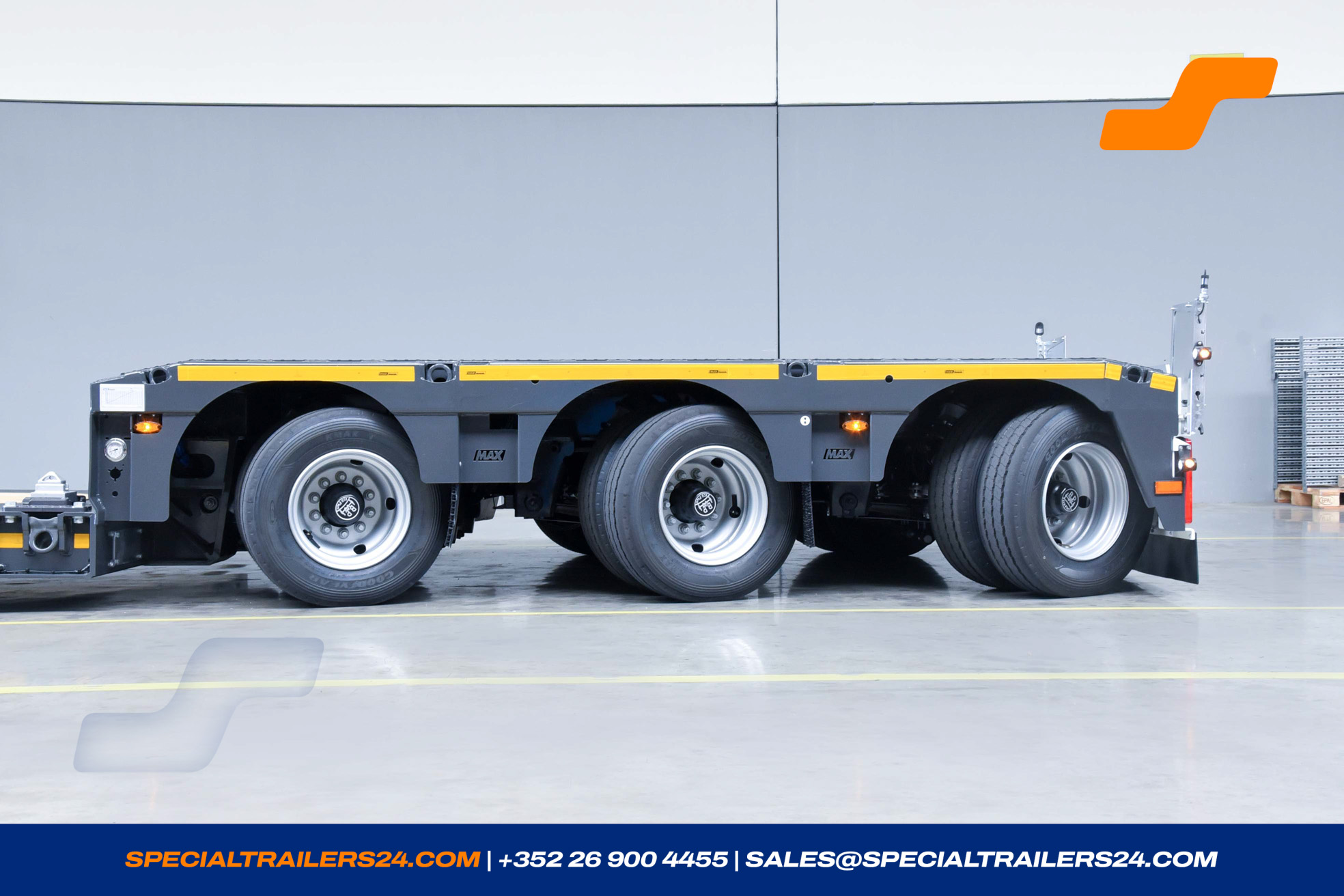

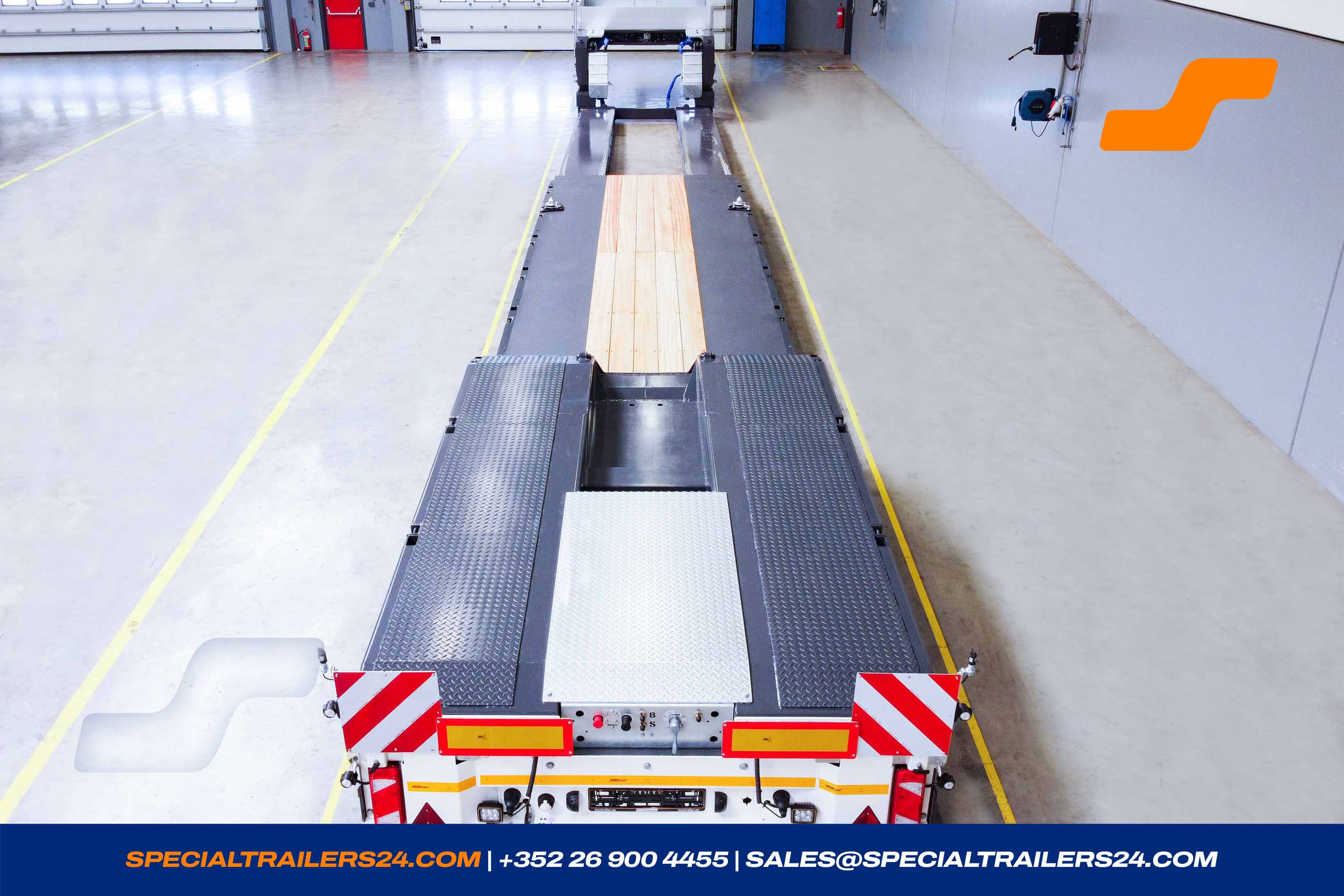

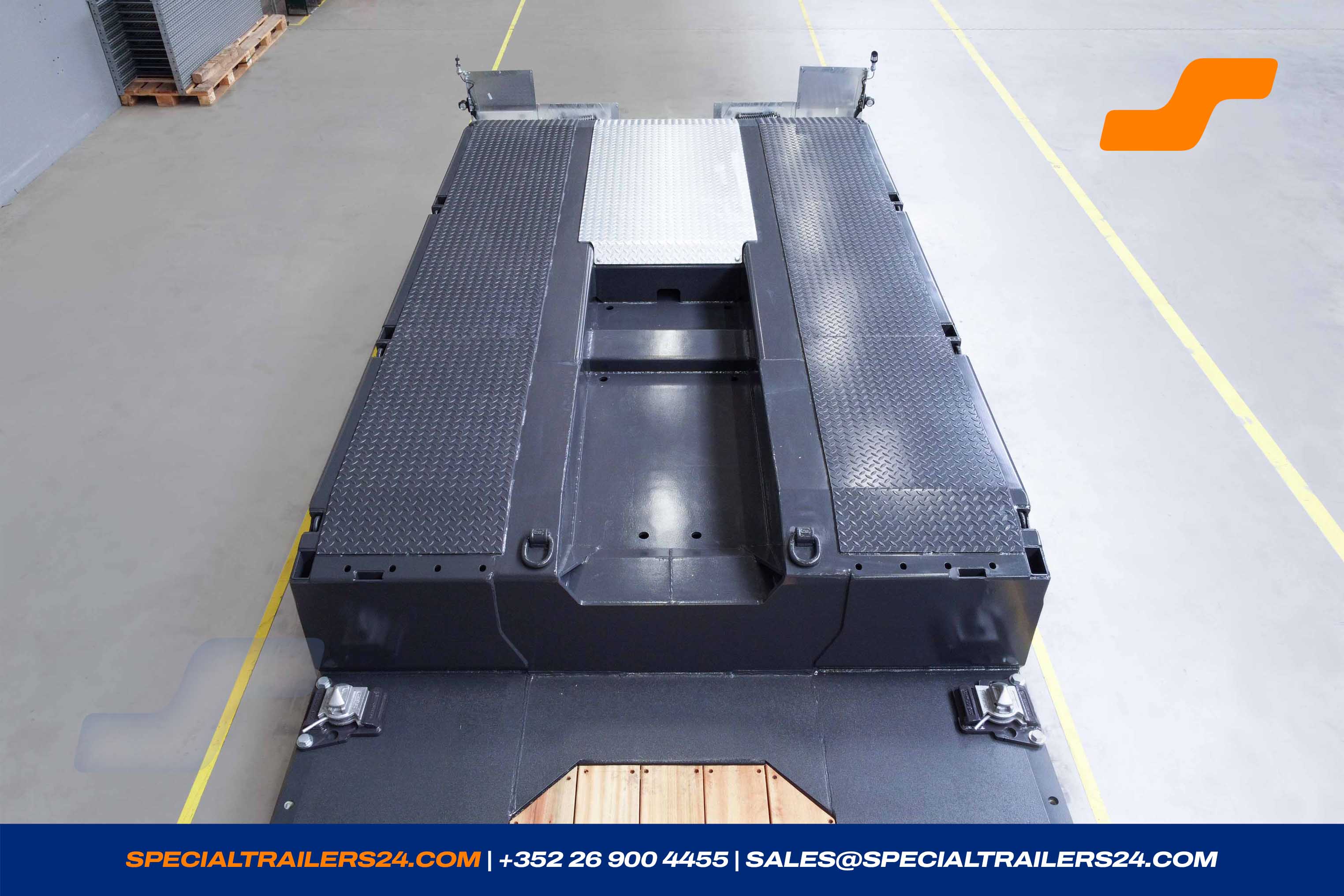

Axles bogie at the rear with outer frame construction and chequer plate cover.
Axles bogie with recess, closed at the rear part for the air tanks.
3 pairs of lashing rings in the loading platform, hinged outward (LC 5 000 daN).
1 pairs of lashing rings in the loading platform, hinged outward (LC 10 000 daN).
1 pair of lashing rings at the front and at the rear of the axles bogie (LC 10 000 daN).

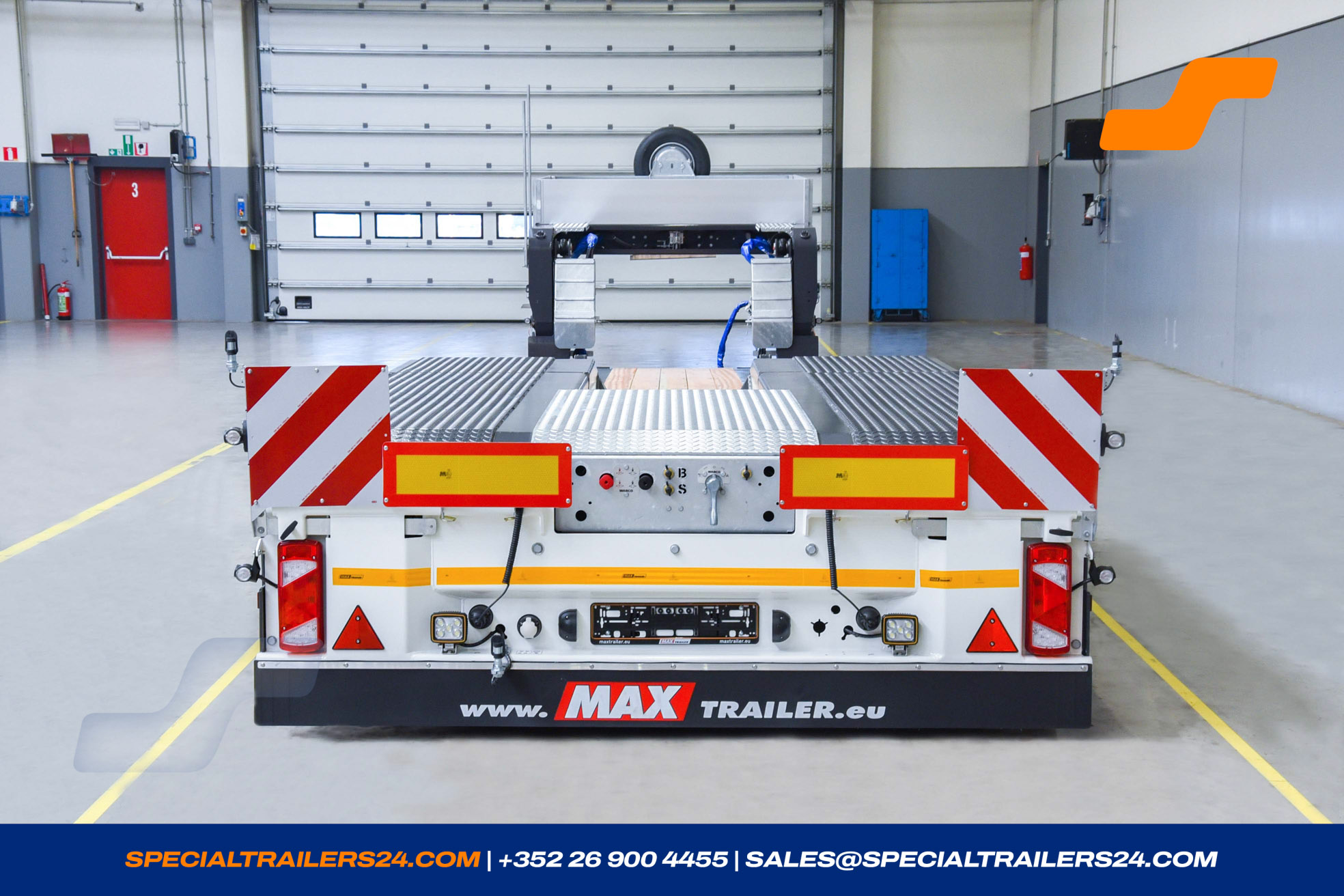

- Holder for one beacon light at the rear of the trailer.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
Accessories
1 x Accessory
MAX510-Accessory
- Manual and description on USB stick .
- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- Cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 250 A) between the semi-trailer and the truck with socket (NATO-NATO).
- Delivery from a trailer to factory Lentzweiler.
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 112394
- Reference MAX510-Z-3-ATX-A-8.00
- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 11/2026
- Price On request
-
Location
SpecialTrailers24
Z.A.E.R. Op der Sang,
16, Op der Bréimicht
9779 Lentzweiler
Luxembourg - AdId 000364
- Steering Type Hydraulic
