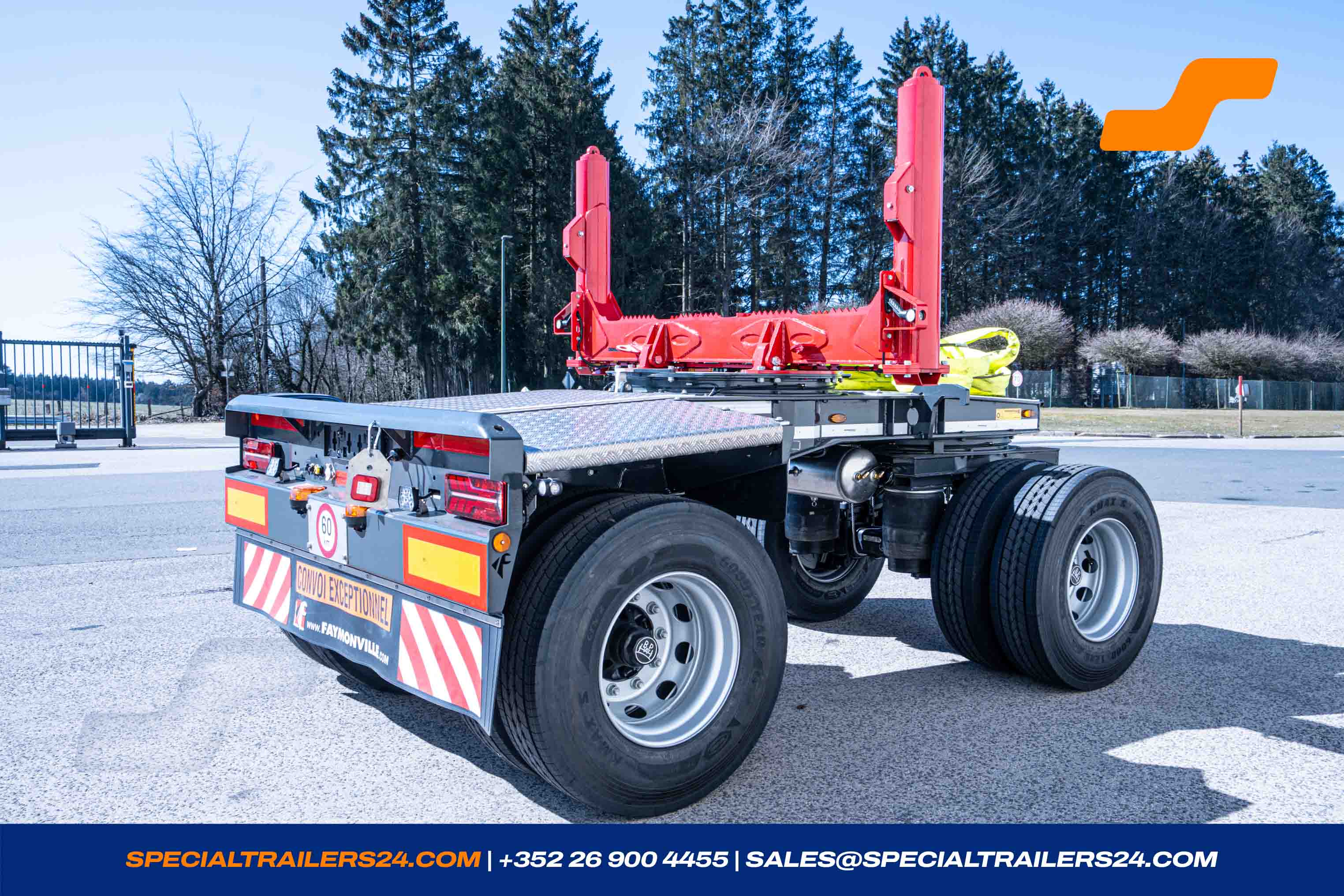

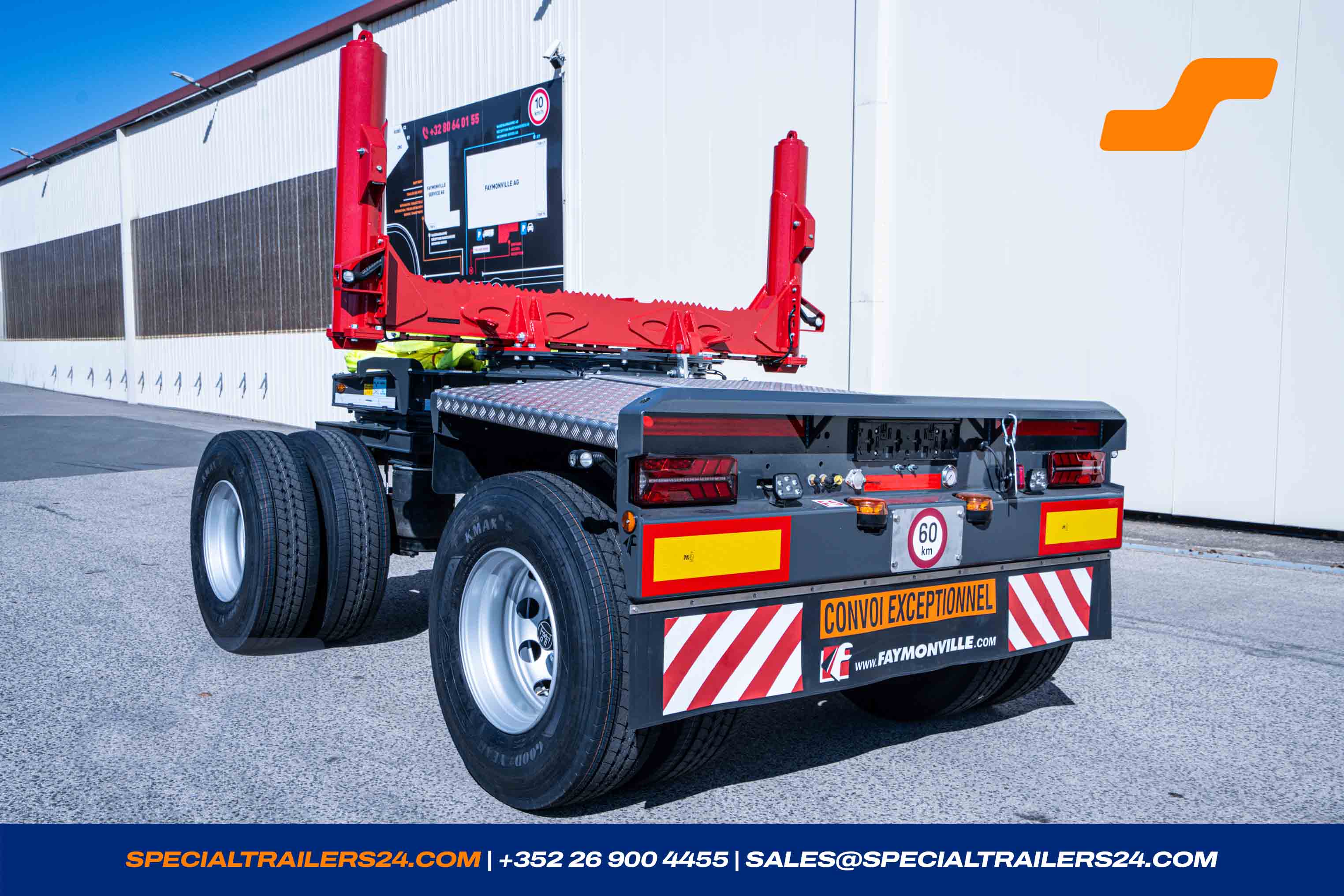

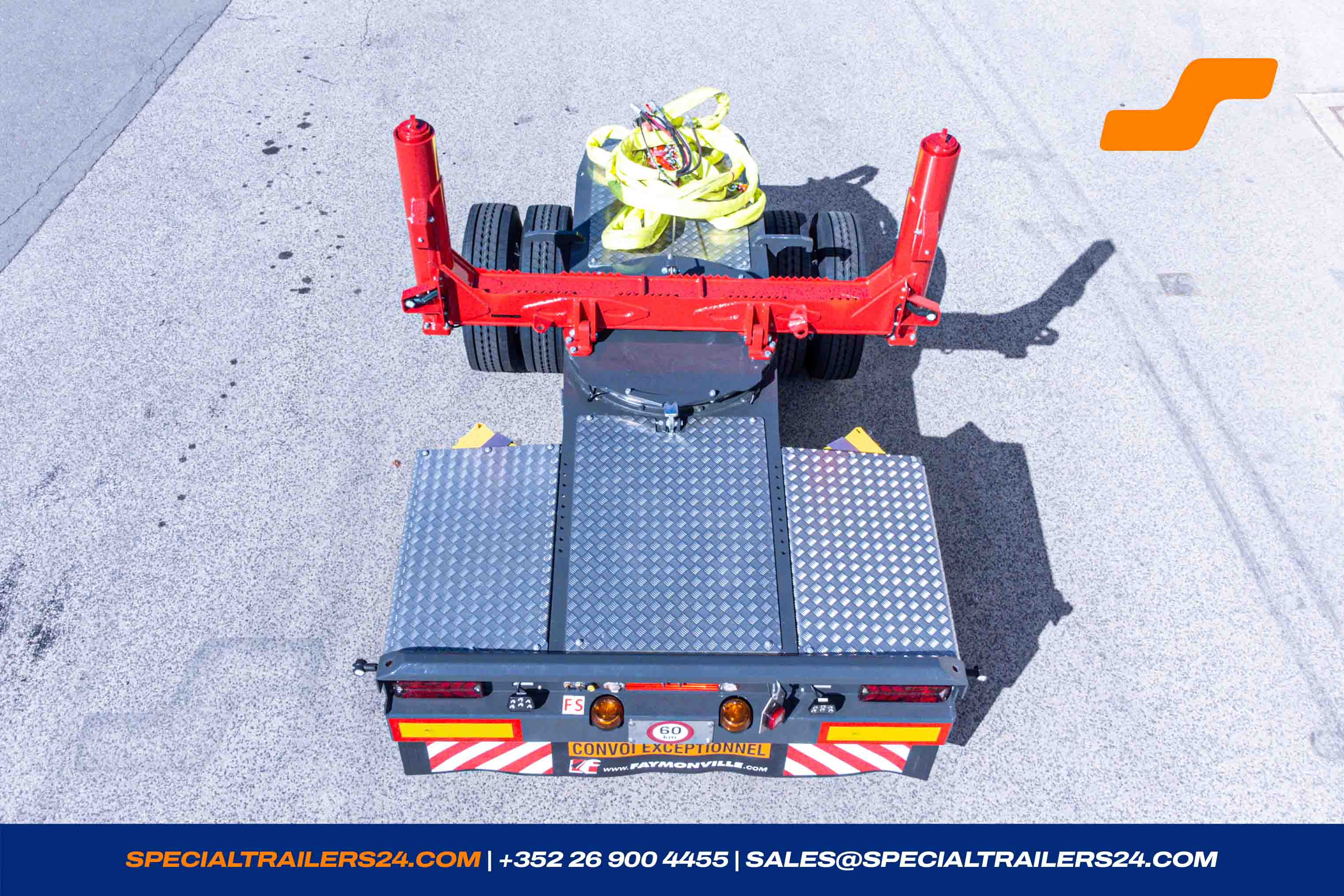

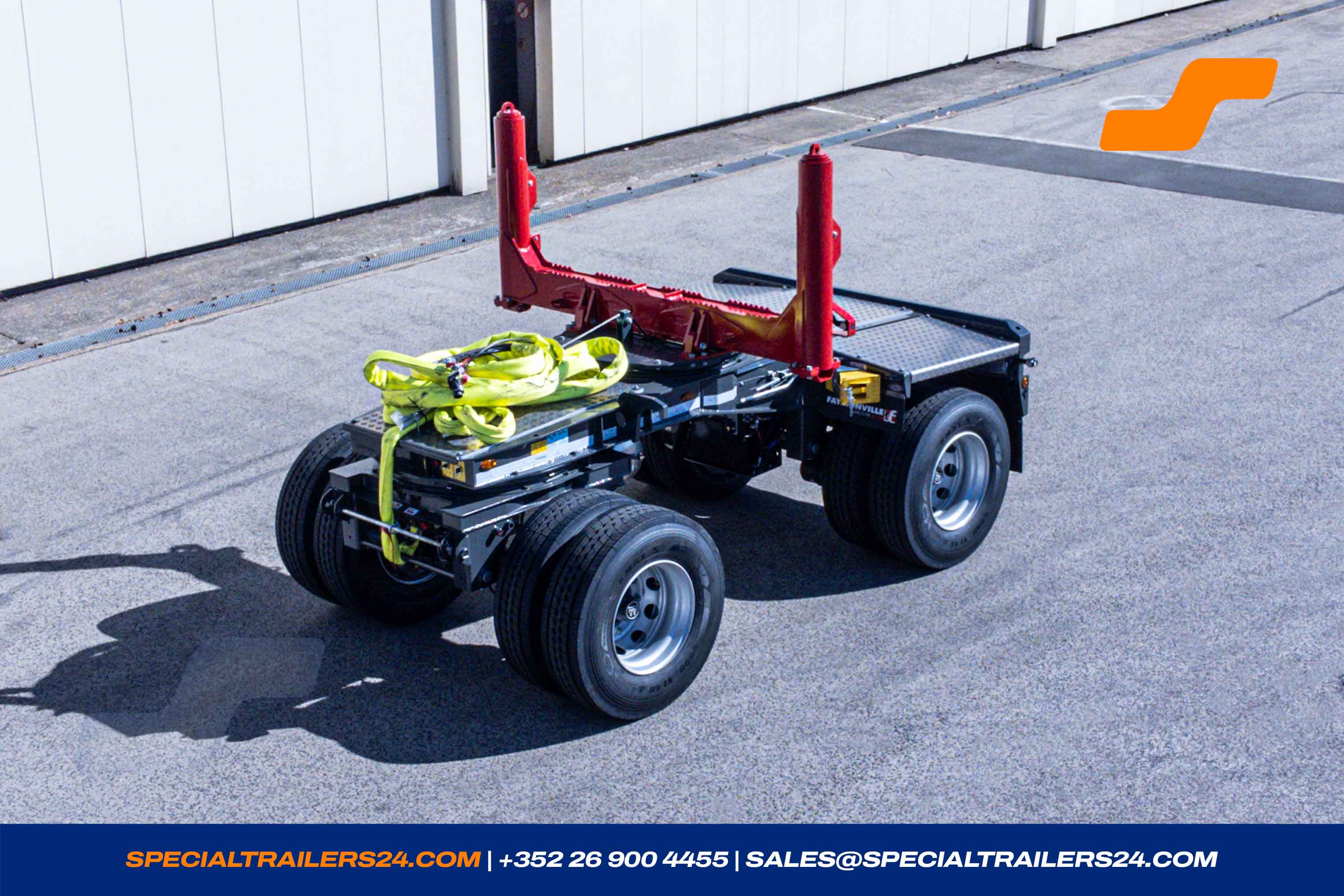

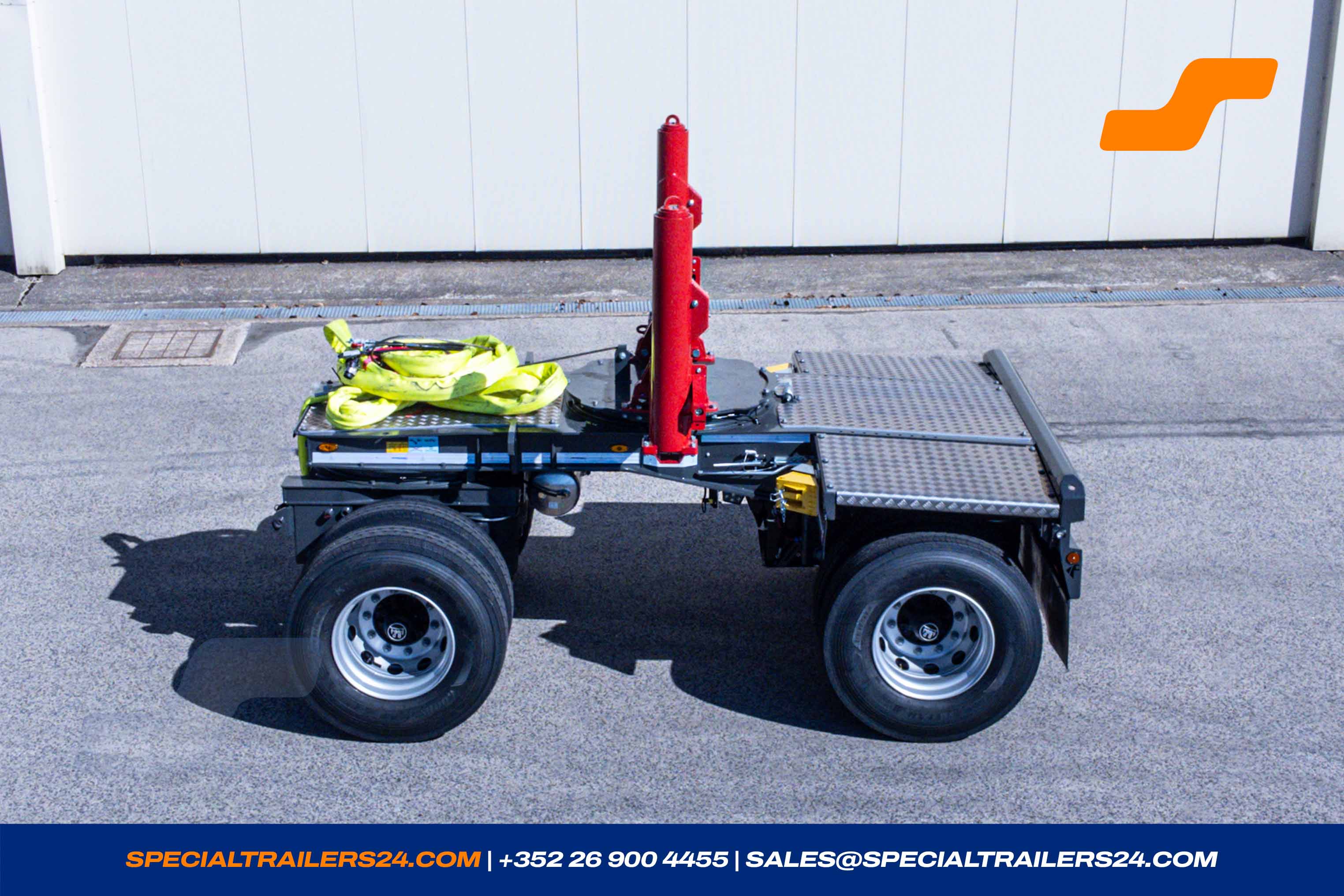

Self-steering trailer
Faymonville FlexMAX (Holz)
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 36443
- Reference Flex-Z-2L-20-22.5-2.54
- Number of axles 2
- Condition New
- Year of manufacture 2025
- Colour DB 7350 - Nova grey
- Availability Directly available
- Steering Type Hydraulic
Availability
Directly available
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| Axle load | 24000 kg |
| Gross weight | 24000 kg |
| Tare weight +- 3% | 4050 kg |
| Payload | 19950 kg |
Painting
| Chassis | DB 7350 - Nova grey |
Bogie
Vehicle
1 x Flex-Z-2L-20-22.5-2.54
Gross weight : 24 000 kg
Tare weight ± 3% : 4 050 kg
Pay load ± : 19 950 kg
- Steel ropes on the axles.
-

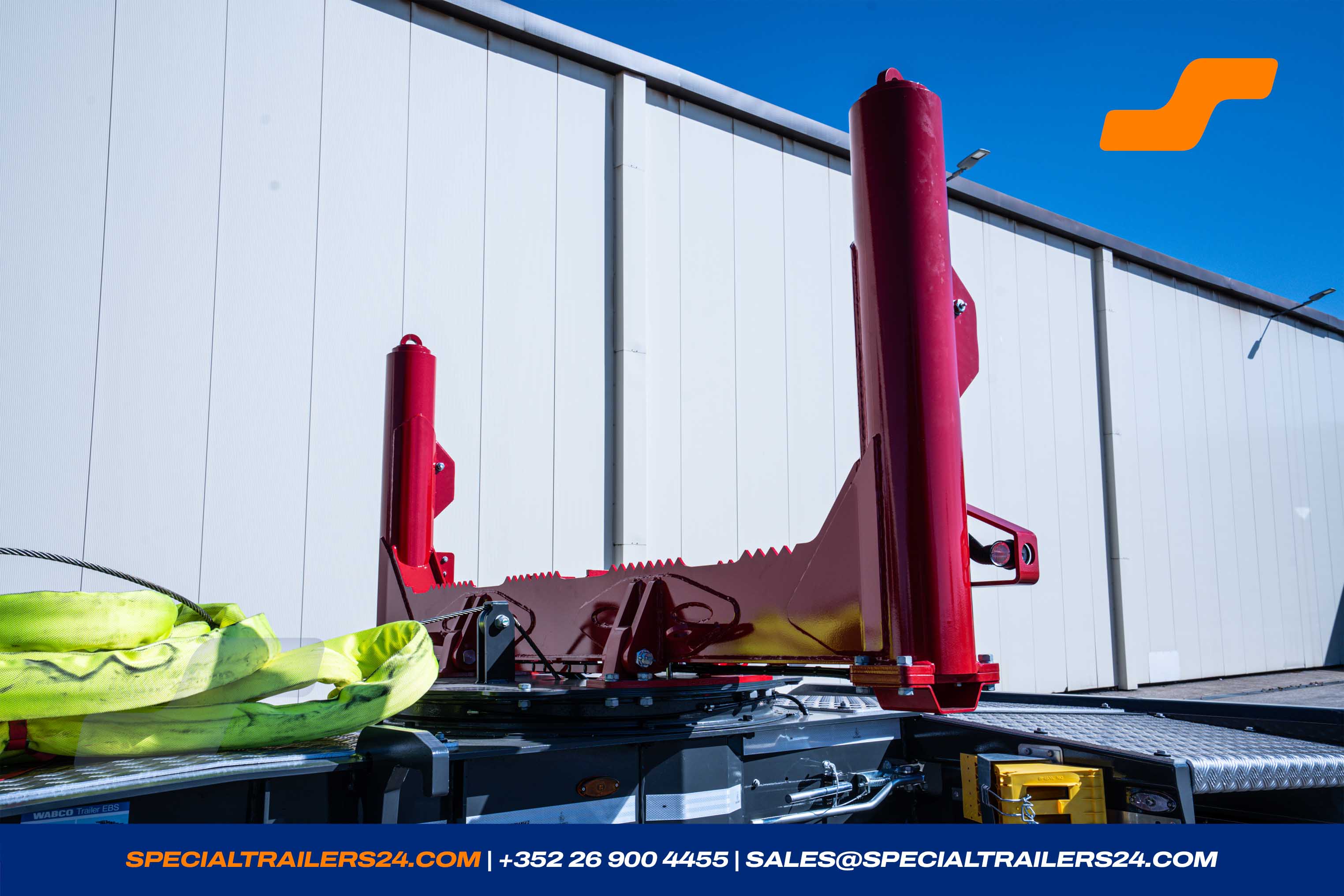

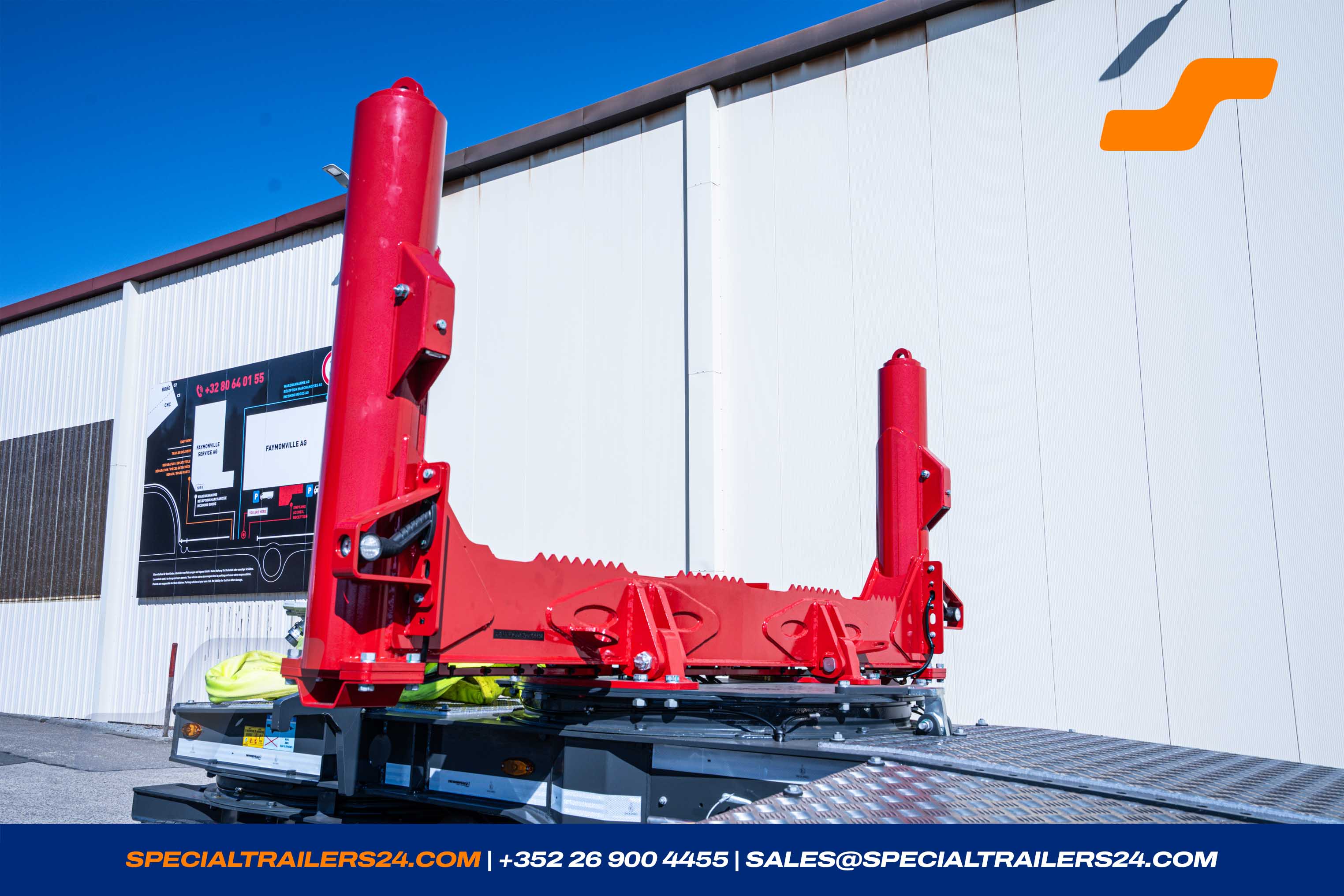

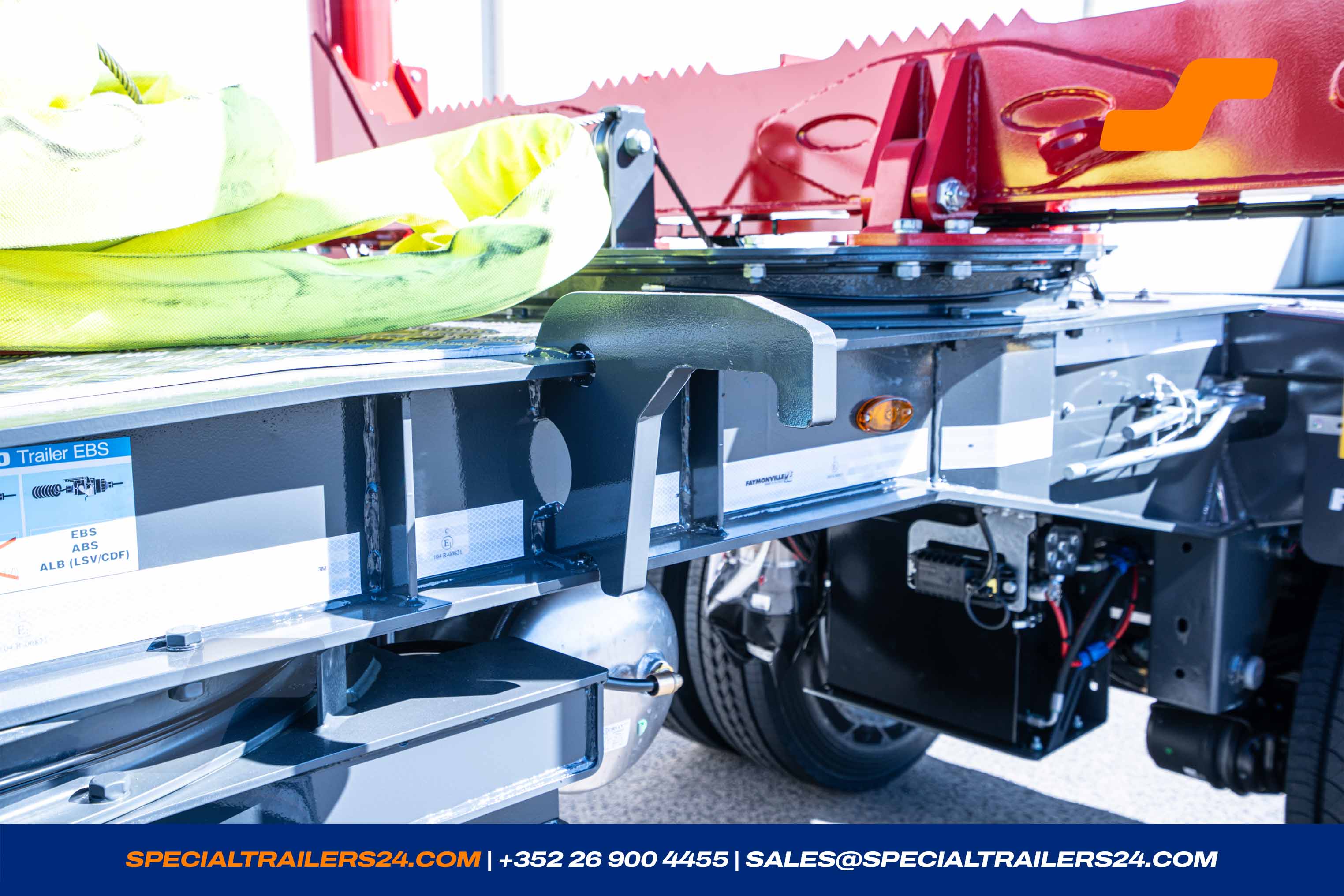

Loading bolster (Flexmax) with stakes, double pneumatic telescoping, operate from the crane seat and 4 lashing points.

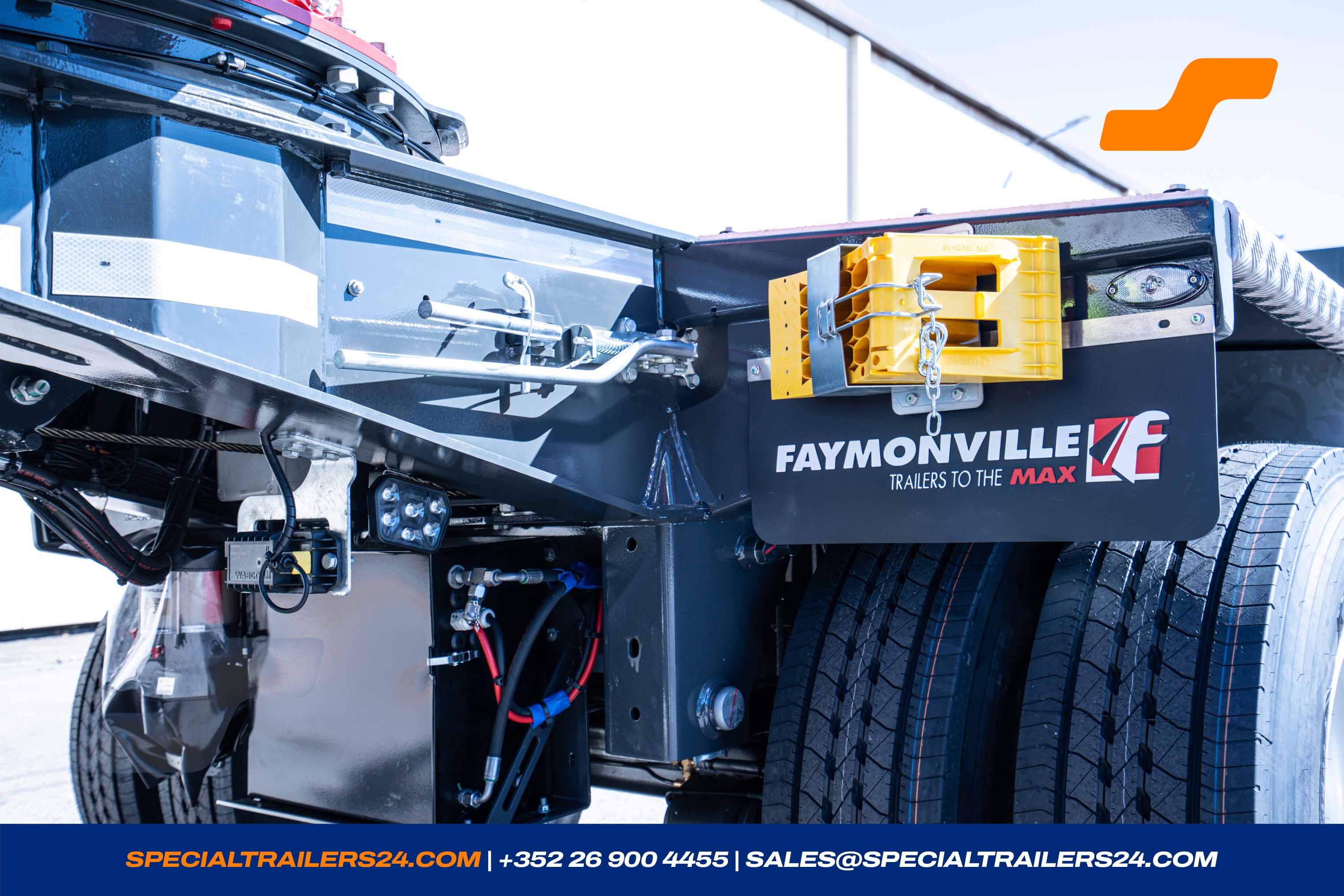

1 pair of holders for fixing the loading bolster to a turntable. - 2 wheel chocks with carrier.
-
Eye for mounting a drawbar on the front on the Flexmax.

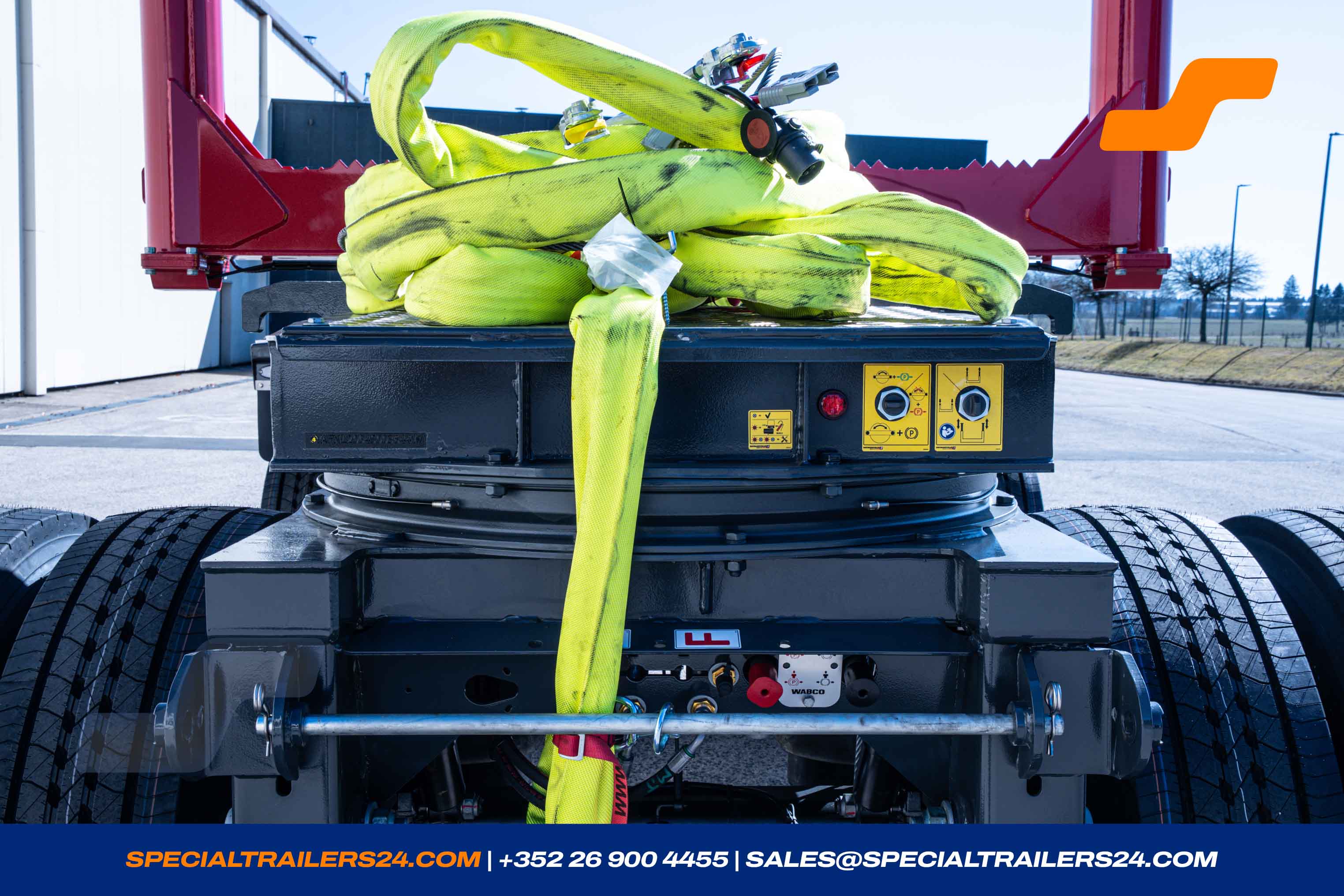

(Drawbar isn't part of the delivery). - Pneumatic locking of the turntable, operate from the crane seat.
- One additional electric-hydraulic steering, made-up of electric-hydraulic pump and electric valve.
-
1 hose pack pooled in the protection hose, ± 20 m length, with cable eyelet, comprising :

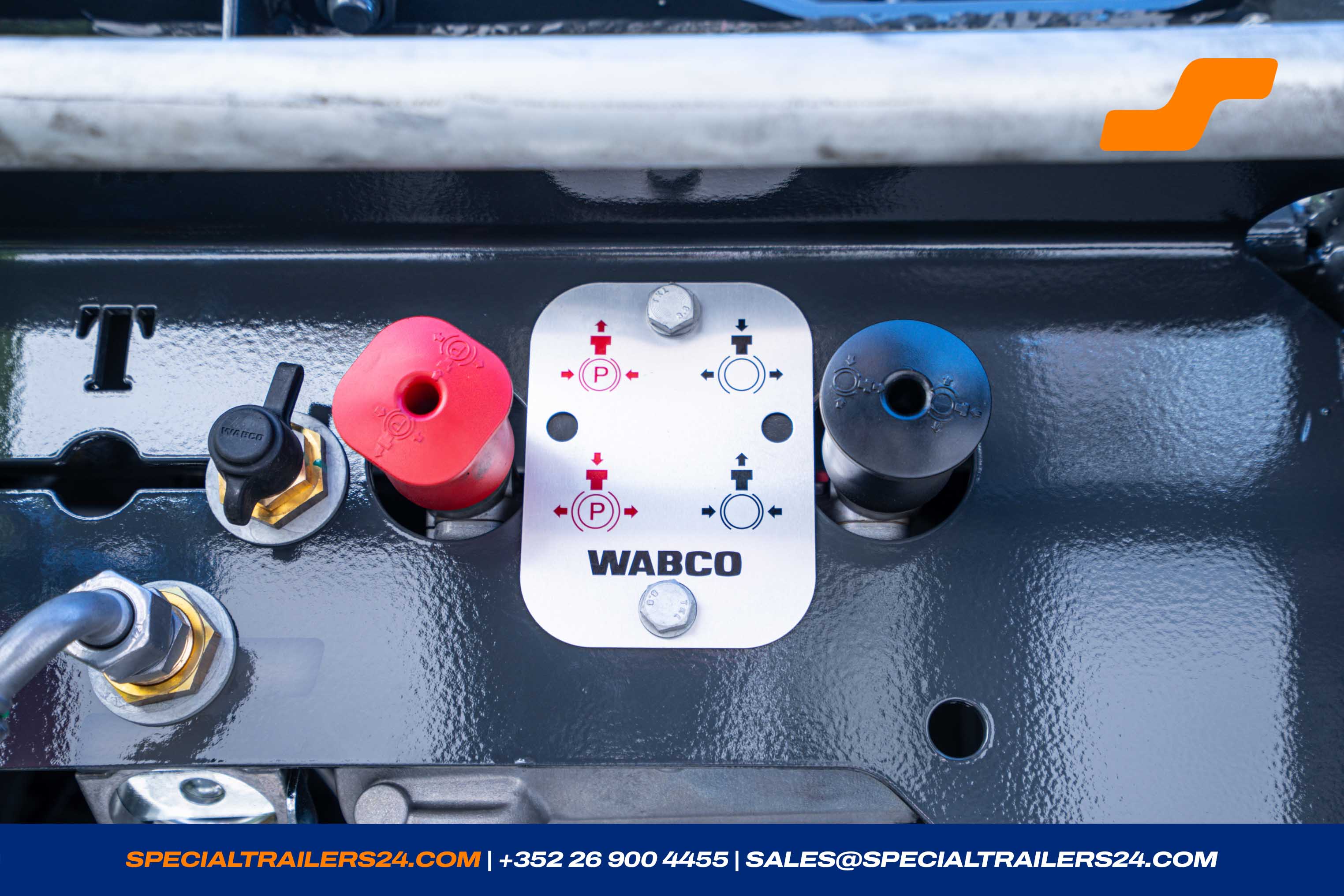

2 air pressure brake hoses, 1 EBS cable, 1x 24-pole cable and power supply for the E-engine (Anderson socket).

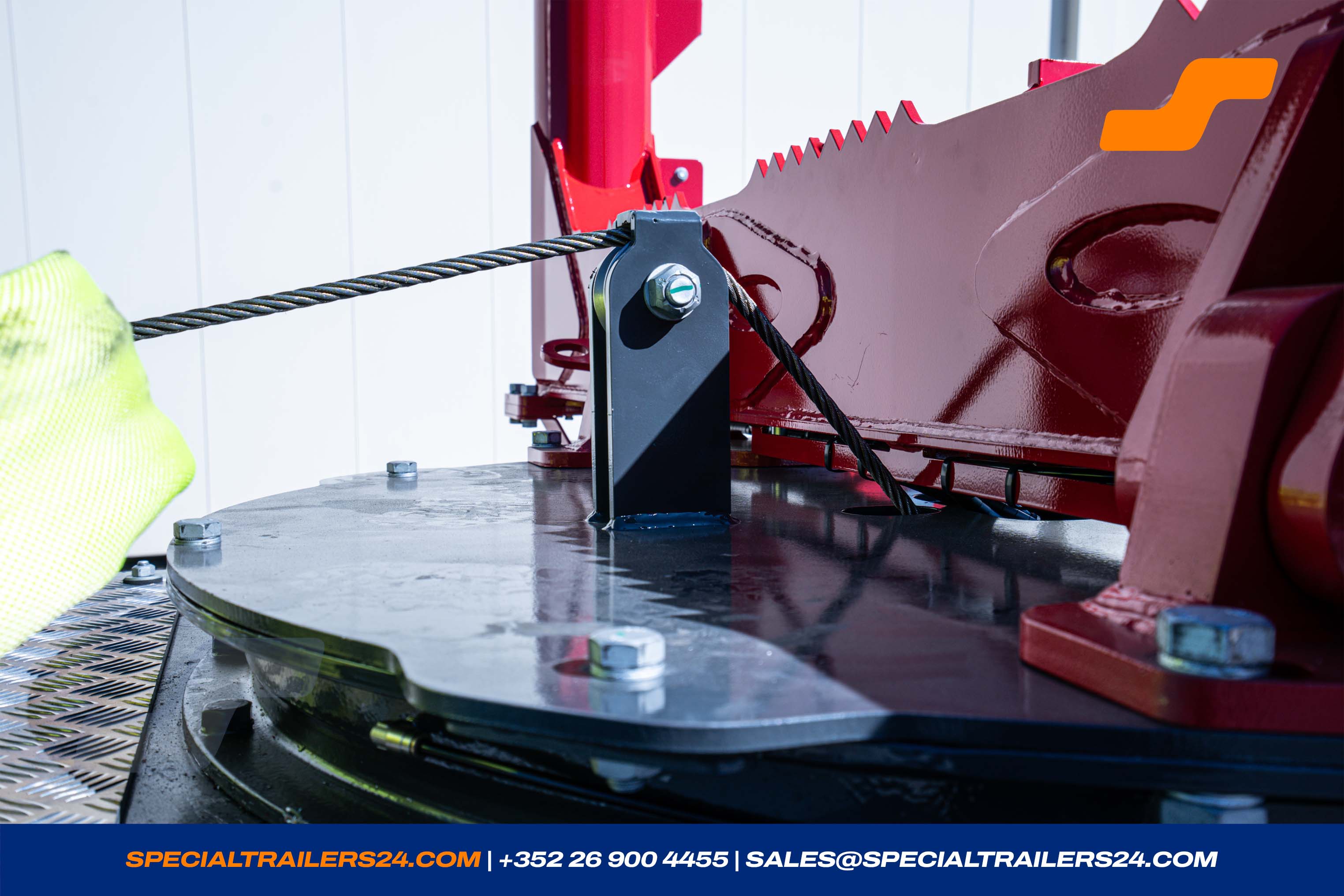

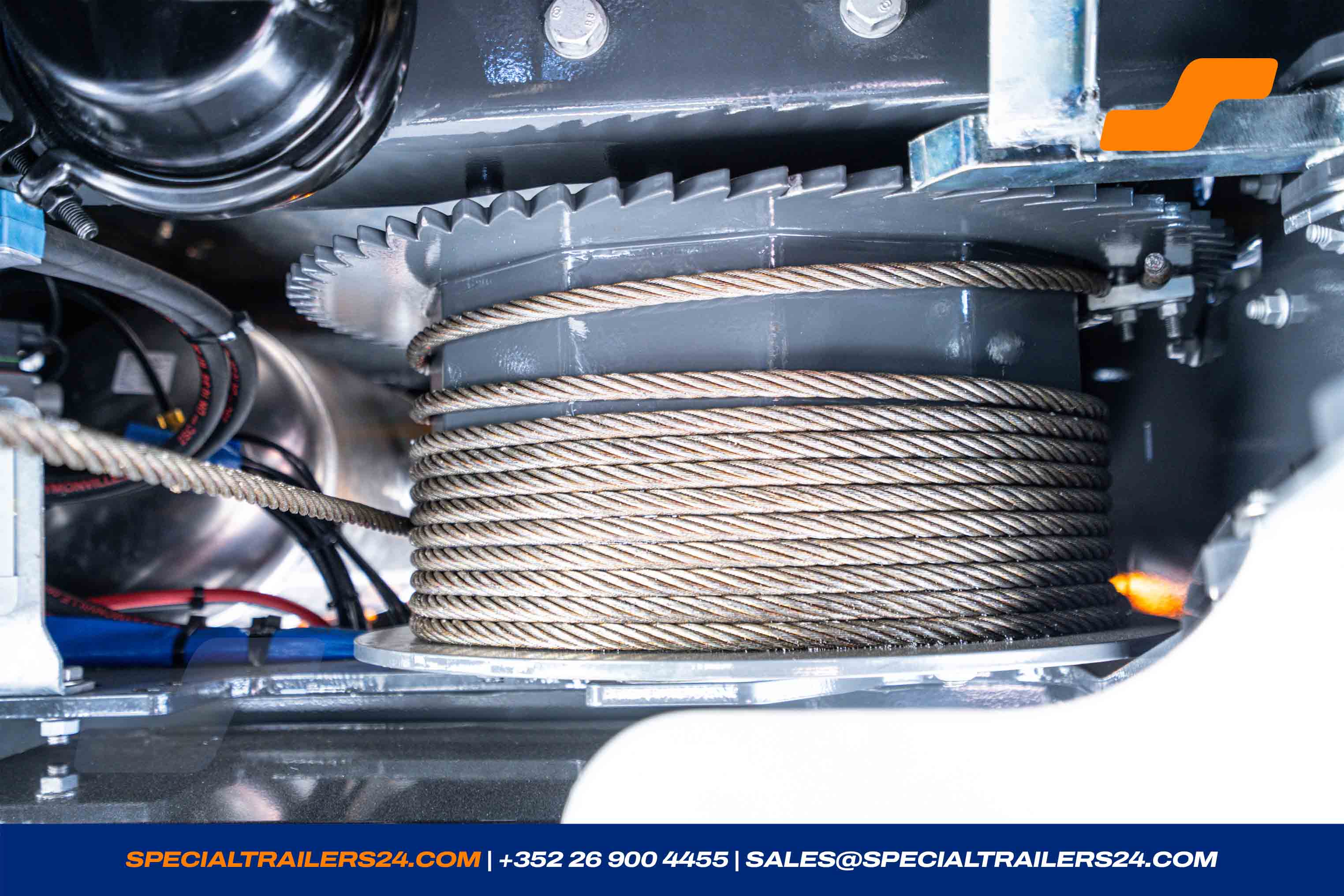

Pen stroke engine for the suspending rope Ø 12 mm incl. ratch and pneumatic locking of the peb stroke engine -
1 LED working lamp each left and right in front of the second axle with handling from the truck.

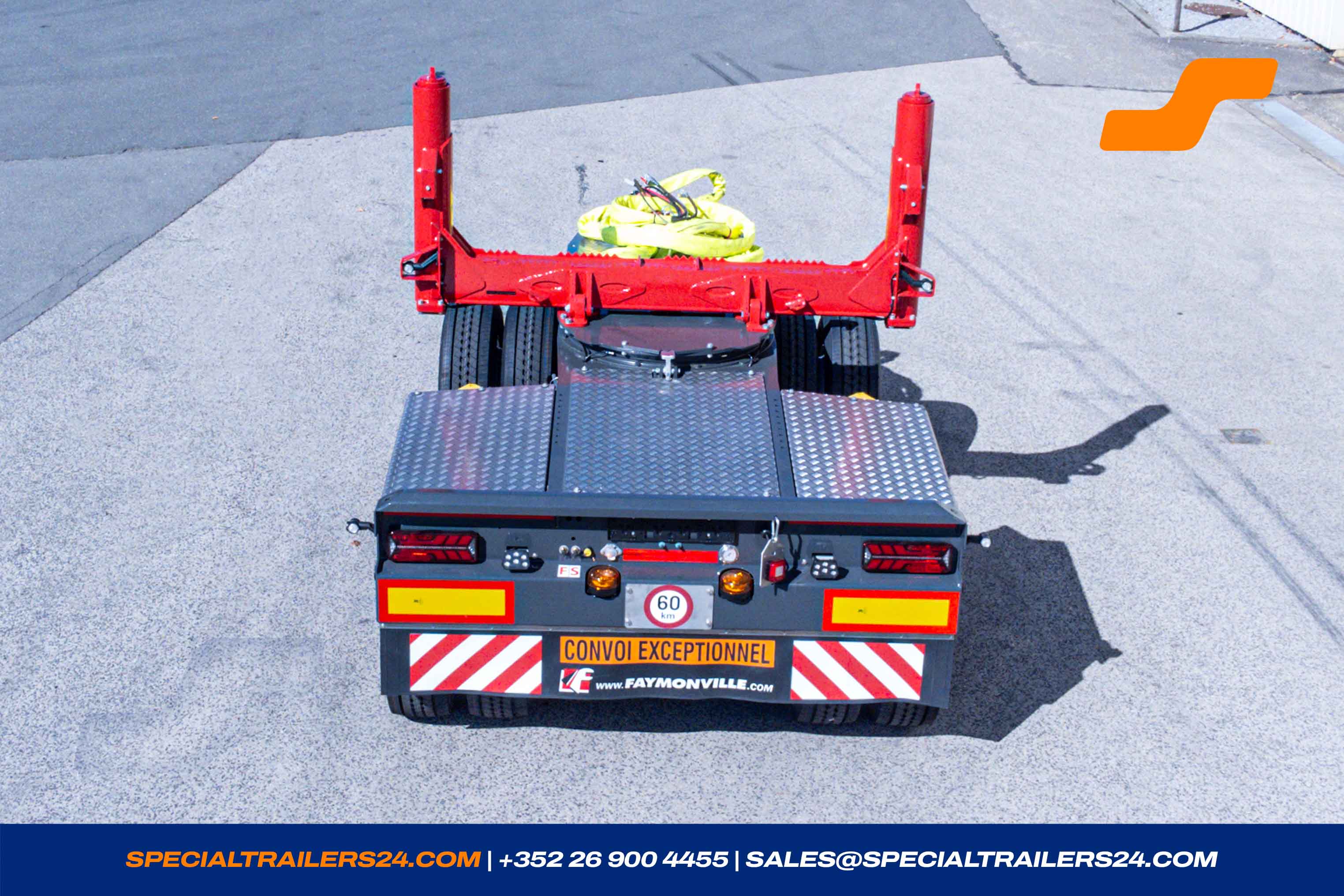

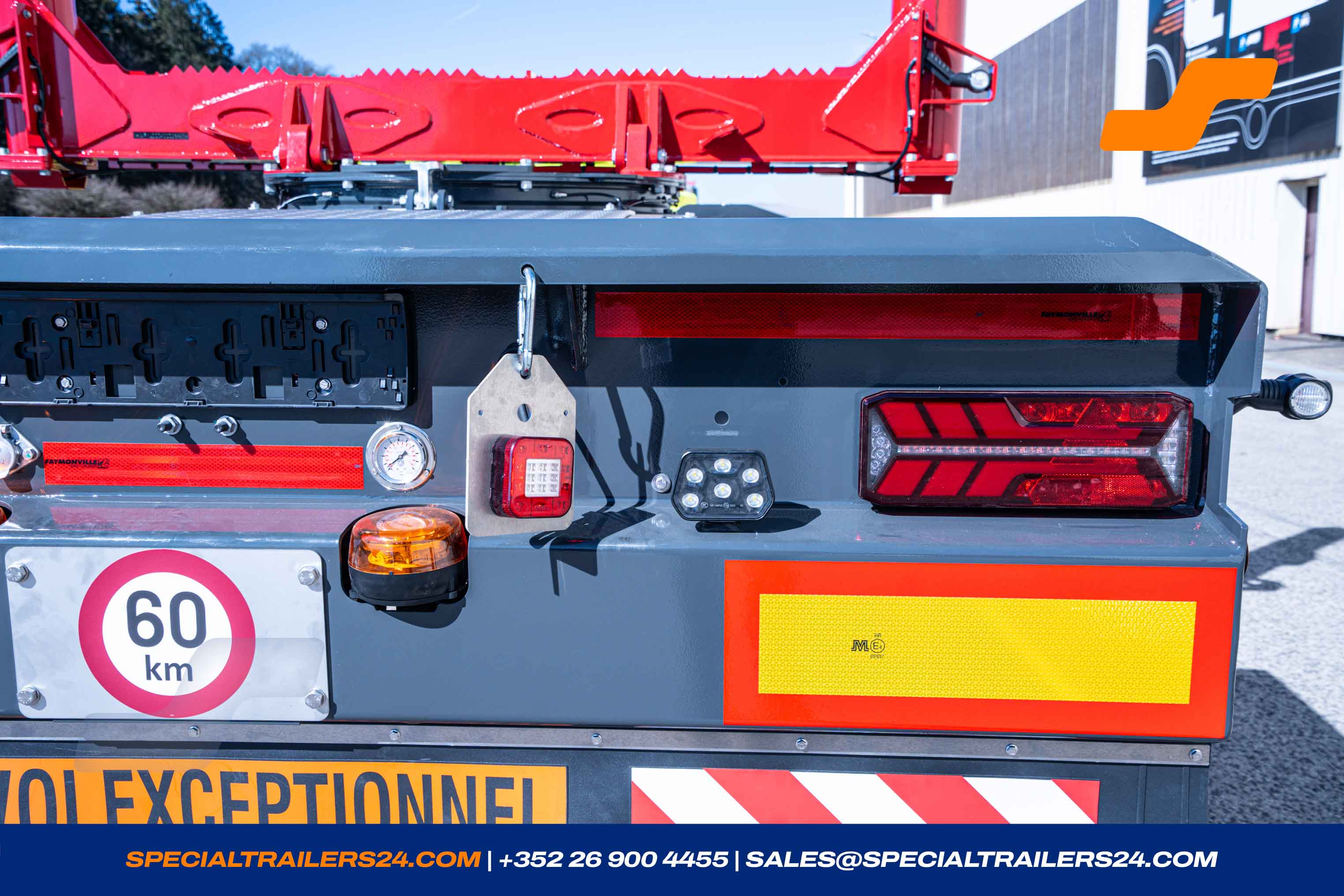

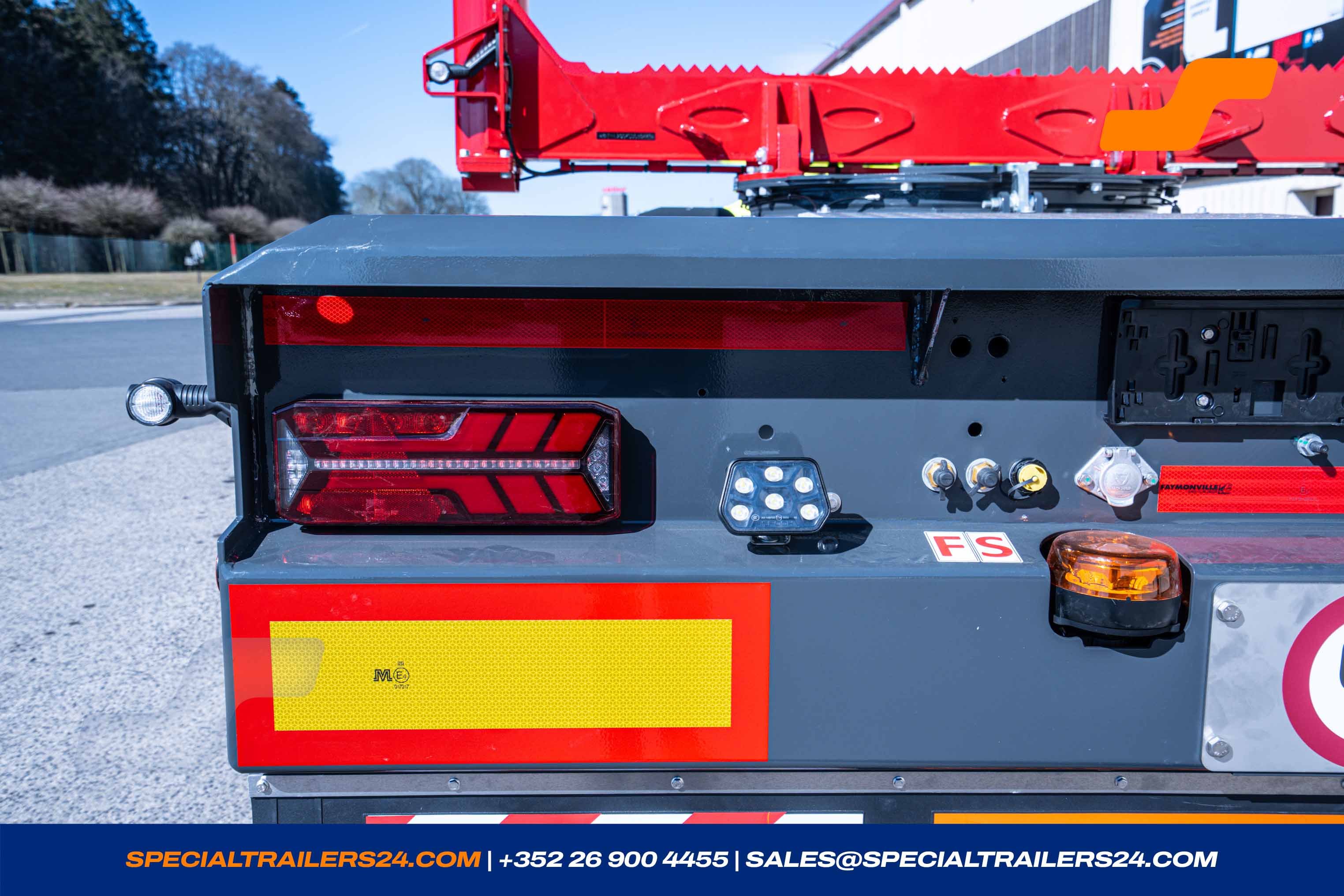

2 LED working lamps at the rear of the trailer with handling from the truck. - Projection lamps on the rear of the trailer with automatic cable retractor.
-
Central greasing with 1 pump, make BEKAMAX, with NLGI-2 normal grease.
Removable protection box around the (all) pump(s) of the central greasing. - A mud flap (www.faymonville.com) at the rear.
- Manual and description :
- 1 LED flashing beacon light on the left and right side at the rear of the trailer.
- TPMS pressure sensor SMS-2 (Strap-Mounted-Sensor) installed in all tires including spare wheels.
-
TPMS Tyre Pressure Monitoring System according to ECE R 141.
Data transmission to the motor vehicle takes place via the standardised EBS interface according to ISO 11992.
For accurate display, the motor vehicle must be able to transmit and display this data. - High Resistance Metallisation (HRM) of the complete steelconstruction, after all welding works, the structure is shotblasted and a layer of zinc (85%) - aluminium 15%) is applied.
-

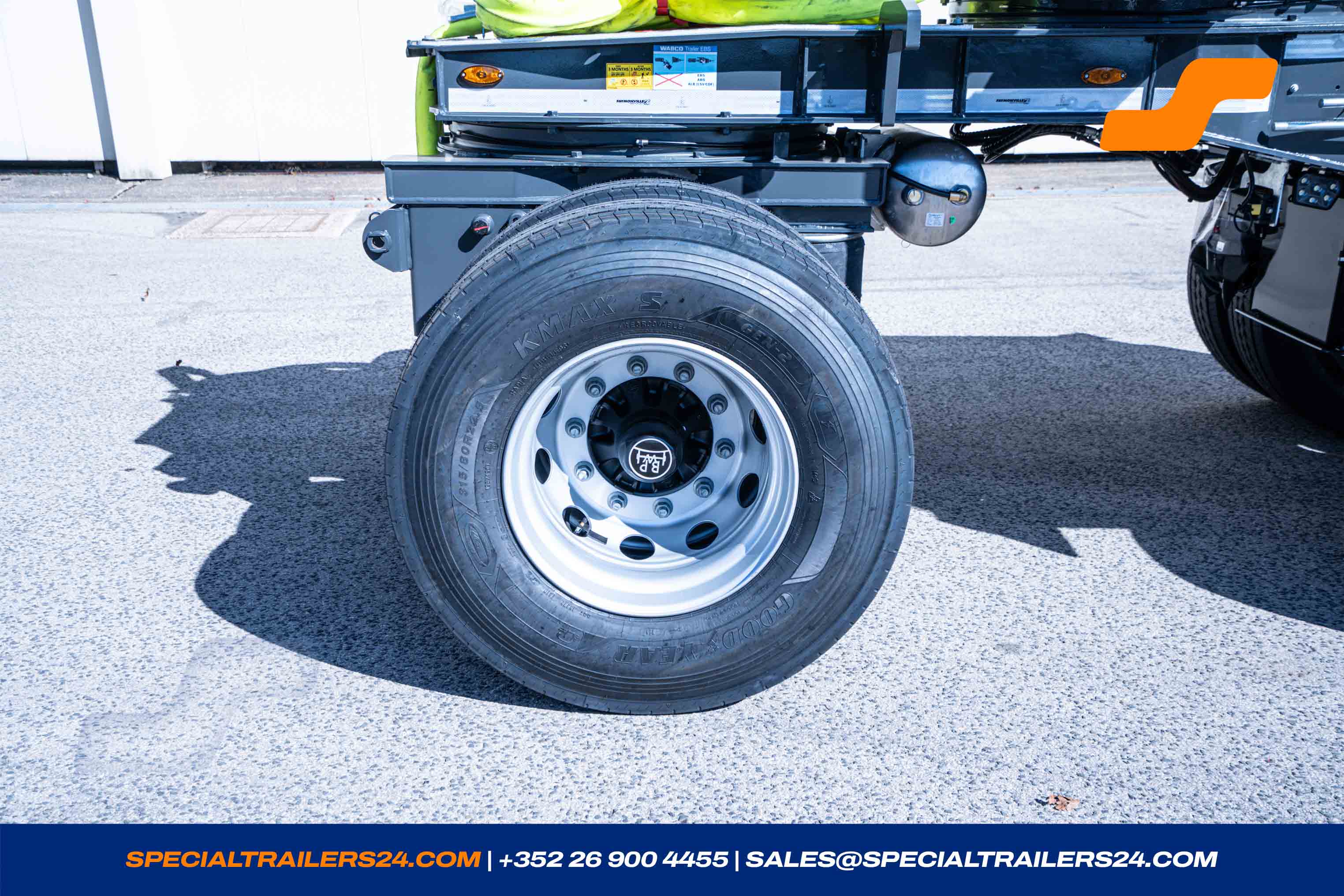

315/80 R 22.5 twin tyres.
Product of our choice. -

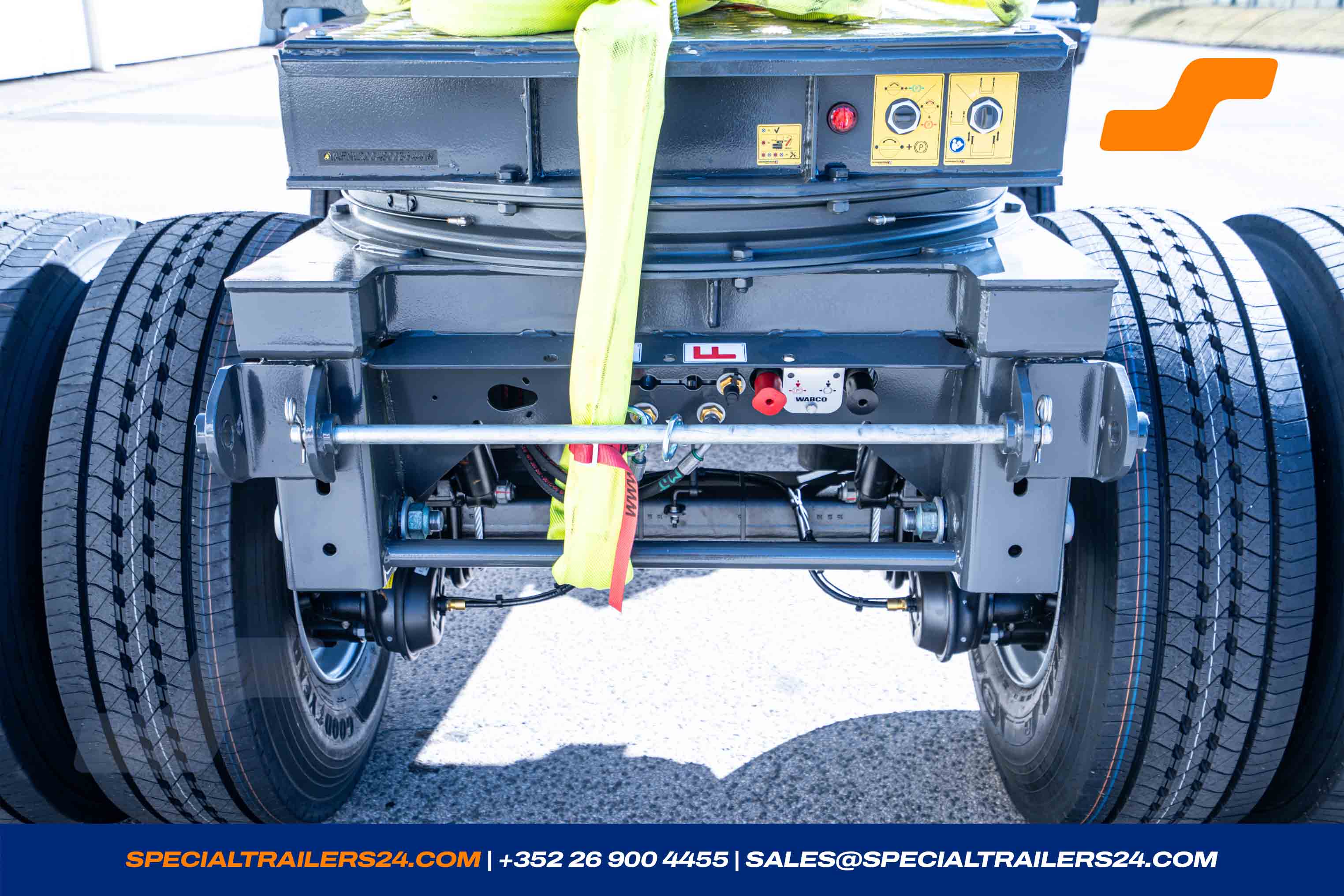

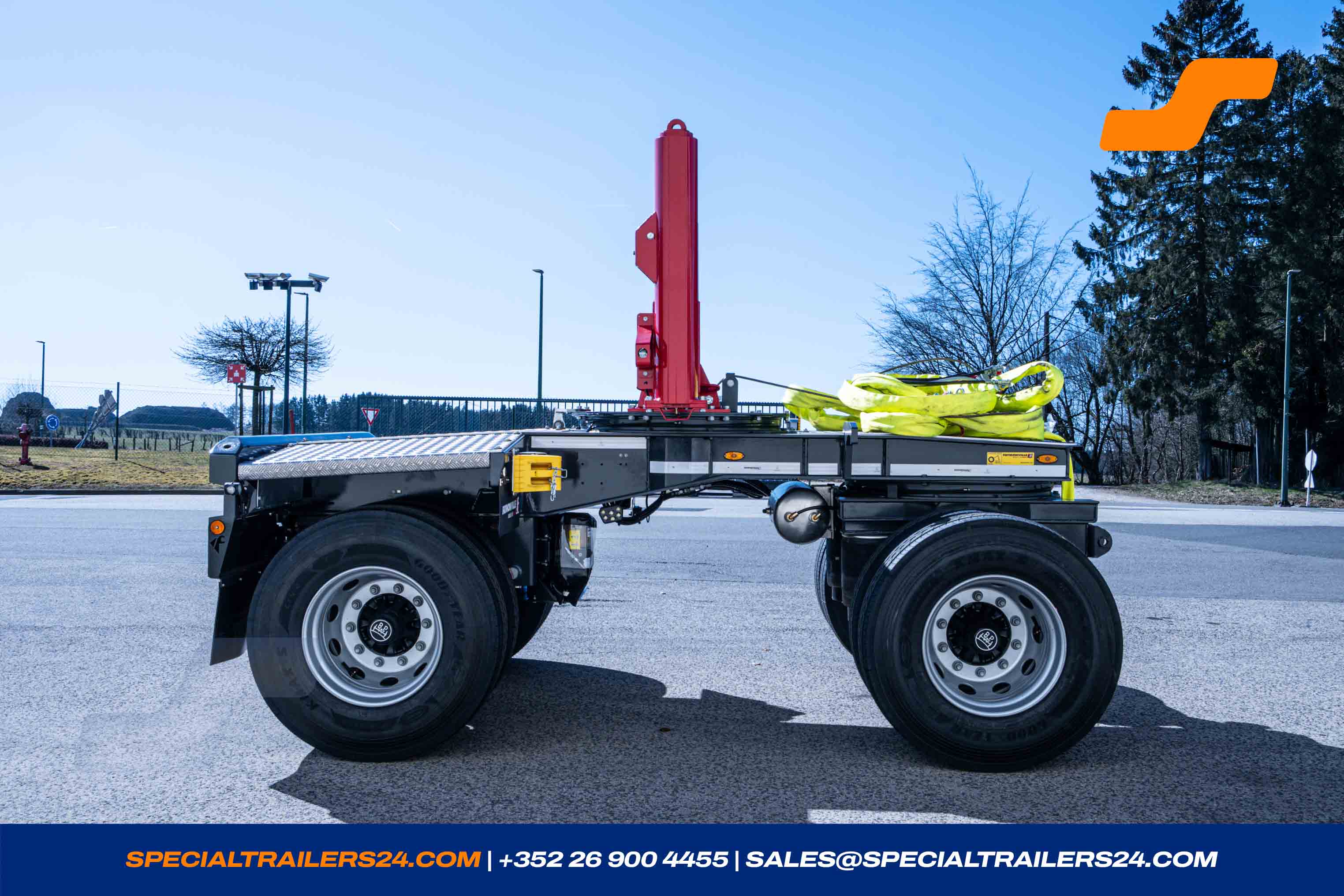

BPW axles and suspension with disc brakes (covering OFF-ROAD), 1st axle hydro-mechanically steered, mounted on double race turntables, 2nd axle fixe, 2 hydraulic cylinders with locking valve, for steering transmission from stakes loading bolster to the 1st axle.
Technical axle load: 12 000 kg
Pneumatic suspension with lifting/lowering valve.

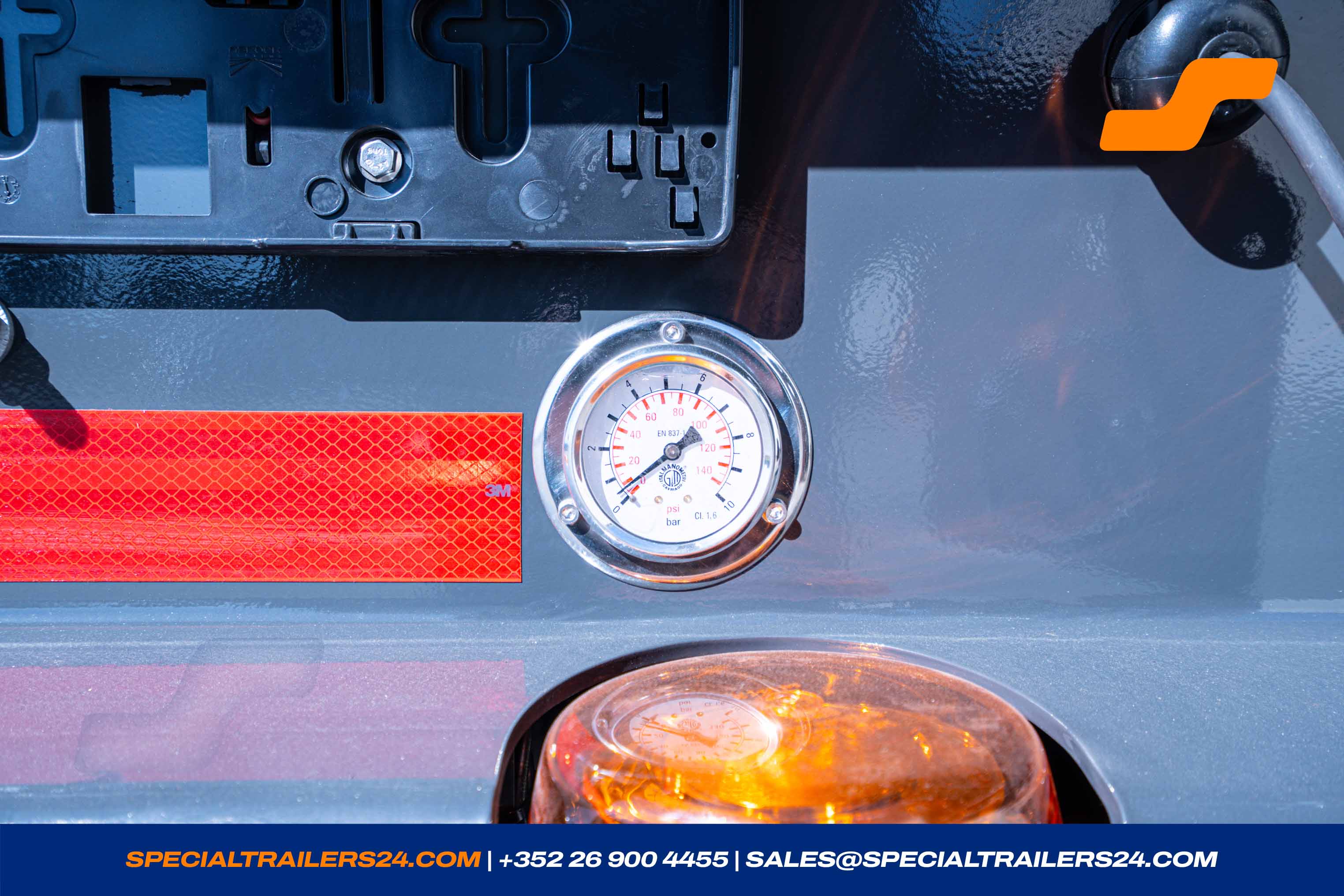

Axle tools. - 1 pressure gauge for the axle load on the axle bogie.
- White reflective tape on both sides on the entire length according to the EU regulation.

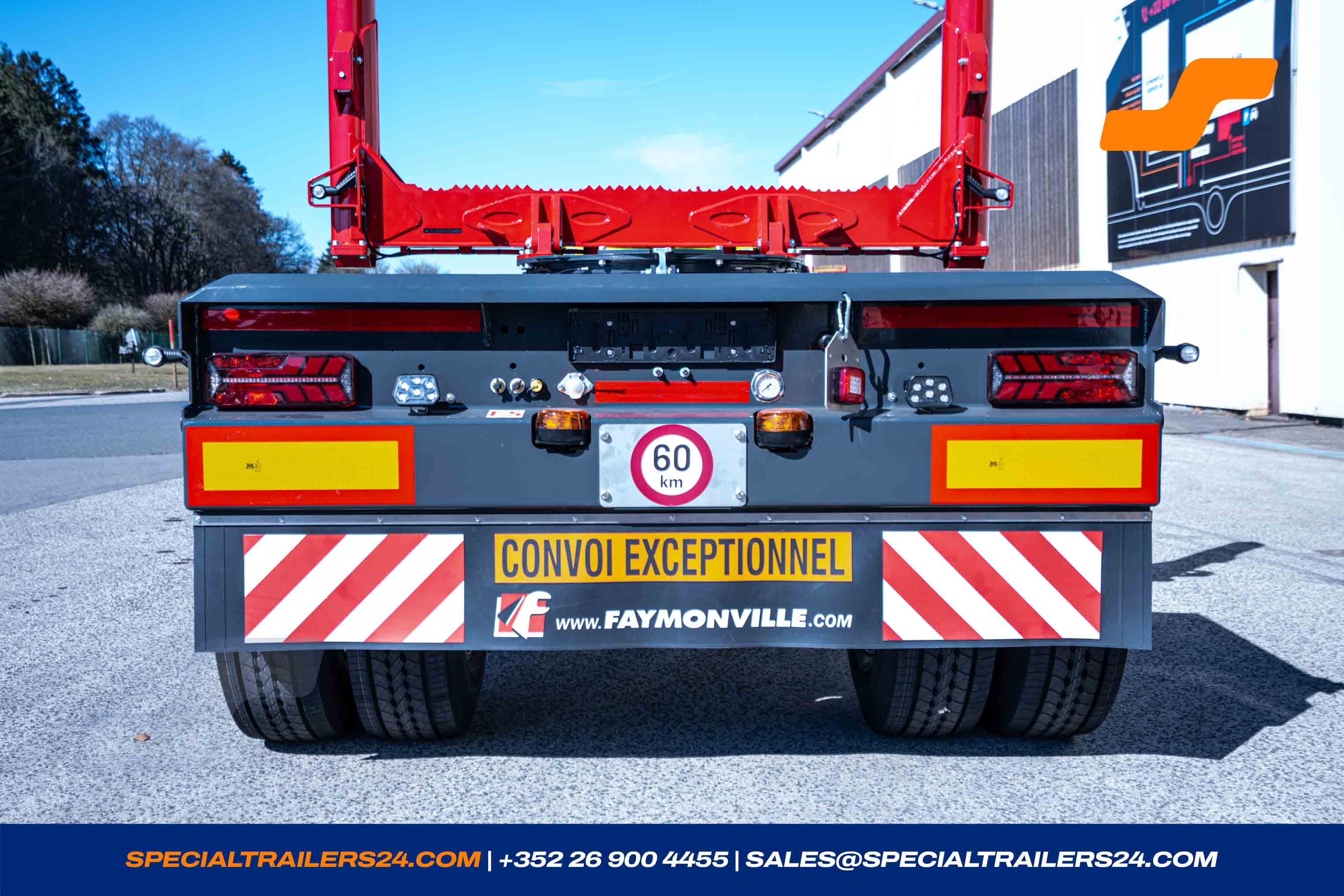

- Red reflective tape on the rear on the entire width according to the EU regulation.
Painting
| Trailer | DB 7350 - Nova grey |
| Rims | Silvergrey |
| Turntable | RAL 9005 - Jet black |
Faymonville FlexMAX (Holz)
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 36443
- Reference Flex-Z-2L-20-22.5-2.54
- Number of axles 2
- Condition New
- Year of manufacture 2025
- Colour DB 7350 - Nova grey
- Availability Directly available
- Price On request
-
Location
SpecialTrailers24
Z.A.E.R. Op der Sang
16, Op der Bréimicht
9779 Lentzweiler
Luxembourg - AdId 000256
- Steering Type Hydraulic
