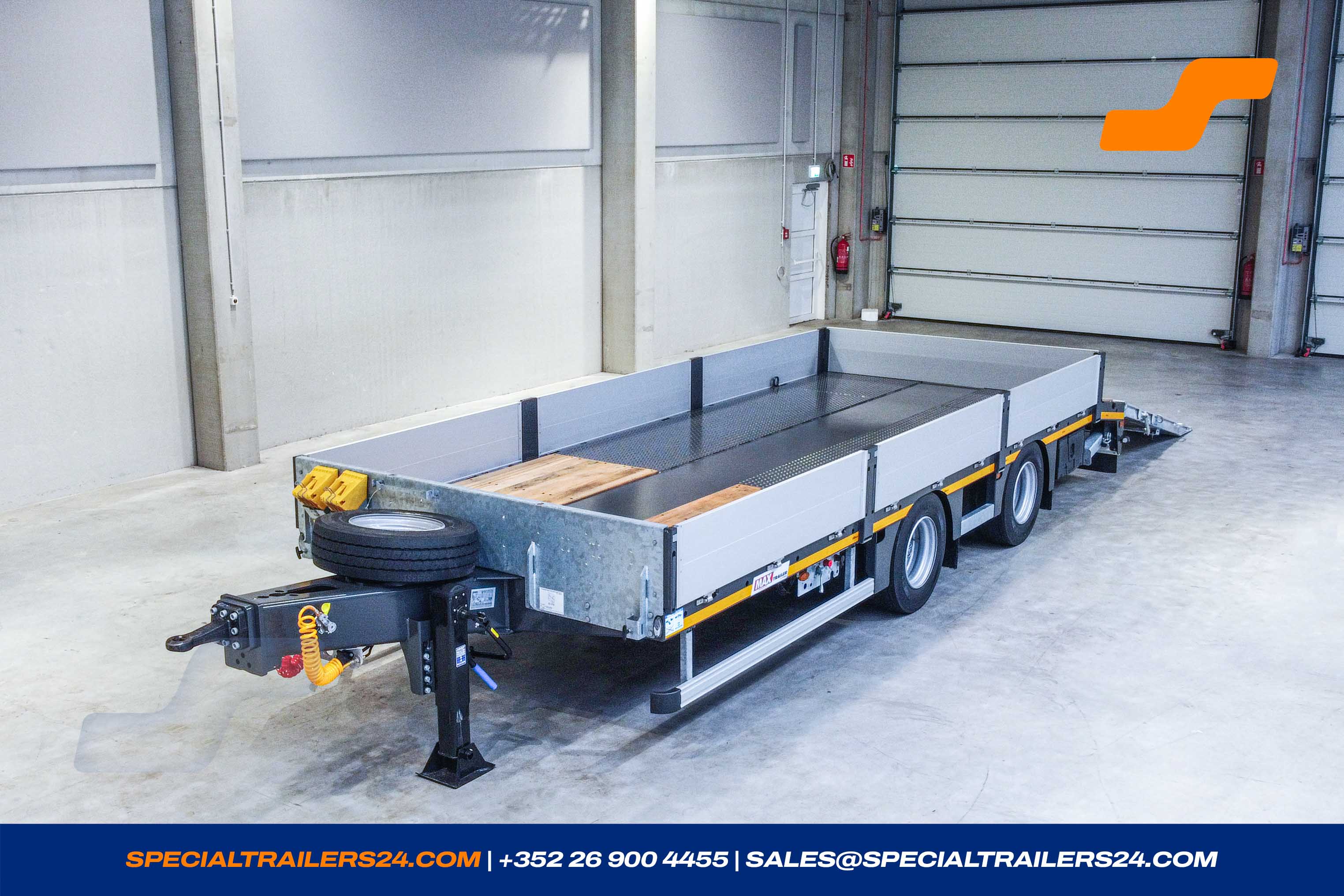

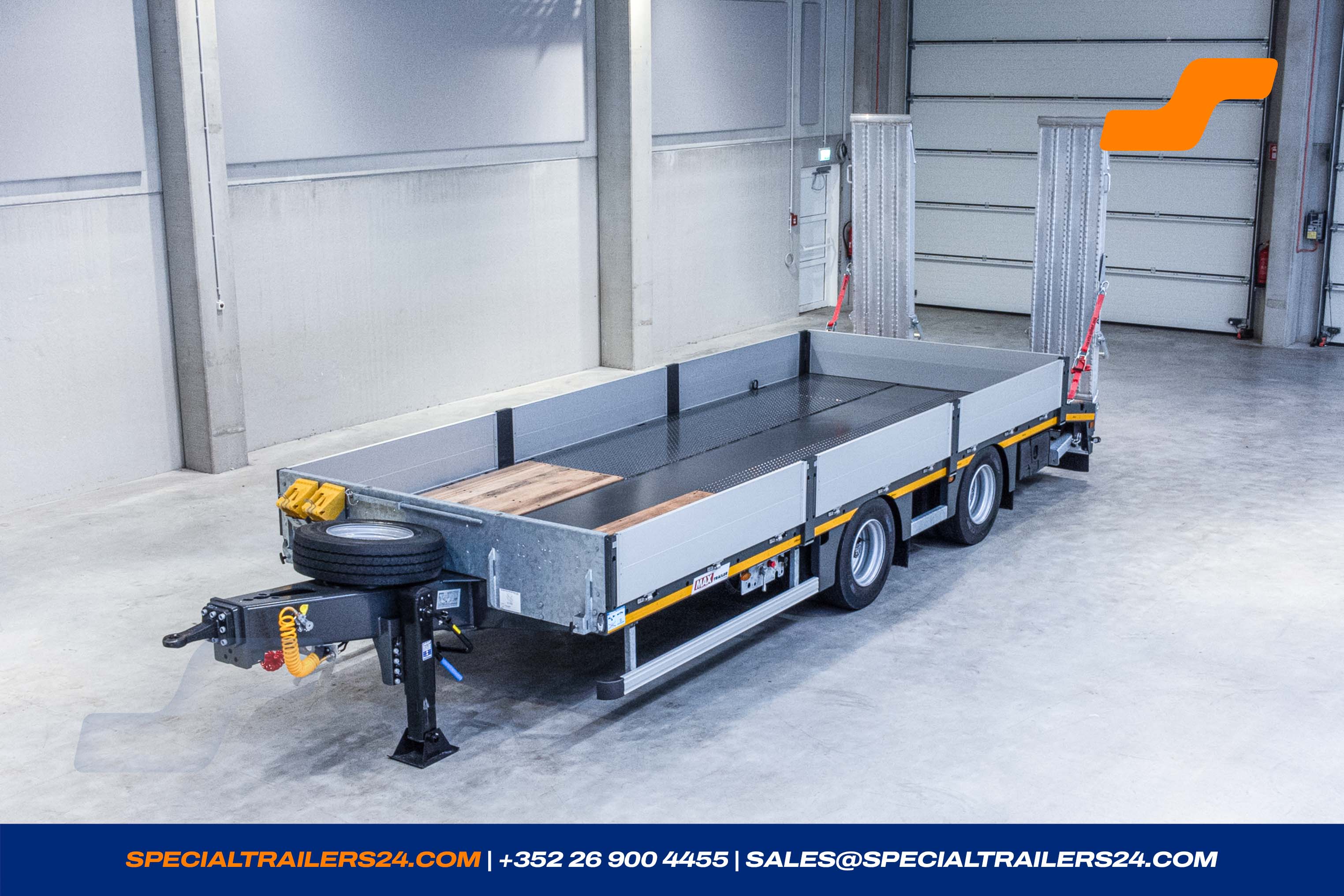

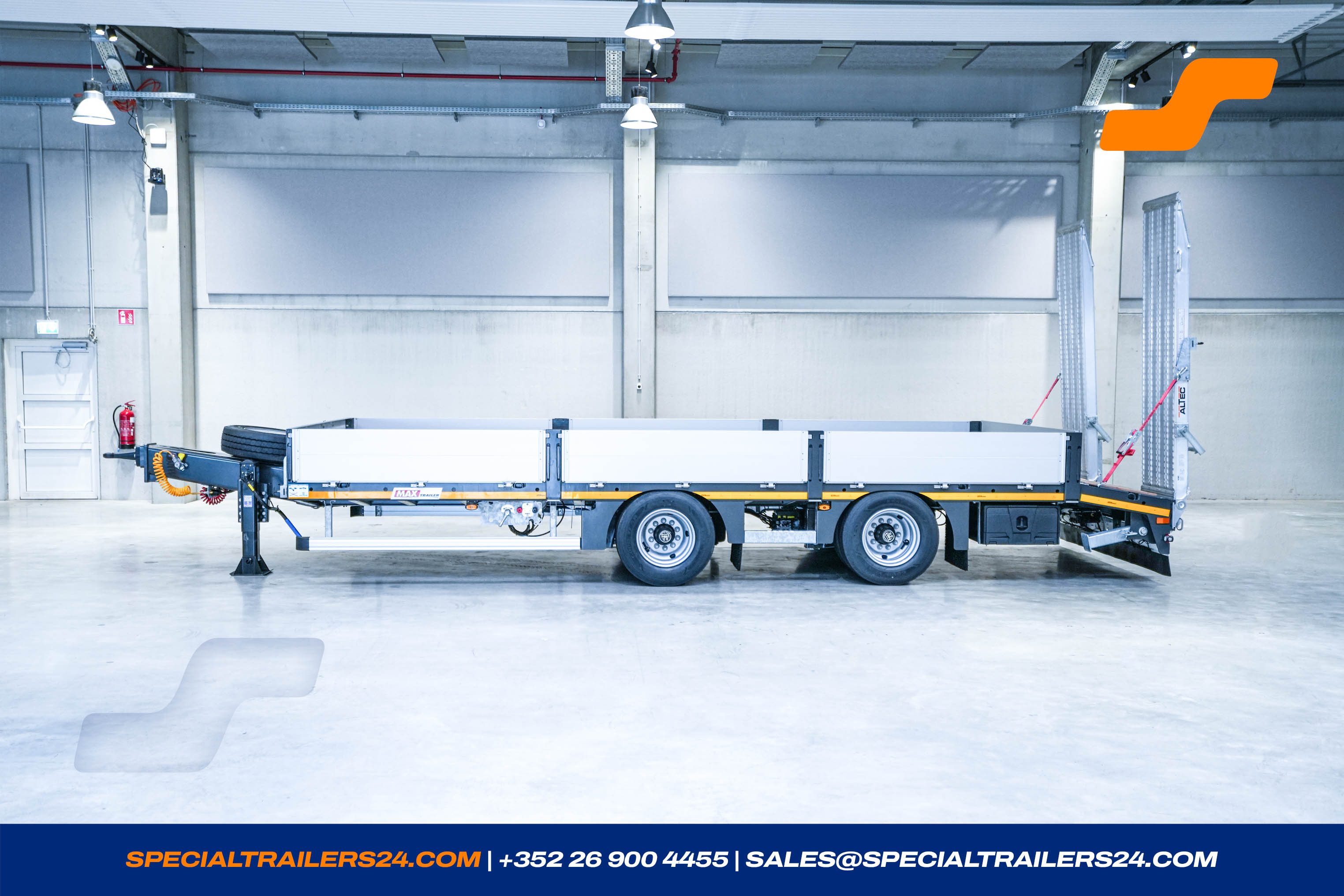

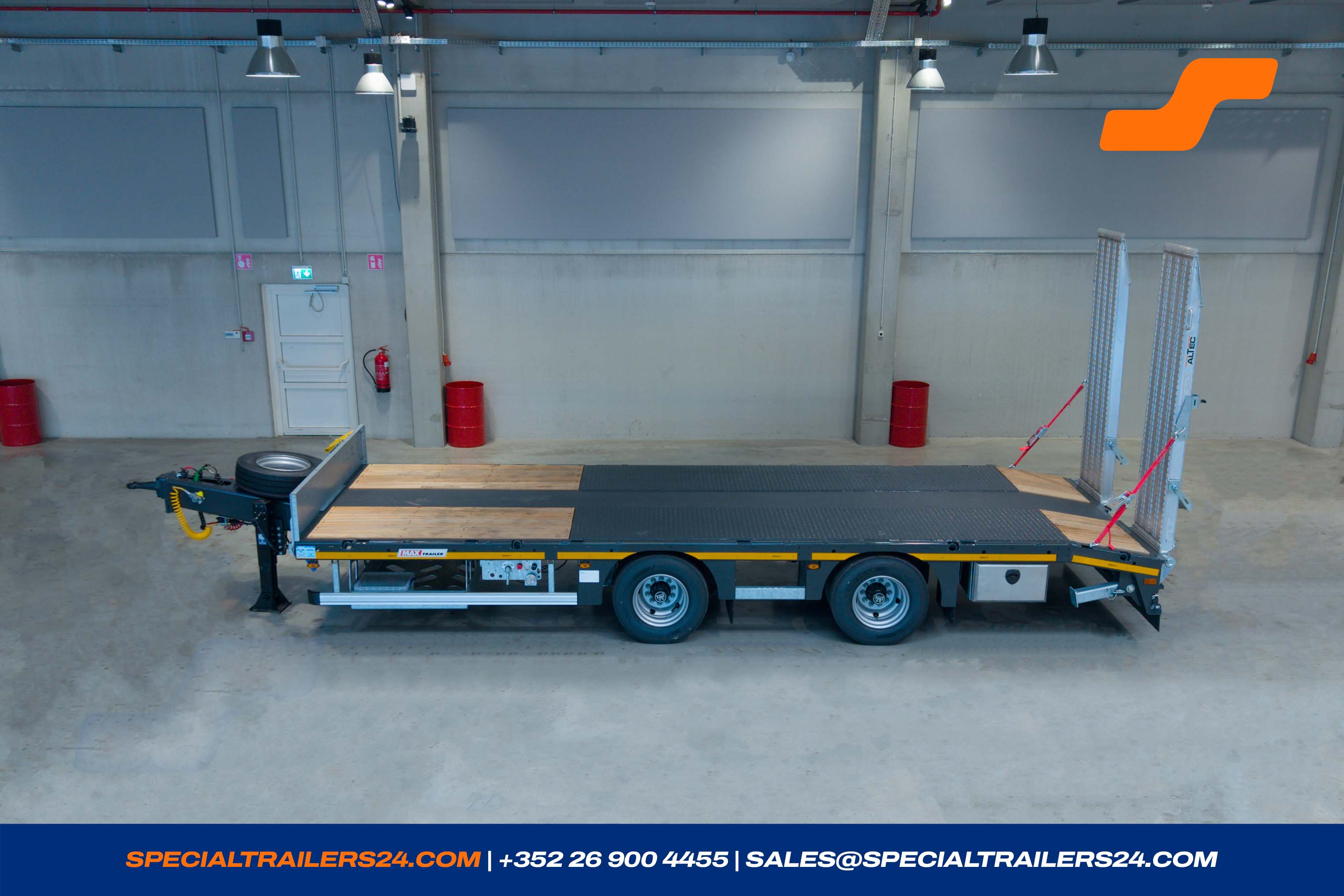

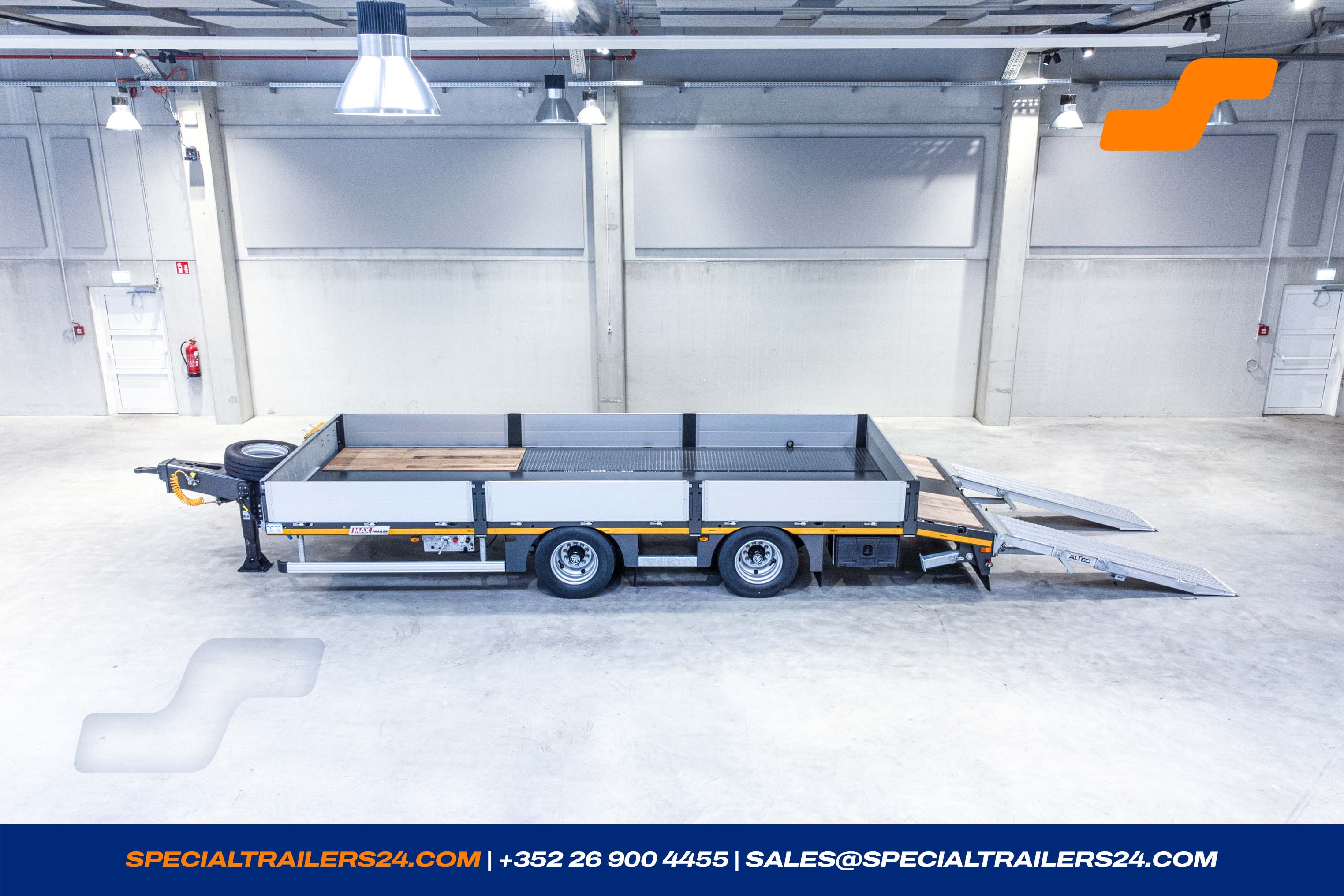

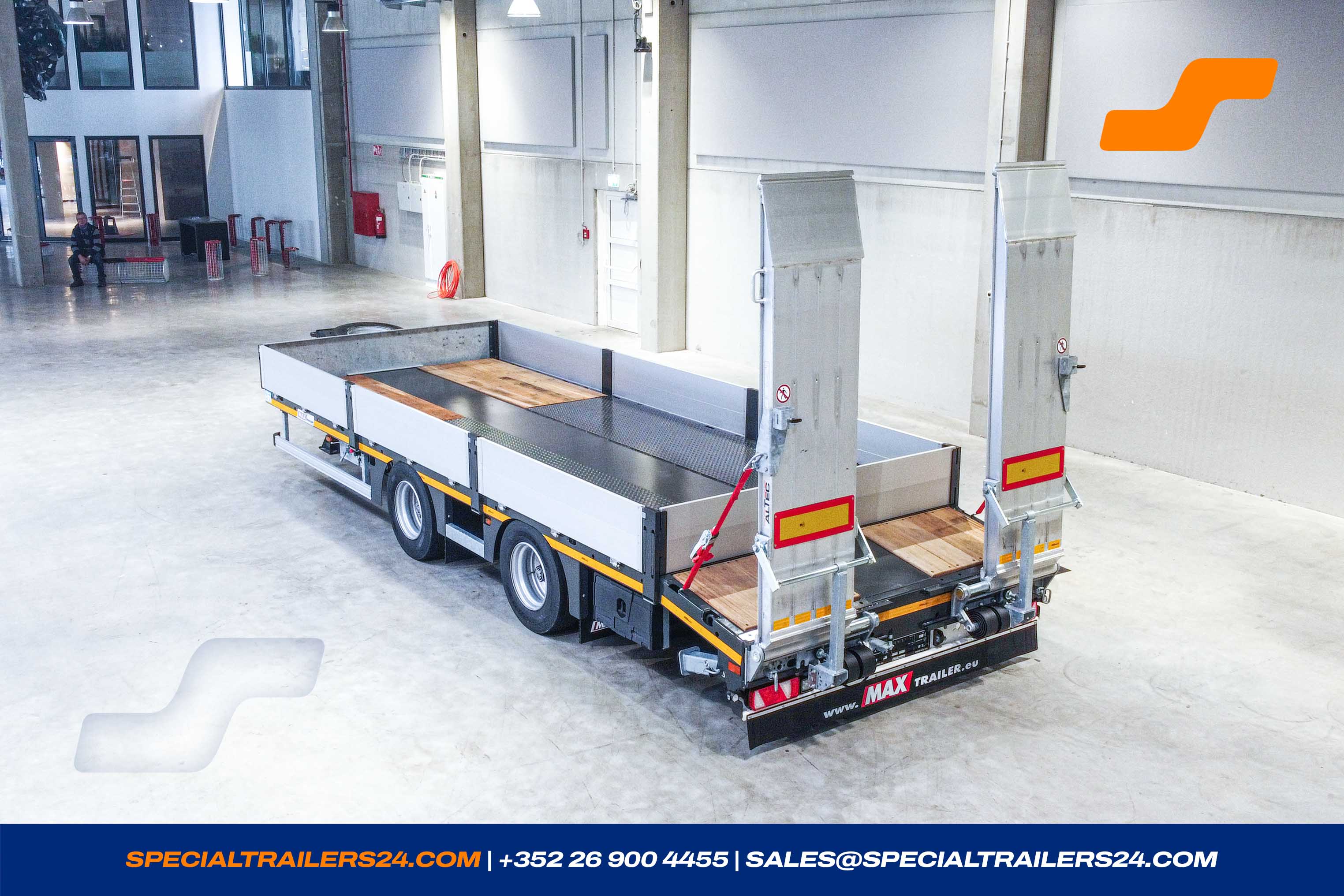

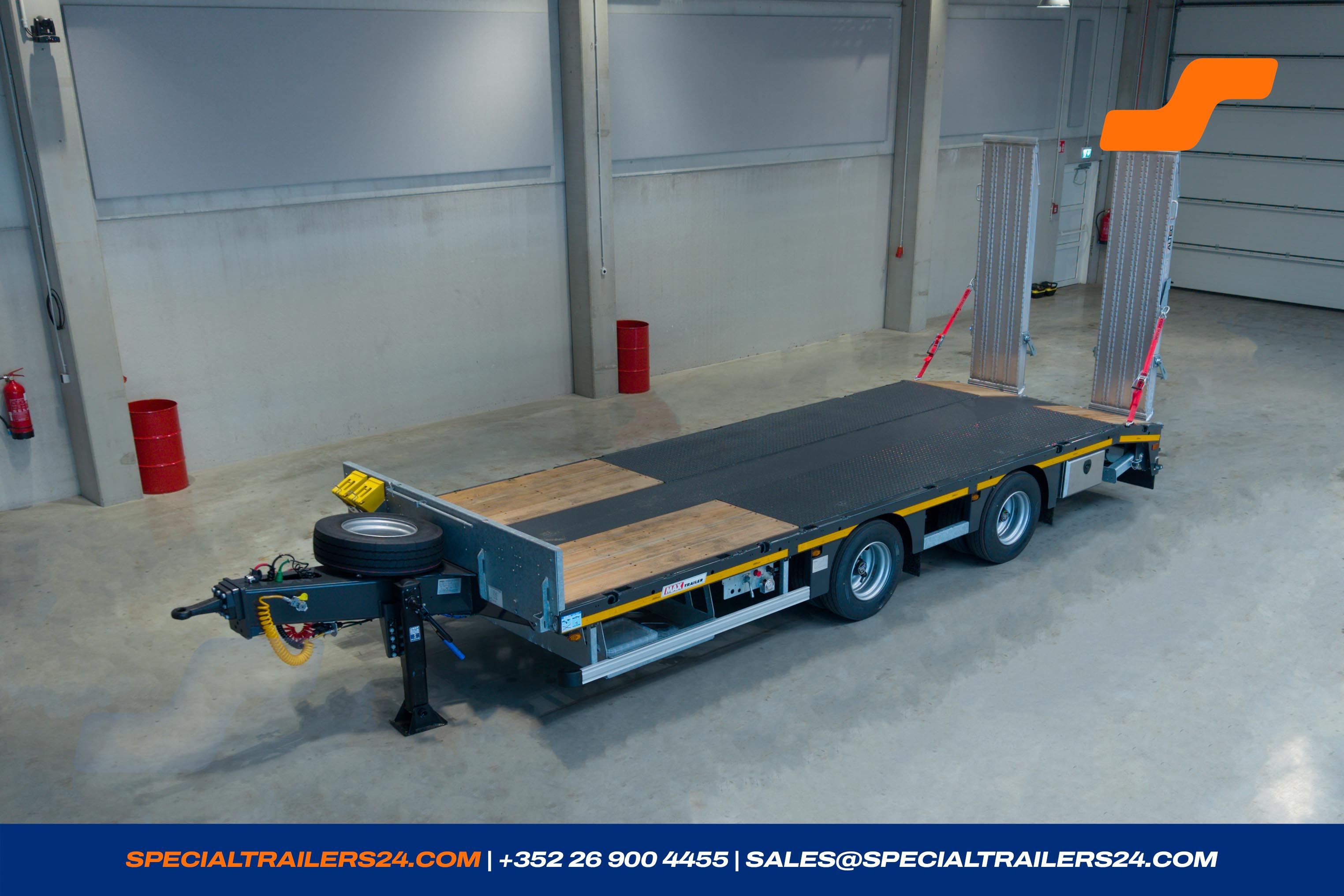

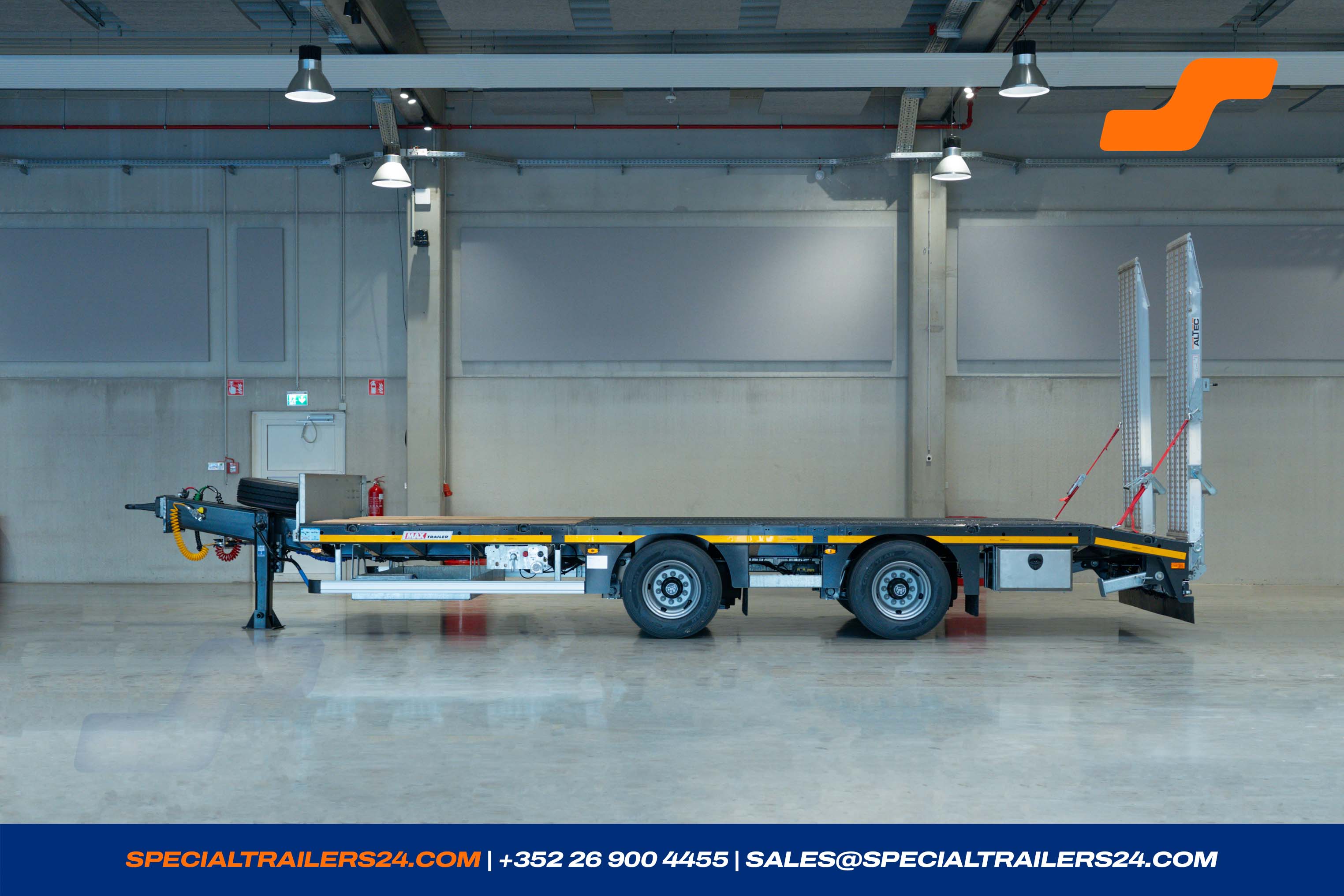

MAX Trailer MAX300
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111555
- Reference MAX300-S-2-7.00-U

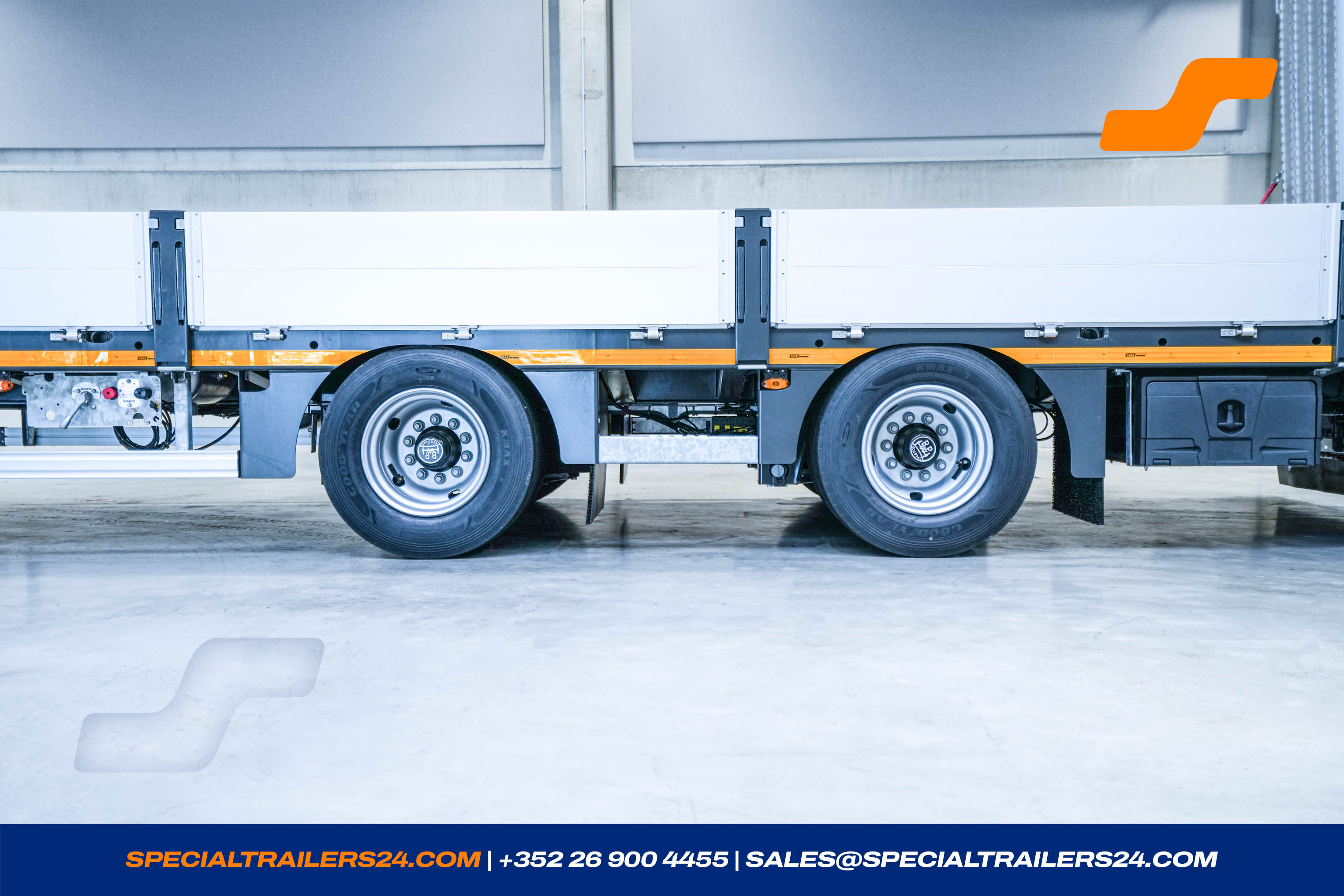

- Number of axles 2
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 02/2026
- Steering Type Rigid
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| Axle load | 21000 kg |
| Gross weight | 21000 kg |
| Tare weight +- 3% | 4798 kg |
| Payload | 16202 kg |
Dimensions
| Loading platform length | 7 000 mm |
| Coupling height | 820-895-970 mm |
| Suspension stroke | -45/+145 mm |
Loading deck

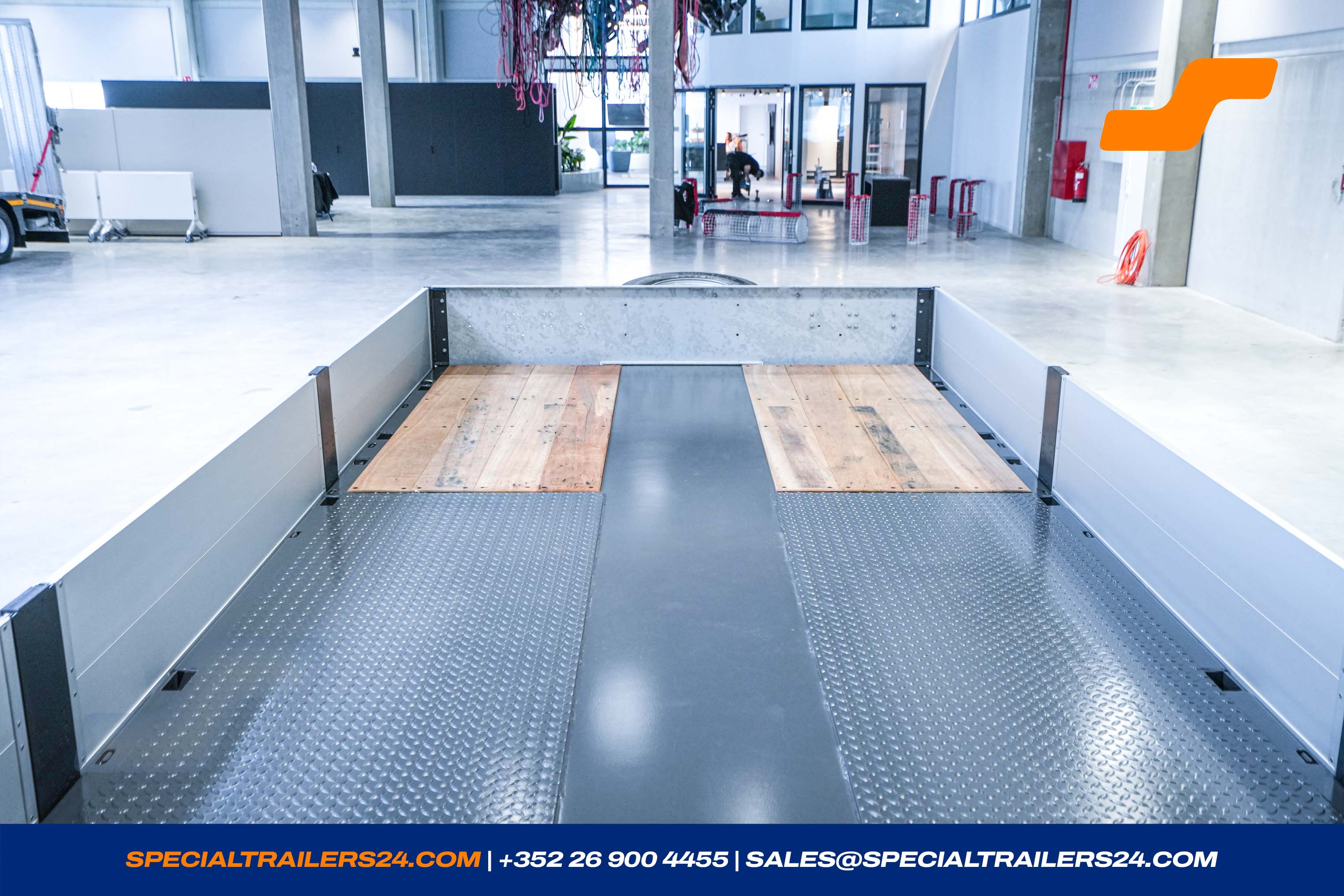

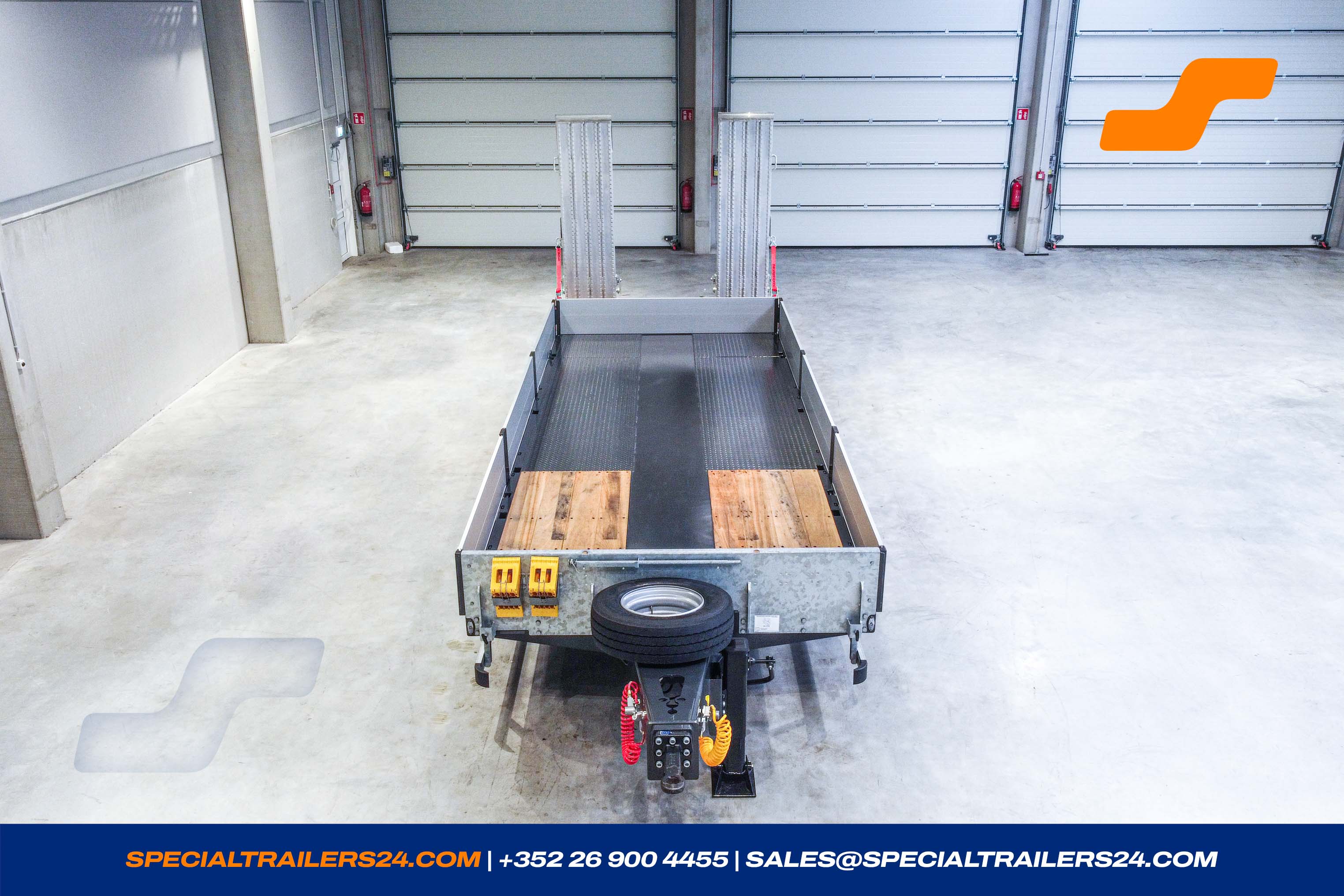

Loading platform
1 x Loading platform
Loading platform with chamfered beaver tail by about 750 mm x 10°.

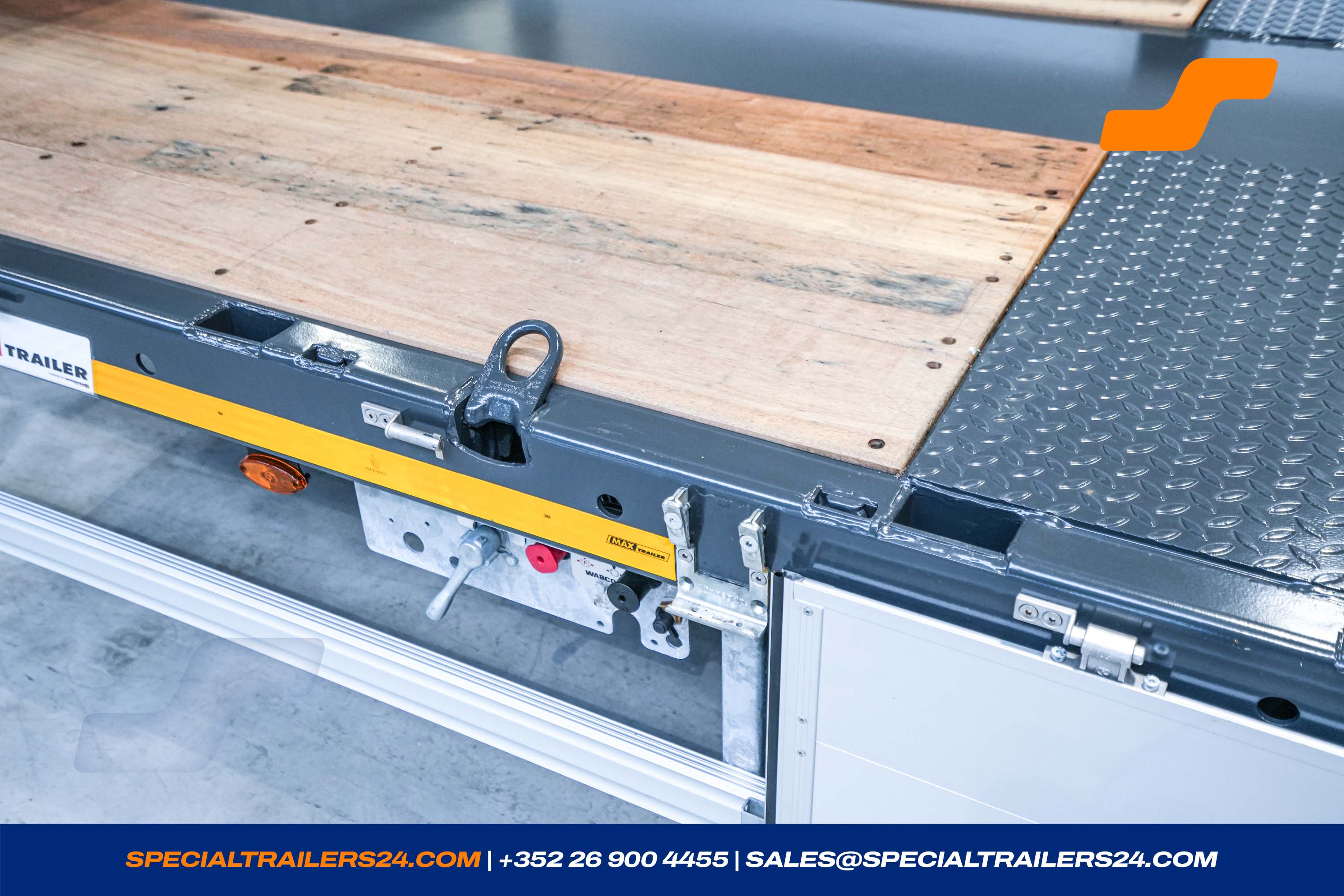

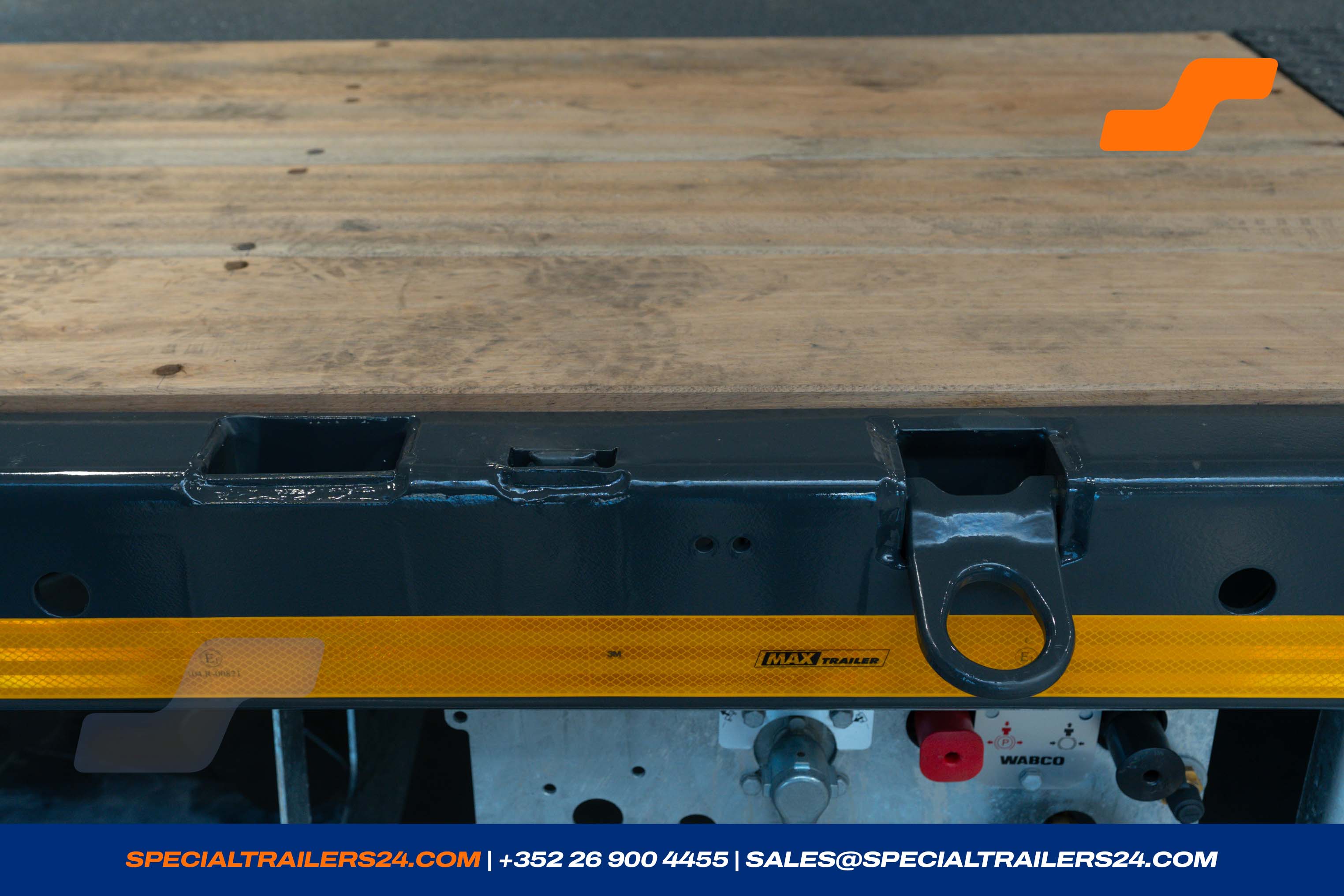

4 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
7 pairs of lashing rings in the loading platform, (LC 2 500 daN).
Cutouts in the border frame of the loading area for hooking in tension belts (LC 2 000 daN).

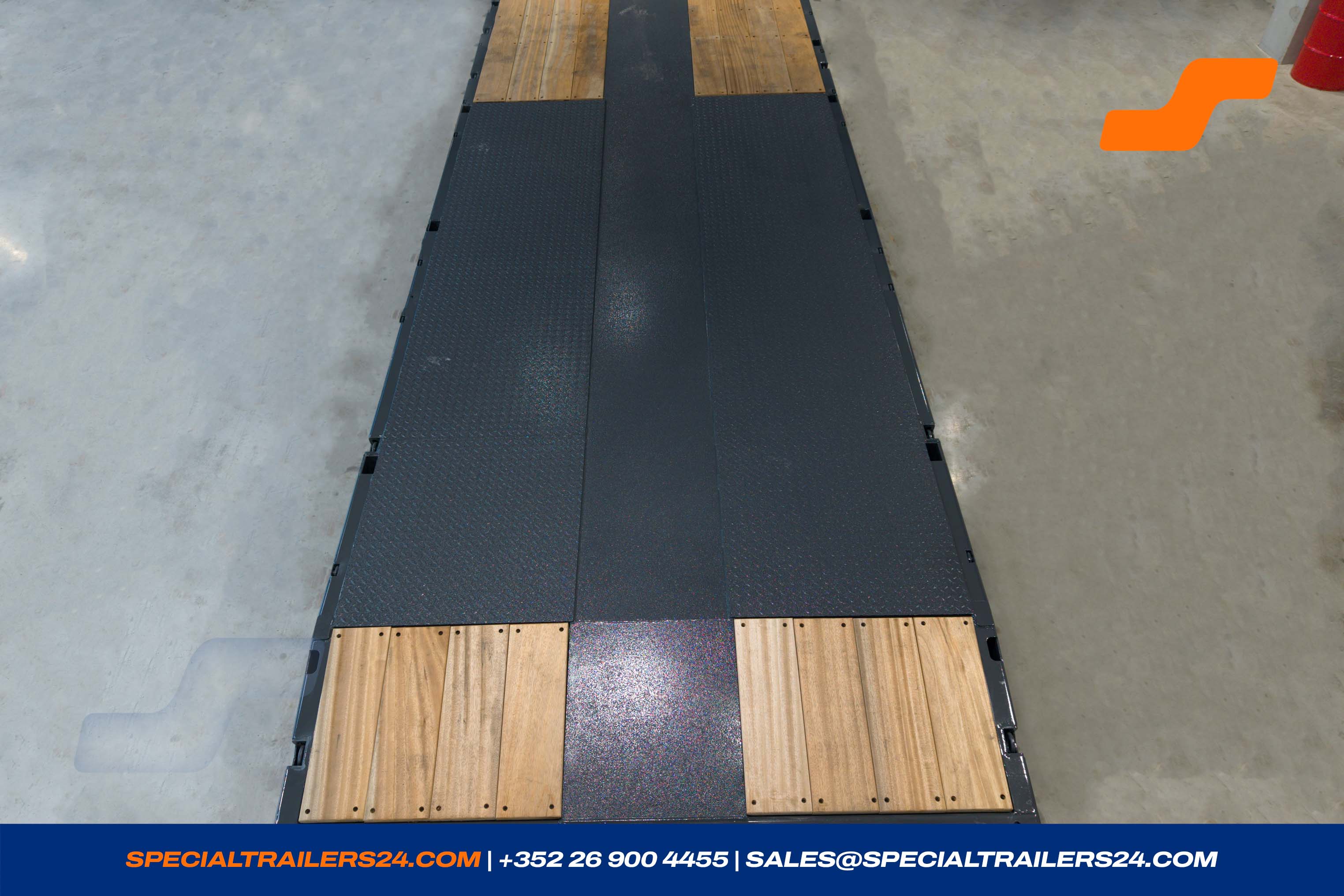

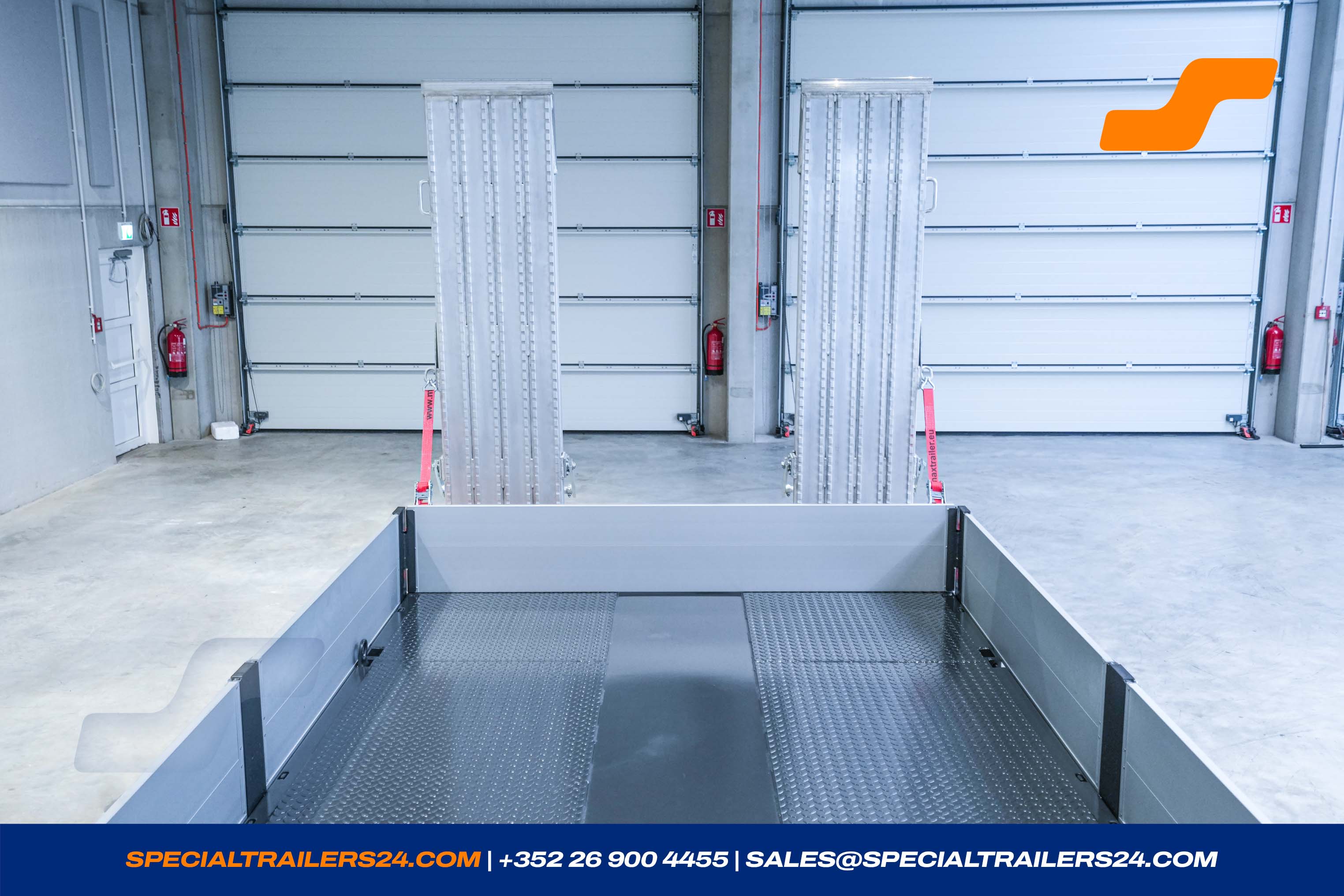

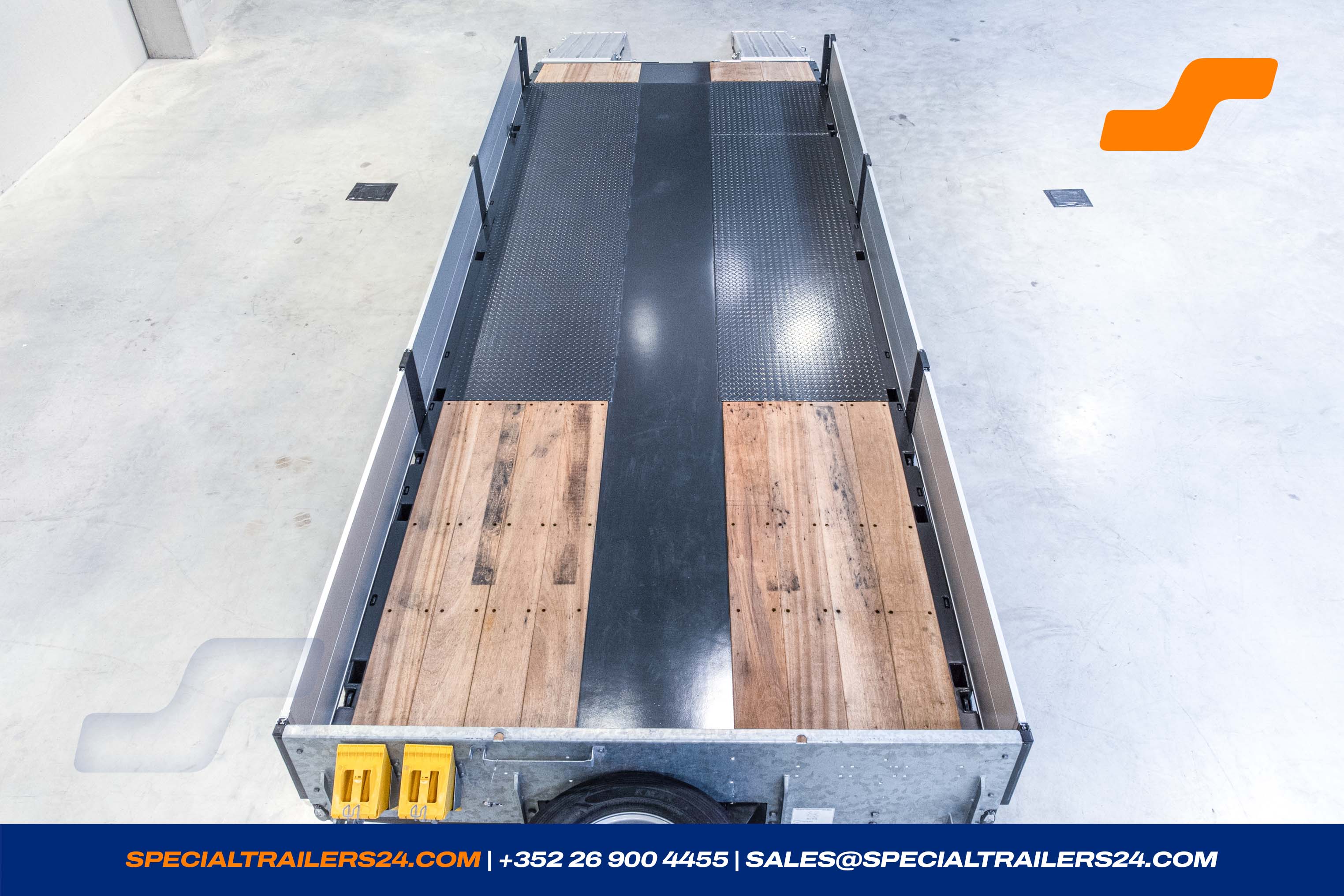

Hardwood cover thickness 38 mm above of the axles chequer plate.
- Red and yellow air couplings.
- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.

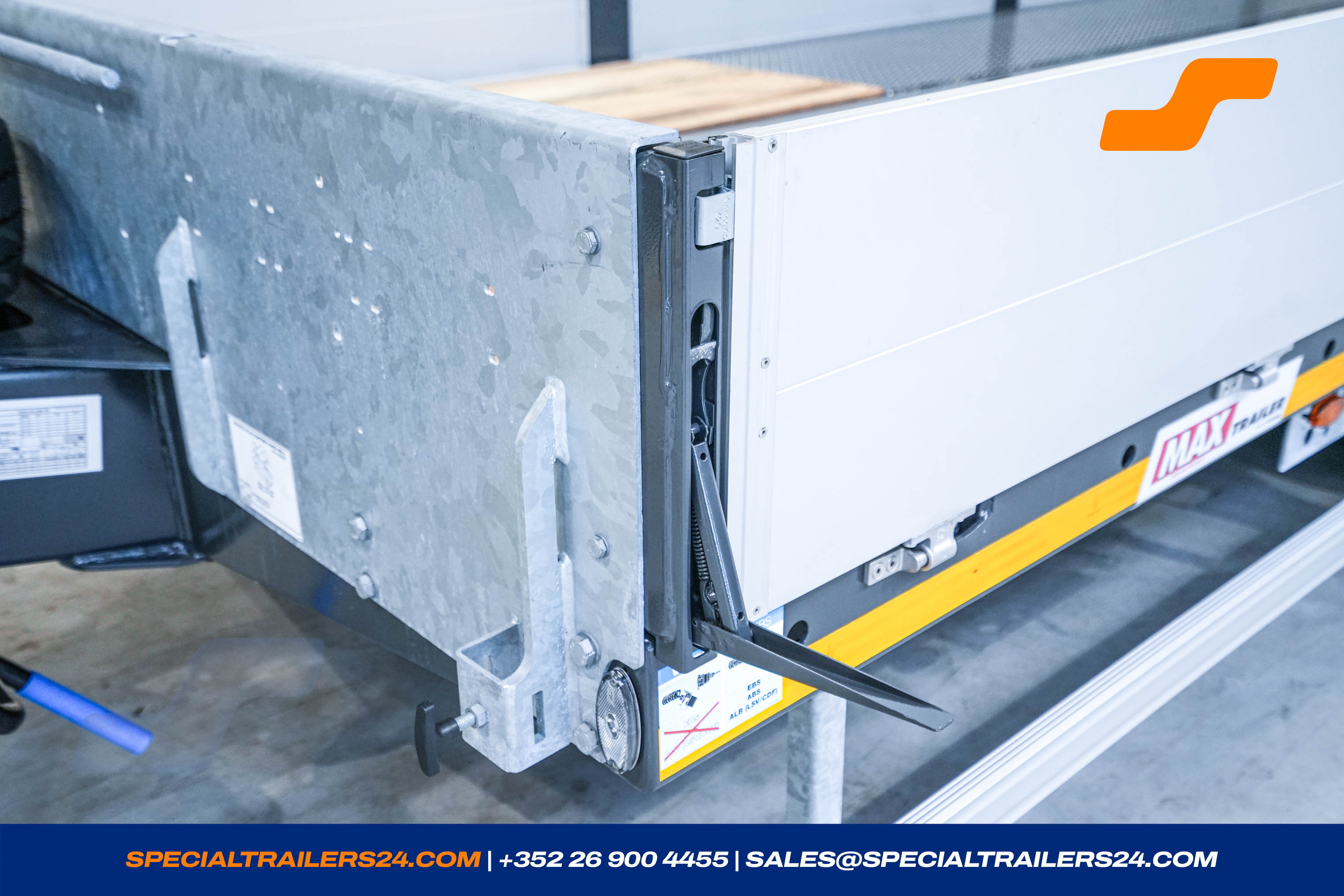

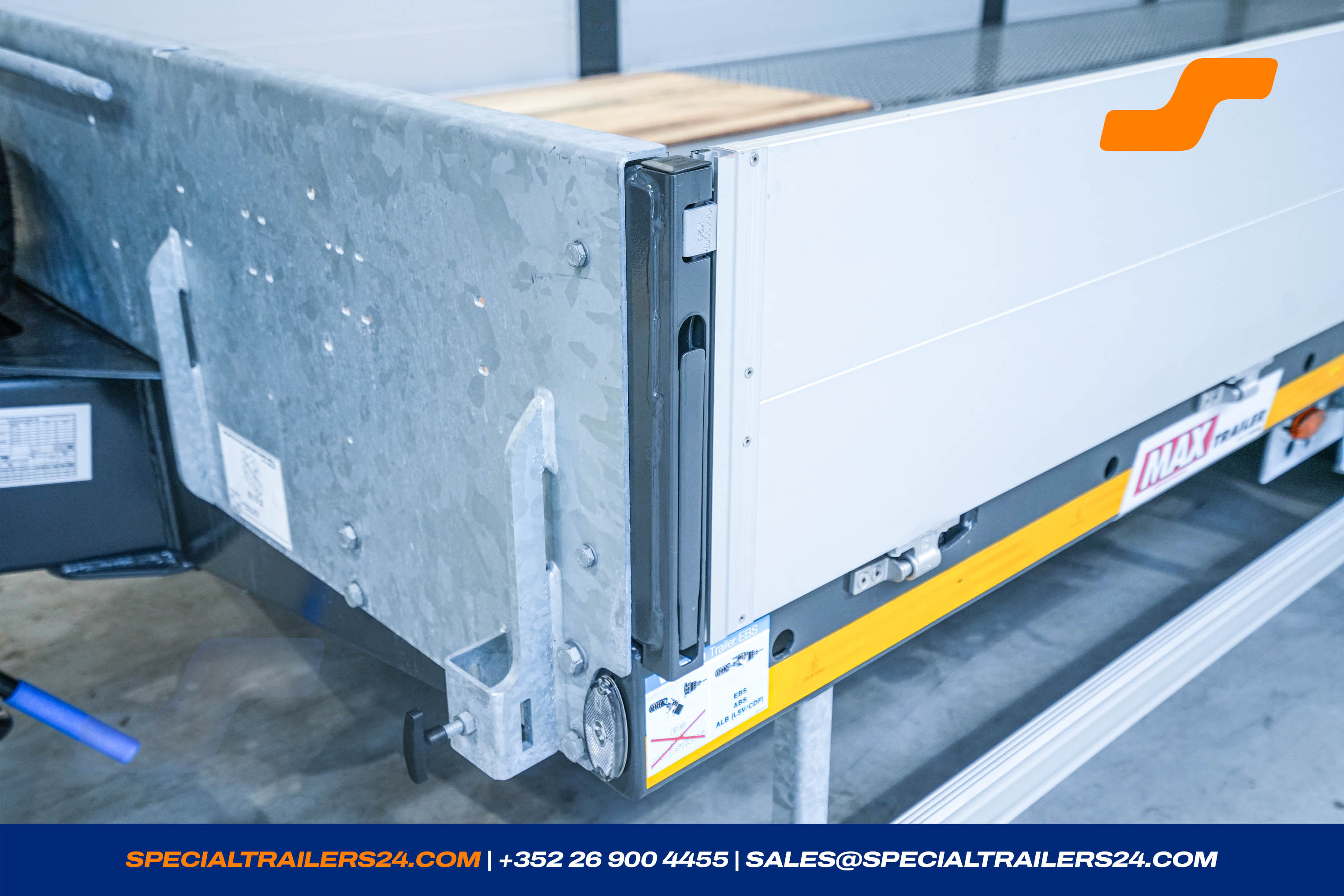

- One galvanised steel headboard, height ± 400 mm.
- 2 wheel chocks with carrier on the headboard.

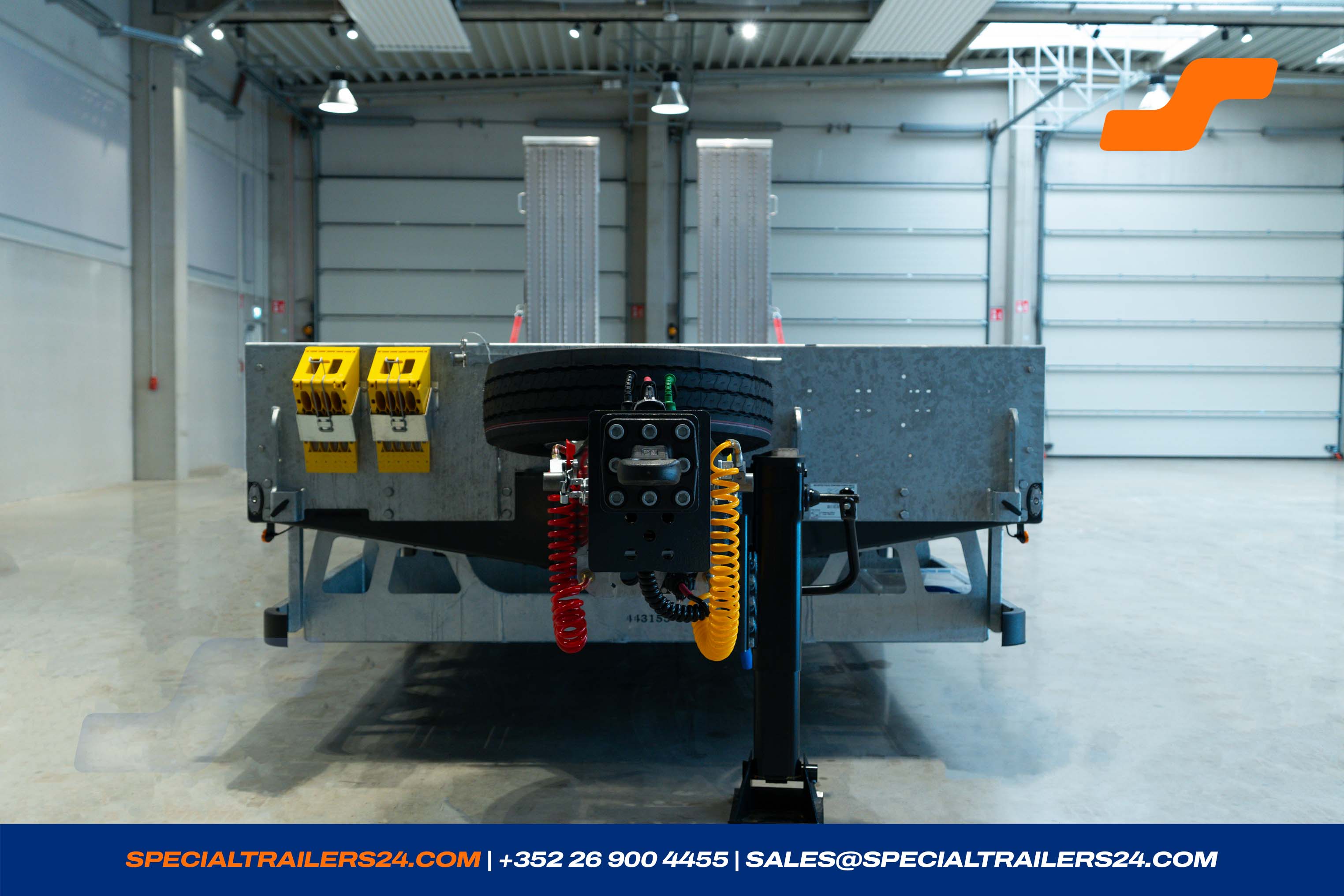

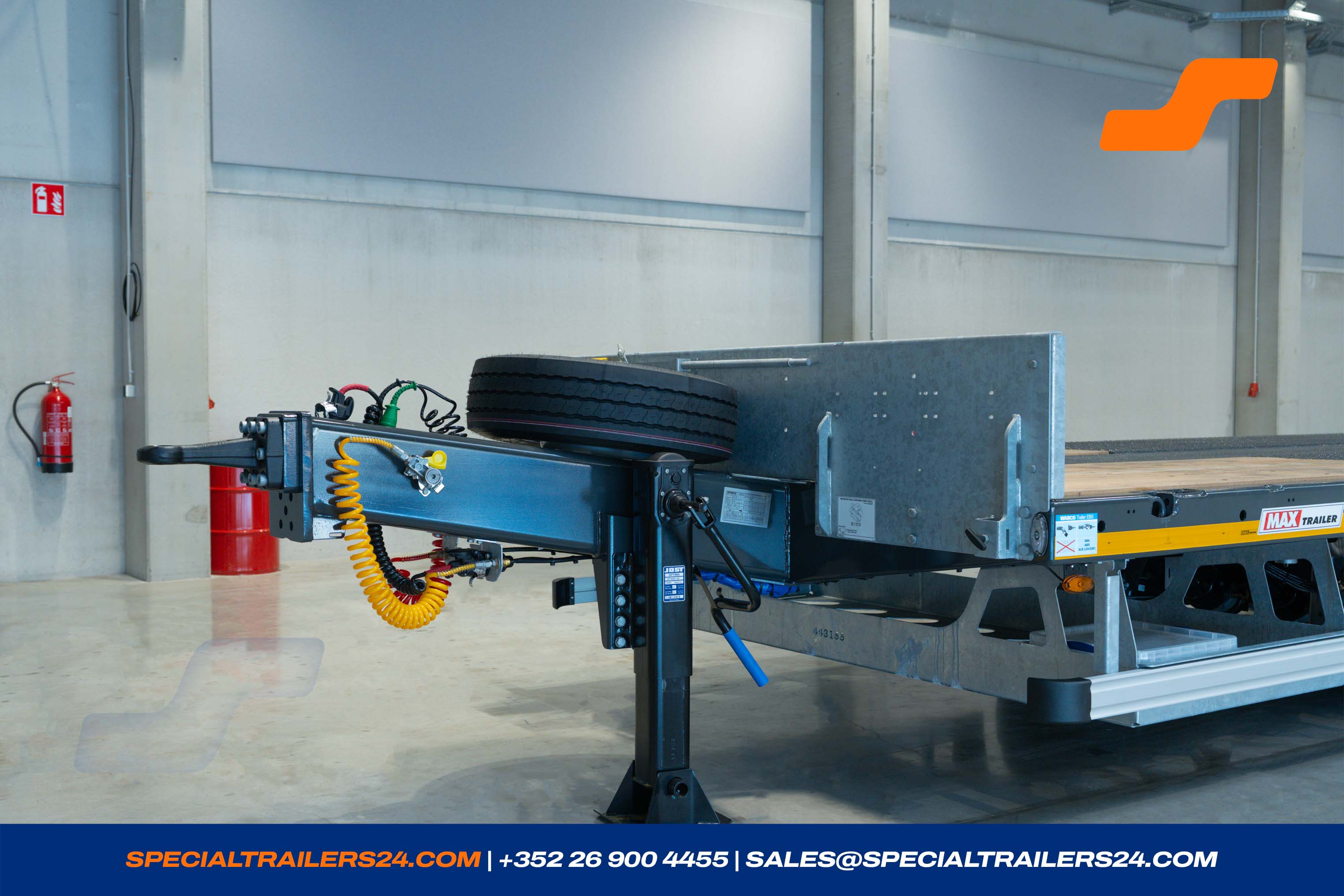

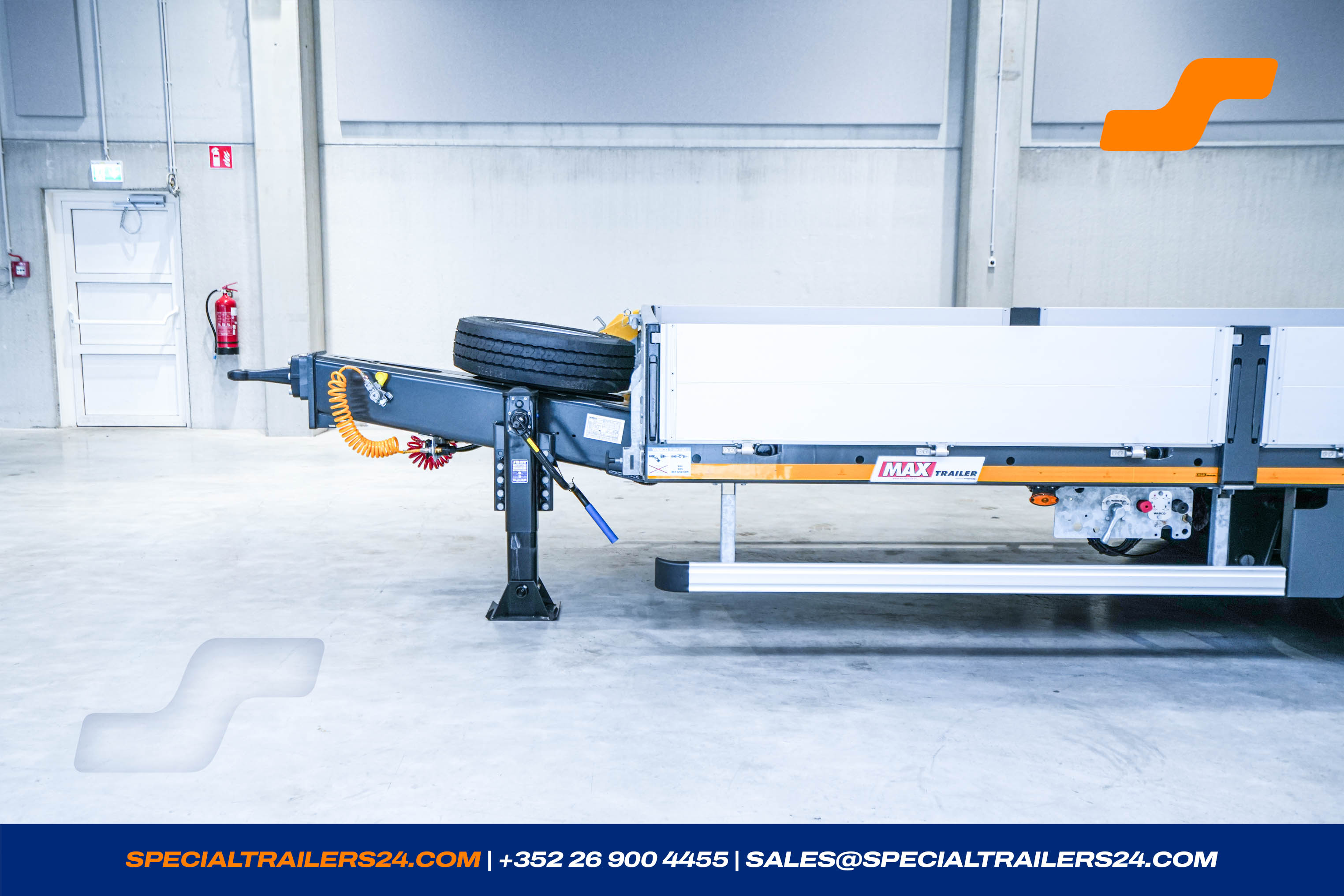

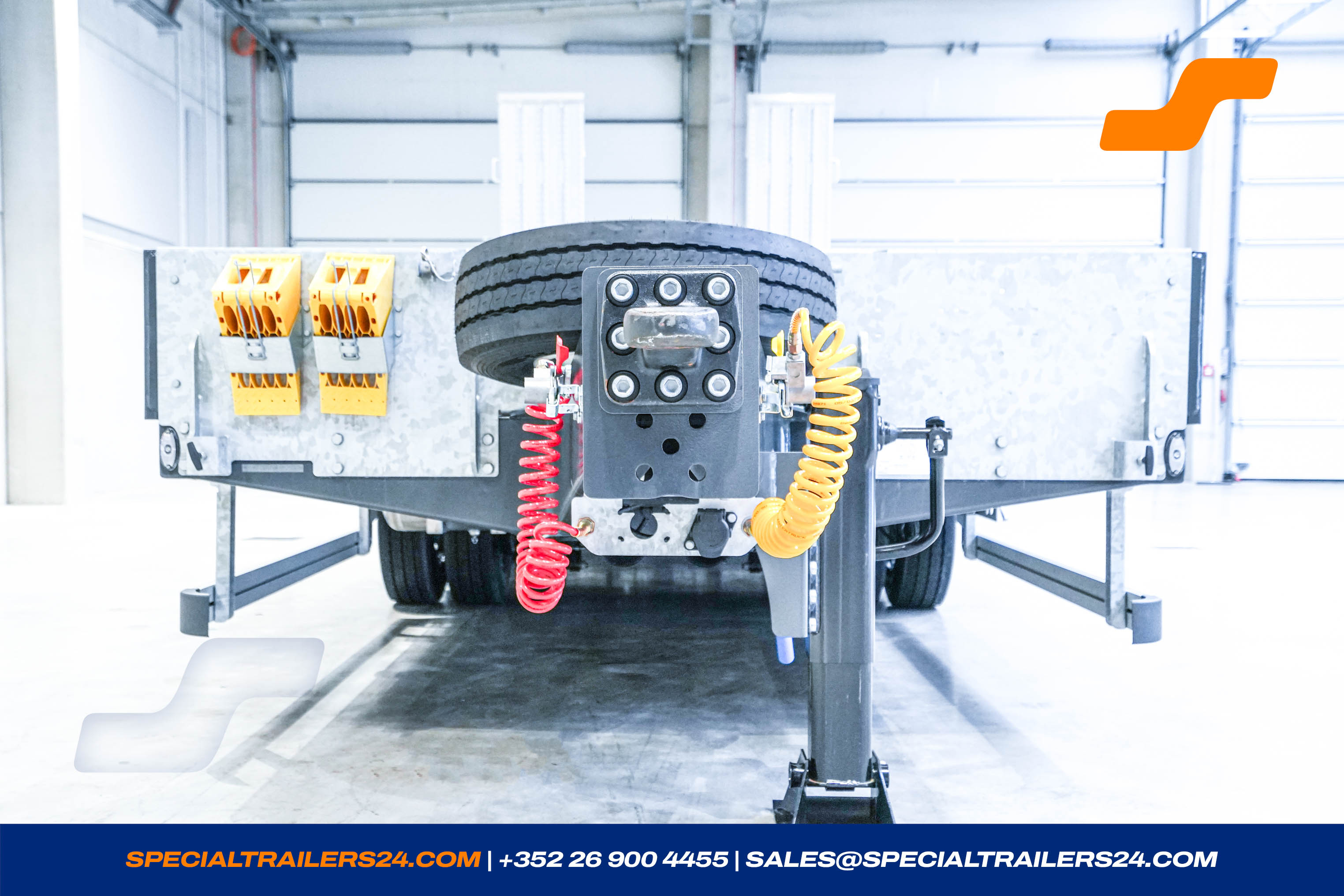

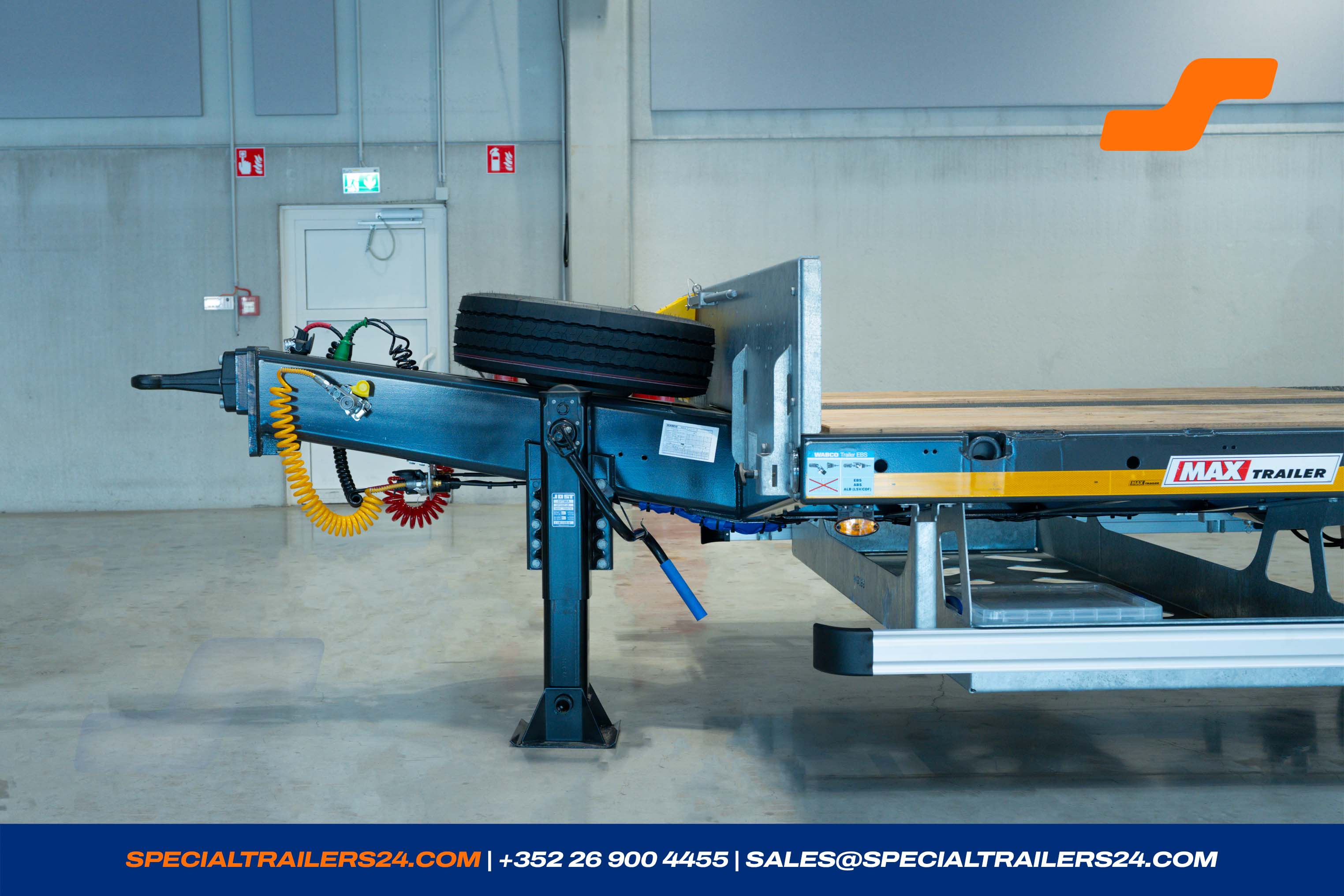

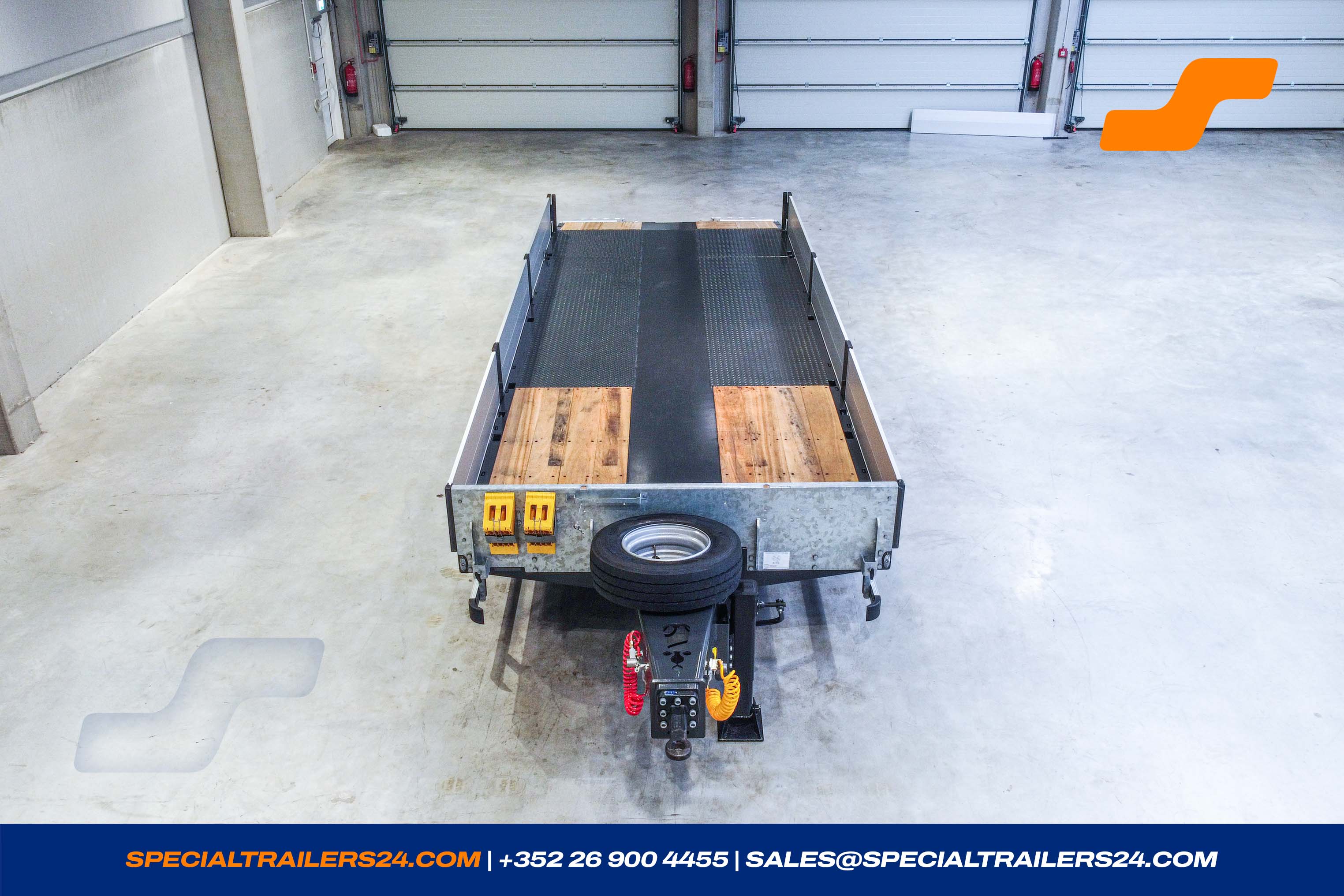

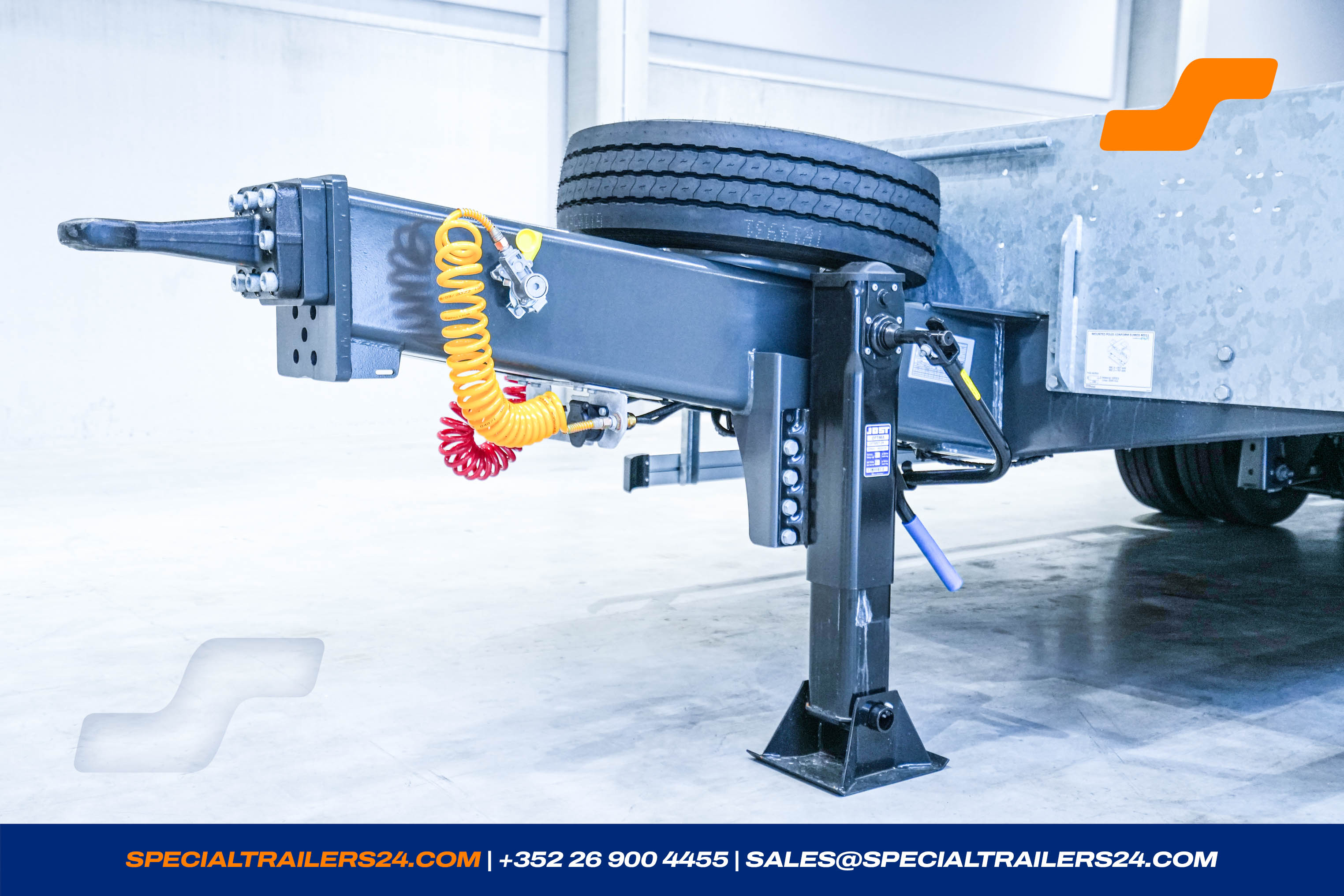

- One ± 1 750 mm long drawbar, towing eye (50 mm Ø).

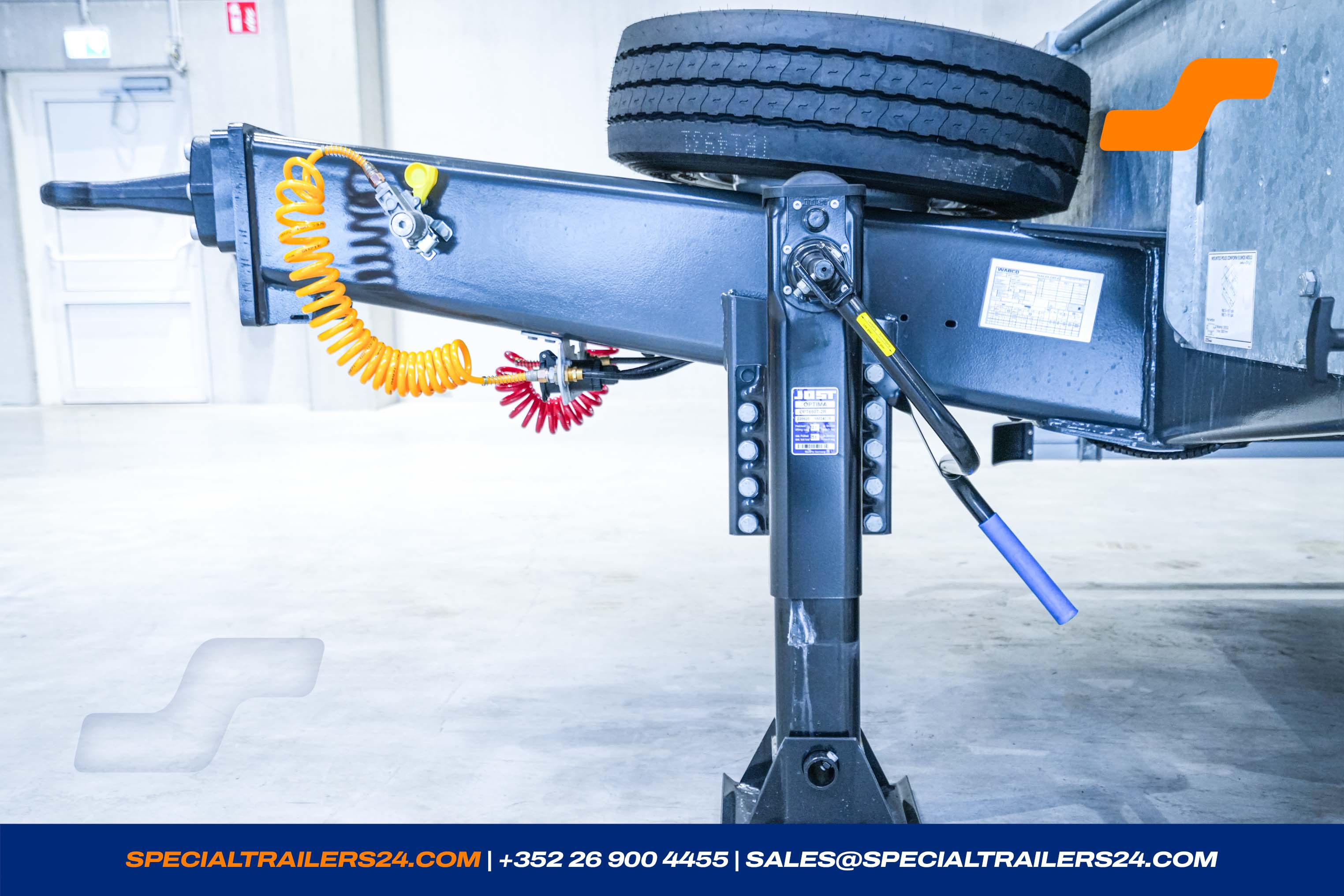

- 1 mechanical landing gear at the front of the trailer.

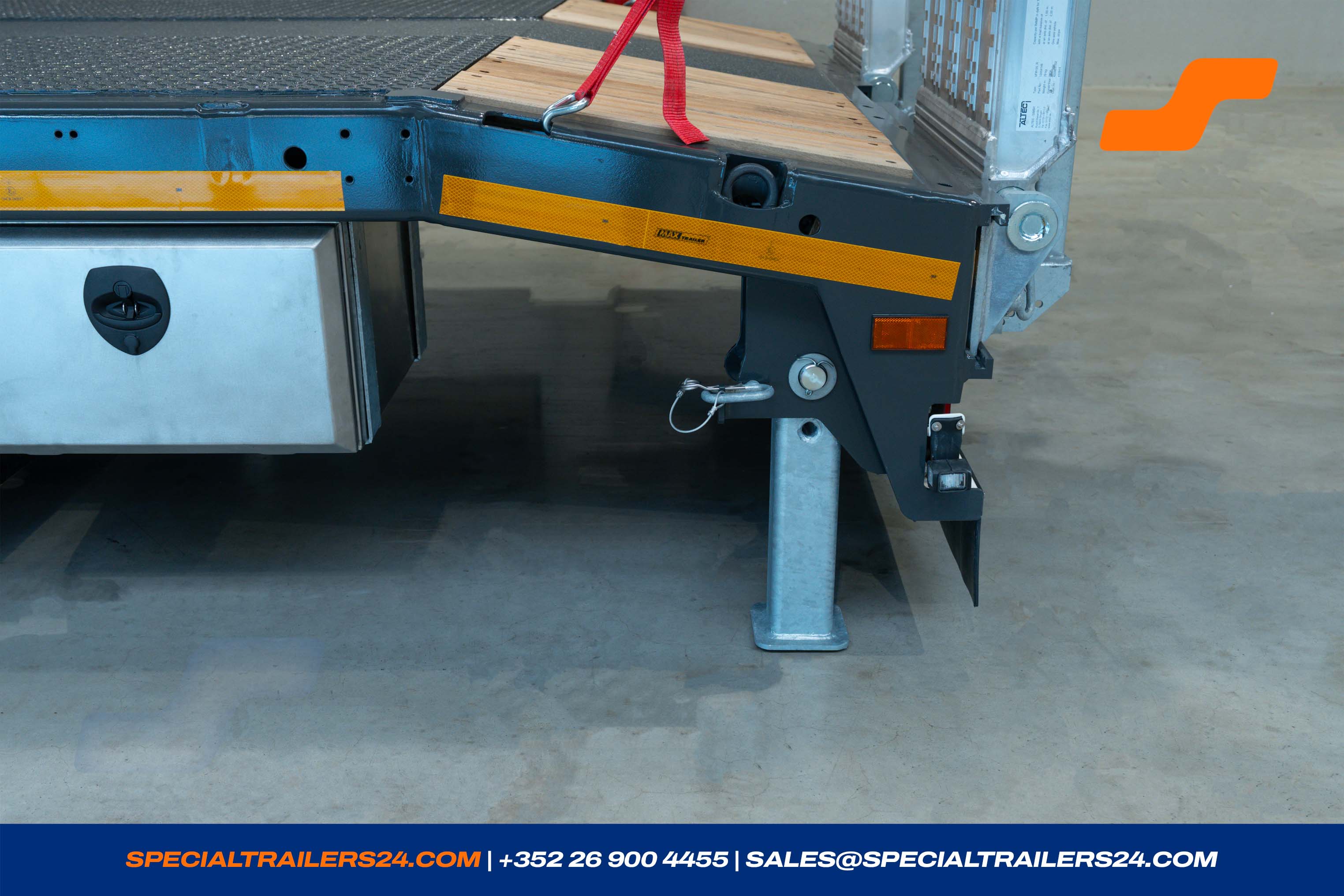

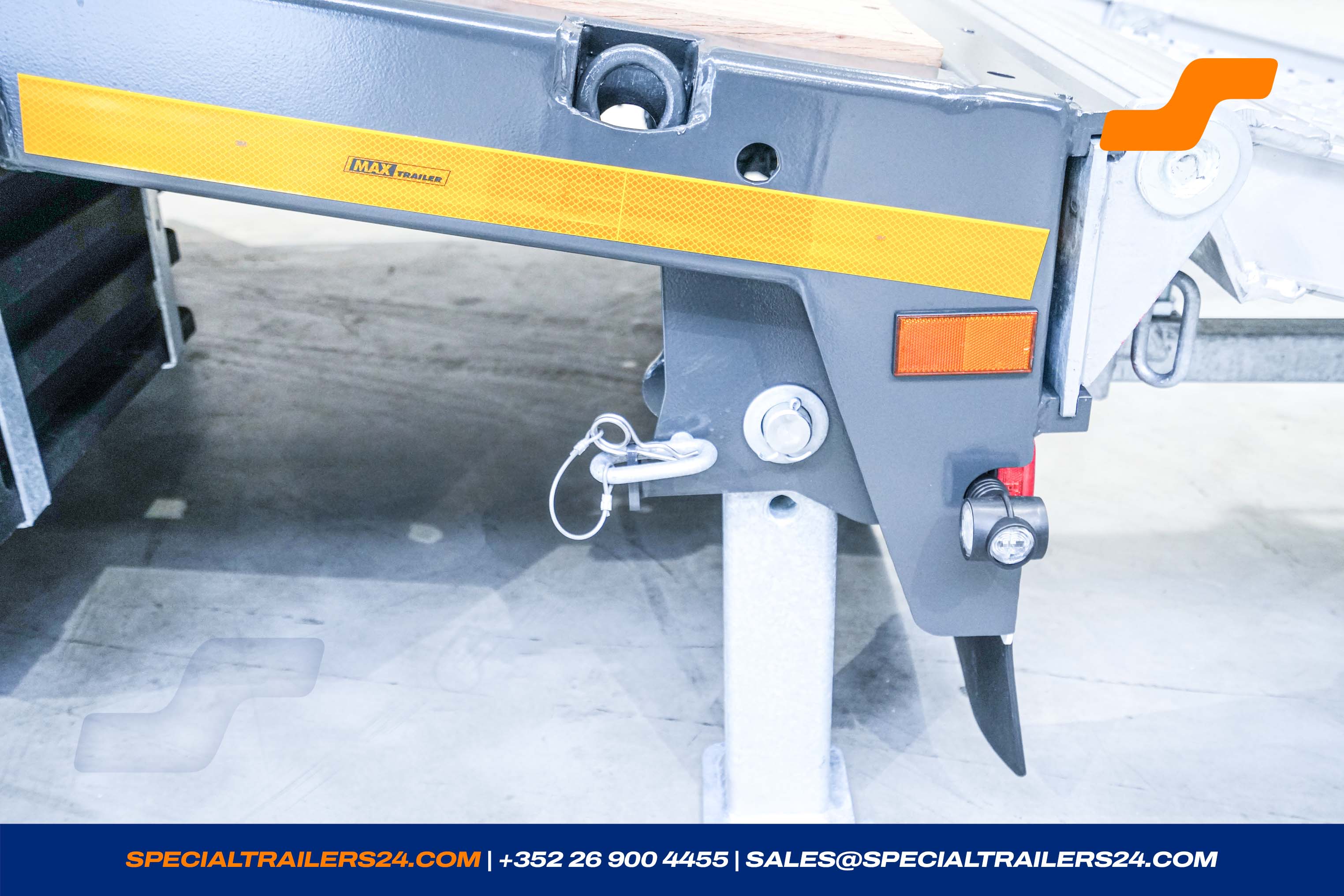

- Galvanised landing gears at the rear under the loading platform.

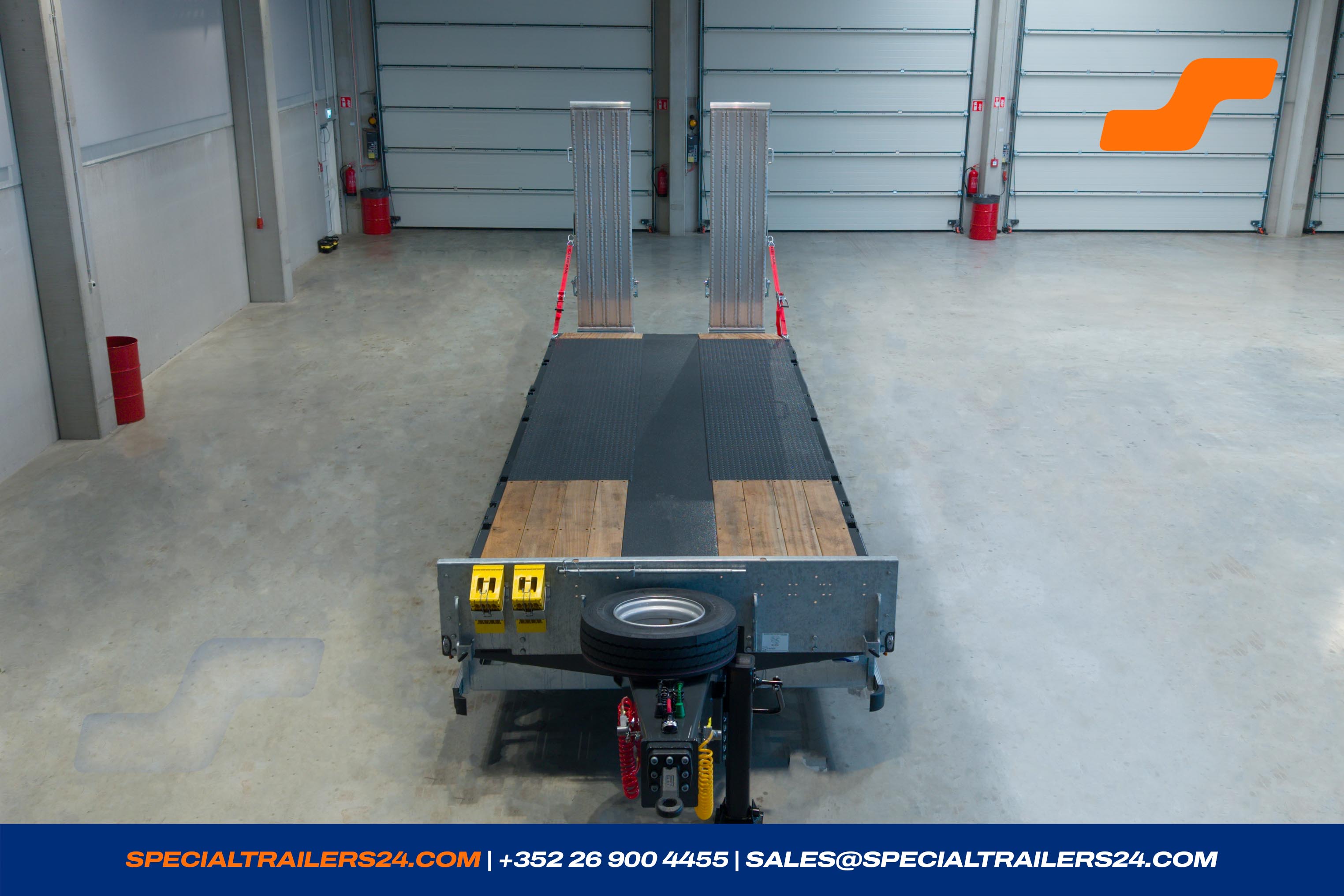

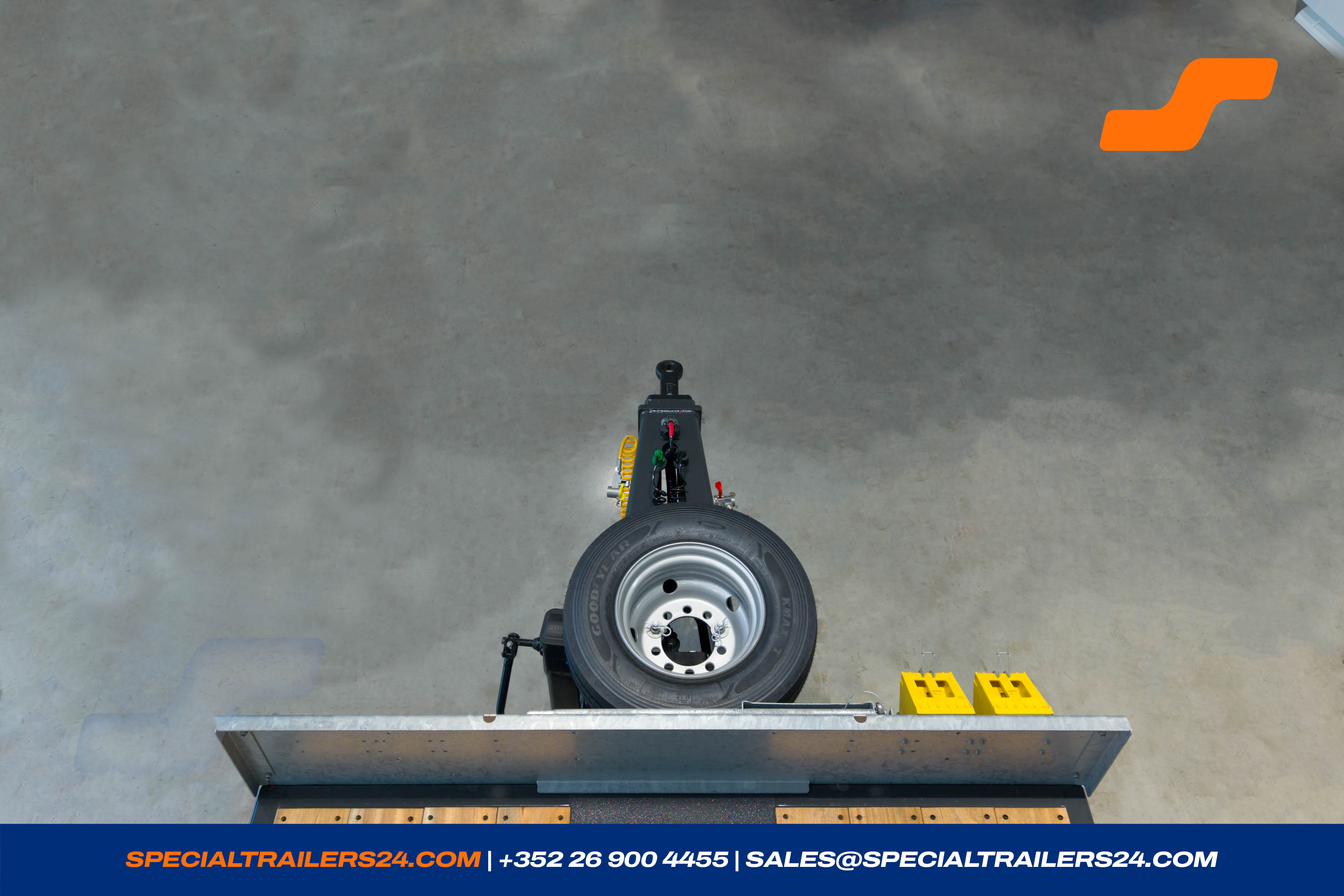

- Spare wheel holder with spare wheel mounted on the drawbar.
- Holder for one beacon light at the rear of the trailer.
- Yellow reflective tape according to the EU regulation over the entire length and at the rear.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.

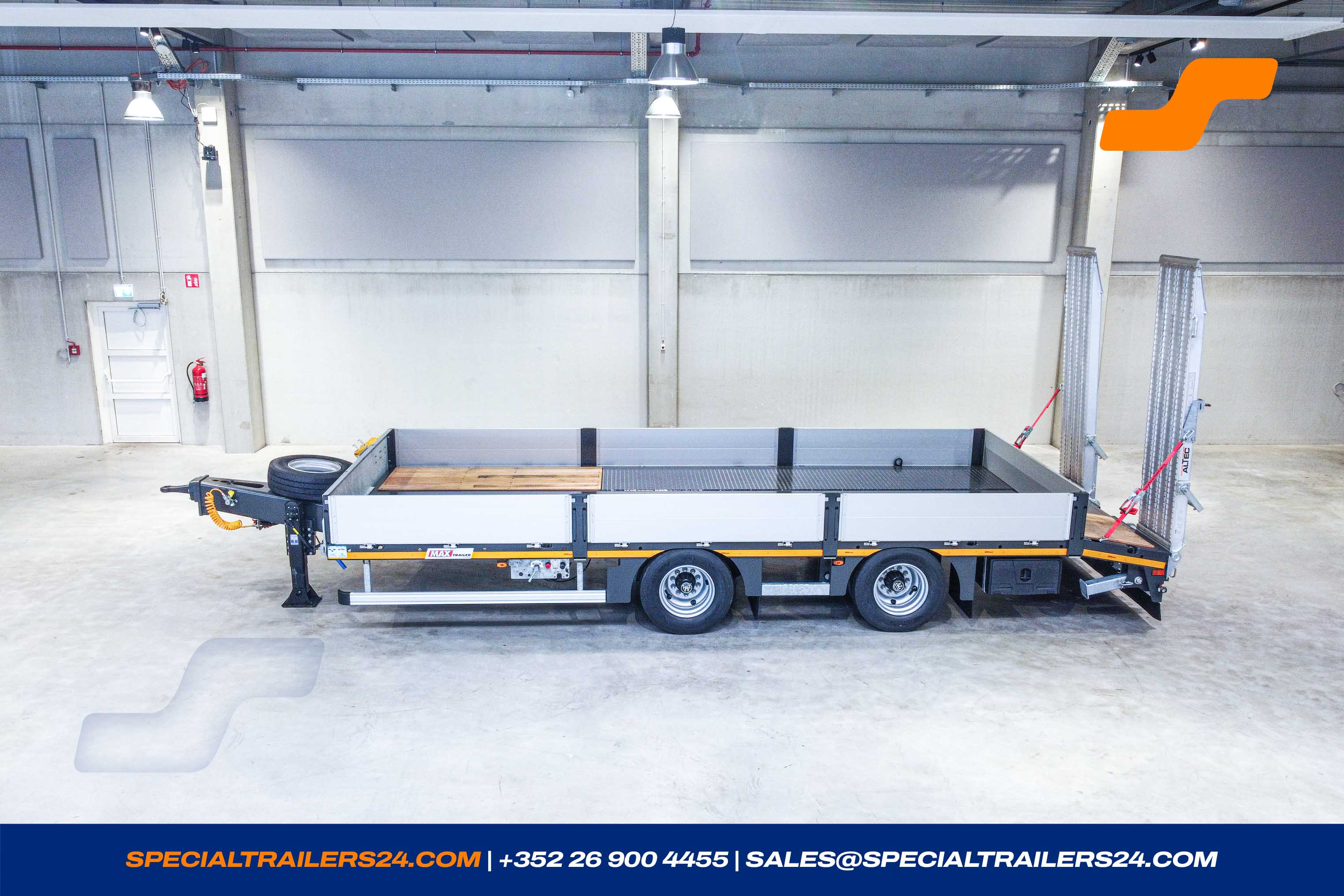

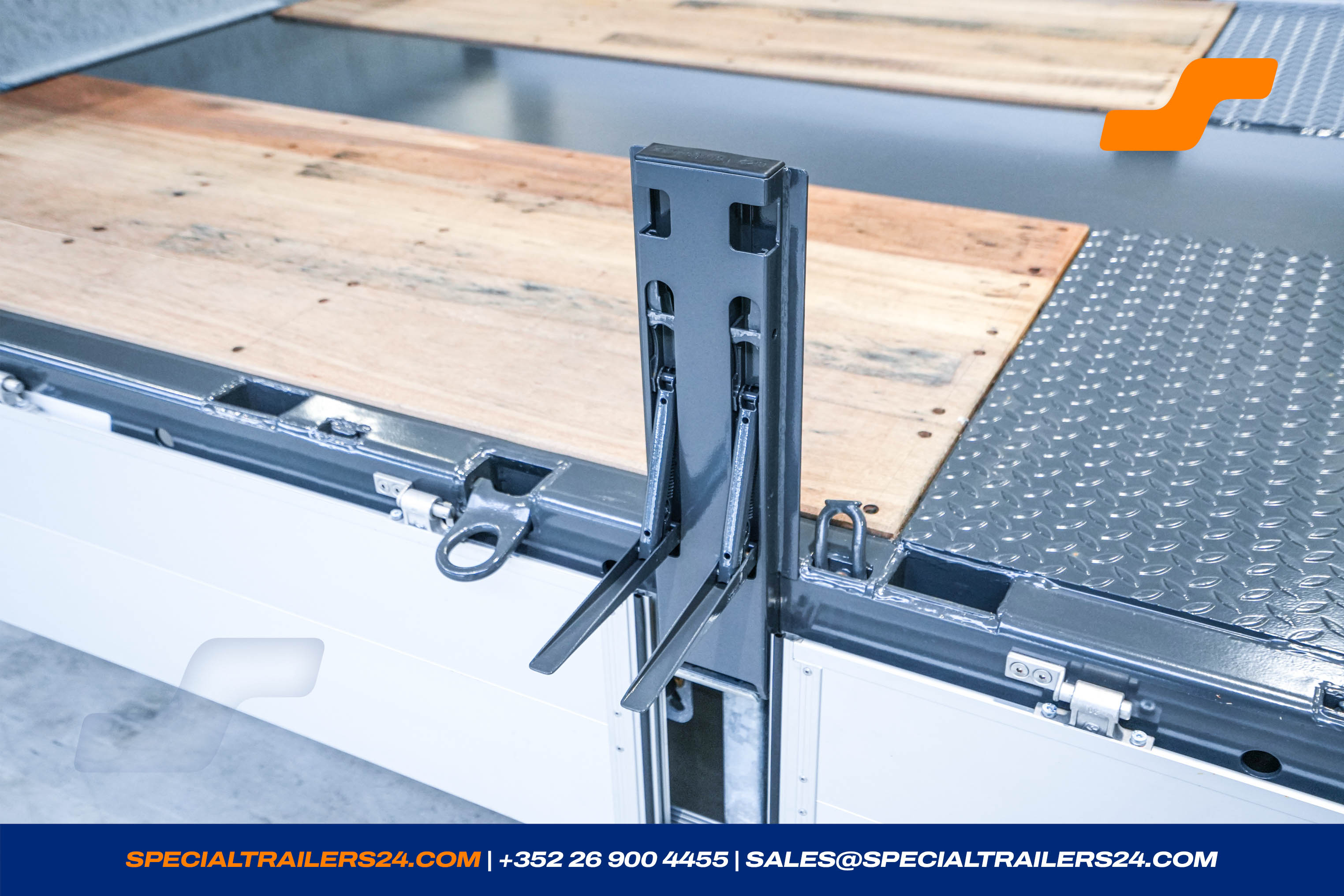

- 5 pairs of pockets for stakes ±100 x 50 mm in the outer frame of the loading platform (± 18 kg).

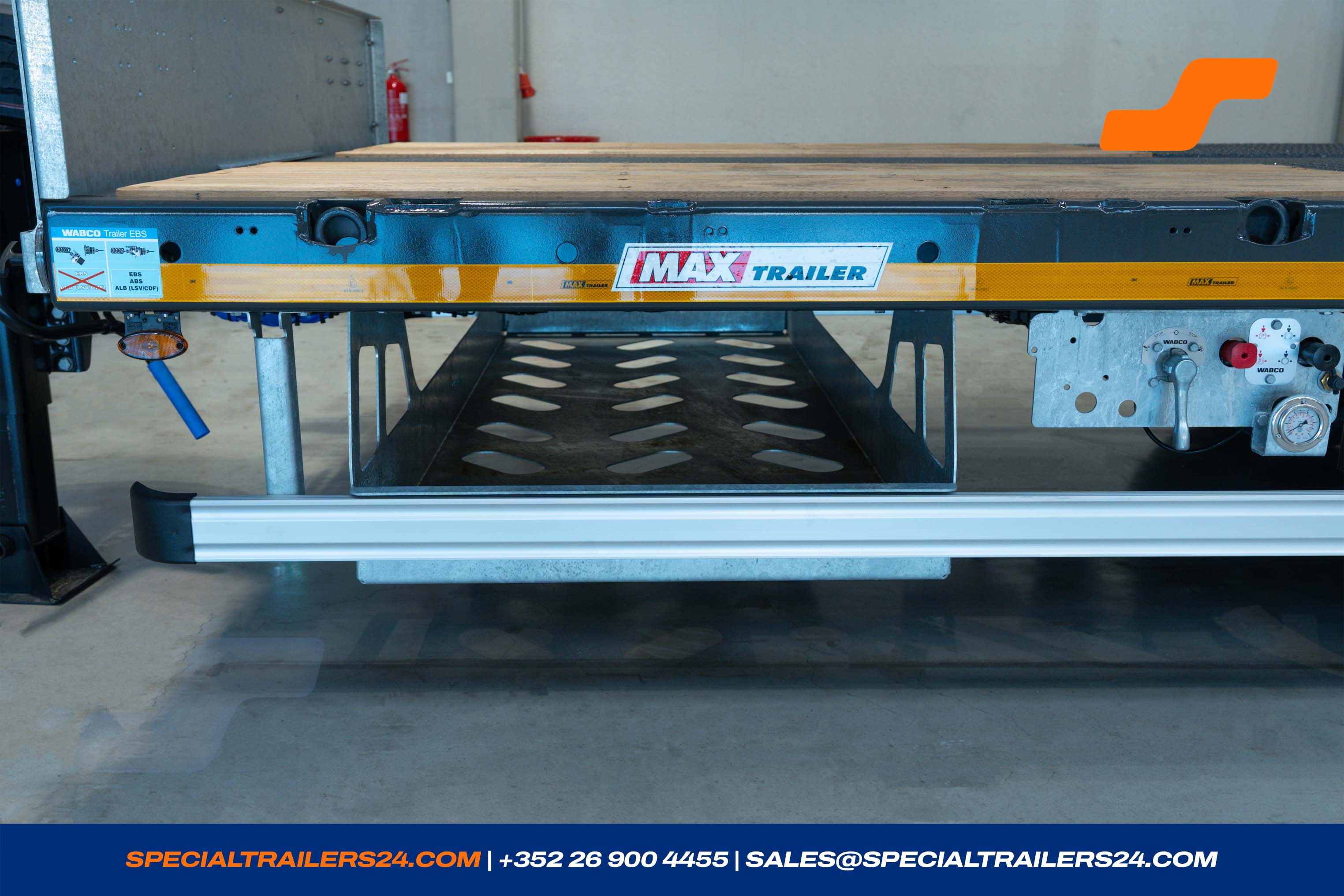

- Galvanised storage under the loading platform. (2340x940x165mm).(± 102 kg)
- Anti-slip-coating with sand on the loading platform.

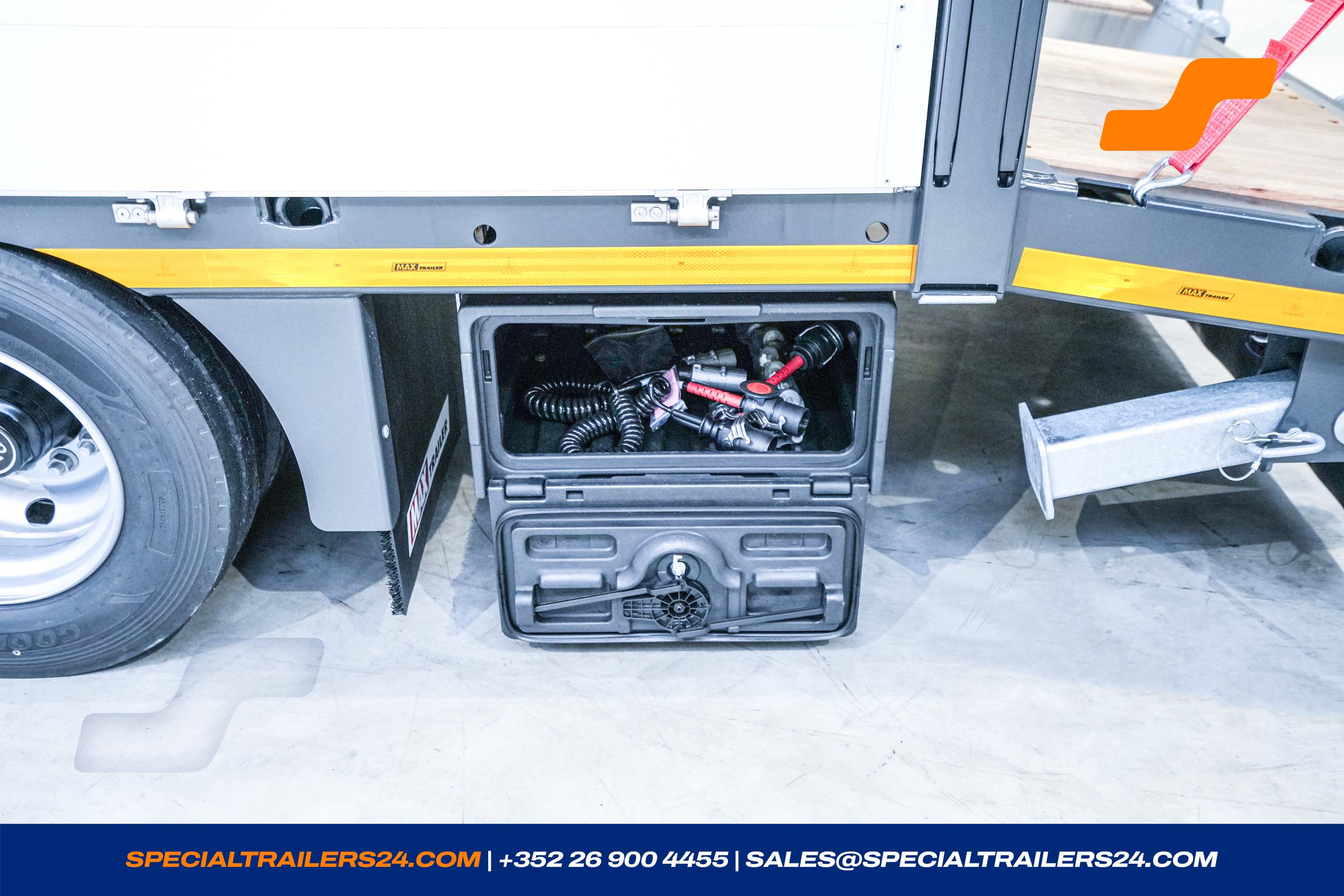

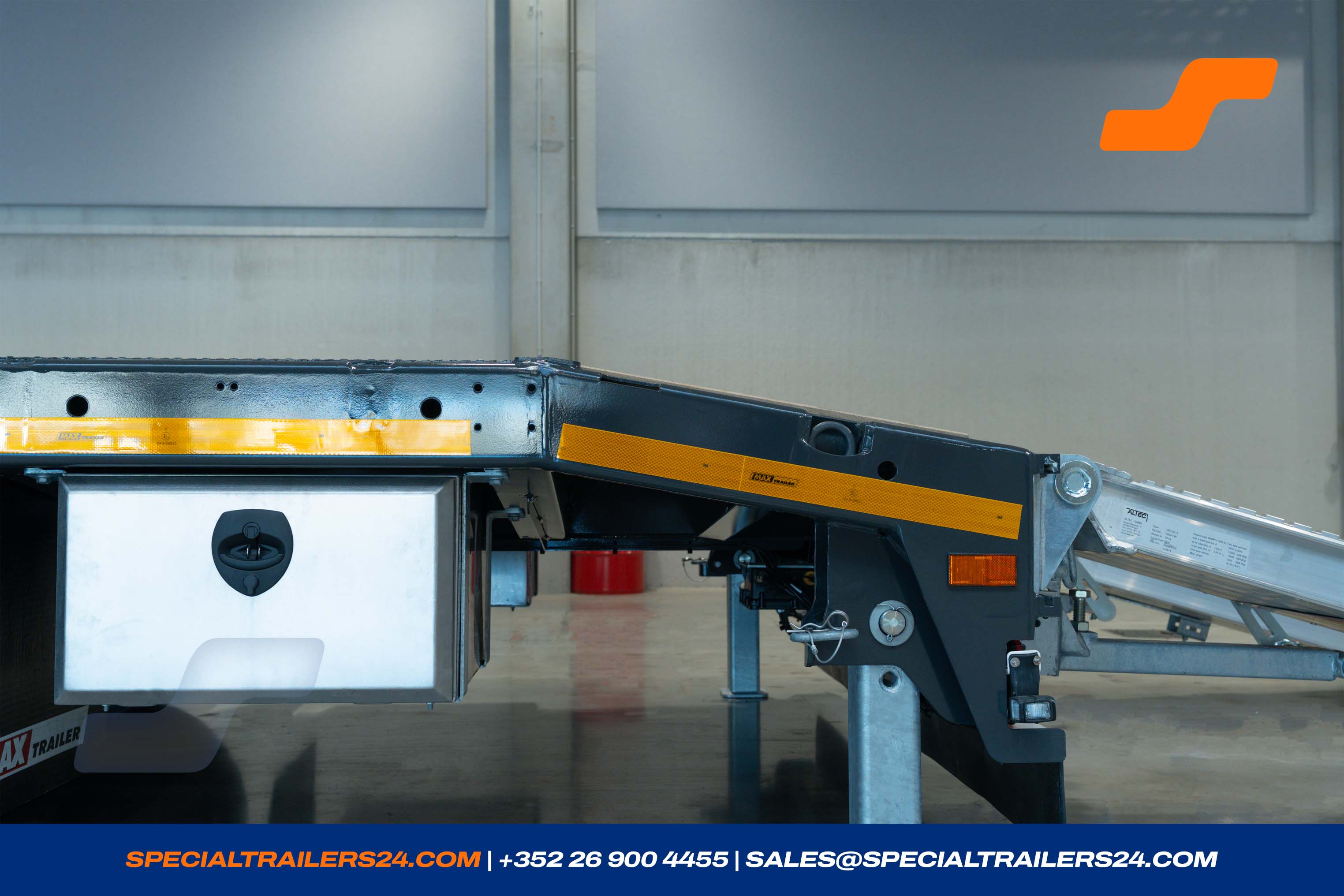

- Two lockable tool-box INOX 600 X 350 X 600 under the loading platform in driving direction on the left and right side. (± 54kg)

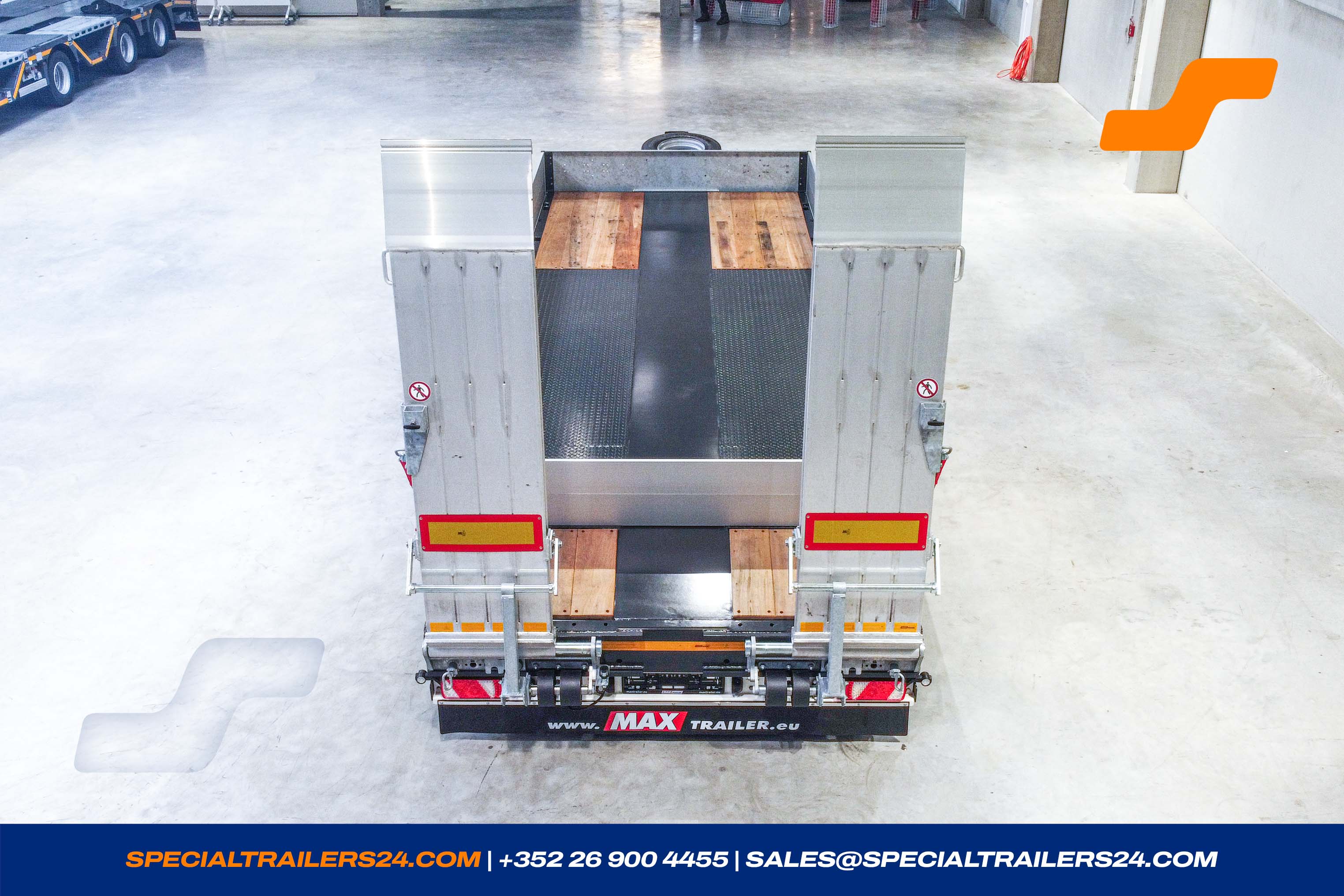

Ramps

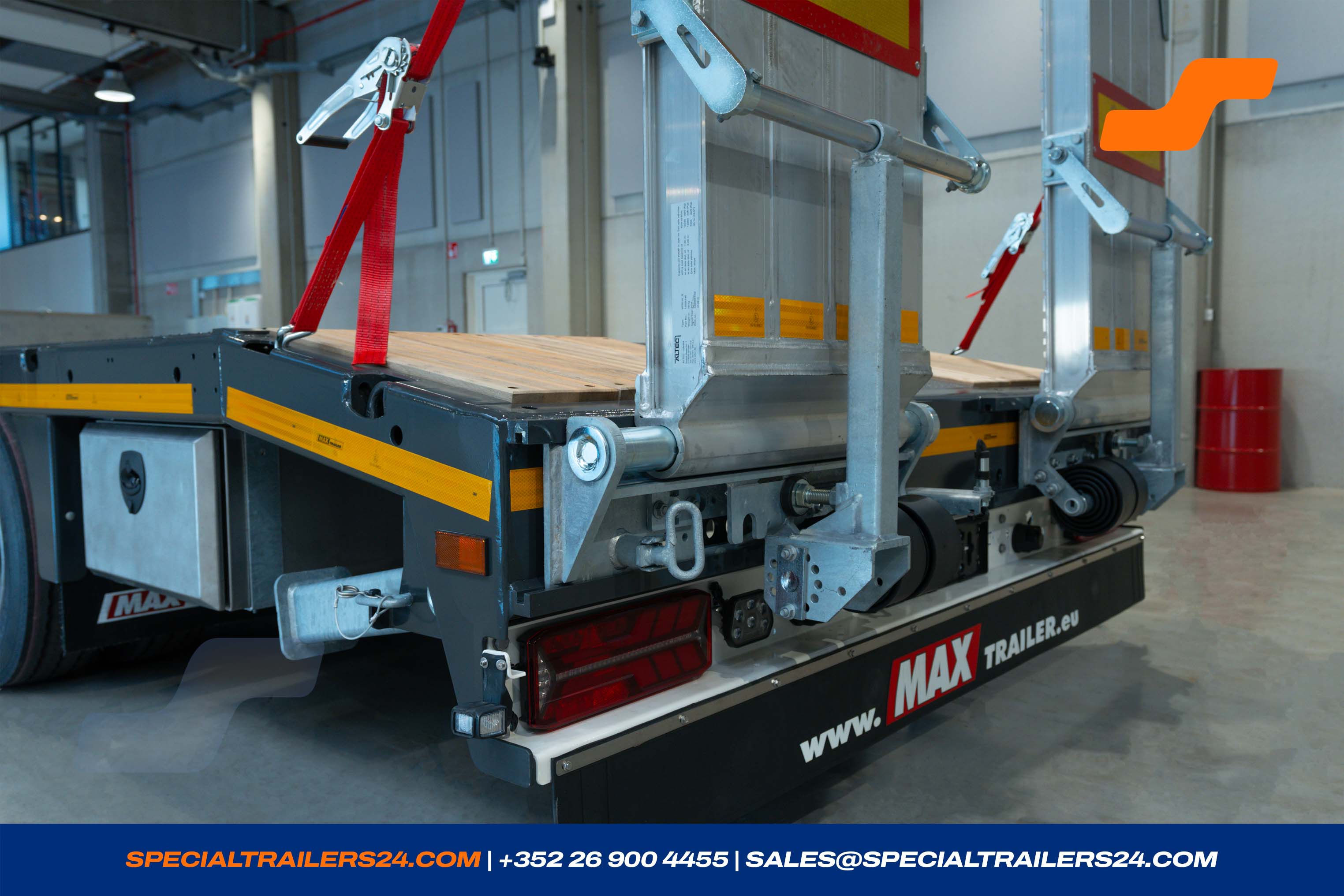

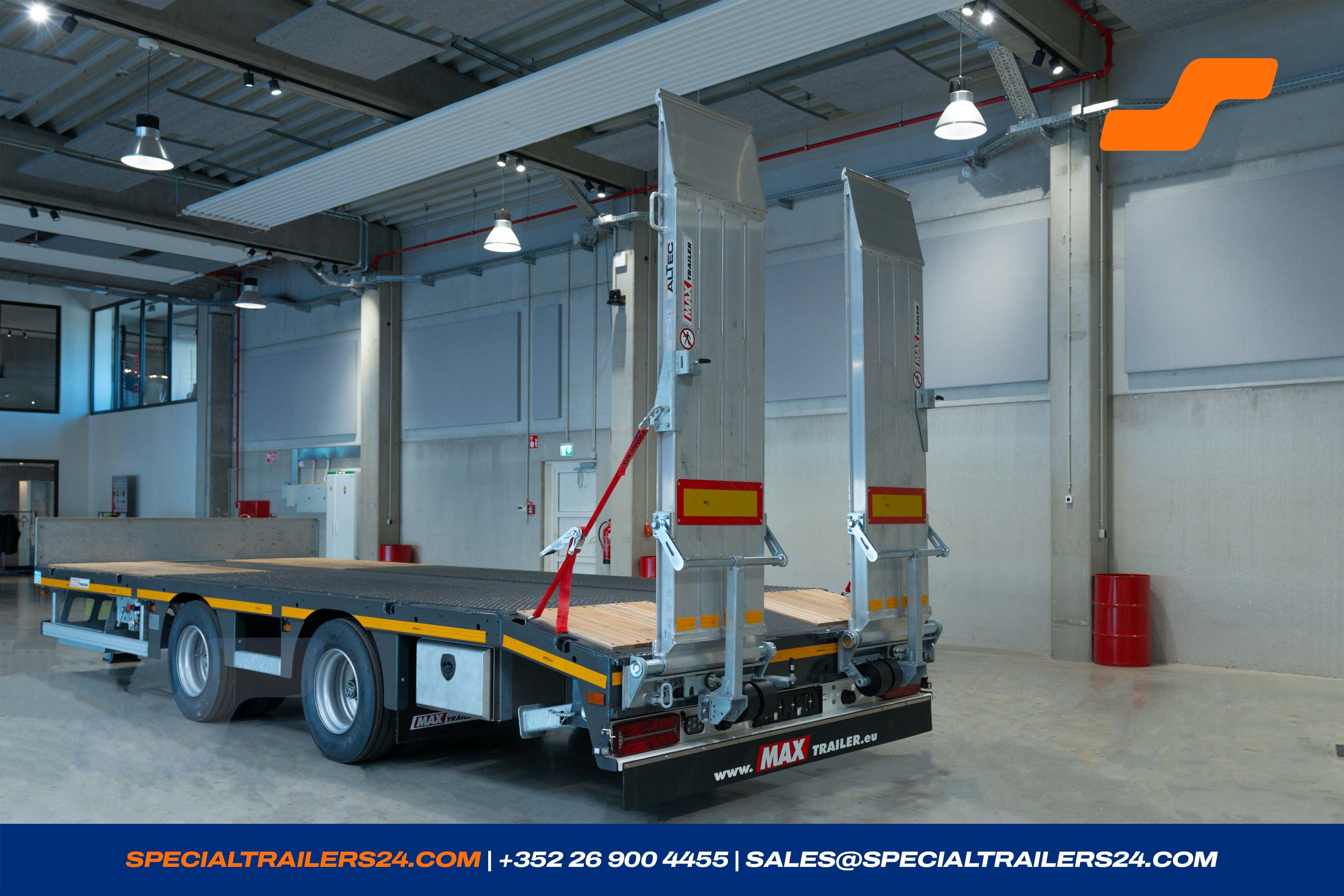

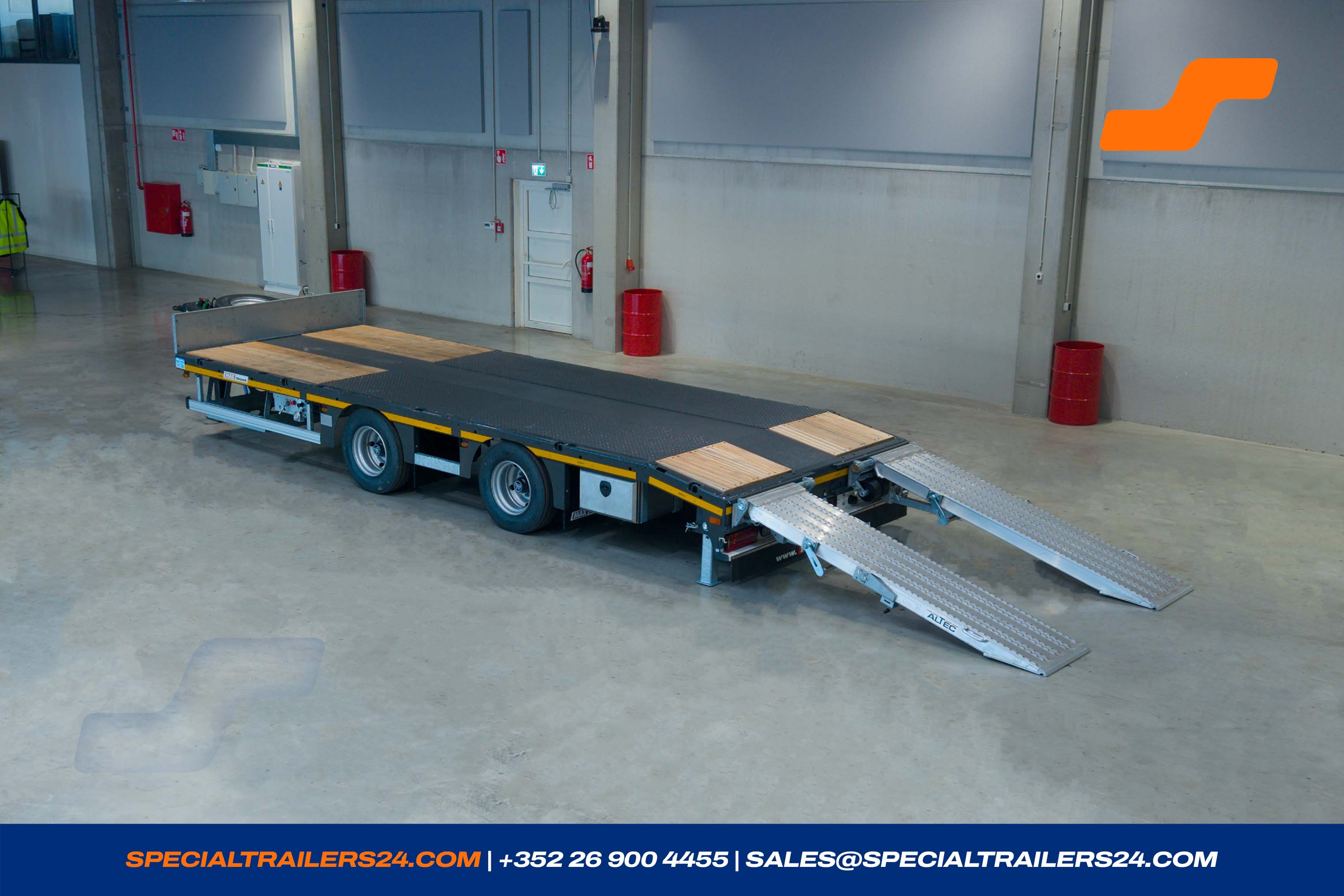

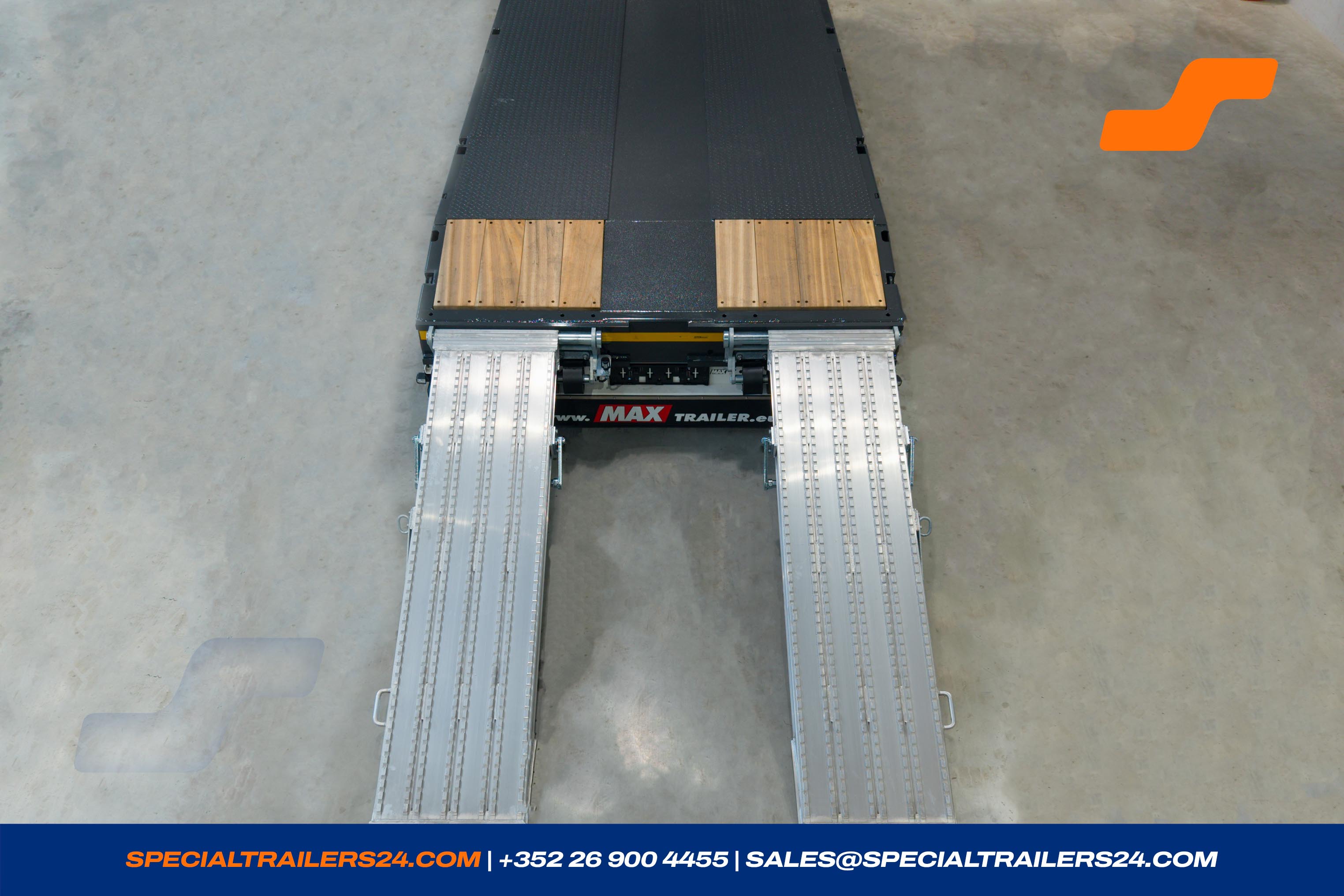

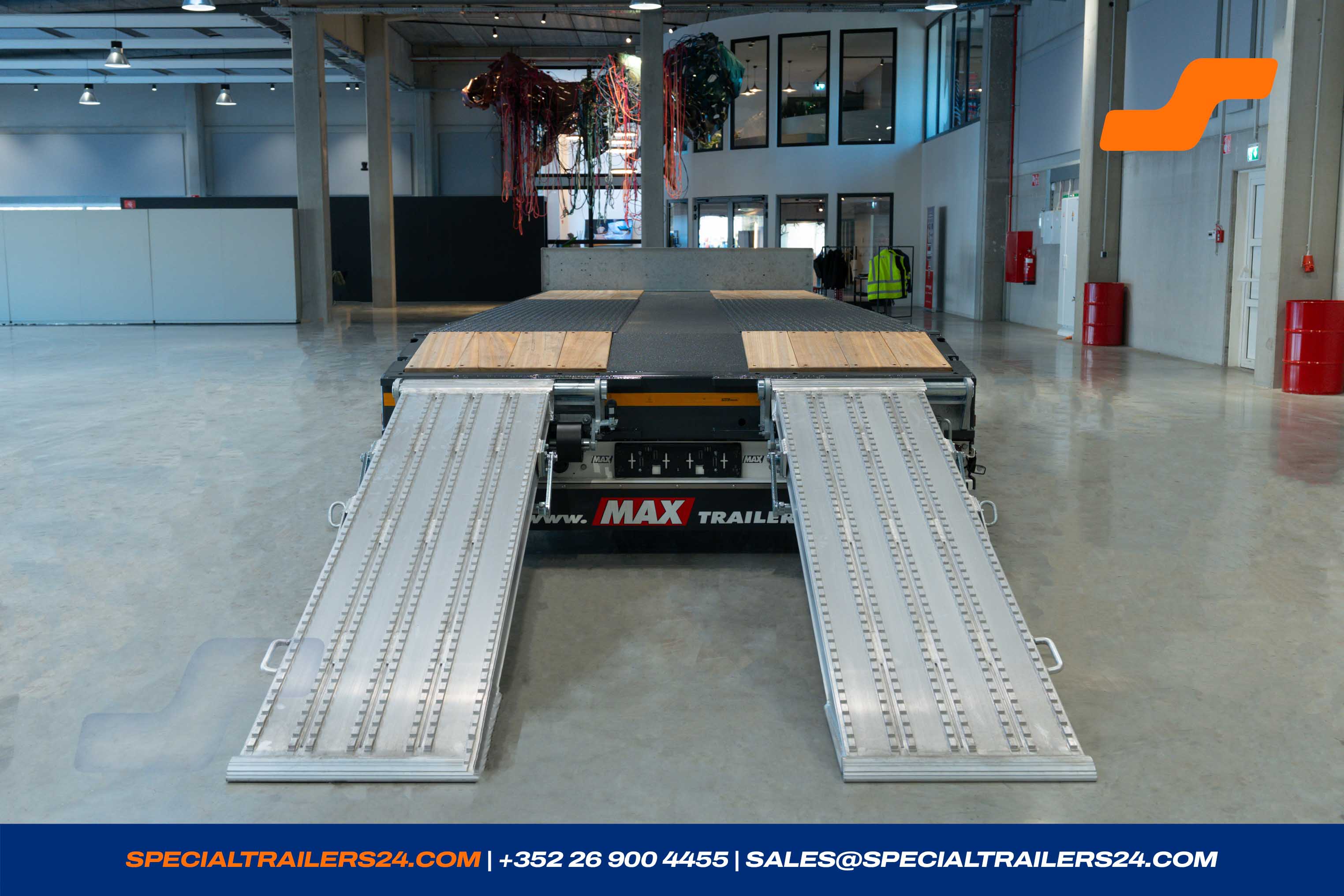

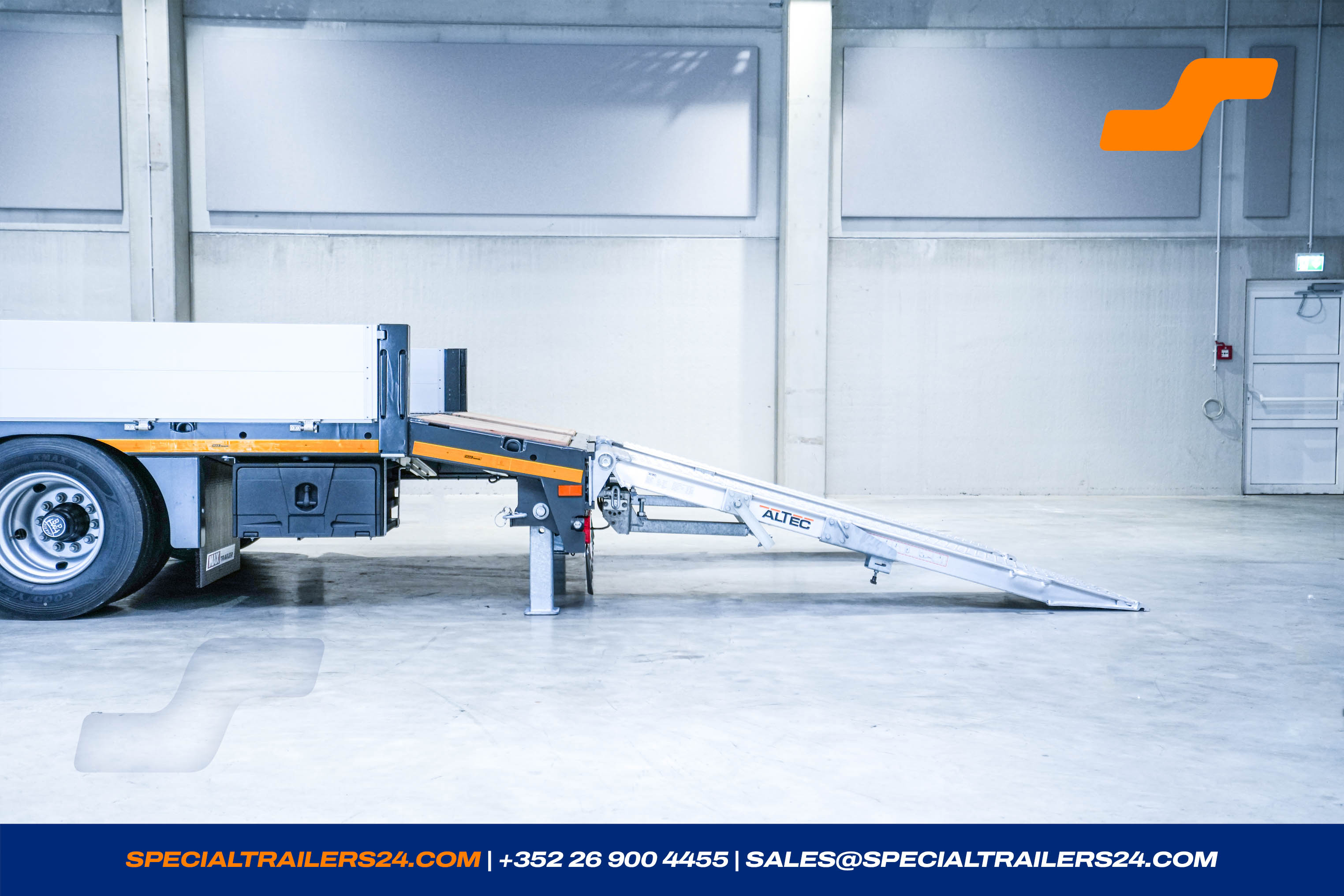

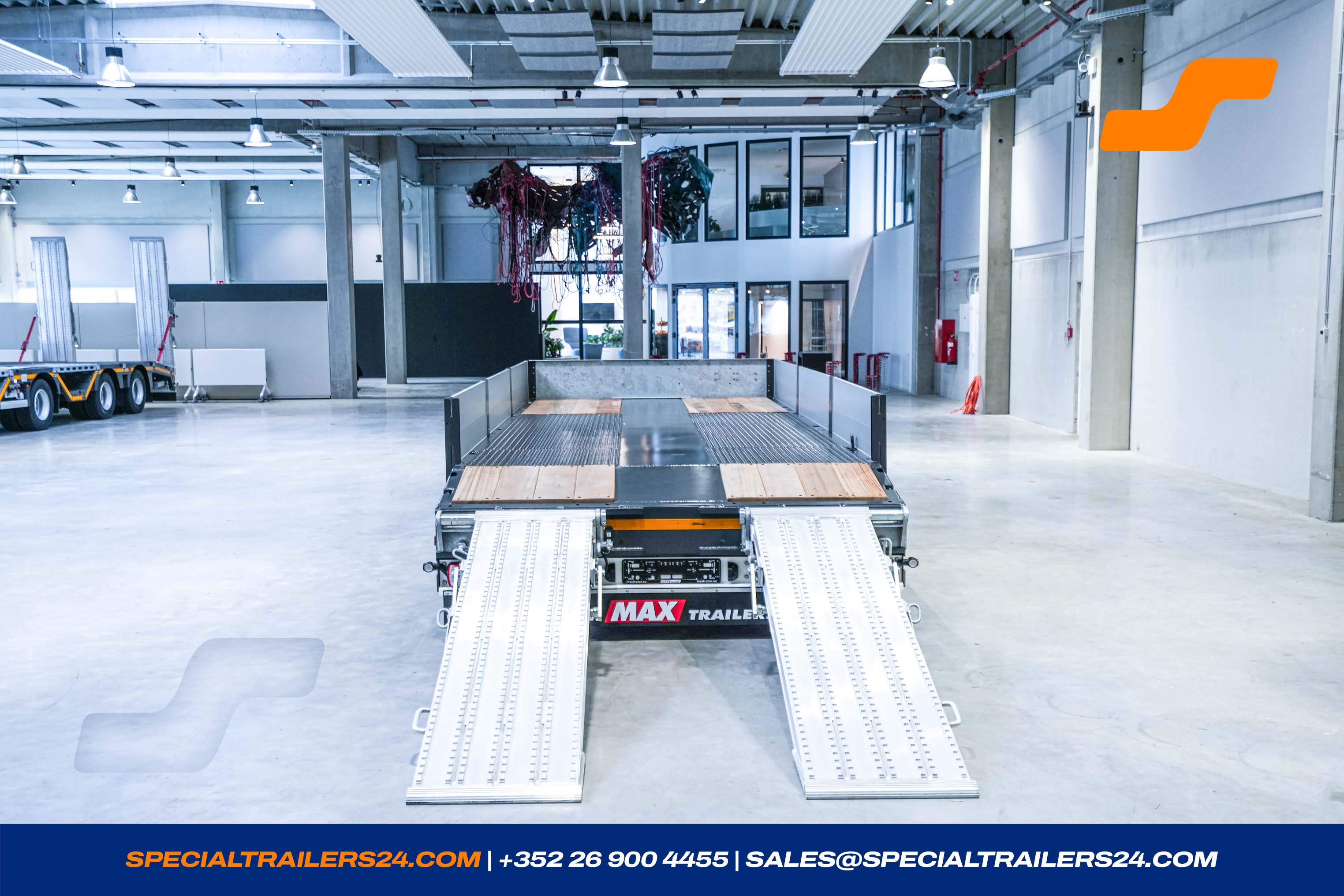

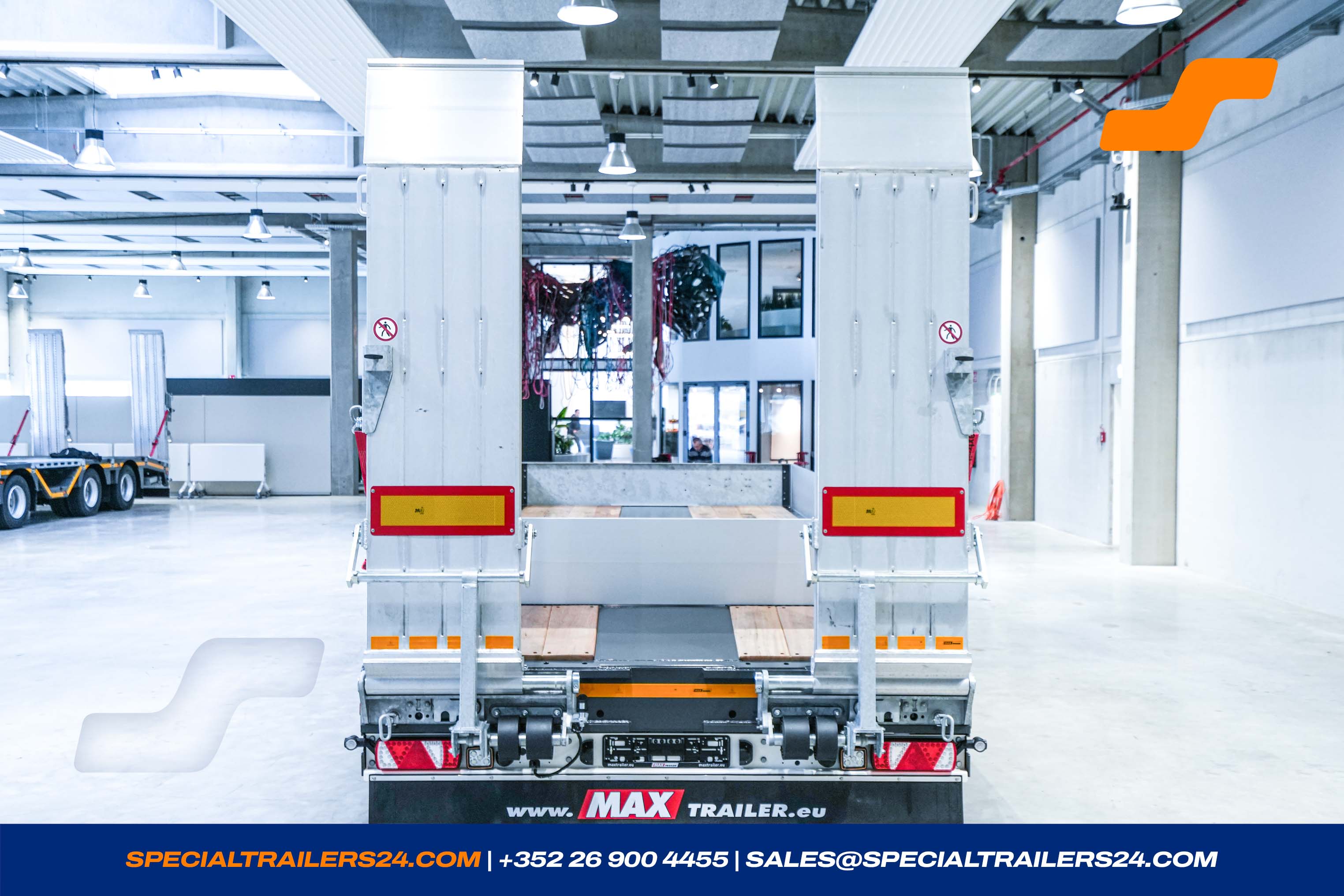

Hydraulic loading ramps

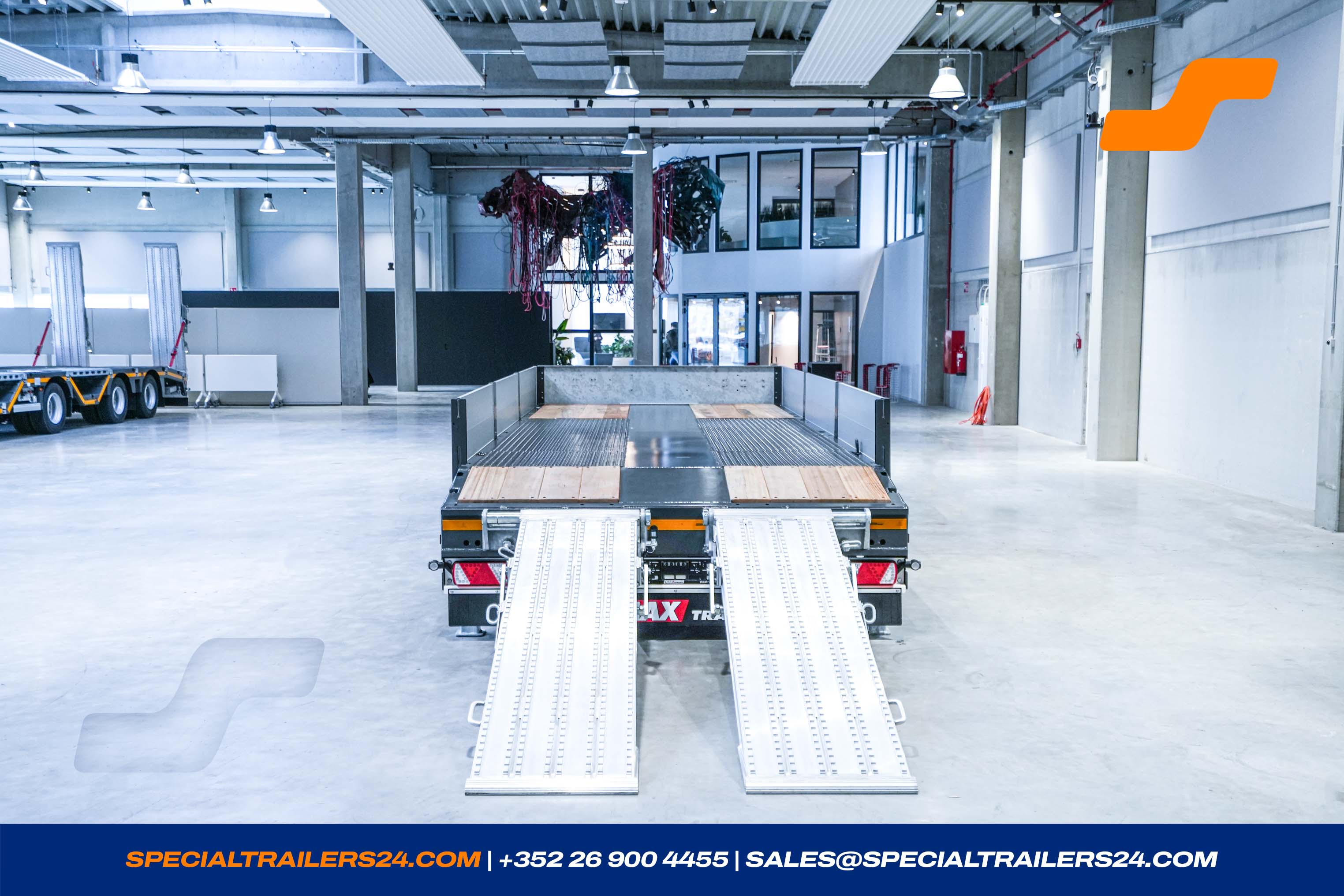

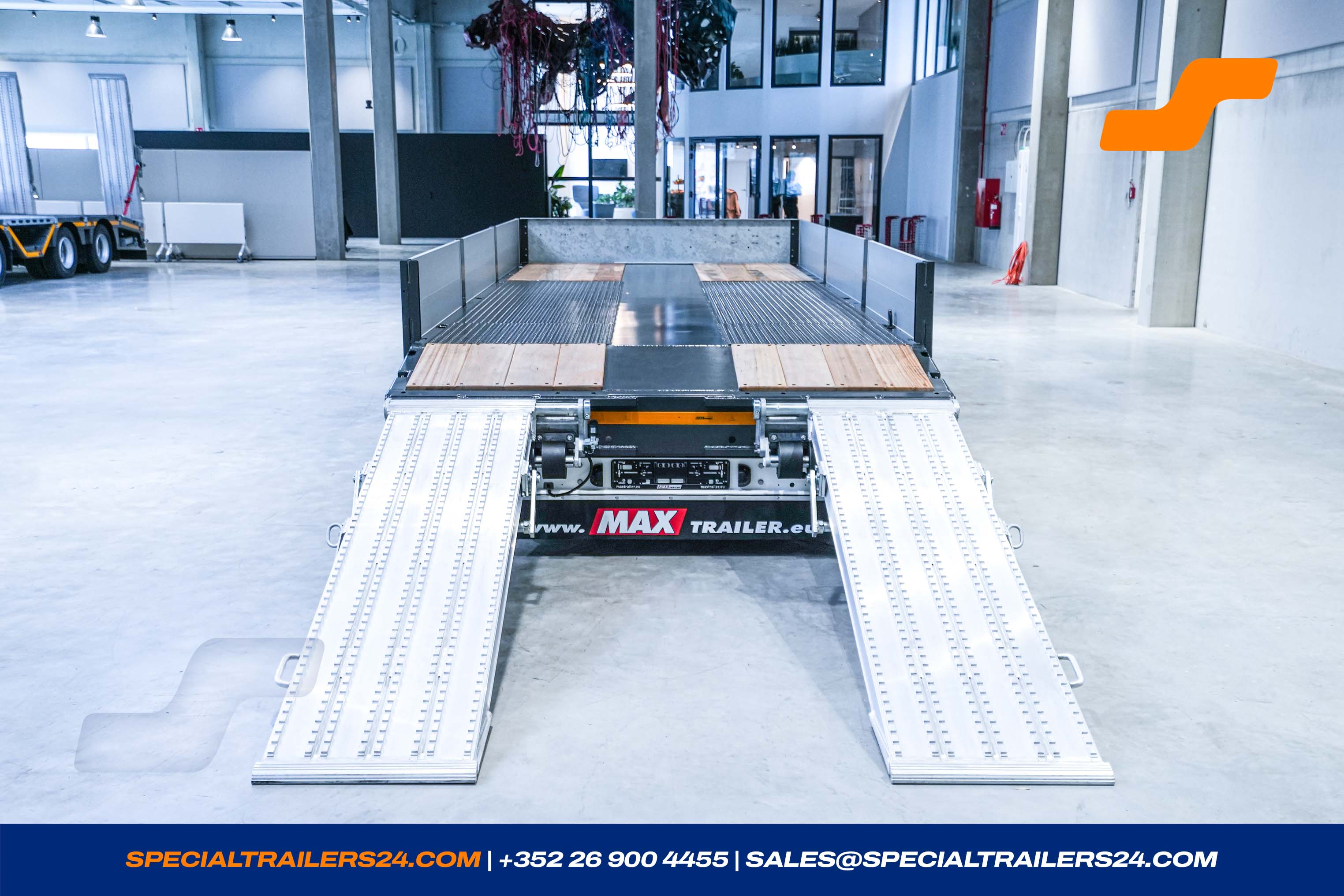

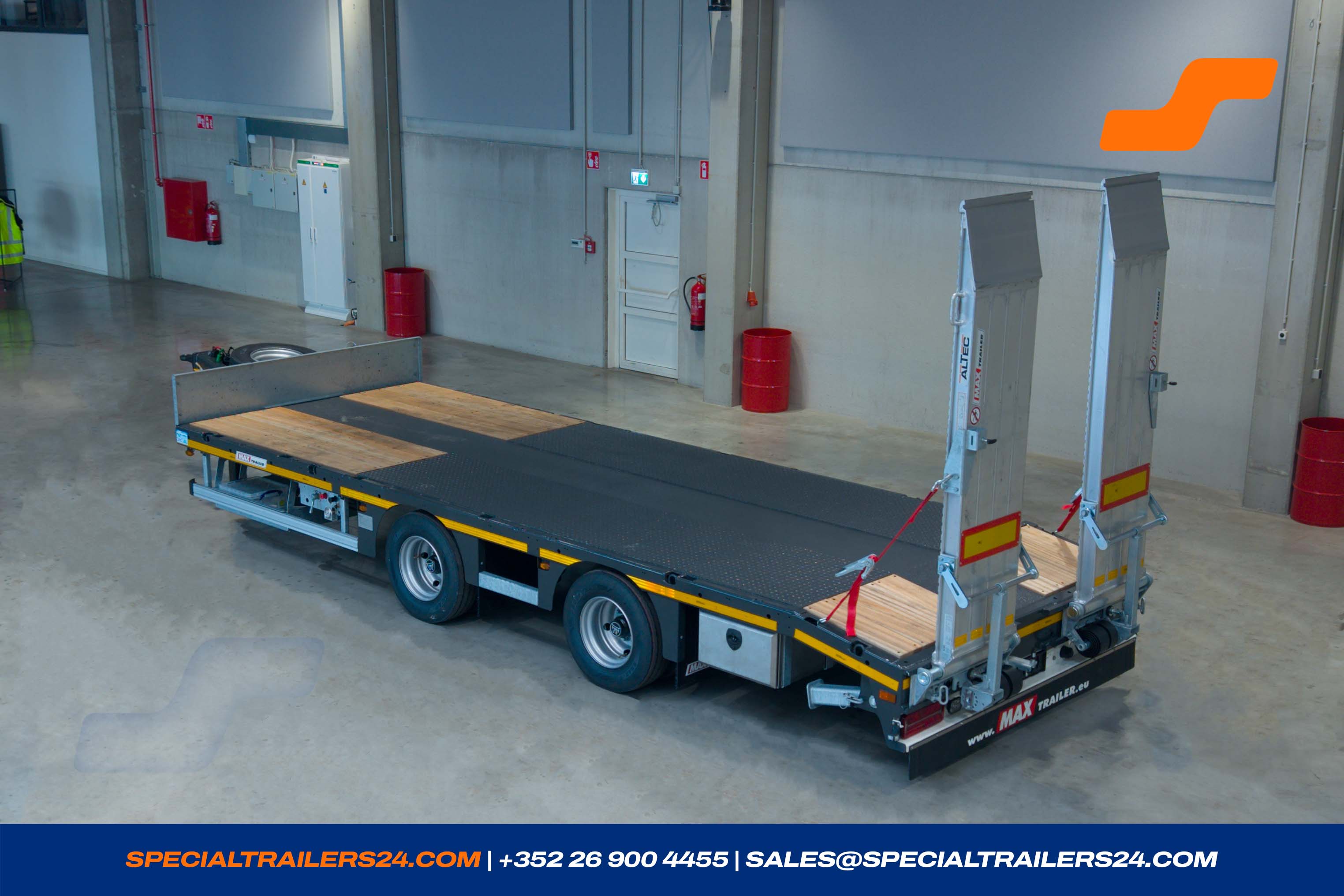

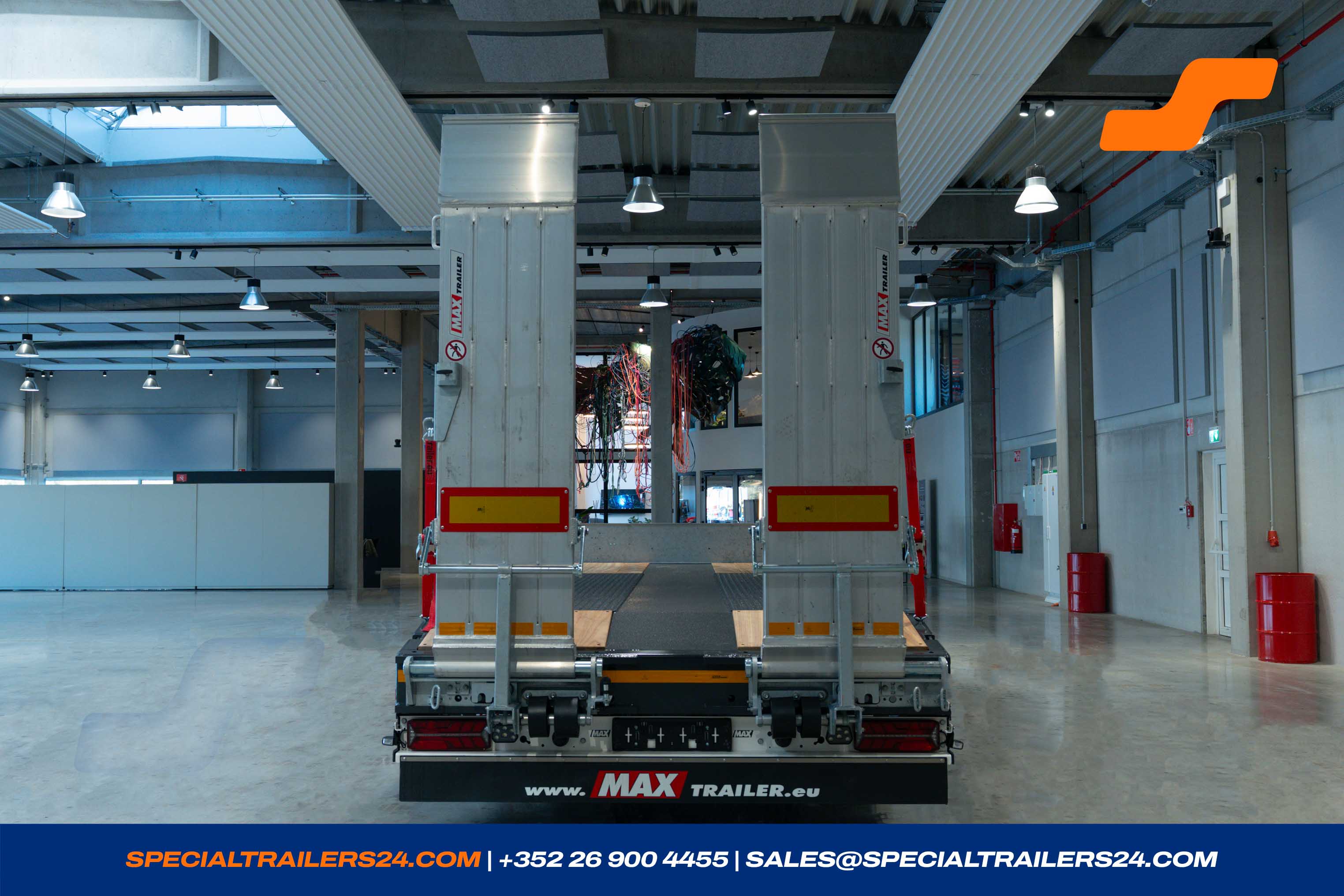

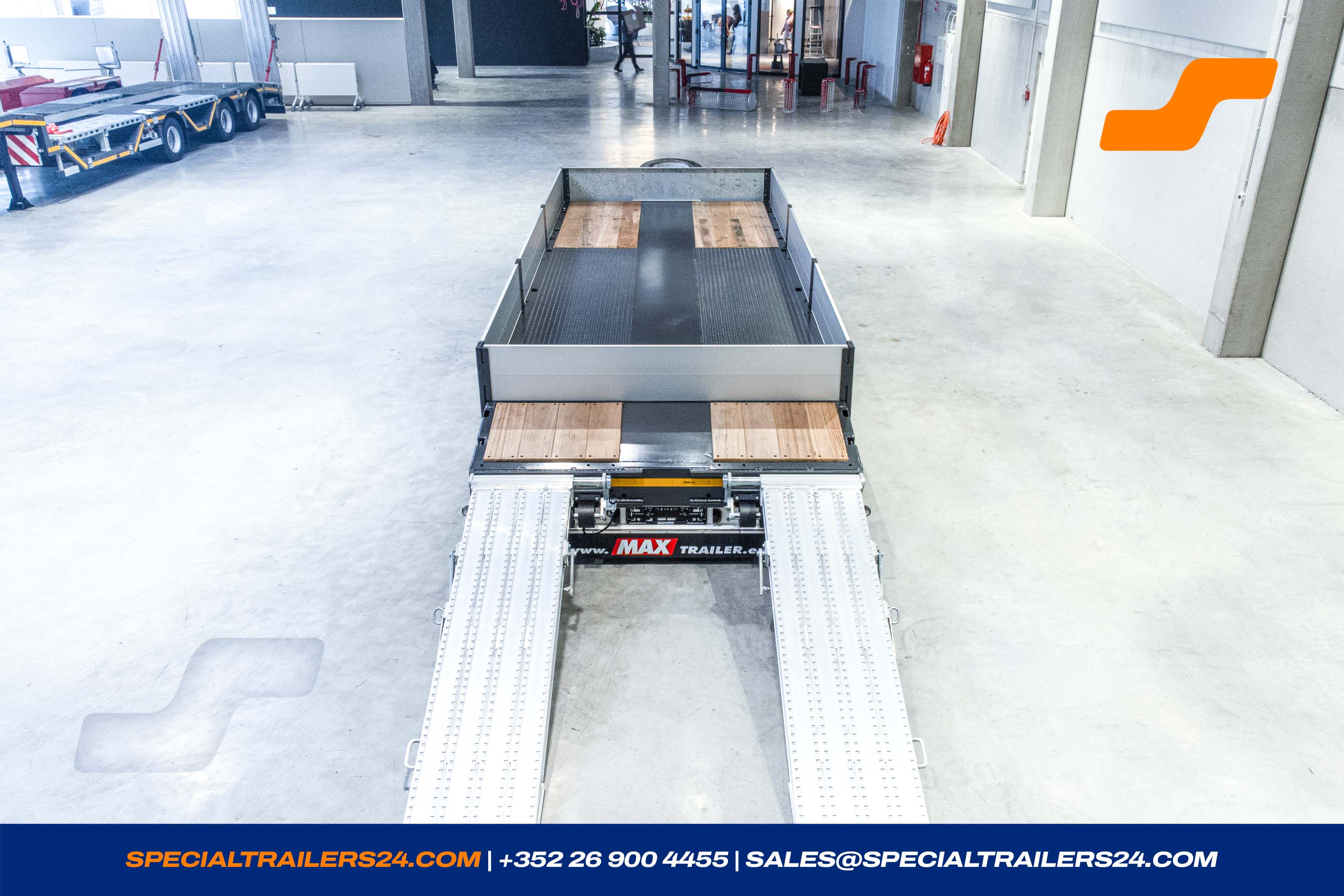

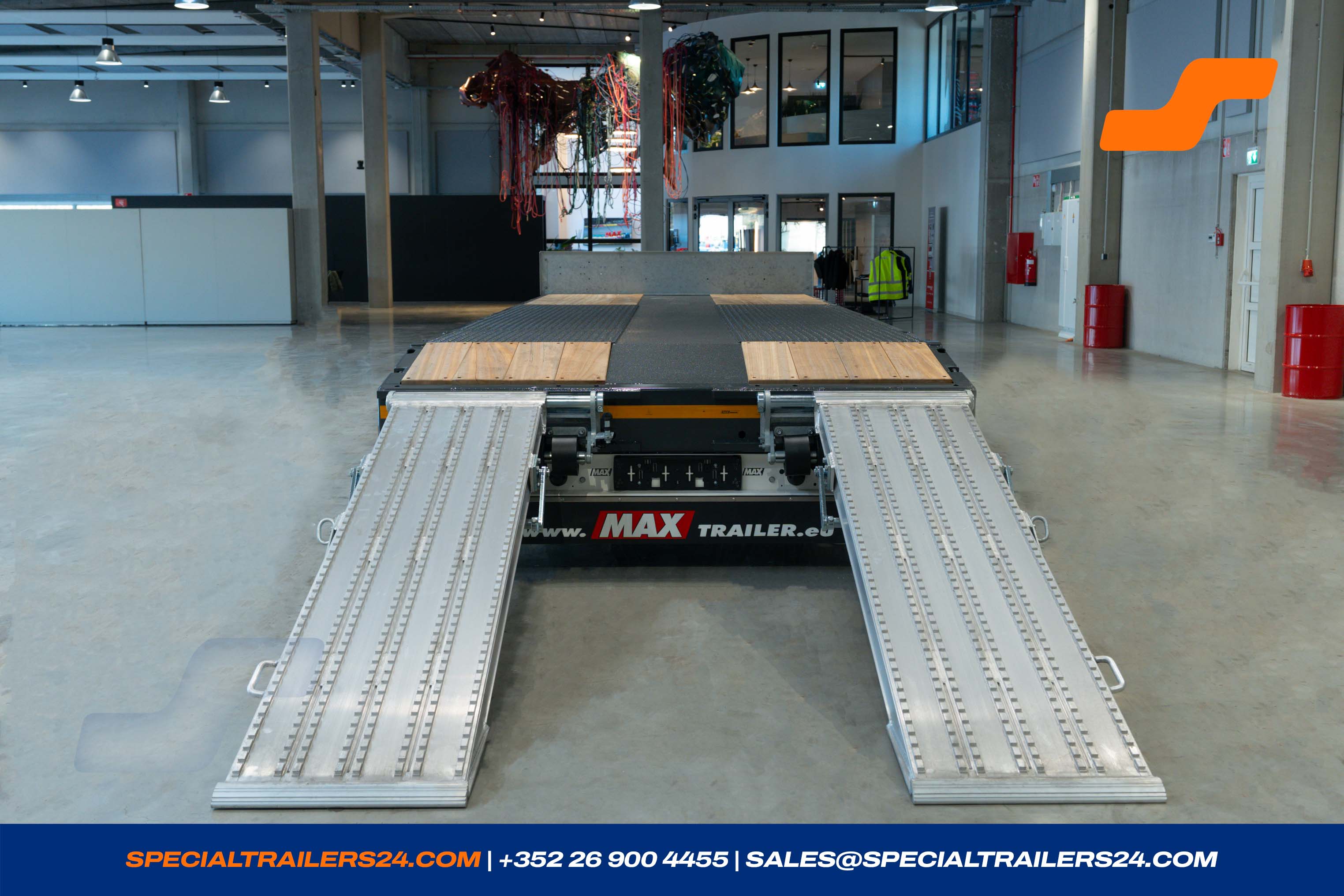

1 x ALU single piece ramps

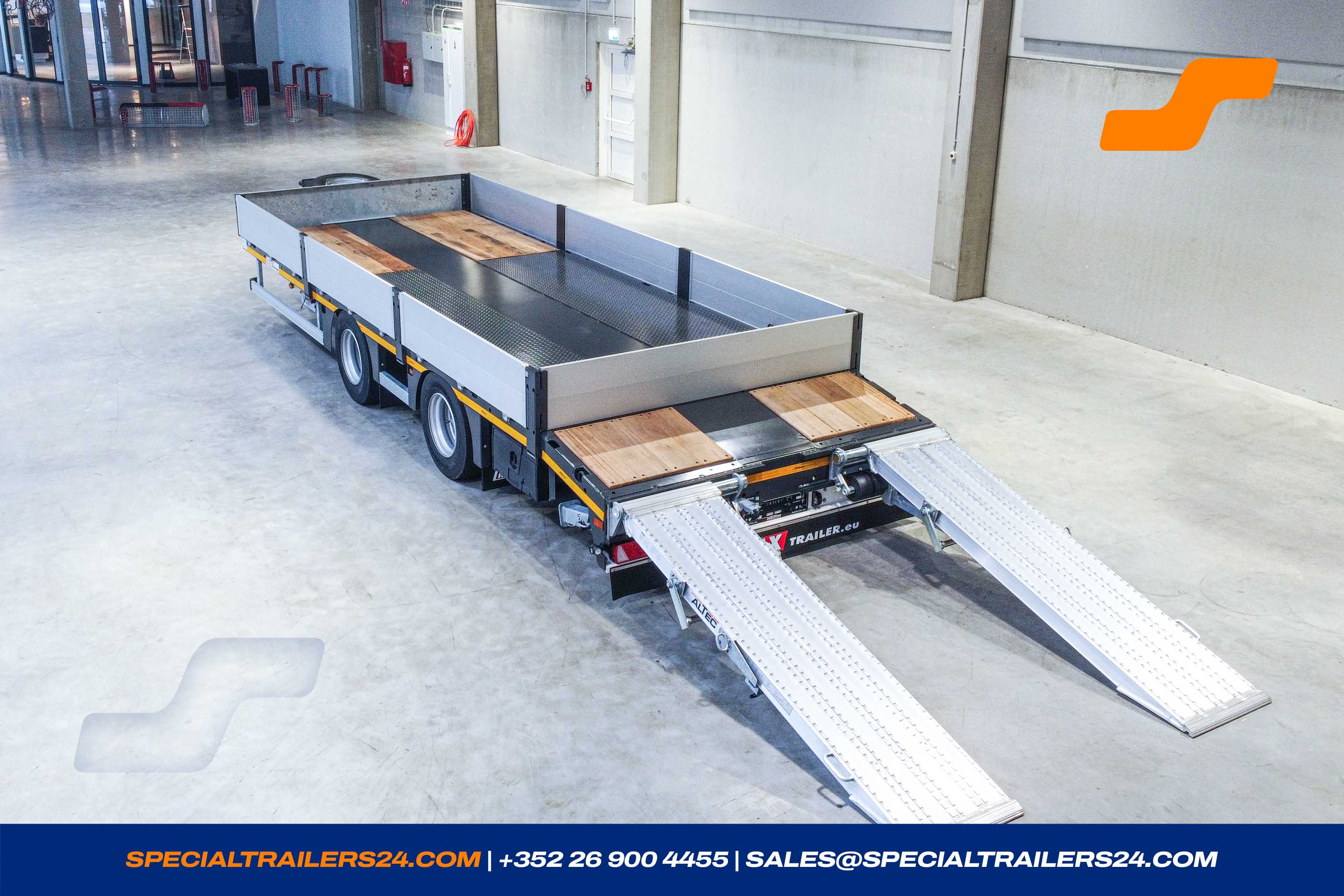

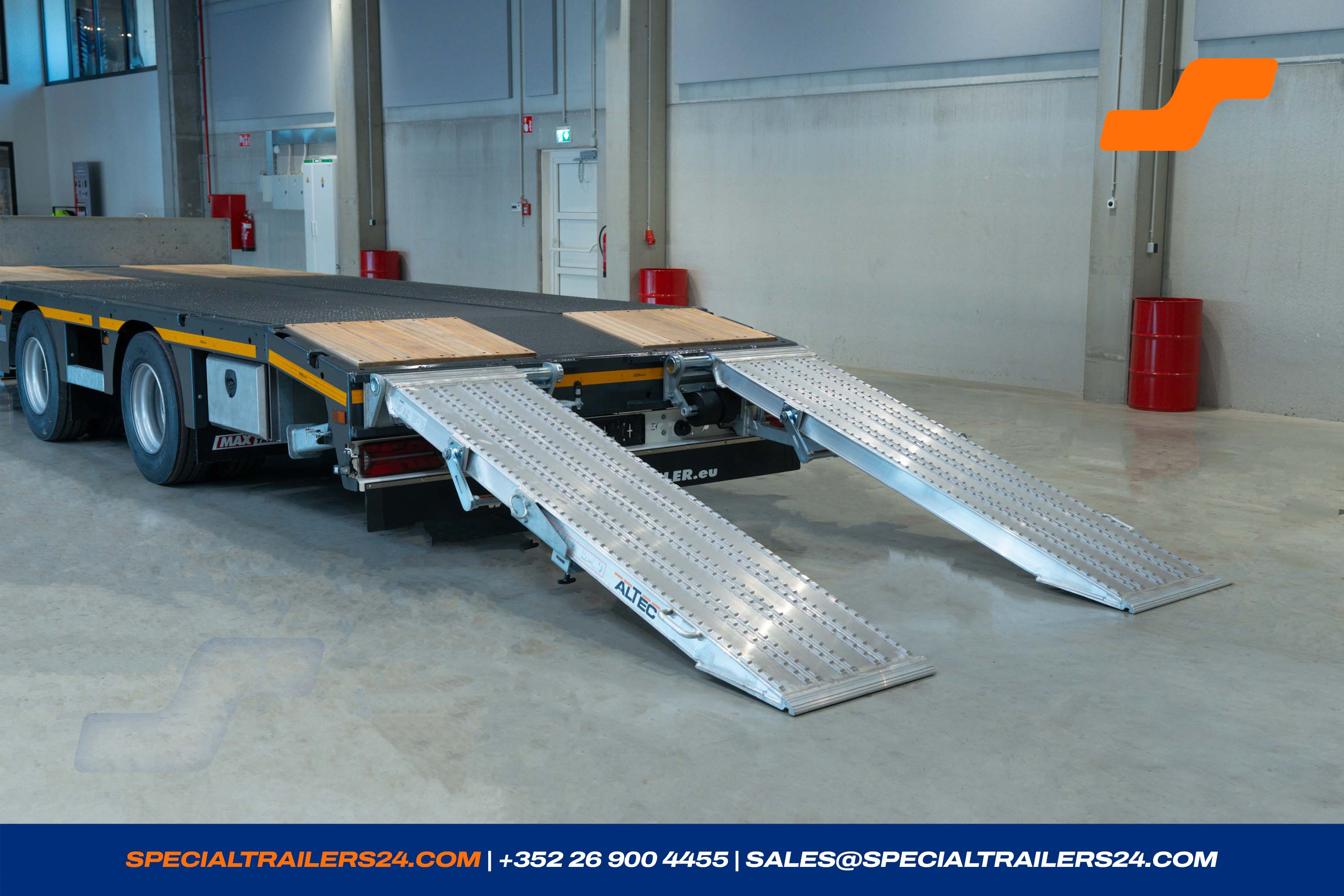

1 pair of single-piece ALU ramps ca. 2 500 x 600 mm.

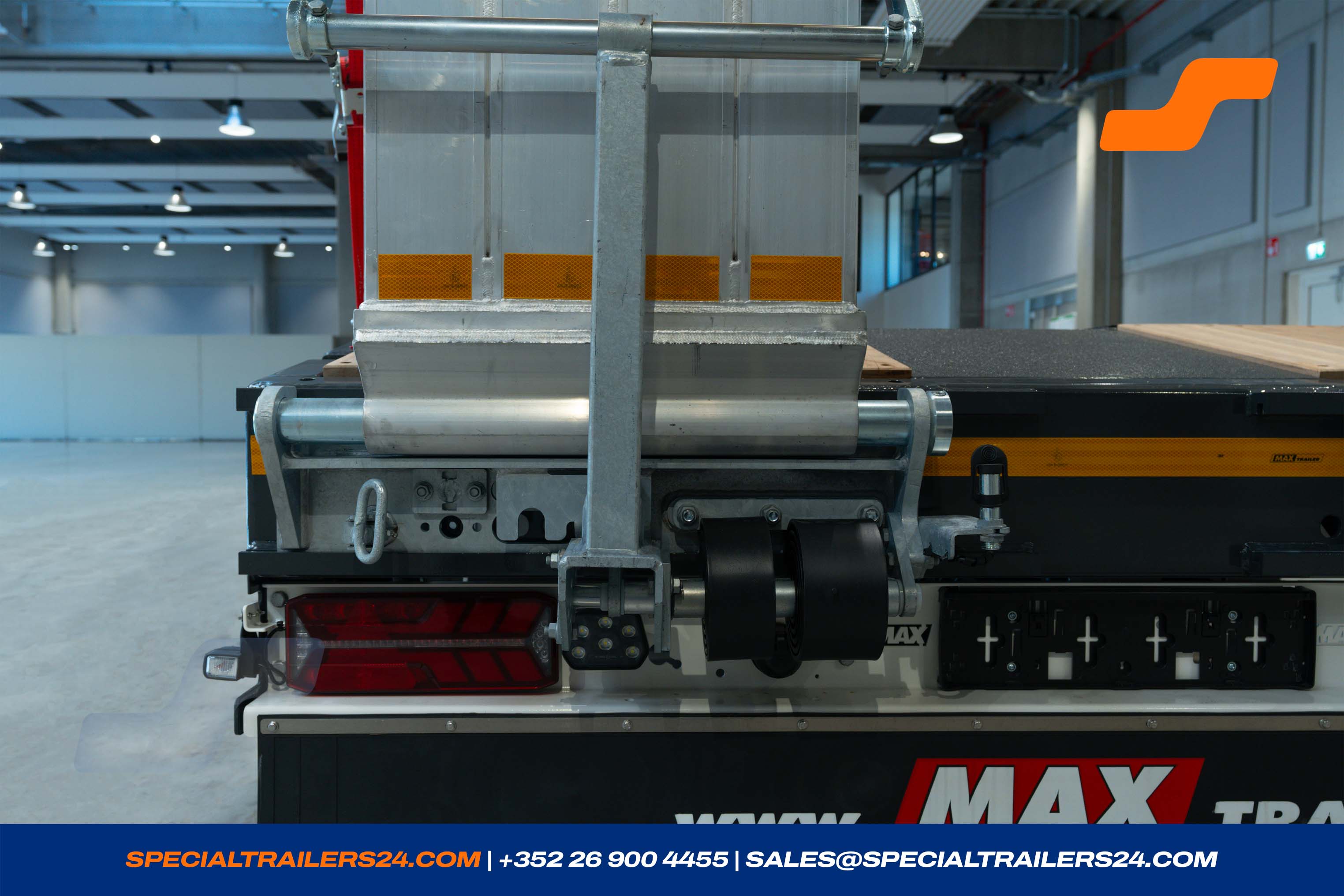

Ramps spring actuated and manuel side shift
Maximal charge for one pair : 24 000 kg
Accessories
1 x Accessories
- Manual and description on USB stick .

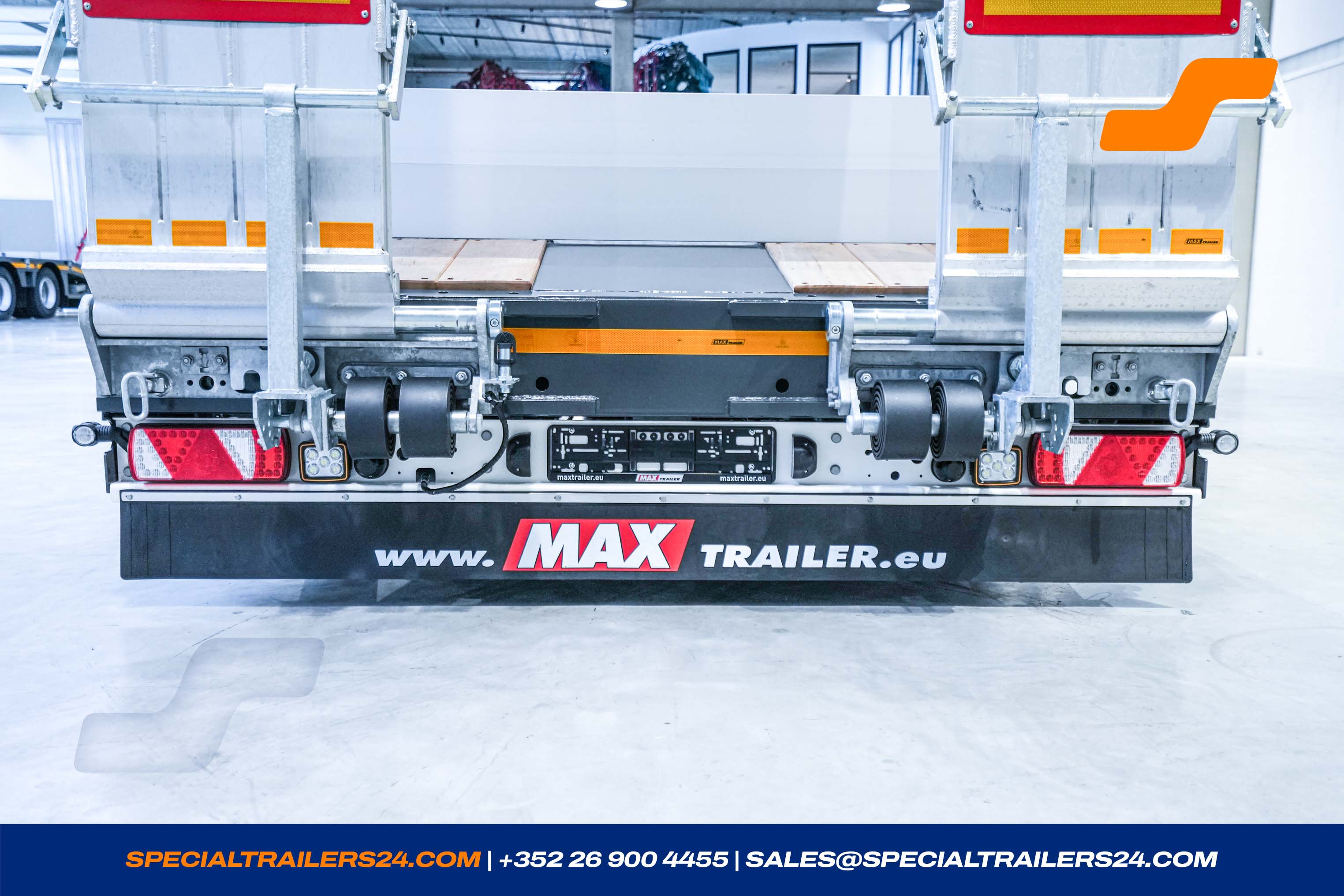

- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Spiral cable 15/2x7 poles.

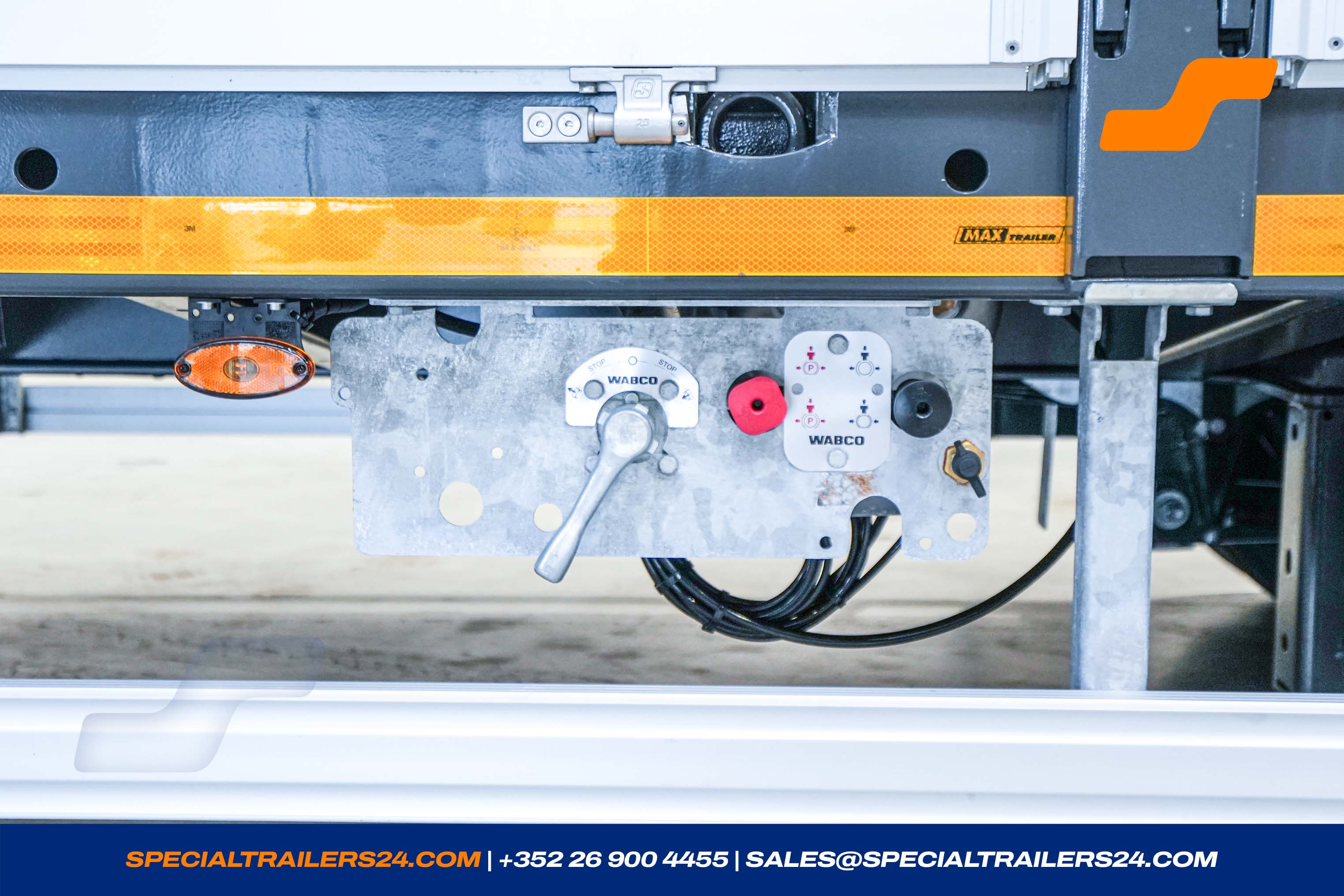

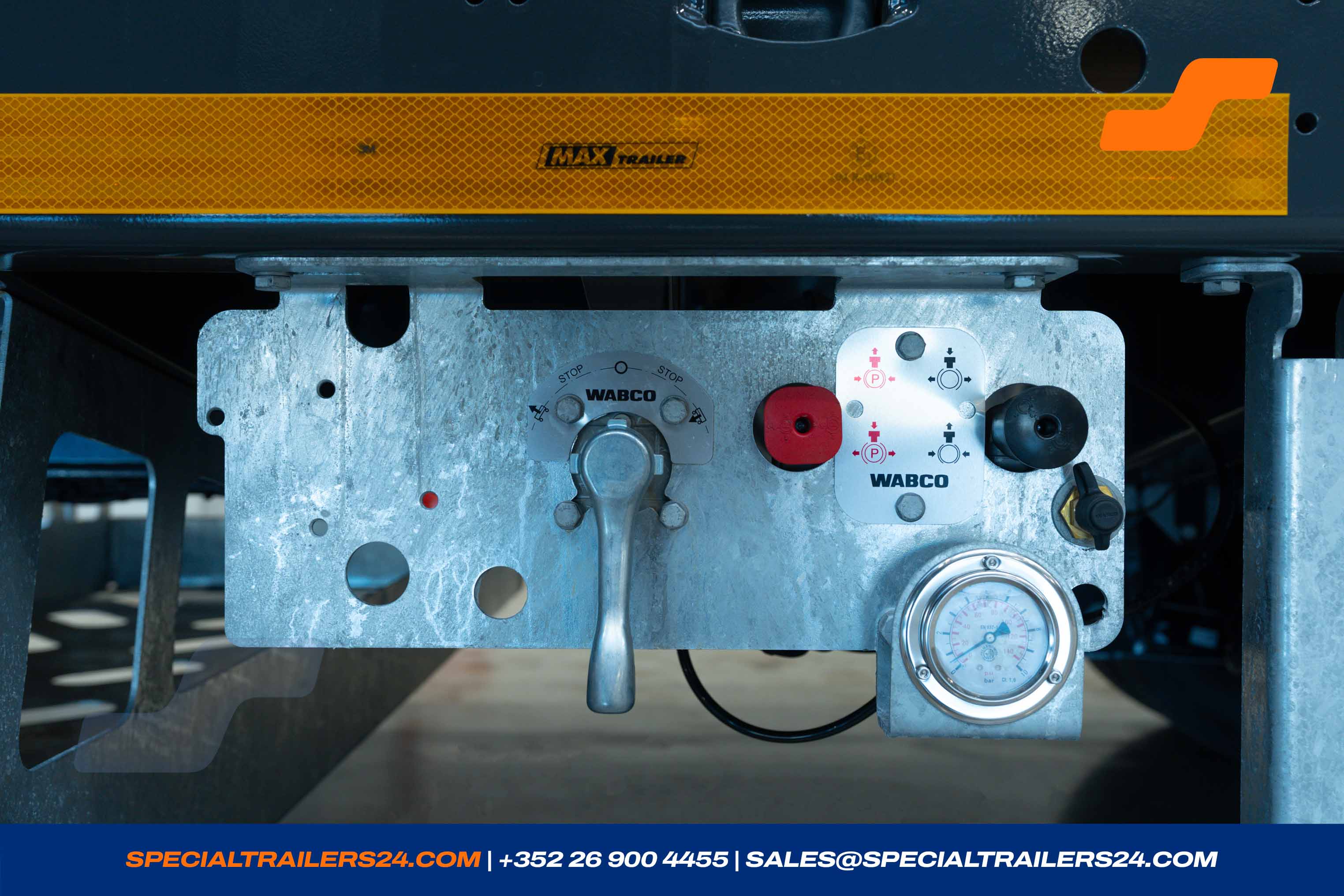

- Load manometer for determining the axle load, including load diagram.

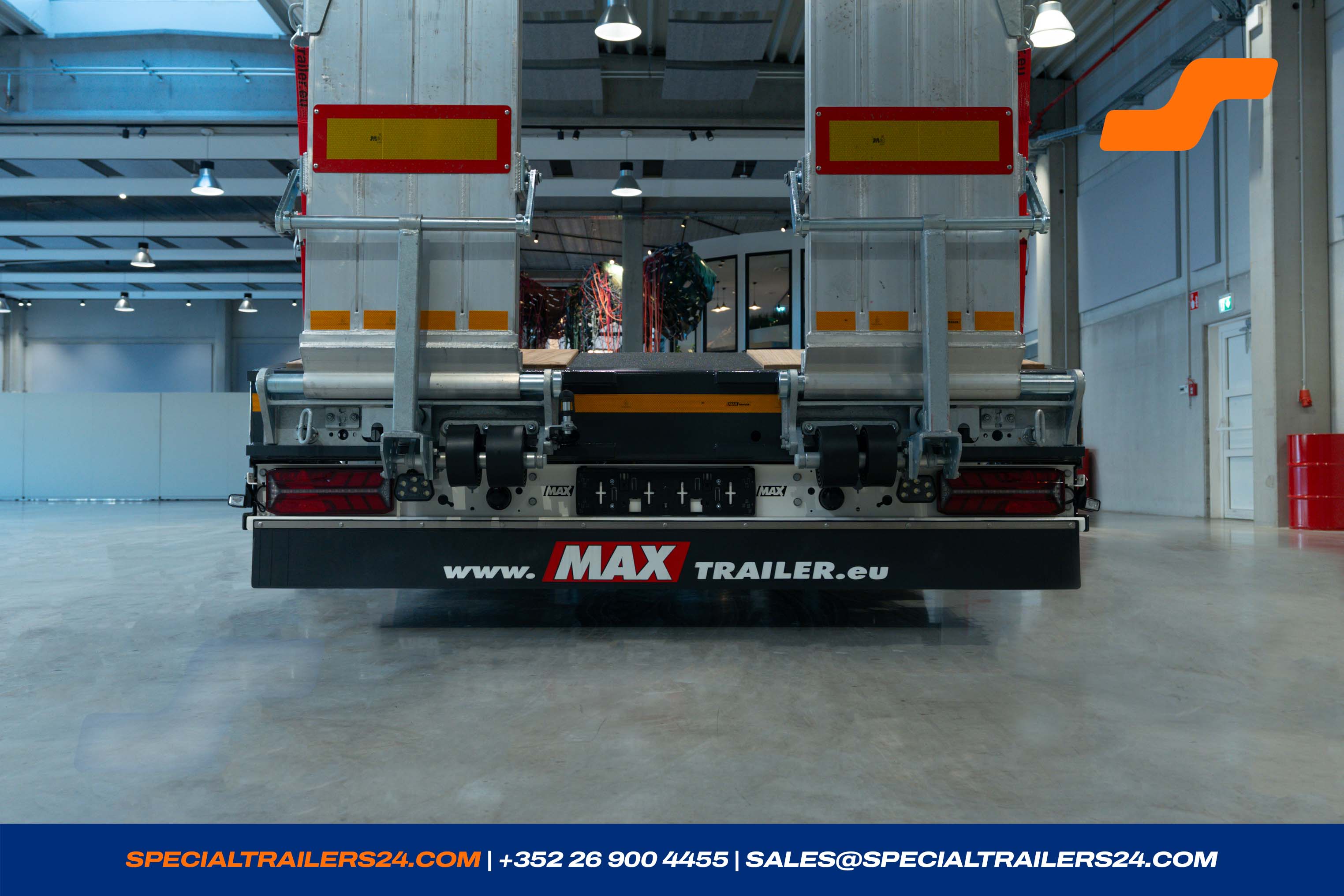

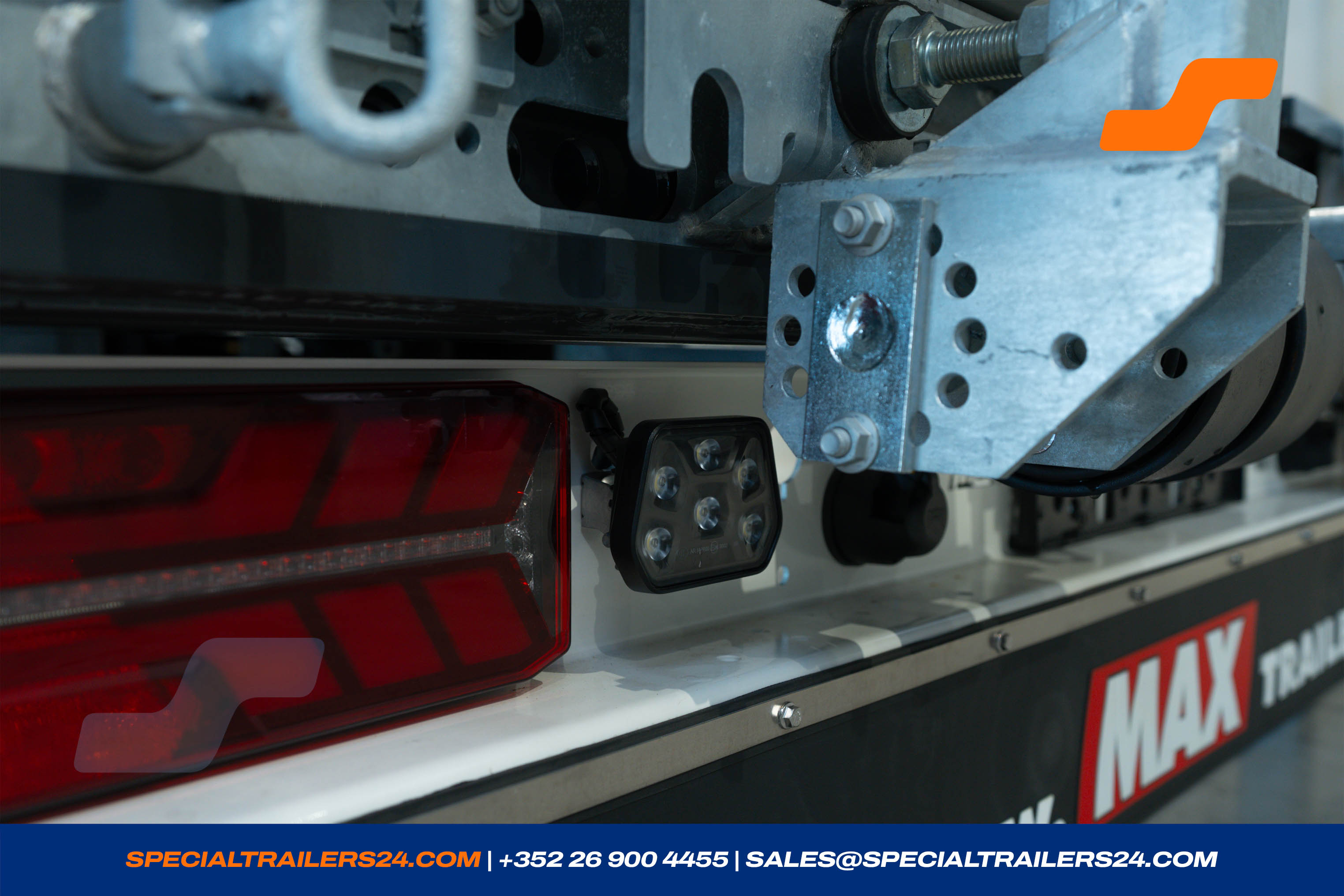

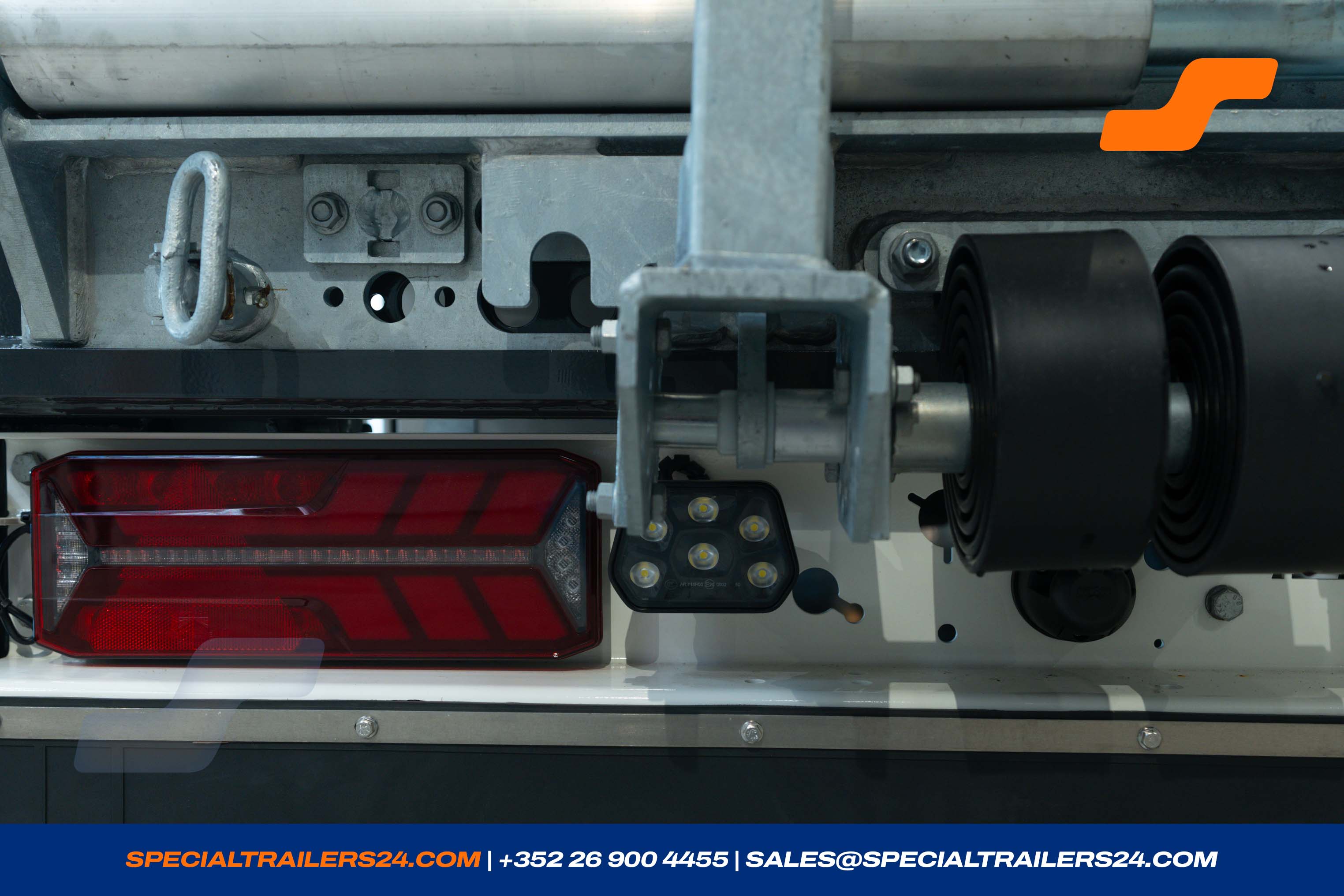

- 2 LED- reversing lights at the rear.
- Assembly of the single ramps on the semitrailer.
- Delivery from a trailer to factory Lentzweiler.
