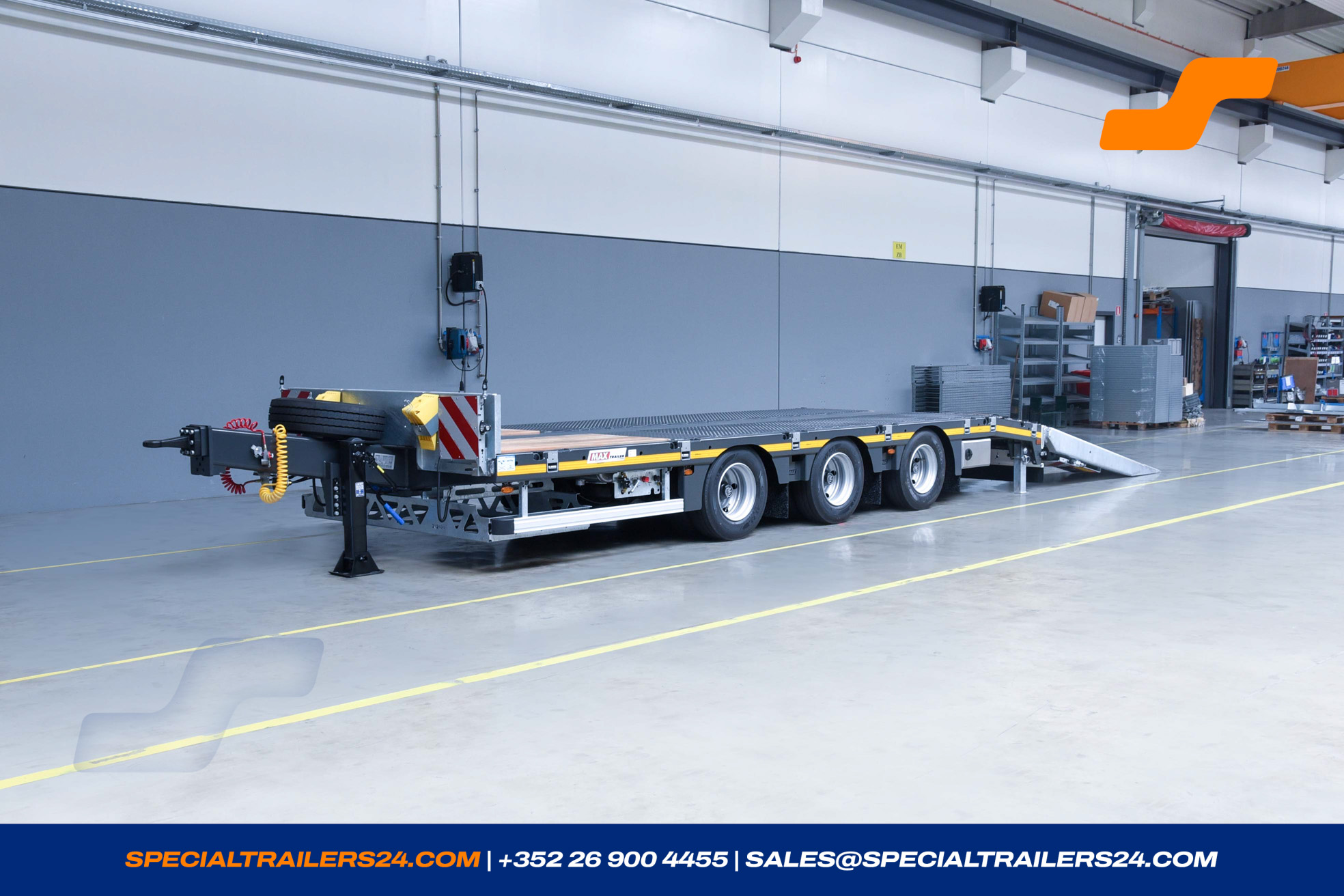

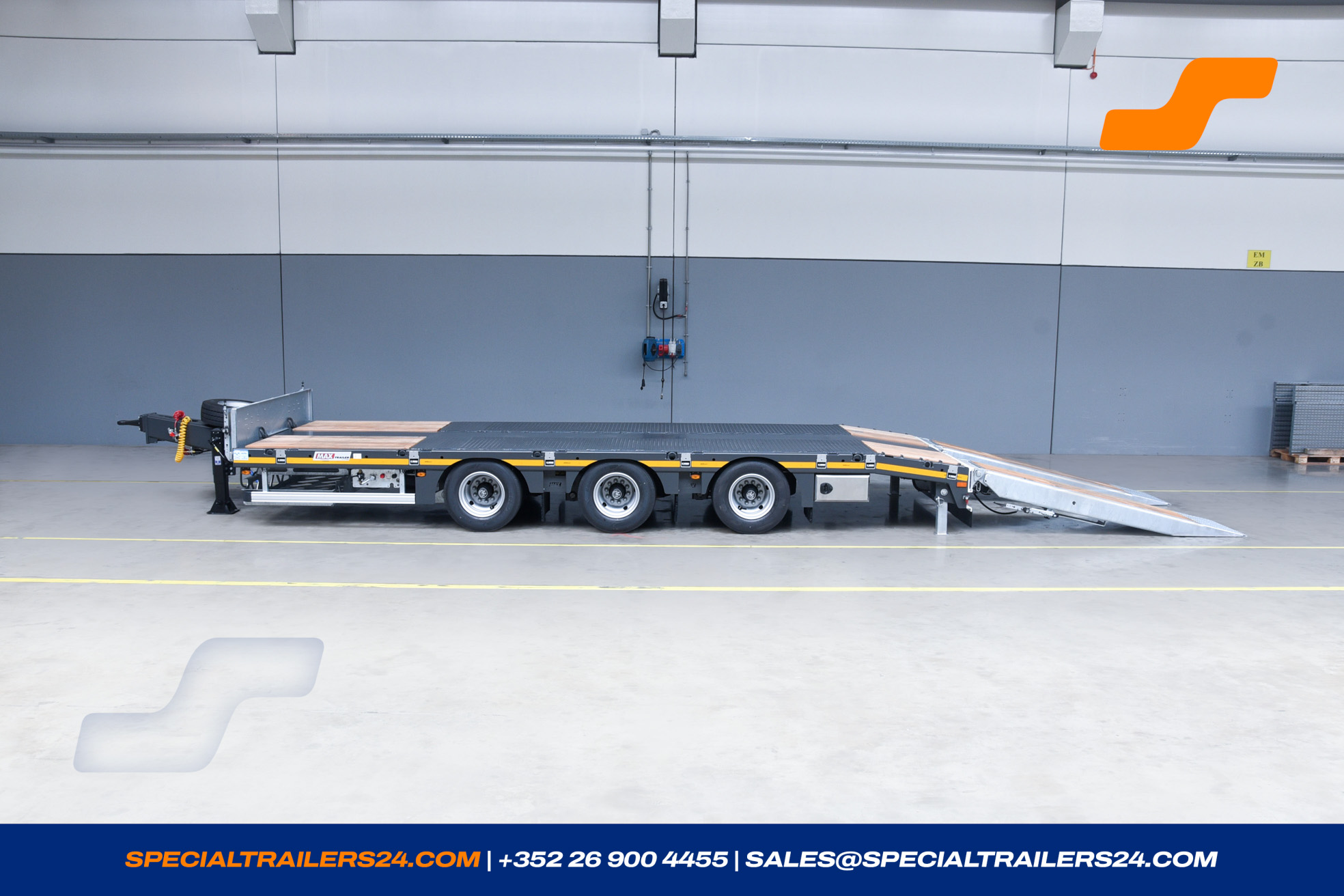

MAX Trailer MAX300
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 112280
- Reference MAX300-N-3-7.50-U

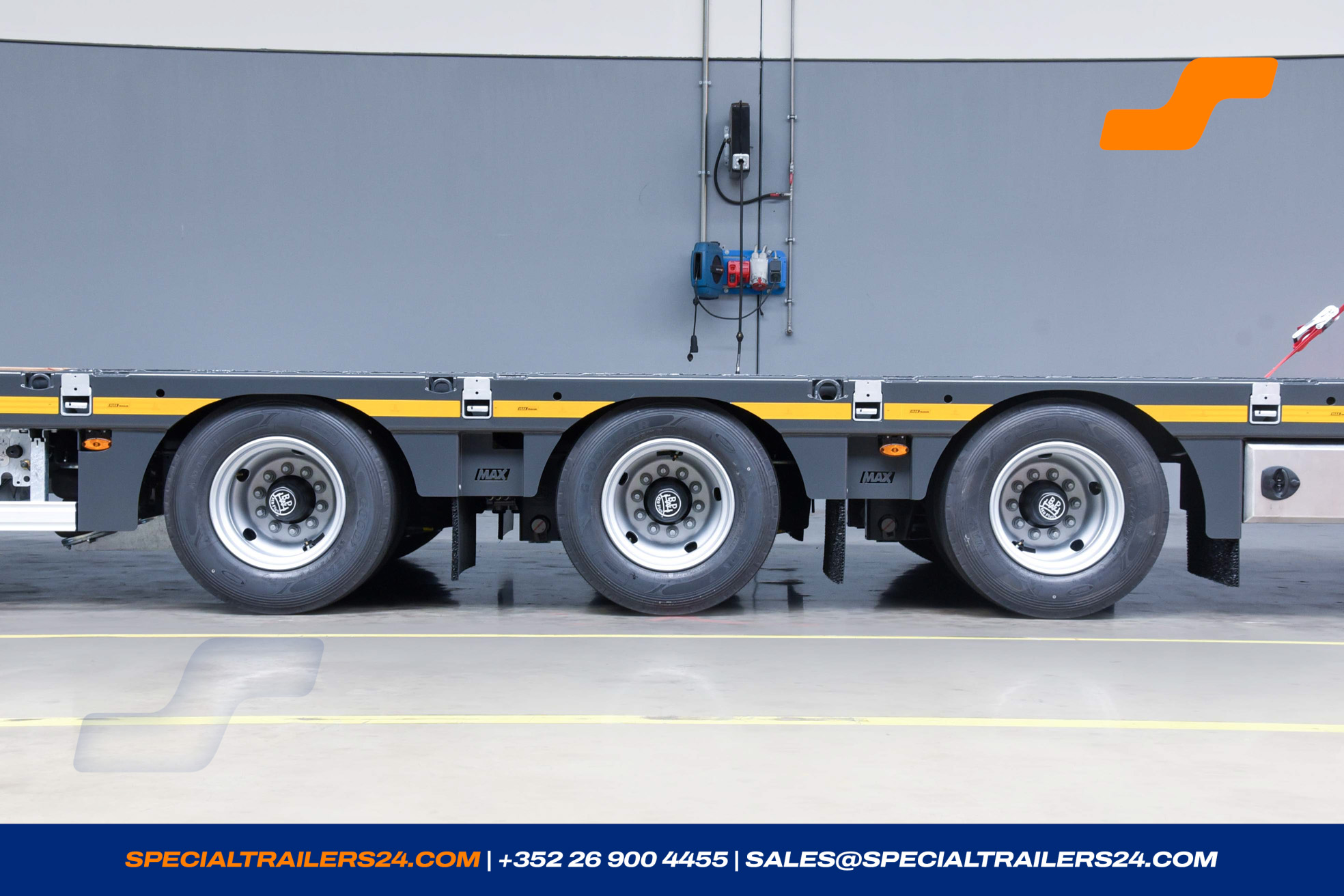

- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 10/2026
- Steering Type Friction
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| Axle load | 28400 kg |
| Gross weight | 28400 kg |
| Tare weight +- 3% | 6903 kg |
| Payload | 21497 kg |
Dimensions
| Loading platform length | 7 500 mm |
| Coupling height | 820-895-970 mm |
| Suspension stroke | -45/+145 mm |
Loading deck
Loading platform
1 x Loading platform : MAX300-N-3-7.50(KH820-895-970 DL1750)
Loading platform with chamfered beaver tail by about 1 000 mm x 8°.

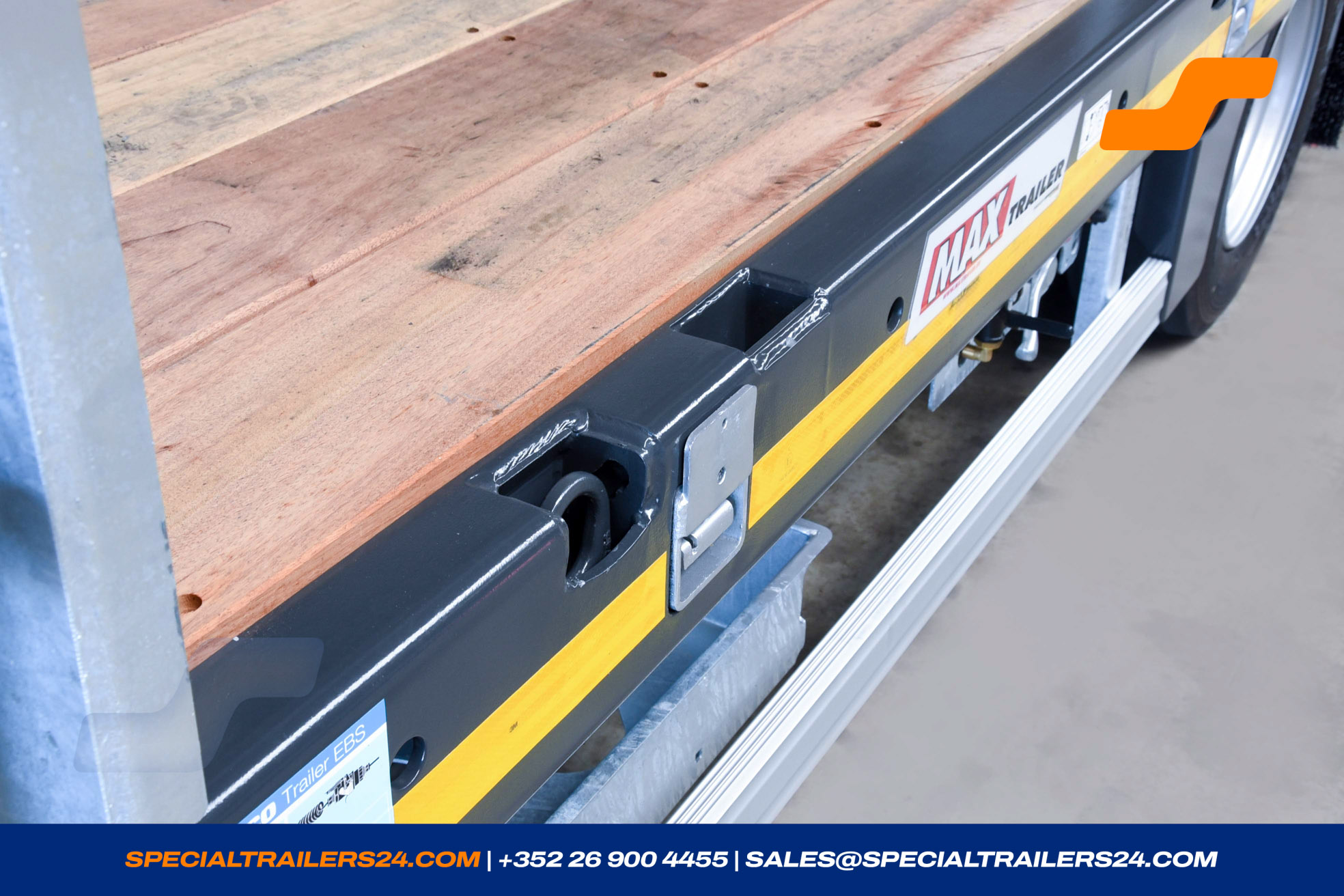

4 pairs of lashing rings in the loading platform, hinged outwardss (LC 5 000 daN).
3 pairs of lashing rings in the loading platform, hinged outwardss (LC 10 000 daN).
Cutouts in the border frame of the loading area for hooking in tension belts (LC 2 000 daN).

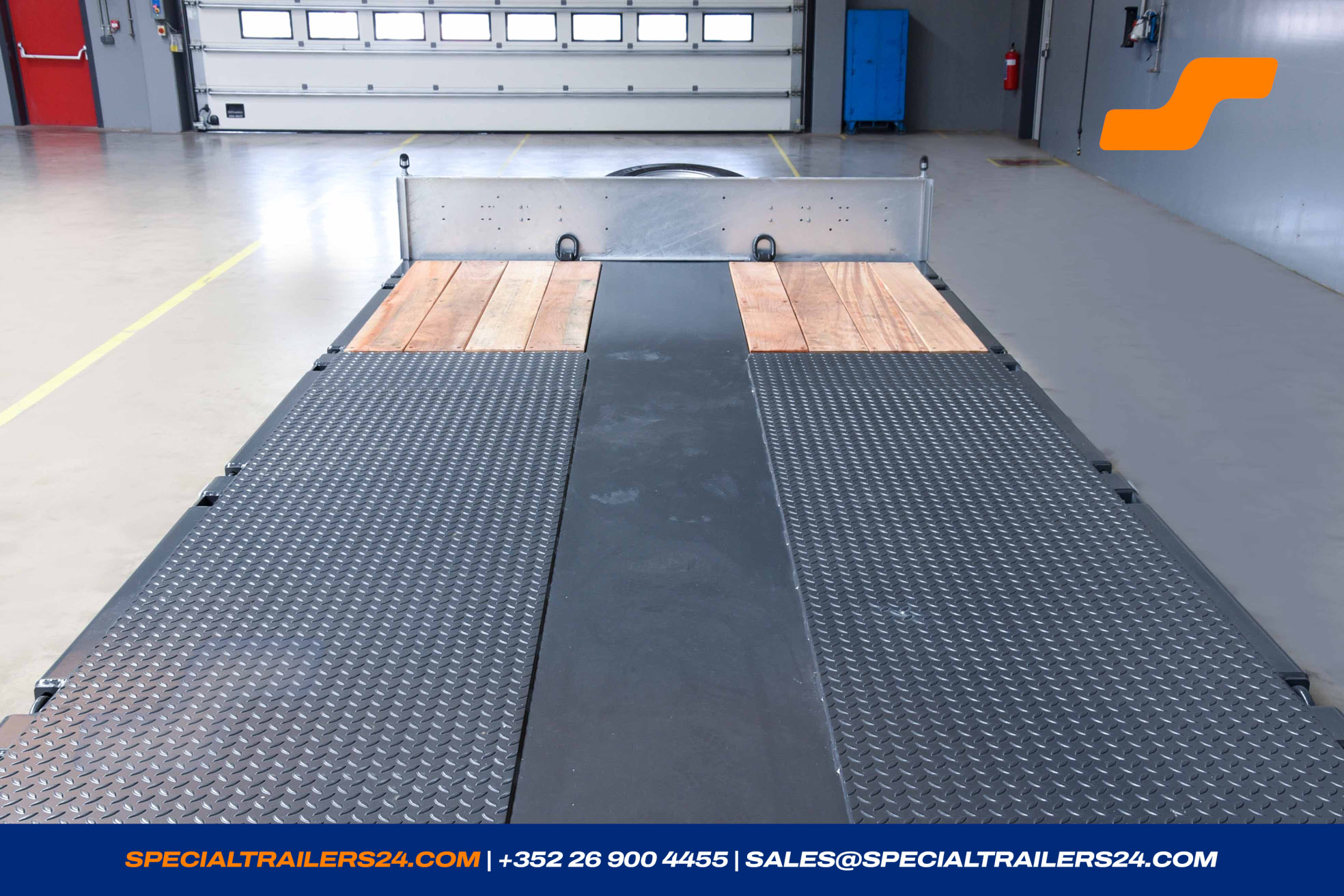

Hardwood cover thickness 48 mm, above of the axles chequer plate.
- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.

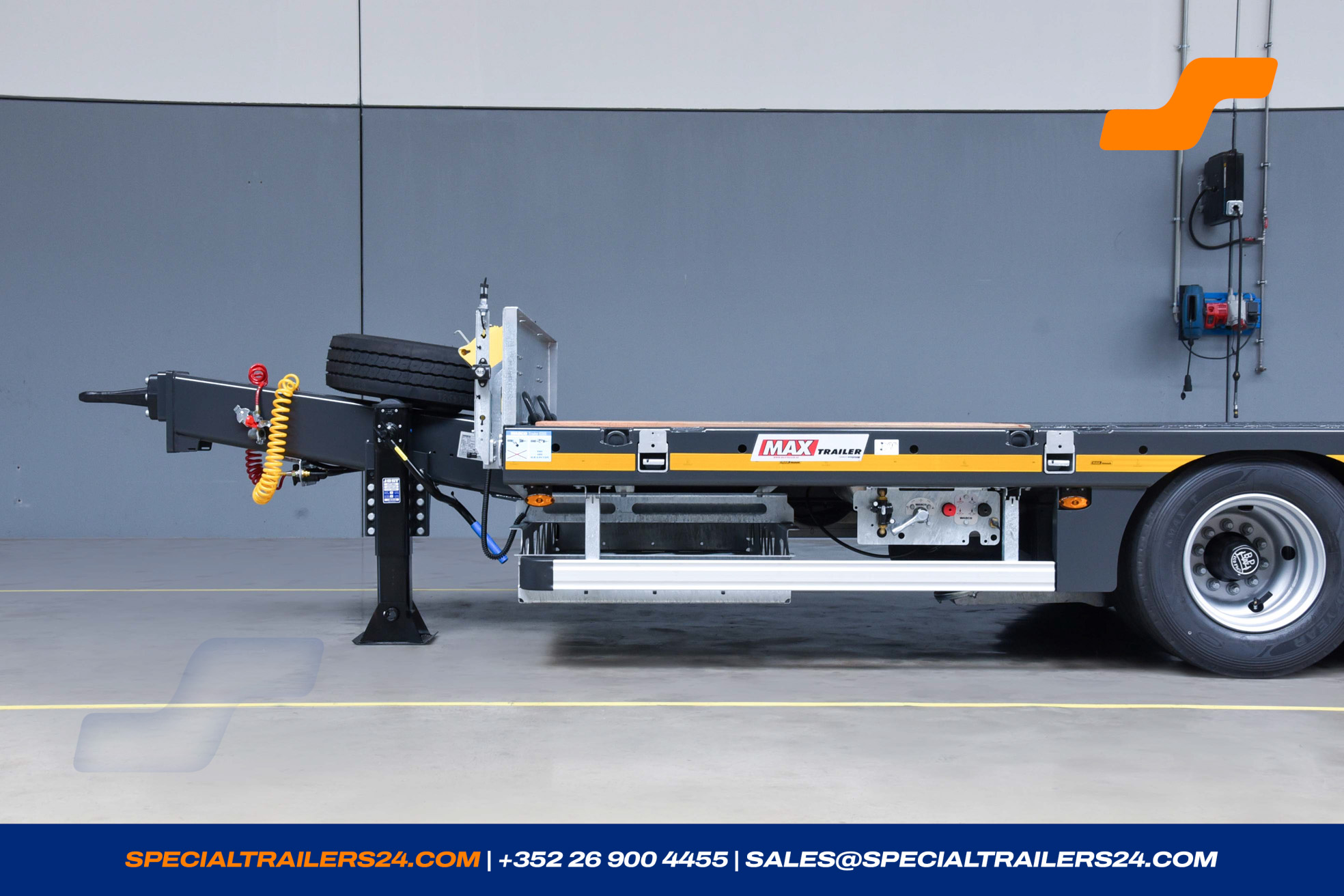

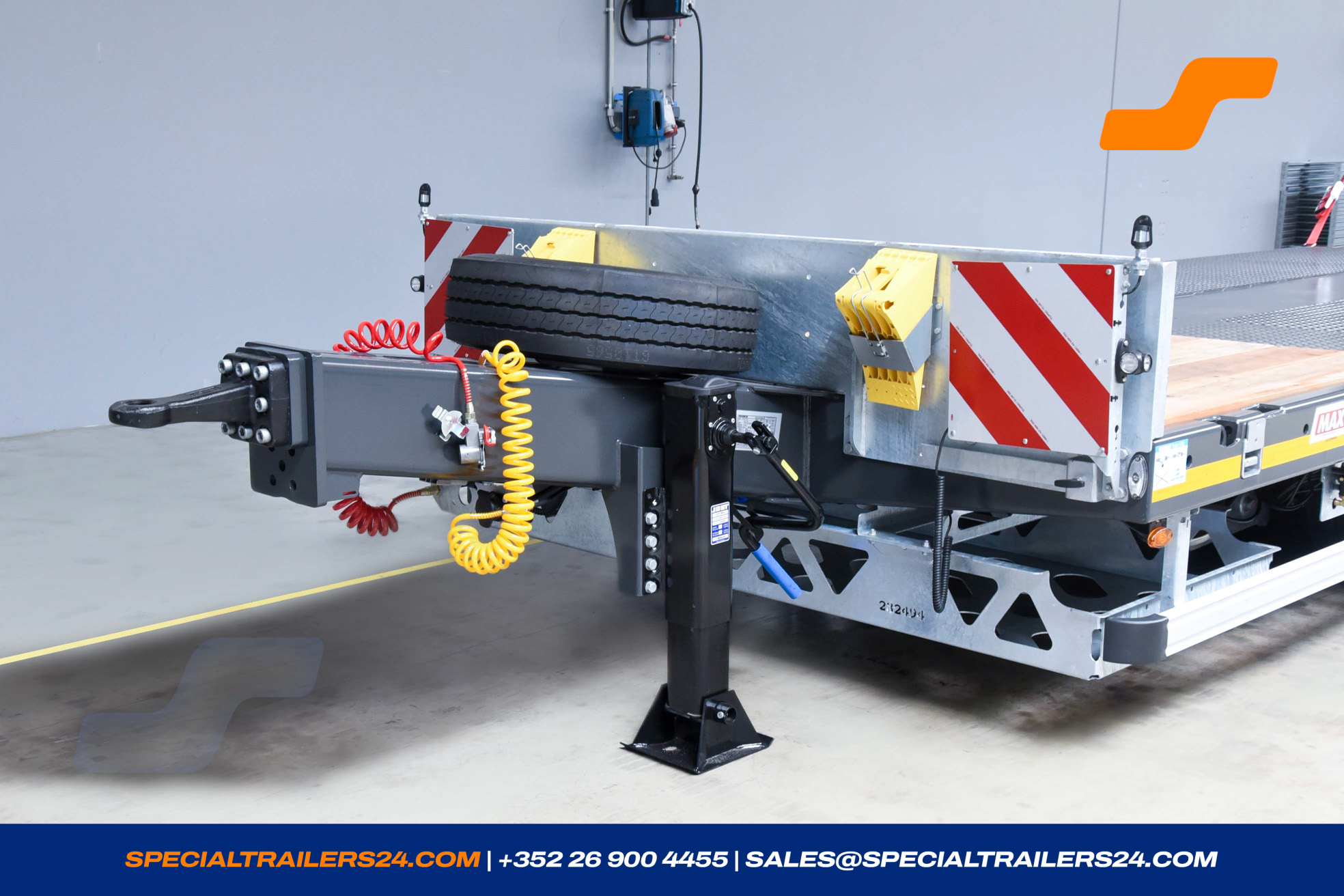

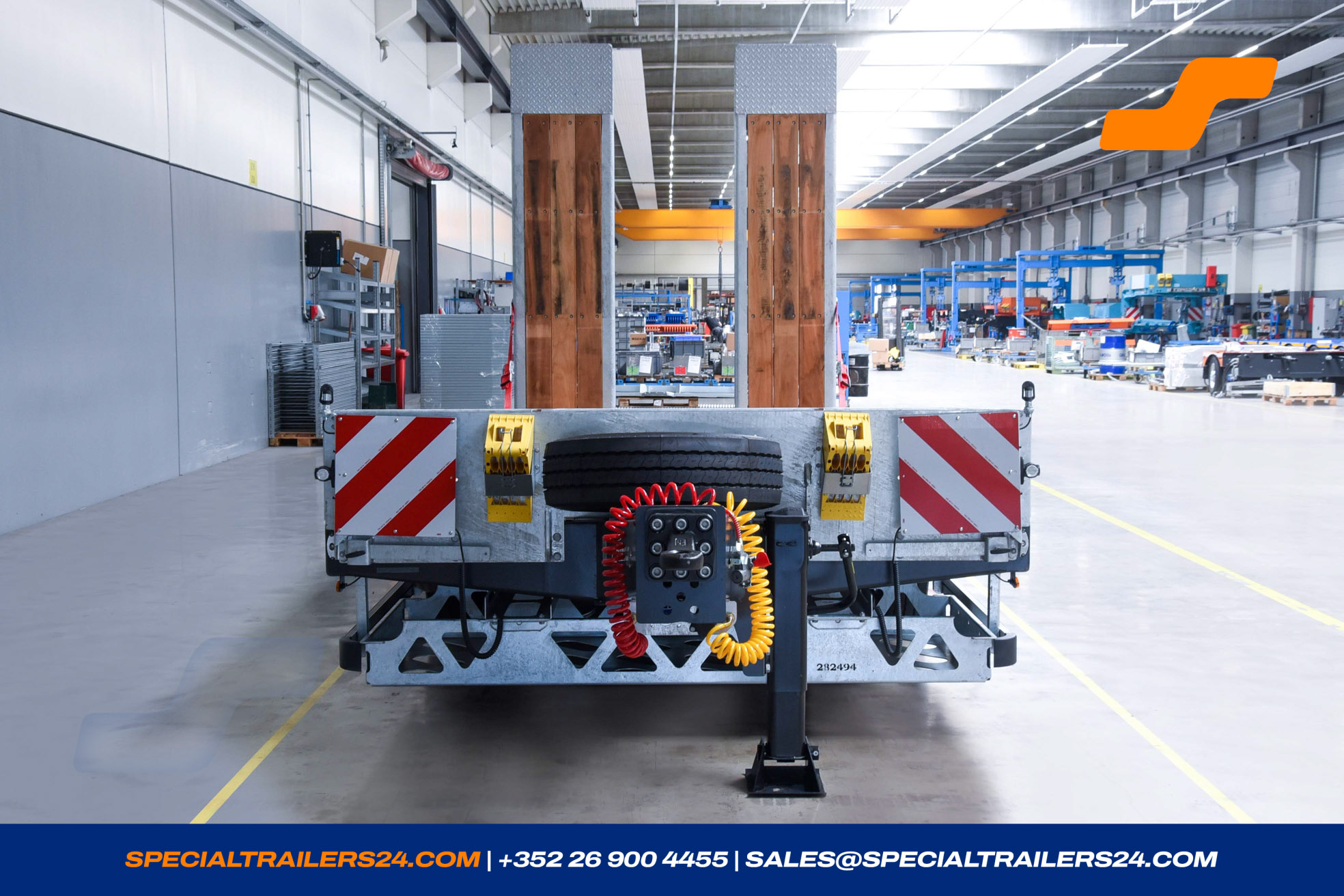

- One ± 1 750 mm long drawbar, towing eye (50 mm Ø).
- 2 wheel chocks with carrier on the headboard.

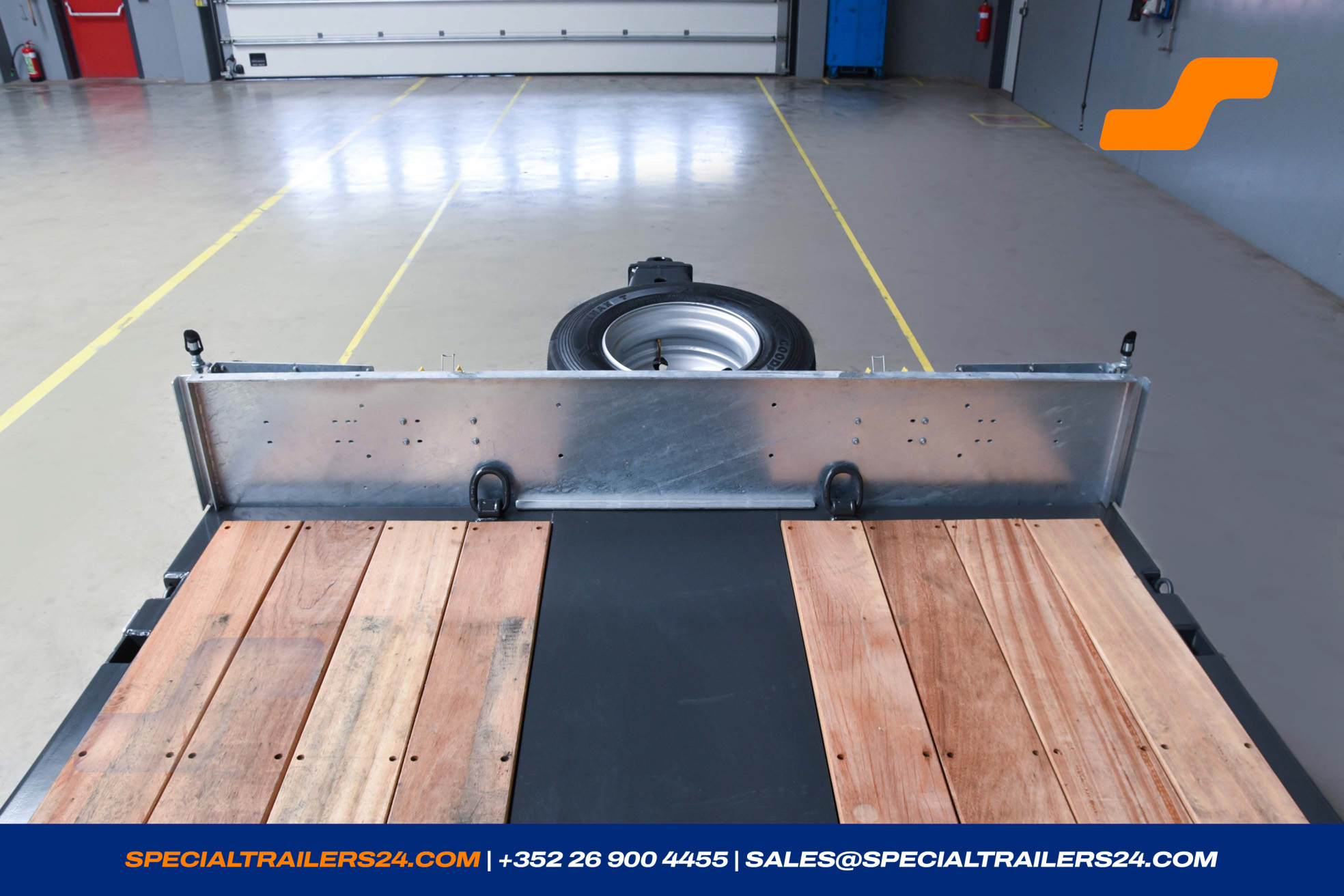

- One galvanised steel headboard, height ± 400 mm.

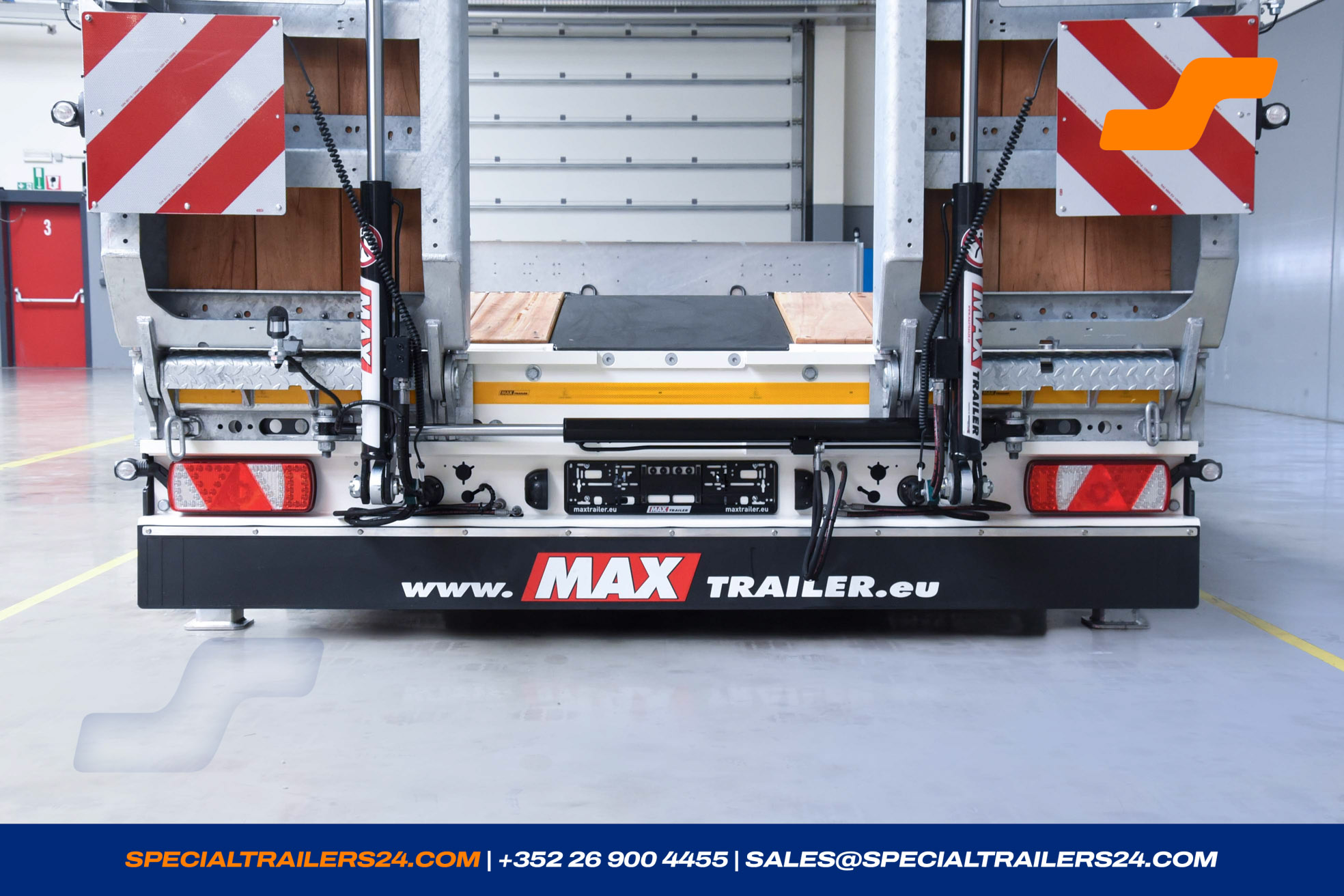

- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- 1 mechanical landing gear at the front of the trailer.

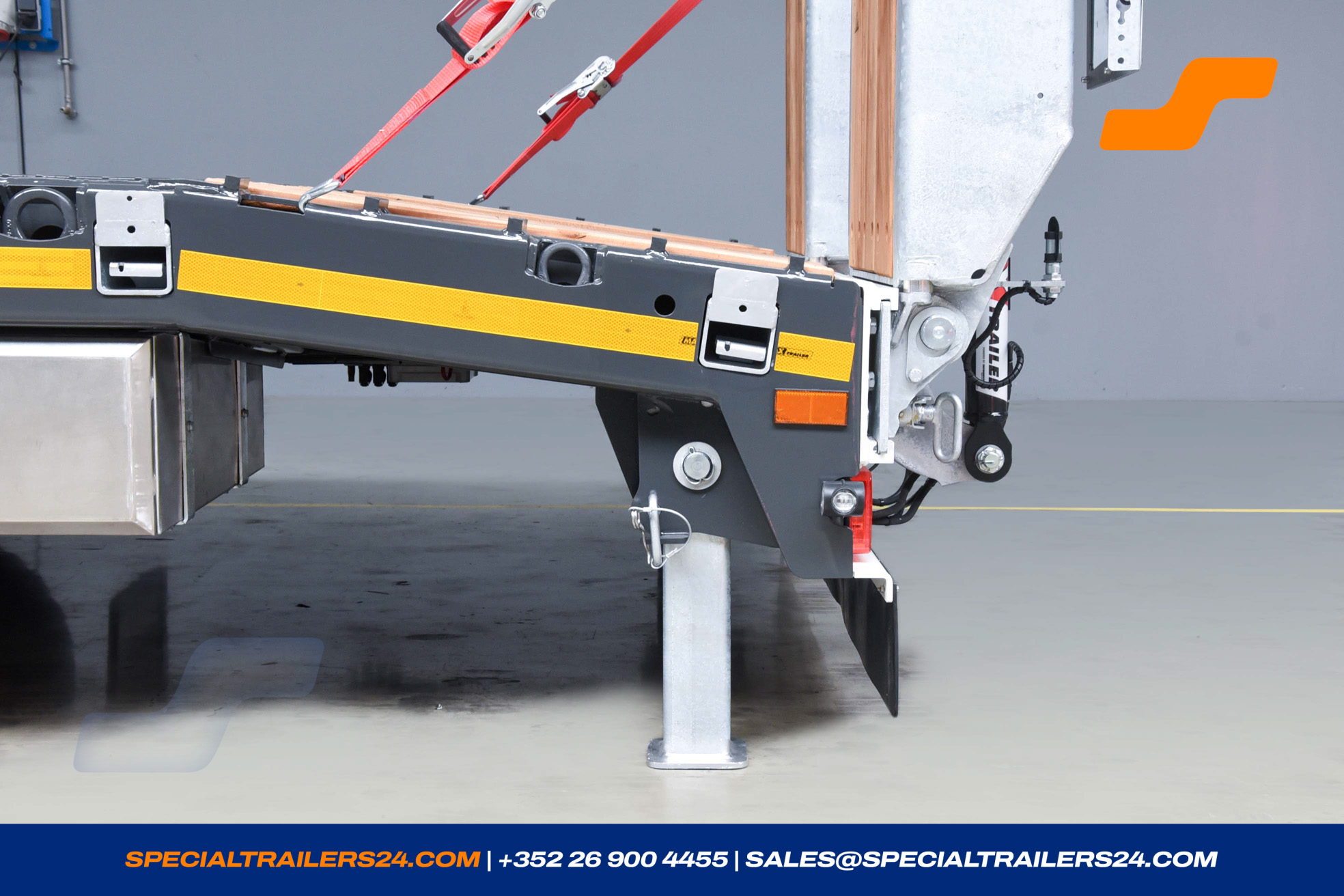

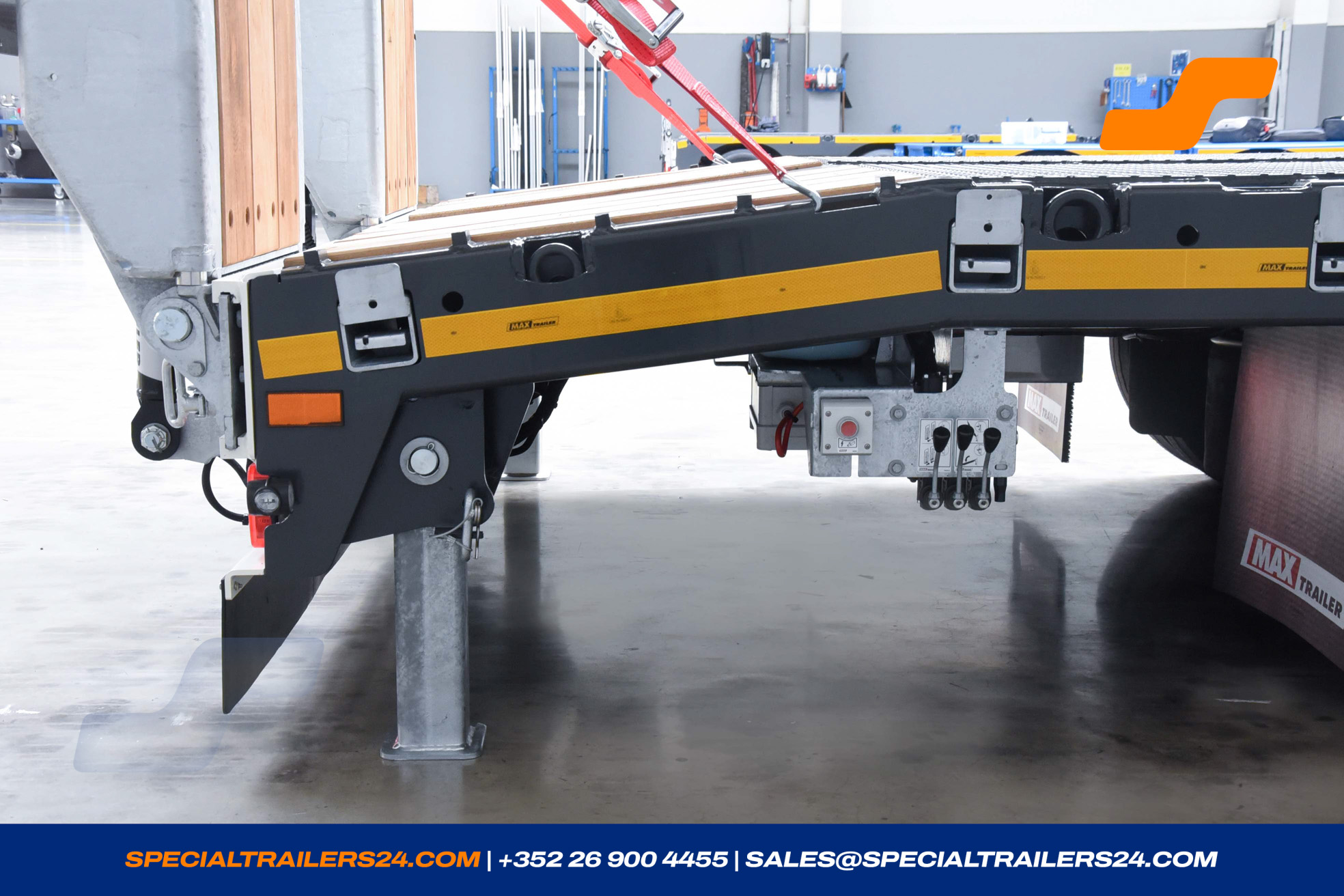

- Galvanised landing gears at the rear under the loading platform.
- Spare wheel holder with spare wheel mounted on the drawbar.
- Holder for one beacon light at the rear of the trailer.
- Yellow reflective tape according to the EU regulation over the entire length and at the rear.
- Electrically operated hydraulic pump at the rear under the loading platform (± 45kg).
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
- Spiral cable 15/2x7 poles.
- Spiral cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 160 A) between the semi-trailer and the truck with socket (ANDERSON-ANDERSON).
- 2 pairs of containerpockets WADER incorporated into the loading platform for 1 x 20'. (± 20 kg)

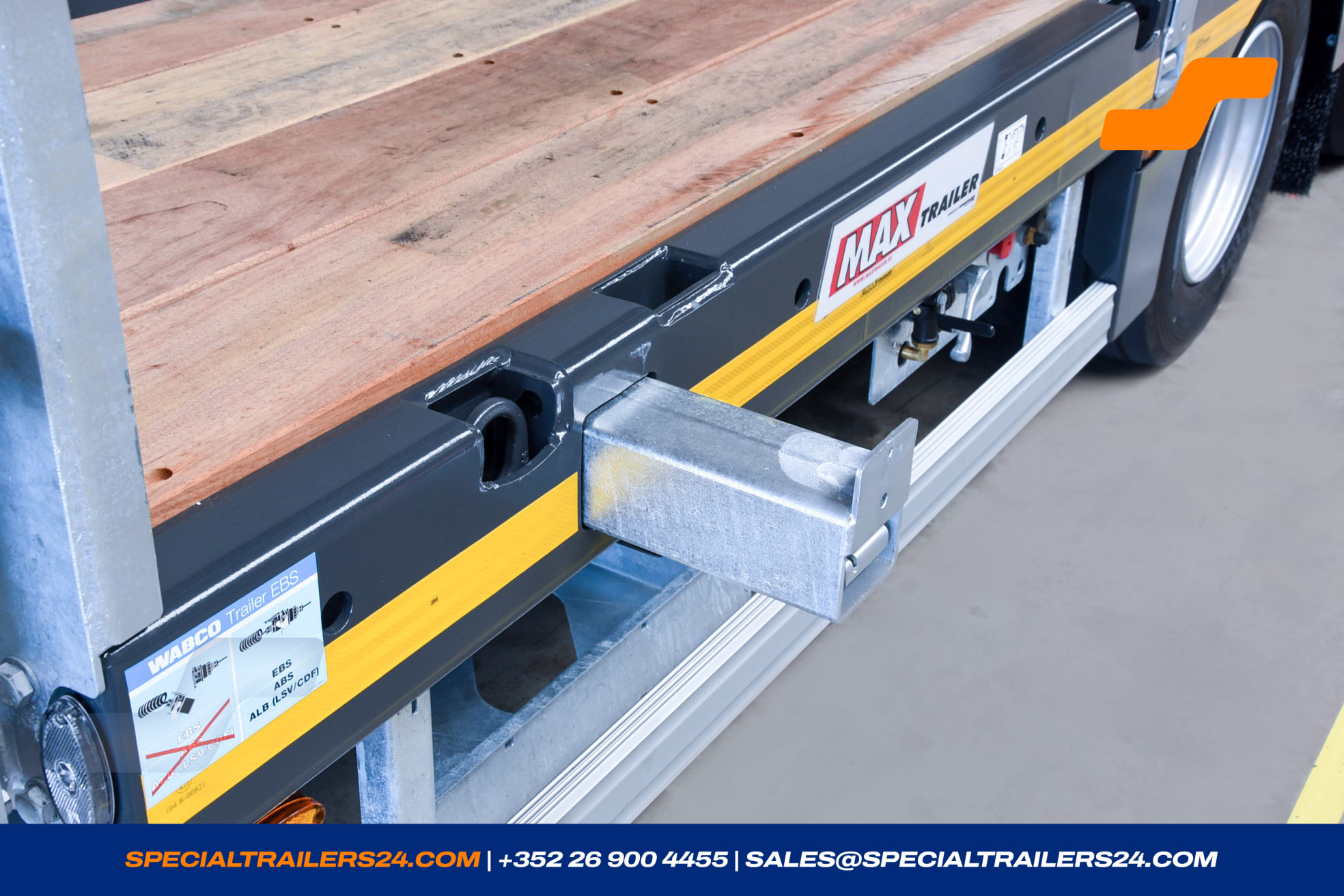

- 5 pairs of pockets for stakes ±100 x 50 mm in the outer frame of the loading platform (± 18 kg).

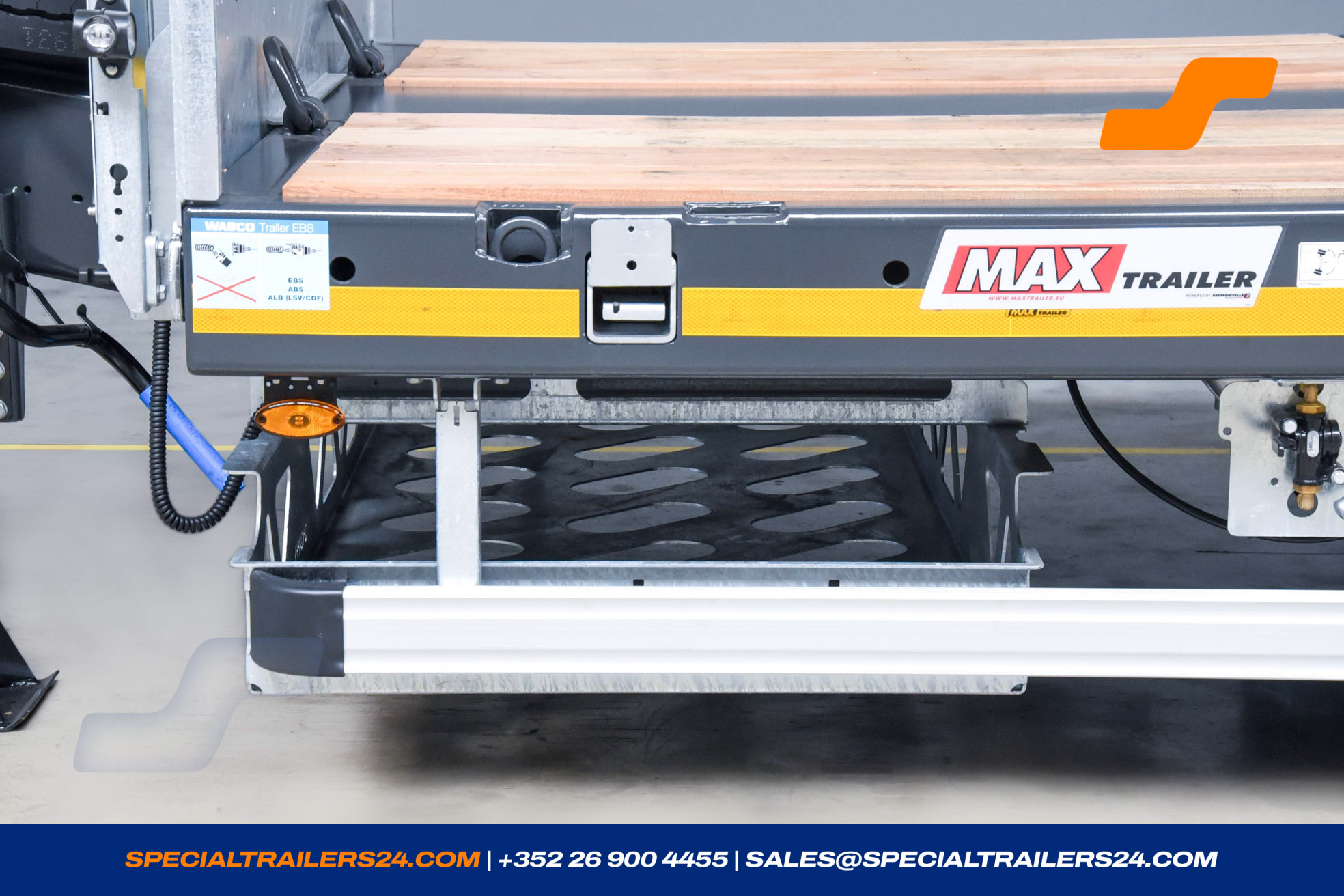

- Galvanised outriggers, extendable up to ± 230 mm per side (± 230 kg).

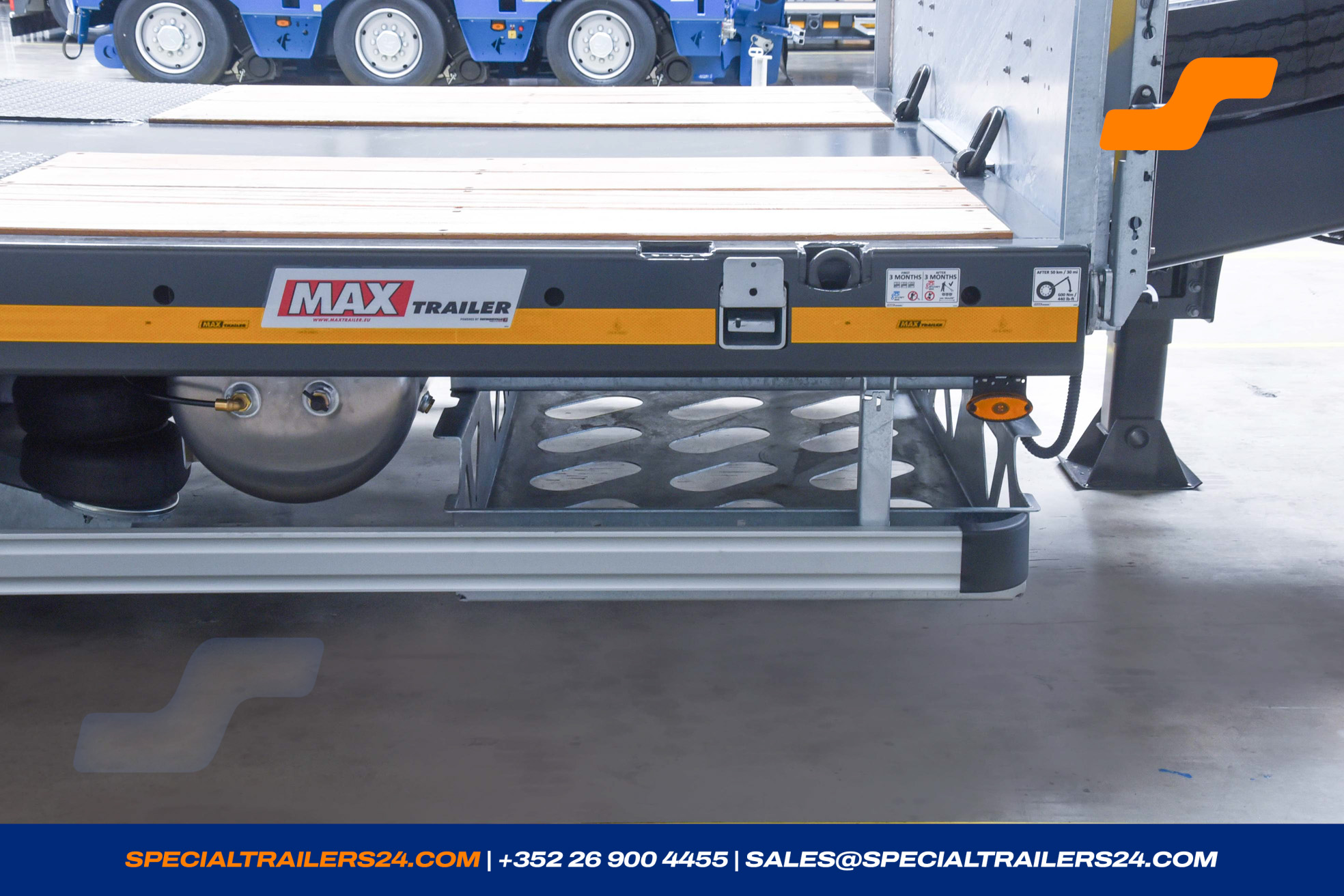

- Galvanised storage across under the loading platform 2 275 x 925 x 245 mm. (± 110 kg)
- Lift axle on the front axle with control by TEBS-E depending on the current axle load and the current loading condition (± 69 kg).

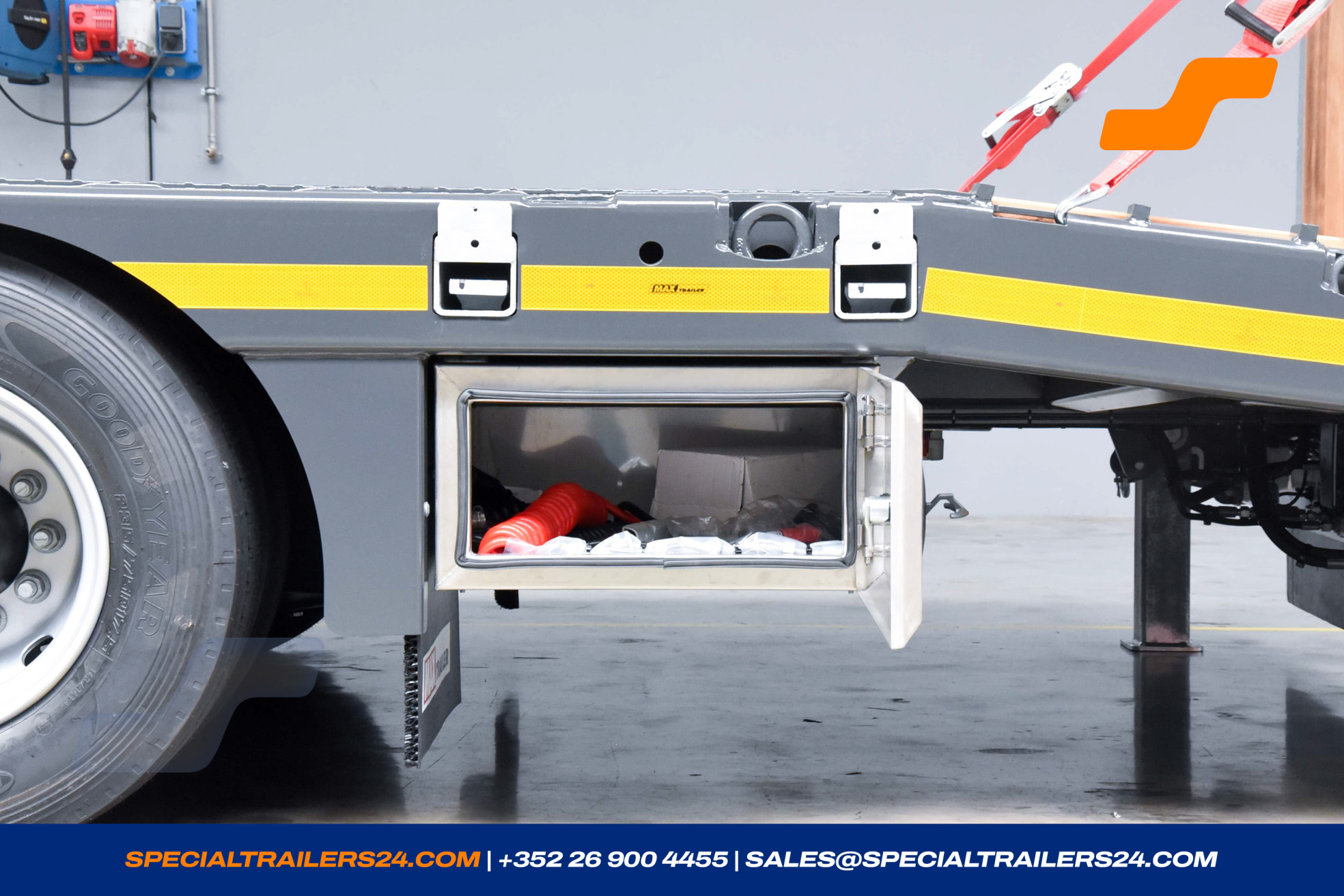

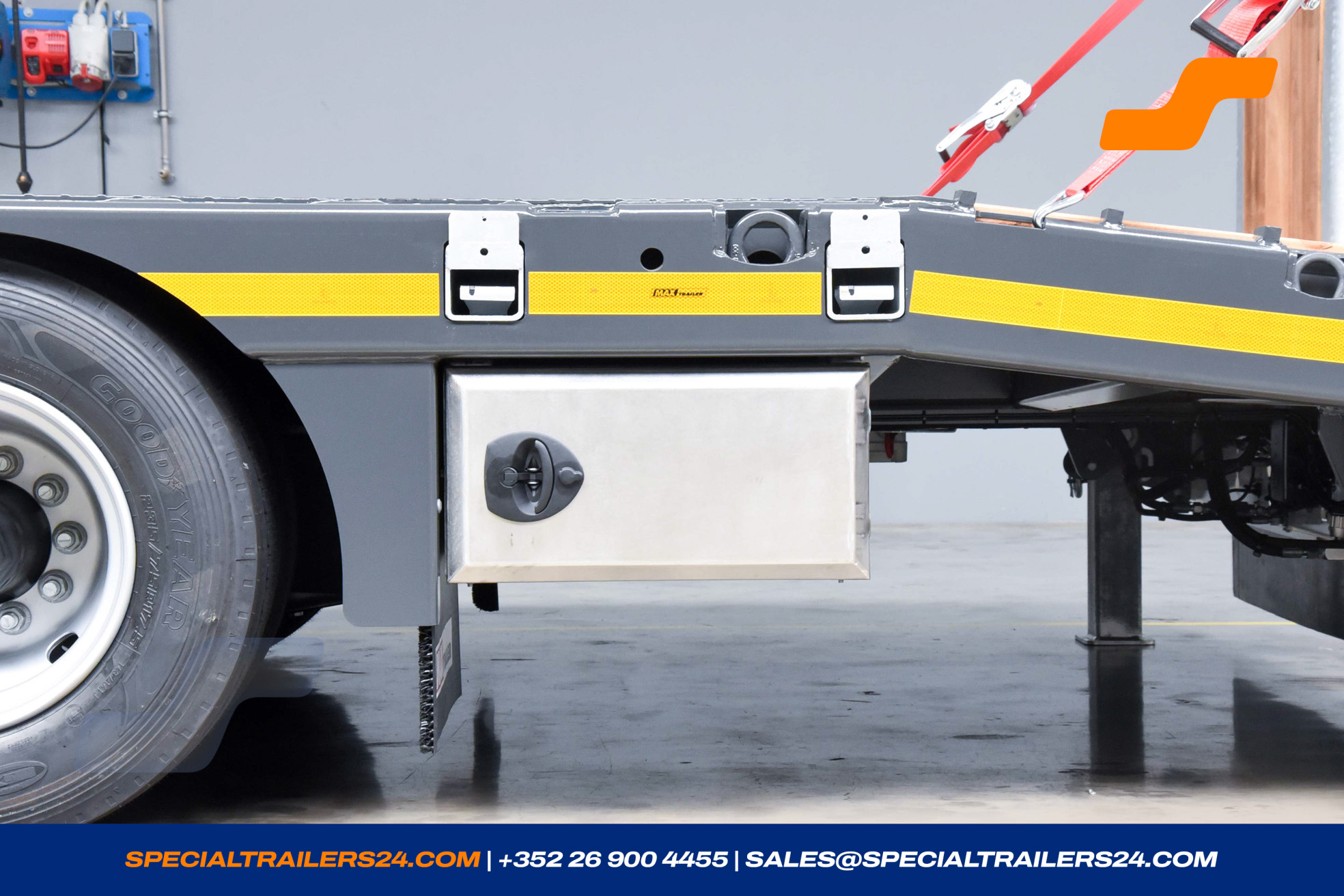

- One lockable tool-box INOX 565 X 290 X 810 under the loading platform in driving direction on the leftt side. (± 45kg)
- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- On the galvanised front connection ledge DUOMATIC air couplings.
Ramps

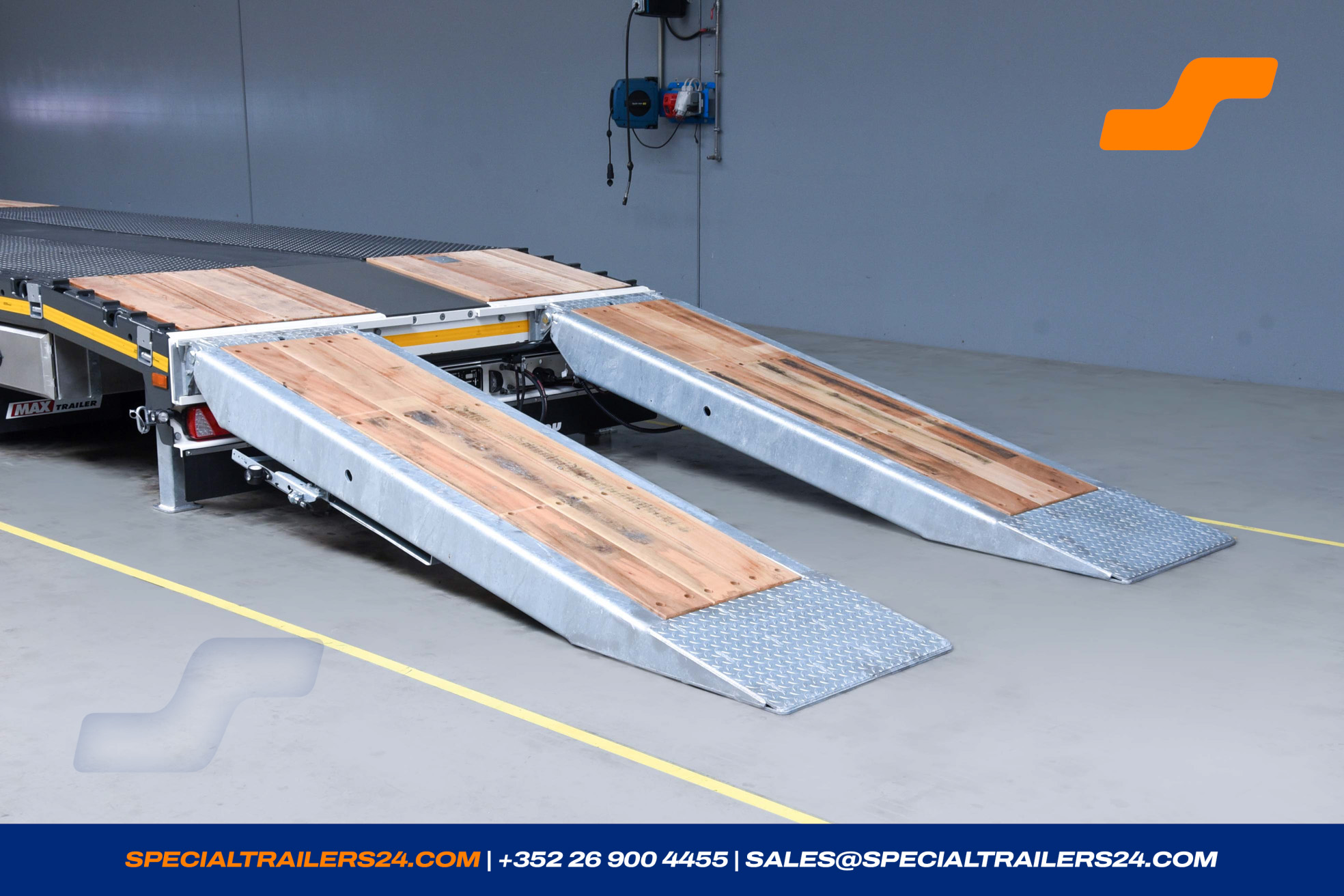

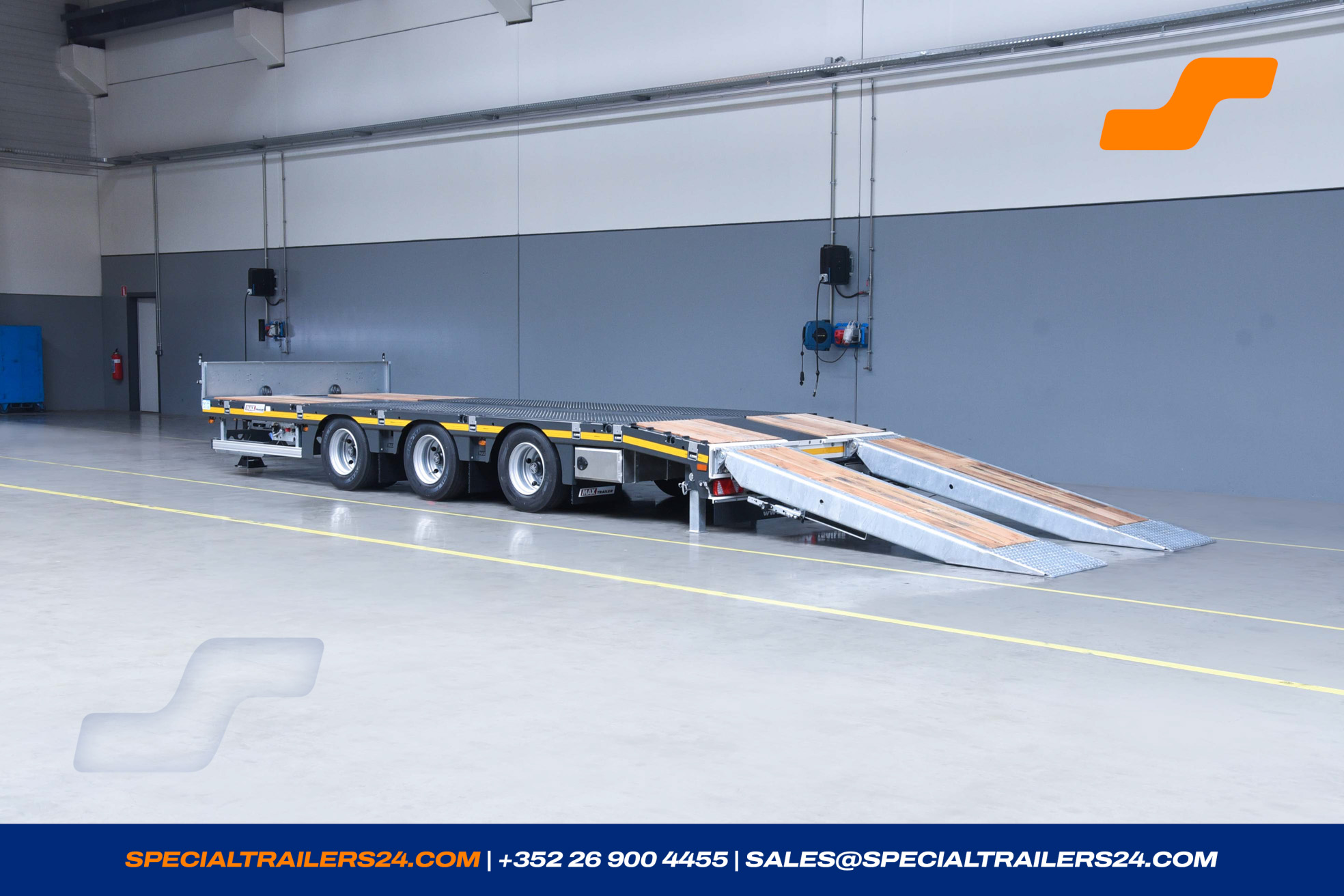

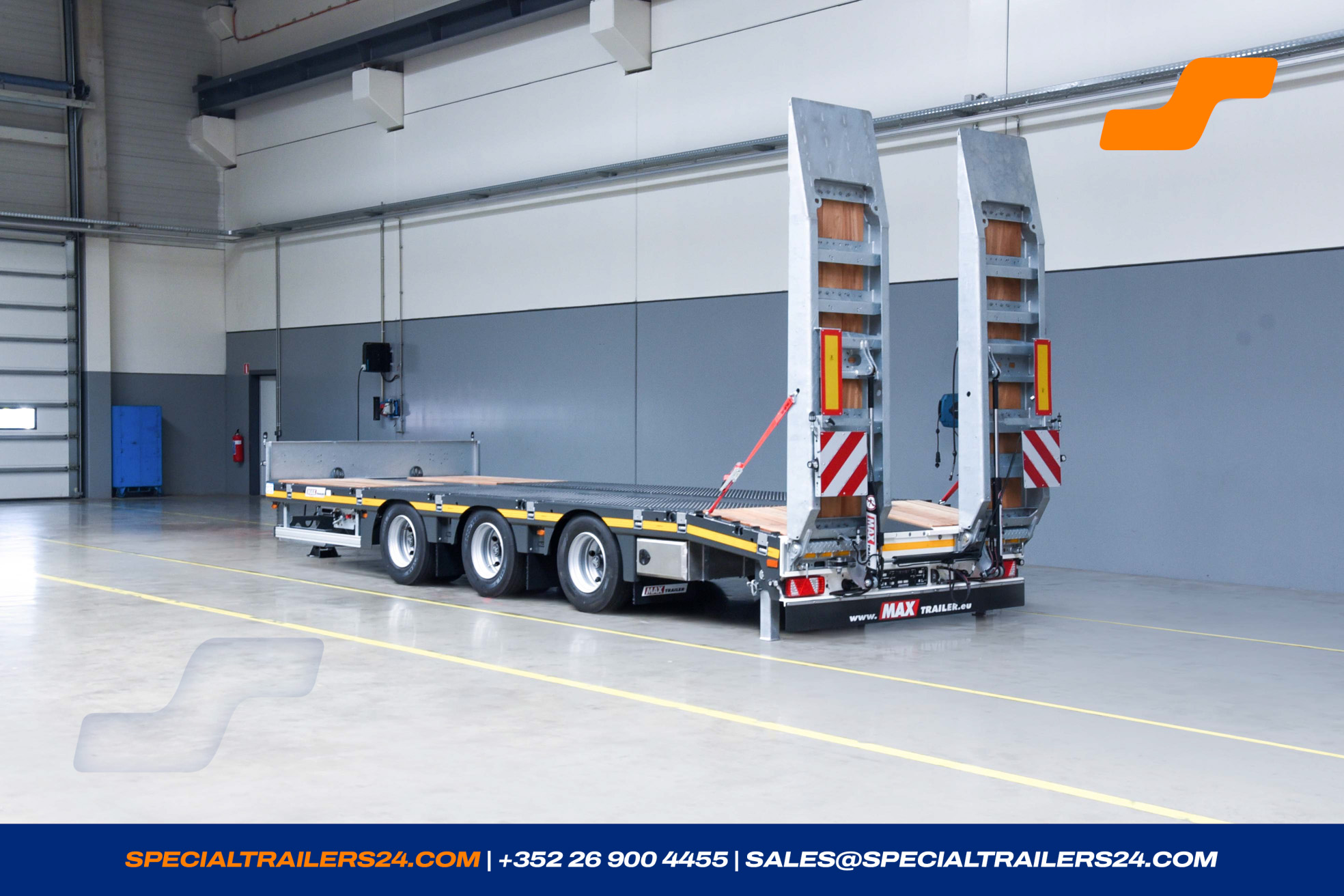

Hydraulic loading ramps

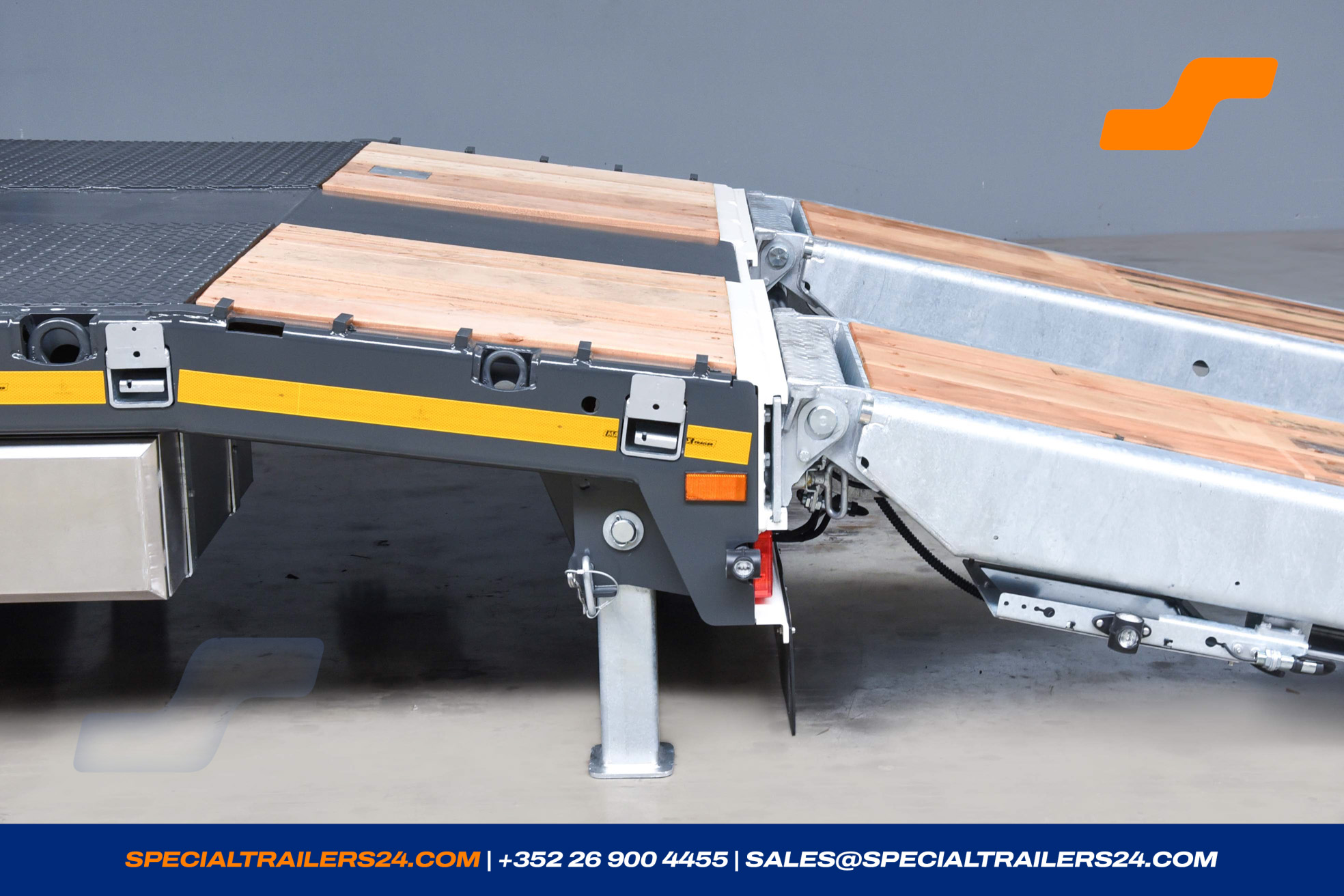

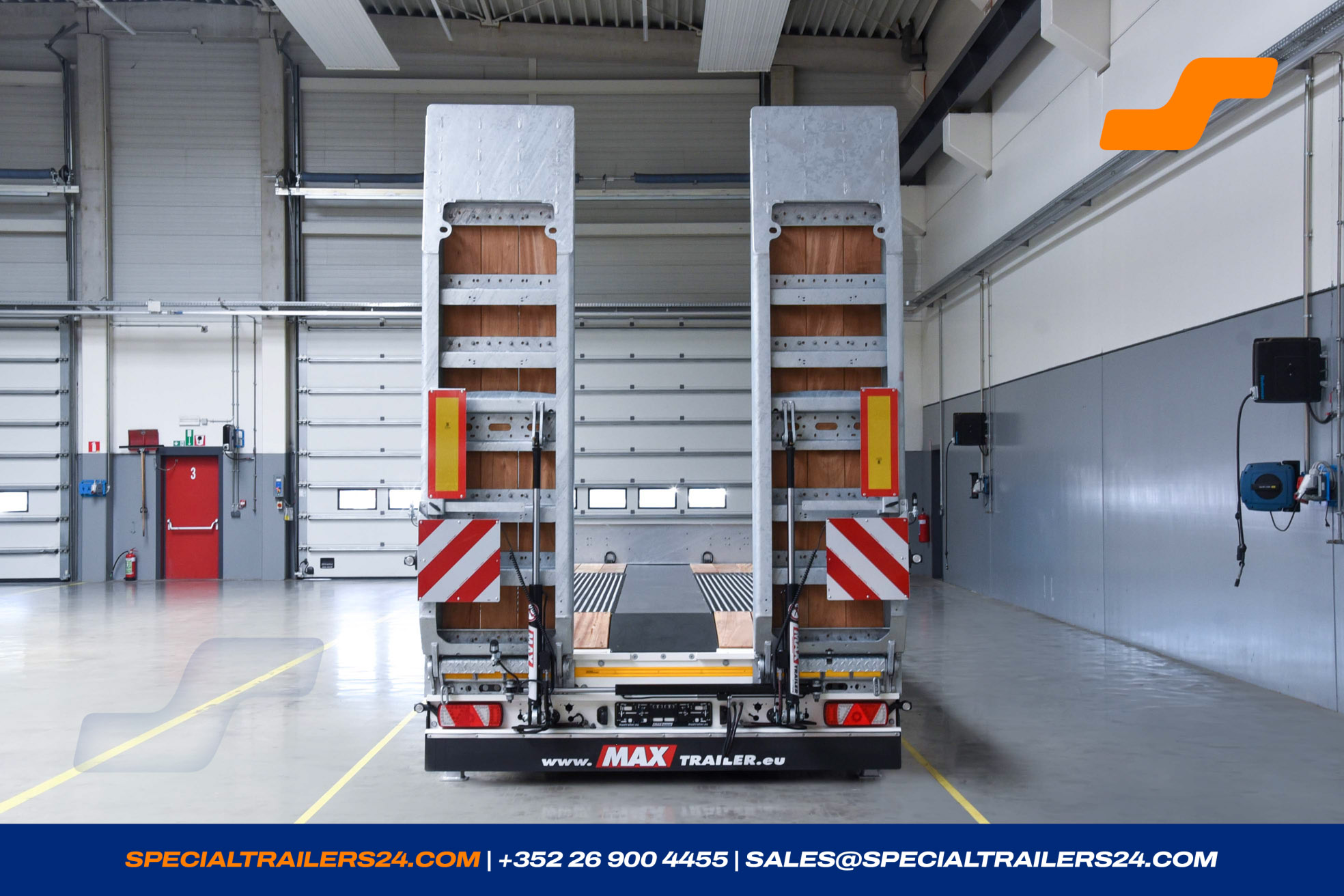

1 x Steel single piece ramps : ER-800-HH-40-HB-HVA

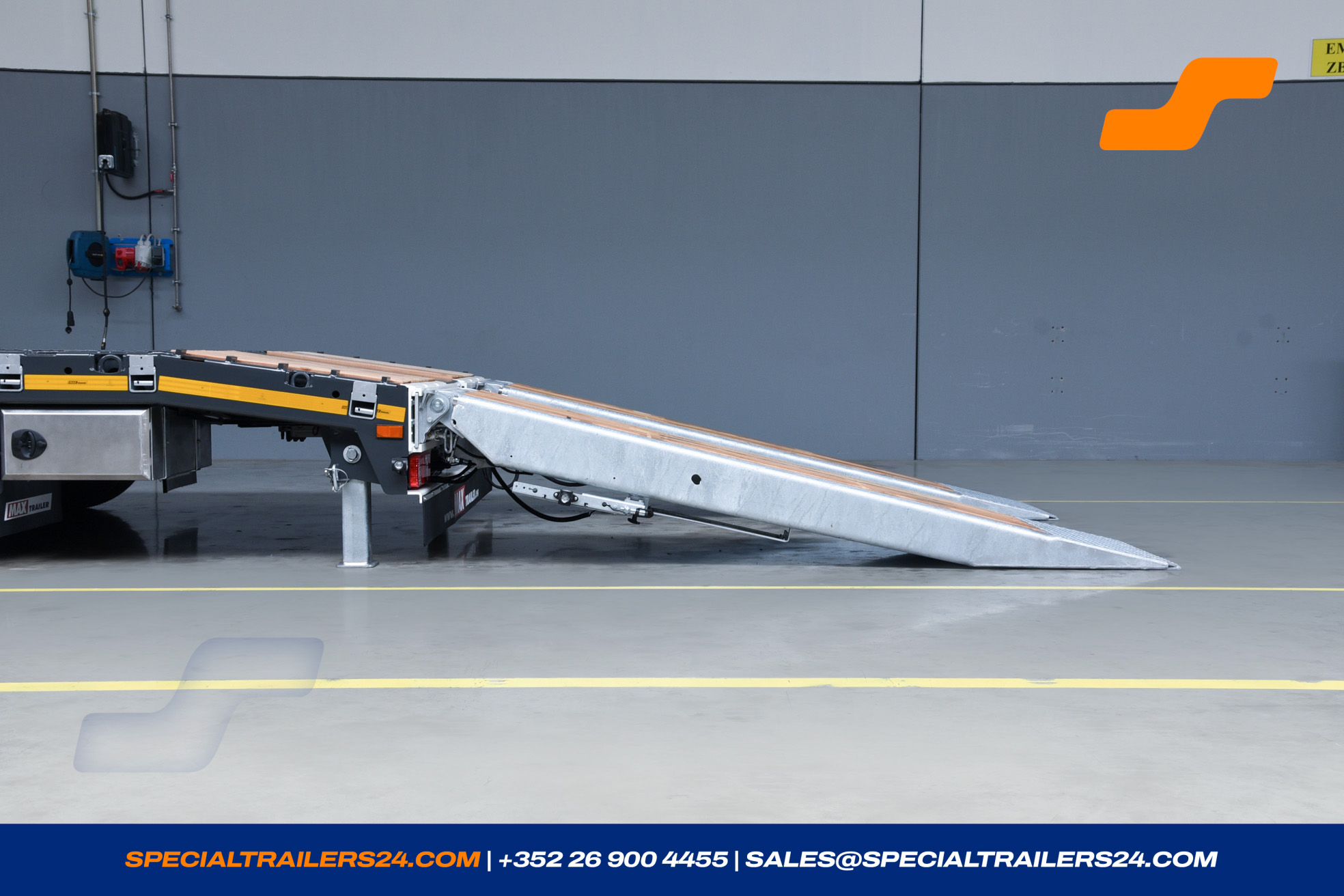

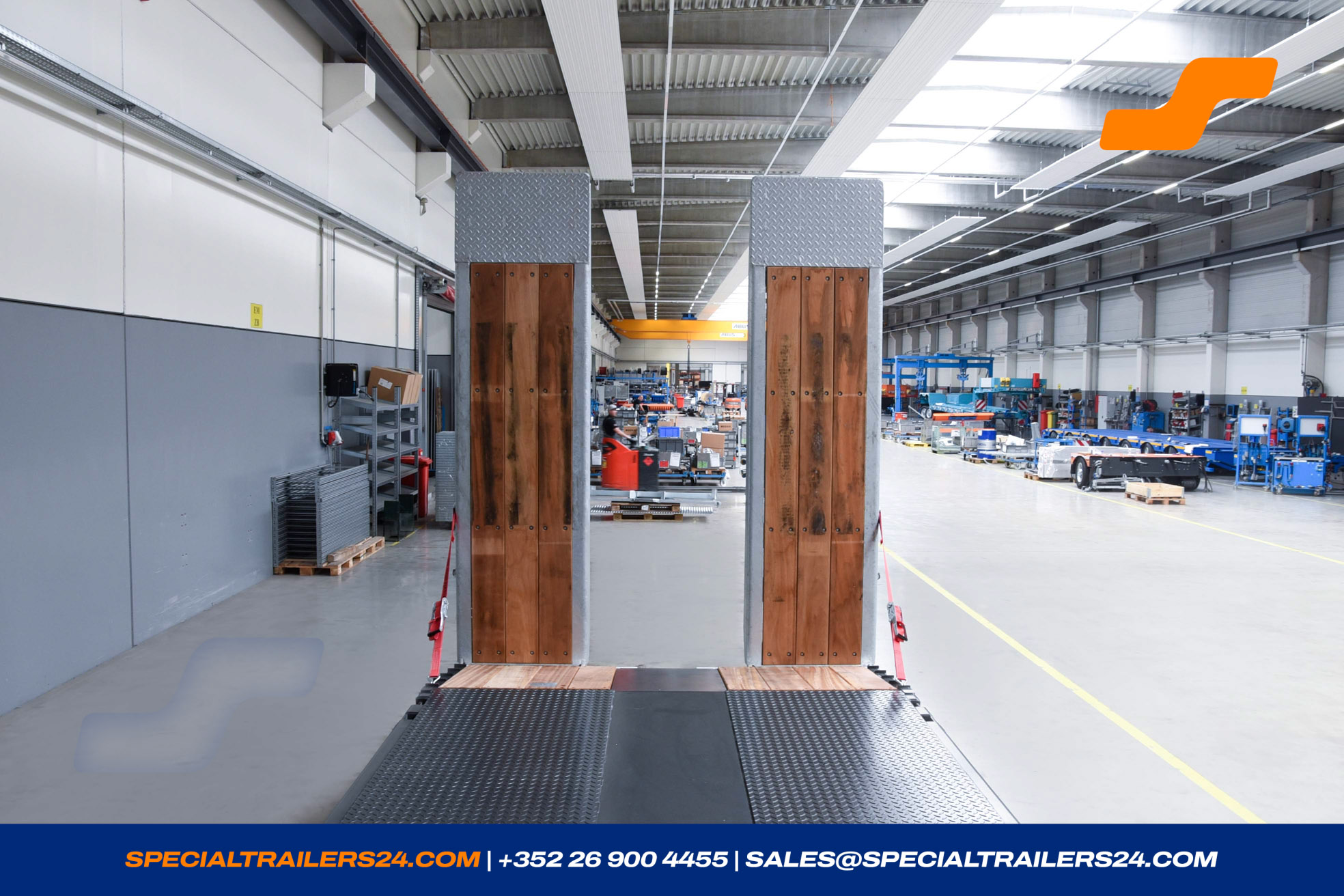

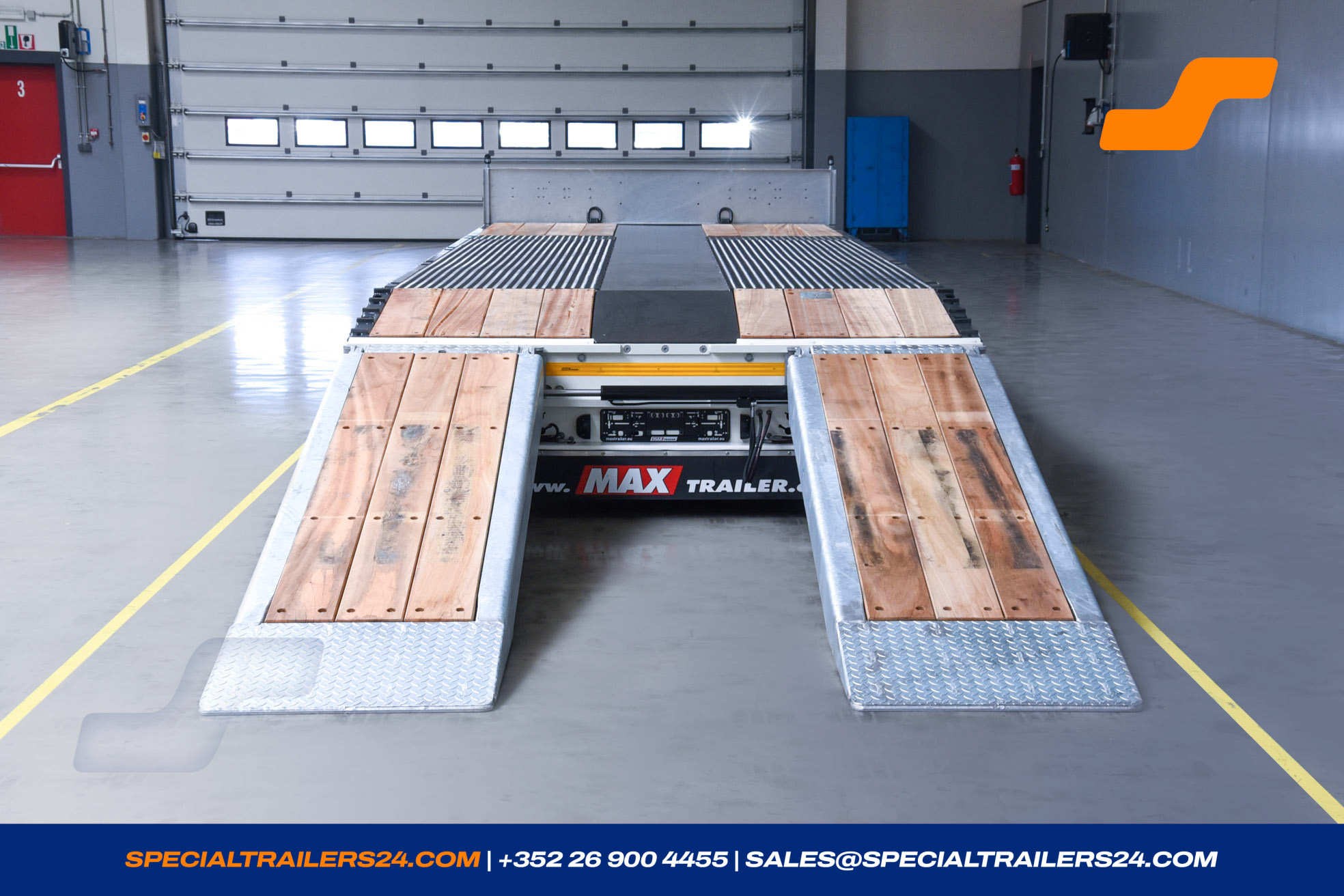

1 pair steel single piece ramps galvanized ca. 3 000 x 800 mm with ca. 48 mm hardwood cover.
Ramps hydraulically operated and hydraulic side shift.
Maximal charge for one pair: 40.000 kg

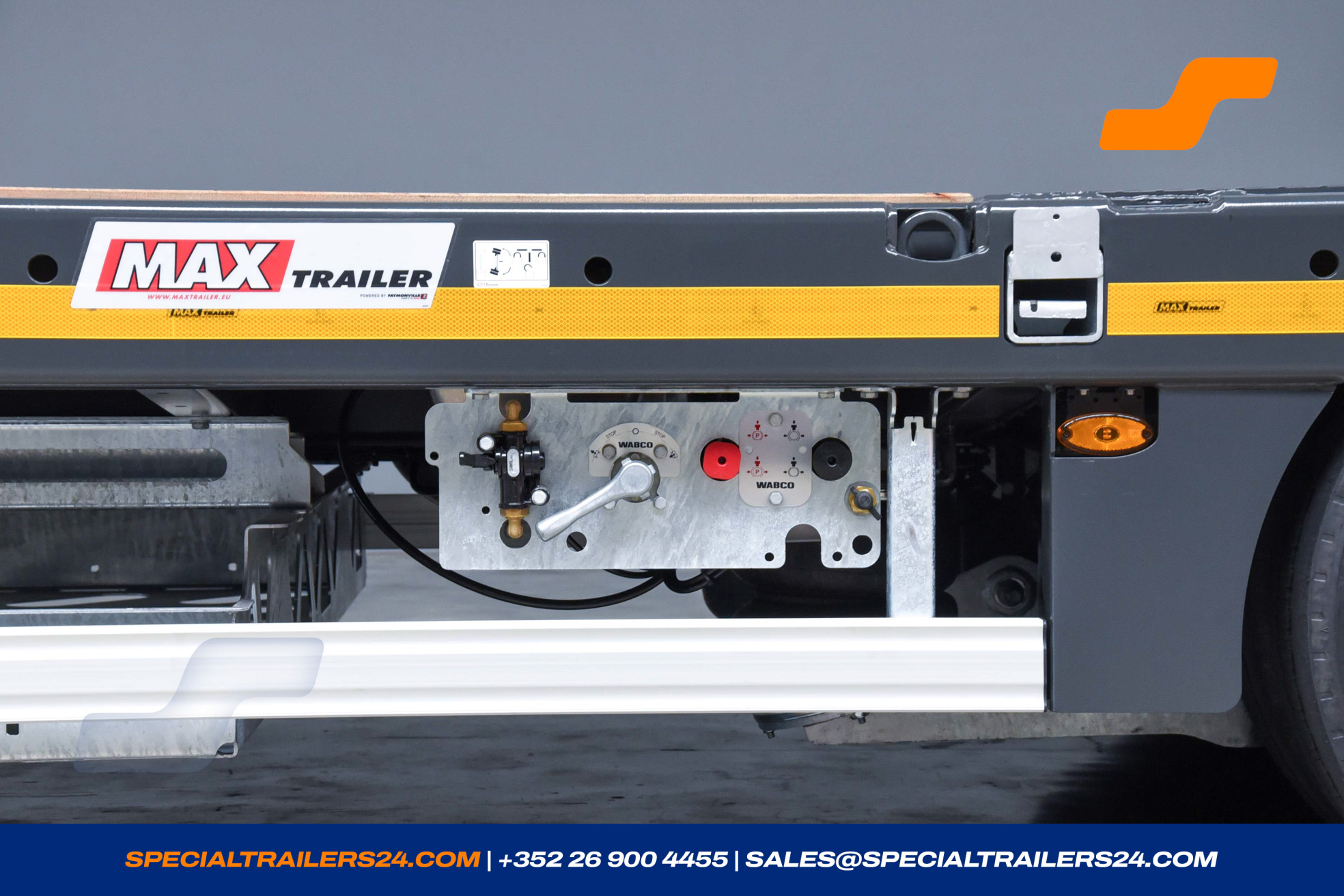

- Operated valve for ramps mounted on the right side (± 4 kg).

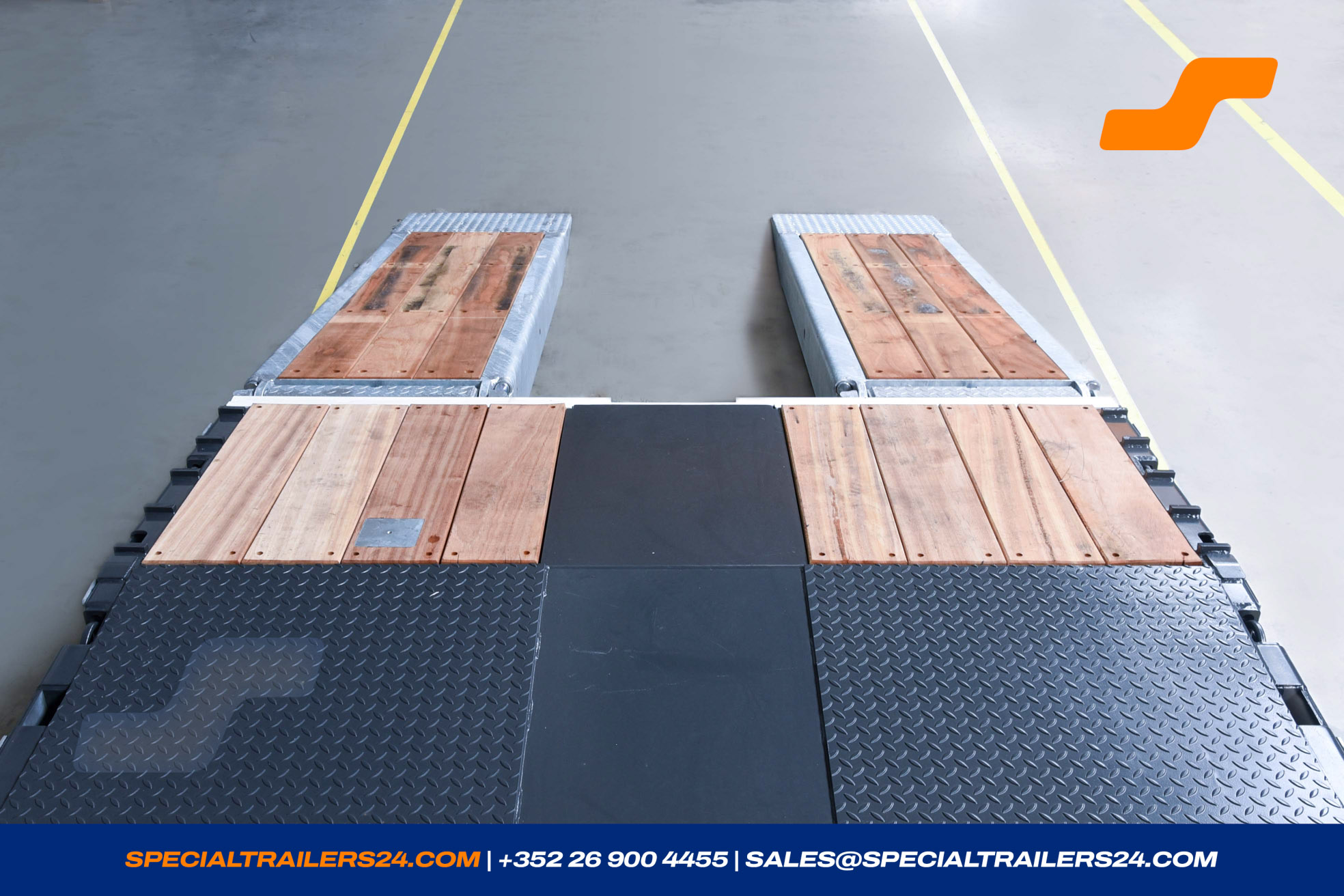

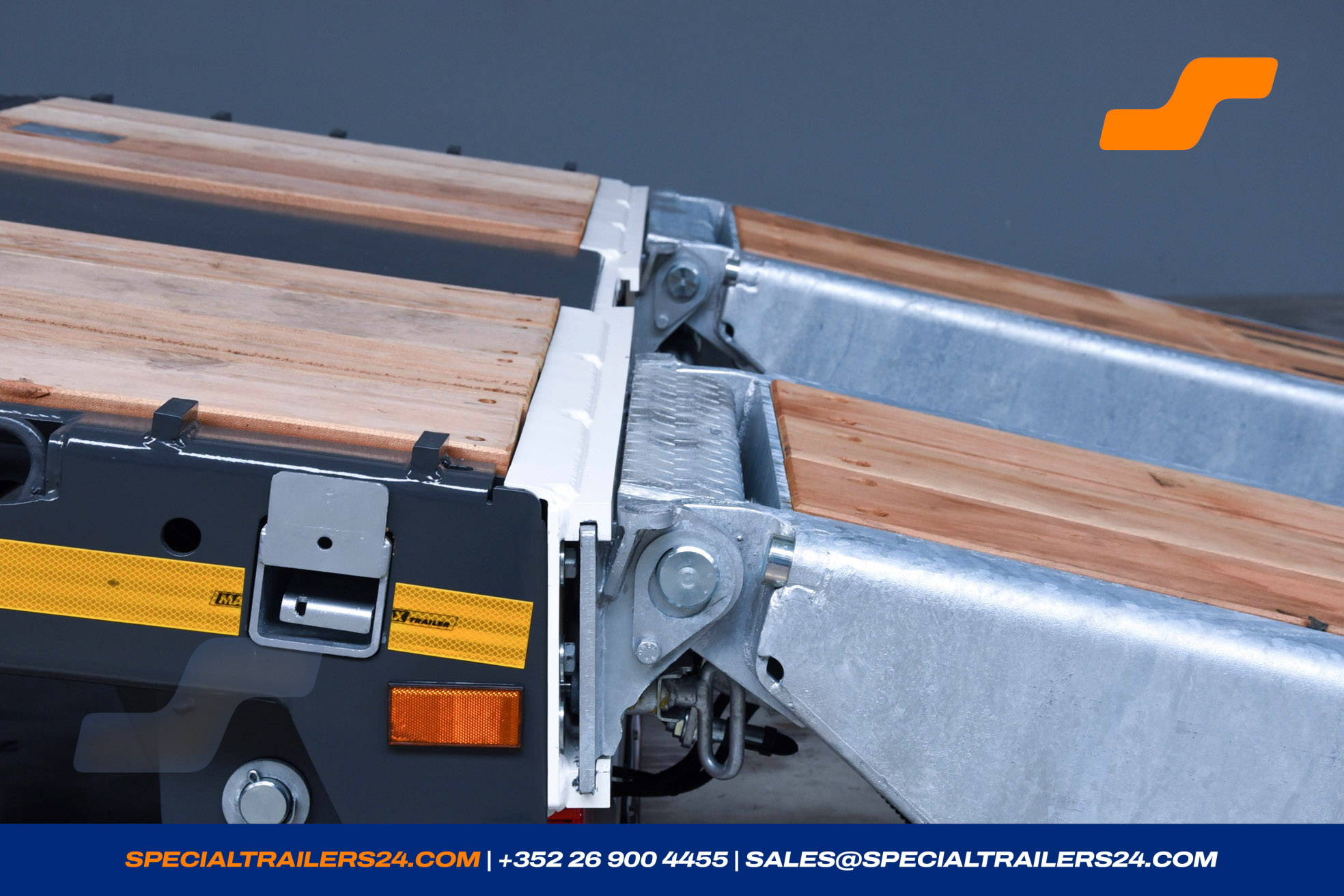

- Cover plates to bridge the clearance between ramps and loading area (± 17kg).
- Assembly of the single ramps on the semitrailer.
Accessories
1 x Accessory
MAX300-Accessory
- Manual and description on USB stick .
- 2 LED- reversing lights at the rear.
- Delivery from a trailer to factory Lentzweiler.
