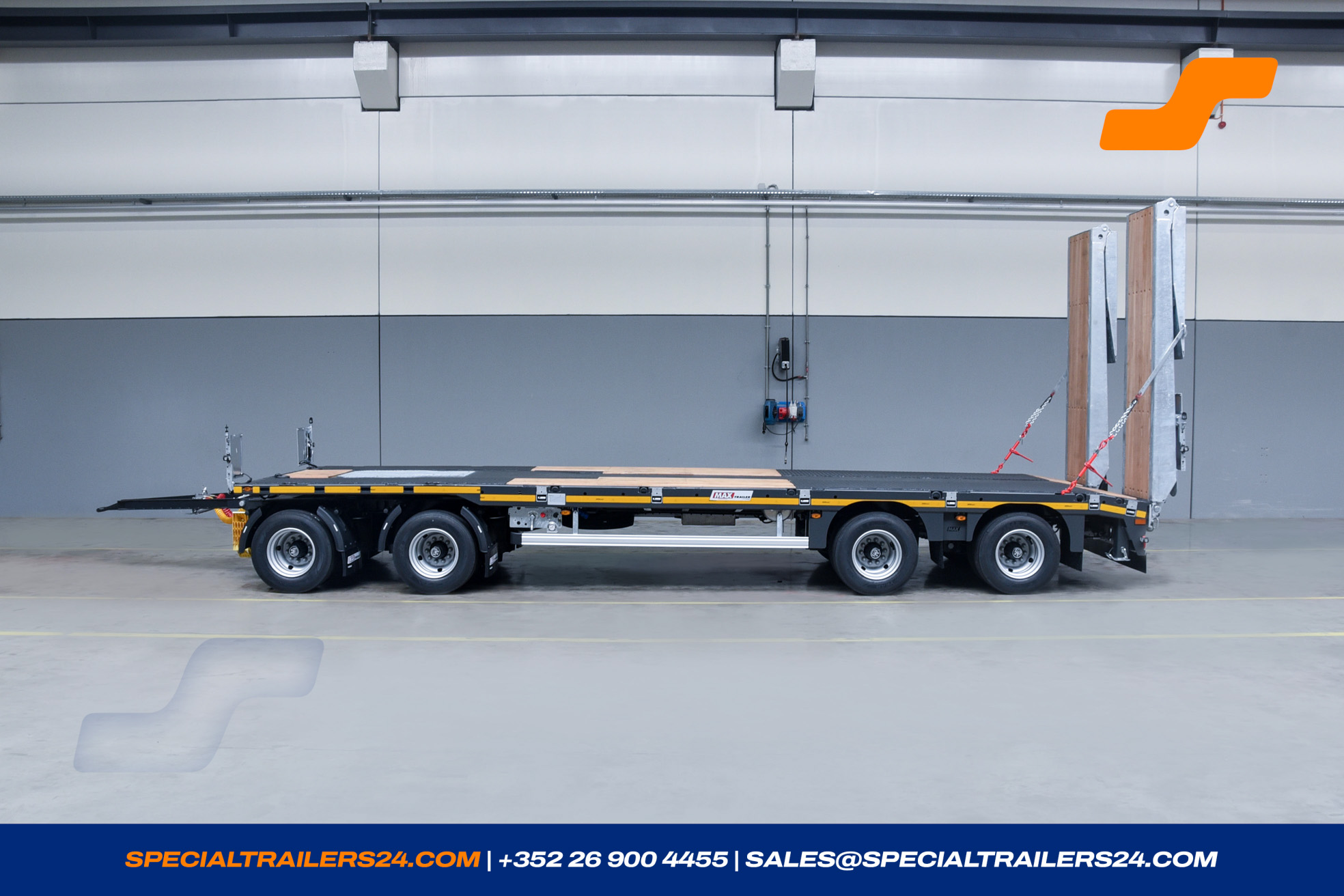

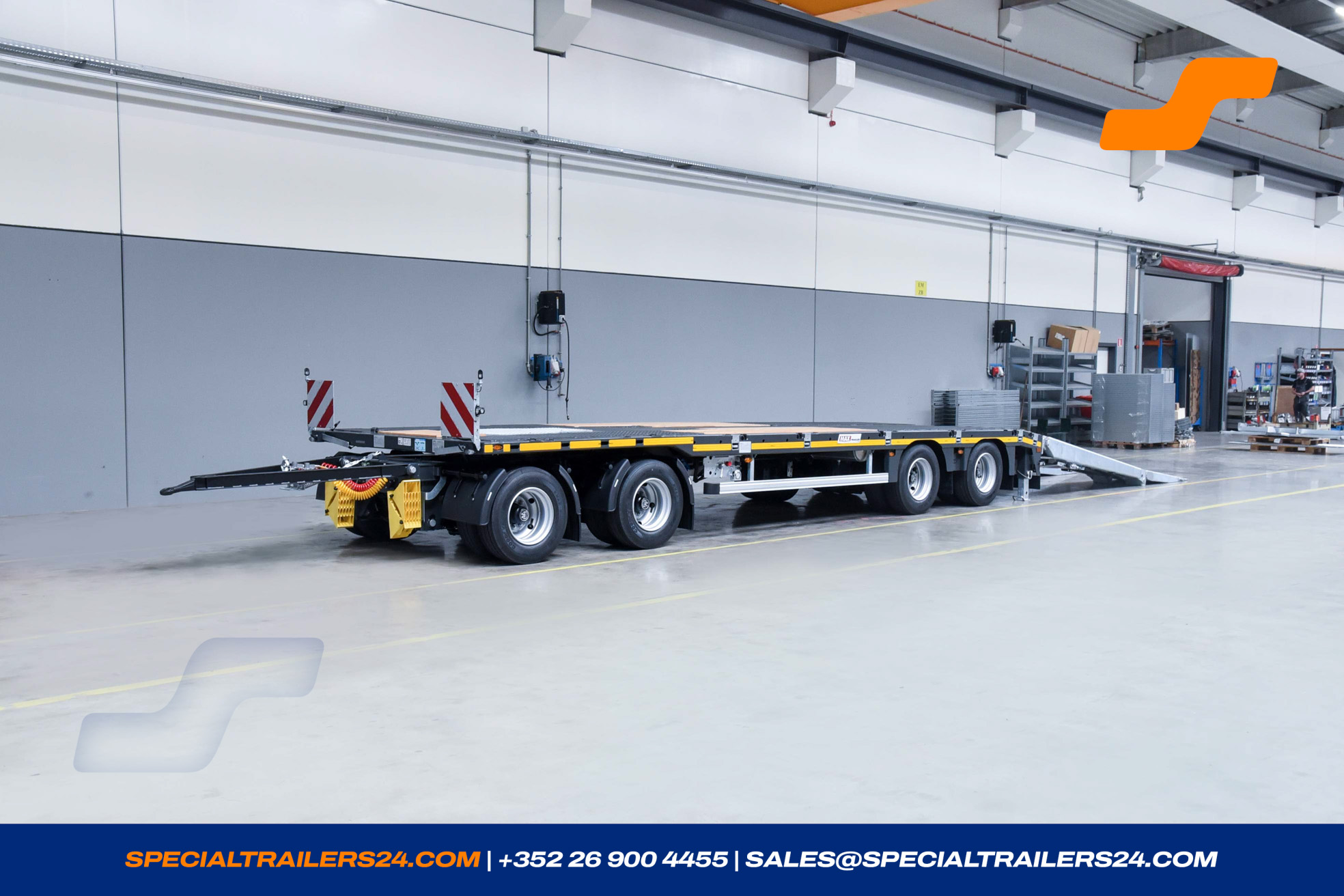

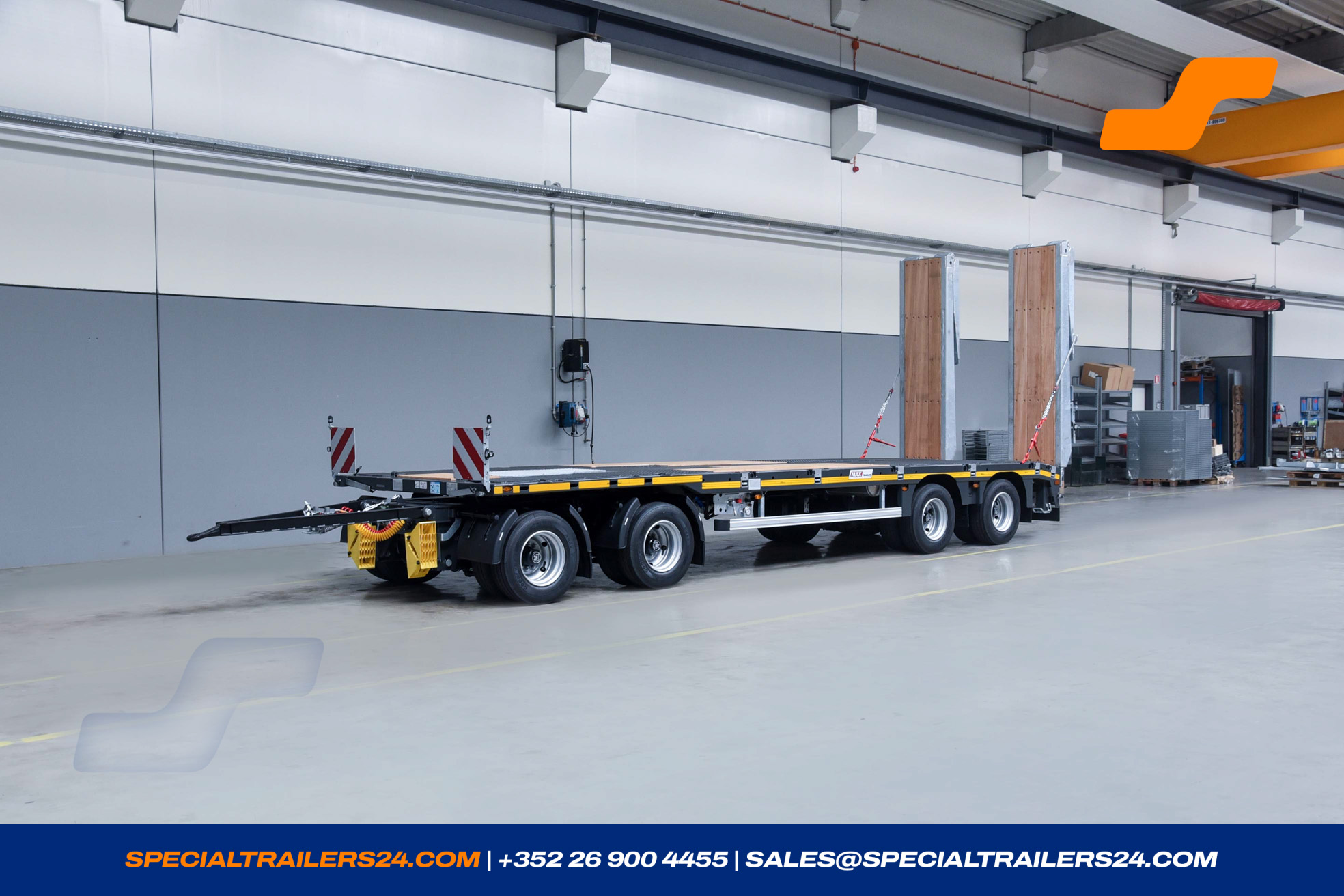

MAX Trailer MAX600
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111714
- Reference MAX600-S-4-8.60-U
- Number of axles 4
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 07/2026
- Steering Type Rigid
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| Axle load | 42000 kg |
| Gross weight | 42000 kg |
| Tare weight +- 3% | 8851 kg |
| Payload | 33149 kg |
Dimensions
| Loading platform length | 8 600 mm |
| Total width | 2 540 mm |
| Loading height at max. load | 900 mm |
| Wheelbase | 1 360 mm |
| Suspension stroke | -55/ +145 mm |
Loading deck

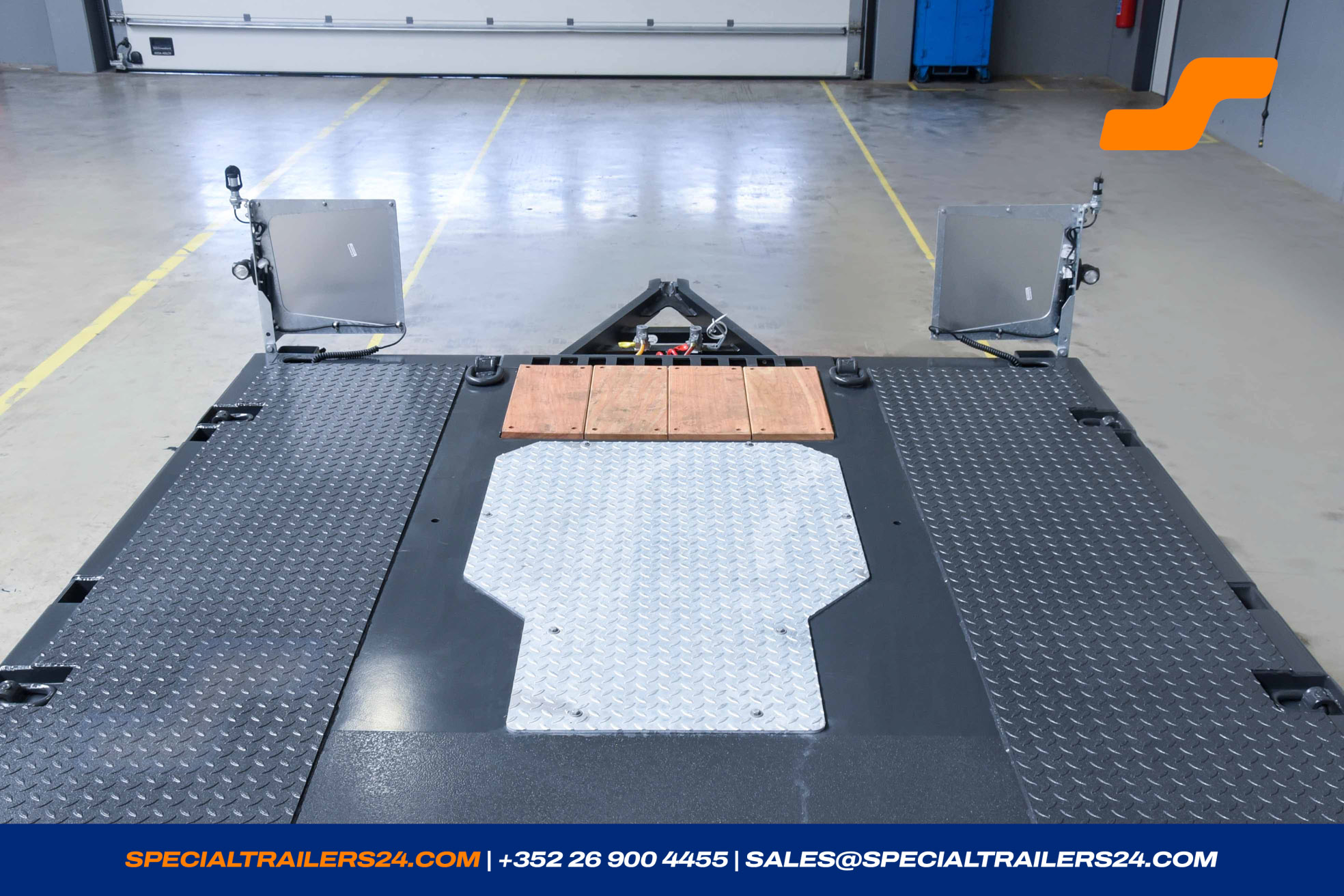

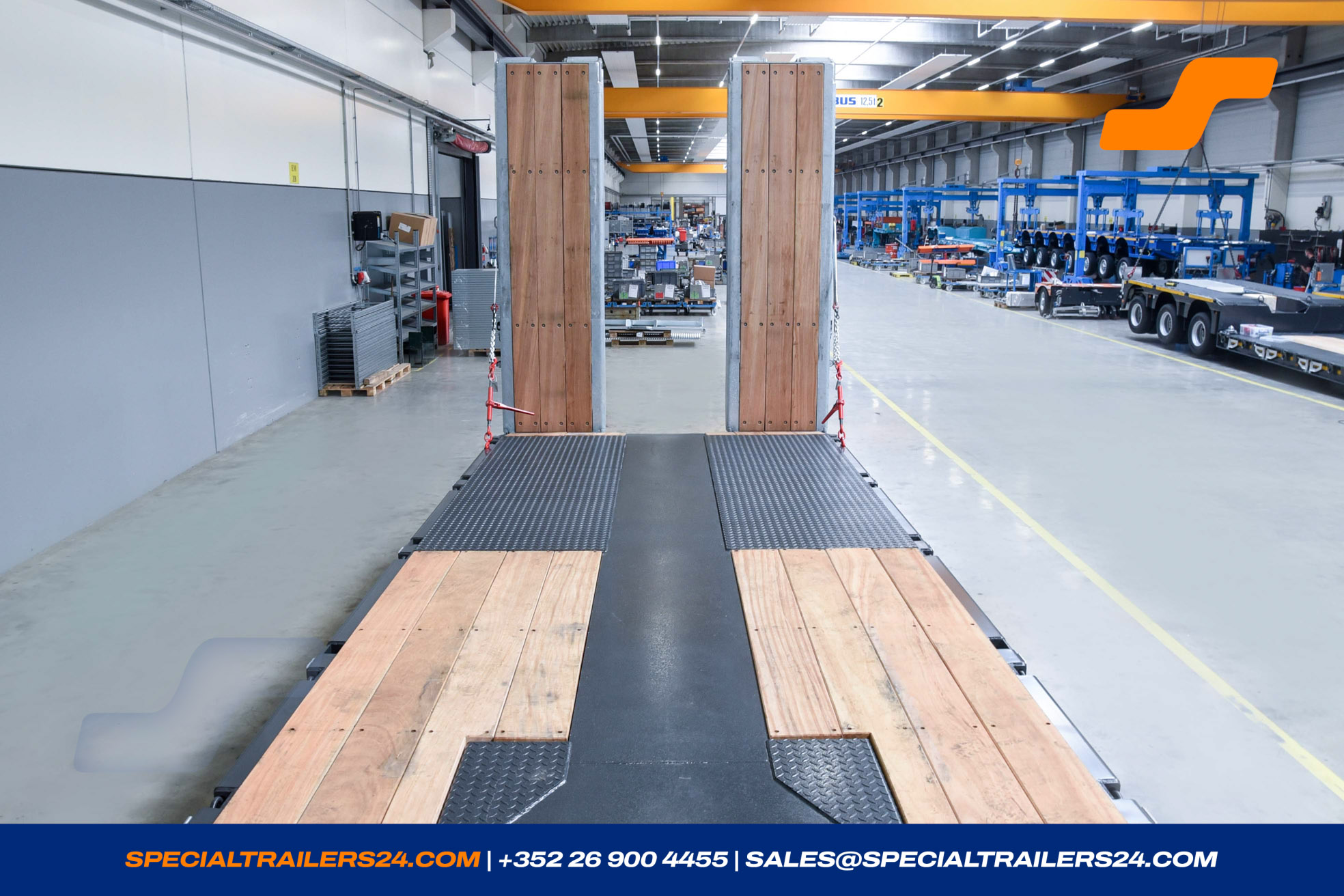

Loading platform
1 x Loading platform : MAX600-S-4-8.60-17.5-2.54
Loading platform with chamfered beaver tail by about 500 mm x 8°.

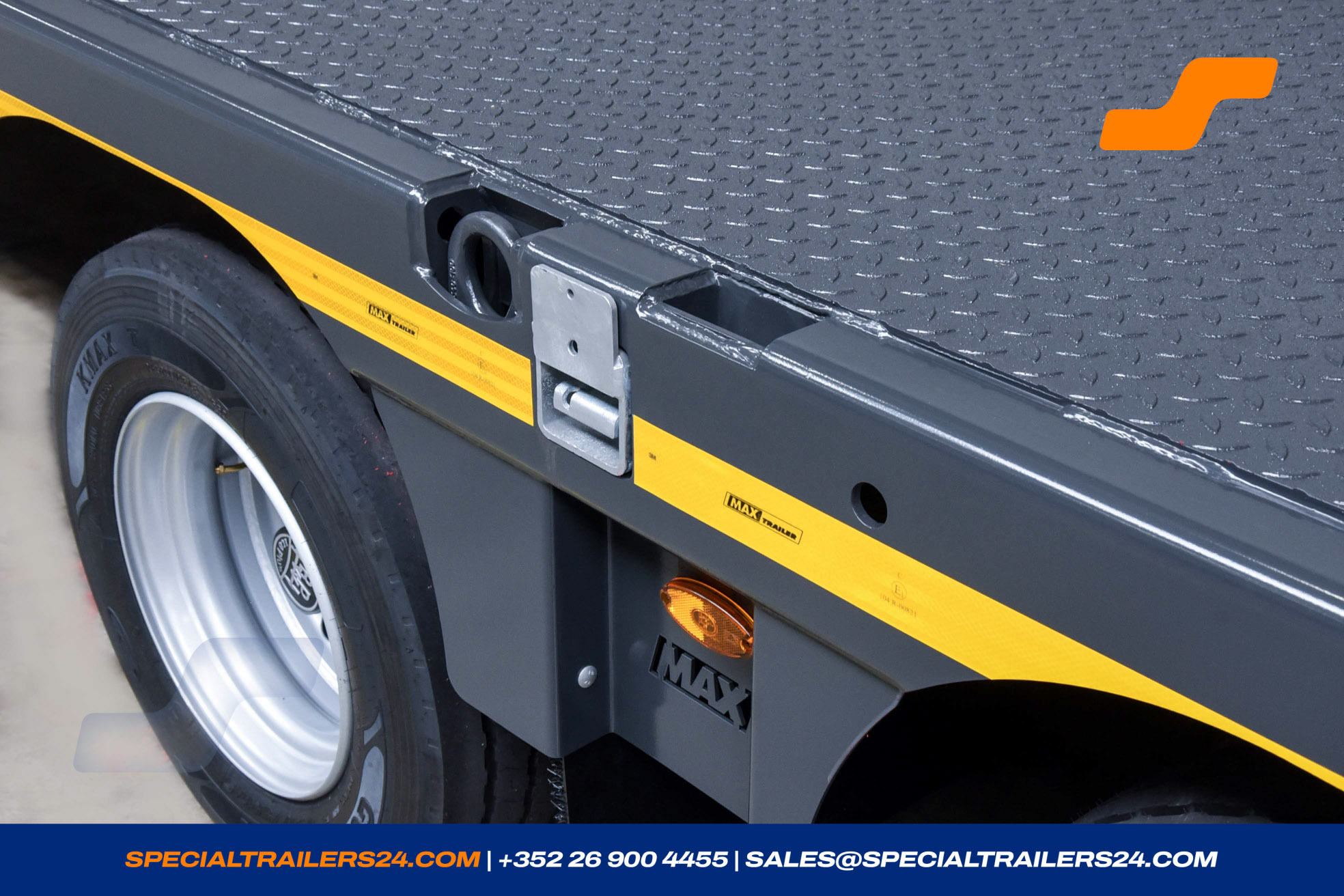

4 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
2 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
2 pair of lashing rings in front in the firm part the loading platform (LC 5 000 daN).
1 pair of lashing rings in front in the firm part the loading platform (LC 10 000 daN).
Cutouts in the border frame of the loading area for hooking in tension belts (LC 2 000 daN).

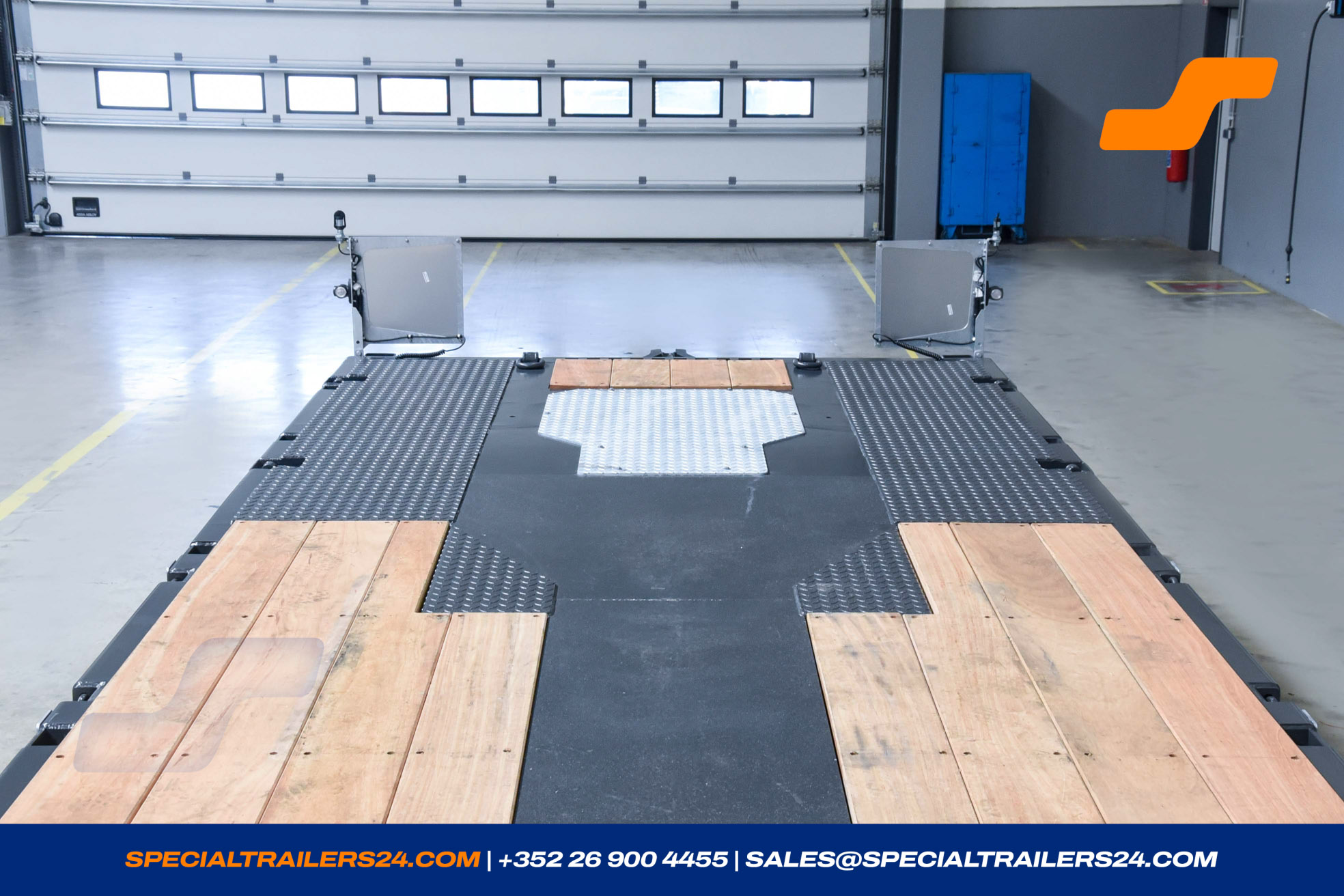

Hardwood cover thickness 48 mm above of the axles chequer plate.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.

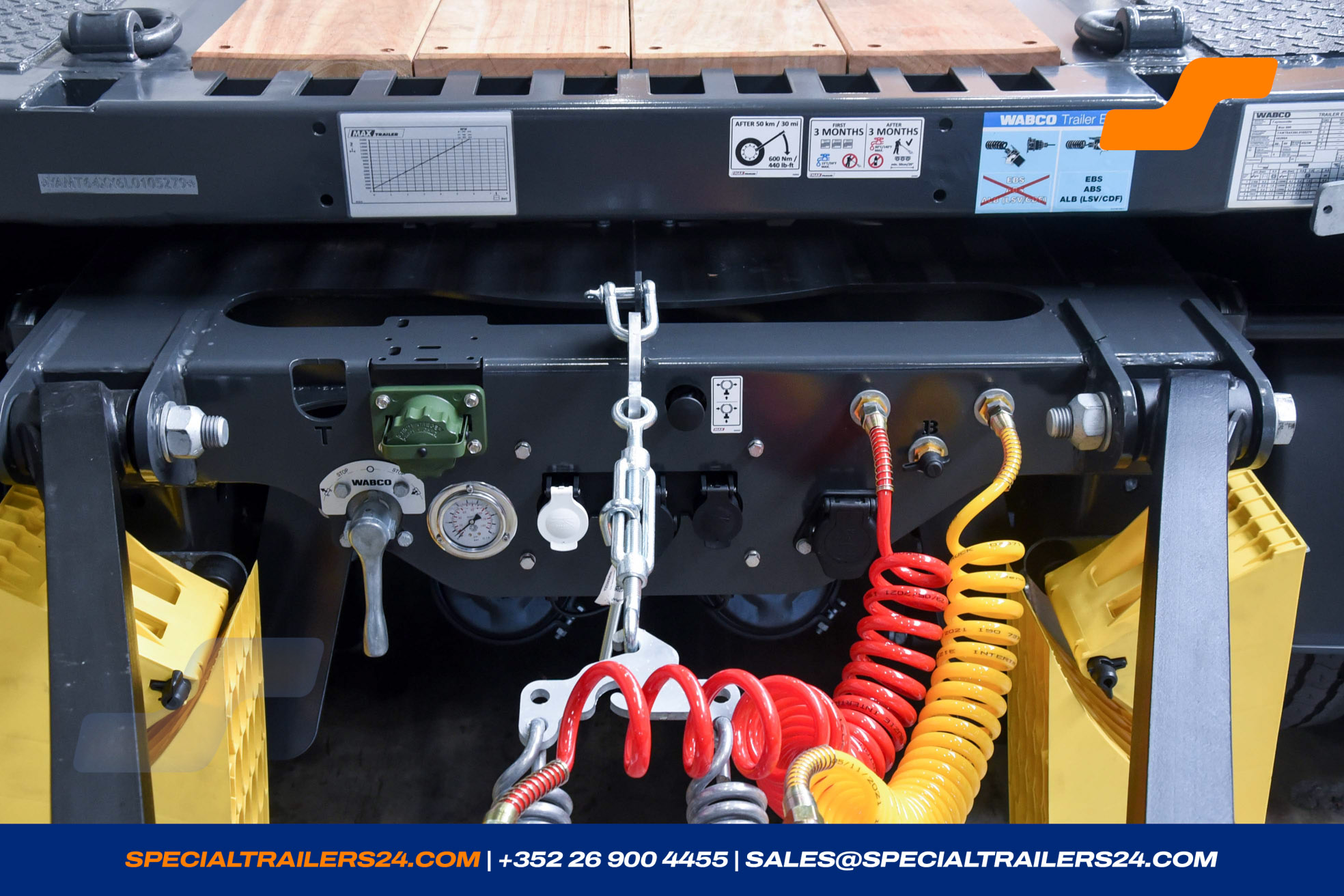

- Spiral cable 15/2x7 poles.
- Red and yellow air couplings.
- Holder for one beacon light at the rear of the trailer.
- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- Yellow reflective tape according to the EU regulation over the entire length and at the rear.

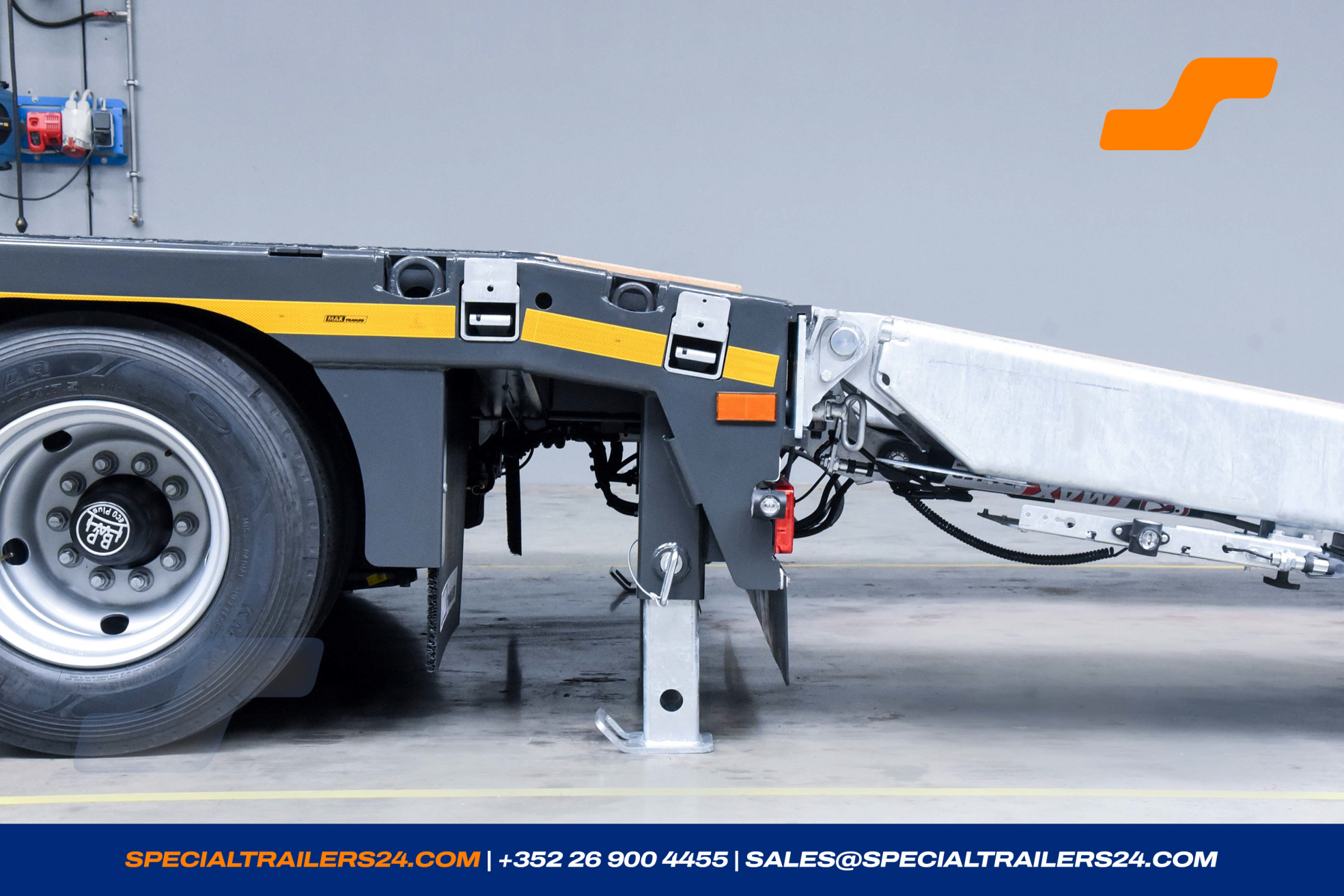

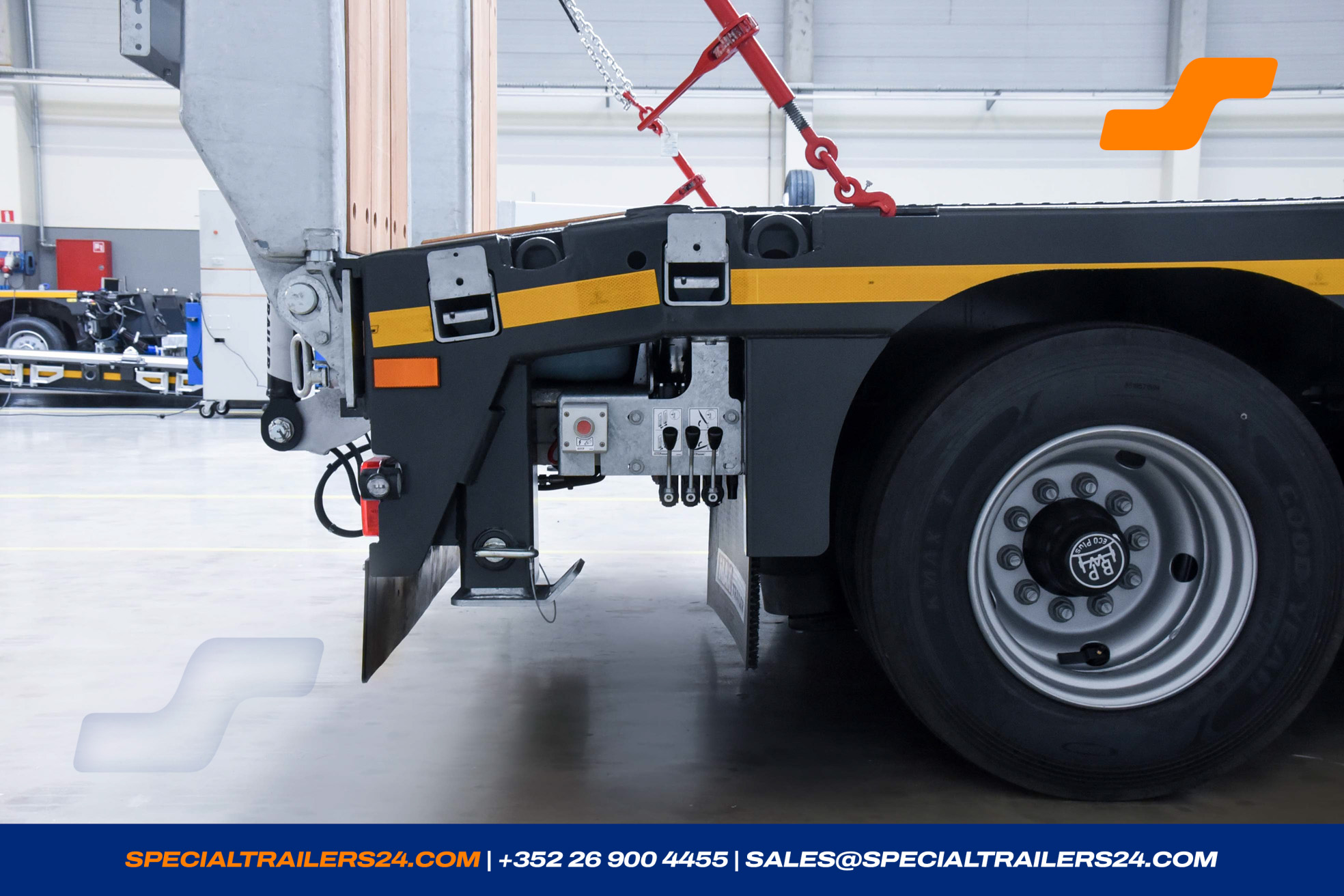

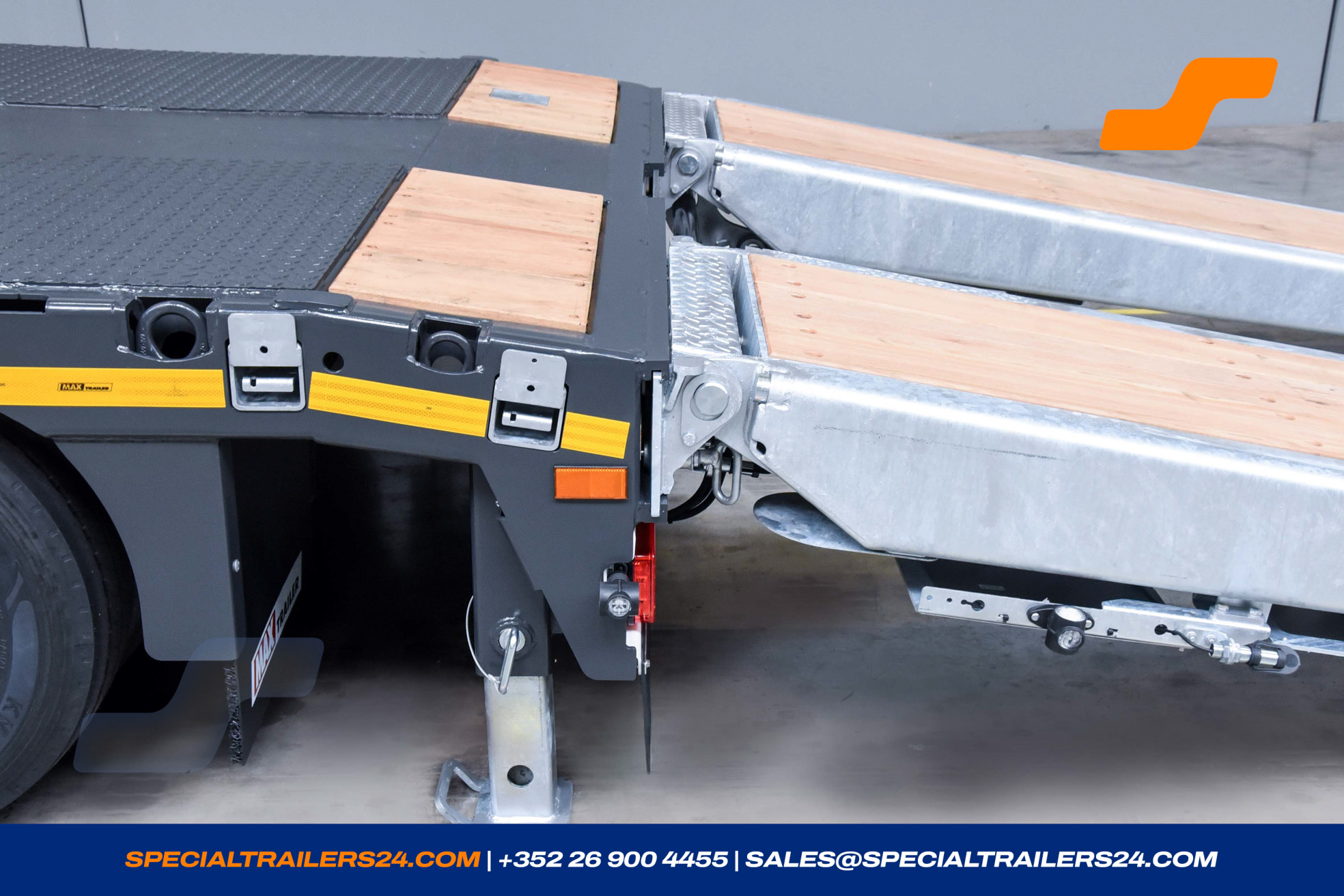

- Galvanised landing gears at the rear under the chamfer of loading platform.
- Electrically operated hydraulic pump at the rear under the loading platform. (± 45 kg)
-

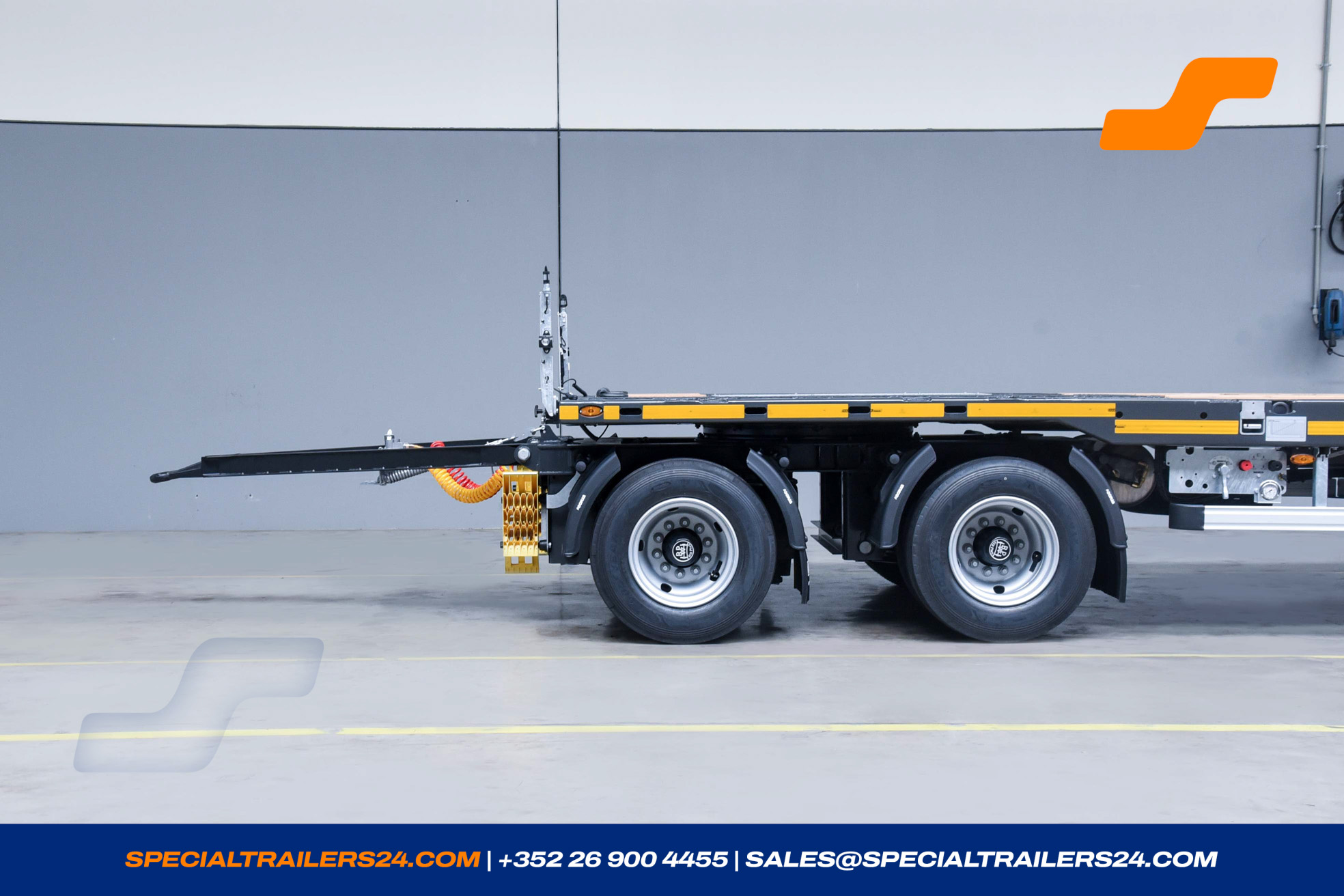

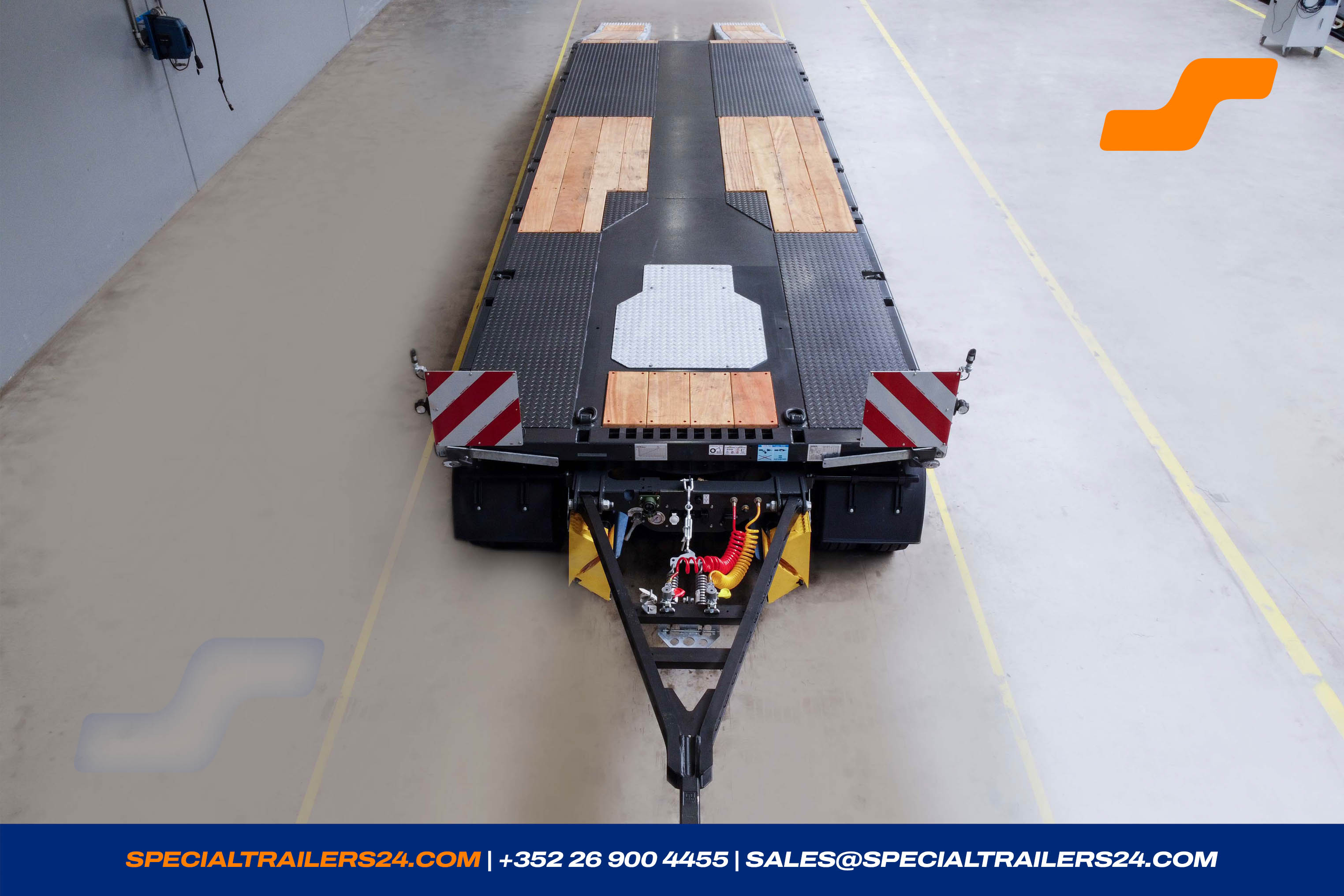

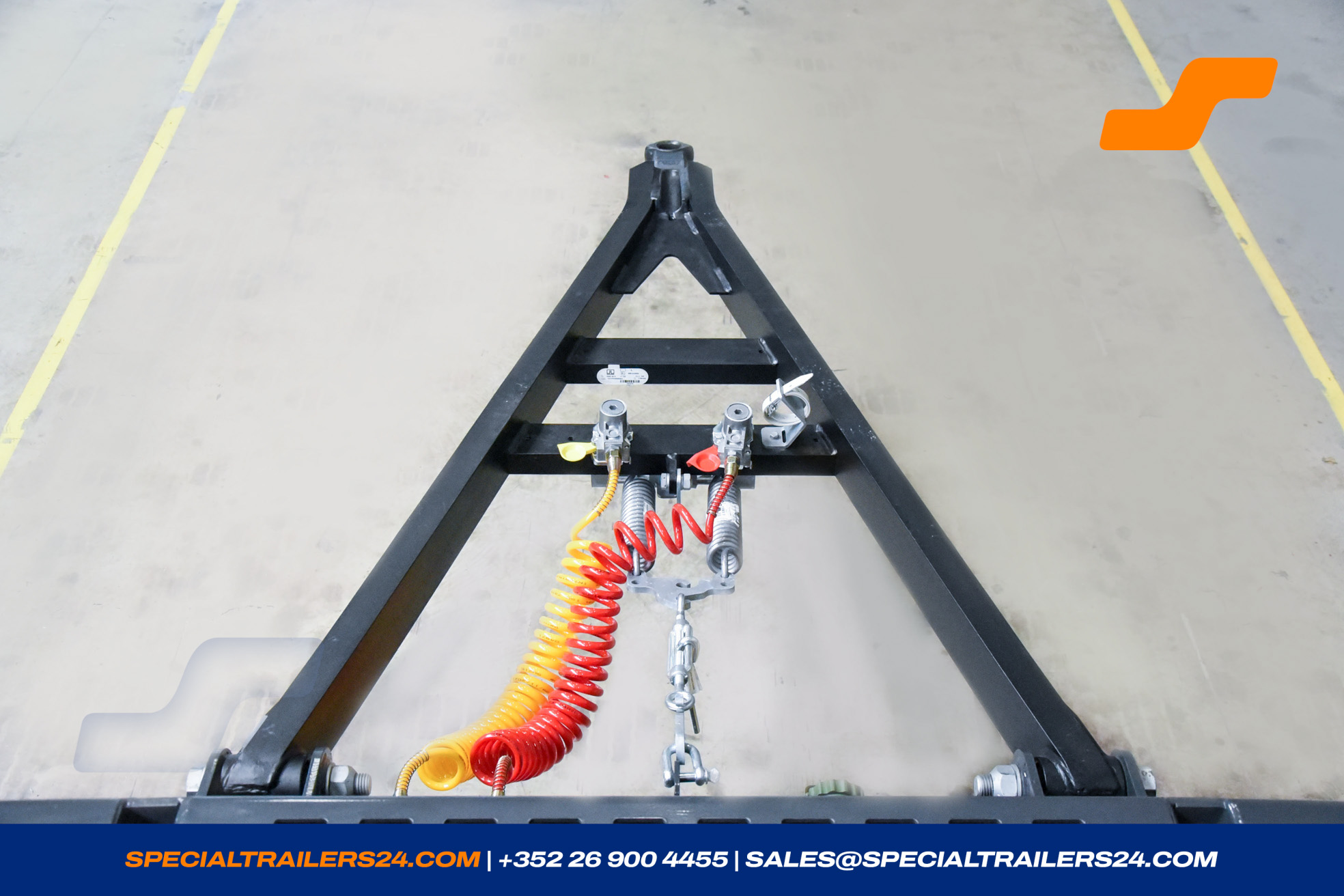

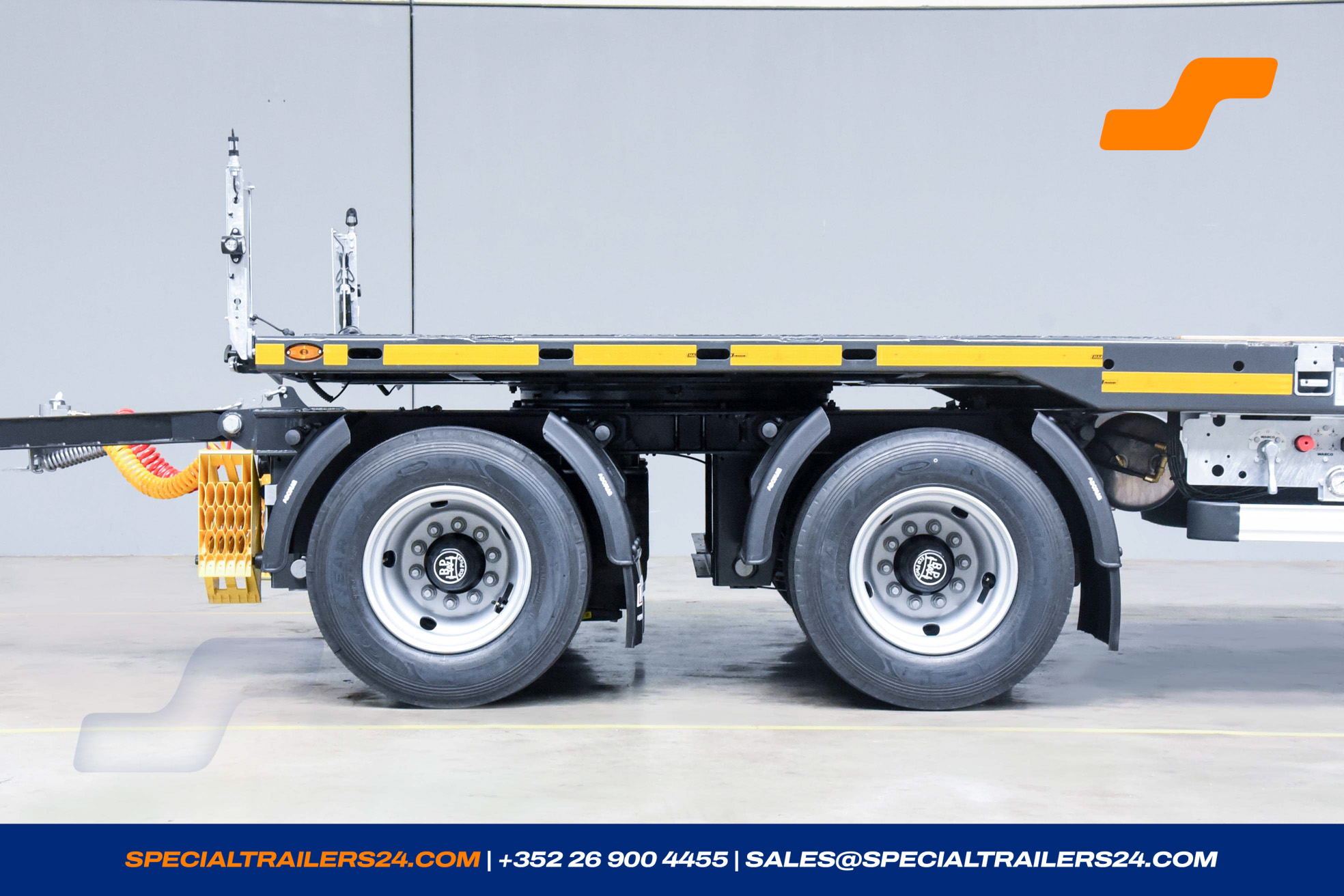

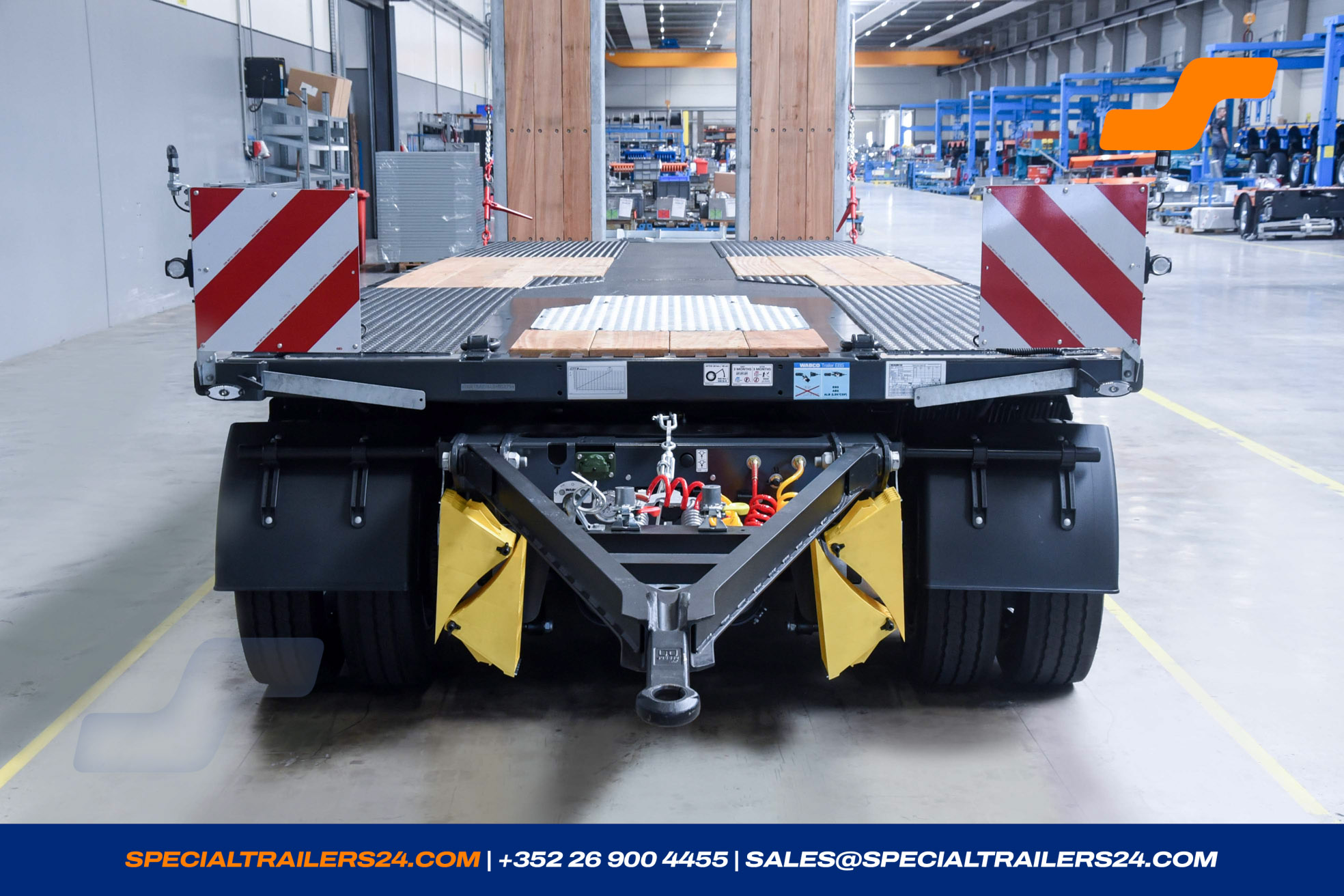

Bogie with a ± 1 750 mm long drawbar, with a towing eye (50 mm diameter).
Clutch height 830 - 1 010 mm loaded.
KTL powder coating black. - 2 pairs of containerpockets WADER incorporated into the loading platform for 1 x 20'. (± 20 kg)
- 6 pairs of pockets for stakes ca. 100 x 50 mm in the outer frame of the loading platform (± 18kg).
- Galvanised outriggers, extendable up to ± 230 mm per side (± 230 kg).

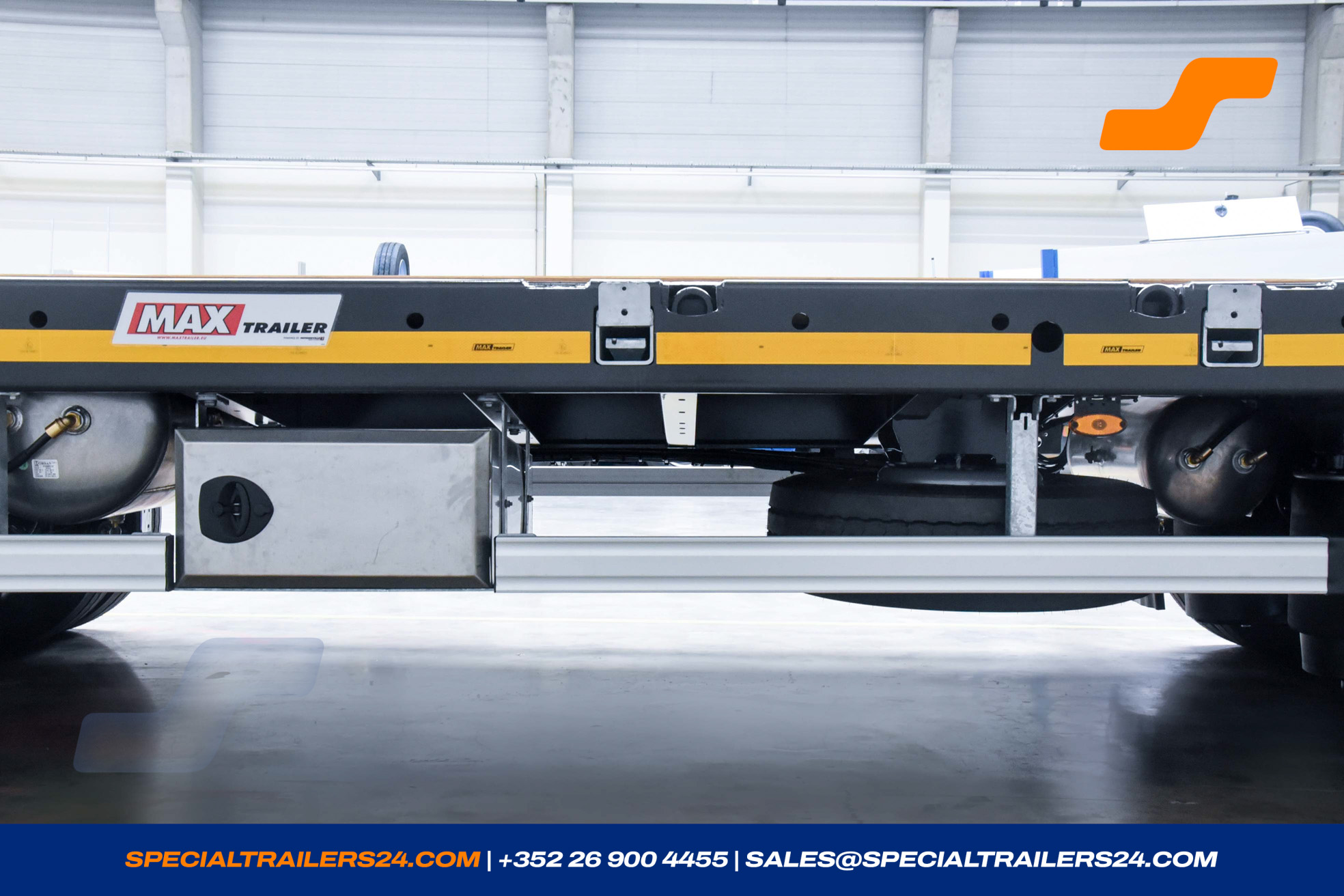

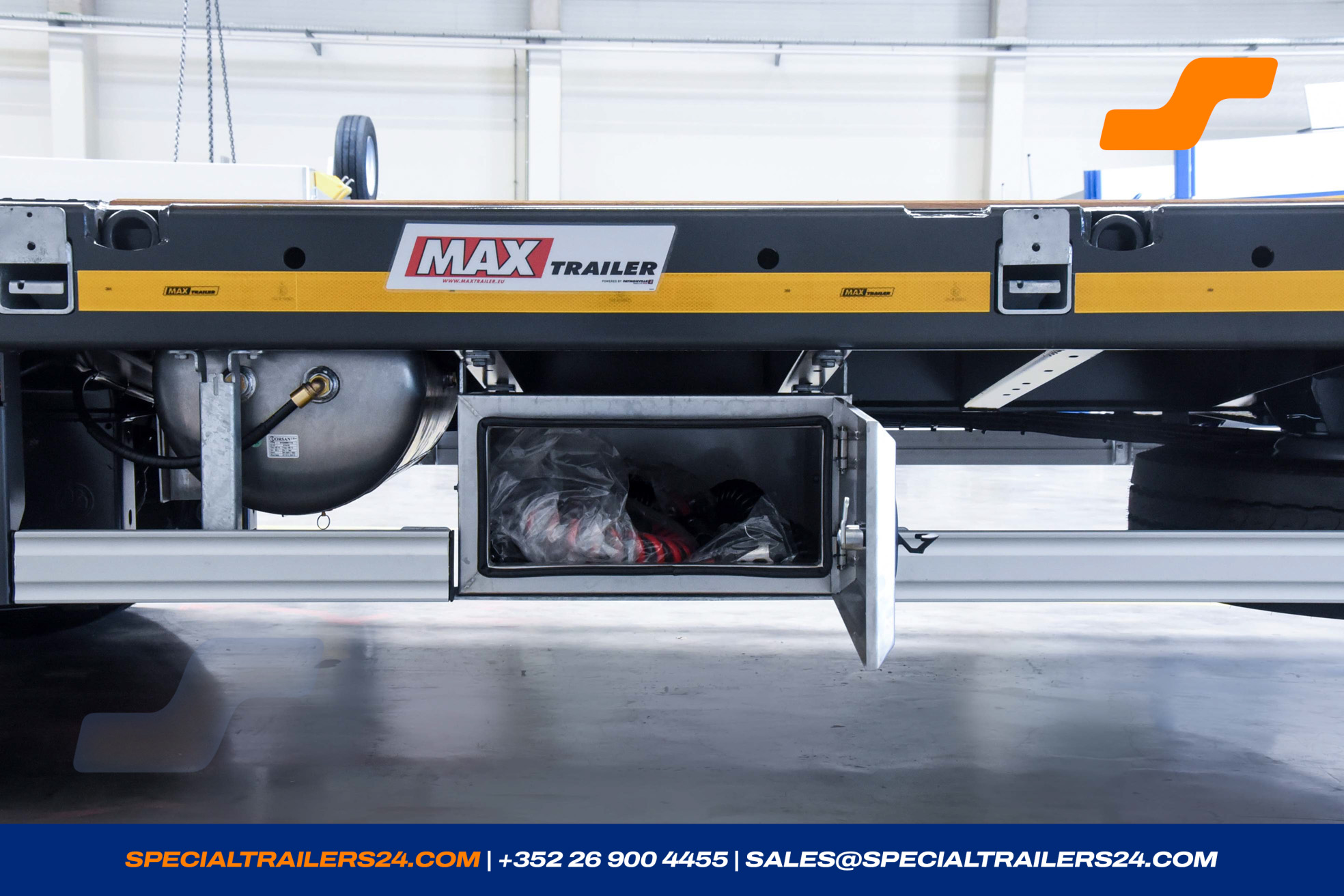

- Galvanised storage left under the loading platform. (± 60kg)
- 1 tool box (INOX) on the gooseneck ca. 1 350 x 400 x 400 mm (l x w x h). (± 55kg)

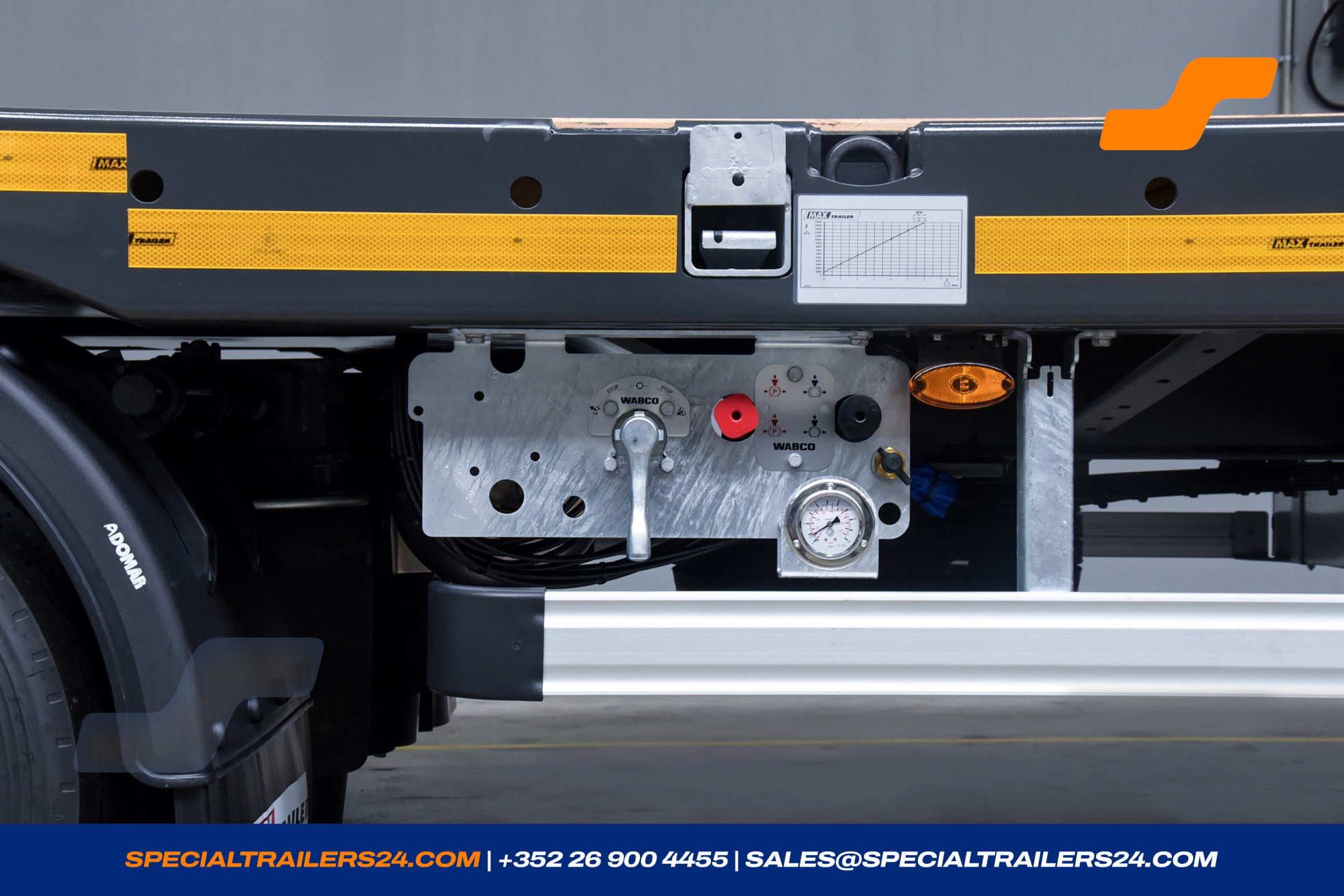

- 2 load manometers for the axle load including load graphs.
- 1 spare wheel with holder 245/70 R17.5 3PMSF (± 73 kg)
Ramps

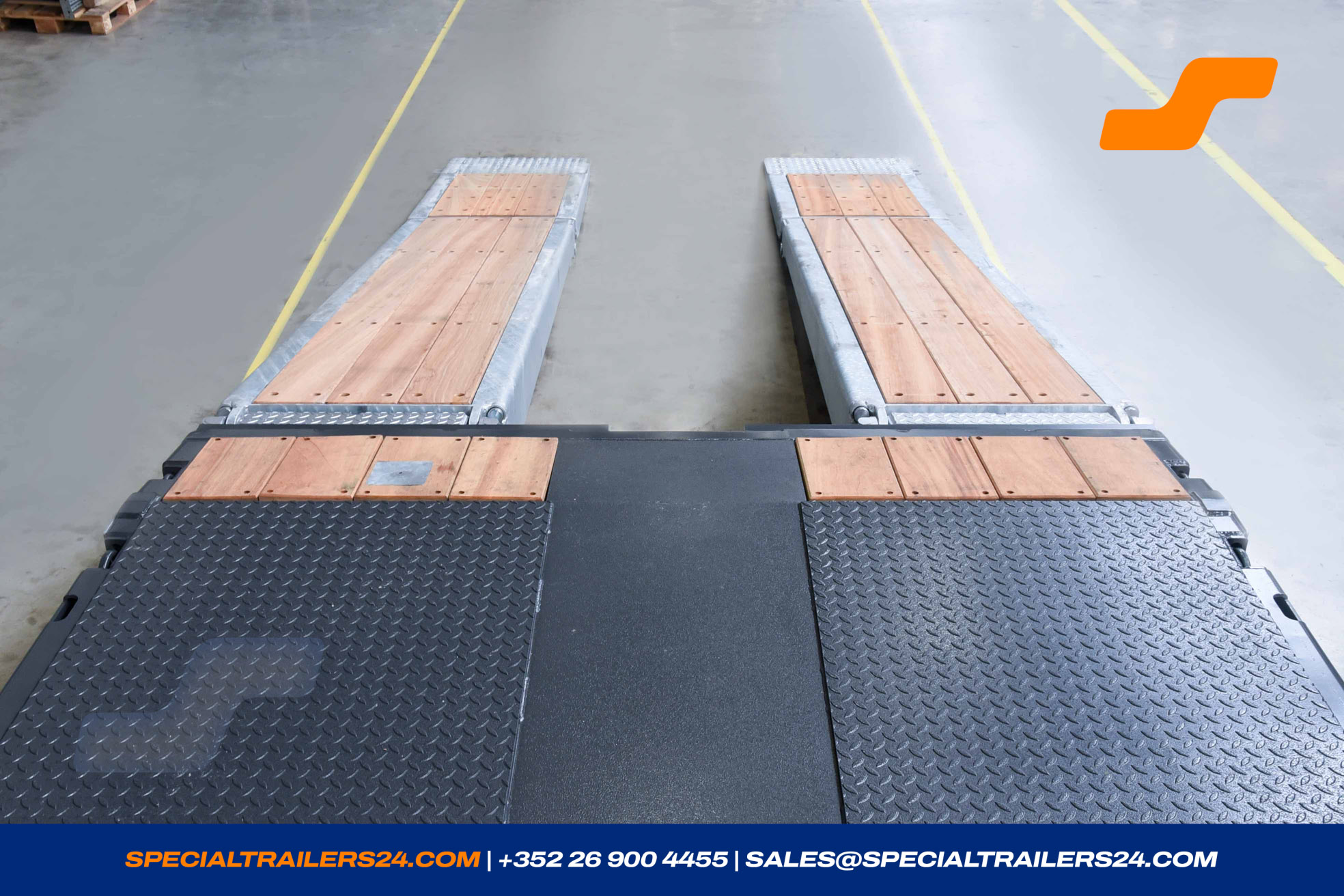

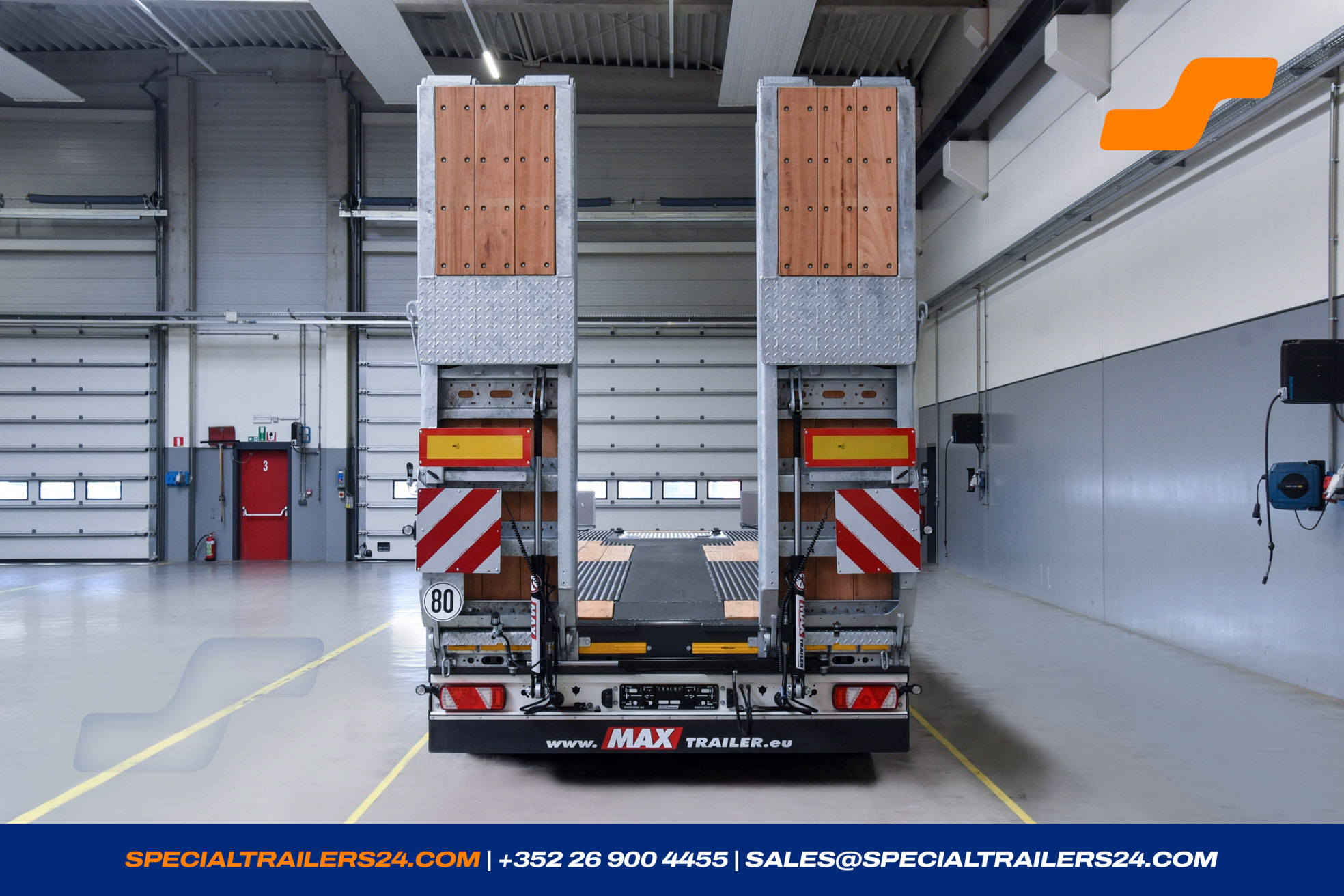

Hydraulic loading ramps

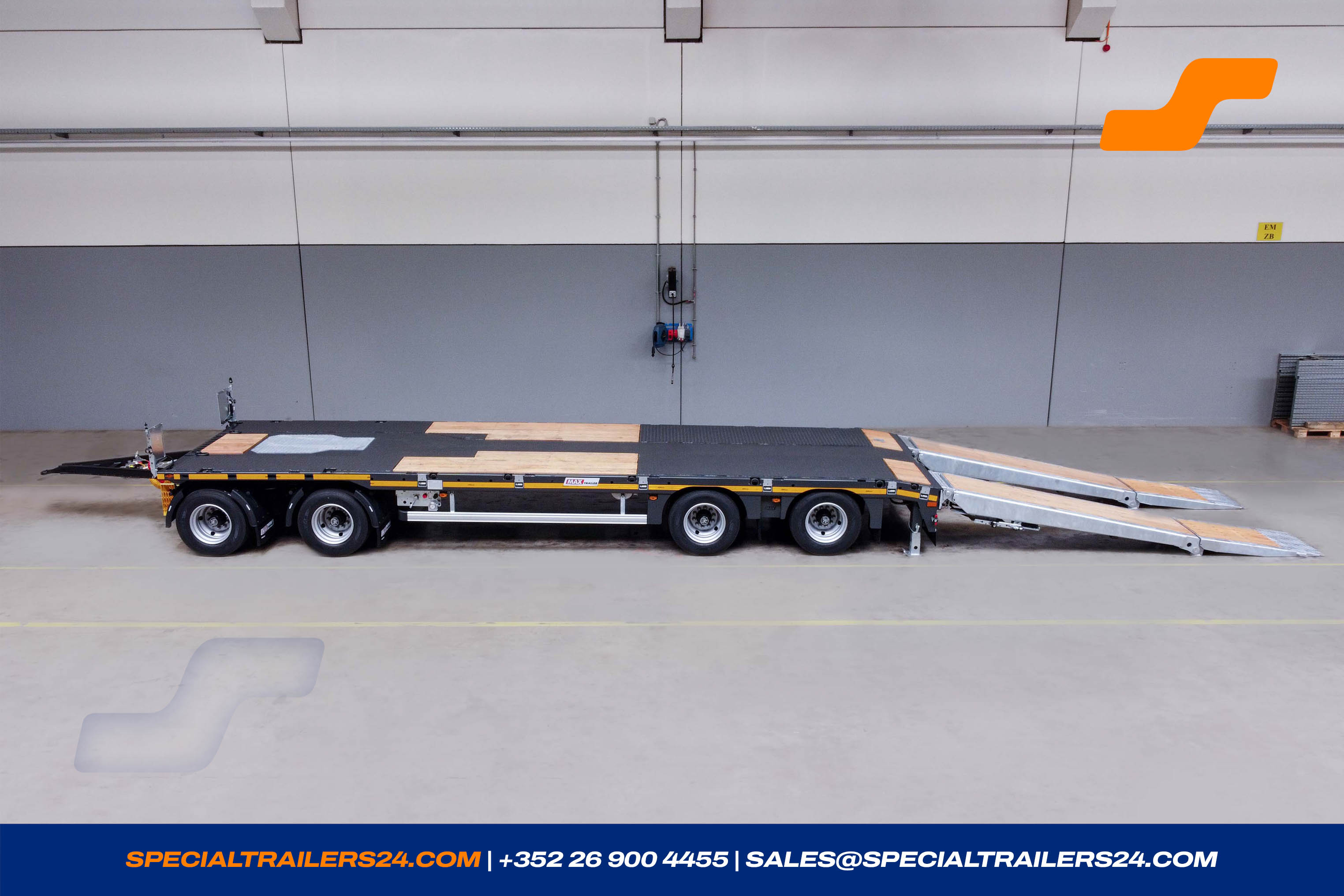

1 x Steel double flip ramps : DR-800-HH-40-HB-HVA

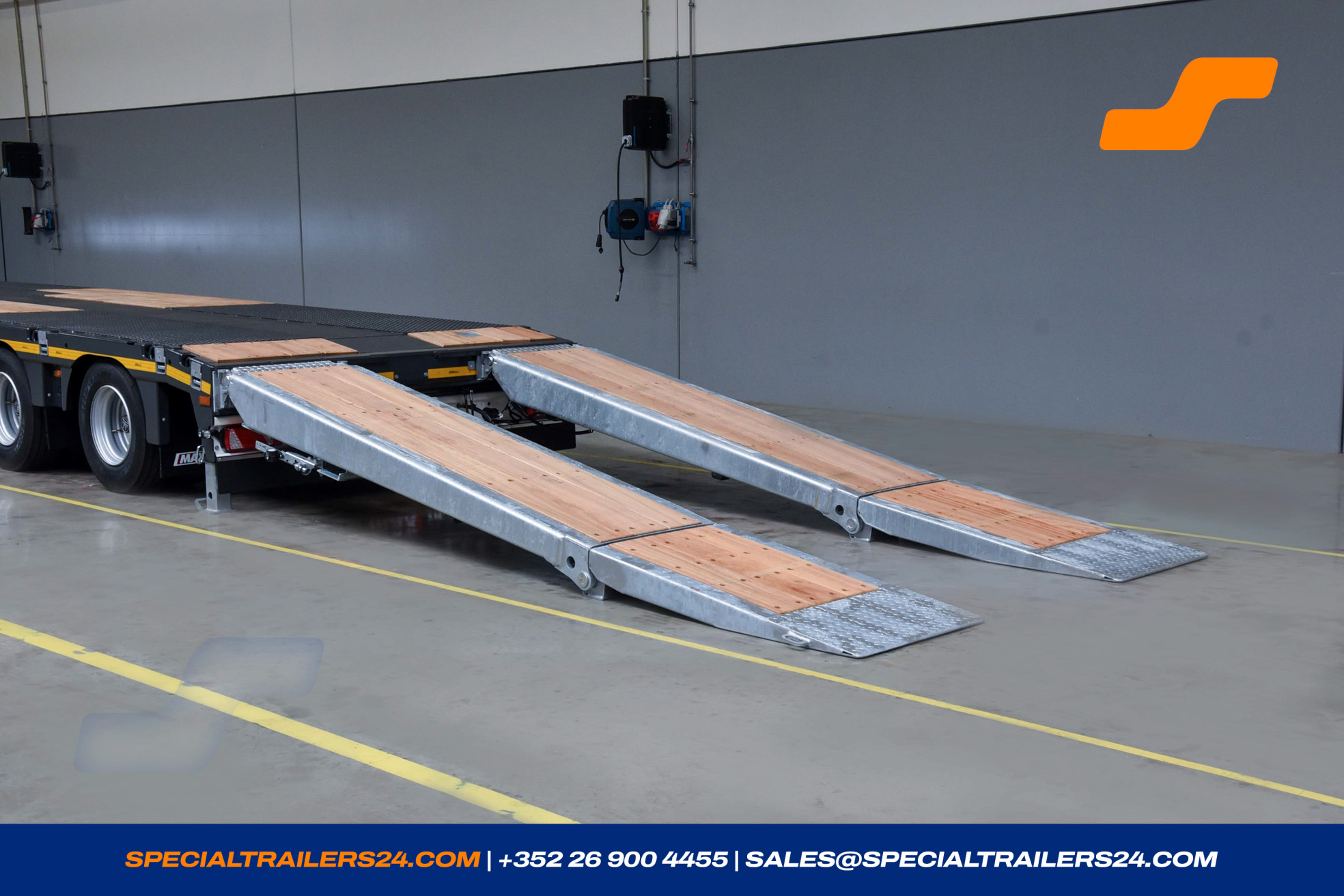

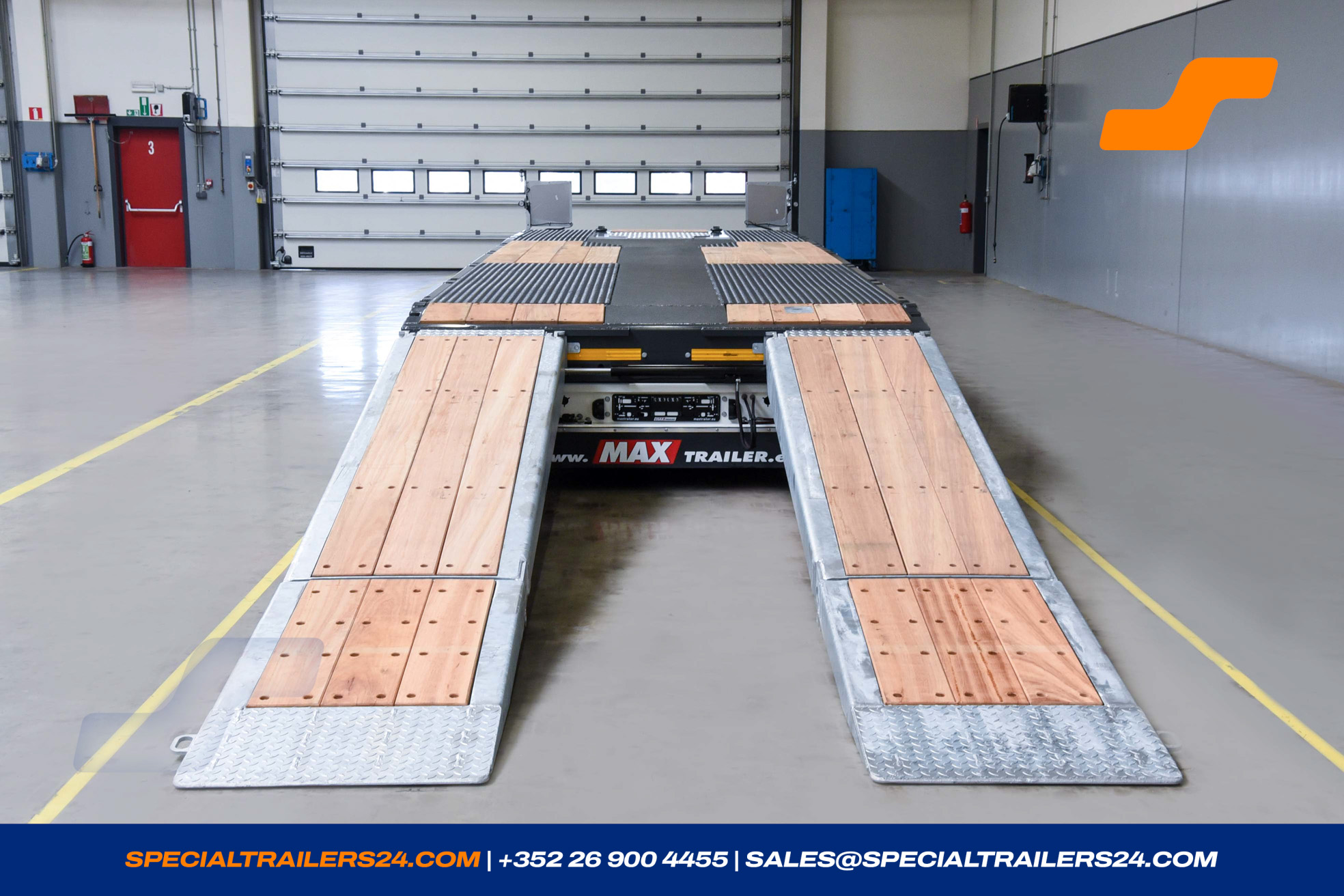

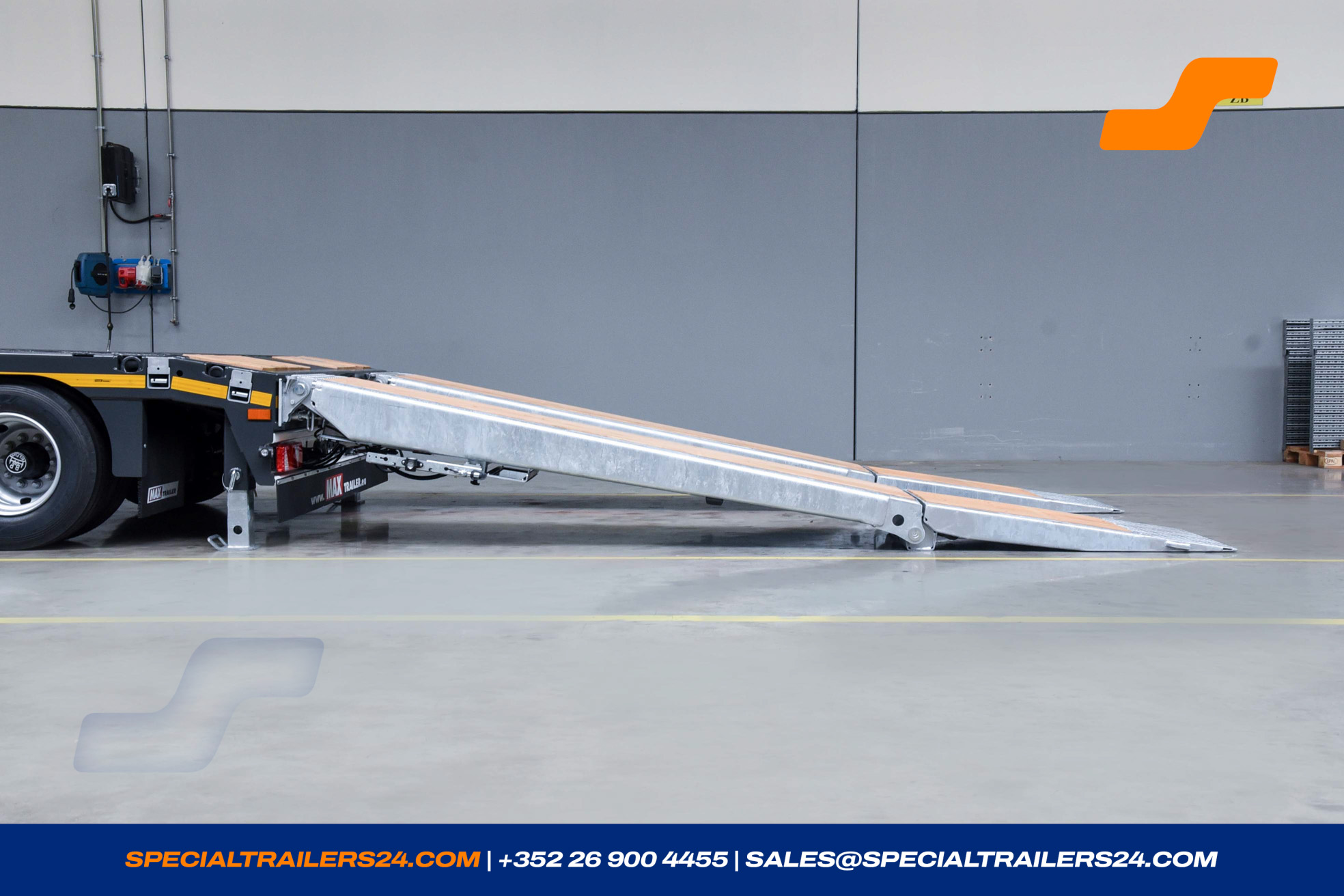

1 pair steel double flip ramps galvanized ca. 2 750 + 1 400 x 800 mm with ca. 48 mm hardwood cover.
Ramps hydraulically operated and hydraulic side shift.
Maximal charge for one pair: 40 000 kg
- Operated valve for ramps mounted on the right side (± 4 kg).
- Cover plates to bridge the clearance between ramps and loading area (± 17kg).
Accessories
1 x Accessory
MAX600-Accessory
- Manual and description on USB stick .

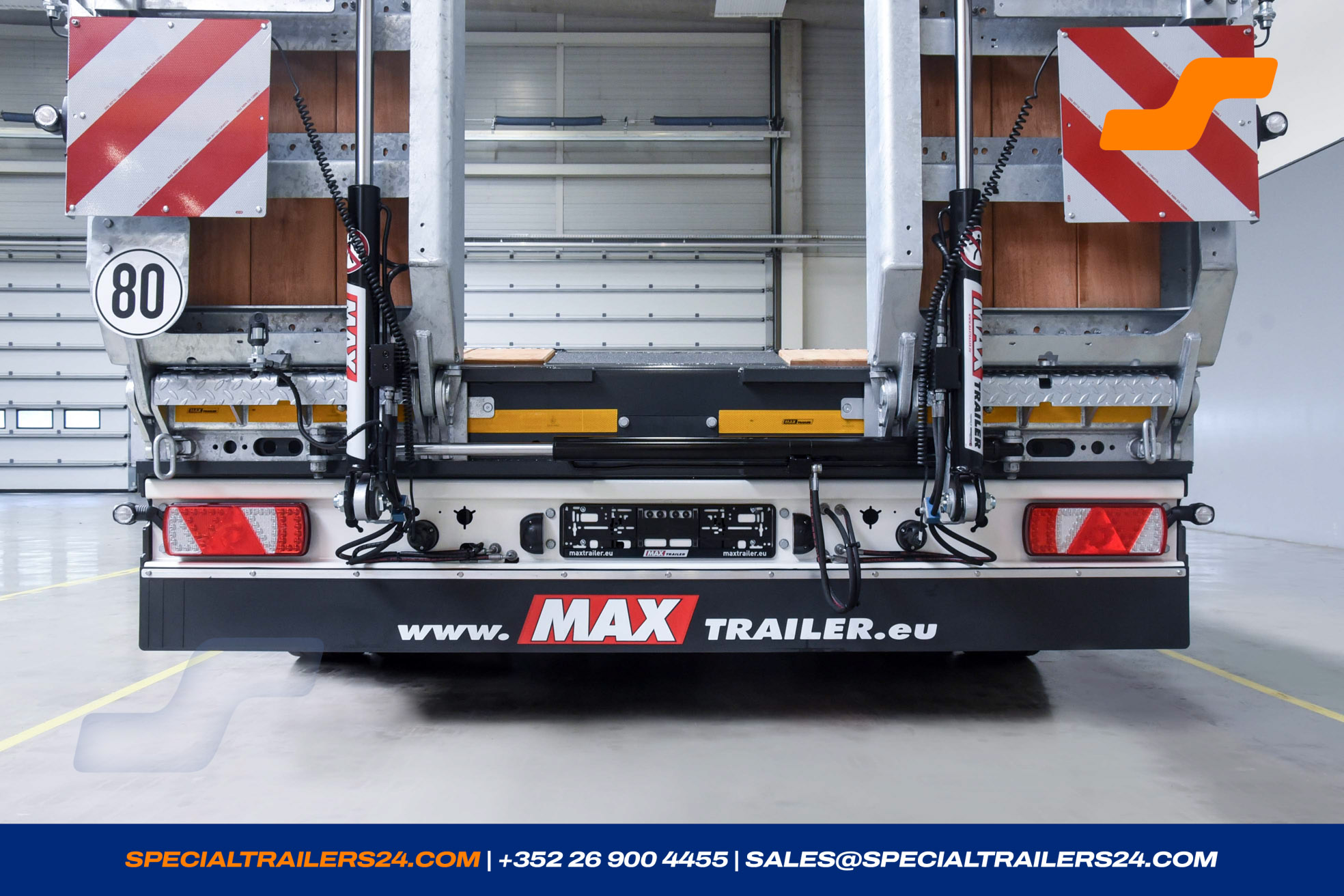

- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- 2 LED- reversing lights at the rear.
- Spiral cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 175 A) between the semi-trailer and the truck with socket (ANDERSON-ANDERSON).
- Delivery from a trailer to factory Lentzweiler.
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 111714
- Reference MAX600-S-4-8.60-U
- Number of axles 4
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 07/2026
- Price On request
-
