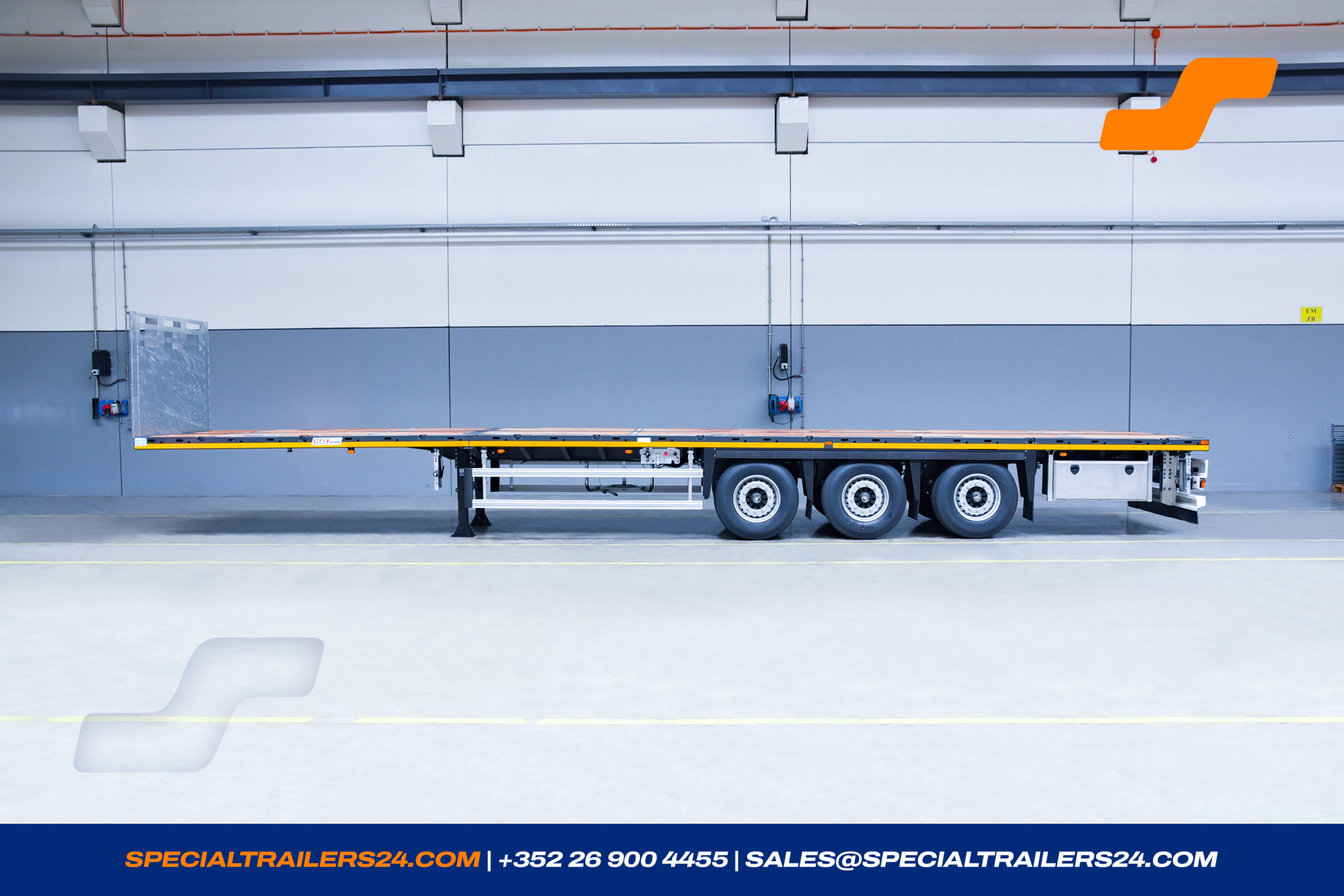

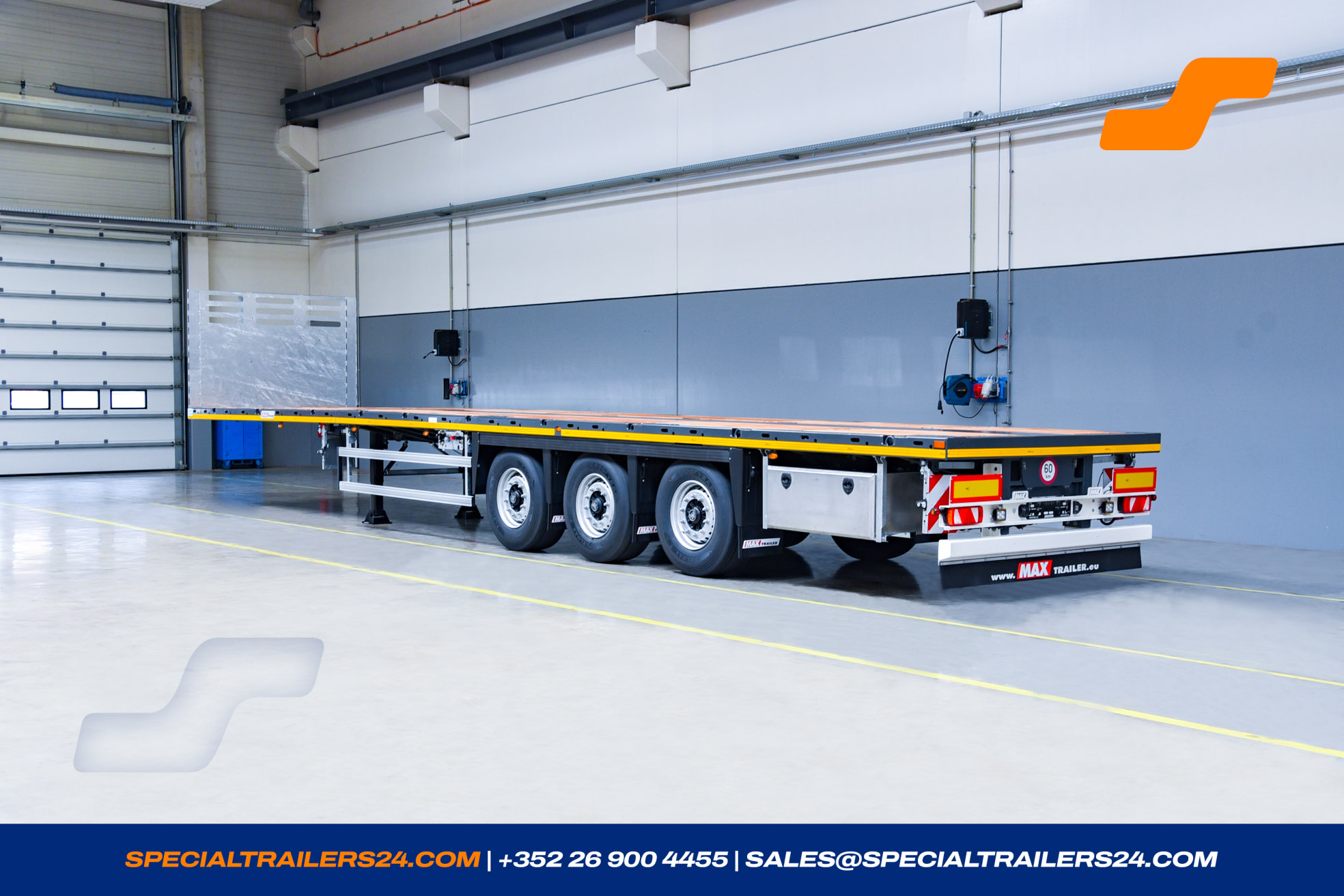

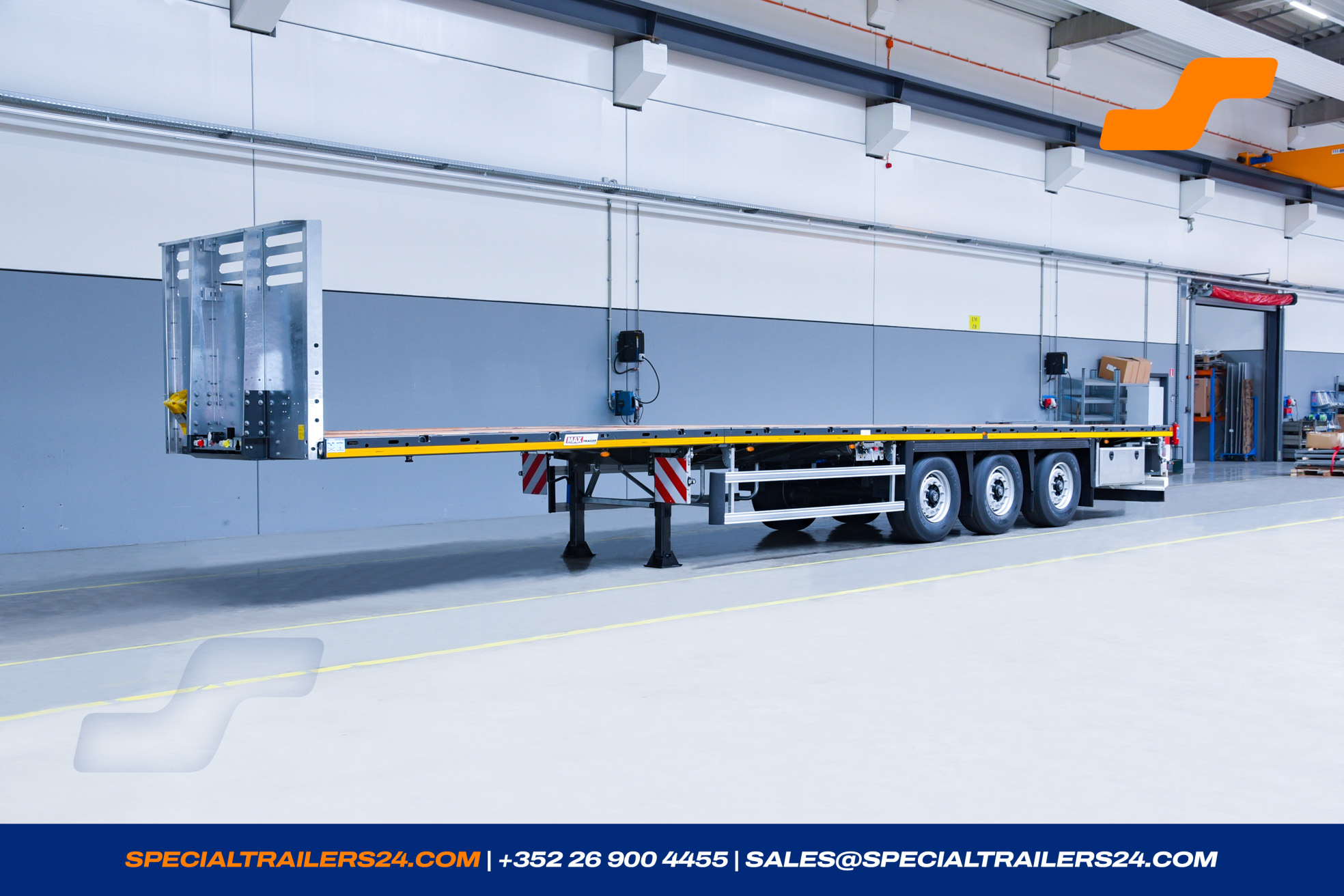

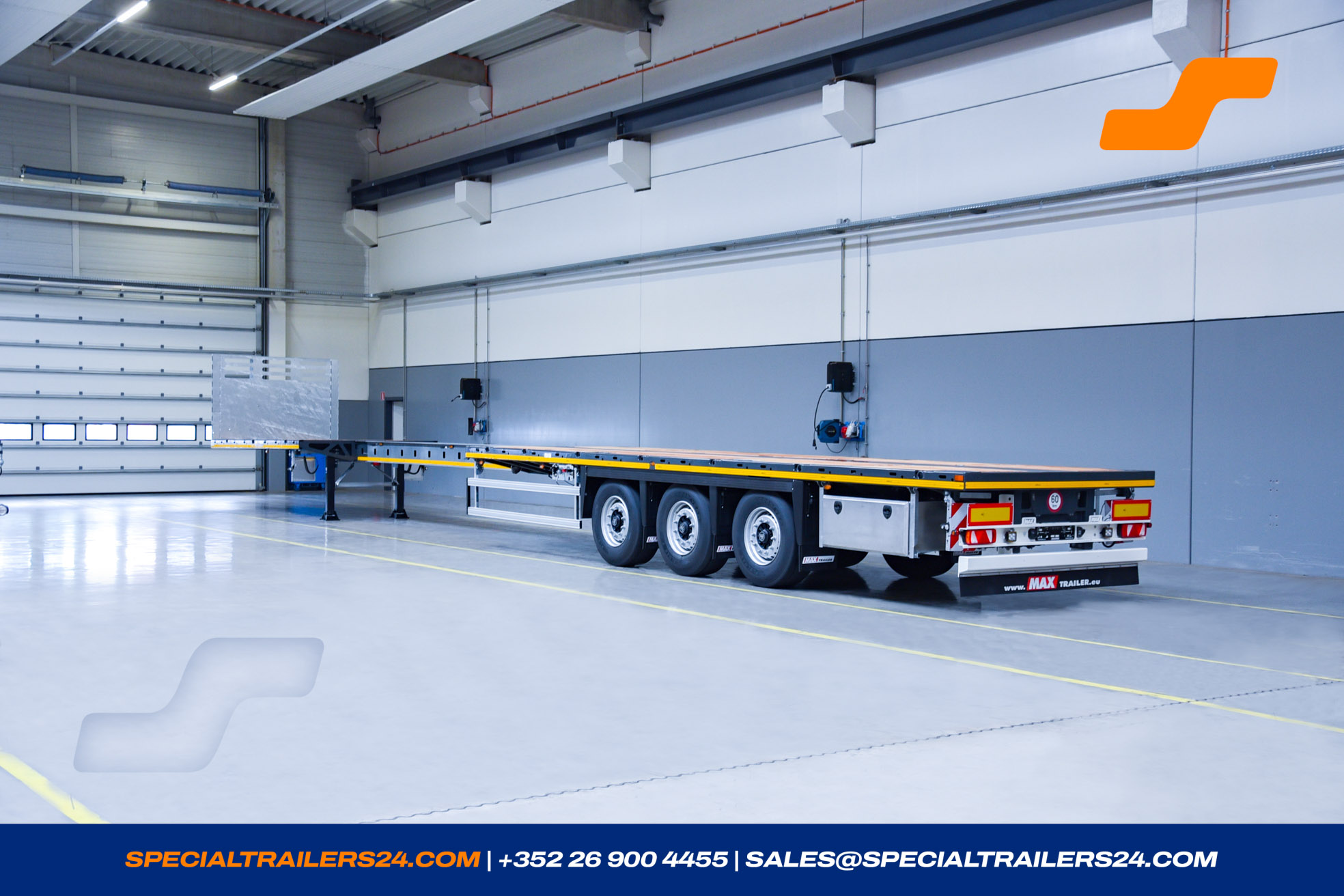

Flatbed trailer
MAX Trailer MAX200
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111948
- Reference MAX200-N-3A-13.60-22.5-2.54

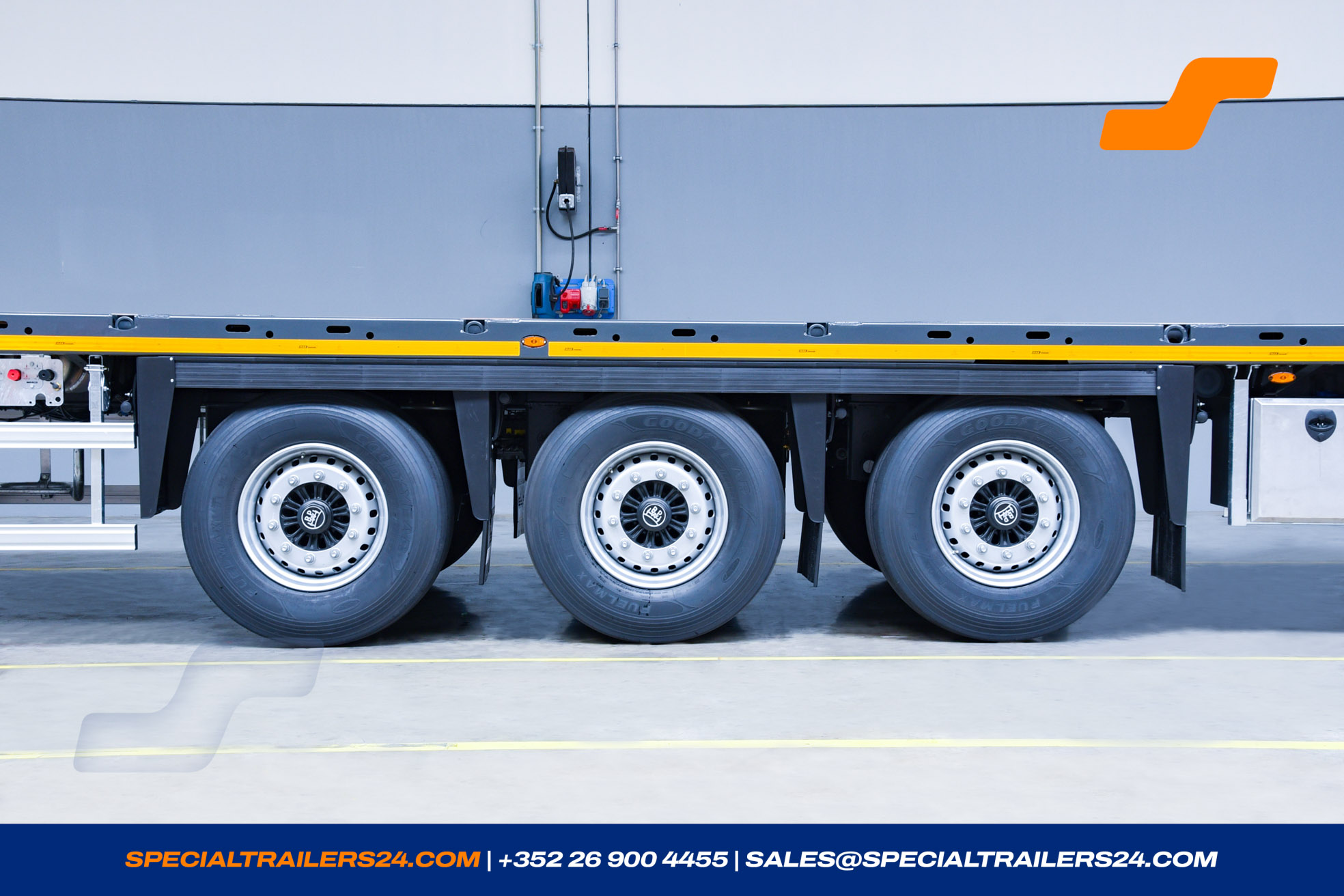

- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 09/2026
- Steering Type Friction
Availability
09/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 27000 kg |
| Gross weight | 45000 kg |
| Tare weight +- 3% | 8096 kg |
| Payload | 36904 kg |
Dimensions
| Fifth wheel height loaded | 1080->1250 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 13 600 mm |
| Extendable by | 6 000 mm |
| Wheelbase | 1 360/1 405 mm |
| Total width | 2 540 mm |
Loading deck
Loading platform
1 x Loading platform : MAX200-N-3A(6000)-13.60-22.5-2.54(DSR 2300-ASH 1080->1250-9T)

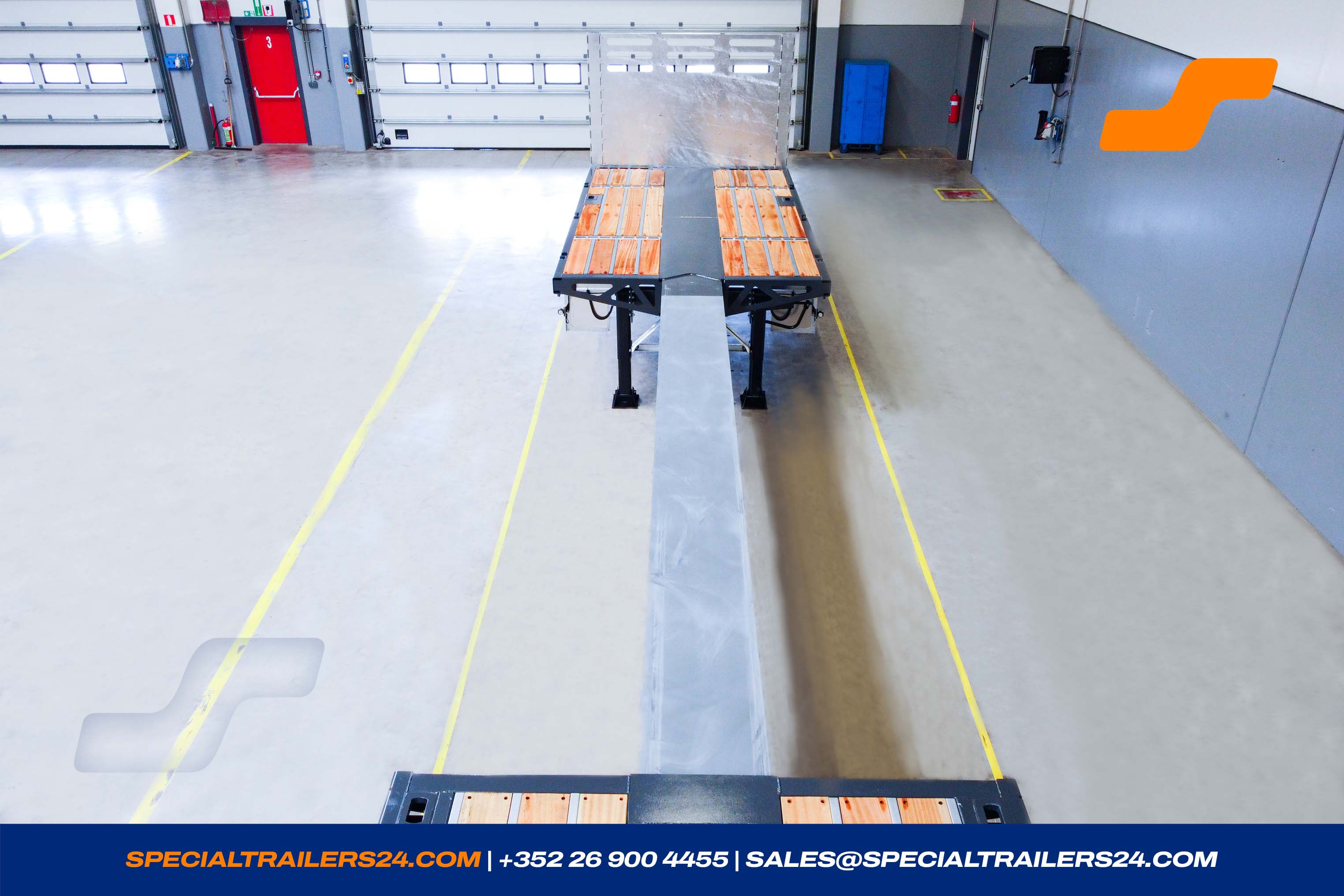

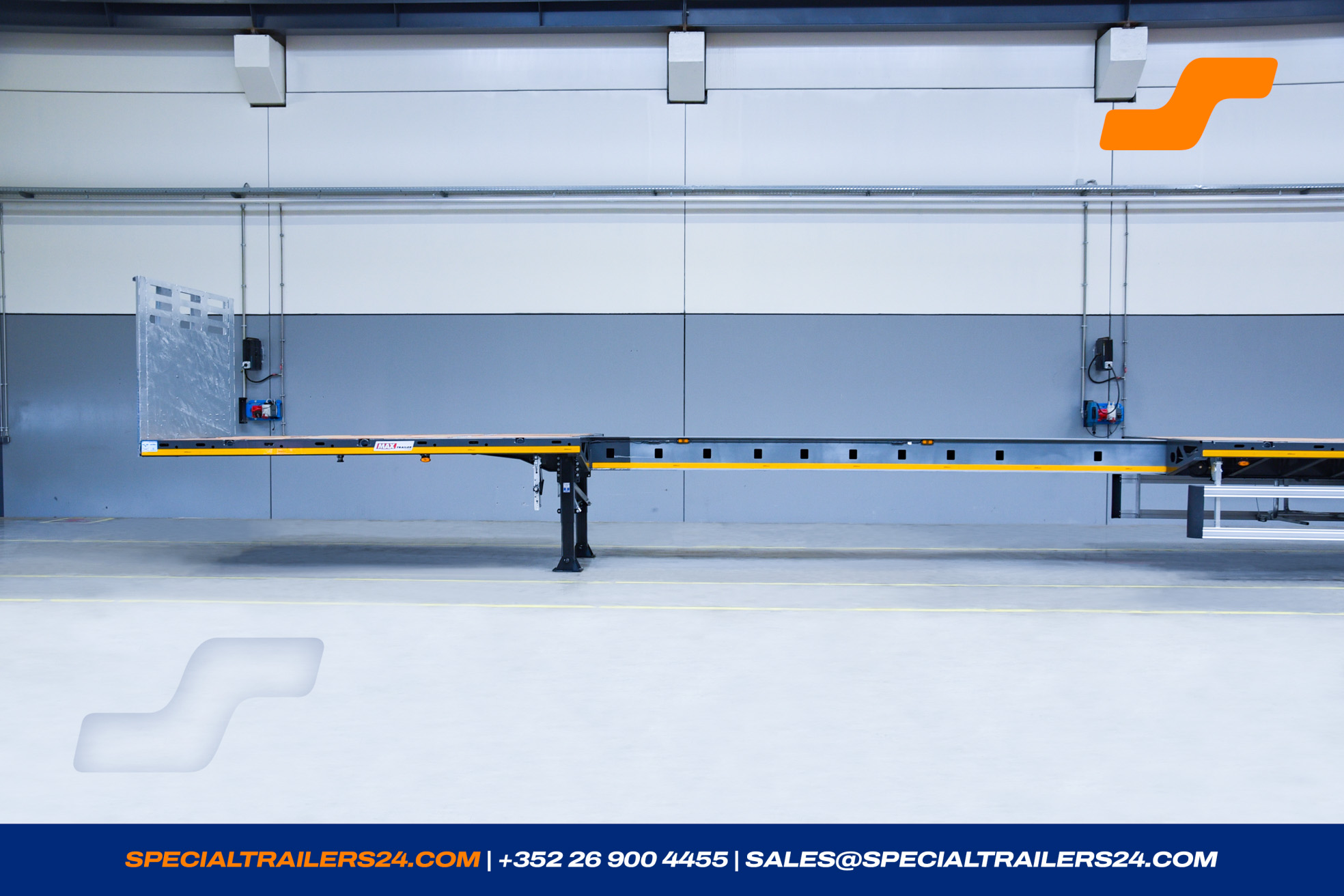

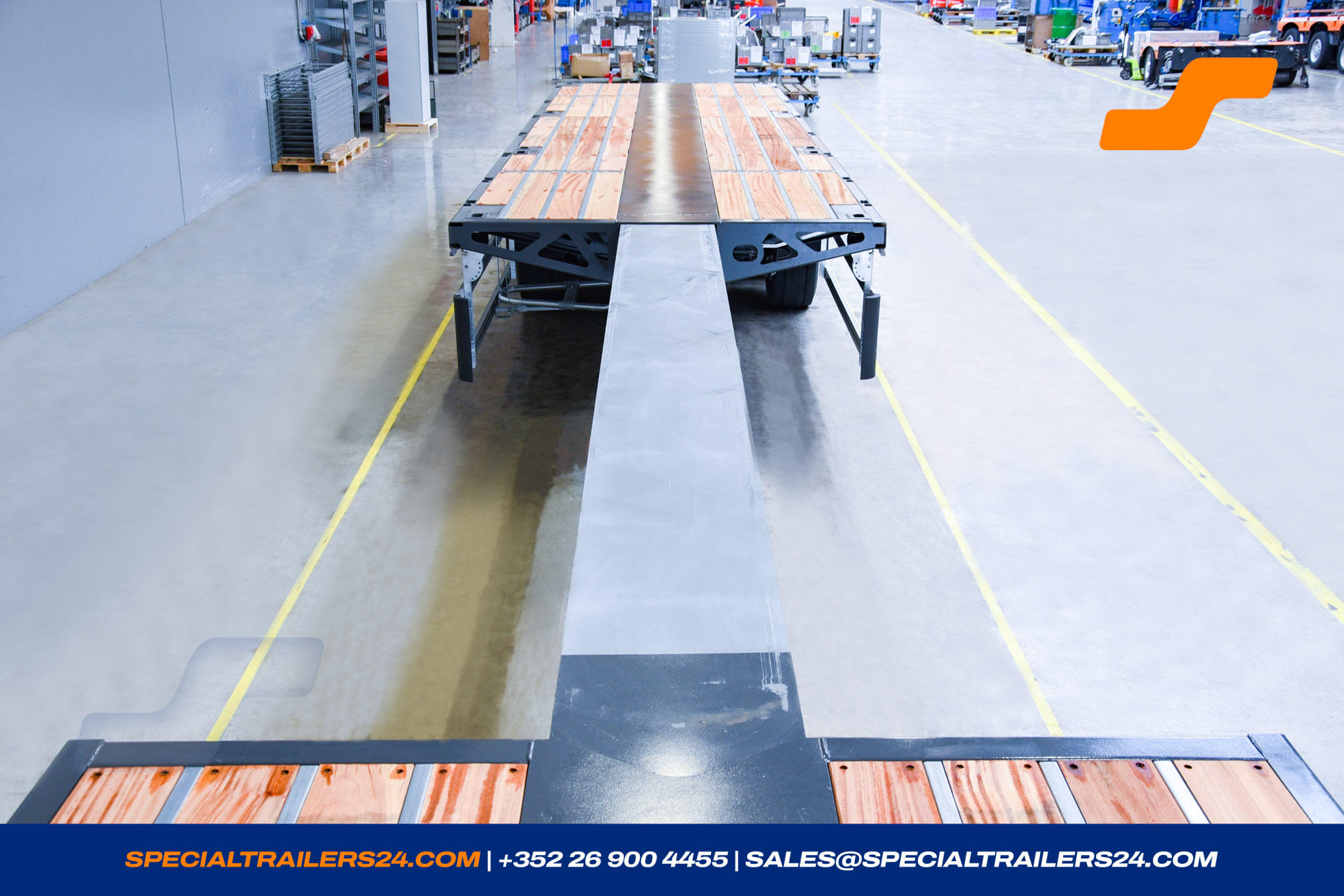

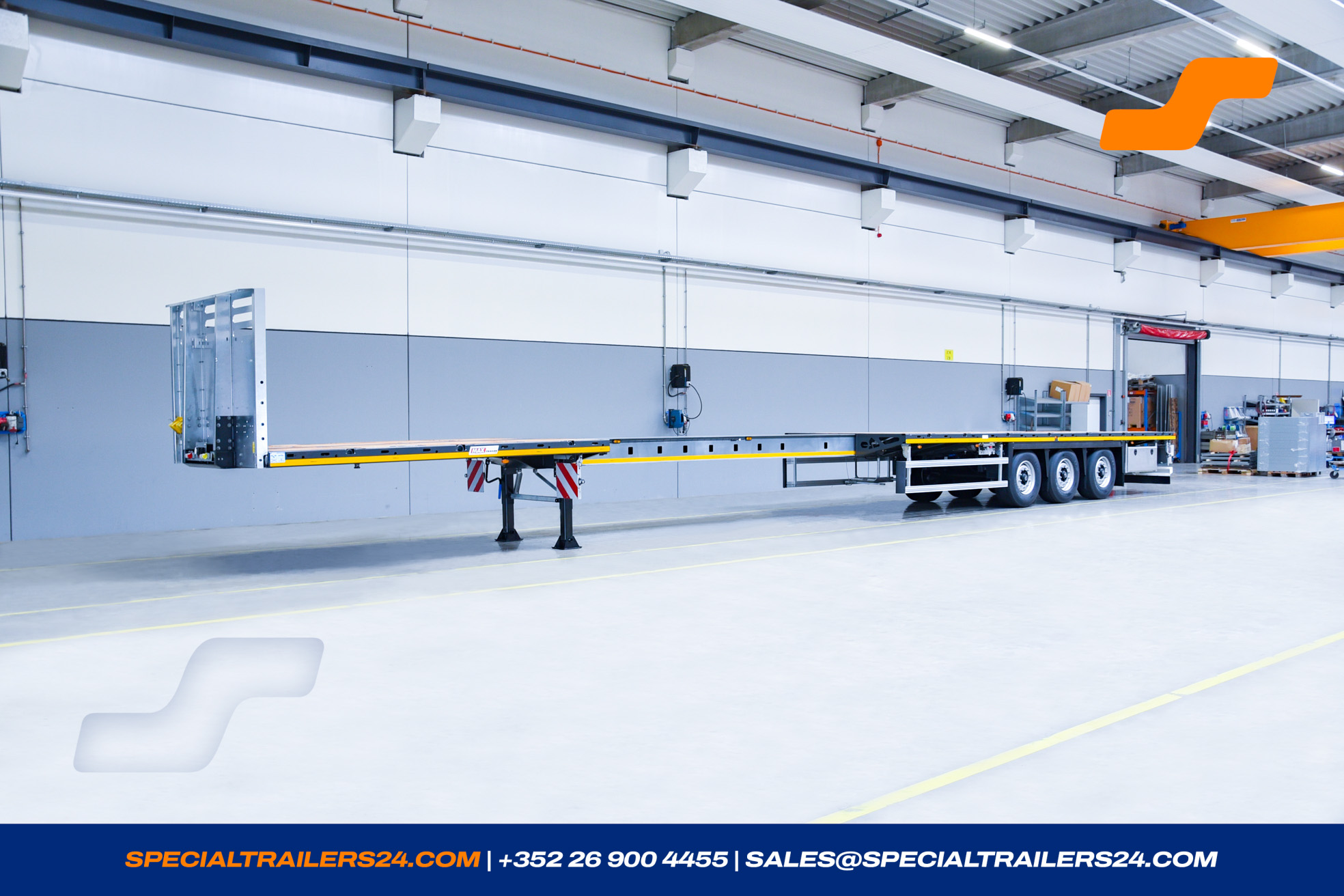

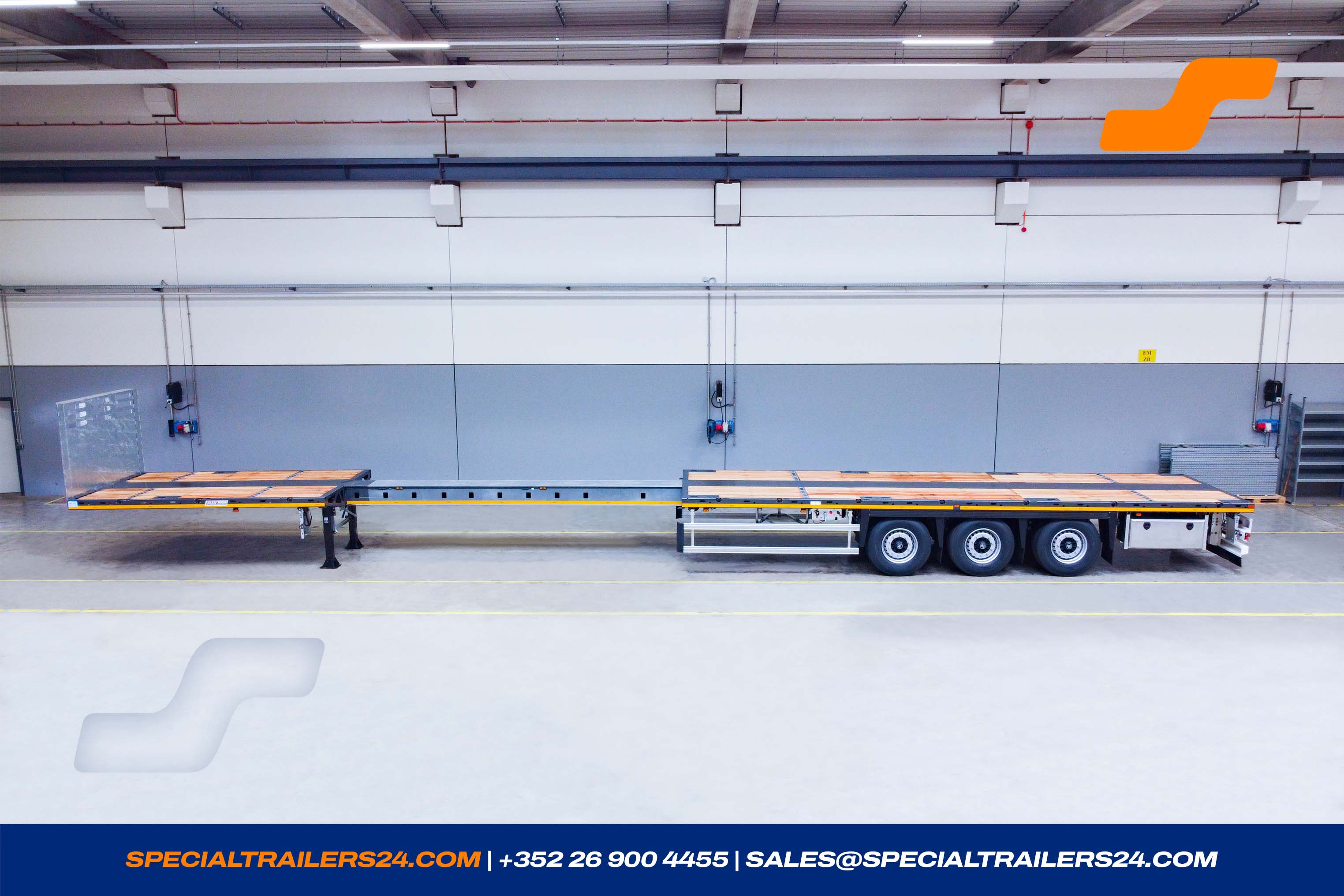

Loading area extendable center spine, pneumatically locked.
7 pairs of lashing rings inserted in the border frame, hinged outwardss (LC 5 000 daN).
3 pairs of lashing rings inserted in the border frame, hinged outwardss (LC 10 000 daN).
Cutouts in the border frame of the loading area for hooking in tension belts. (LC 2 000 daN).

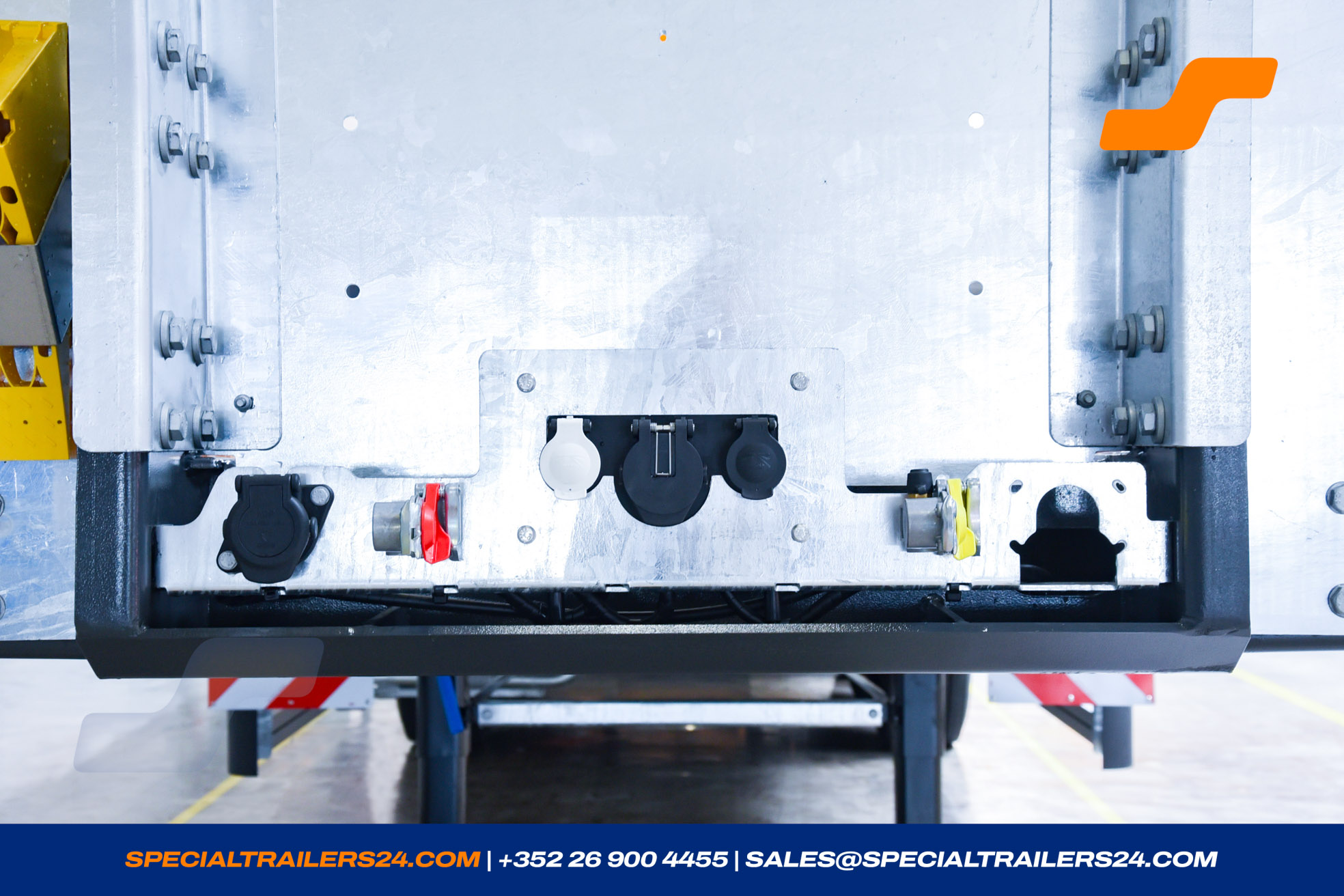

- Red and yellow air couplings on the galvanised front connection ledge.
- 2 wheel chocks with carrier.
- 2 king-pin.
- Yellow reflective tape according to the EU regulation over the entire length, on the extension and at the rear.

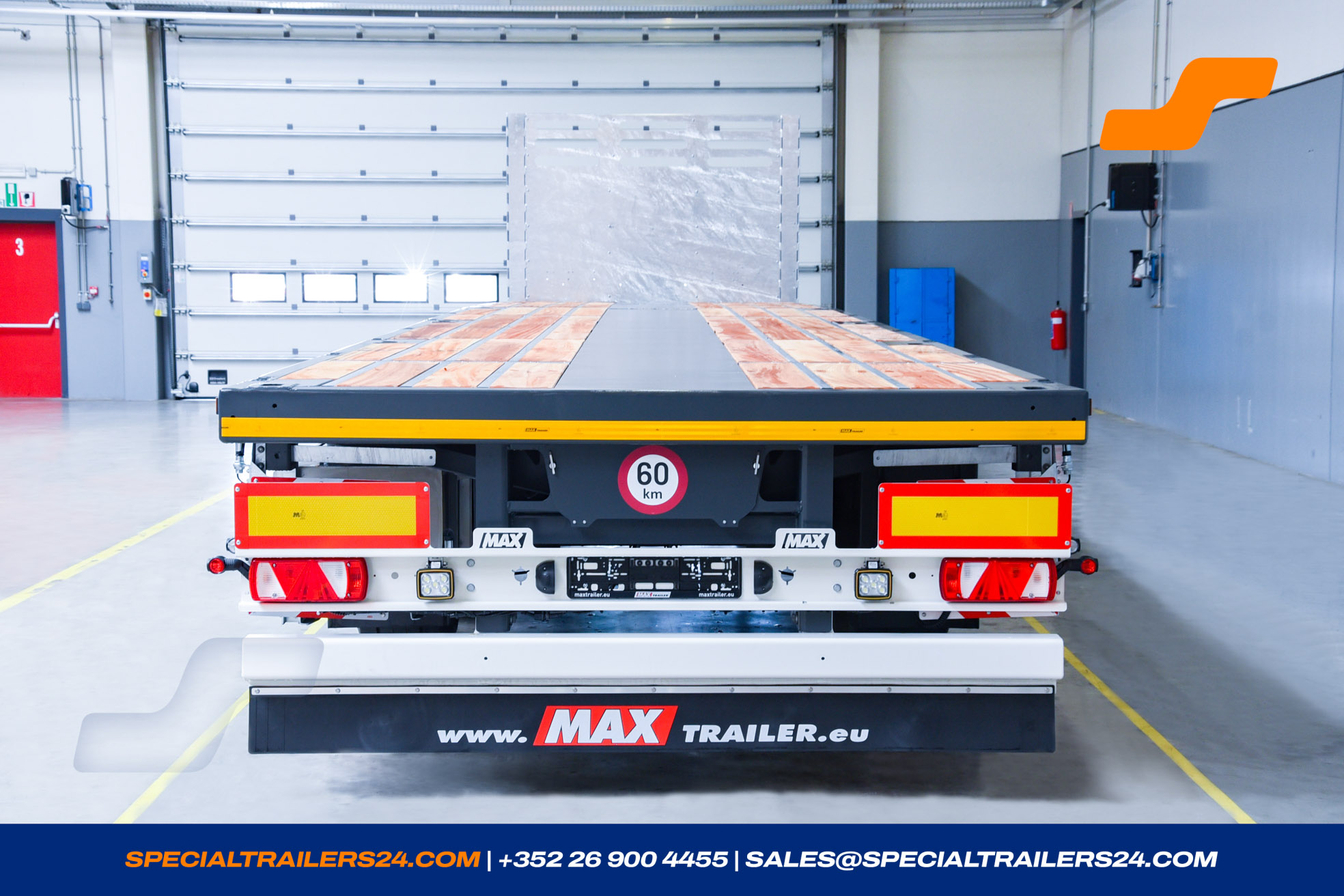

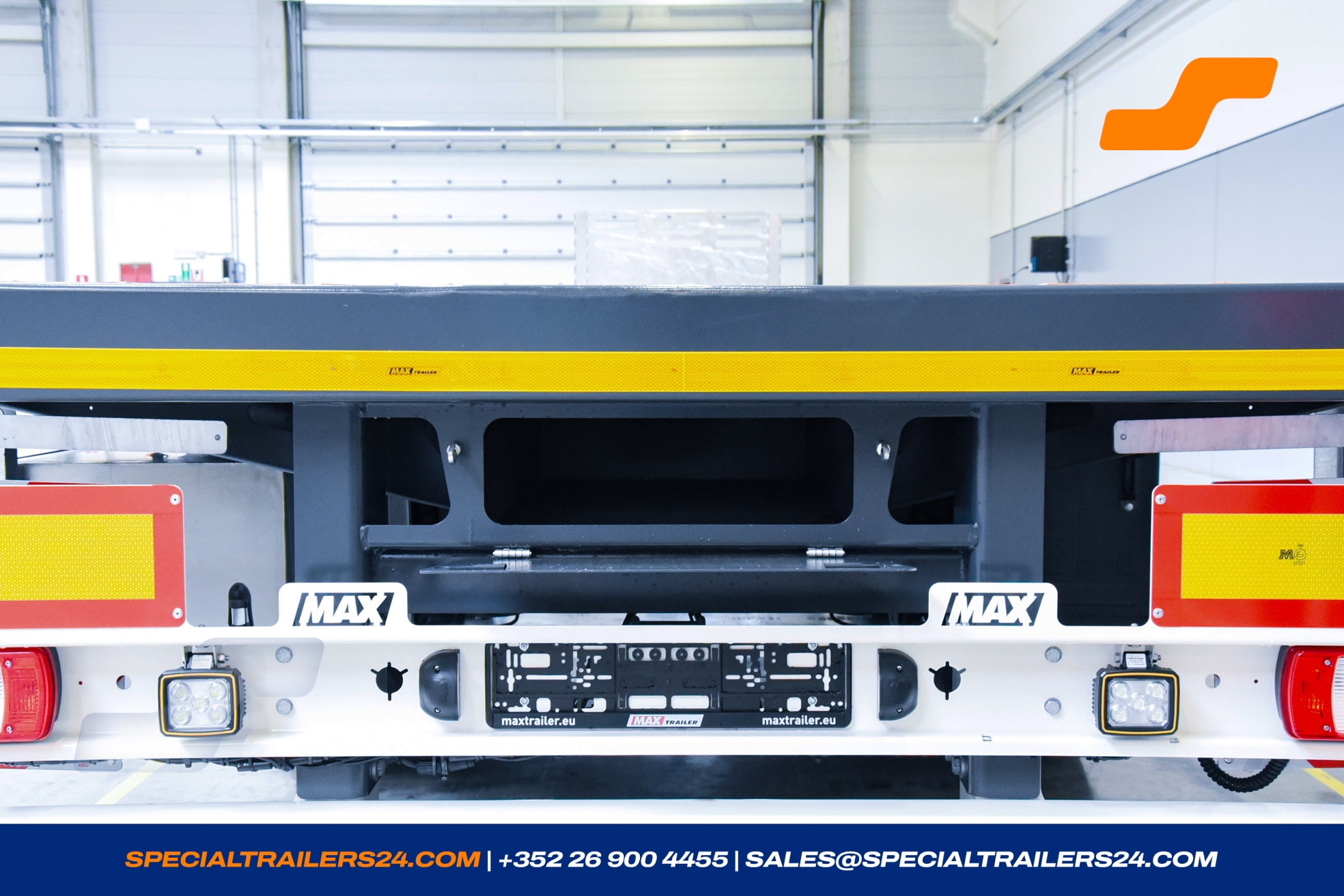

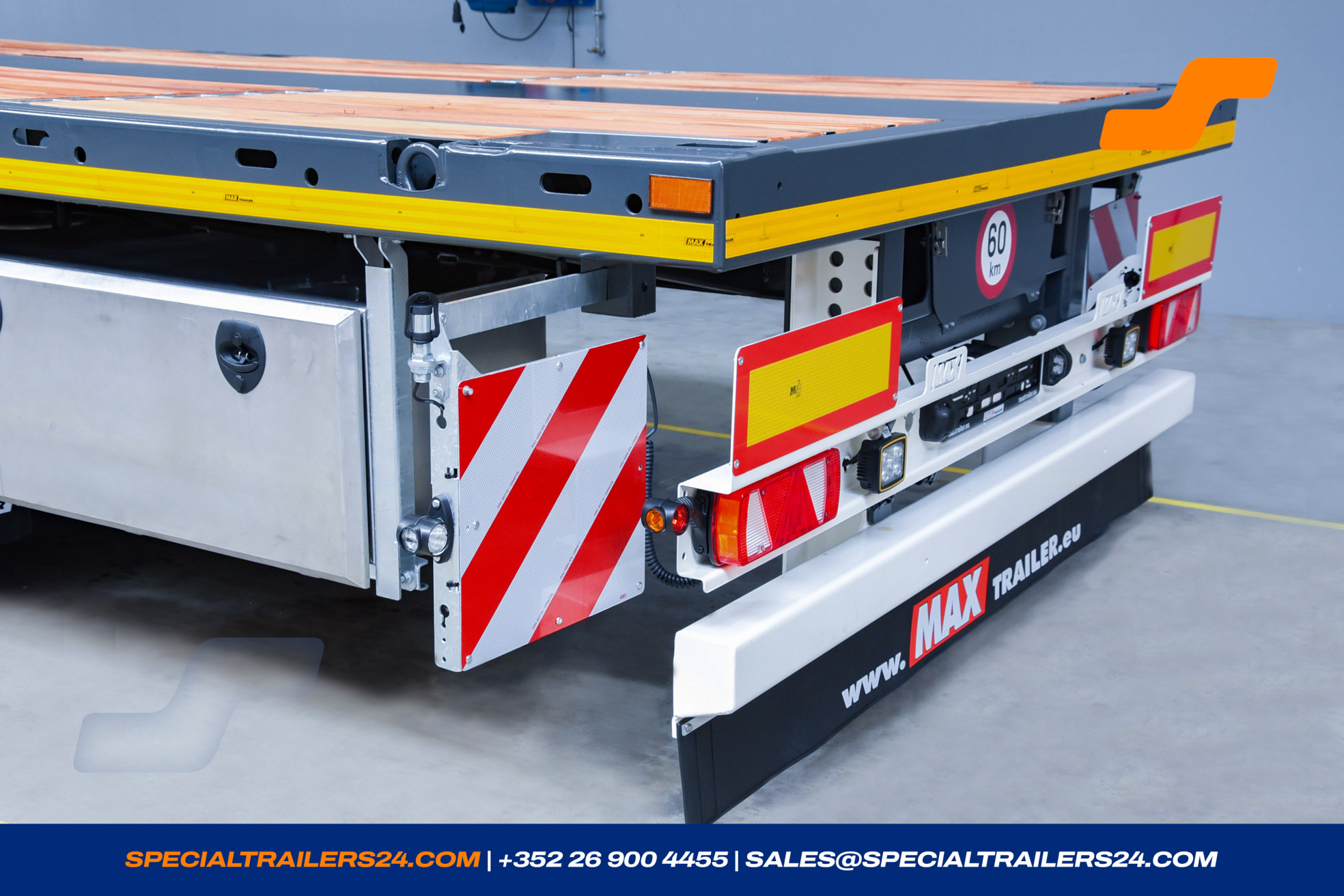

- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- 10 pairs of pockets for stakes ± 100 x 50 mm in the outer frame of the loading platform. (± 30 kg)
- Storage for 1000 mm stakes in the central carrier.

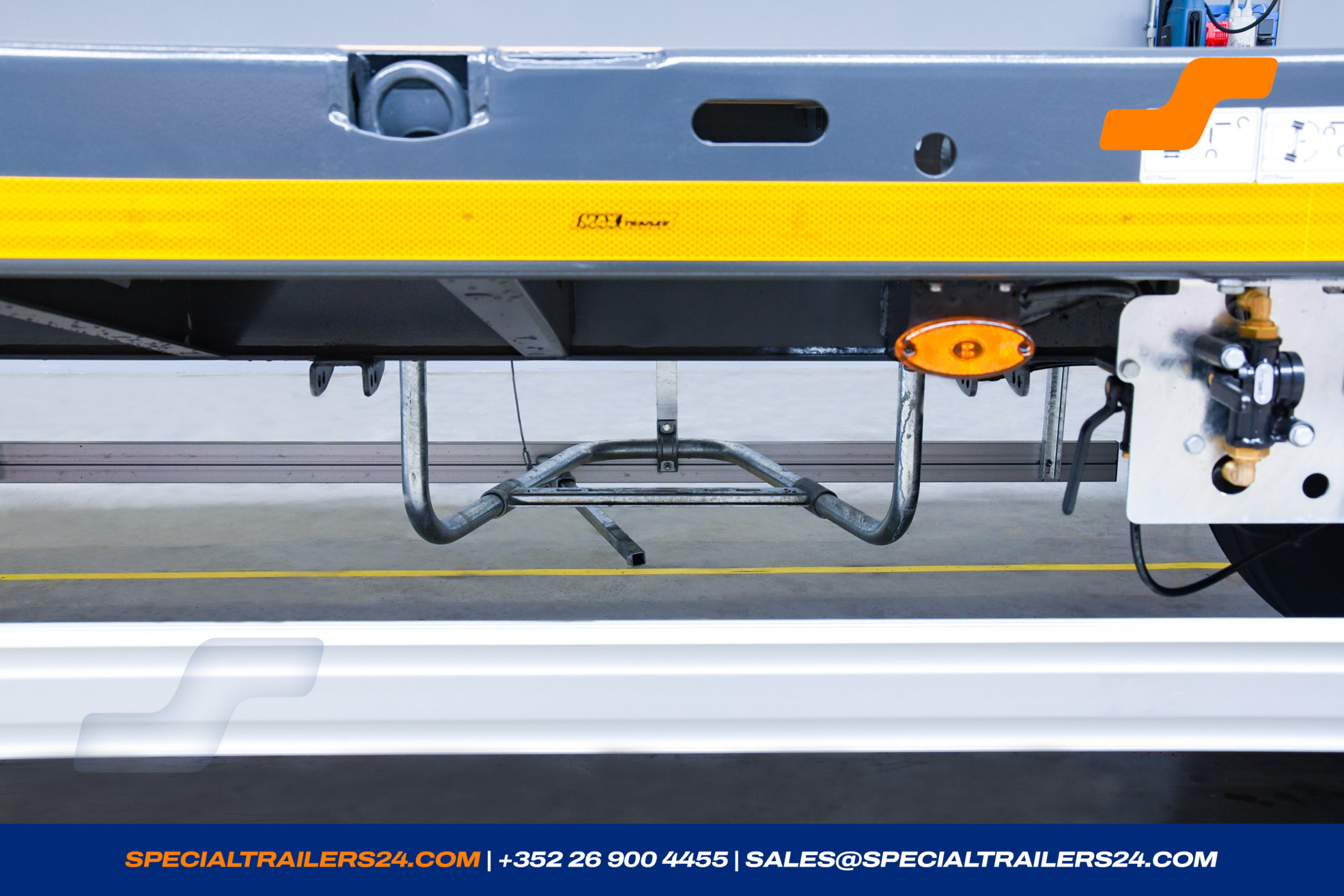

- 1 spare wheel carrier, under the loading platform on the right side.

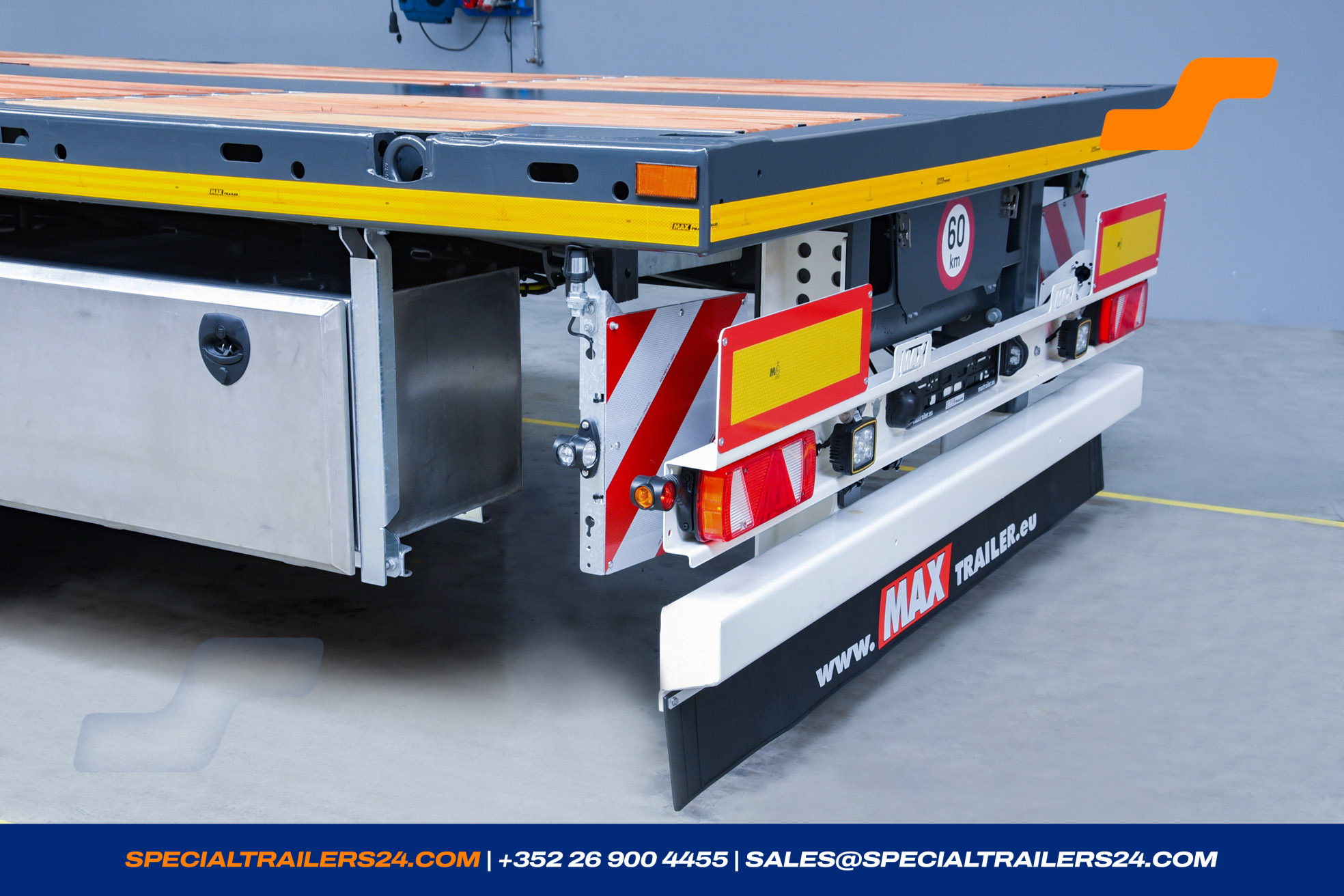

- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Manual and description on USB stick .
- Holder for one beacon light at the rear of the trailer.

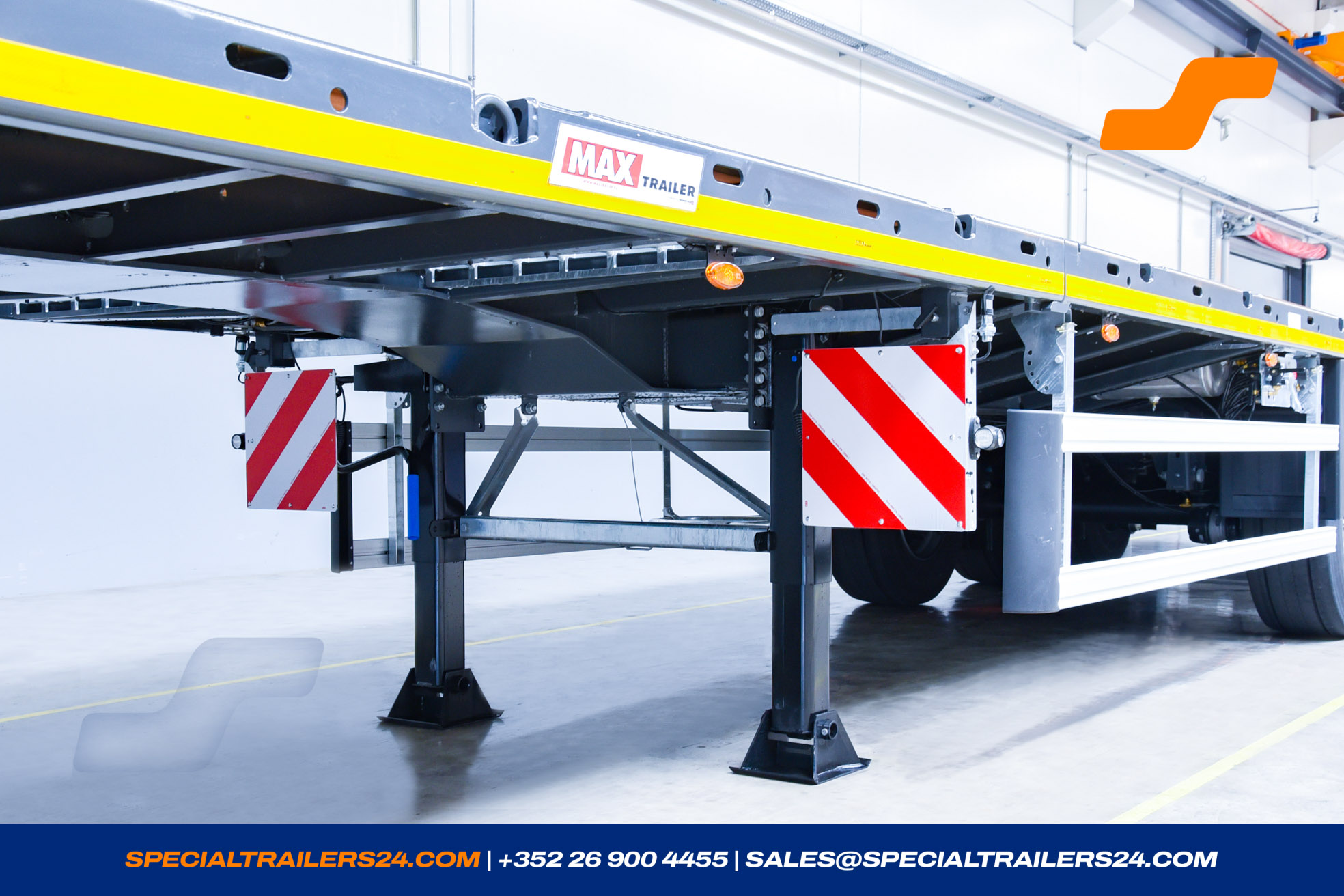

- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
-

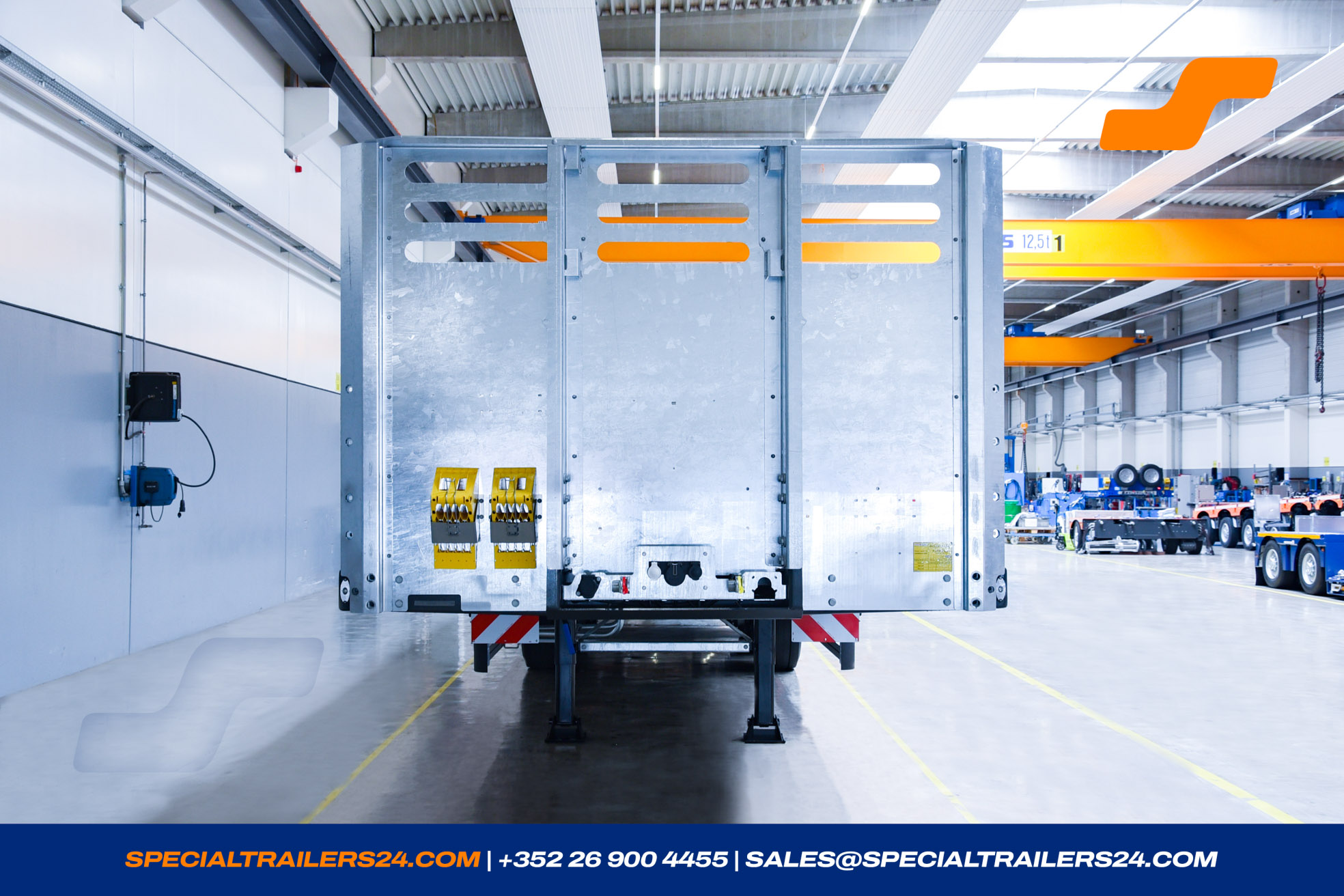

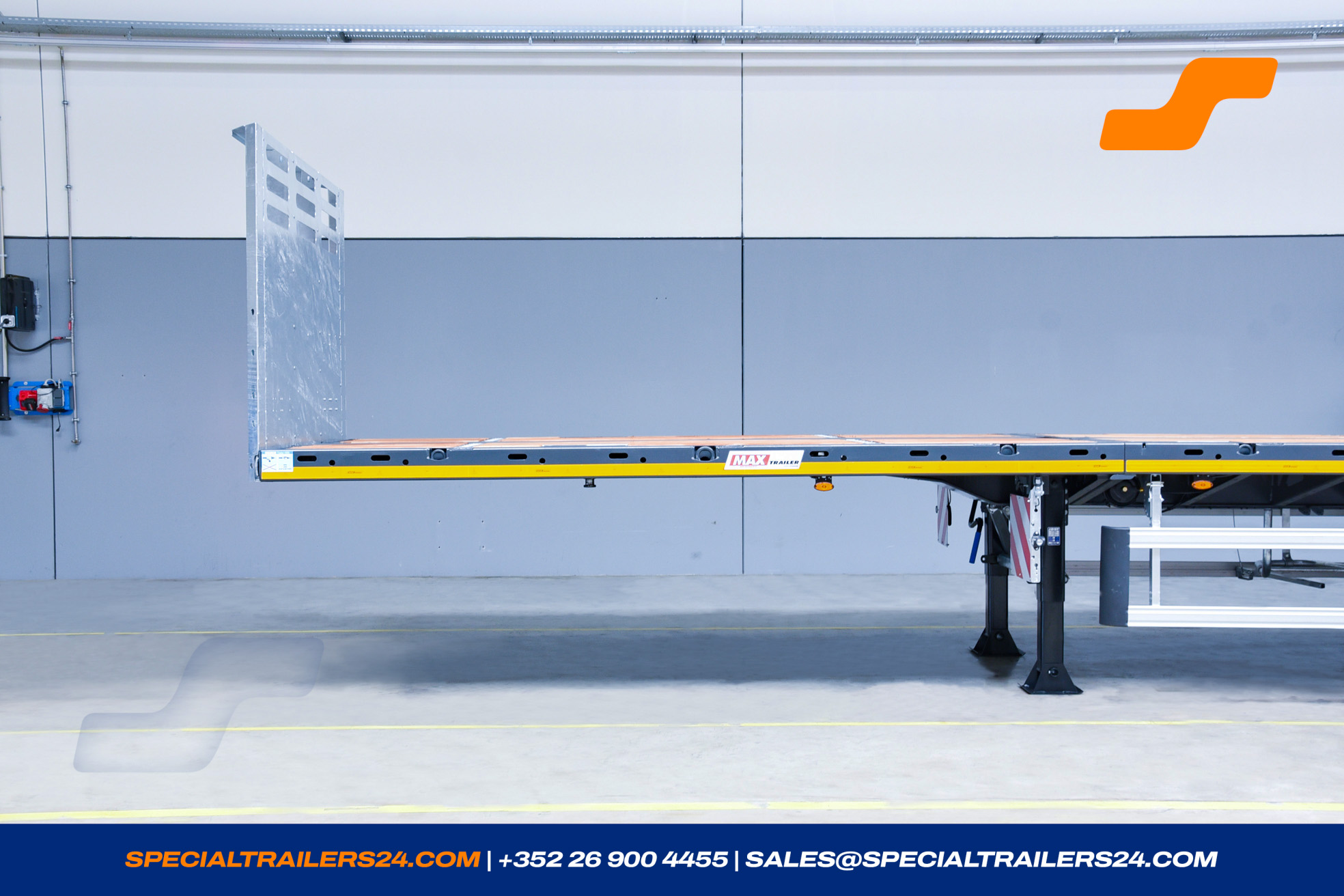

One galvanised steel headboard, height ± 1 600 mm. (± 35 kg)

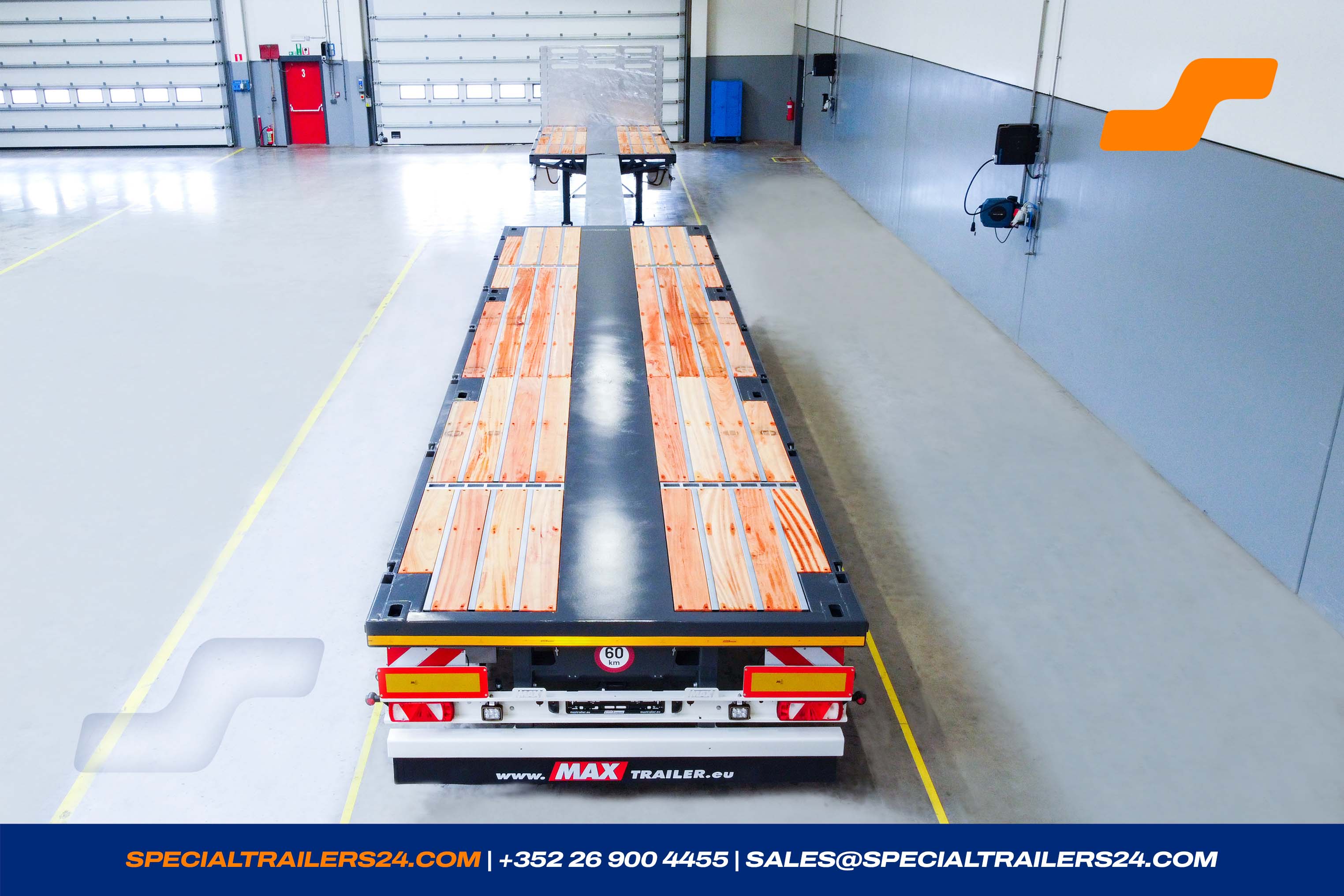

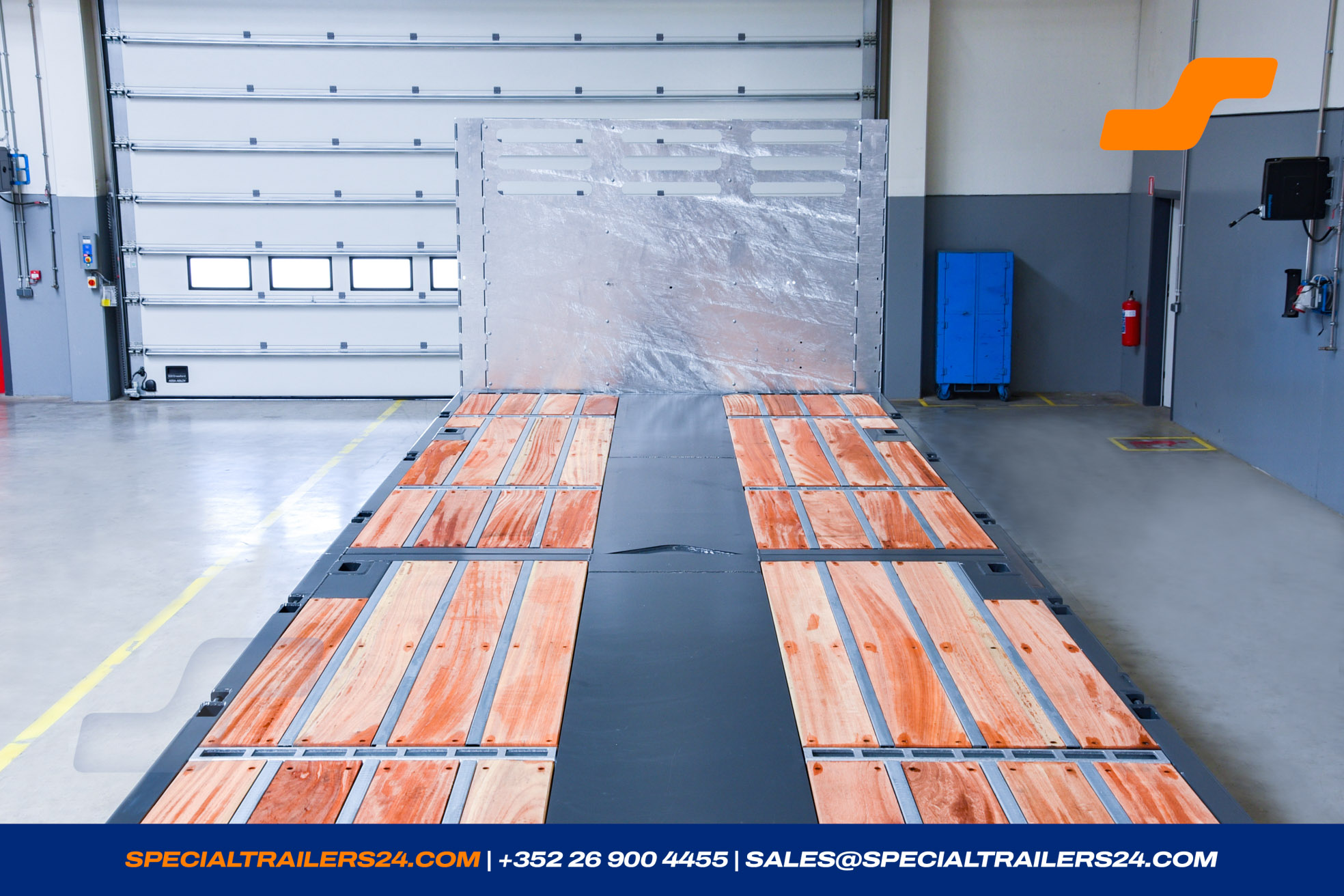

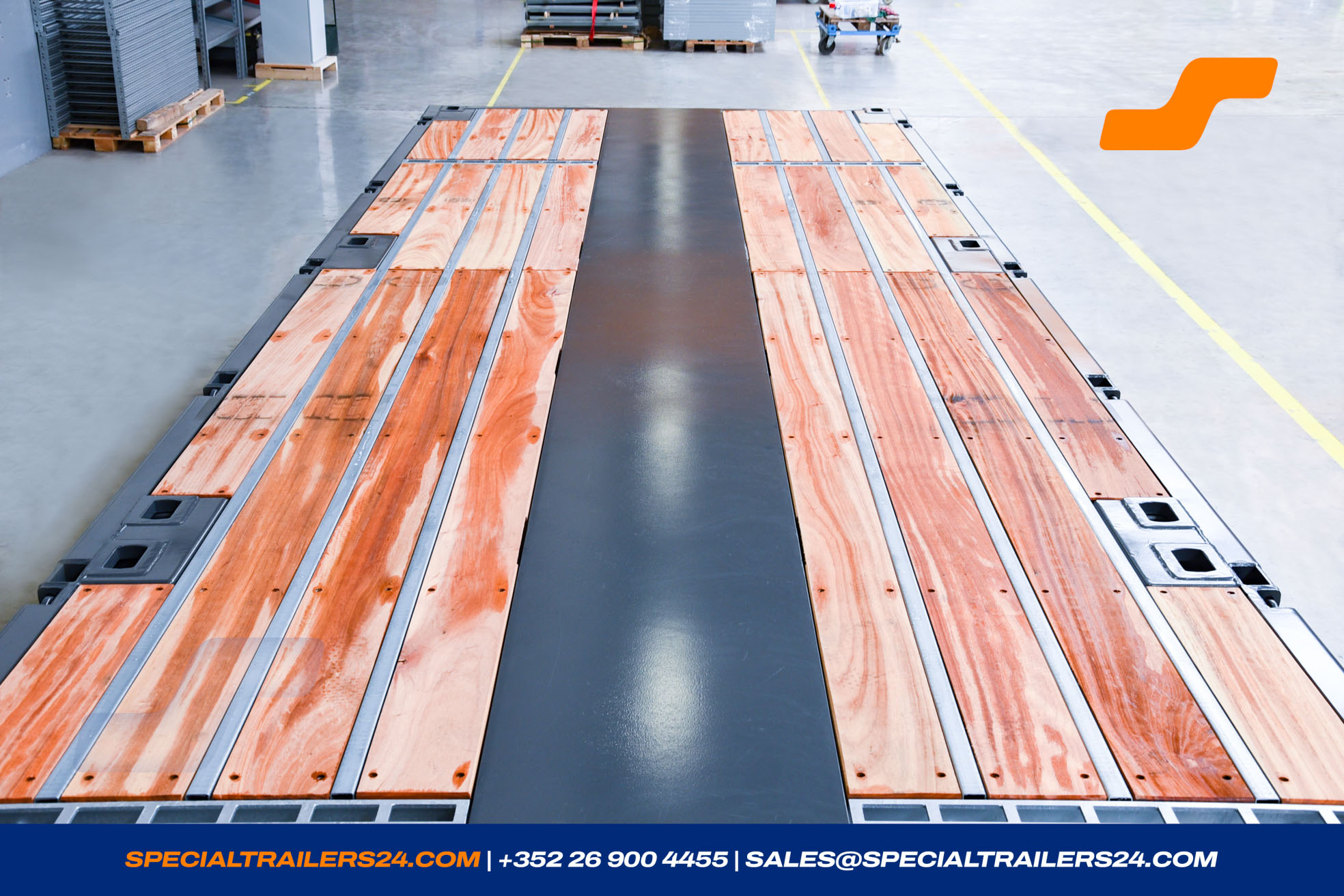

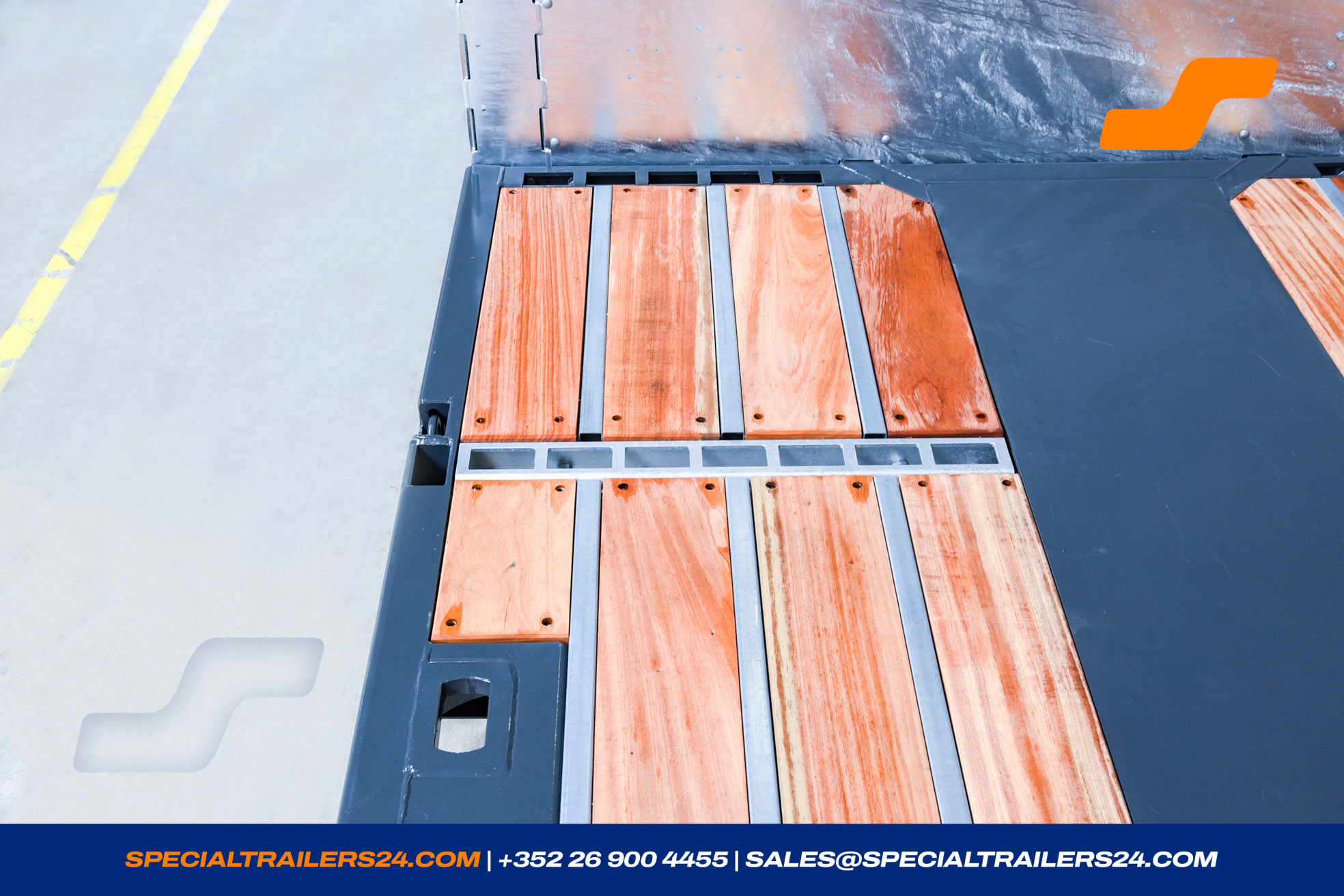

EN12642-XL - Loading area with ± 30 mm hardwood floor incorporated in omega profiles. (± 270 kg)
- 6 pairs of containerpockets incorporated into the loading platform for 1 x 20' or 2 x 20' Containers or 1 x 40' Containers. A locking position in the extending for a container 1 x 45'. (± 90 kg)
- 4 pairs of stake pocket rows in the loading platform for stakes 100 x 50 mm. (± 145 kg)
- Galvanised storage under the loading platform 2 390 x 720 x 400 mm. (± 125 kg)

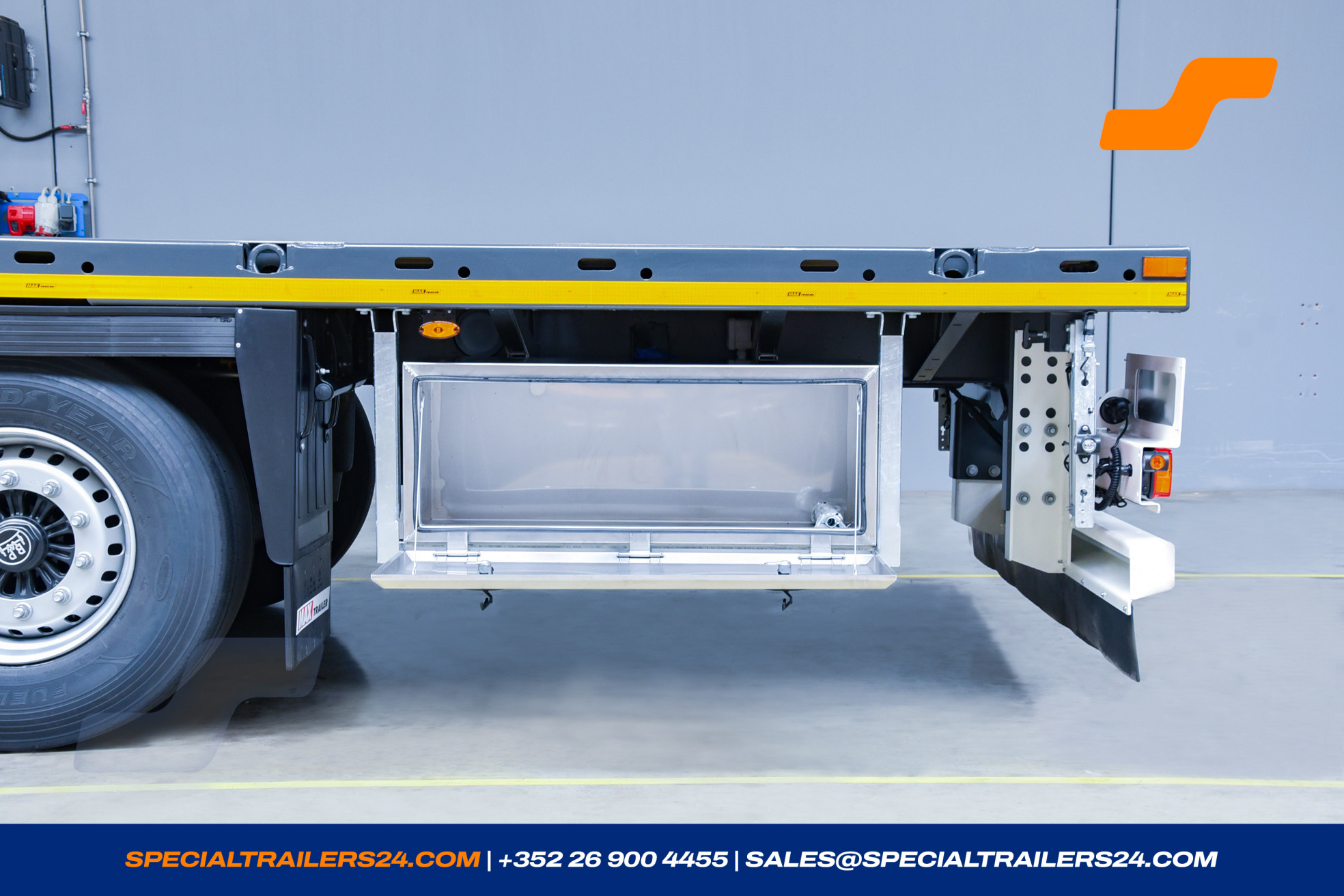

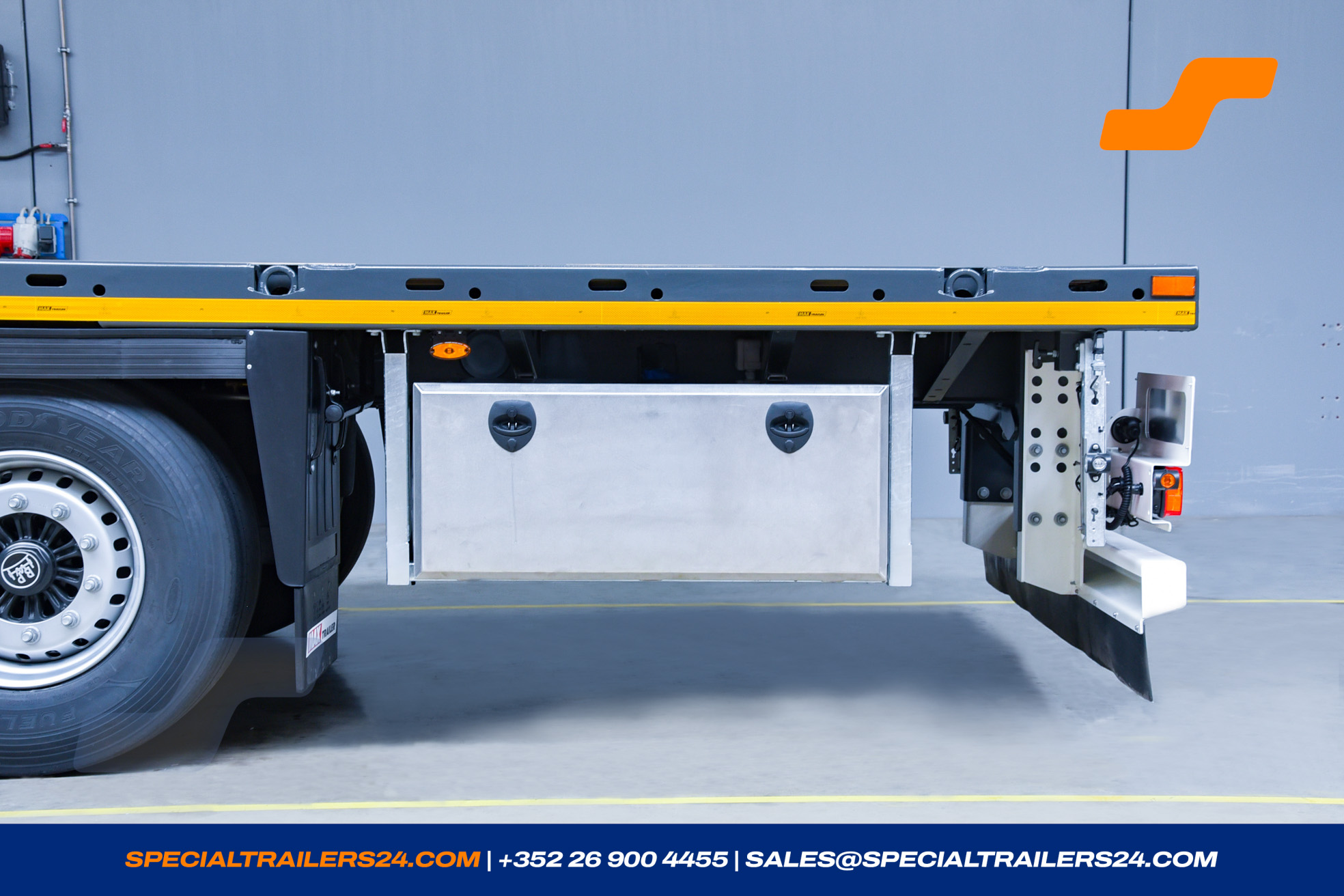

- One lockable tool-box INOX 1 200 x 460 x 550 mm under the loading platform in driving direction on the left side. (± 95 kg)

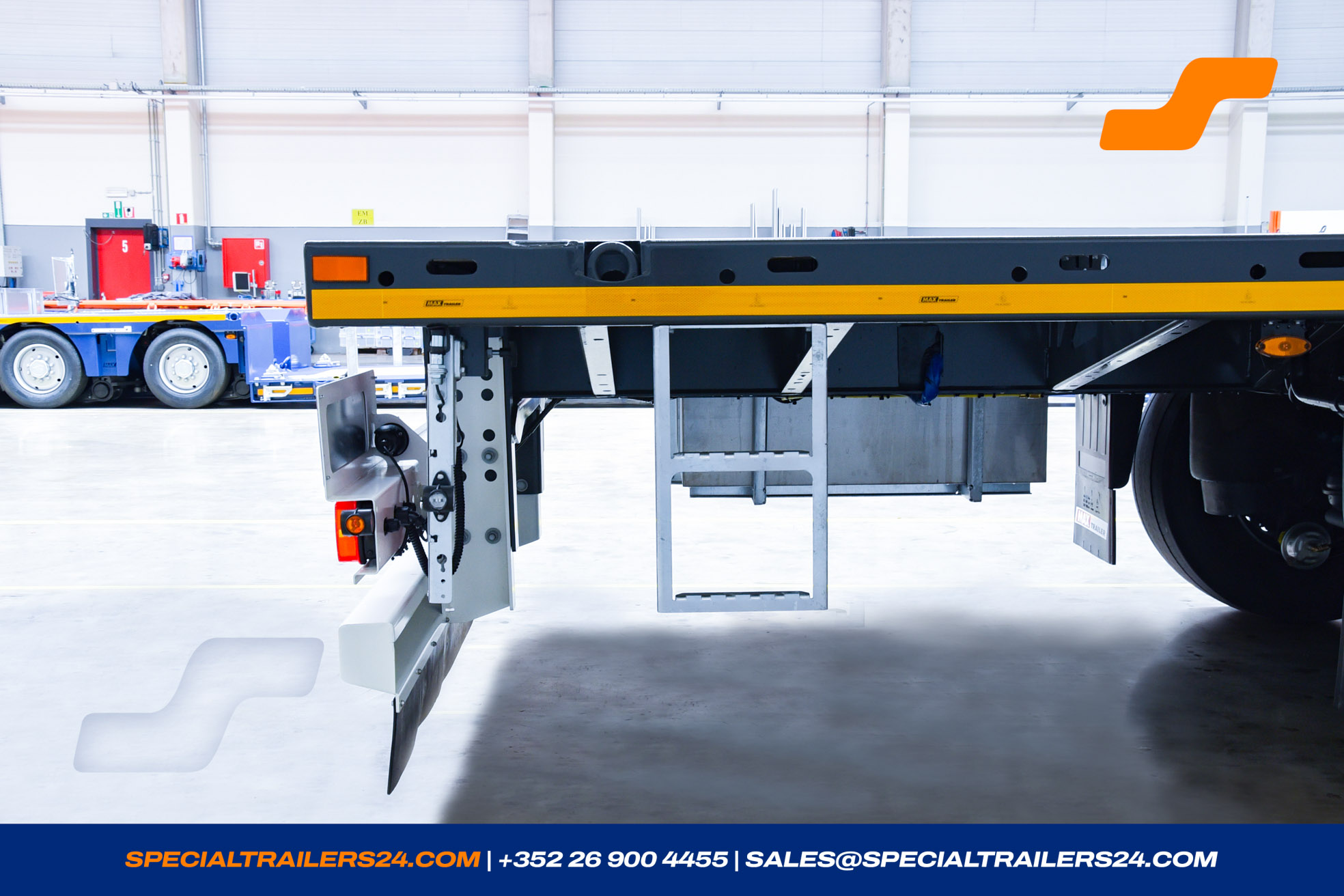

- Ladder mounted on the right hand side. (± 12kg)
Accessories
1 x Accessory
MAX200-Accessory
- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.

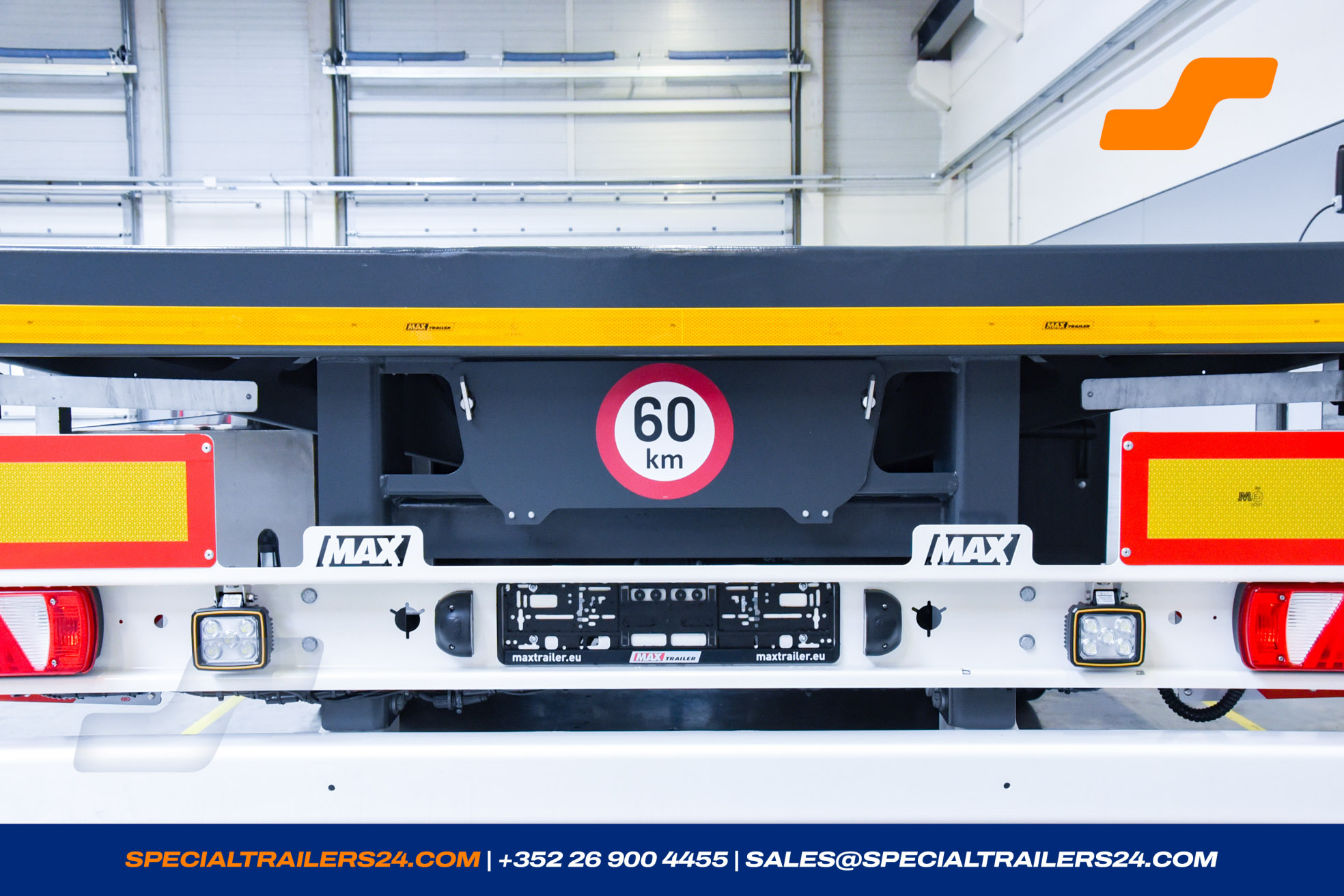

- 2 LED- reversing lights at the rear.
- Delivery from a trailer to factory Lentzweiler.
- Load manometer for determining the axle load, including load diagram.
