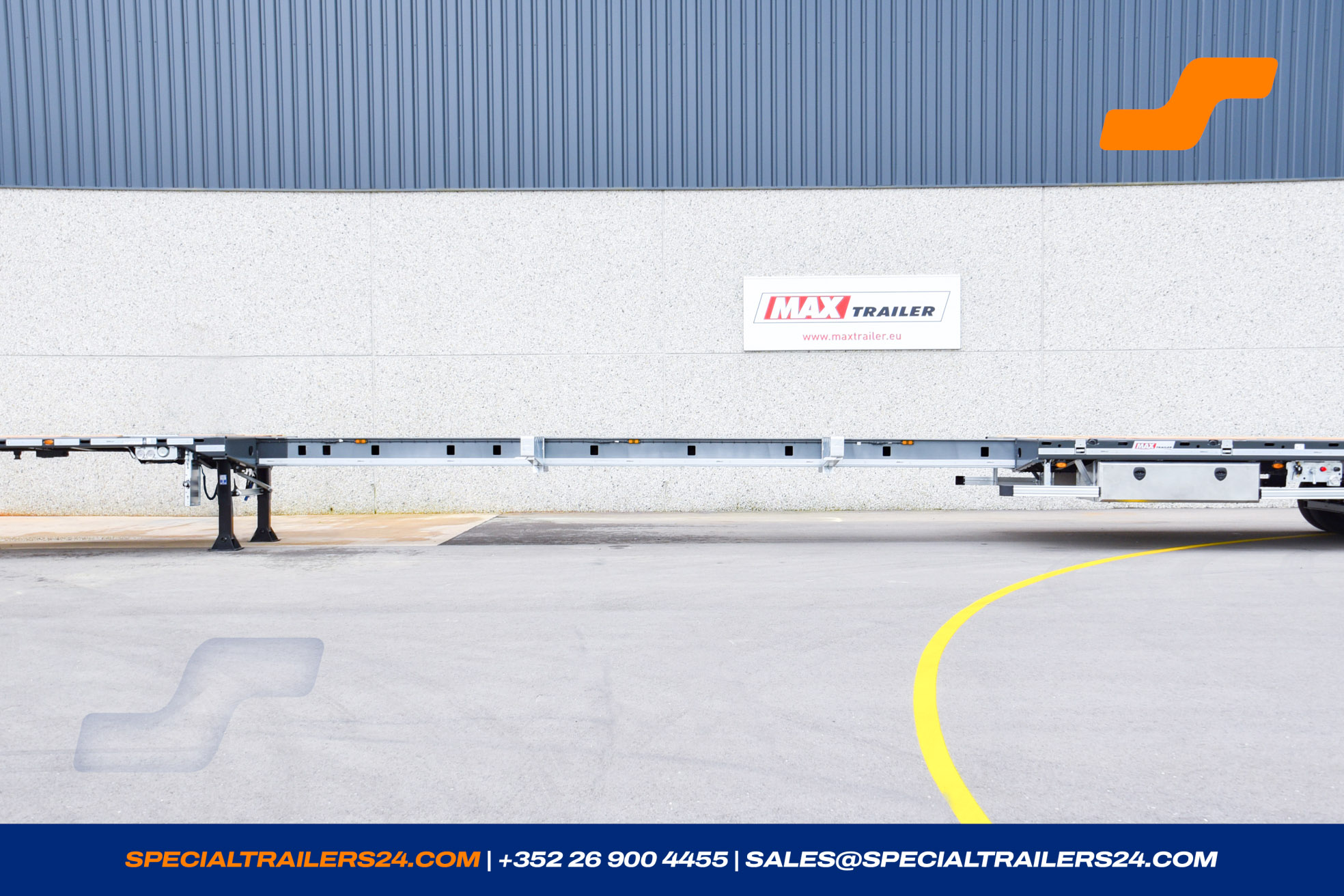

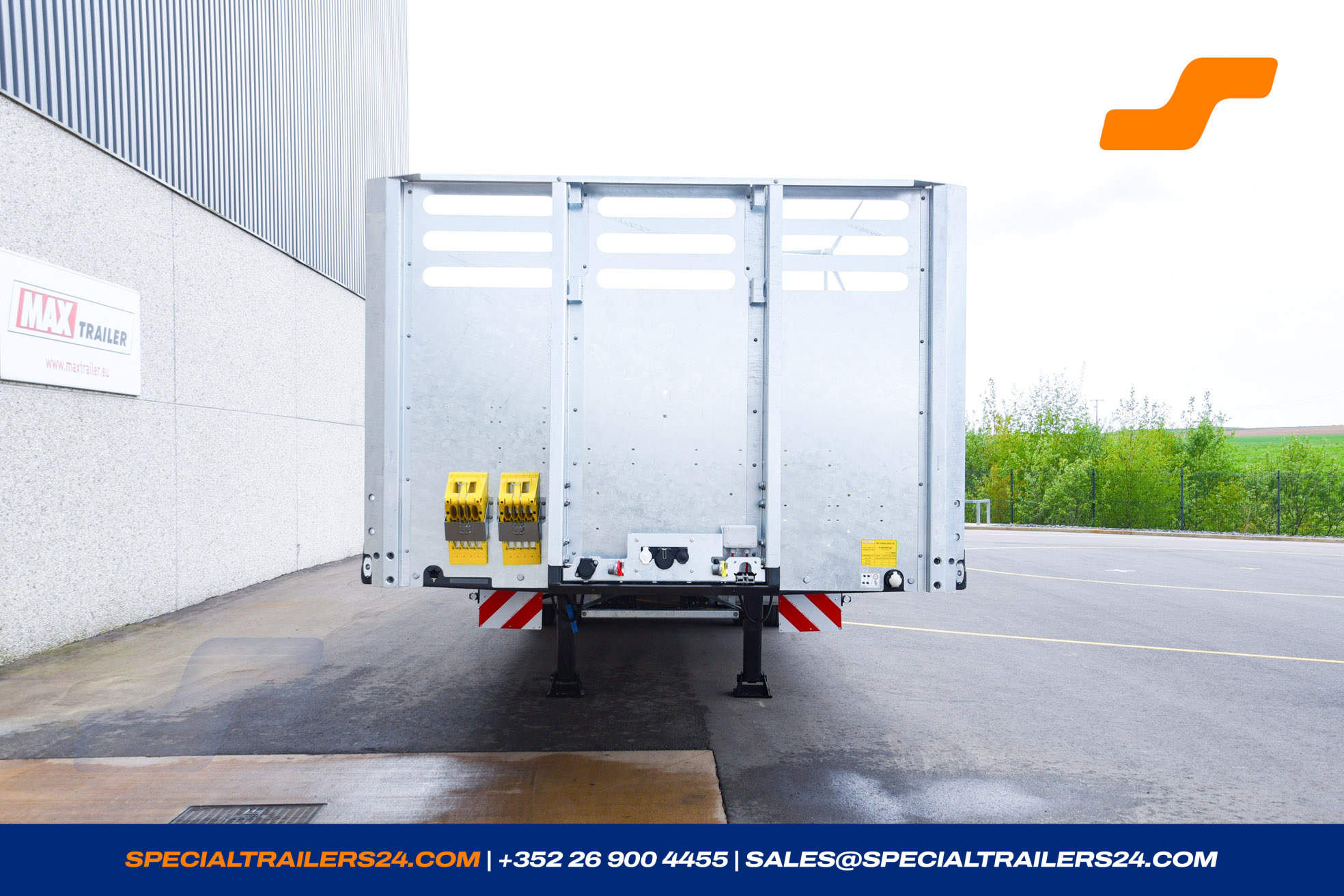

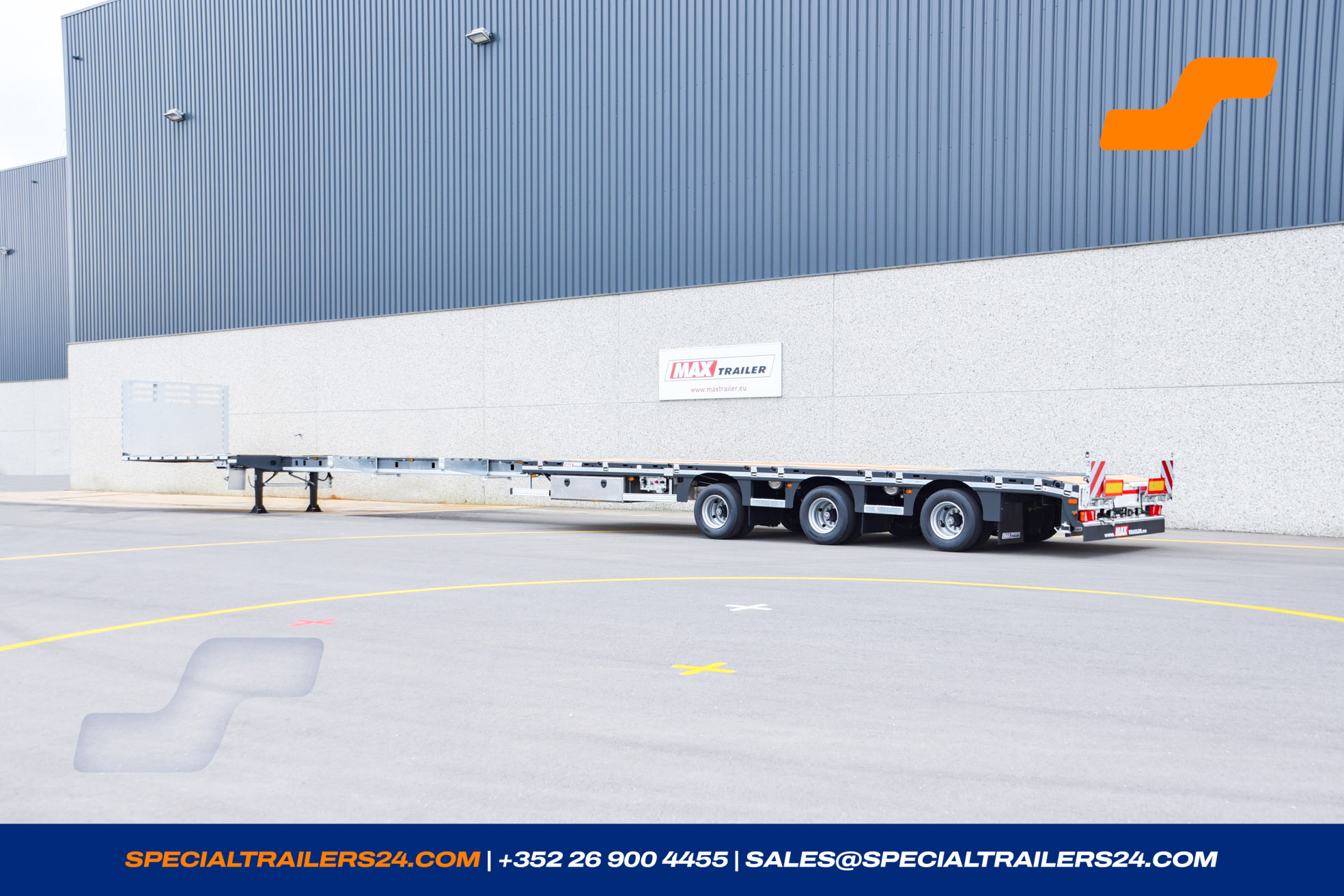

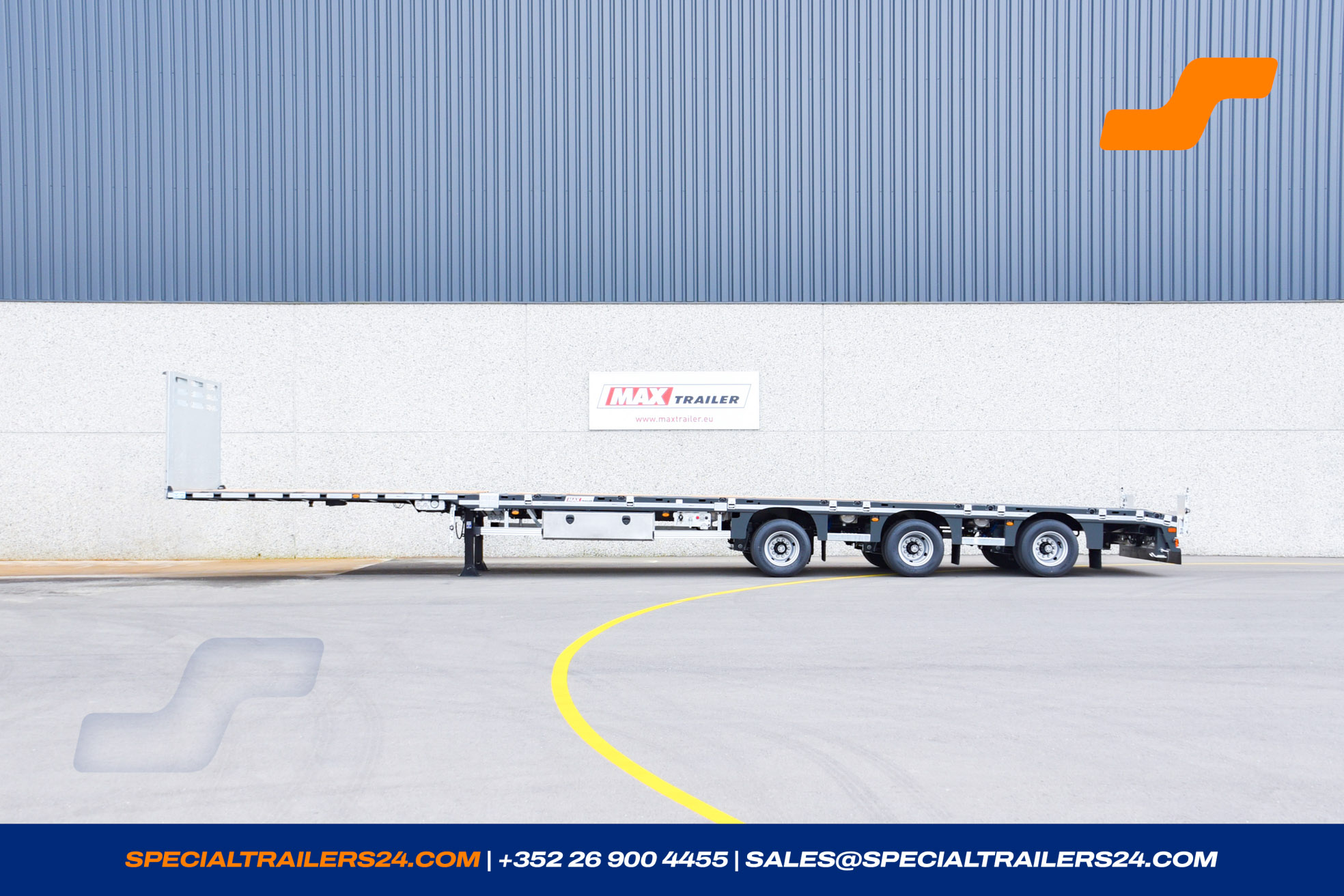

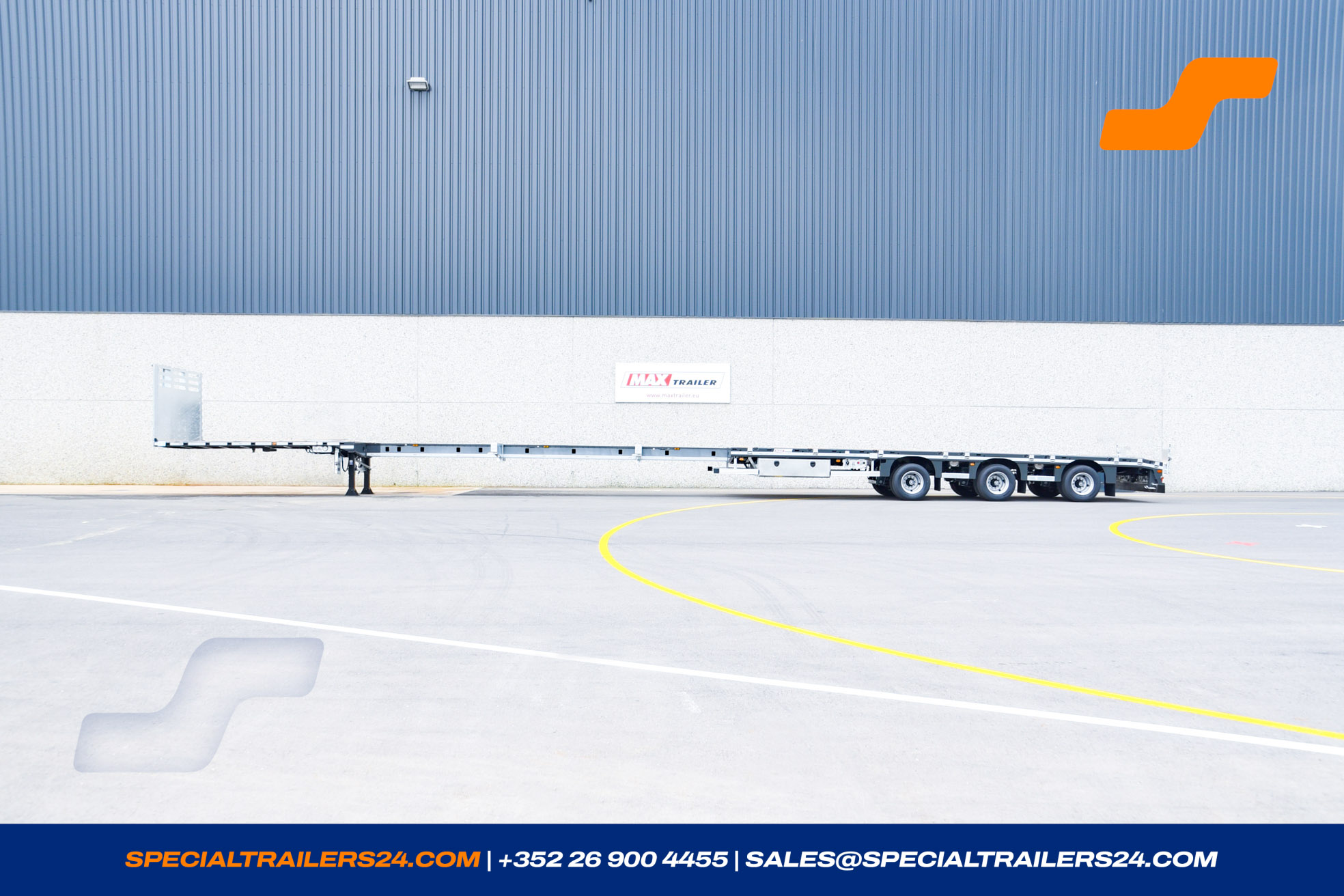

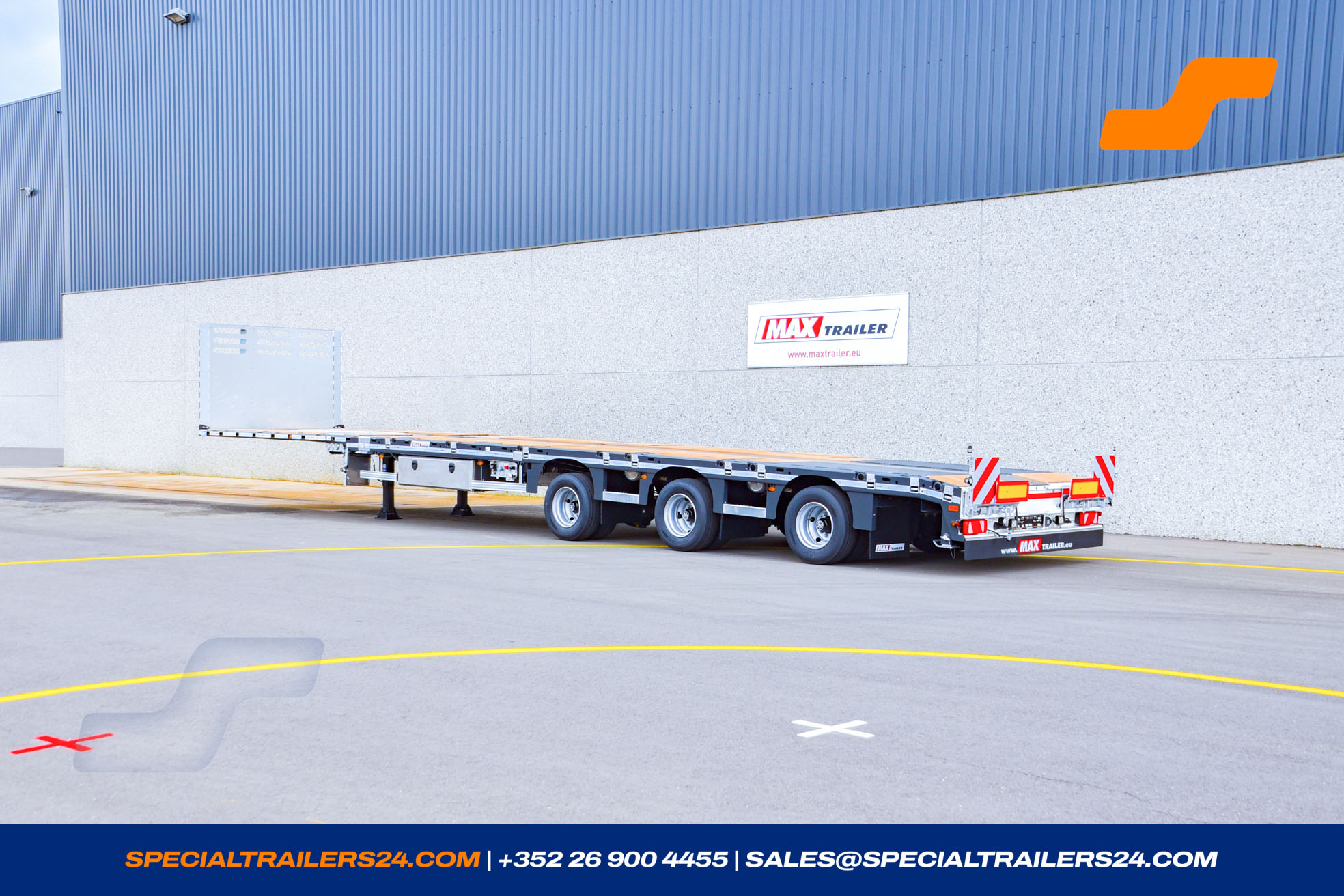

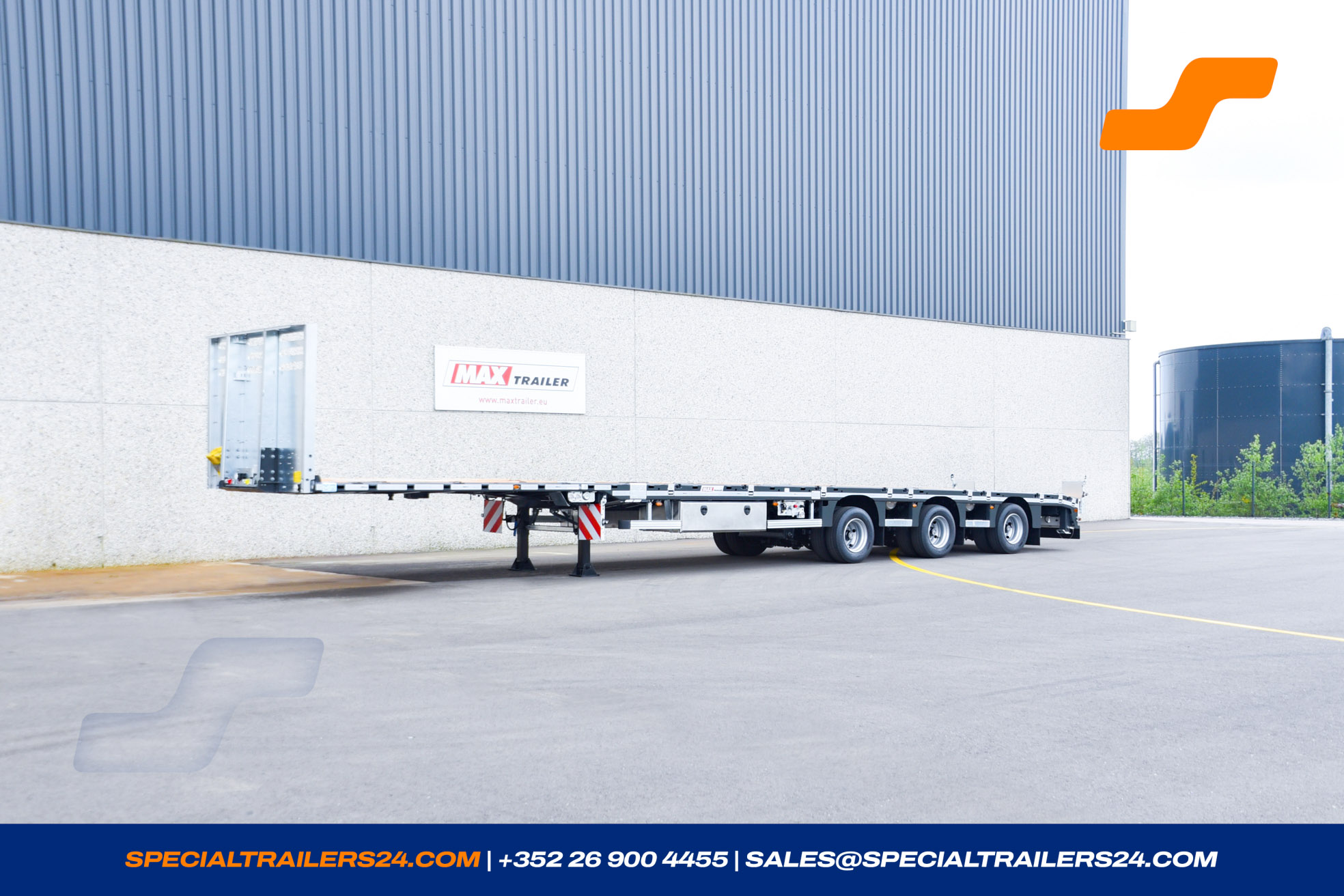

Flatbed trailer
MAX Trailer MAX210
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 112212
- Reference MAX210-Z-3A-13.50-17.5-2.54

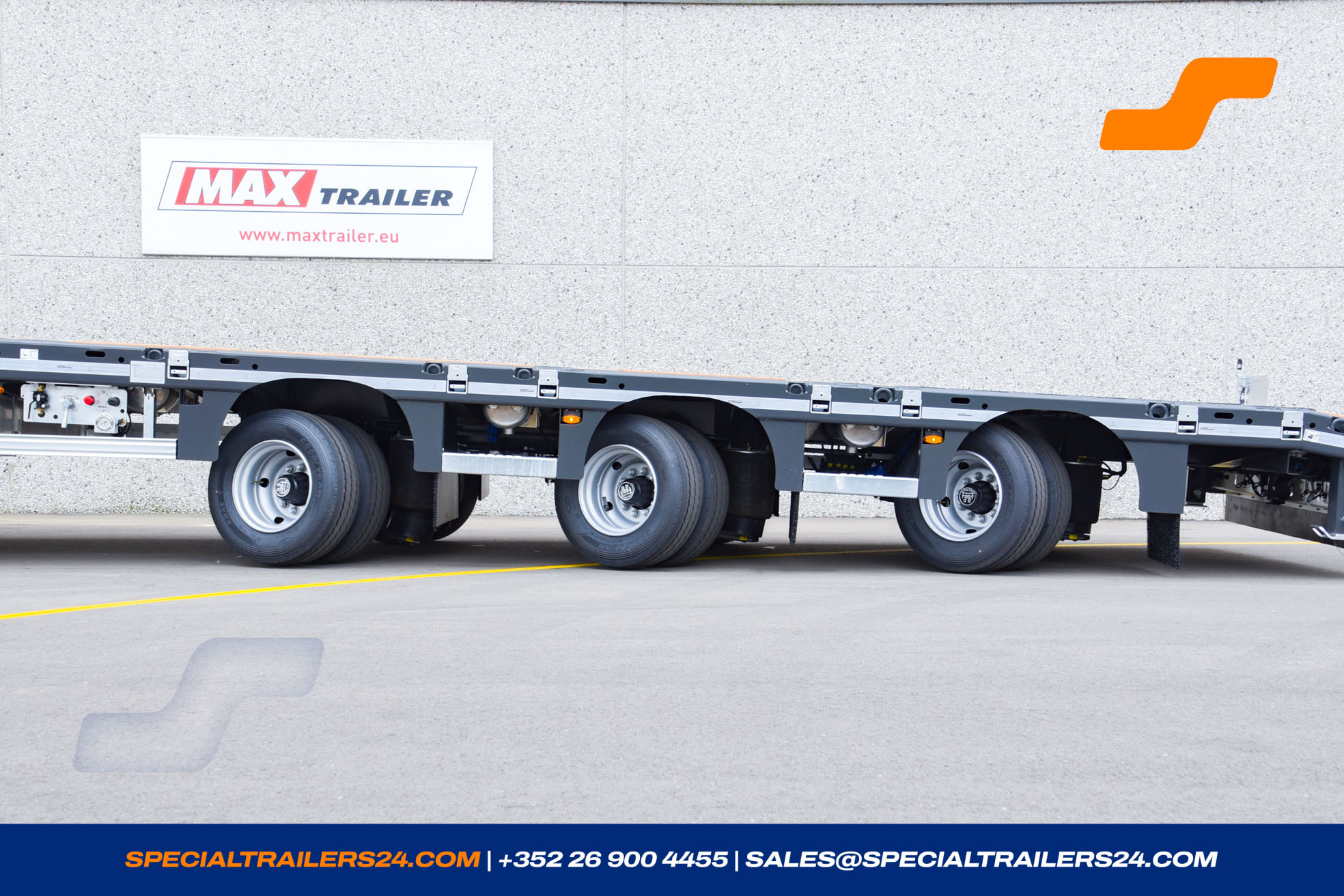

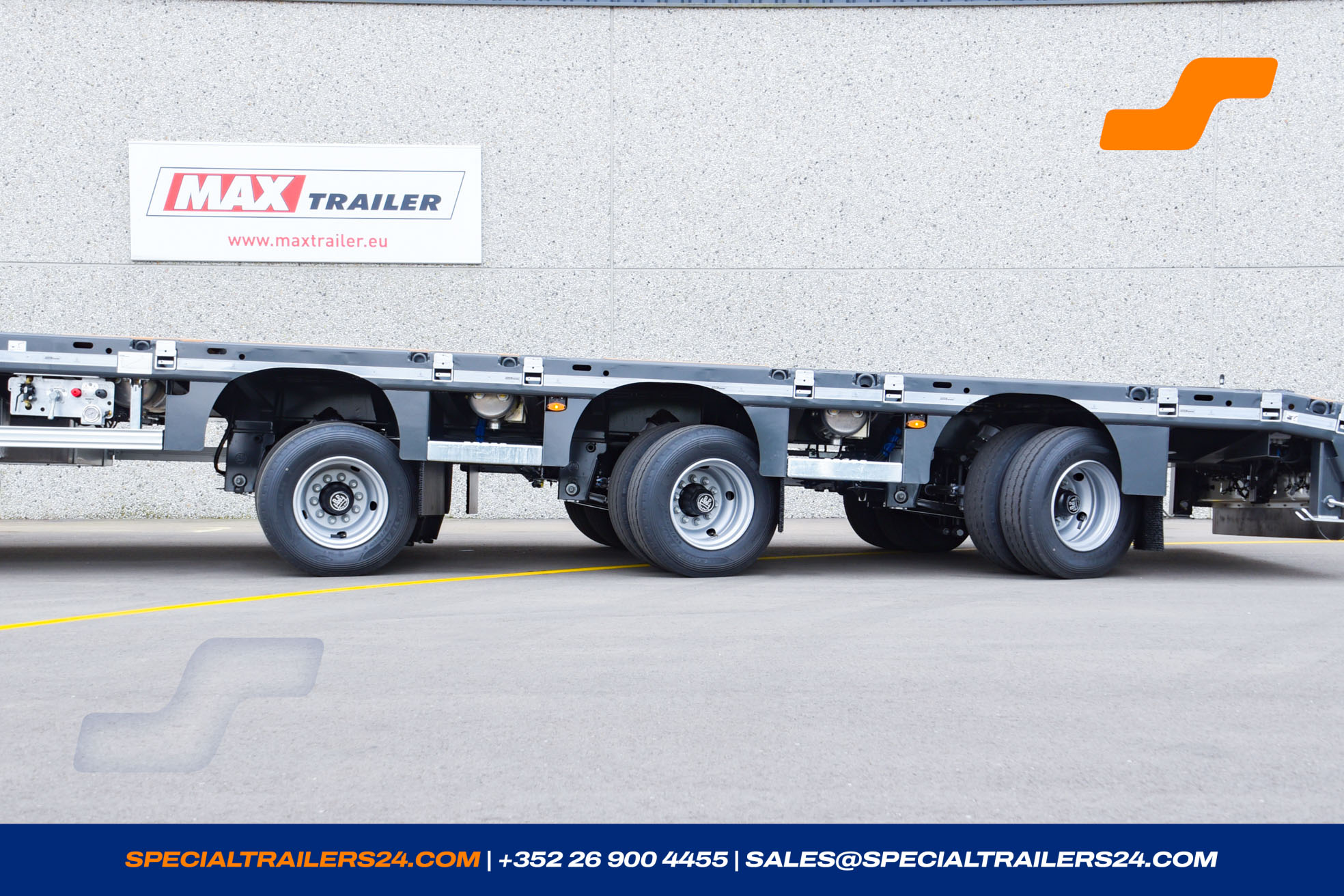

- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 09/2026
- Steering Type Hydraulic
Availability
09/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 32100 kg |
| Gross weight | 50100 kg |
| Tare weight +- 3% | 11122 kg |
| Payload | 38978 kg |
Dimensions
| Fifth wheel height loaded | 950->1050 mm |
| Turning circle reversing | 2 100 mm |
| Loading platform length | 13 500 mm |

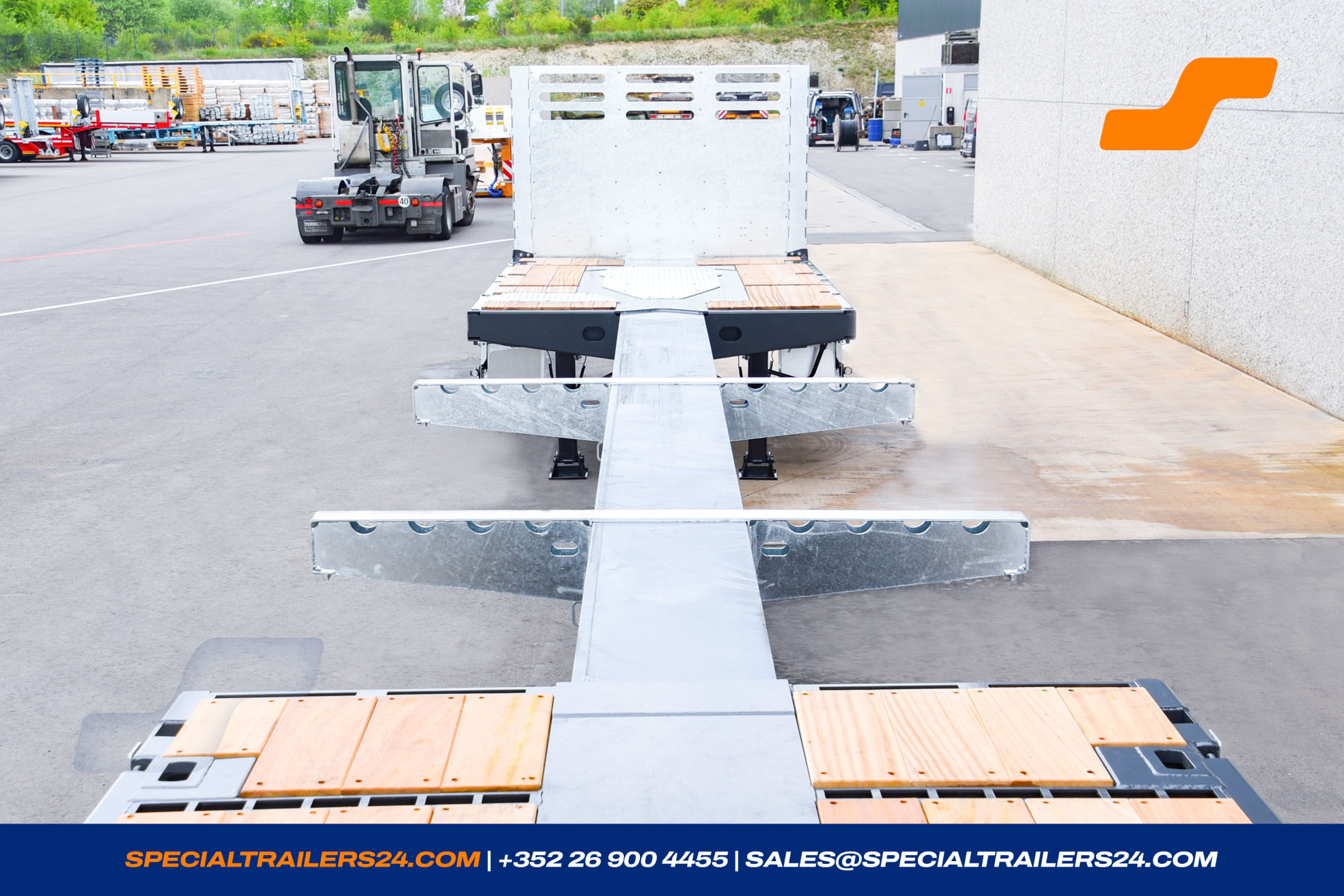

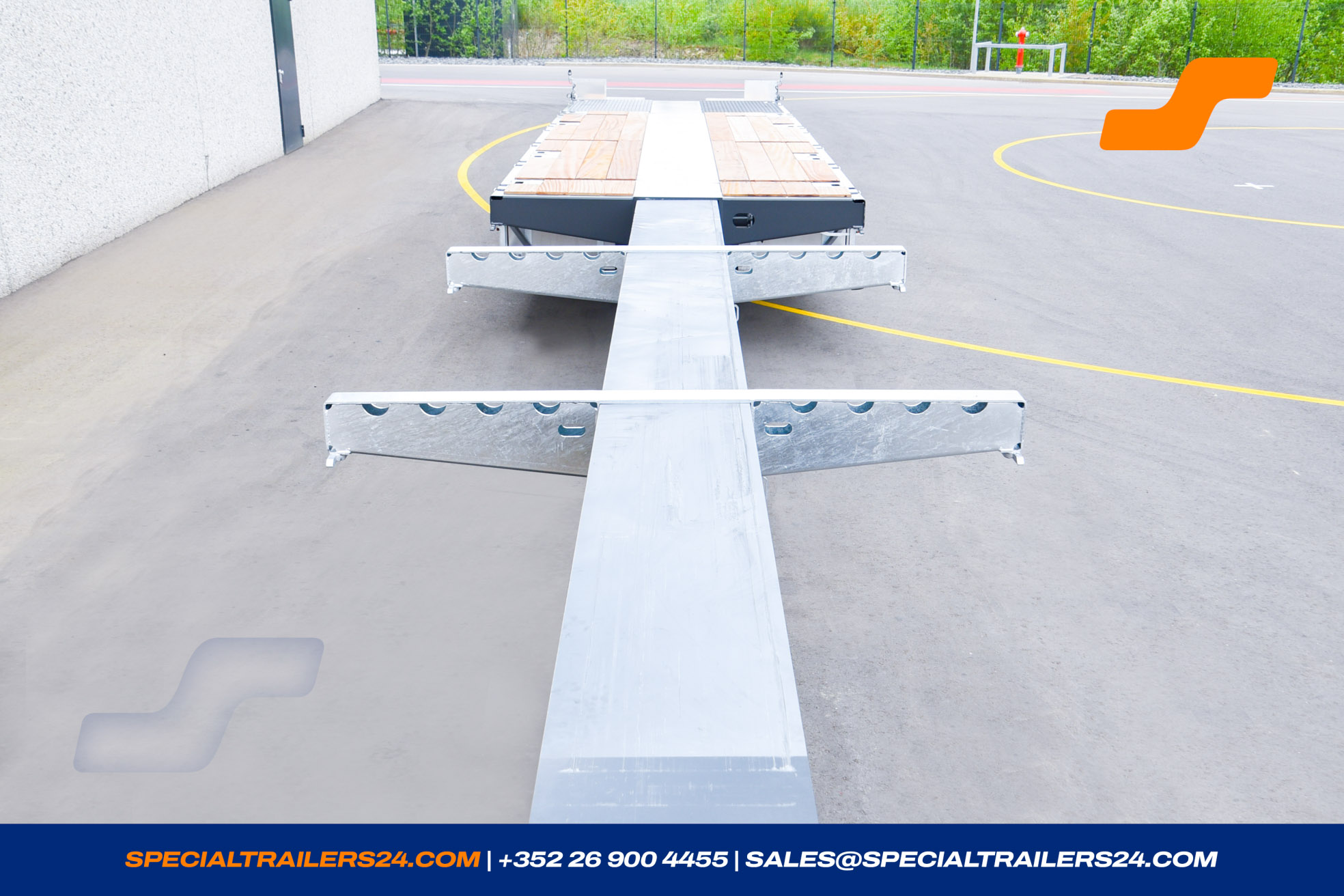

| Extendable by | 7 500 mm |
| Wheelbase | 1 810 mm |
| Total width | 2 540 mm |
Loading deck
Loading platform
1 x Loading platform : MAX210-Z-3A(7500)-13.50-17.5-2.54(DSR 2100-ASH 950->1050-12T)

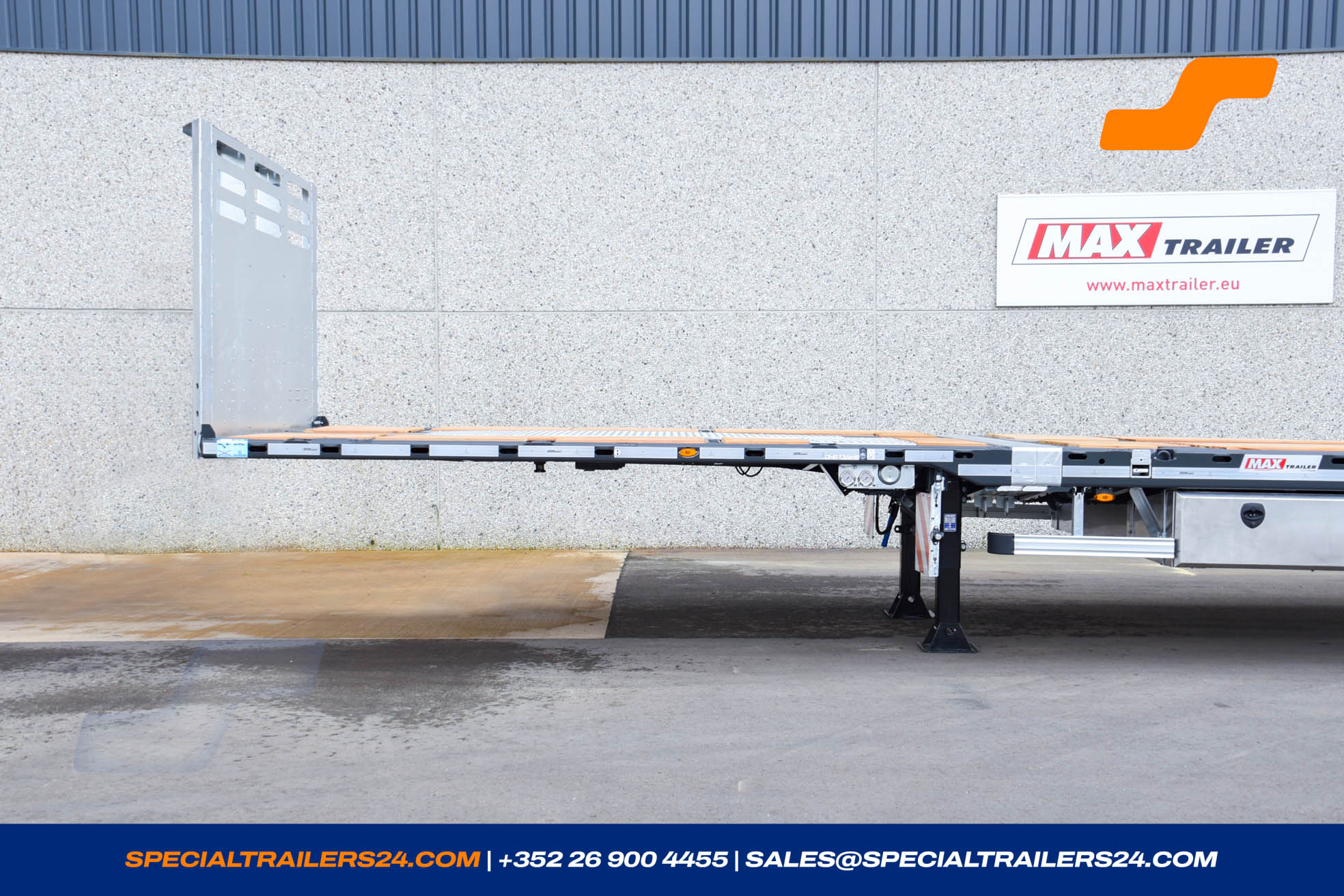

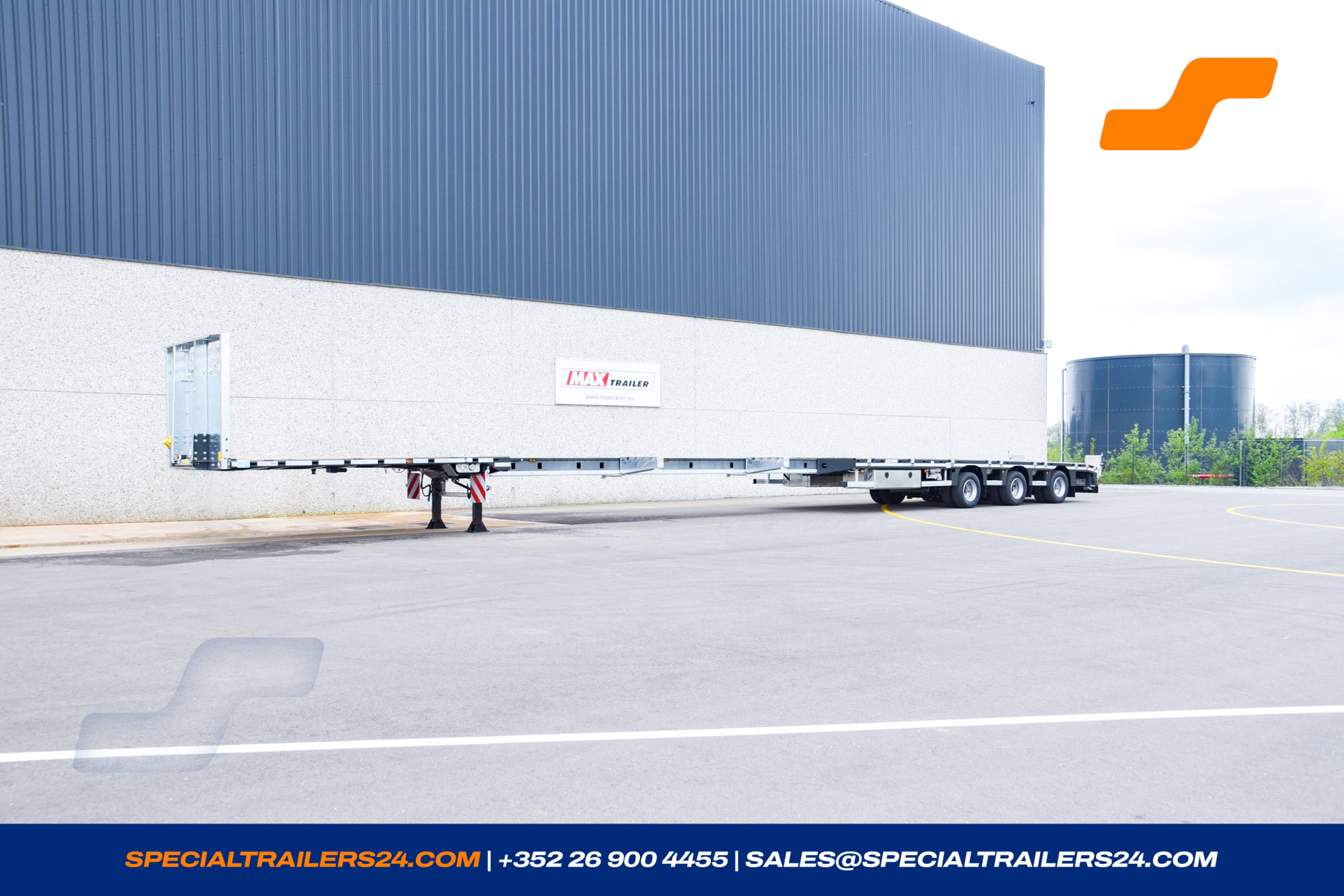

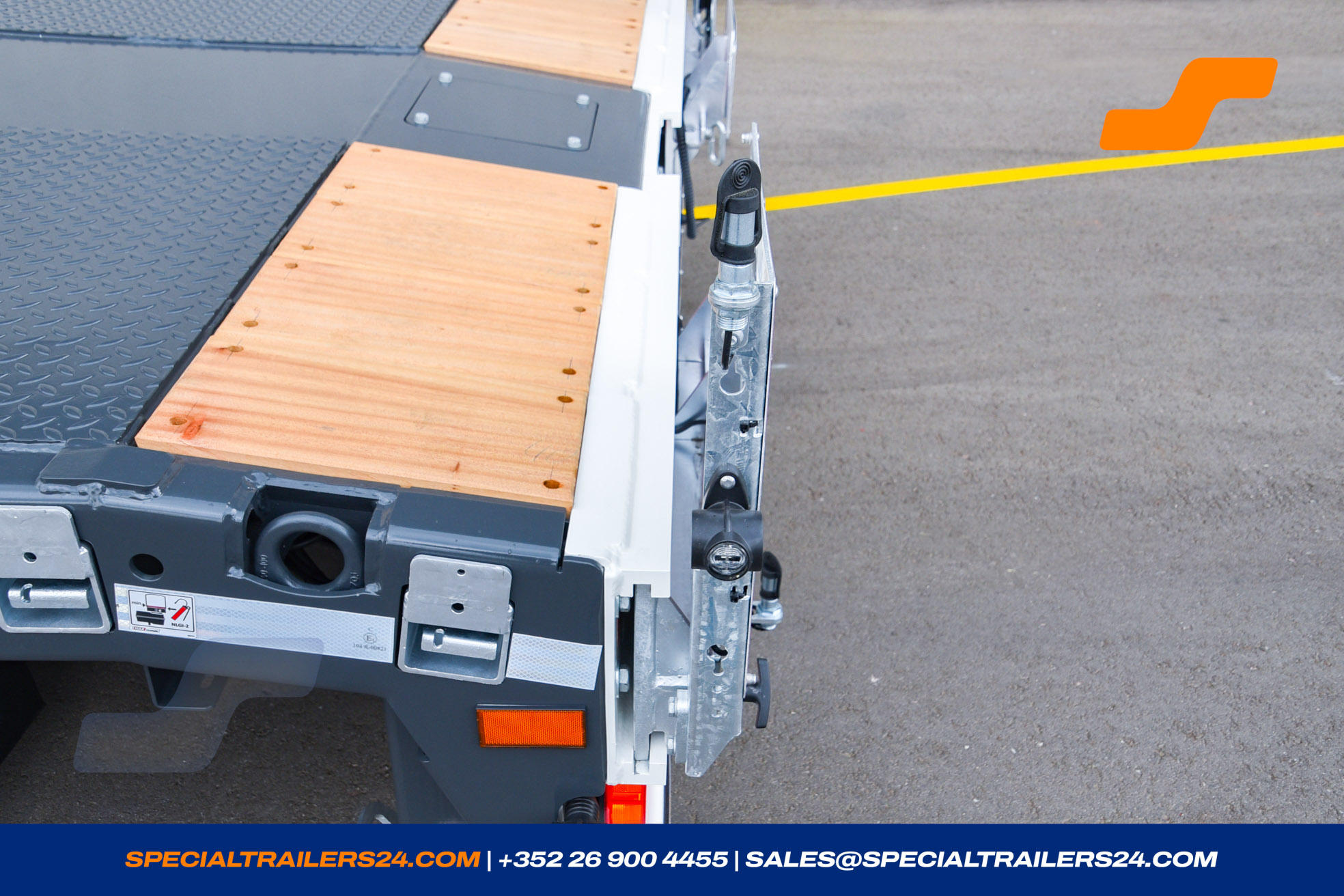

Loading platform in extendable version with chamfered beaver tail by about 500 mm x 8°.
2 pairs of lashing rings lying in the gooseneck (LC 5 000 daN).
1 pair of lashing rings lying in the gooseneck (LC 10 000 daN).

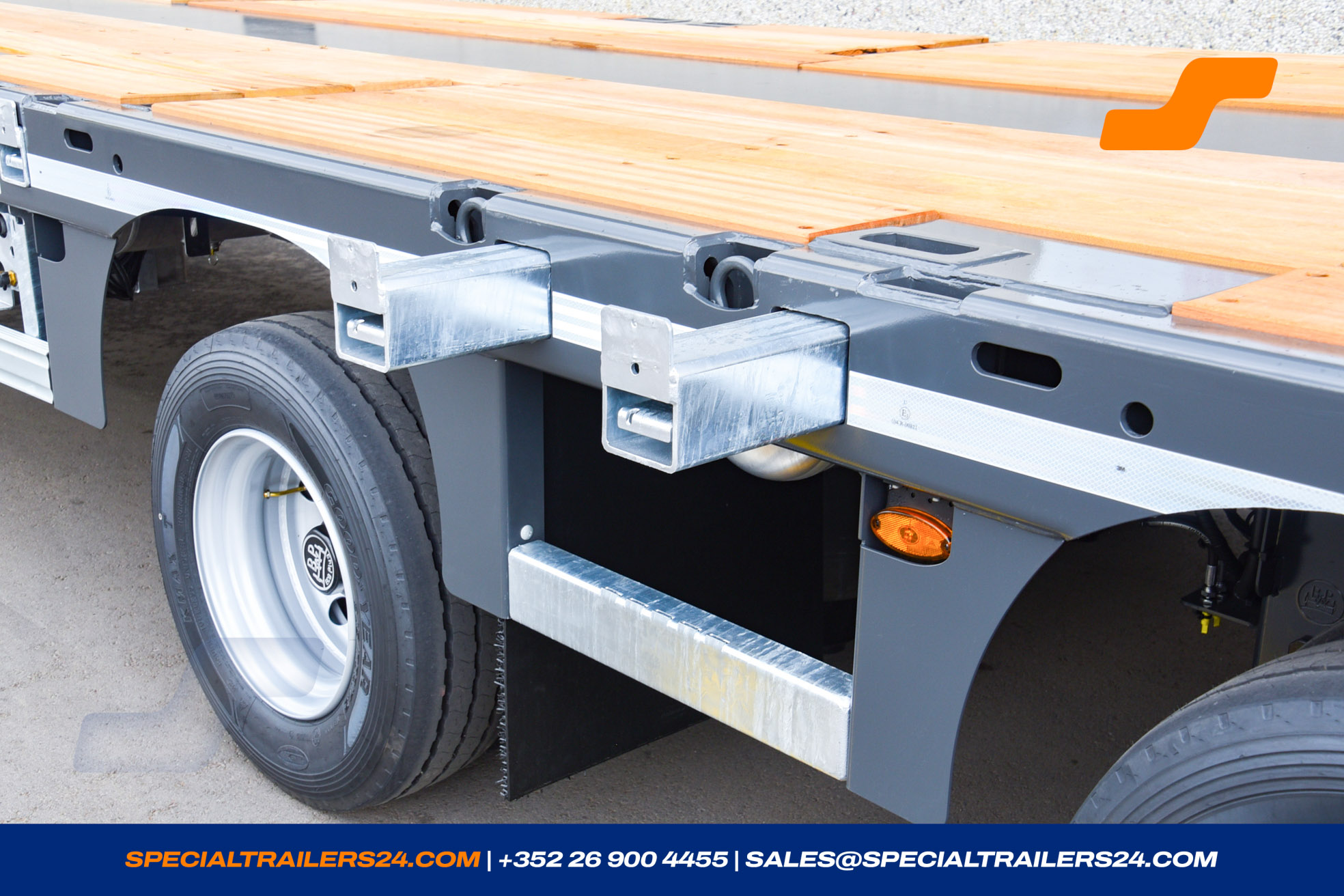

6 pairs of lashing rings folding outwards (LC 5 000 daN).
3 pairs of lashing rings folding outwards (LC 10 000 daN).
Cutouts in the border frame of the loading area for hooking in tension belts. (LC 2 000 daN)
Accessories
1 x Accessory
MAX210-Accessory
- Manual and description on USB stick .

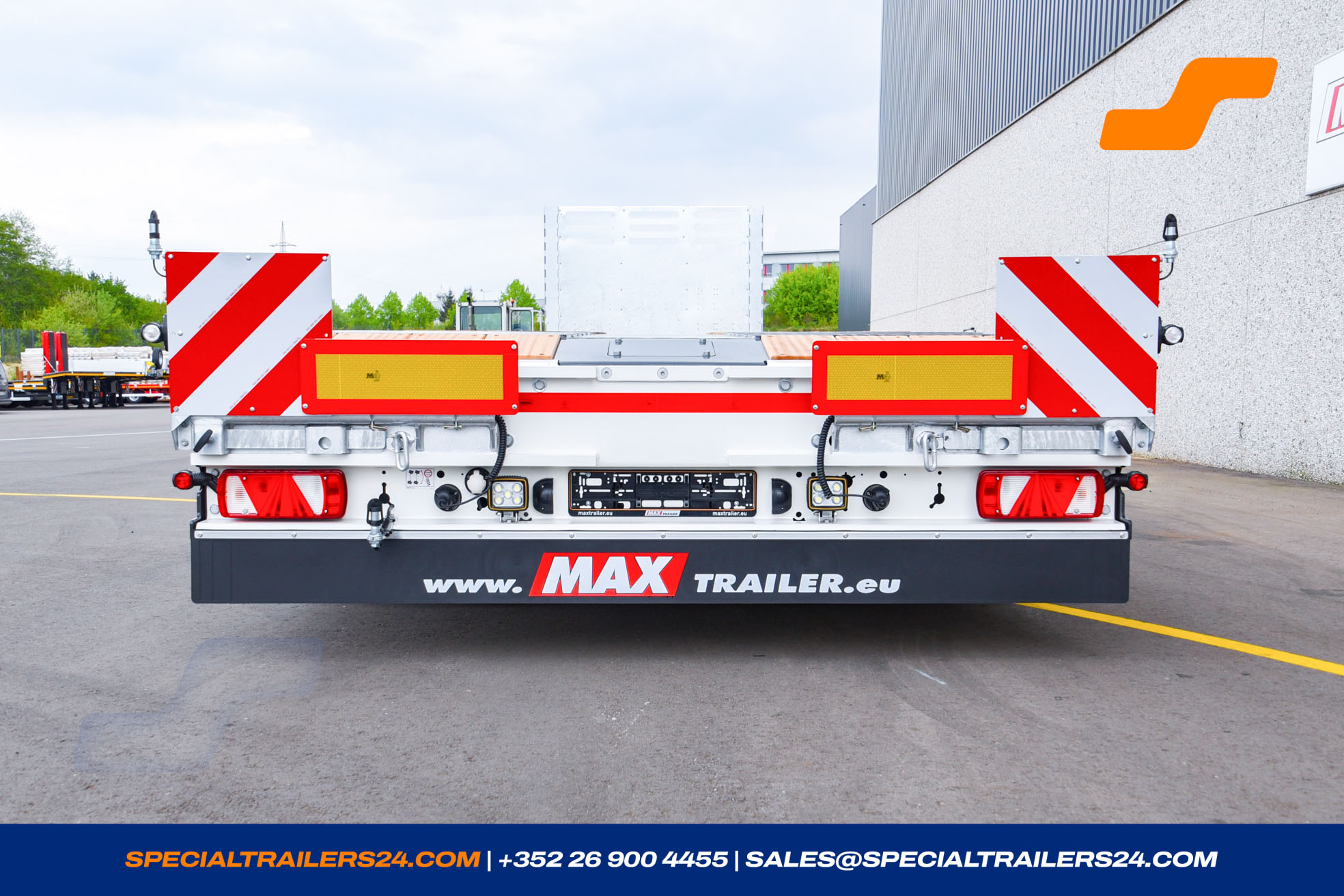

- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.

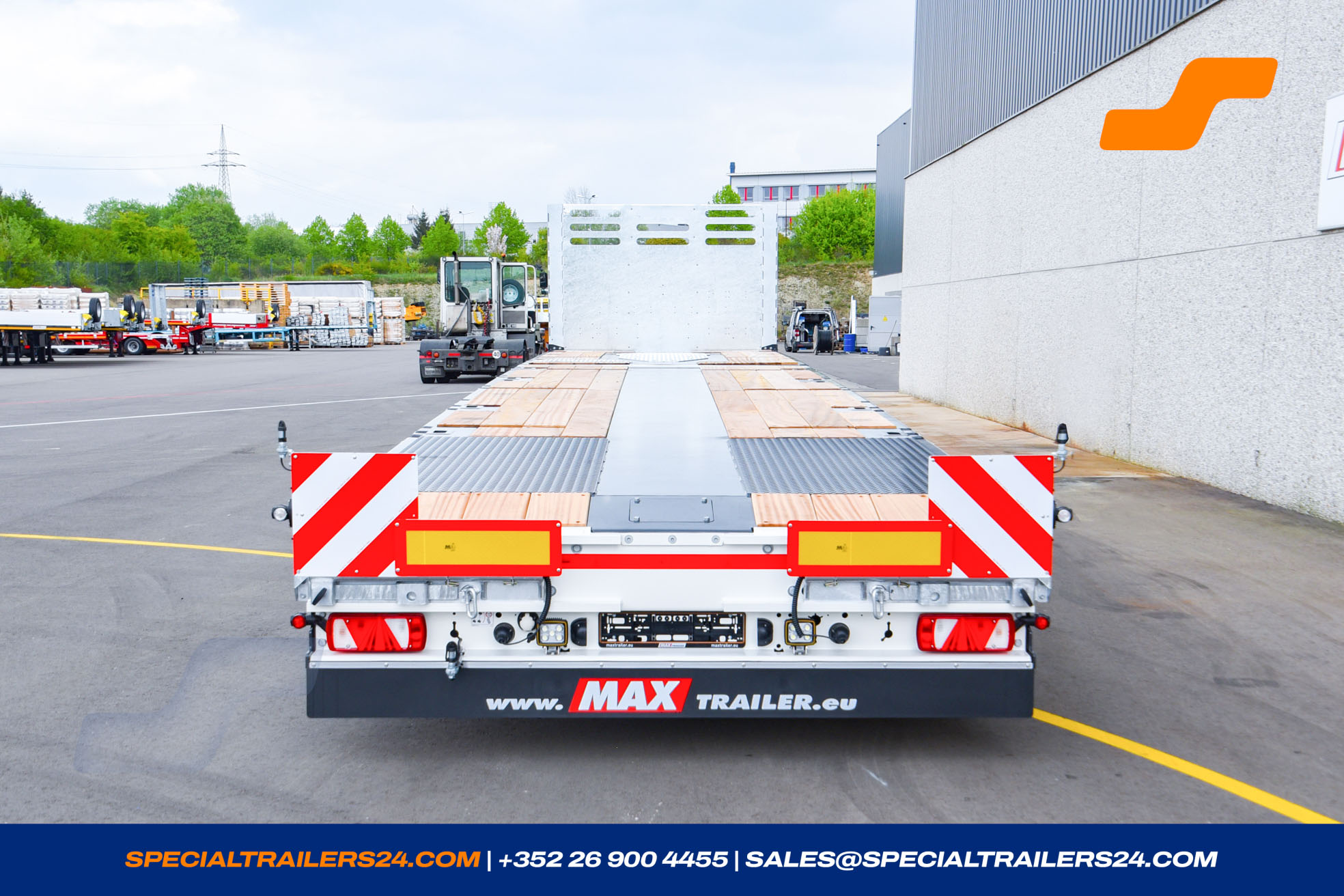

- 2 LED- reversing lights at the rear.
- Delivery from a trailer to factory Lentzweiler.
- Holder for a 2nd numberplate at the rear end included a lighting.
