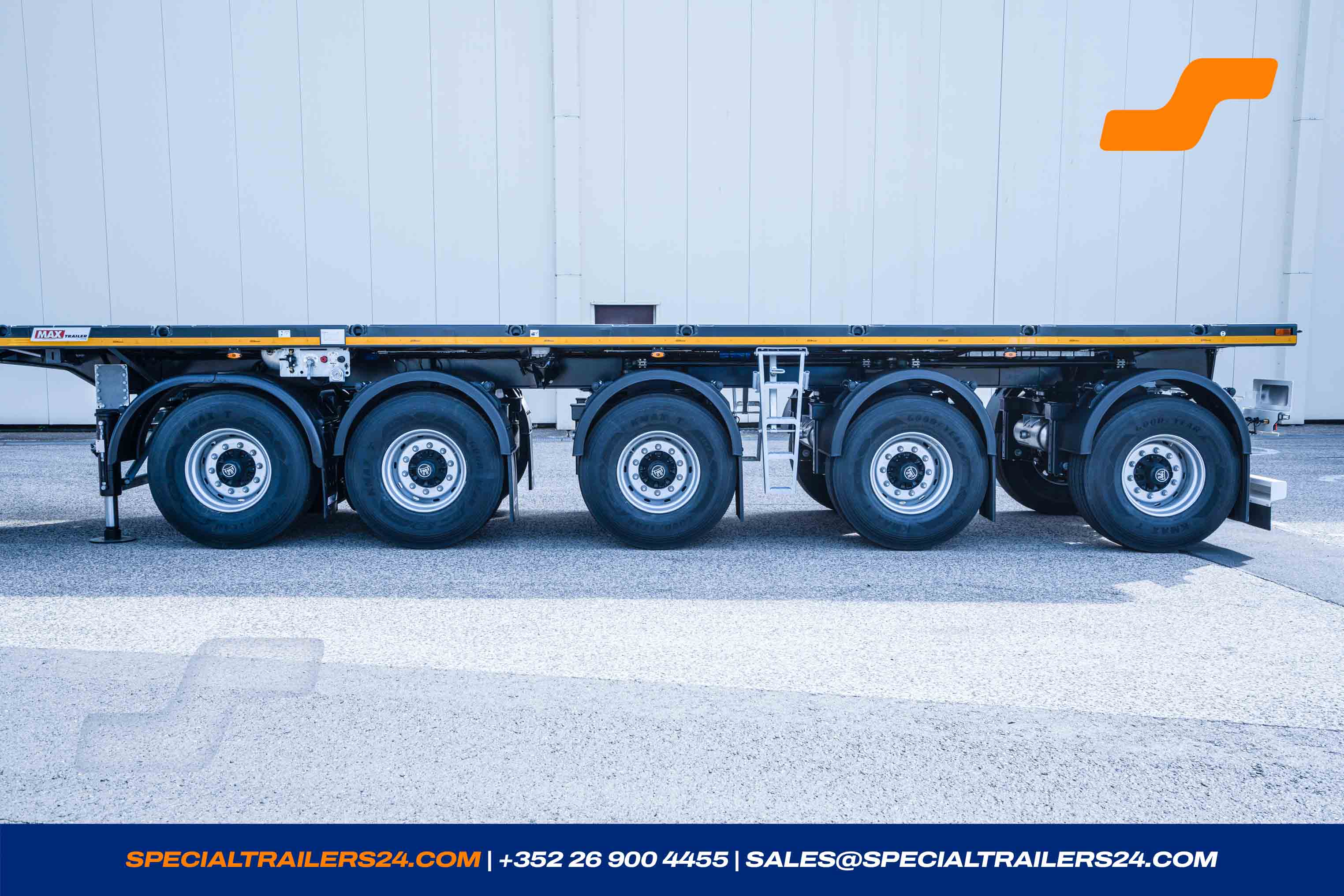

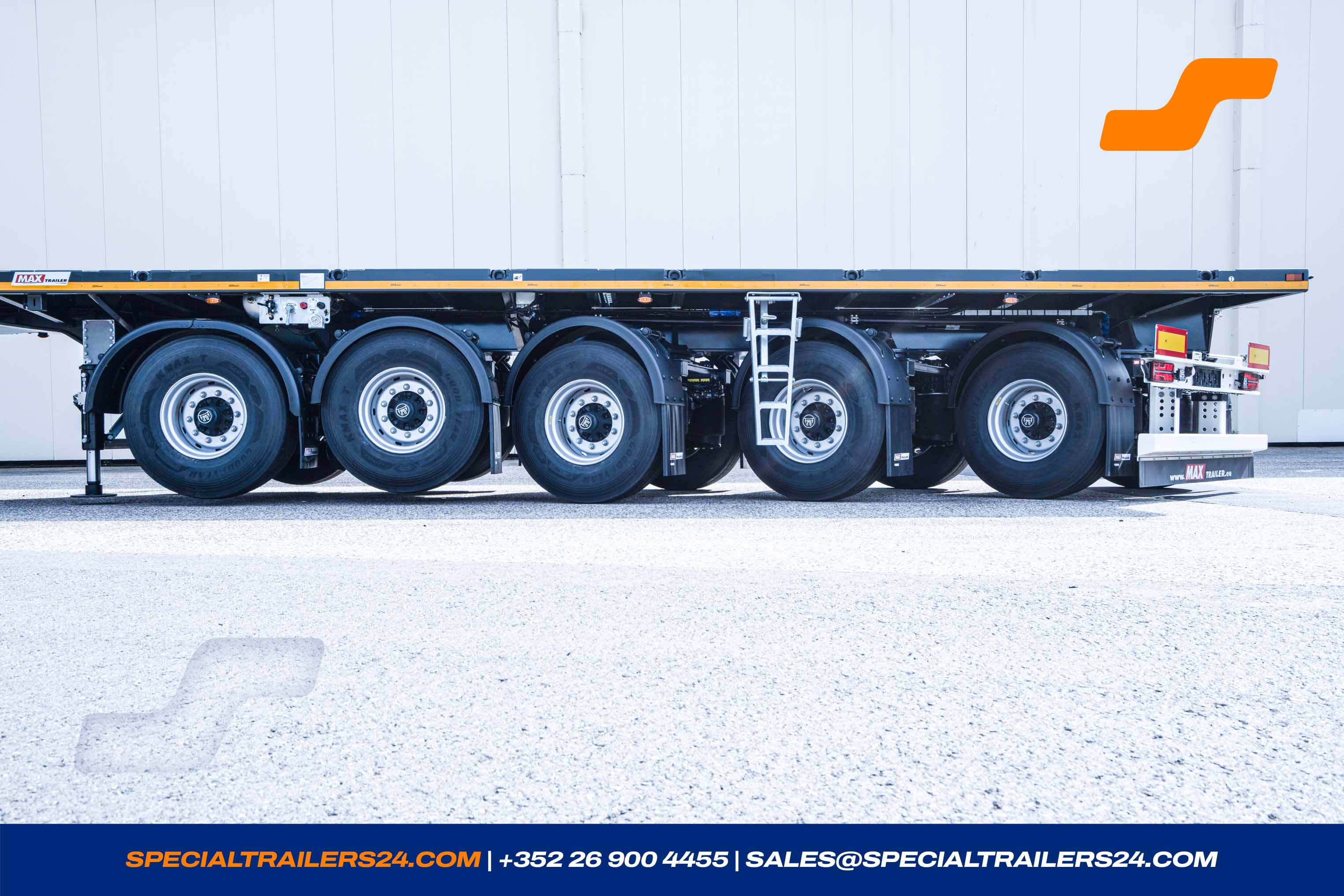

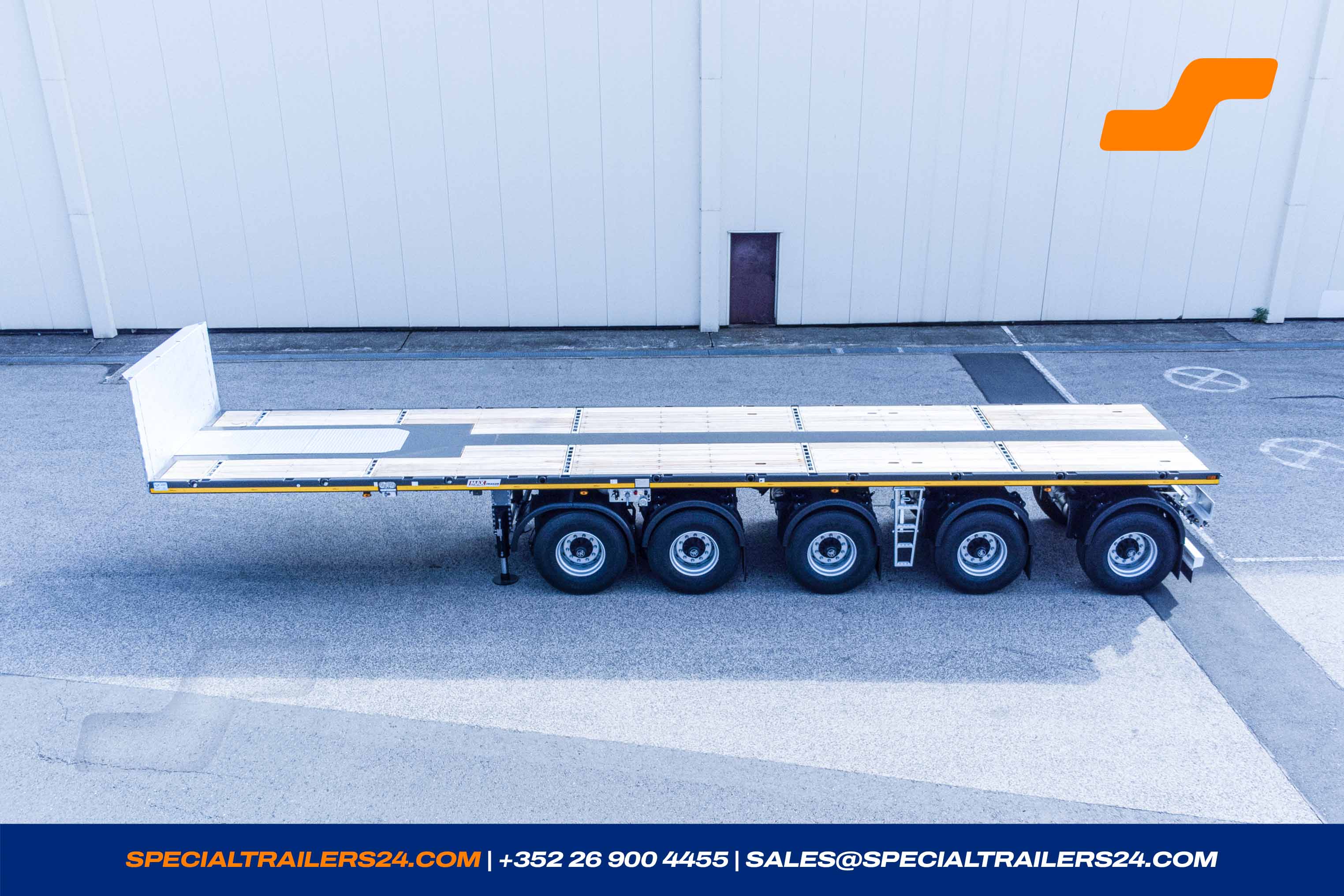

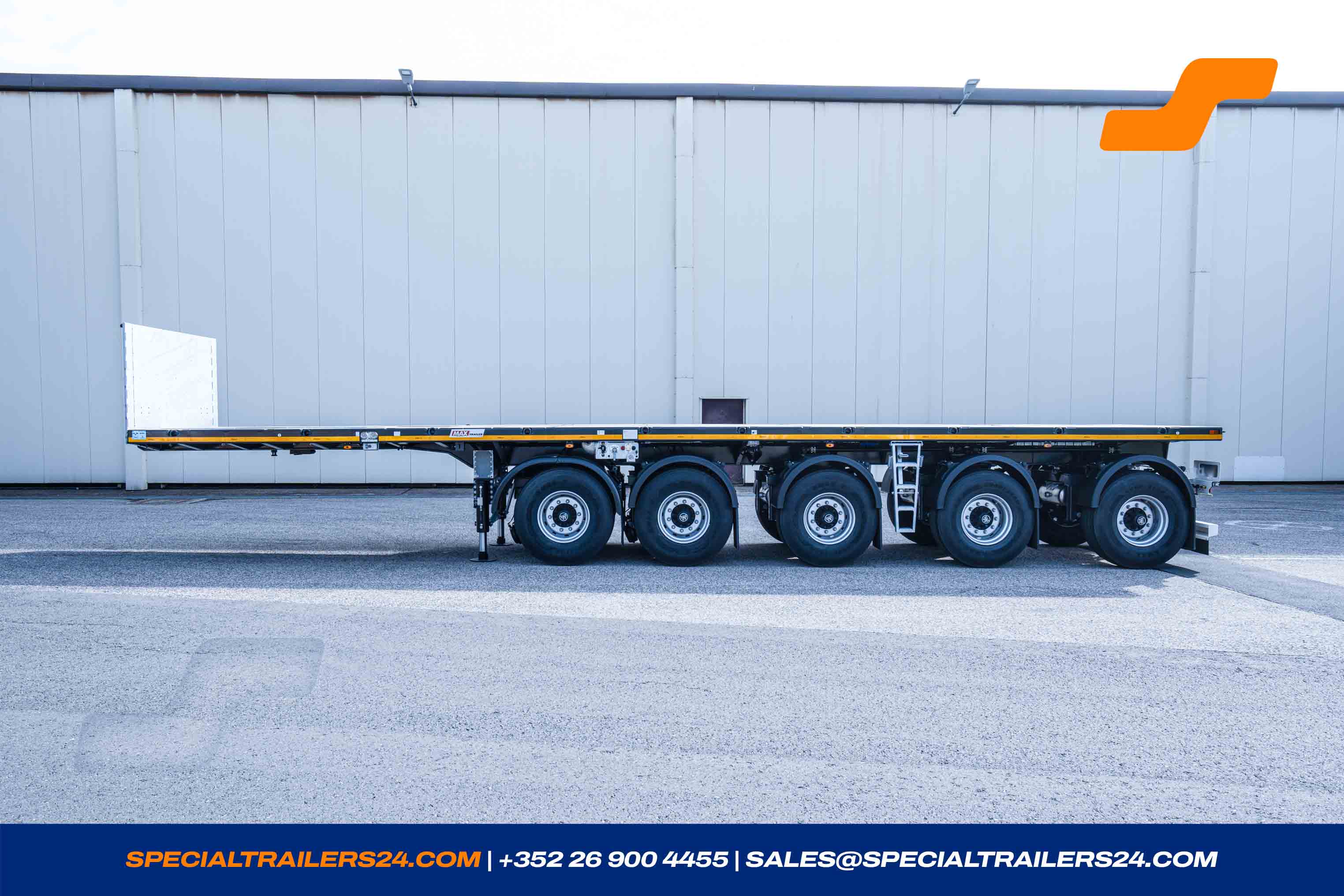

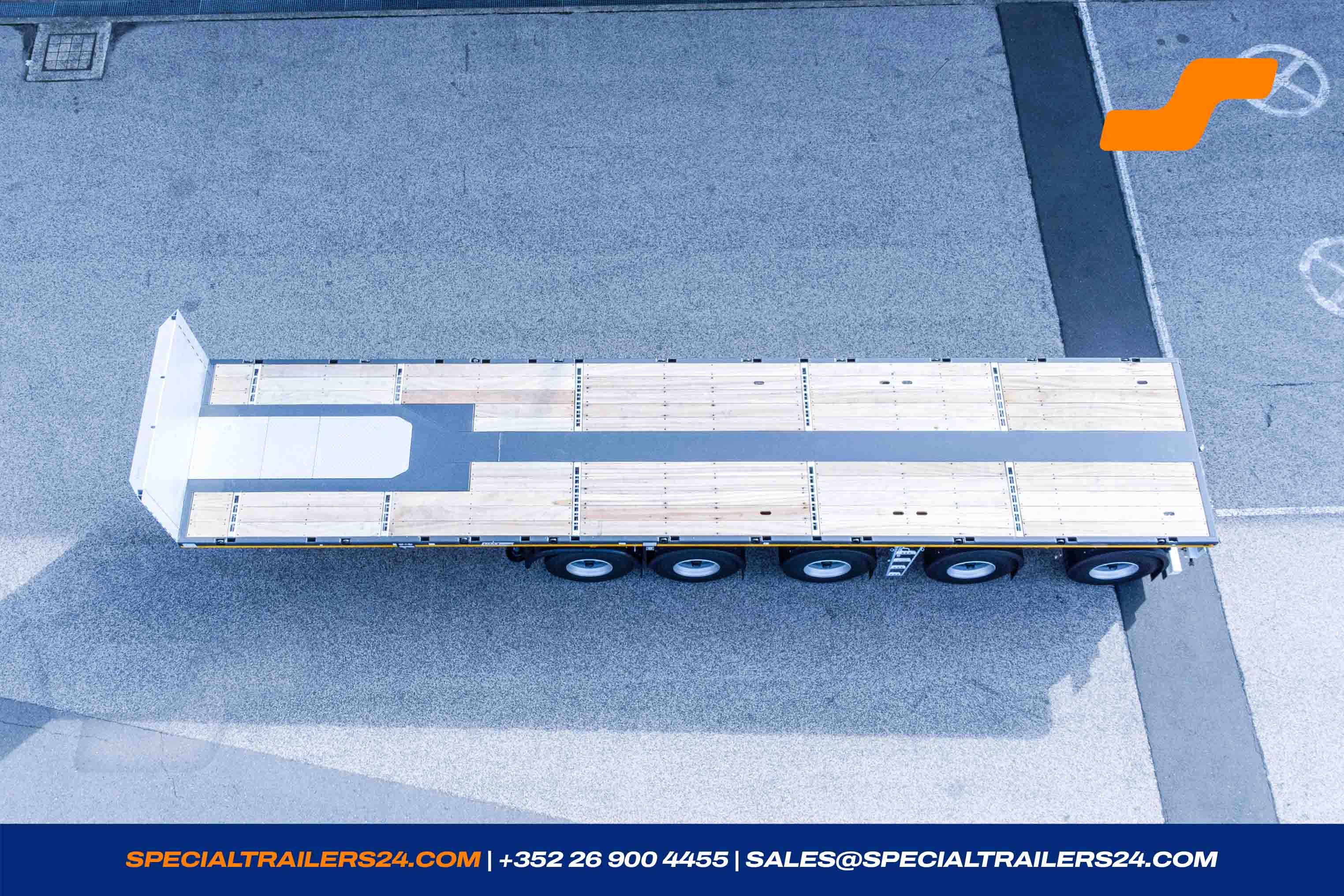

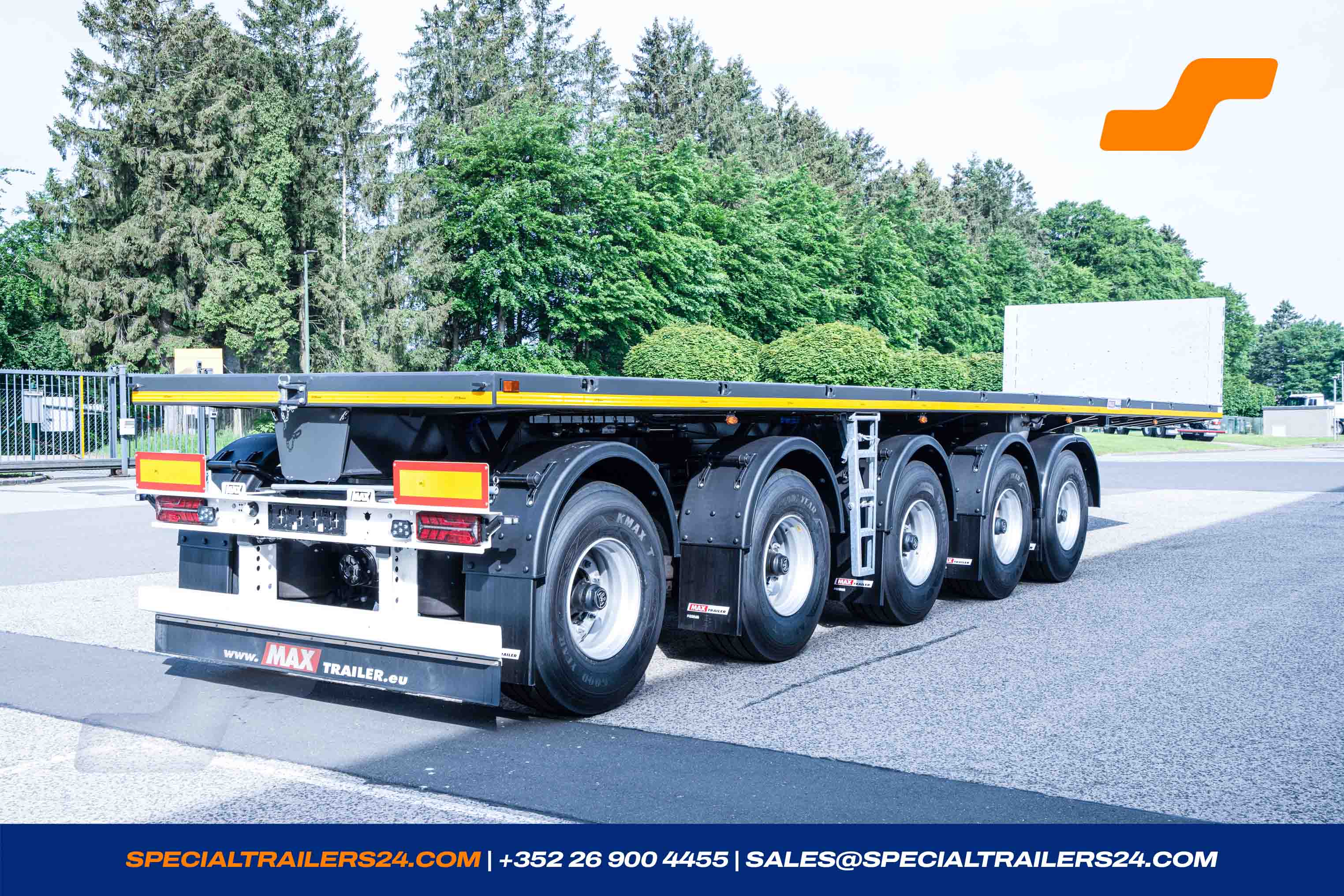

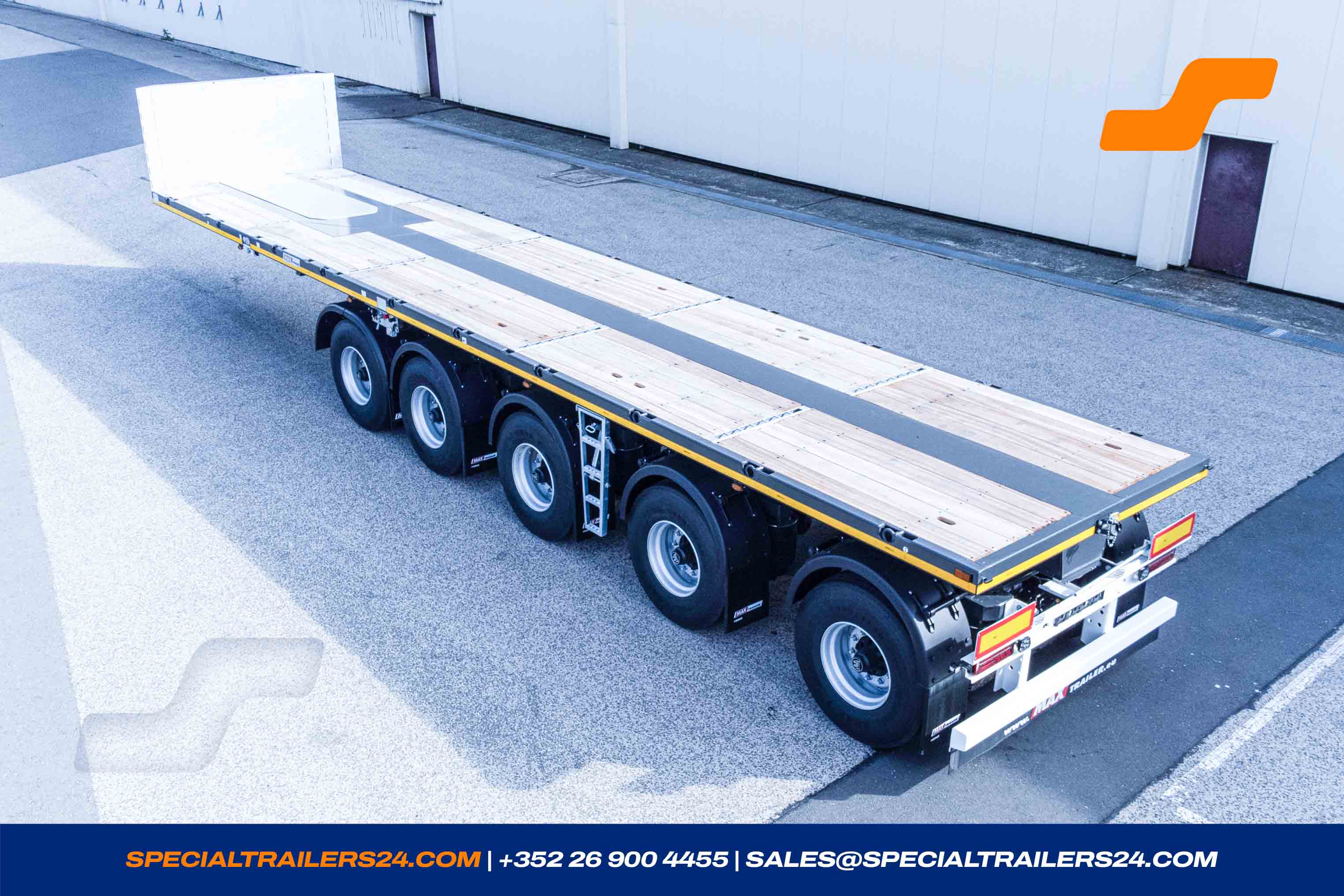

Flatbed trailer
MAX Trailer MAX410
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111513
- Reference MAX410-NZ-5-12.40-22.5-2.54
- Number of axles 5
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 09/2026

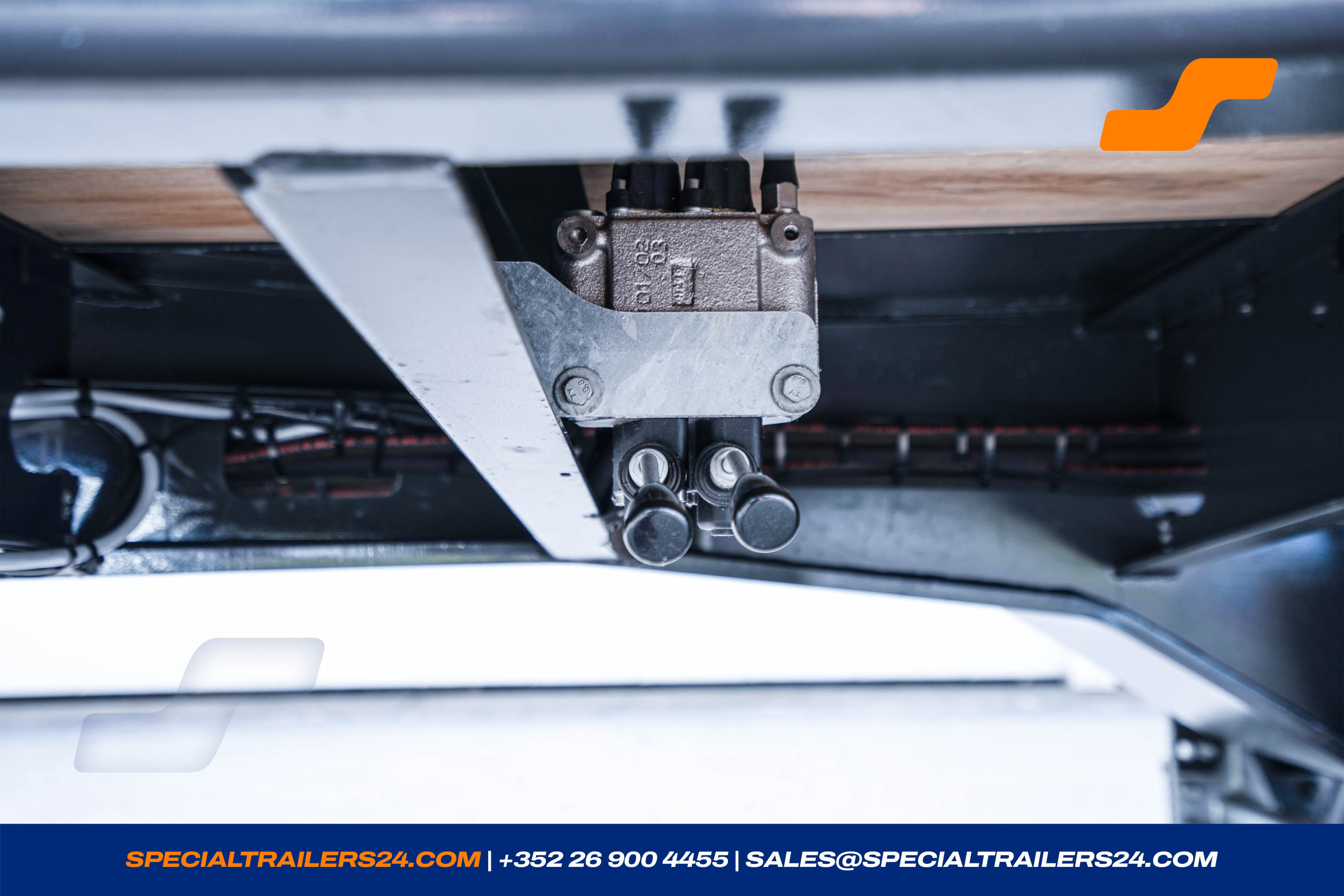

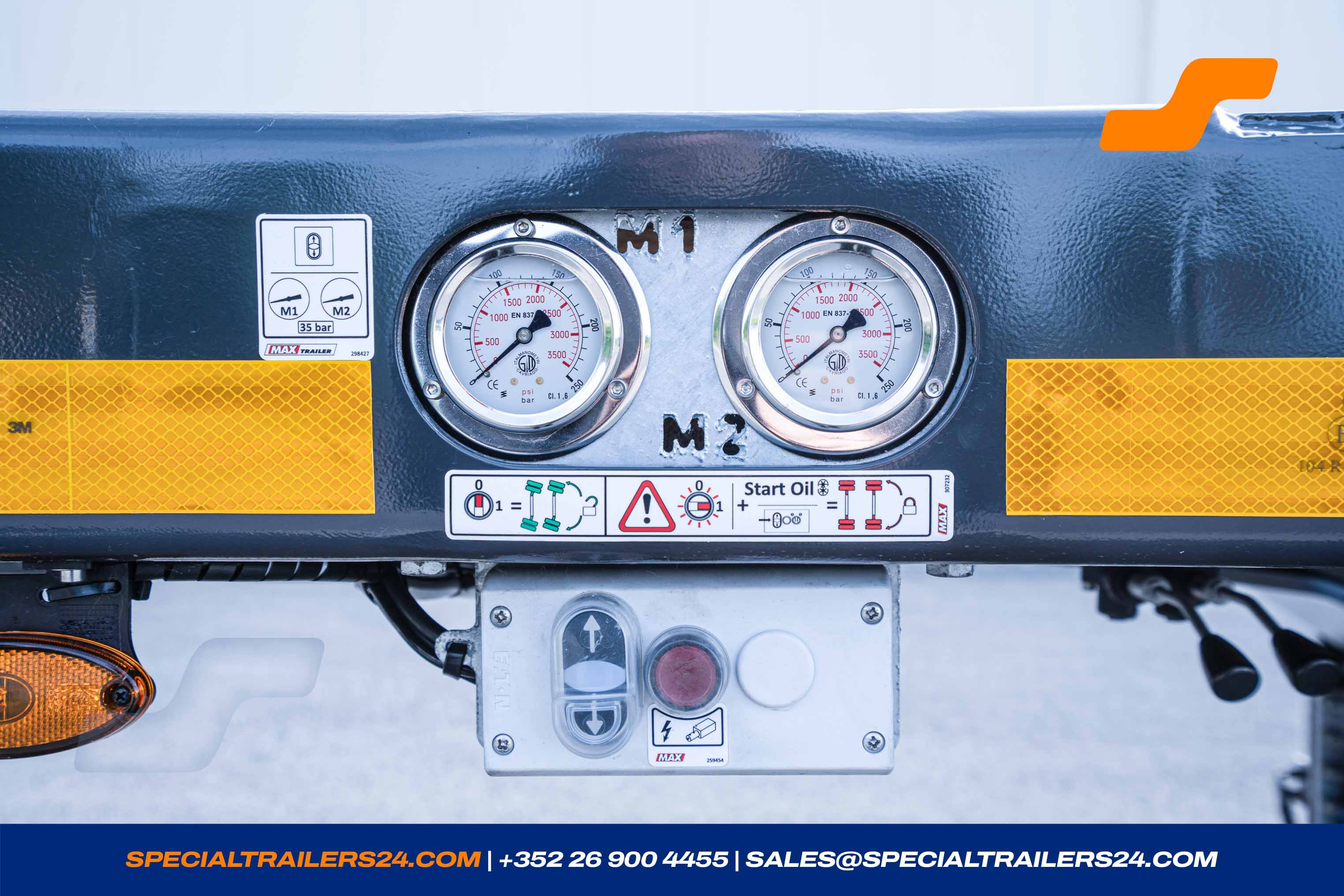

- Steering Type Hydraulic
Availability
09/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| Axle load | 60000 kg |
| Gross weight | 83000 kg |
| Tare weight +- 3% | 11557 kg |
| Payload | 71443 kg |
| King pin load | 23000 kg |
Dimensions
| Fifth wheel height loaded | 1340->1400 mm |
| Loading platform length | 12 400 mm |
| Wheelbase | 1 810 mm |
| Total width | 2 540 mm |
| Turning circle reversing | 2 500 mm |
Loading deck
Loading platform
1 x Loading platform : MAX410-NZ-5-12.40-22.5-2.54(DSR 2500-ASH 1340->1400-12T)

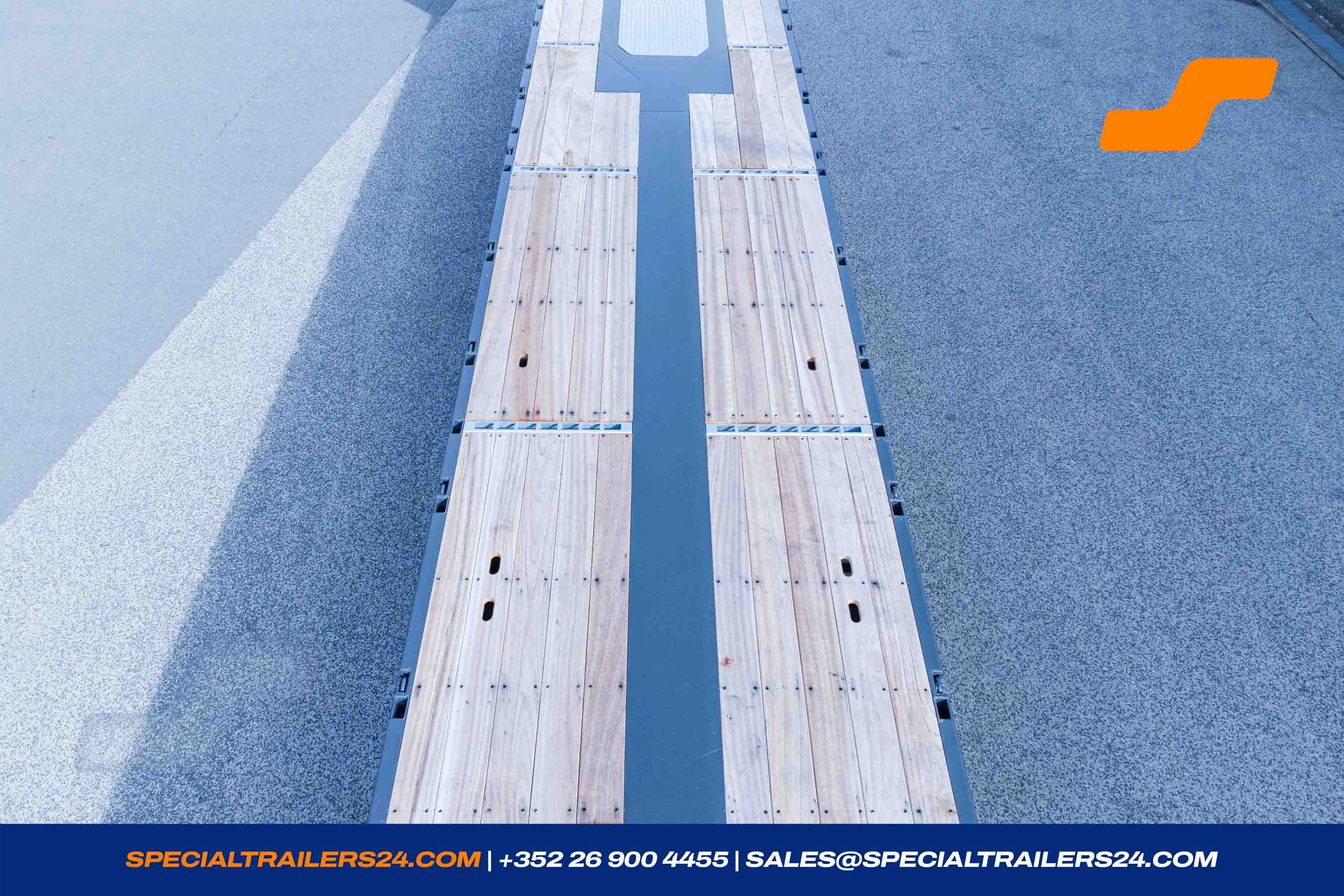

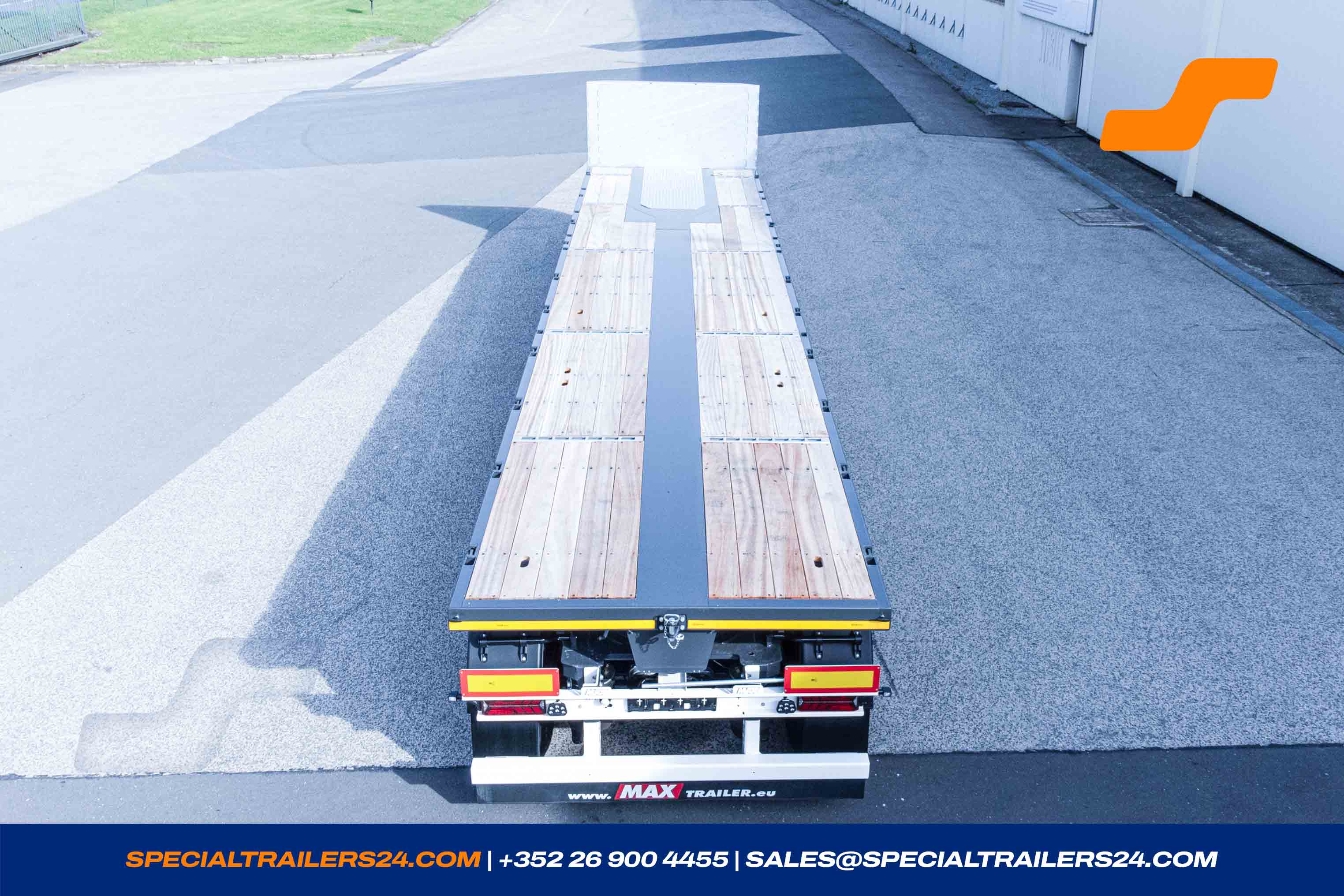

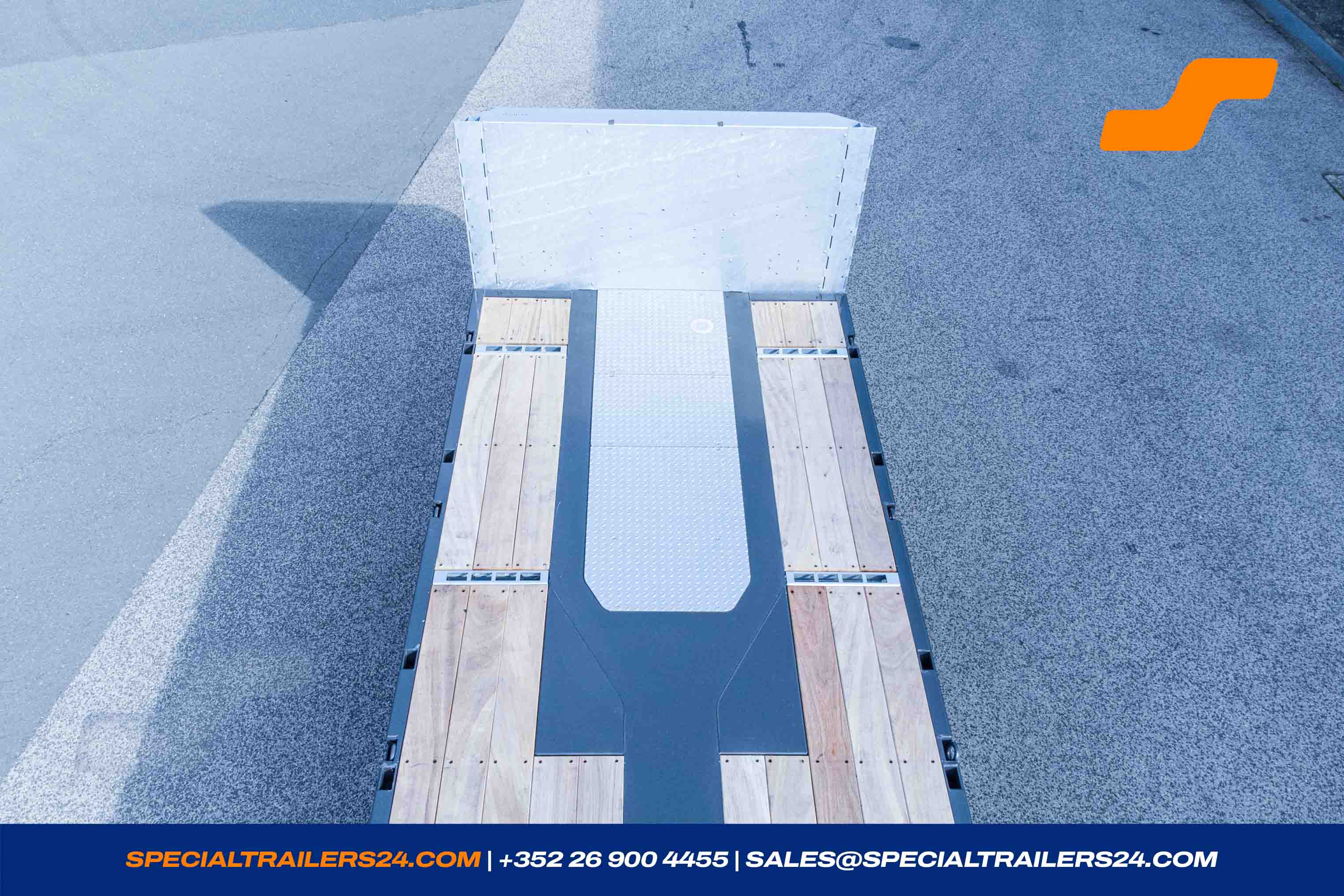

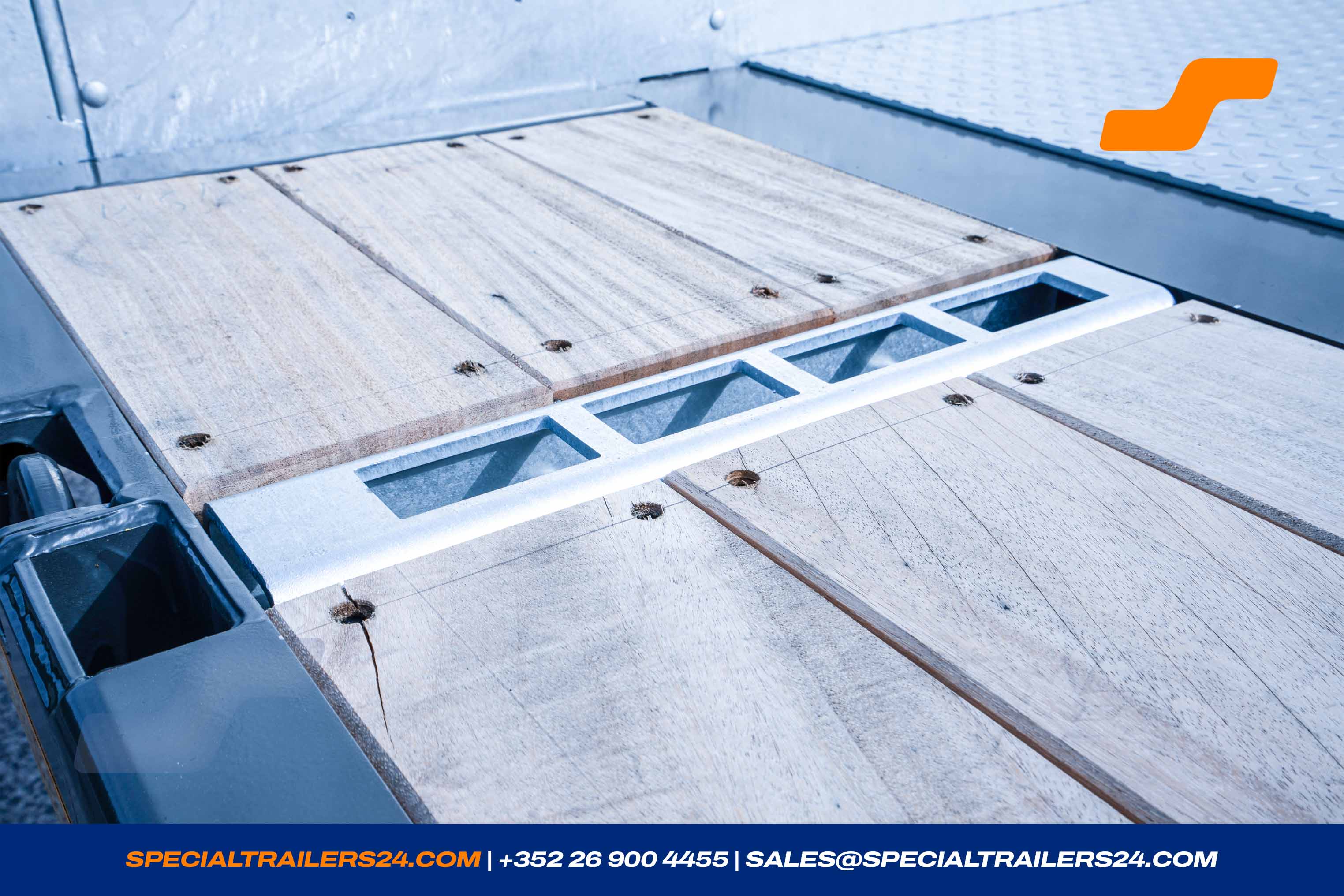

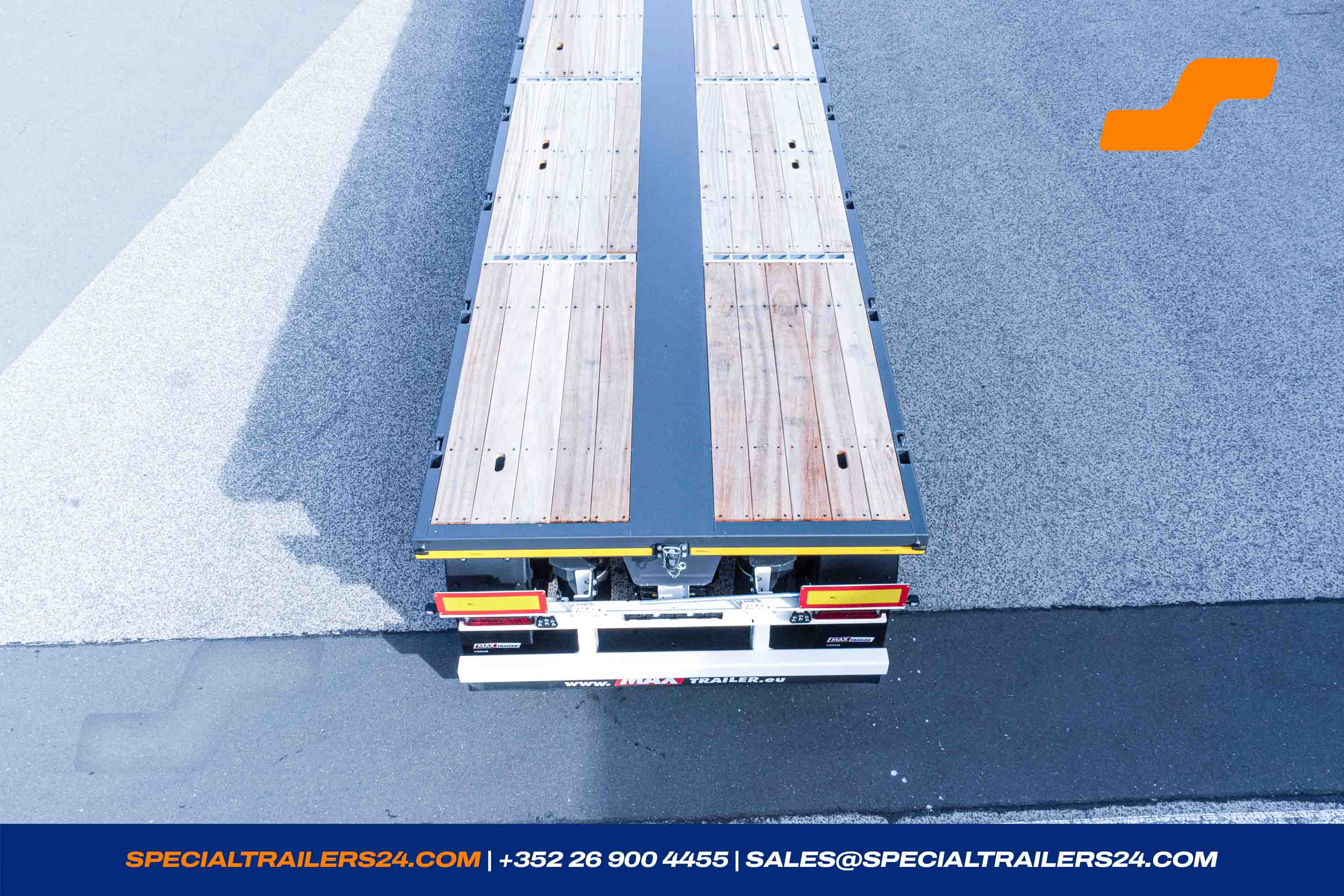

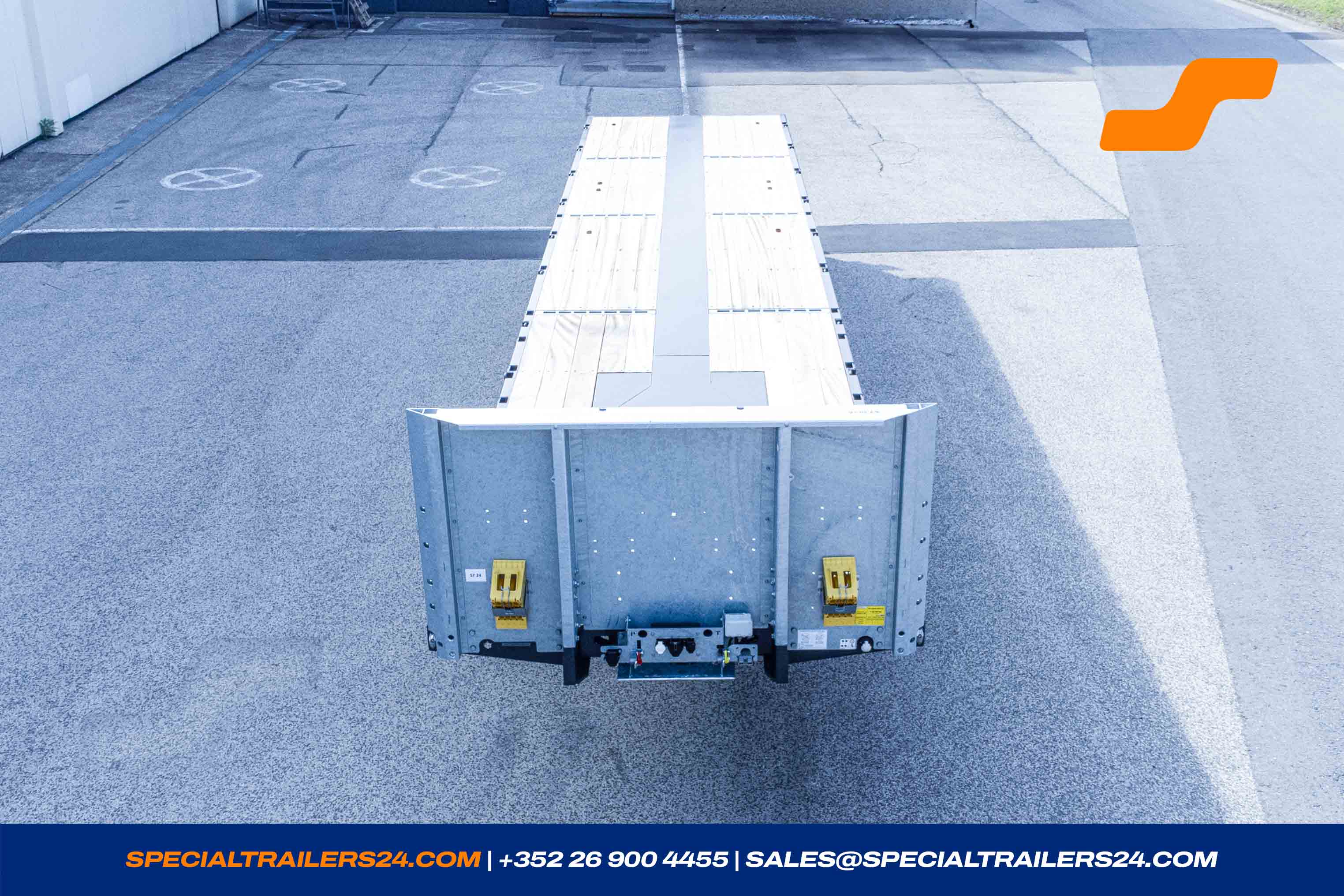

Loading area with ± 30 mm timber floor.

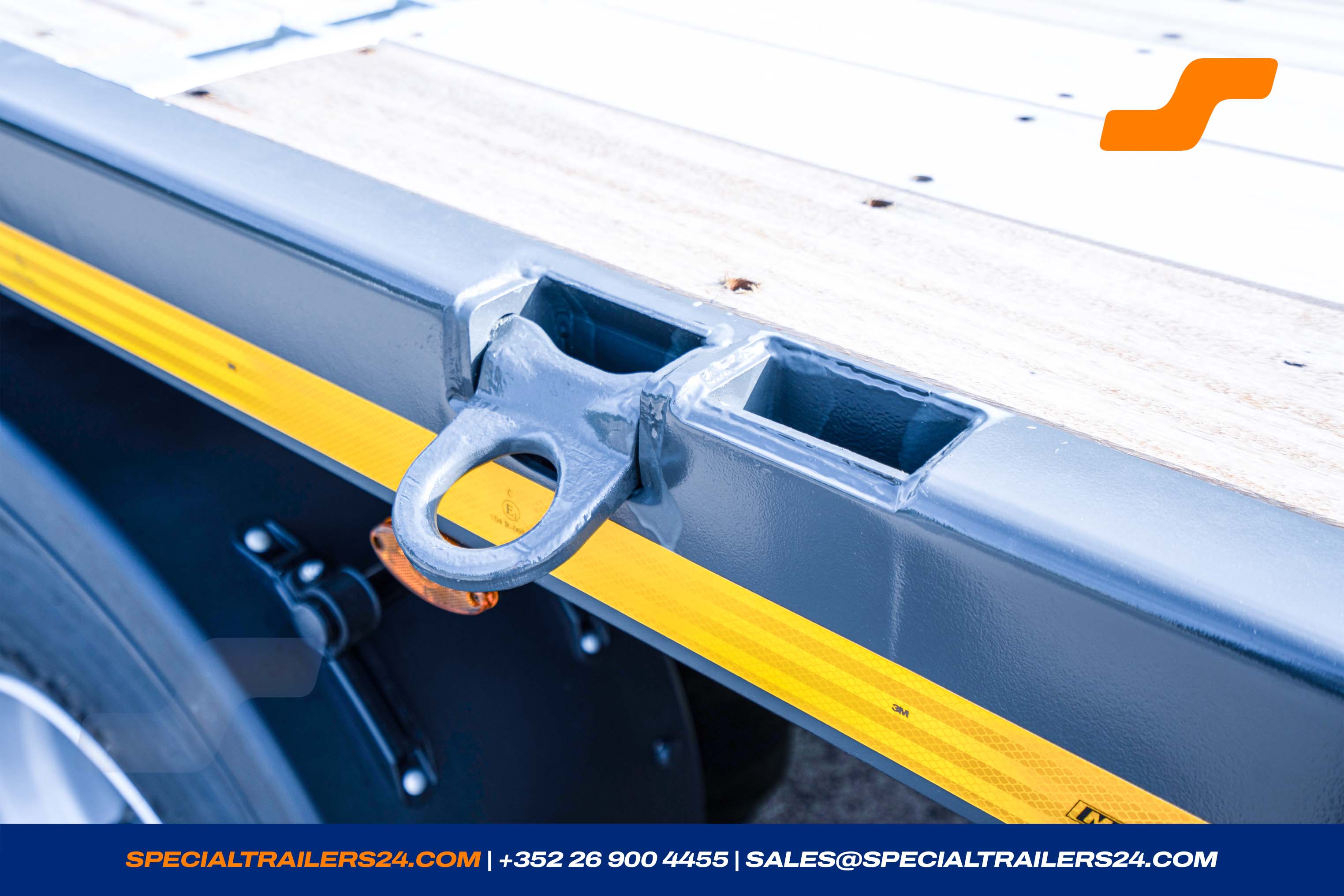

10 pairs of lashing rings inserted in the border frame, hinged outwardss (LC 10 000 daN).
Accessories
1 x Accessory
MAX410-Accessory

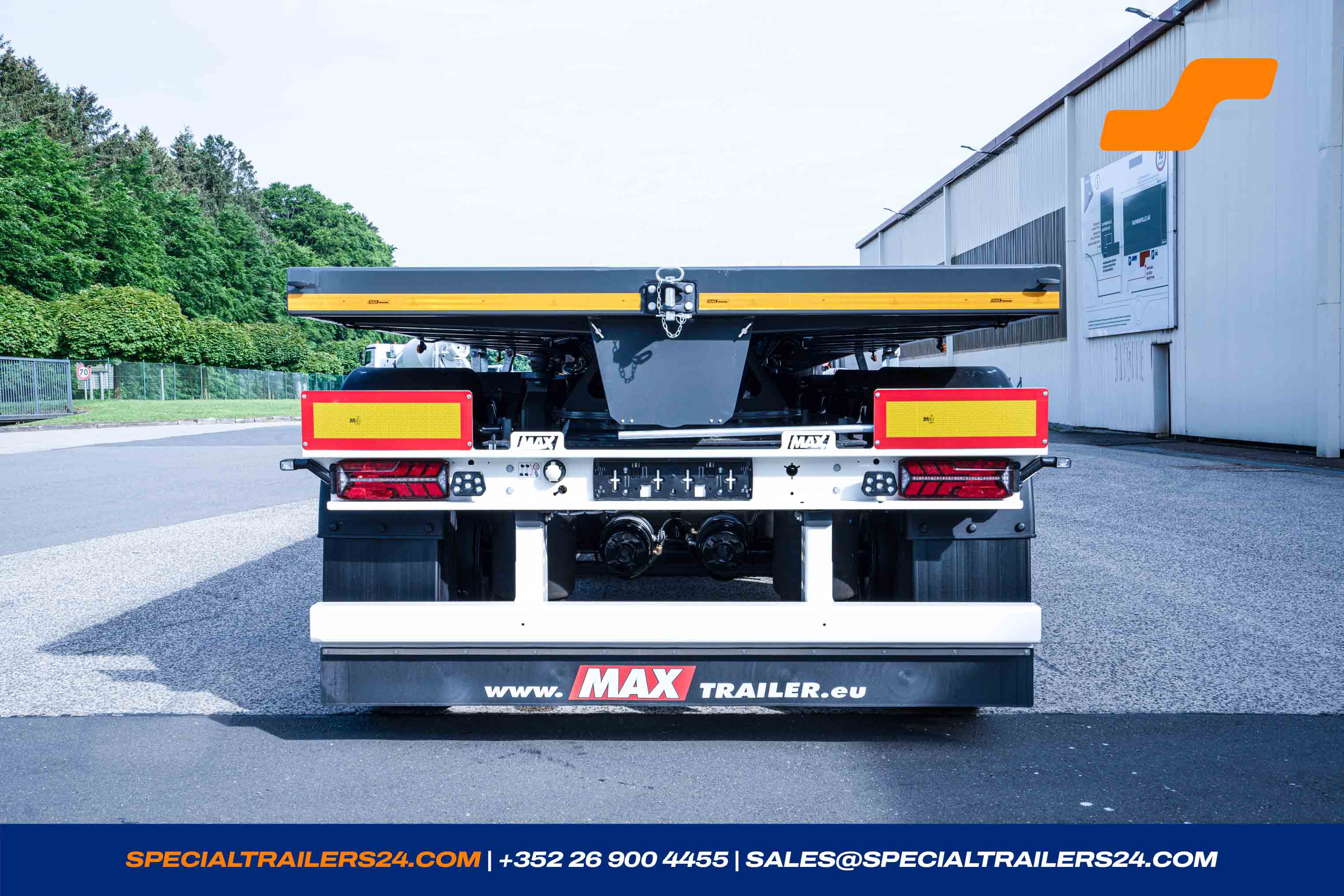

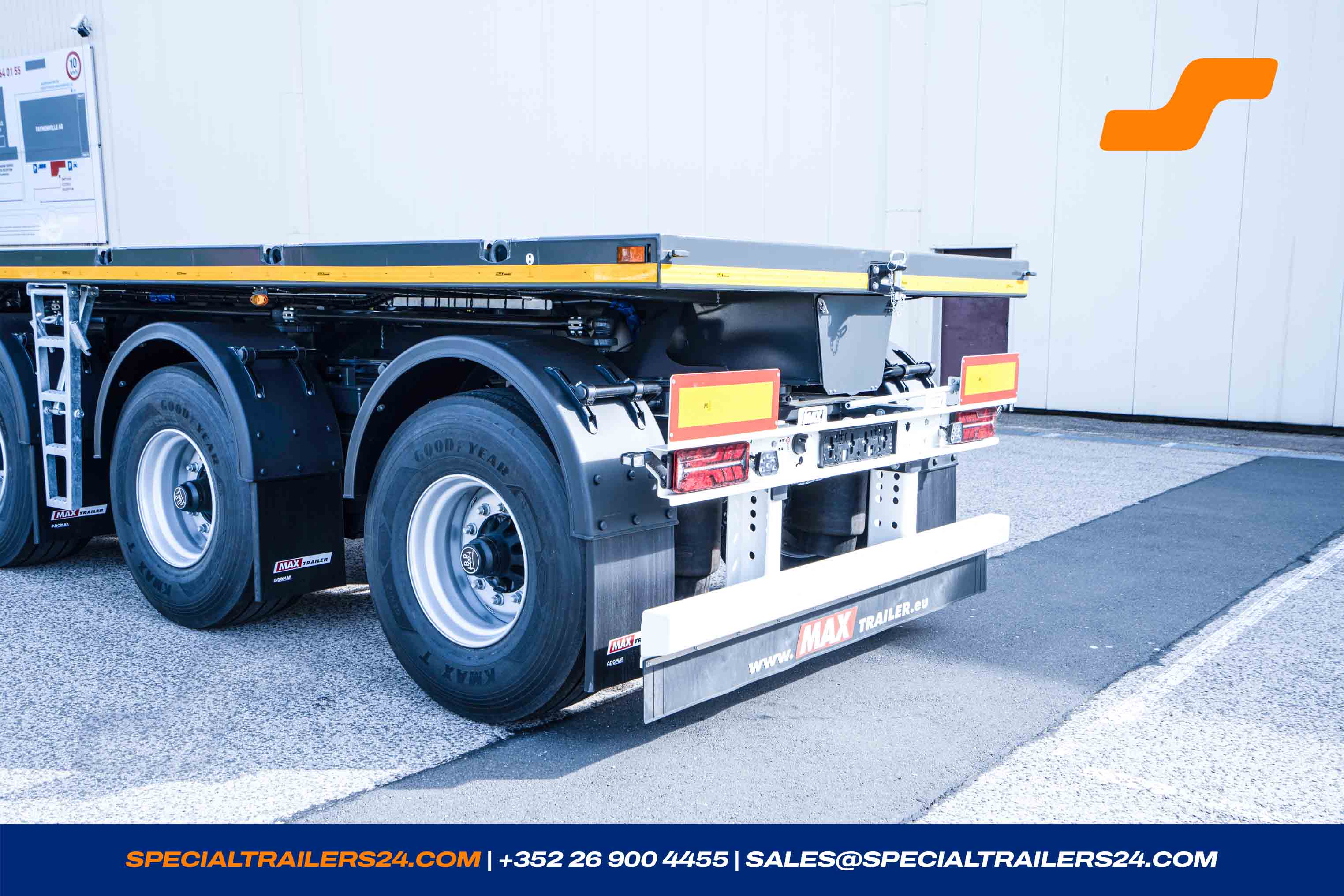

- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Manual and description on USB stick .

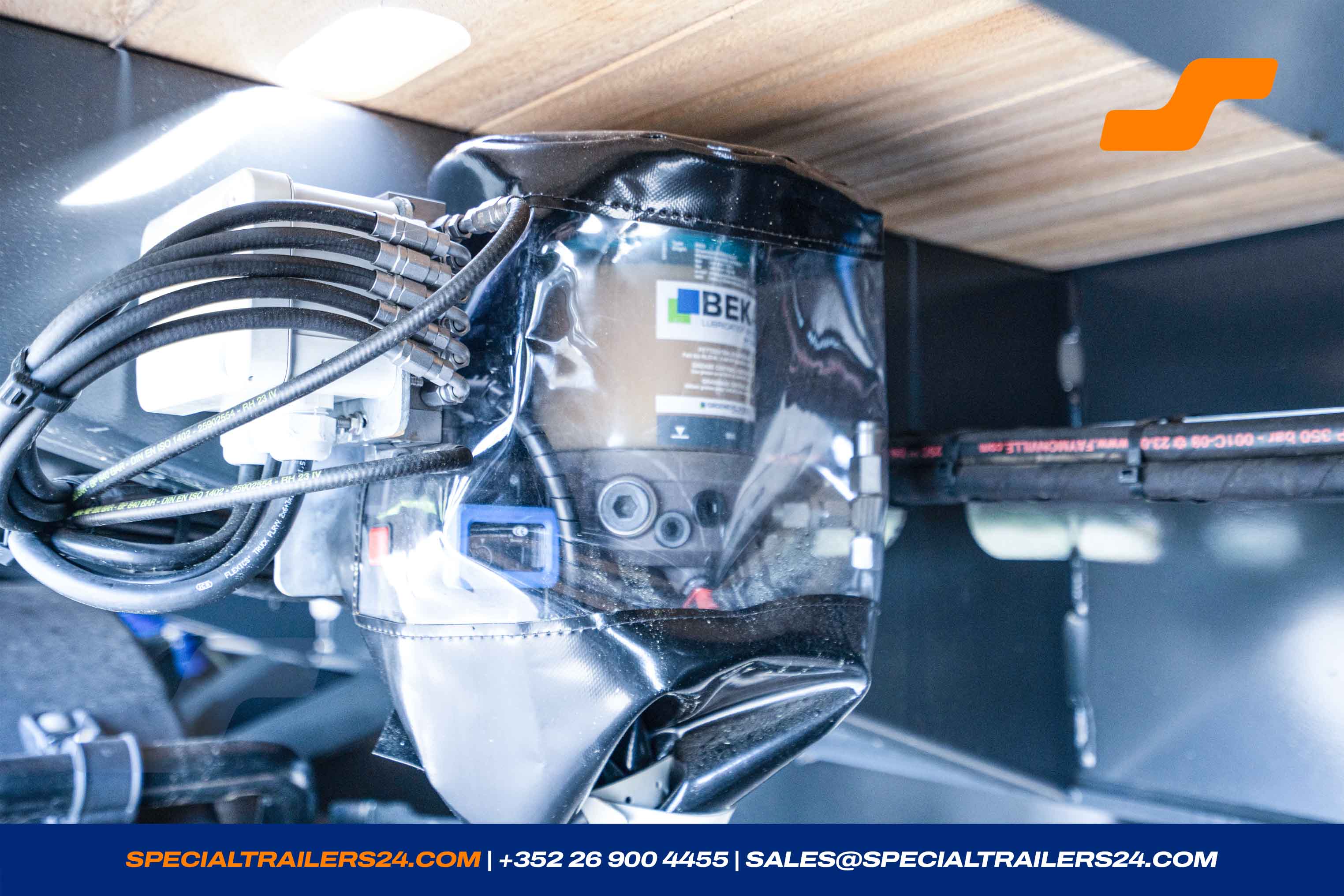

- Central greasing BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pump. (± 18 kg)
- 2 LED- reversing lights at the rear.

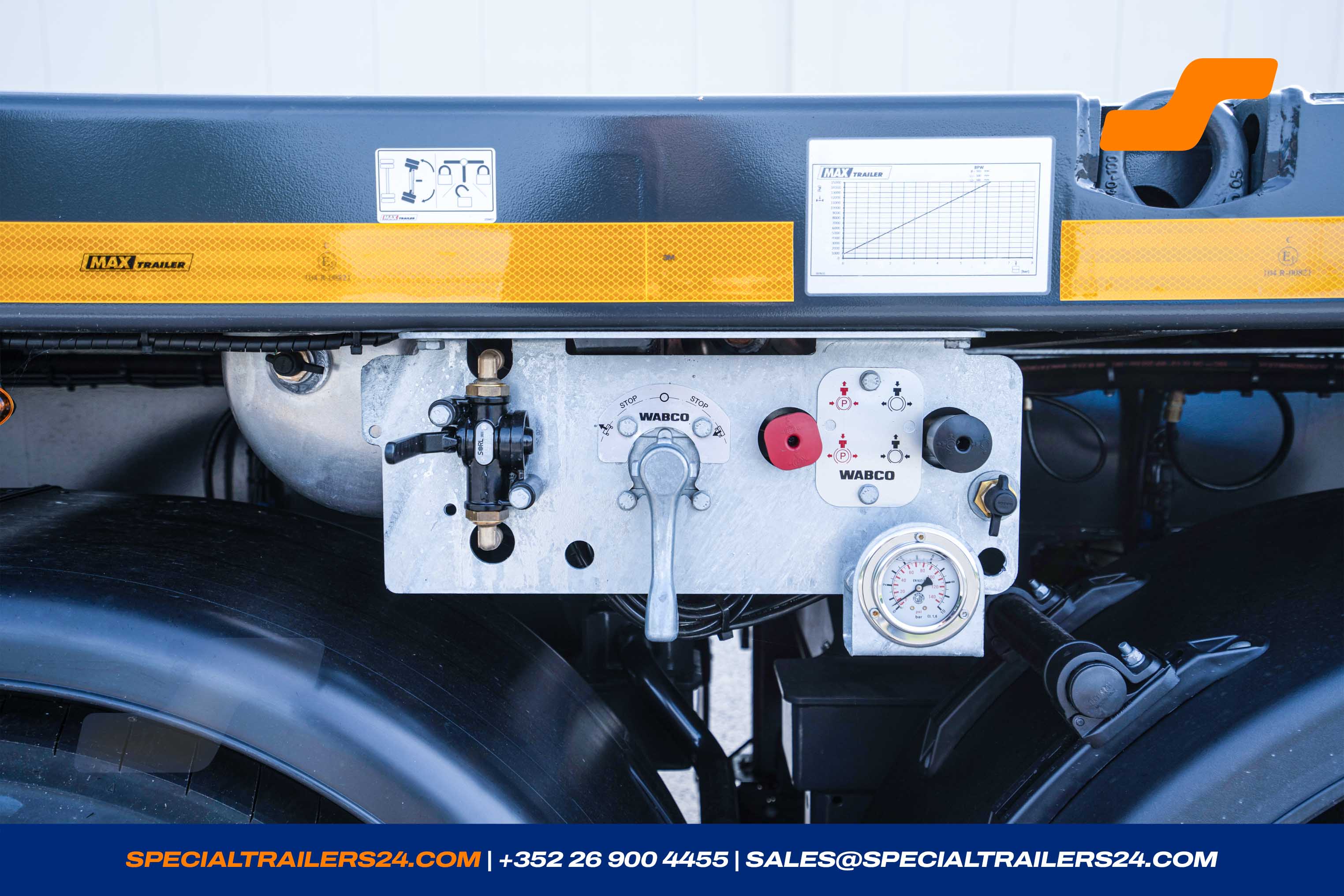

- Load manometer for determining the axle load, including load diagram.
- Delivery from a trailer to factory Lentzweiler.
