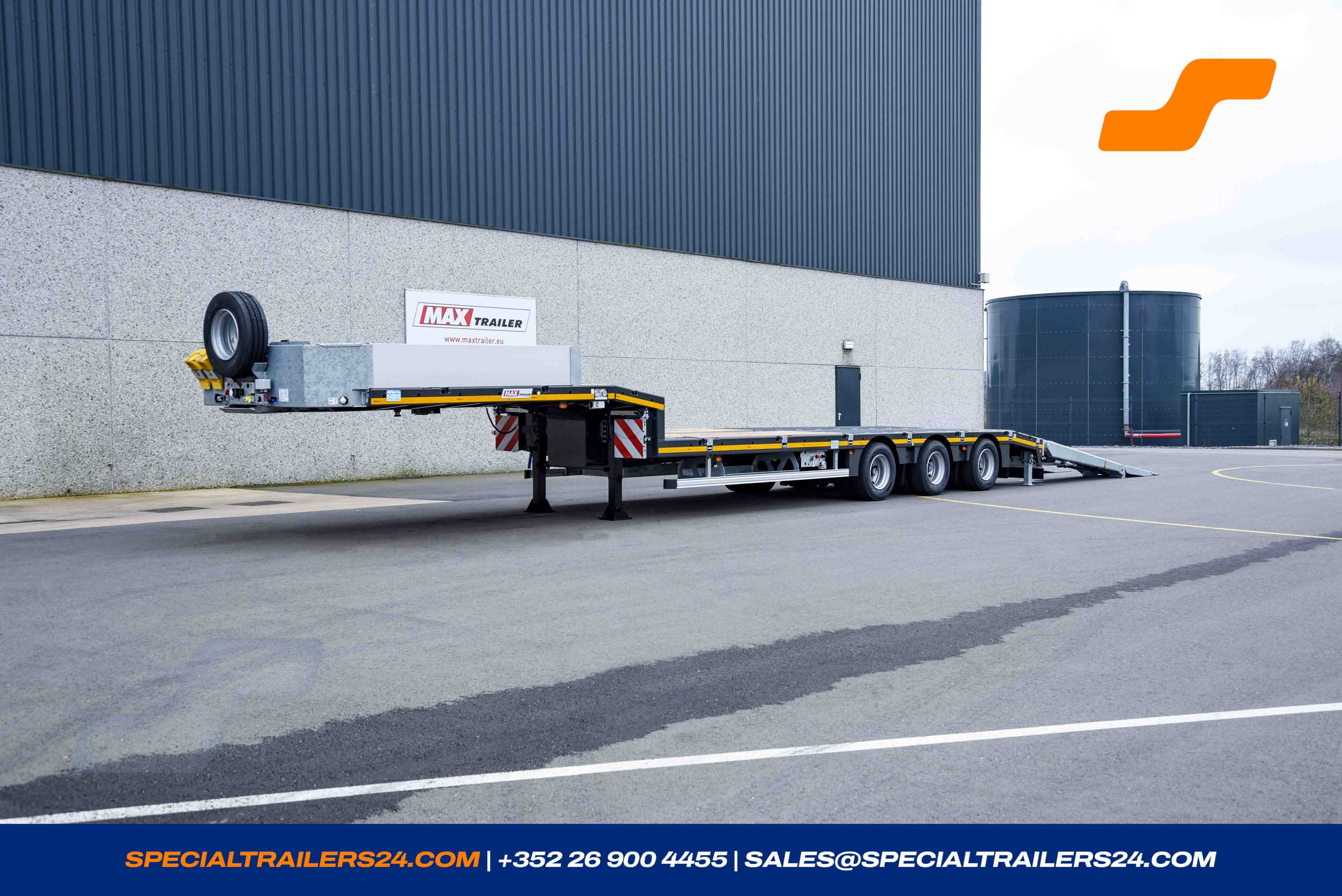

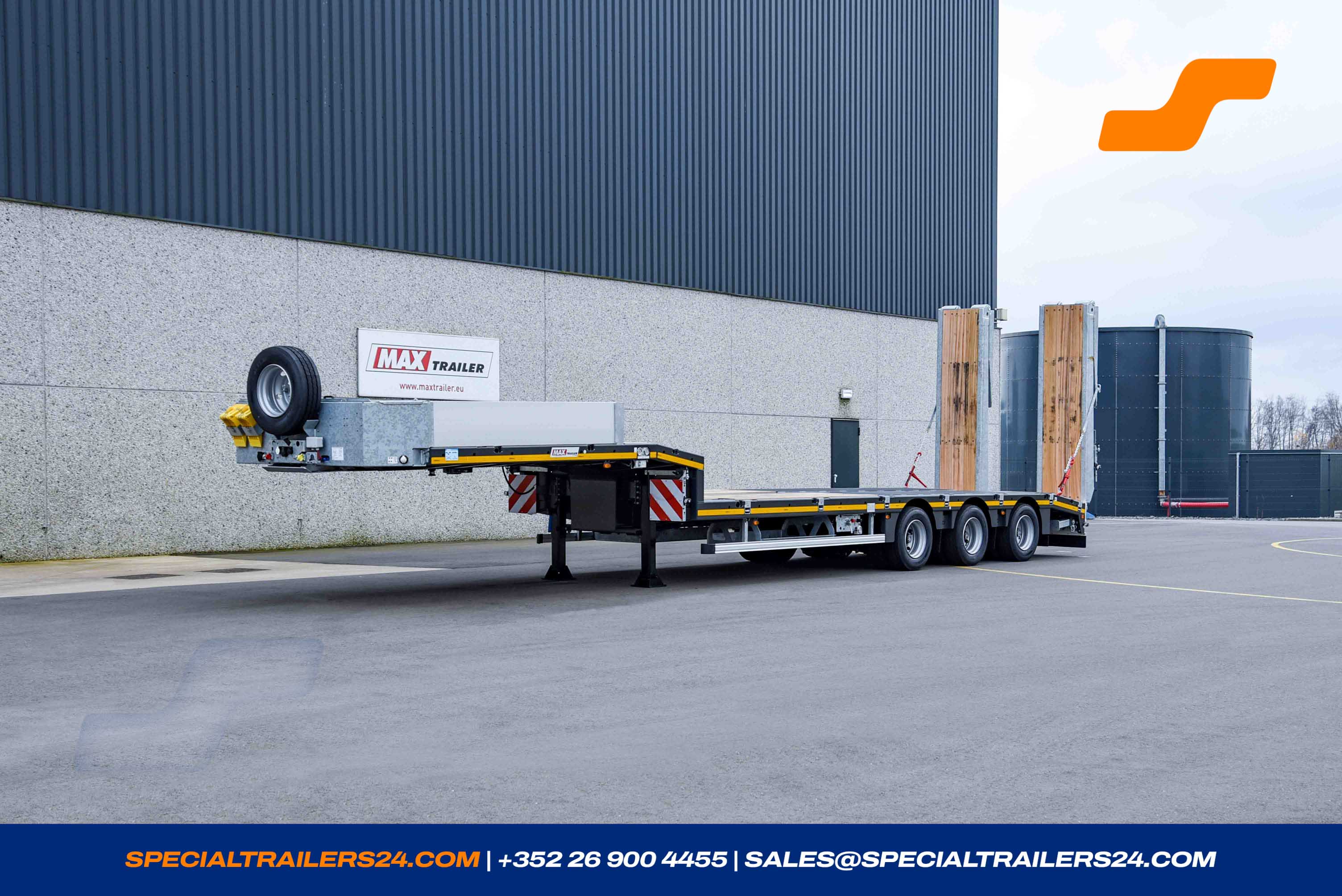

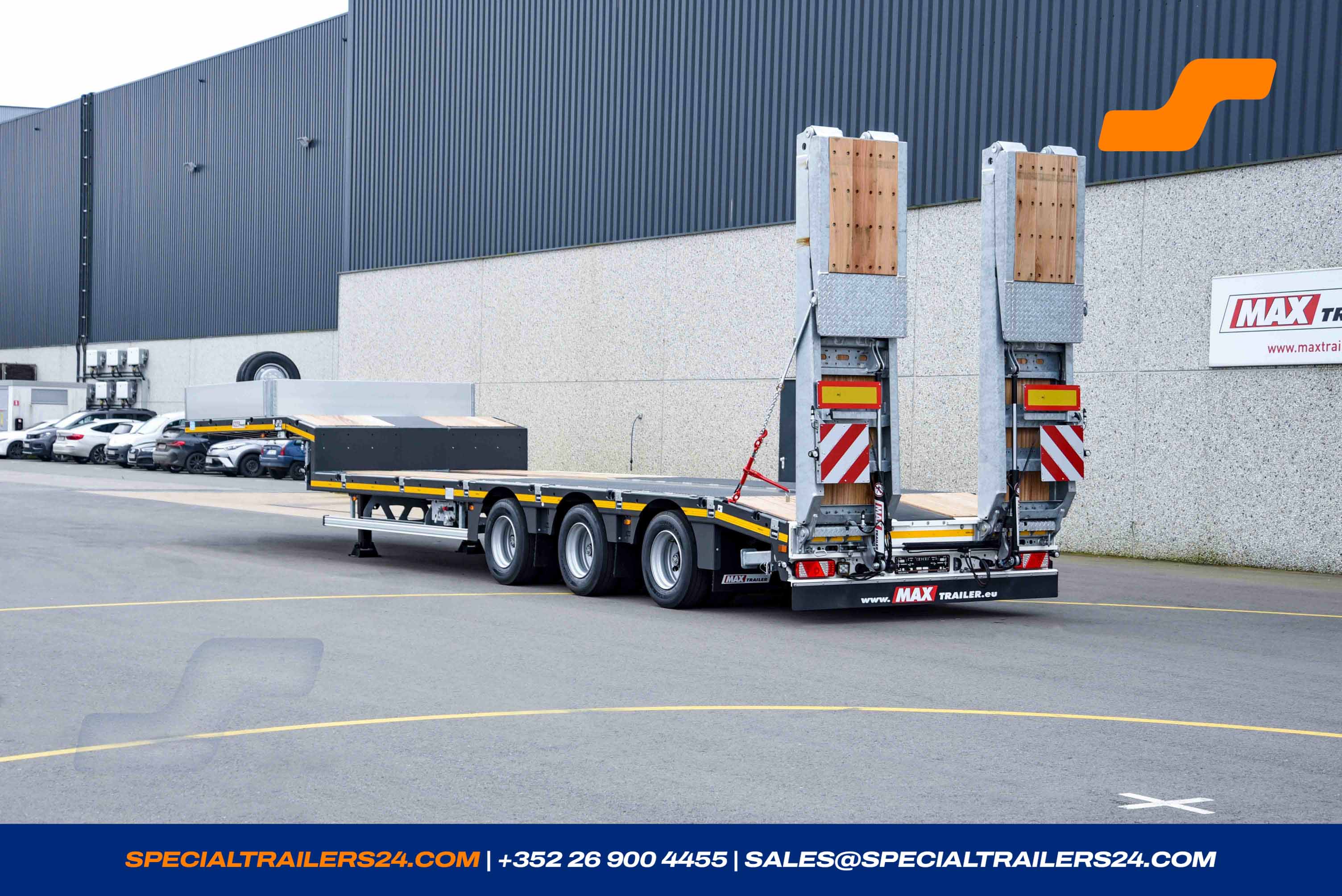

MAX Trailer MAX110
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111771
- Reference MAX110-Z-3-8.60-U

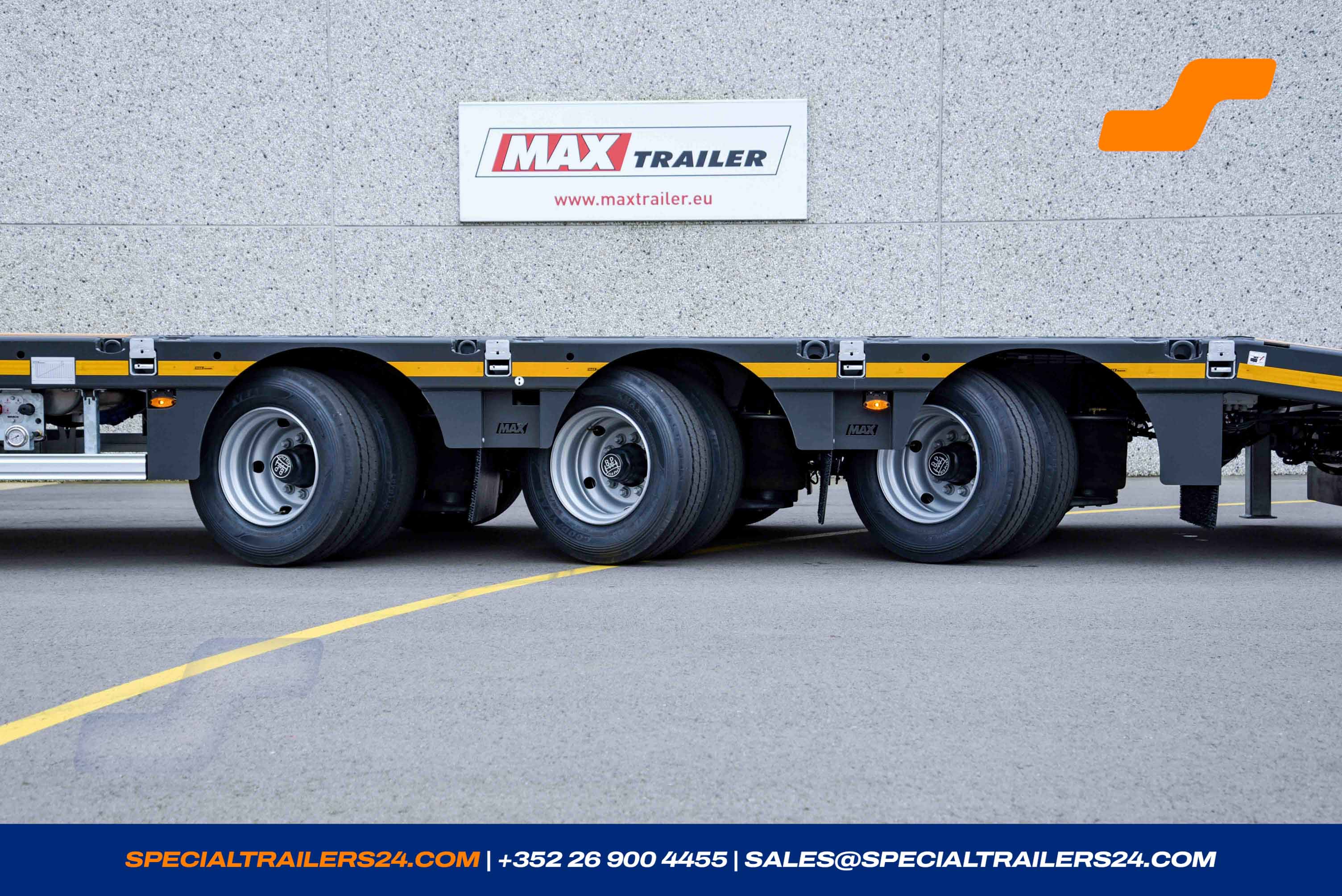

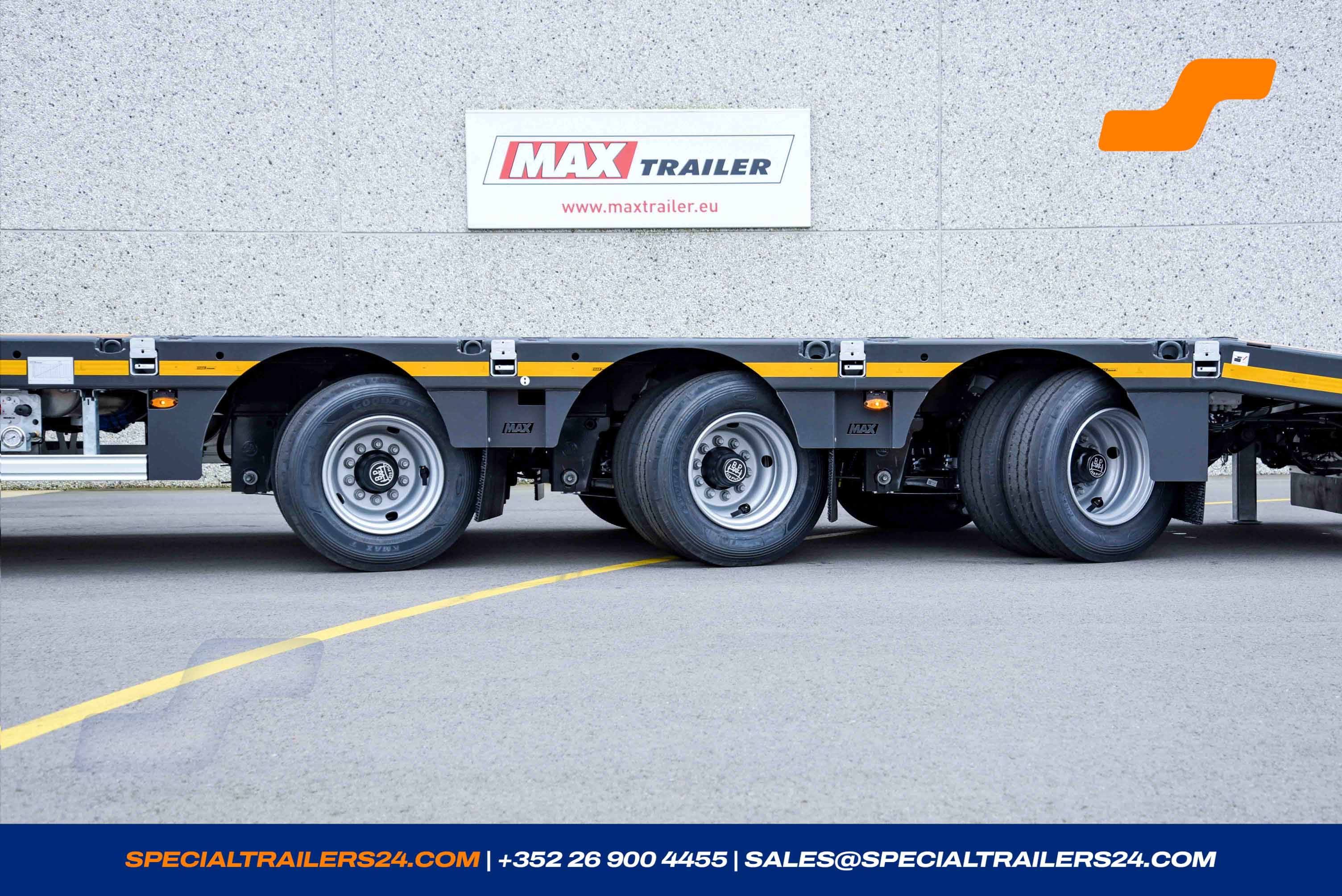

- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 07/2026
- Steering Type Hydraulic
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 32100 kg |
| Gross weight | 50100 kg |
| Tare weight +- 3% | 10739 kg |
| Payload | 39361 kg |
Dimensions
| Fifth wheel height loaded | 1200 mm |
| Gooseneck length | 4 200 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 8 600 mm |
| Wheelbase | 1 360 mm |
| Loading height at max. load | 860 mm |
| Total width | 2 540 mm |
| Suspension stroke | -55/ +145 mm |
Gooseneck
1 x Gooseneck : MAX-4.200-750-10° (DSR 2300/ASH 1200) 45°
Gooseneck with chamfered corners ± 45° in front and rear chamfered by ± 750 mm x 10°.
3 pairs of lashing rings (LC 5 000 daN).

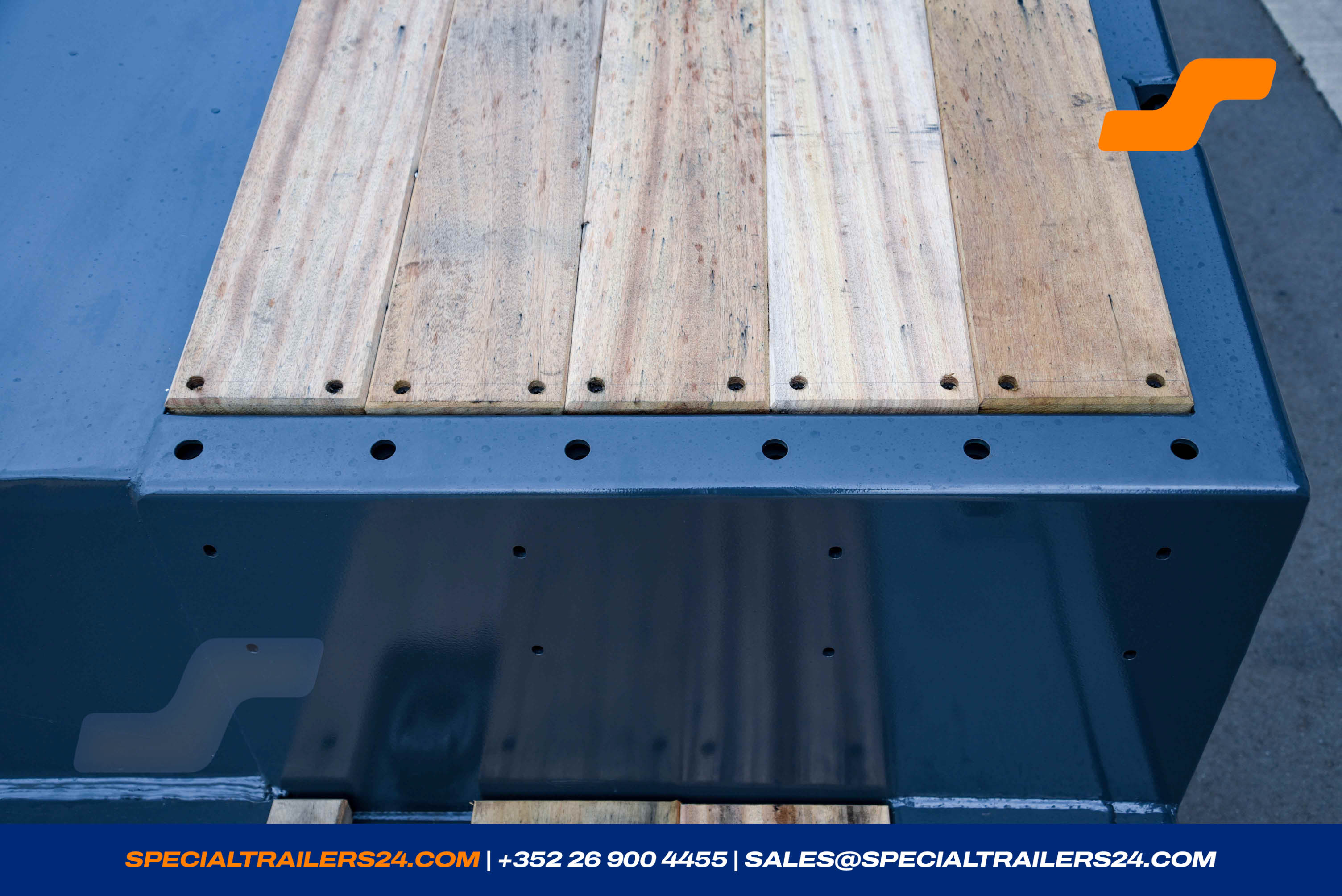

Hardwood cover thickness 30 mm.
- 2 king-pin.

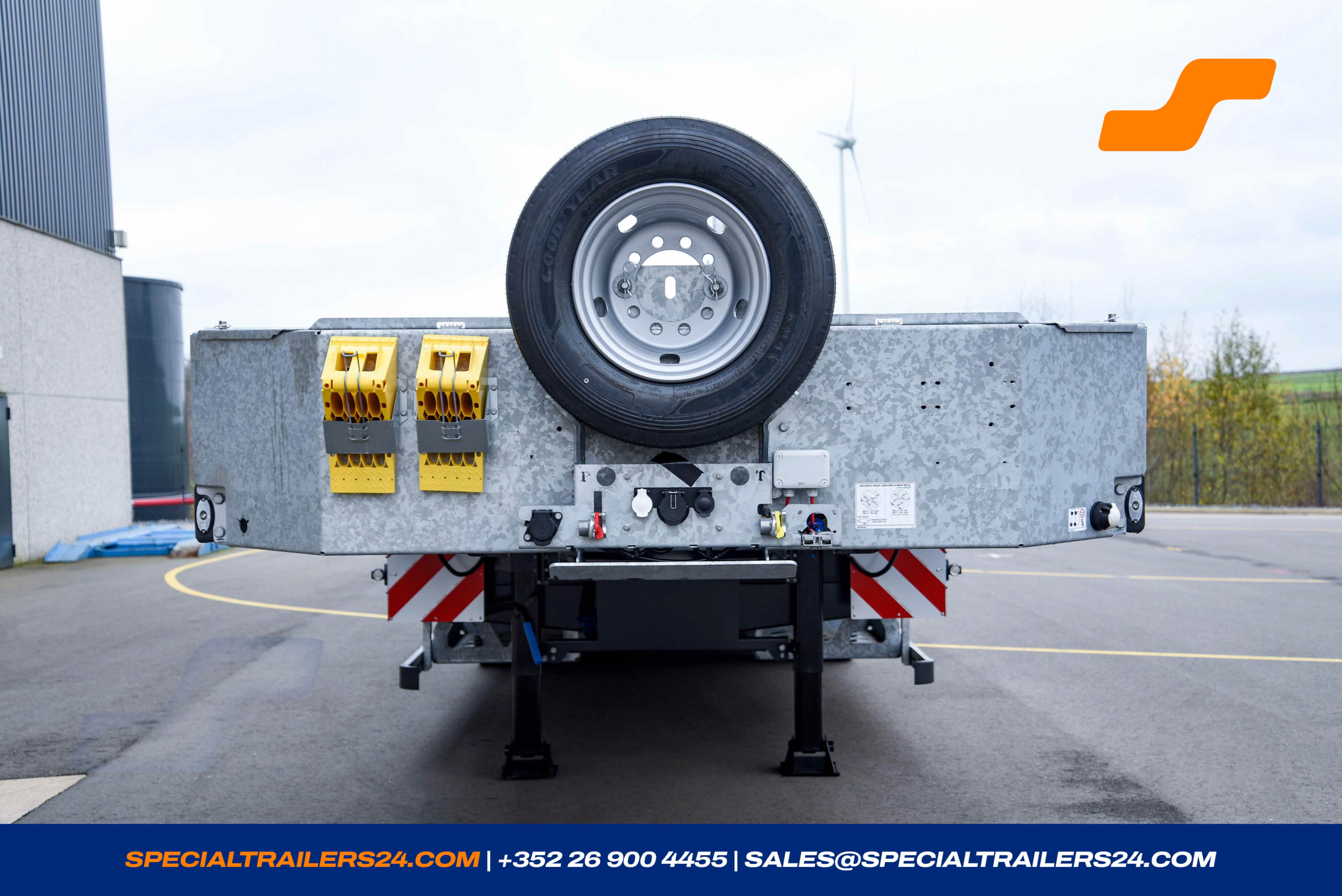

- One galvanised steel headboard, height ± 400 mm.
- Red and yellow air couplings on the galvanised front connection ledge.
- 2 wheel chocks with carrier on the headboard.
- One spare wheel with holder on the headboard.
-

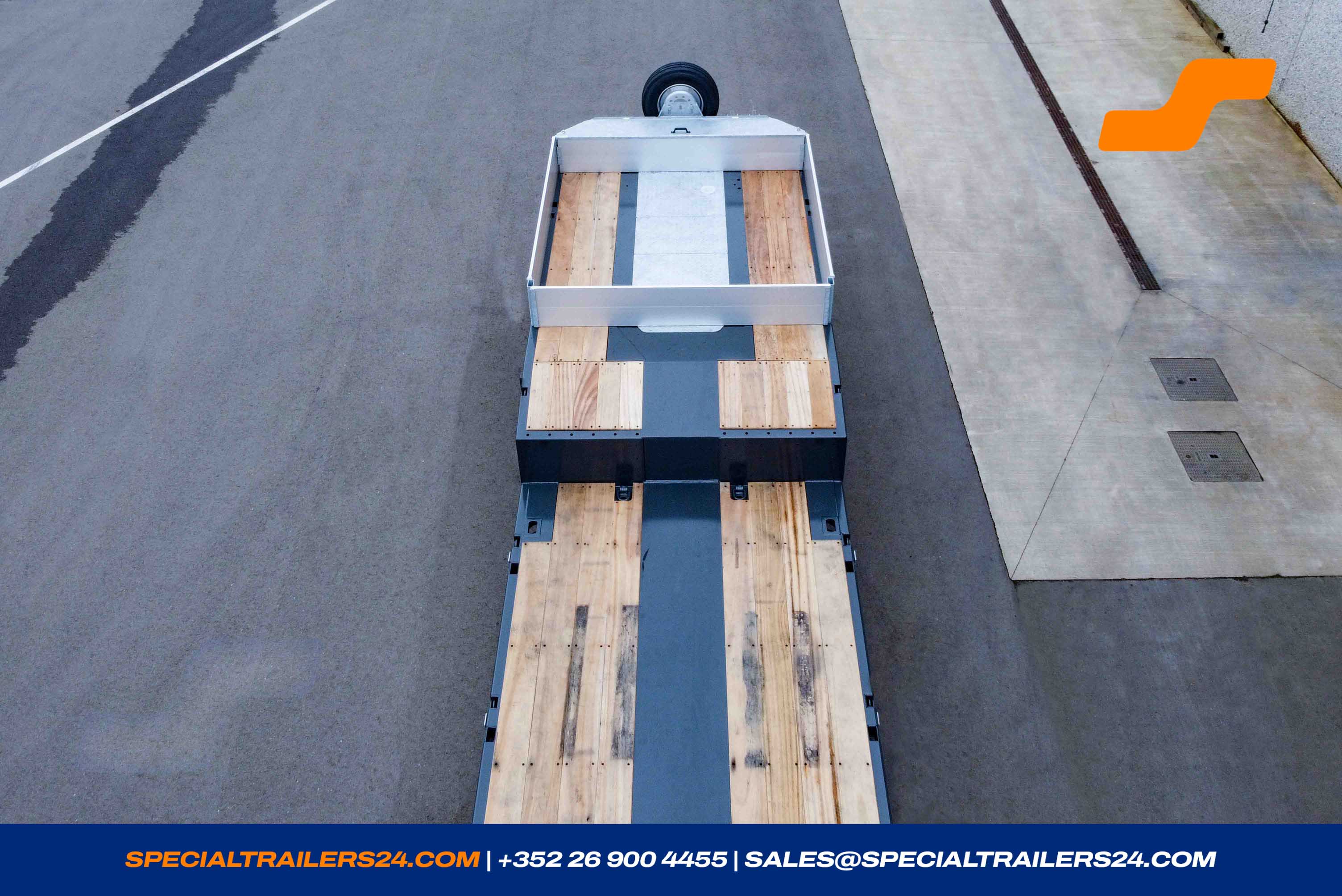

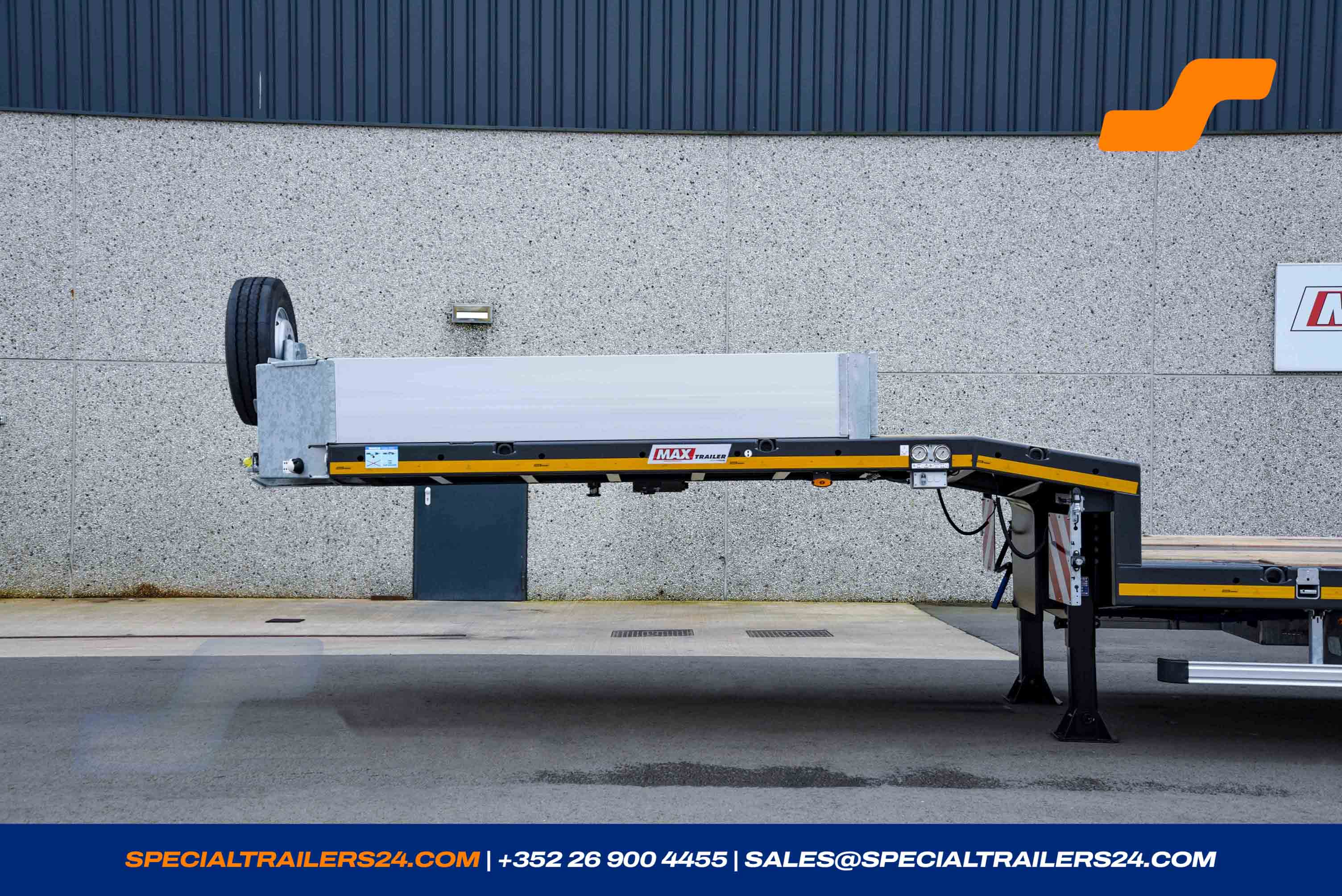

On the gooseneck removable sideboards and rearboard in alu ca. 2 400 x 400 mm (L x H).
The galvanised rear stakes are dismountable.

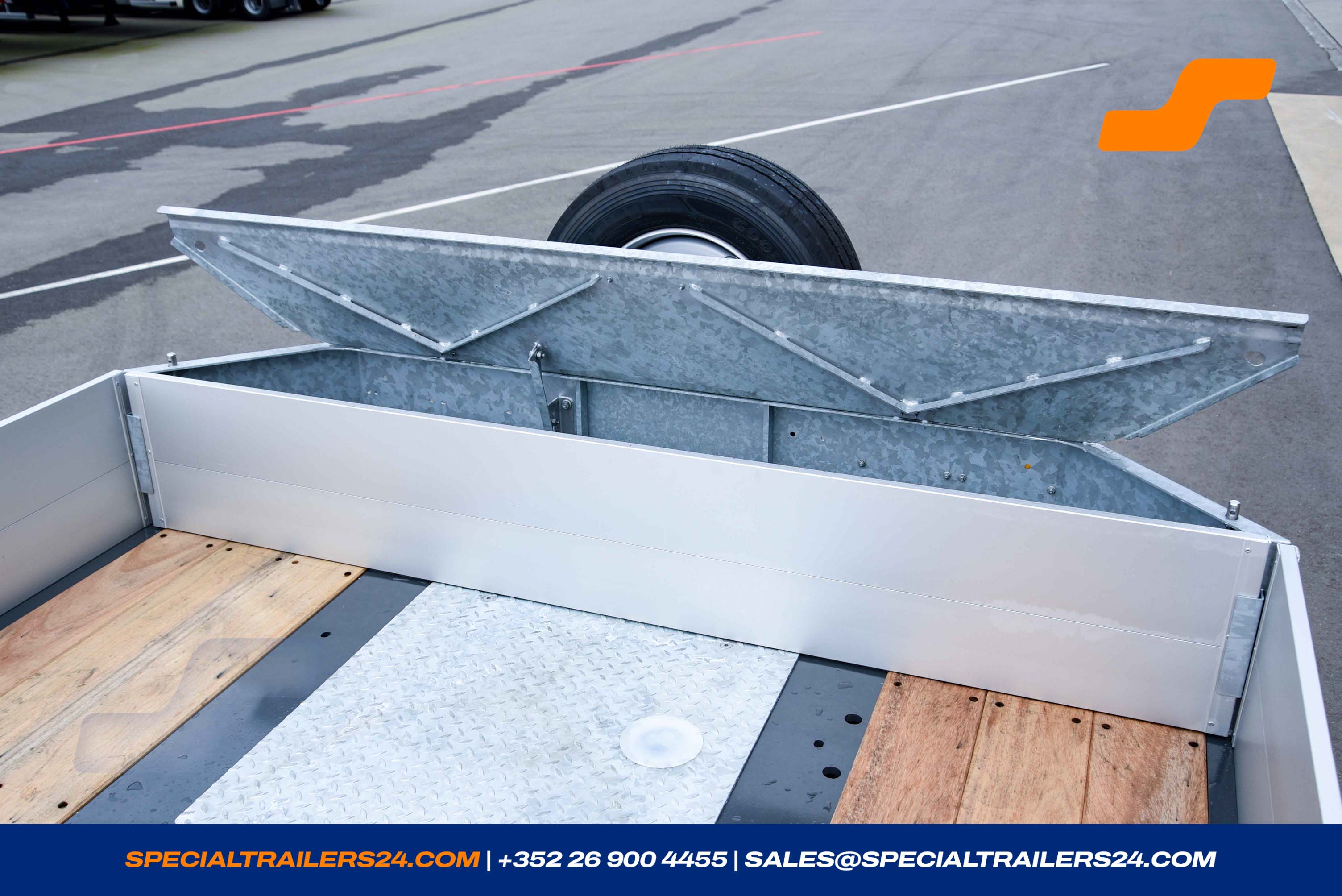

(Length of the structure ca. 2 560 mm) (± 46kg). - 1 galvanized toolbox integrated in the charmfered gooseneck (± 47 kg).
- U-beam for ALU-ramps on the rear of the gooseneck with integrated impact protection. (± 56 kg)

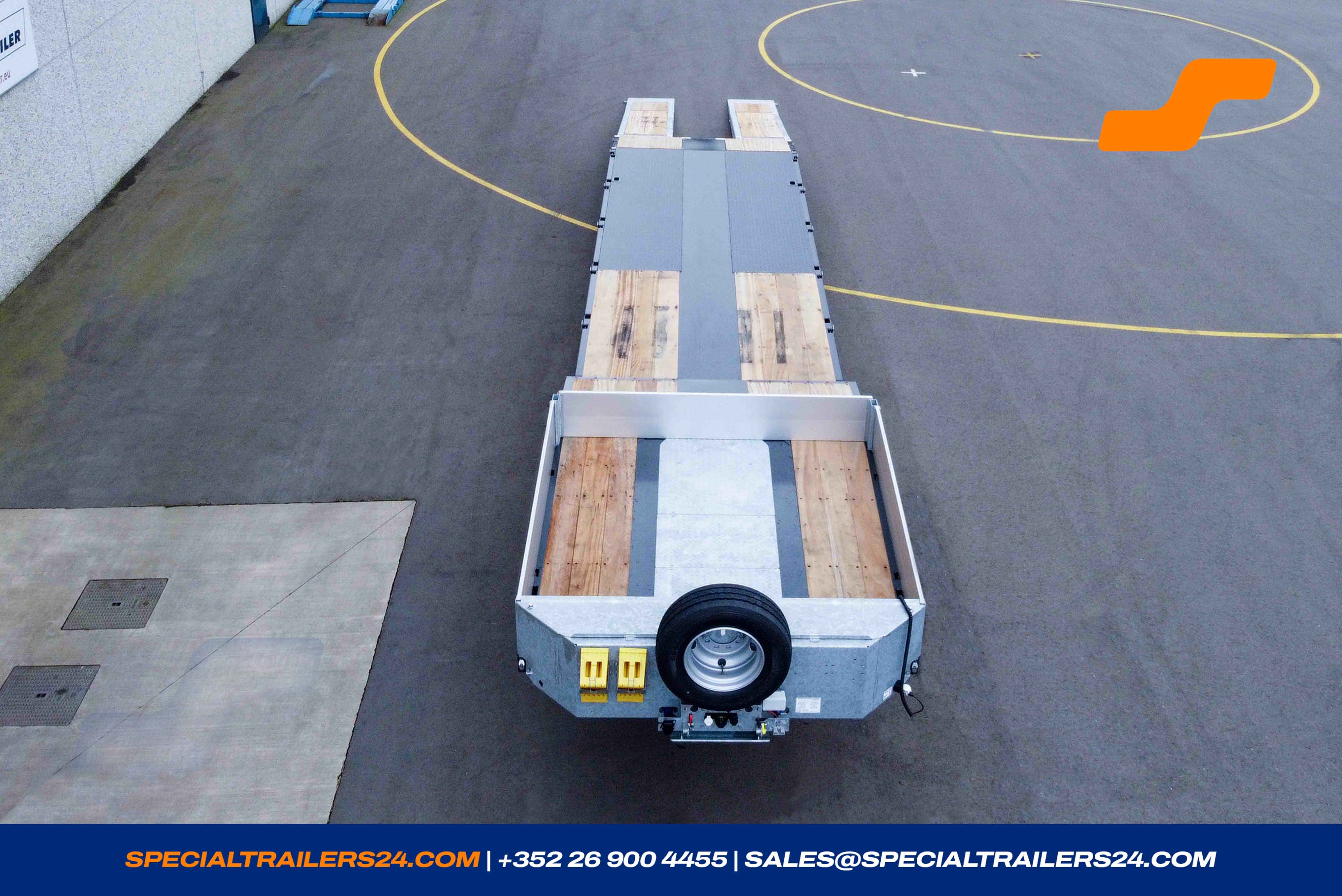

Loading deck

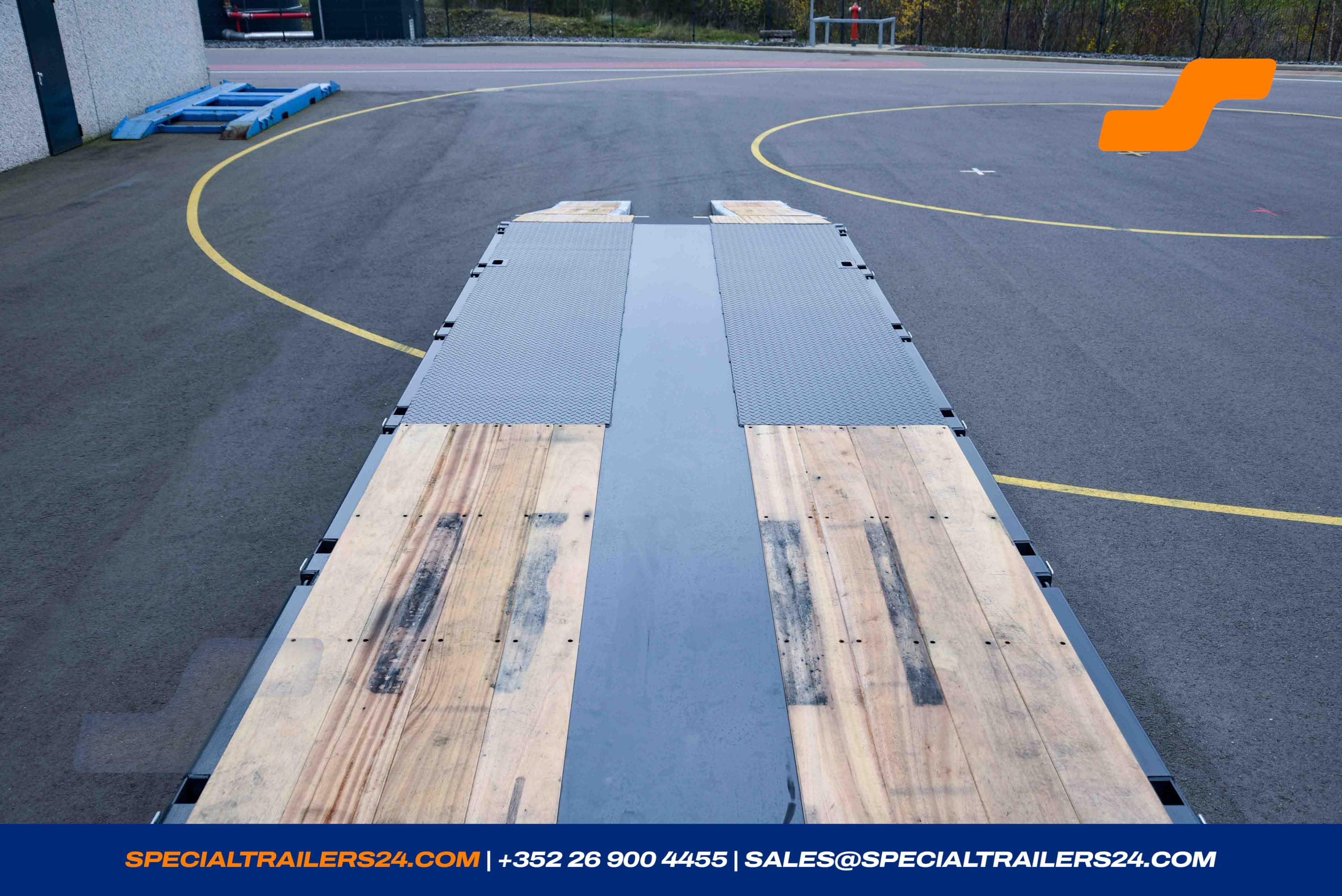

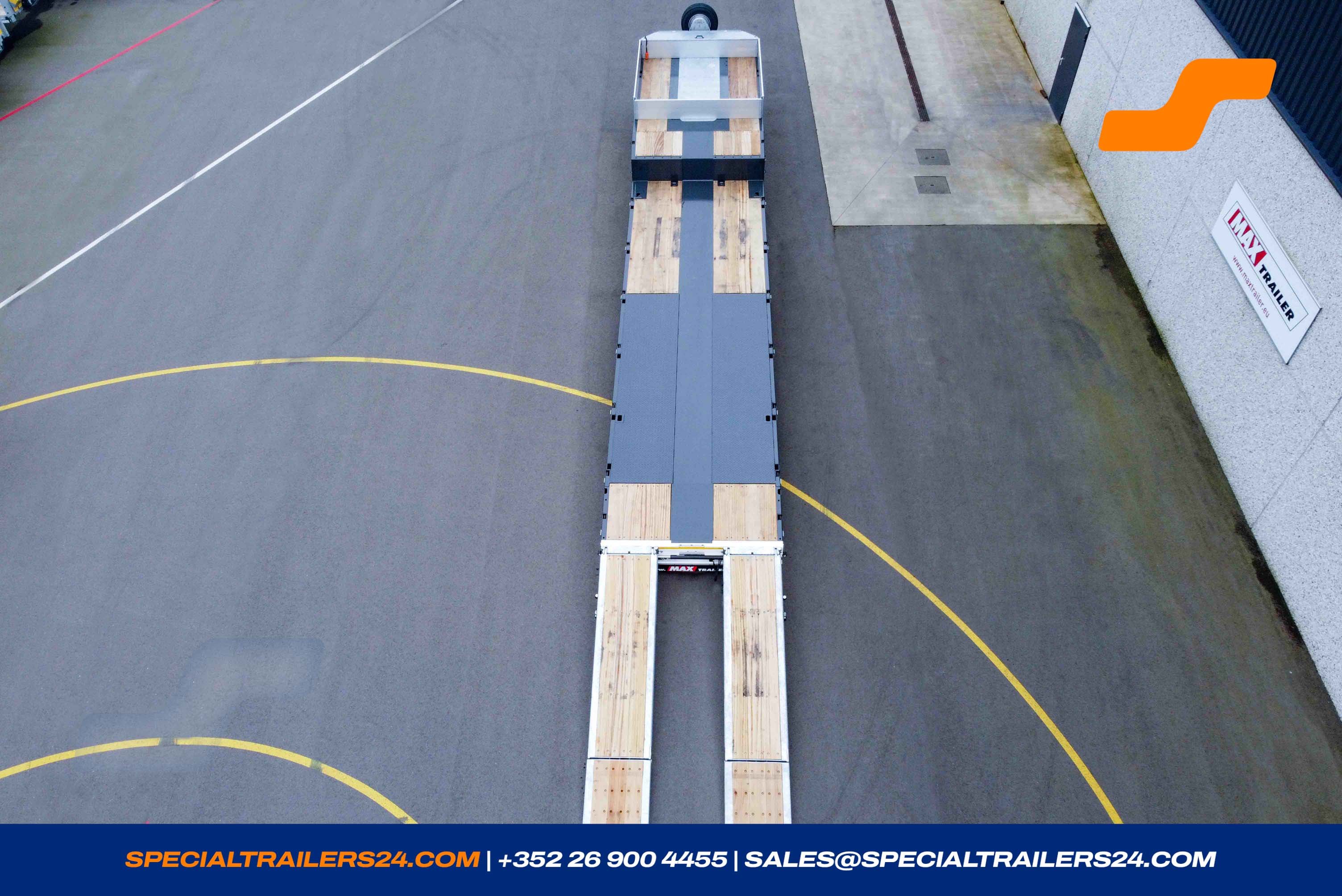

Loading platform
1 x Loading platform : MAX110-Z-3-8.60-17.5-2.54

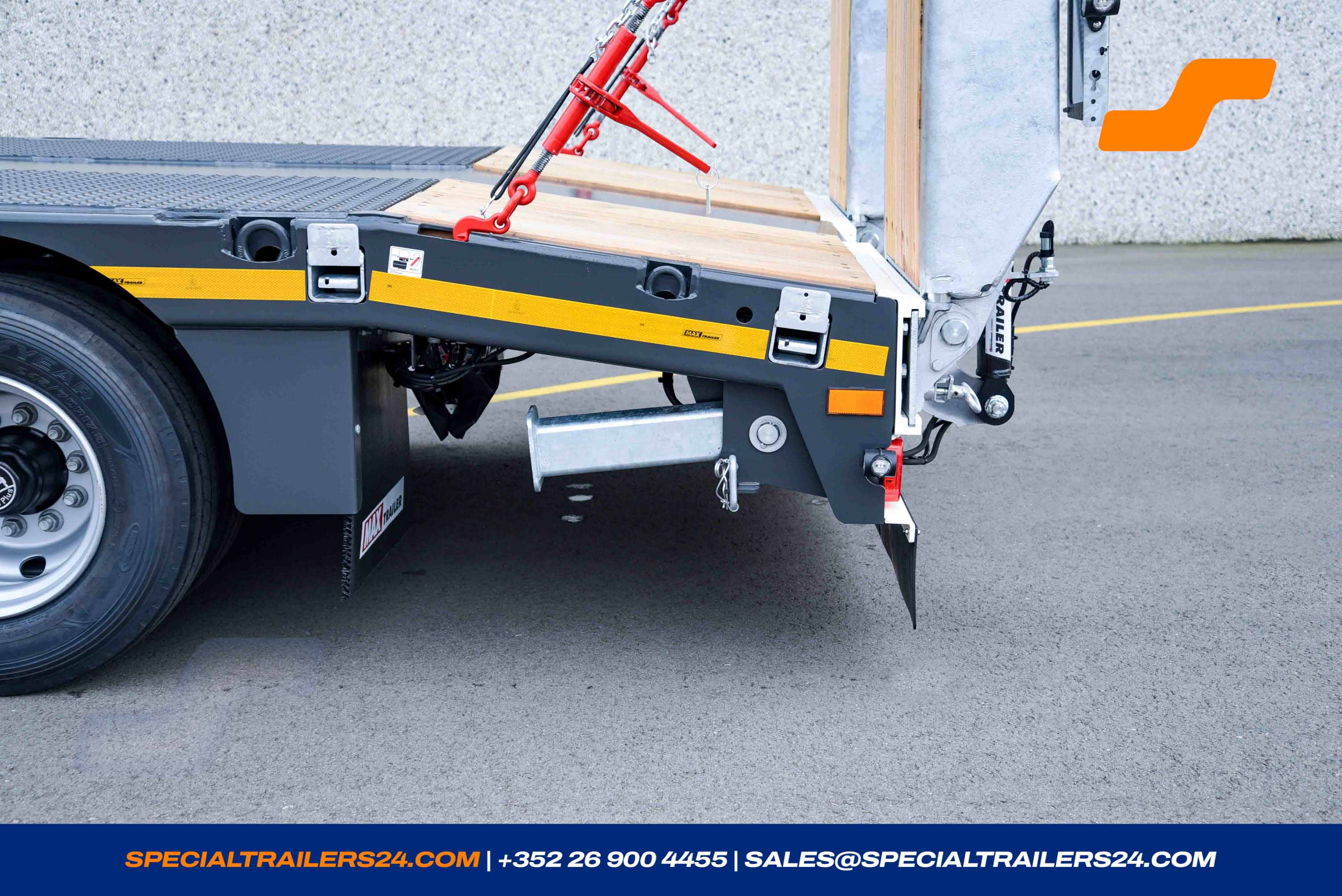

Loading platform with chamfered beaver tail by about 1 000 mm x 8°.

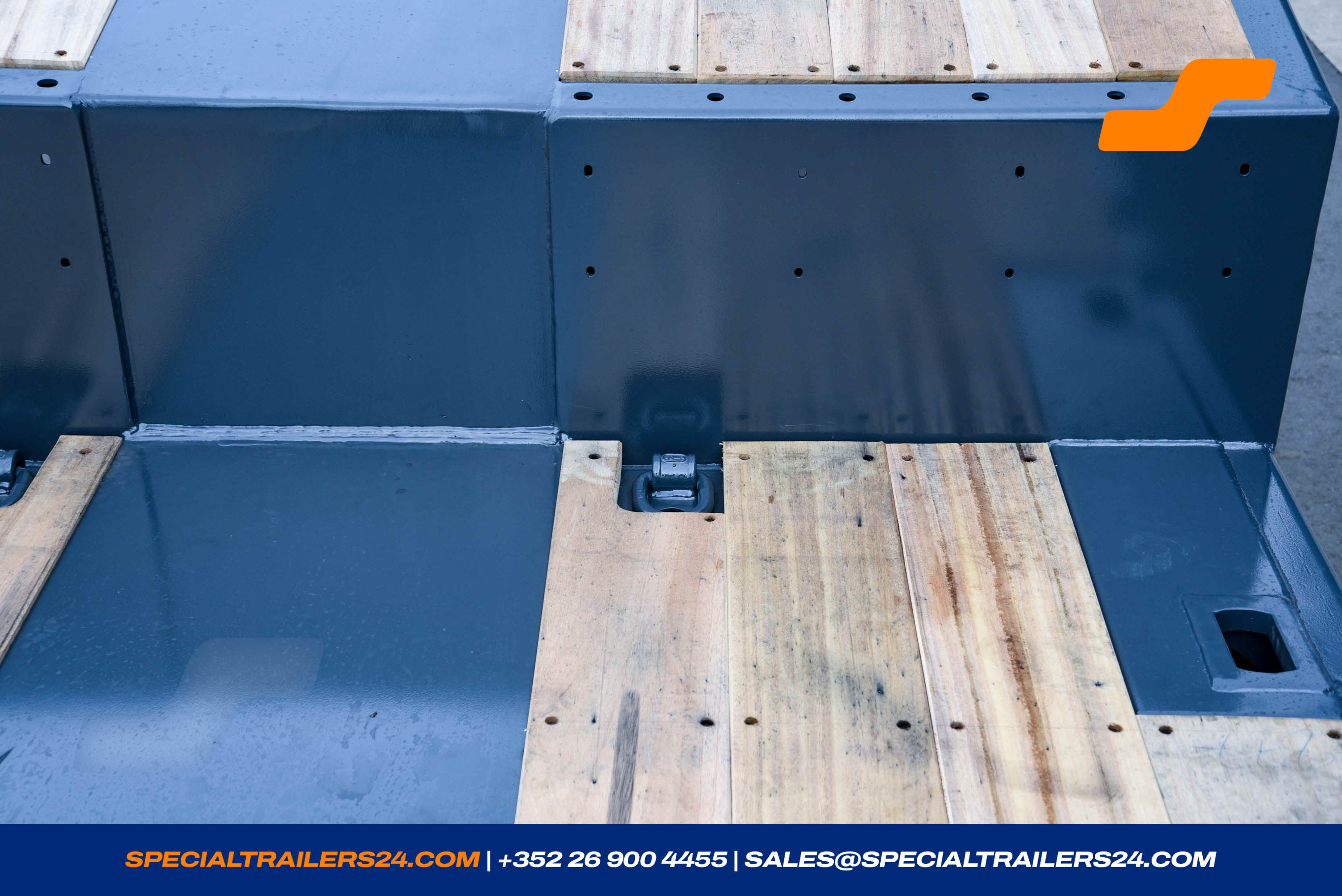

4 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
3 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
1 pair of lashing rings in front in the firm part the loading platform (LC 10 000 daN).
Hardwood cover thickness 48 mm above of the axles chequer plate.

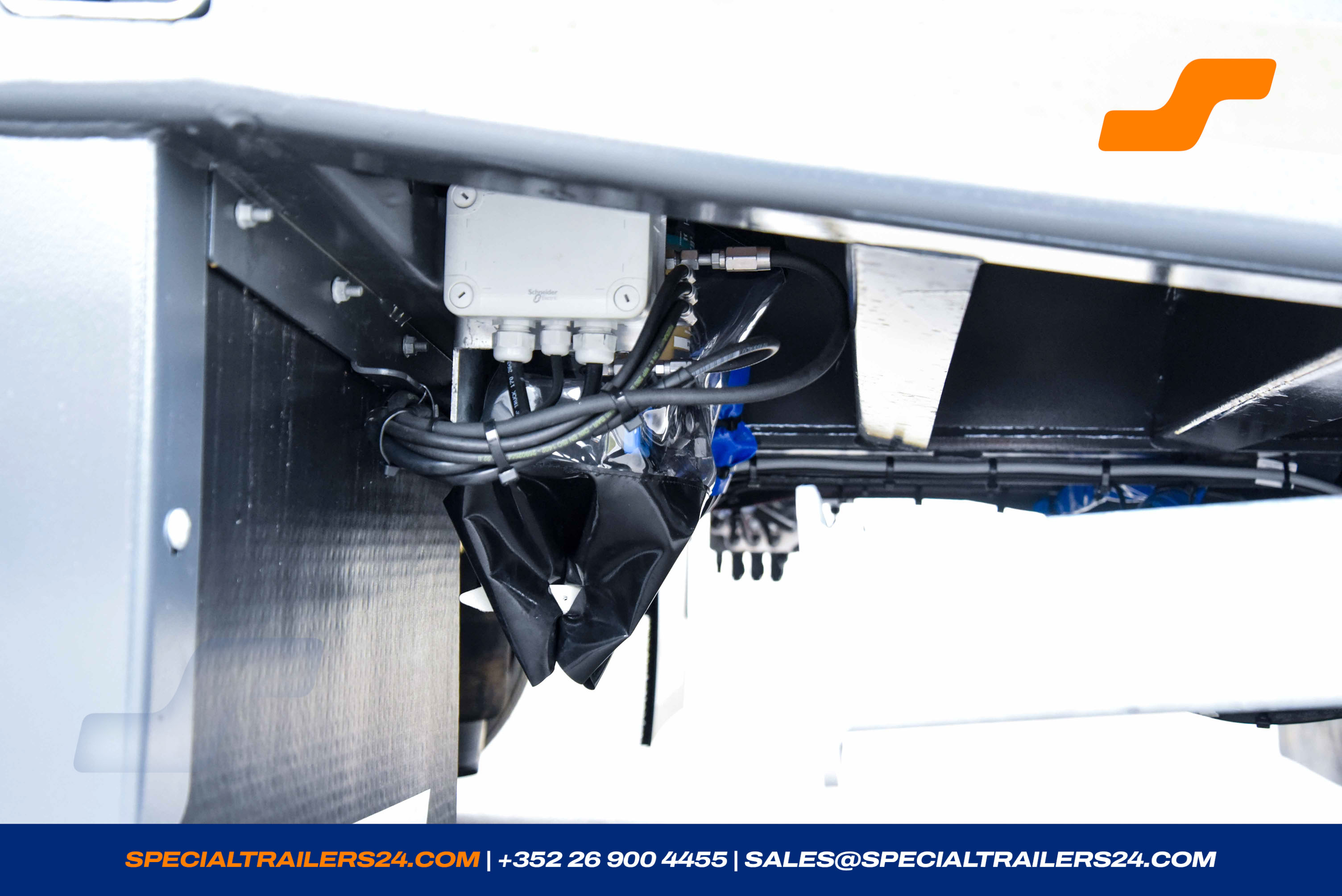

- Electrically operated hydraulic pump. (± 45kg)
-

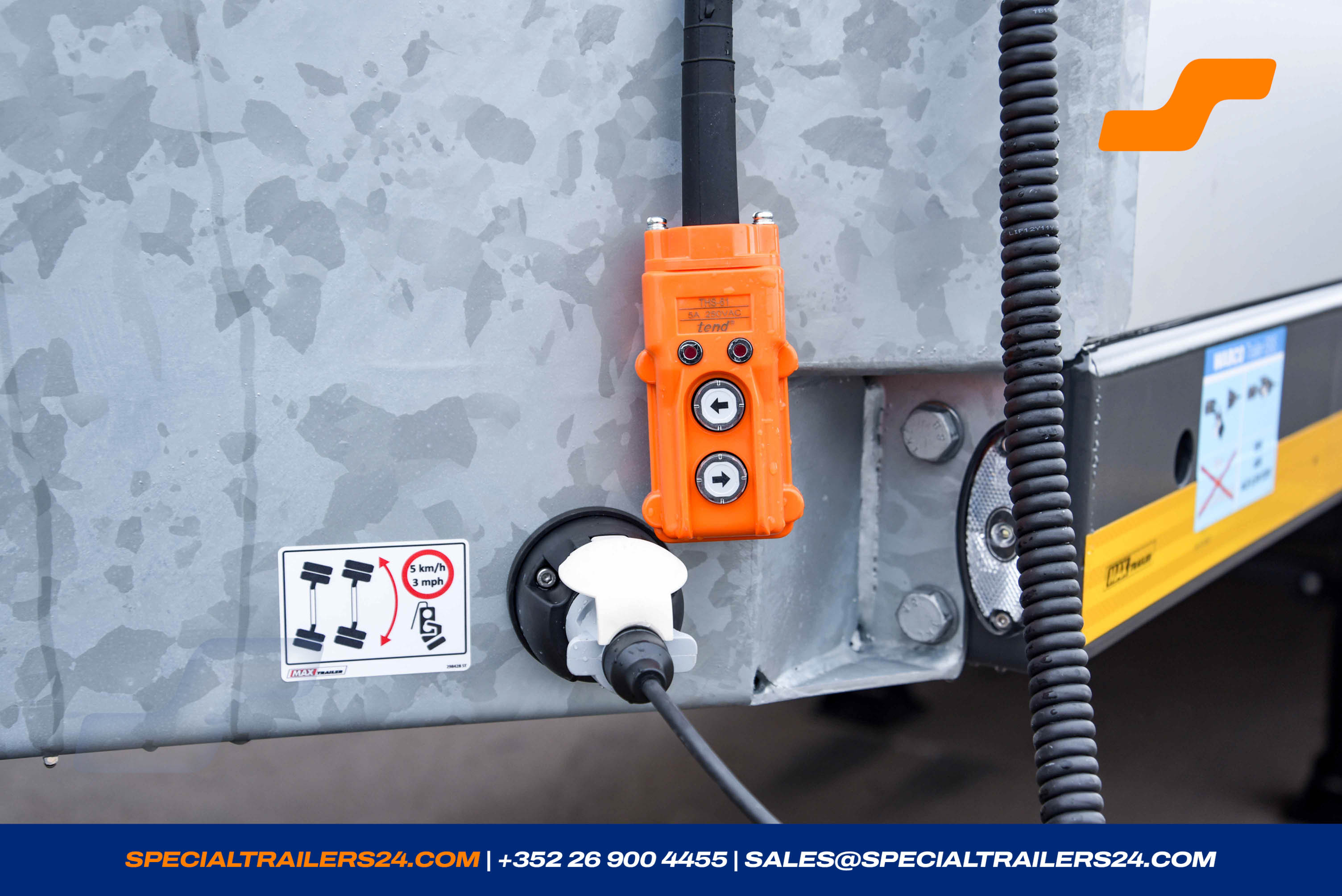

Manual-steering, handling with cable remote control from the front and the back, with PDC-light control for the realignement of the axles.
(without connection to the tractor). - Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- Yellow reflective tape according to the EU regulation over the entire length and at the rear.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
- Holder for one beacon light at the rear of the trailer.

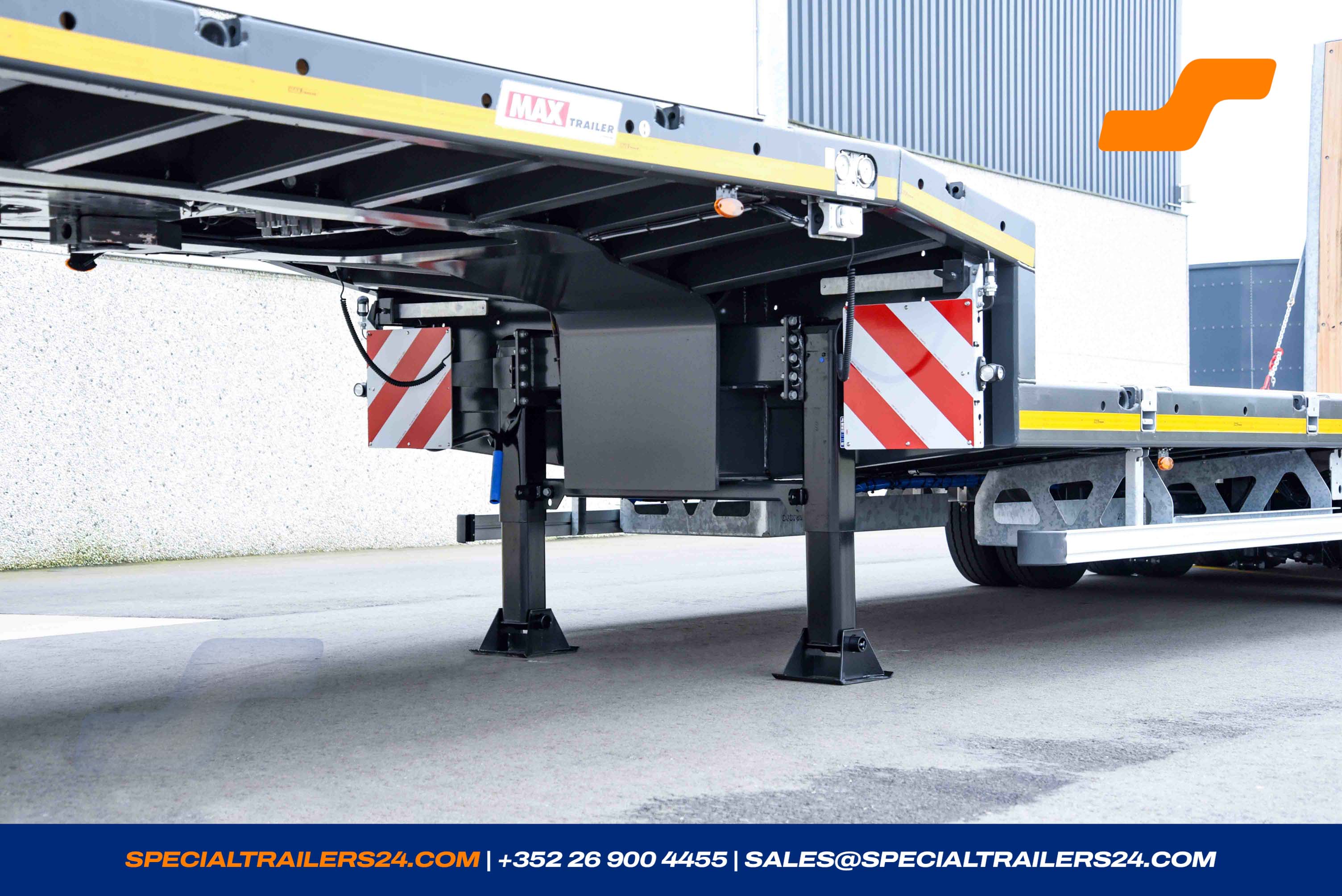

- Galvanised landing gears at the rear under the loading platform.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- 6 pairs of pockets for stakes ca. 100 x 50 mm in the outer frame of the loading platform (± 18kg).

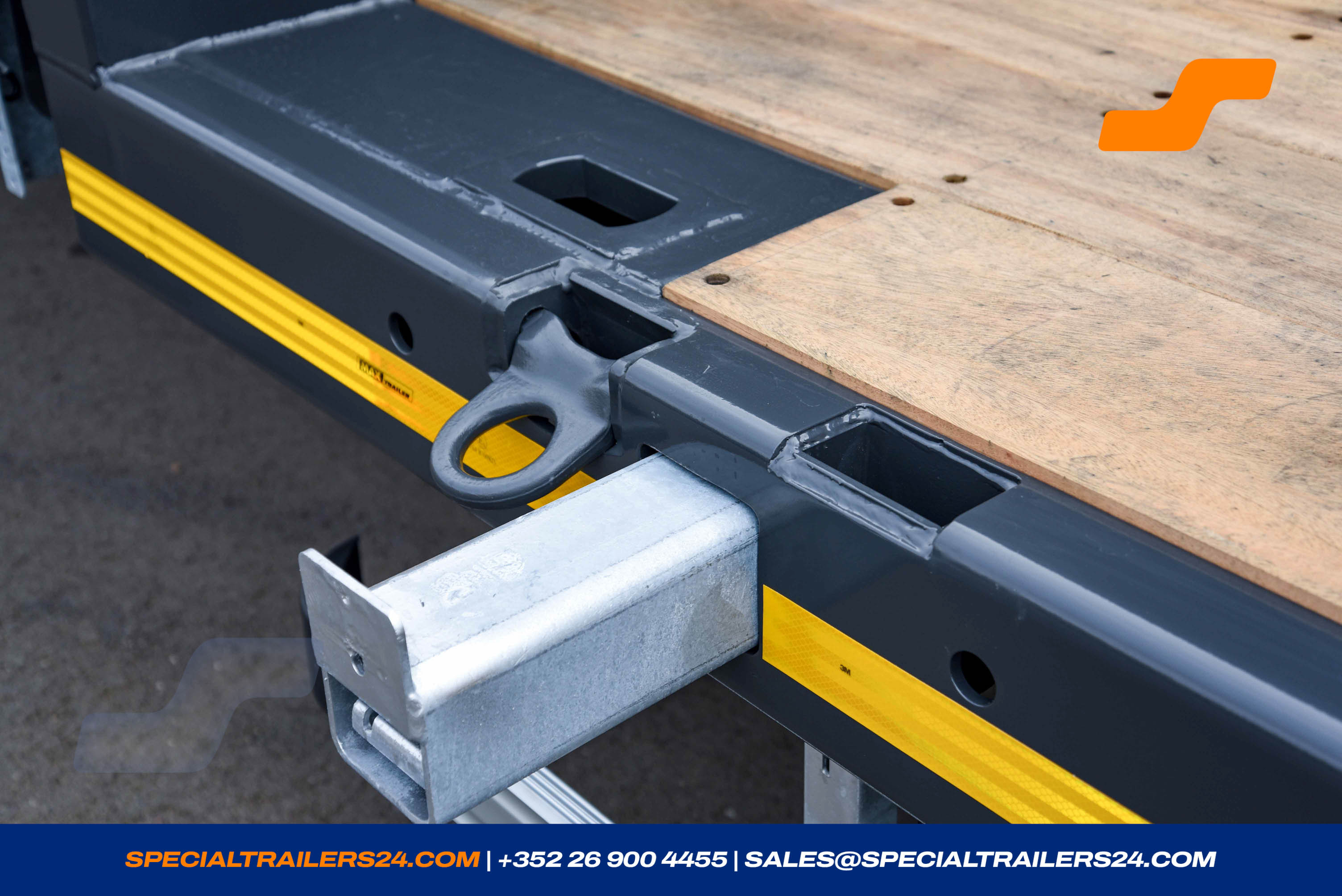

- Galvanised outriggers, extendable up to ± 230 mm per side (± 230 kg).

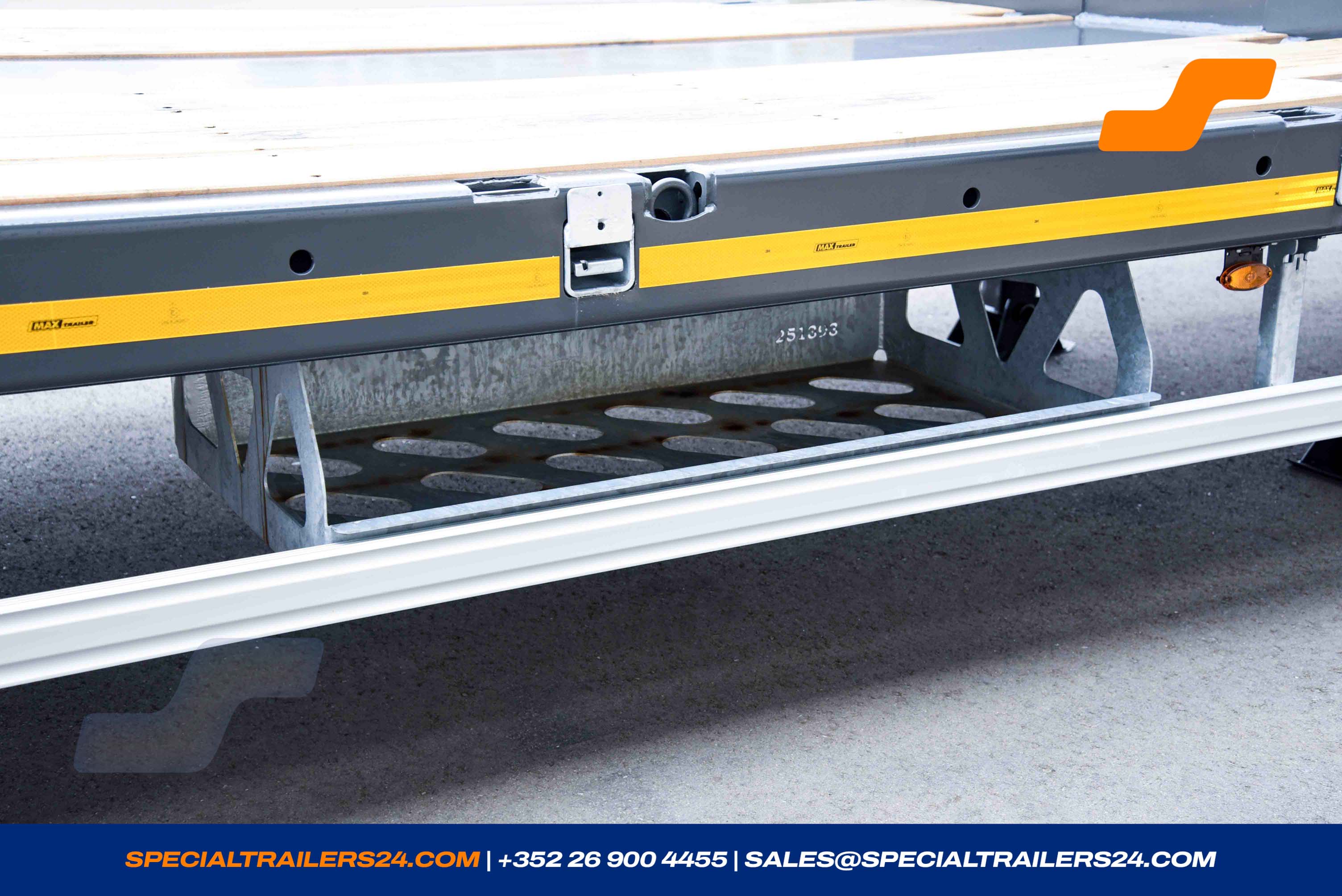

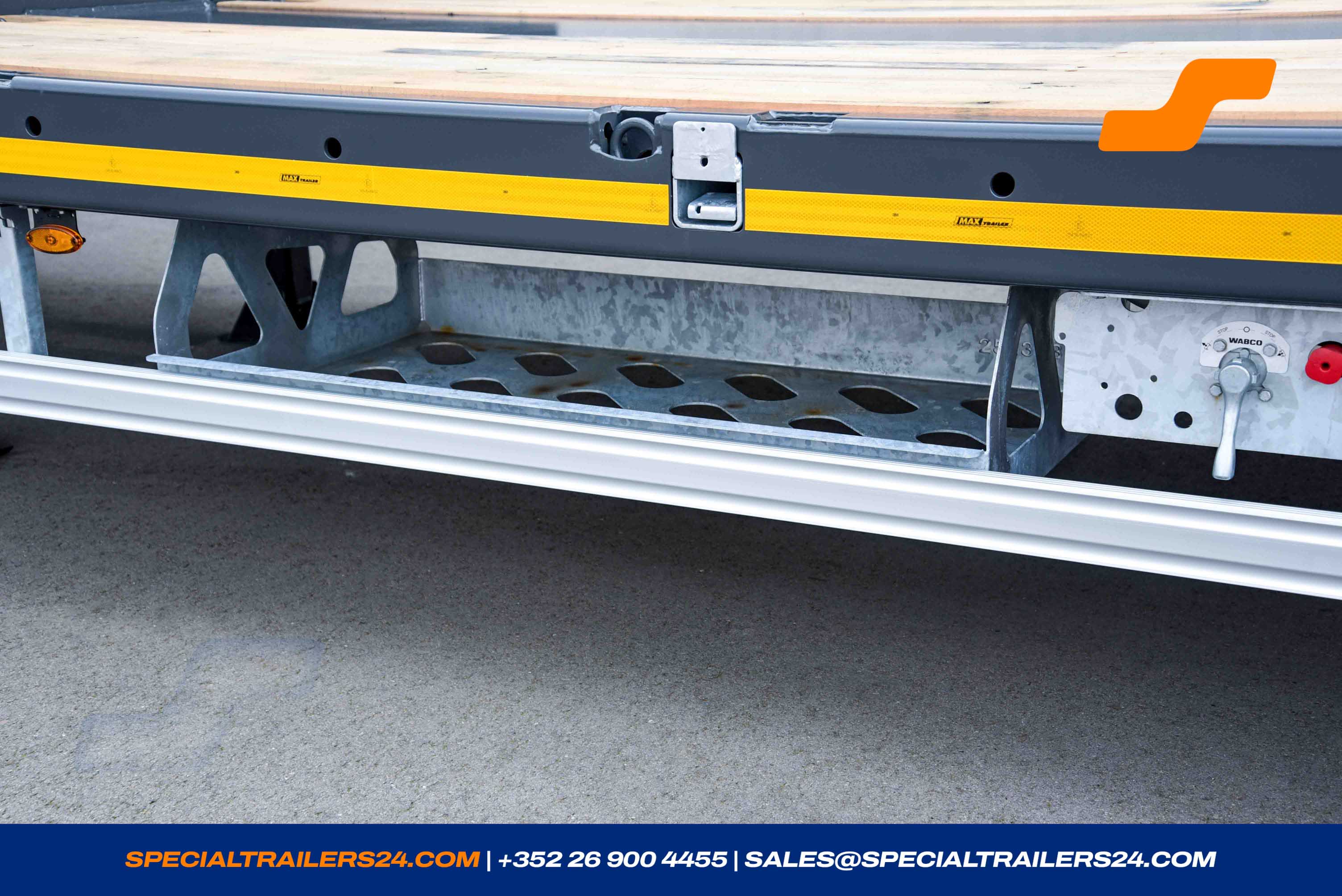

- Galvanised storage for timber, left and right under the loading platform (± 100kg).
- 1 pair of lashing rings along the central beam at the back end of the chamfer (LC 10 000 daN). (± 3kg)
- Anti-slip-coating with sand above the chequer plate of the goosenek and the loading platform.
Ramps

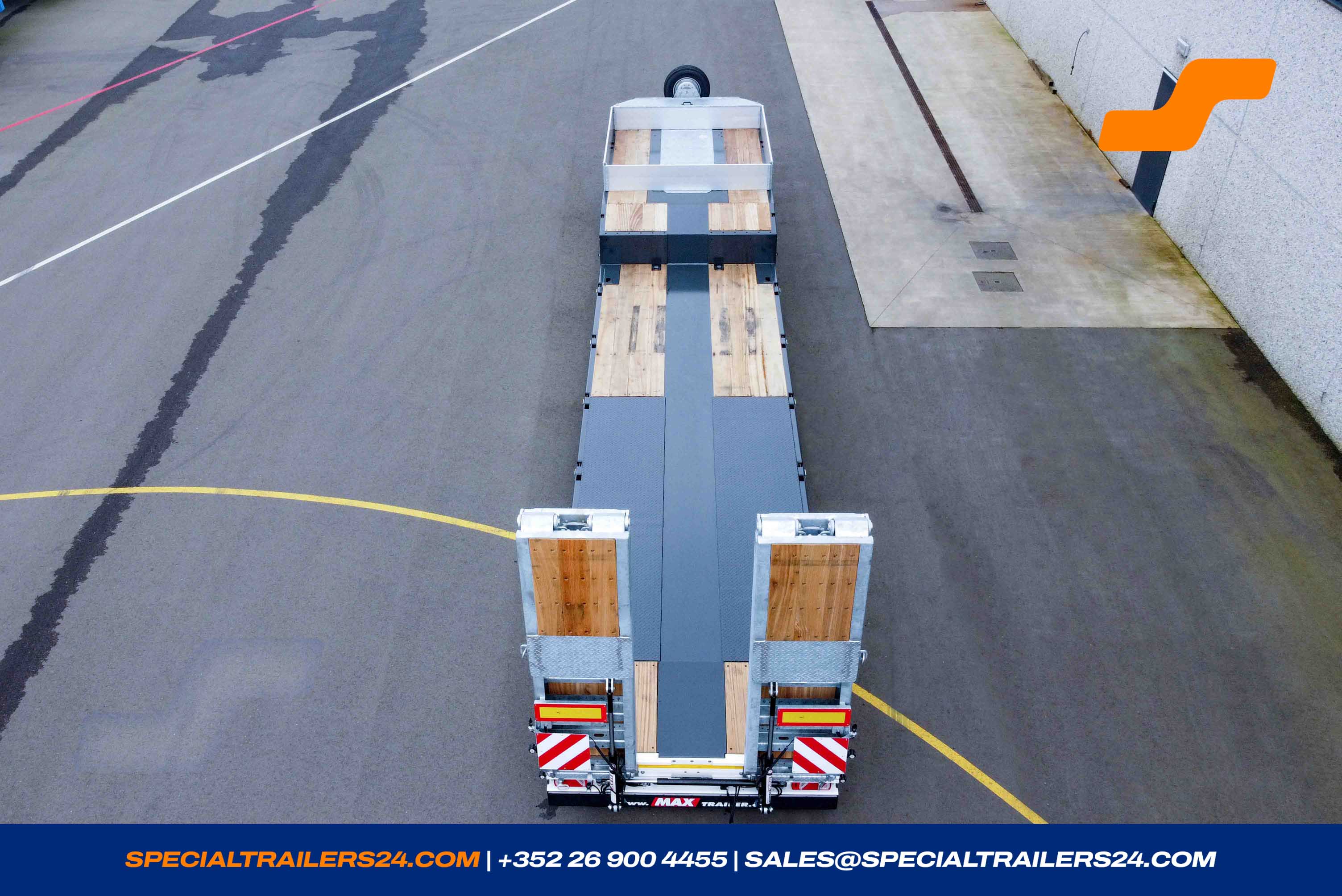

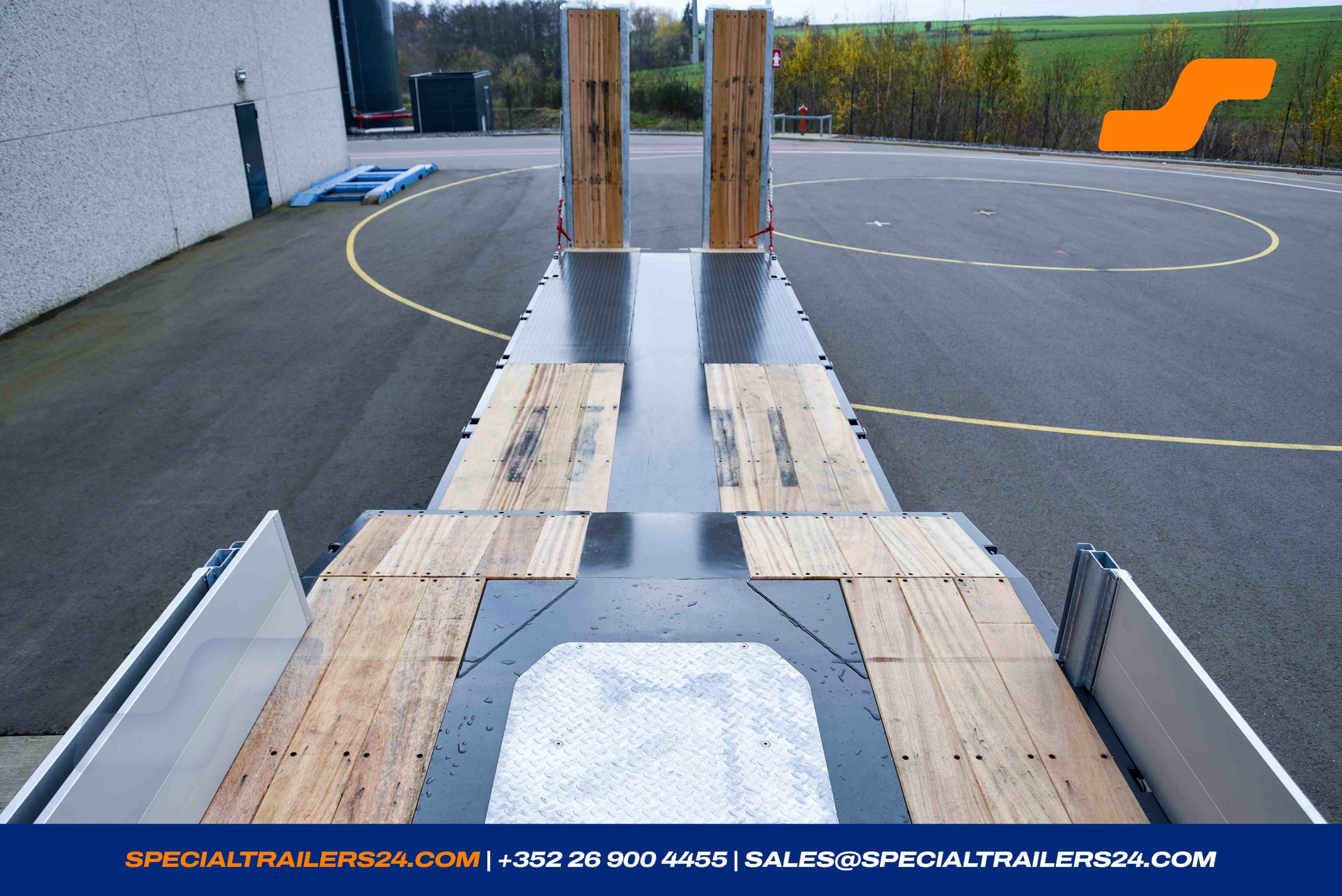

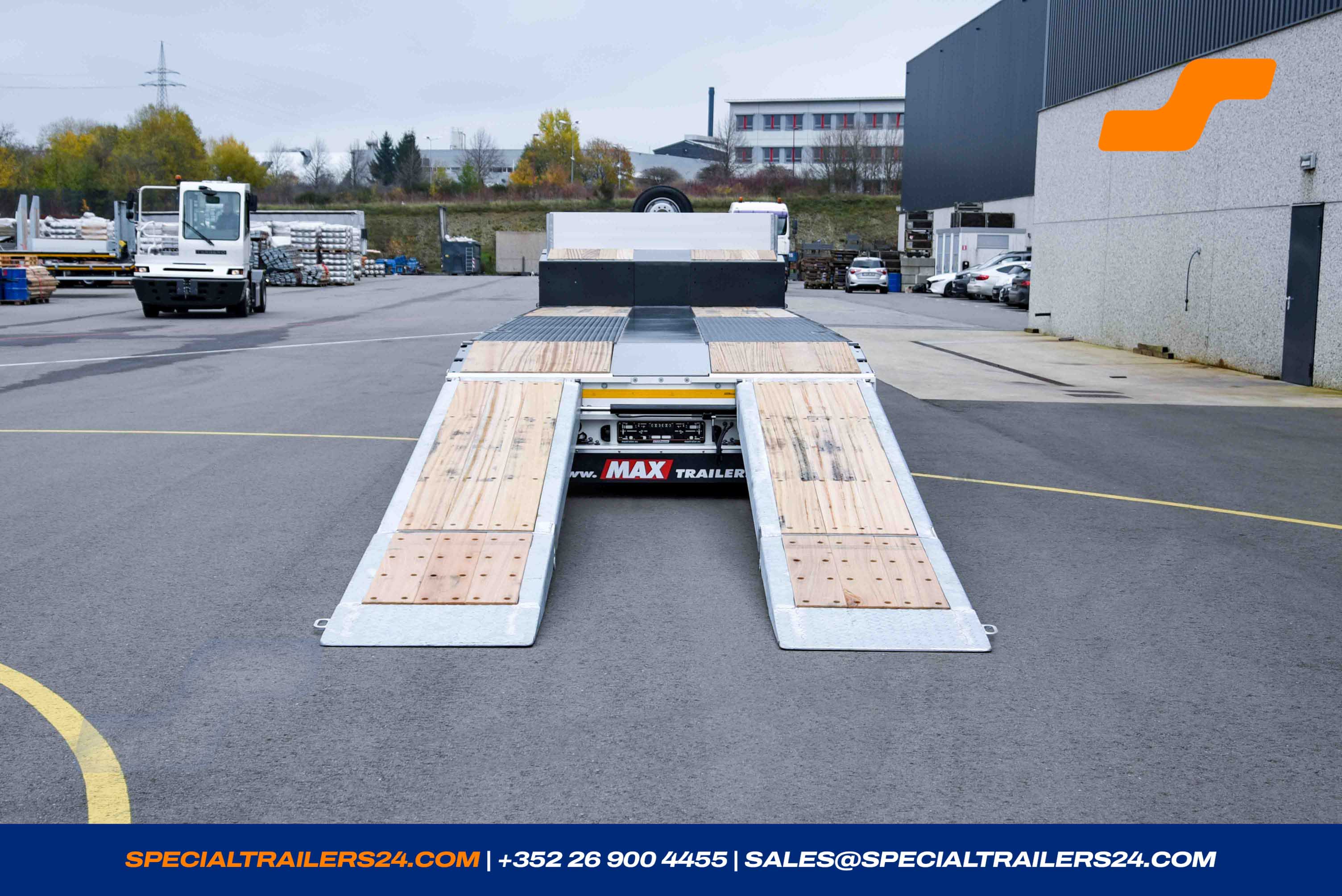

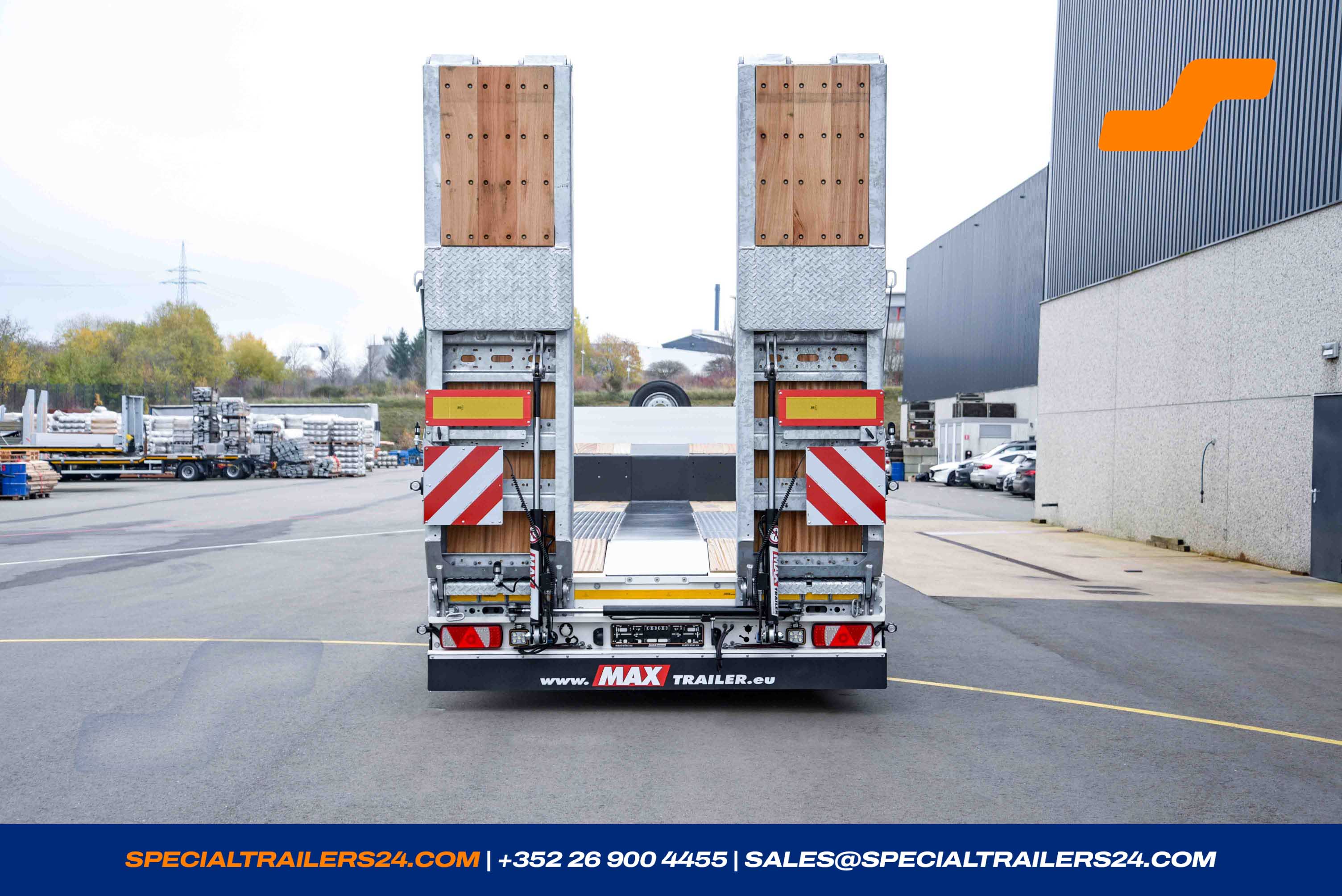

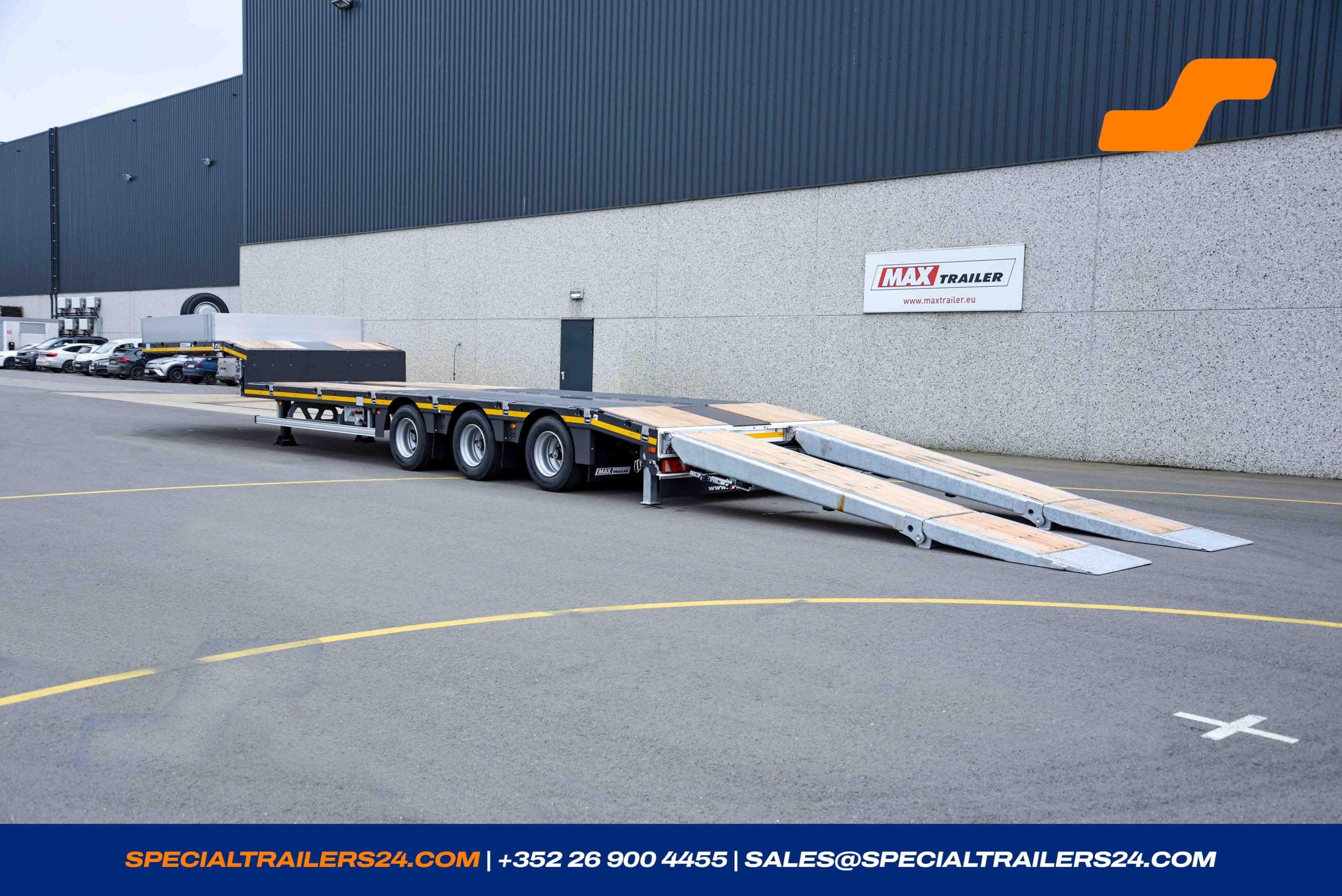

Hydraulic loading ramps

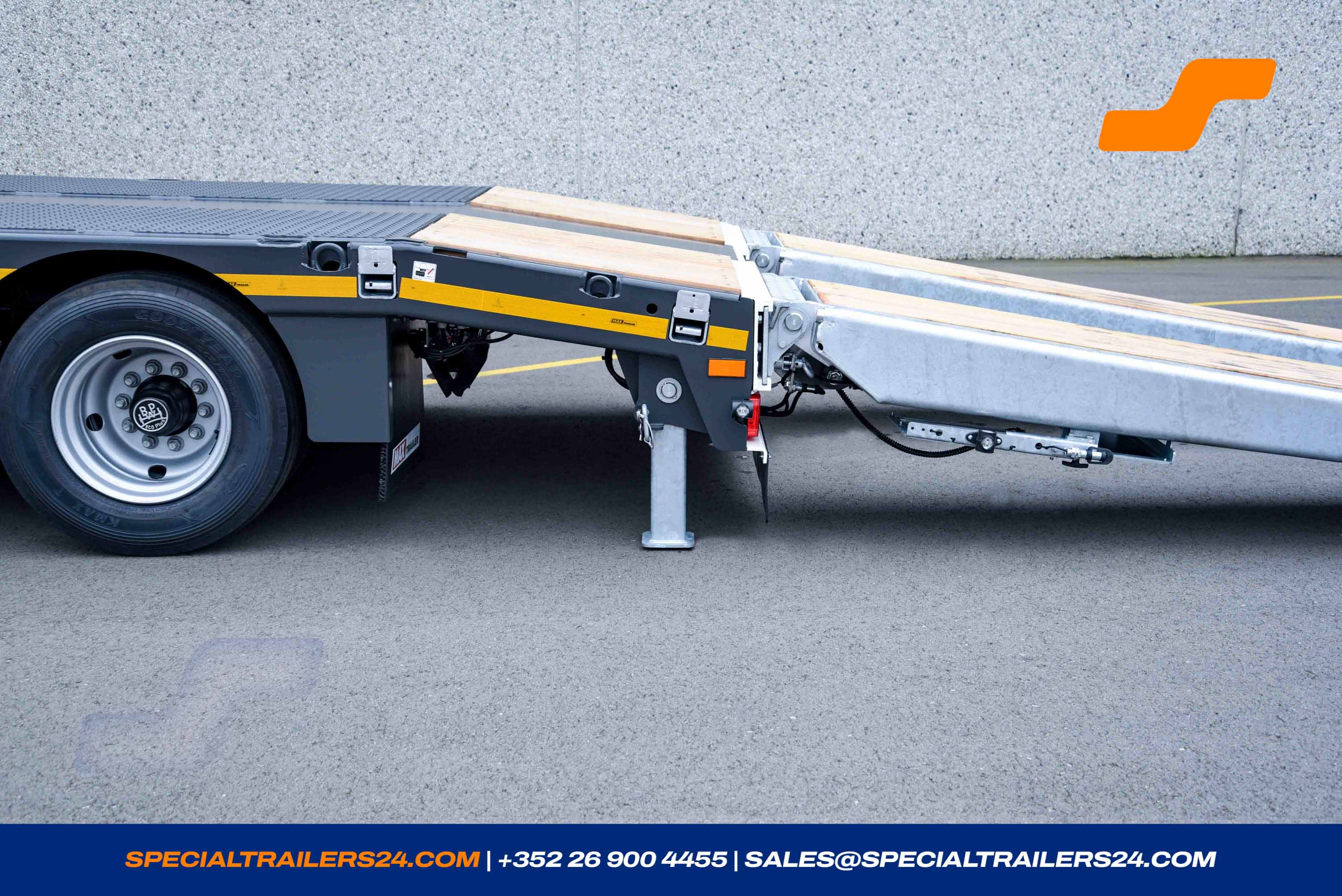

1 x Steel double flip ramps : DR-900-HH-40-HB-HVA
1 pair steel double flip ramps galvanized ca. 2 750 + 1 400 x 900 mm with ca. 48 mm hardwood cover.
Ramps hydraulically operated and hydraulic side shift.
Maximal charge for one pair: 40 000 kg

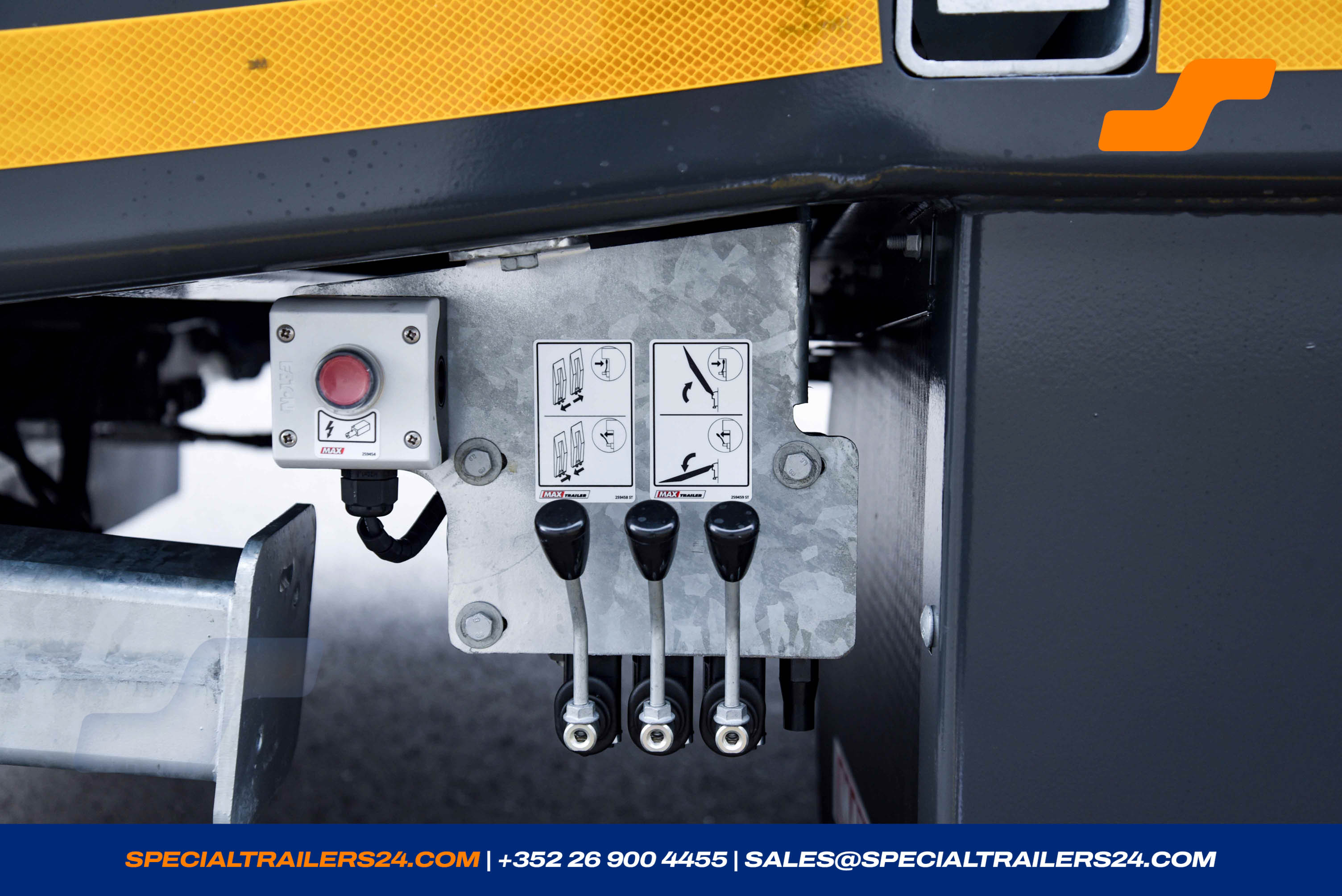

- Operated valve for ramps mounted on the right side (± 4 kg).
- Cover plates to bridge the clearance between ramps and loading area (± 17kg).
Accessories
1 x Accessory
MAX110-Accessory
- Manual and description on USB stick .
- Central greasing BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pump. (± 18 kg)
- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- 2 LED- reversing lights at the rear.
- Spiral cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 250 A) between the semi-trailer and the truck with socket (NATO-NATO).
- Delivery from a trailer to factory Lentzweiler.

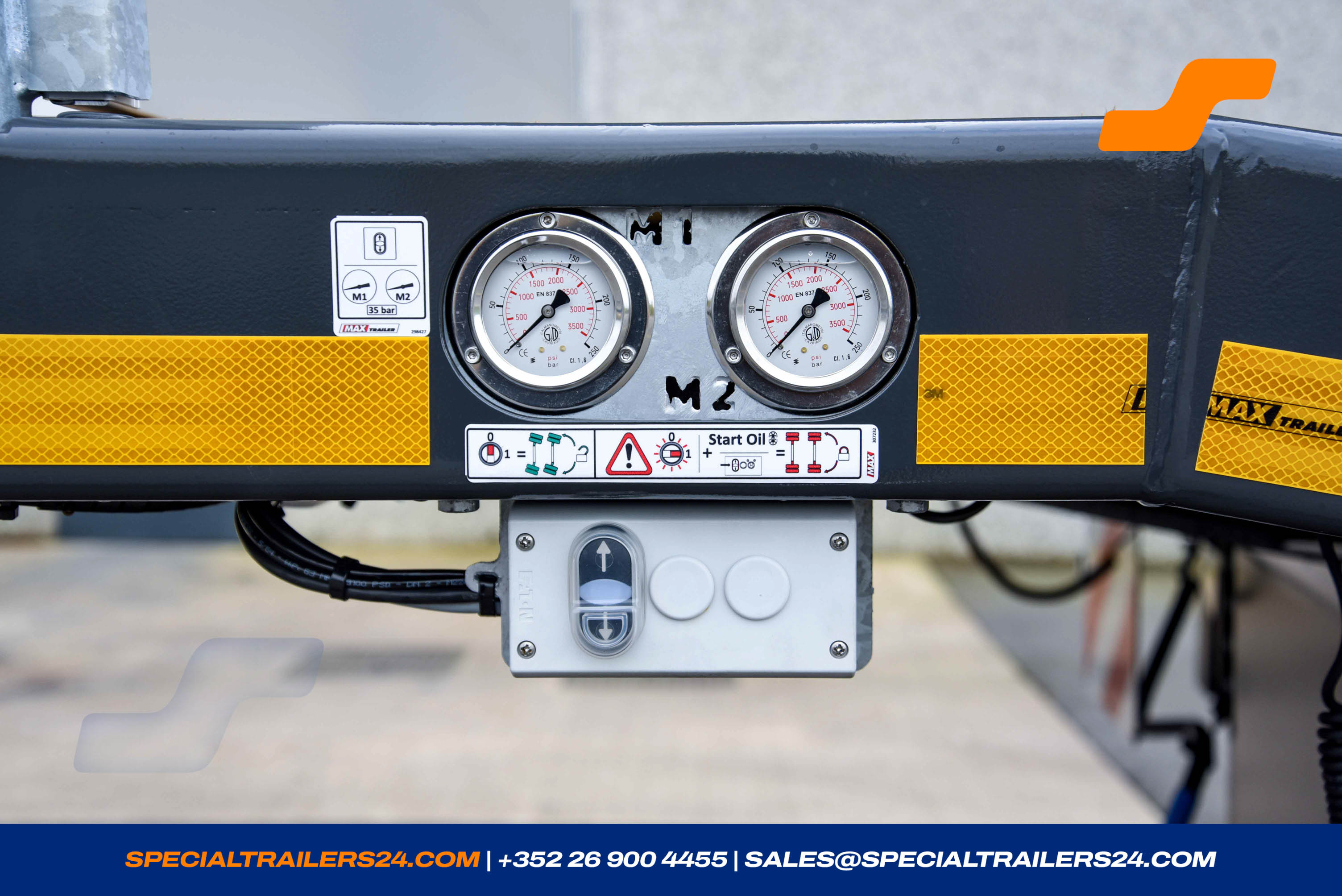

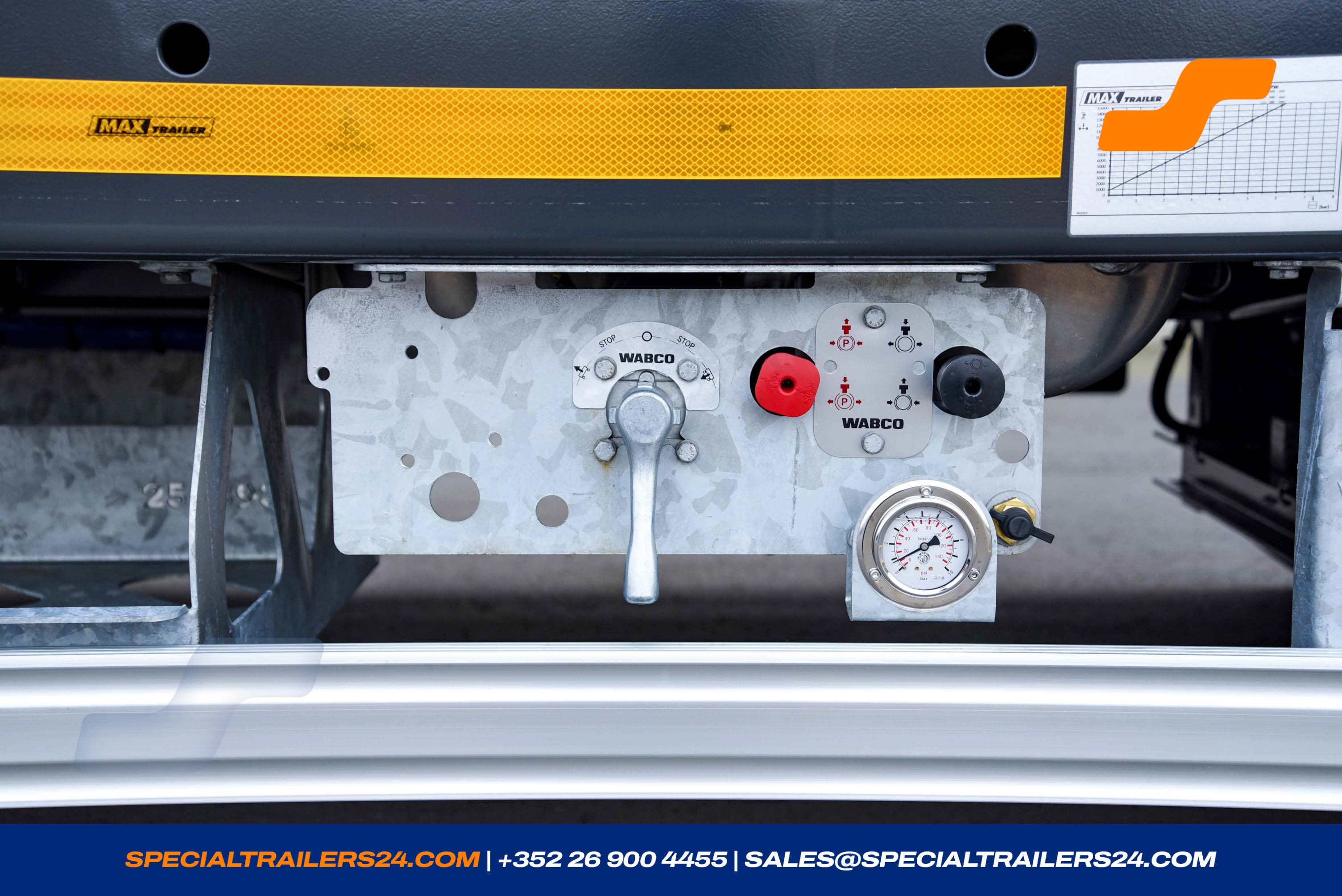

- Load manometer for determining the axle load, including load diagram.
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 111771
- Reference MAX110-Z-3-8.60-U
- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 07/2026
- Price On request
-
Location
SpecialTrailers24
Z.A.E.R. Op der Sang,
16, Op der Bréimicht
9779 Lentzweiler
Luxembourg - AdId 000334
- Steering Type Hydraulic
