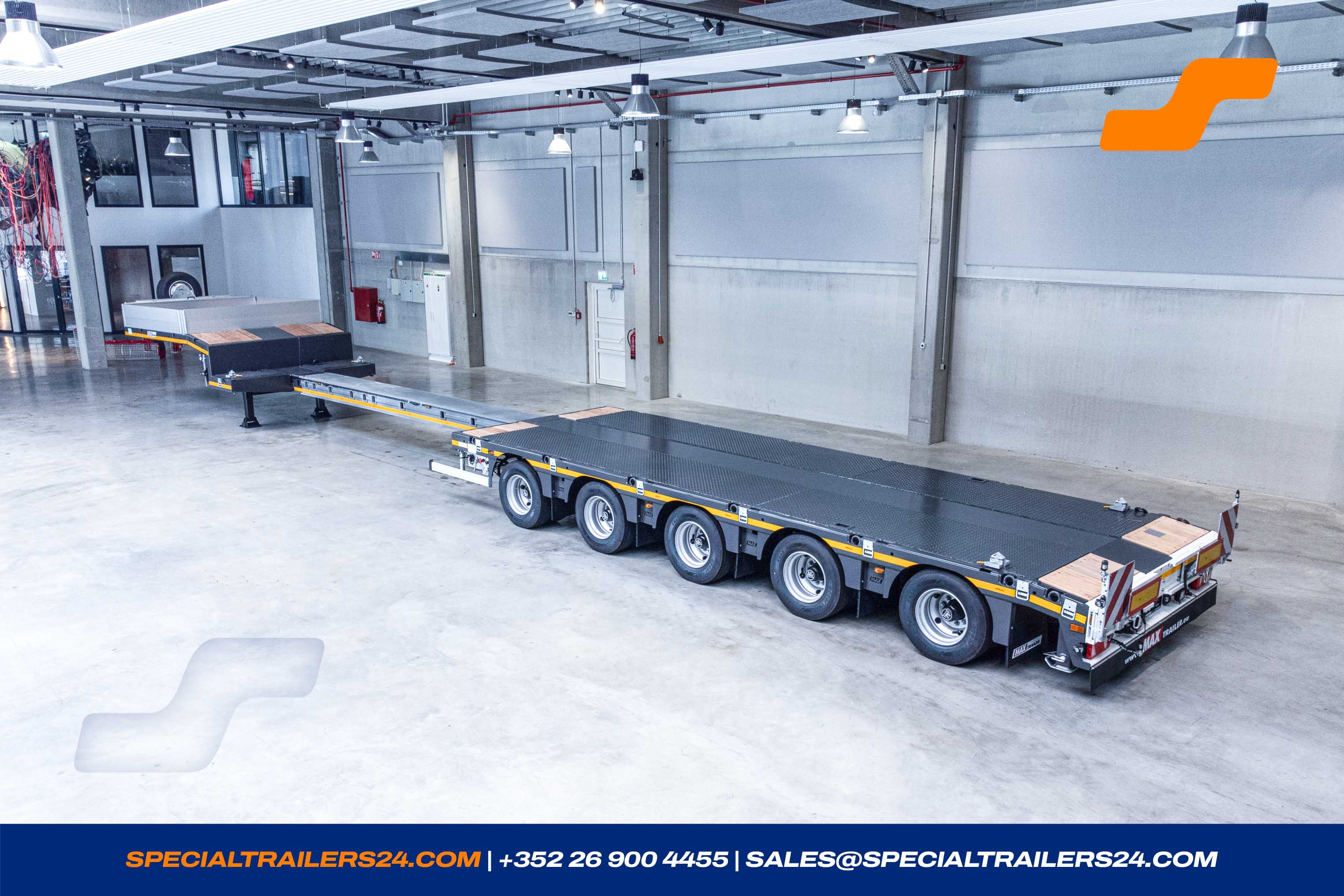

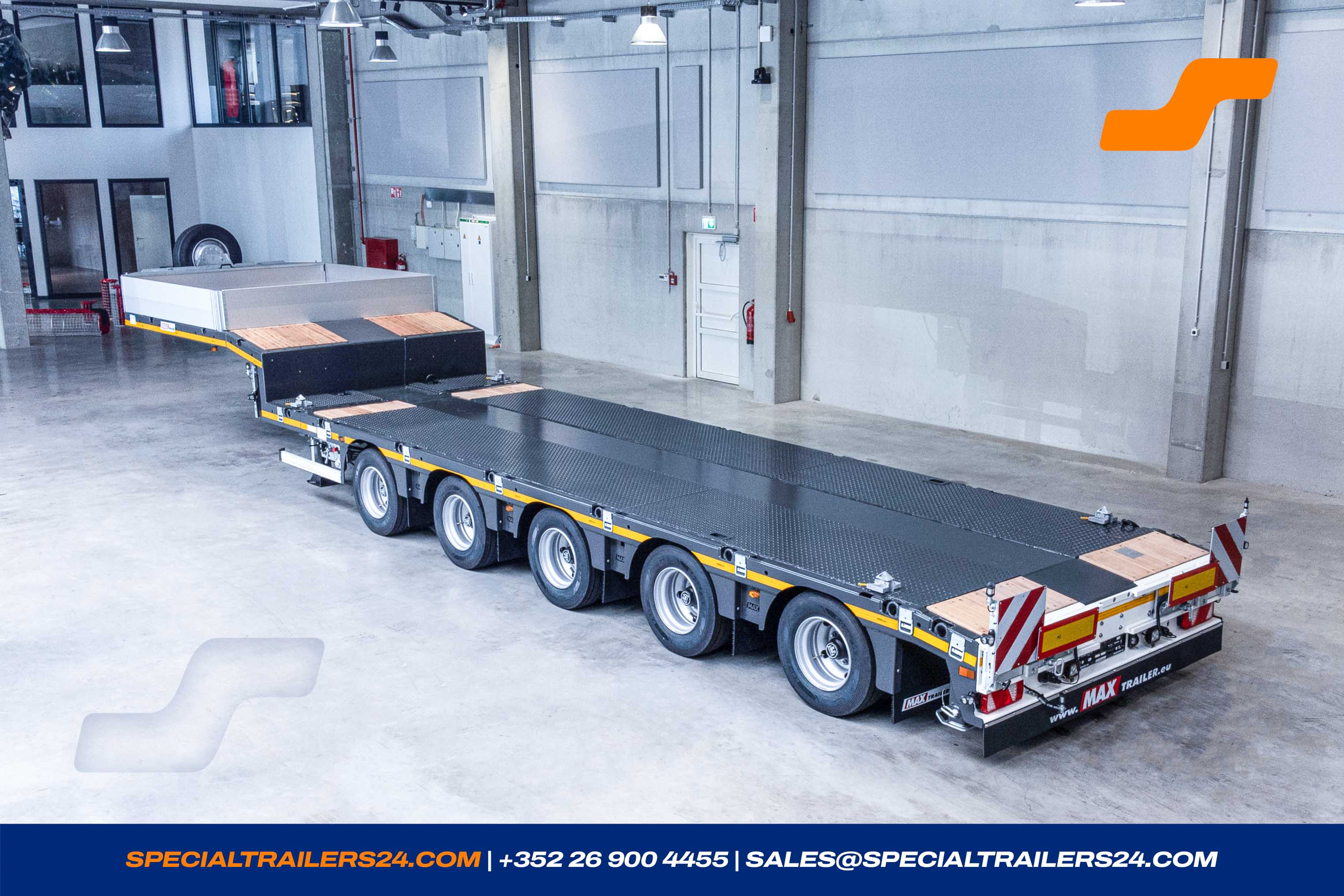

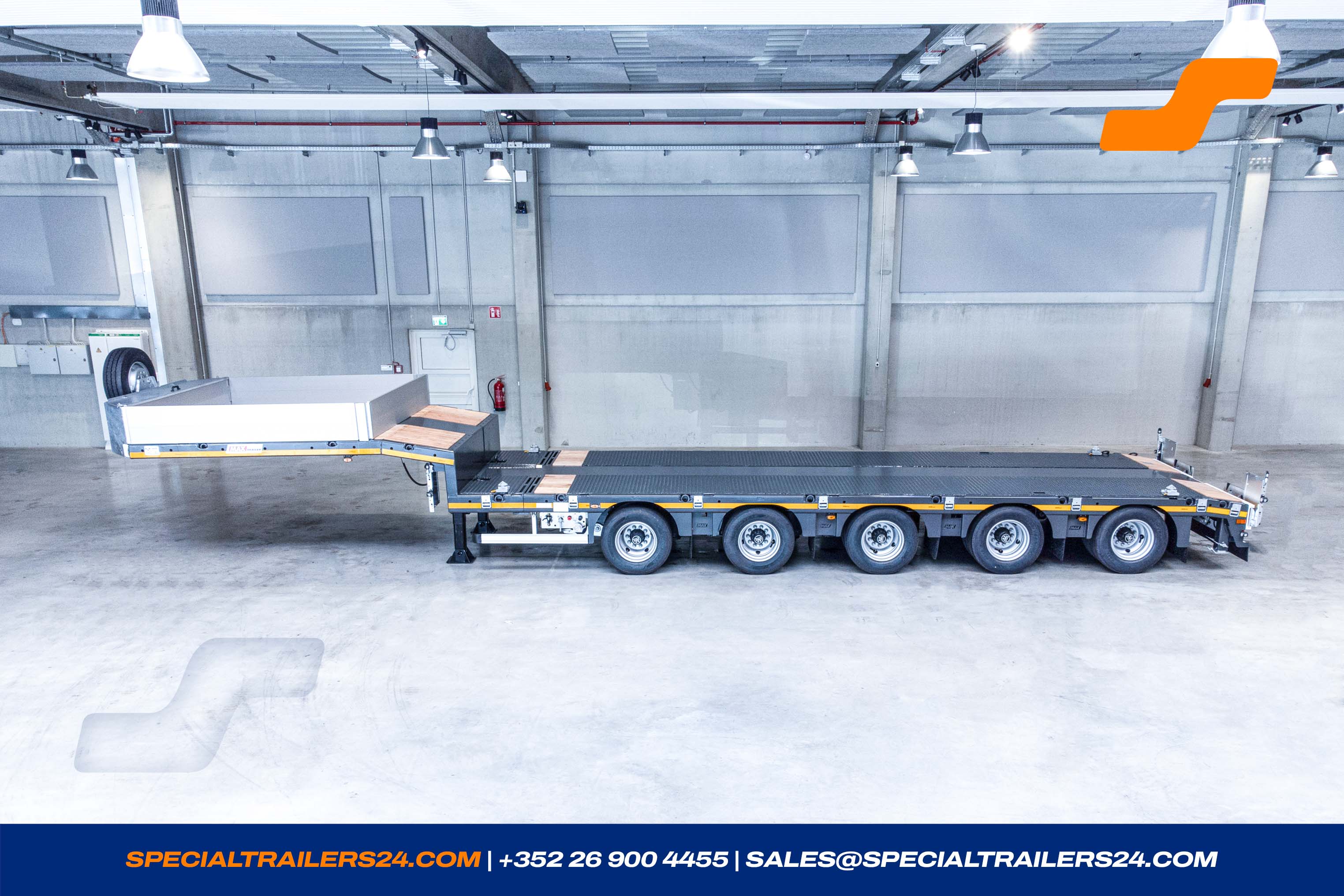

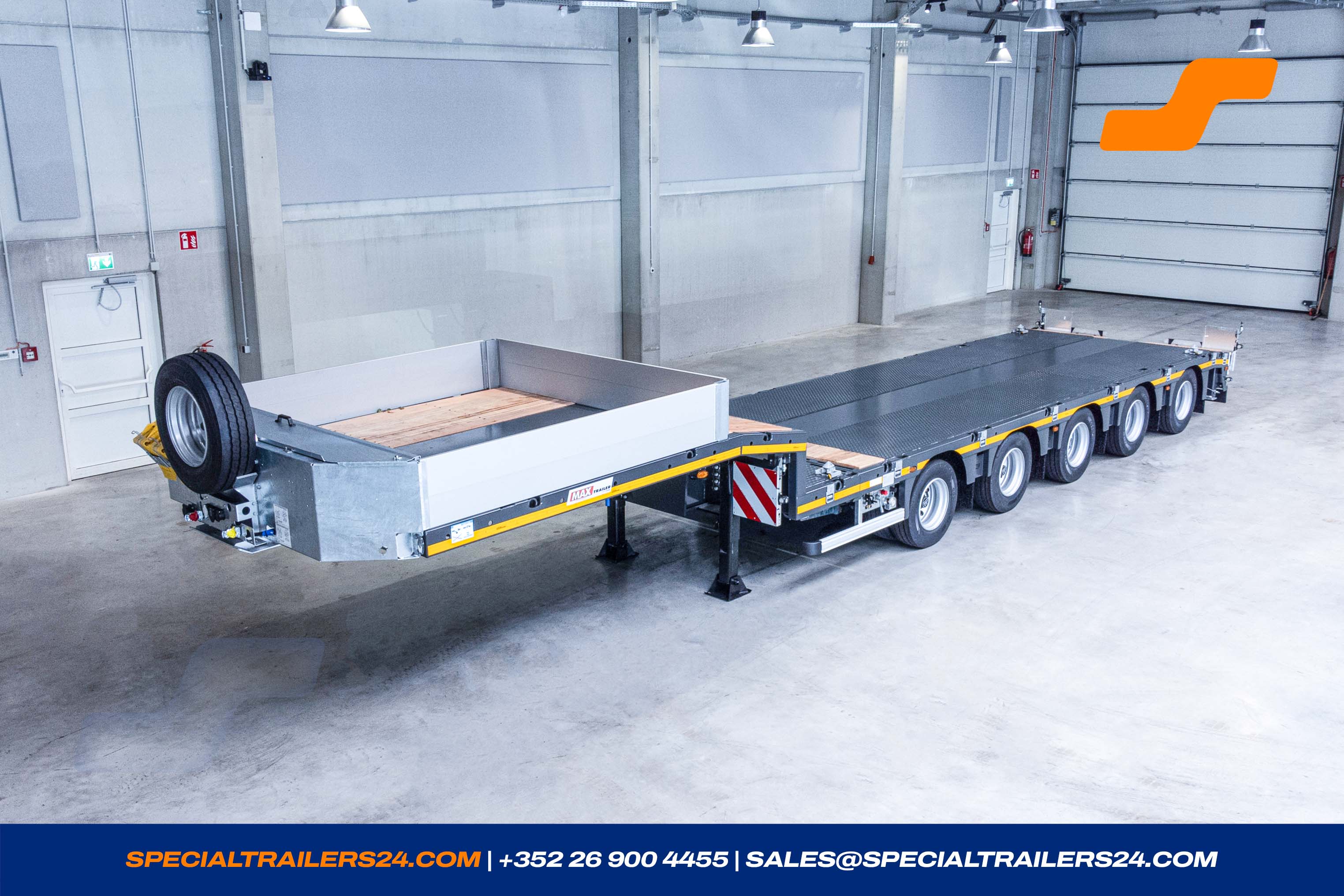

MAX Trailer MAX100
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111761
- Reference MAX100-N-5A-8.60

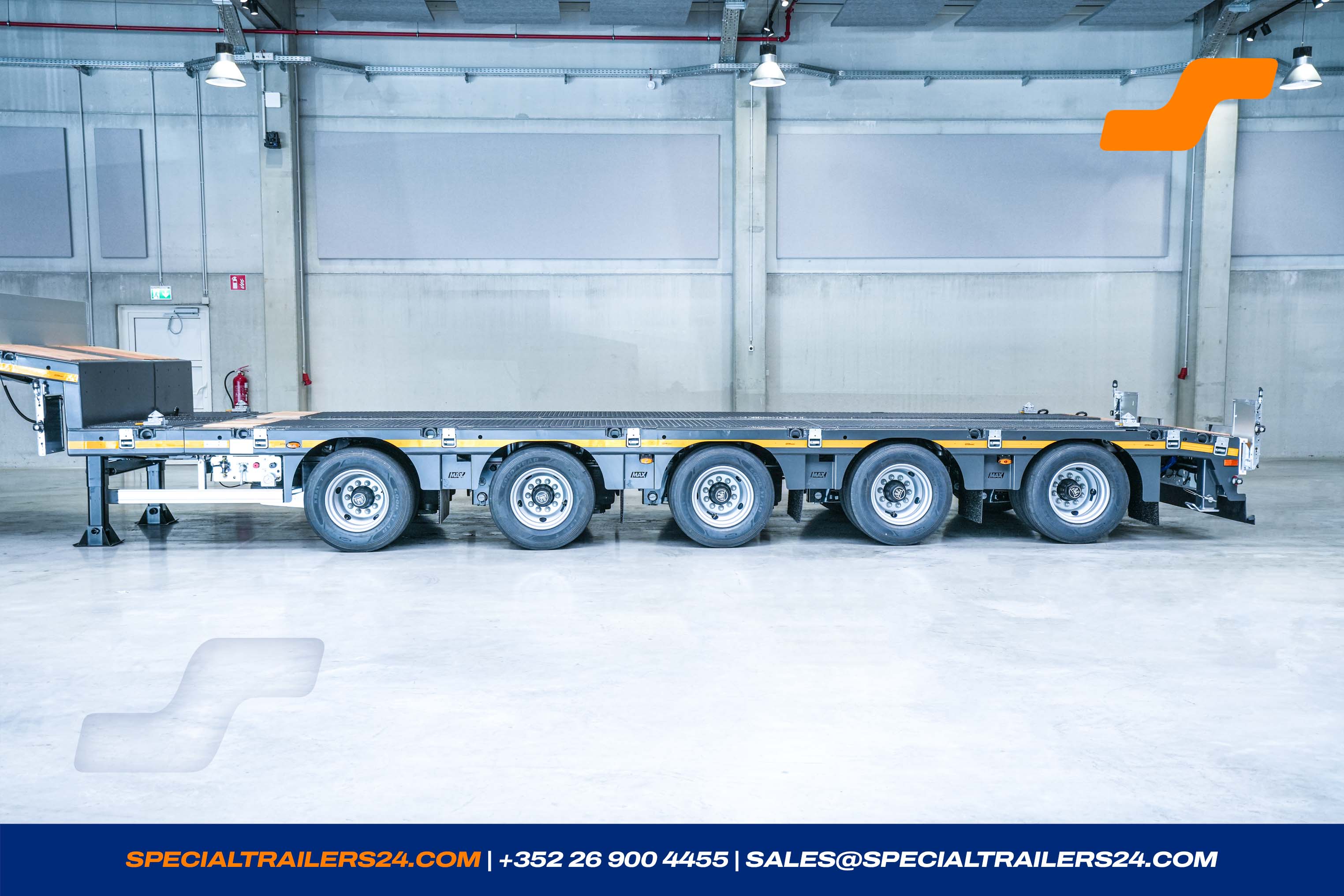

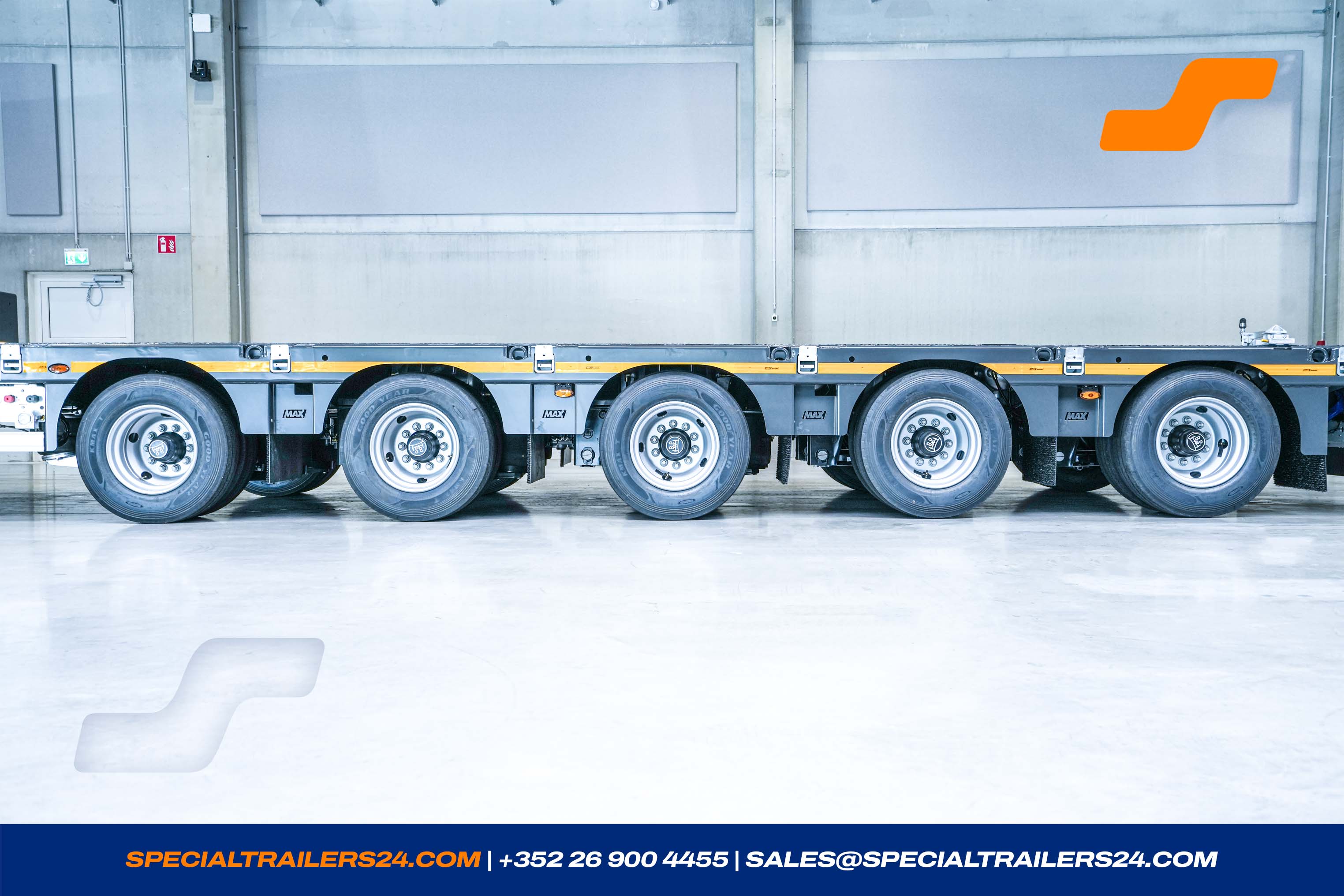

- Number of axles 5
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 07/2026
- Steering Type Friction
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 23000 kg |
| Axle load | 53500 kg |
| Gross weight | 76500 kg |
| Tare weight +- 3% | 12372 kg |
| Payload | 64128 kg |
Dimensions
| Fifth wheel height loaded | 1250 mm |
| Gooseneck length | 3 850 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 8 600 mm |

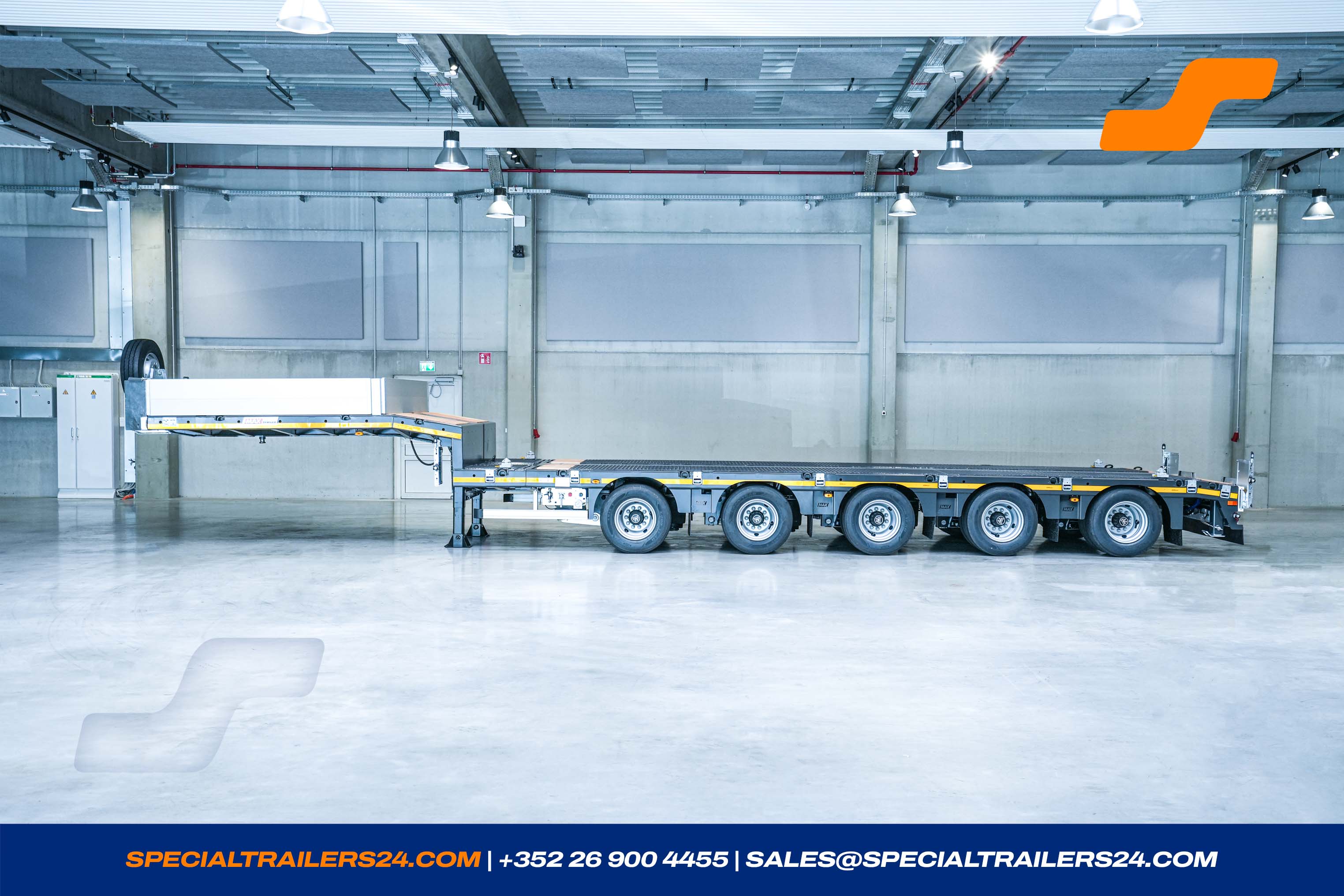

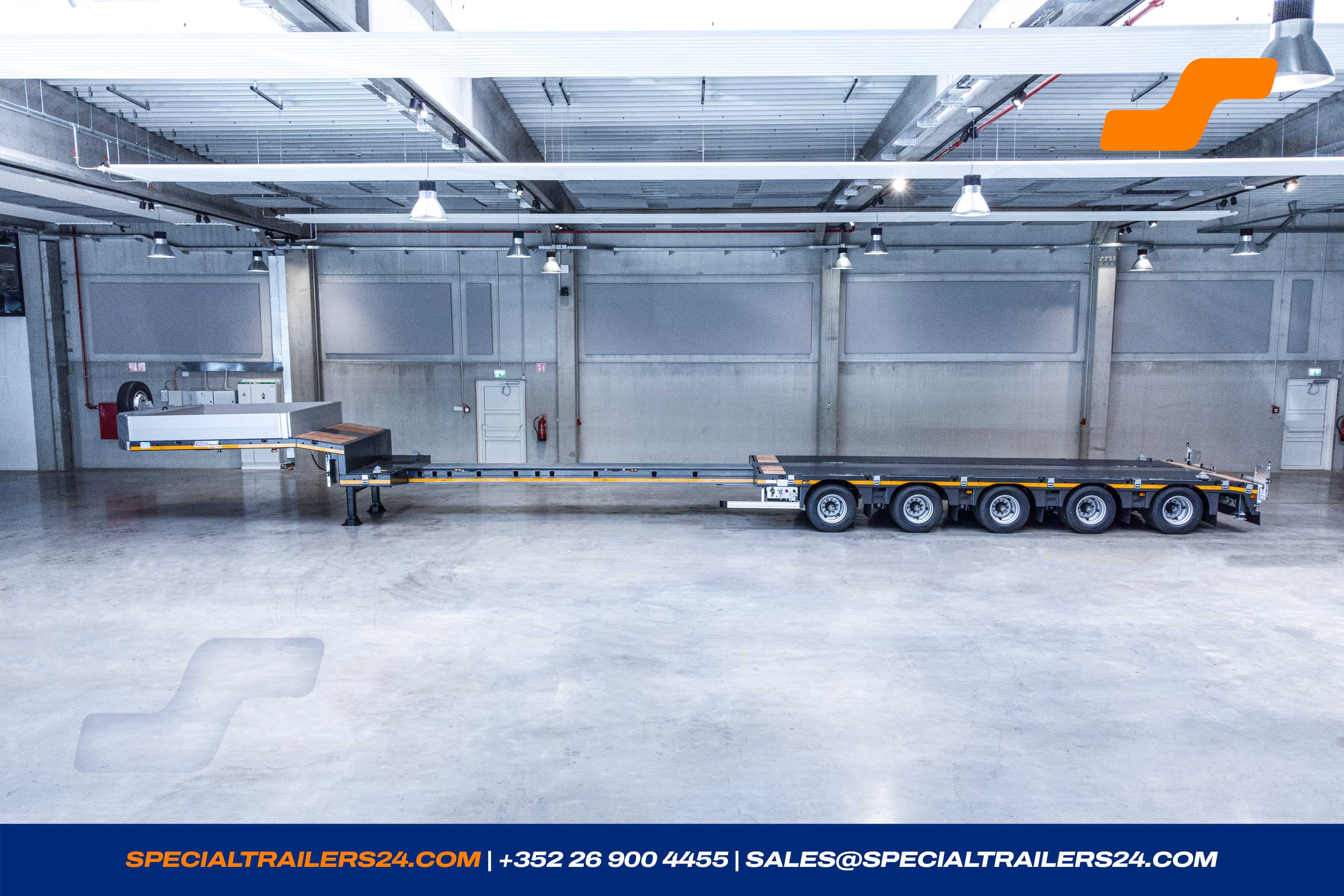

| Extendable by | 5 900 mm |
| Wheelbase | 1 360 mm |
| Loading height at max. load | 900 mm |
| Total width | 2 540 mm |
| Suspension stroke | -55/ +145 mm |

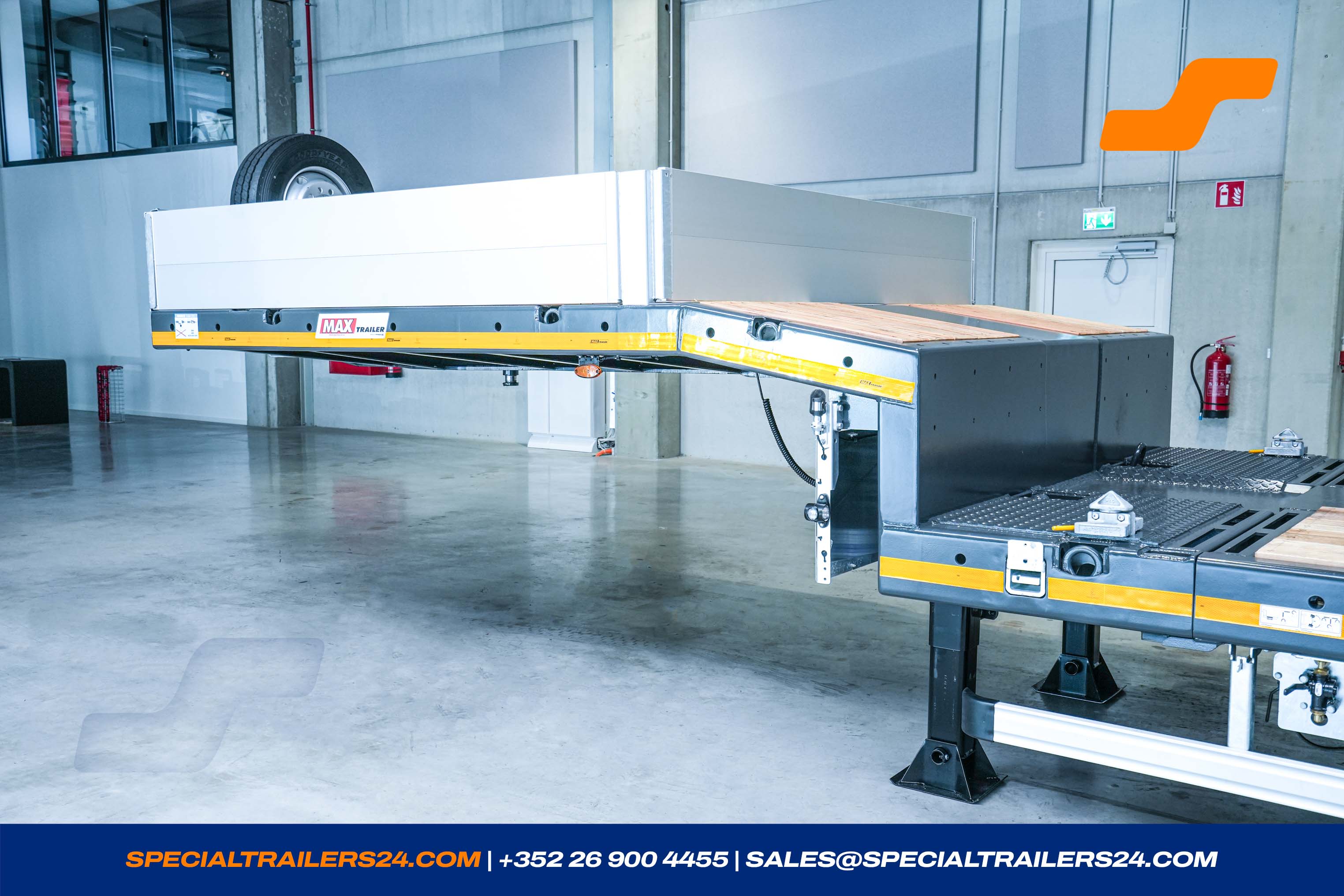

Gooseneck
1 x Gooseneck : MAX-3.850-750-10° (DSR 2300/ASH 1250) 45° 23T
Gooseneck with chamfered corners ± 45° in front and rear chamfered by ± 750 mm x 10°.
3 pairs of lashing rings (LC 5 000 daN).
Hardwood cover thickness 30 mm.

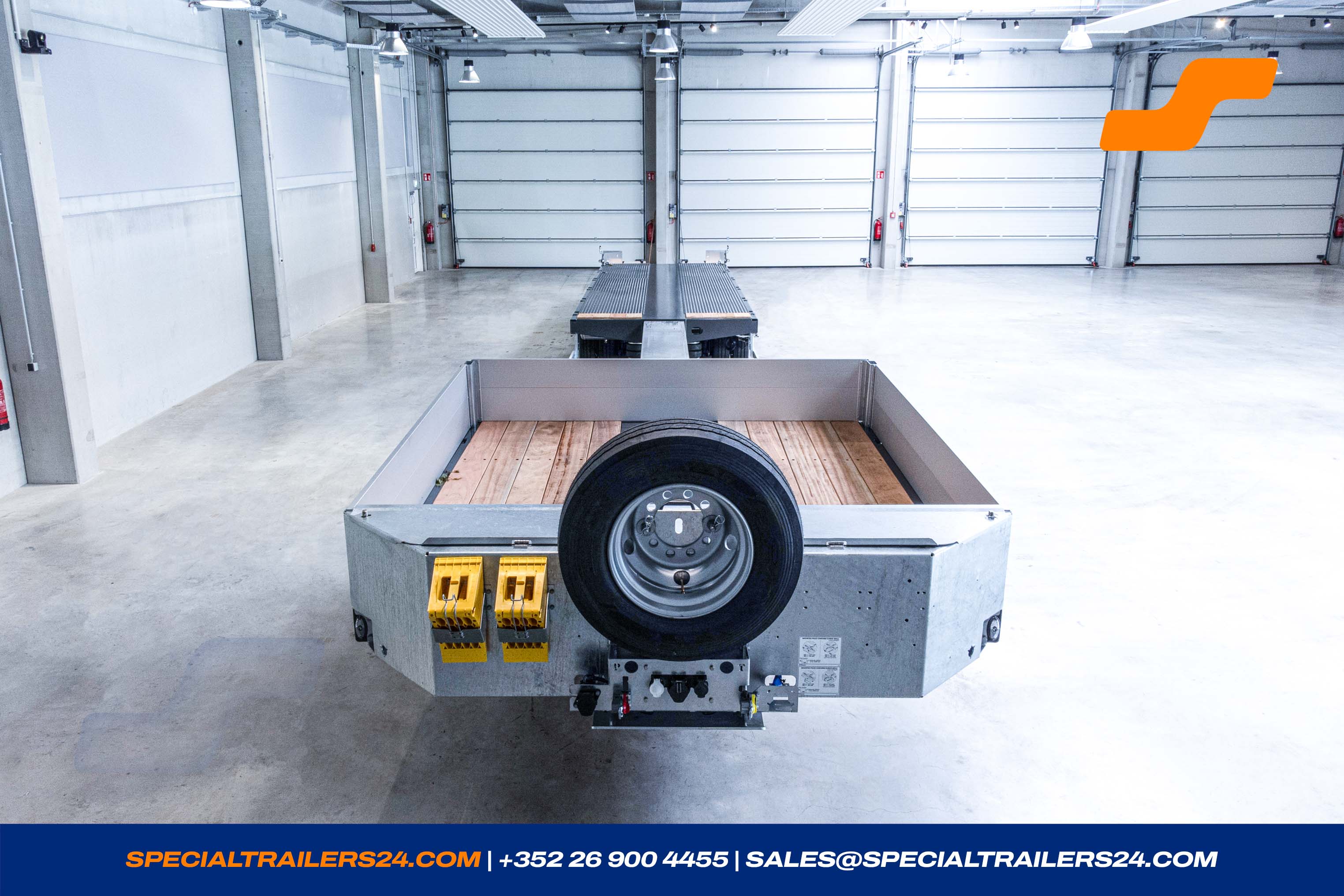

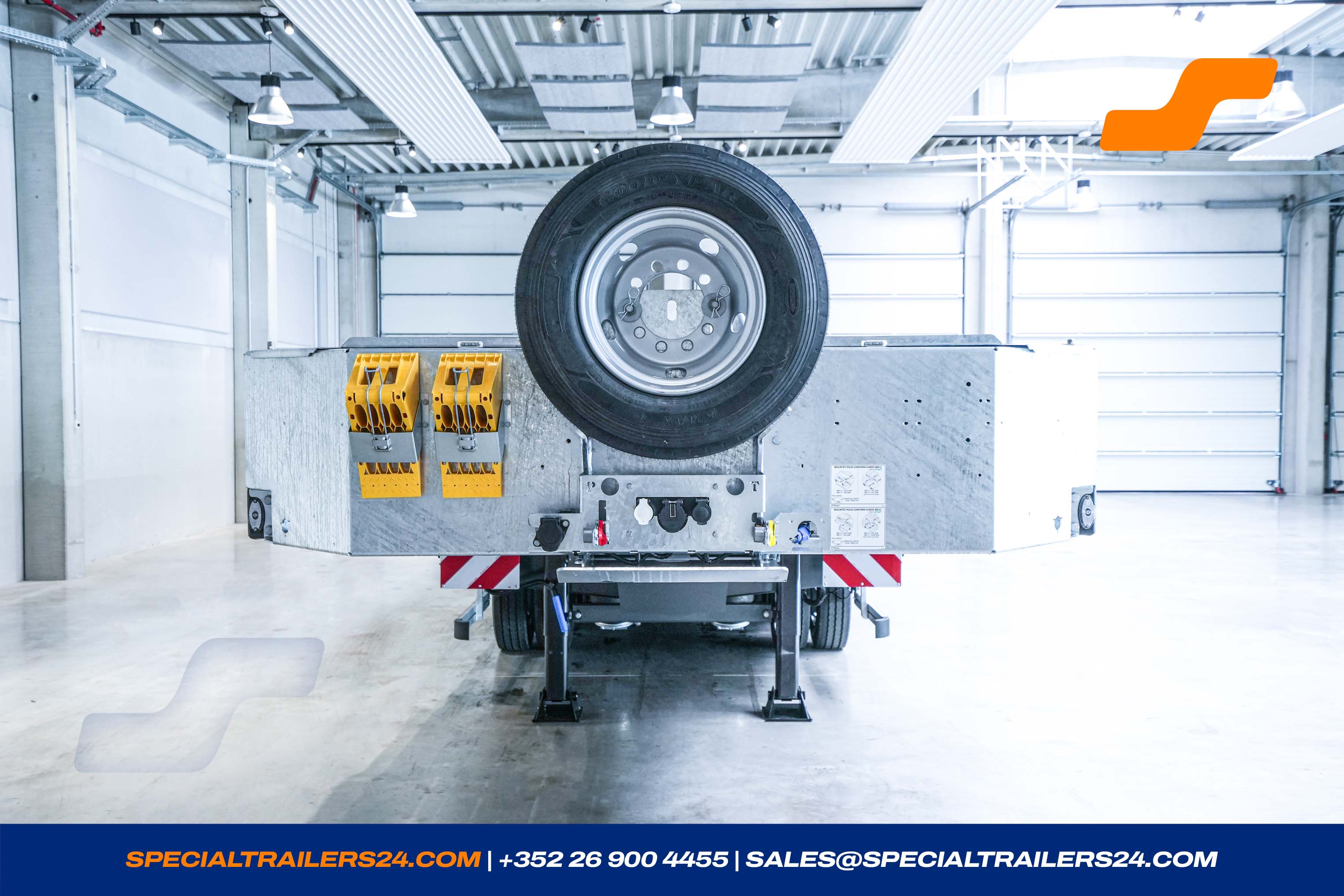

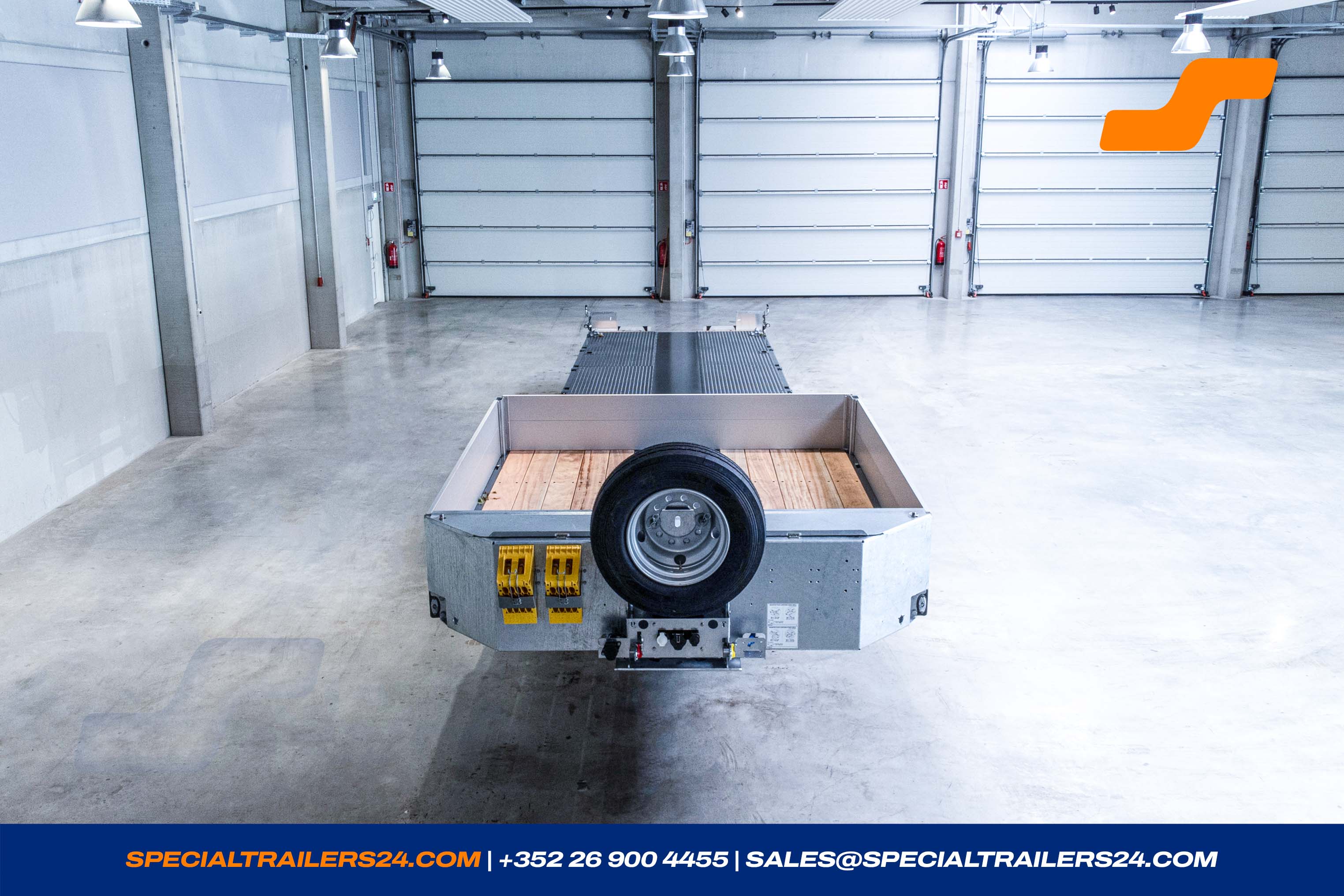

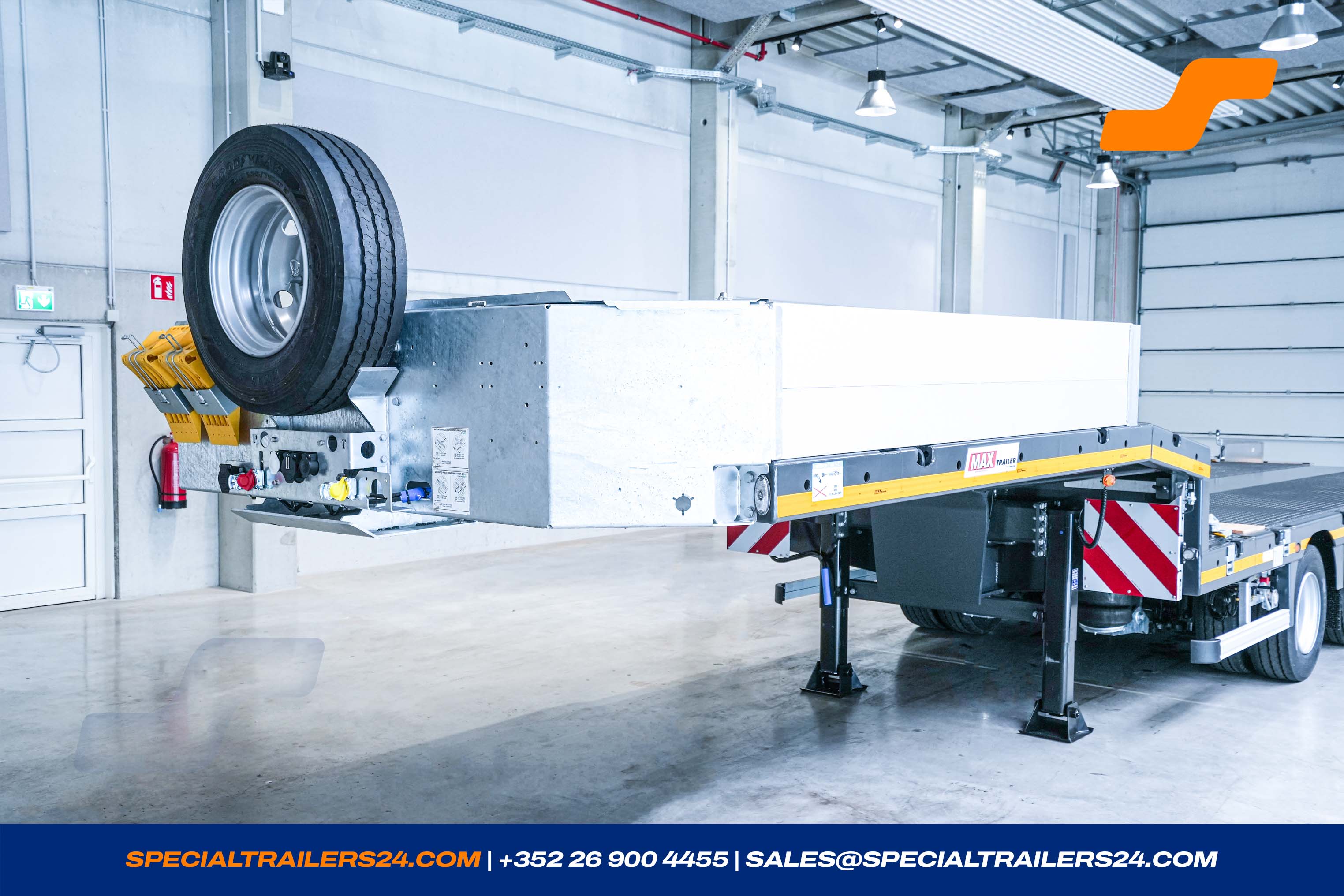

- One spare wheel with holder on the headboard.

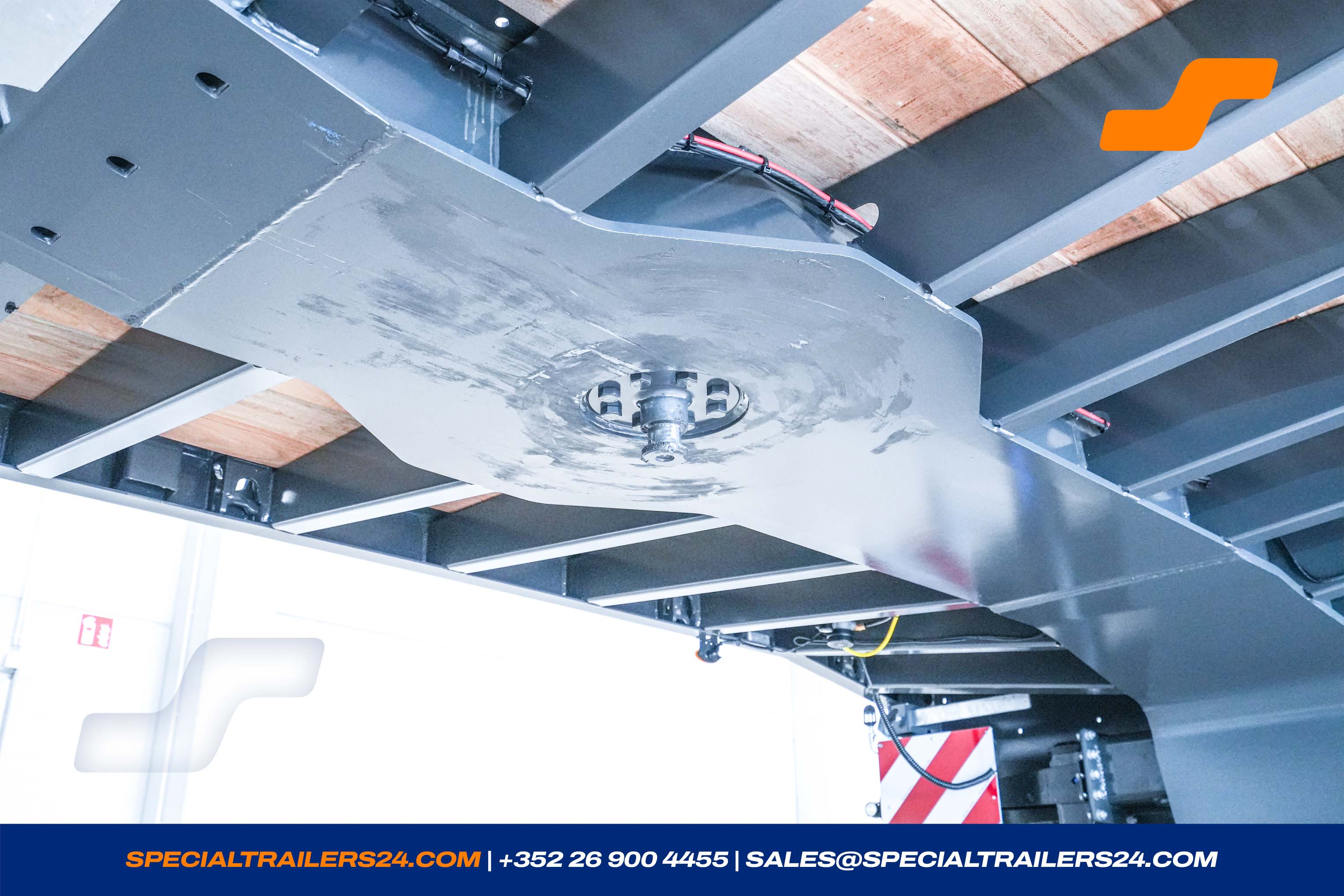

- 2 king-pin.
- One galvanised steel headboard, height ± 400 mm.
- Red and yellow air couplings on the galvanised front connection ledge.
- 2 wheel chocks with carrier on the headboard.
-

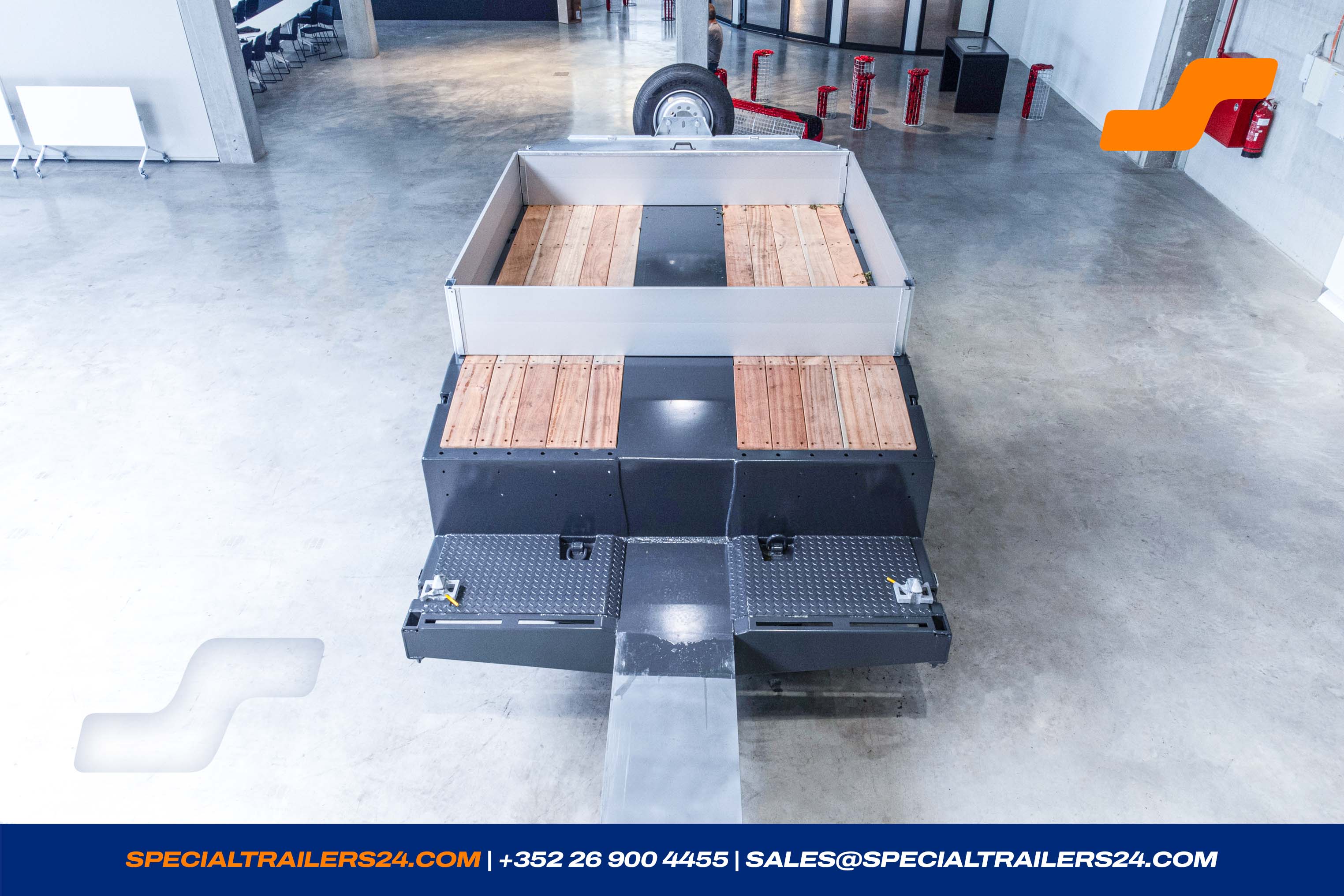

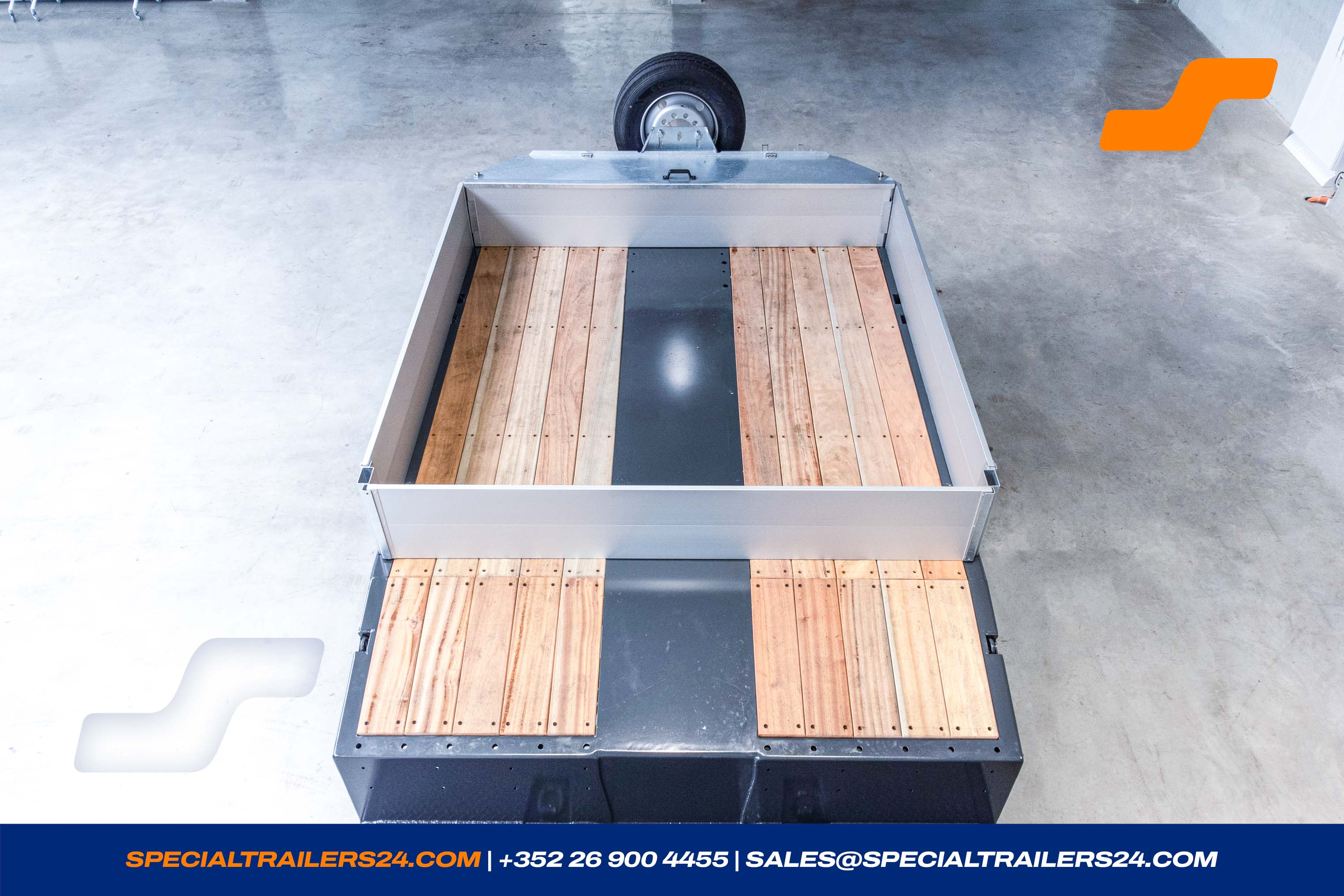

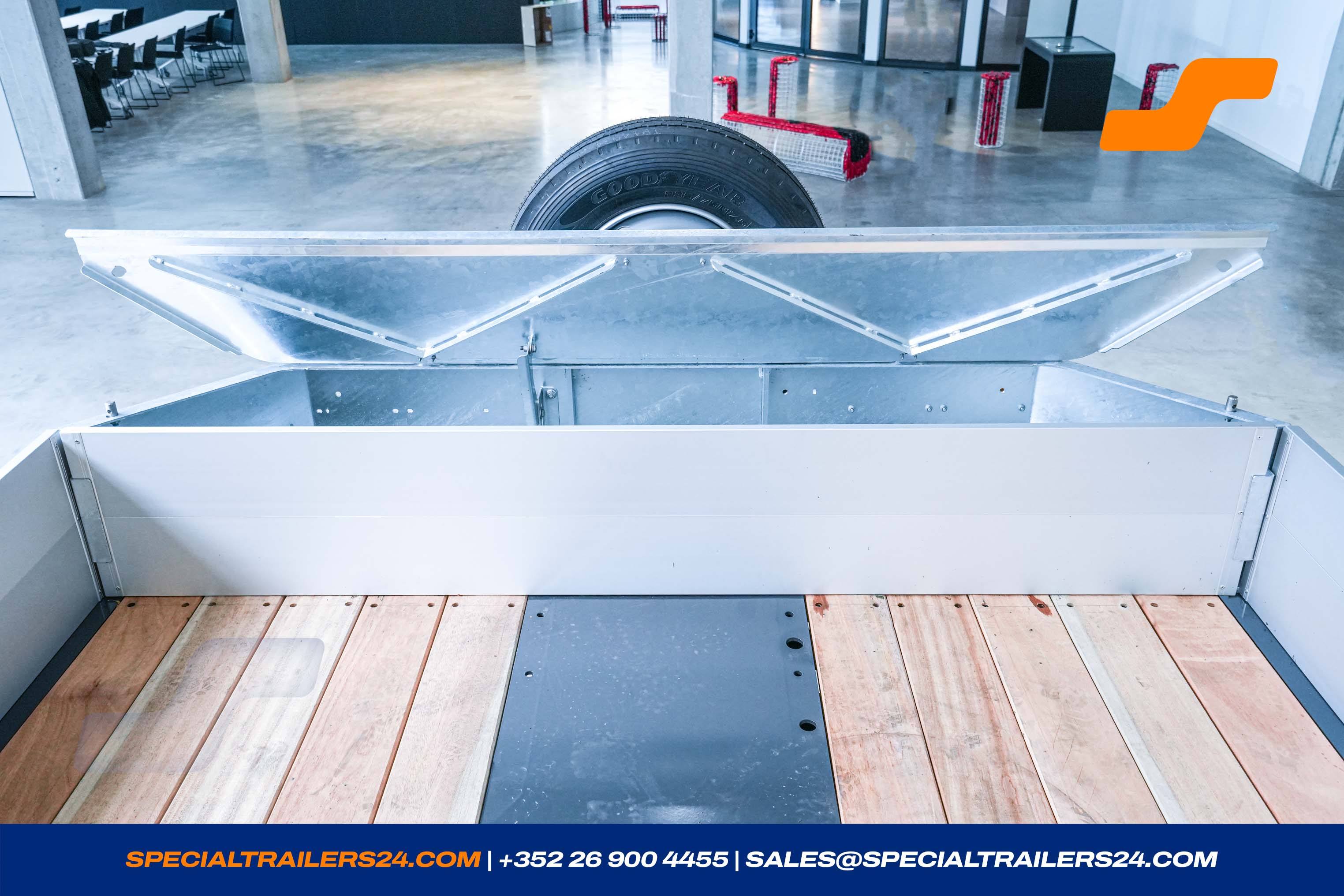

Auf dem Schwanenhals ALU-Bordwände und Rückwand steckbar ca. 2440 x 400 mm (L x H).
Die hinteren, verzinkten Steckrungen sind abnehmbar.
(Länge des Aufbaus ca. 2560 mm) (± 46kg). - 1 galvanized toolbox integrated in the charmfered gooseneck (± 47 kg).
Loading deck

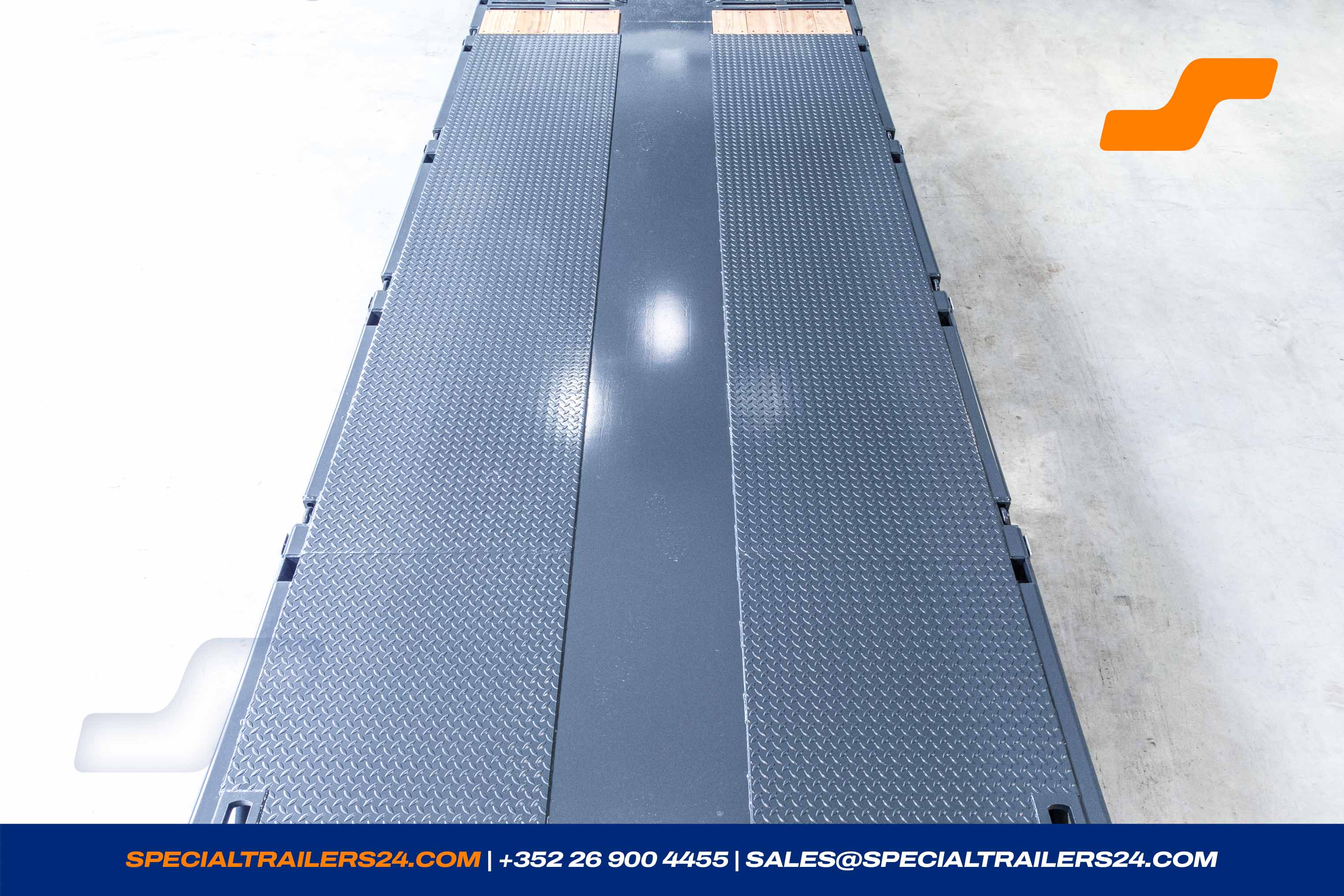

Loading platform
1 x Loading platform : MAX100-N-5A(5900)-8.60-17.5-2.54

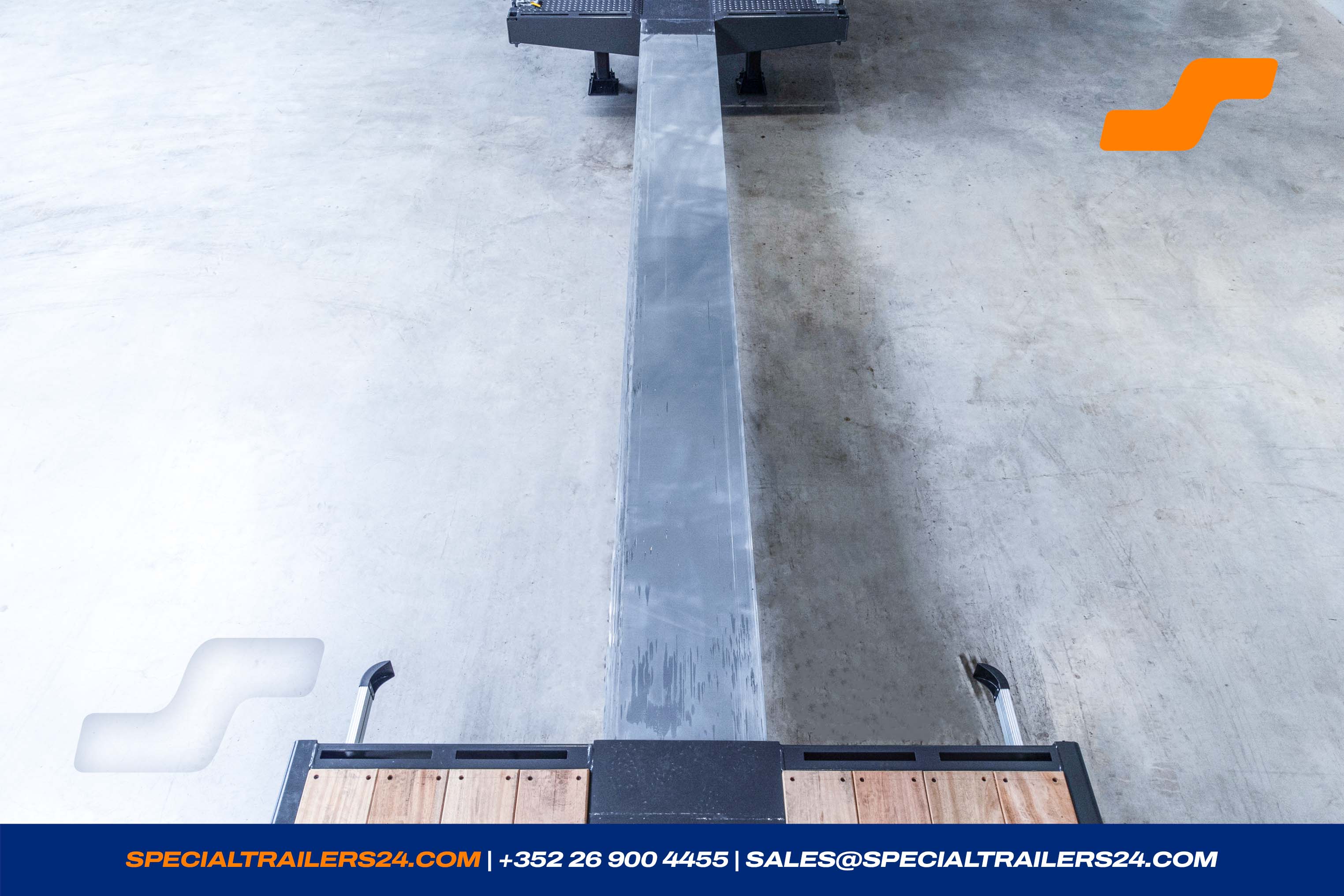

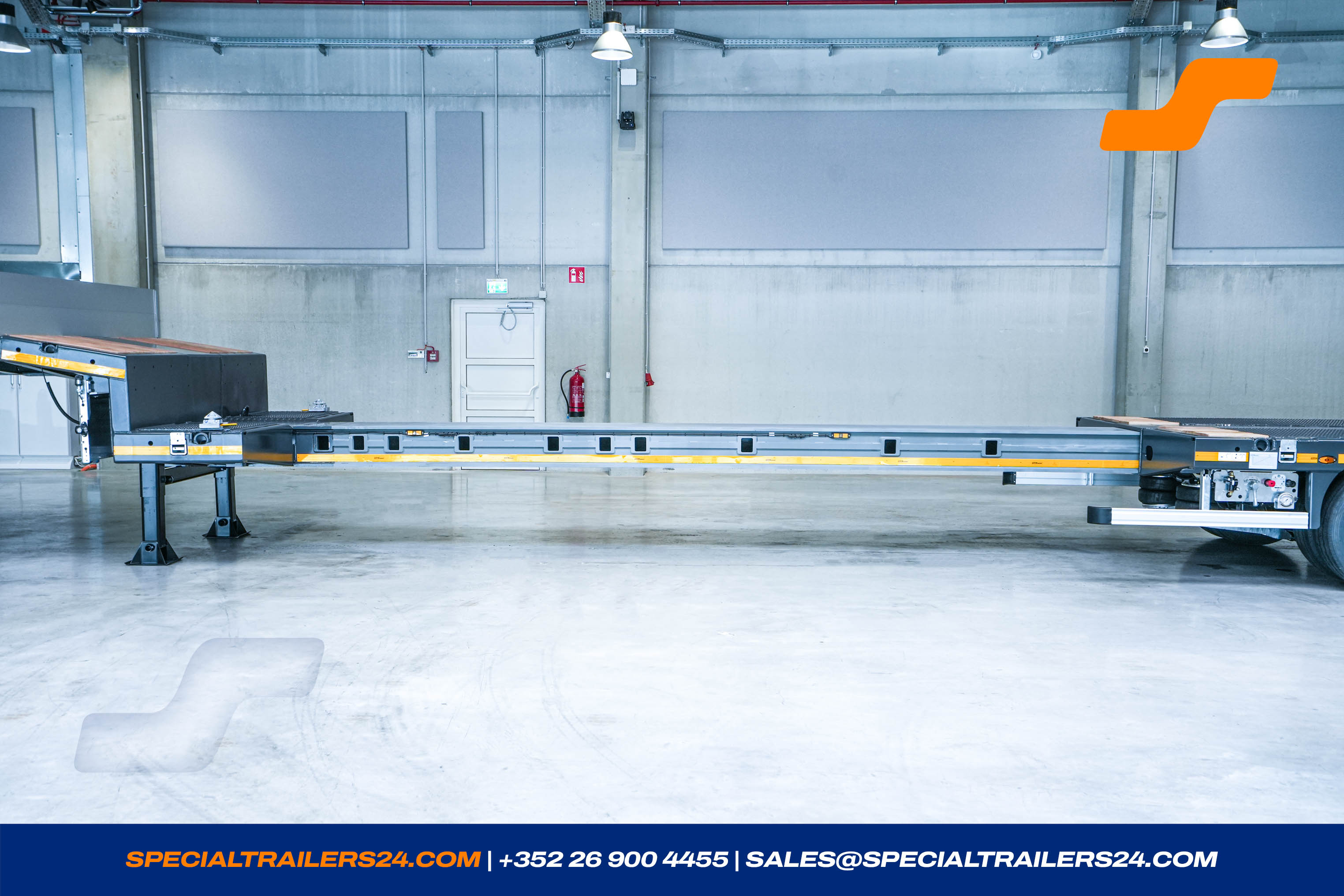

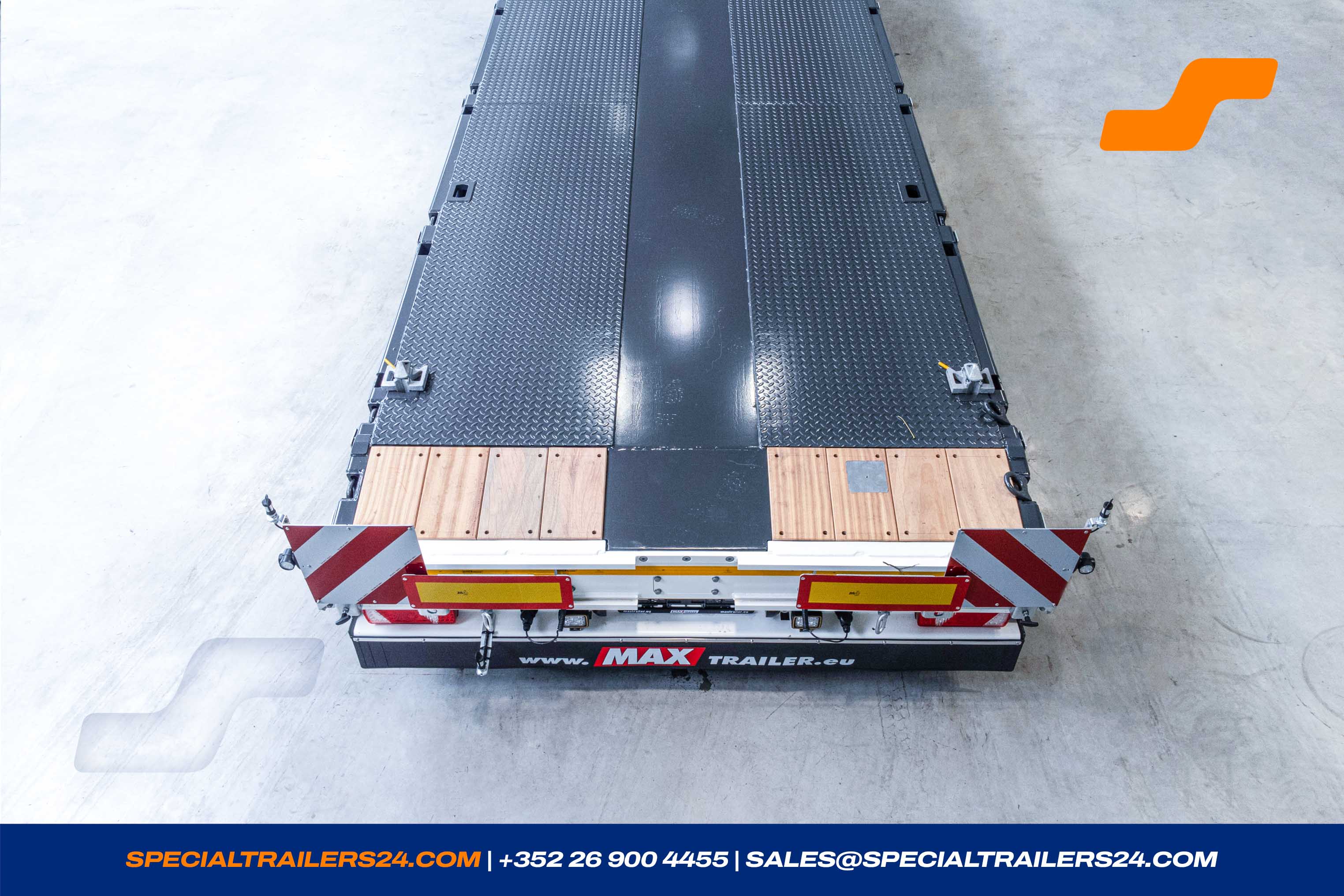

Loading platform in extendable version with chamfered beaver tail by about 500 mm x 8°.

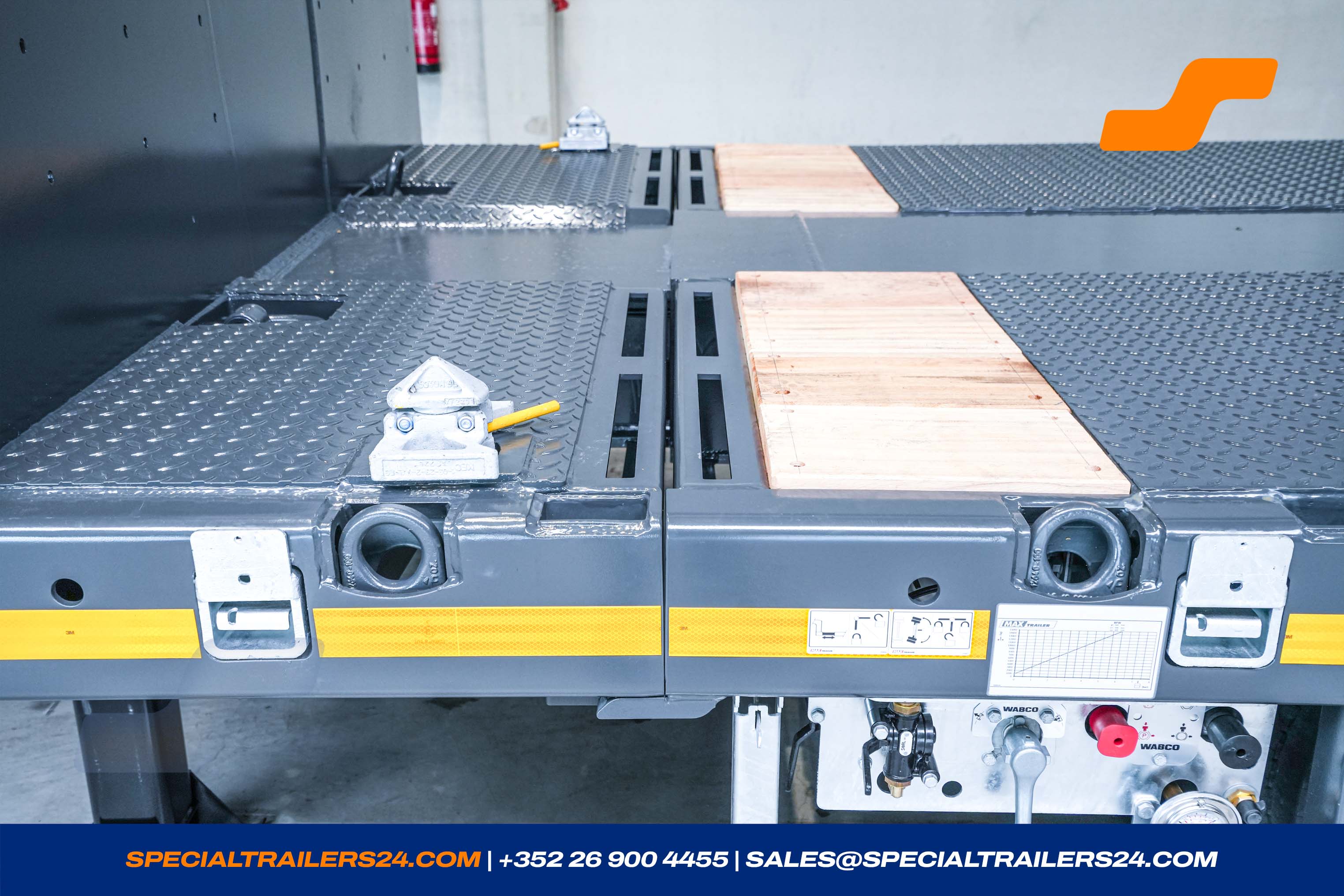

8 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
1 pair of lashing rings in front in the firm part the loading platform (LC 10 000 daN).

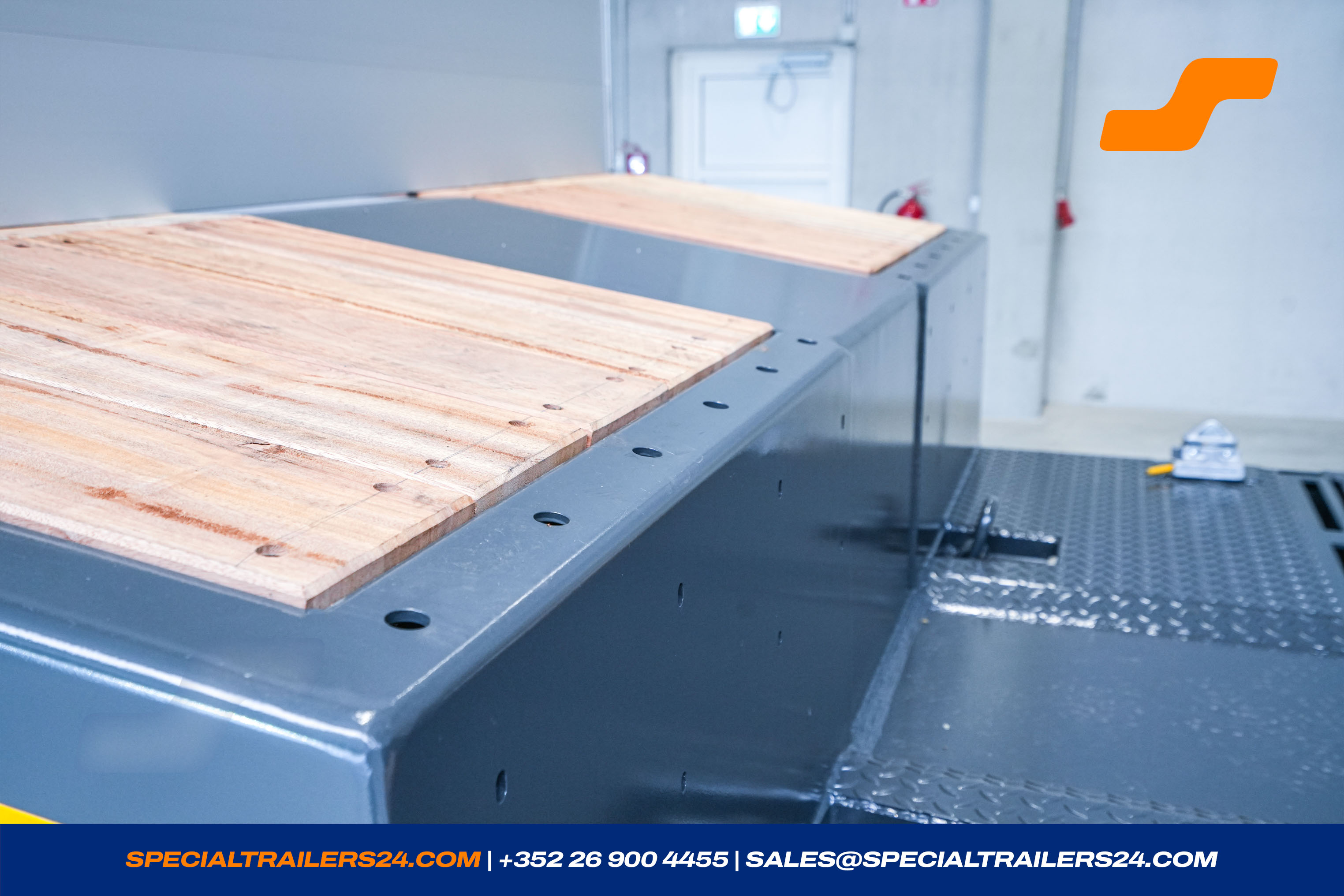

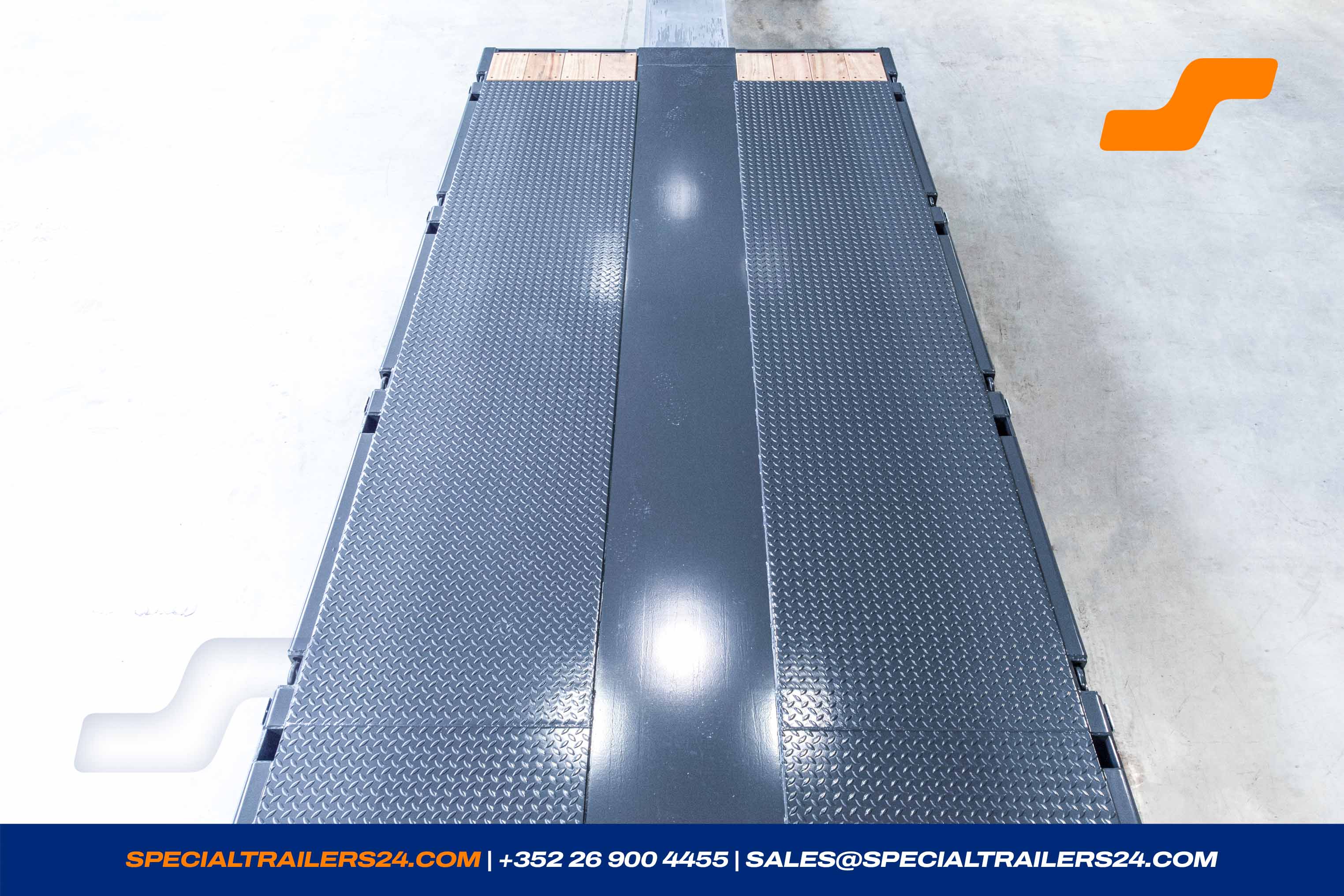

Hardwood cover thickness 48 mm above the axles chequer plate.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.

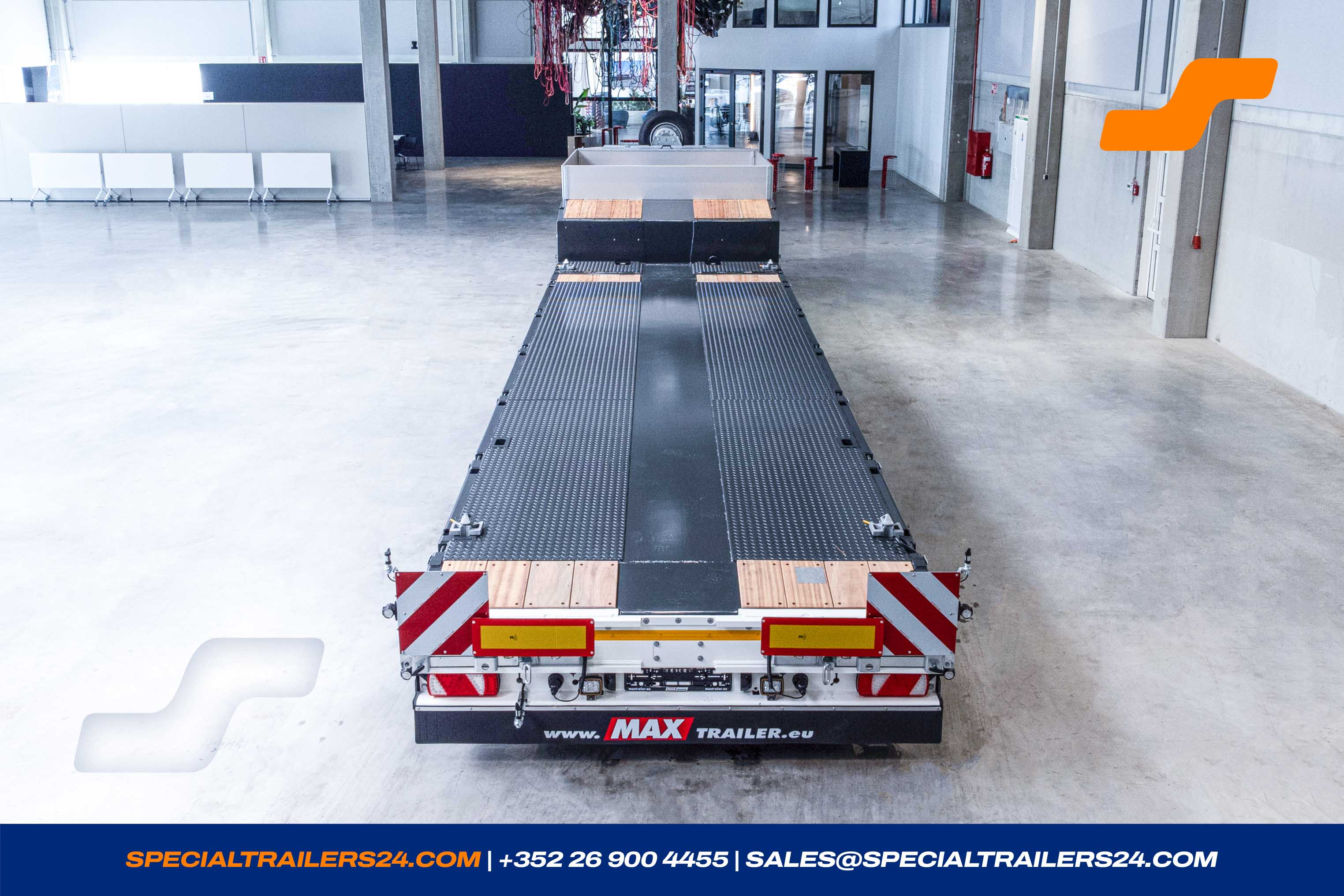

- Holder for one beacon light at the rear of the trailer.

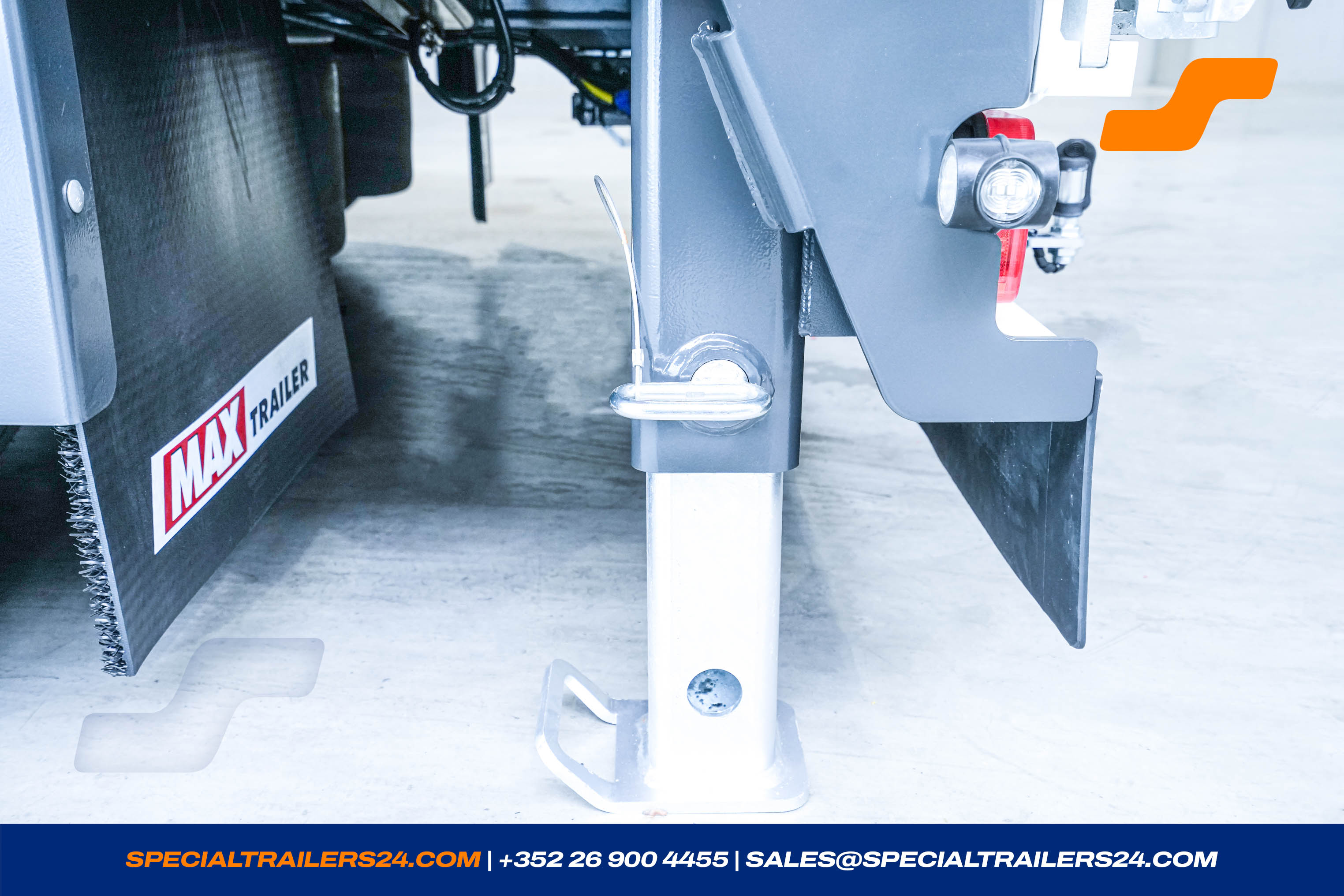

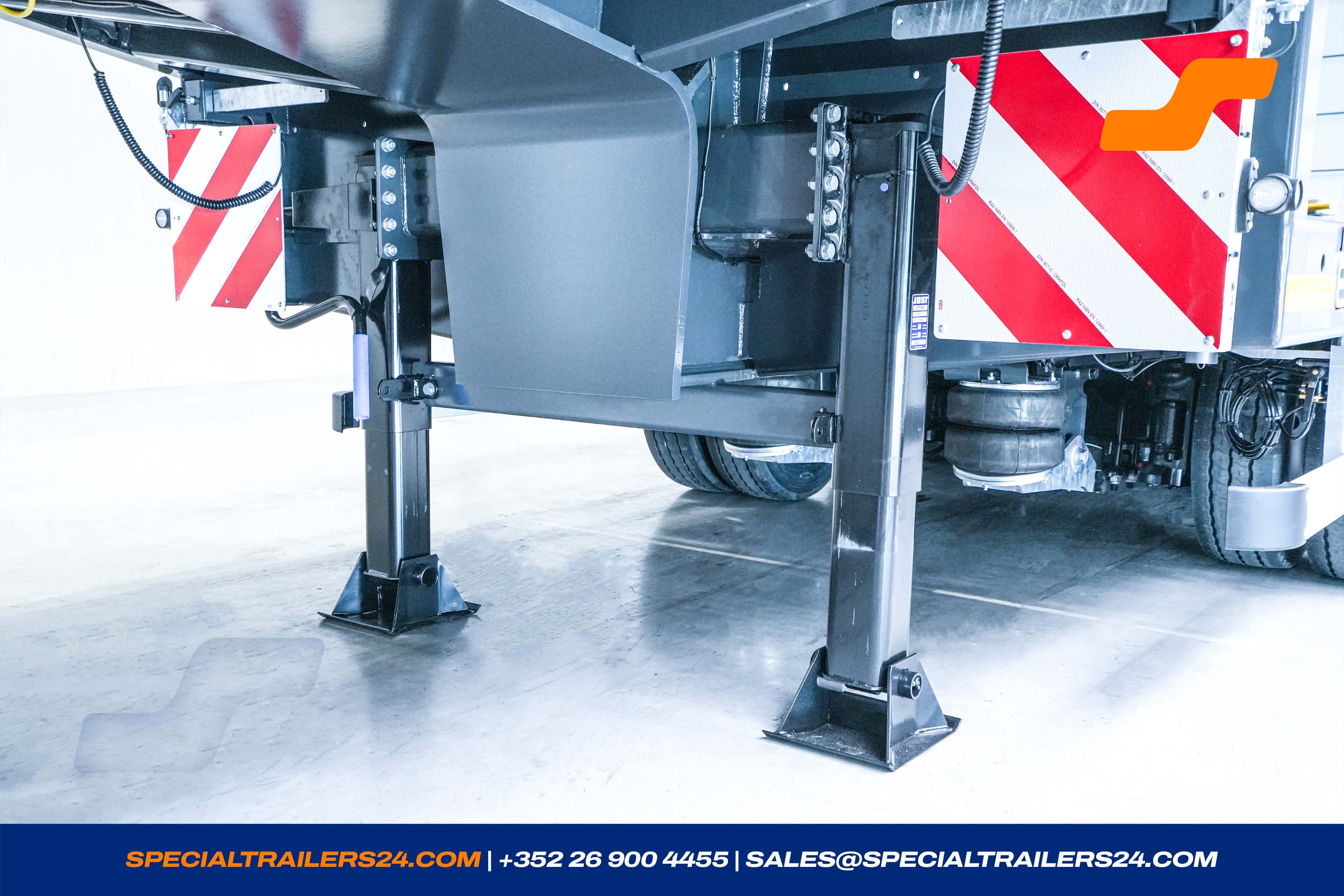

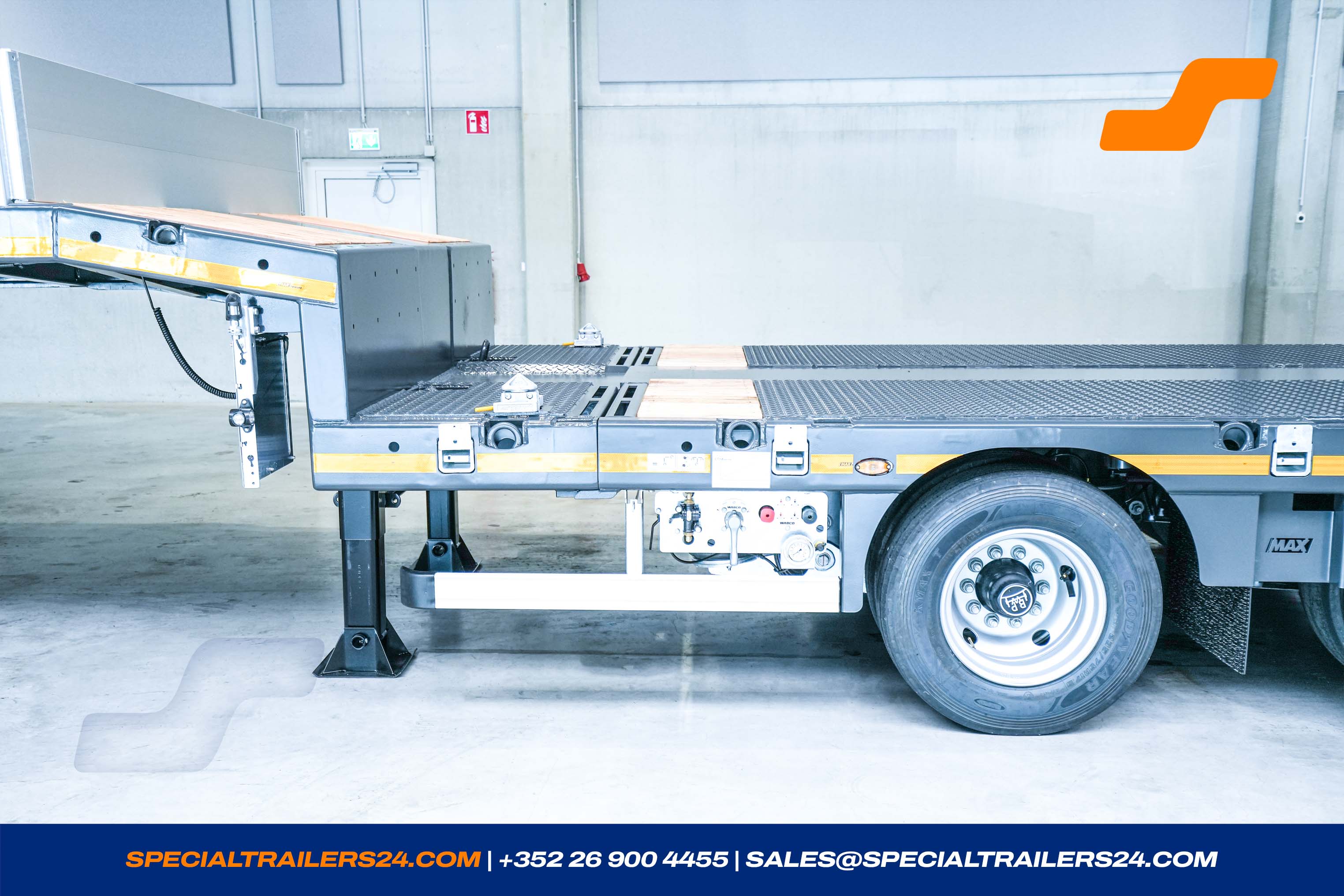

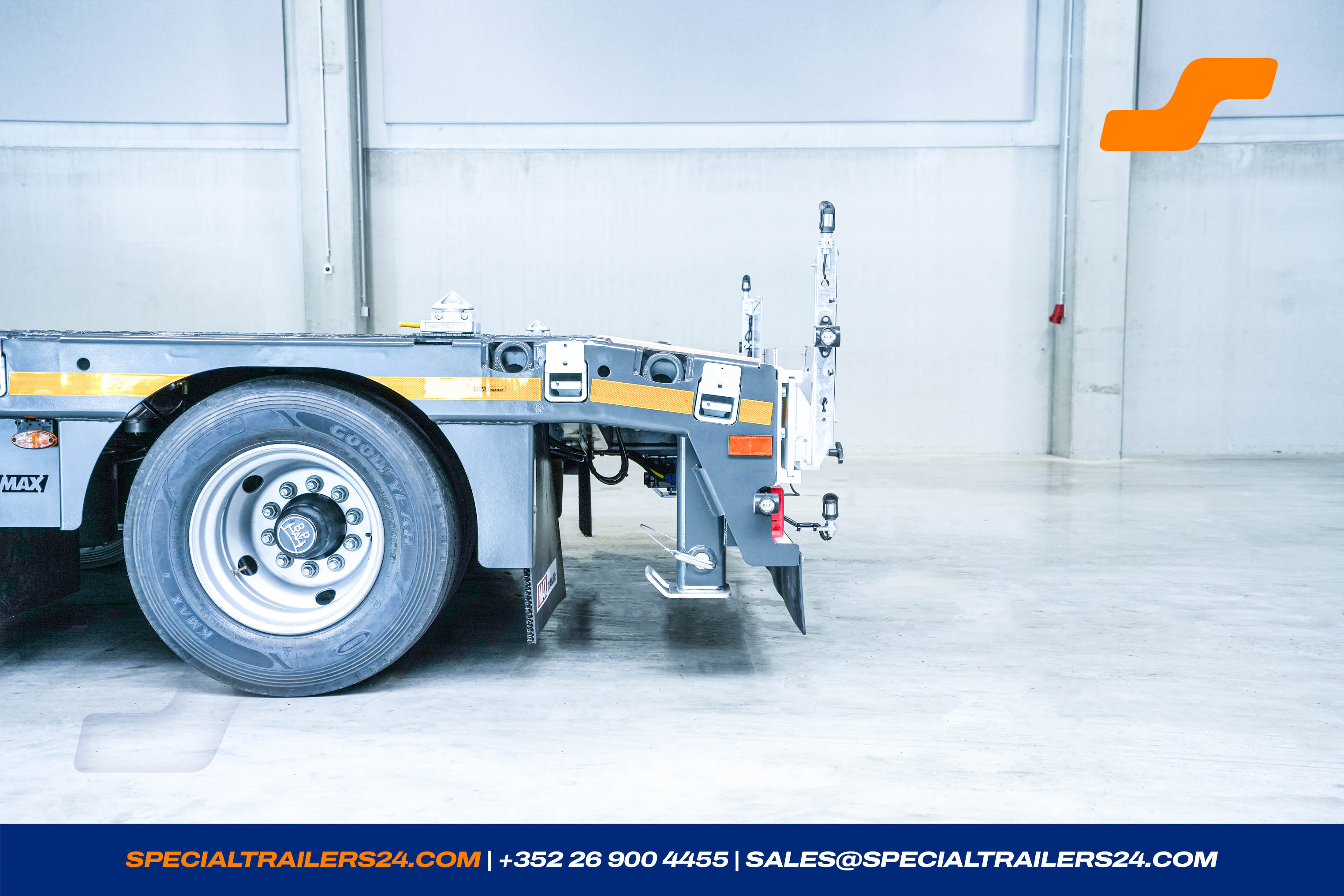

- Galvanised landing gears at the rear under the chamfer of loading platform.
- Yellow reflective tape according to the EU regulation over the entire length, on the extension and at the rear.

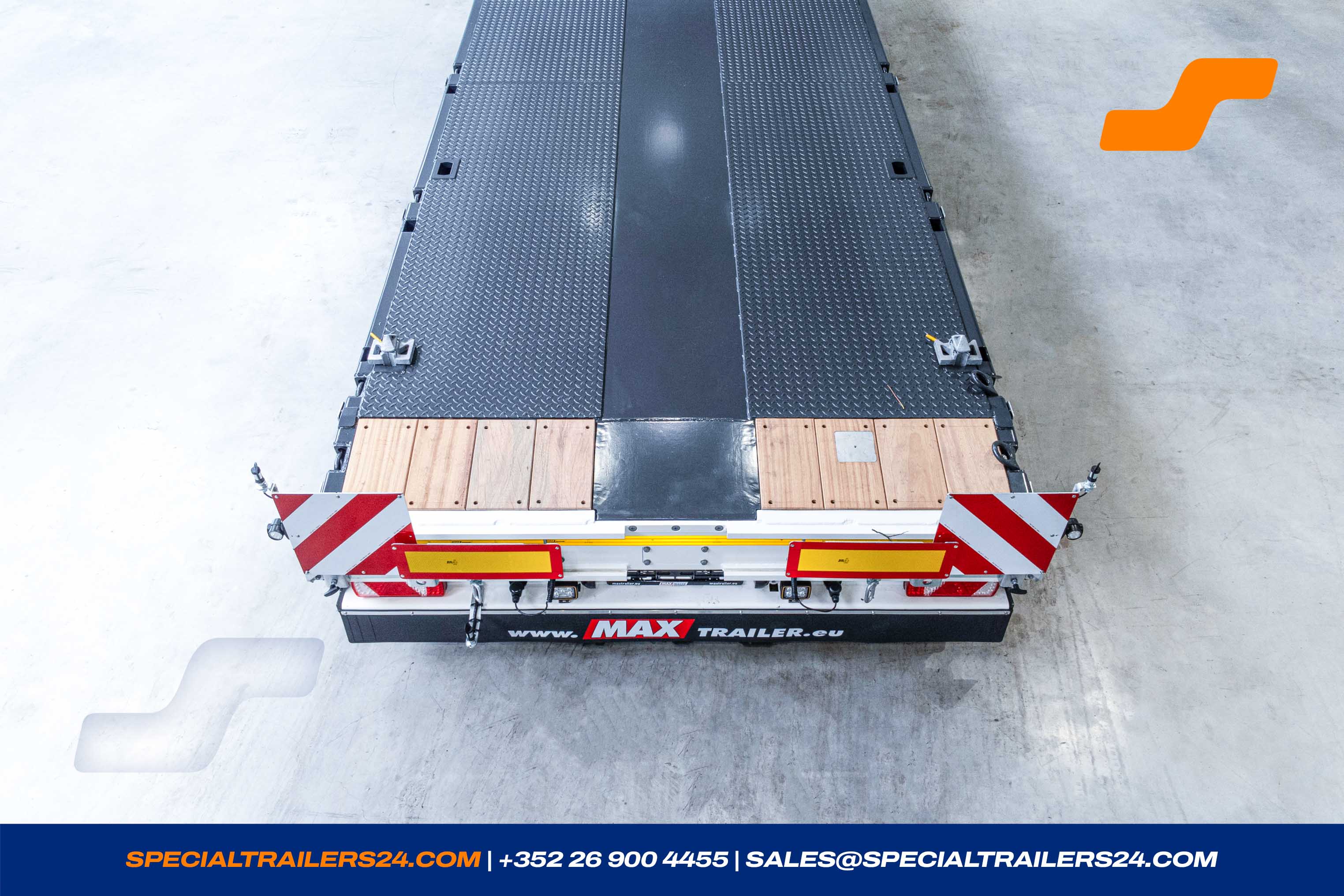

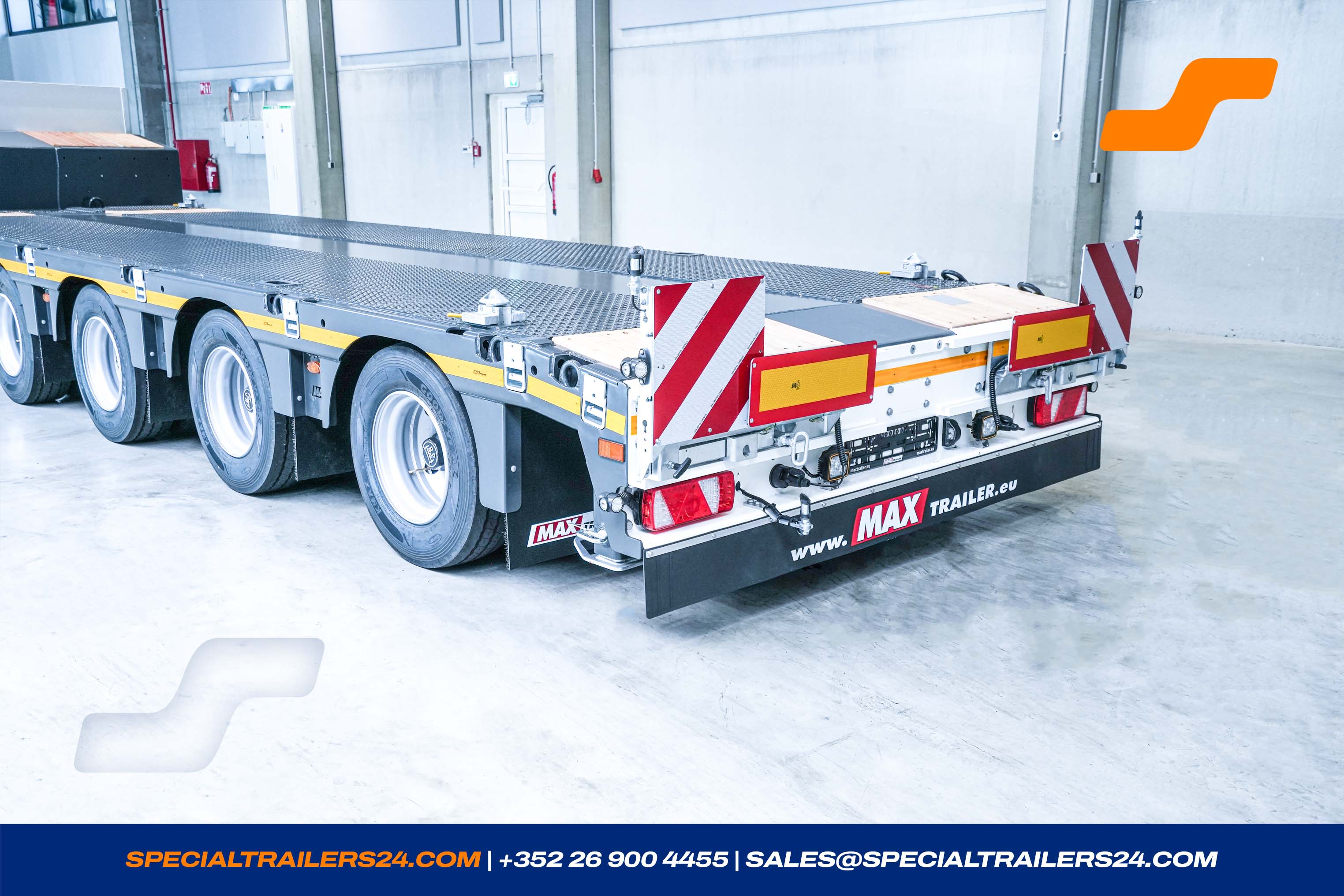

- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.

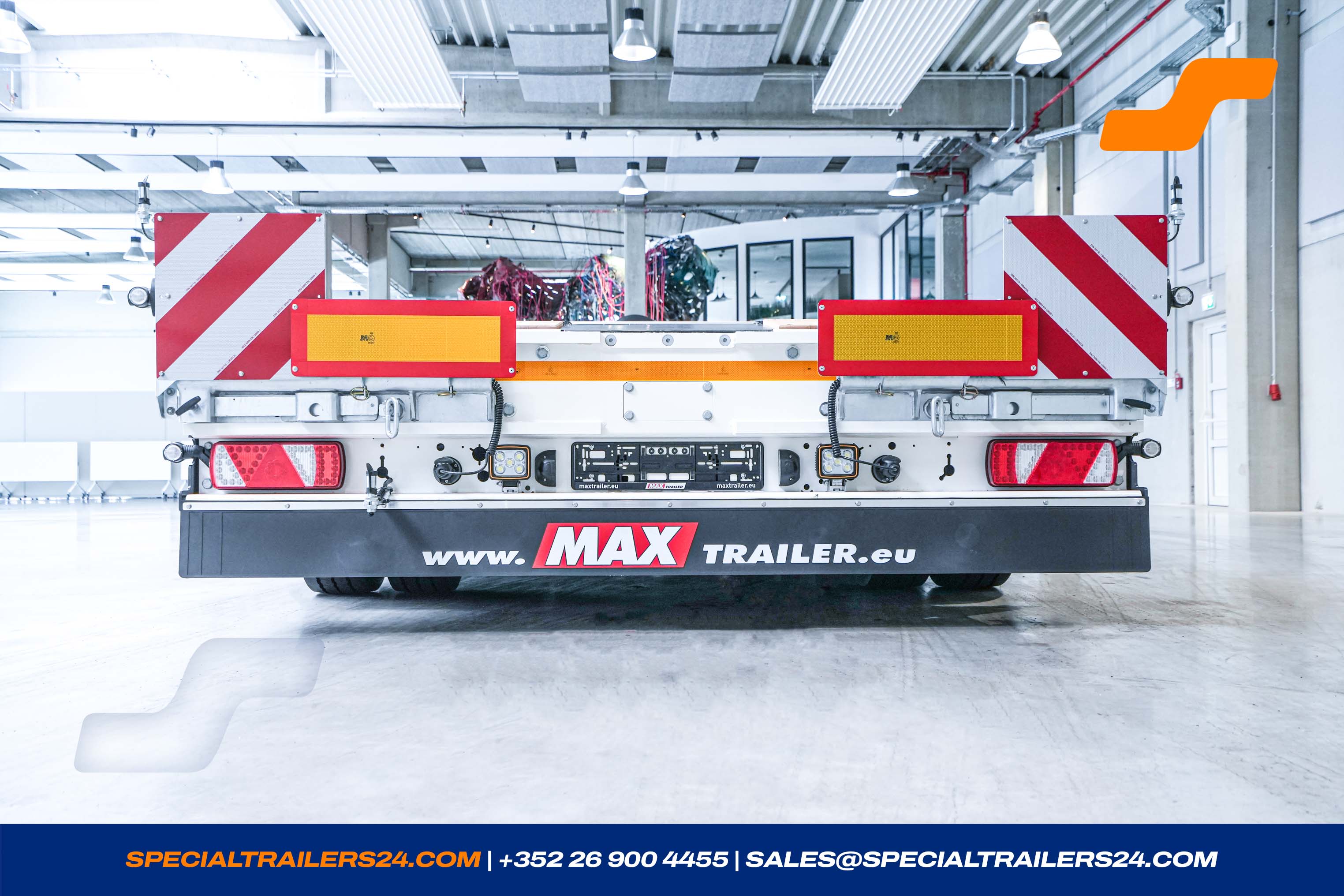

- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.

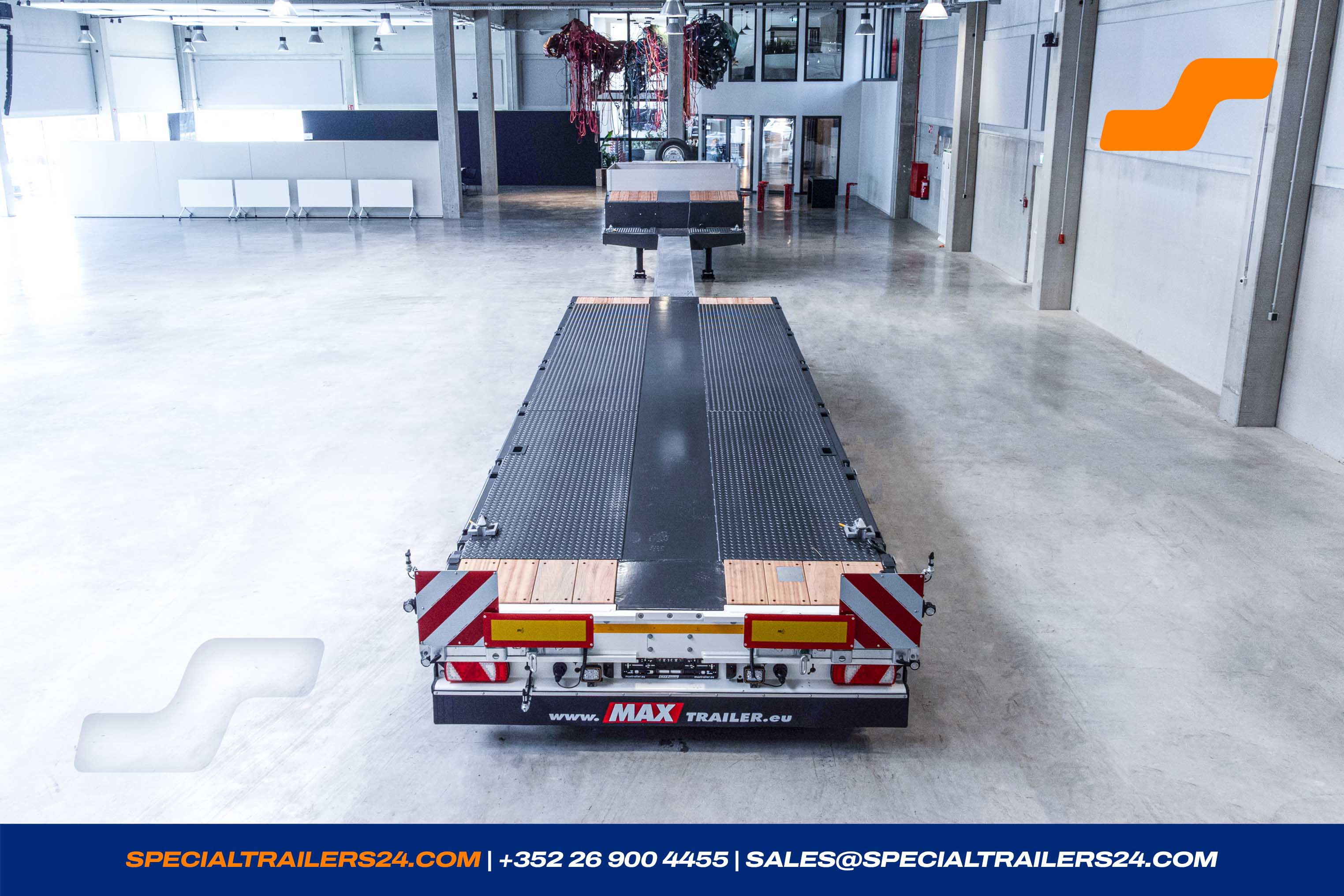

- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.

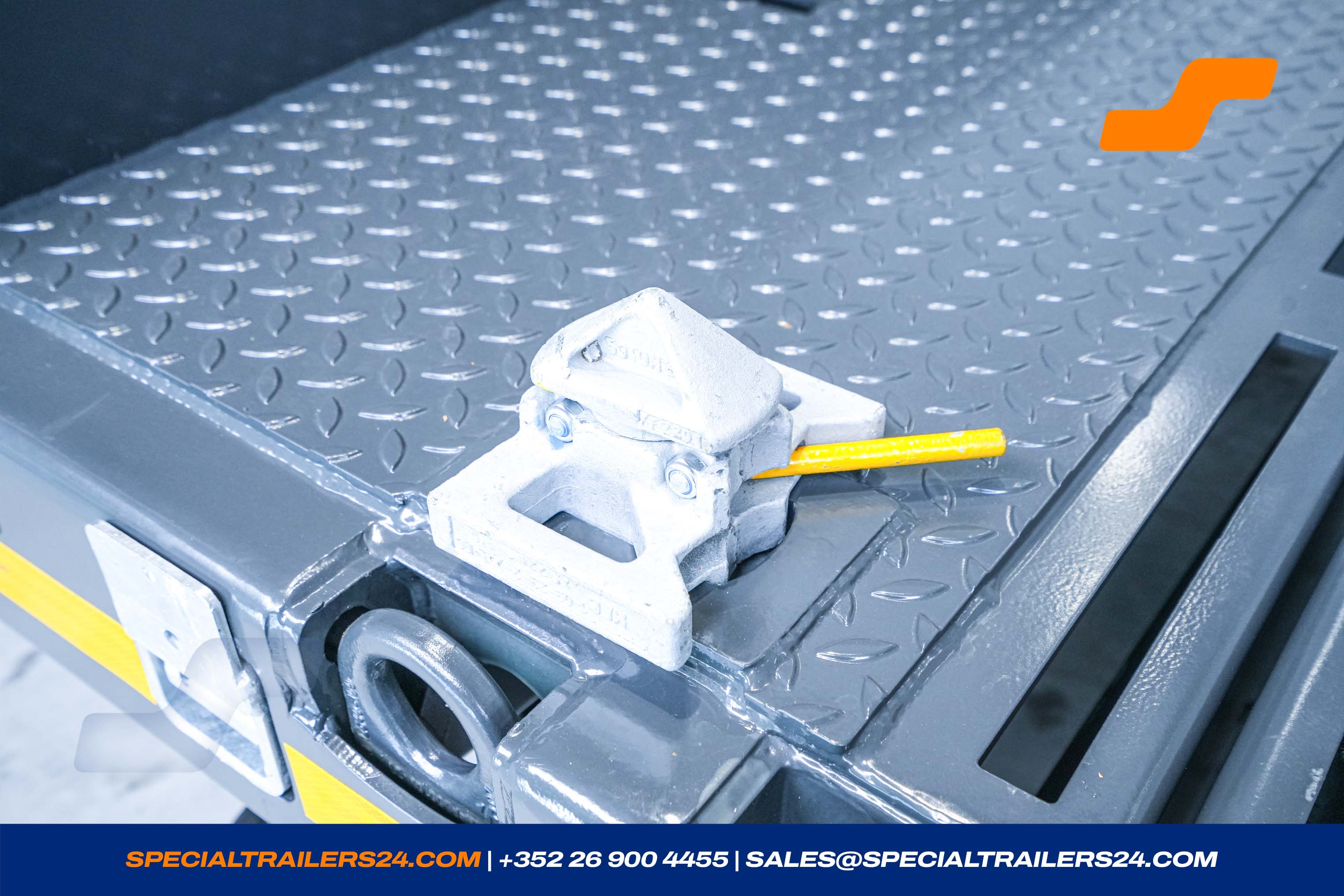

- 3 pairs of WADER containerpockets in the loading platform for one 20', (30') or 40' container. (± 30 kg)
- 6 pairs of pockets for stakes ca. 100 x 50 mm in the outer frame of the loading platform (± 18kg).

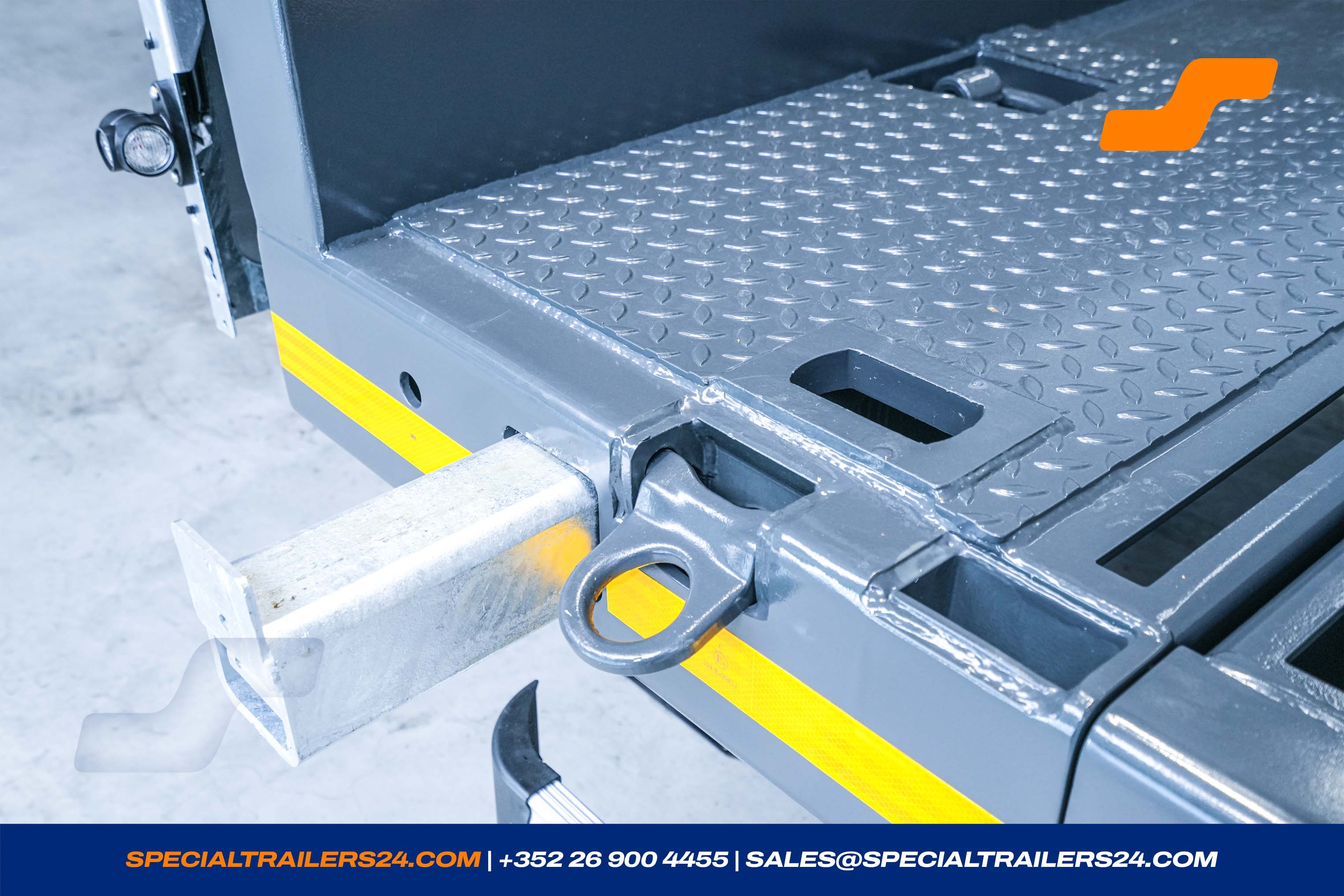

- Galvanised outriggers, extendable up to ± 230 mm per side (± 230 kg).
- Lift axle on the front axle with control by TEBS-E depending on the current axle load and the current loading condition (± 69 kg).
- Profile displaceable as hook-on device for alu-ramps at the rear.
- 2 LED- reversing lights at the rear.

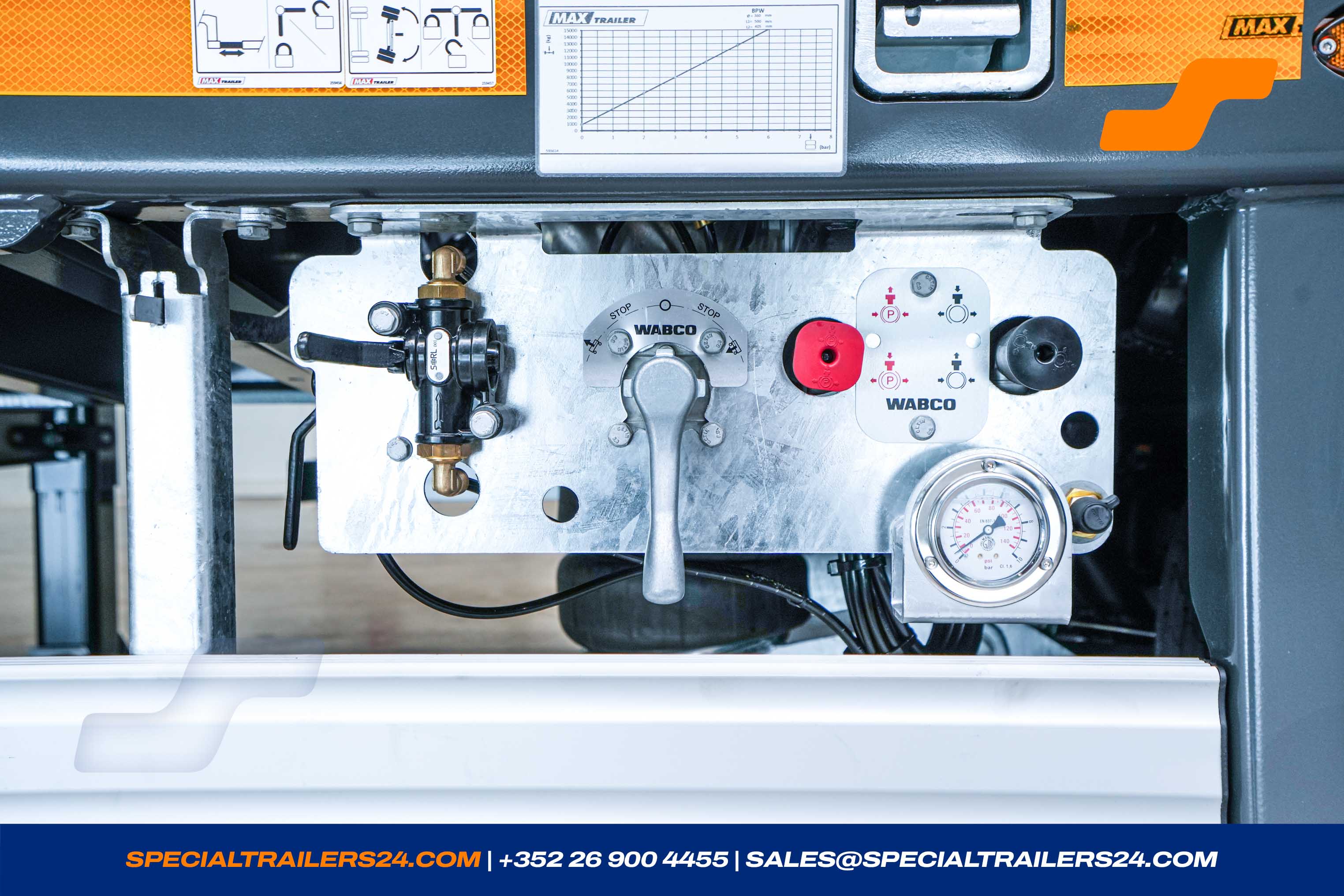

- Load manometer for determining the axle load, including load diagram.
Accessories
1 x Accessory
MAX100-Accessory
- Manual and description on USB stick .
- Delivery from a trailer to factory Lentzweiler.
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 111761
- Reference MAX100-N-5A-8.60
- Number of axles 5
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 07/2026
- Price On request
-
Location
SpecialTrailers24
Z.A.E.R. Op der Sang,
16, Op der Bréimicht
9779 Lentzweiler
Luxembourg - AdId 000333
- Steering Type Friction
