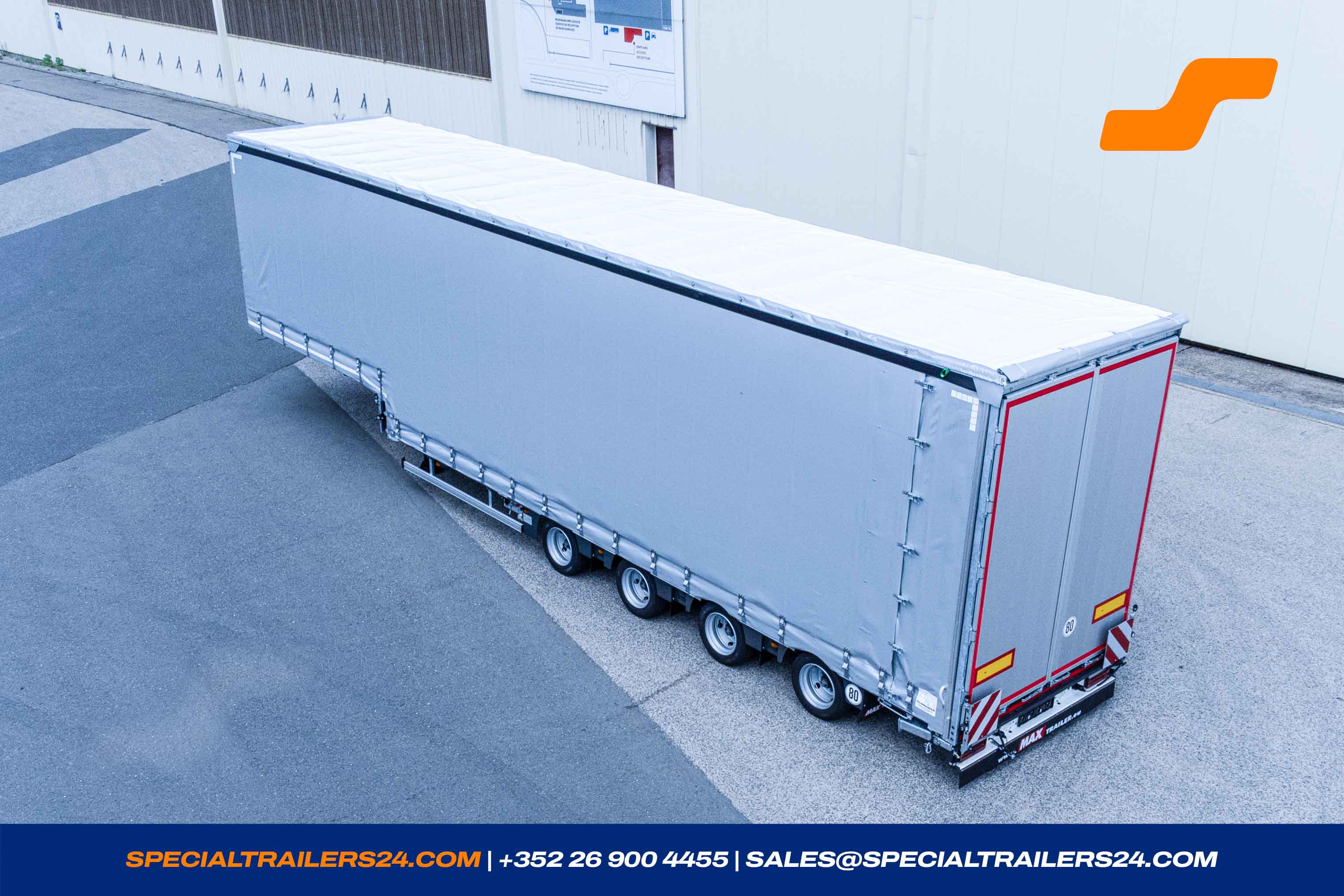

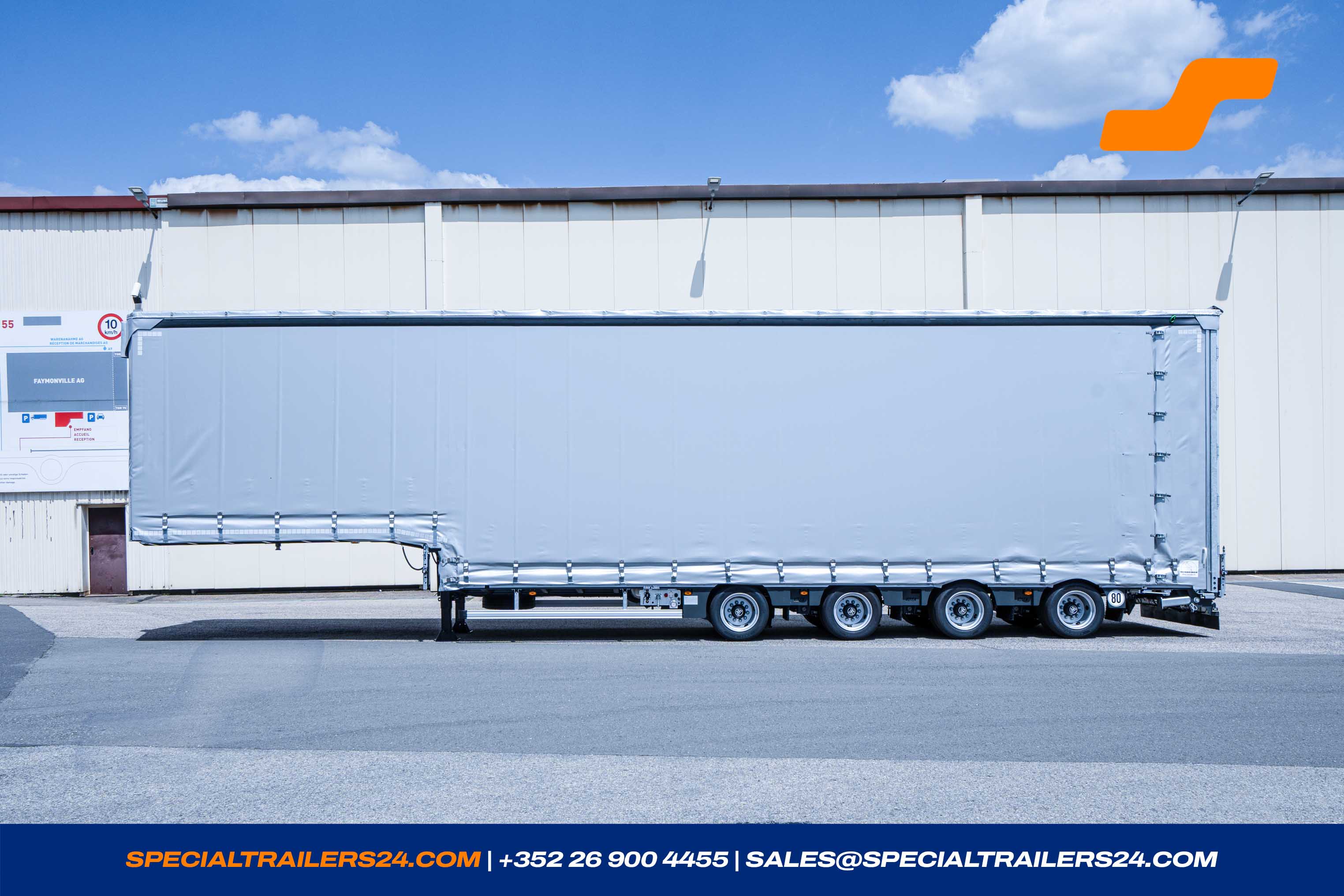

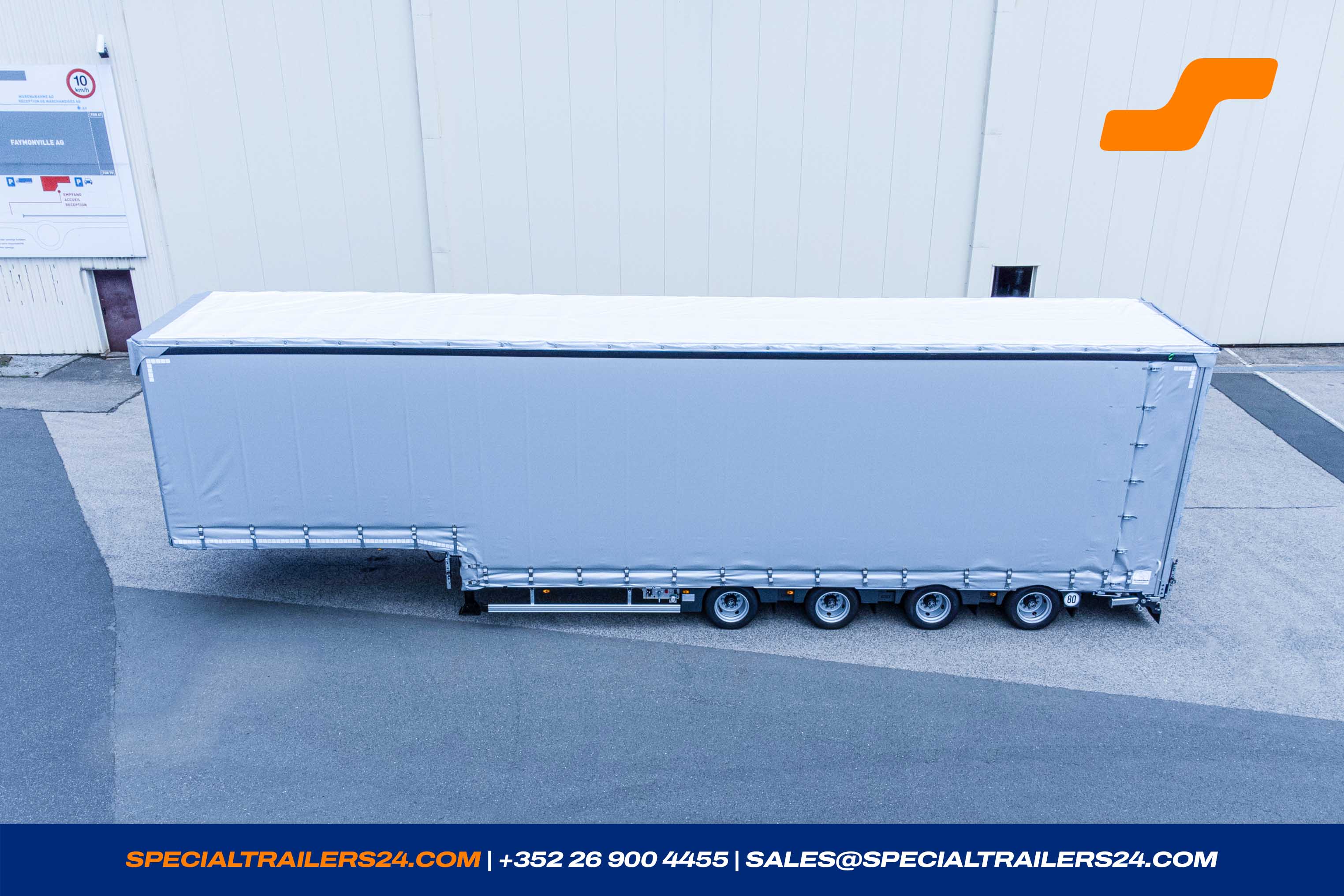

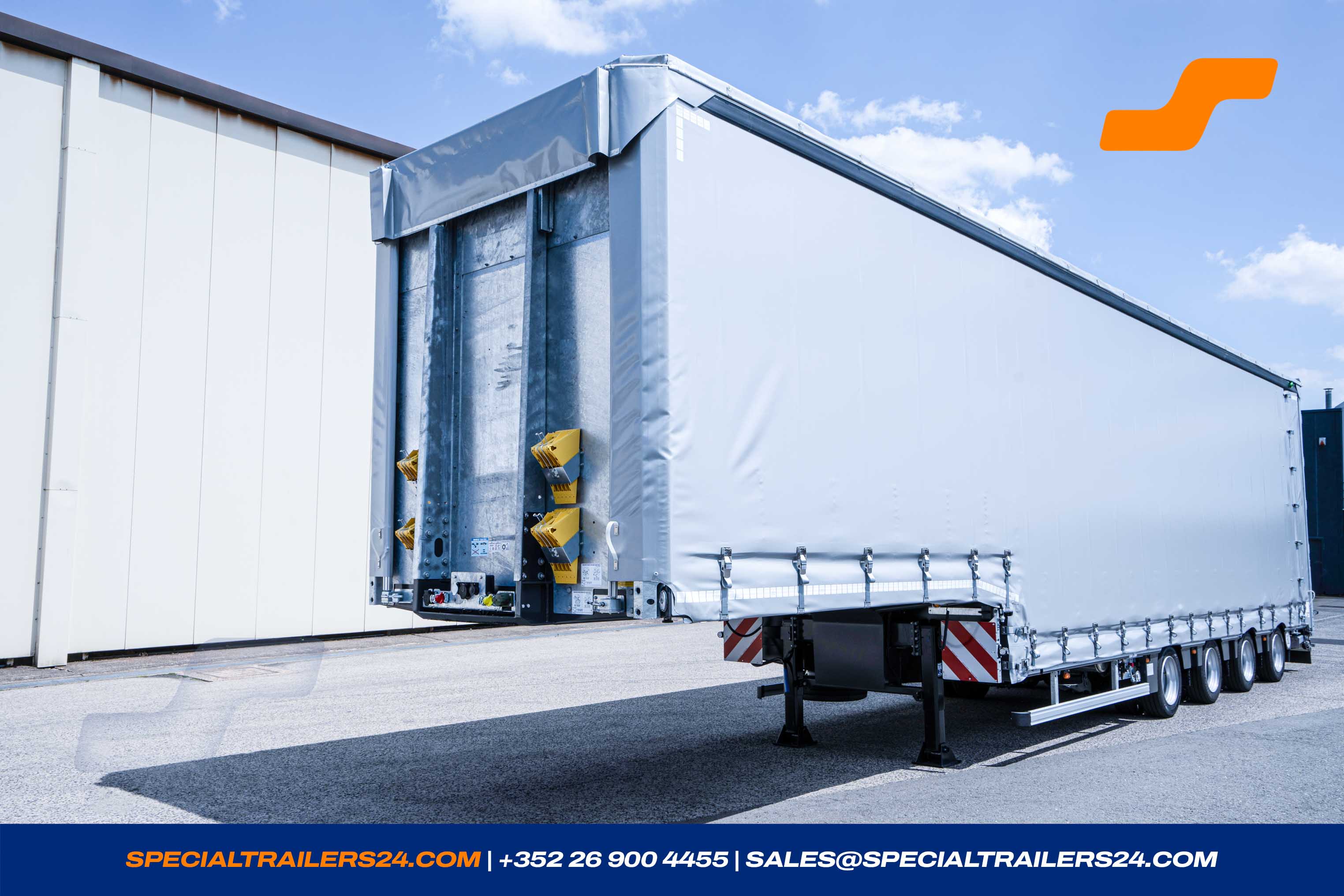

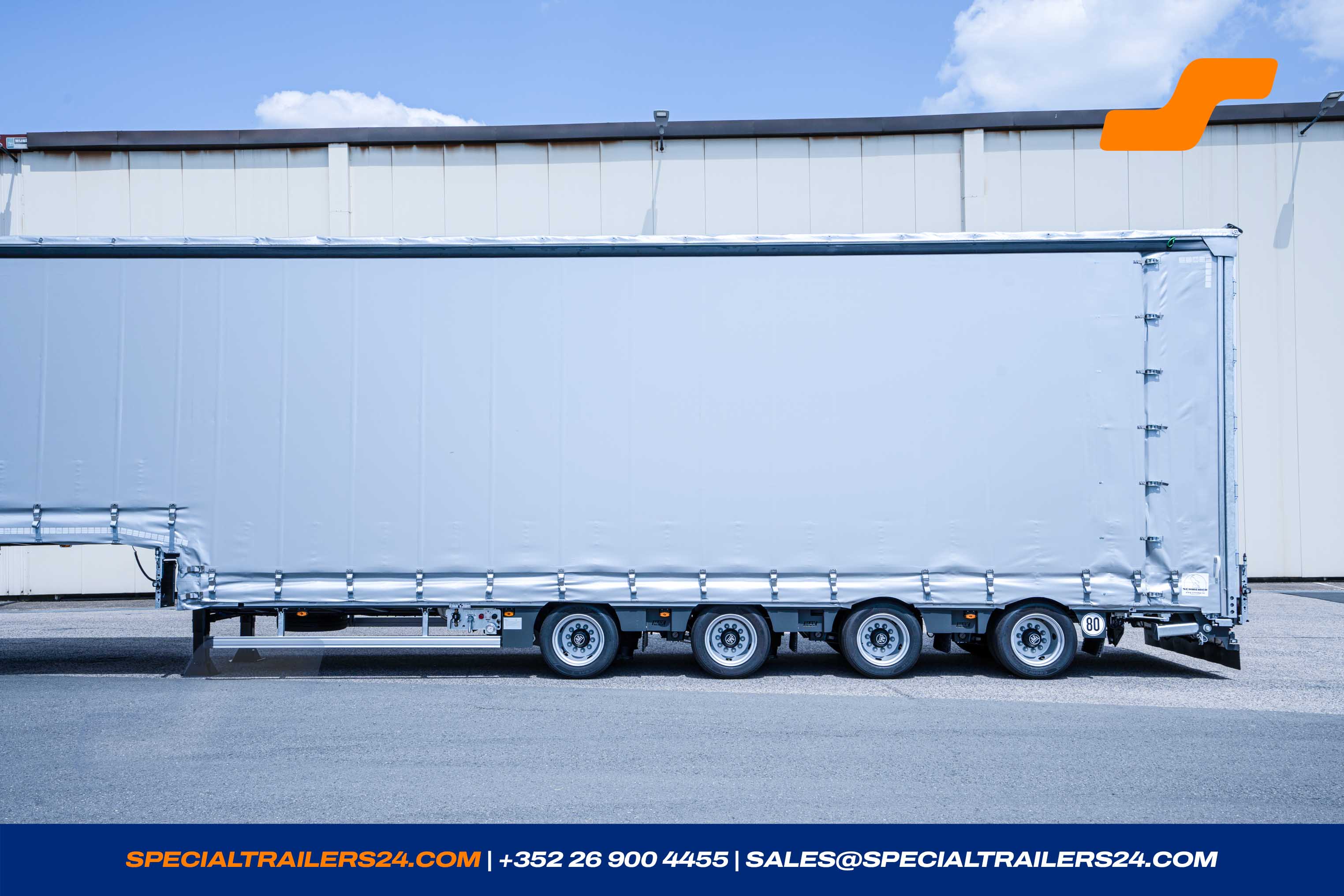

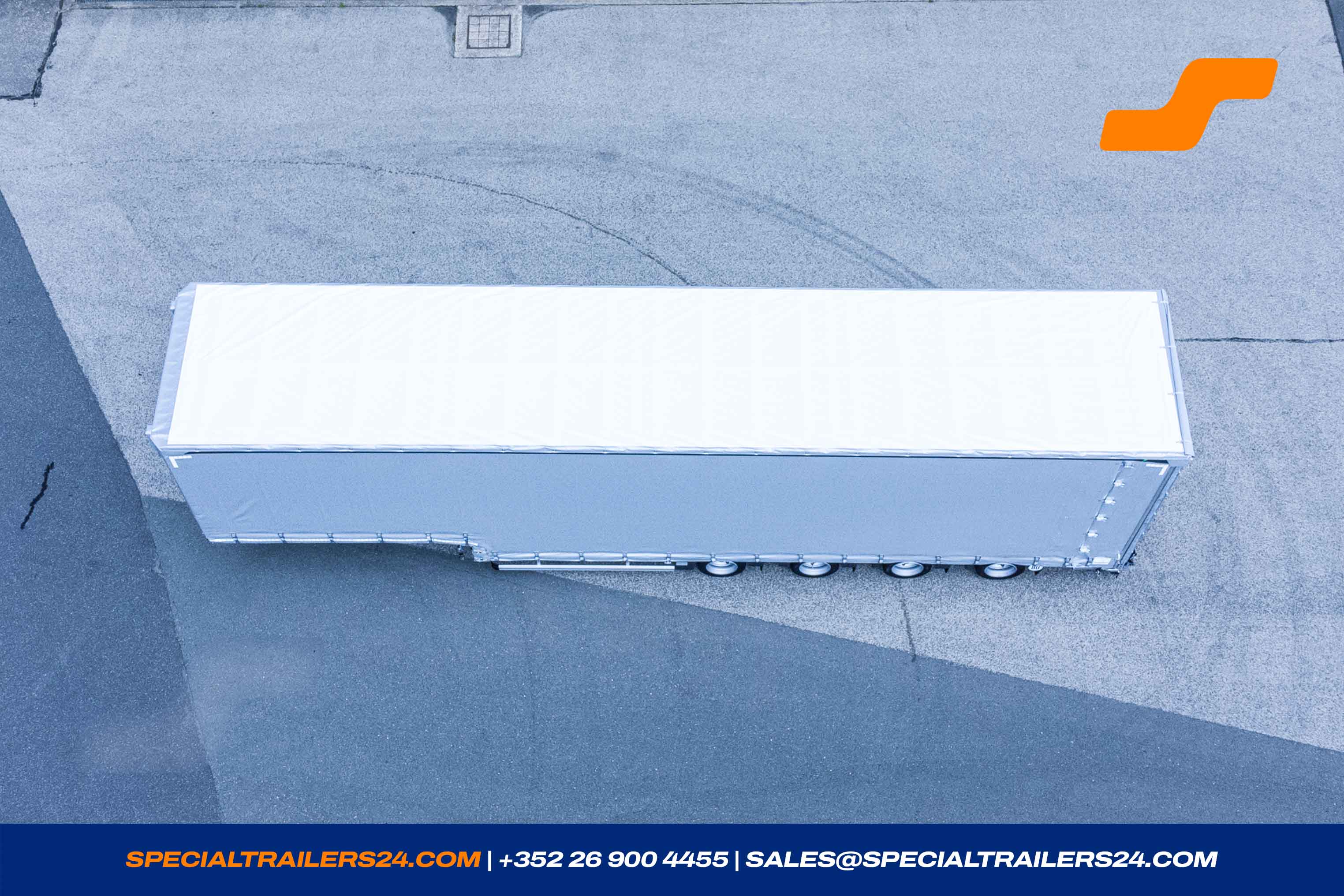

Low loader
MAX Trailer MAX100
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111907
- Reference MAX100-N-4X-9.30-(CS)

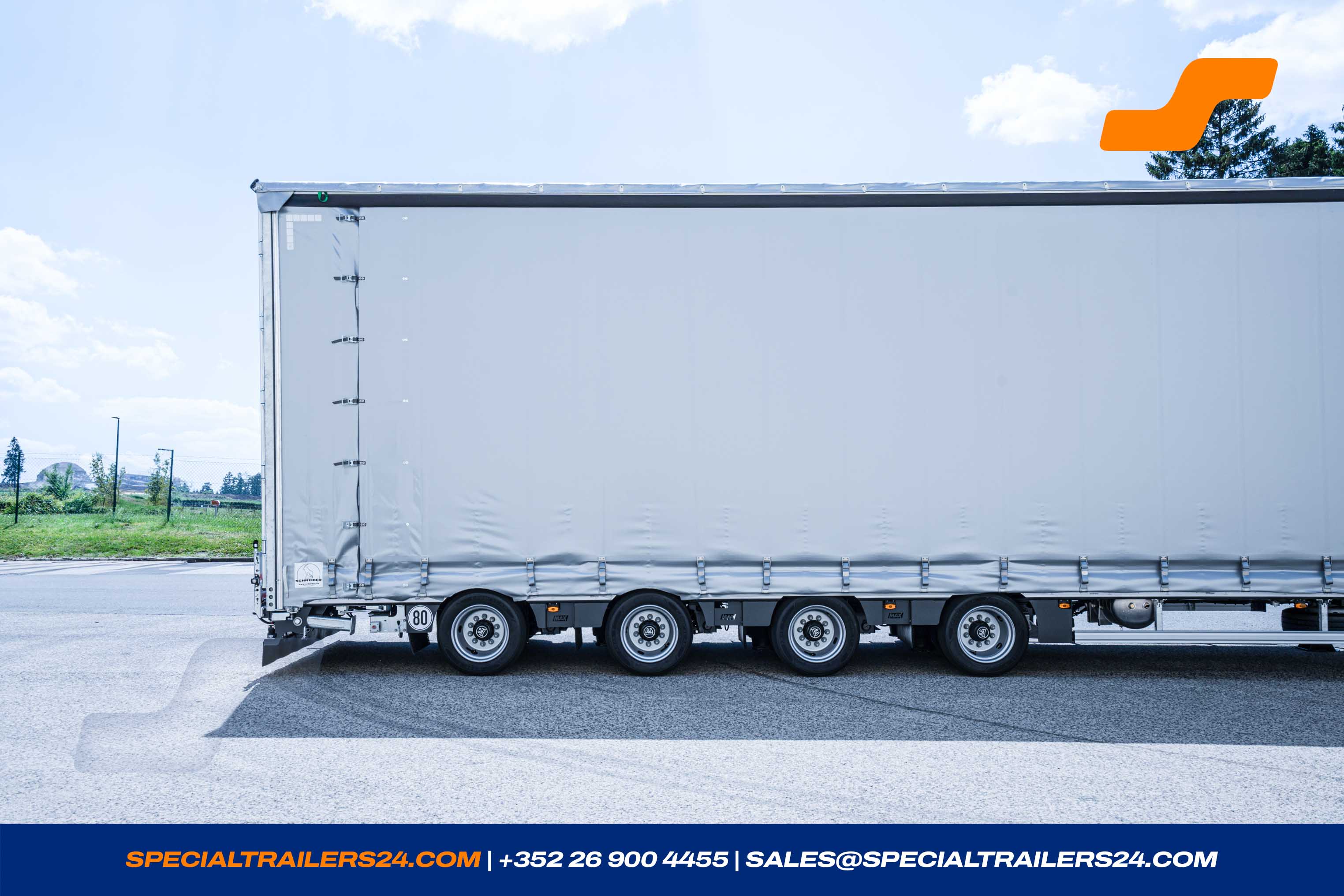

- Number of axles 4
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 07/2026
- Steering Type Rigid
Availability
07/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Dimensions
| Fifth wheel height loaded | 1150 mm |
| Gooseneck length | 3 800 mm |
| Turning circle reversing | 2 100 mm |
| Loading platform length | 9 300 mm |
| Wheelbase | 1 360 mm |
| Loading height at max. load | 760 mm |
| Total width | 2 480 mm |
| Suspension stroke | -40/ +155 mm |

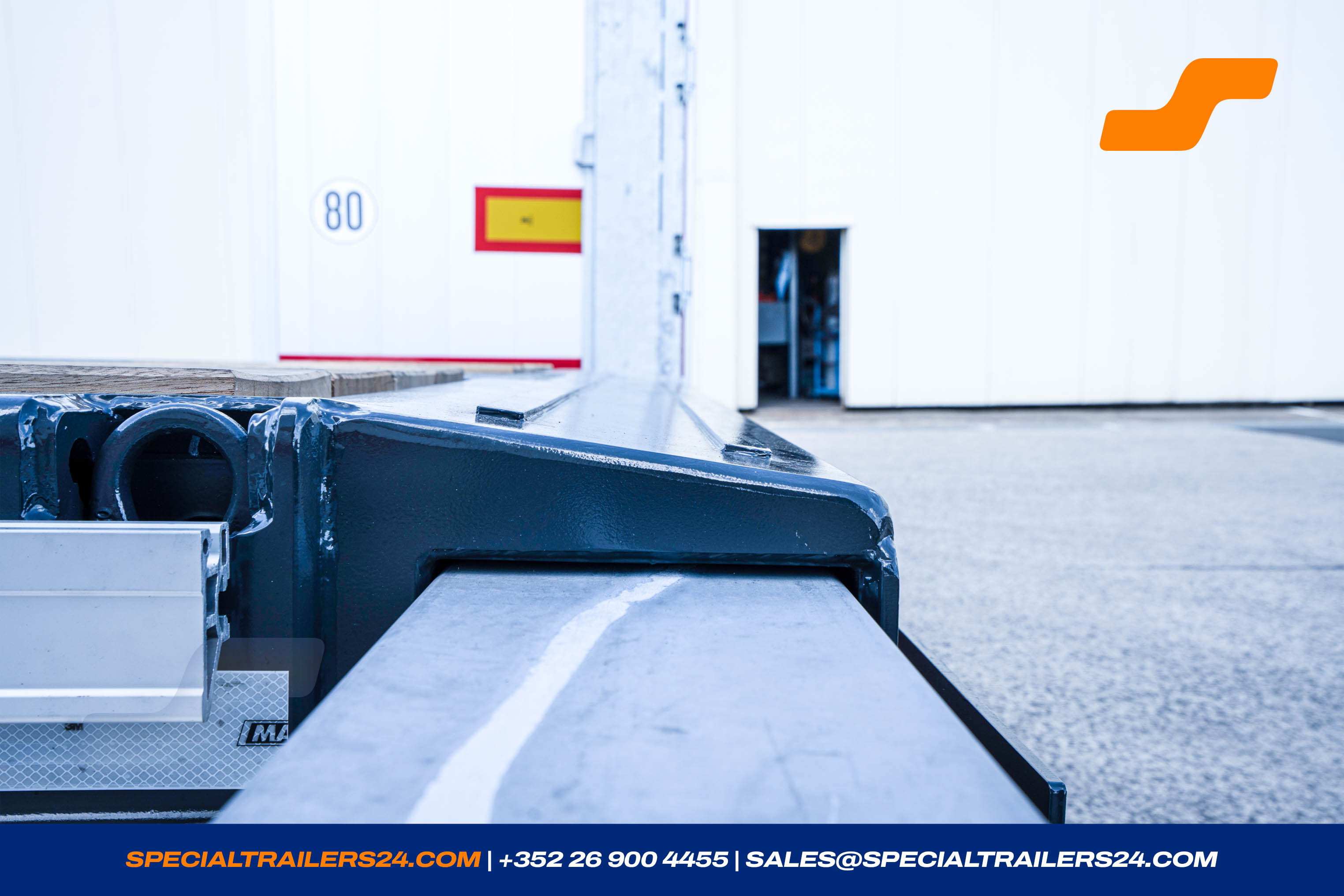

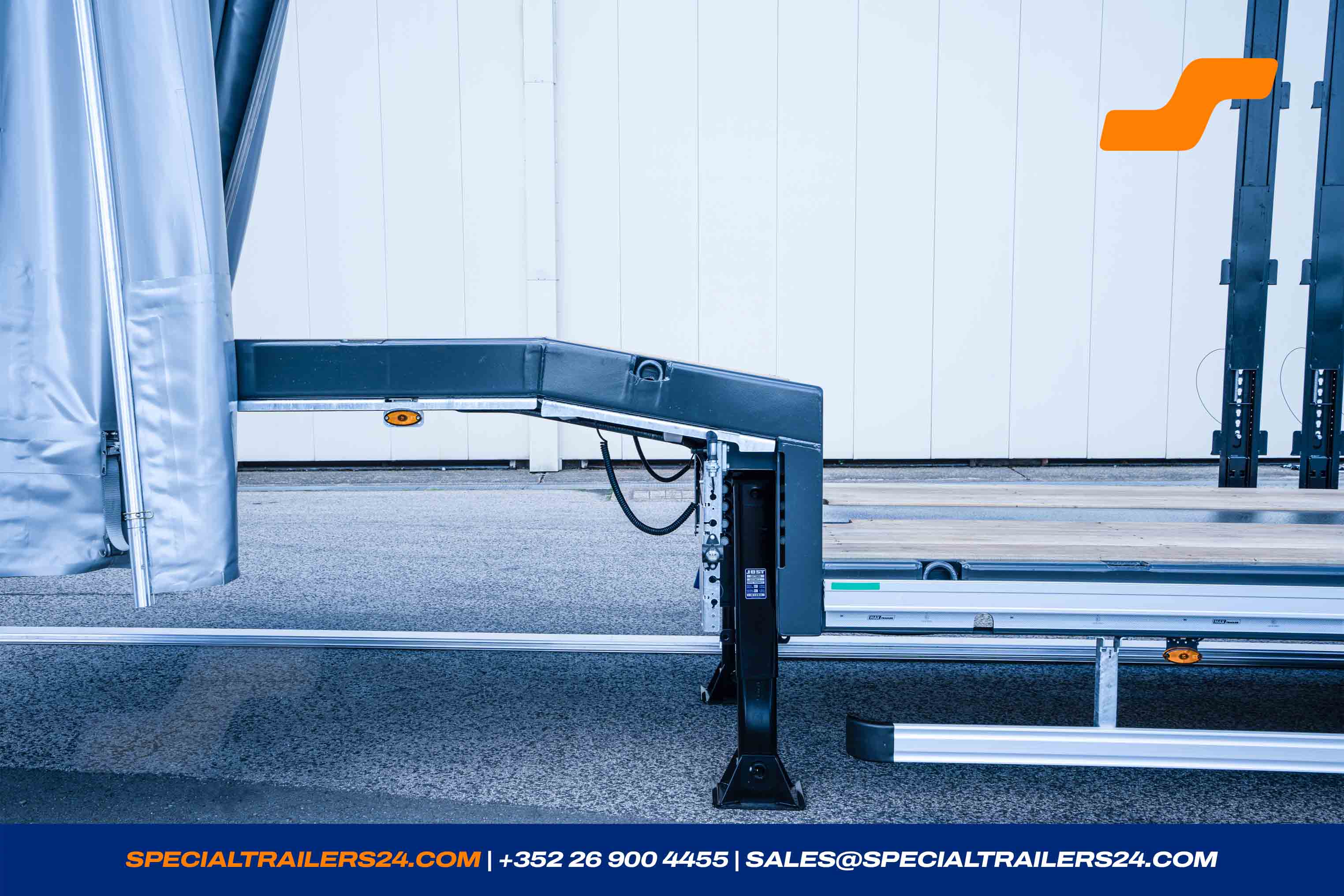

Gooseneck
1 x Gooseneck : MAX-3.800-750-10° (DSR 2100/ASH 1150)
Gooseneck with rear chamfered by ca. 750 mm x 10°.
3 pairs of lashing rings (LC 5 000 daN).

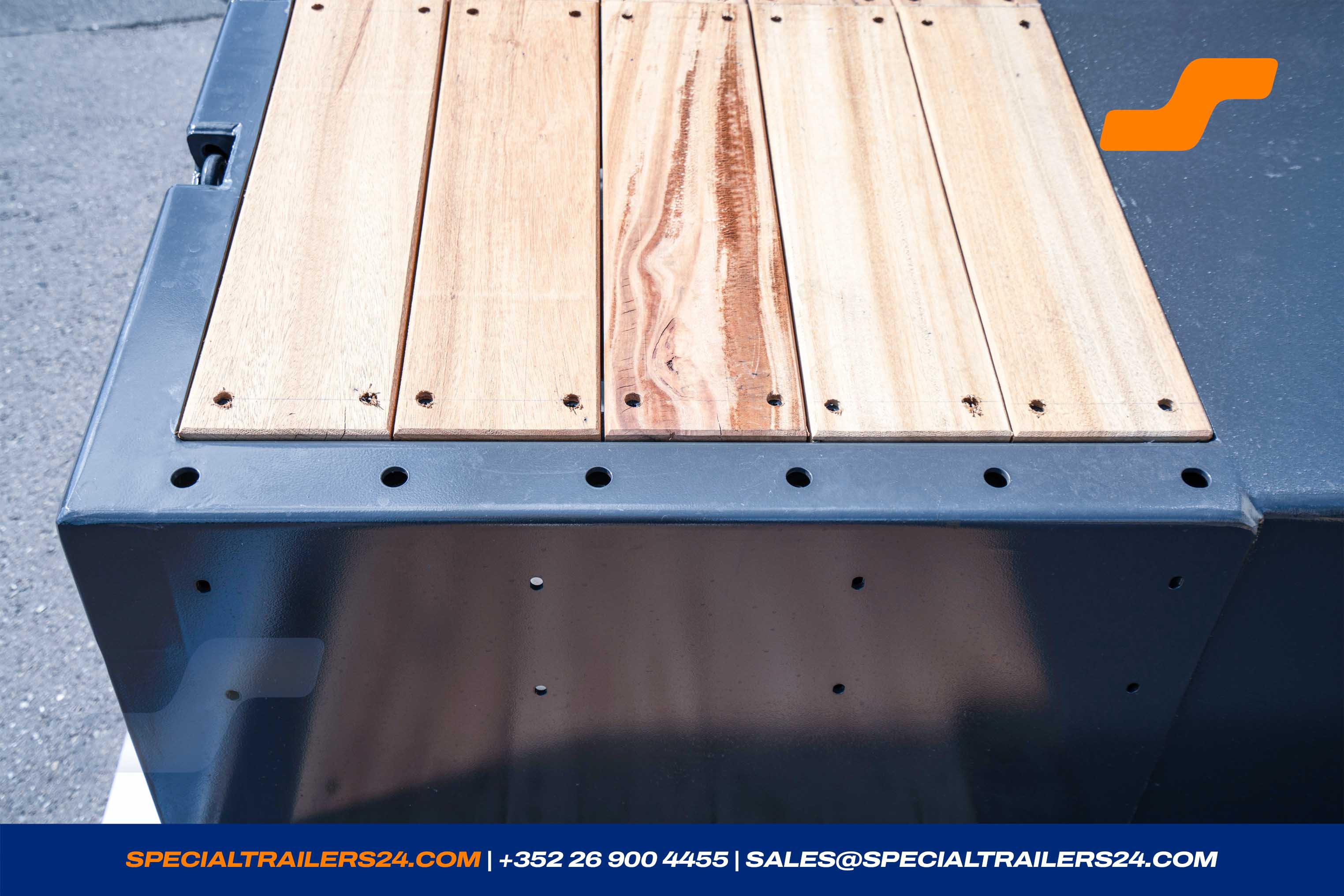

Hardwood cover thickness 30 mm.

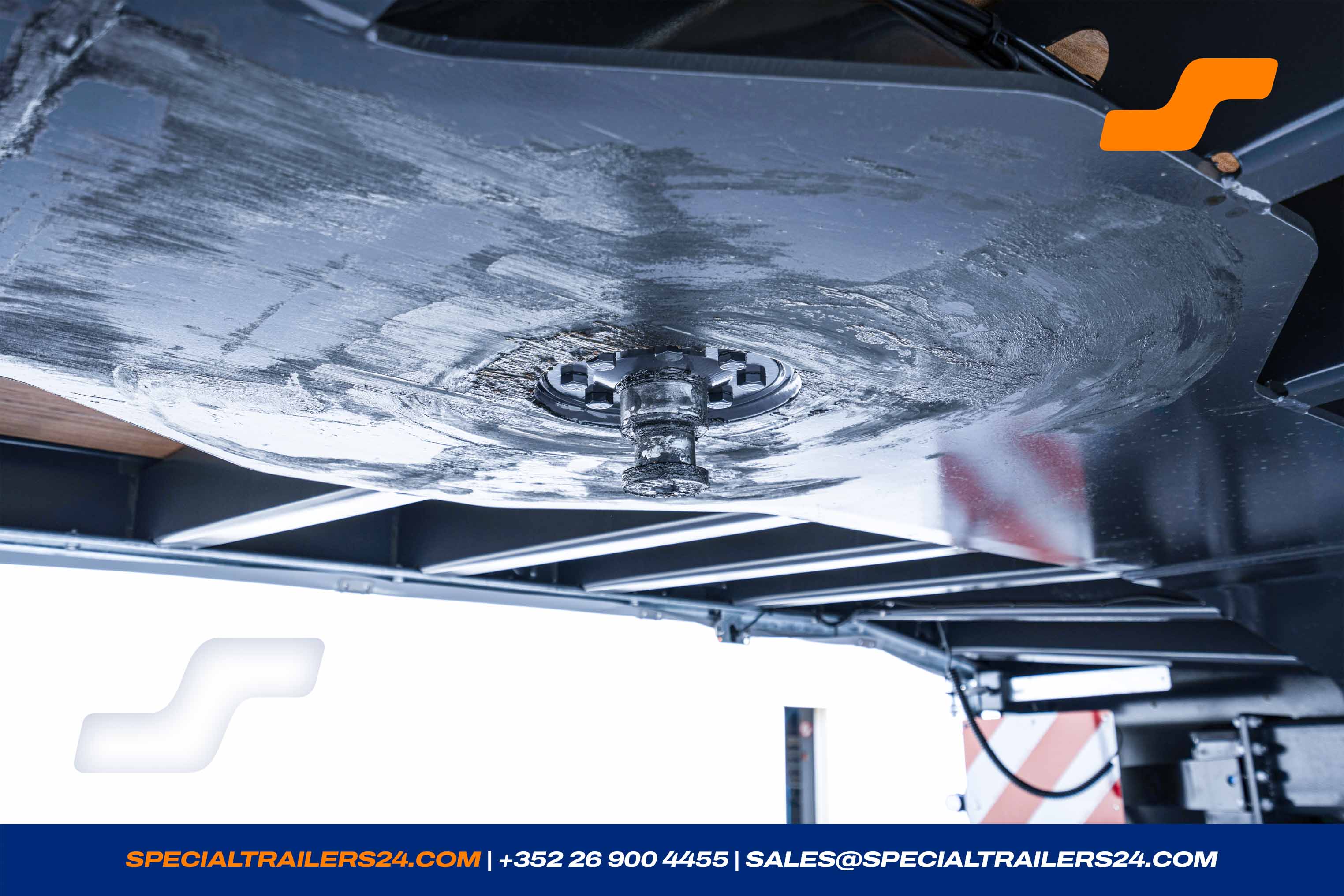

- 2 king-pin.
- Red and yellow air couplings on the galvanised front connection ledge.

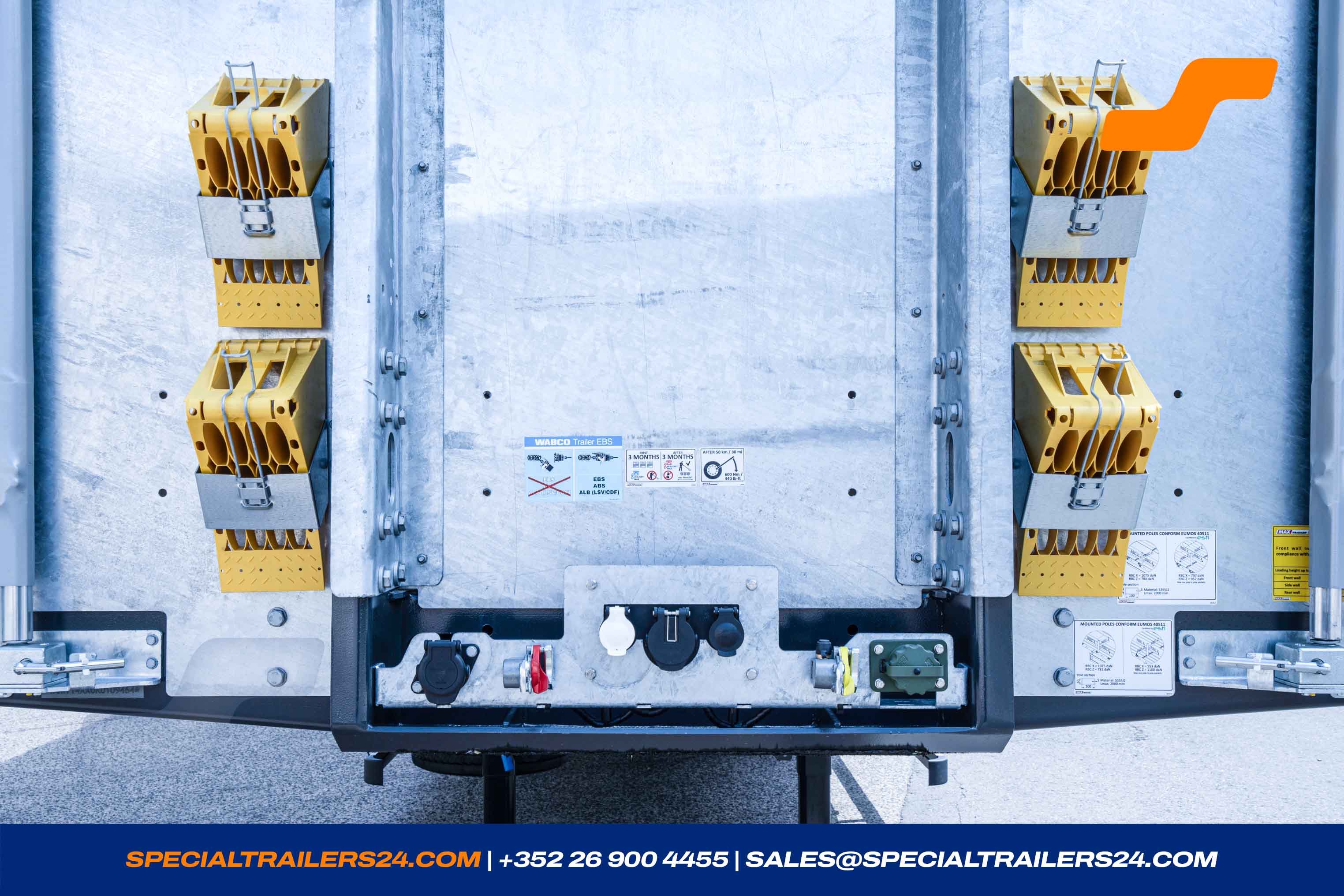

- 2 wheel chocks with carrier on the headboard.
Loading deck
Loading platform
1 x Loading platform : MAX100-N-4X-9.30-(CS-HV-AL)-17.5-2.54

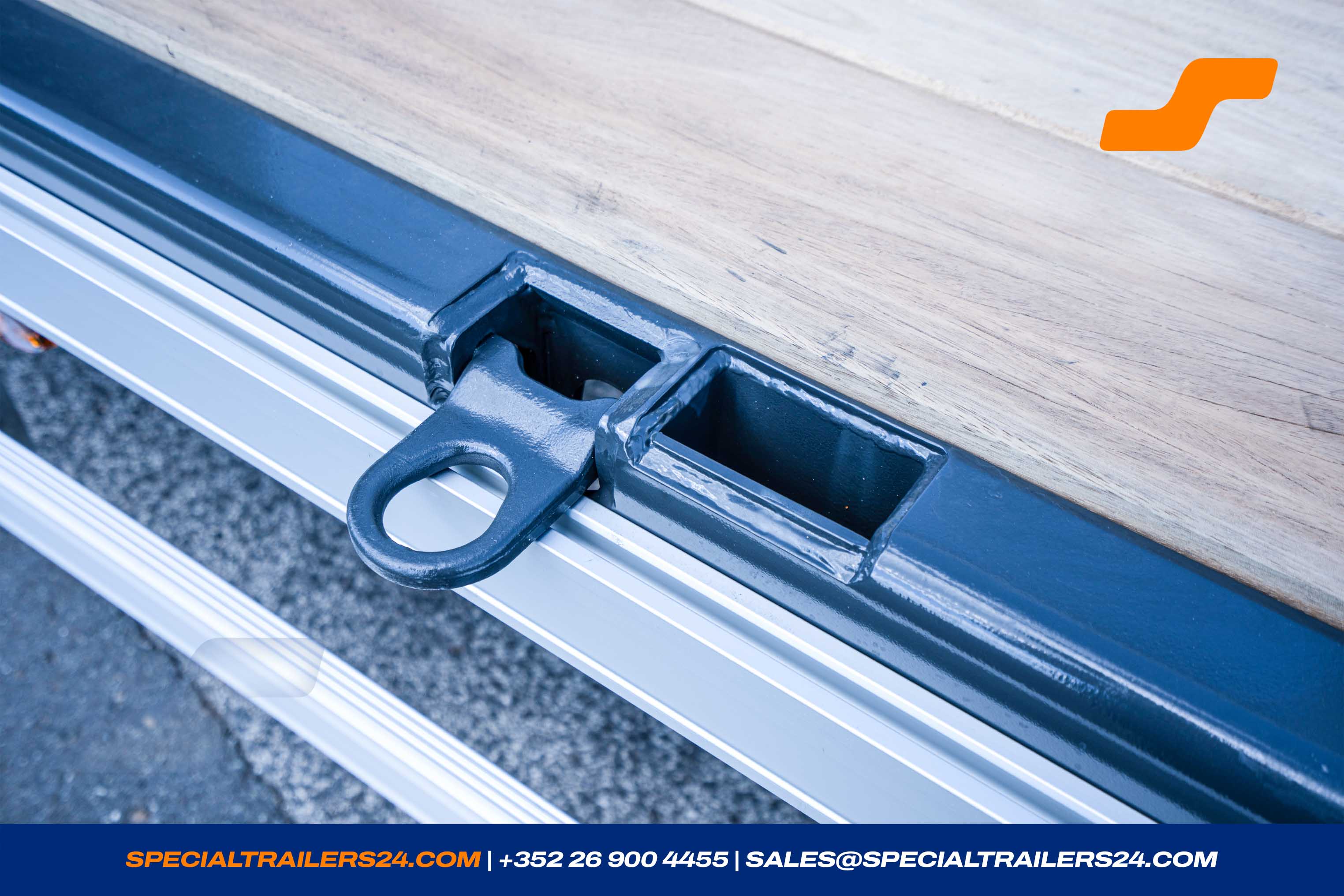

5 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
3 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
1 pair of lashing rings in front in the firm part the loading platform (LC 10 000 daN).

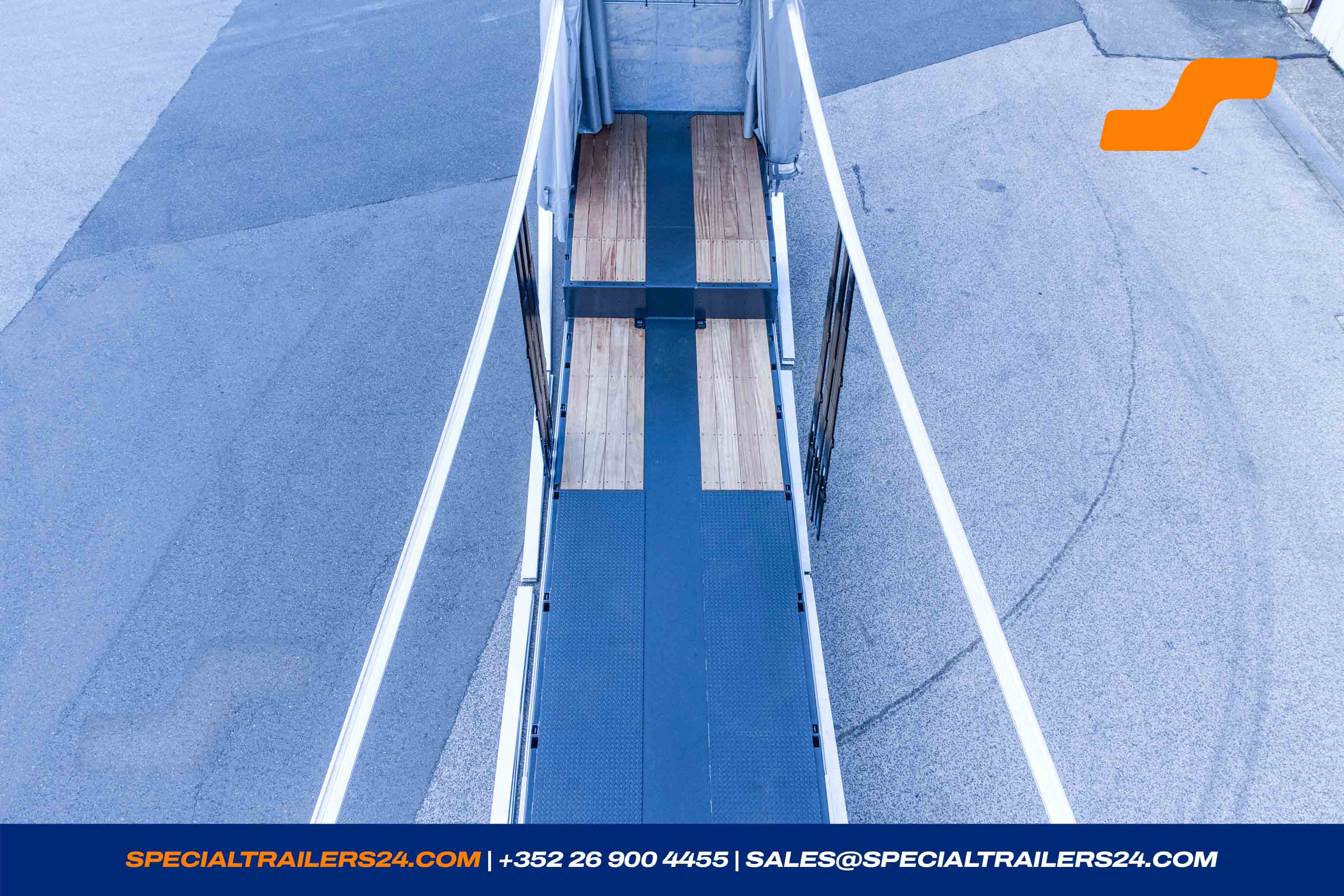

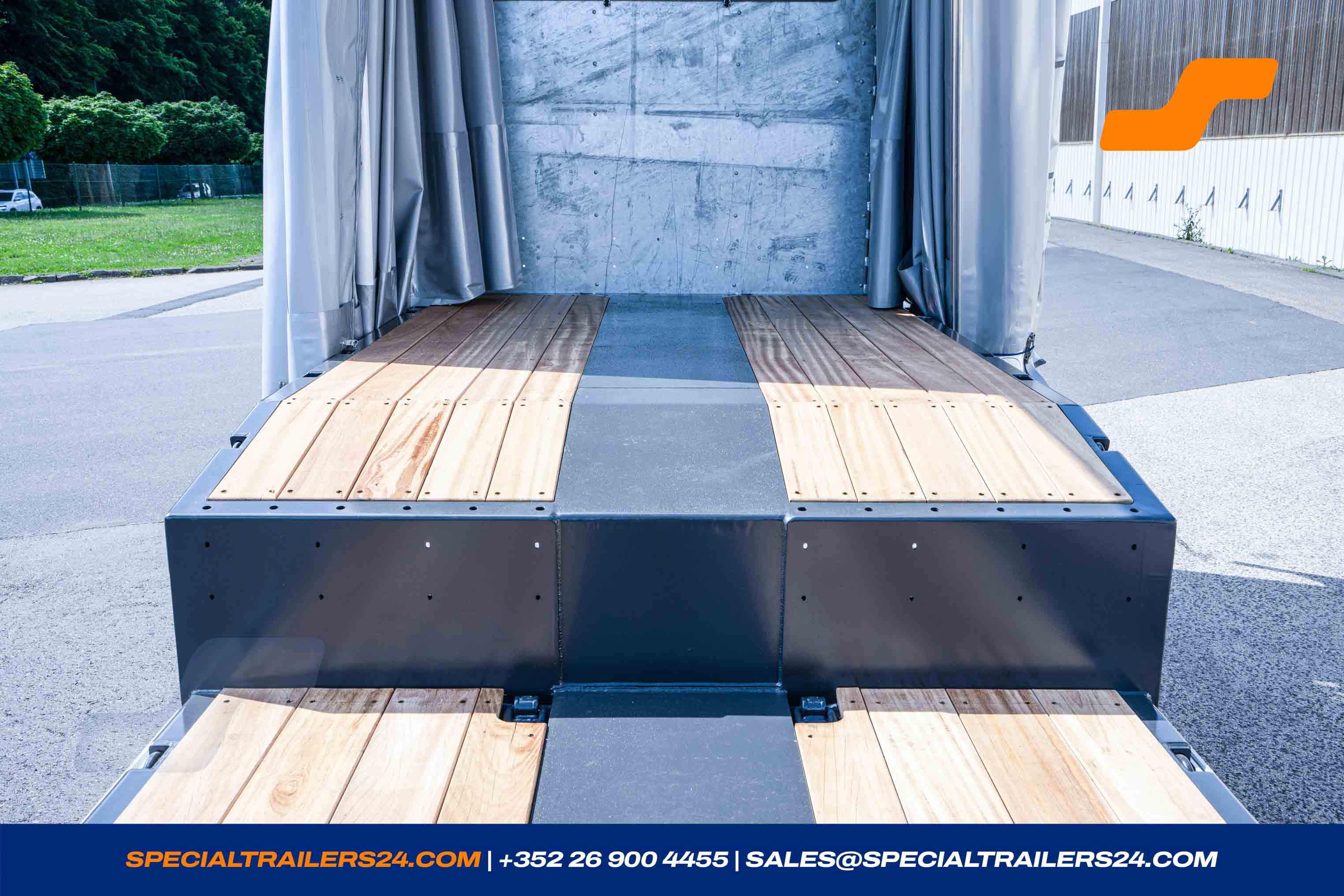

Hardwood cover thickness 48 mm above the axles chequer plate.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.

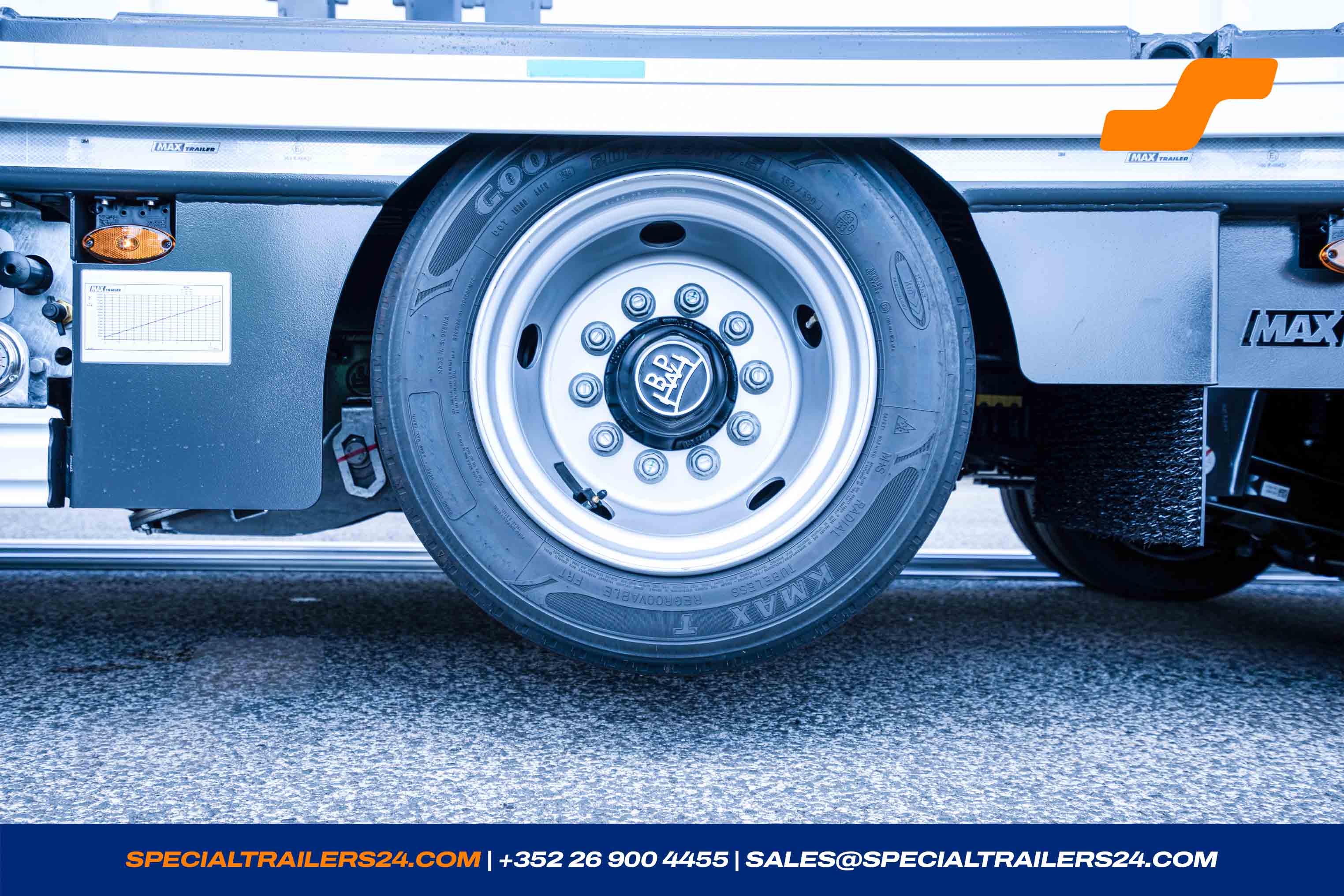

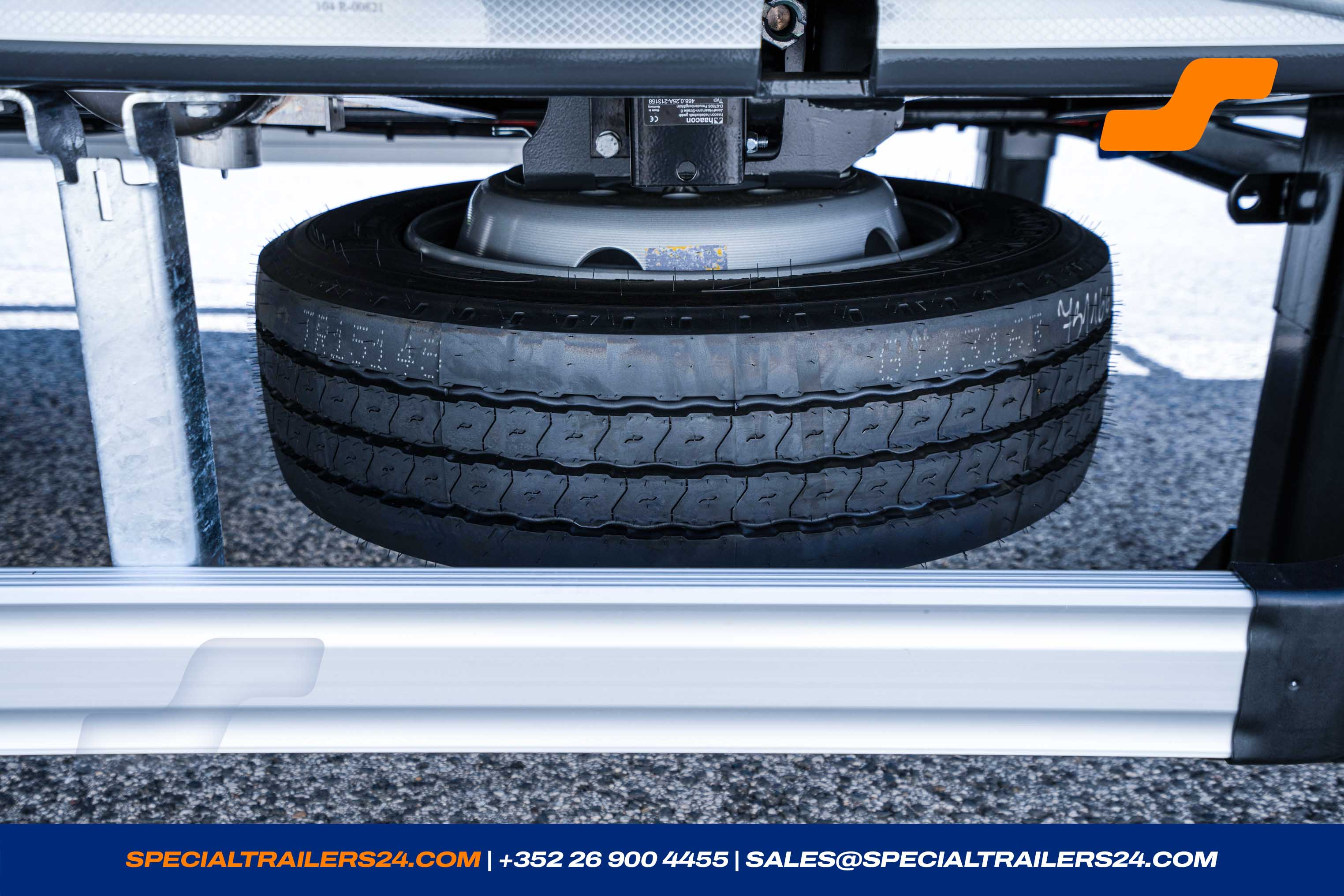

- 1 spare wheel 205/65 R17.5 (± 70 kg)
- One galvanised steel headboard.

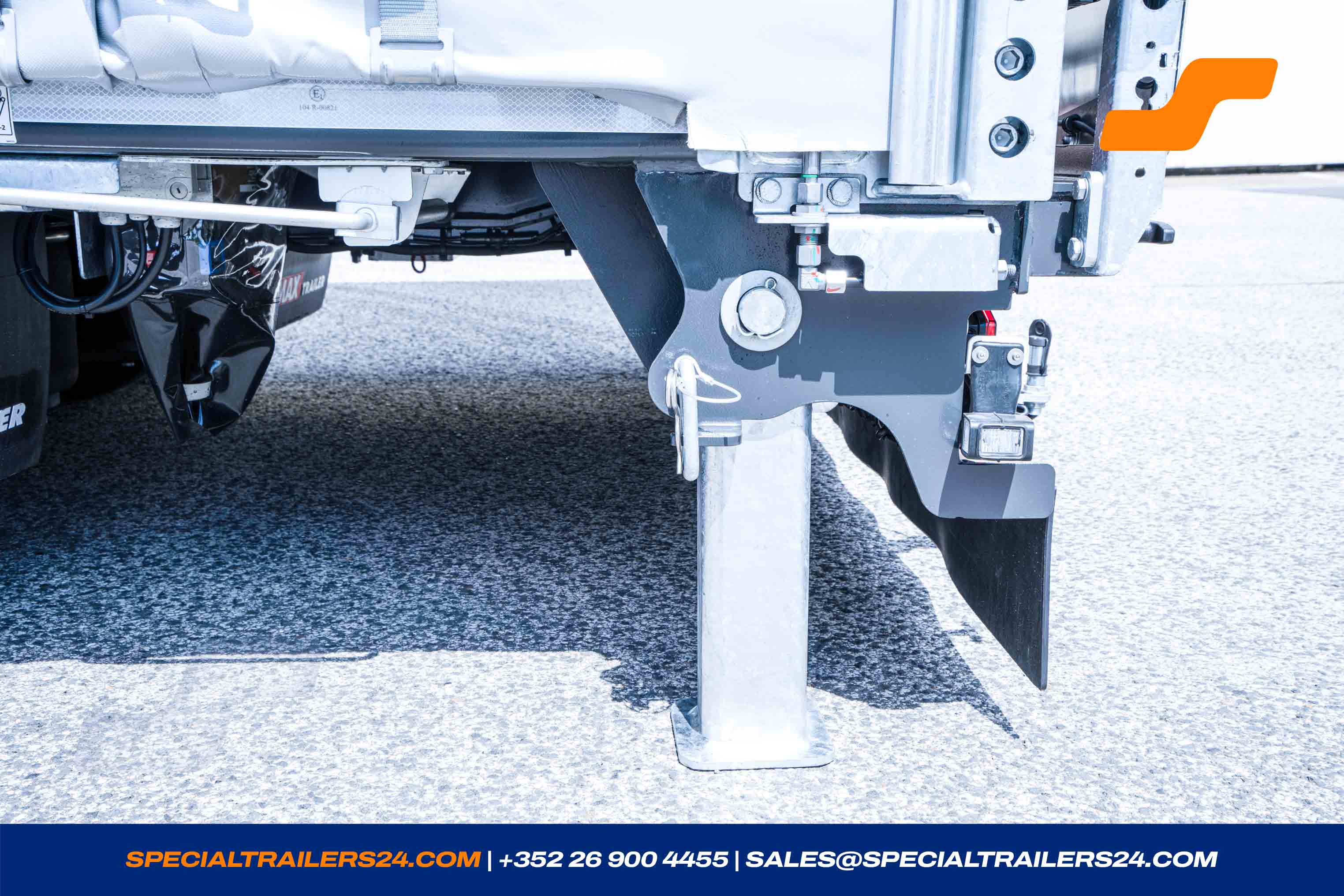

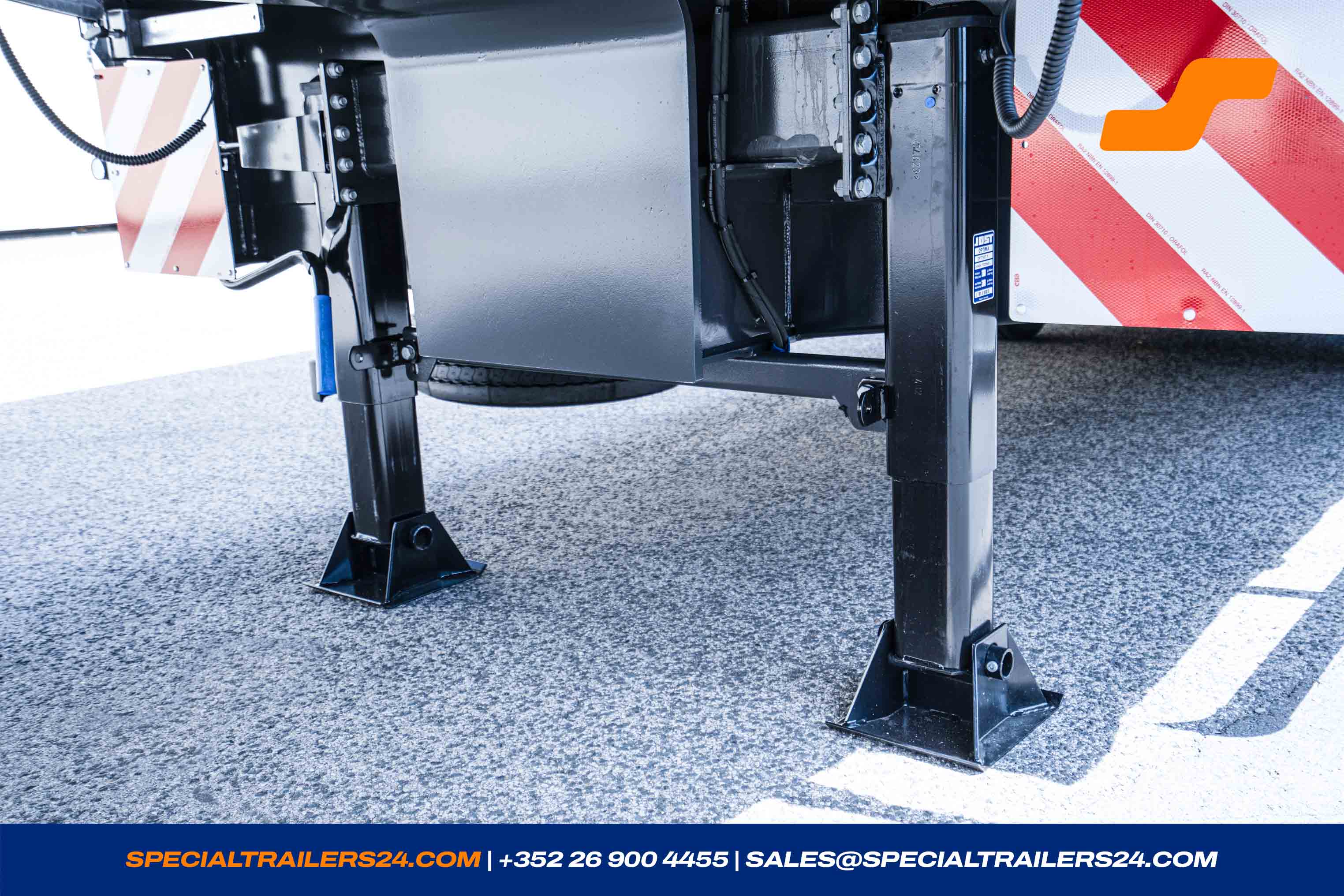

- Galvanised landing gears at the rear under the loading platform.
- Holder for one beacon light at the rear of the trailer.
-
Height-ajustable superstructure ***3.960 mm***:

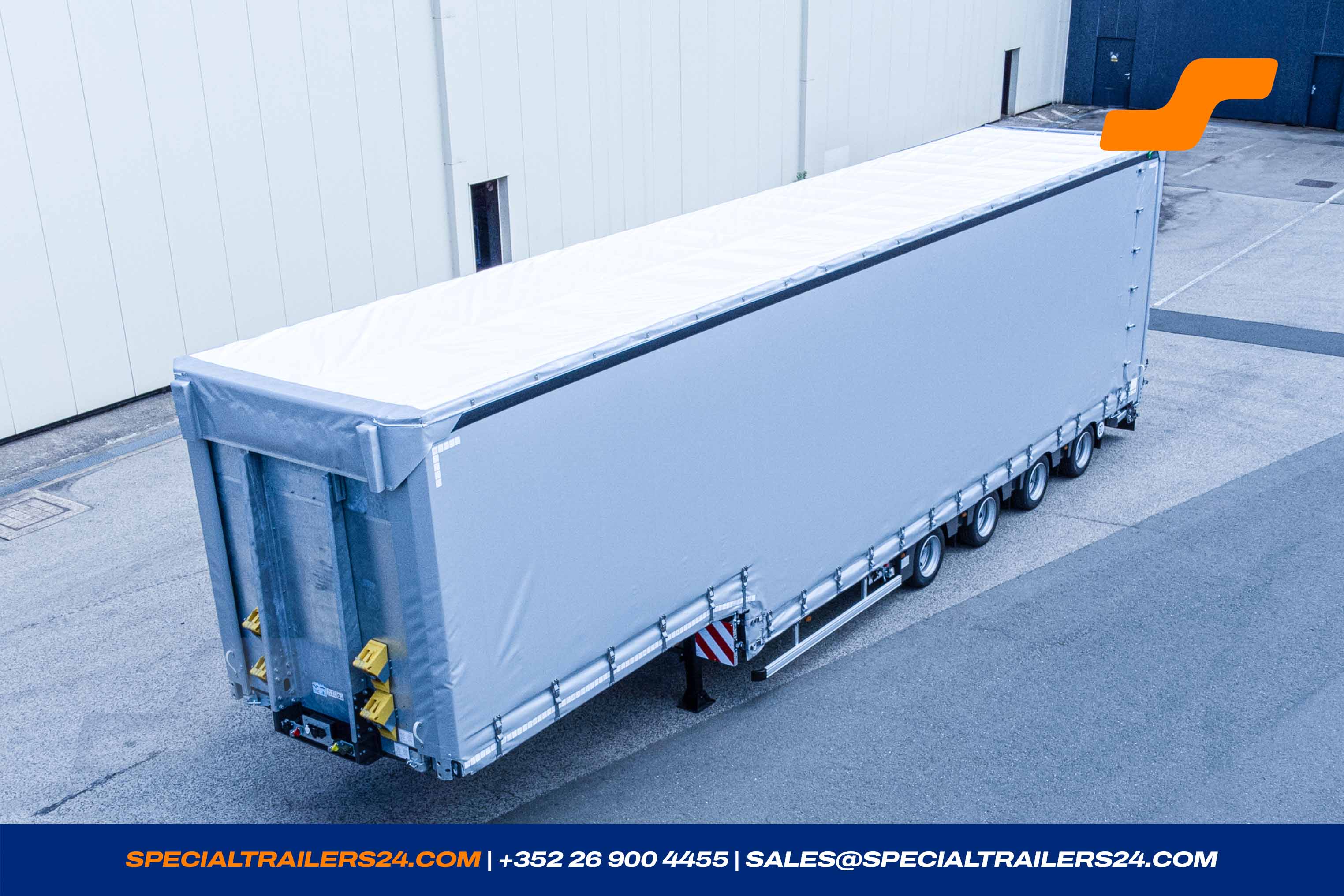

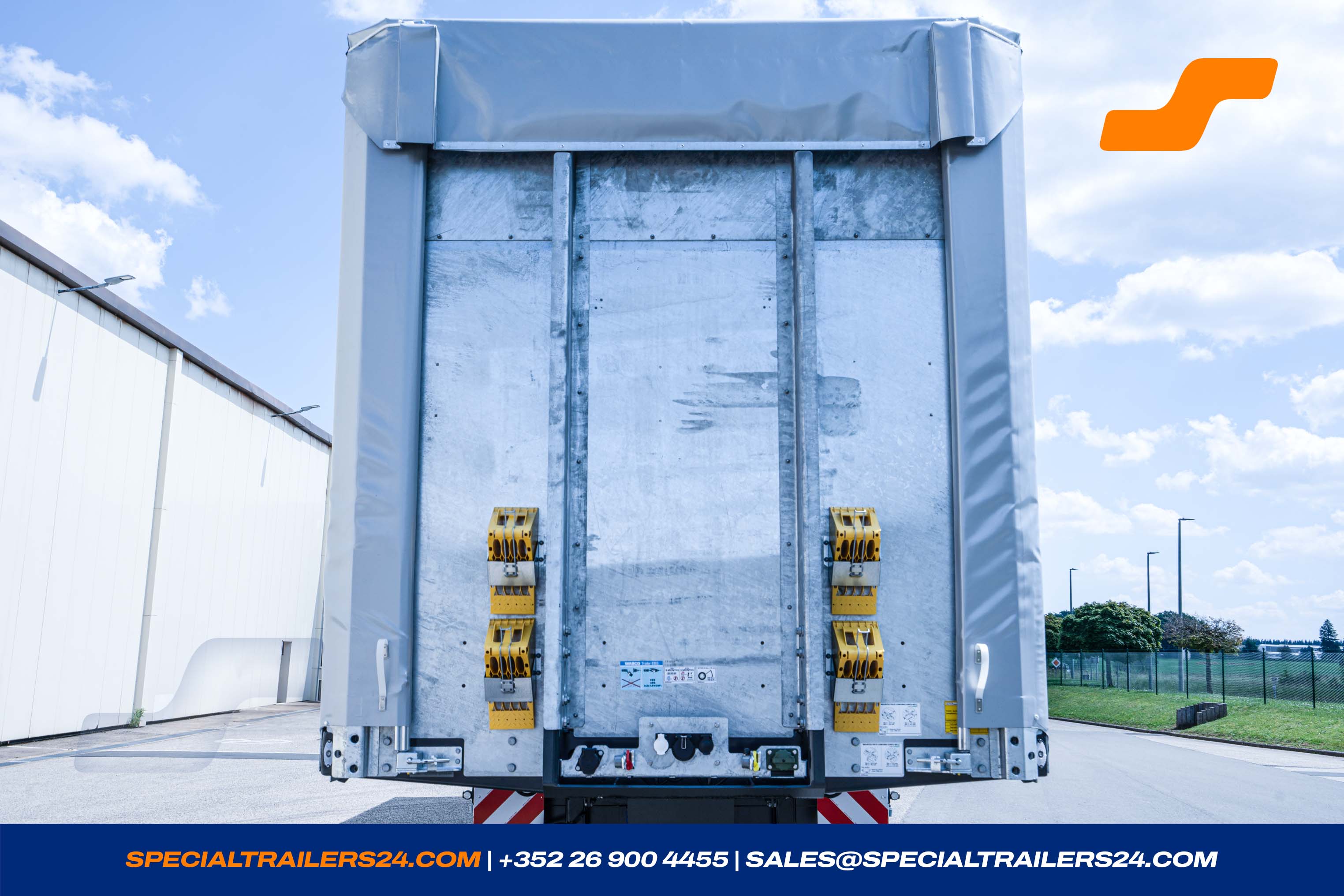

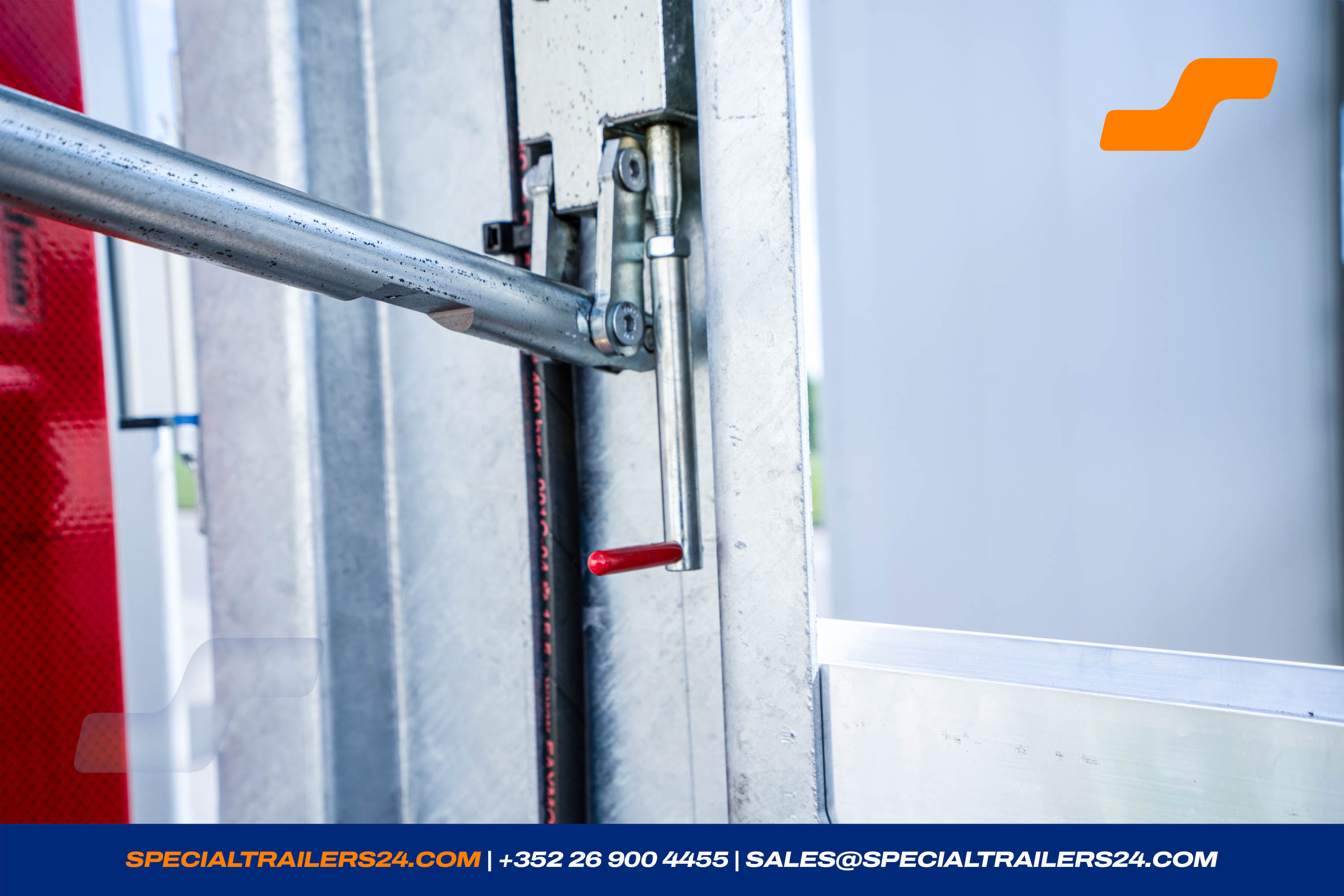

- Front headboard galvanised steel,with a tensioning mechanism for the curtainsider.
Height-adjustable by approx. 400 mm.

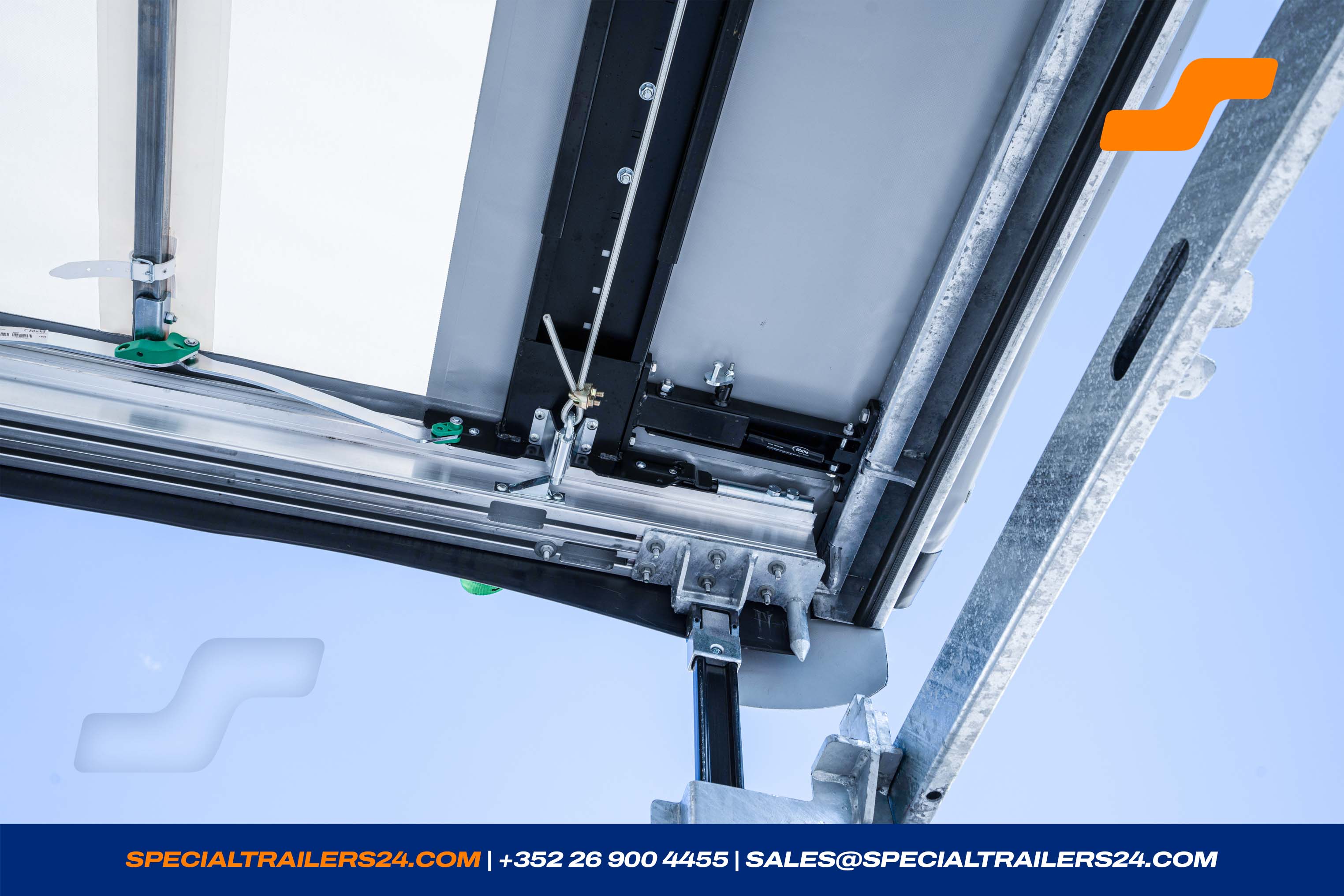

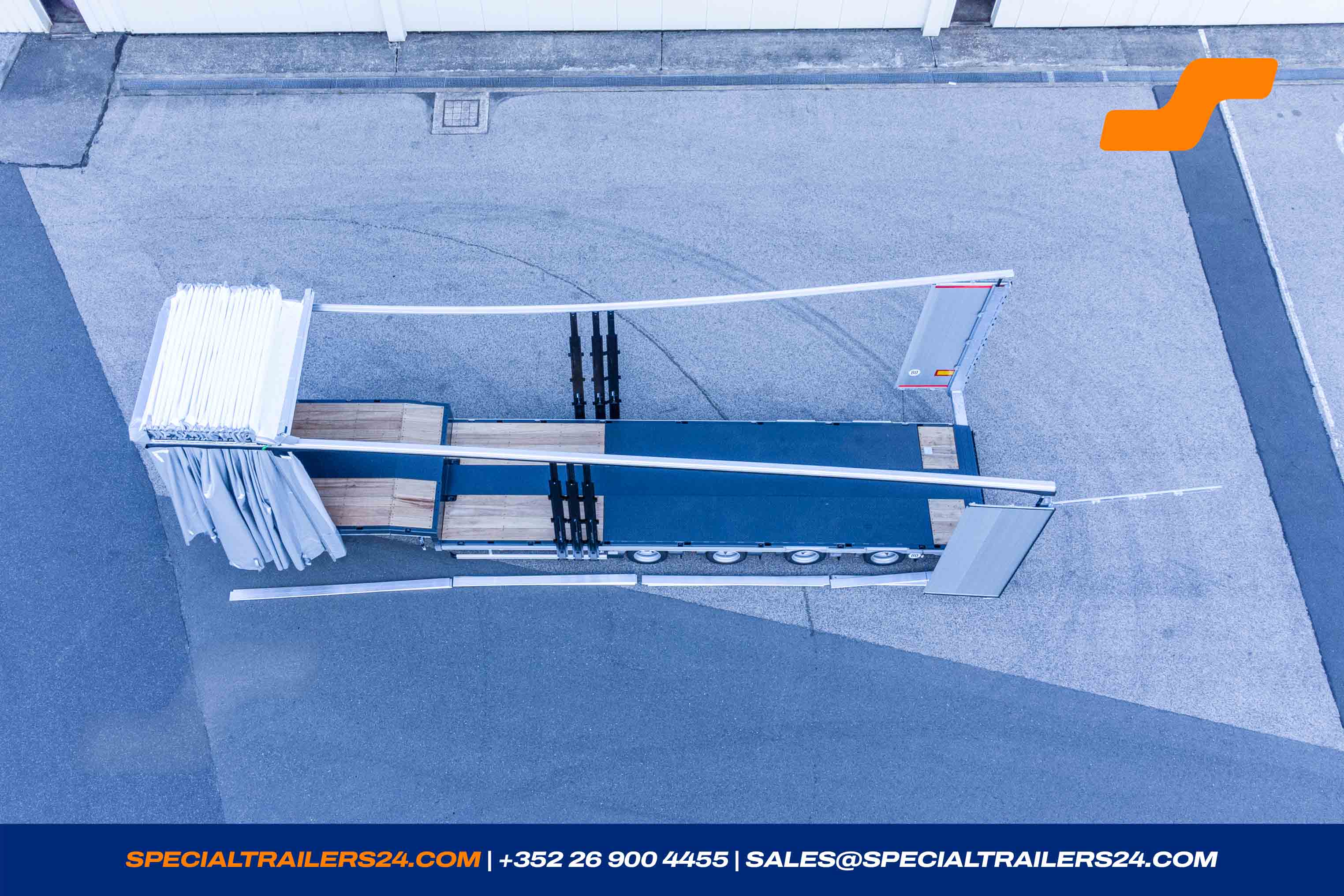

- EDSCHAroof sliding forwards on ALU roof belt profiles (bolted to front and rear wall).

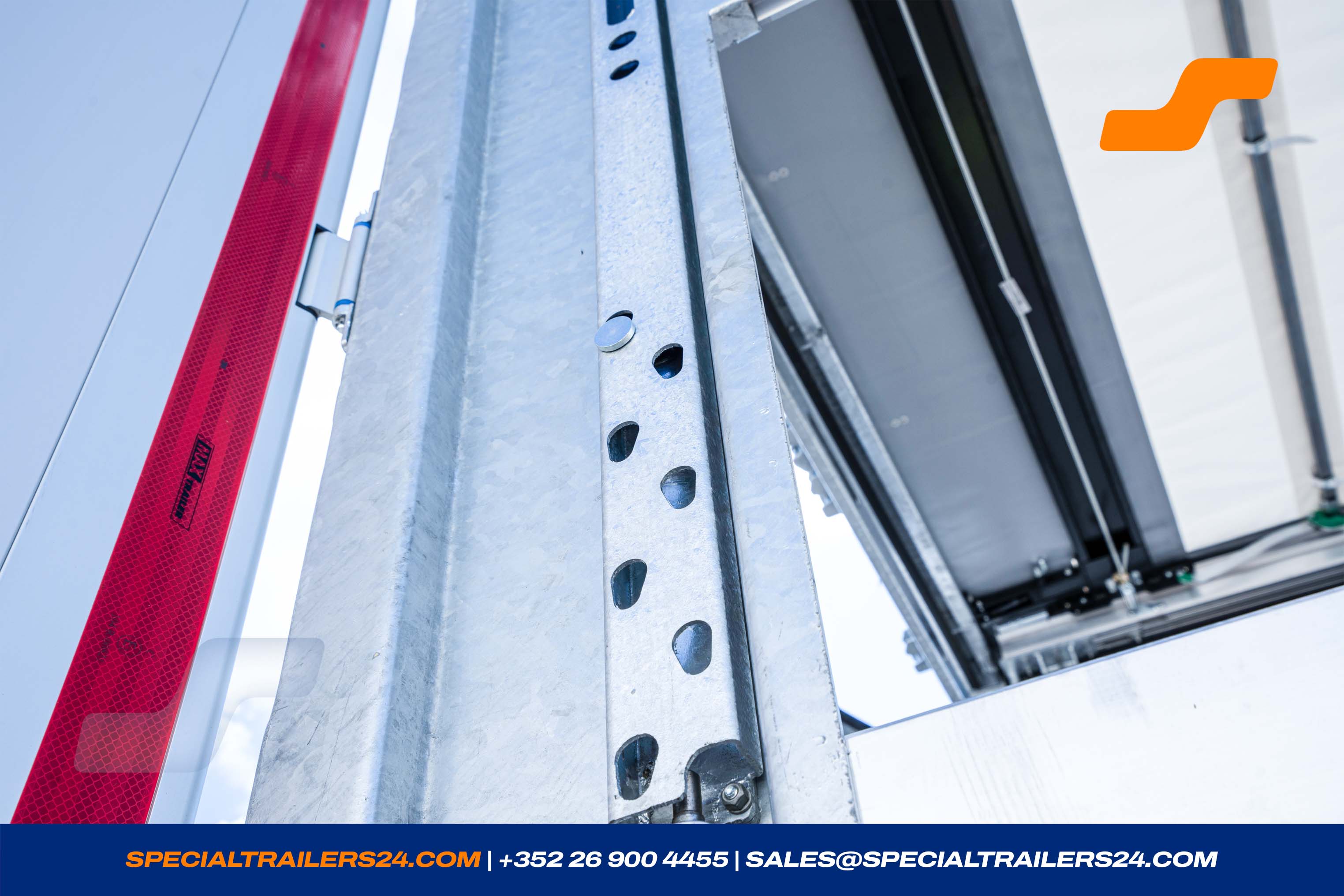

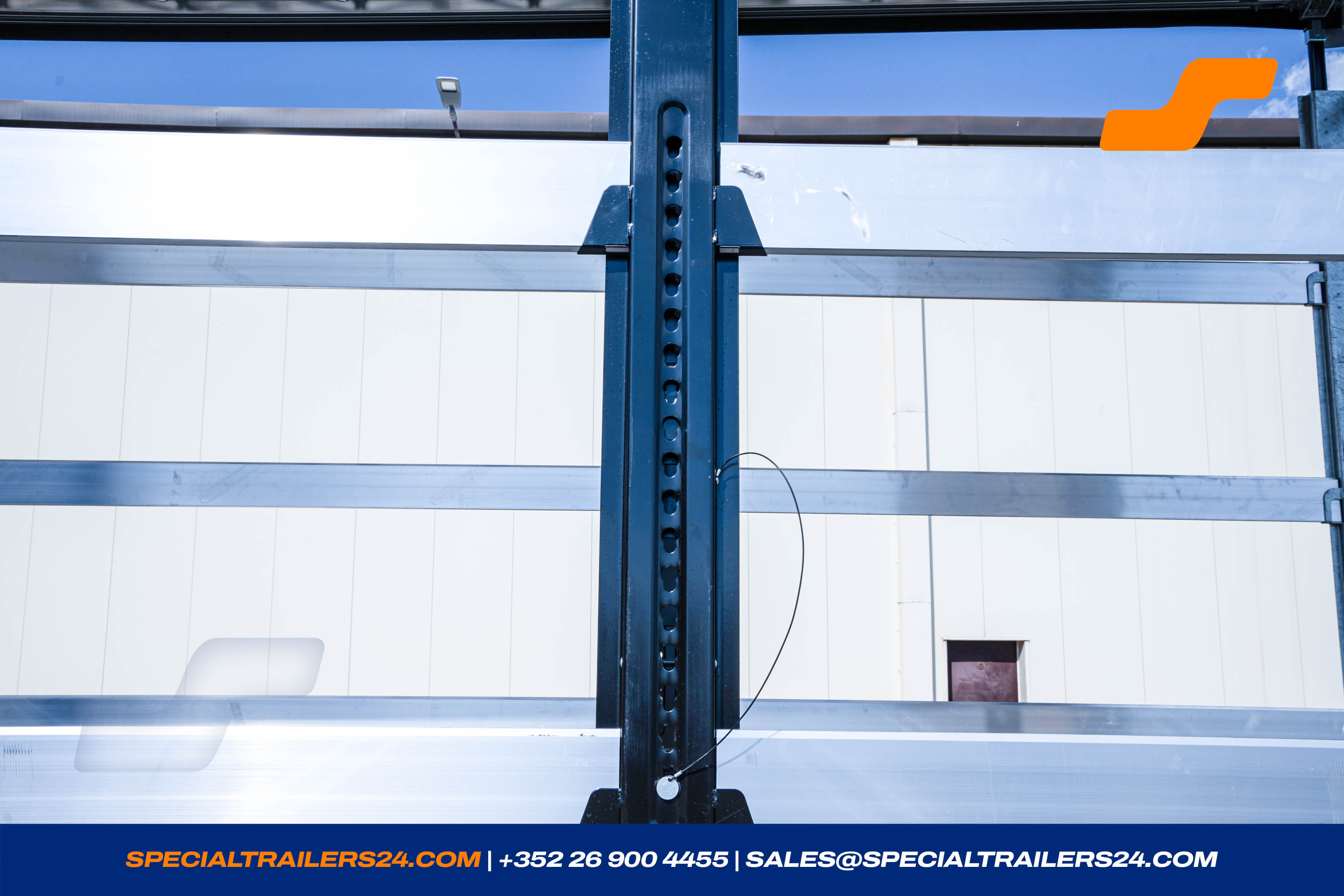

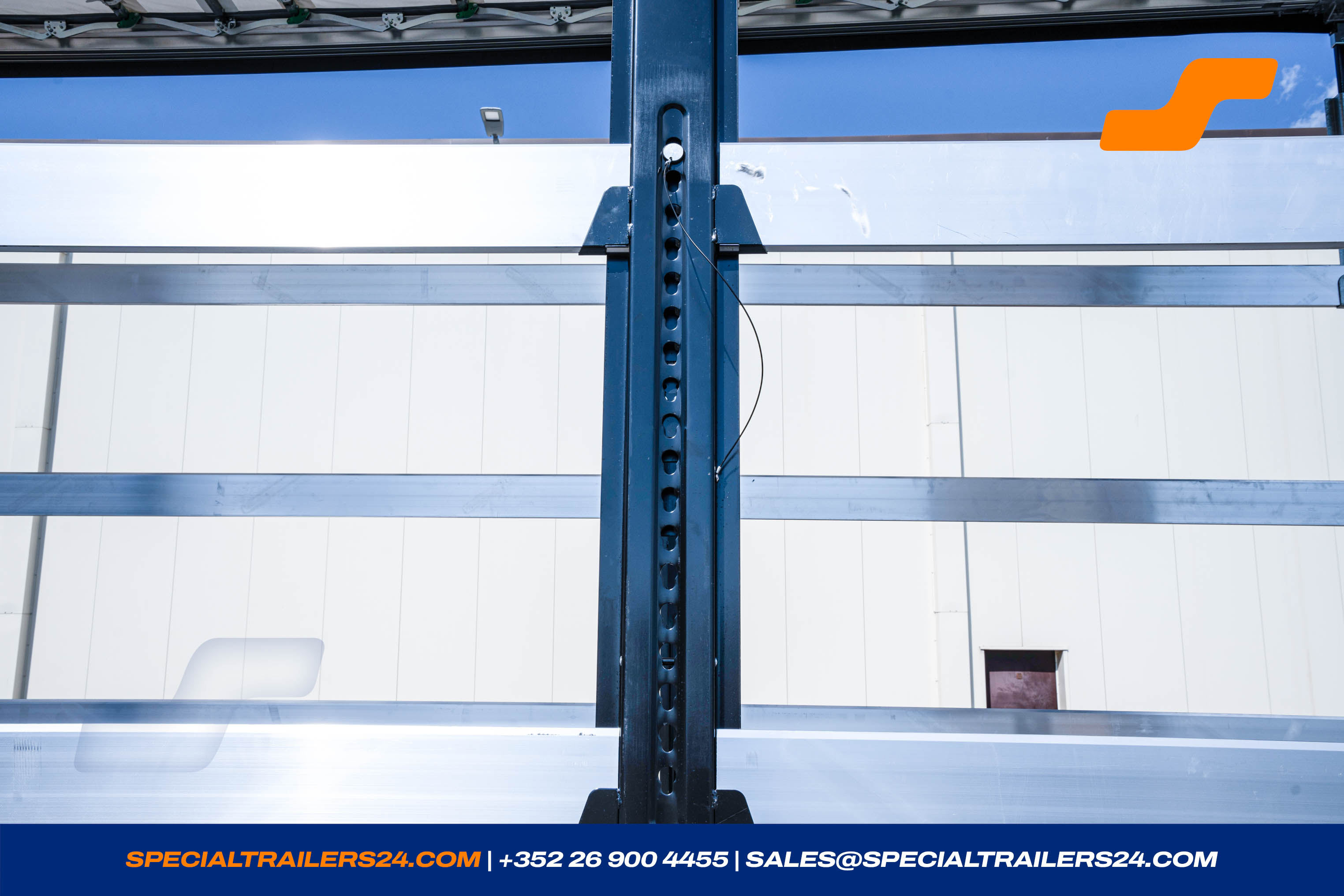

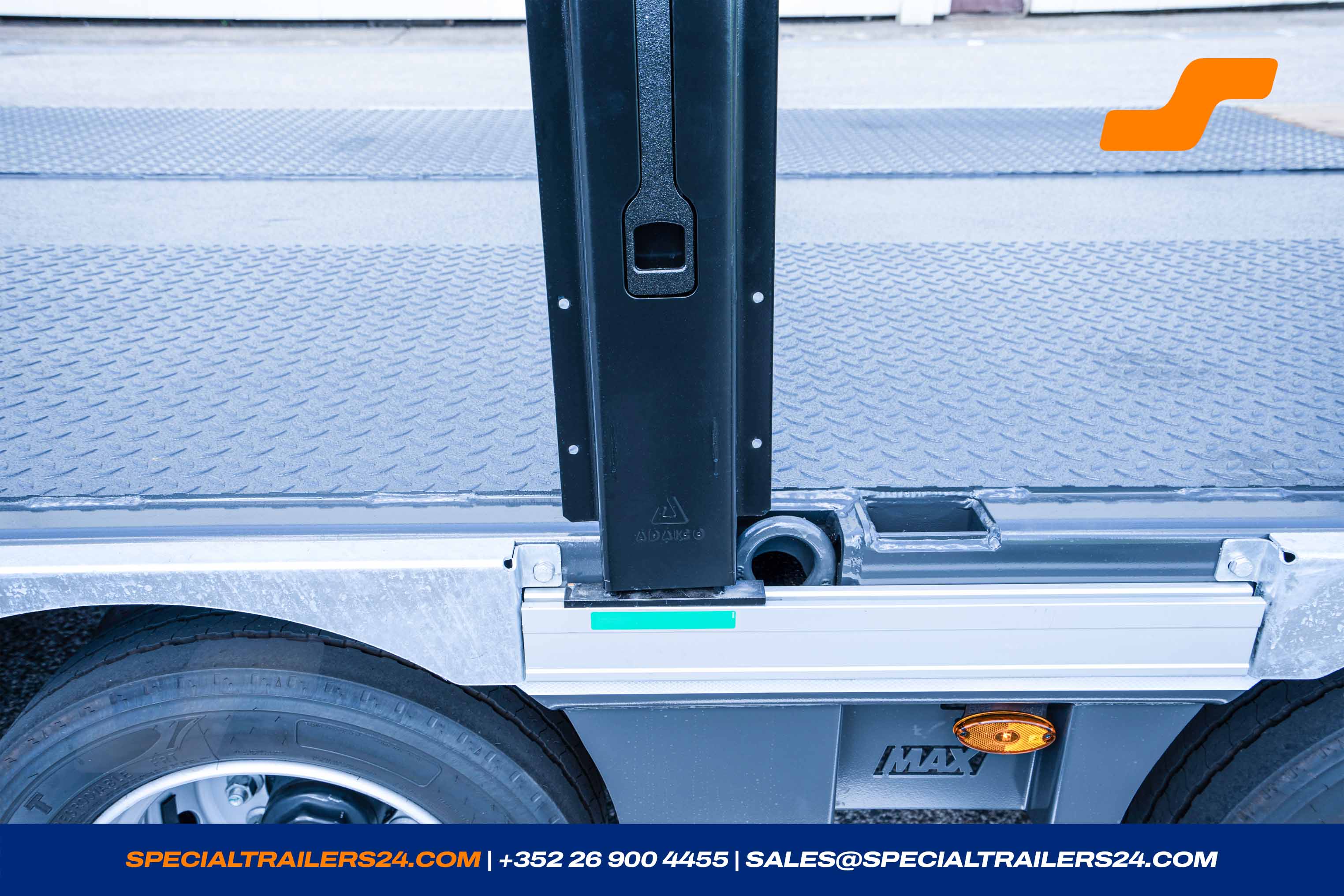

- On the loading area 3 pairs of sliding stakes.

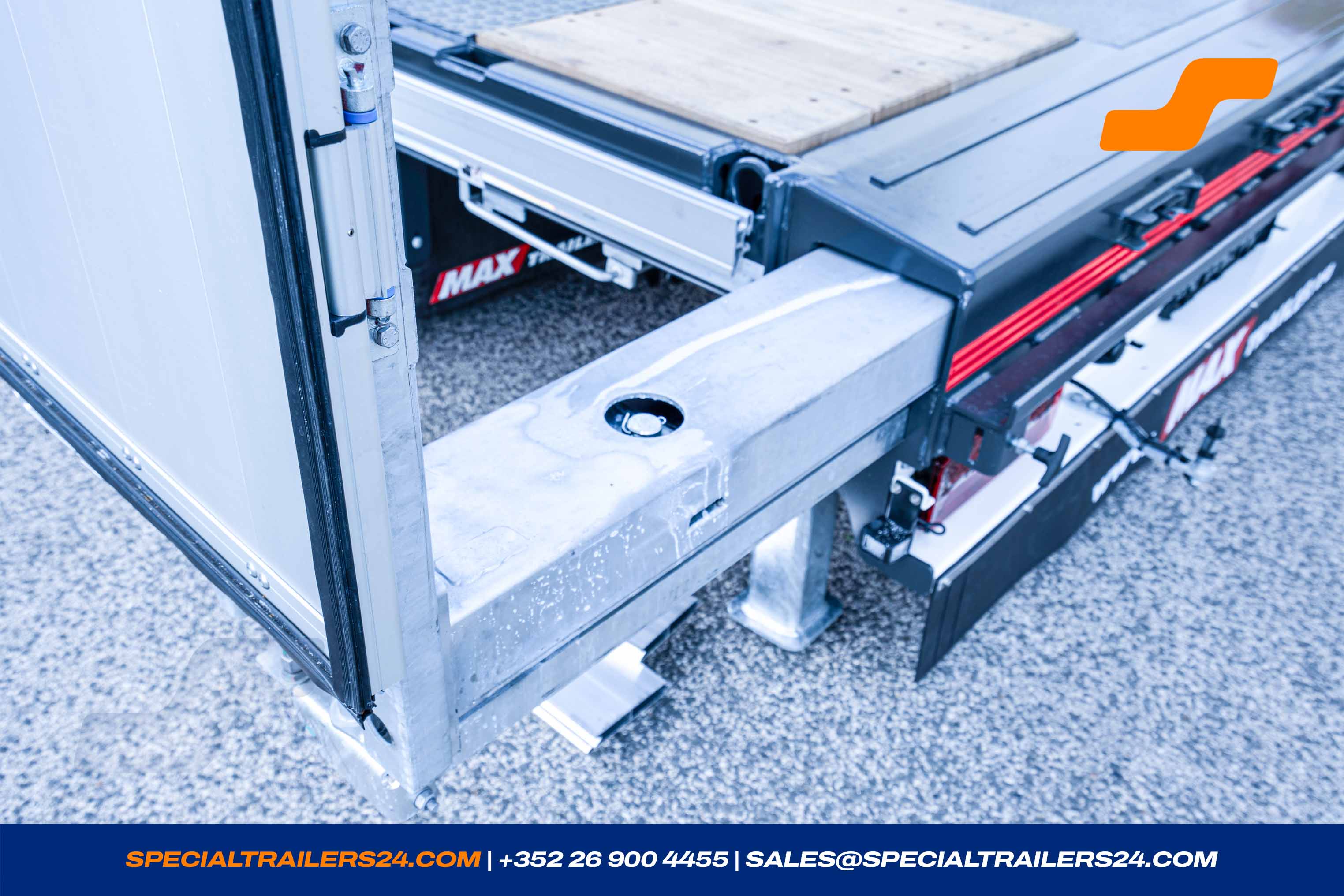

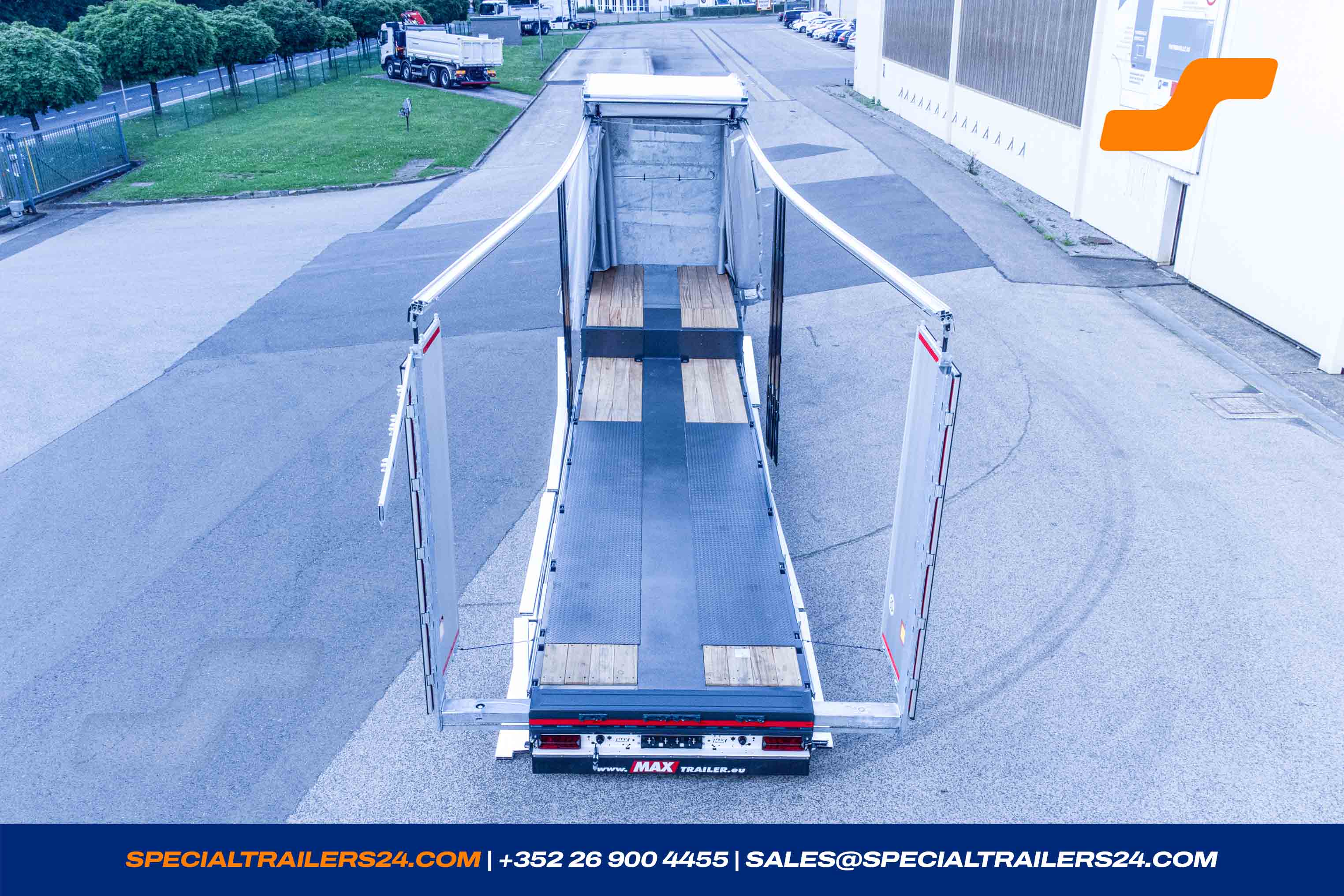

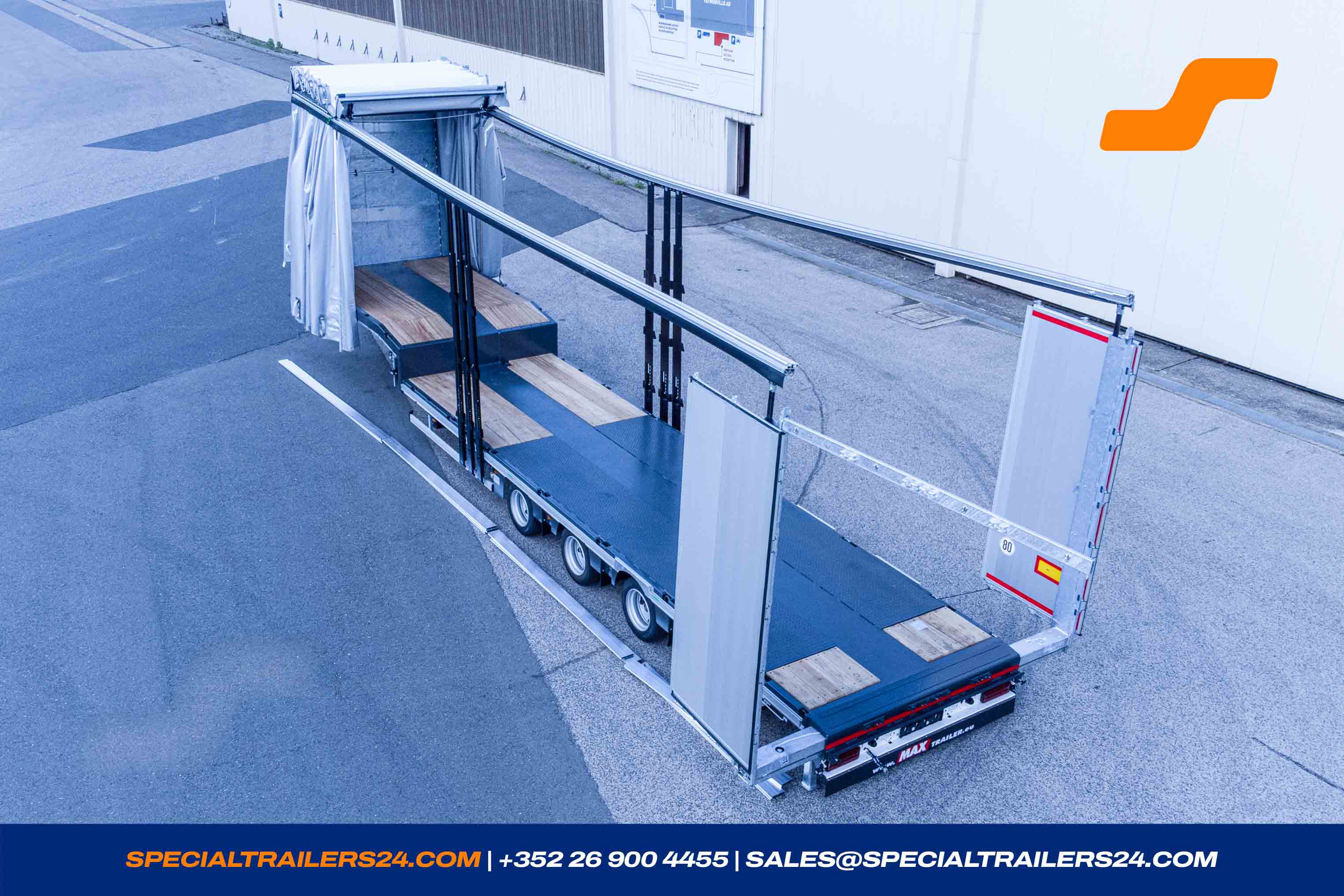

- The rear corner stakes can be hydraulically extended by 750 mm to the left and right.

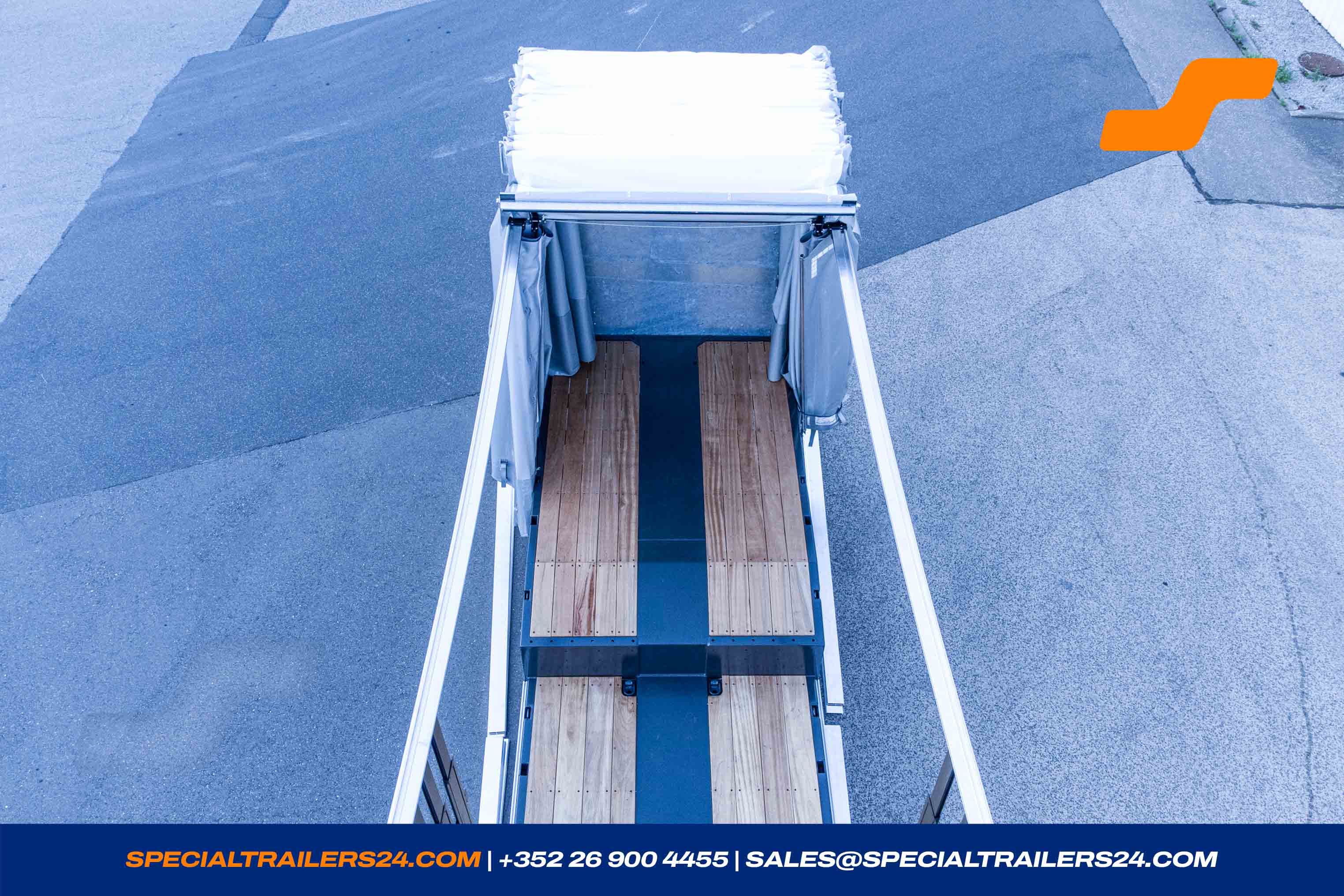

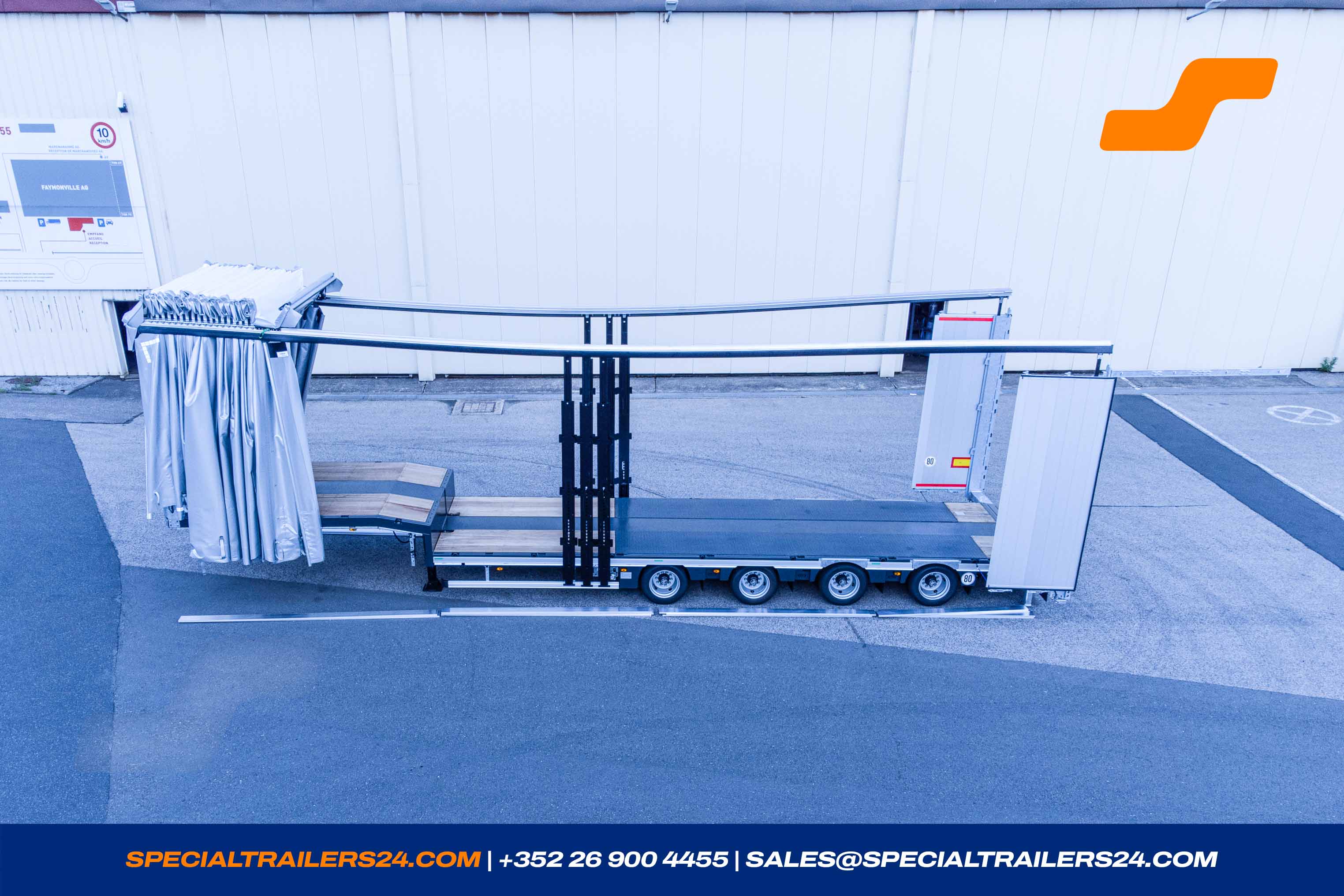

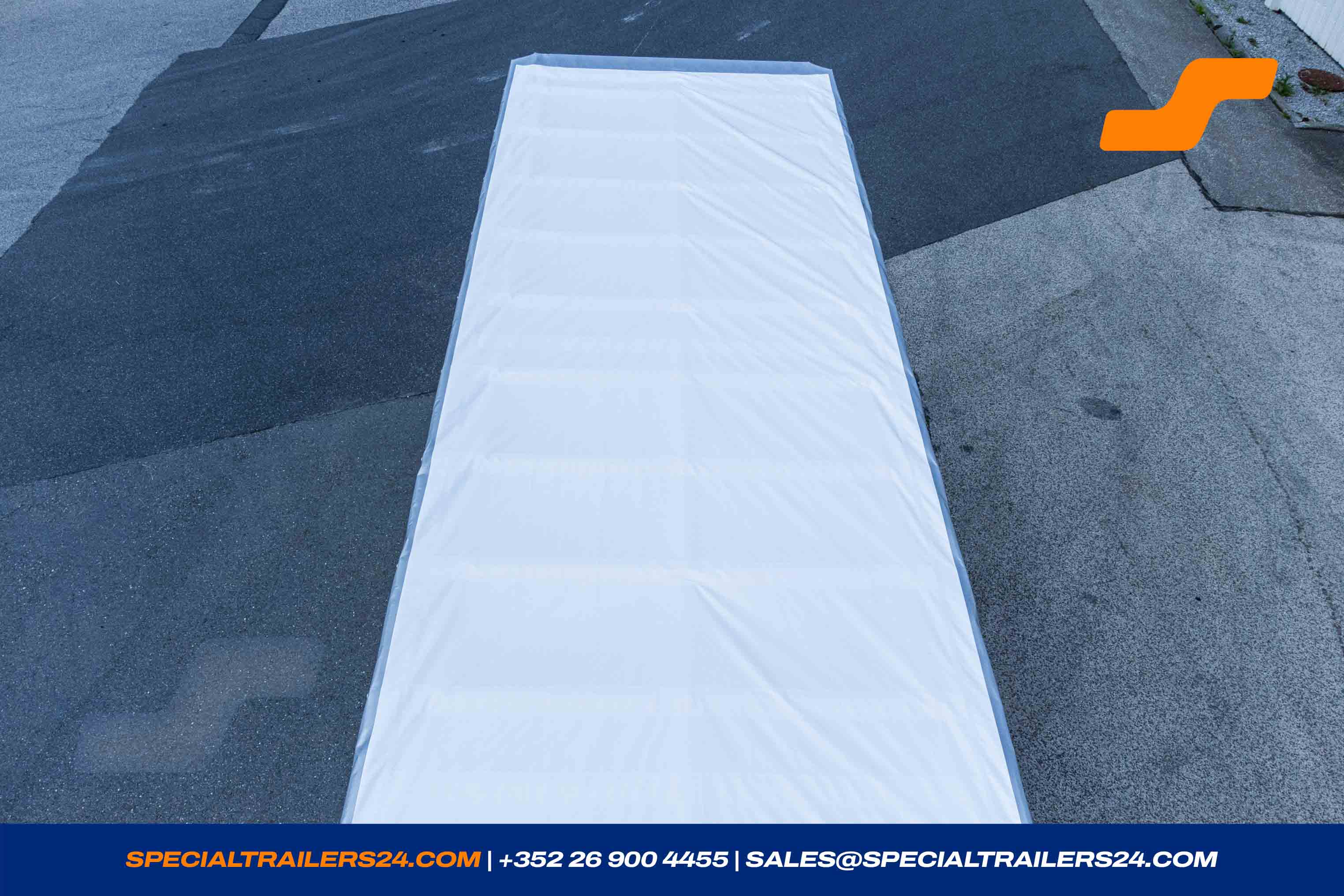

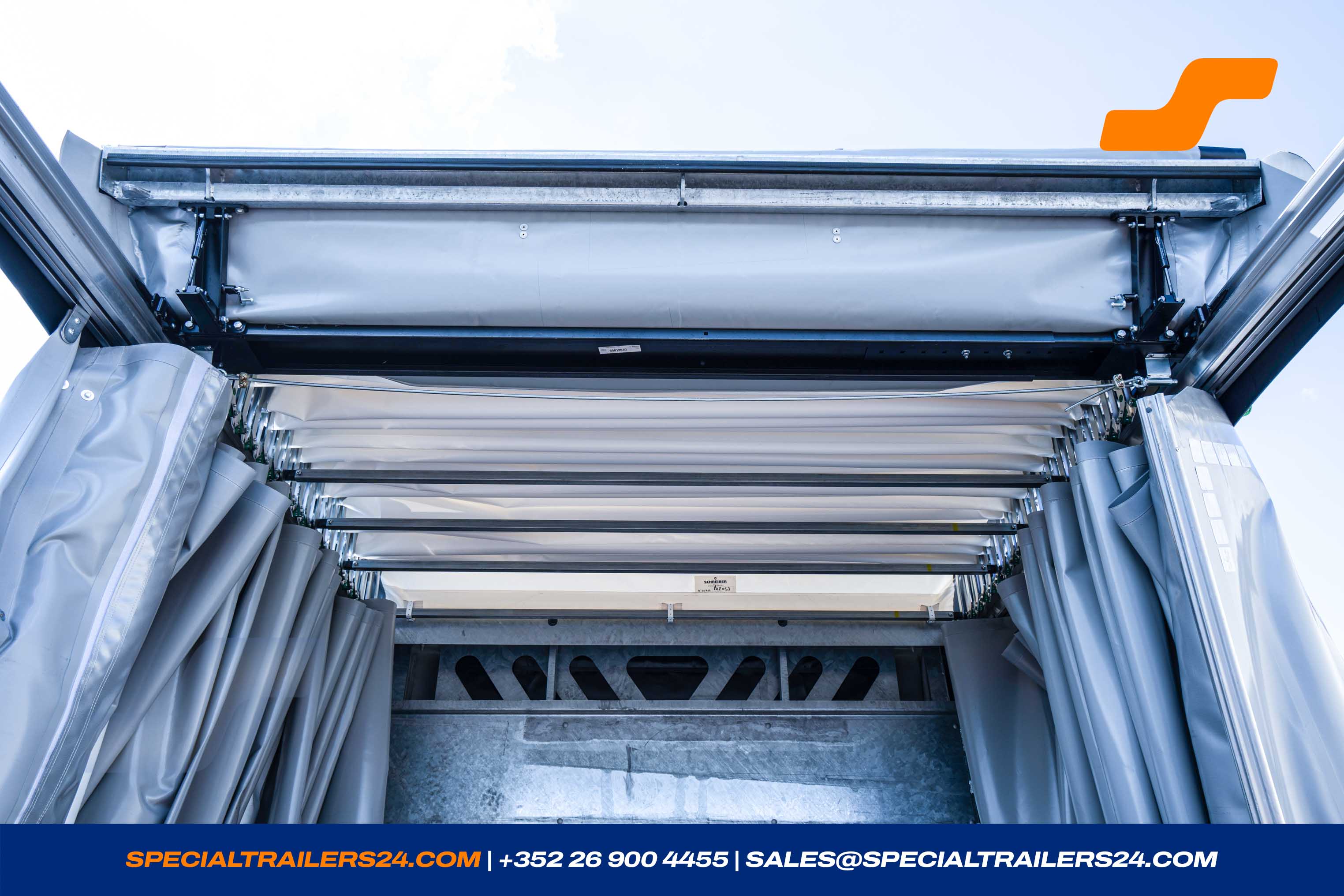

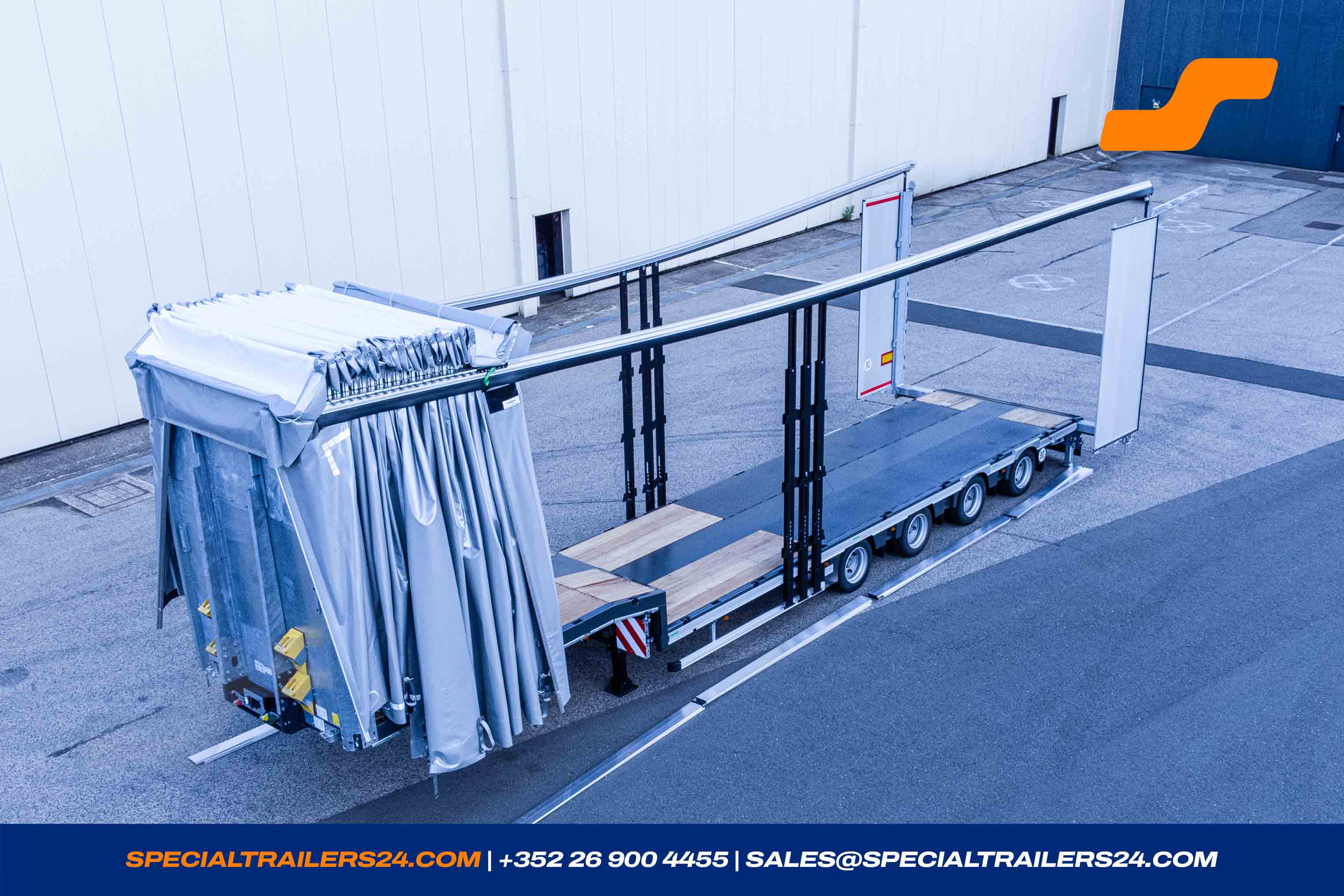

- Sliding roof with high-swinging portal beam.

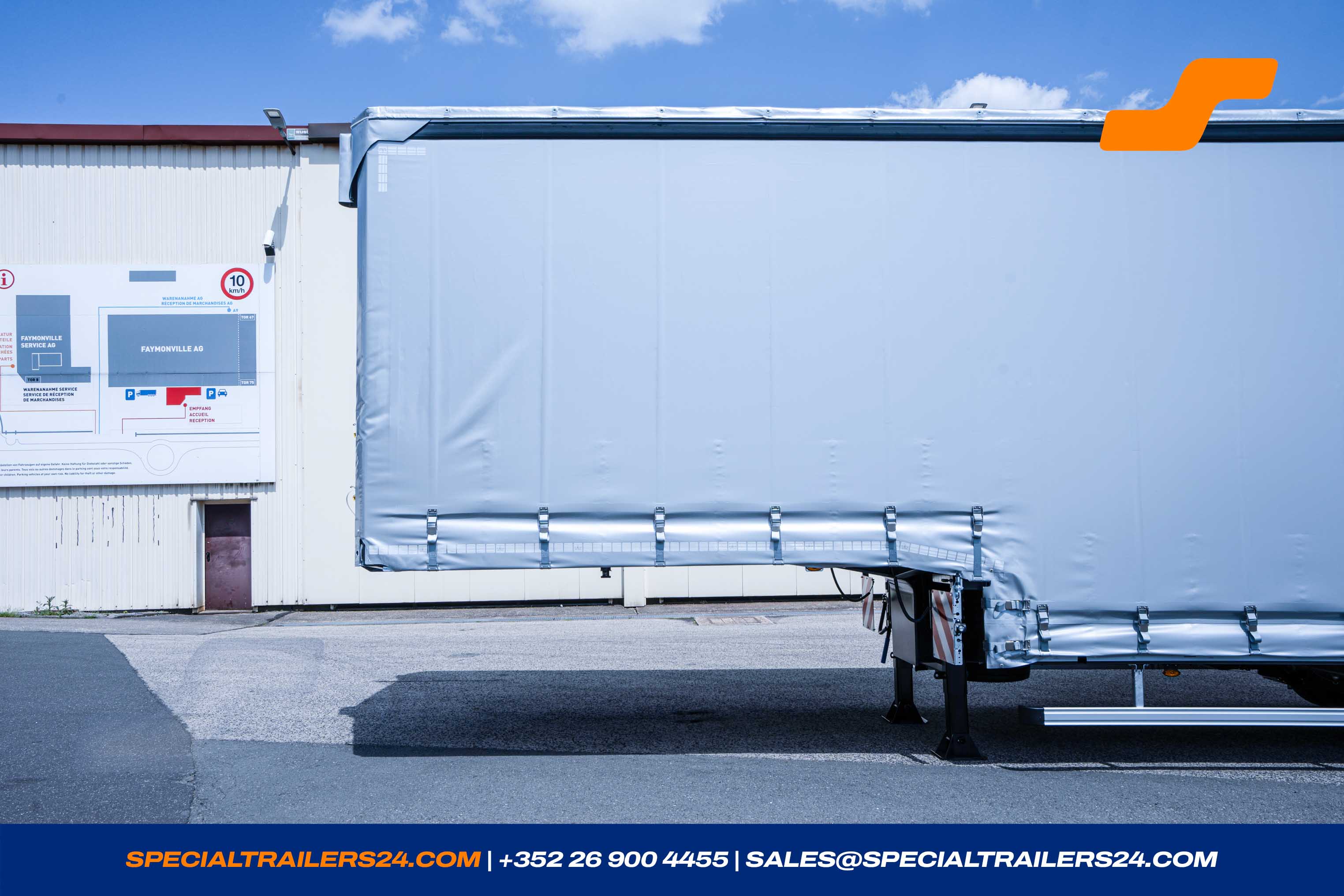

- Sliding tarpaulin with 700 mm reserve in length, with tensioning straps at intervals of approx. 600 mm.
Height of upper edge of construction 3.960 mm (Loaded).

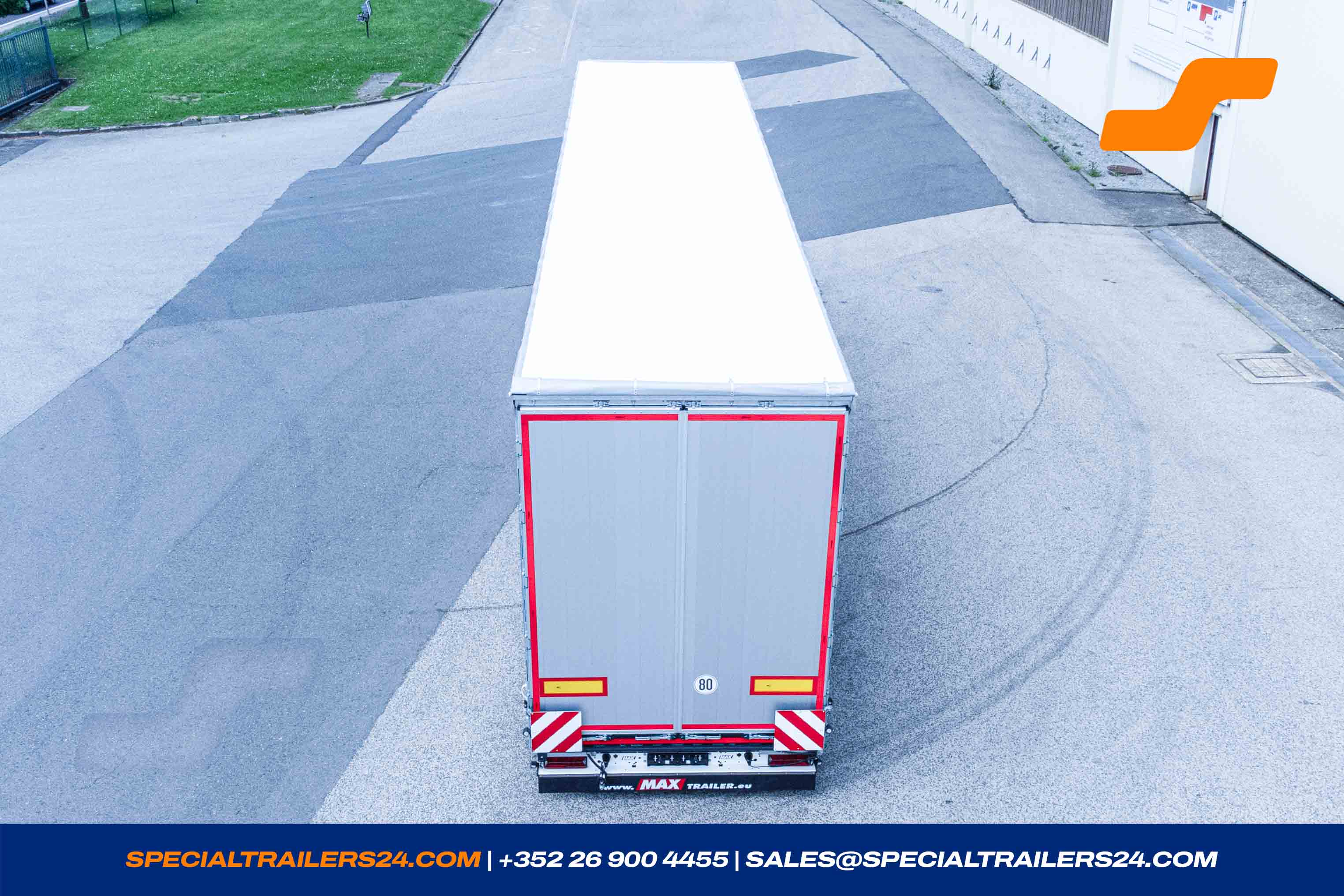

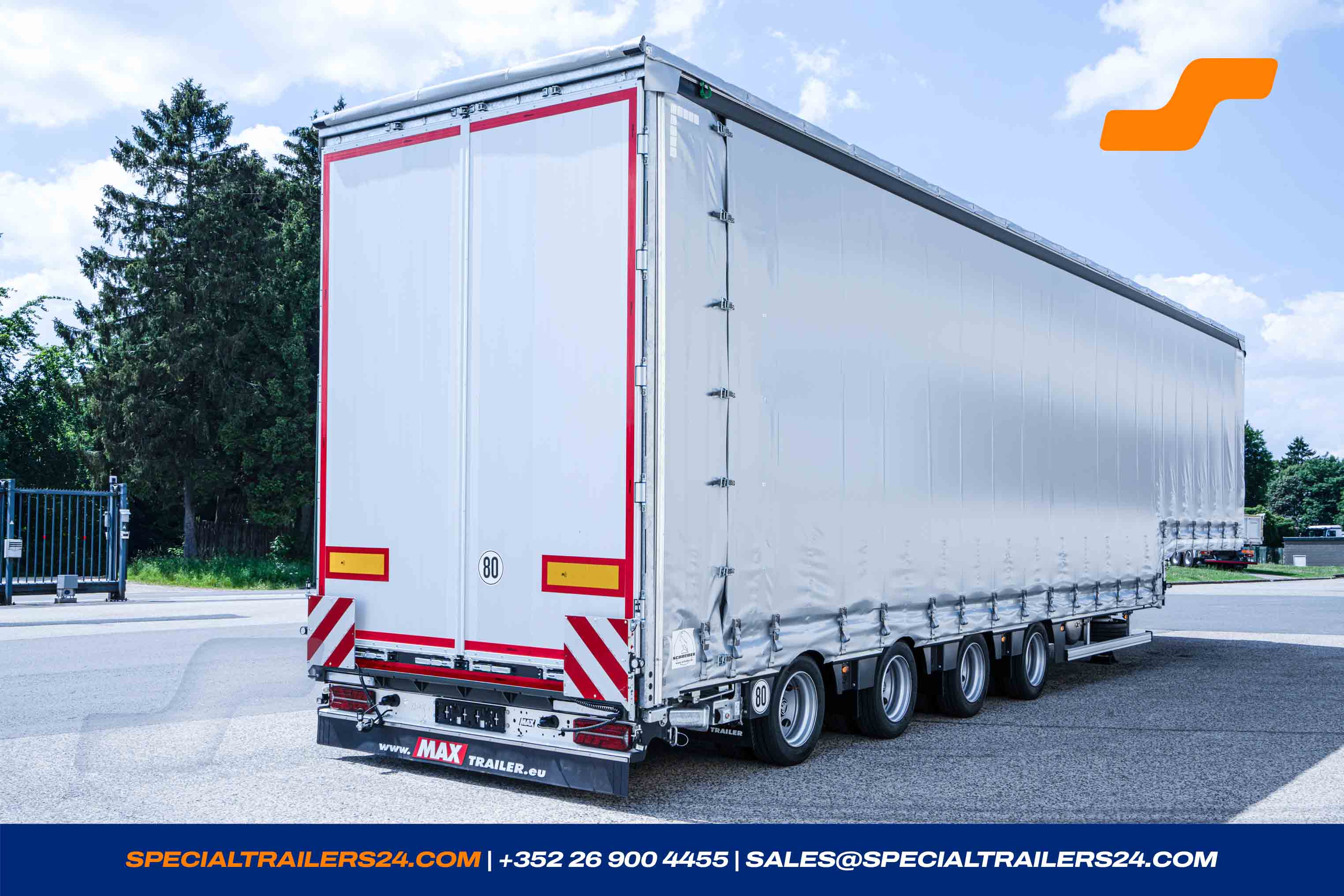

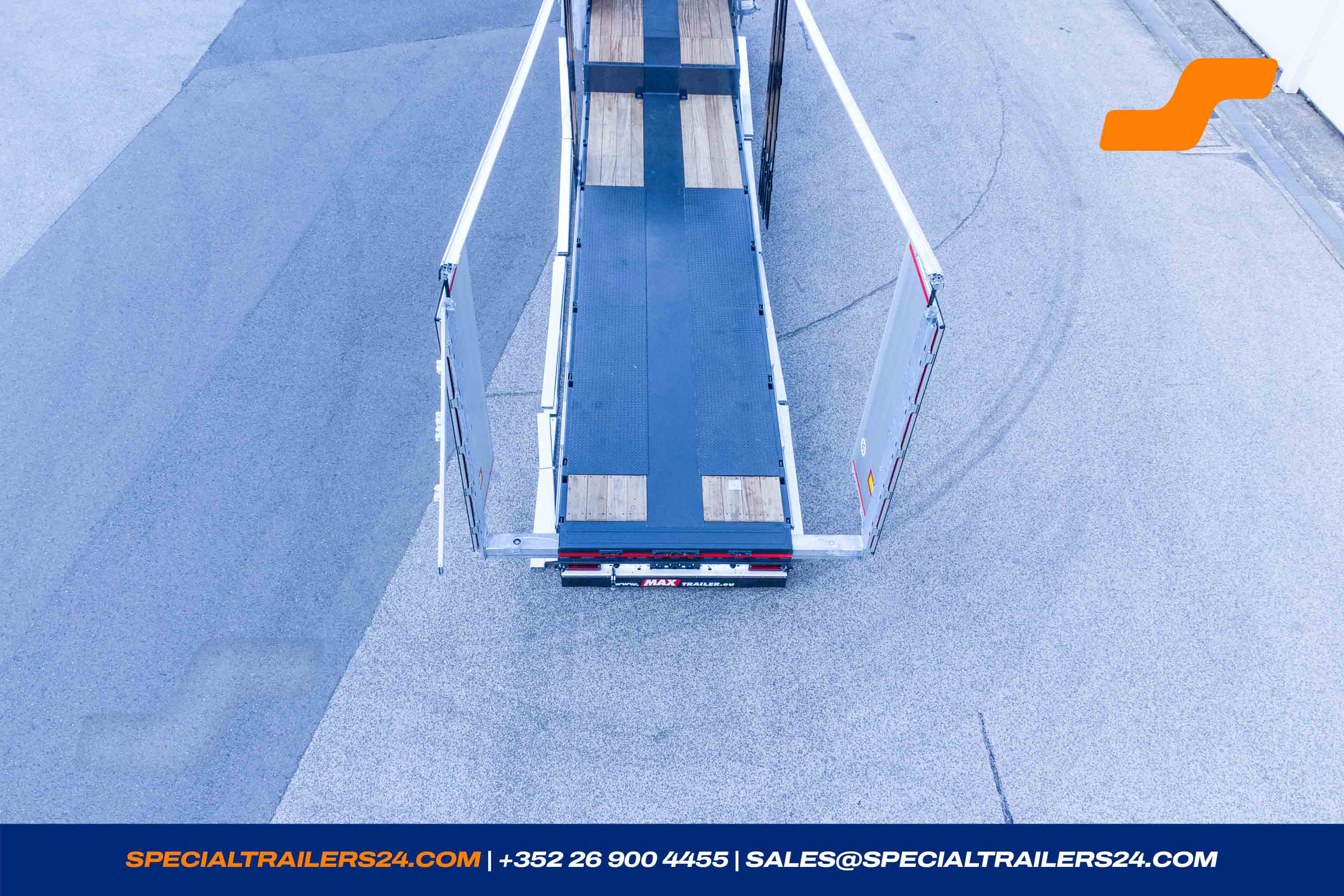

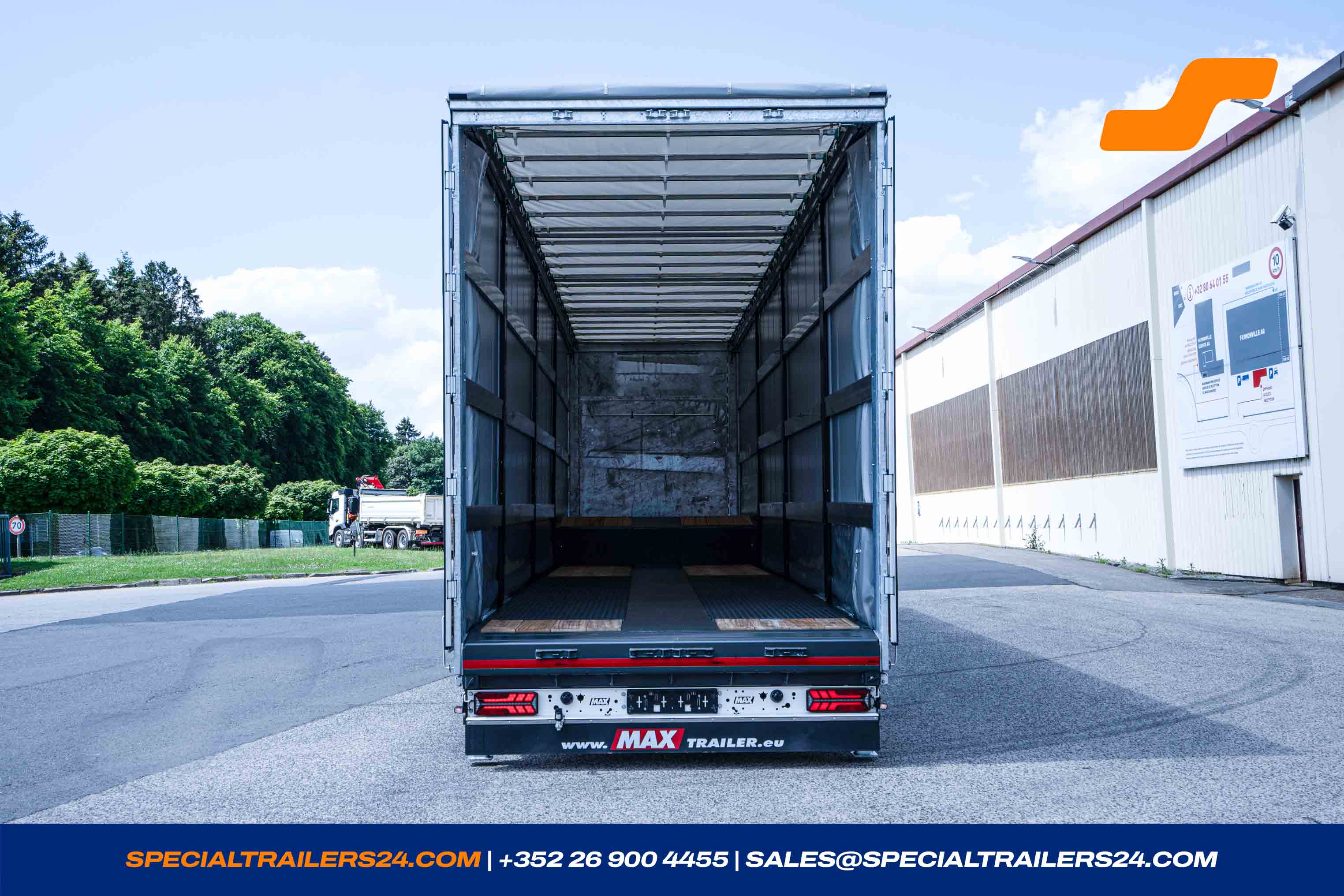

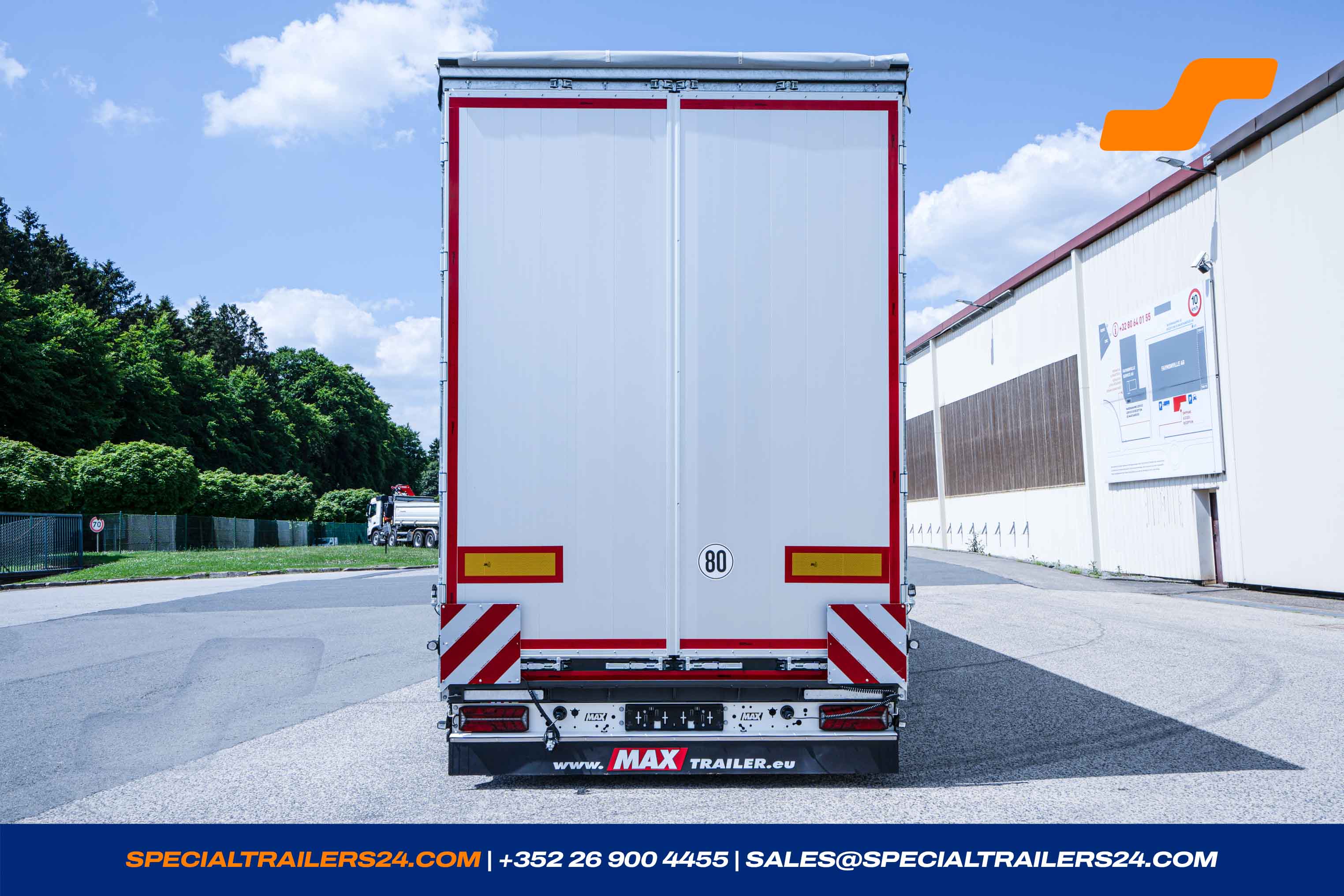

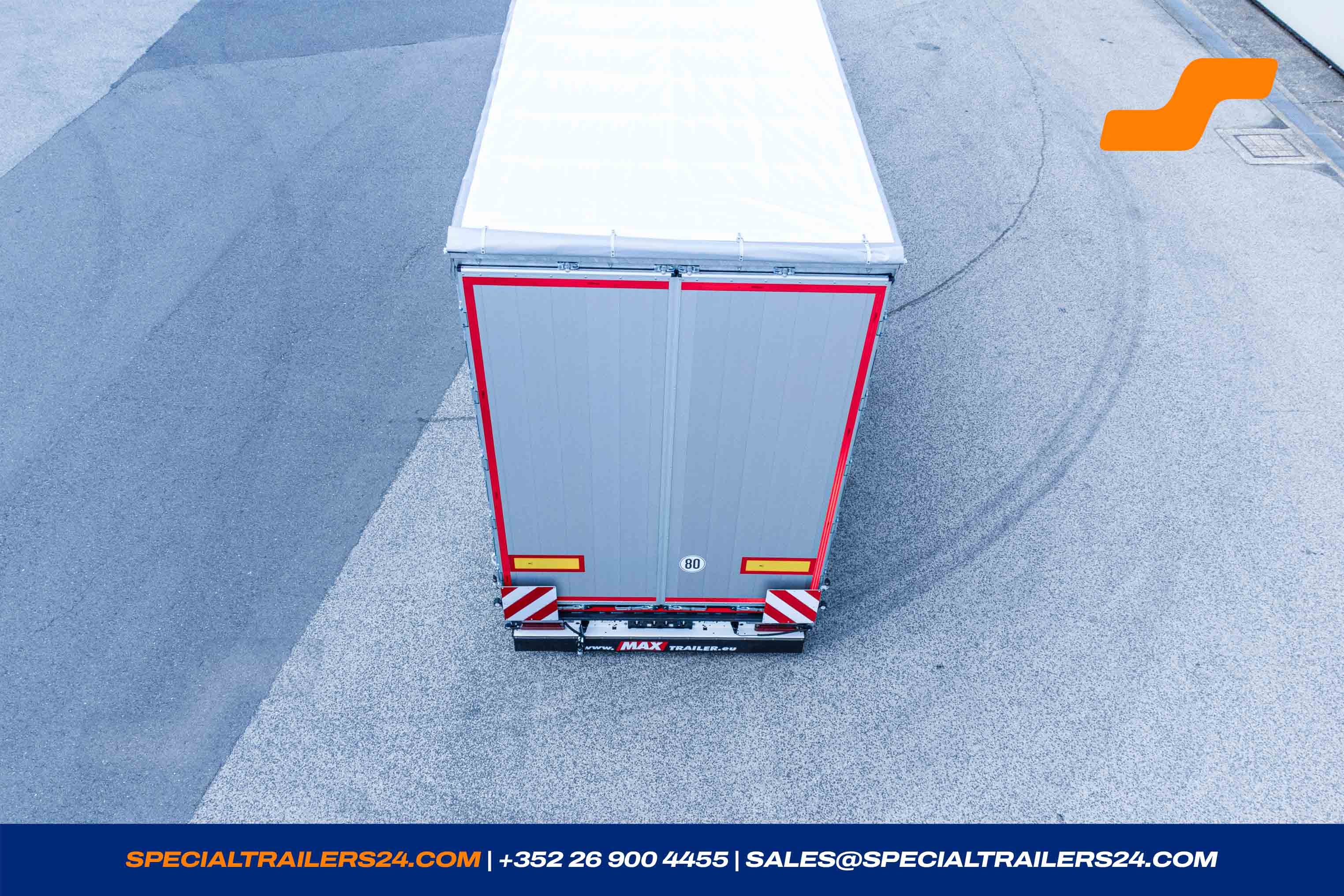

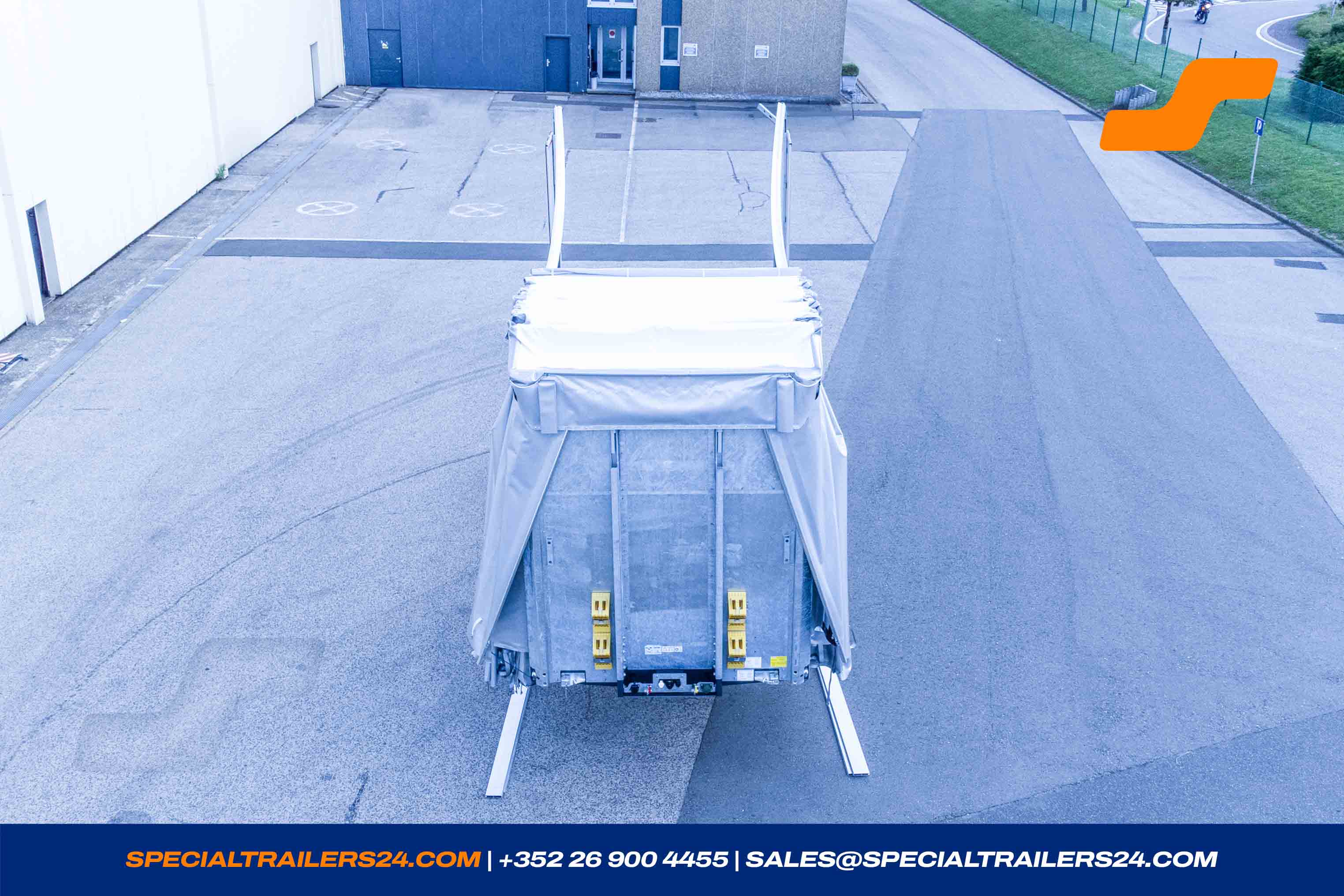

- Driving with the sliding roof open is not permitted and will damage the tarpaulin. - Body closed at the rear with anodised ALU hinged doors.
- Profile as hook on device for alu-ramps at the rear.

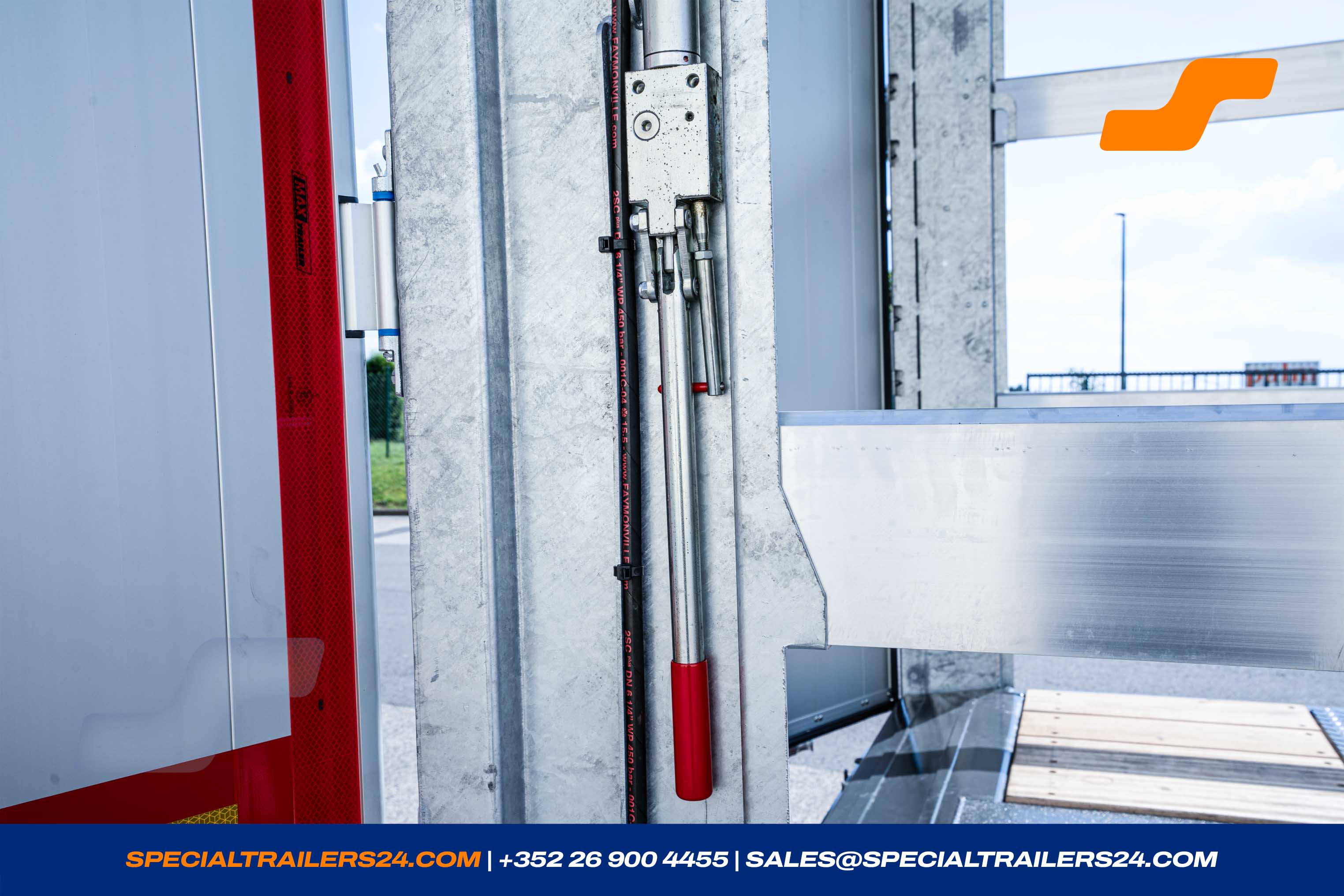

- Control valves for the hydraulic widening of the body, mounted on the right side. (± 4 kg)
- White reflective tape according to the EU regulation over the entire length, red on the rear.

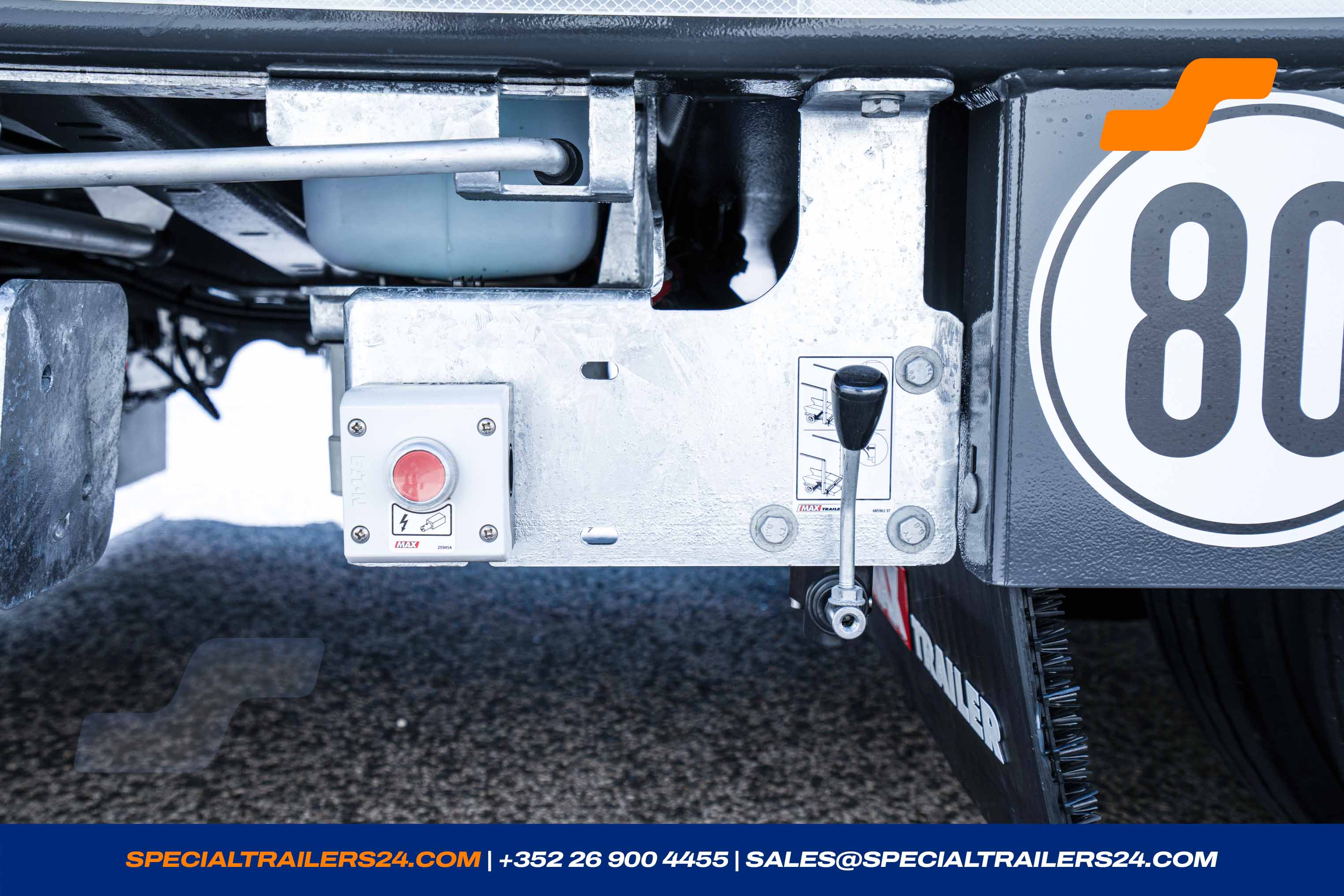

- Electrically operated hydraulic pump at the rear under the loading platform. (± 45 kg)
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- Delivery from a trailer to factory Büllingen.
- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- 3 heights alu boards.
- 7 pairs of pockets for stakes ca. 100 x 50 mm in the outer frame of the loading platform. (± 21kg)

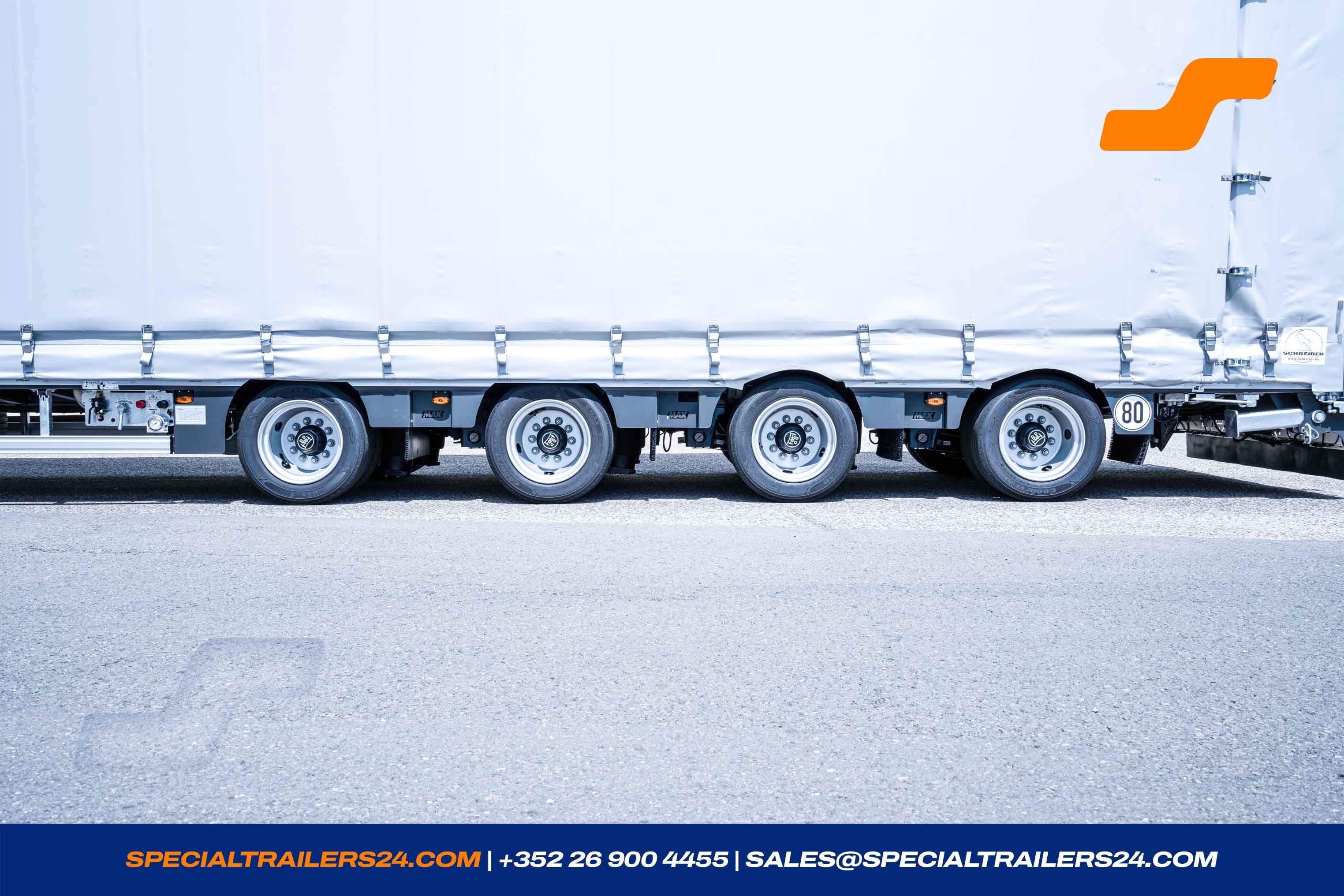

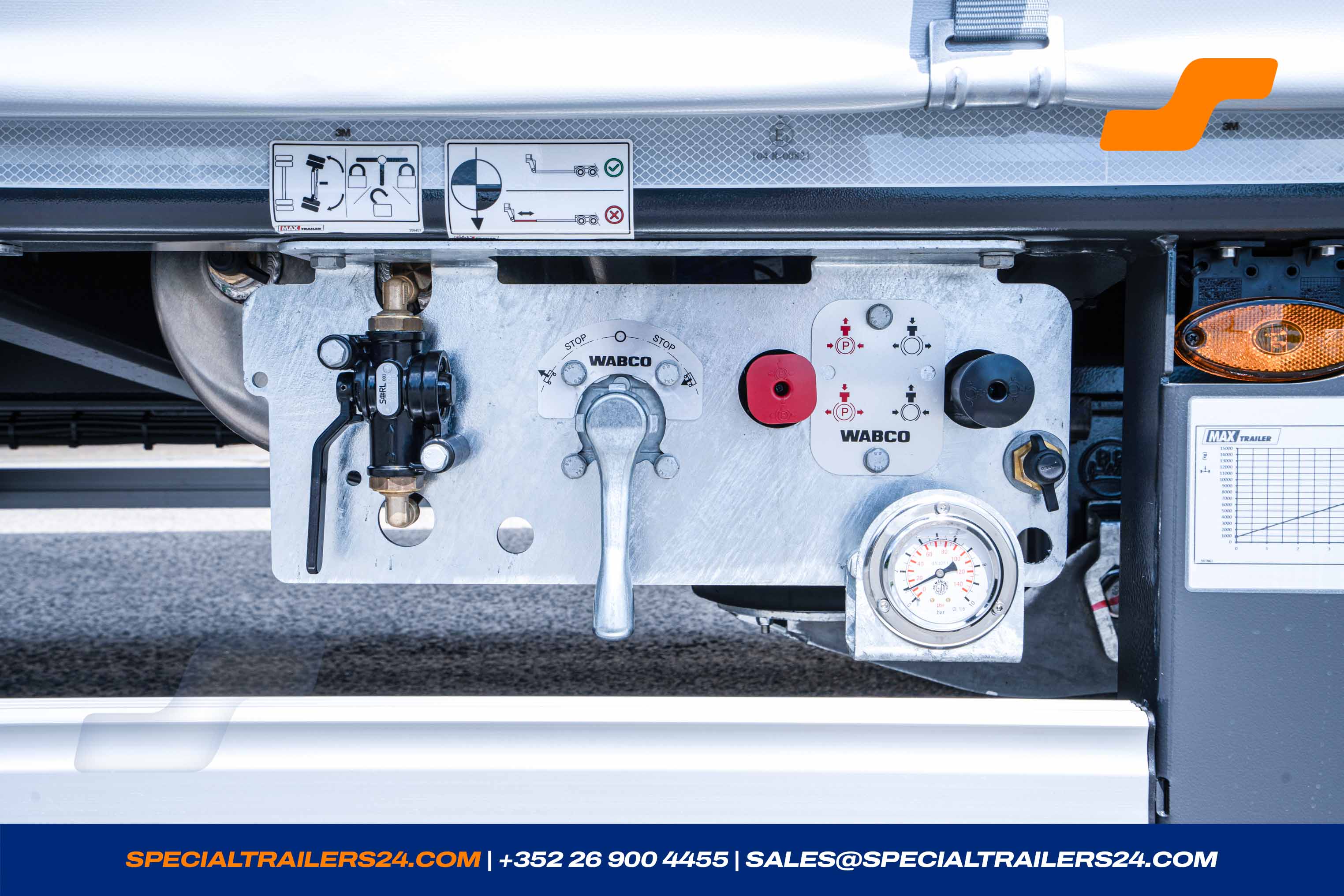

- Lift axle on the front axle with control by TEBS-E depending on the current axle load and the current loading condition (± 69 kg).
-
6 pairs of inserted lashing rings along the central beam of the loading area (LC 5.000 daN).
1 pair of inserted lashing rings along the central beam at the back end of the chamfer (LC 10 000 daN). (± 27kg) - Anti-slip-coating with sand above the chequer plate of the goosenek and the loading platform.
- 2 LED working lights mounted on the rear plate.
Accessories
1 x Accessory
MAX100-Accessory
- Manual and description on USB stick .
