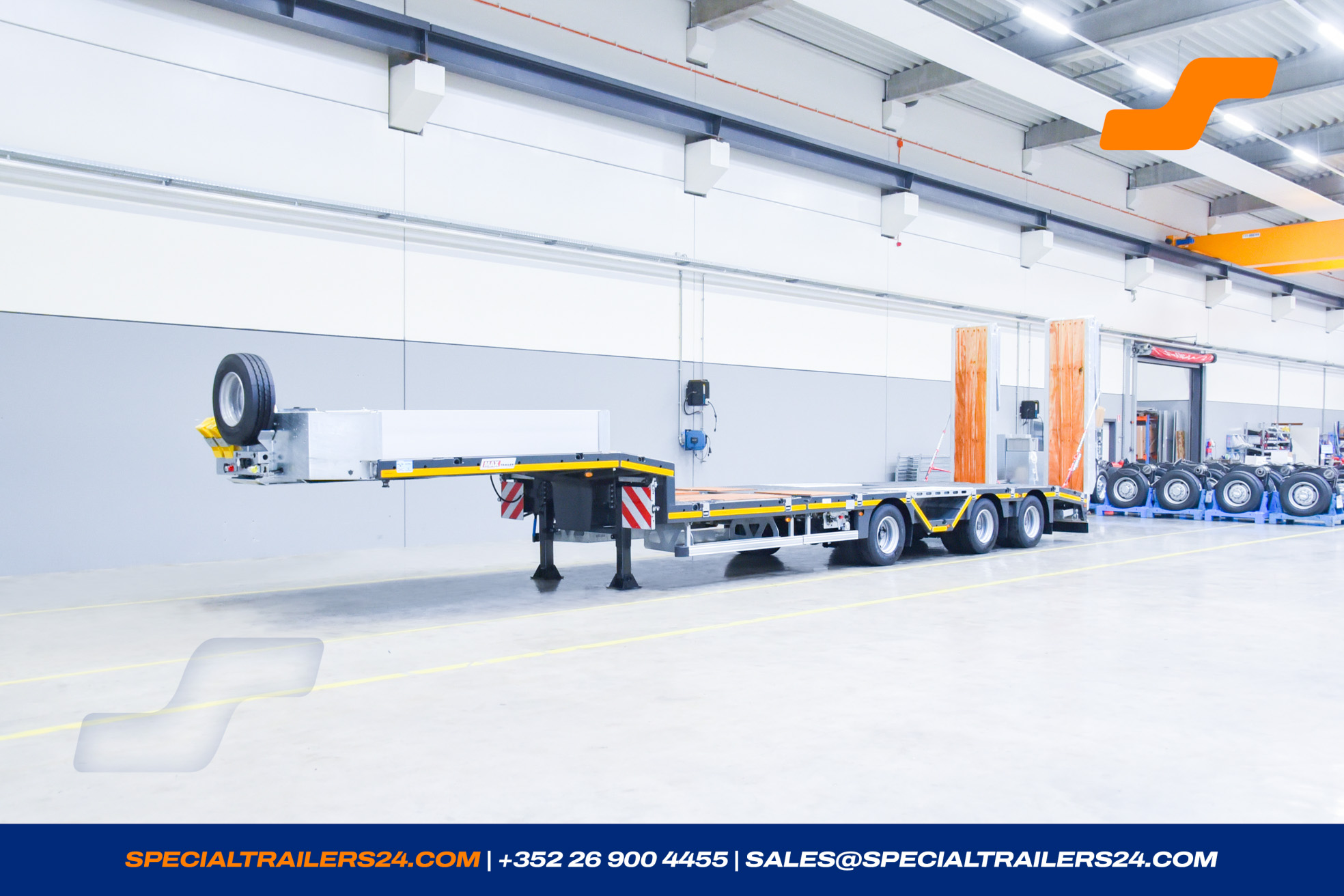

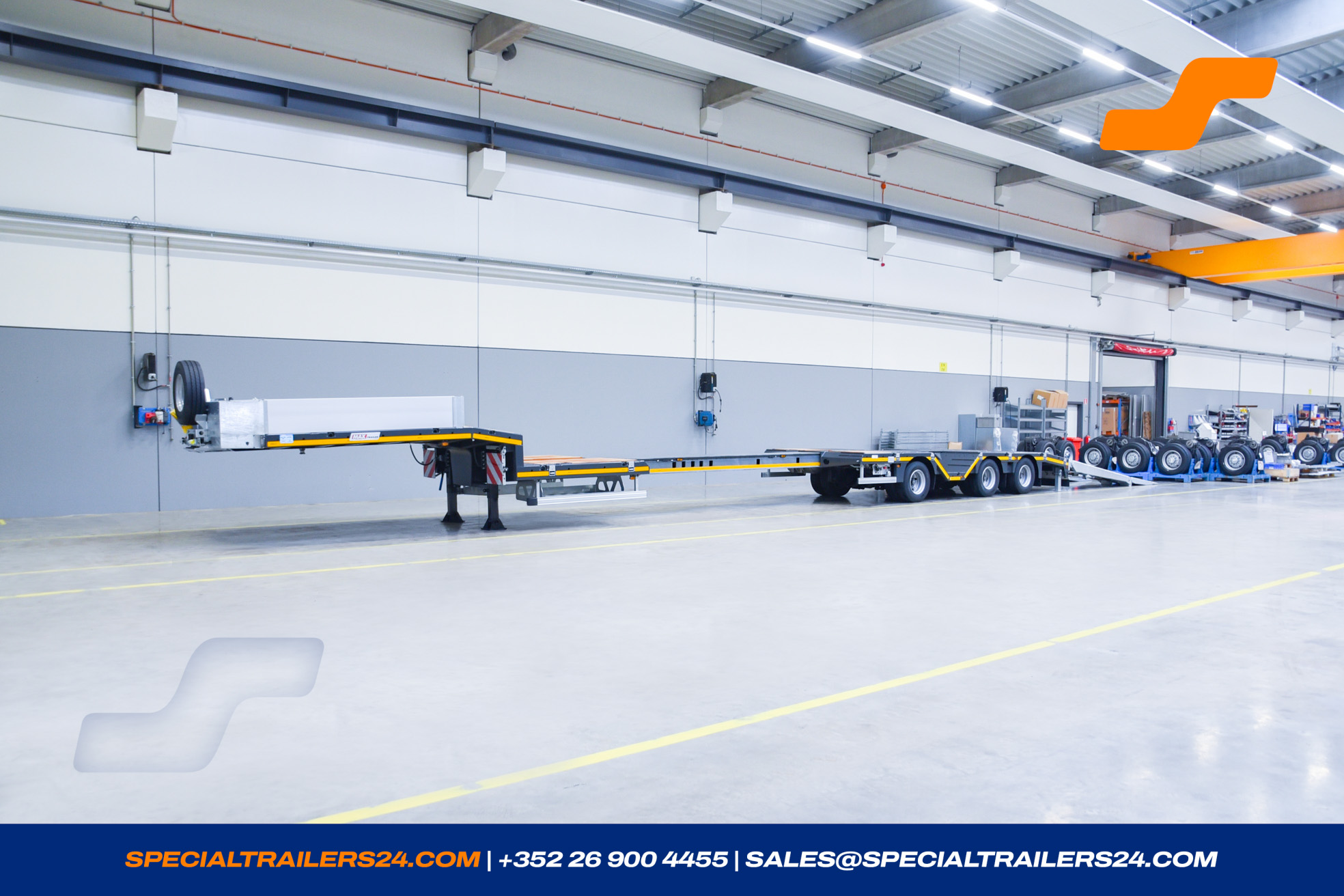

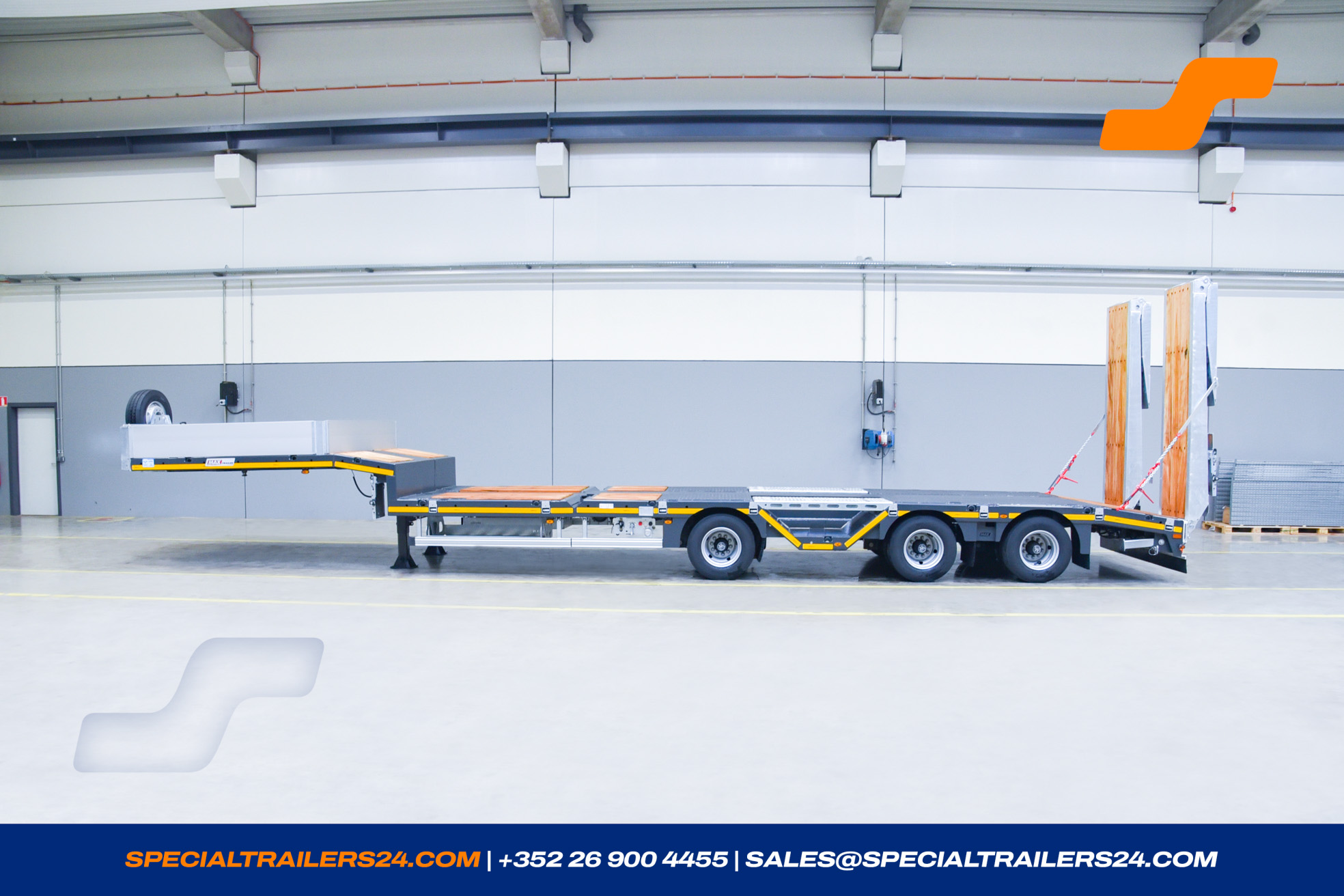

MAX Trailer MAX100
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111760
- Reference MAX100-N-3A-9.30-RM-U
- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 07/2026
- Steering Type Friction
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 31500 kg |
| Gross weight | 49500 kg |
| Tare weight +- 3% | 10978 kg |
| Payload | 38522 kg |
Dimensions
| Fifth wheel height loaded | 1200 mm |
| Gooseneck length | 3 850 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 9 300 mm |
| Extendable by | 4 750 mm |
| Wheelbase | 2350/1360 mm |
| Loading height at max. load | 860 mm |
| Total width | 2 540 mm |
| Suspension stroke | -55/ +145 mm |

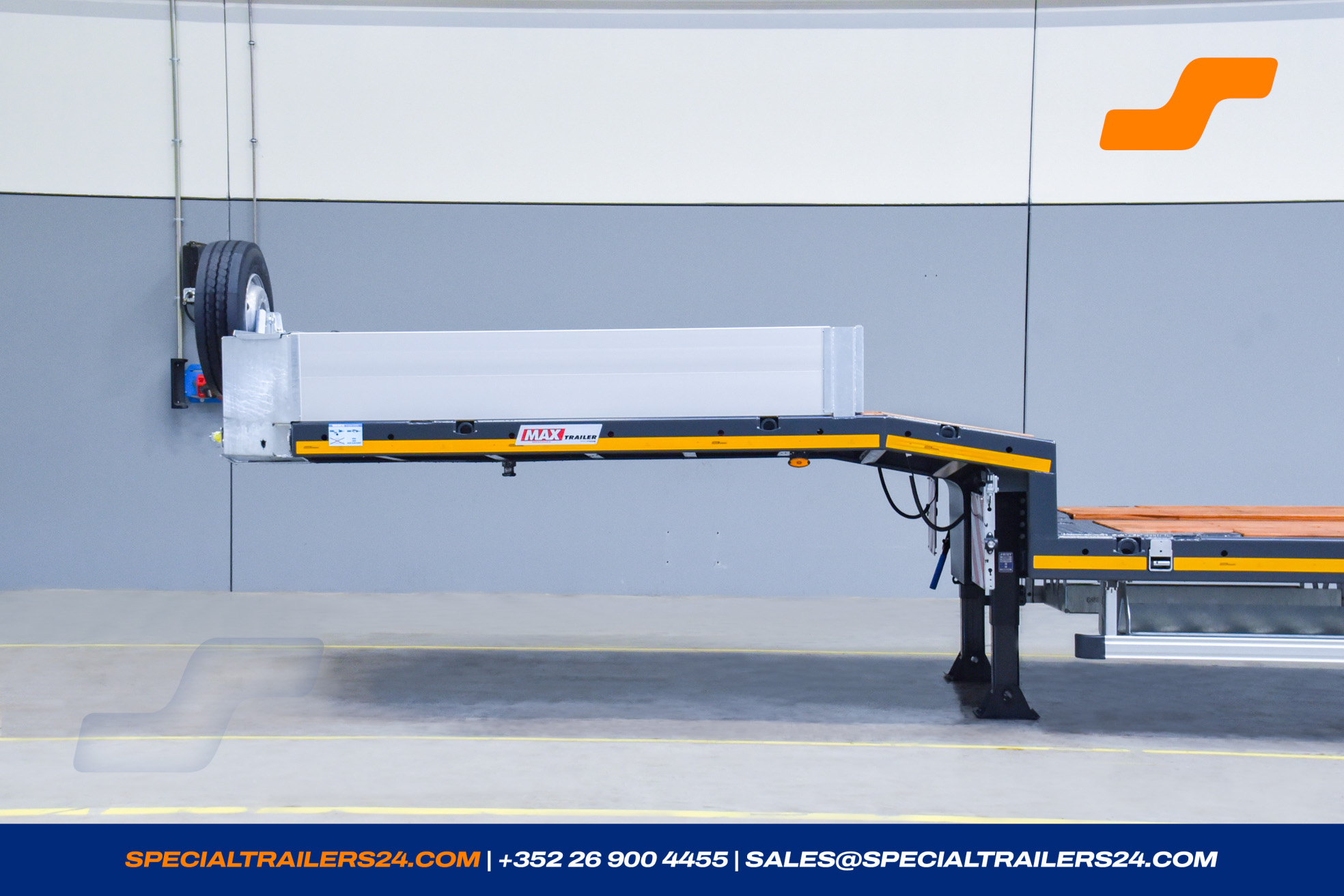

Gooseneck
1 x Gooseneck : MAX-3.850-750-10° (DSR 2300/ASH 1200) 45°
Gooseneck with chamfered corners ± 45° in front and rear chamfered by ± 750 mm x 10°.
3 pairs of lashing rings (LC 5 000 daN).
Hardwood cover thickness 30 mm.

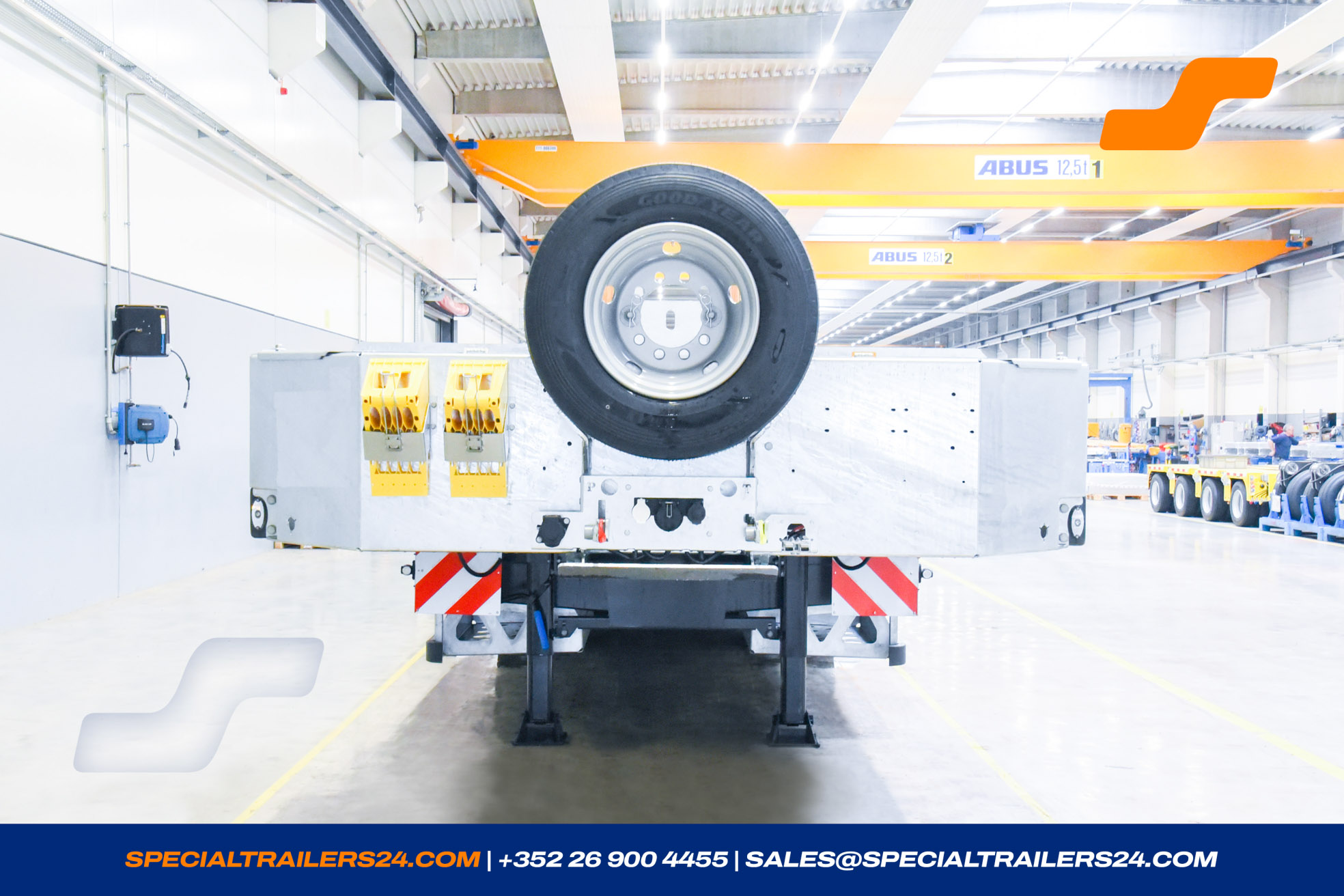

- One spare wheel with holder on the headboard.
- 2 king-pin.
- One galvanised steel headboard, height ± 400 mm.
- Red and yellow air couplings on the galvanised front connection ledge.
- 2 wheel chocks with carrier on the headboard.
-

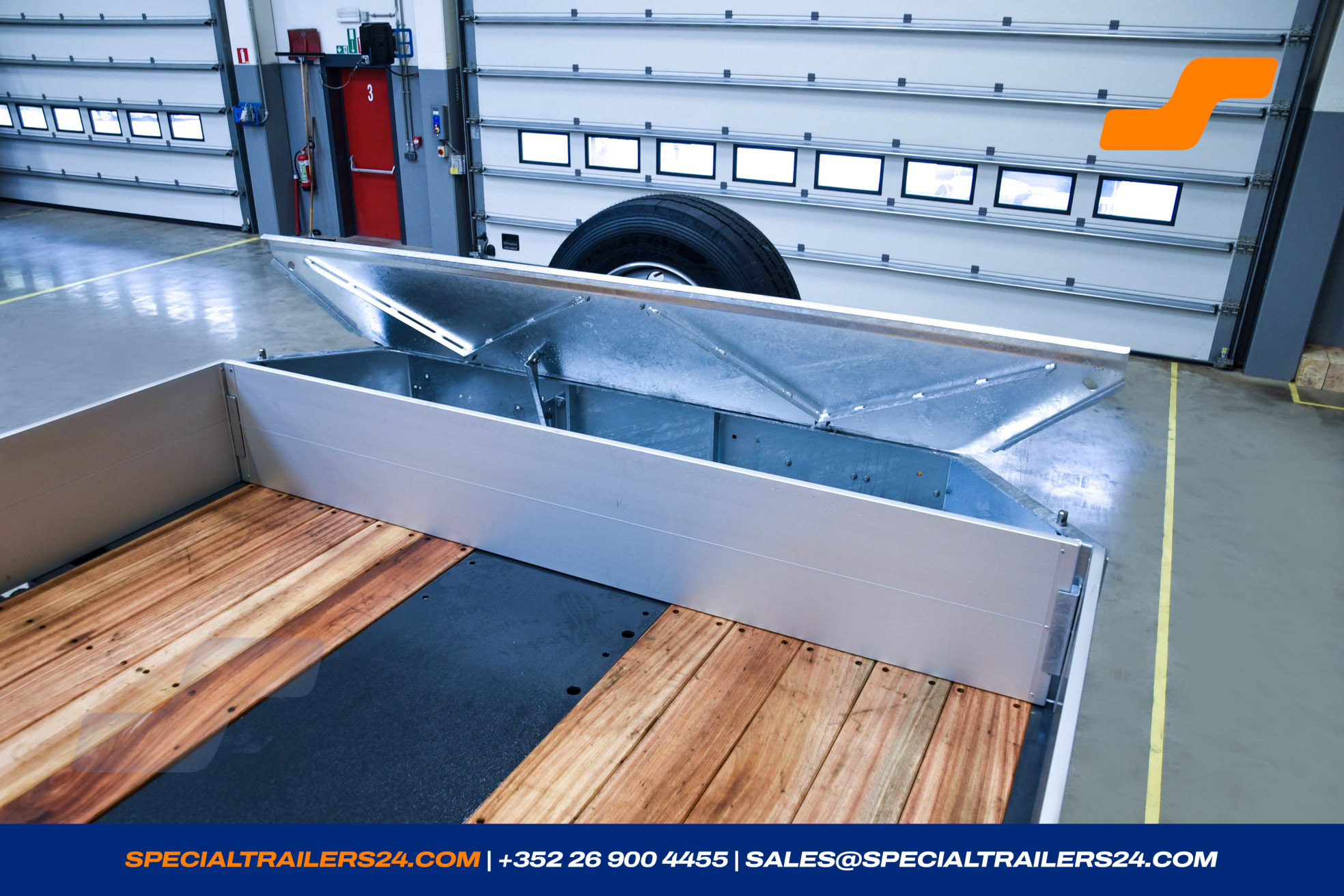

On the gooseneck removable sideboards and rearboard in alu ca. 2 400 x 400 mm (L x H).
The galvanised rear stakes are dismountable.
(Length of the structure ca. 2 560 mm) (± 46kg). - 1 galvanized toolbox integrated in the charmfered gooseneck (± 47 kg).
Loading deck
Loading platform

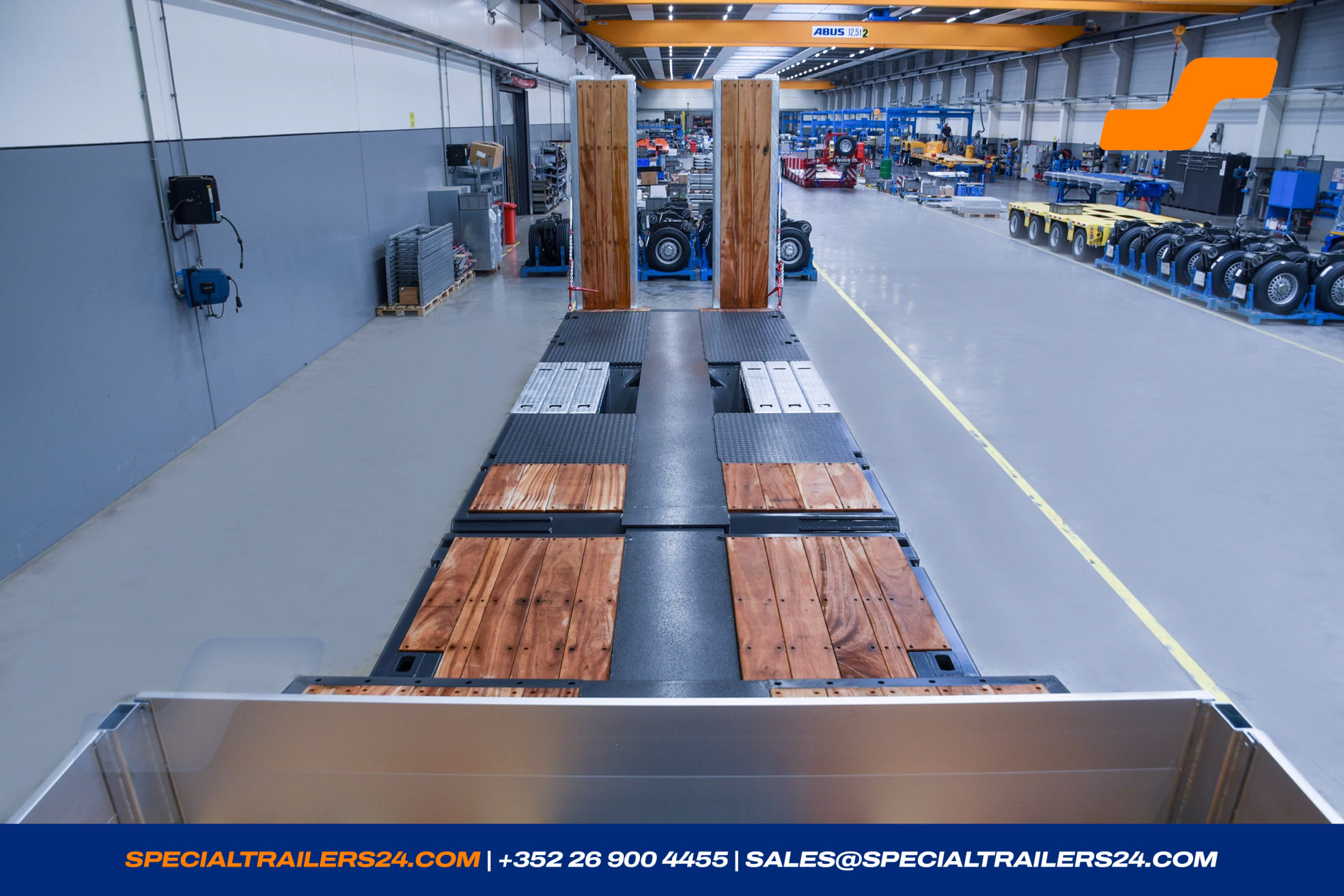

1 x Loading platform : MAX100-N-3A-9.30-17.5-2.54-RM

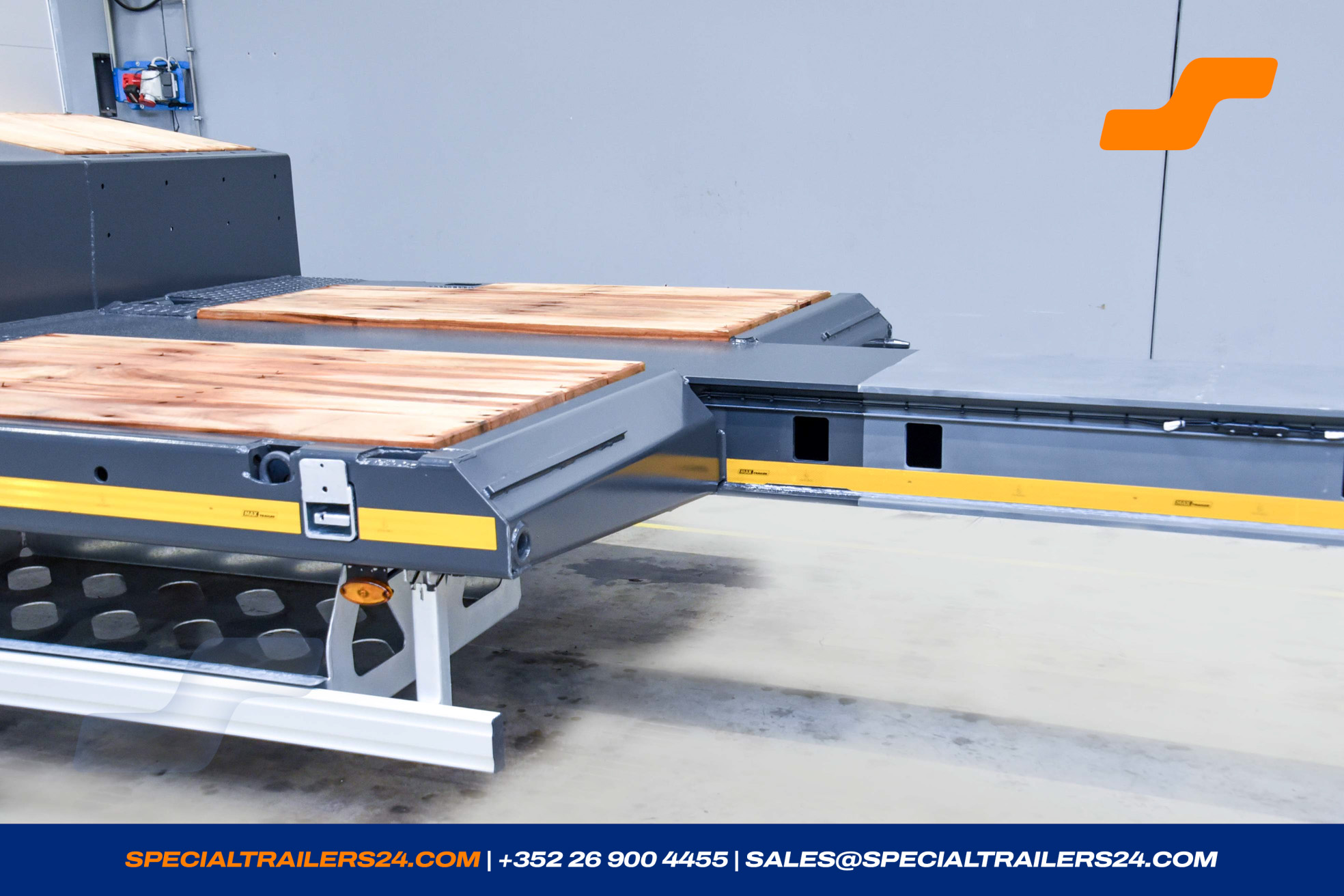

Extendable loading platform with rear slope of approximately 1,000 mm x 8°.

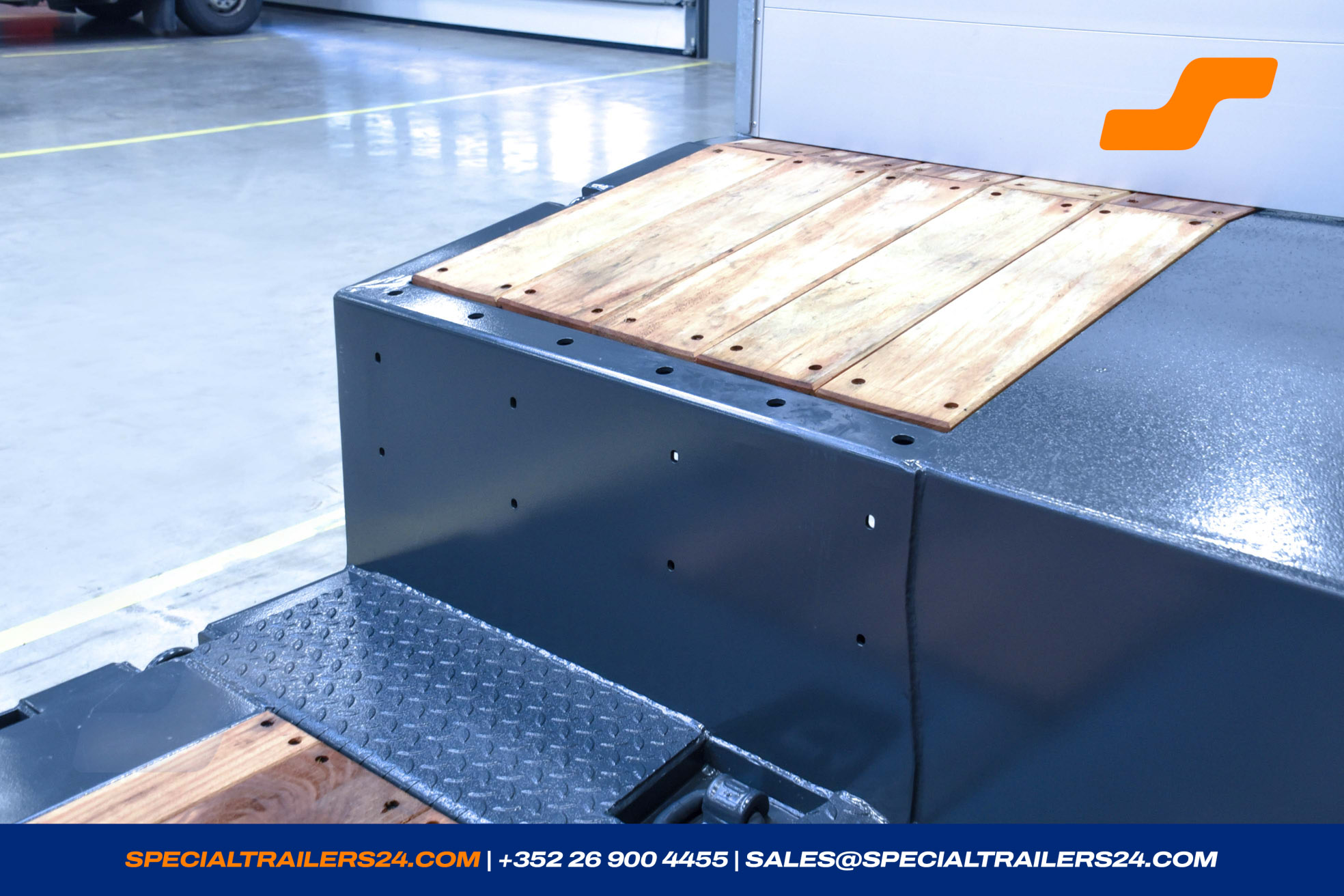

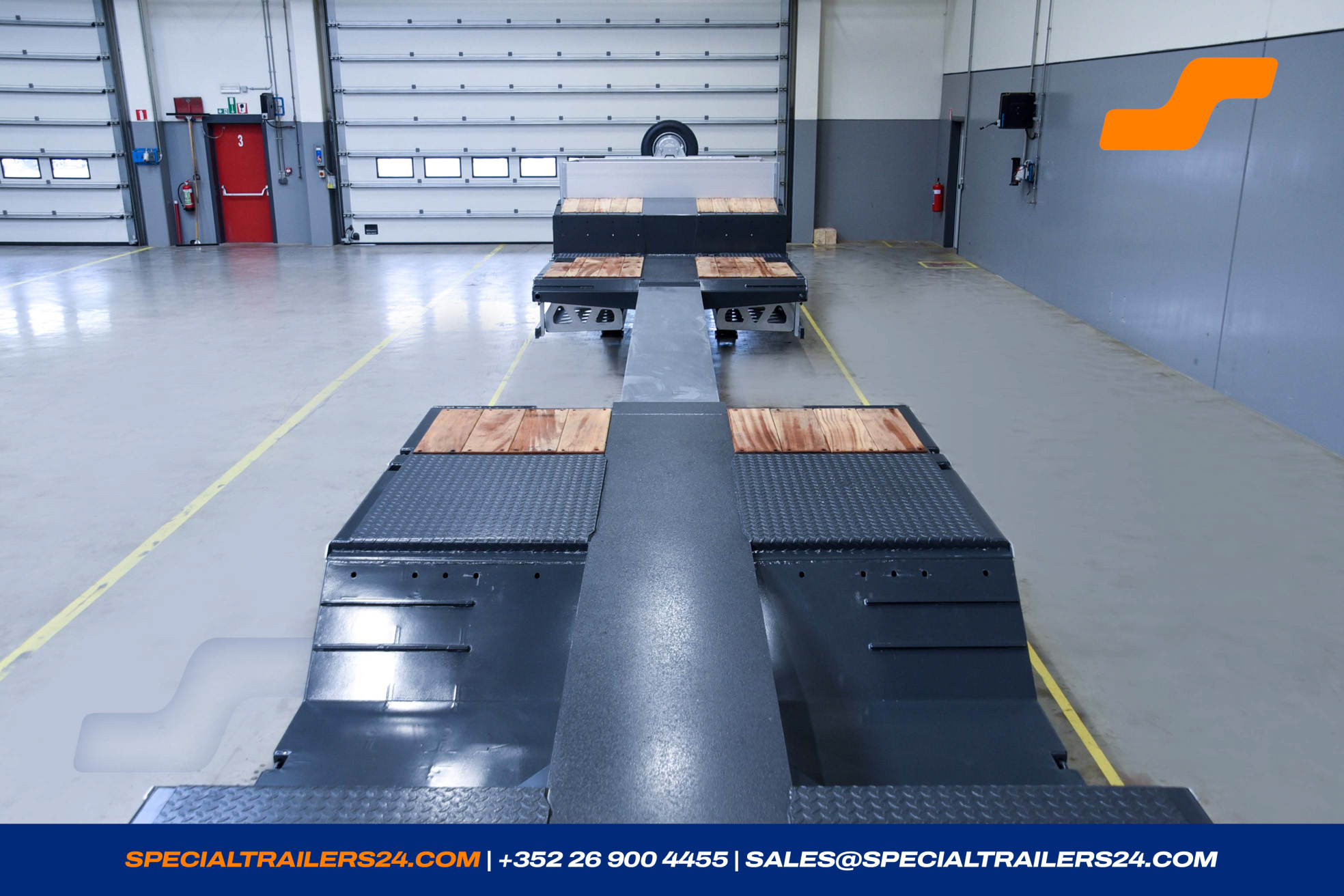

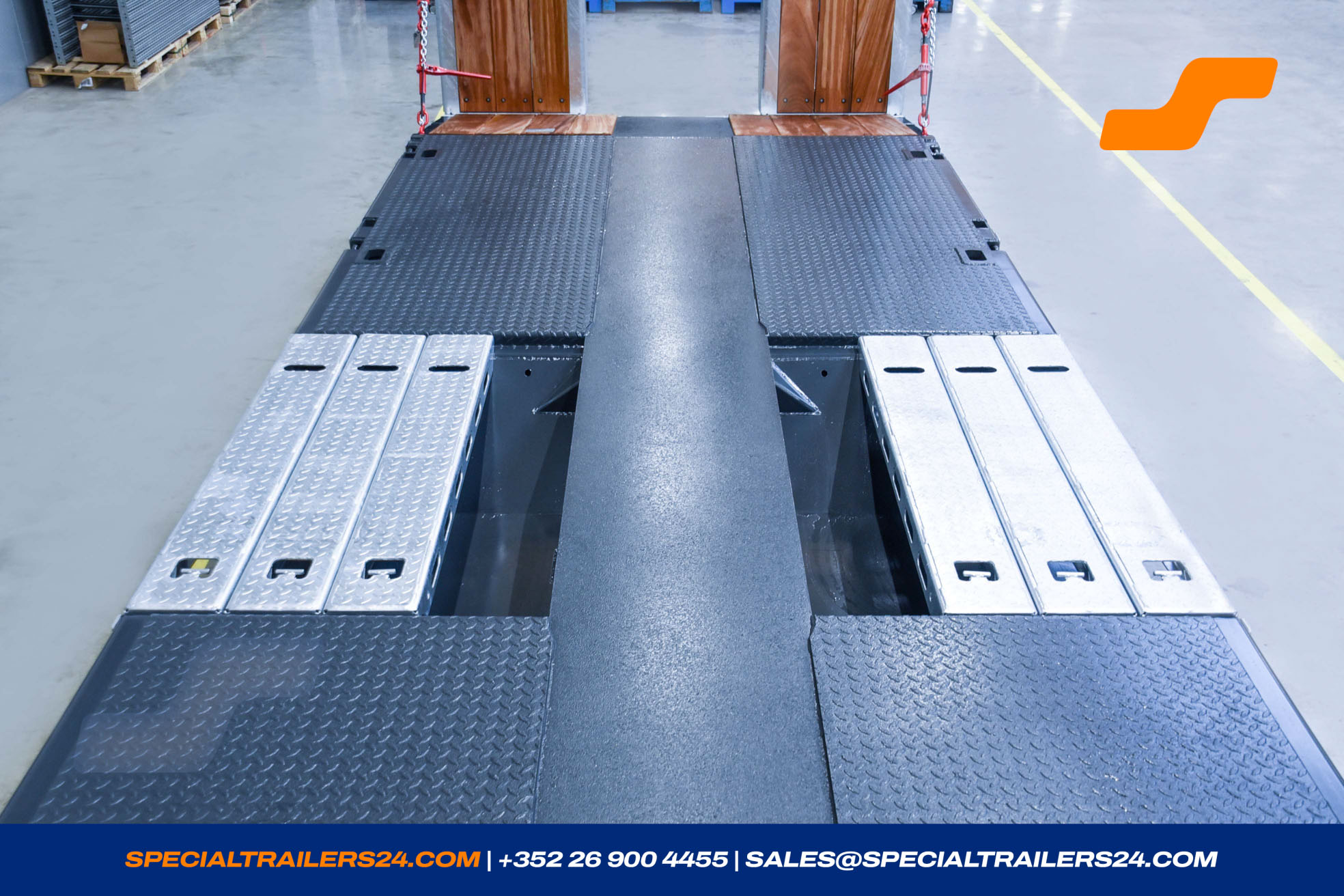

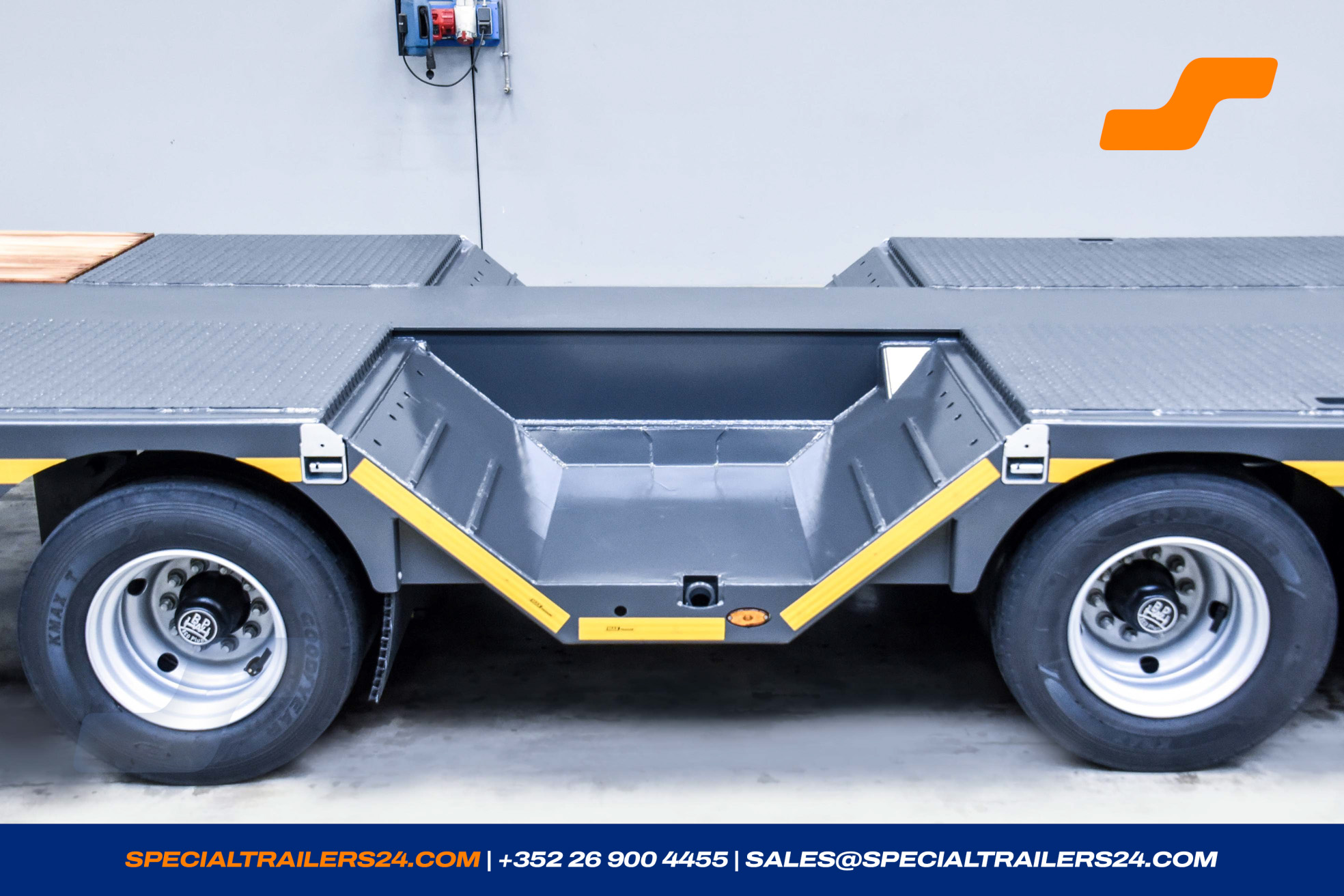

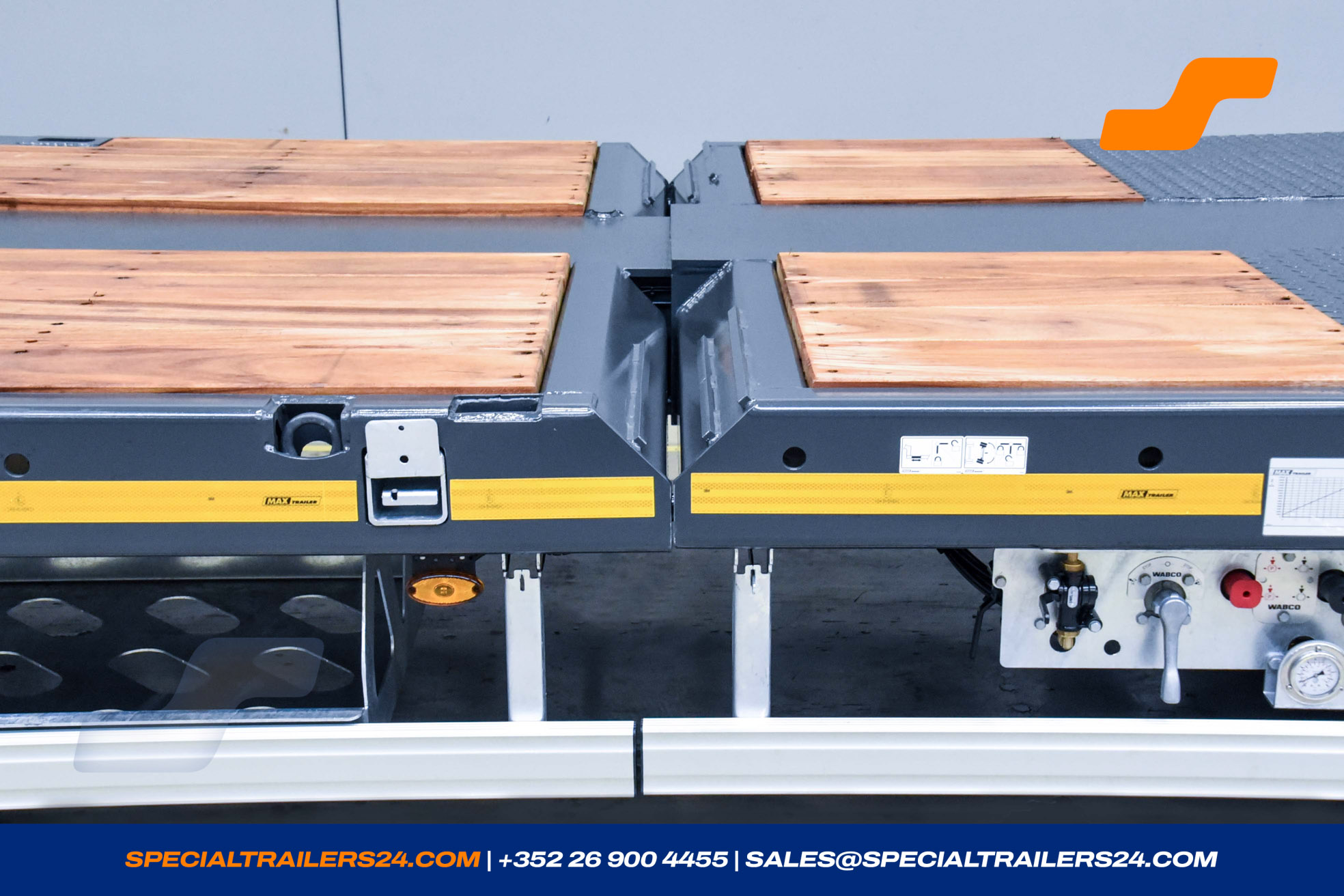

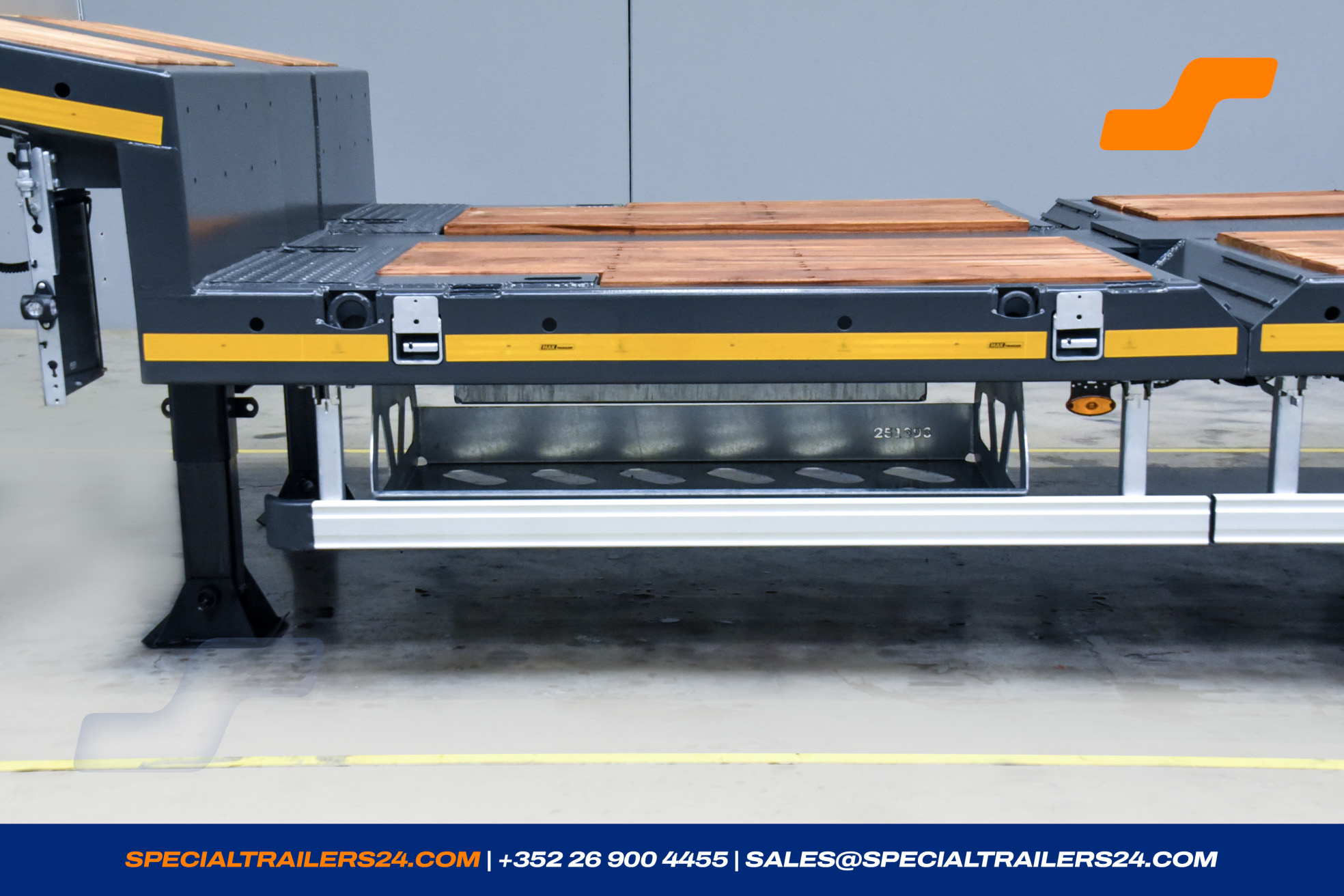

Between the 1st and 2nd axle, a pair of built-in wheel recesses, approximately 1,610 x 970 x 400 mm (L x W x H).

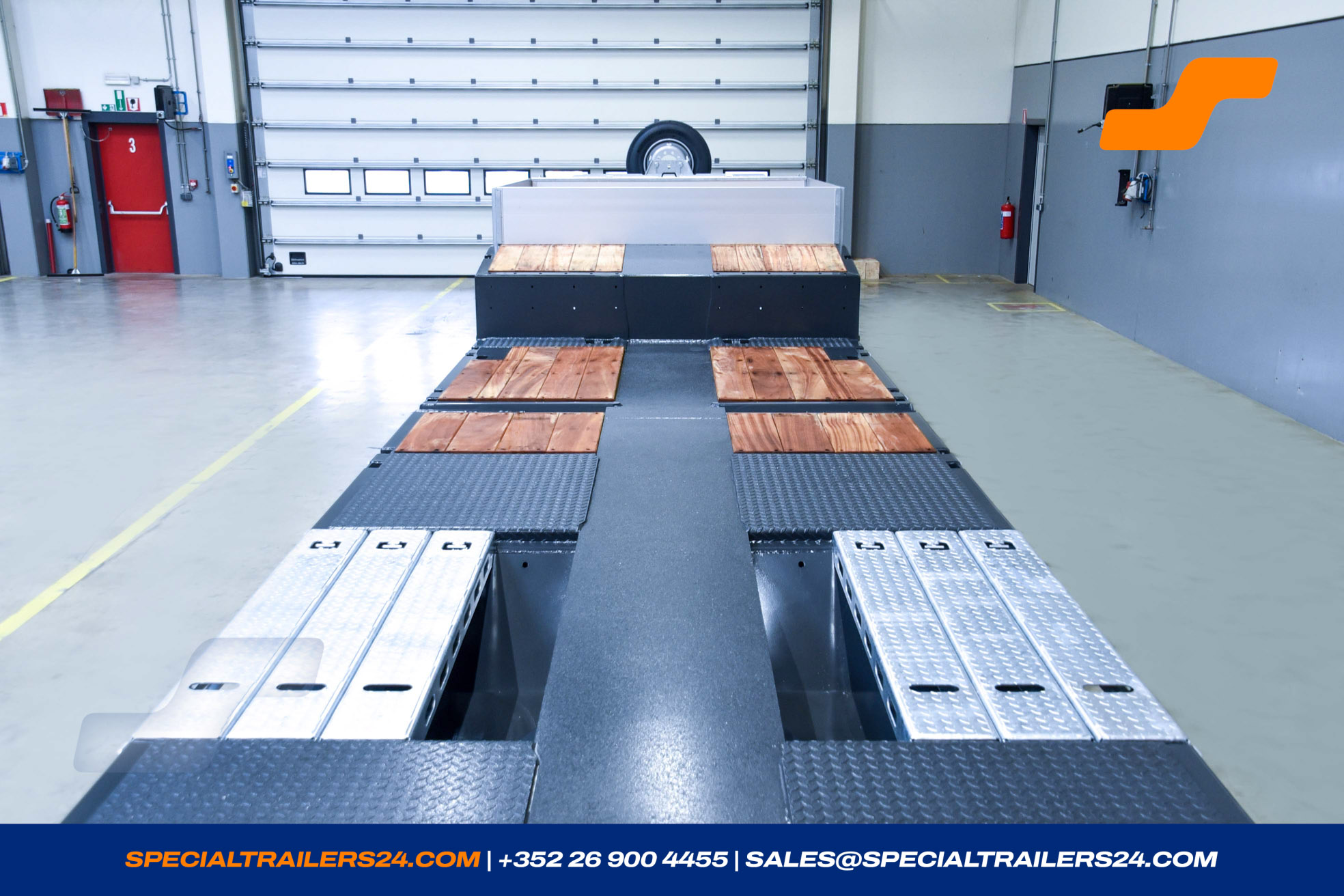

Includes 3-piece, removable, galvanized cover over the wheel recesses (W 670 mm - max. point load 5 tons per piece).

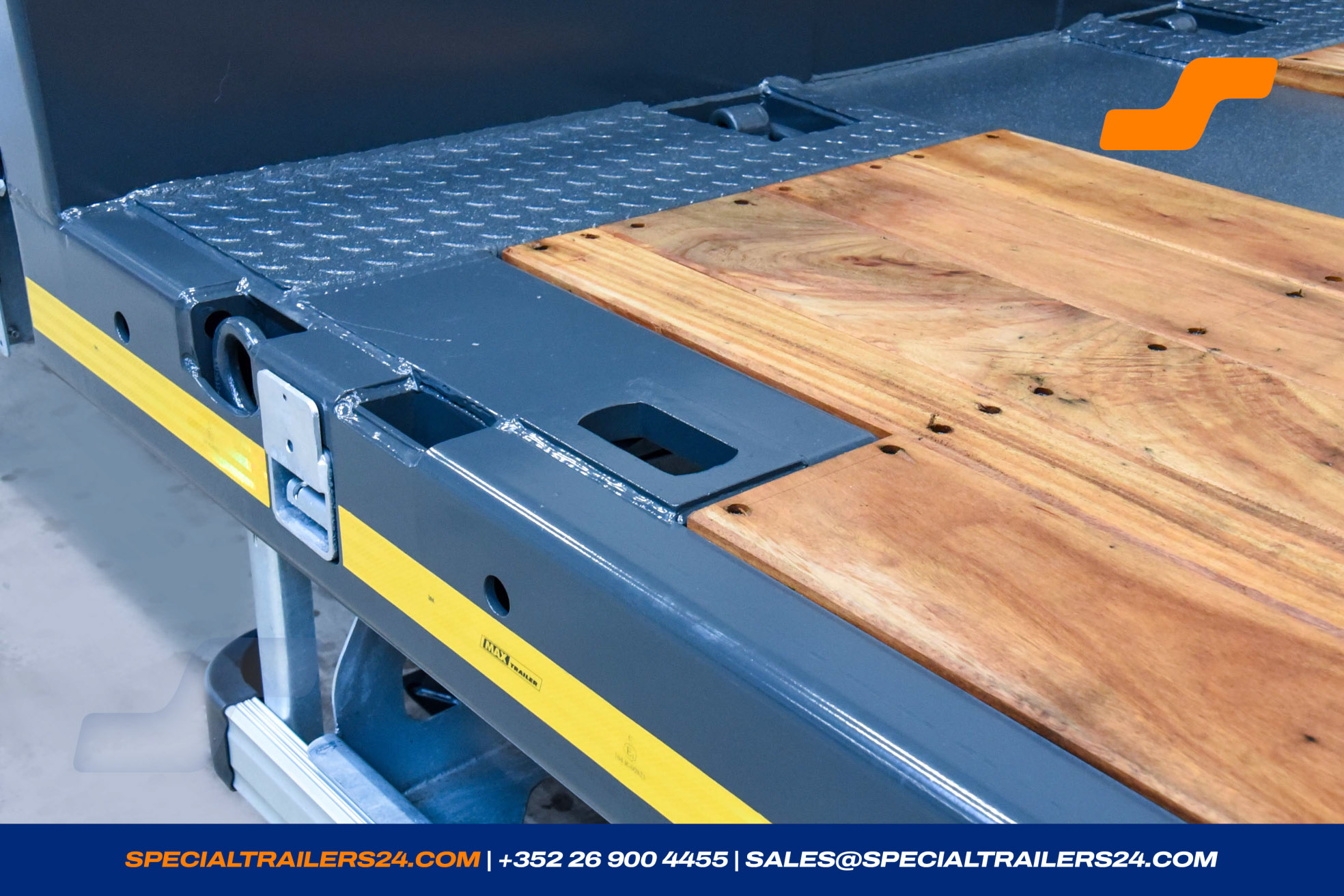

1 pair of horizontal lashing rings at the front of the loading platform (LC 10,000 daN).
4 pairs of fold-out lashing rings (LC 5,000 daN).
3 pairs of fold-out lashing rings (LC 10,000 daN).
Cutouts in the outer frame of the loading platform for attaching tension straps (LC 2,000 daN).
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.

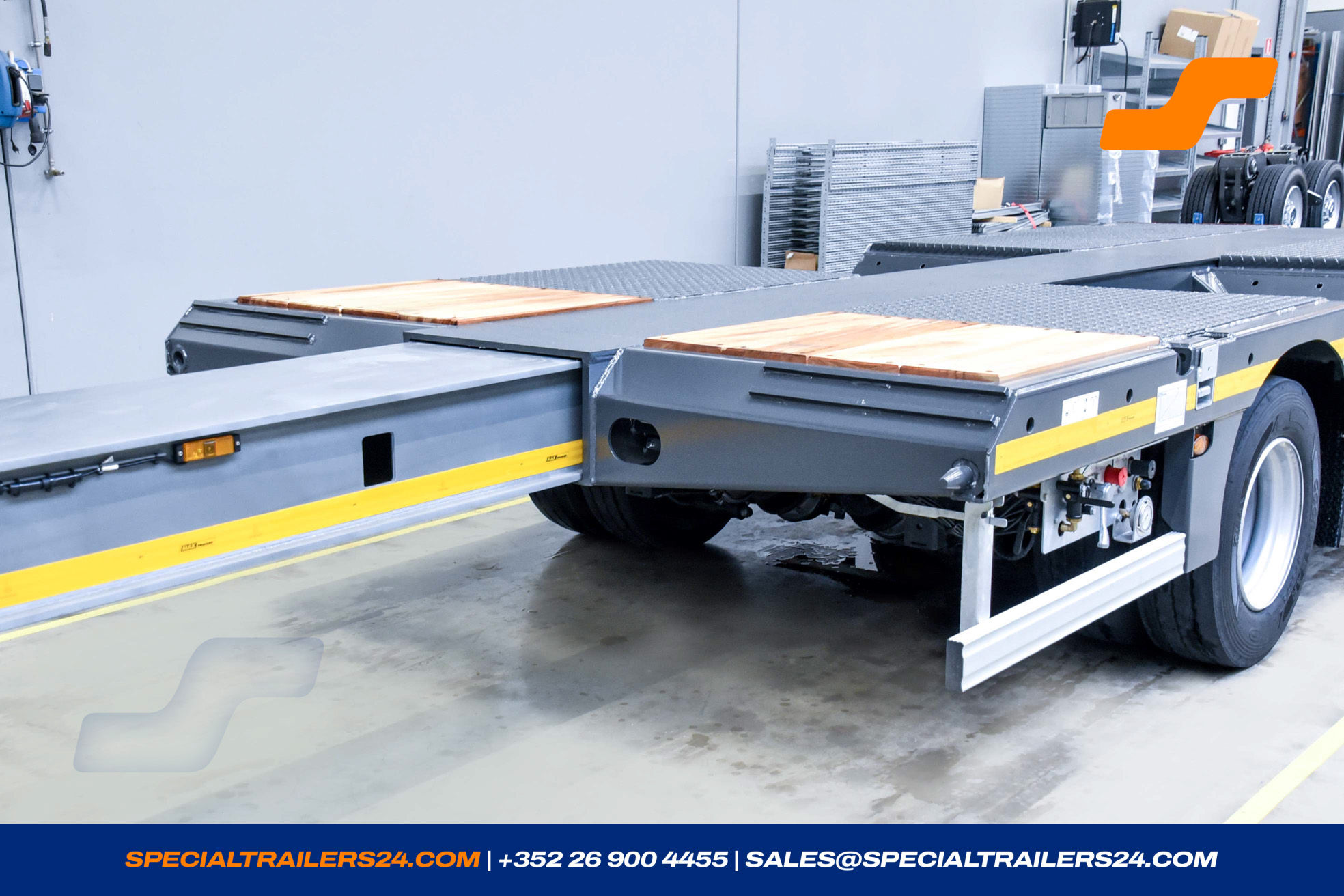

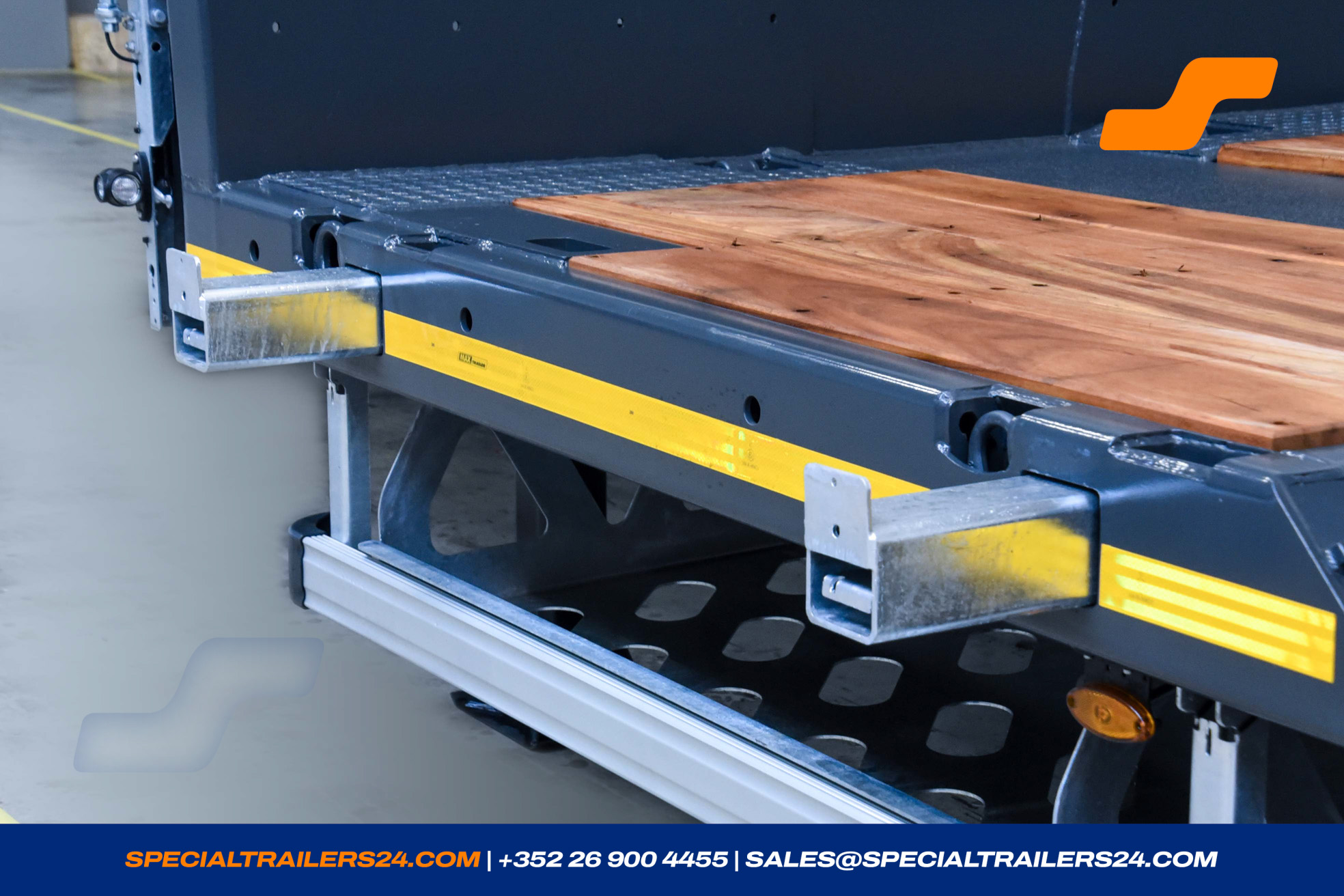

- Galvanised outriggers, extendable up to ± 230 mm per side (± 262 kg).

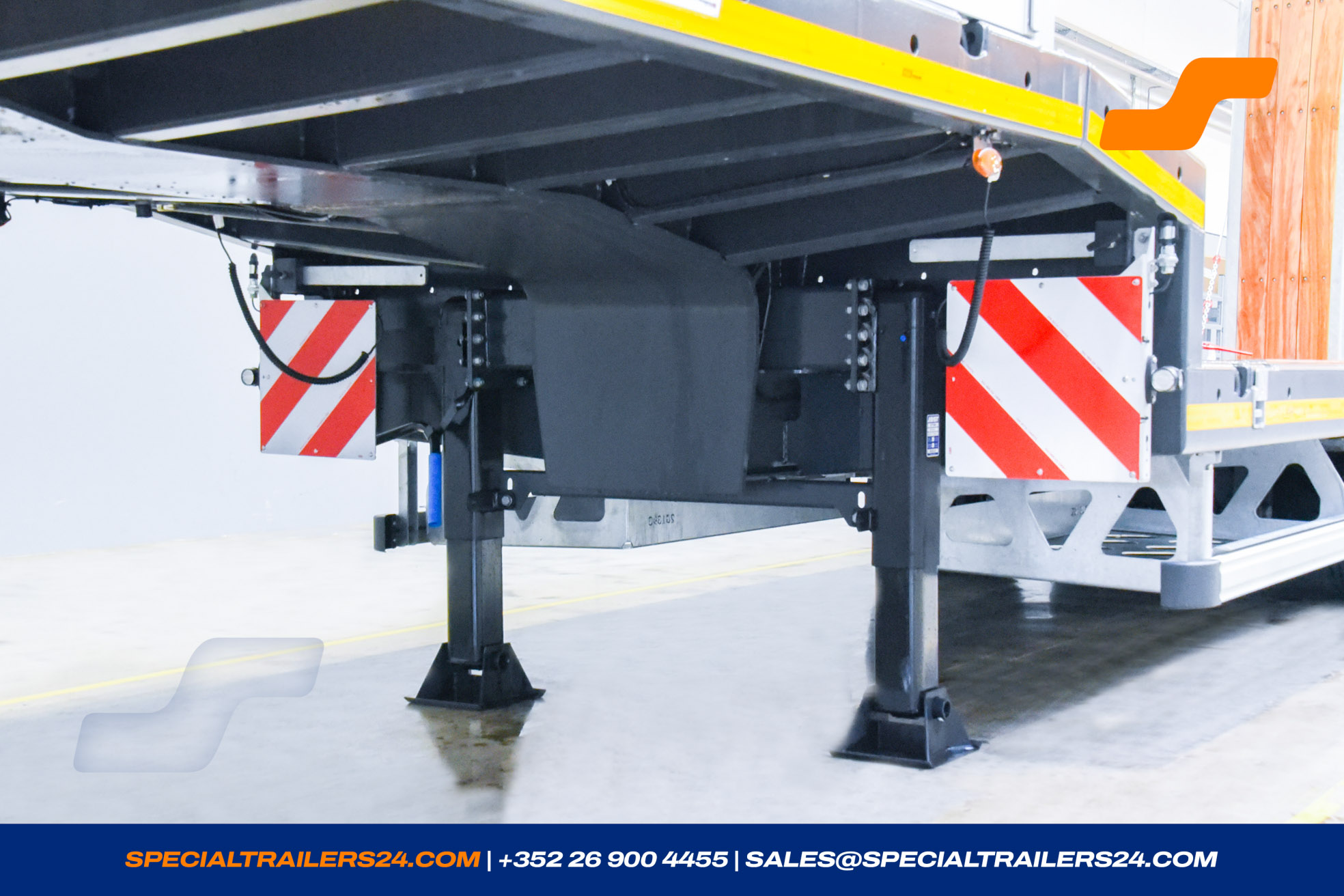

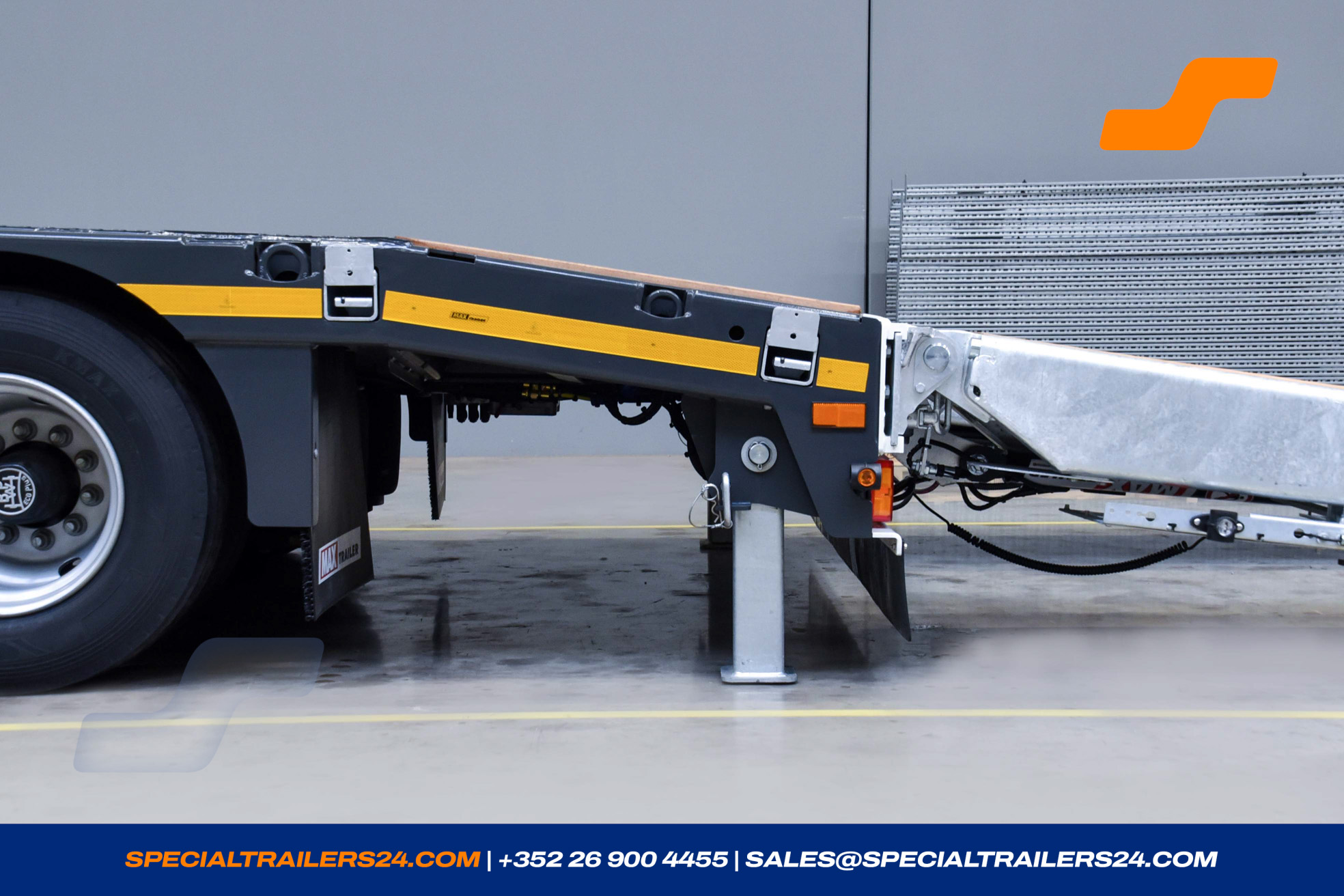

- Galvanised landing gears at the rear under the loading platform.
- Holder for one beacon light at the rear of the trailer.
- Yellow reflective tape according to the EU regulation over the entire length, on the extension and at the rear.
- Electrically operated hydraulic pump at the rear under the loading platform (± 45kg).
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- 3 pairs of WADER containerpockets in the loading platform for one 20', (30') or 40' container. (± 30 kg)
- 5 pairs of pockets for stakes ±100 x 50 mm in the outer frame of the loading platform (± 18 kg).
- Galvanised storage for timber, left and right under the loading platform (± 100kg).
- 2 LED- reversing lights at the rear.

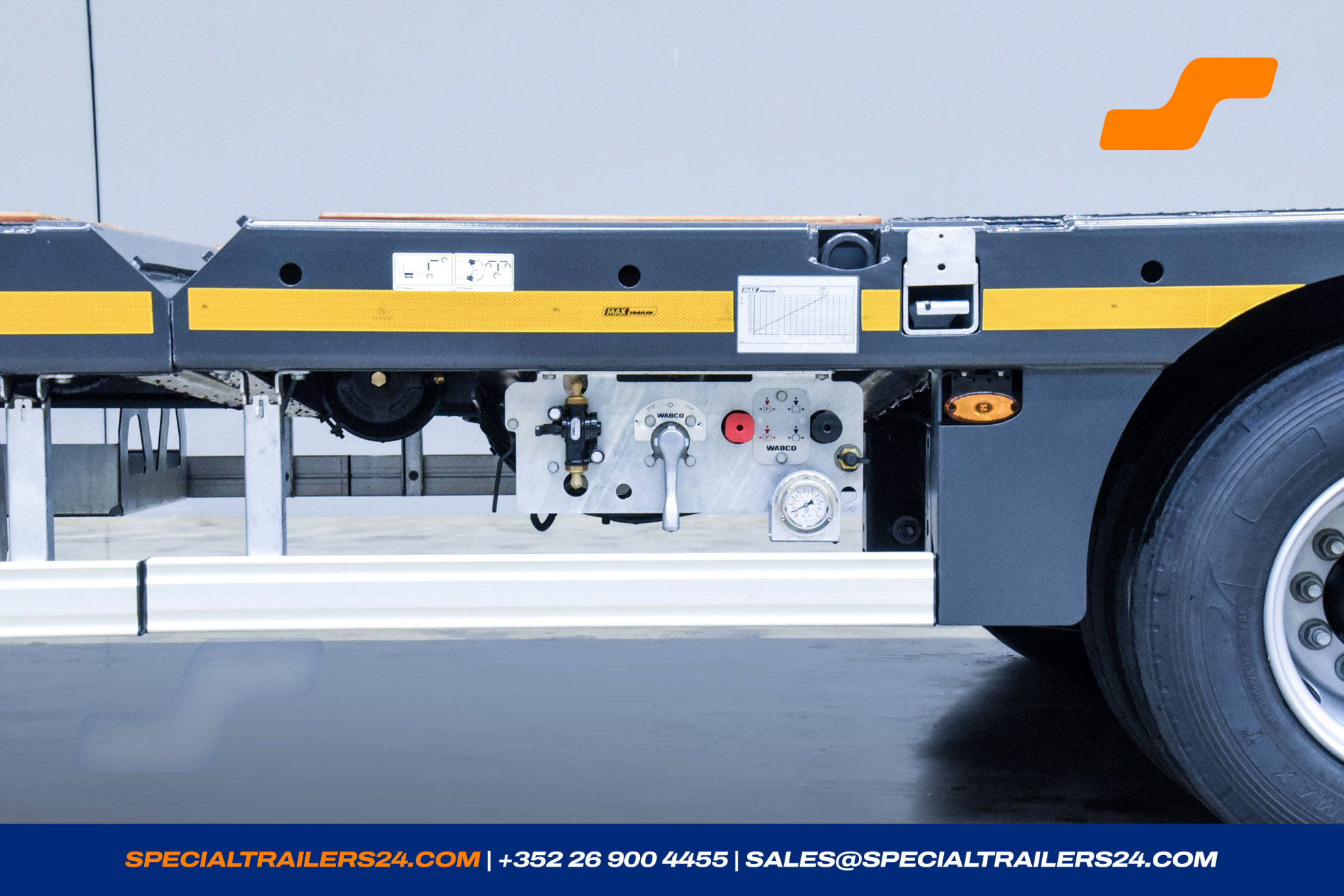

- Load manometer for determining the axle load, including load diagram.
Ramps

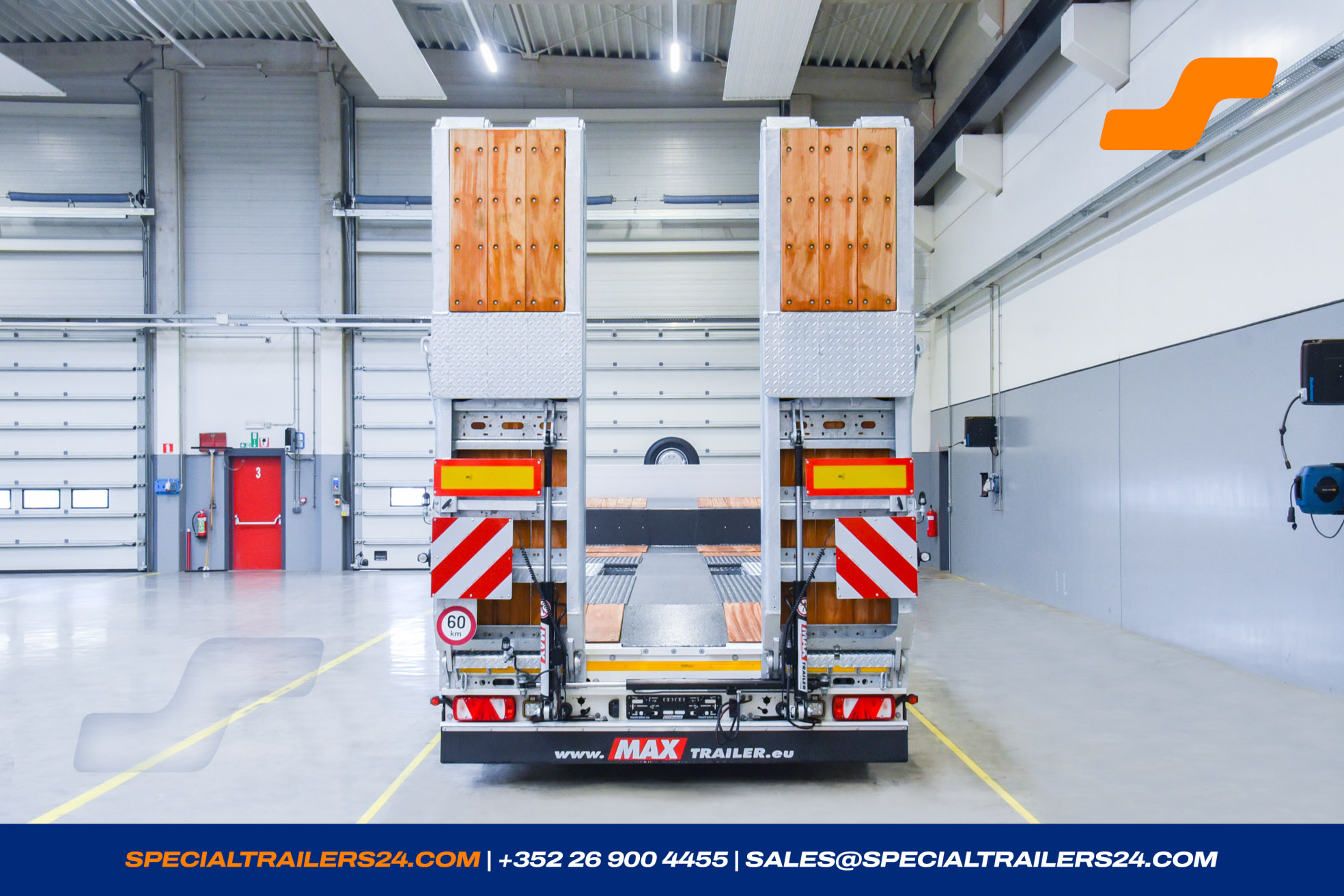

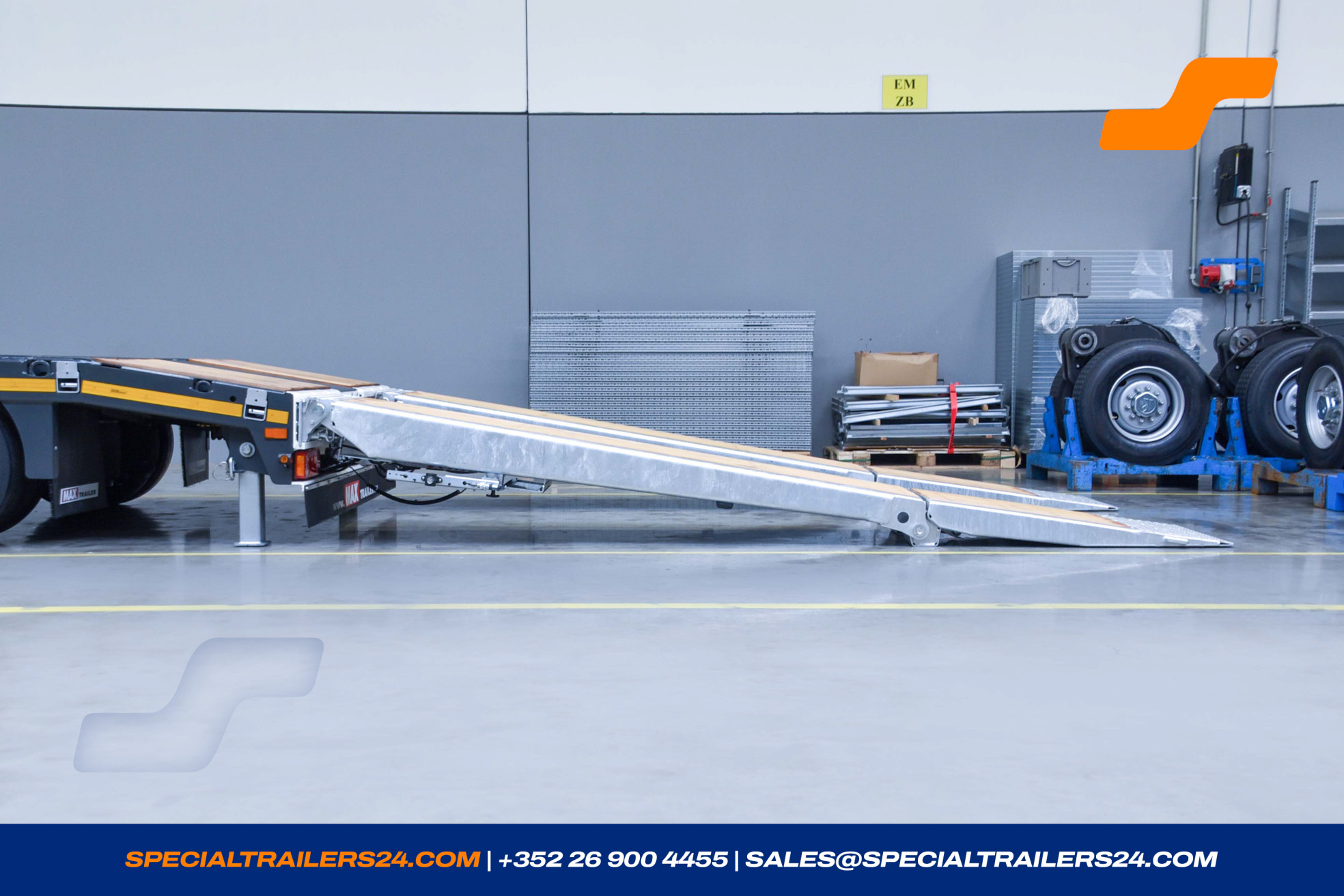

Hydraulic loading ramps

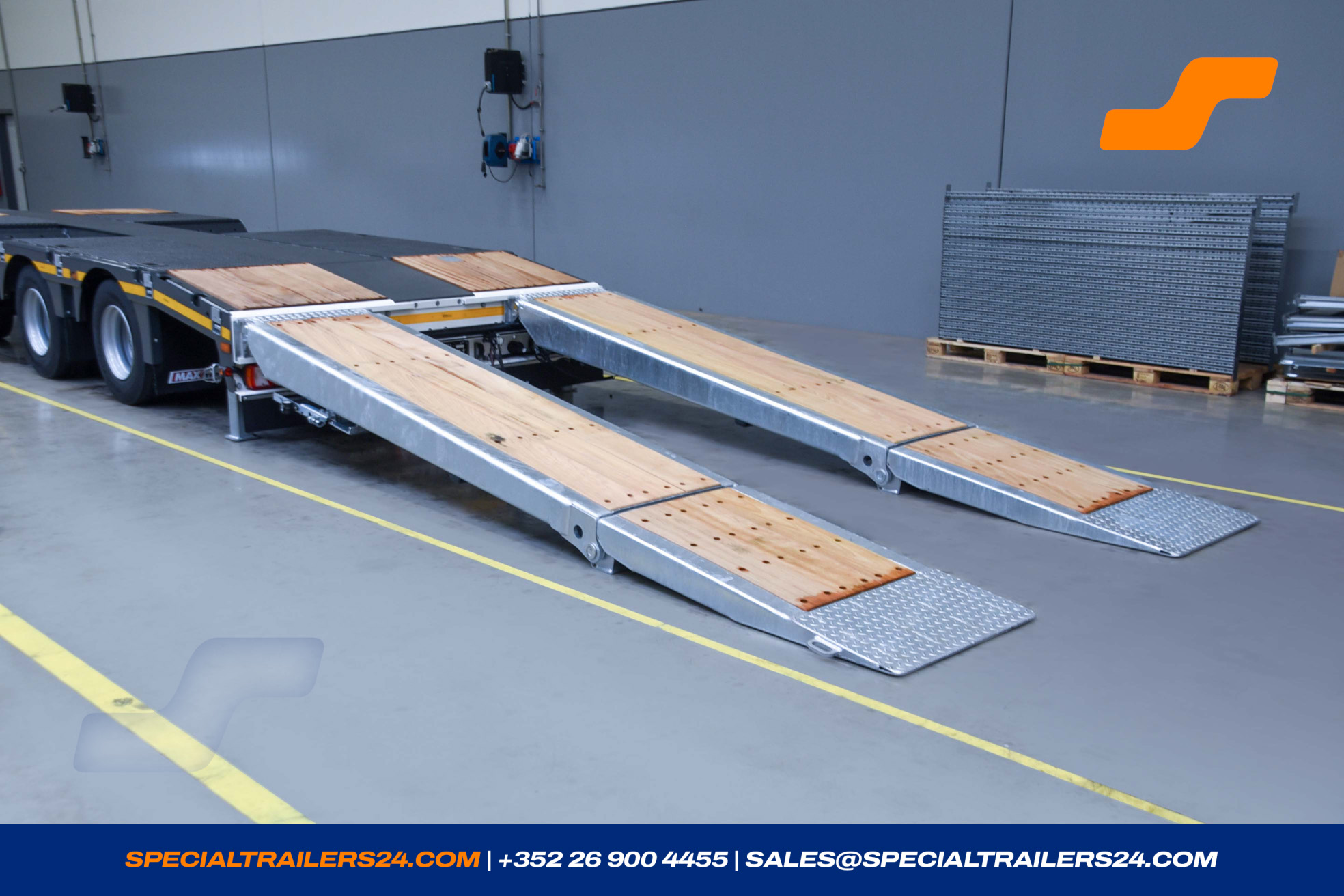

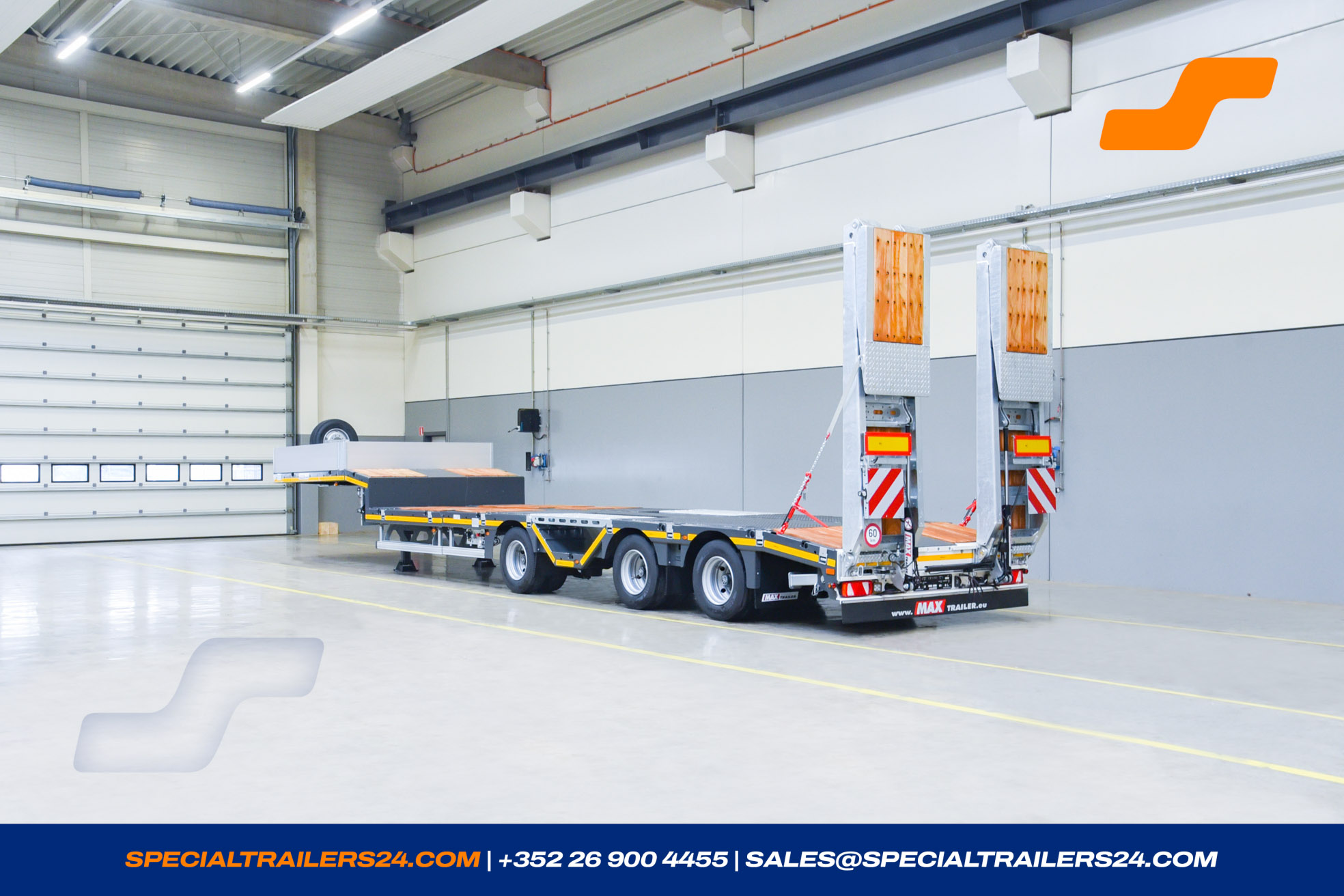

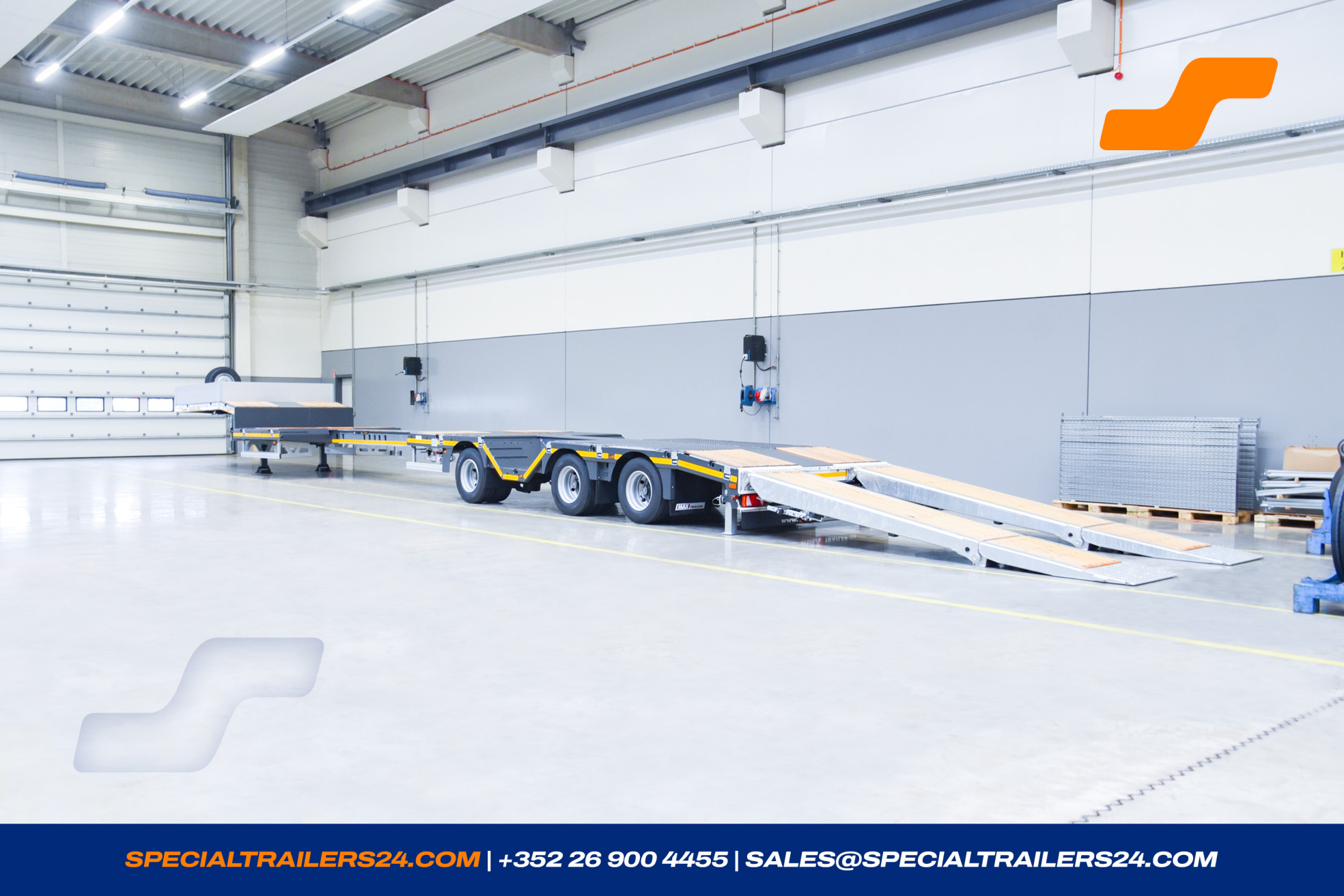

1 x Steel double flip ramps : DR-800-HH-40-HB-HVA

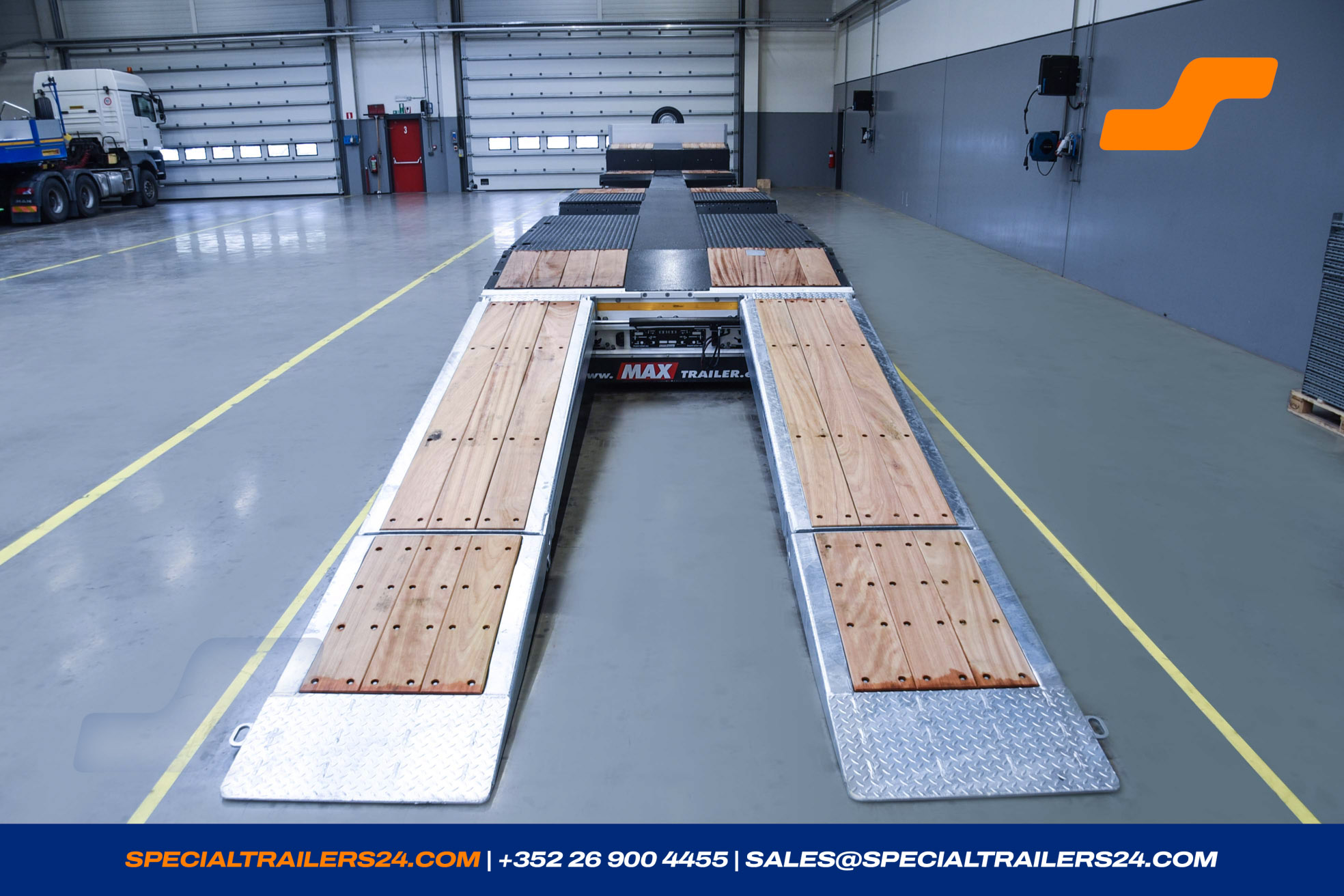

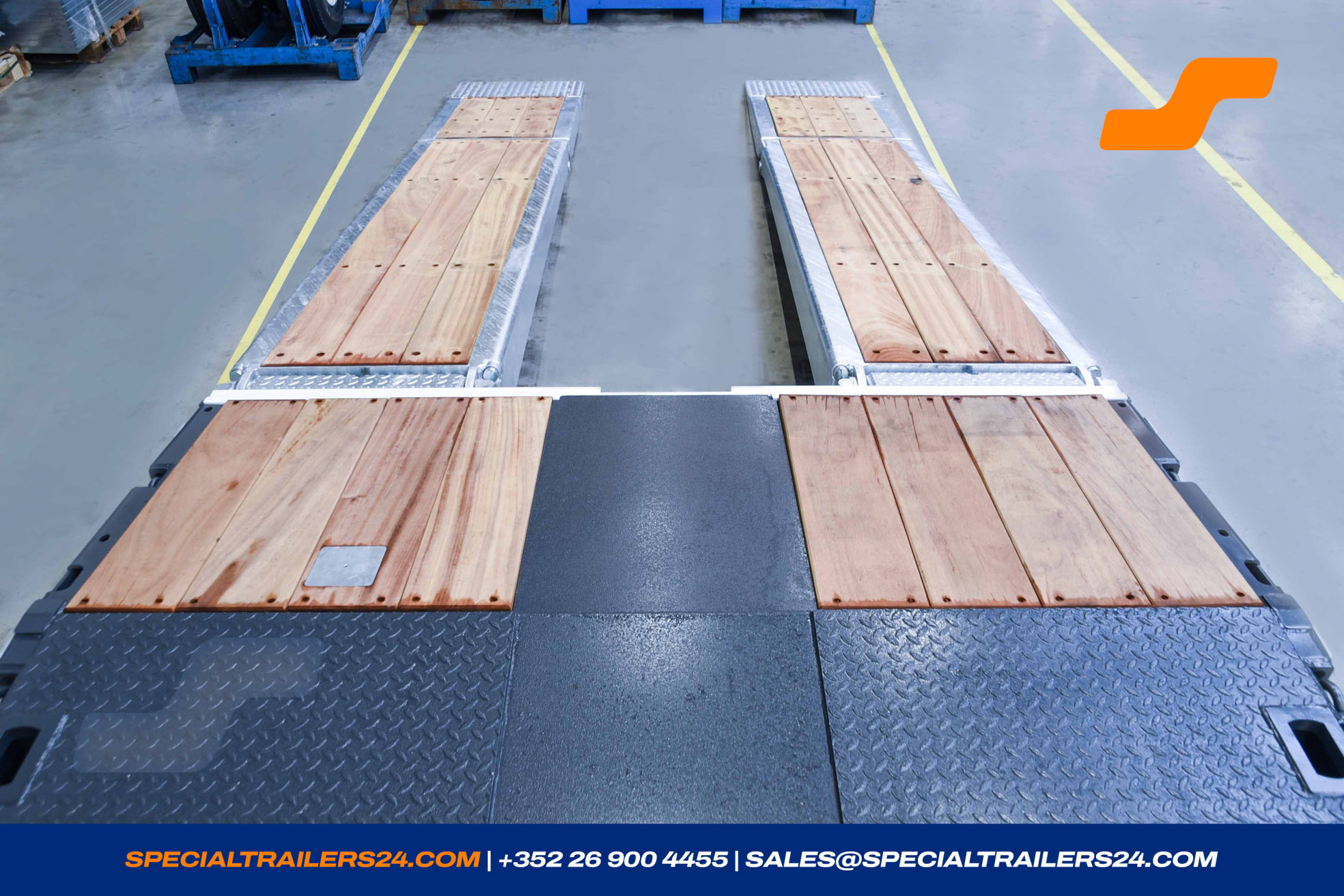

1 pair steel double flip ramps galvanized ca. 2 750 + 1 400 x 800 mm with ca. 48 mm hardwood cover.
Ramps hydraulically operated and hydraulic side shift.
Maximal charge for one pair: 40 000 kg
- Cover plates to bridge the clearance between ramps and loading area (± 17kg).

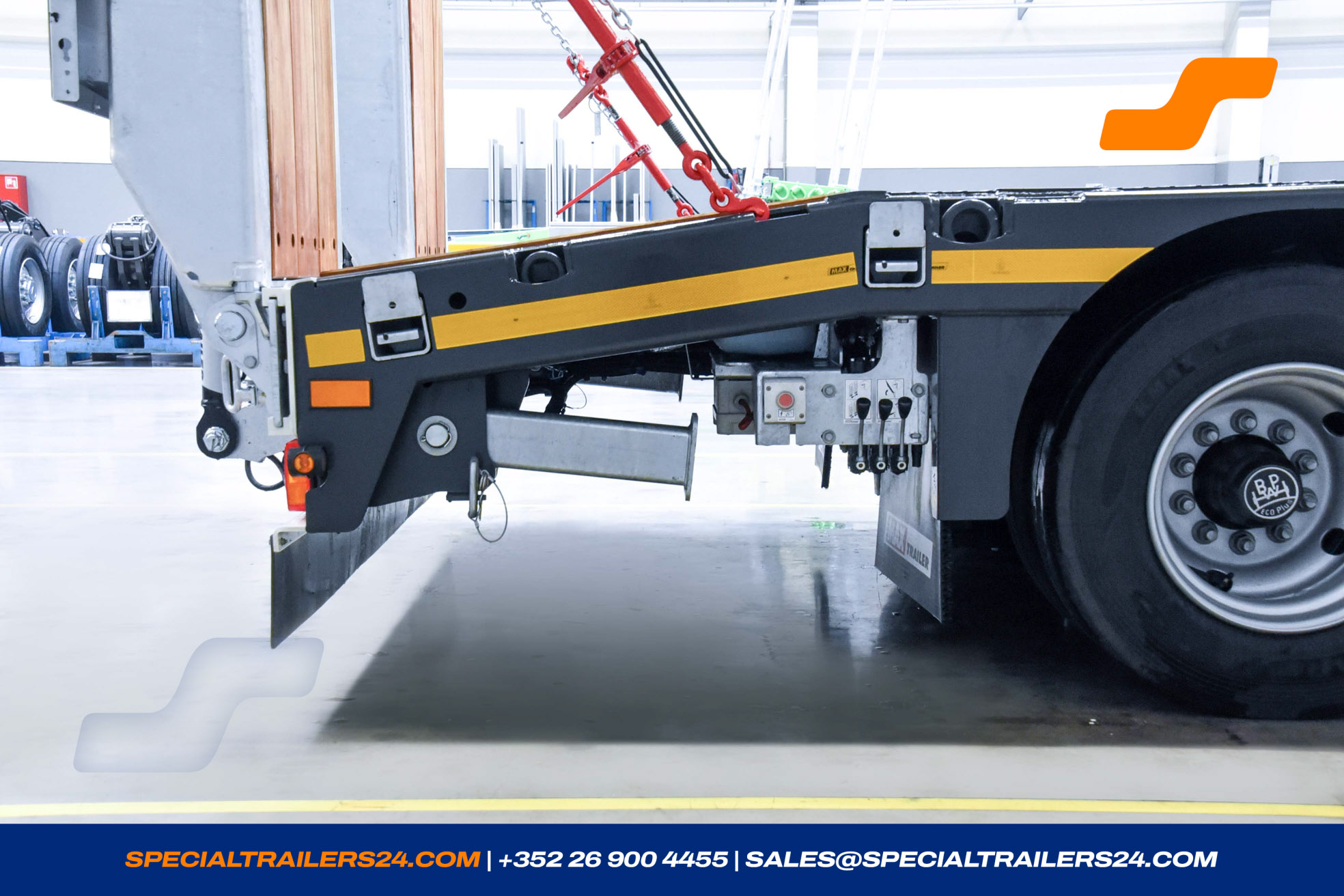

- Operated valve for ramps mounted on the right side (± 4 kg).
Accessories
1 x Accessory
MAX100-Accessory
- Cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 160 A) between the semi-trailer and the truck with socket (ANDERSON-ANDERSON).
- Manual and description on USB stick .
- Assembly of the double ramps on the semitrailer.
- Delivery from a trailer to factory Lentzweiler.
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 111760
- Reference MAX100-N-3A-9.30-RM-U
- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 07/2026
- Price On request
-
