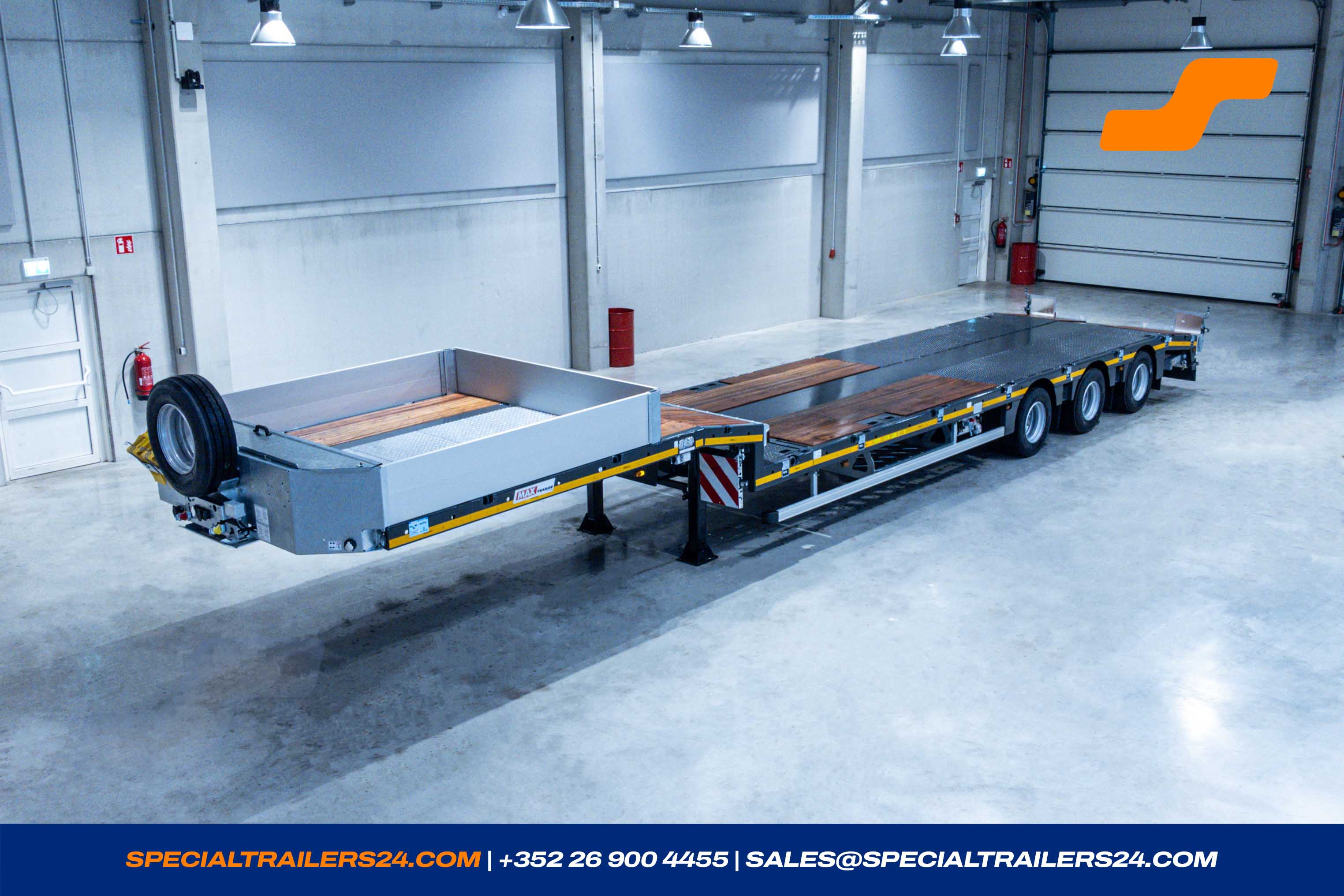

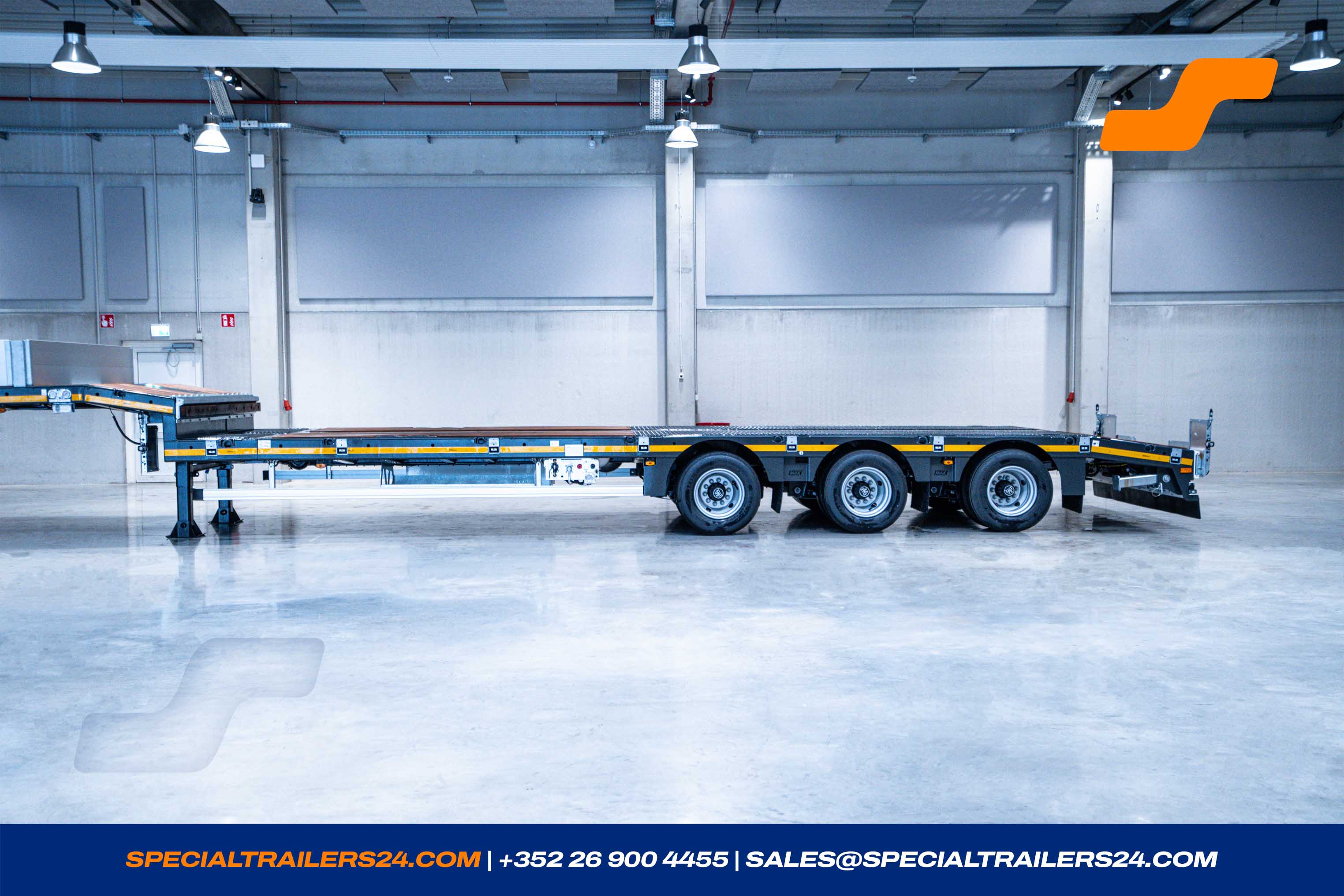

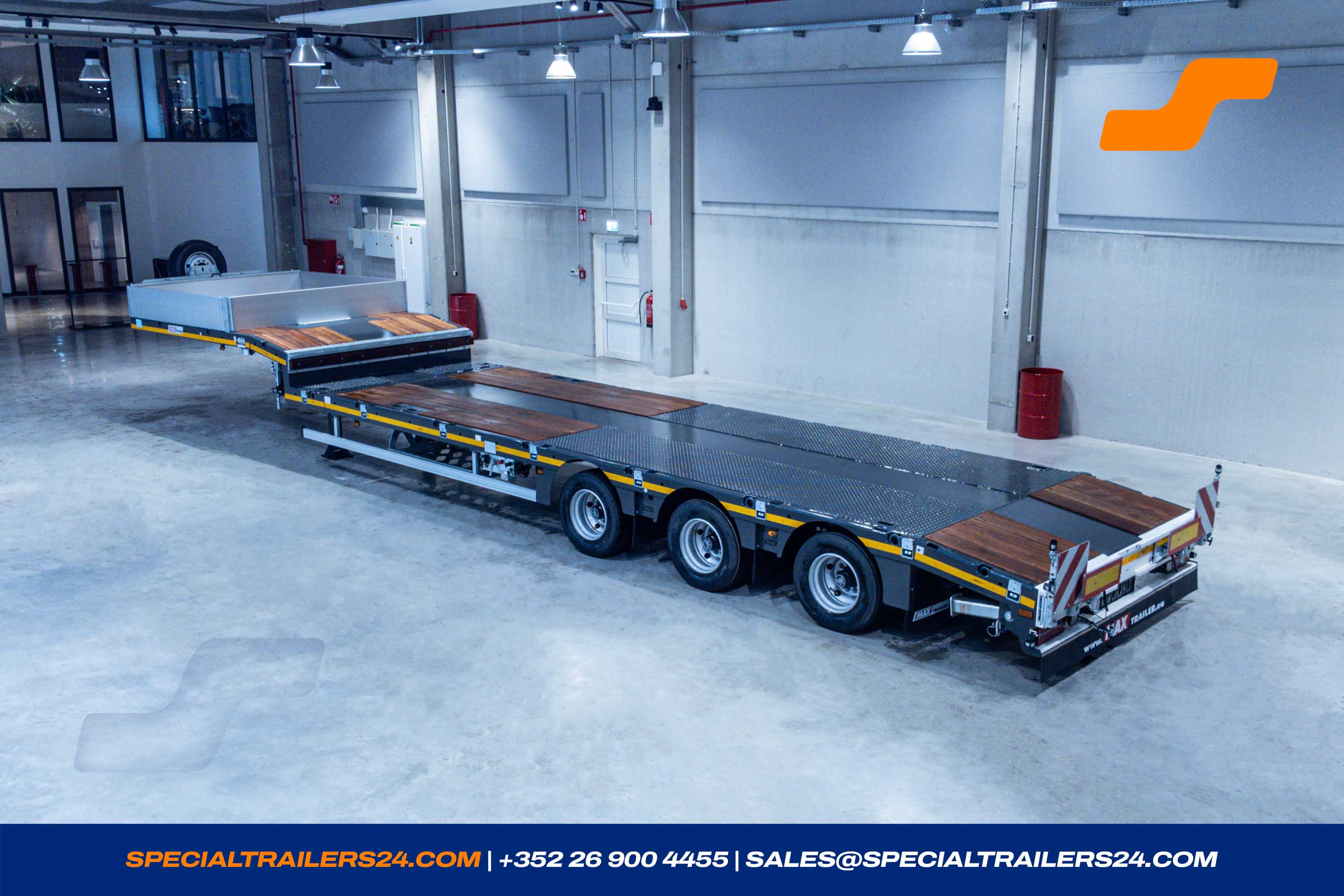

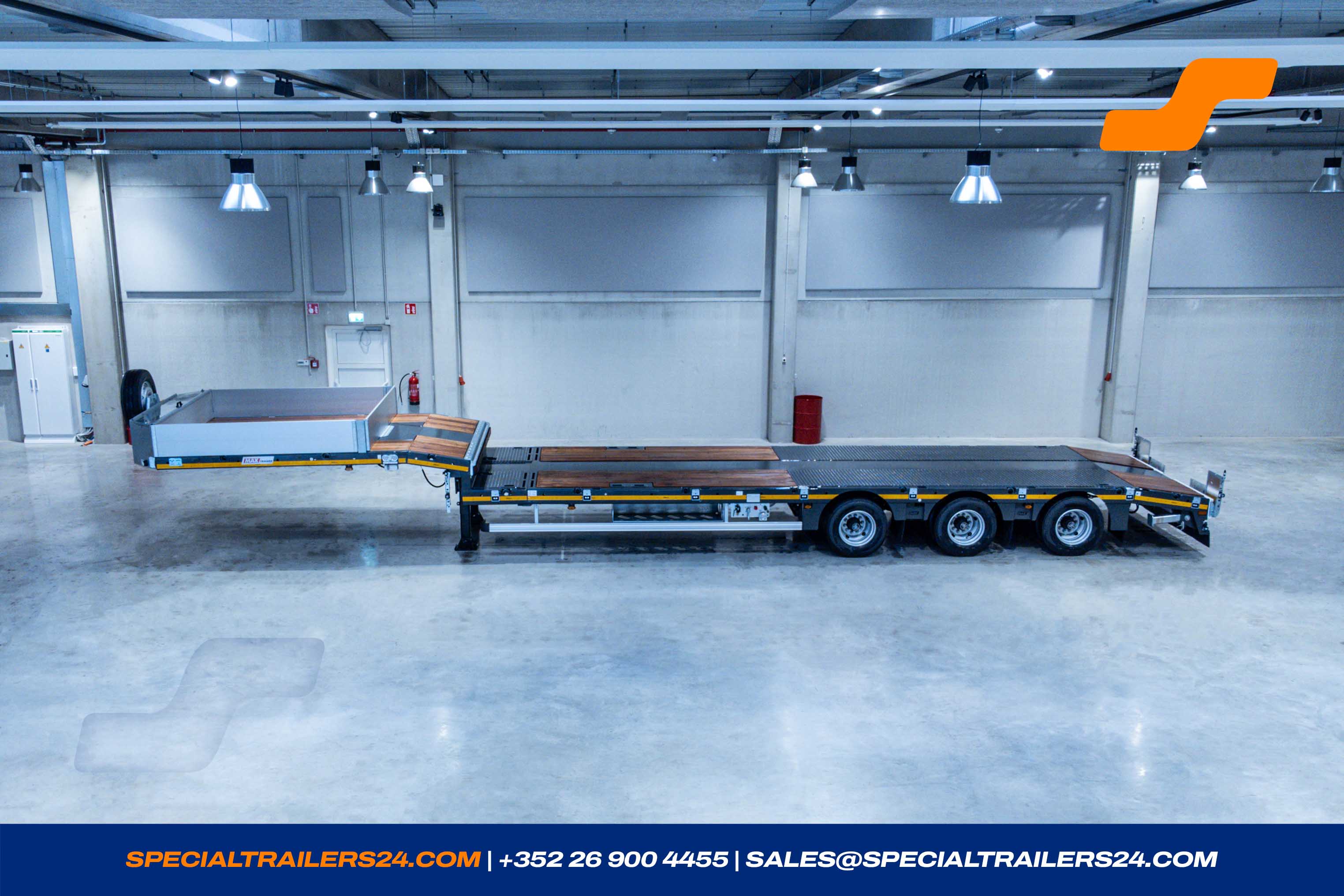

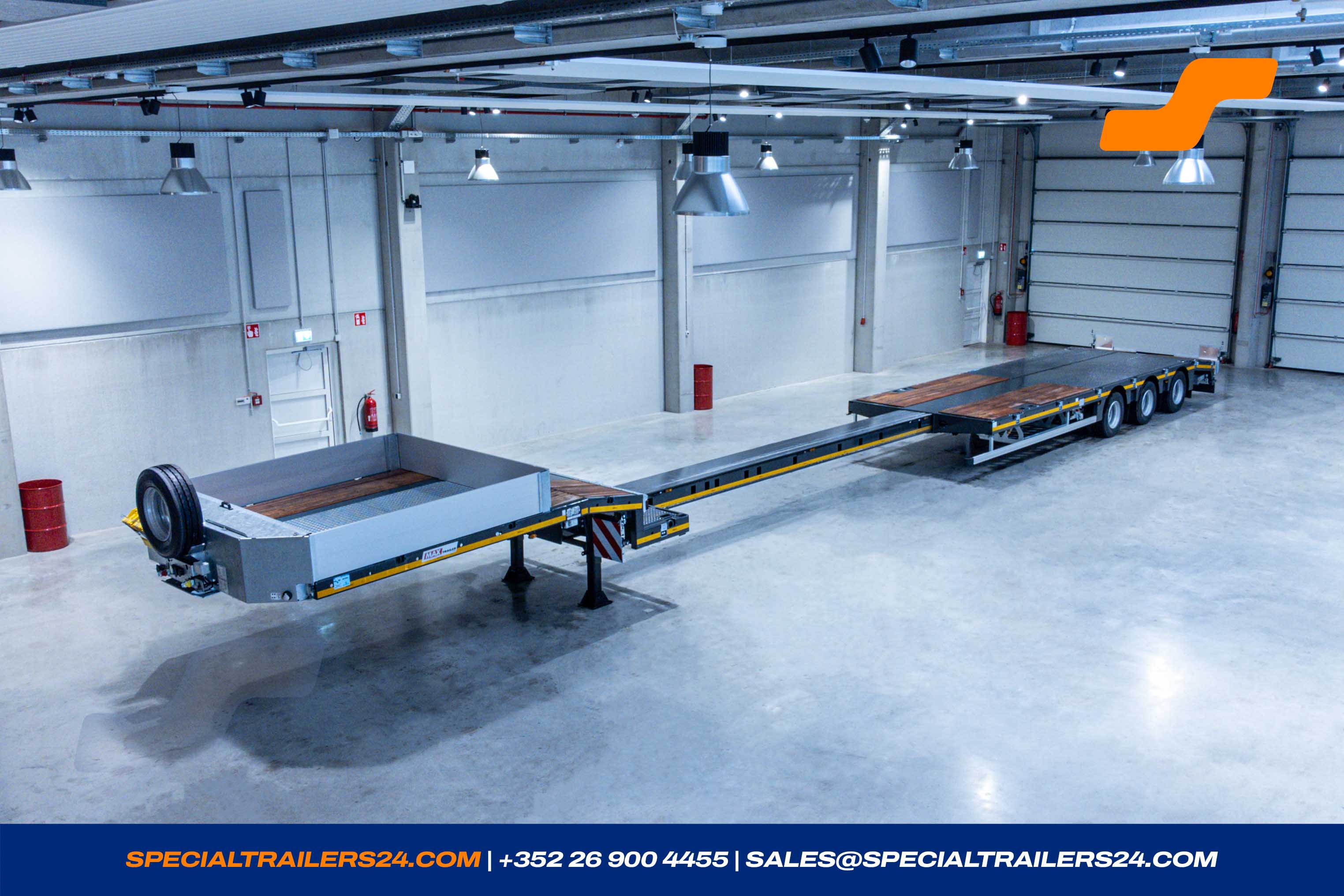

Low loader
MAX Trailer MAX110
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 112110
- Reference MAX110-Z-3A-9.30

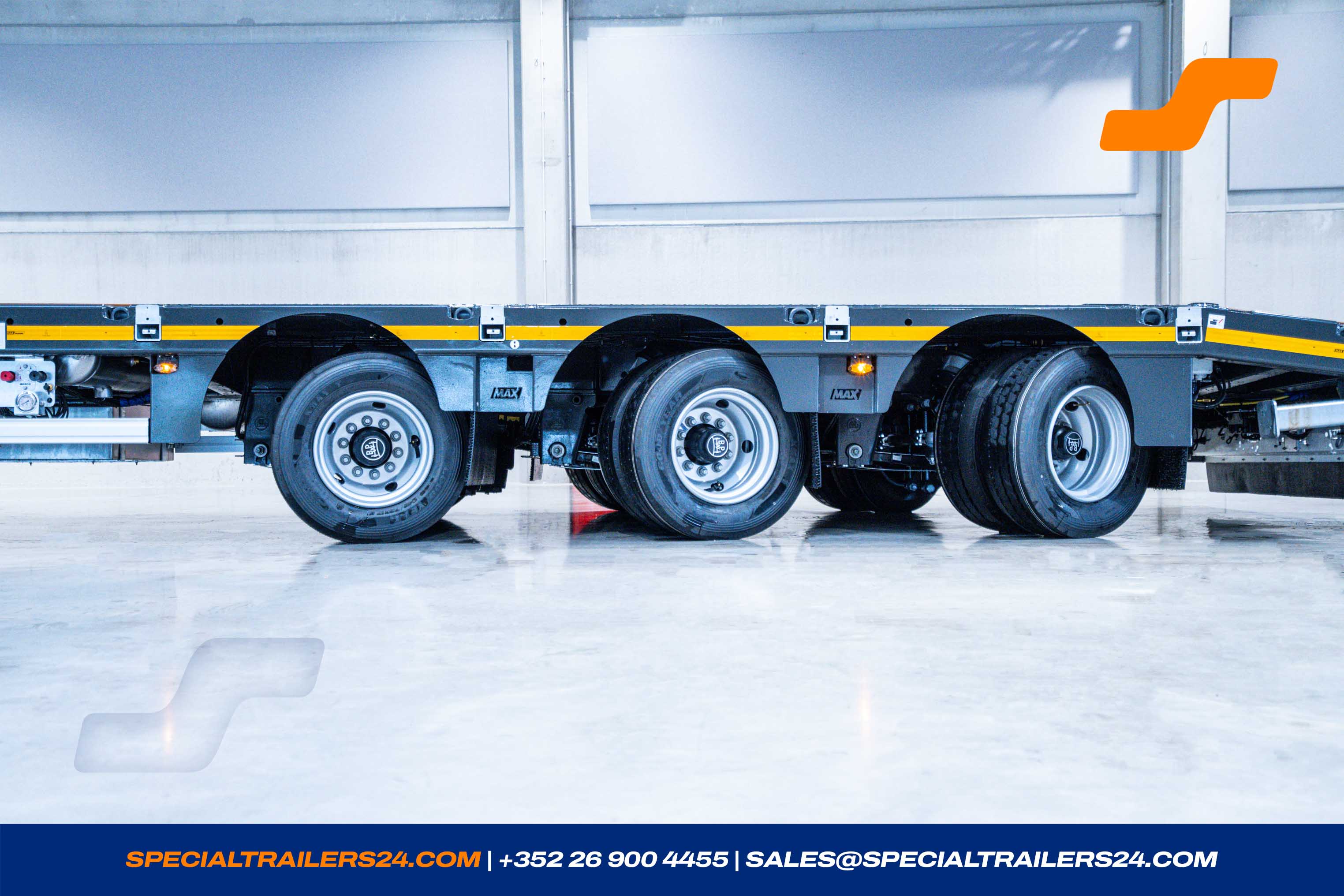

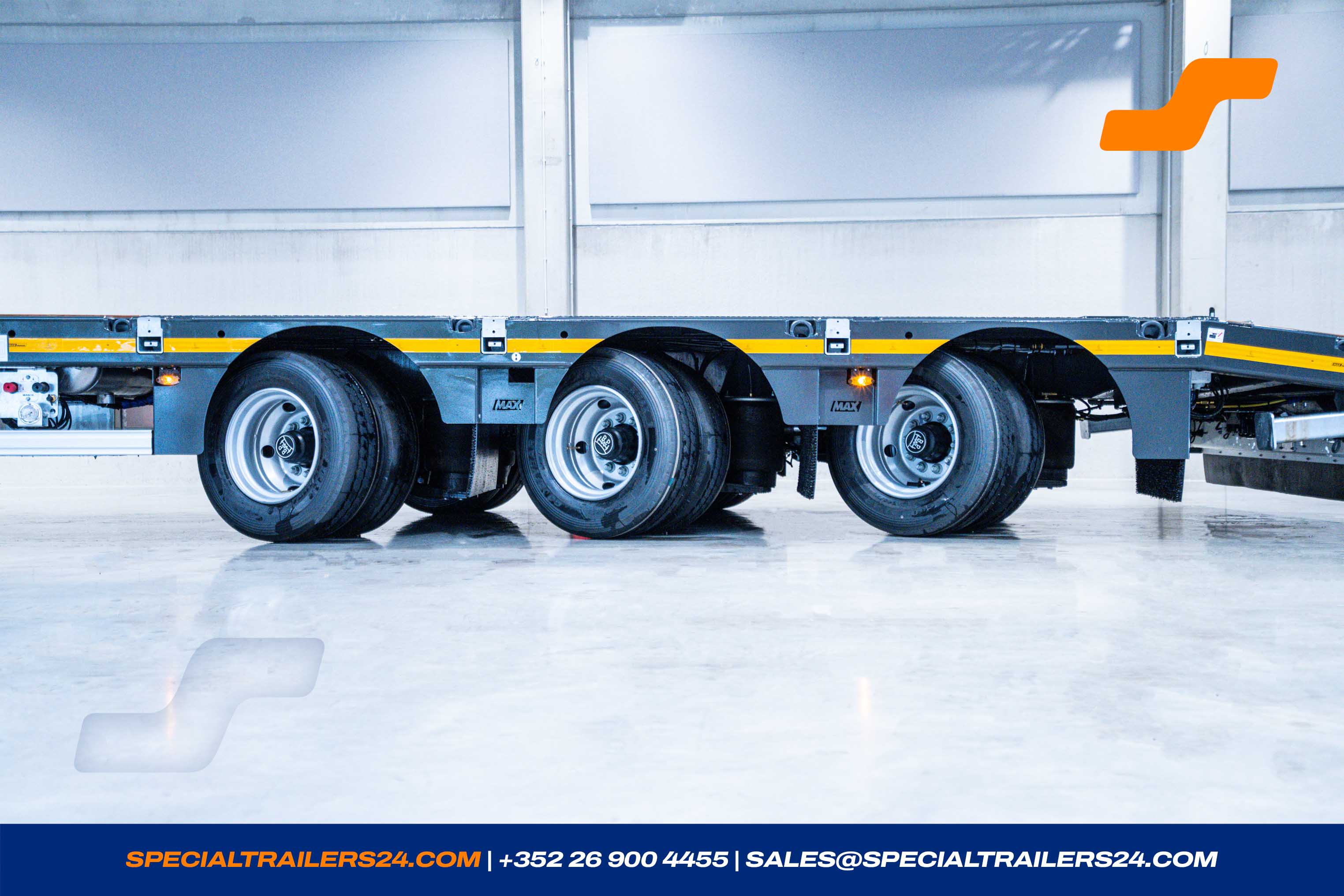

- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 06/2026
- Steering Type Hydraulic
Availability
06/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 32100 kg |
| Gross weight | 50100 kg |
| Tare weight +- 3% | 11239 kg |
| Payload | 38861 kg |
Dimensions
| Fifth wheel height loaded | 1200 mm |
| Gooseneck length | 4 200 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 9 300 mm |

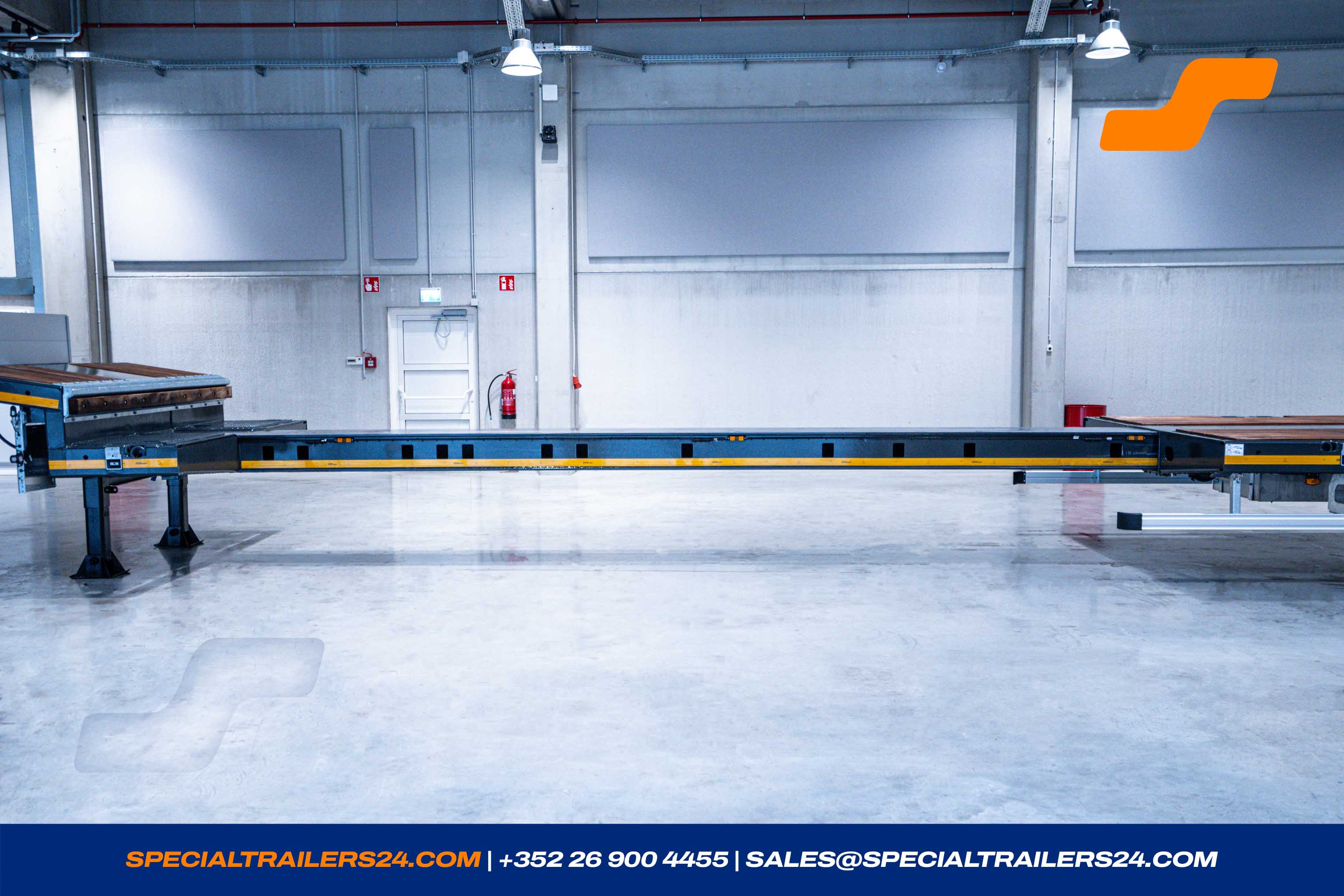

| Extendable by | 6 500 mm |
| Wheelbase | 1 360 mm |
| Loading height at max. load | 860 mm |
| Total width | 2 540 mm |
| Suspension stroke | -55/ +145 mm |

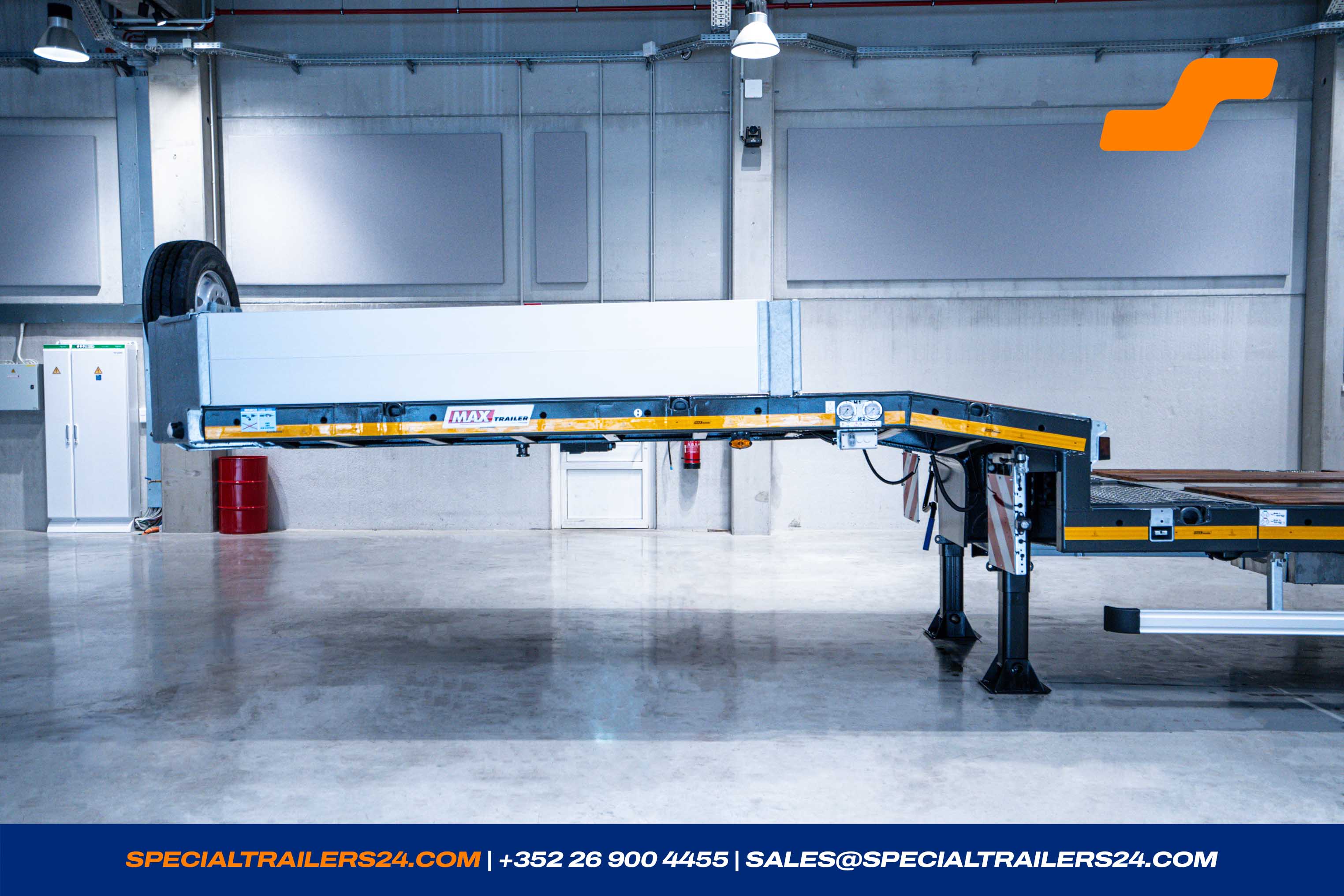

Gooseneck

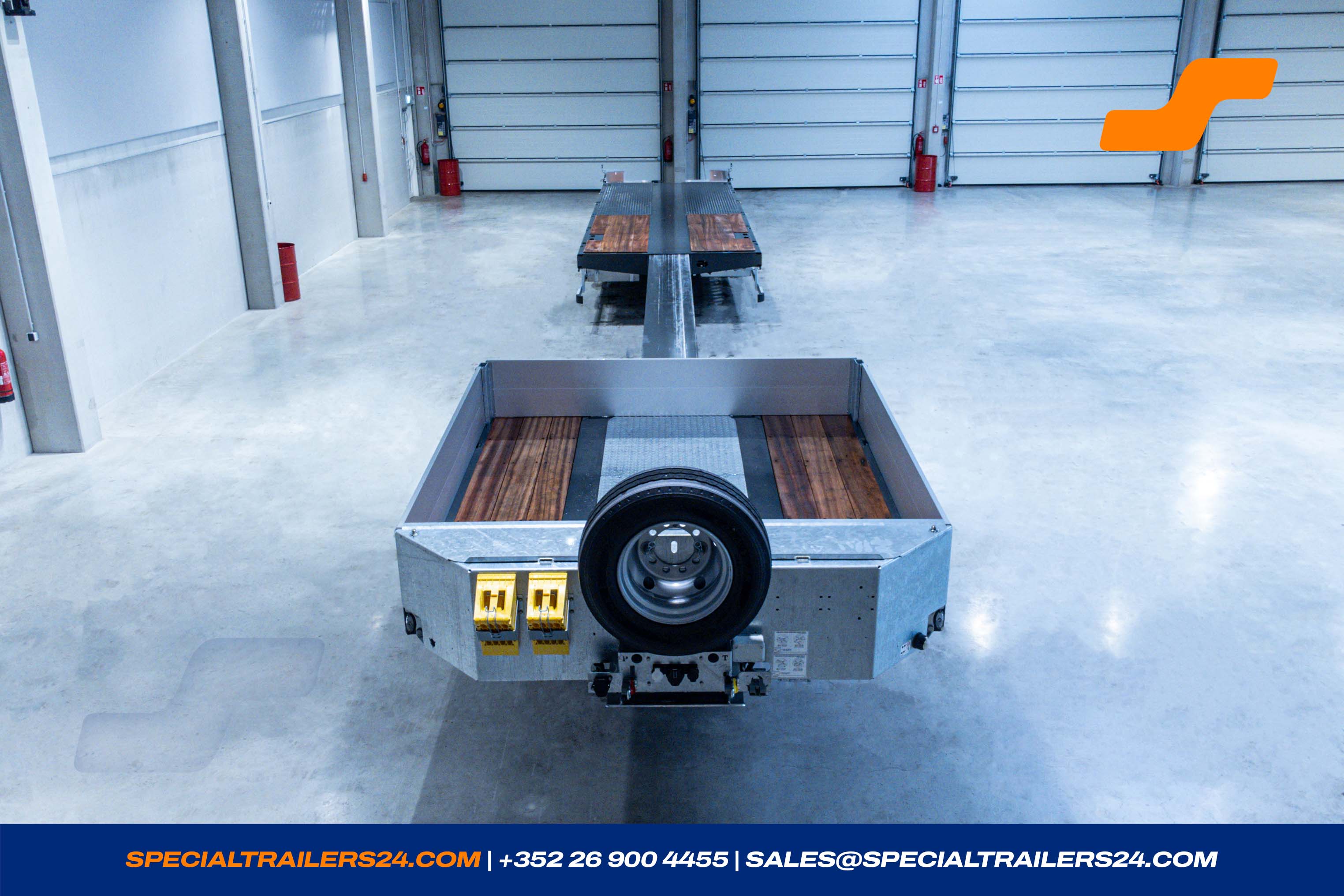

1 x Gooseneck : MAX-4.200-750-10° (DSR 2300/ASH 1200) 45°
Gooseneck with chamfered corners ± 45° in front and rear chamfered by ± 750 mm x 10°.
3 pairs of lashing rings (LC 5 000 daN).
Hardwood cover thickness 30 mm.
- 2 king-pin.

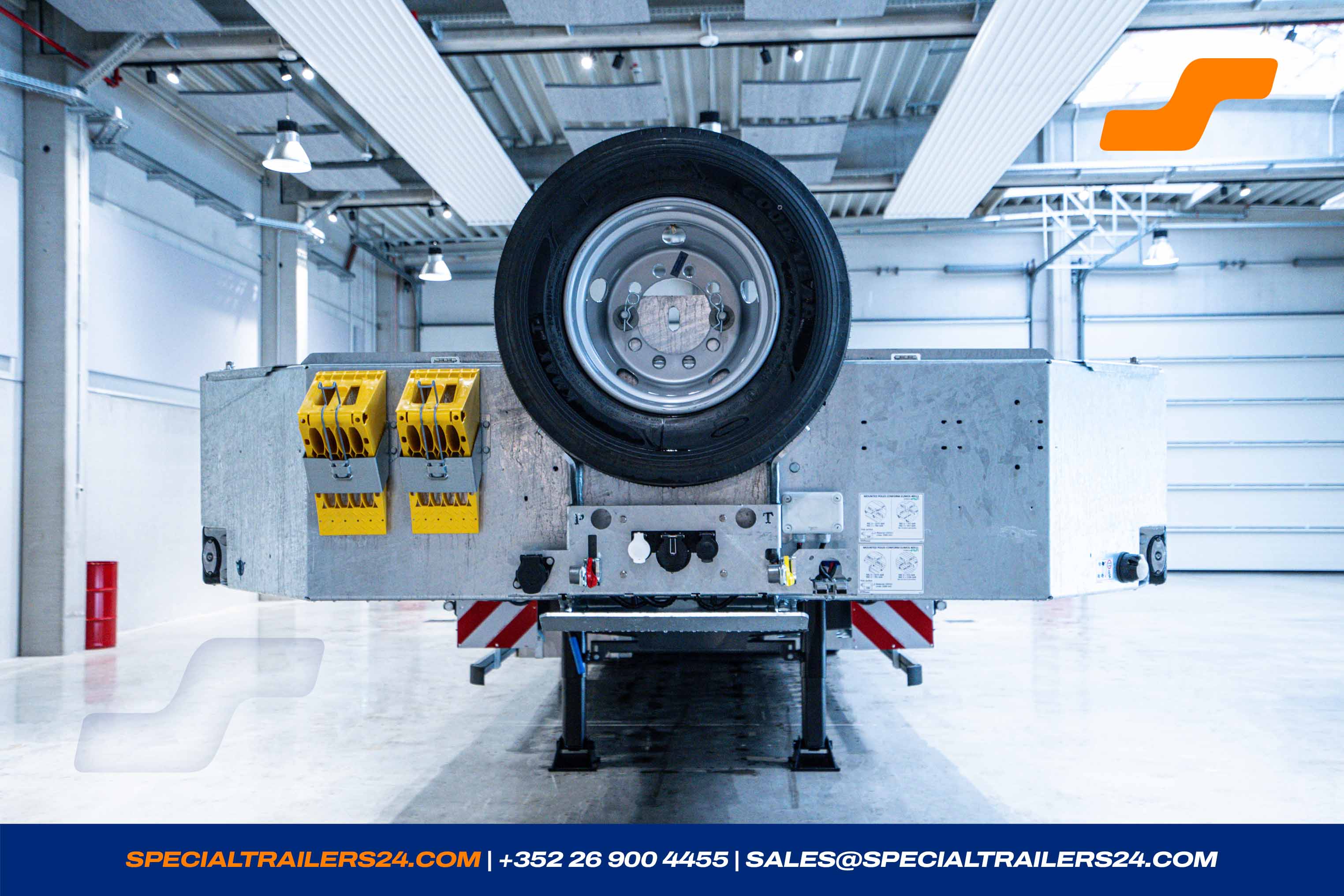

- One galvanised steel headboard, height ± 400 mm.
- Red and yellow air couplings on the galvanised front connection ledge.
- 2 wheel chocks with carrier on the headboard.

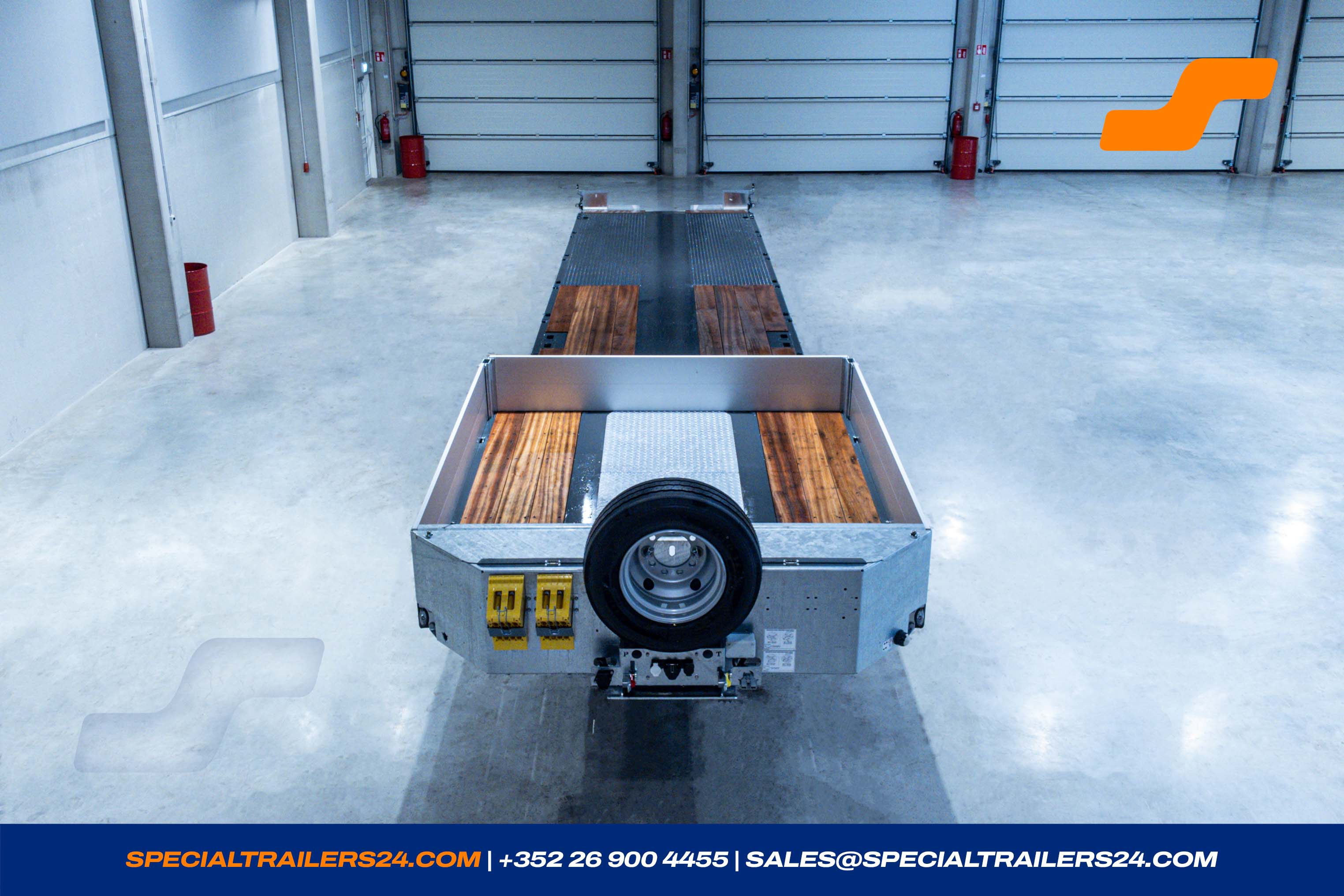

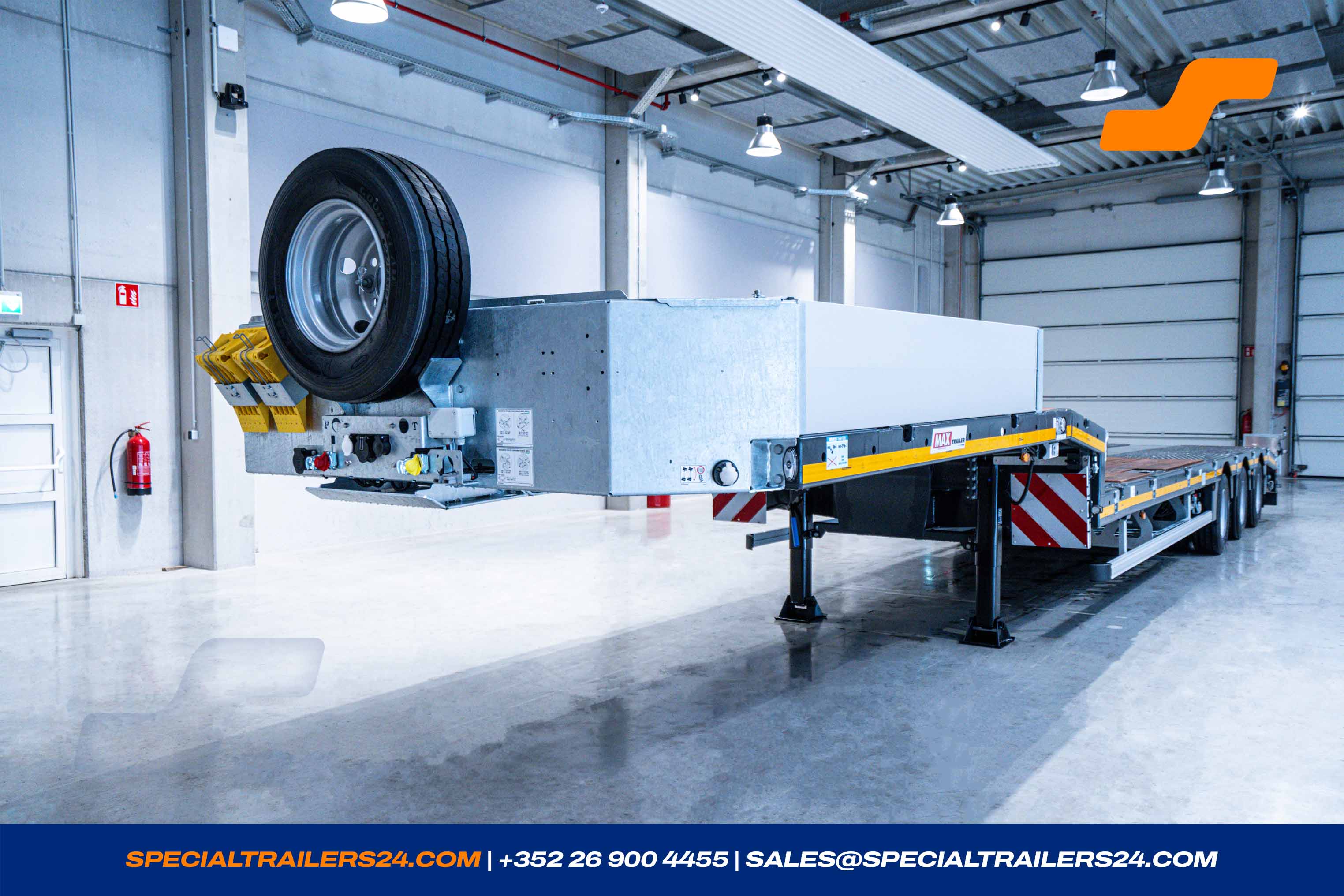

- One spare wheel with holder on the headboard.
-

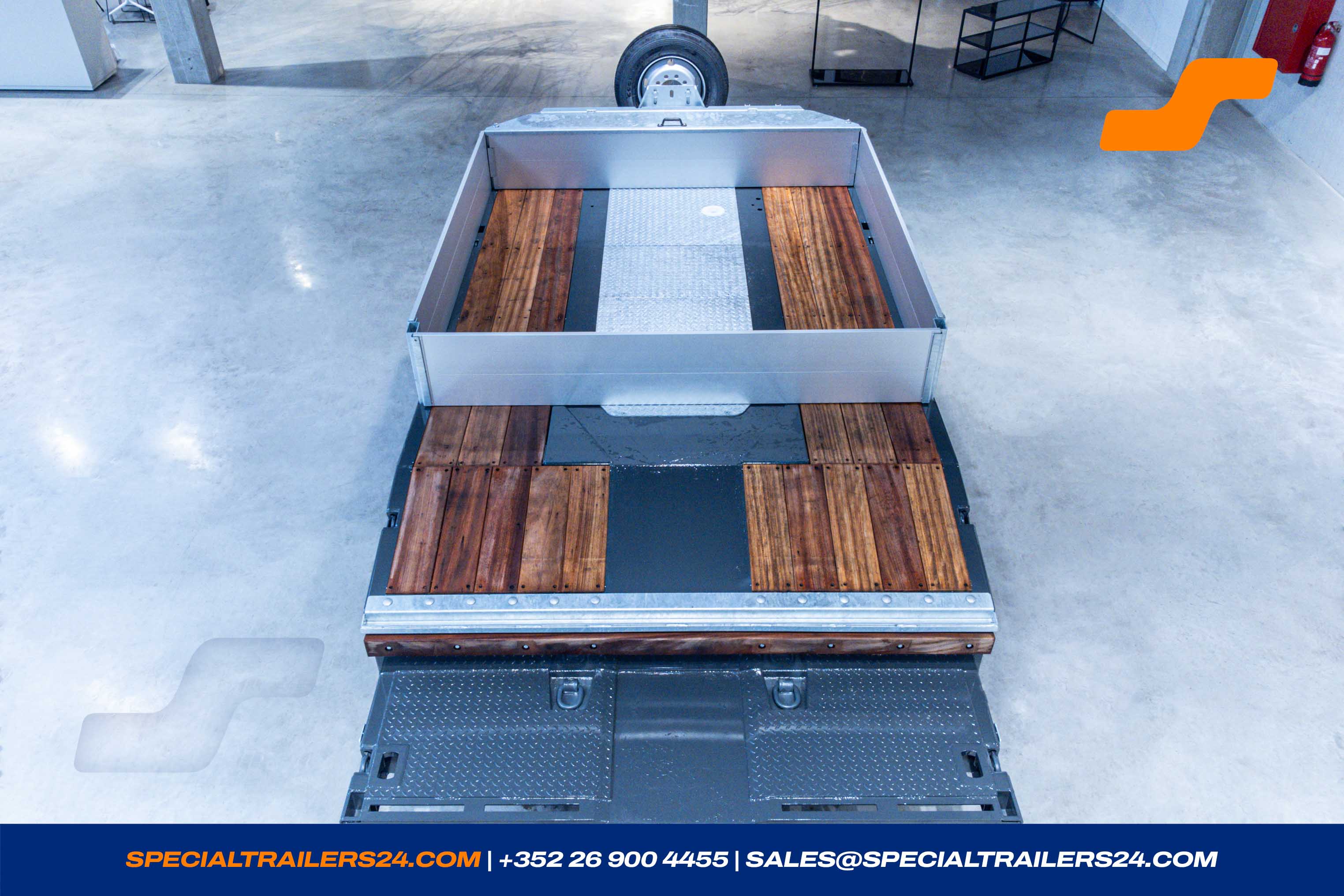

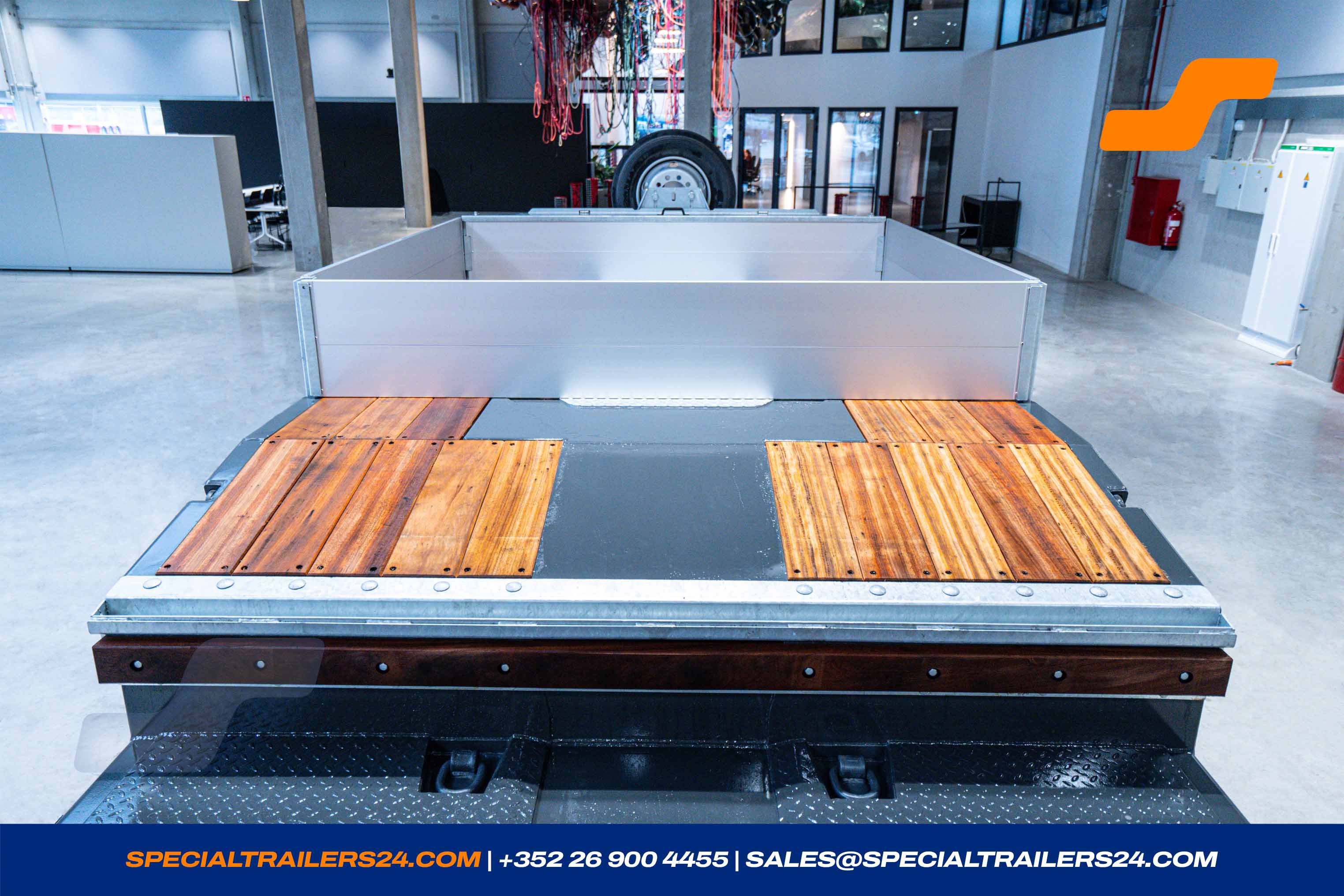

On the gooseneck removable sideboards and rearboard in alu ca. 2 400 x 400 mm (L x H).
The galvanised rear stakes are dismountable.

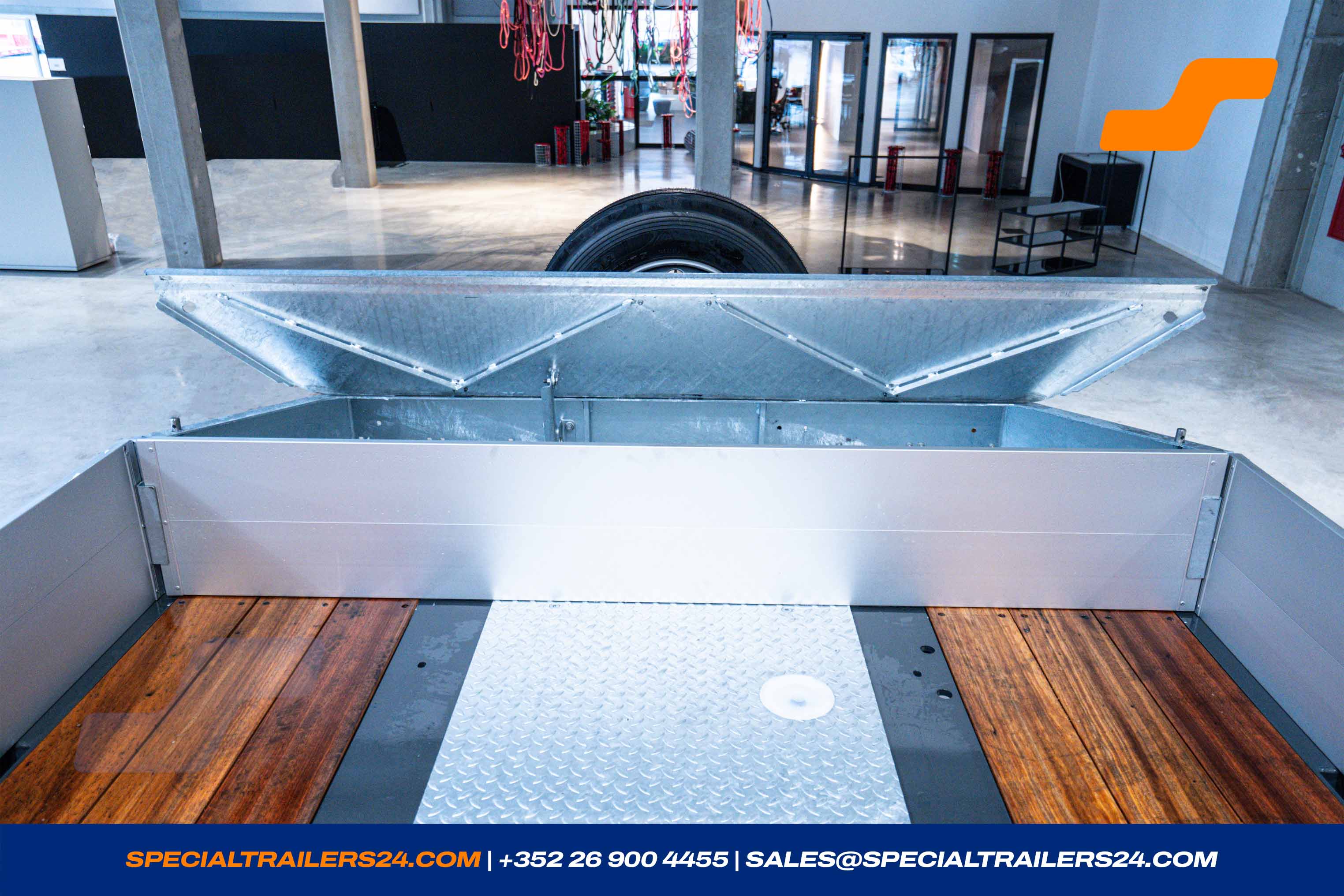

(Length of the structure ca. 2 560 mm) (± 46kg). - 1 galvanized toolbox integrated in the charmfered gooseneck (± 47 kg).
- U-beam for ALU-ramps on the rear of the gooseneck with integrated impact protection. (± 56 kg)
Loading deck
Loading platform
1 x Loading platform : MAX110-Z-3A-9.30-17.5-2.54

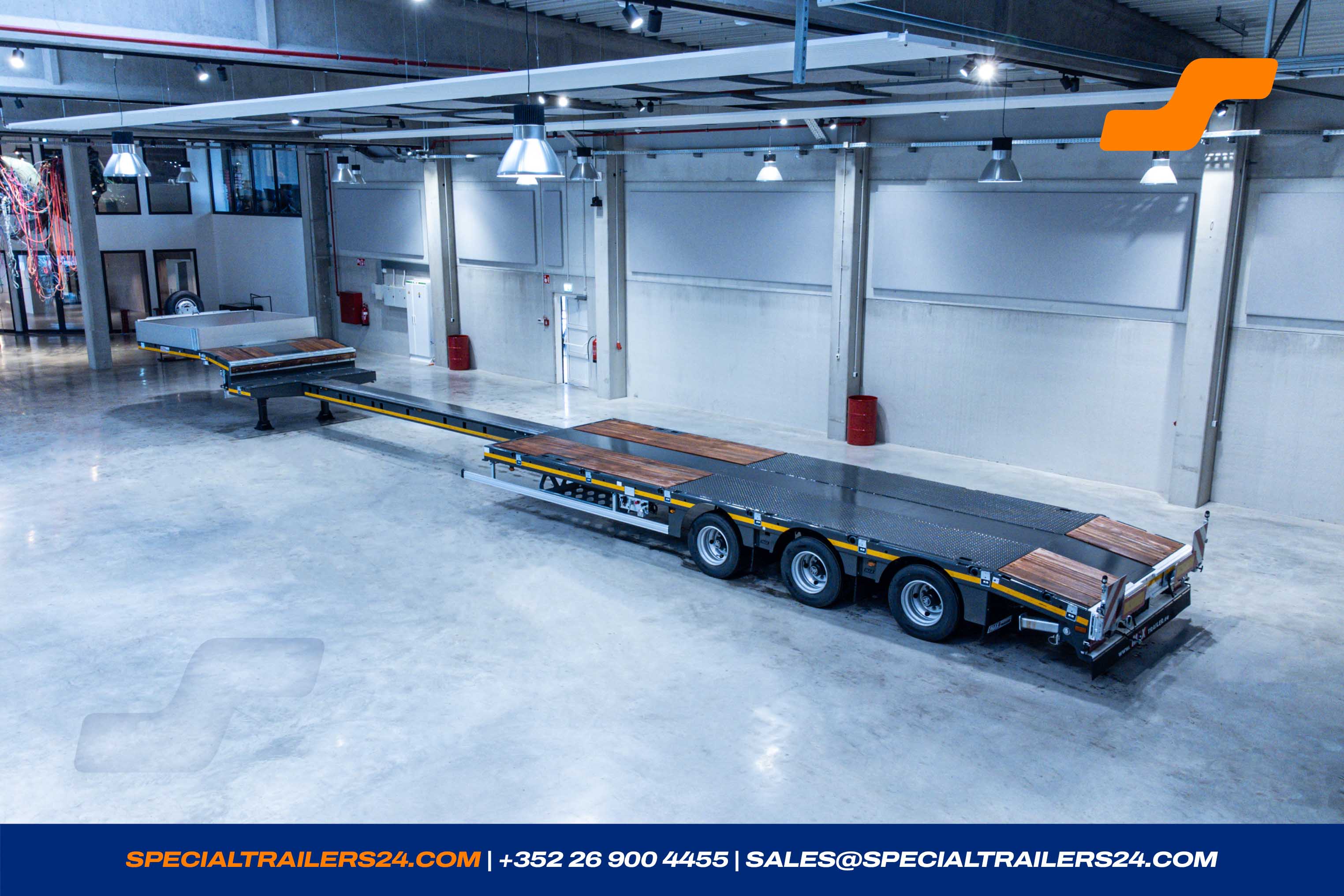

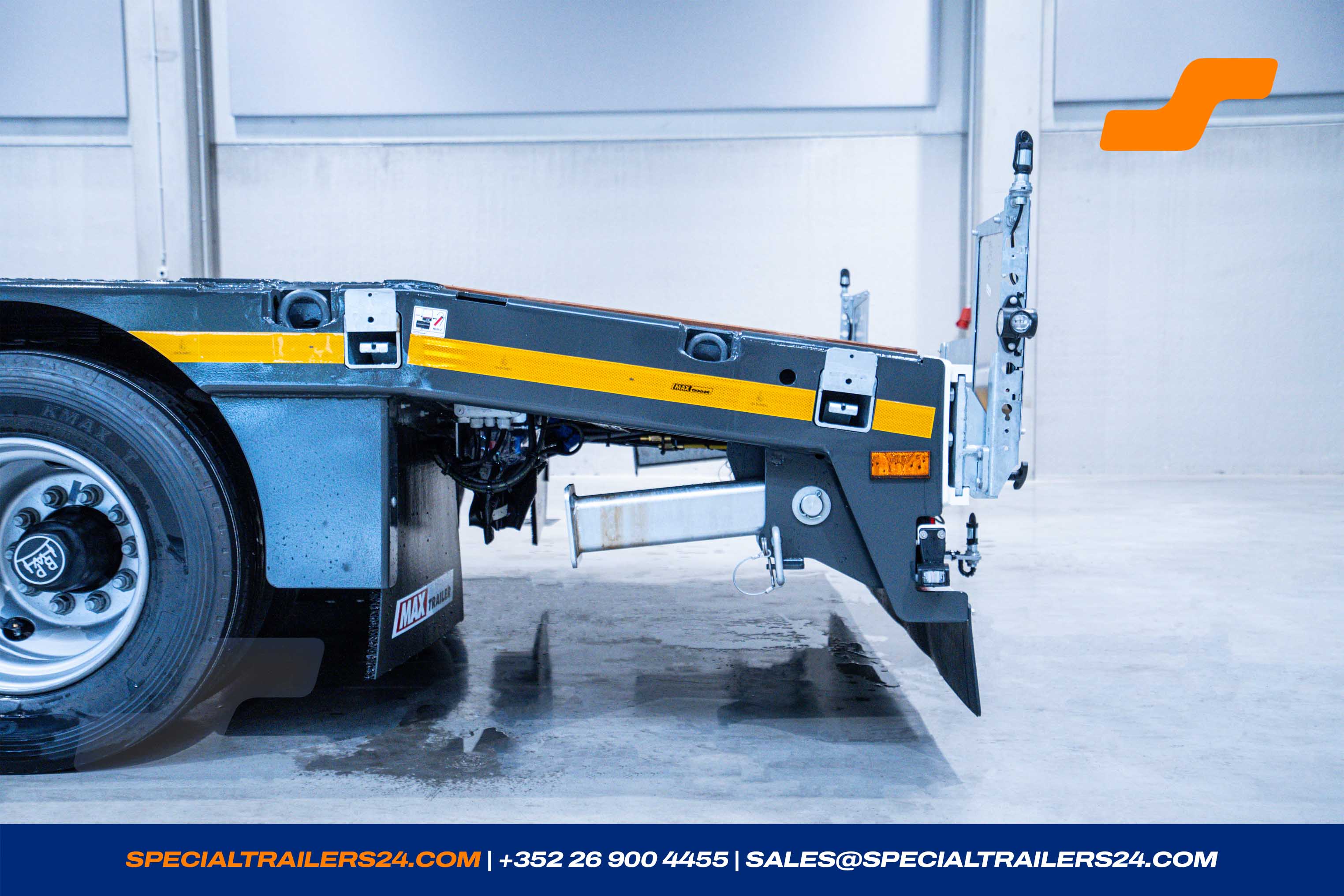

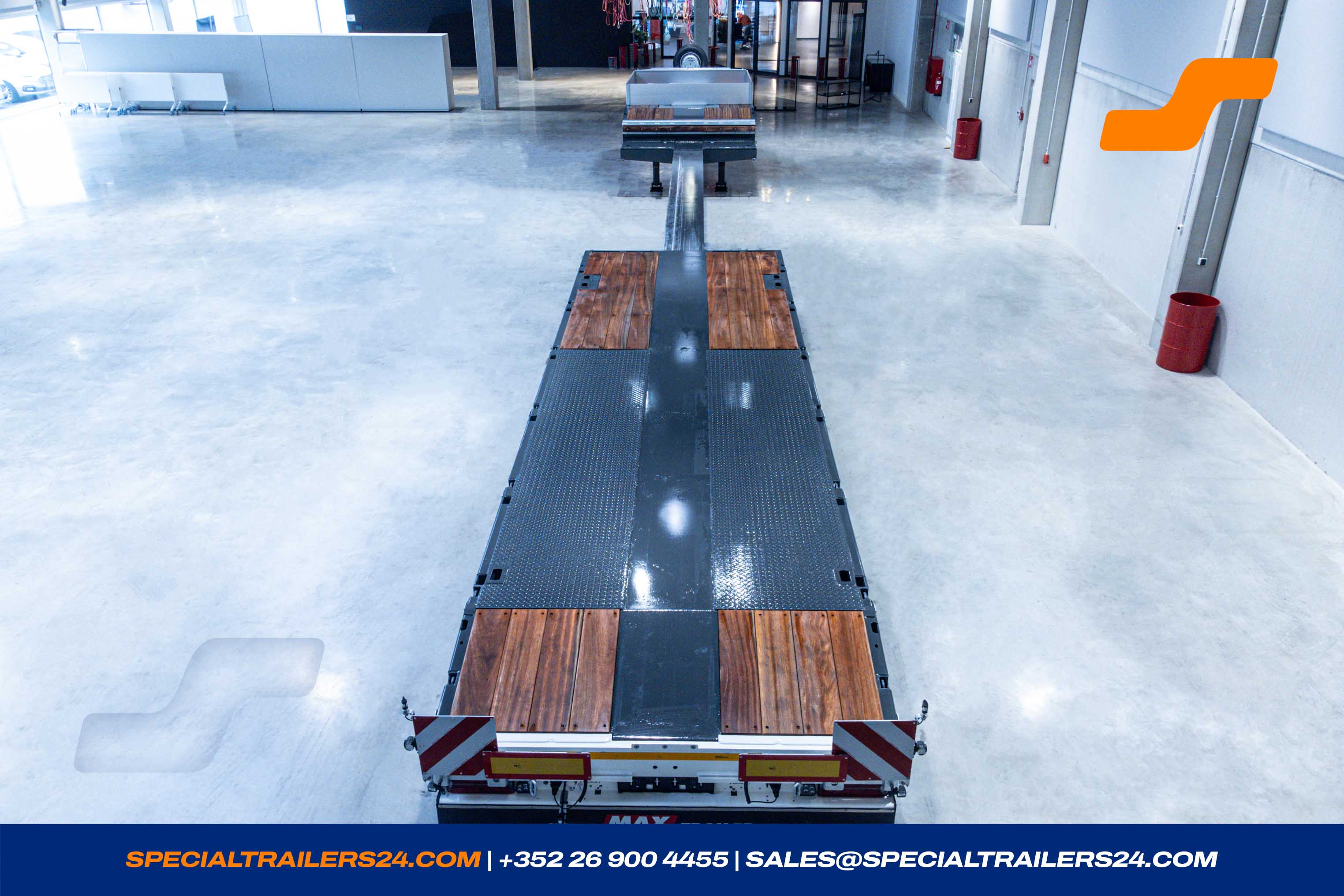

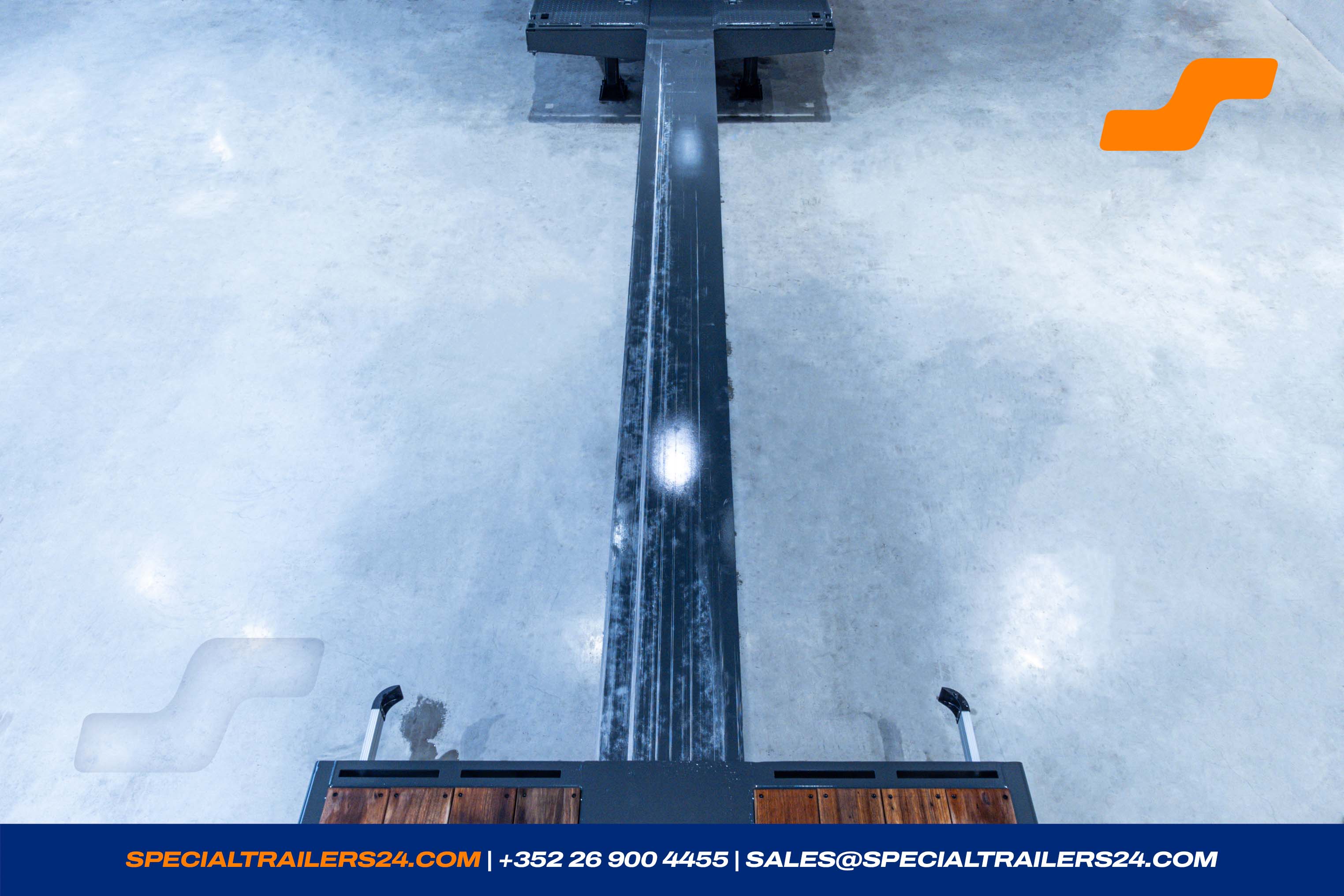

Loading platform in extendable version with chamfered beaver tail by about 1 000 mm x 8°.
5 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
3 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
1 pair of lashing rings in front in the firm part the loading platform (LC 10 000 daN).

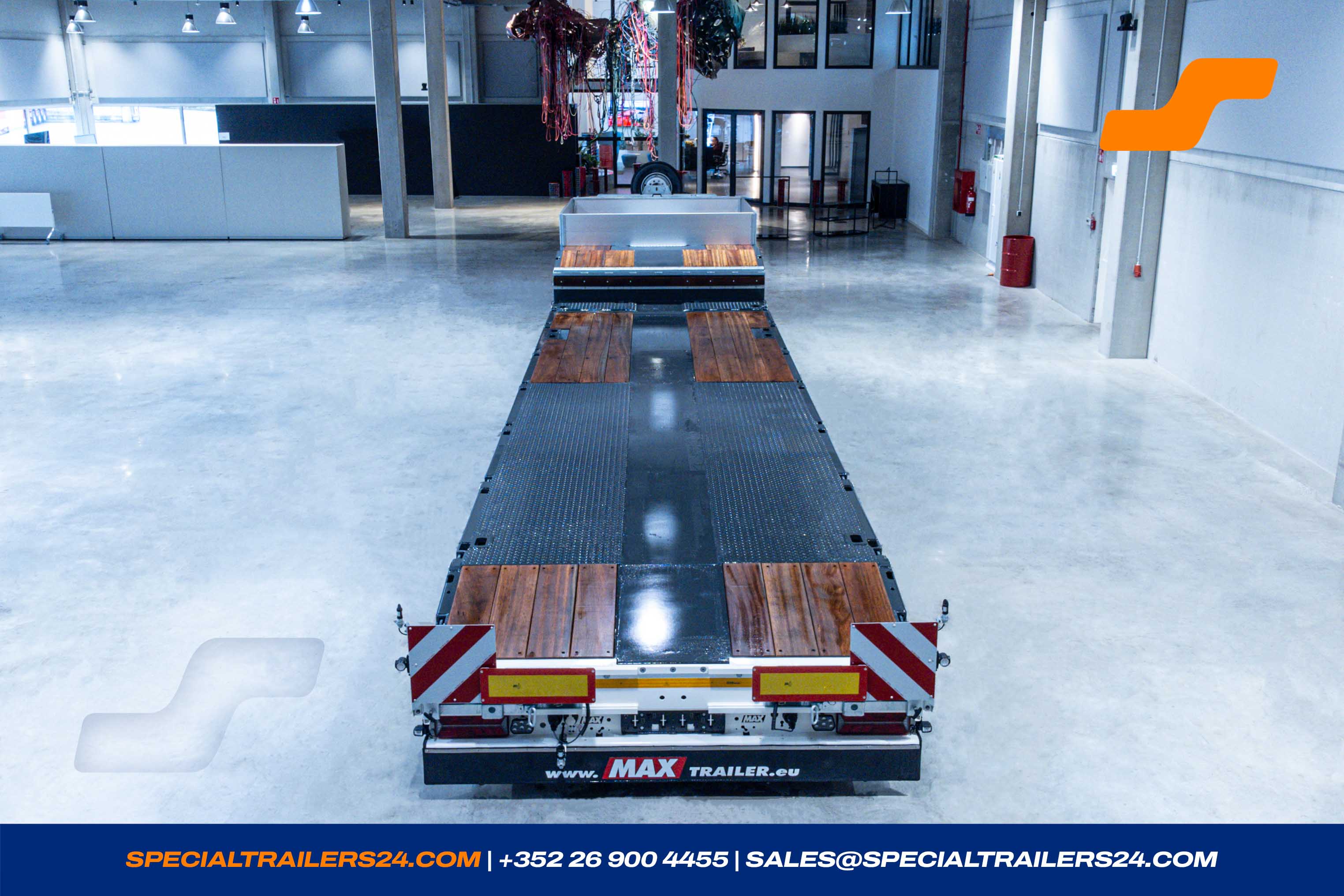

Hardwood cover thickness 48 mm above the axles chequer plate.
- Electrically operated hydraulic pump. (± 45kg)
-

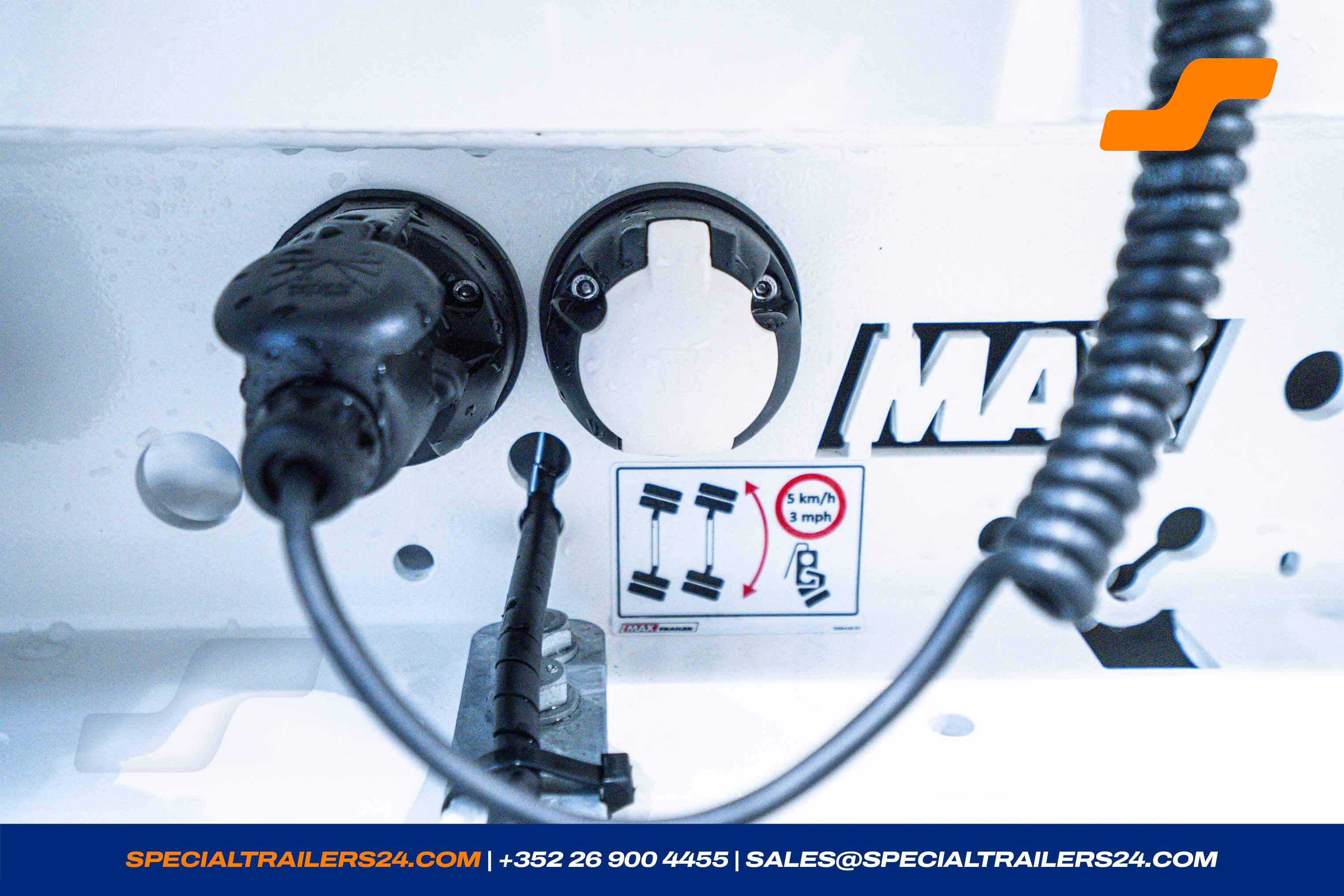

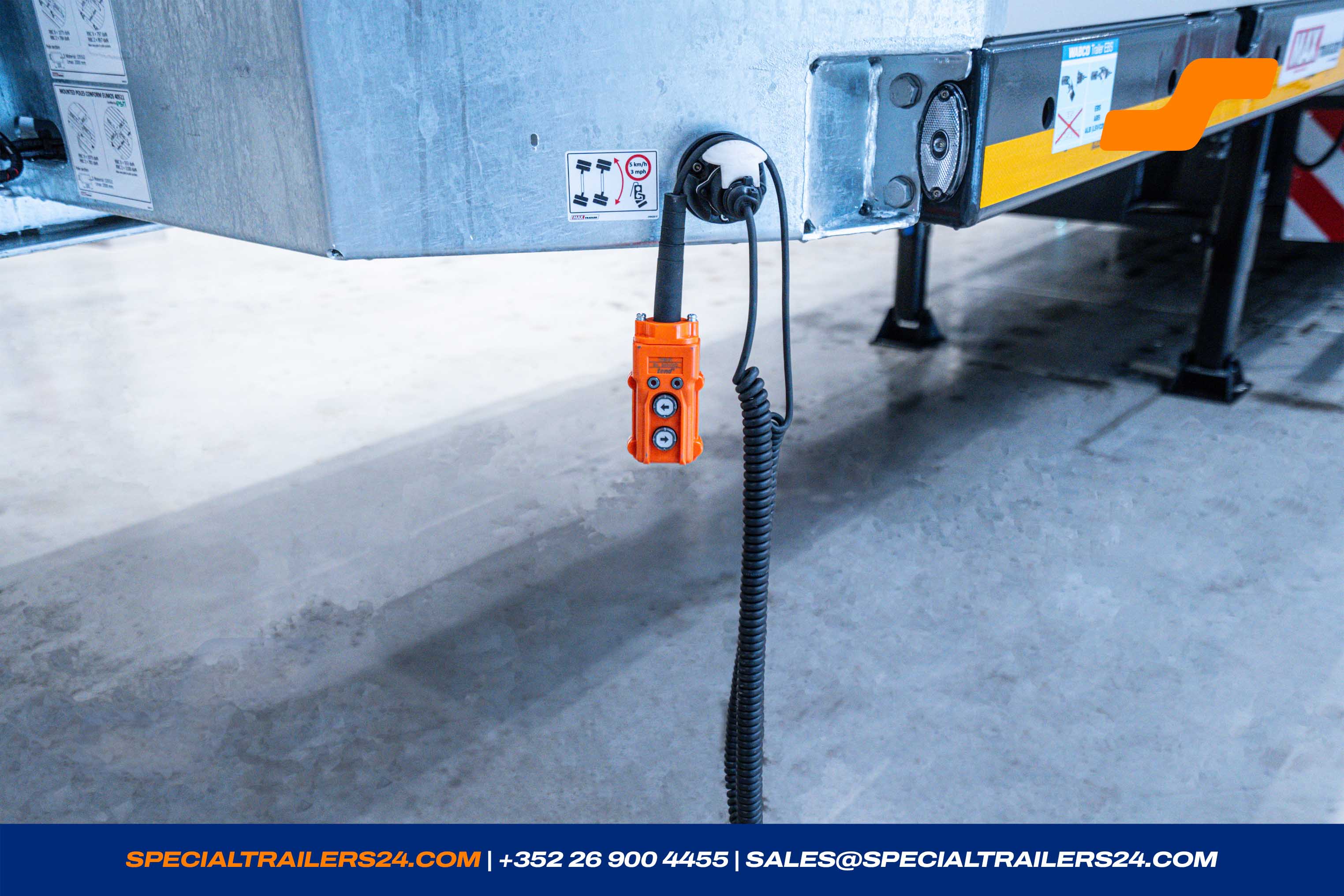

Manual-steering, handling with cable remote control from the front and the back, with PDC-light control for the realignement of the axles.

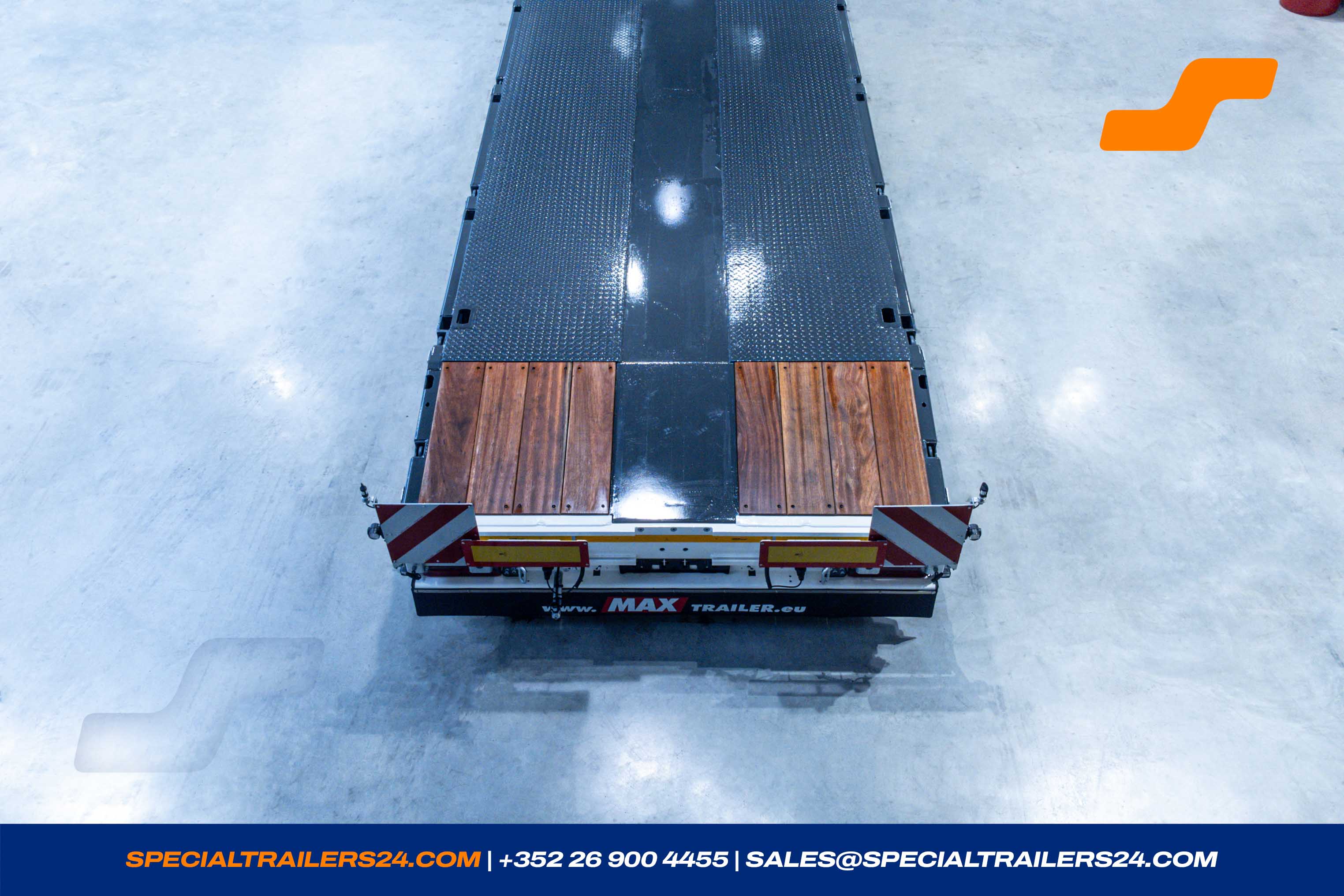

(without connection to the tractor). - Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.

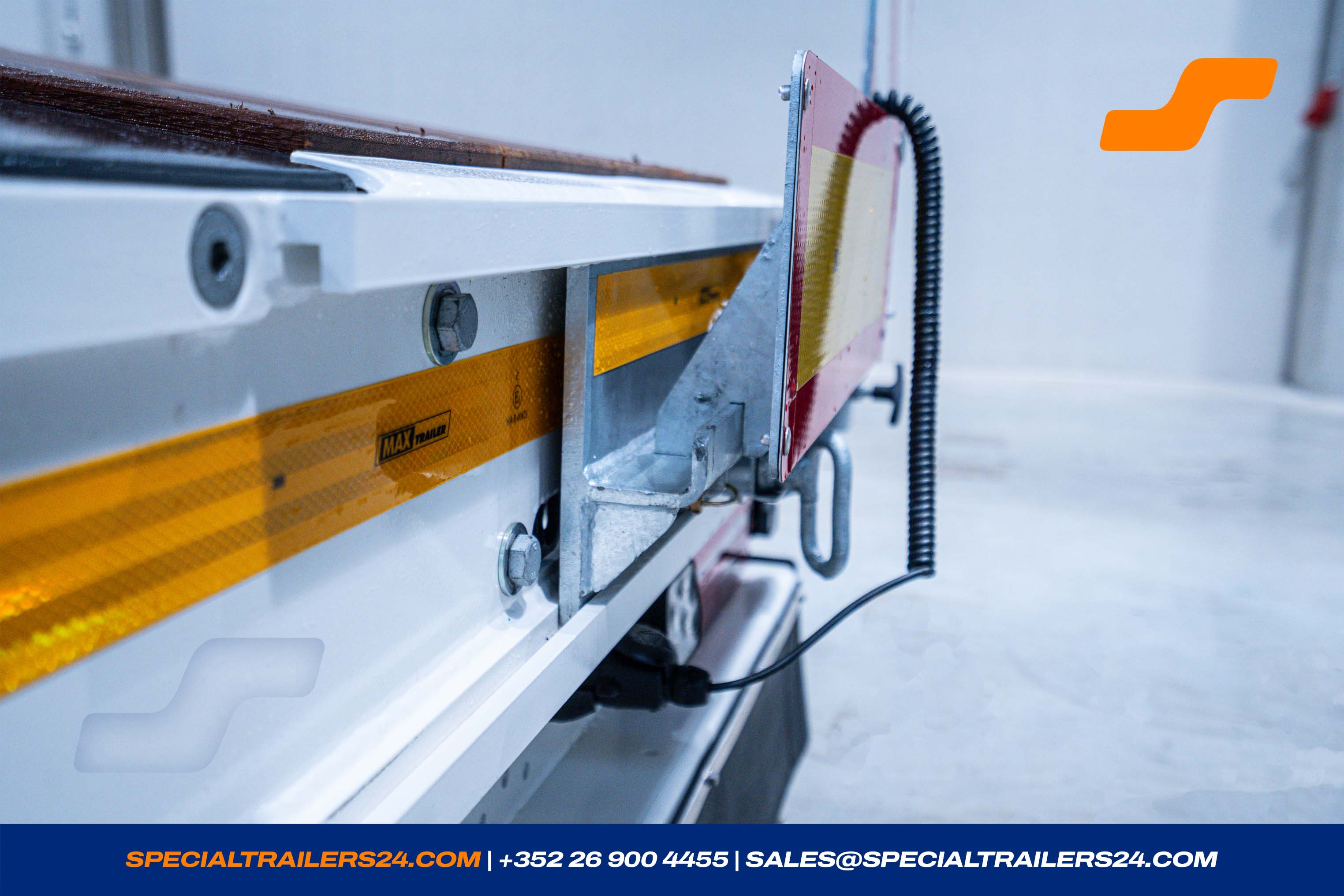

- Yellow reflective tape according to the EU regulation over the entire length, on the extension and at the rear.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
- Holder for one beacon light at the rear of the trailer.

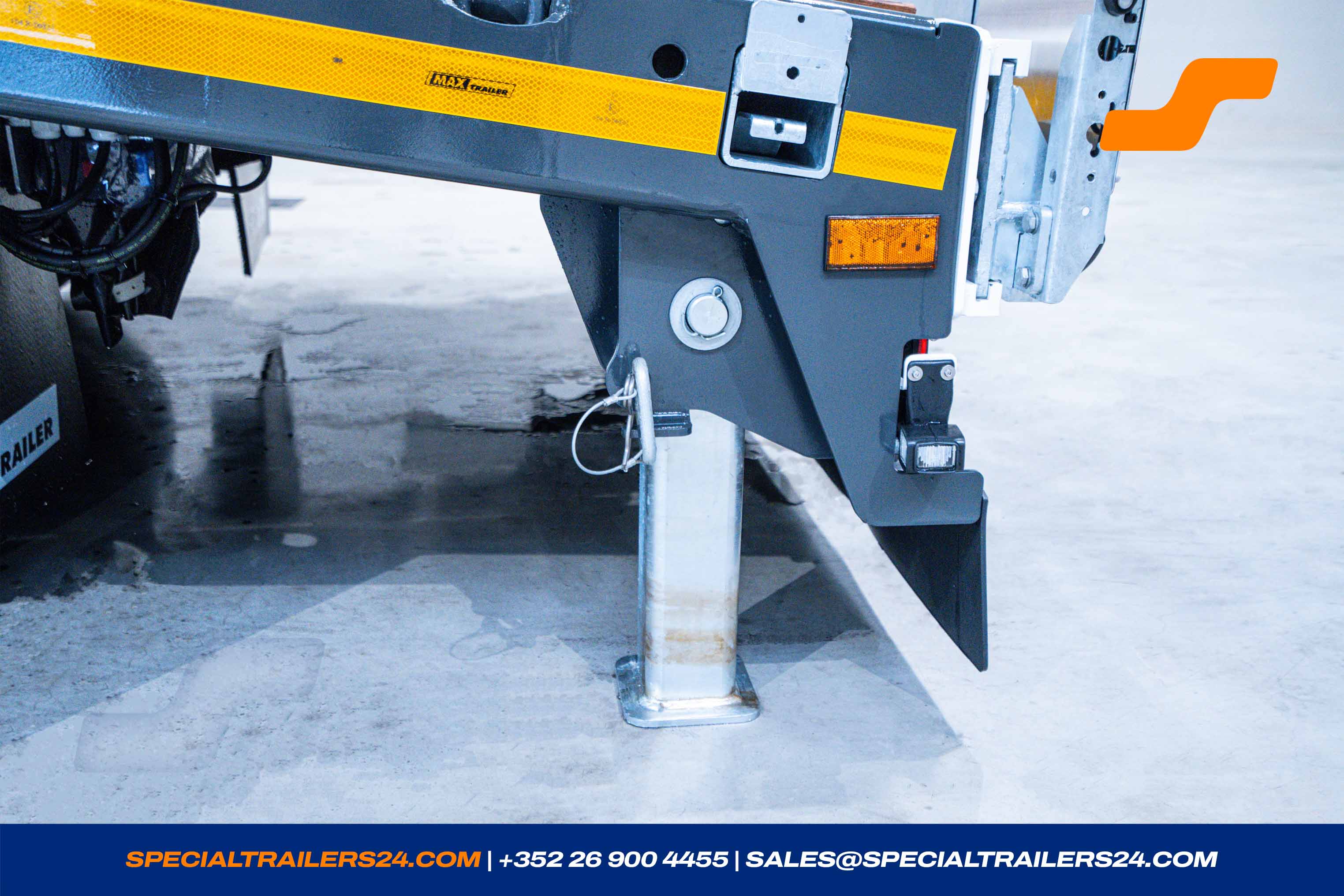

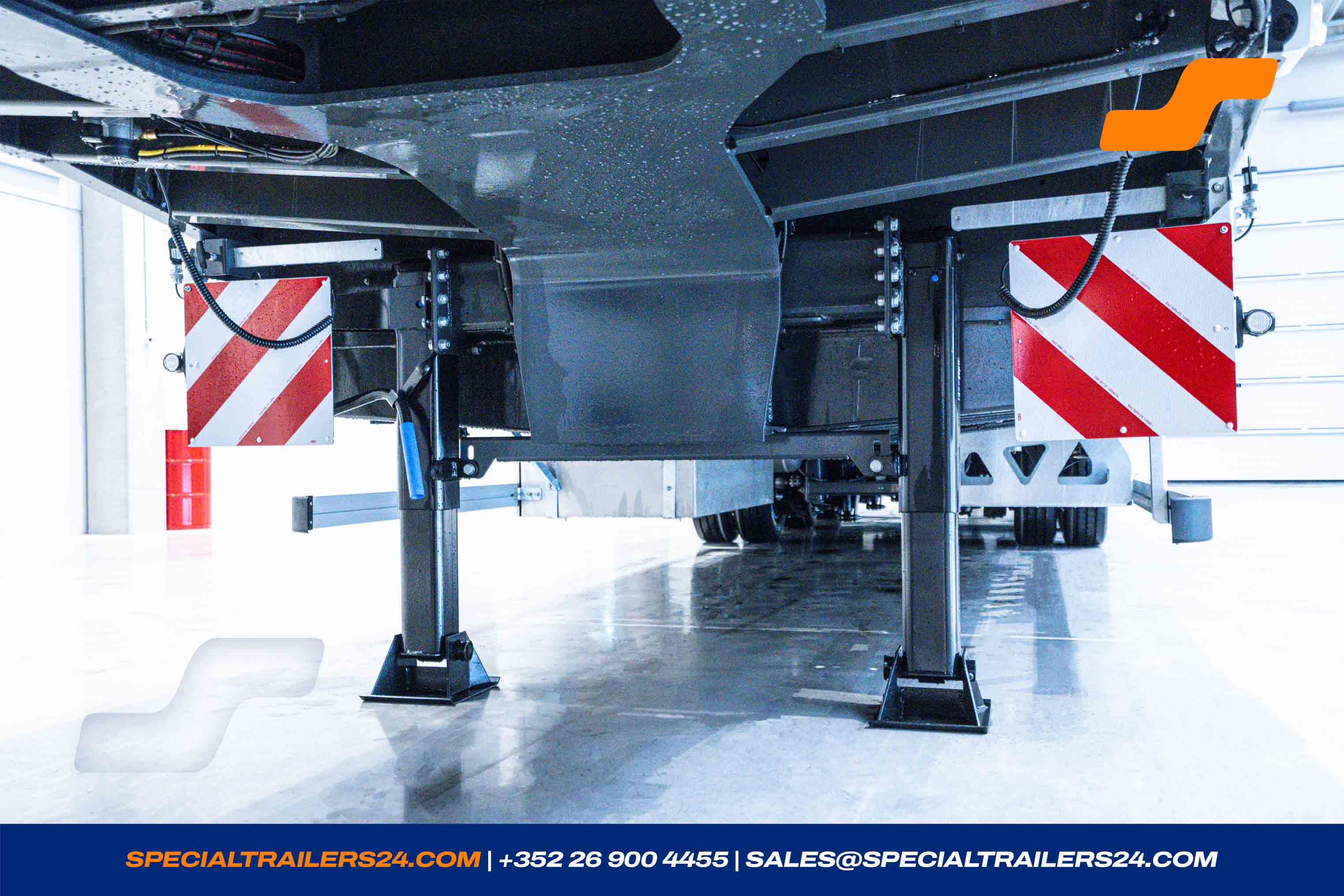

- Galvanised landing gears at the rear under the loading platform.

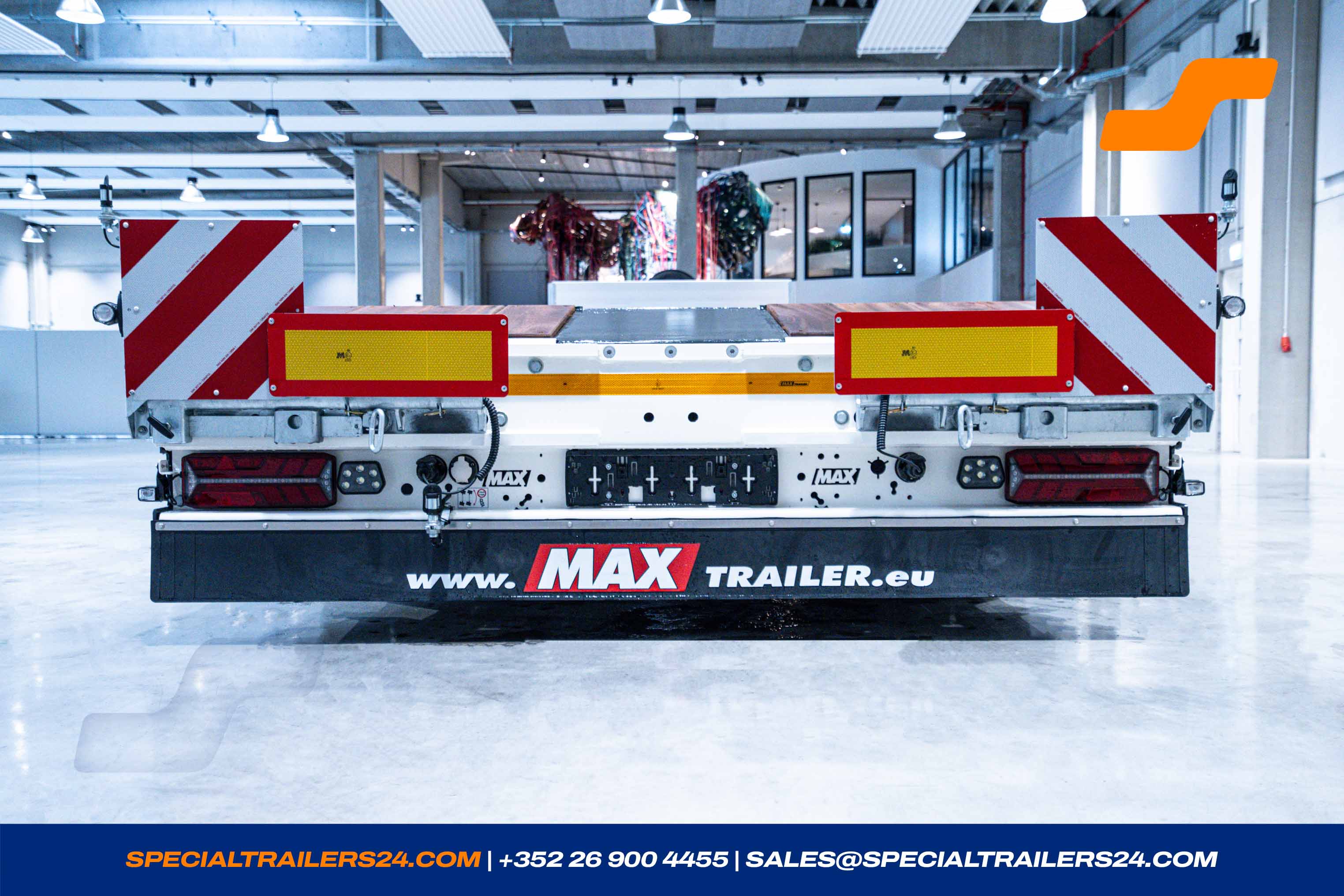

- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- 4 pairs of WADER containerpockets in the loading platform for one 20', 2 x 20', 1 x 40' or 1 x 45' container. (± 40 kg)
- 7 pairs of pockets for stakes ca. 100 x 50 mm in the outer frame of the loading platform. (± 21kg)

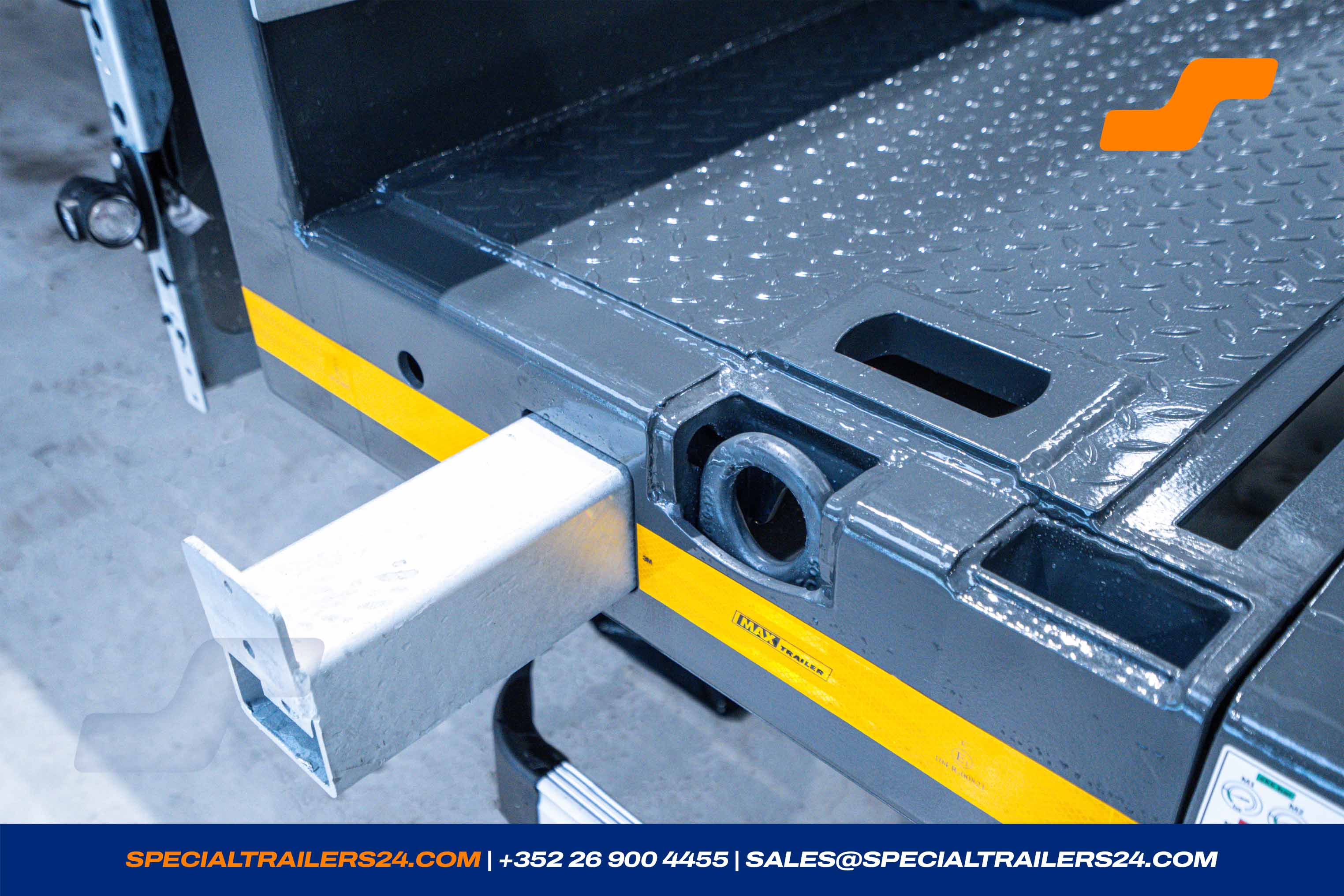

- Galvanised outriggers, extendable up to ± 230 mm per side (± 262 kg).

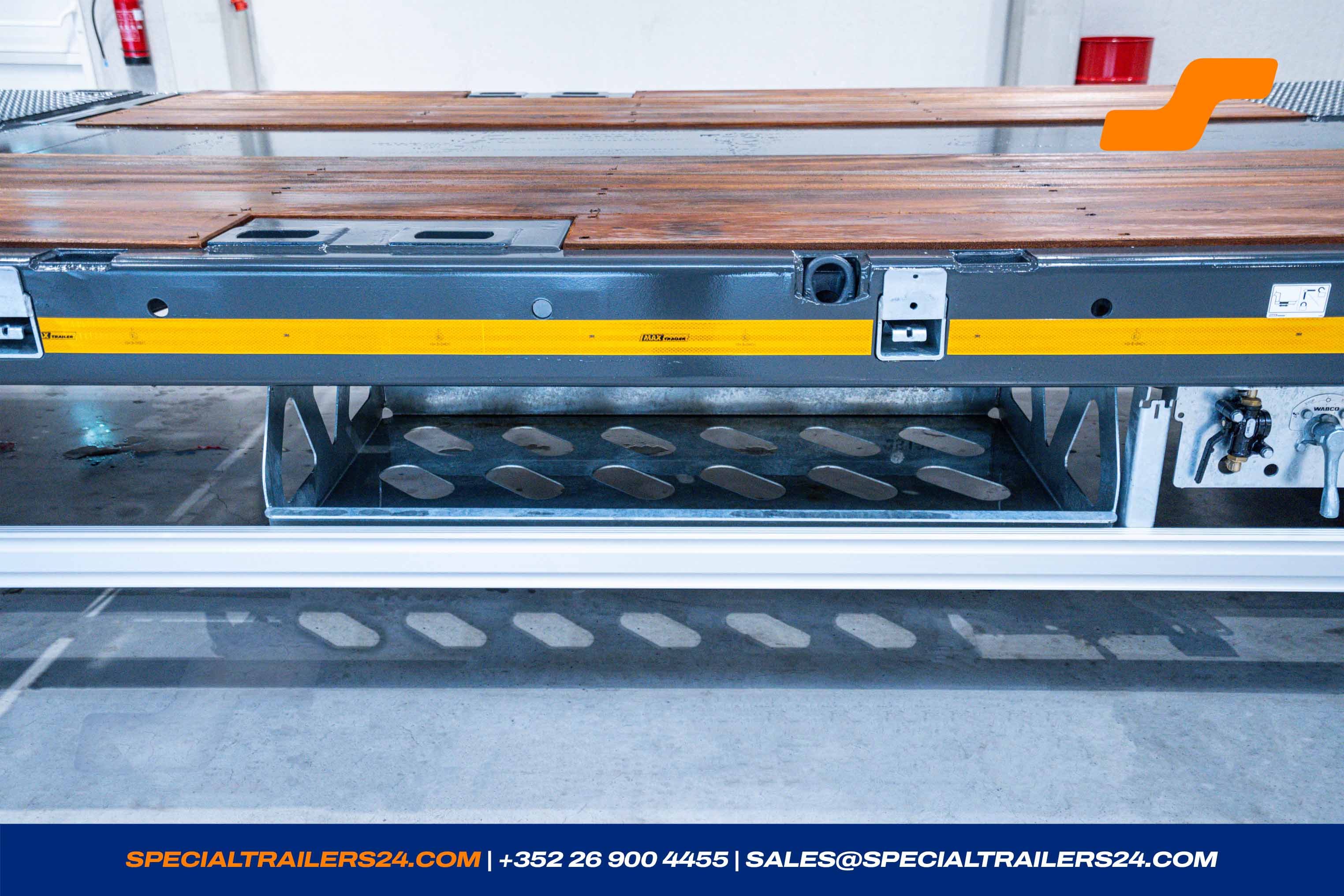

- Galvanised storage on the left under the loading platform. (± 60 kg)

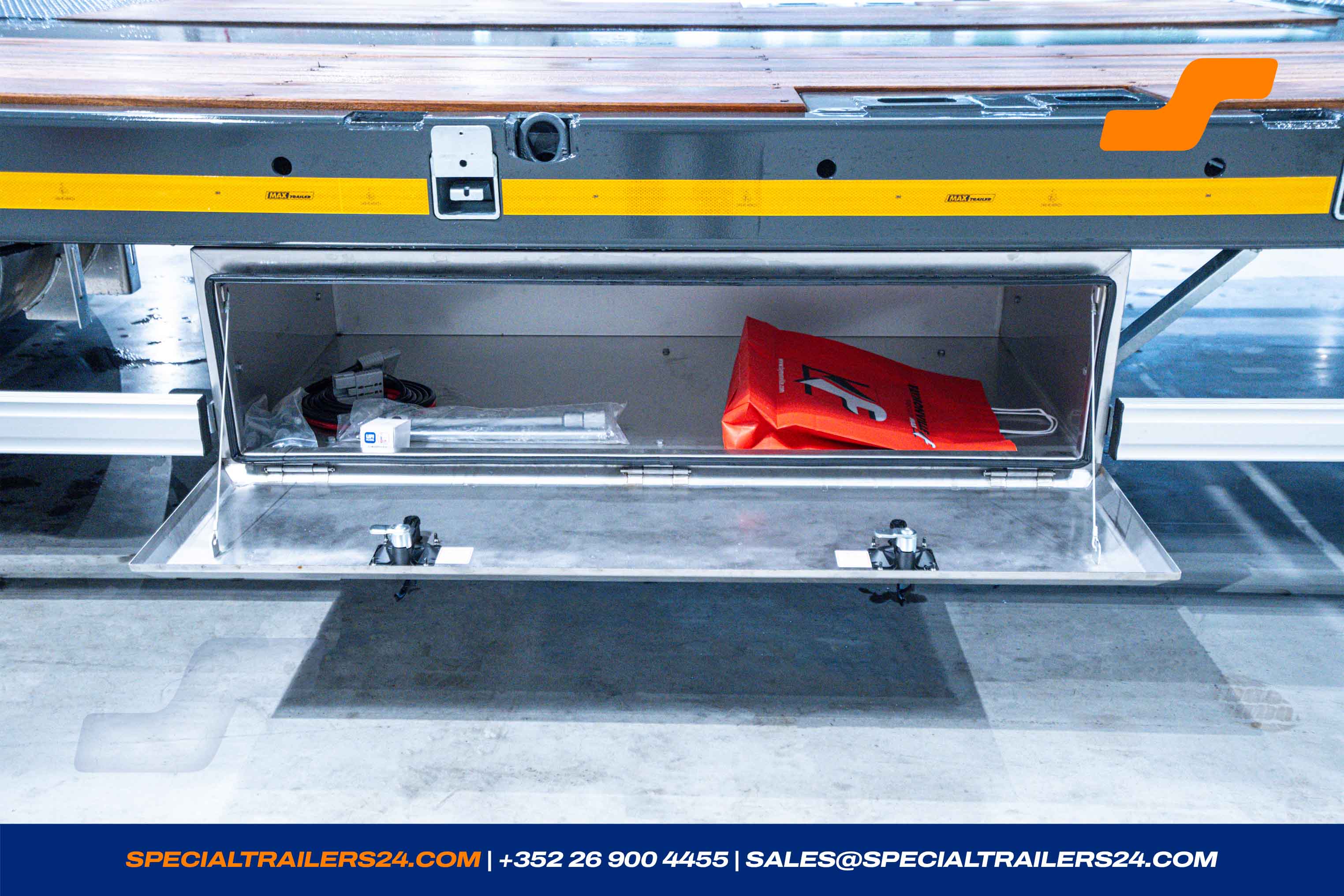

- One lockable tool-box INOX 1500x390x810 under the loading platform in driving direction on the right side.(± 65kg)
- Profile displaceable as hook-on device for alu-ramps at the rear.
Accessories
1 x Accessory
MAX110-Accessory
- Cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 160 A) between the semi-trailer and the truck with socket (ANDERSON-ANDERSON).
- Manual and description on USB stick .

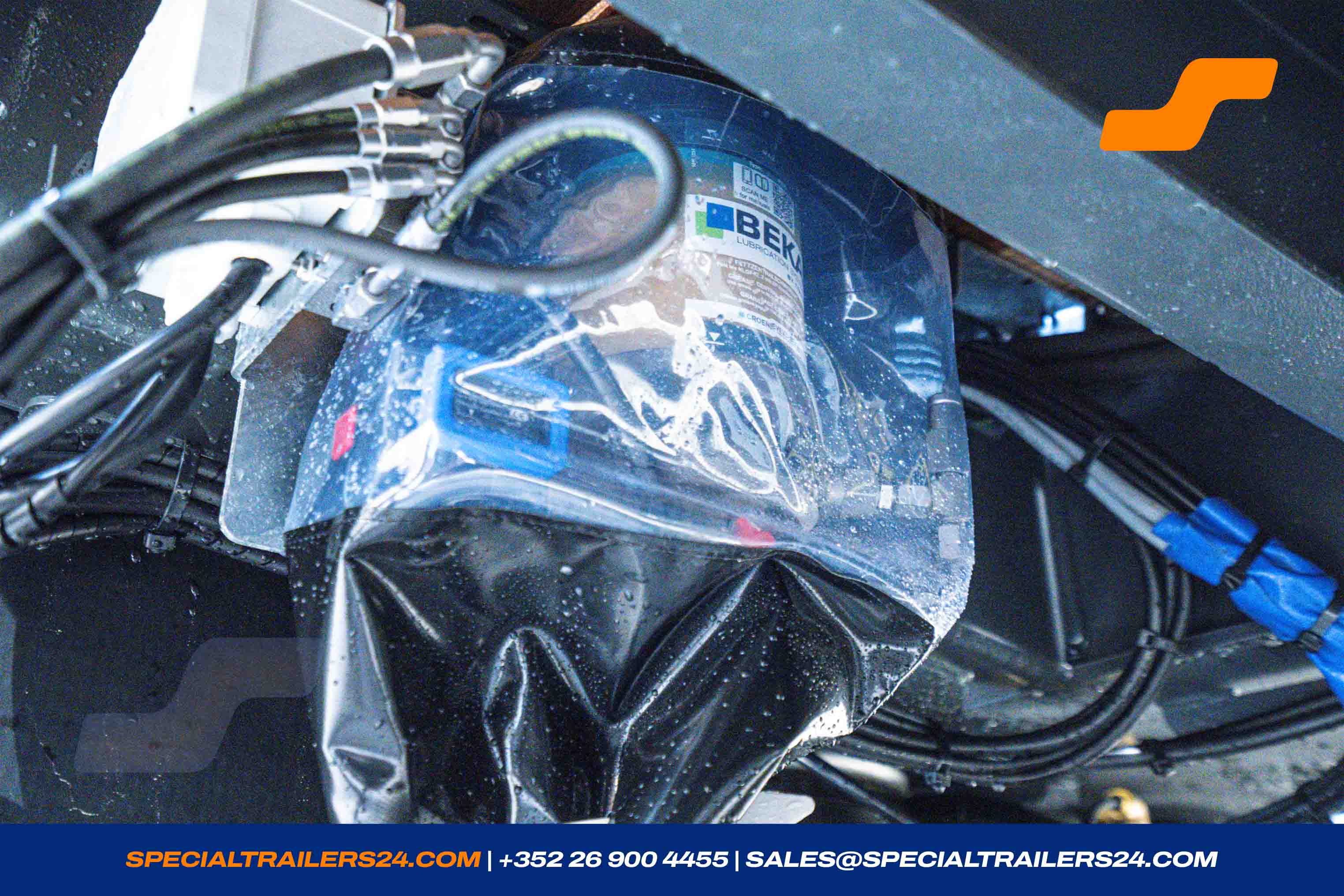

- Central greasing BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pump. (± 18 kg)
- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- 2 LED- reversing lights at the rear.
- Delivery from a trailer to factory Lentzweiler.

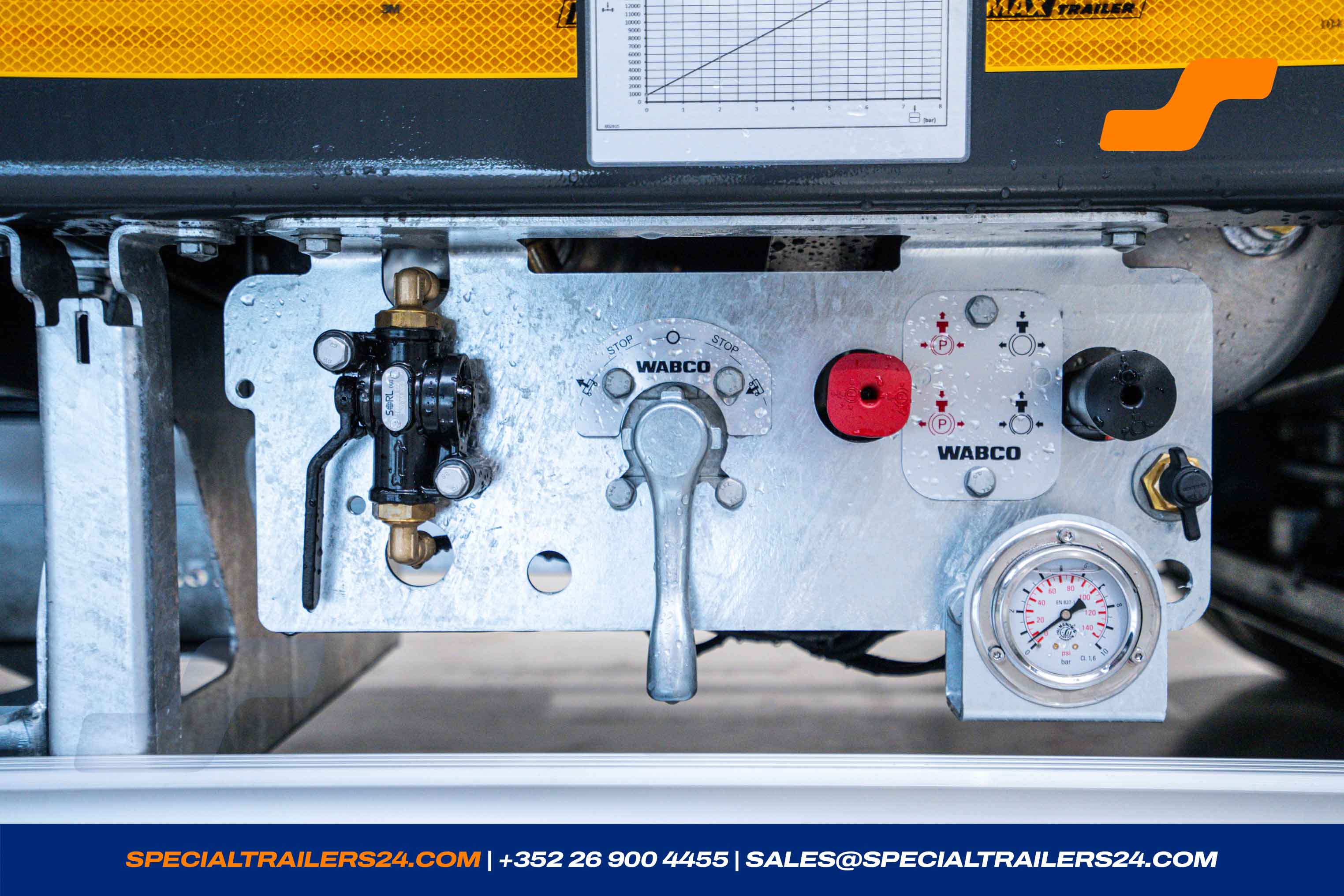

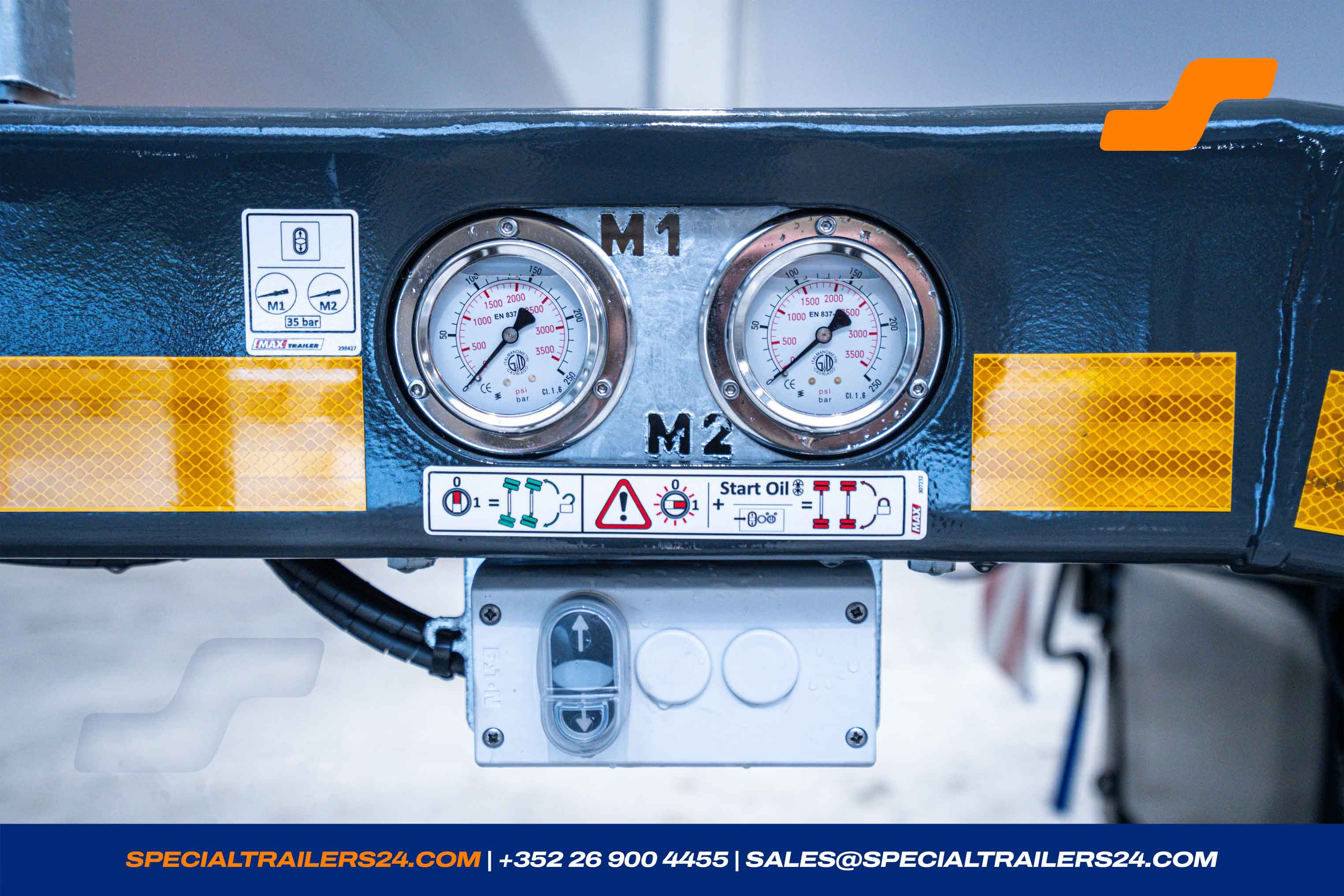

- Load manometer for determining the axle load, including load diagram.
- Holder for a 2nd numberplate at the rear end included a lighting.
